南通都市农业公园一期游客服务建筑/都市和乡野体验的过渡

近日造域设计完成了南通都市农业公园一期服务建筑的设计工作。南通都市农业公园位于江苏省南通市北郊，一期游客服务建筑总面积约4552.8平方米，用时4个月即完成设计到落地的全过程。

Recently, a service buildings group of Nantong Urban Agricultural Park has been completed by Z-ONE Architects (a newly emerging studio which specializes in experimental architectural practice in rural China; established in 2020). The project located on the northern suburb of Nantong, Jiangsu, China, with a total construction area of 4552.8m². It took four months from concept design to final completion.

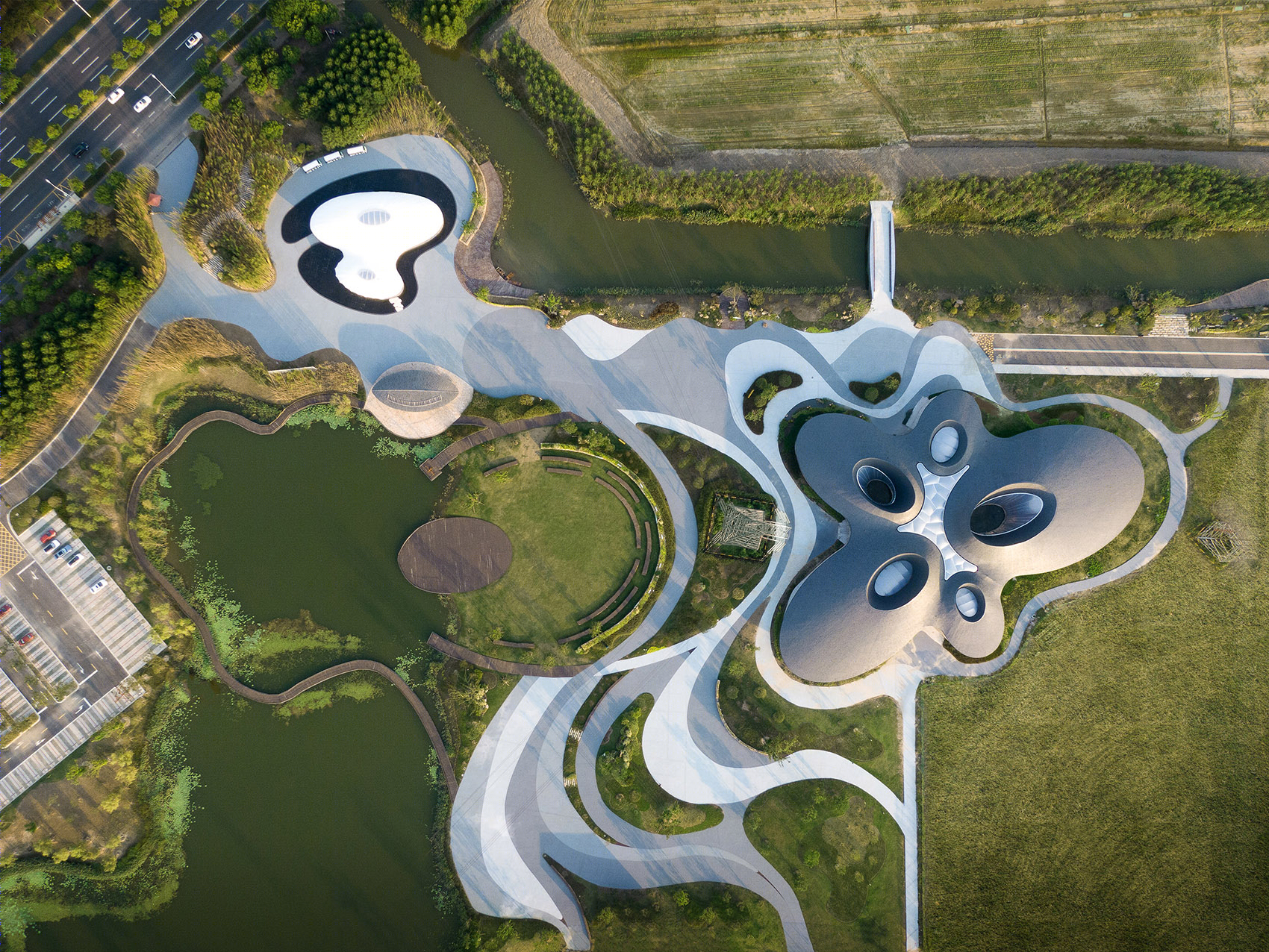

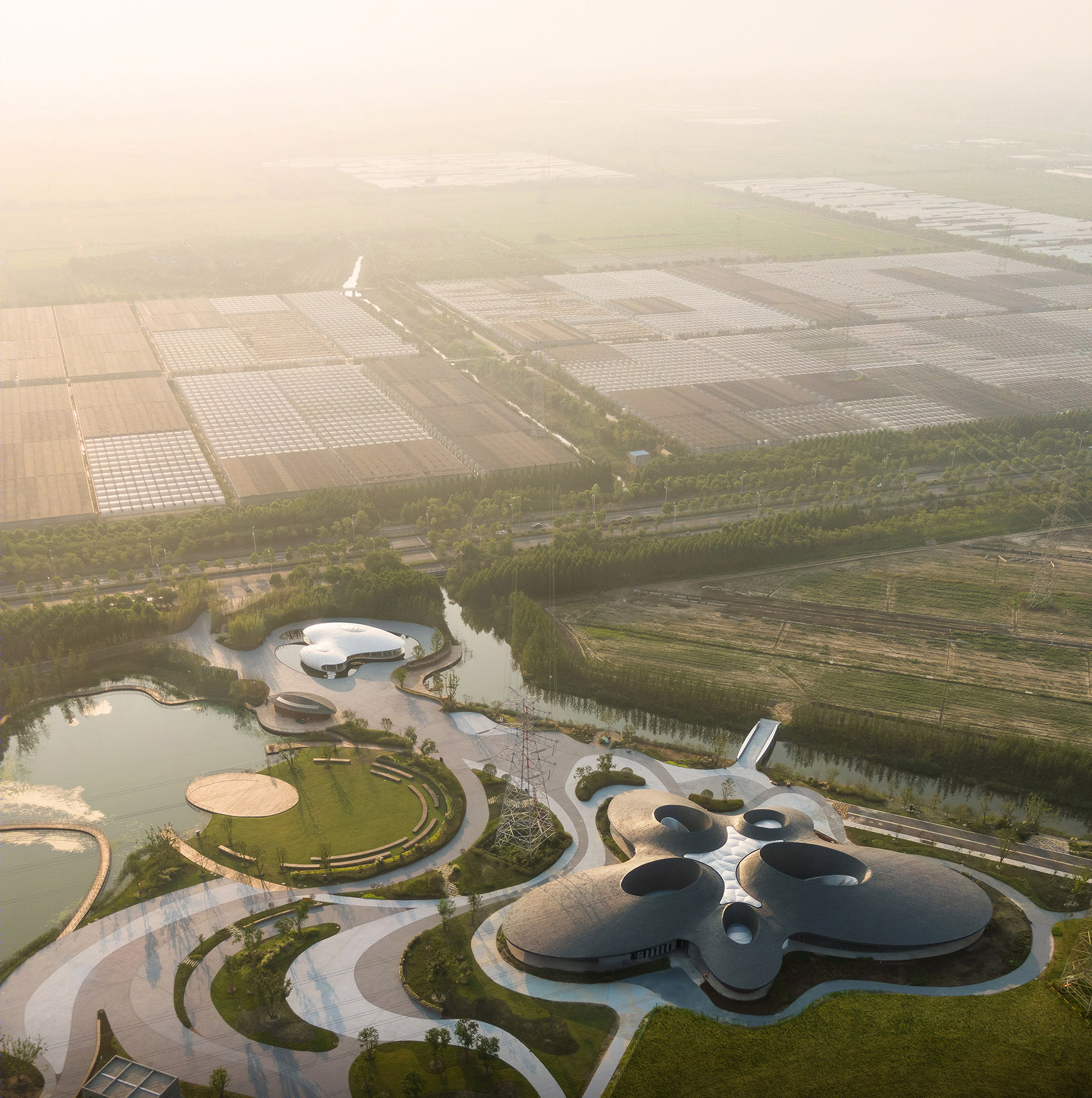

▼鸟瞰，aerial view ©林边

造域团队在前期田园东方策划规划团队的工作基础上介入相应工作，包括设计聚谷成仓综合服务中心，入口田园客厅展示中心，以及一处原有配套公共厕所和两处桥梁的改造。考虑项目本身位于整个公园的入口区，是游客感知整体项目的重要所在，既需要考虑都市和乡野体验的过渡，但又不失对当代建造语汇的反思与重构。

The project includes 3 buildings ：a Comprehensive Service Center called “Gather Grain into Granary”， an Exhibition Hall of Rural Life and a public restroom renovation. Considering the project is located in the entrance area, which is an important place for visitors to perceive the whole park, it needs to transition between urban and rural experience, without missing the reflection and reconstruction of contemporary architectural vocabulary.

▼项目由三栋建筑组成，project composed of three buildings ©林边

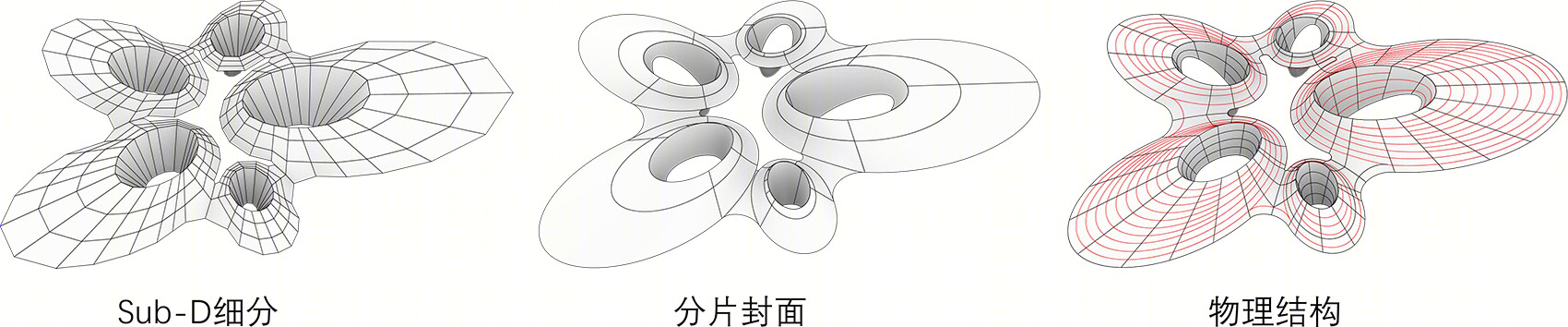

主要功能建筑“聚谷成仓”综合服务中心采用钢木混合的结构形式，将五个仓形空间加以聚合而成。内部融合了田野书屋，展览空间，研学空间，餐饮空间，以及一处可以进行会务活动的多功能厅。设计团队在每处核心空间通过结构的聚合营造一处内侧的“光之井”，每个空间又通过不同的光线导入方式，为每处空间提供不同的阳光感知，让每个游客在不同的层面上感知自然的力量。在设计过程中造域团队对自由曲面进行多次降维分解，大幅减少了异形钢木结构用量，降低了工程难度；同时结合现场施工条件，创造性解决了在异形曲面屋顶上大批量人工铺设瓦片的难题。

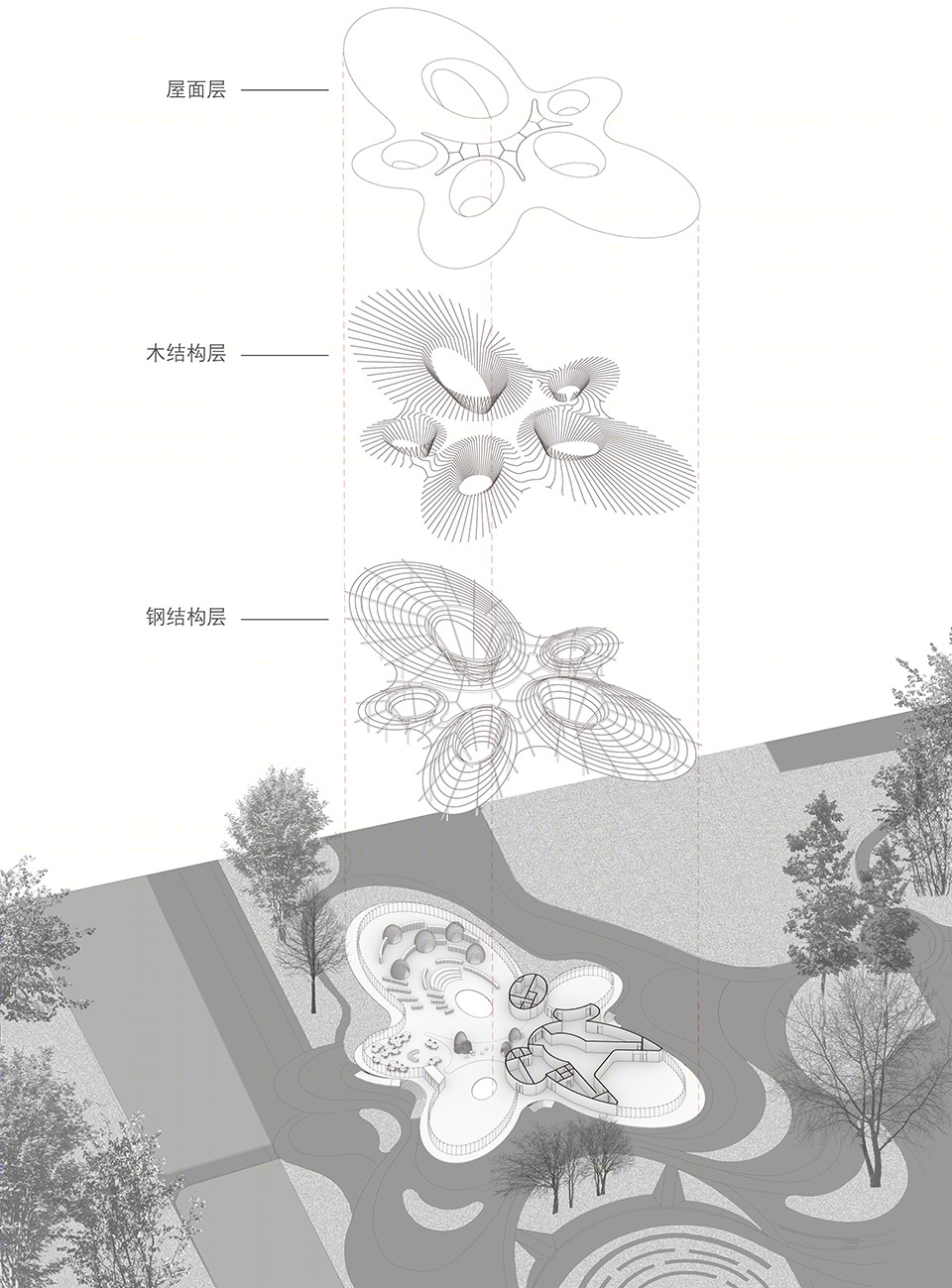

▼综合服务中心分解轴测图 exploded axonometric of the Comprehensive Service Center ©Z-one Tech

The main function building “Gather Grain into Granary” Comprehensive Service Center, a collection of five warehouse-shaped spaces, adopts steel-timber combined structure. It gathers a field library, an exhibition space, a studying space, a dining space and a multi-function hall for variable activities. The design team creates internal ‘light wells’ in every core space by the intersection of structure. Each space provides different sunlight perception through different ways of light leading which makes visitors accept the power of nature in different layers. Z-ONE team applied “dimension reduction” to most of the free-form surface during the design process, which greatly reduced the amount of special-shaped steel and wood structure and also the engineering difficulty. At the same time, the problem of laying tiles in large quantities on the irregular curved roof was creatively solved.

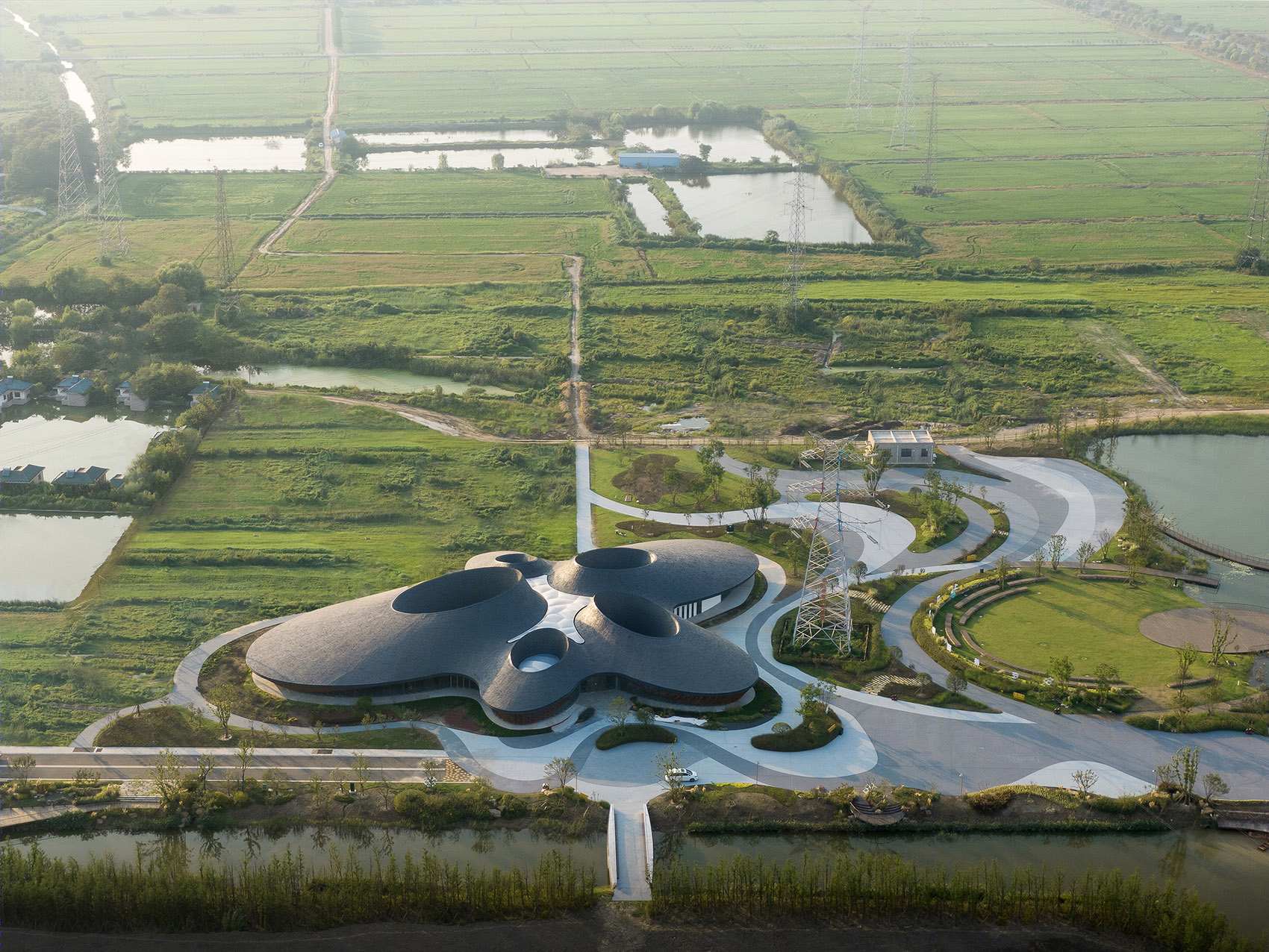

▼综合服务中心鸟瞰，aerial view of the Comprehensive Service Center ©林边

▼五个仓形空间，a collection of five warehouse-shaped spaces ©林边

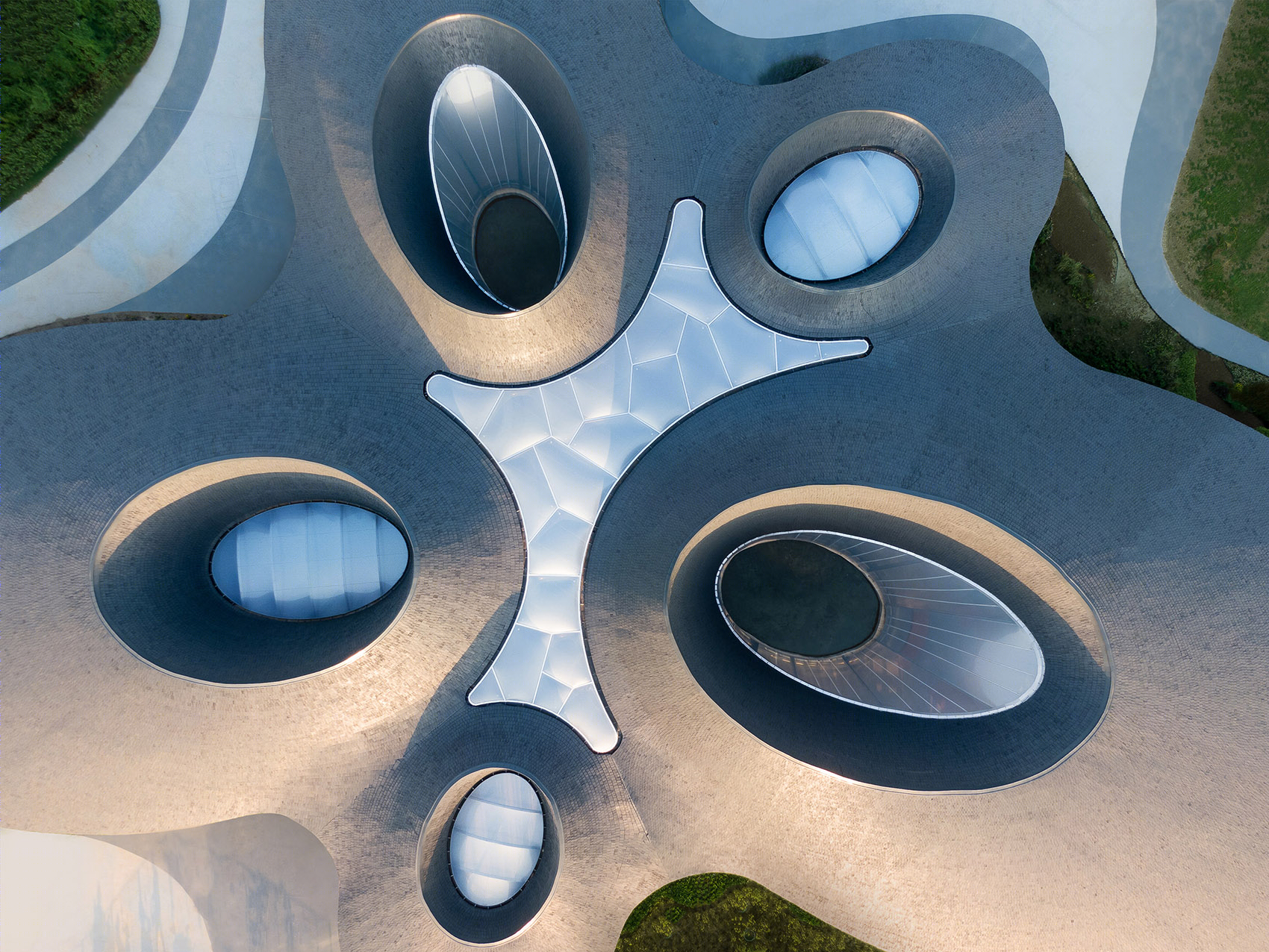

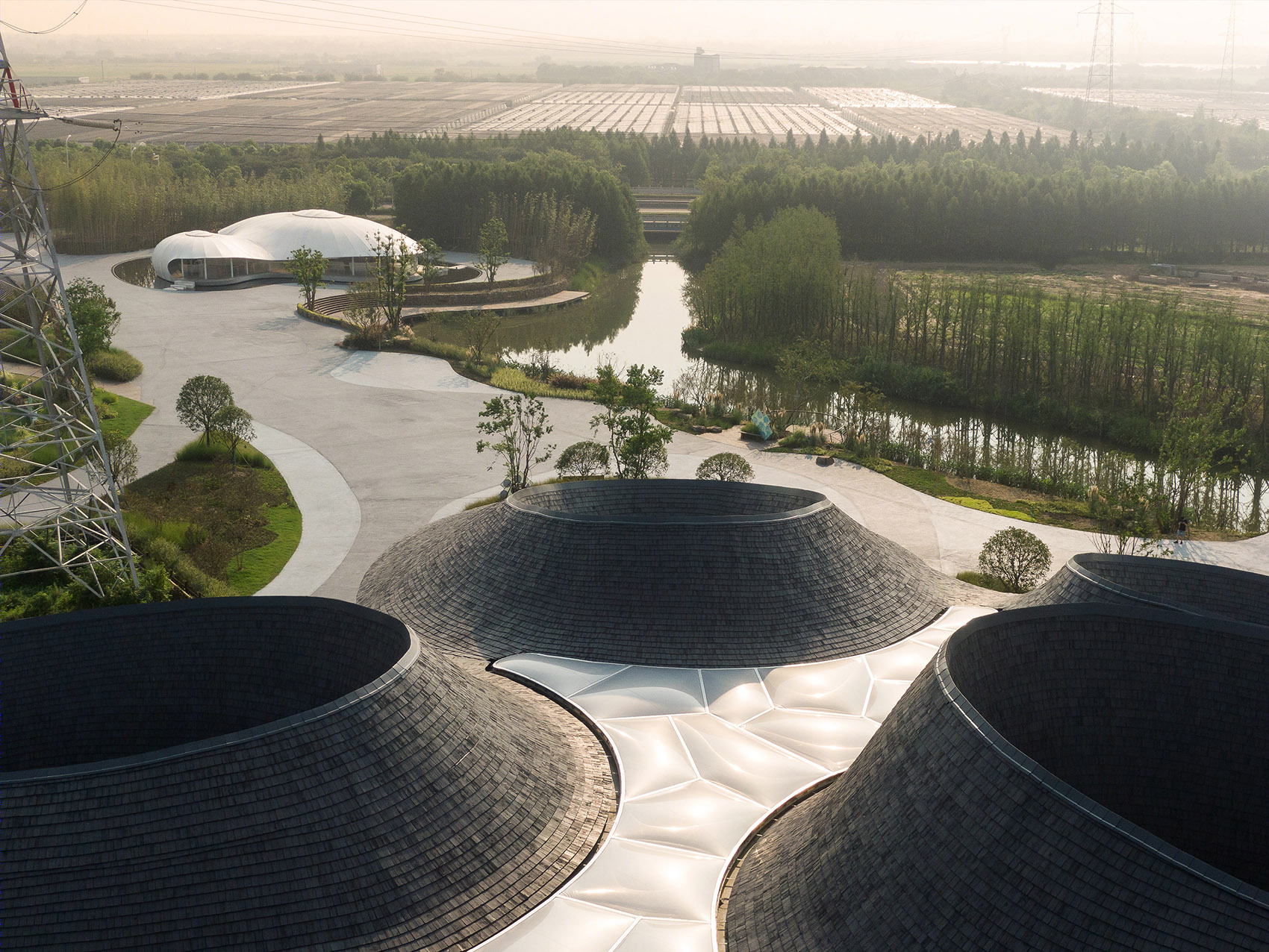

▼屋面，roof ©林边

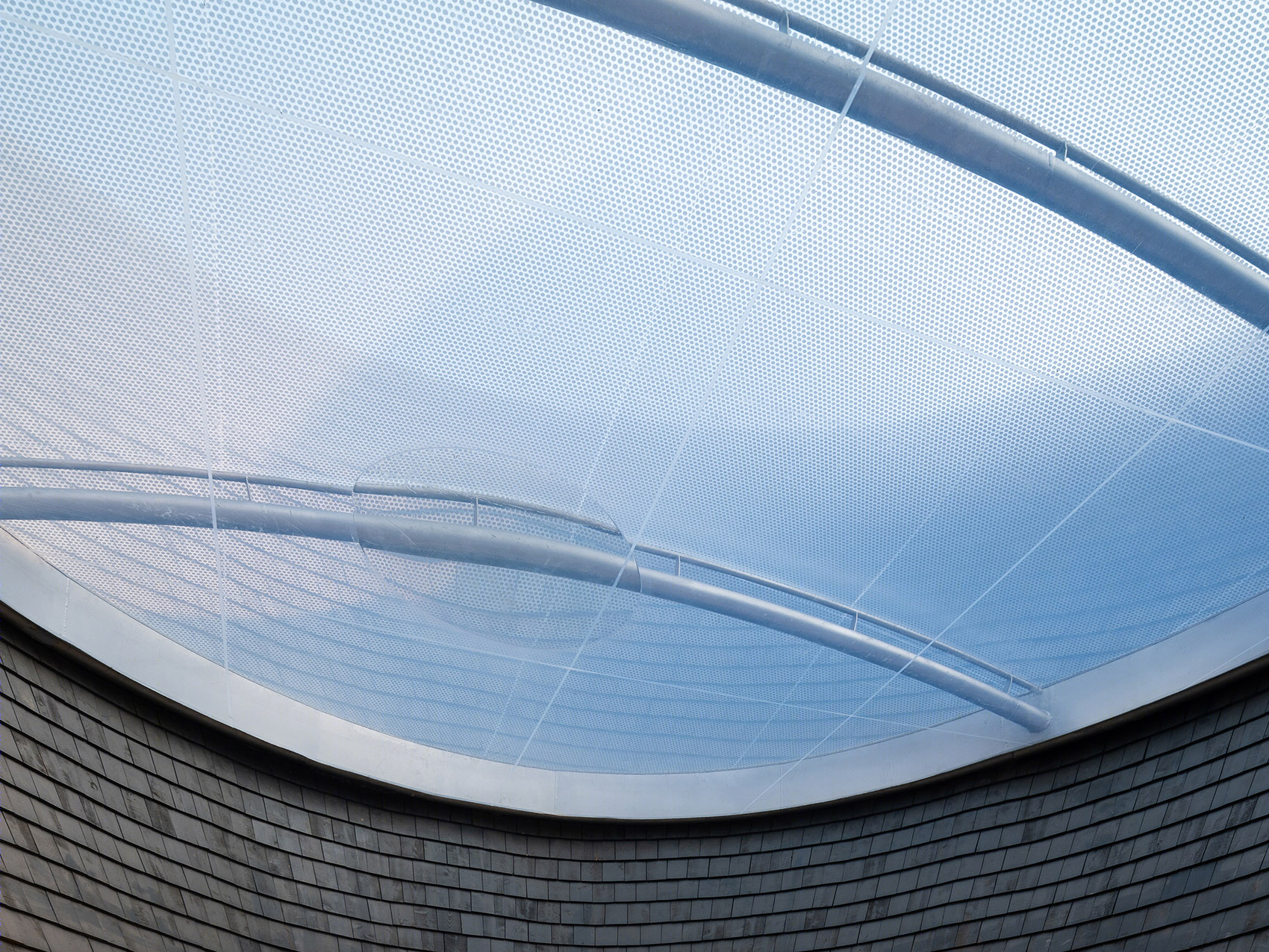

▼屋顶细部，不同材料结构的衔接，roof details, combination of different material structures ©林边

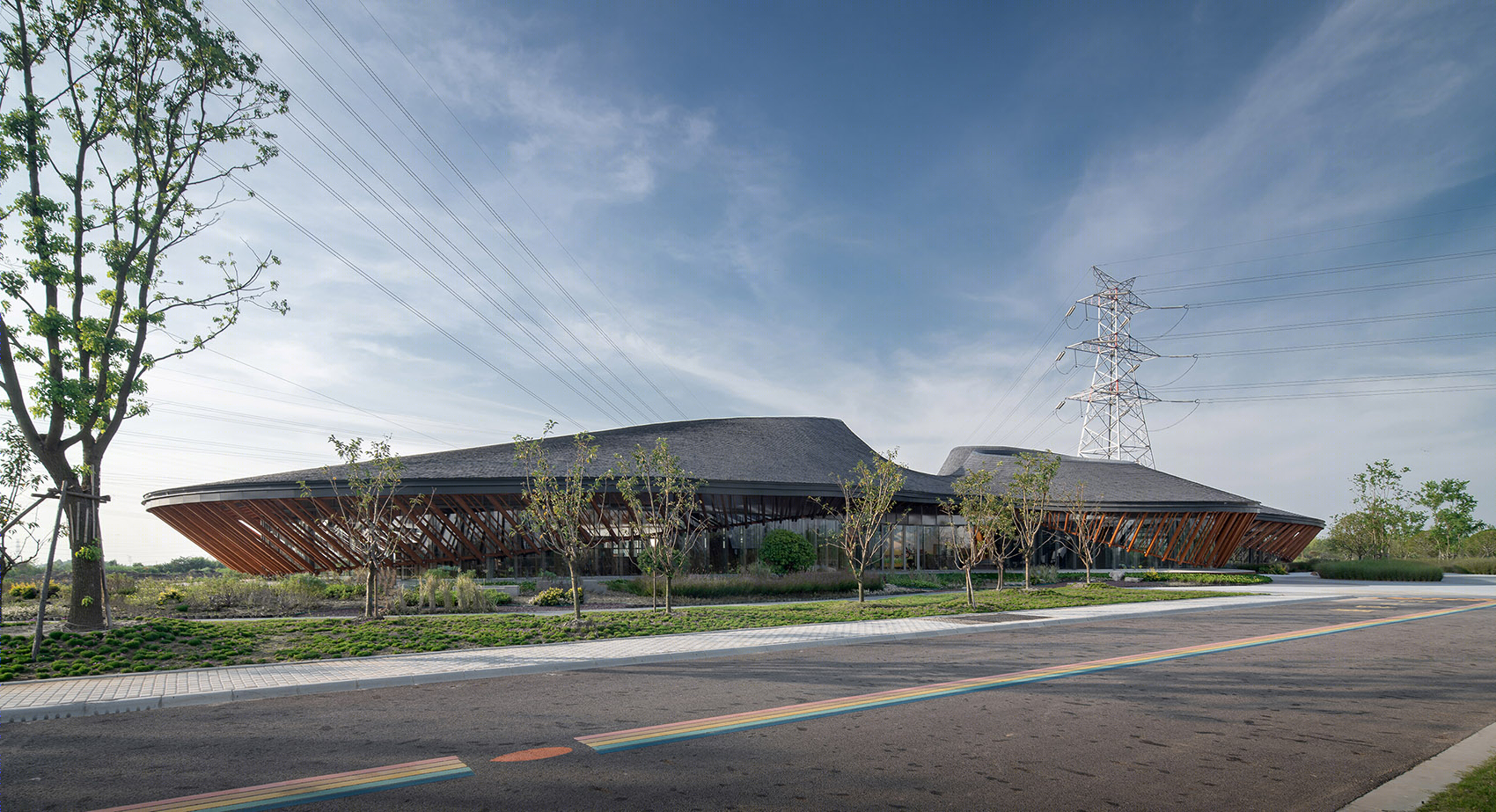

▼从道路看向综合服务中心，view to the Comprehensive Service Center from the street ©林边

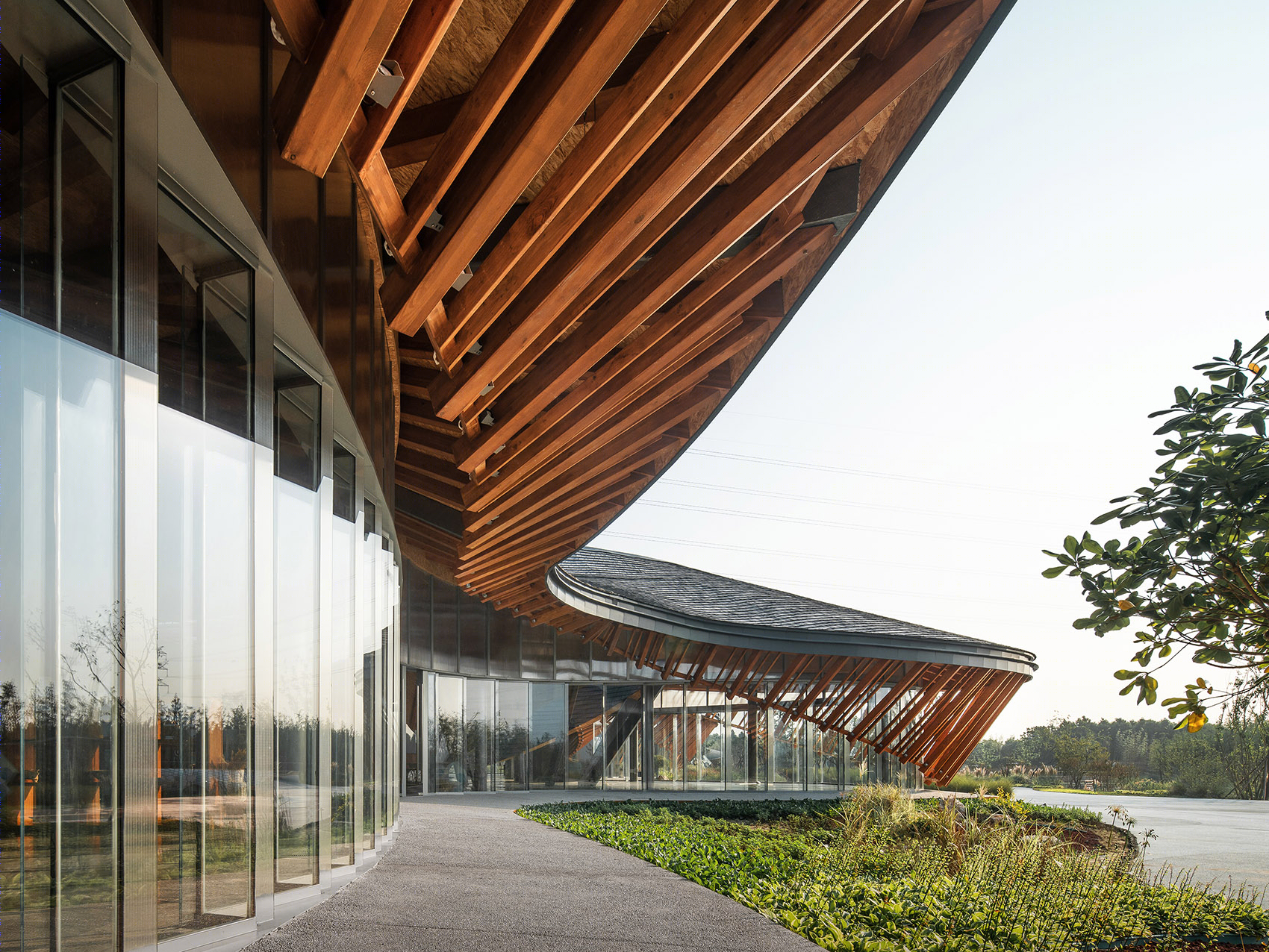

▼室外廊道，outdoor corridor ©林边

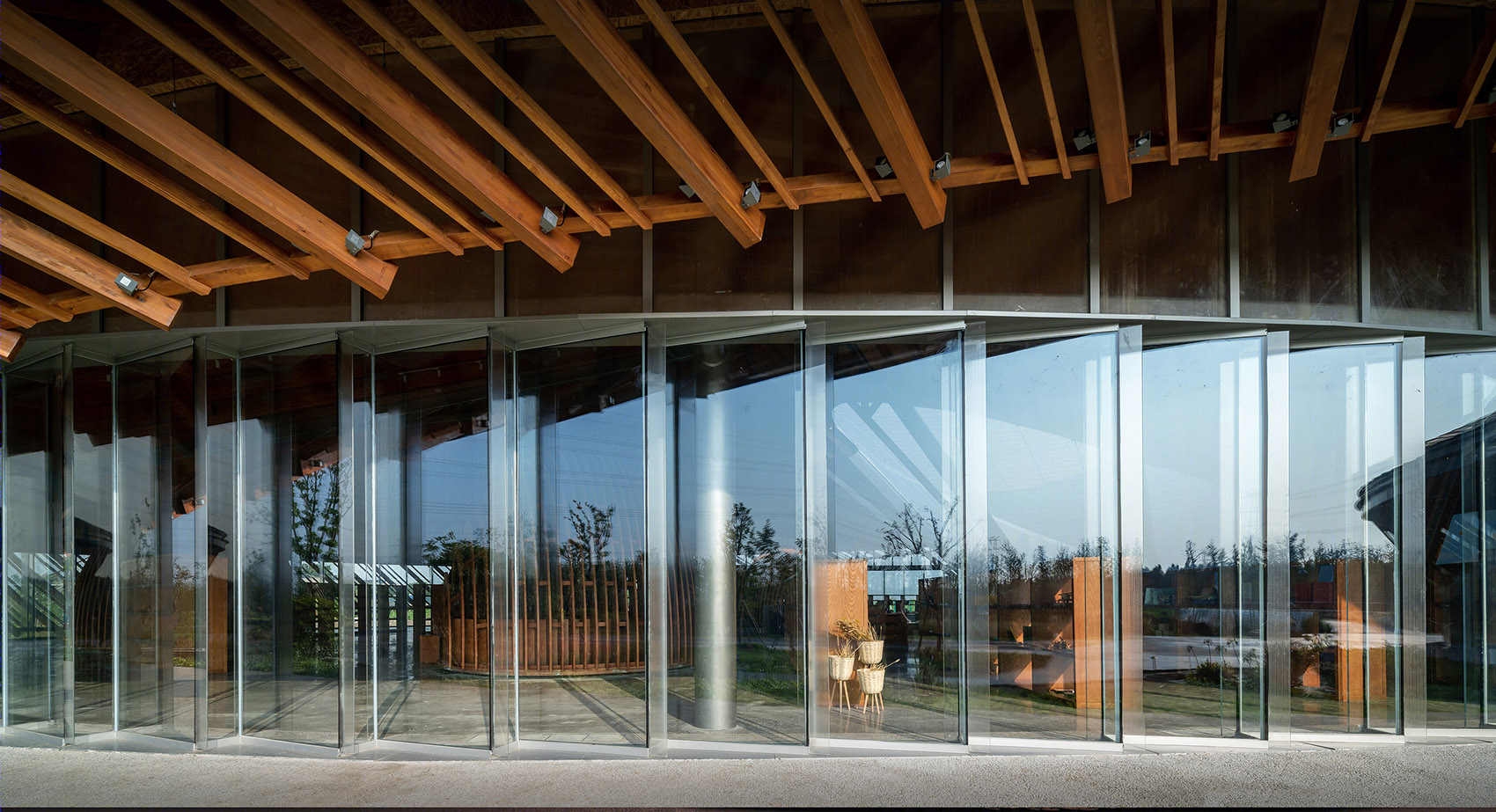

▼锯齿形的玻璃立面，zigzag glass facade ©林边

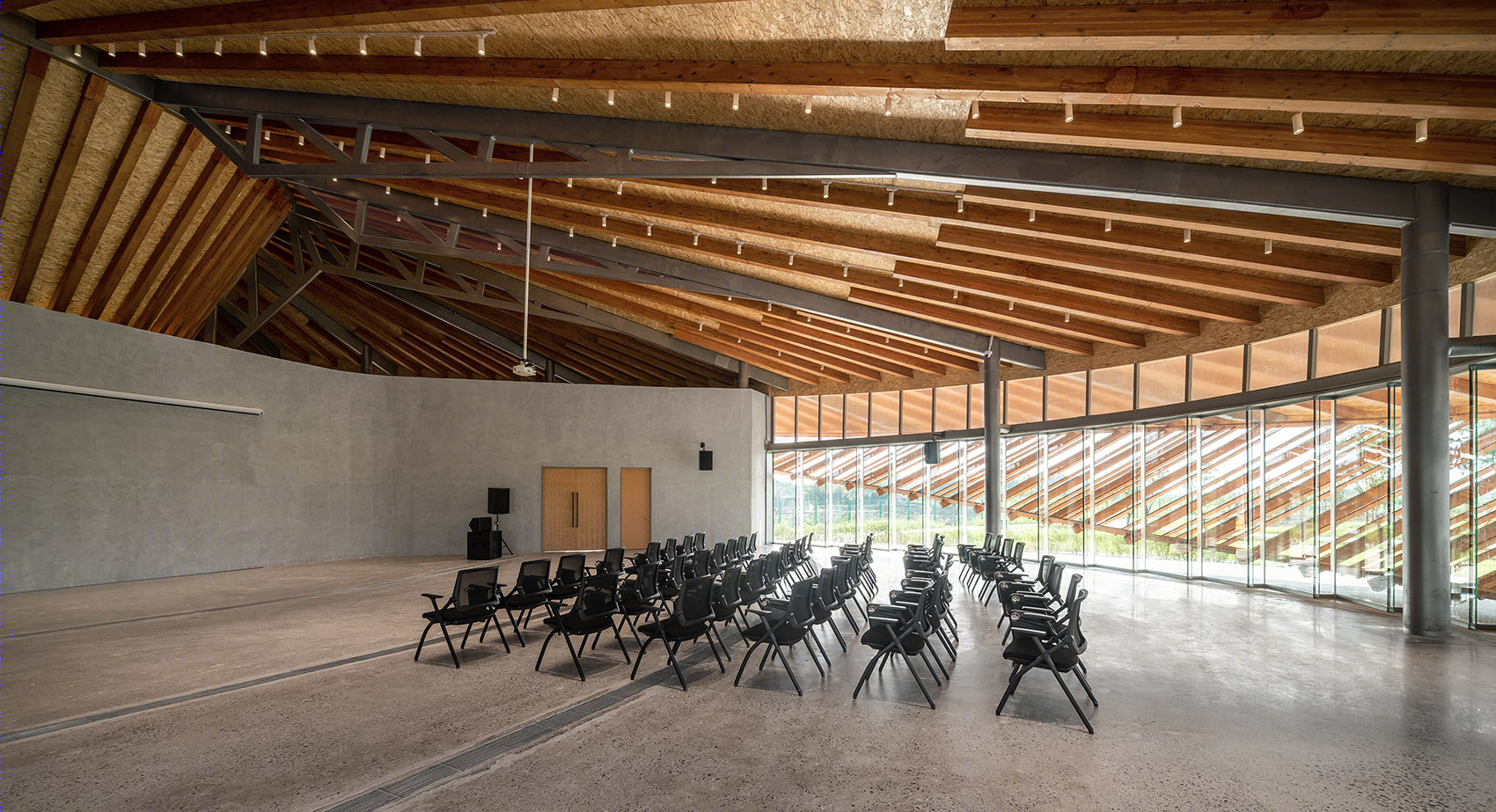

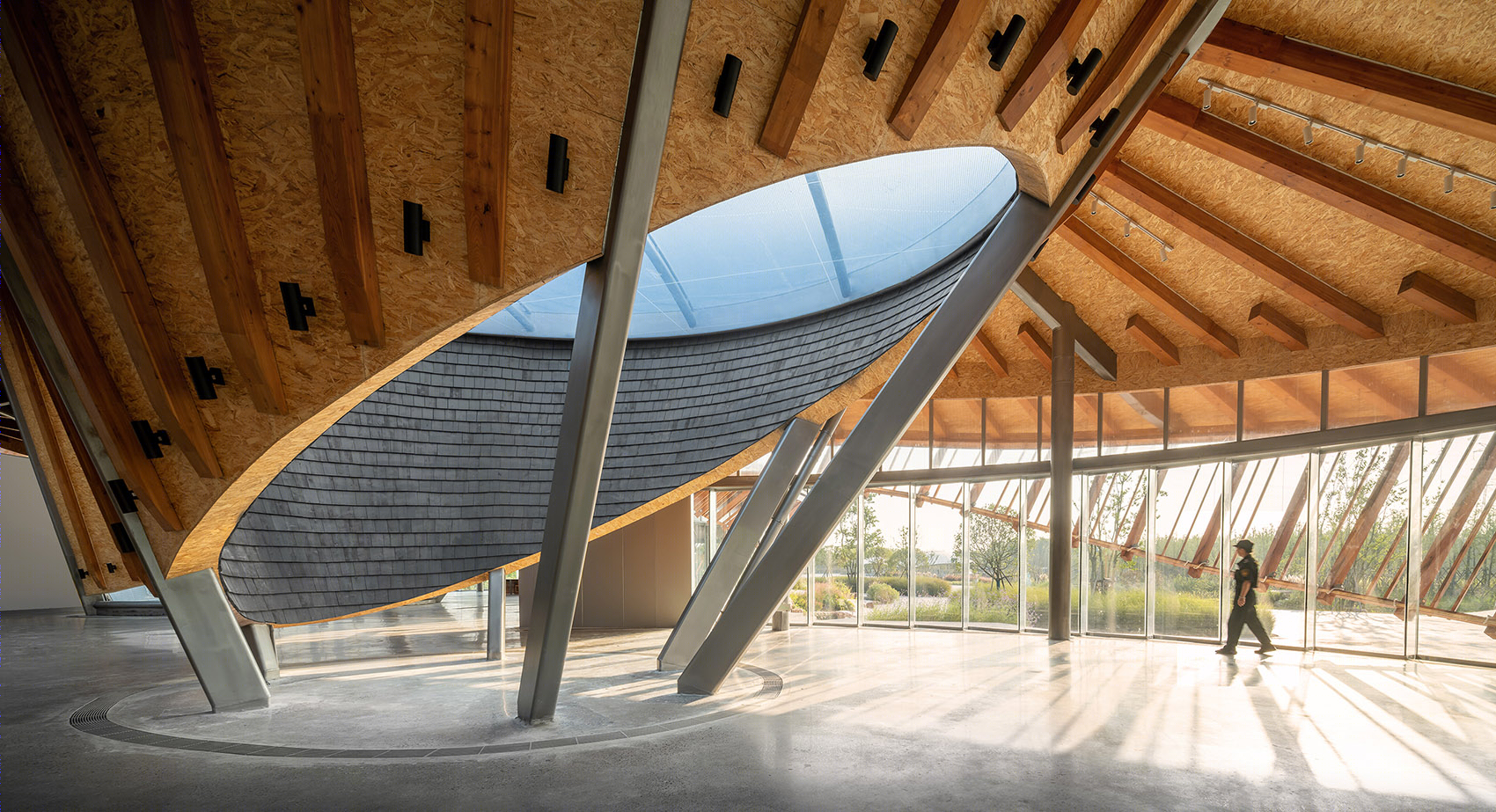

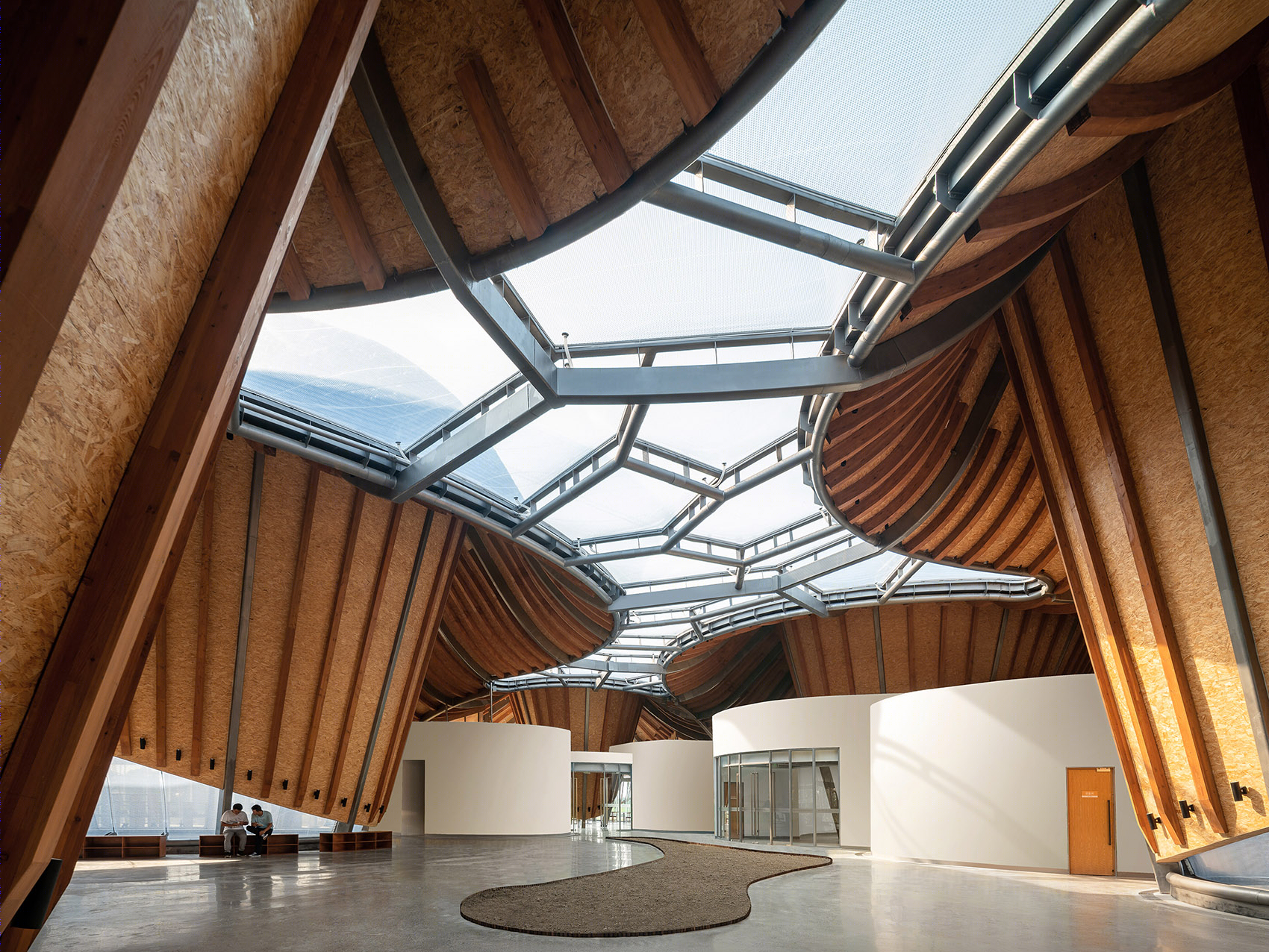

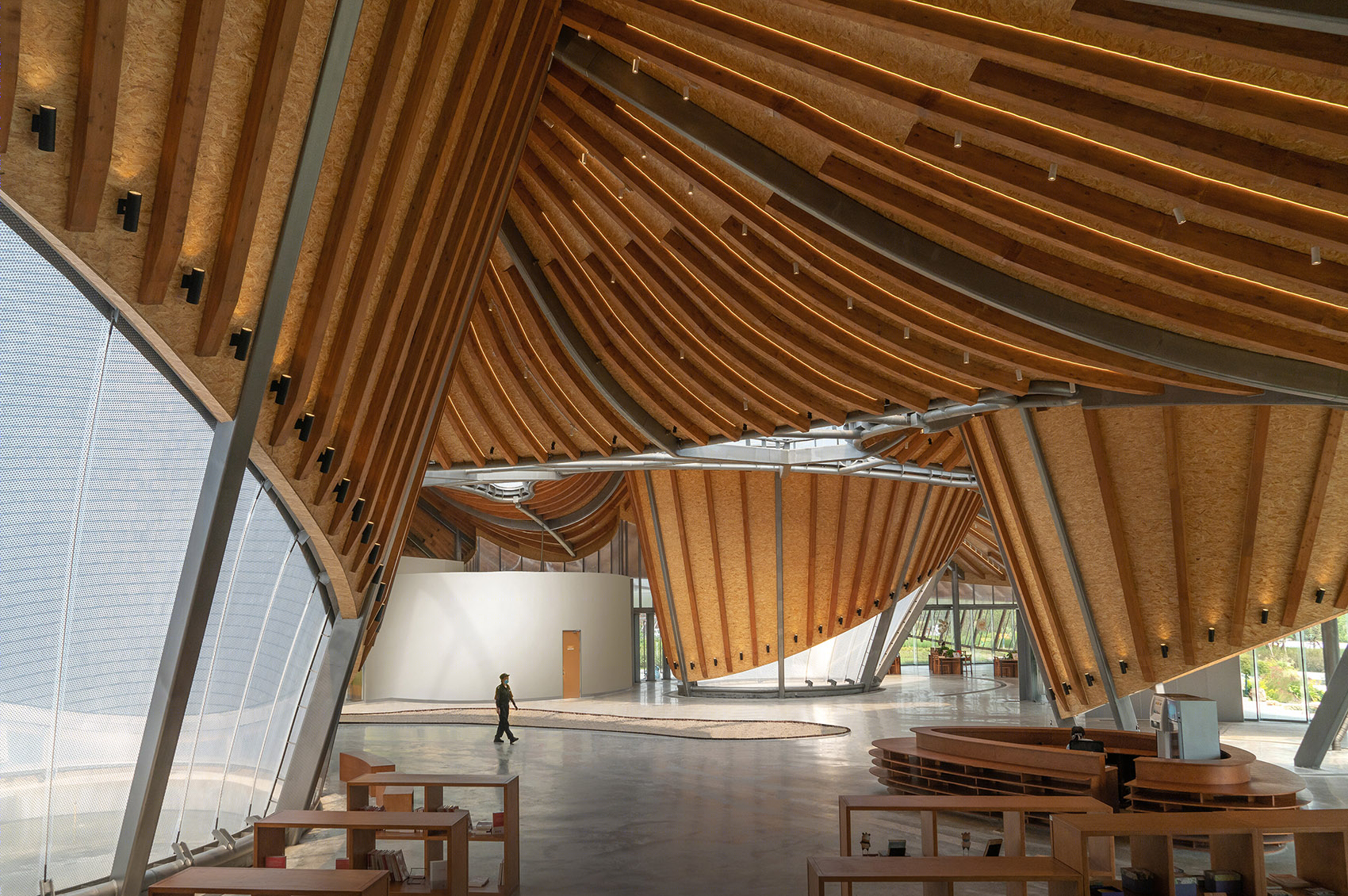

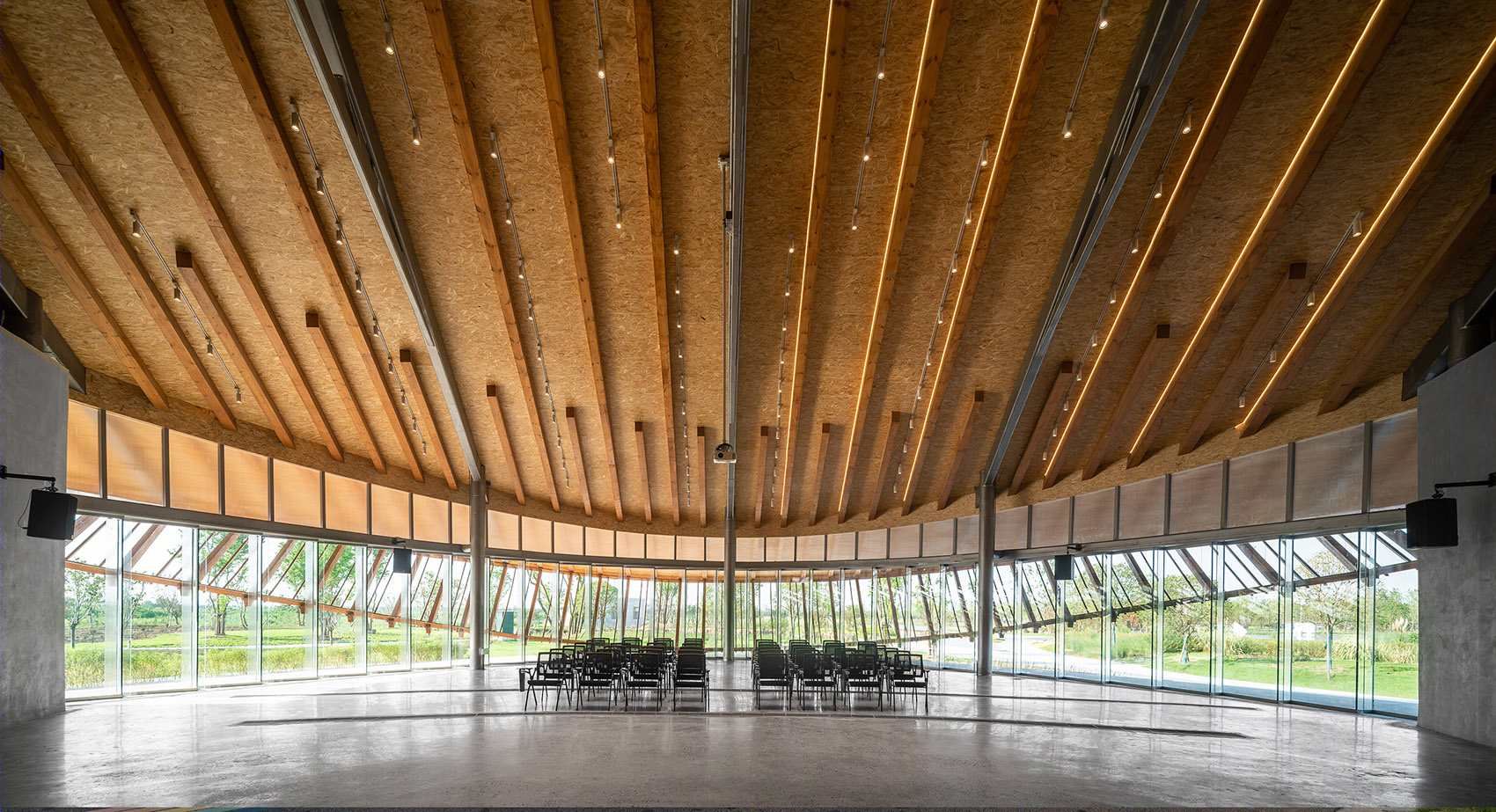

▼中部公共空间，central public space ©林边

▼田野书屋，field library ©林边

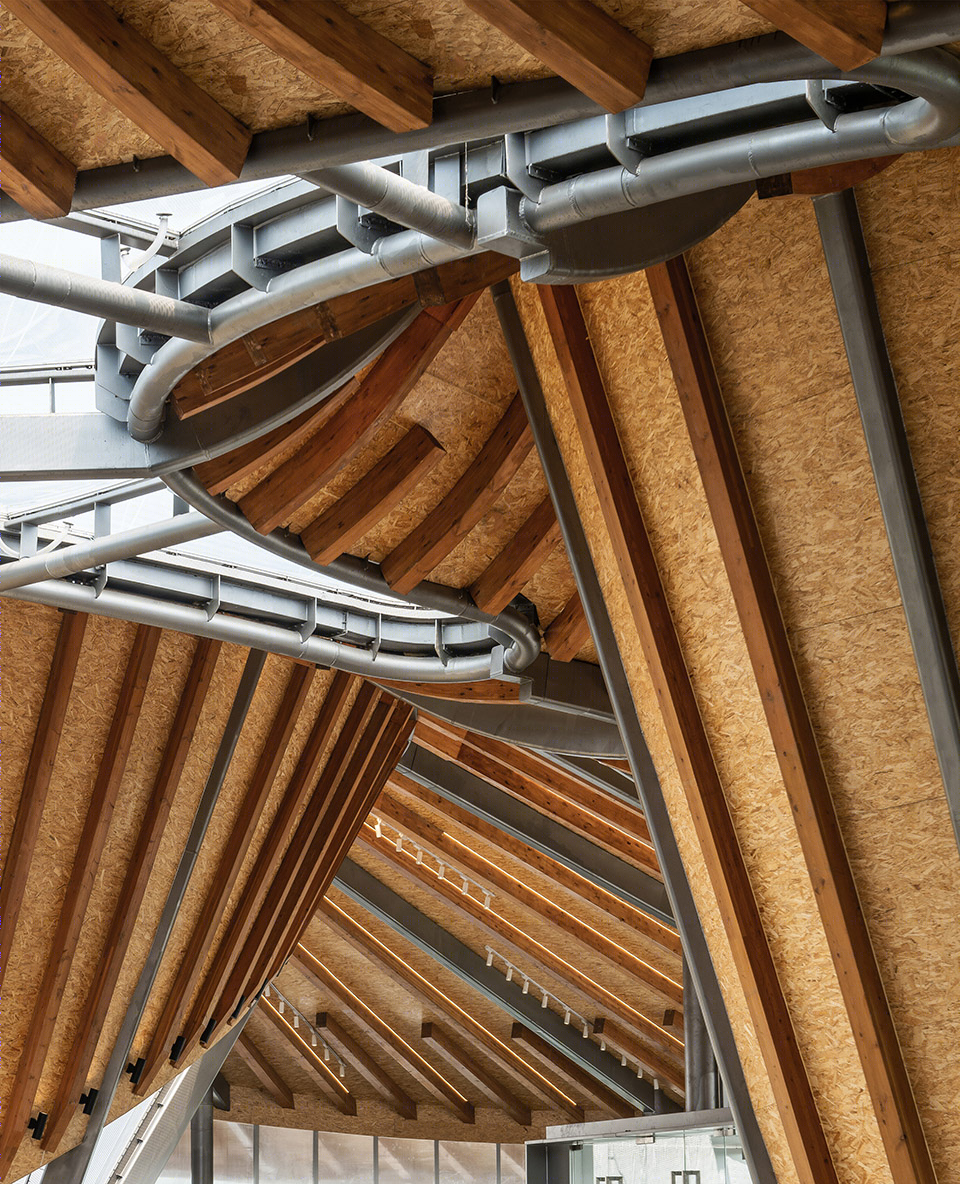

▼木结构细部，closer view to the wooden structure ©林边

▼展览空间，exhibition space ©林边

▼研学空间，studying space ©林边

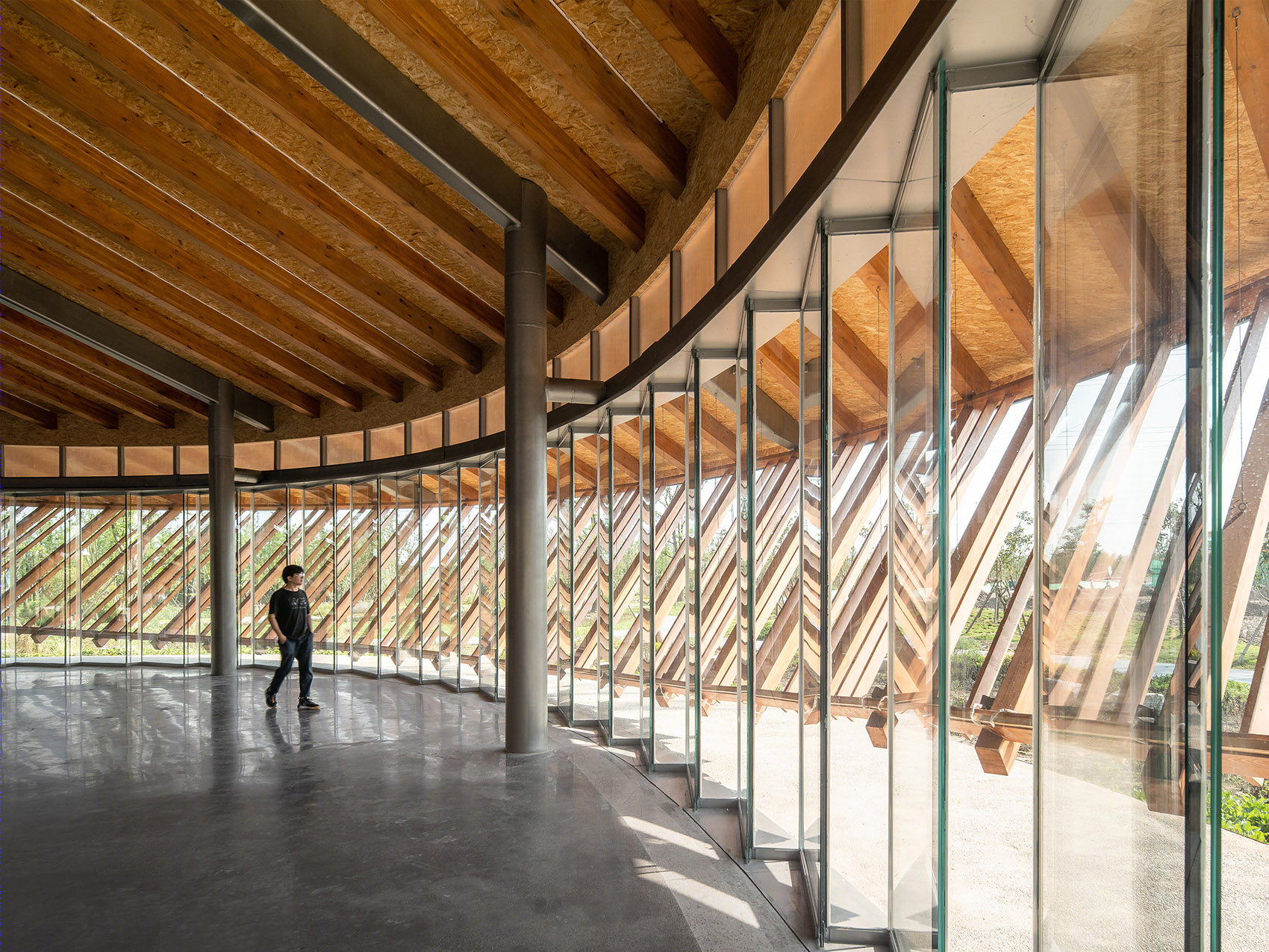

▼透过折线形玻璃立面看向室外，view to the outdoor space through the zigzag glass facade ©林边

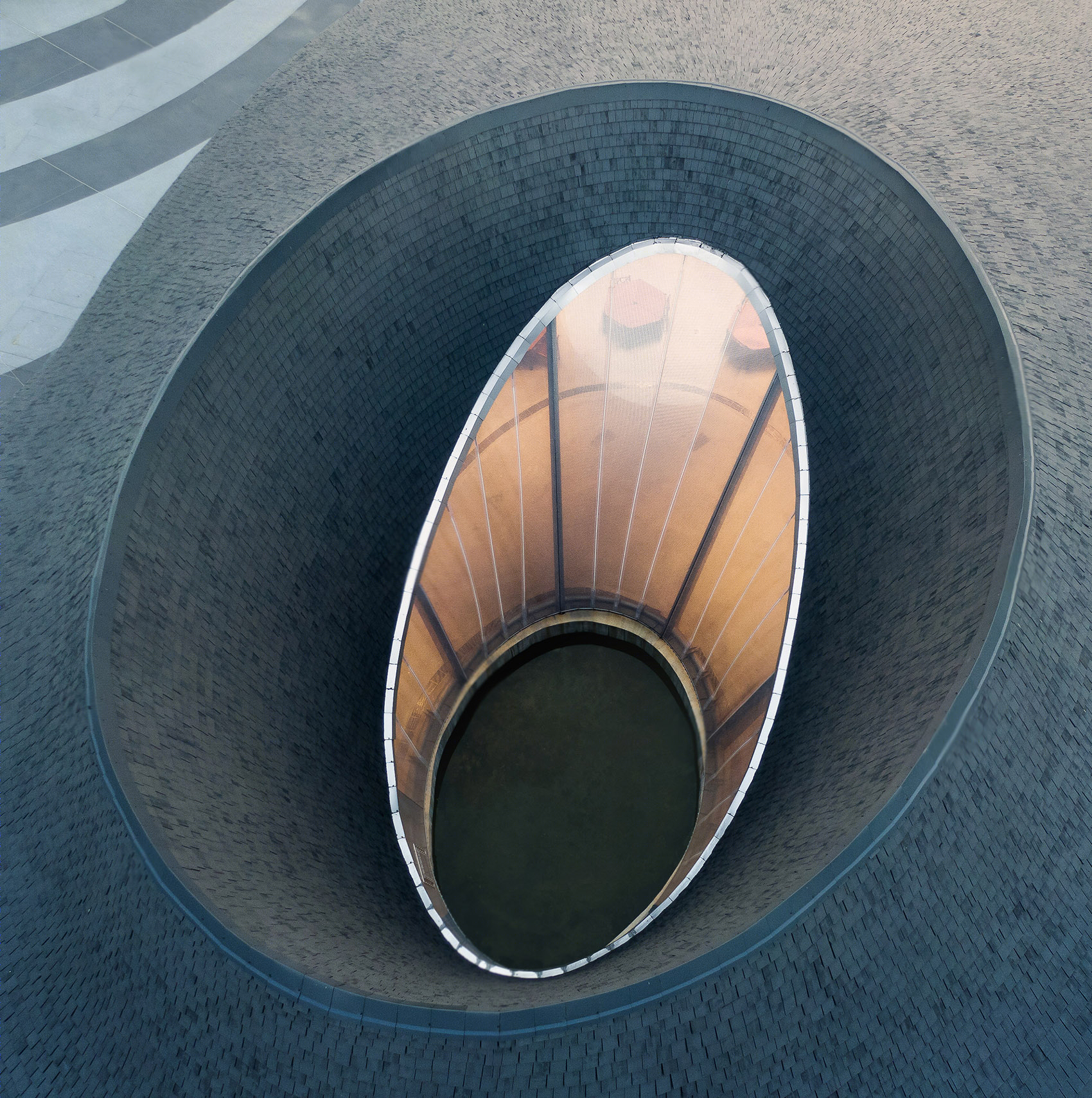

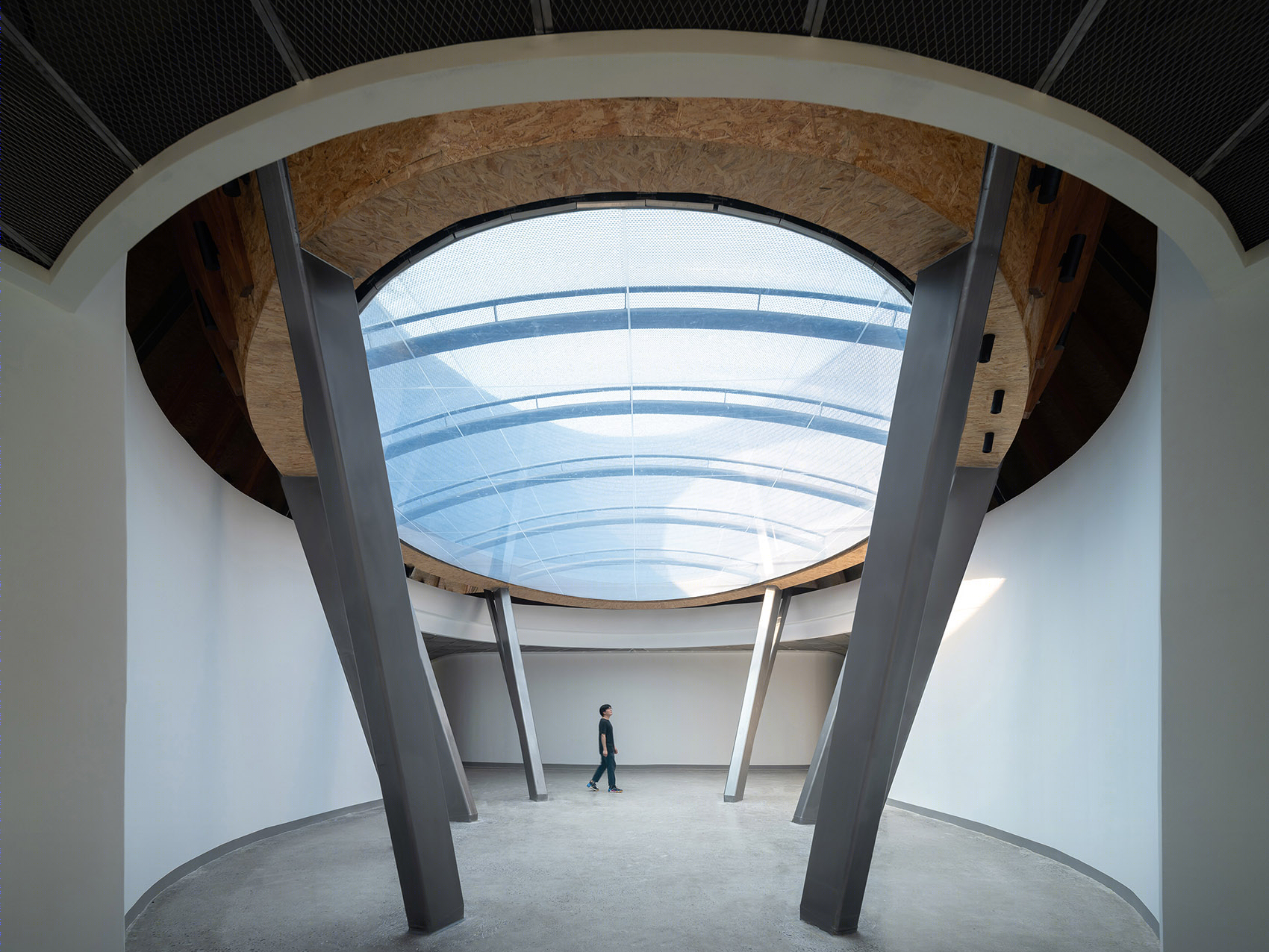

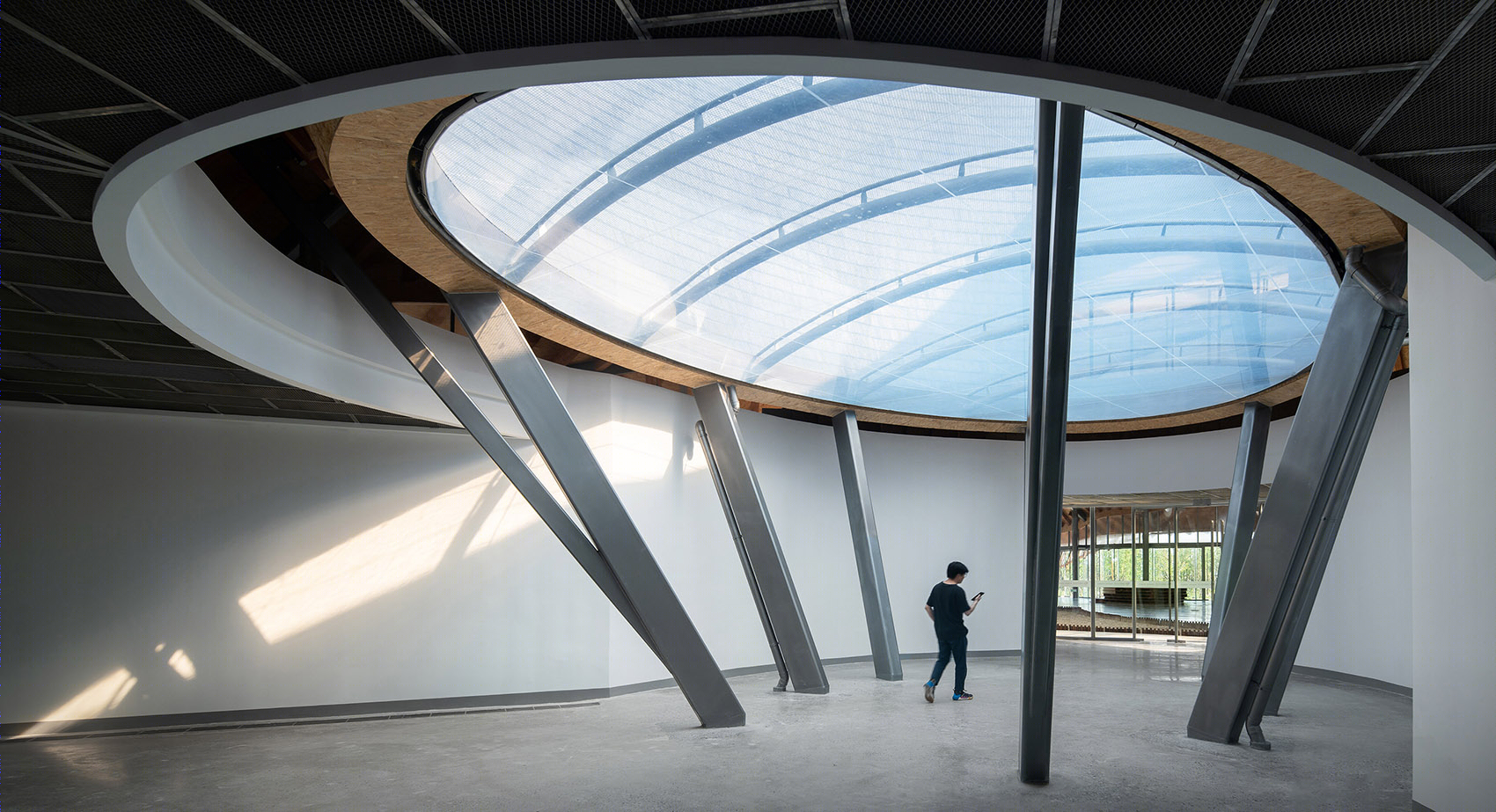

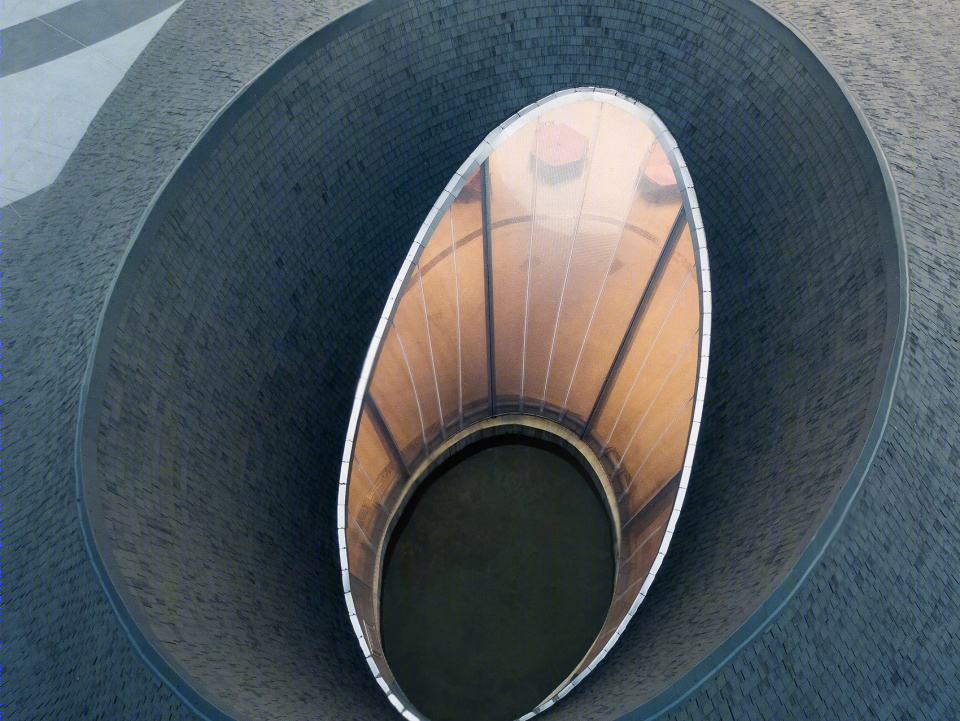

▼光井，light well ©林边

田园客厅展示中心采用膜结构的设计语汇，整体形态和质感既映射整个公园的主题，又表现为独特的空间和形态元素；整个建筑通过逐渐改变的内部高度营造不同的区域功能，而纯白的材质，天光的渗透，既保证了内部空间的完整性，又让一处小房子也拥有了大空间的层次感；向着独特河渠景观打开的弧形超长横窗，也是通过细腻的顶口高度控制让整个空间和外部景观既分又合。

The Exhibition Hall of Rural Life used membrane structure of architectural vocabulary. Its form and texture not only reflect the theme of the whole park, but also reflects the unique spatial and morphological elements. The whole building creates different areas of function by gradually changing the height of interior spaces. While the pure white texture and the penetration of sky light ensure the integrity of interior space and make a small house have a layering of a big space. A Curved long horizontal window facing unique river scenery make the whole space to be both separated and integrated with the external landscape through the delicate top height control.

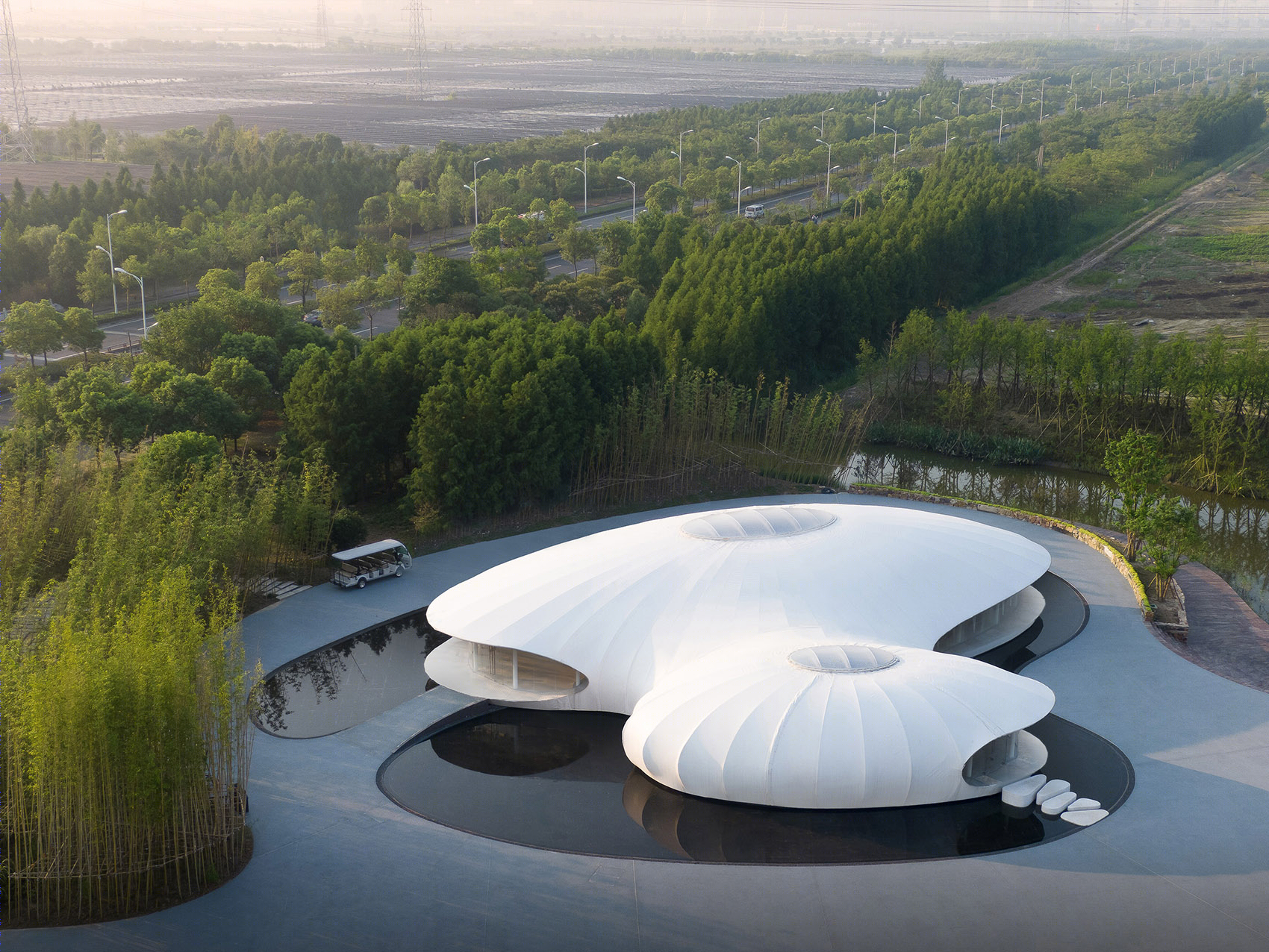

▼田园客厅展示中心鸟瞰，aerial view of the Exhibition Hall of Rural Life ©林边

▼近景鸟瞰，closer aerial view ©林边

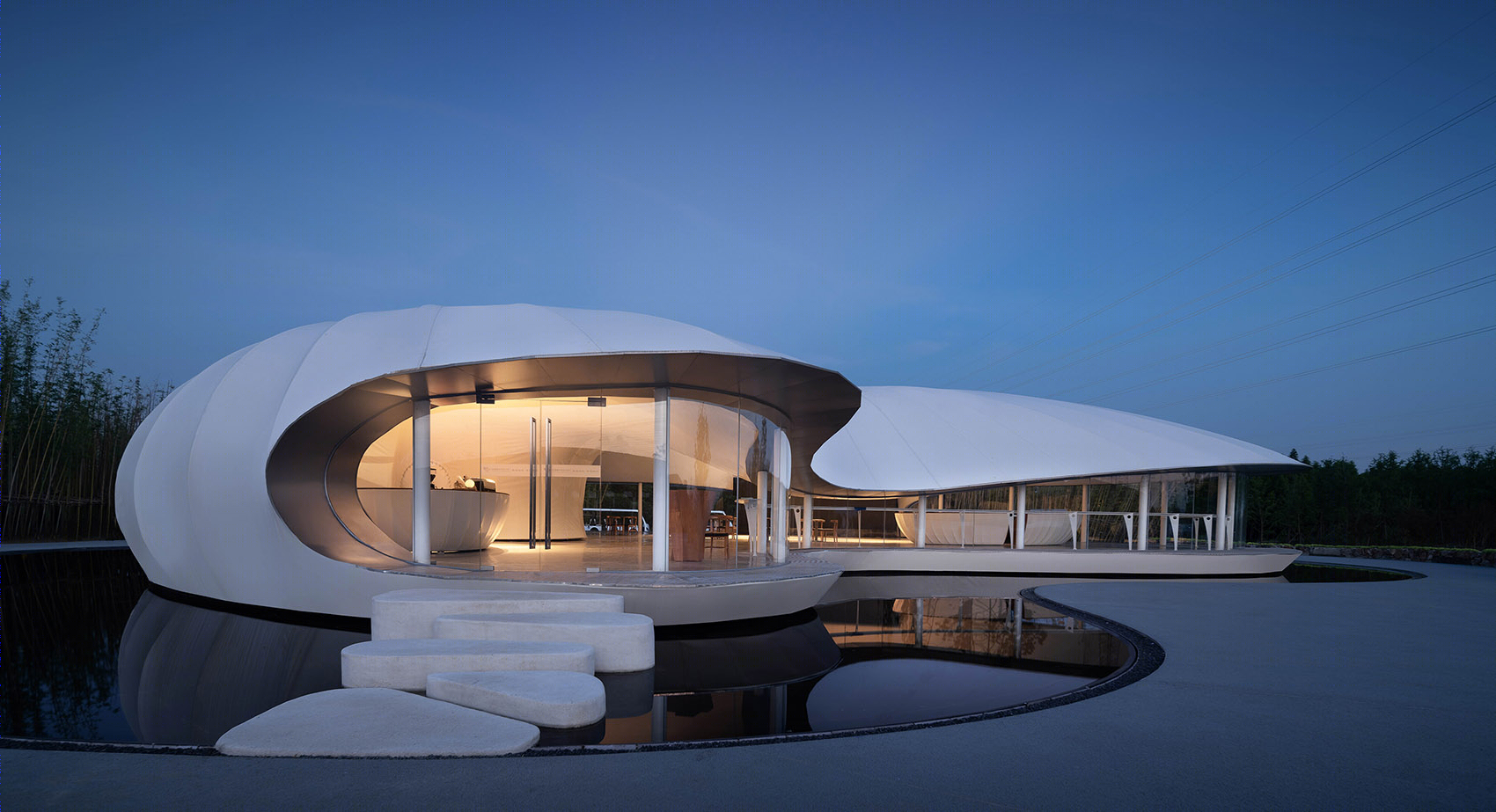

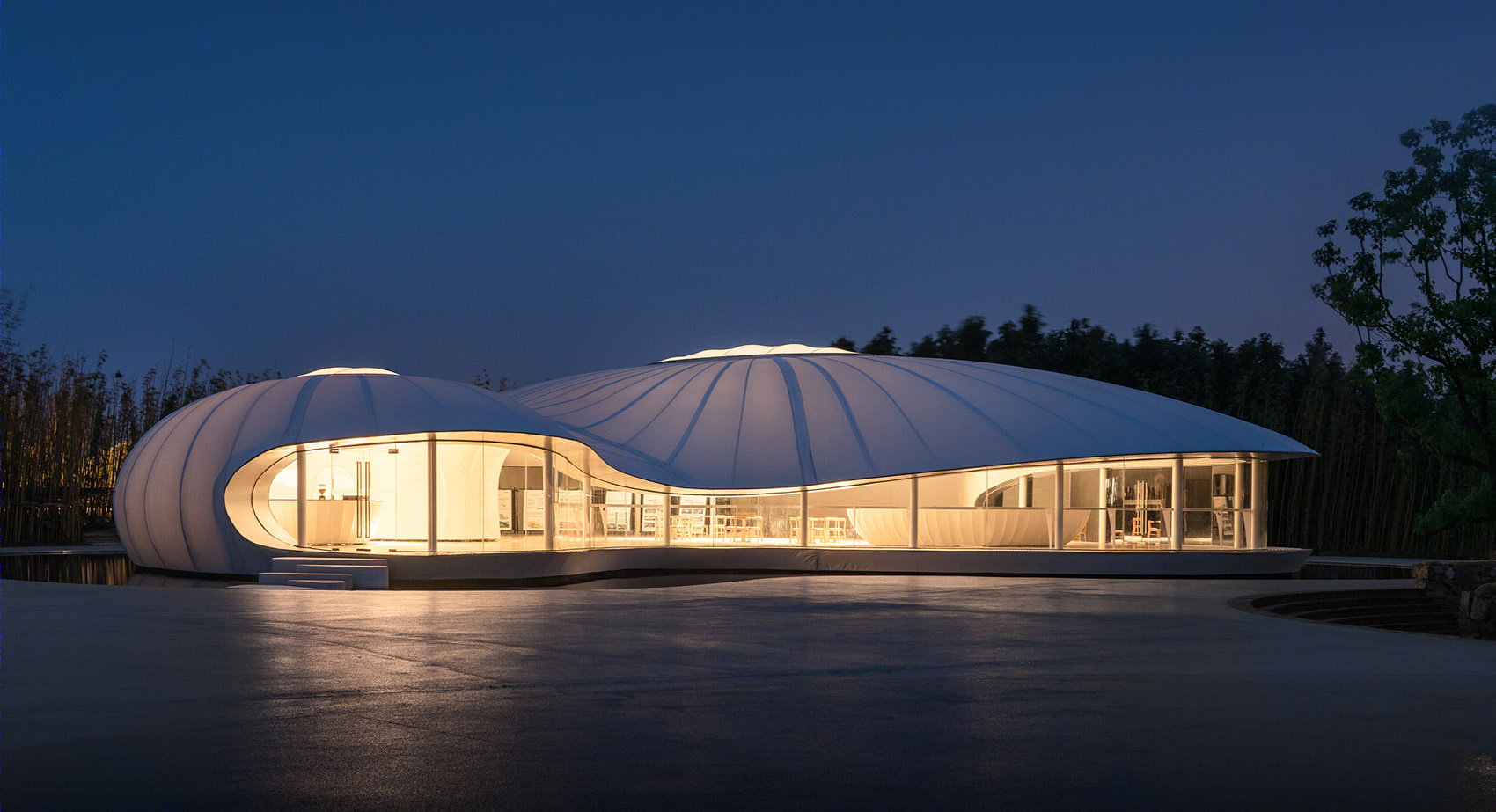

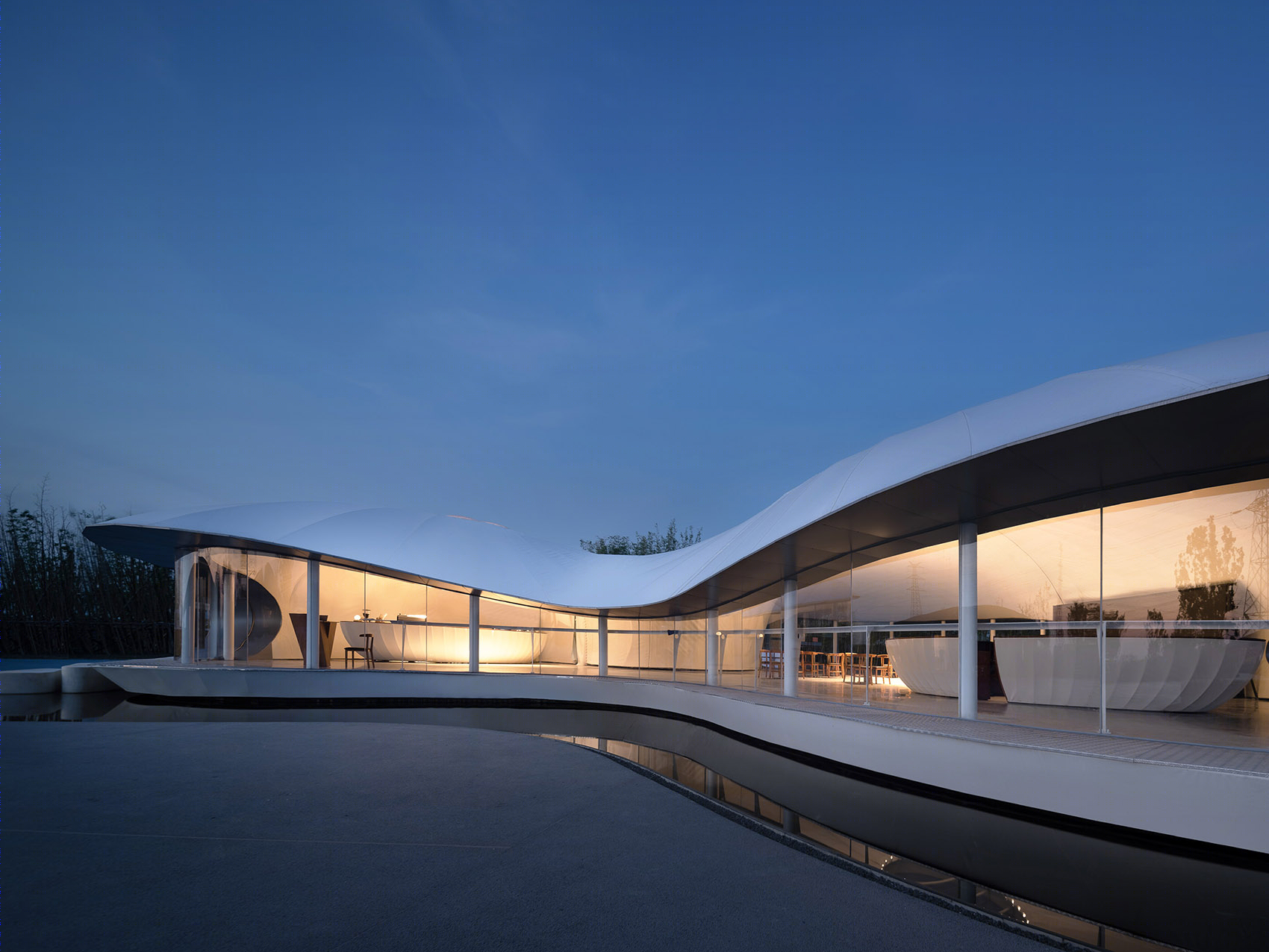

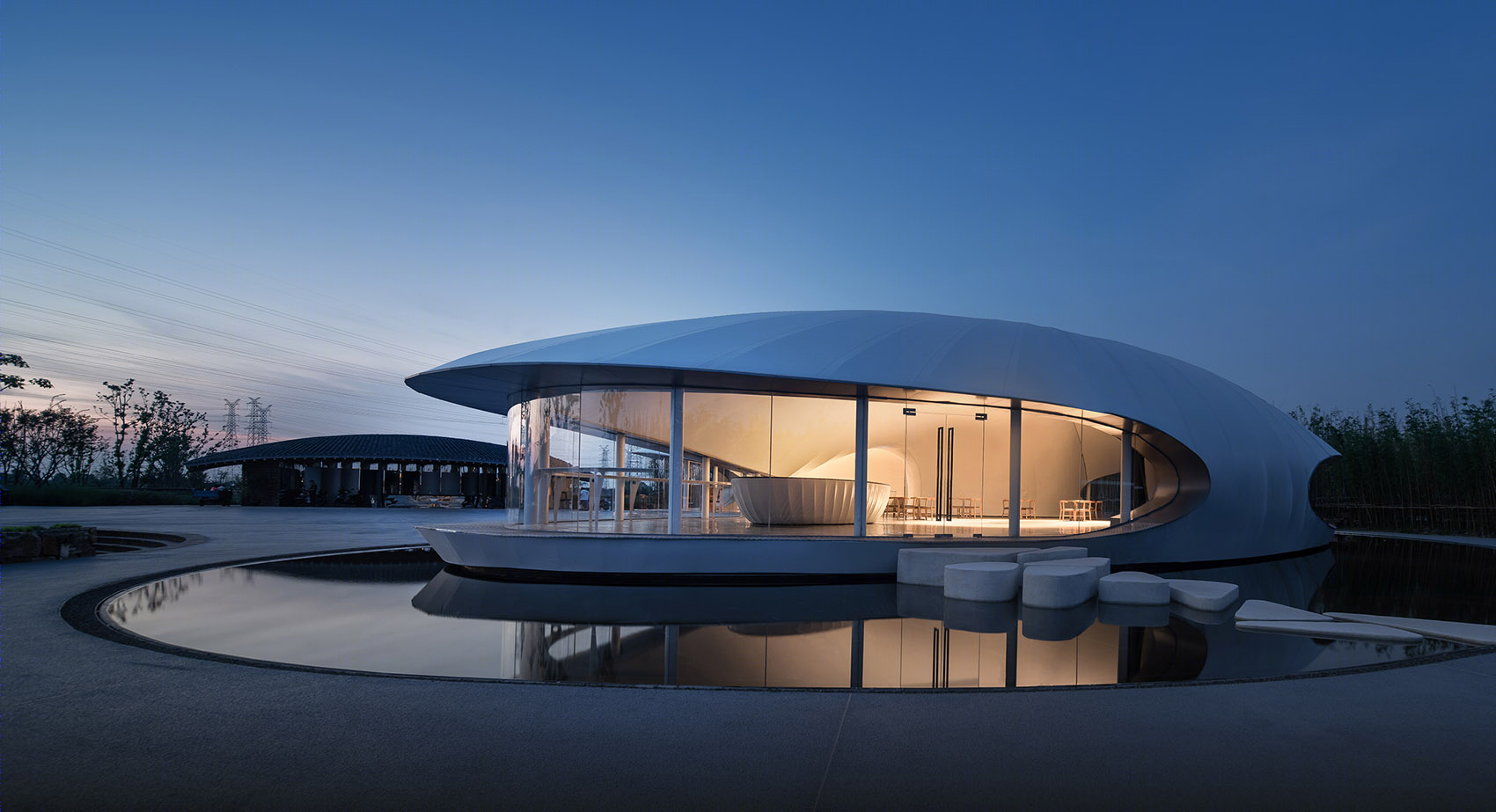

▼夜晚光线从膜结构中透出，light leaking through the membrane structure in the night ©林边

▼高低起伏的外形，waving form of the building ©林边

▼连续的室内空间，continuous interior space ©林边

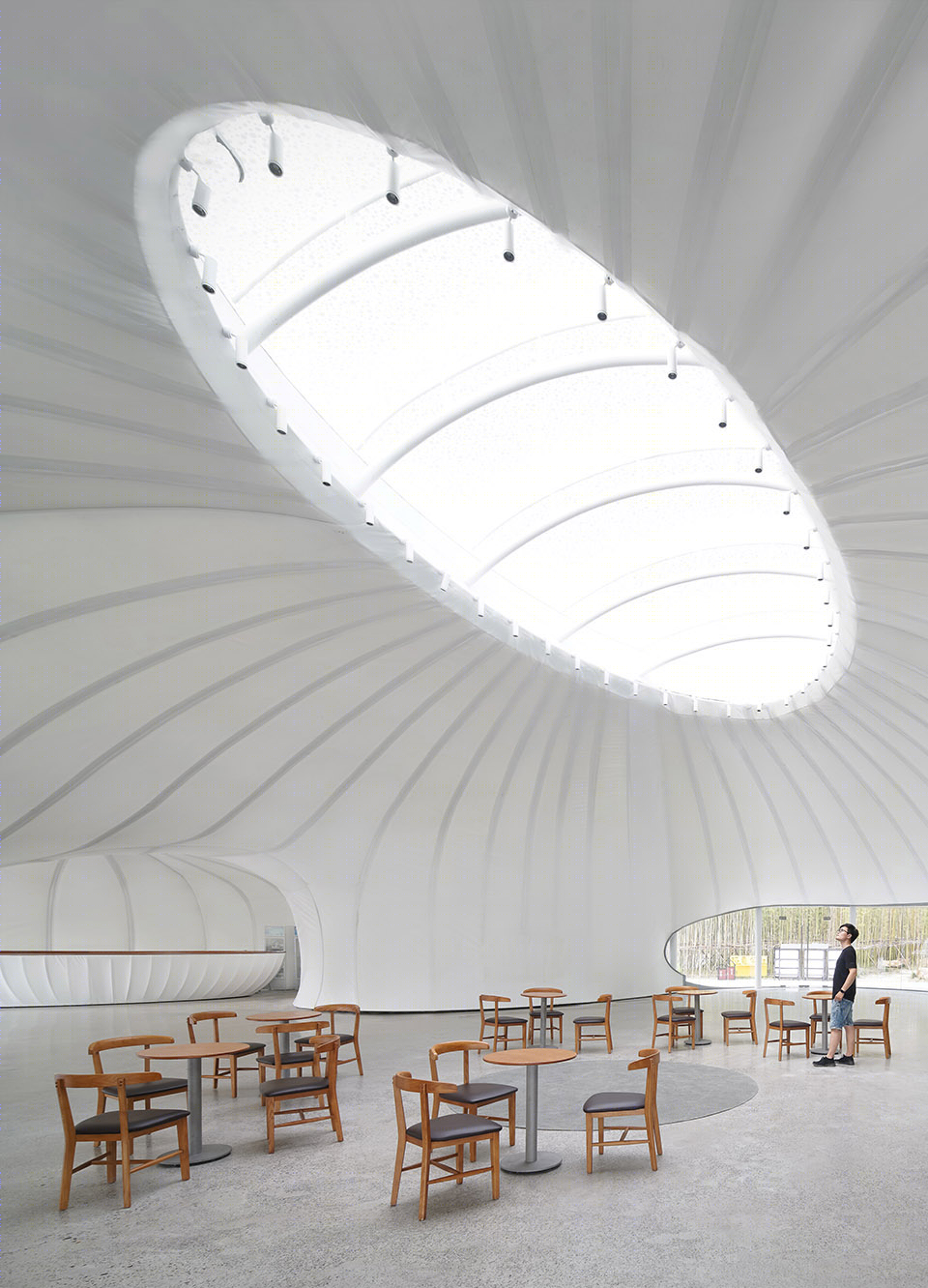

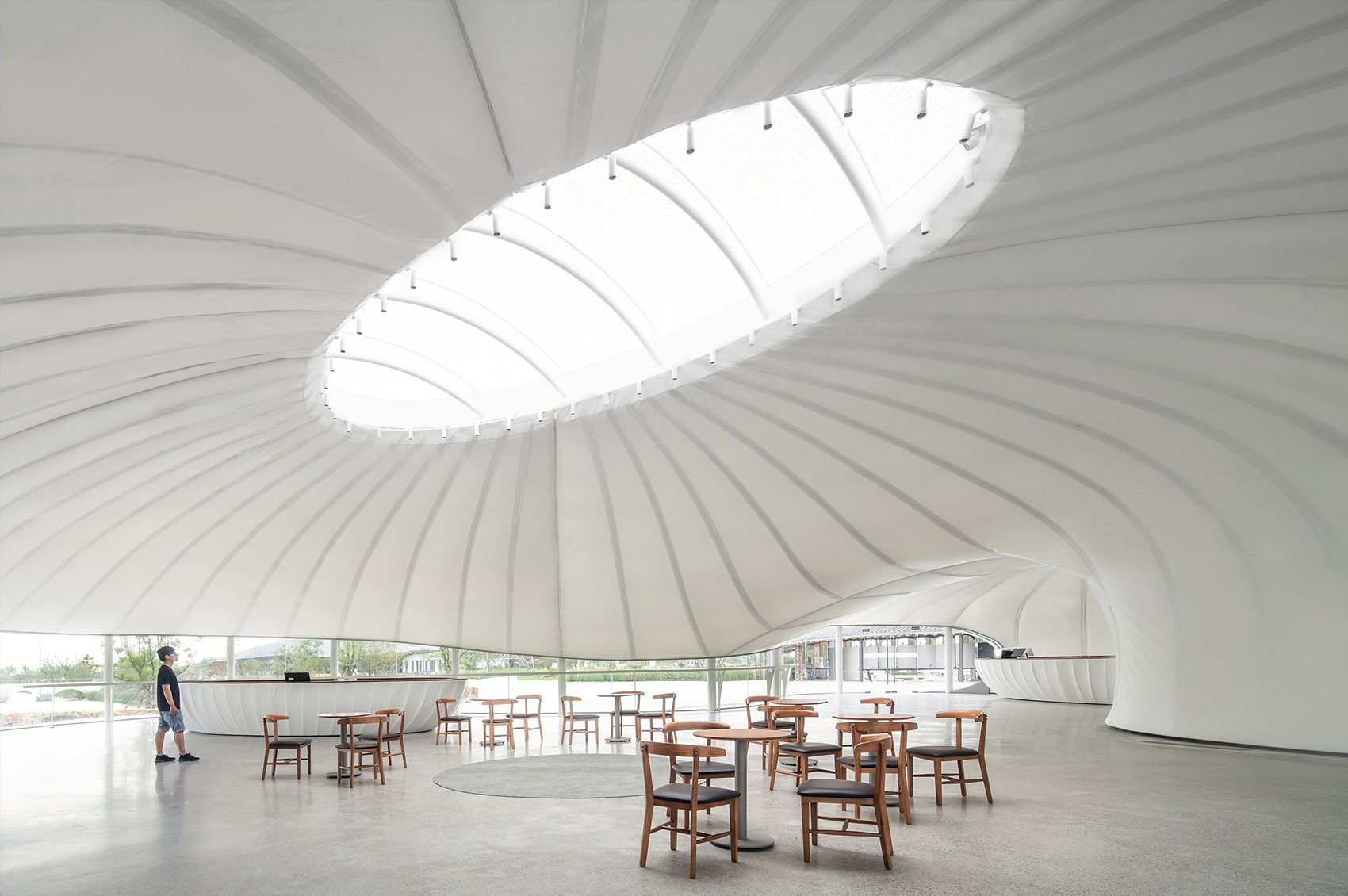

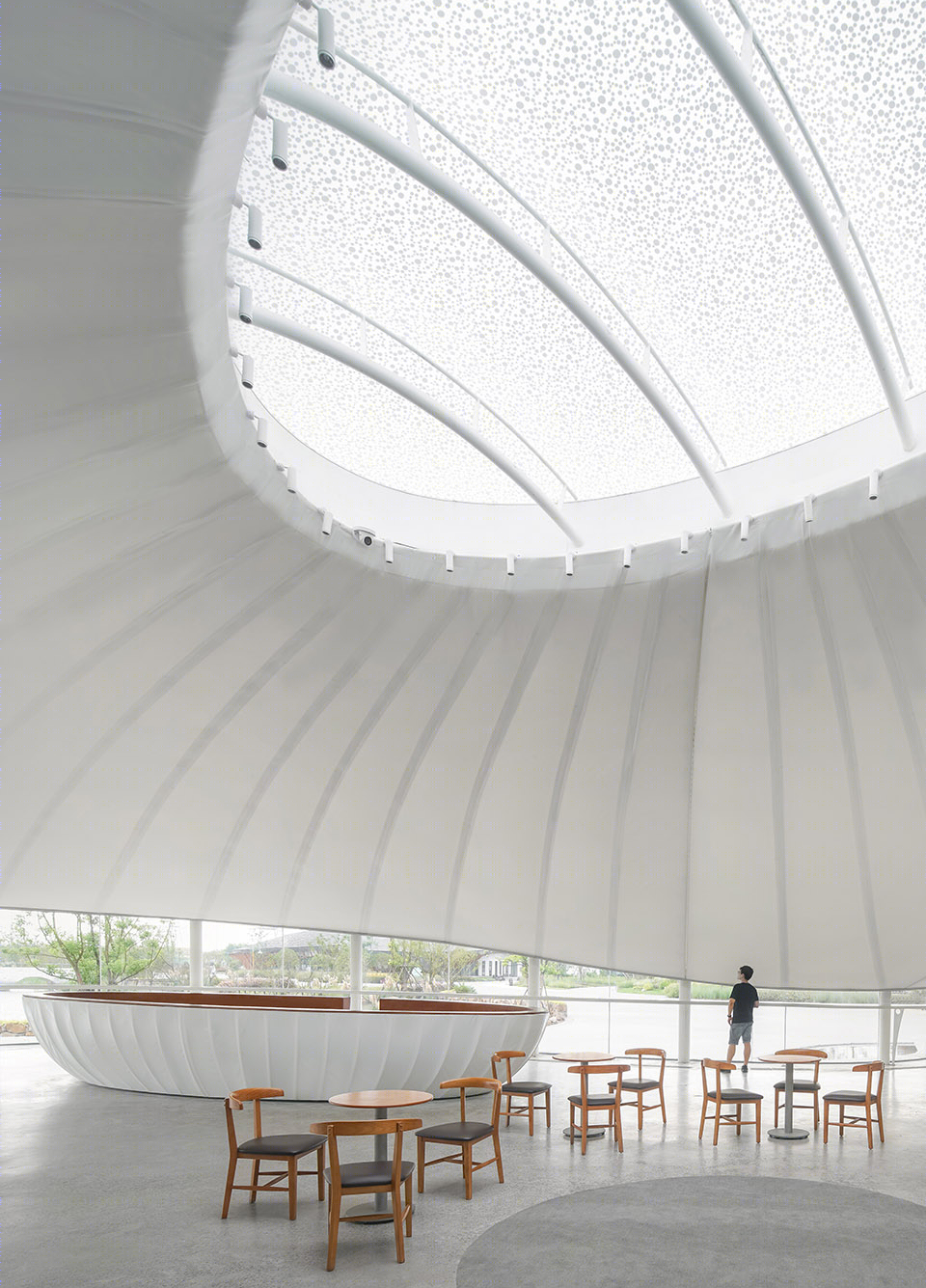

▼天光照亮空间，space lit by skylight ©林边

公共厕所的改造考虑整体入口空间形态，而希望尽量消减建筑本身的物质感；屋顶重而墙轻，是整个建筑希望呈现的整体感知；前区公用洗手台所形成的灰空间与后部反射材料的共同作用使得重材质的屋顶也呈现了漂浮之感。

The renovation of the public toilet takes into account the overall spatial form of the entrance. It hopes to reduce the physical sense of the building as much as possible. The perception of the building is that the roof is heavy and the walls are light. While the grey space formed by the public washbasin in the front interact with the reflection material in the back making the heavy material roof present the feeling of floating.

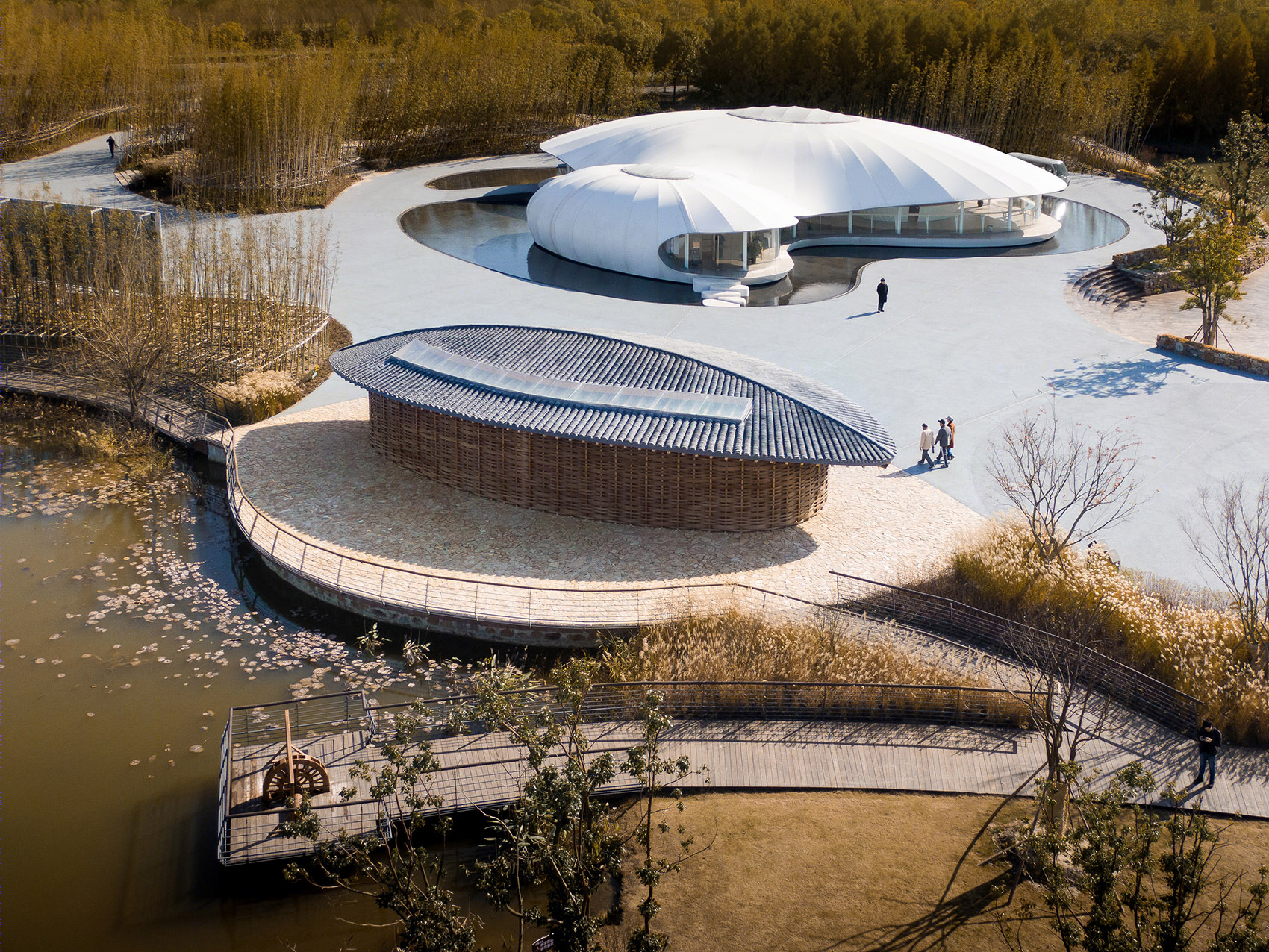

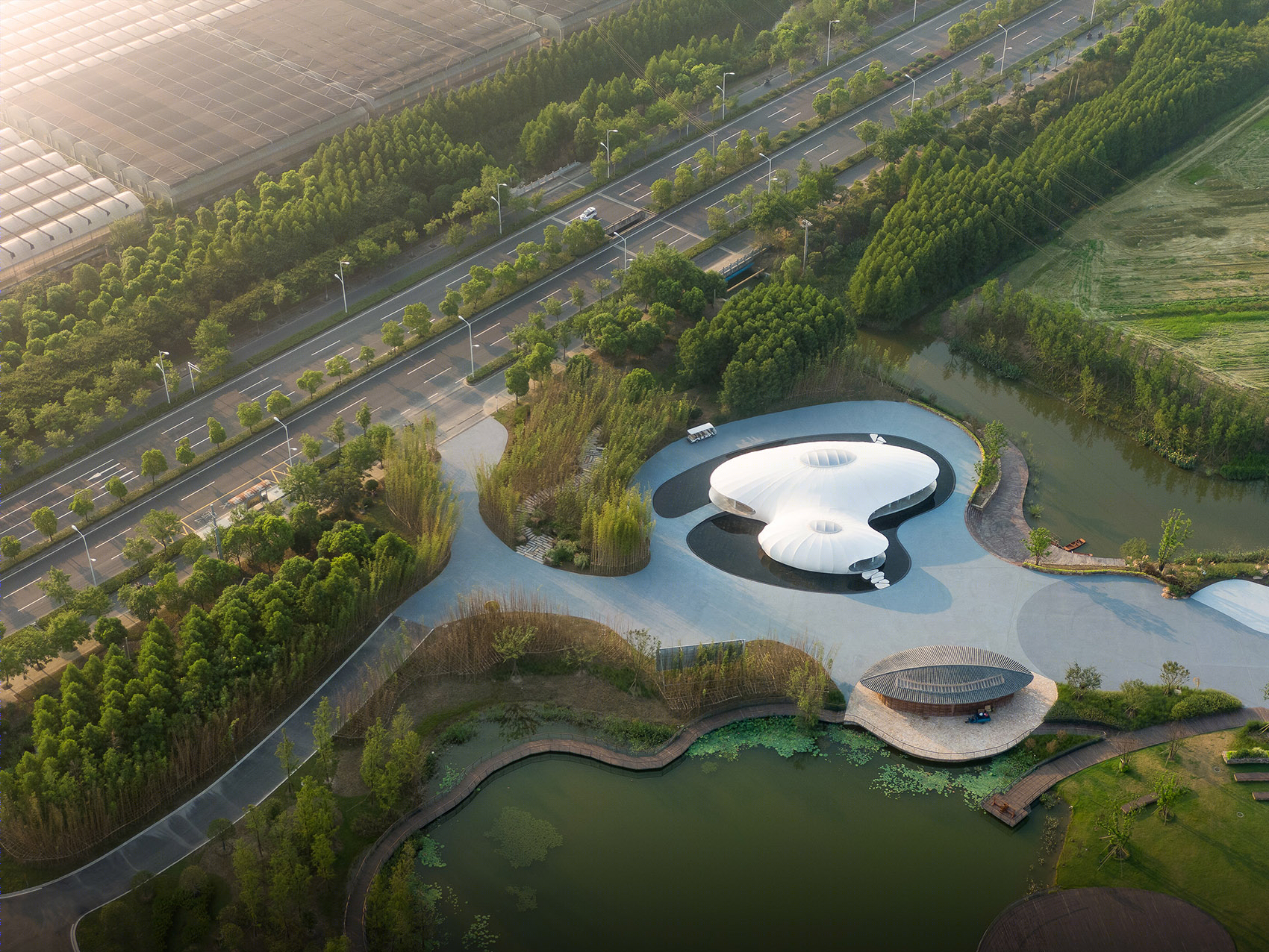

▼鸟瞰公共厕所和田园客厅展示中心 aerial view of the public toilet and the Exhibition Center of Rural Life ©林边

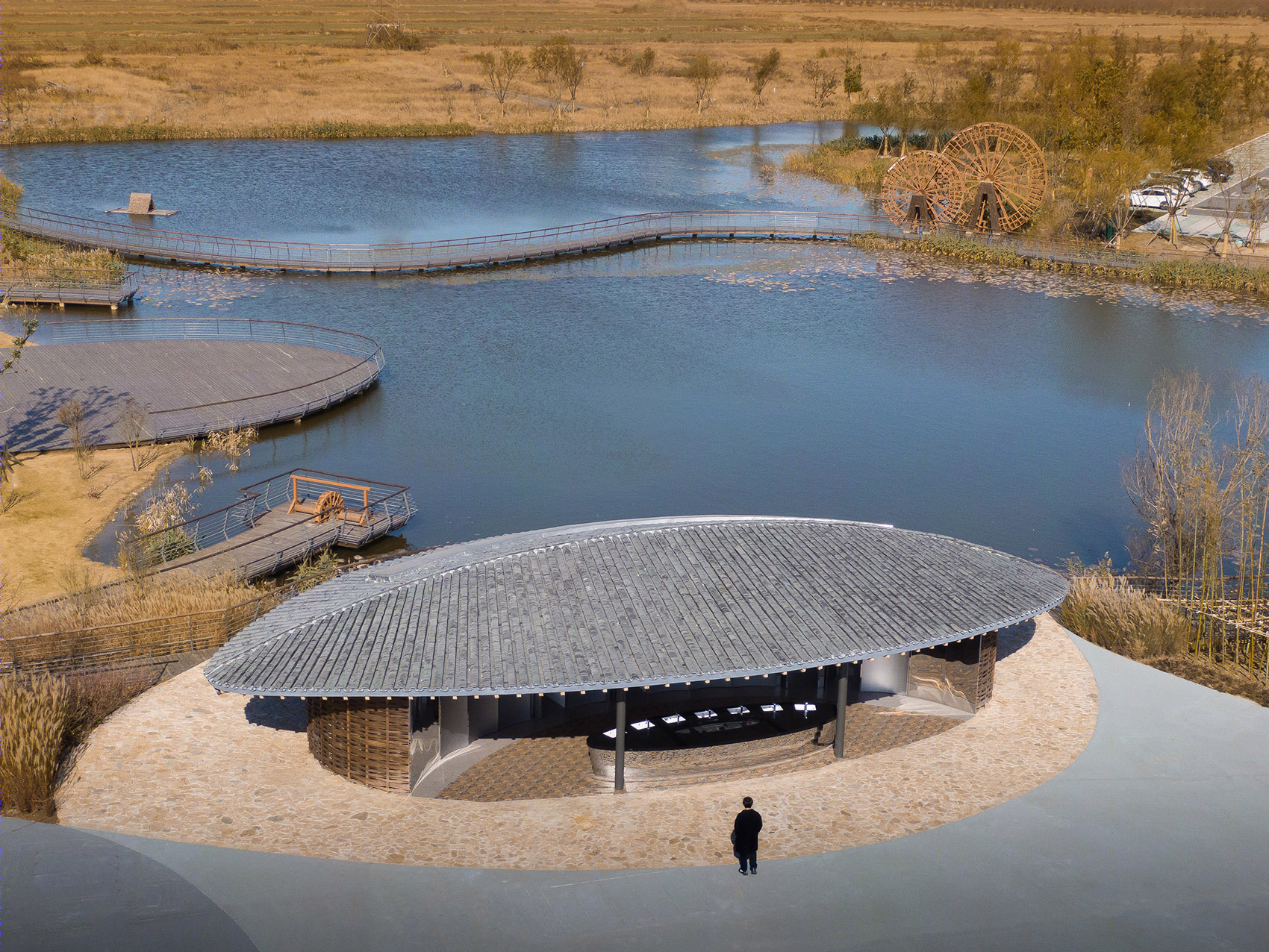

▼公共厕所鸟瞰，aerial view of the public toilet ©林边

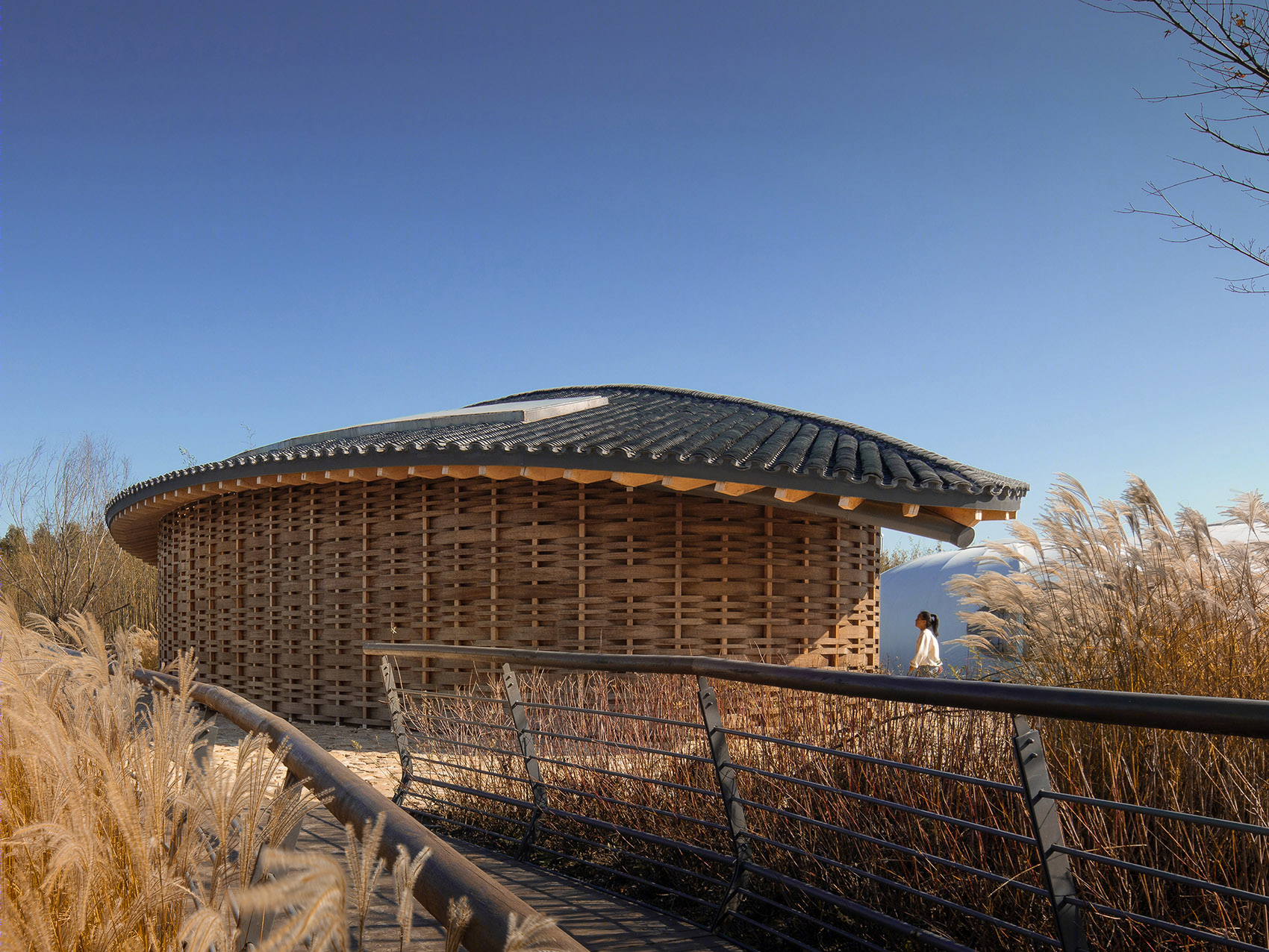

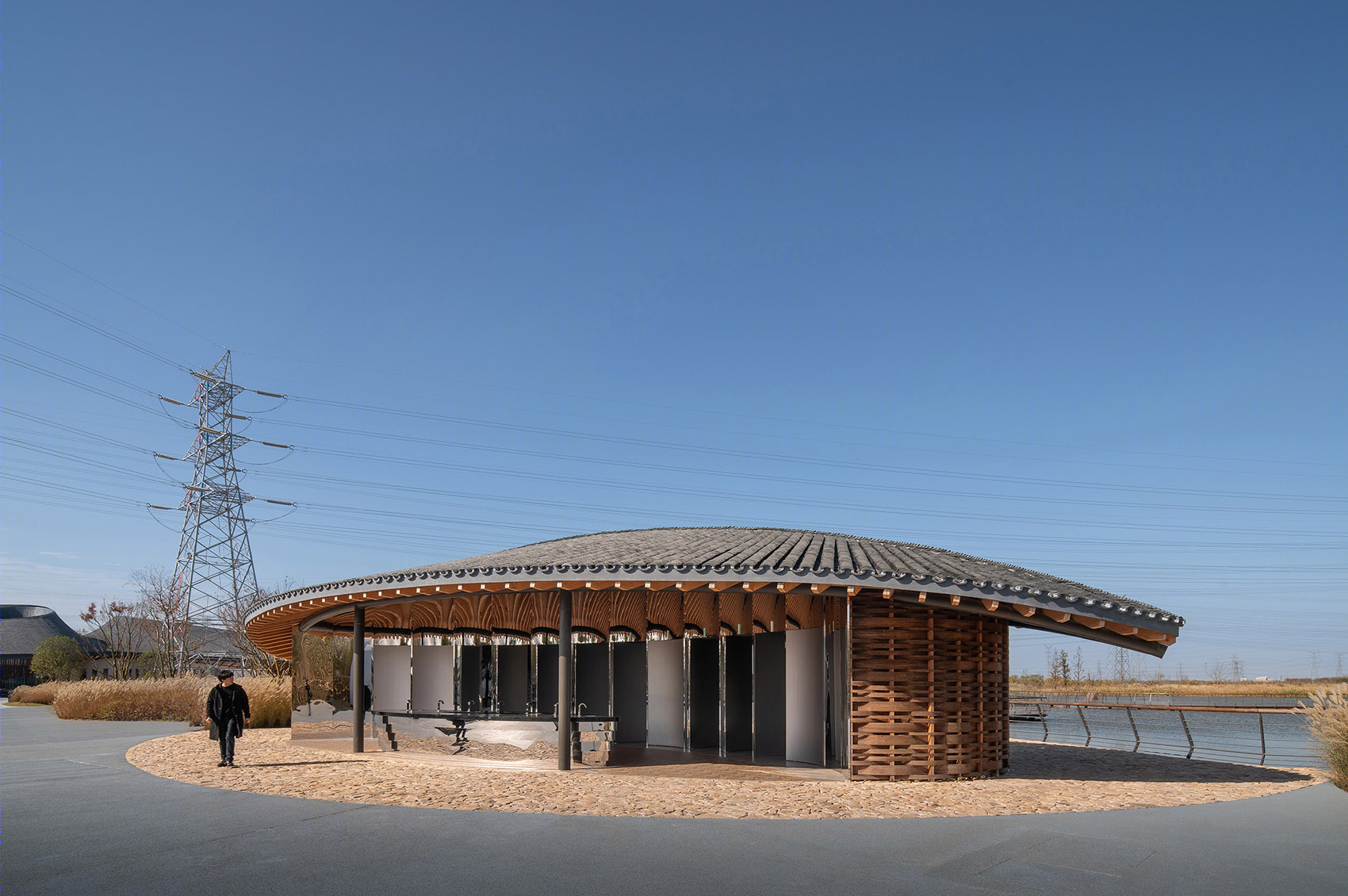

▼公共厕所外观，external view of the public toilet ©林边

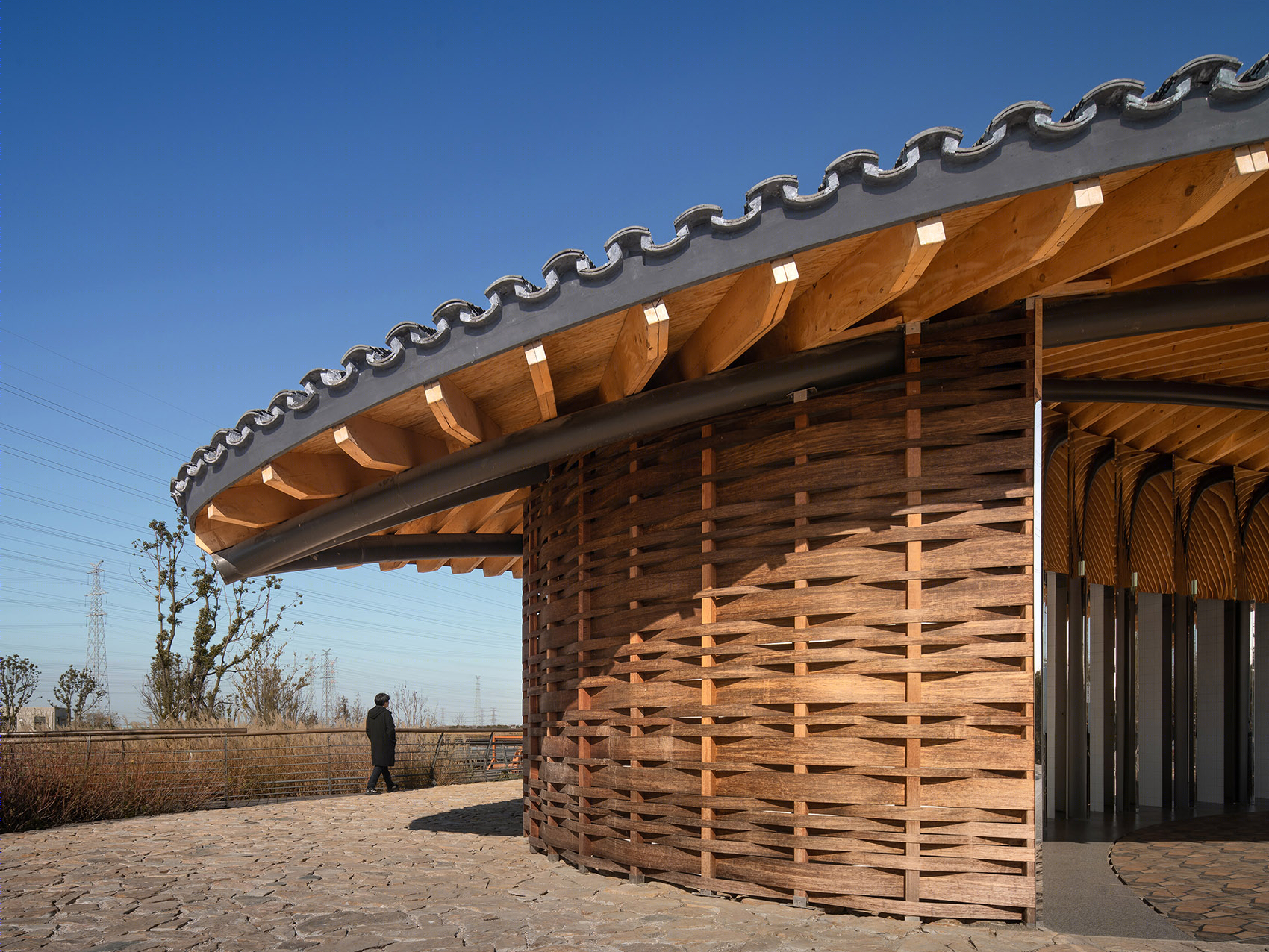

▼不同材料的对比，contrast between different materials ©林边

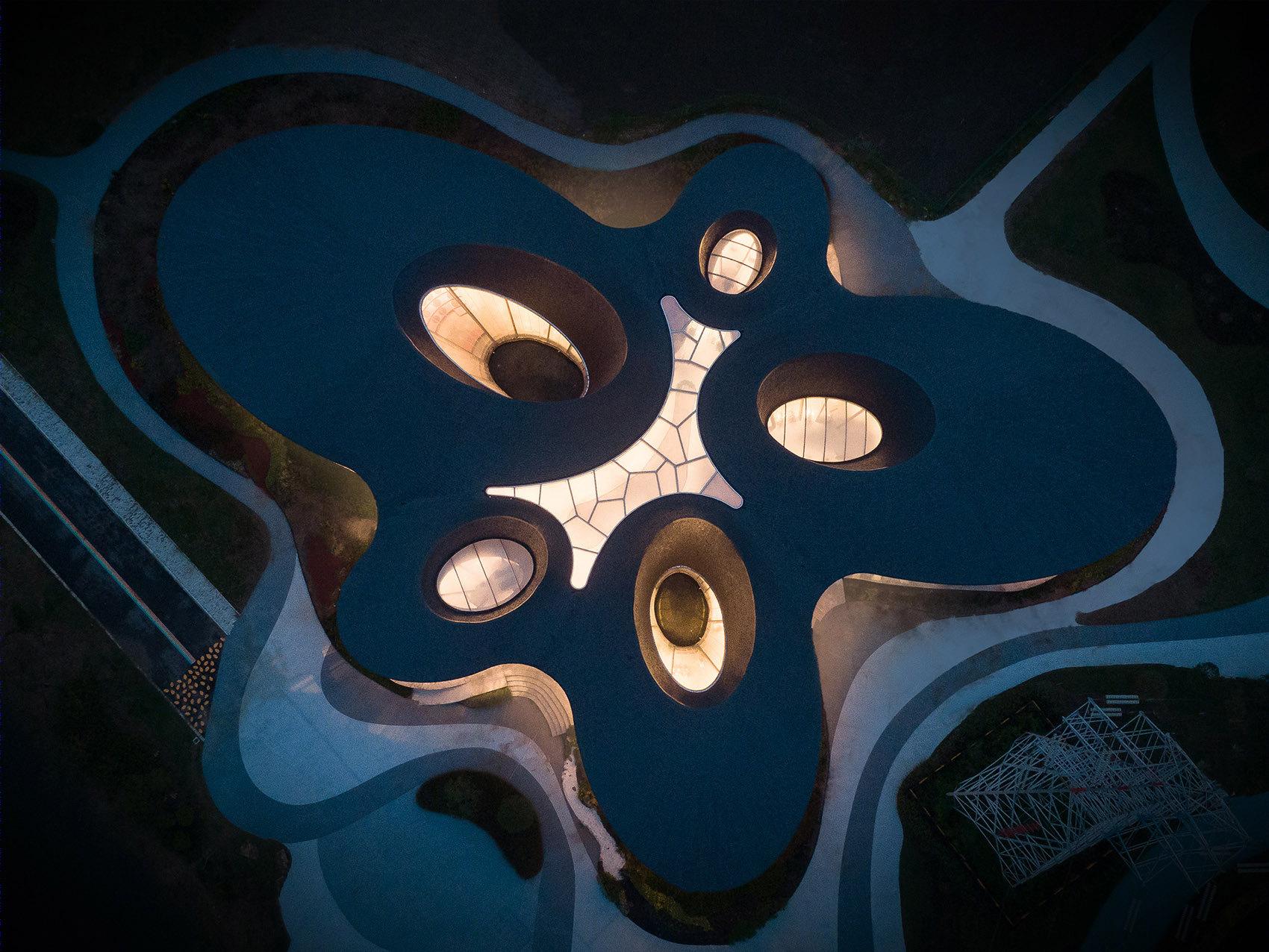

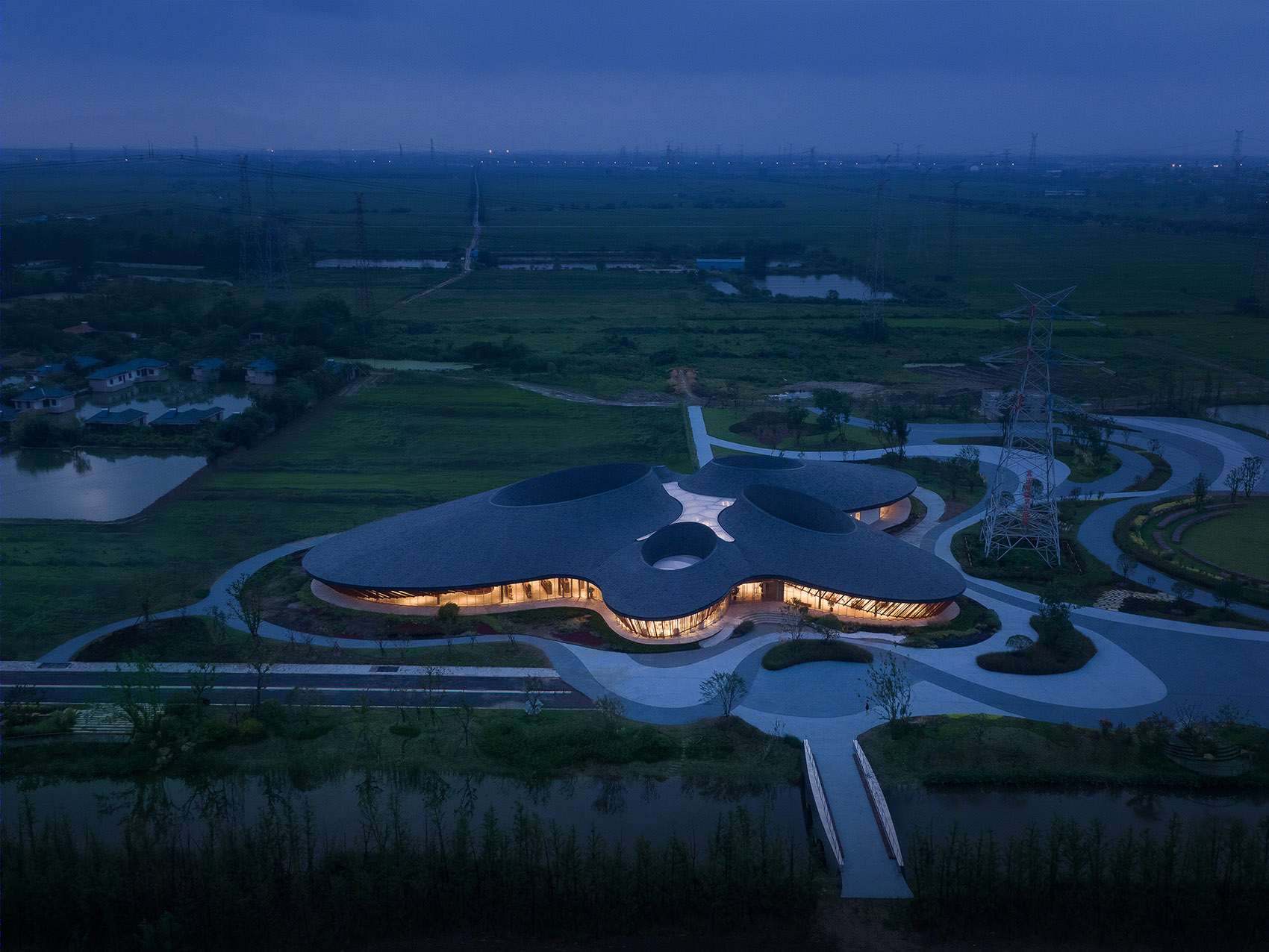

▼综合服务中心夜景鸟瞰，aerial view of the Comprehensive Service Center in the night ©林边

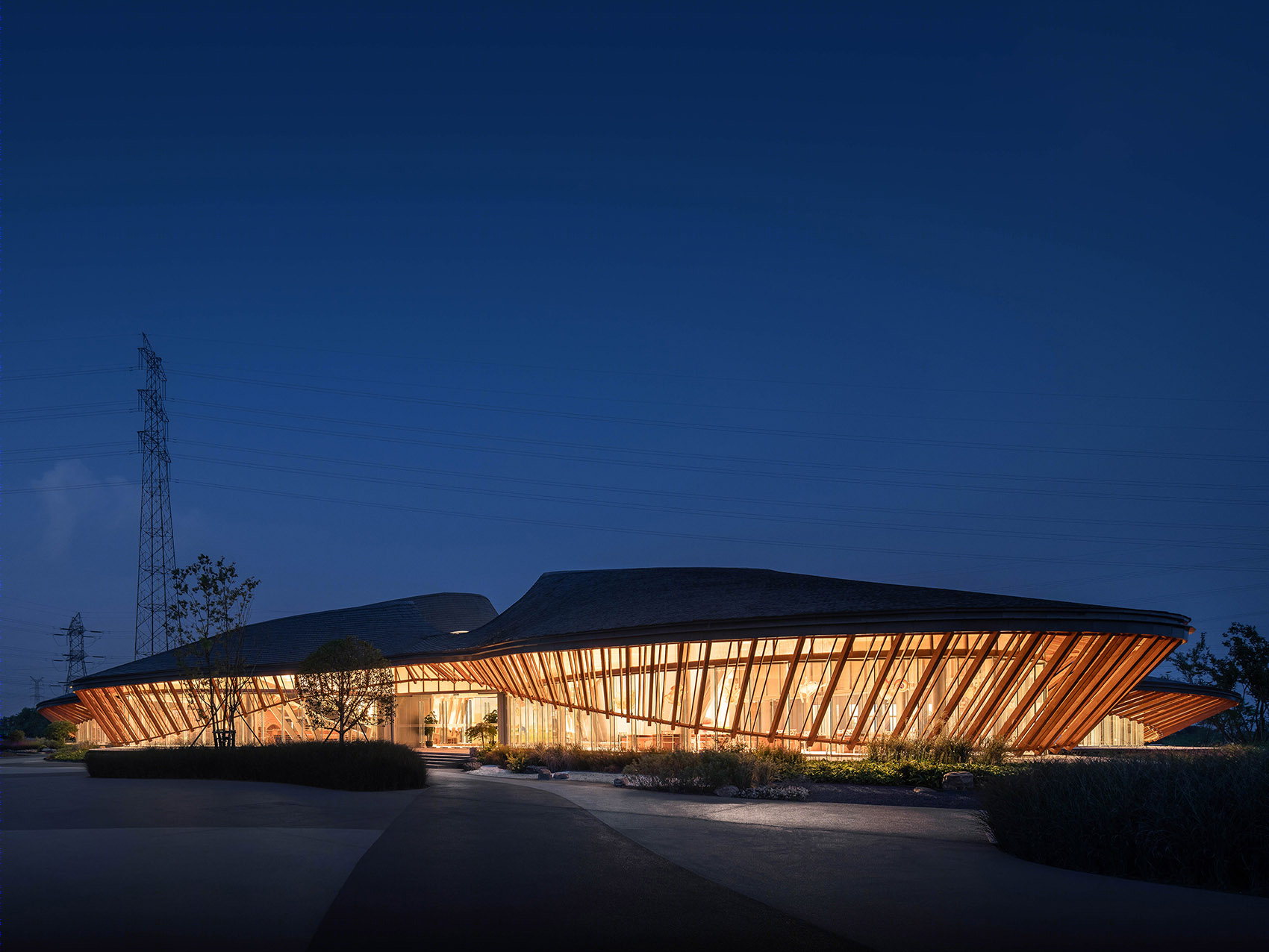

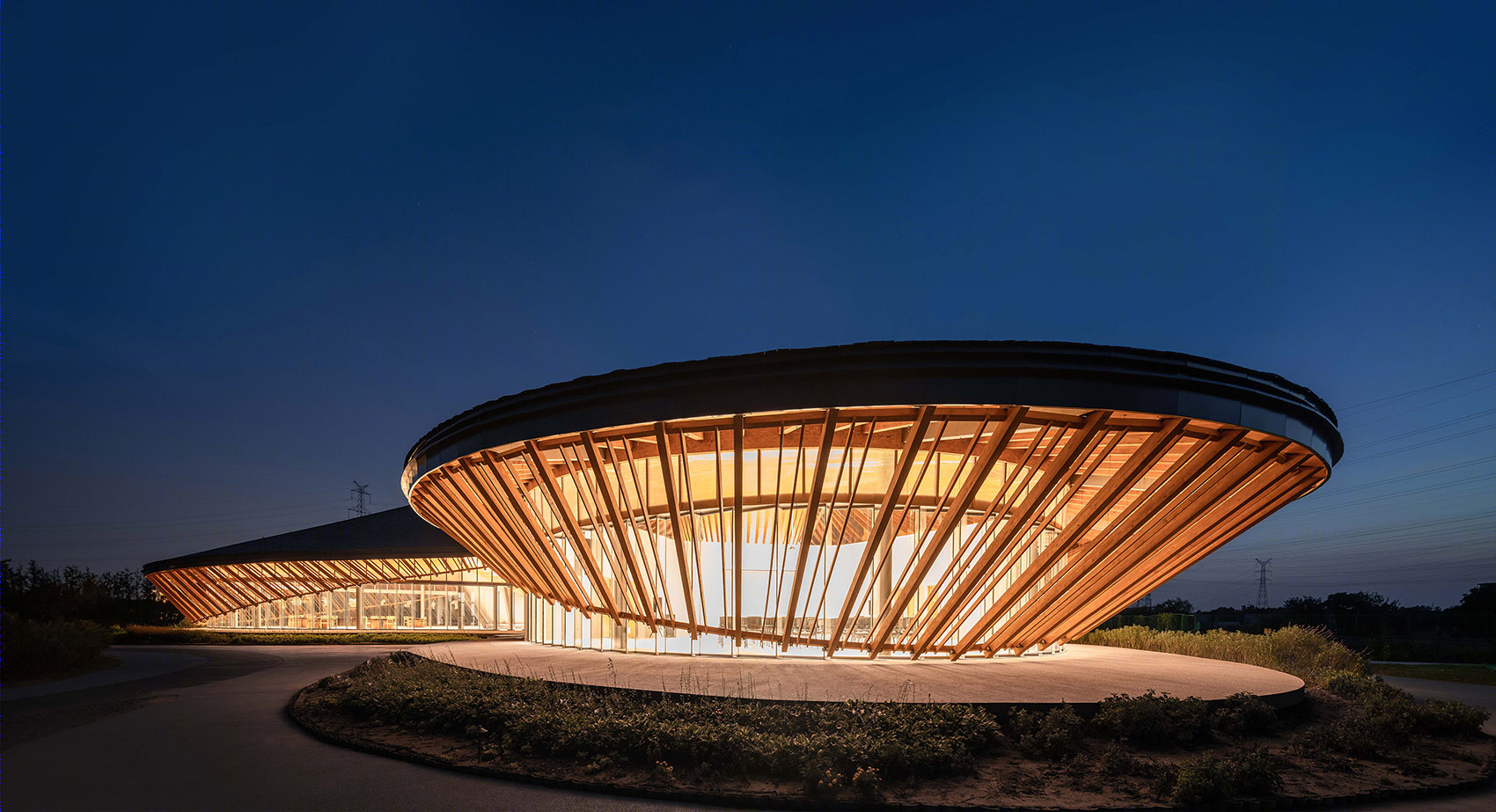

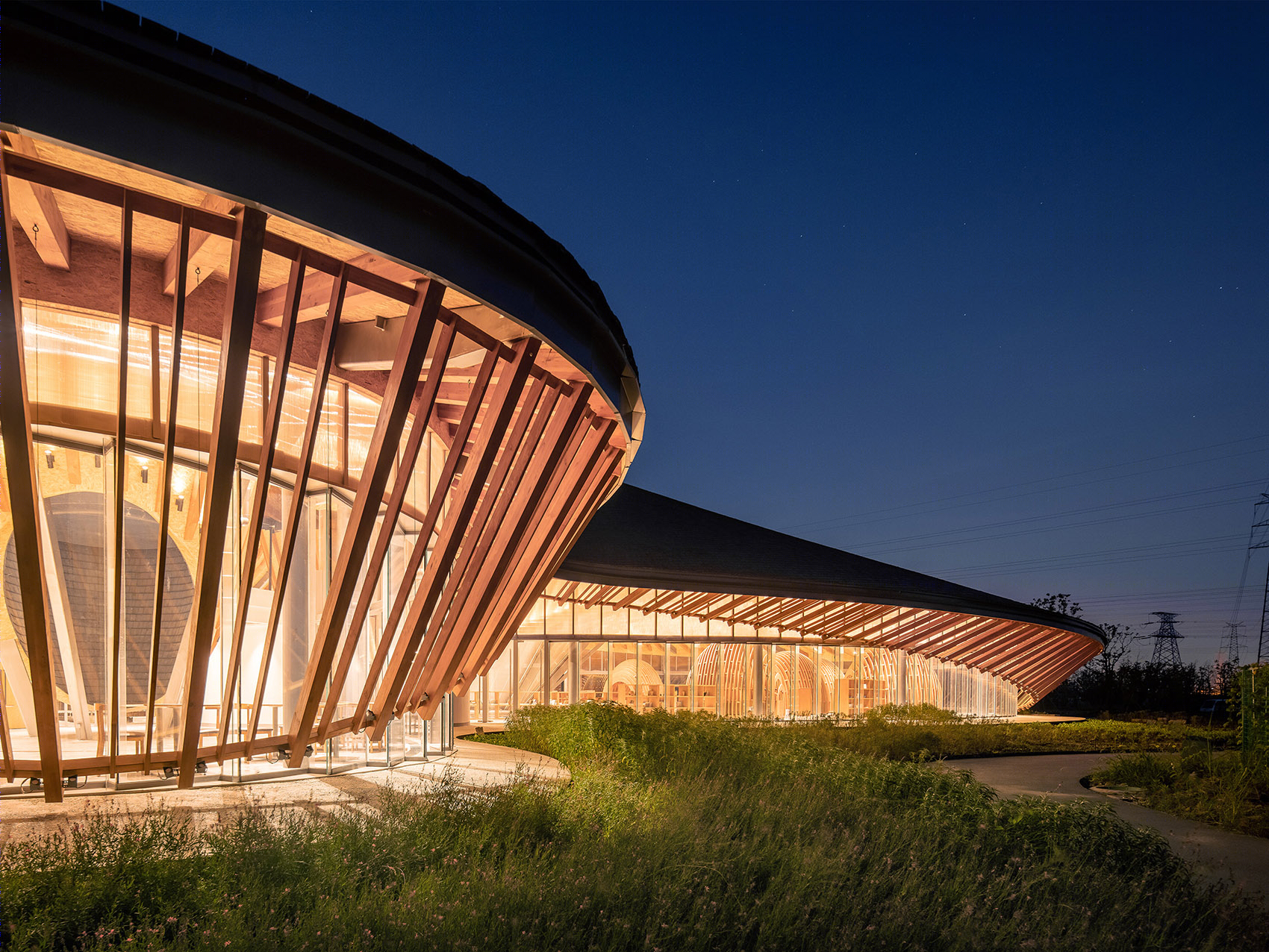

▼综合服务中心夜景，night view of the Comprehensive Service Center ©林边

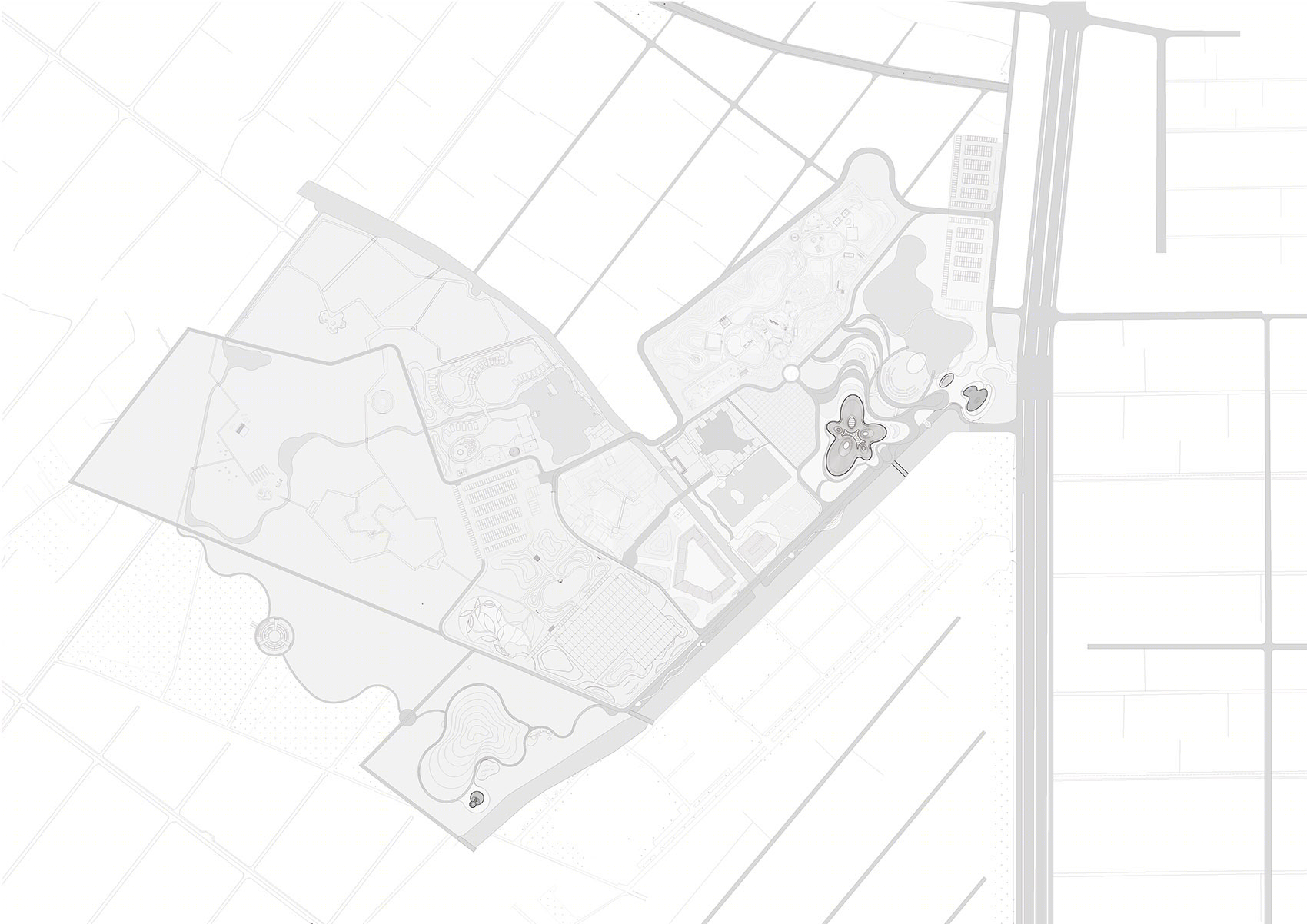

▼总平面图，site plan ©Z-one Tech

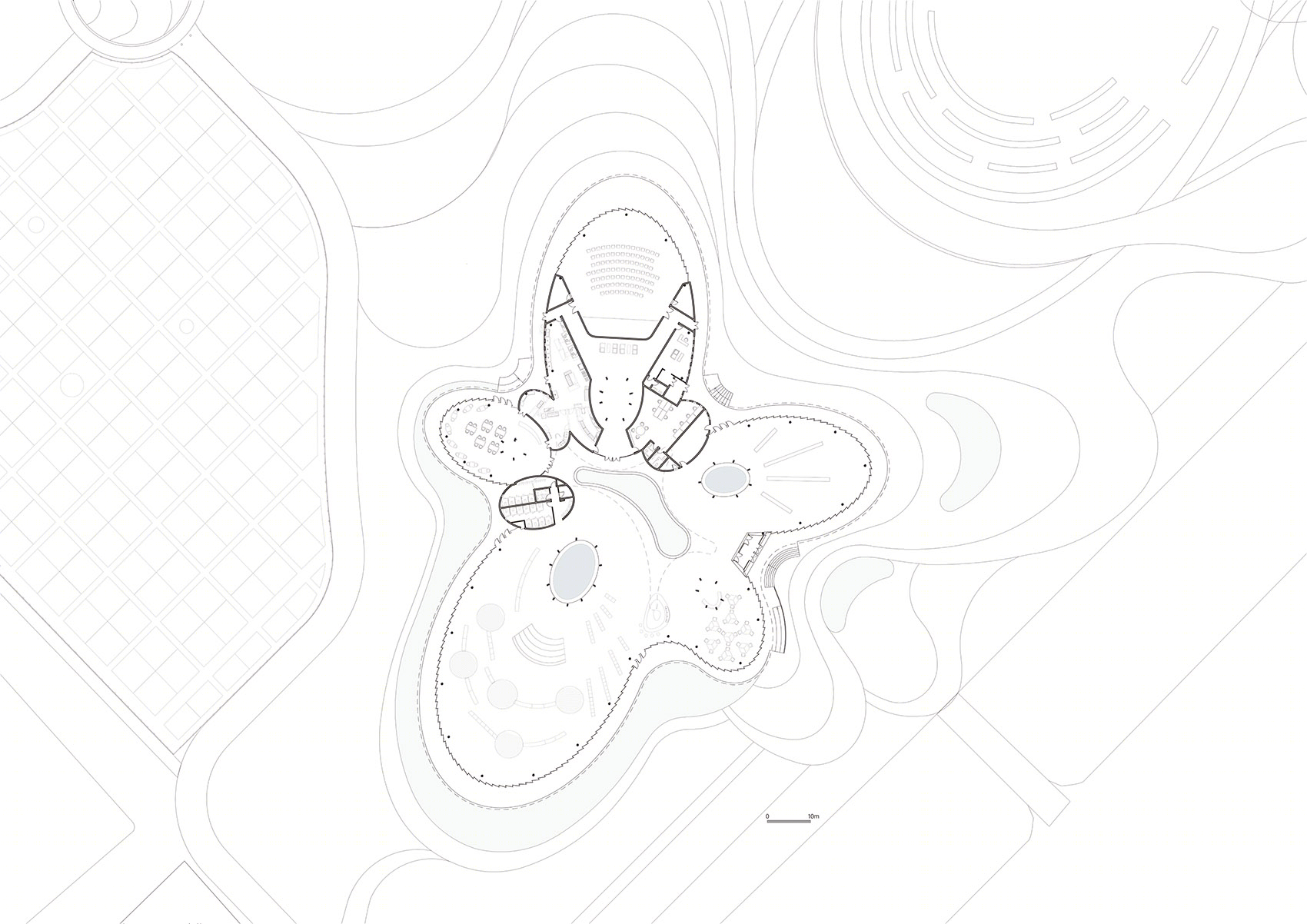

▼综合服务中心一层平面图，first floor plan of the Comprehensive Service Center ©Z-one Tech

▼综合服务中心屋顶平面图，roof plan of the Comprehensive Service Center ©Z-one Tech

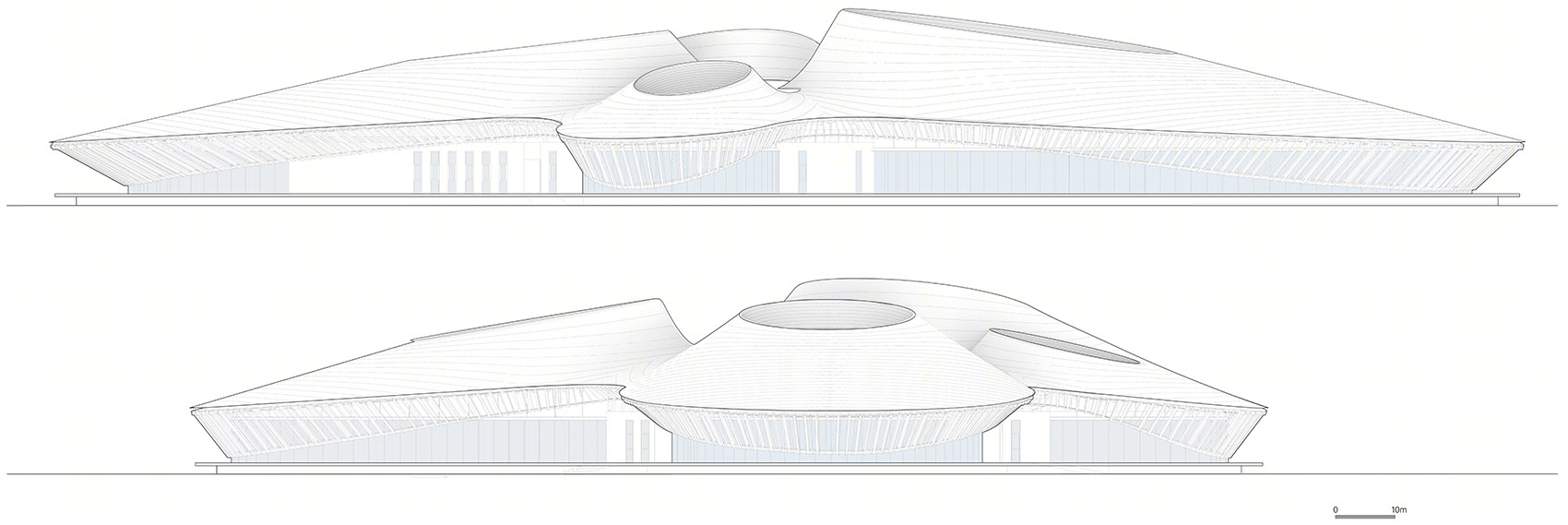

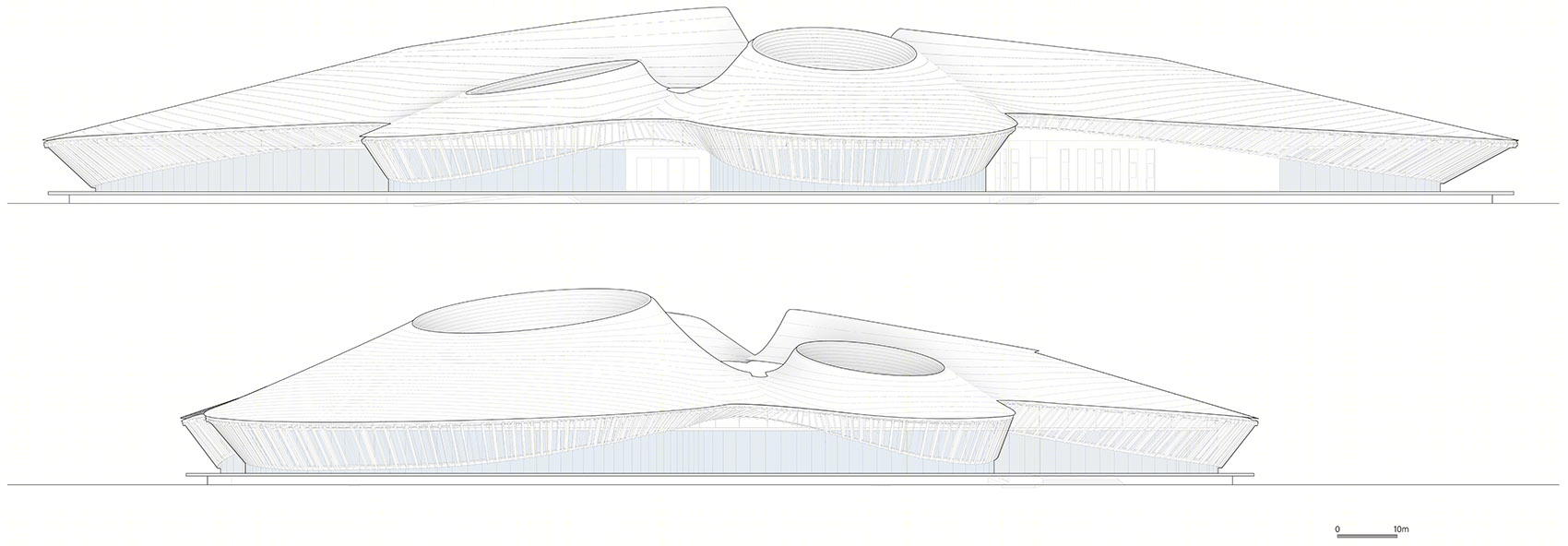

▼综合服务中心立面图，elevations of the Comprehensive Service Center ©Z-one Tech

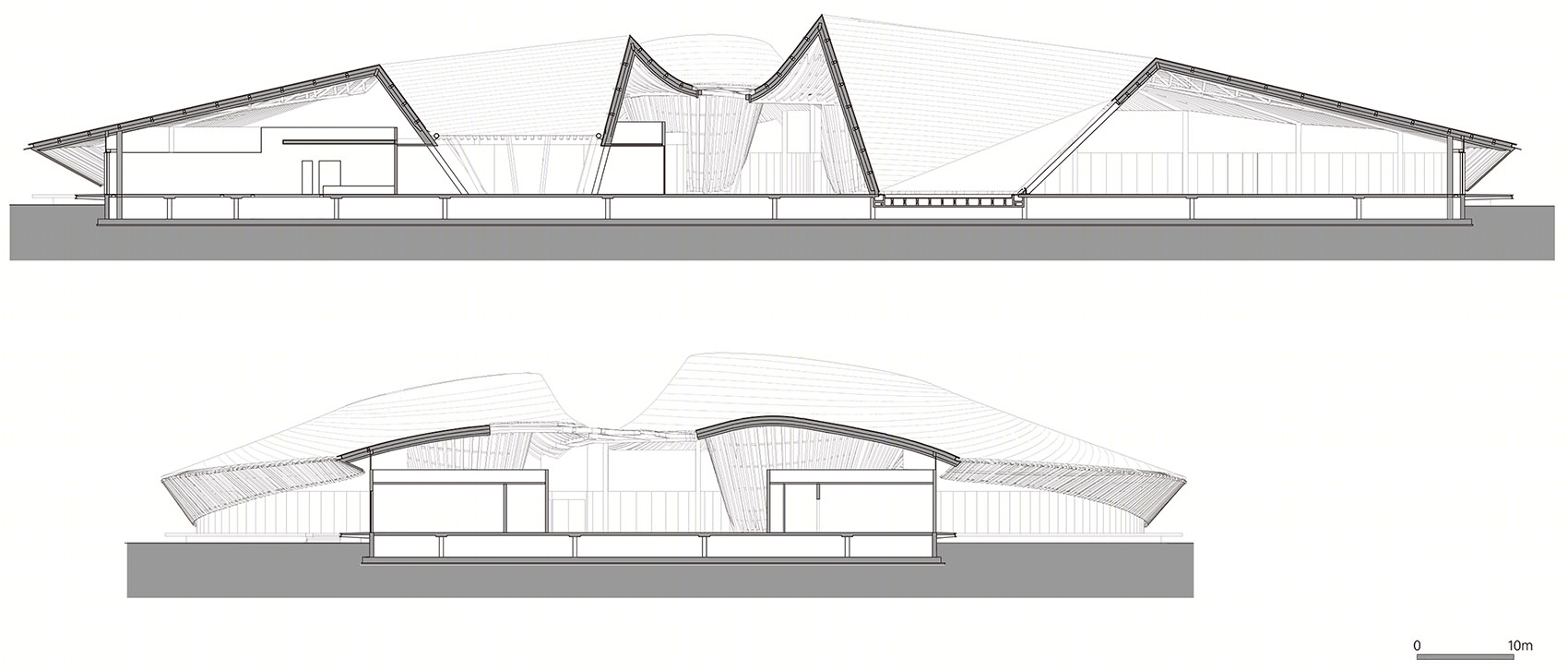

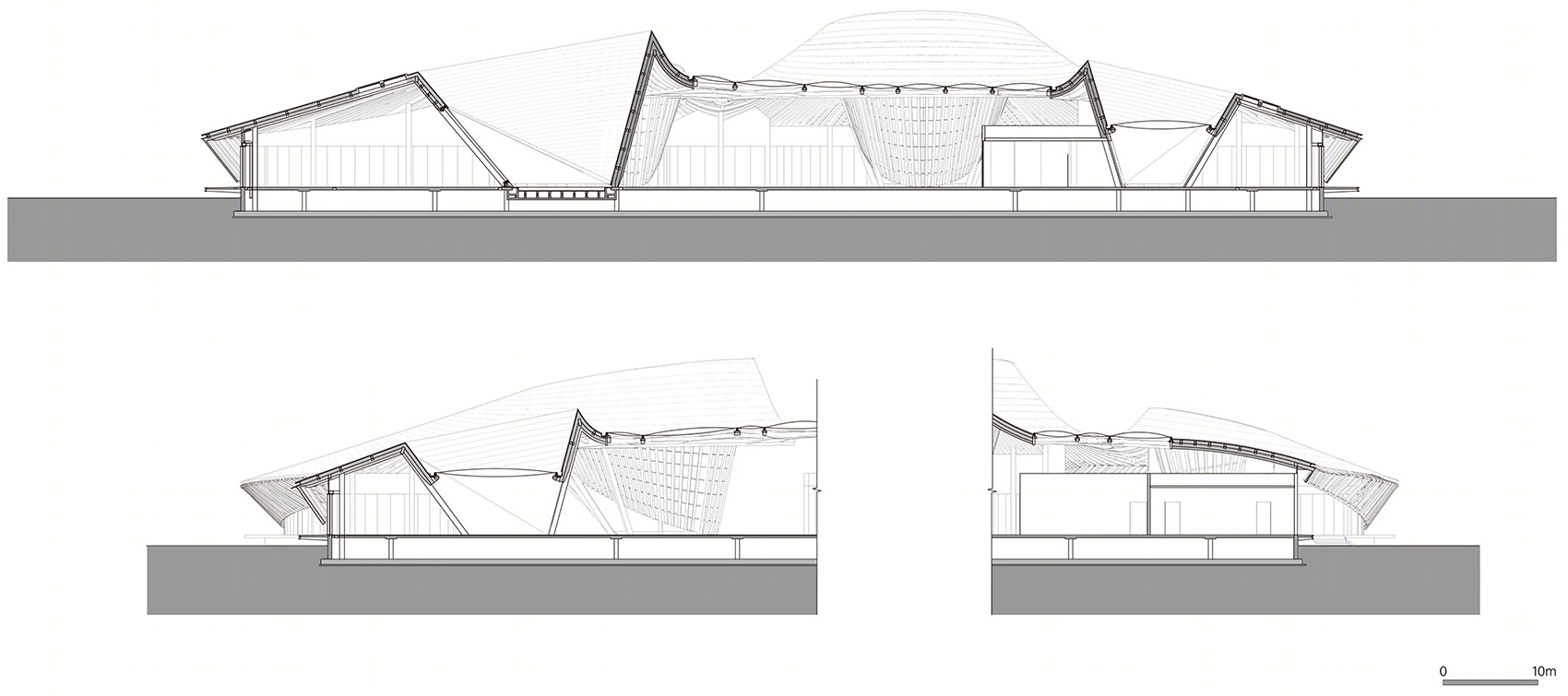

▼综合服务中心剖面图，sections of the Comprehensive Service Center ©Z-one Tech

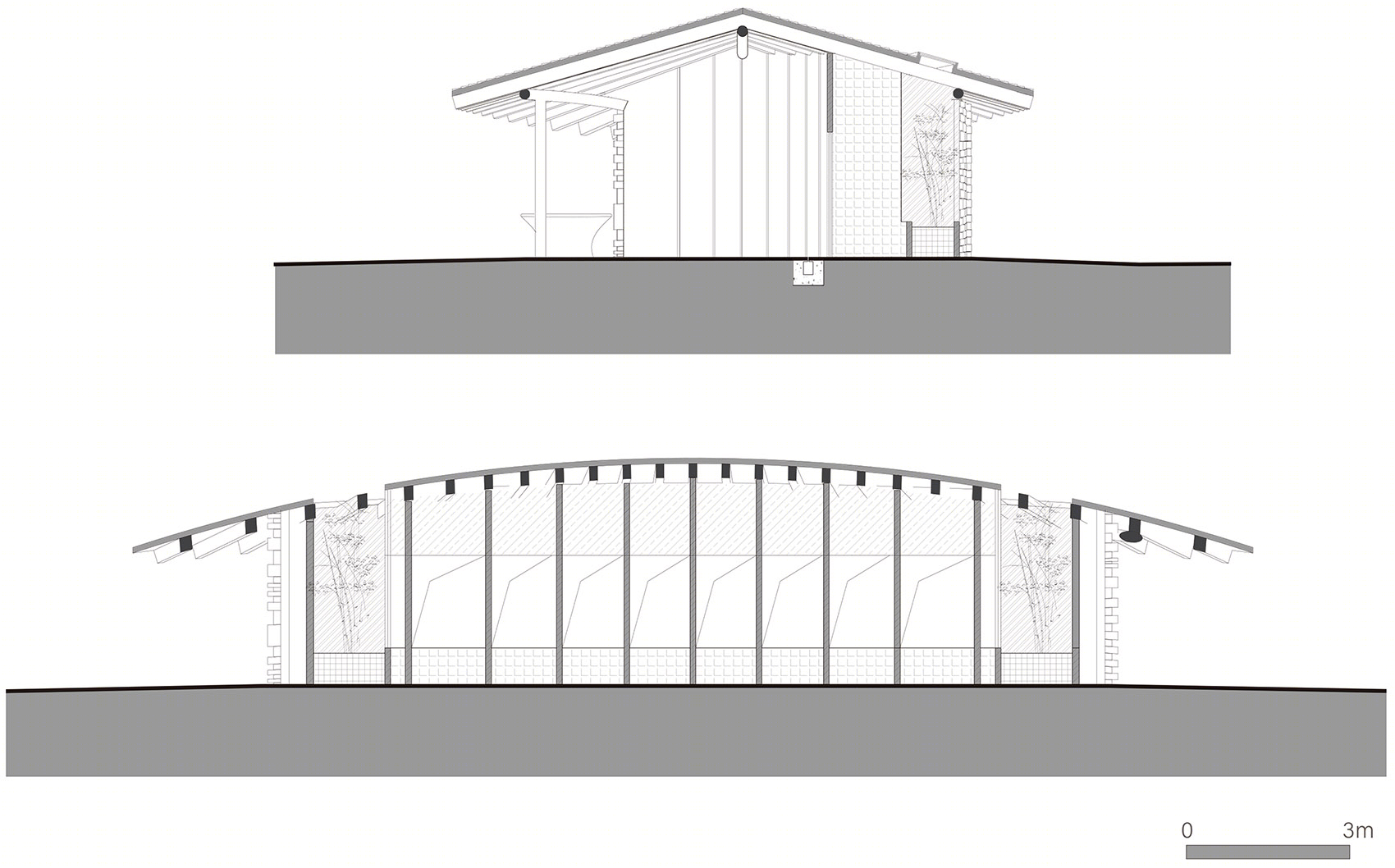

▼公共厕所剖面图，sections of the public toilet ©Z-one Tech

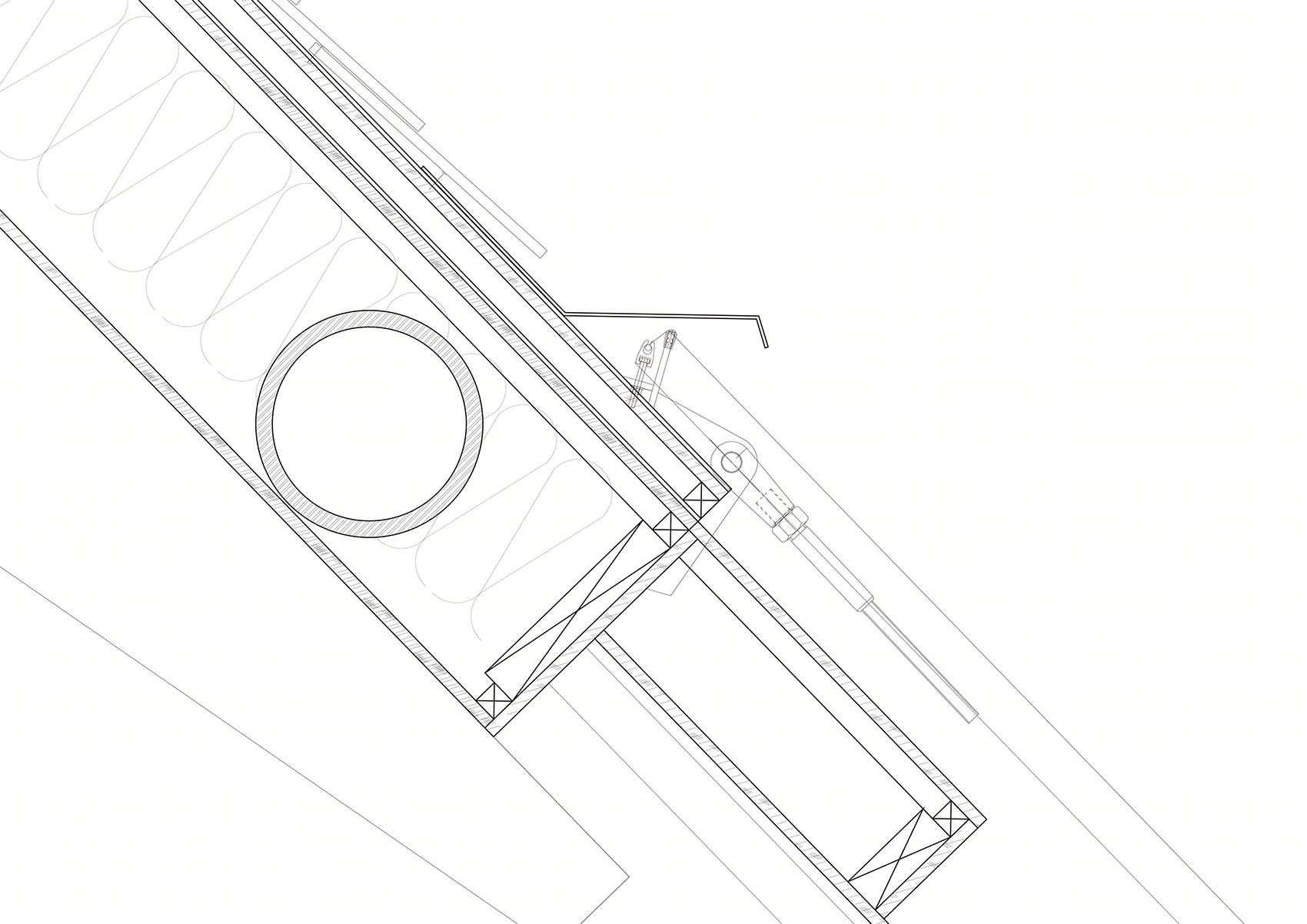

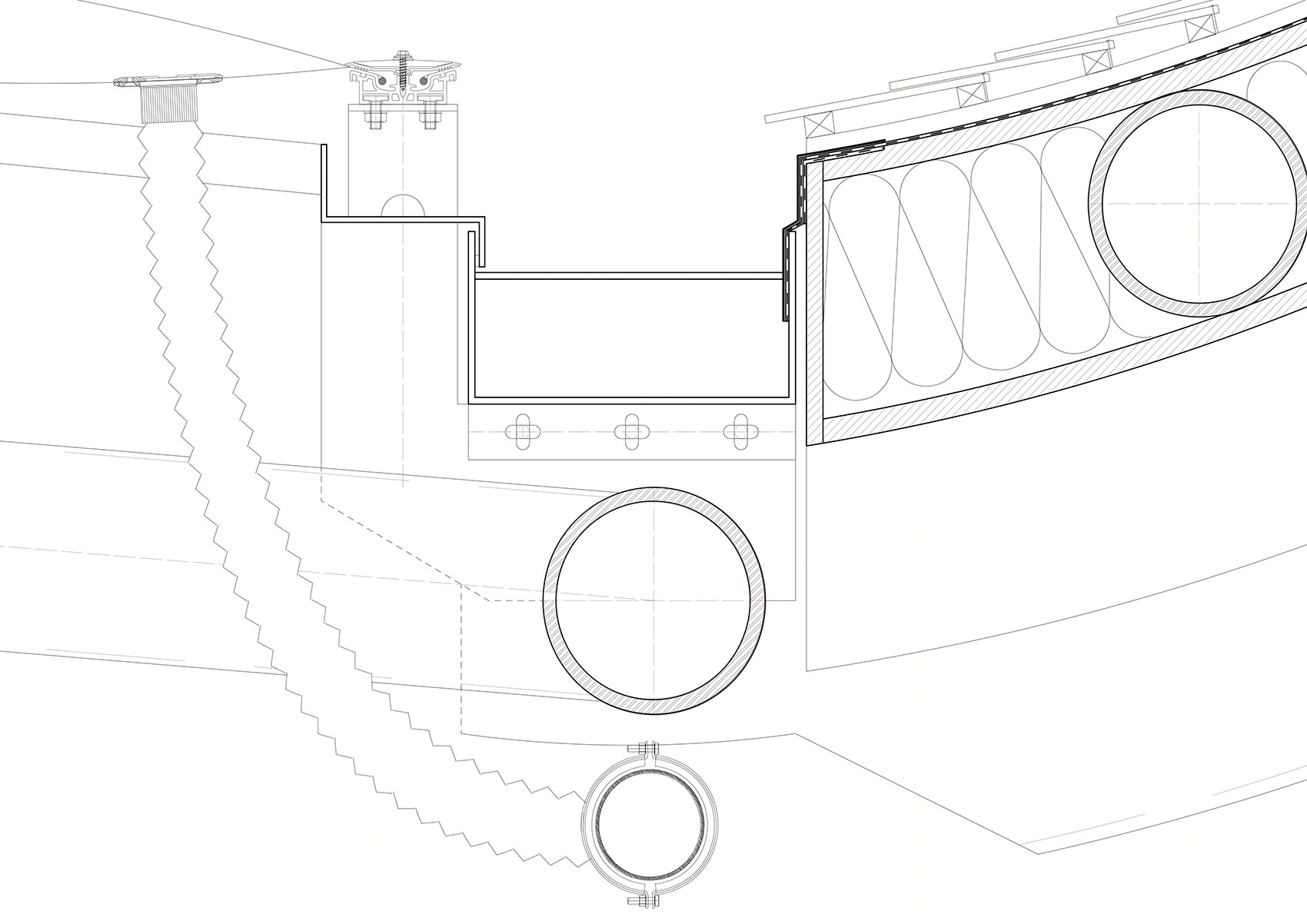

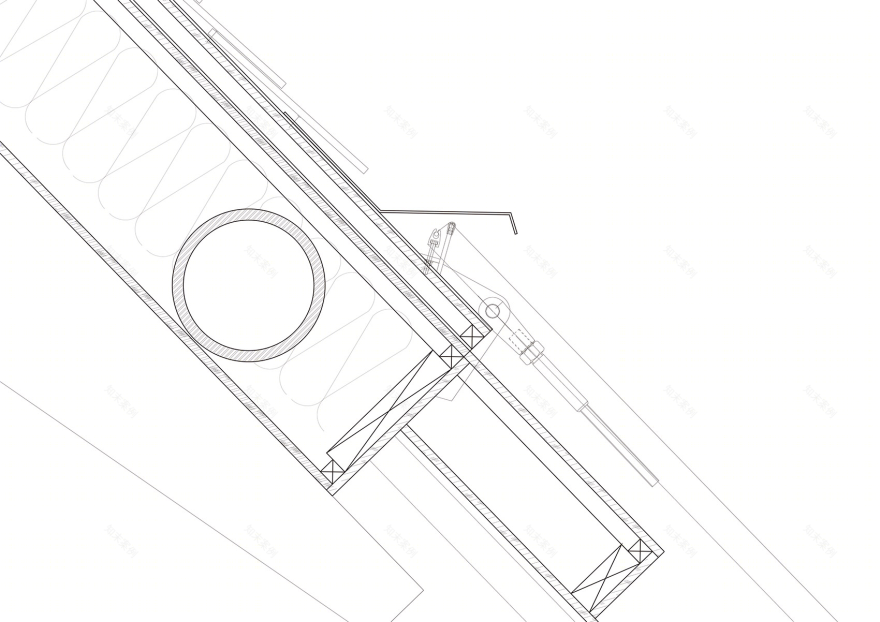

▼节点细部，joints details ©Z-one Tech
