加利昂国际机场林克斯酒店丨OSPA Arquitetura e Urbanismo

Links hotel California international airport

设计方：OSPA Arquitetura e Urbanismo

位置：巴西 里约热内卢

分类：宾馆酒店建筑

内容：实景照片

项目建筑师：Carolina Souza Pinto, Lucas Obino, Cristiano Selbach Carneiro

结构工程师：Klacon Engenharia

设计团队：André Fauri, Carlota Vázquez, Erika Hartmann, Franco Miotto, Gelson Saldanha, Louise Serraglio, Luís

委托人：Ivo Rizzo Construtora e Incorporadora

建筑公司：Klacon Engenharia

建造：Ivo Rizzo Construtora e Incorporadora

图片：52张

摄影师：Marcelo Donadussi

这是由OSPA Arquitetura e Urbanismo设计的加利昂国际机场林克斯酒店。该项目位于里约热内卢的Antônio Carlos Jobim国际机场，这是一个高端

酒店建筑设计

项目，场地面积为480000平方米，建筑面积约10000平方米。该项目位于机场附近，主要服务对象为游客、商务人士以及过境游客。该项目由两个单独的建筑体块组成，一个是服务功能区级服务区，另一个是酒店公寓。两栋建筑使用了两条走道相连接。基于附近机场对建筑高度的限制，该项目以横向设计优化酒店运营，增加酒店客房单元。鉴于该项目施工时间有限，建筑结构主要使用了预制混凝土。该项目还考虑了能源效率，如利用太阳能电池板取暖、绿色屋顶和自动化系统。

译者： 艾比

This project received an honorable mention in ABCIC Prize (Brazilian Association Industrialized Concrete Construction) in 2013.The project consists of the architectural design of an executive hotel, located in Rio de Janeiro’s Antônio Carlos Jobim International Airport, on a site with an area of 4,800.00 square meters and a building area of approximately 10,000 m². As it is near the airport, it is located in the area of Infraero, the main target audience are tourists, business people and people in transit.

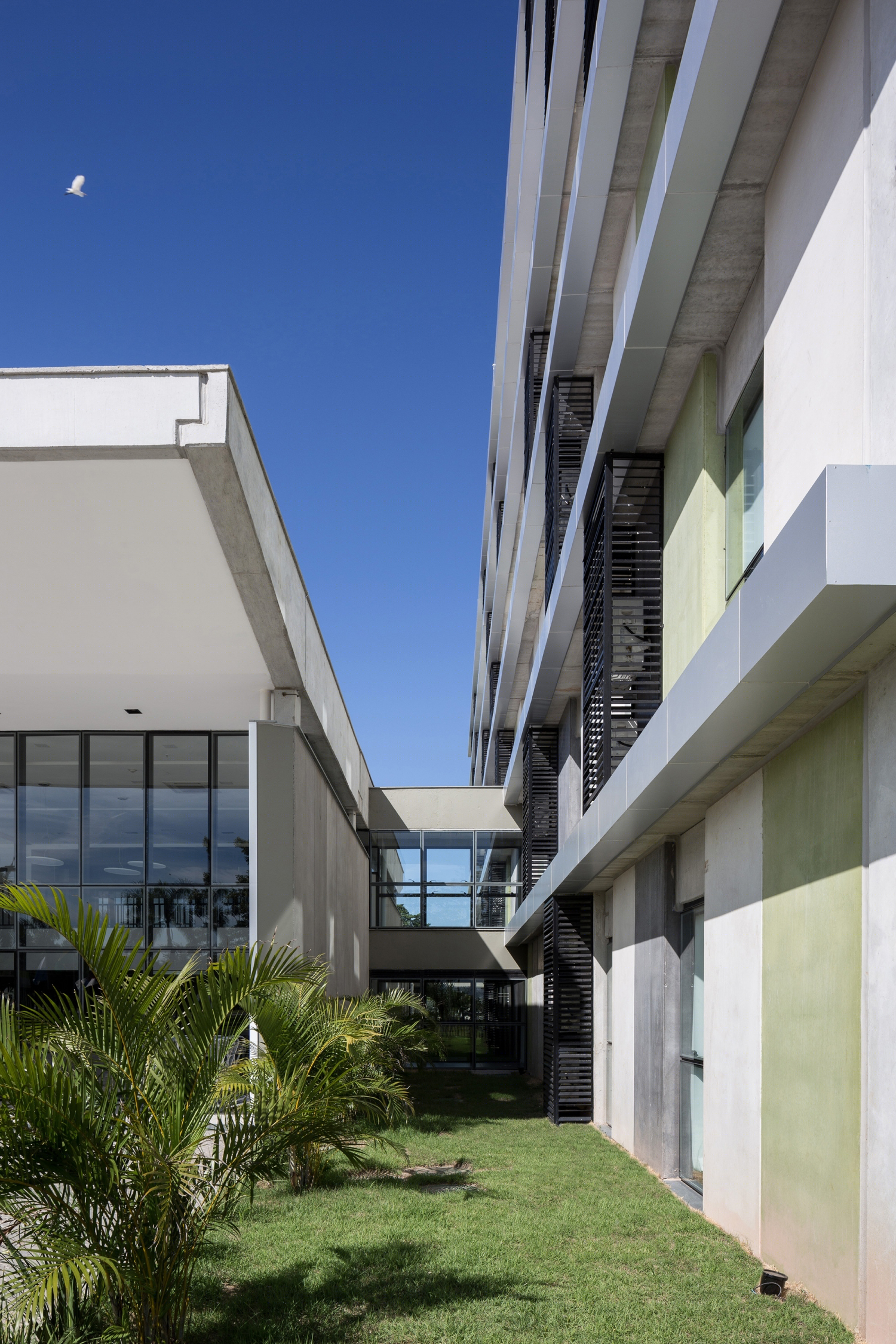

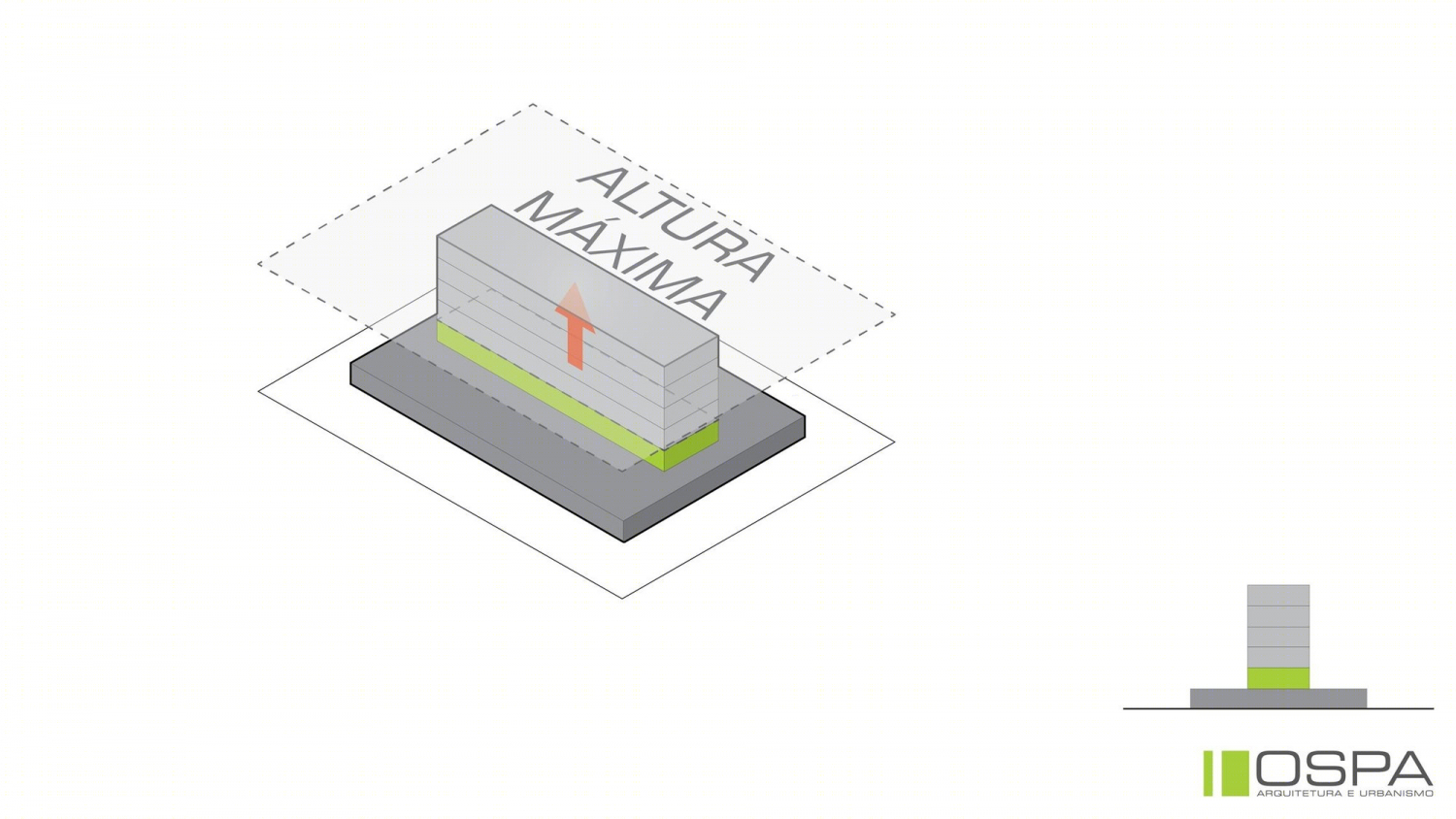

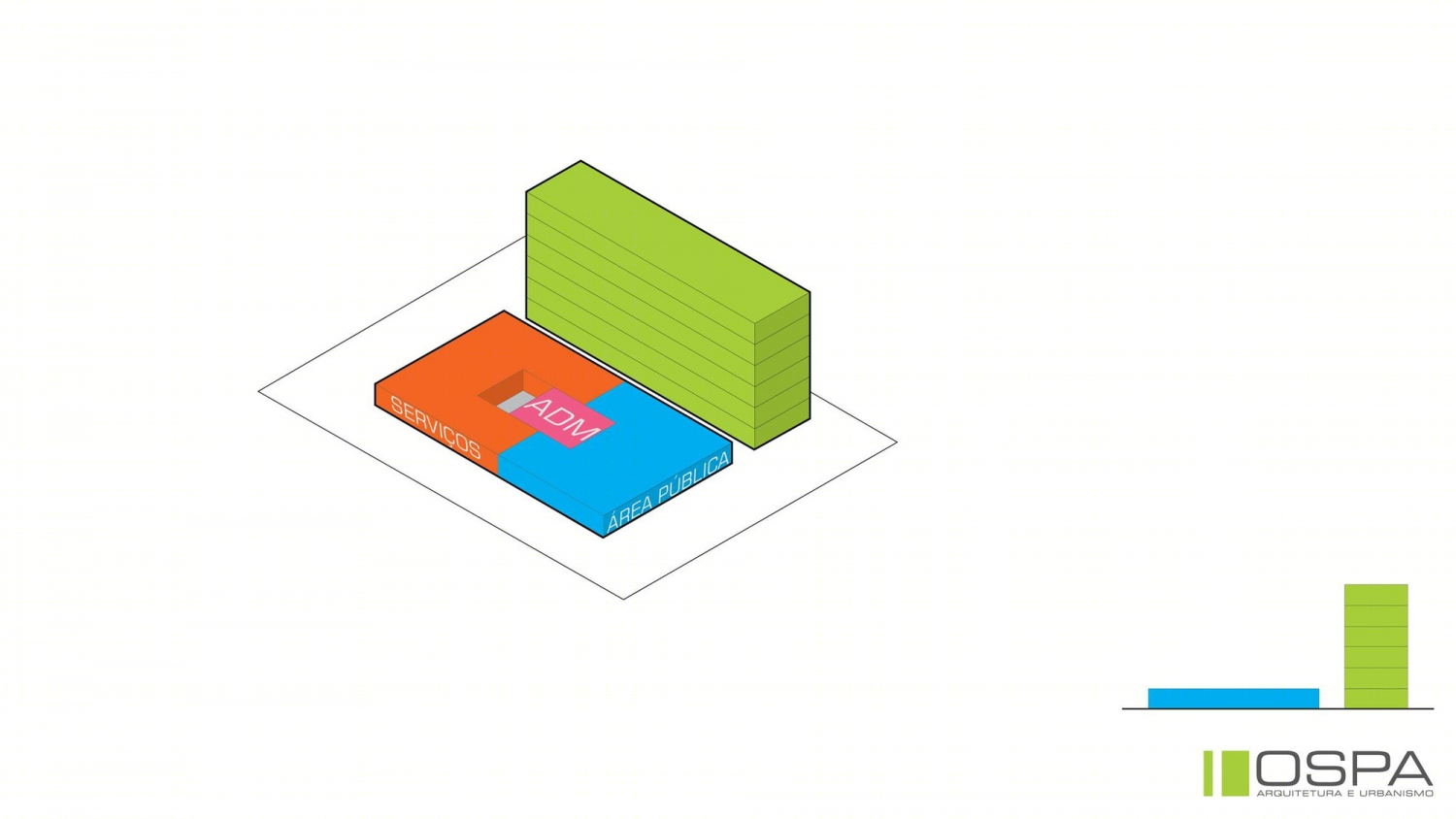

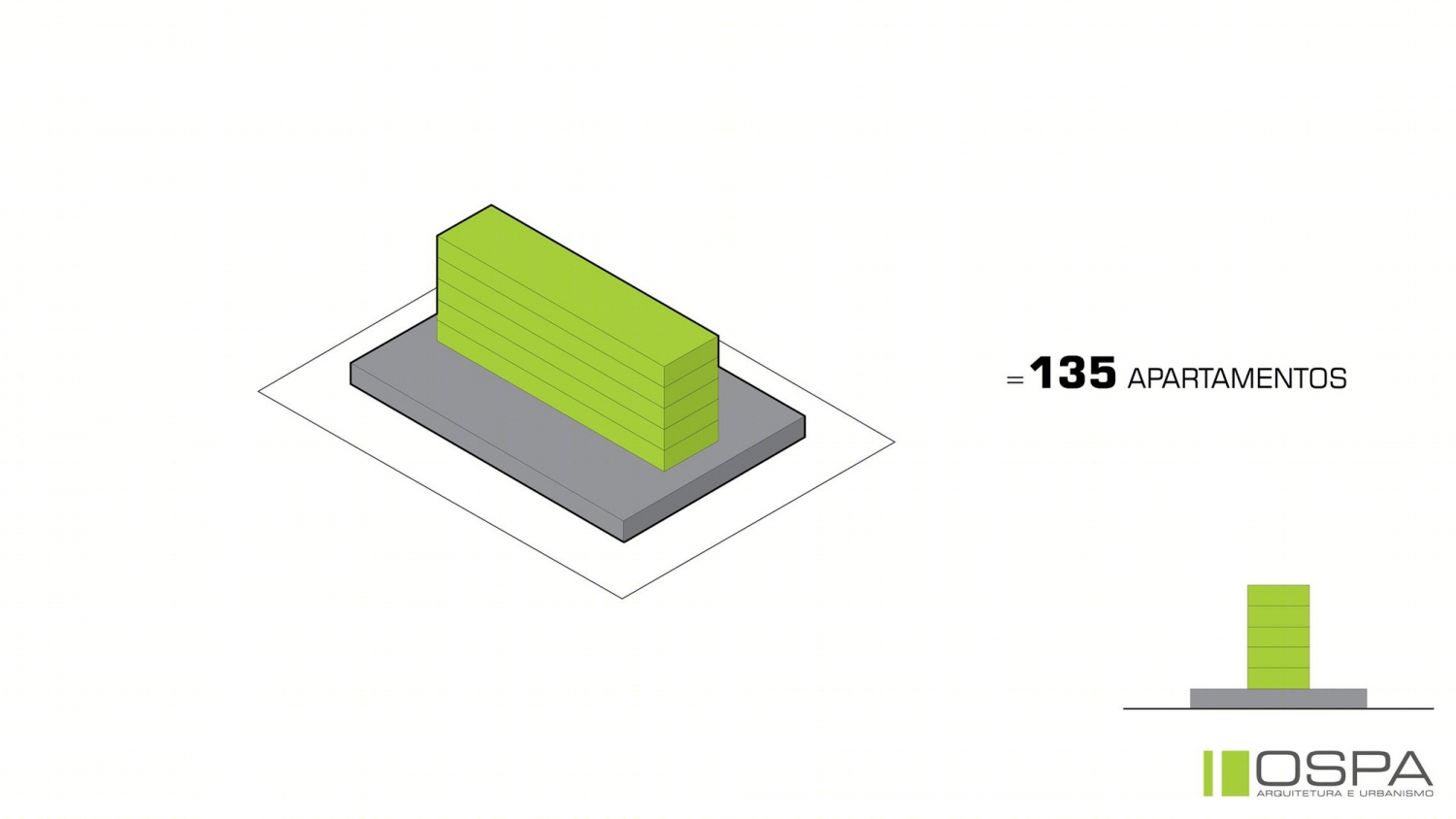

The hotel program is located in two separate buildings, one for social areas and services (volume 1 – Annex), and one for the apartments (volume 2), both are joined by two walkways on the first two floors. Based on the height limitations due to the proximity of the airport, the volume of flats stretches to the ground floor in order to optimize the hotel operations, increasing the number of units available.Volume 1 has two floors. To the front of the ground floor and on the second floor (mezzanine and terrace) are the social areas. At the back of the ground floor is the service area.

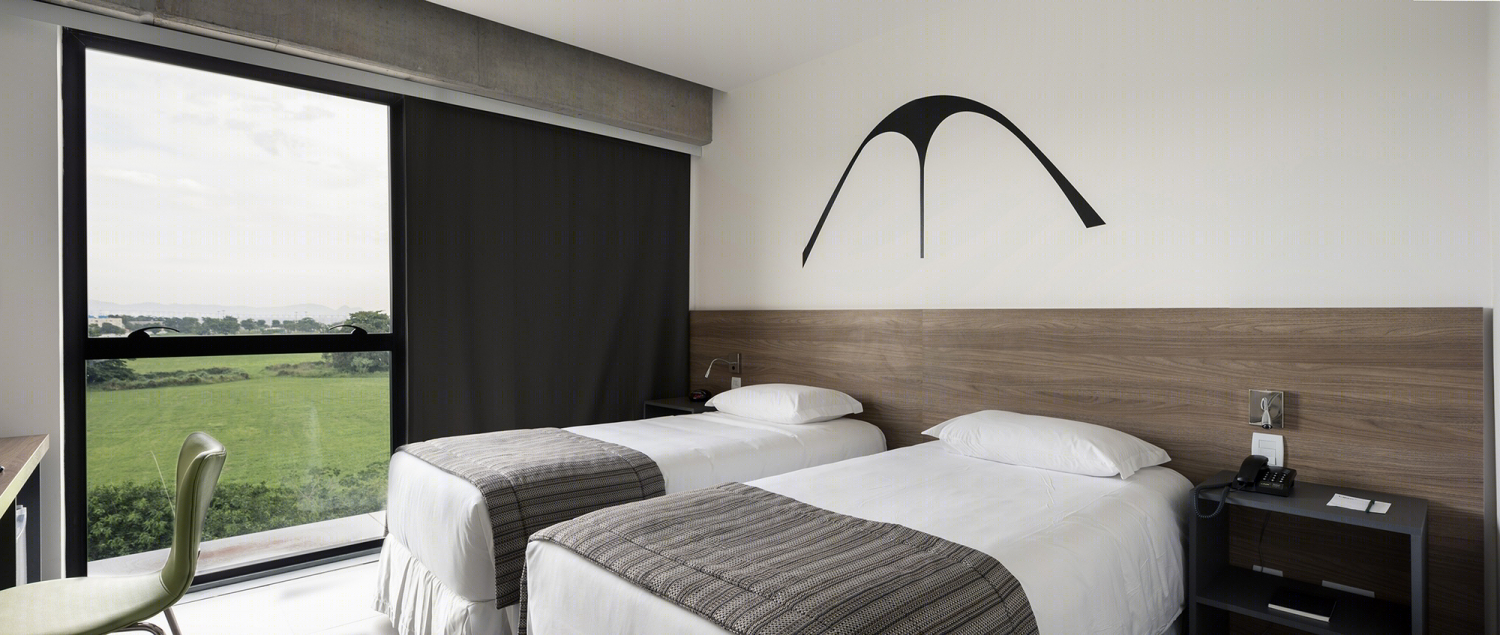

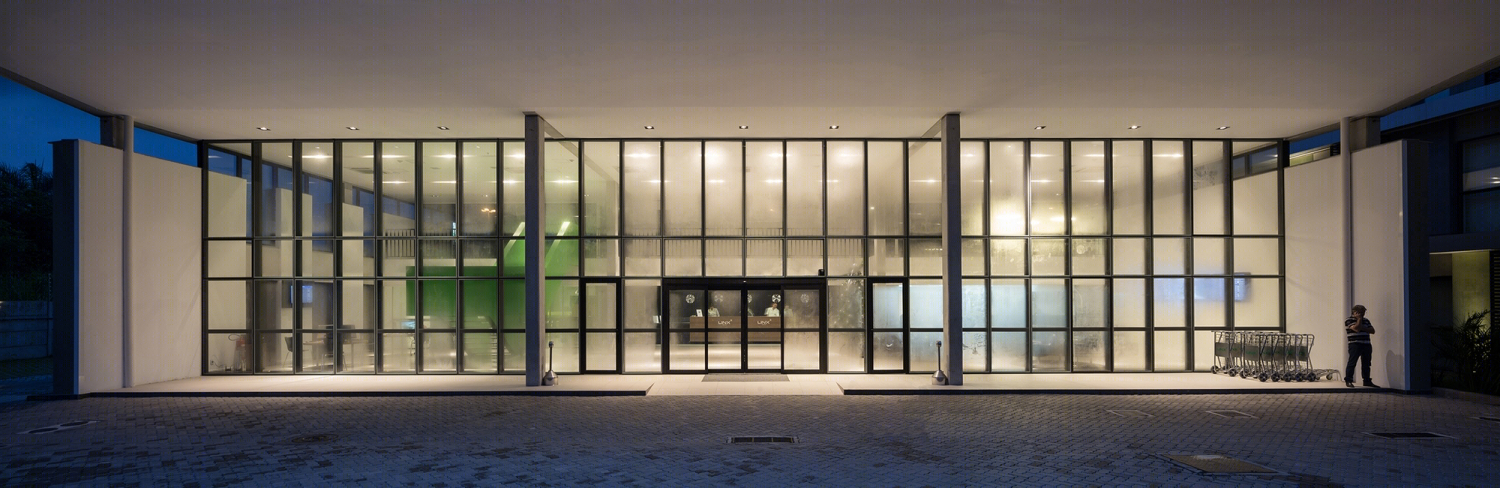

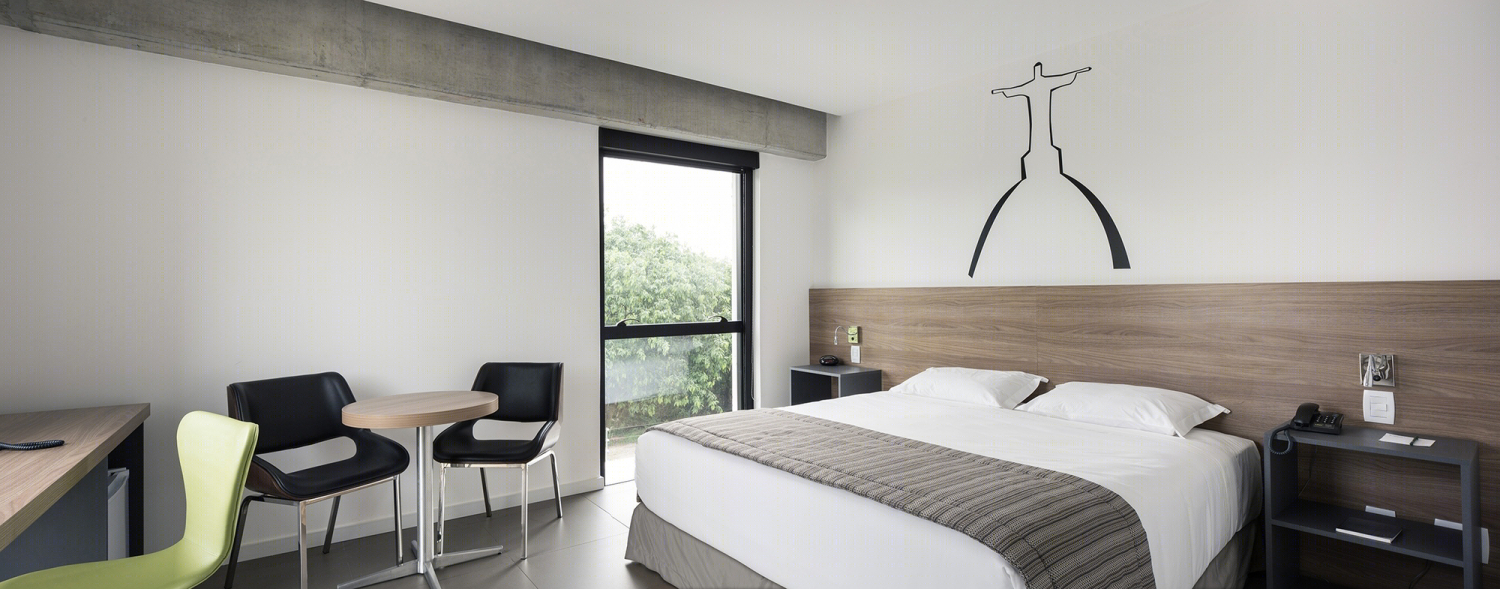

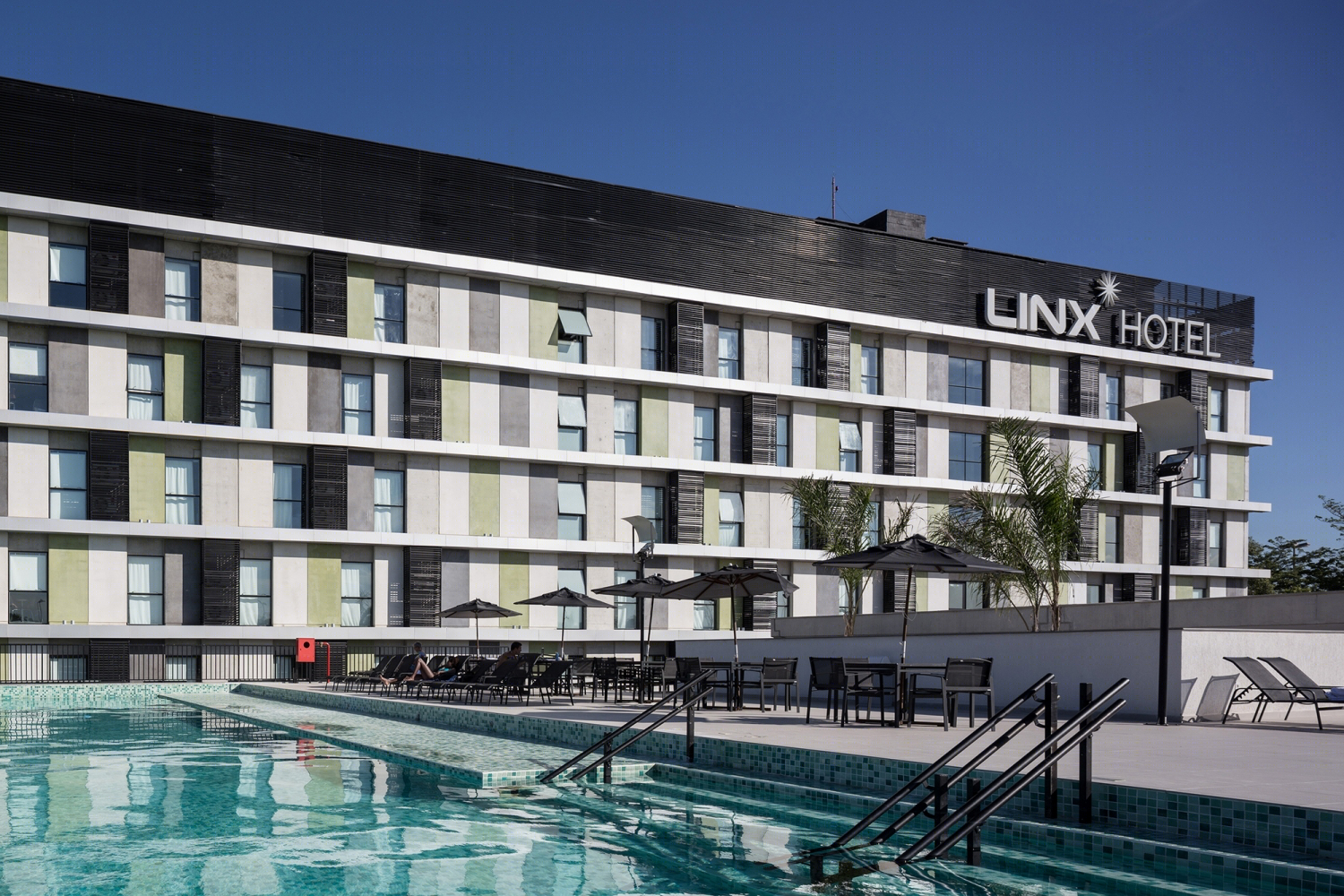

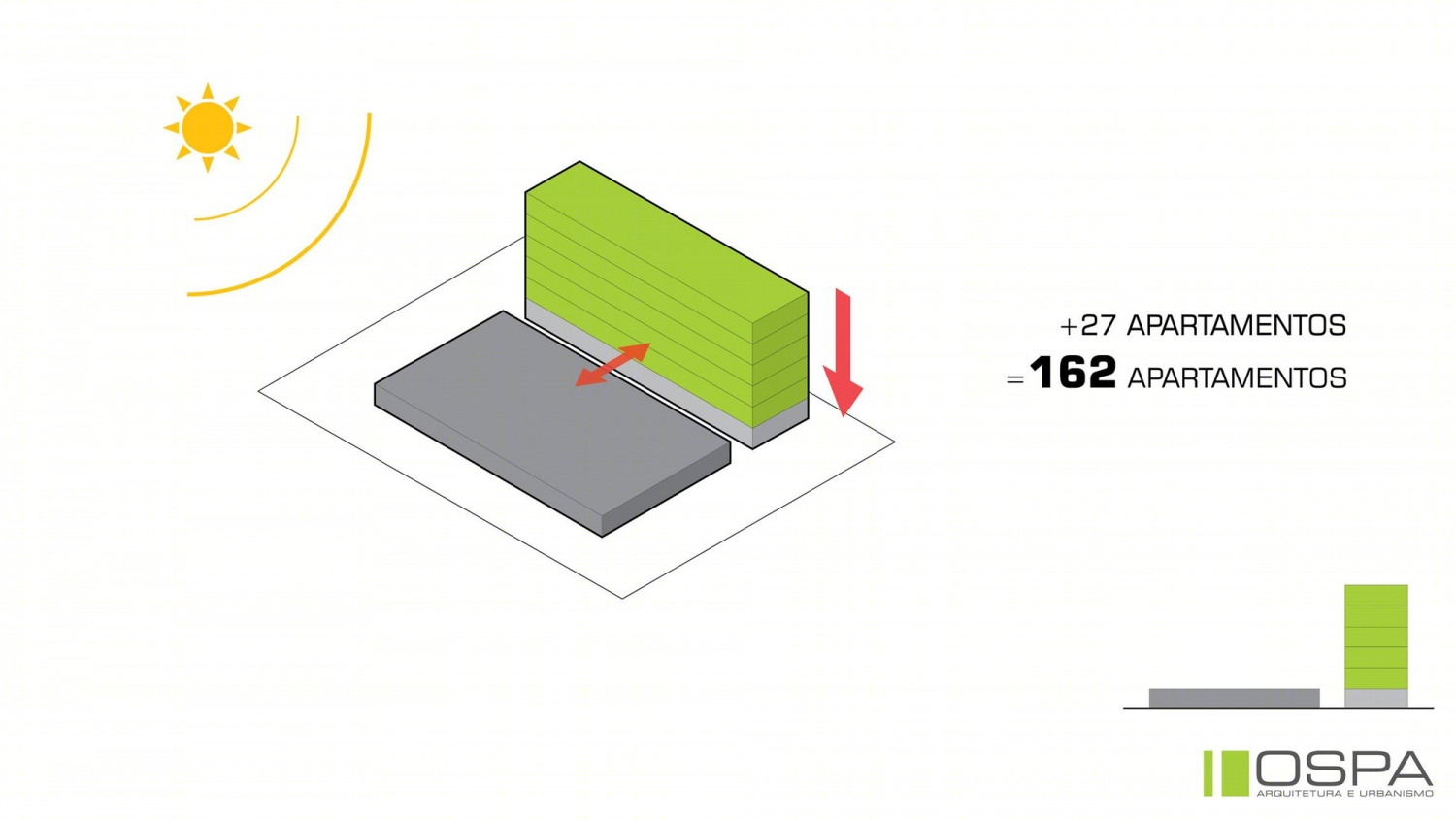

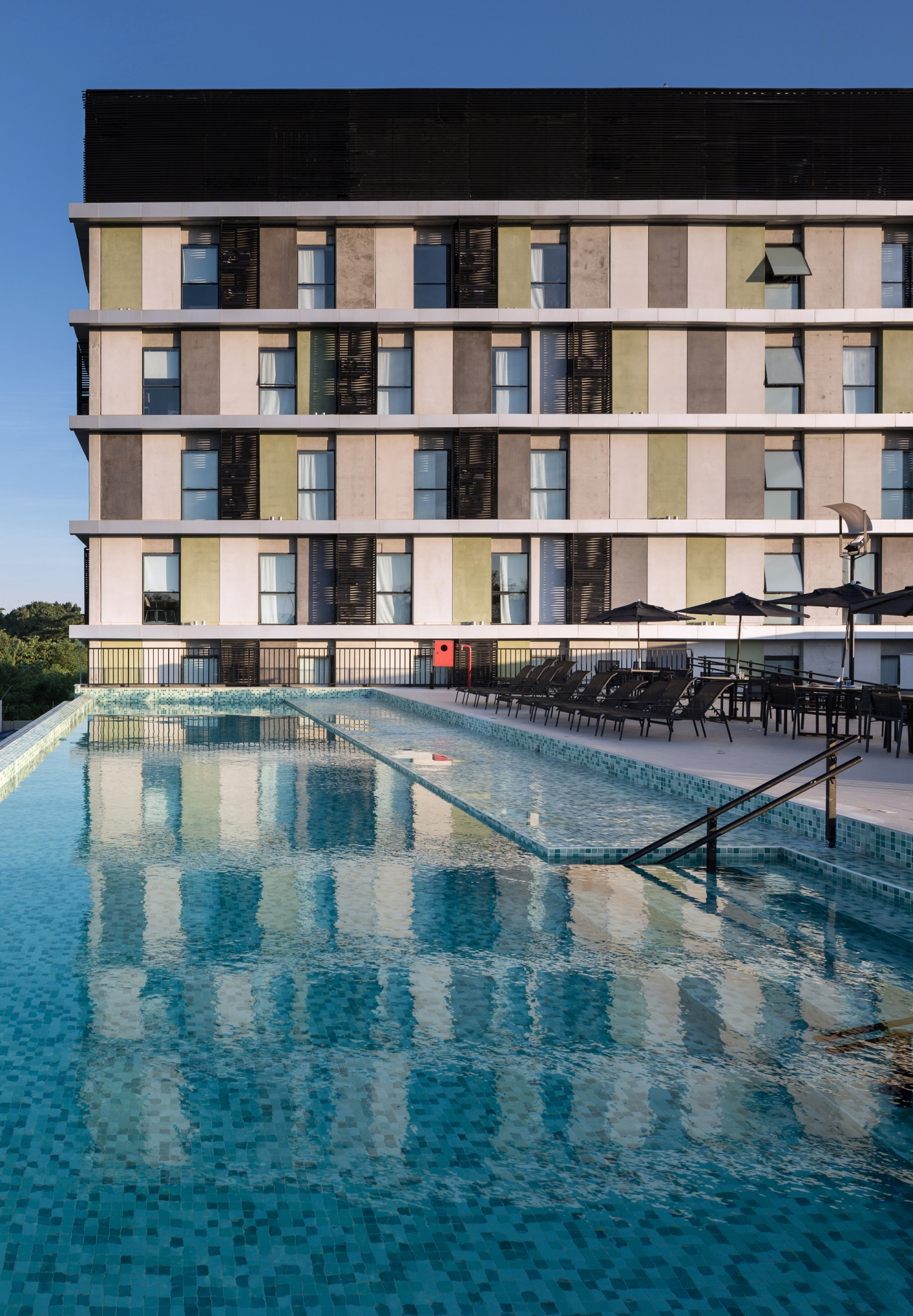

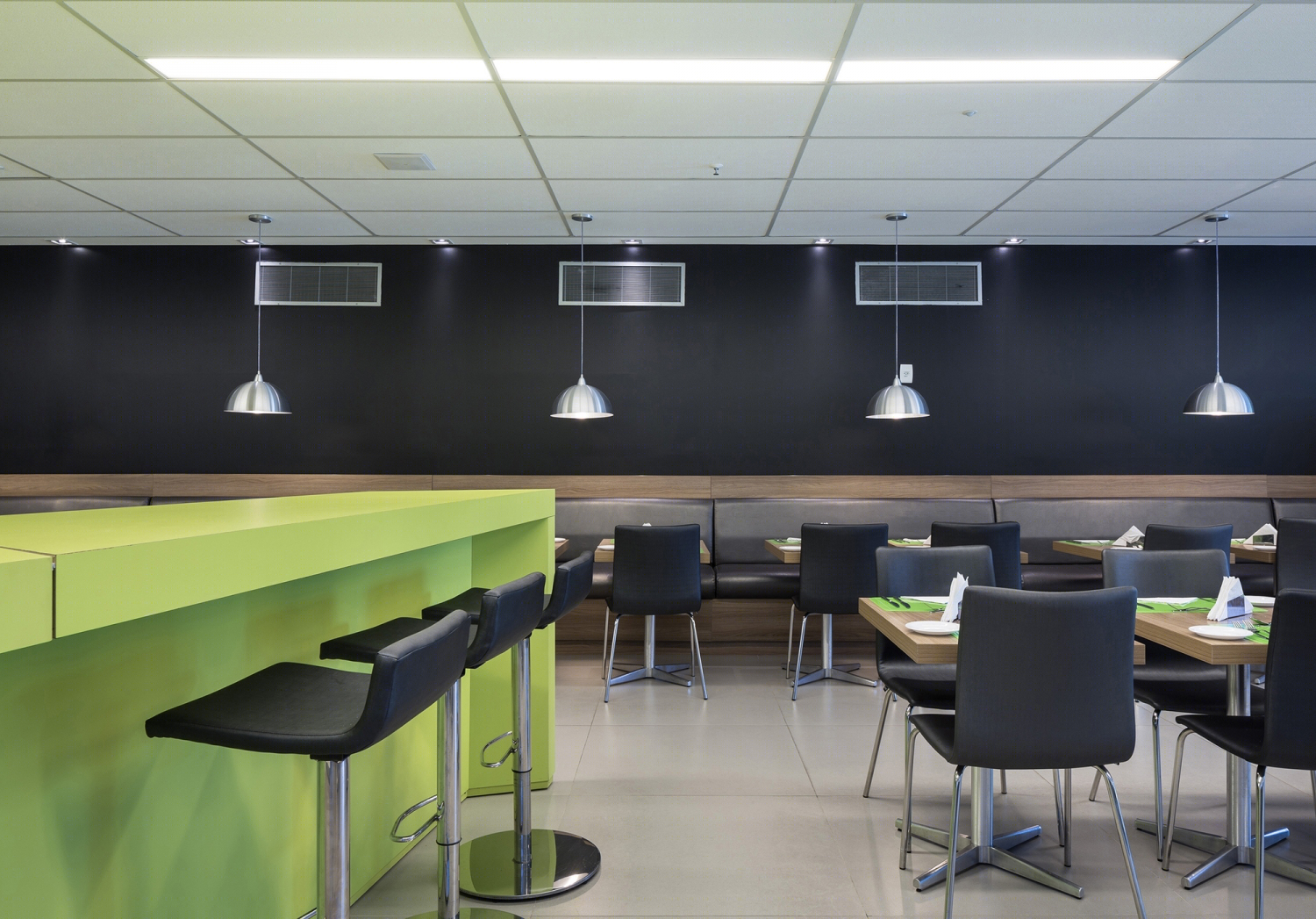

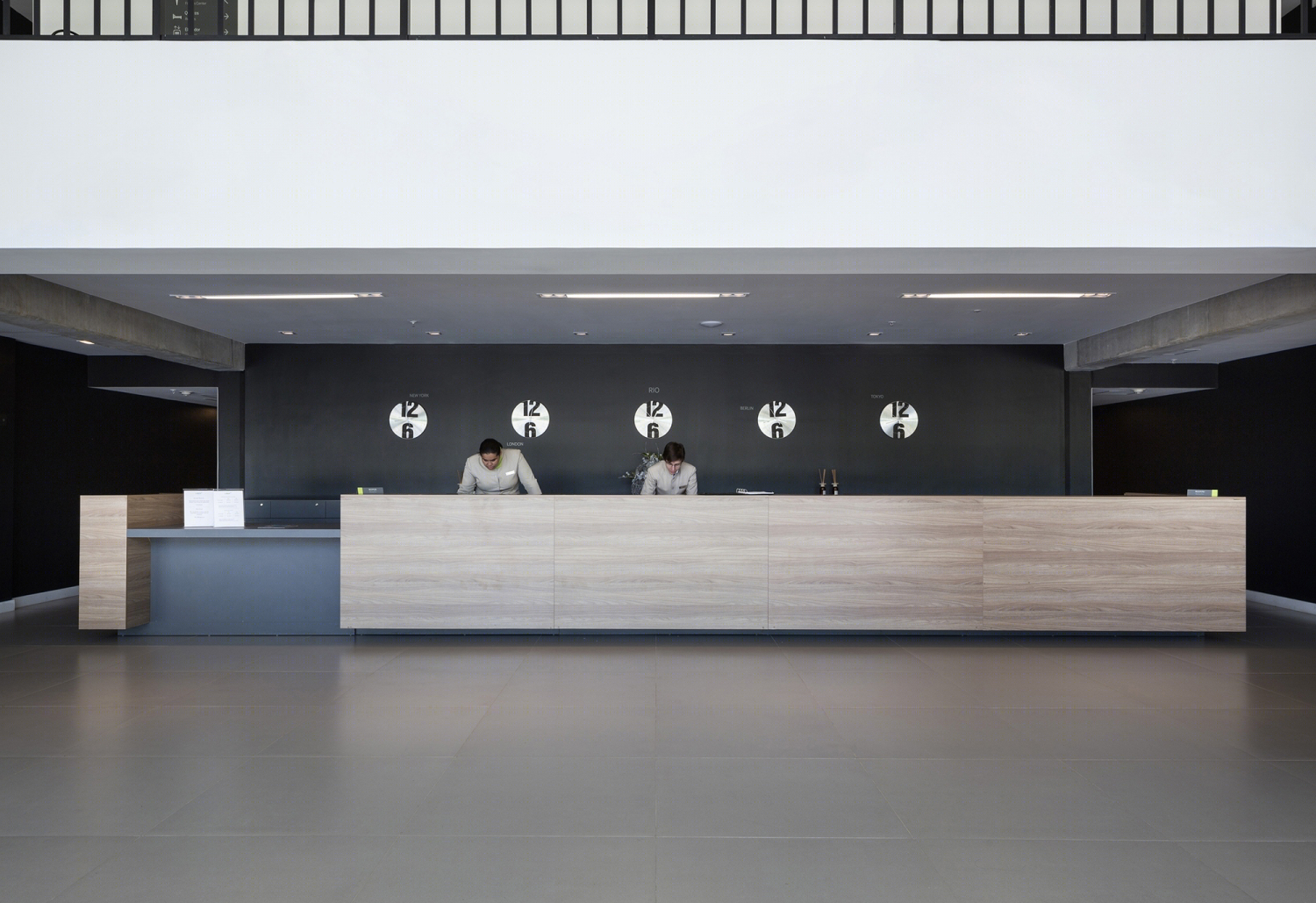

A covered parking lot leads guests to the hotel lobby, in Volume 1, which features a reception desk, doors, balconies, internet access for guest use, restaurant and cafe in the social area. On the mezzanine (second floor), there is access to the terrace, which has a swimming pool with two swimming lanes, living spaces, bar / restaurant, gym and locker rooms. One on the ground floor and one on the mezzanine – plus two meeting rooms for hire were contemplated. Walkways on the ground floor and the mezzanine lead guests to volume 2, where the elevator hall and the apartments are located.Volume 2 houses a total of 162 apartments spread over six floors – from the ground floor to the fifth floor.Each floor consists of a wardrobe, social and service elevators, two staircases intended for emergency exits and 27 apartments, those at the ends (front and back) are larger in size, and nine of them accommodate guests with special needs.

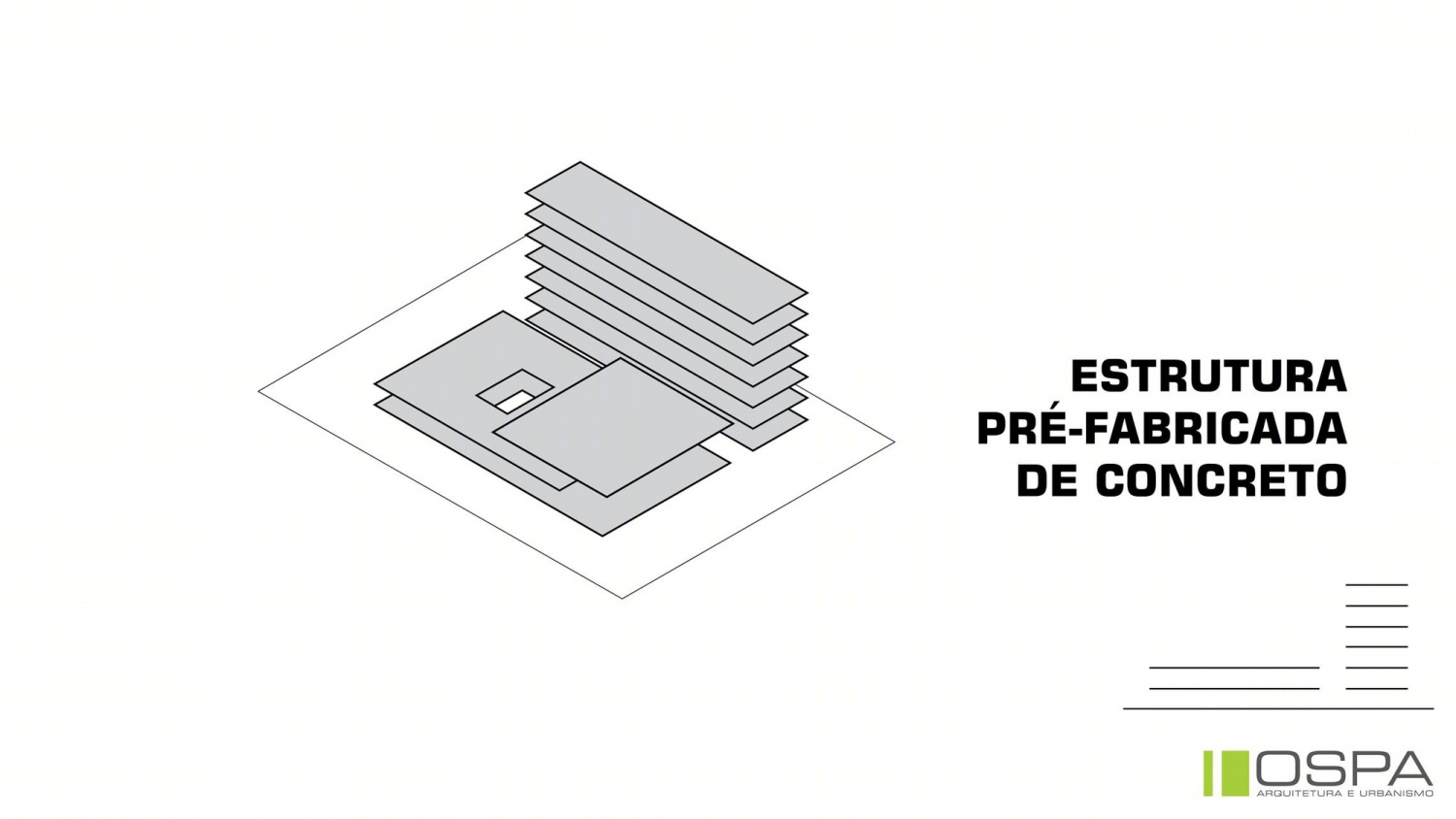

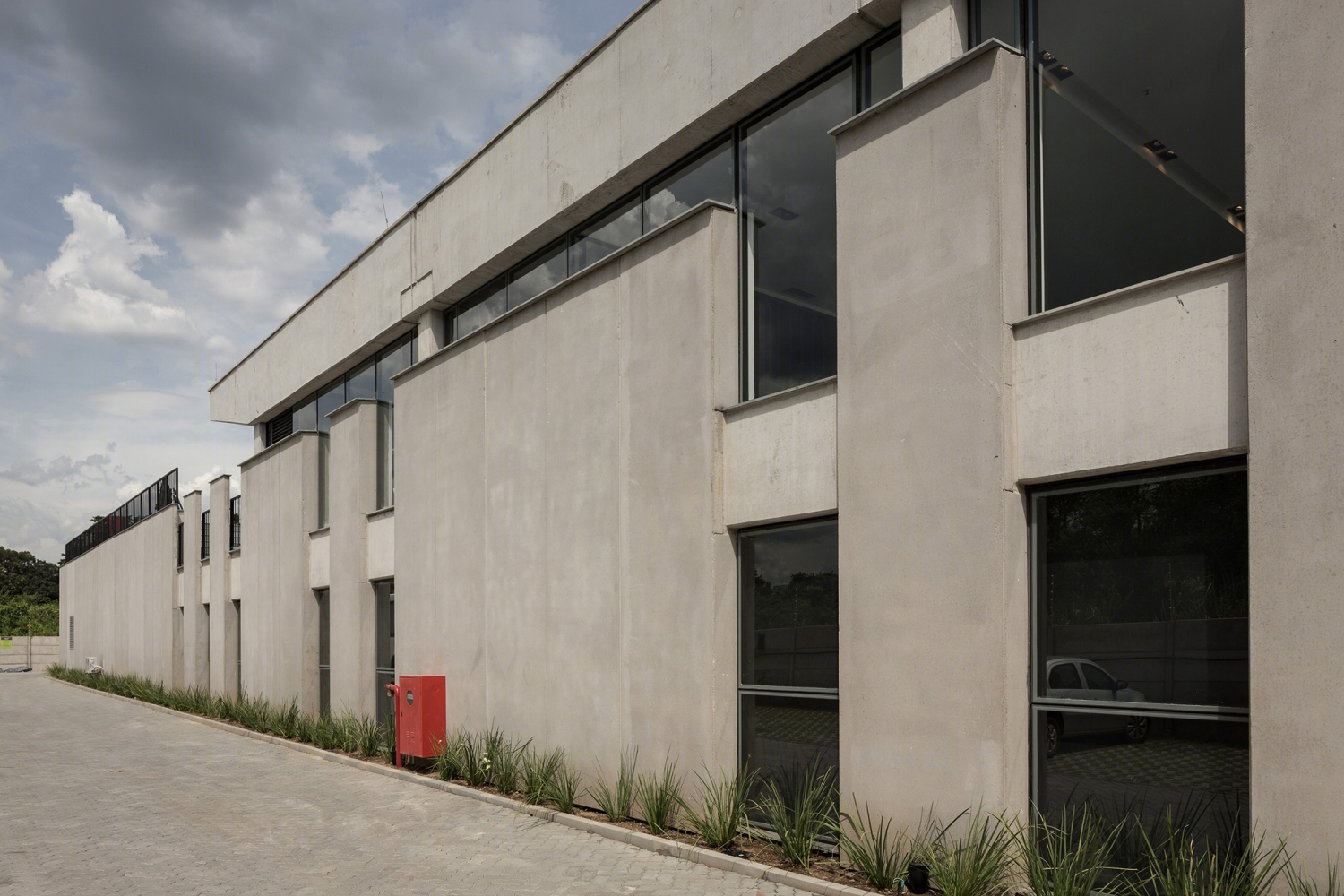

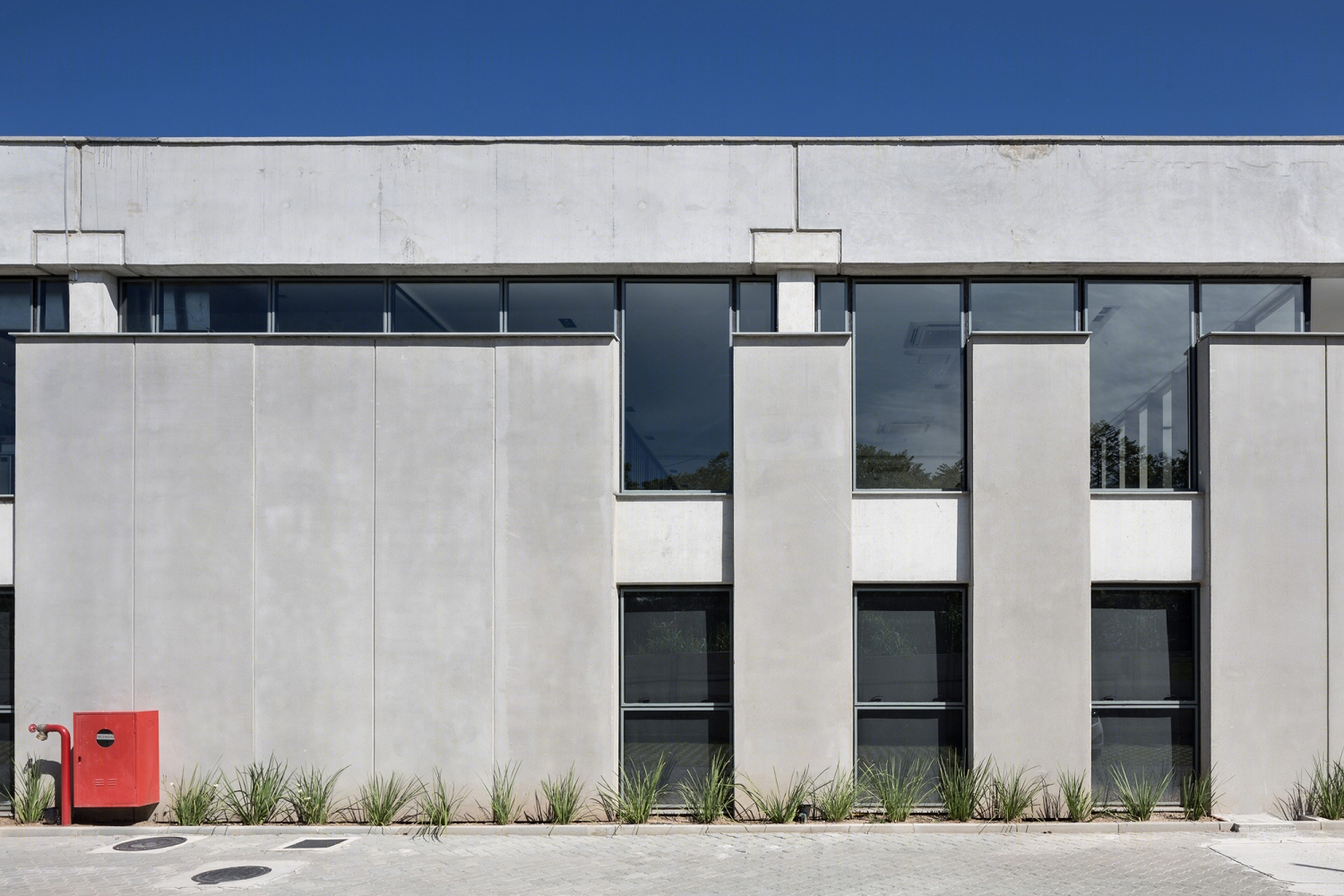

Given the limited time frame for the construction of the project, the structure of the hotel is predominantly precast concrete, sealing is done with precast concrete panels and bathrooms were supplied in ready modules. The project also contemplates the use of various resources related to energy efficiency, such as the use of solar panels for heating, green roofs and automation systems.

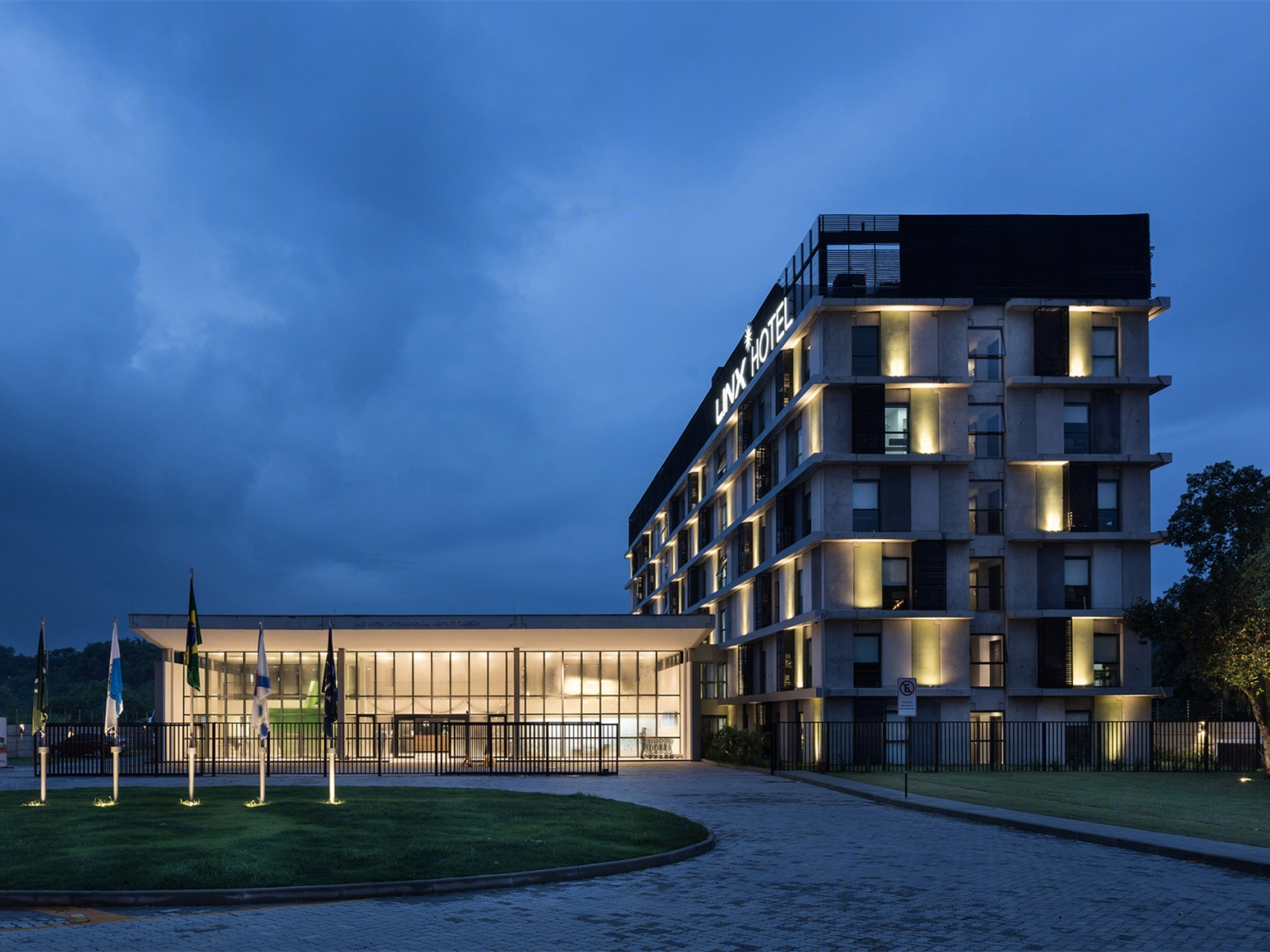

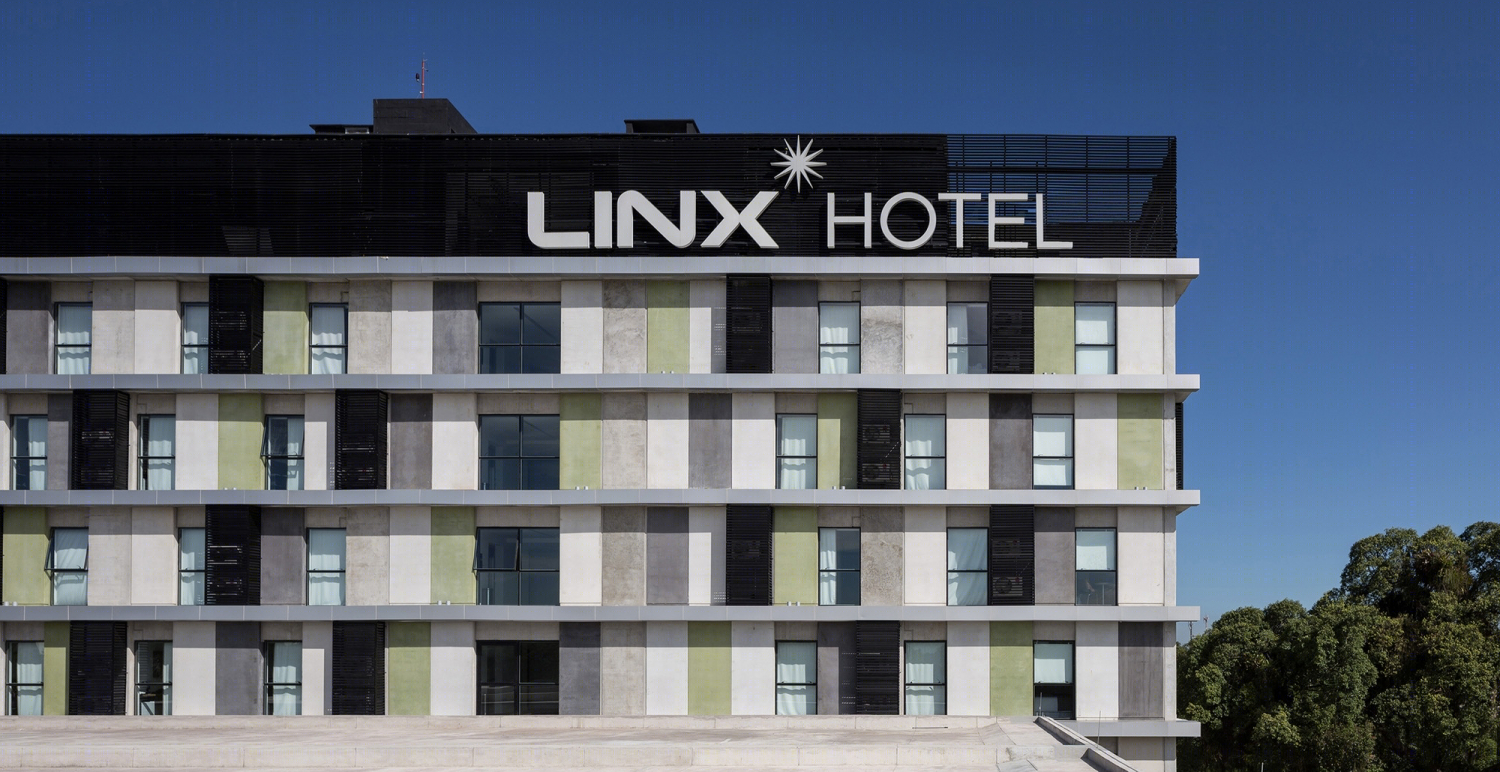

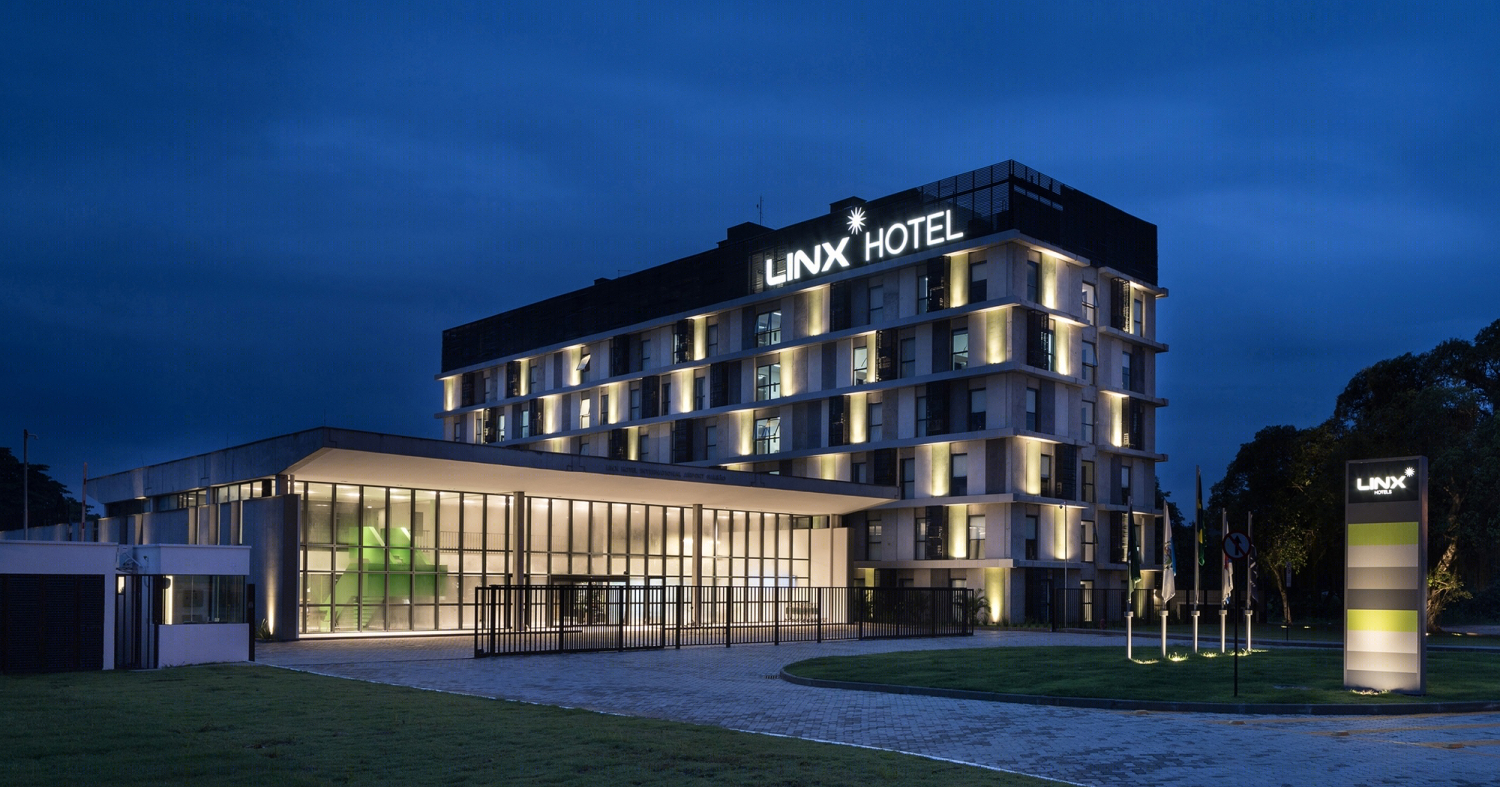

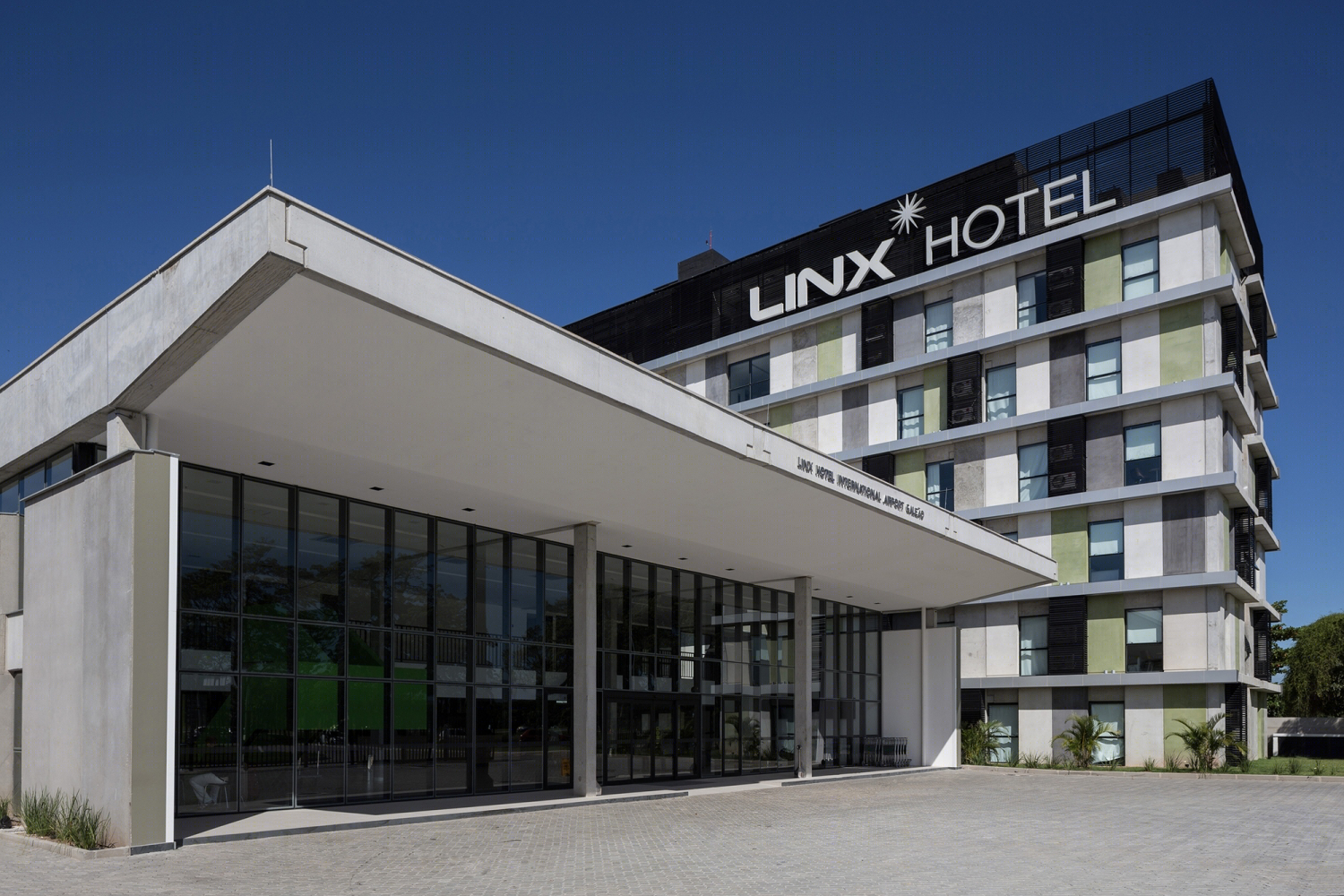

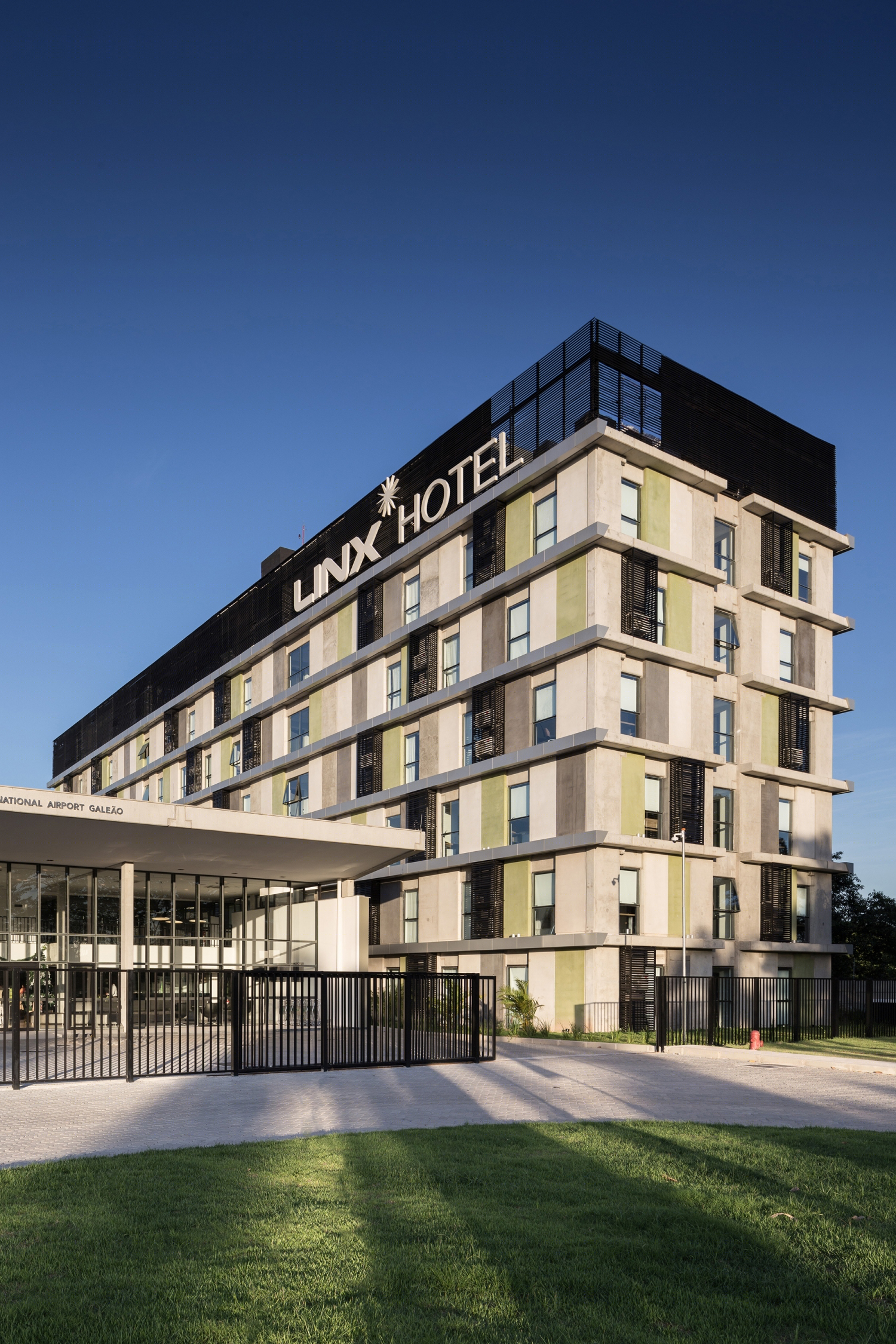

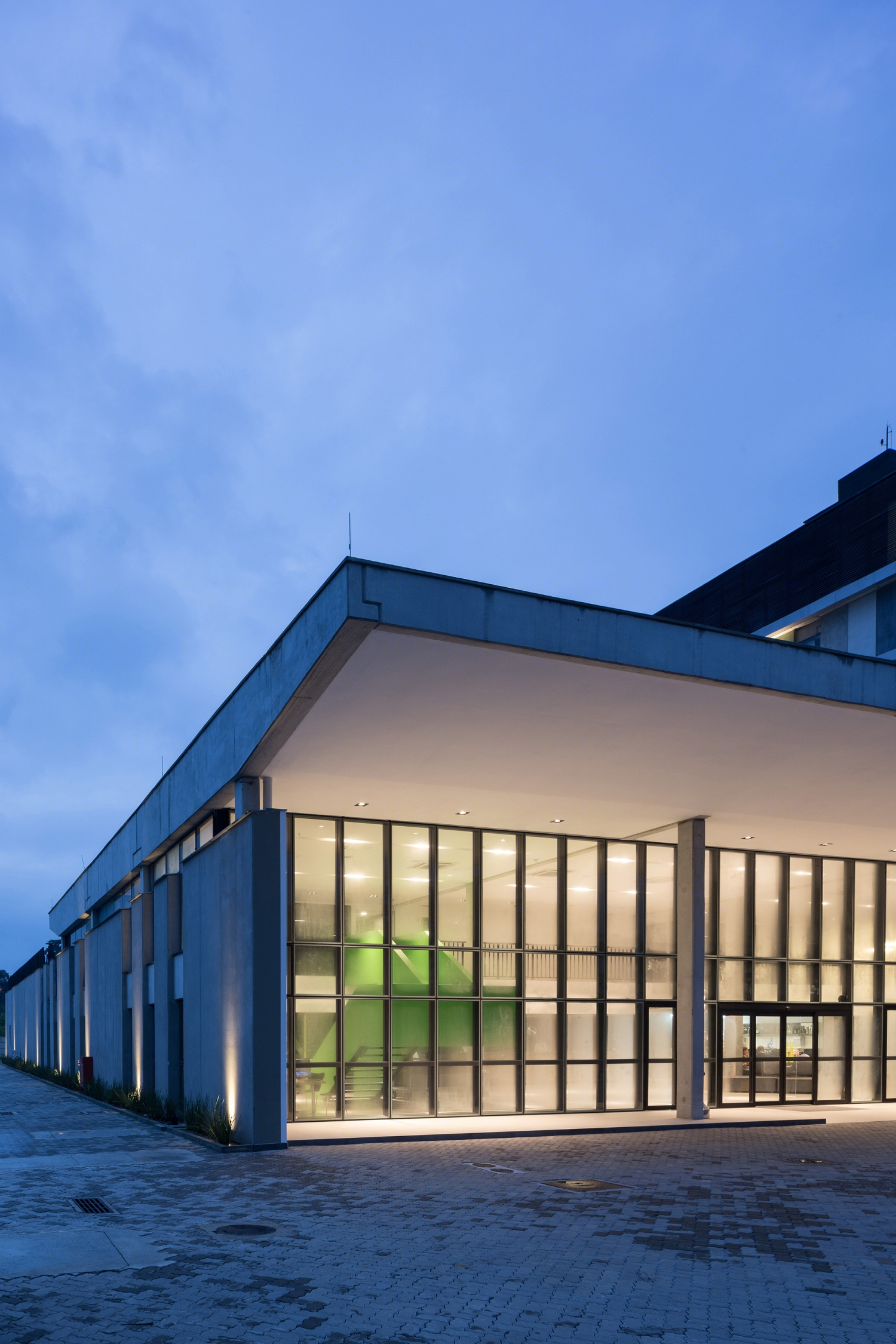

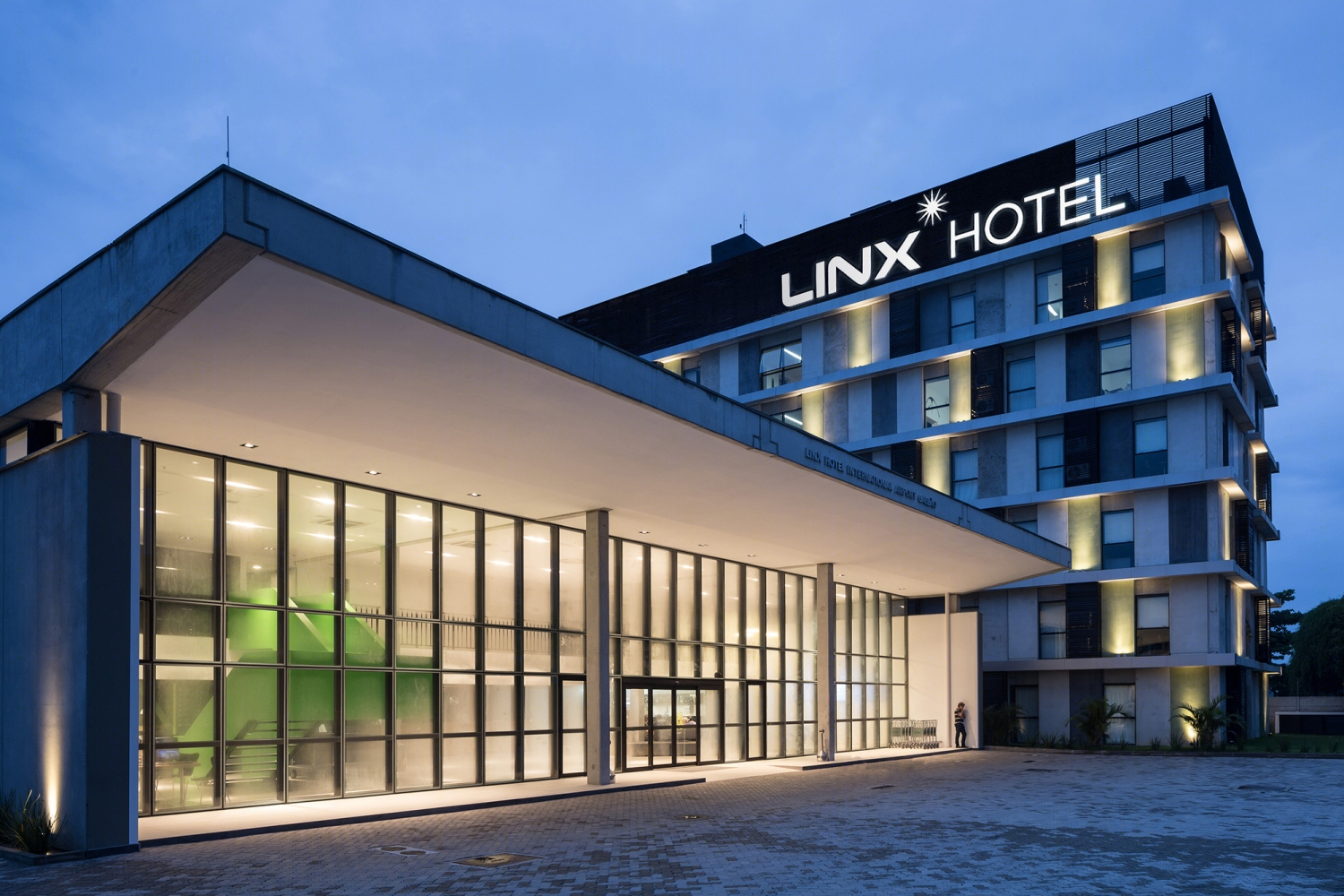

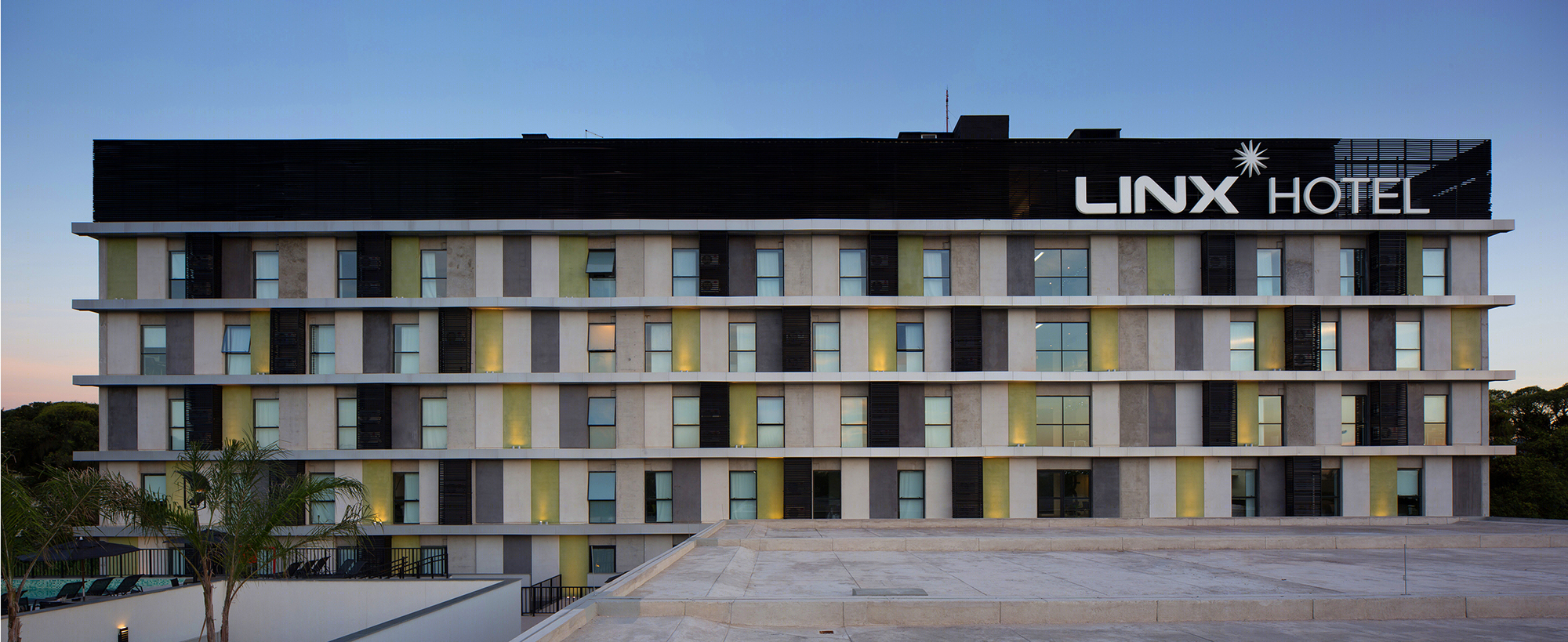

加利昂国际机场林克斯酒店外观图

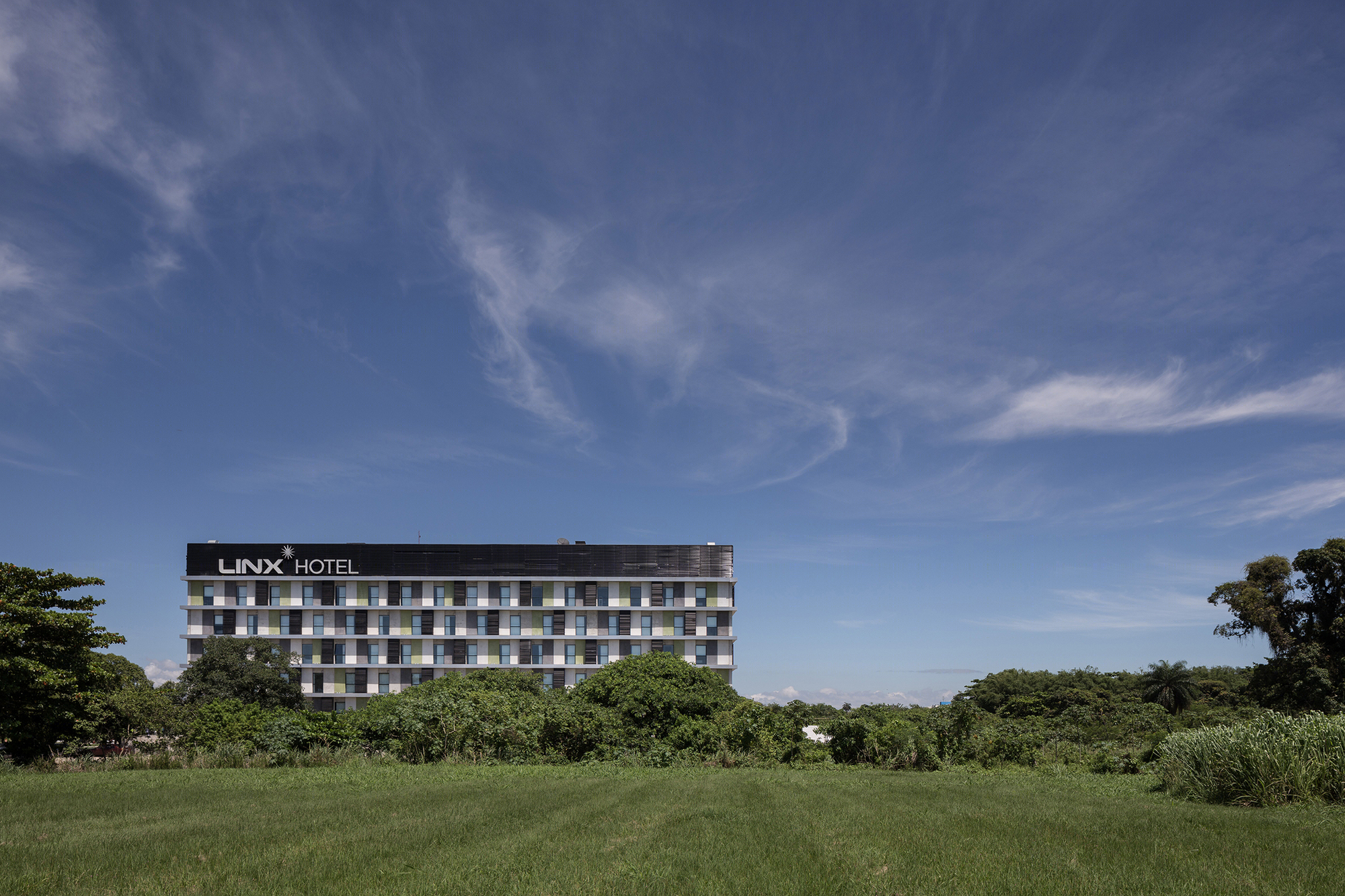

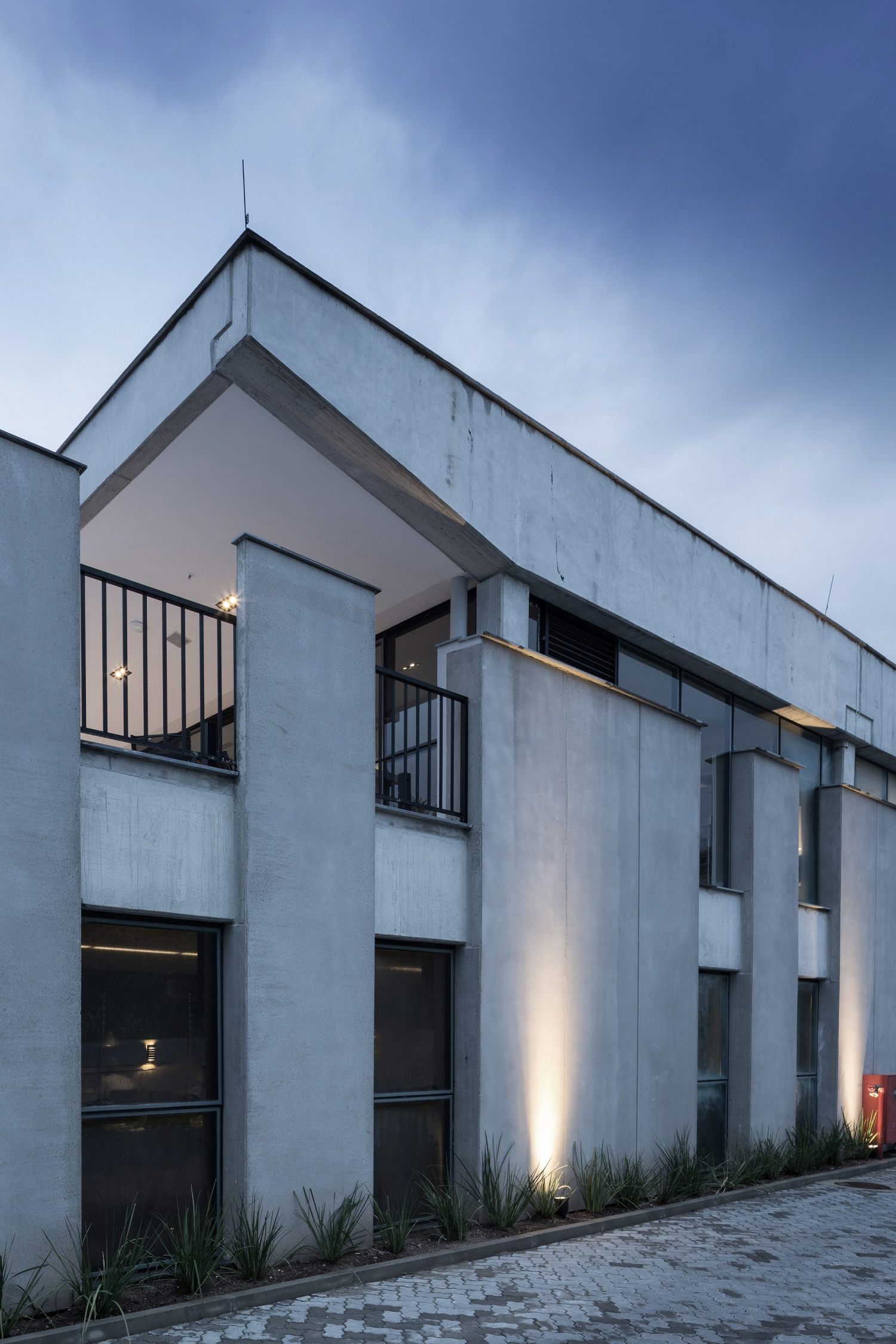

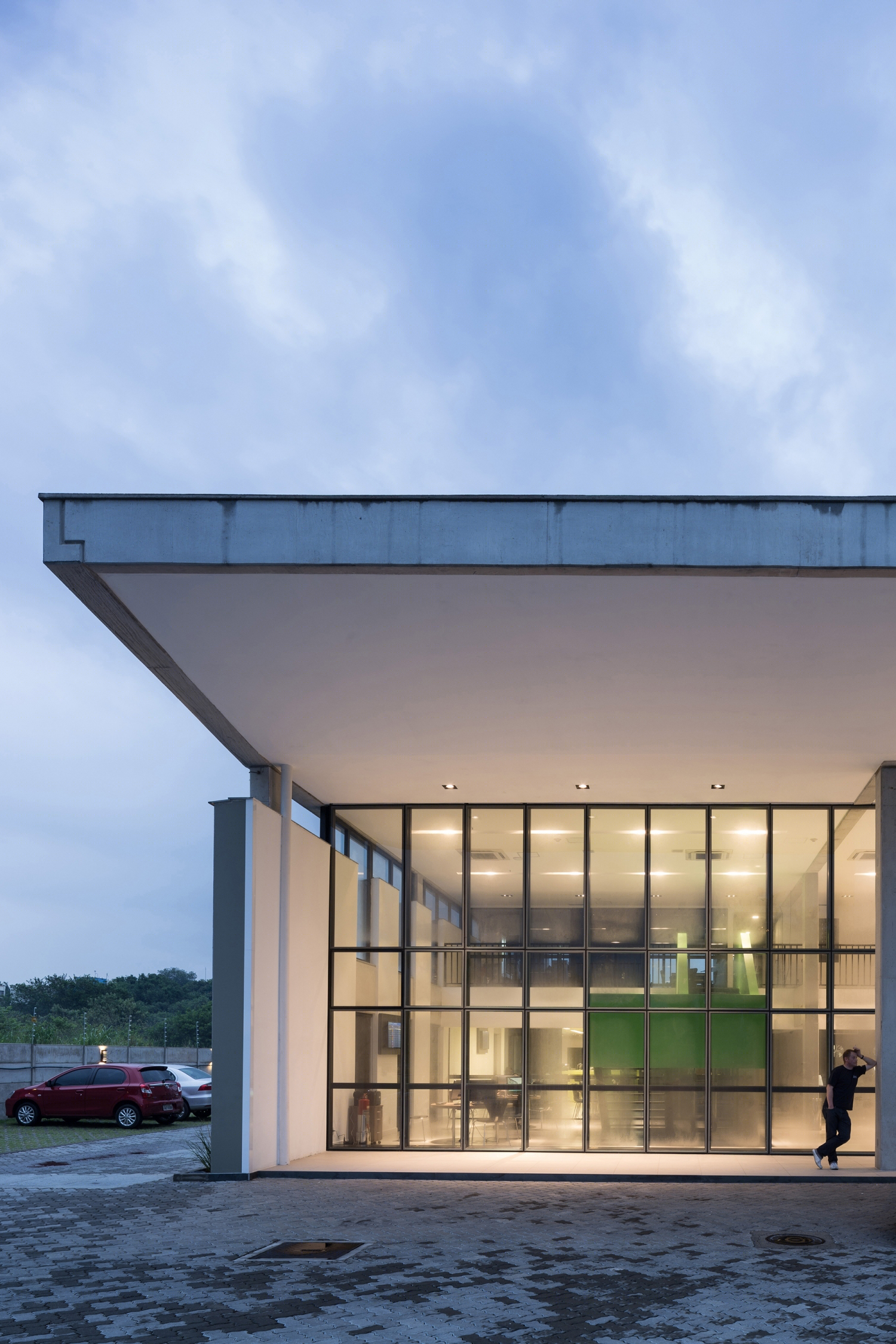

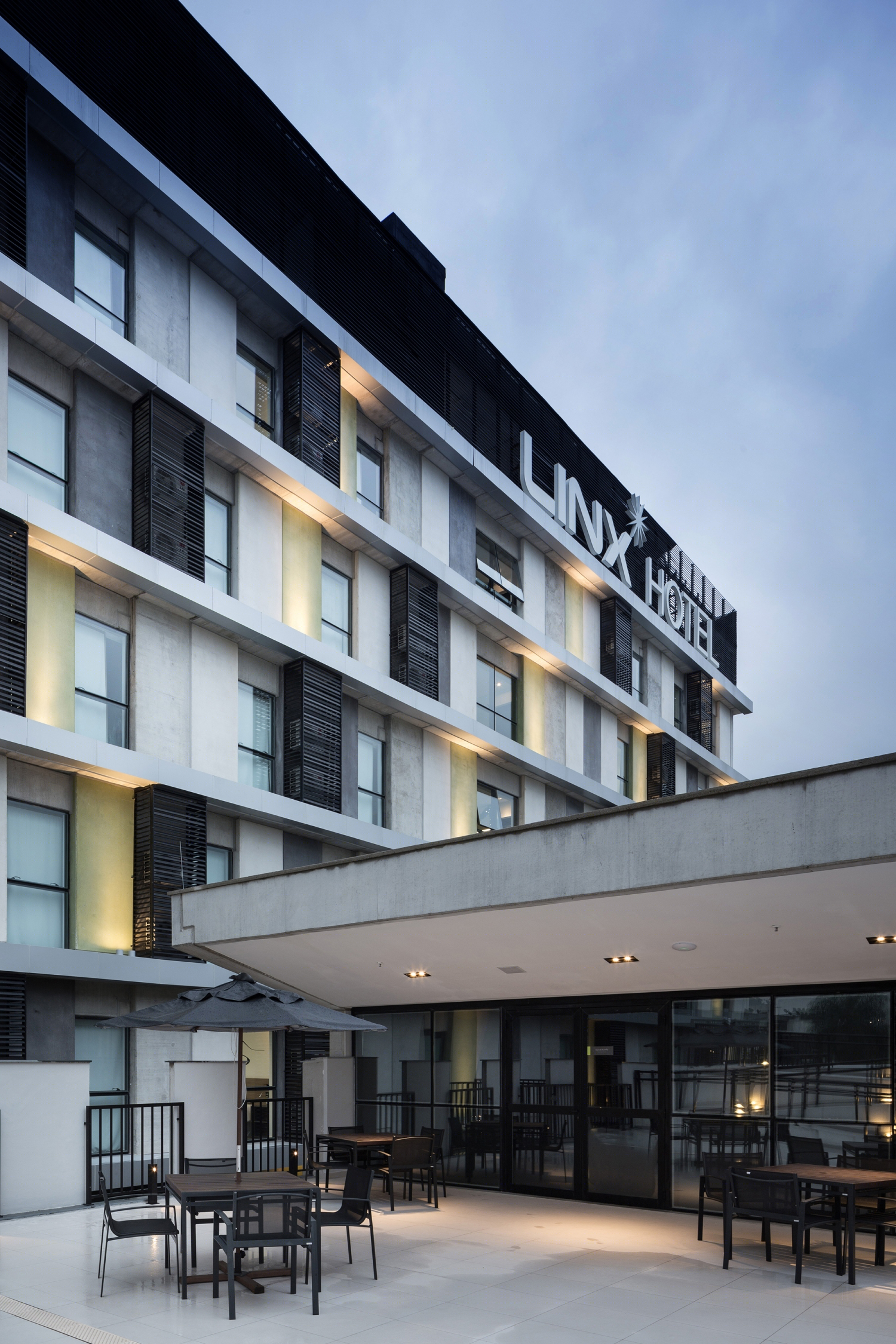

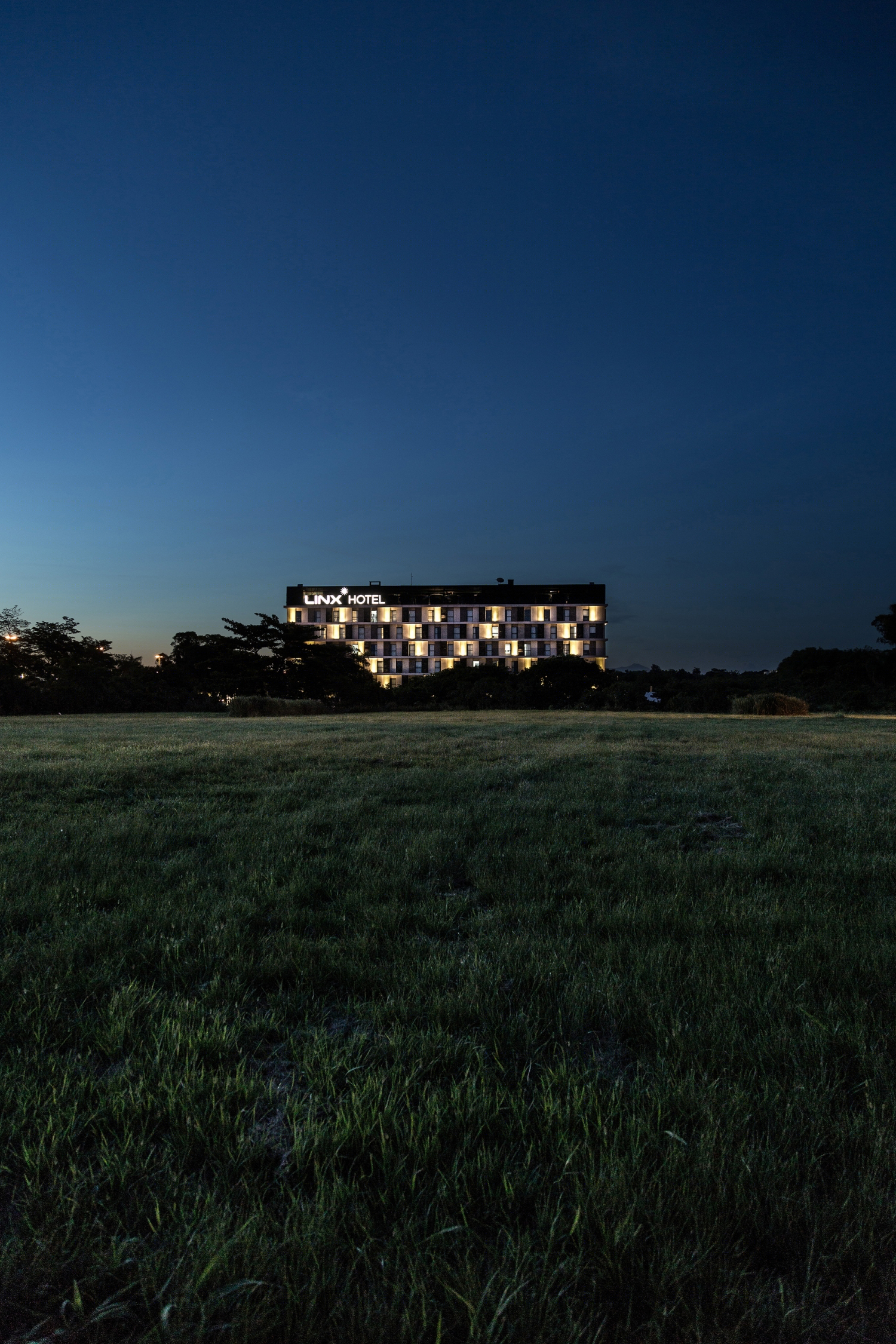

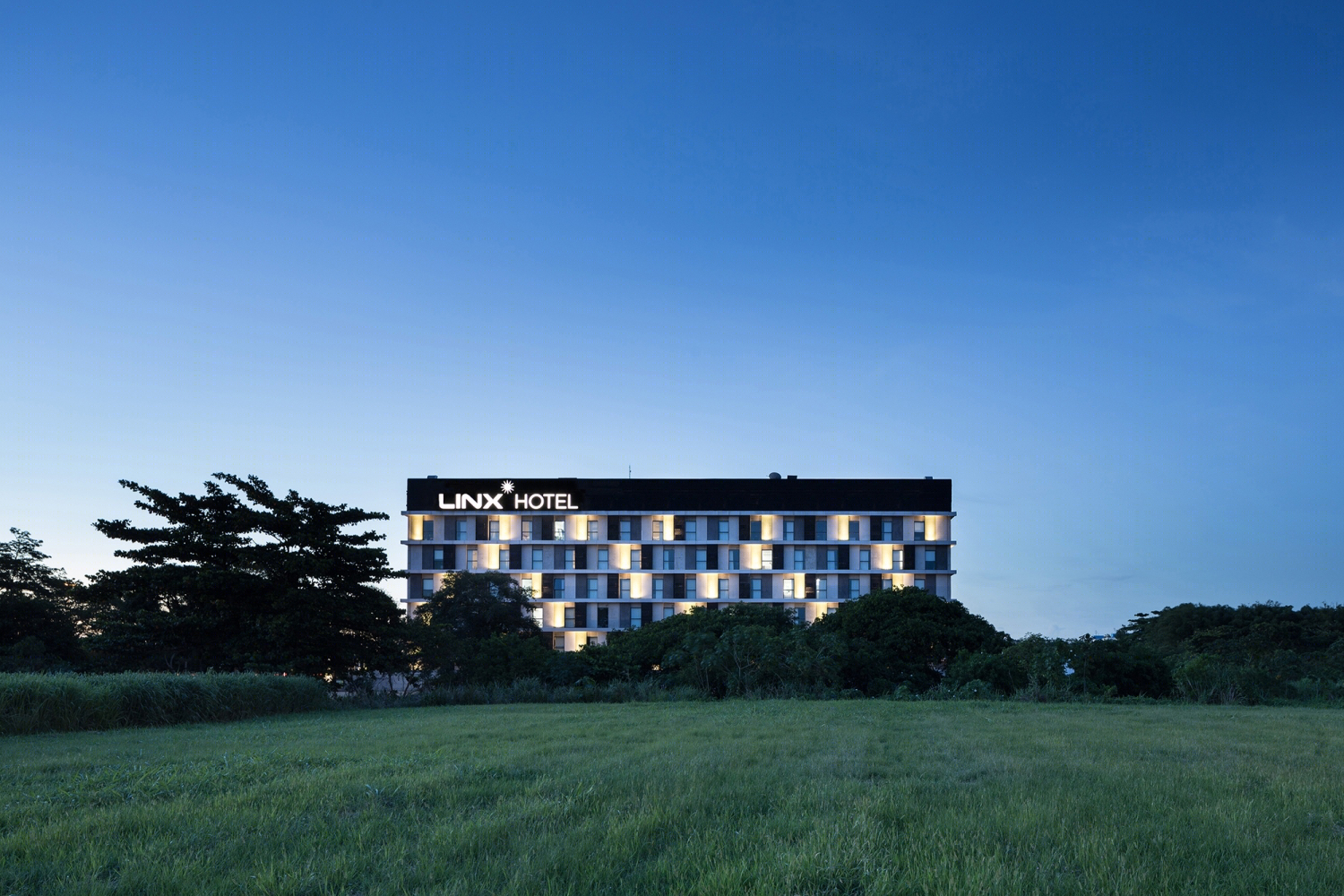

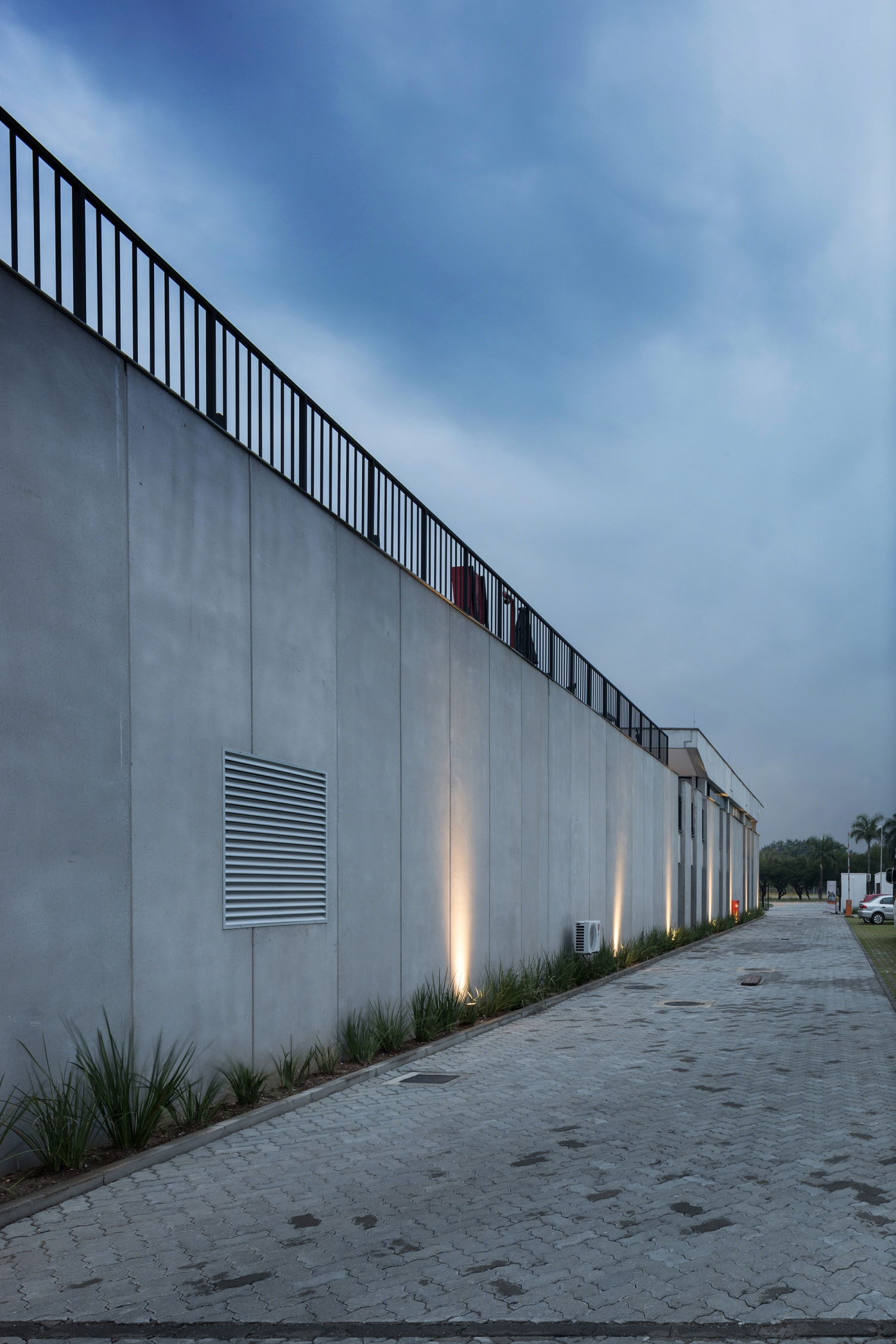

加利昂国际机场林克斯酒店外部图

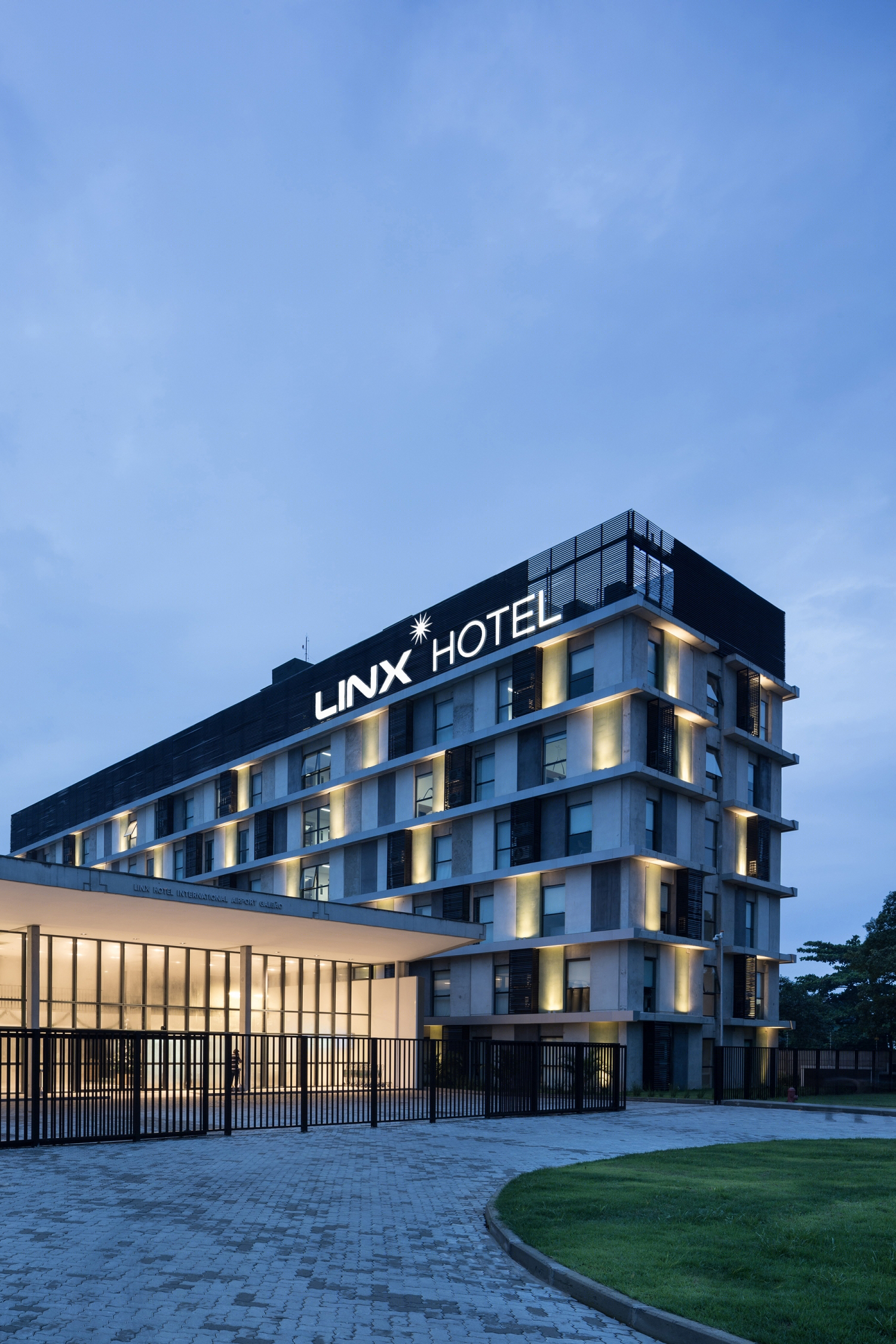

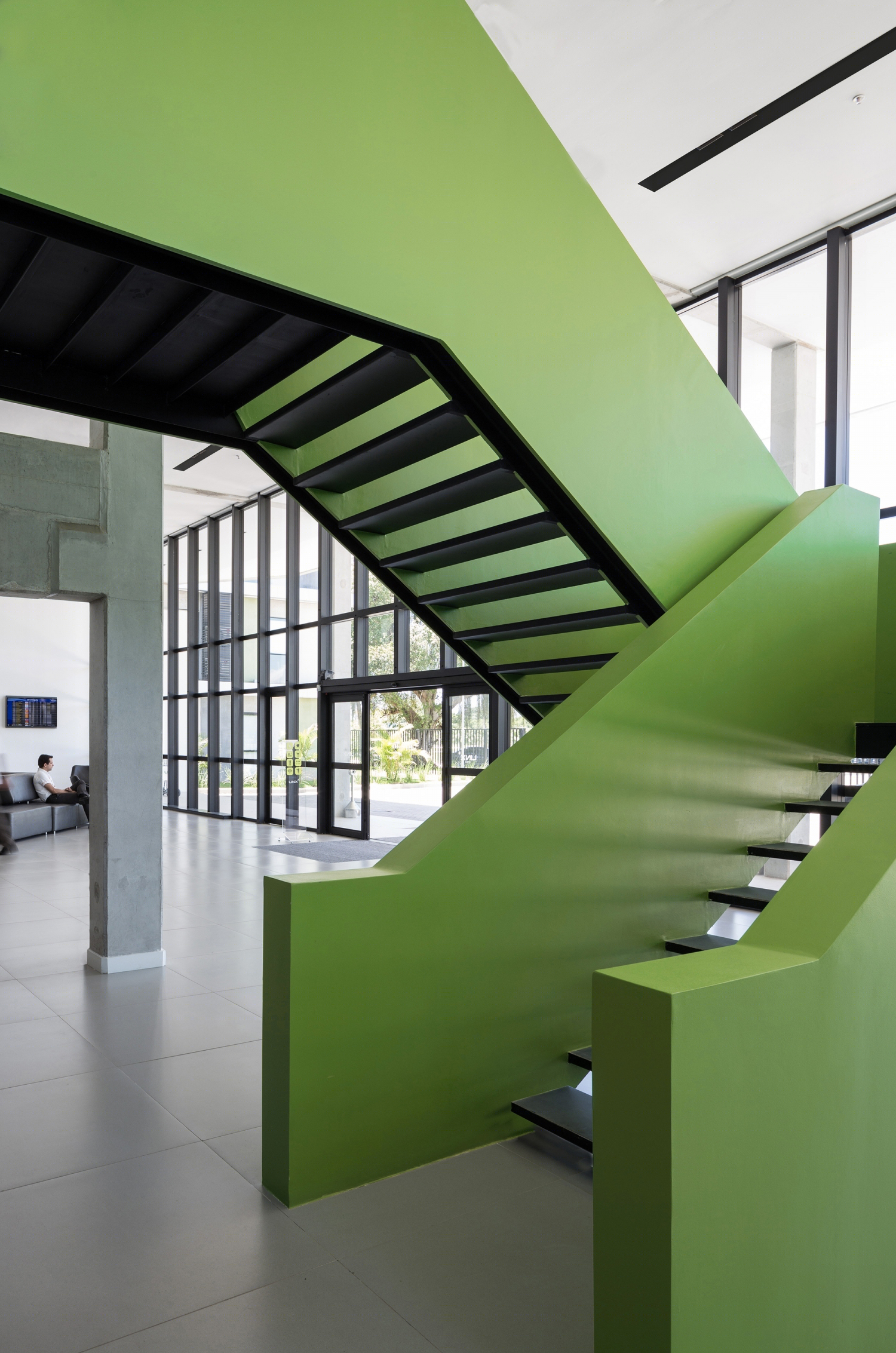

加利昂国际机场林克斯酒店

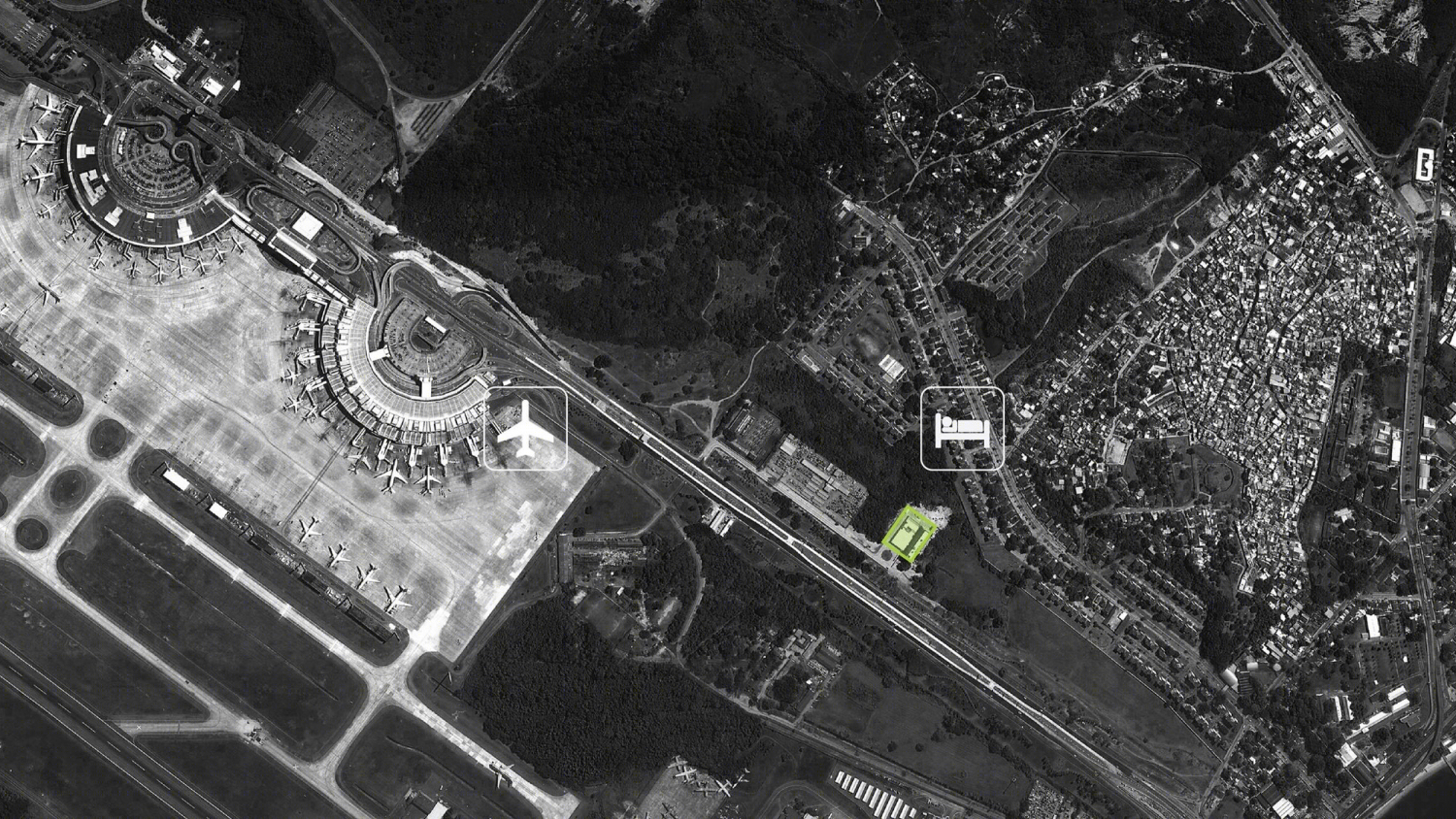

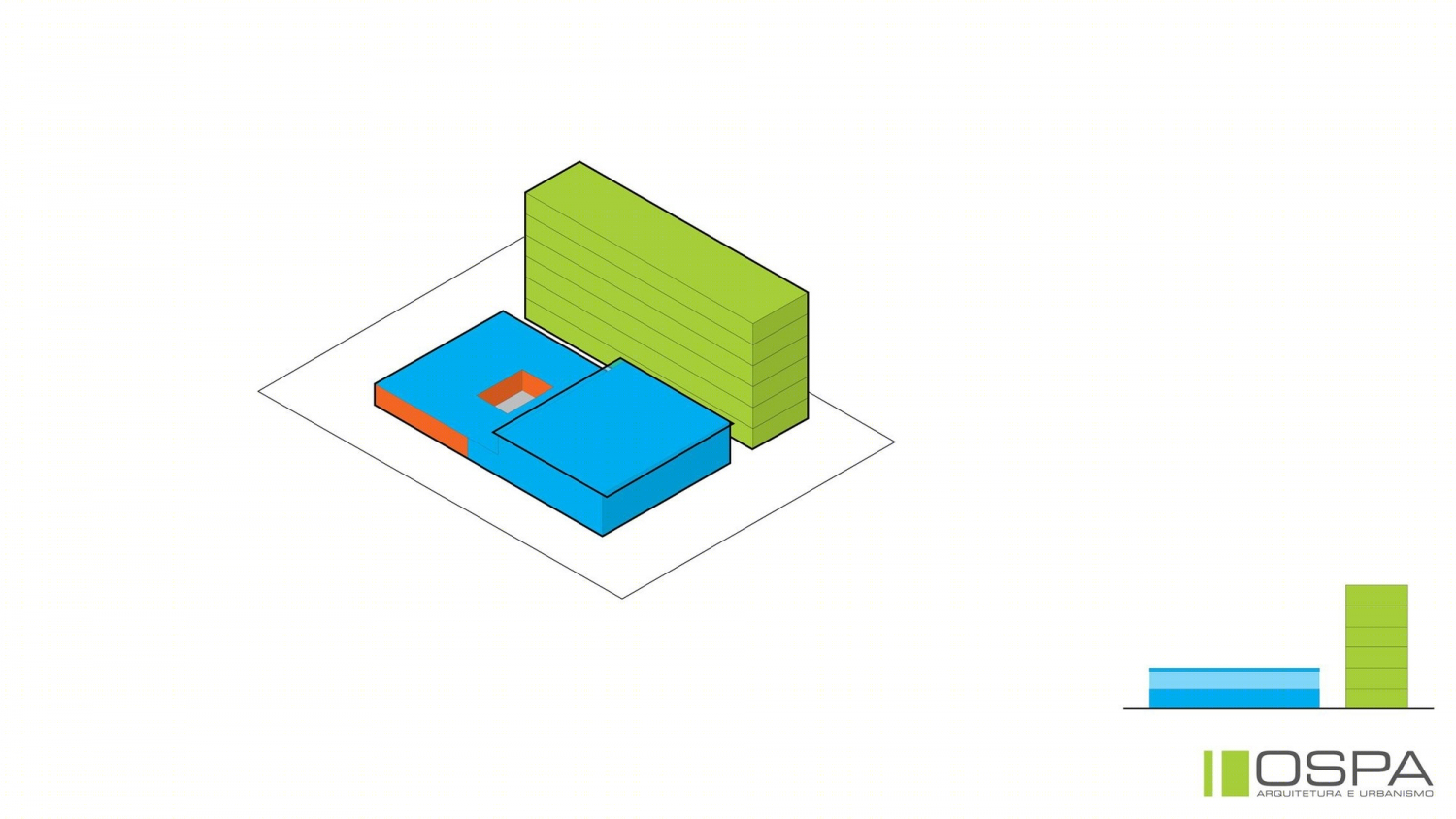

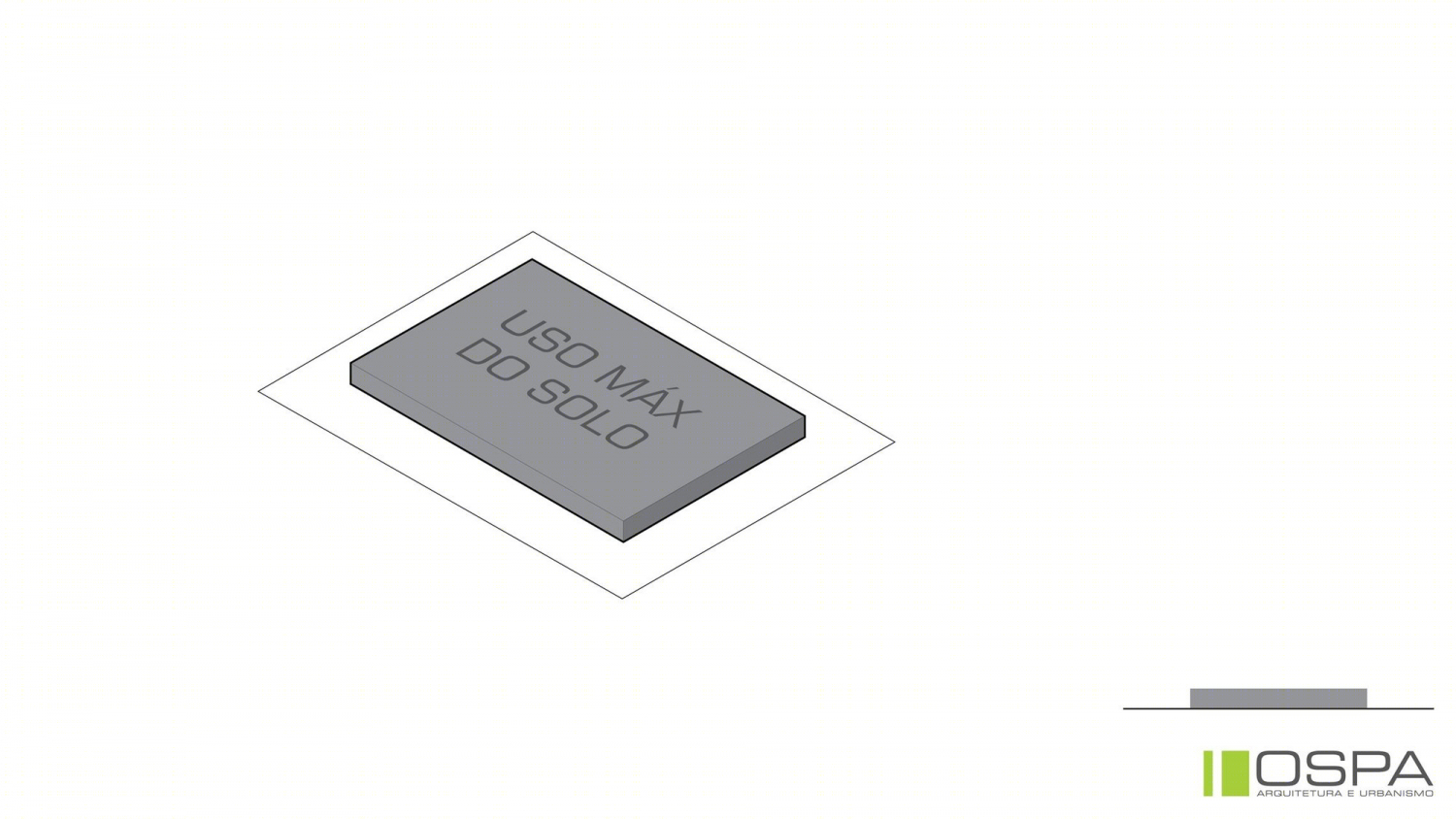

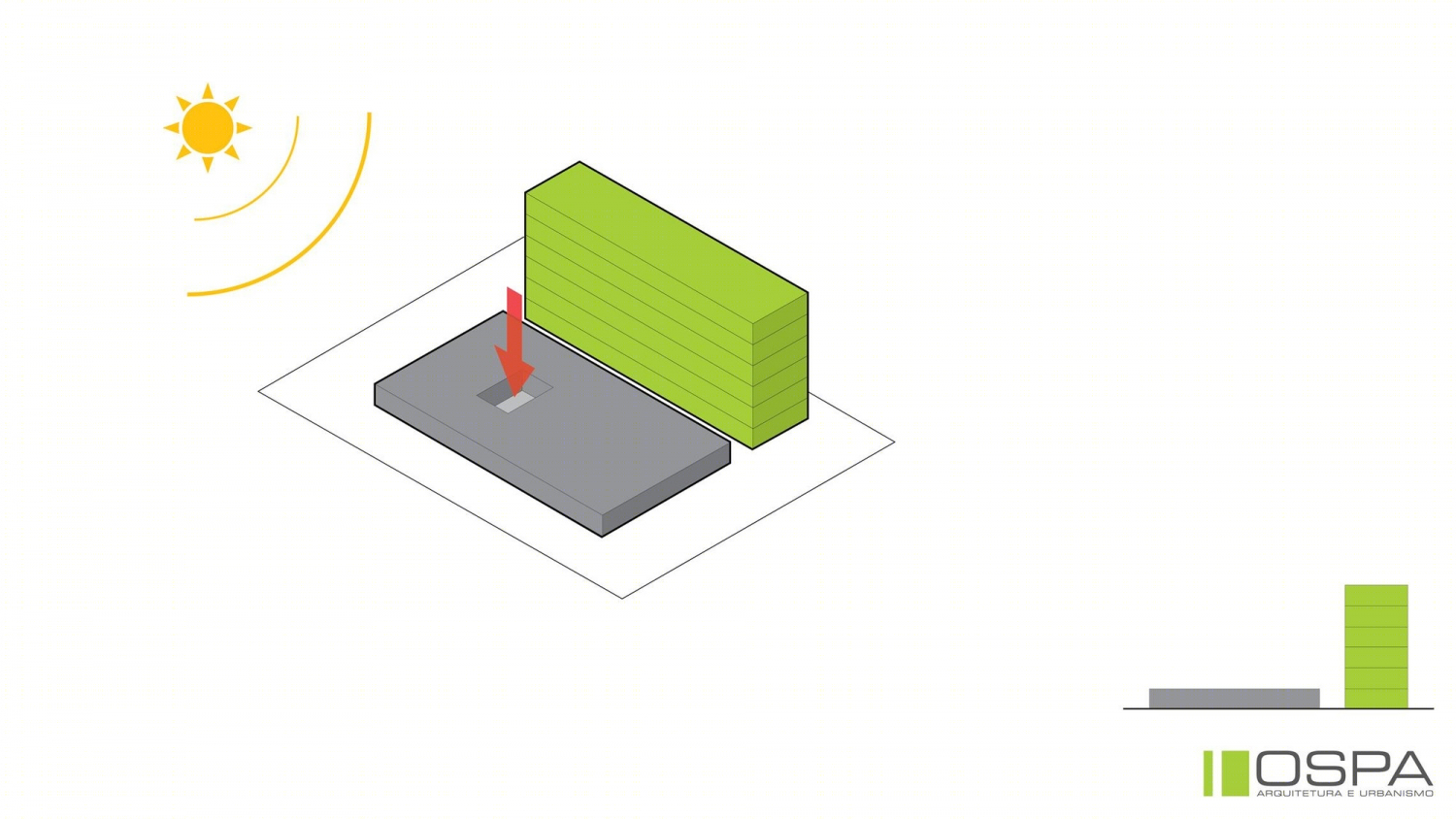

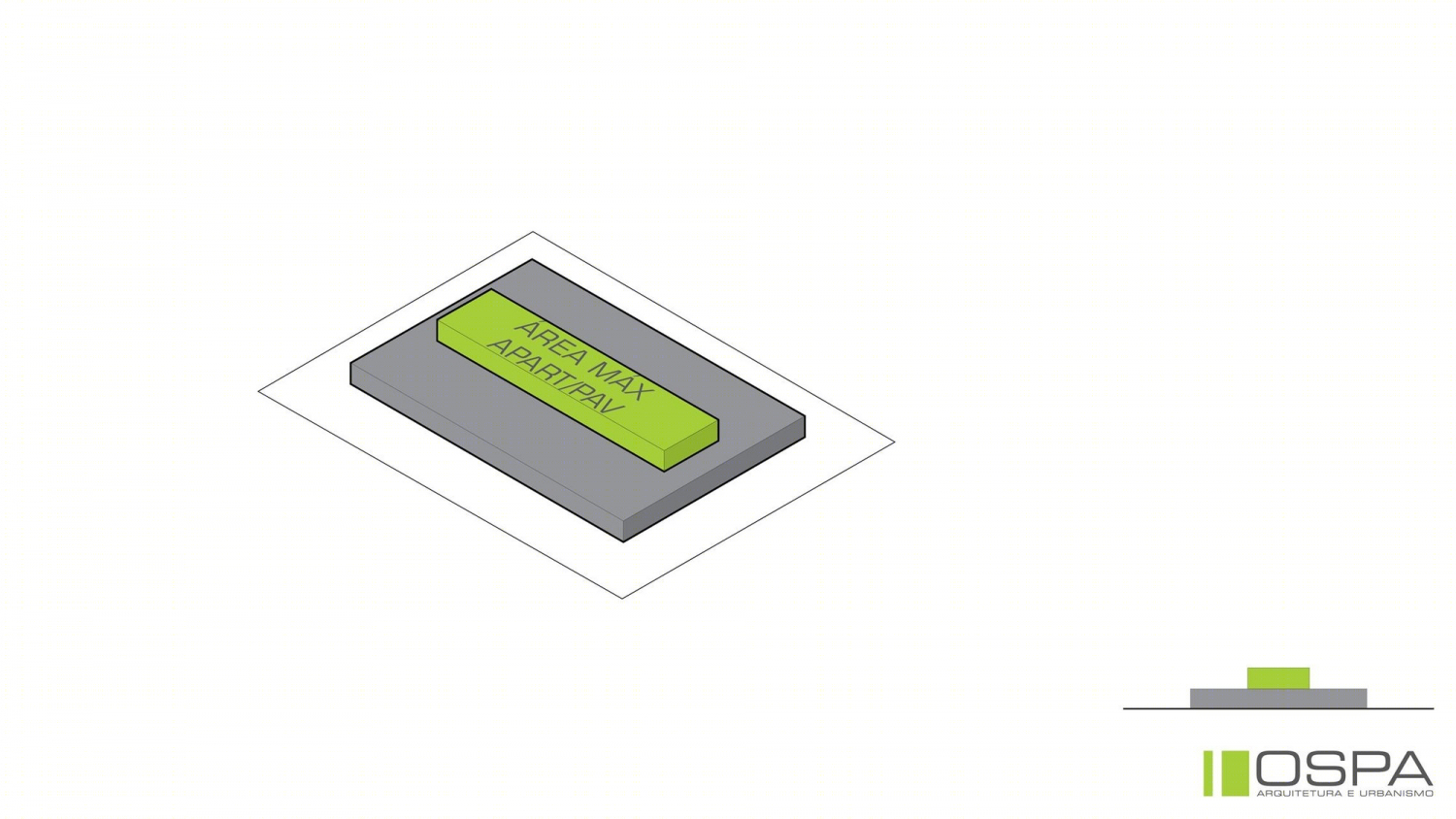

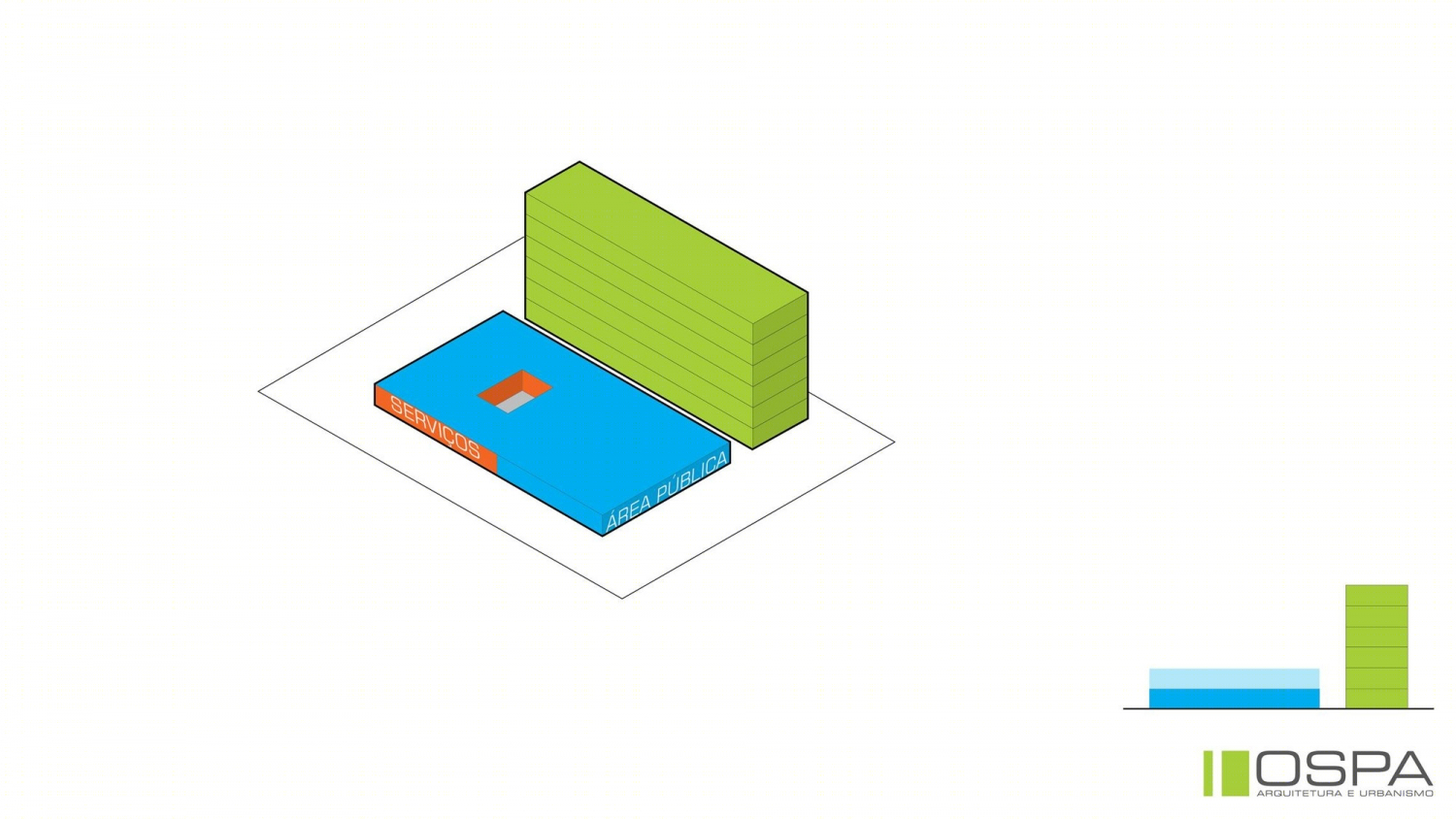

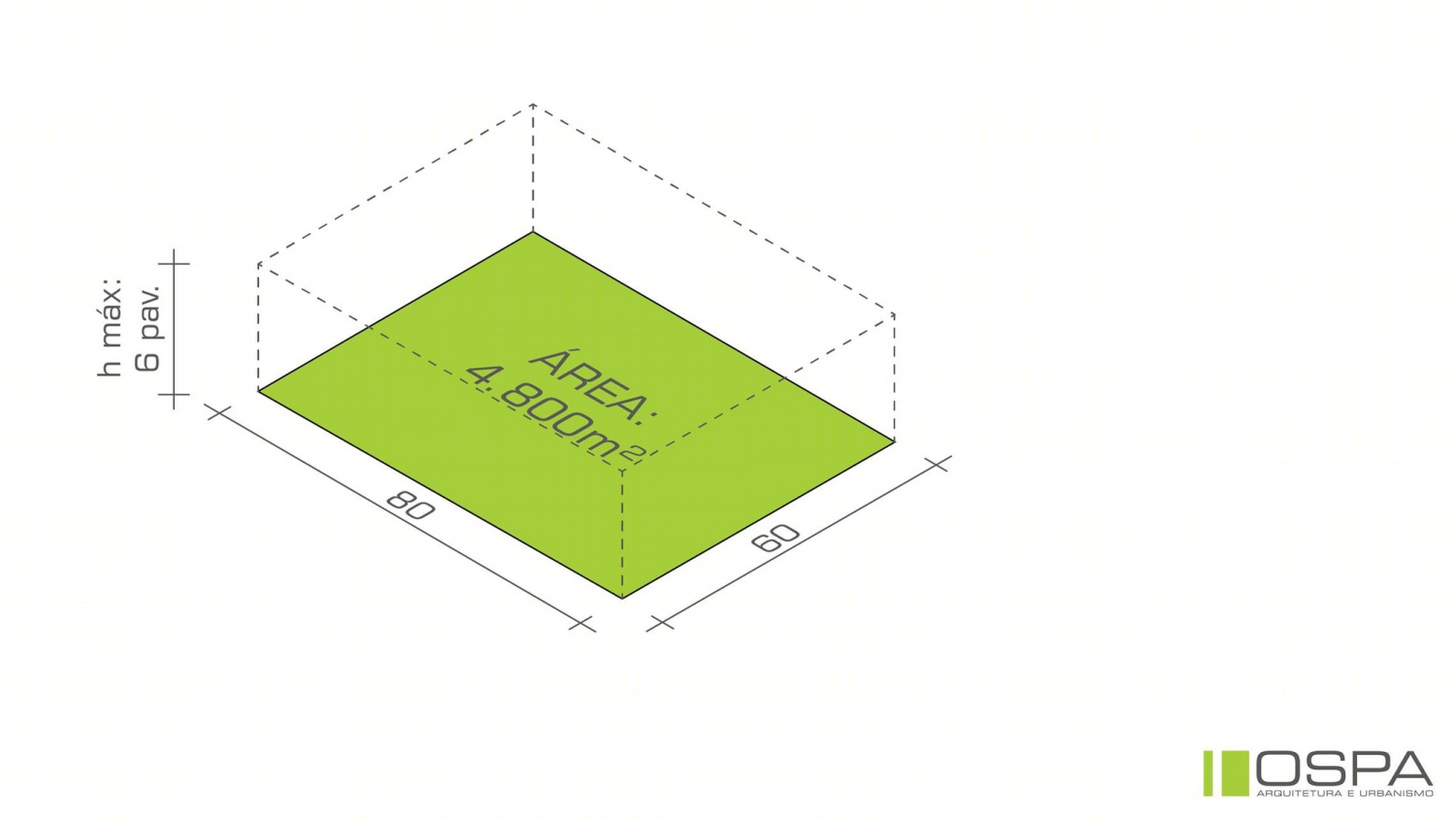

加利昂国际机场林克斯酒店图解

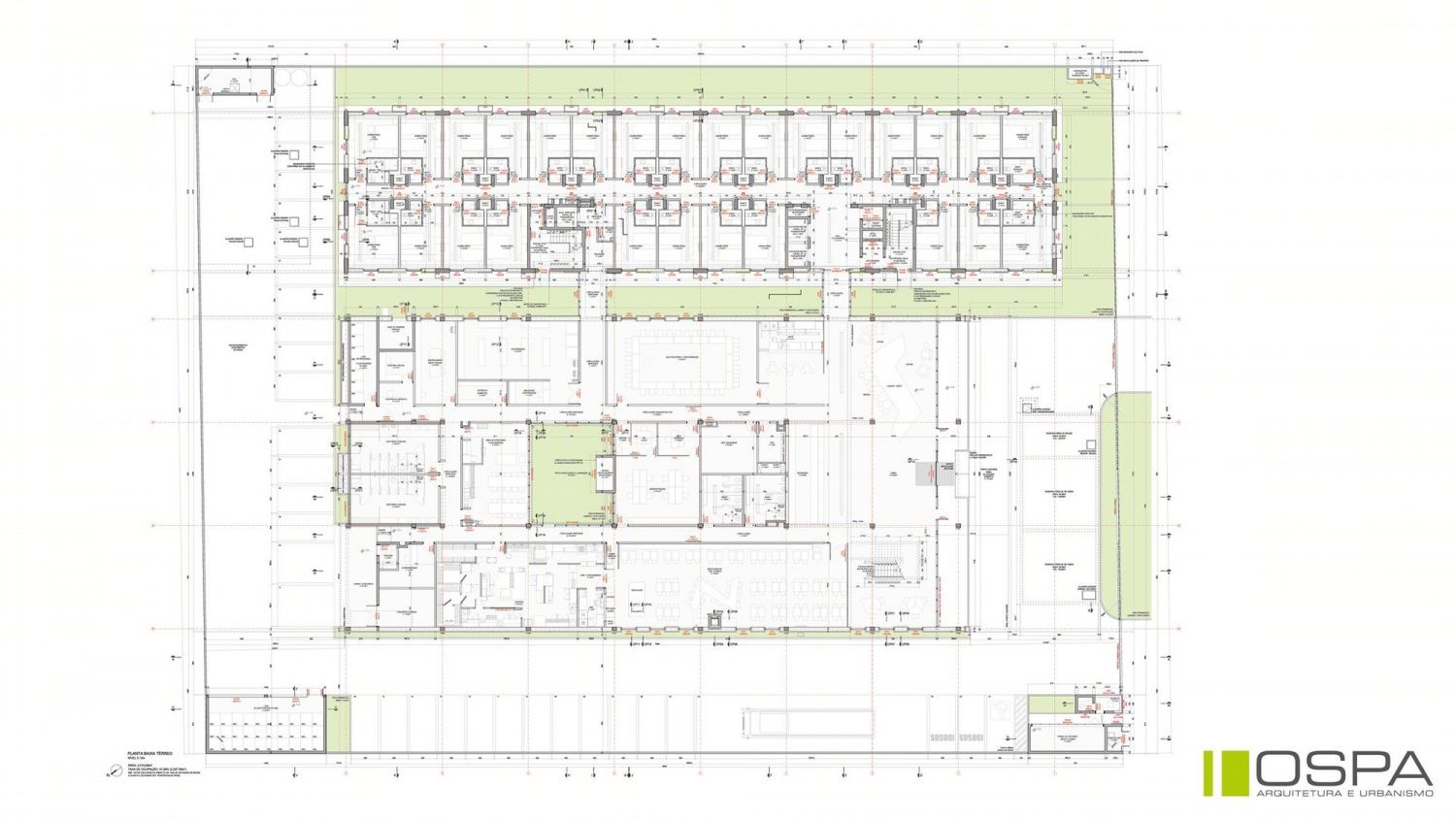

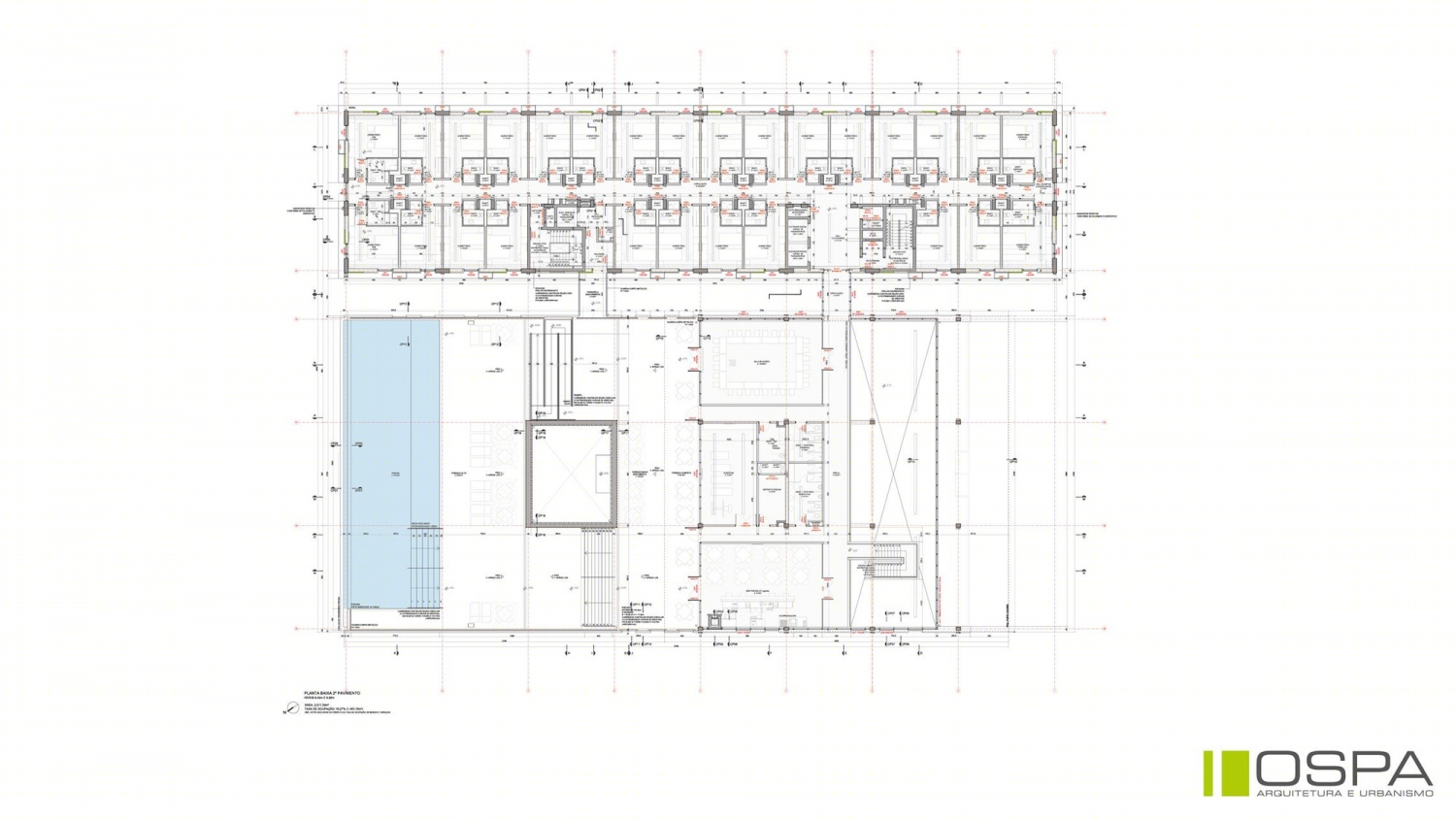

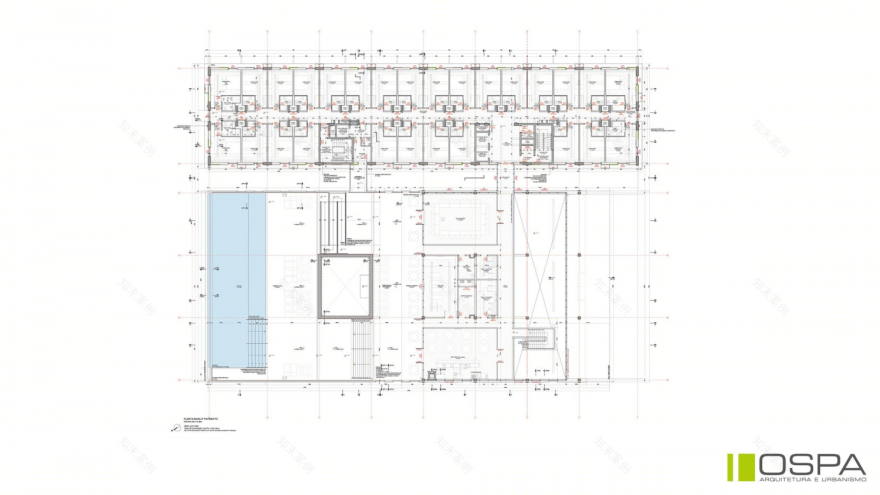

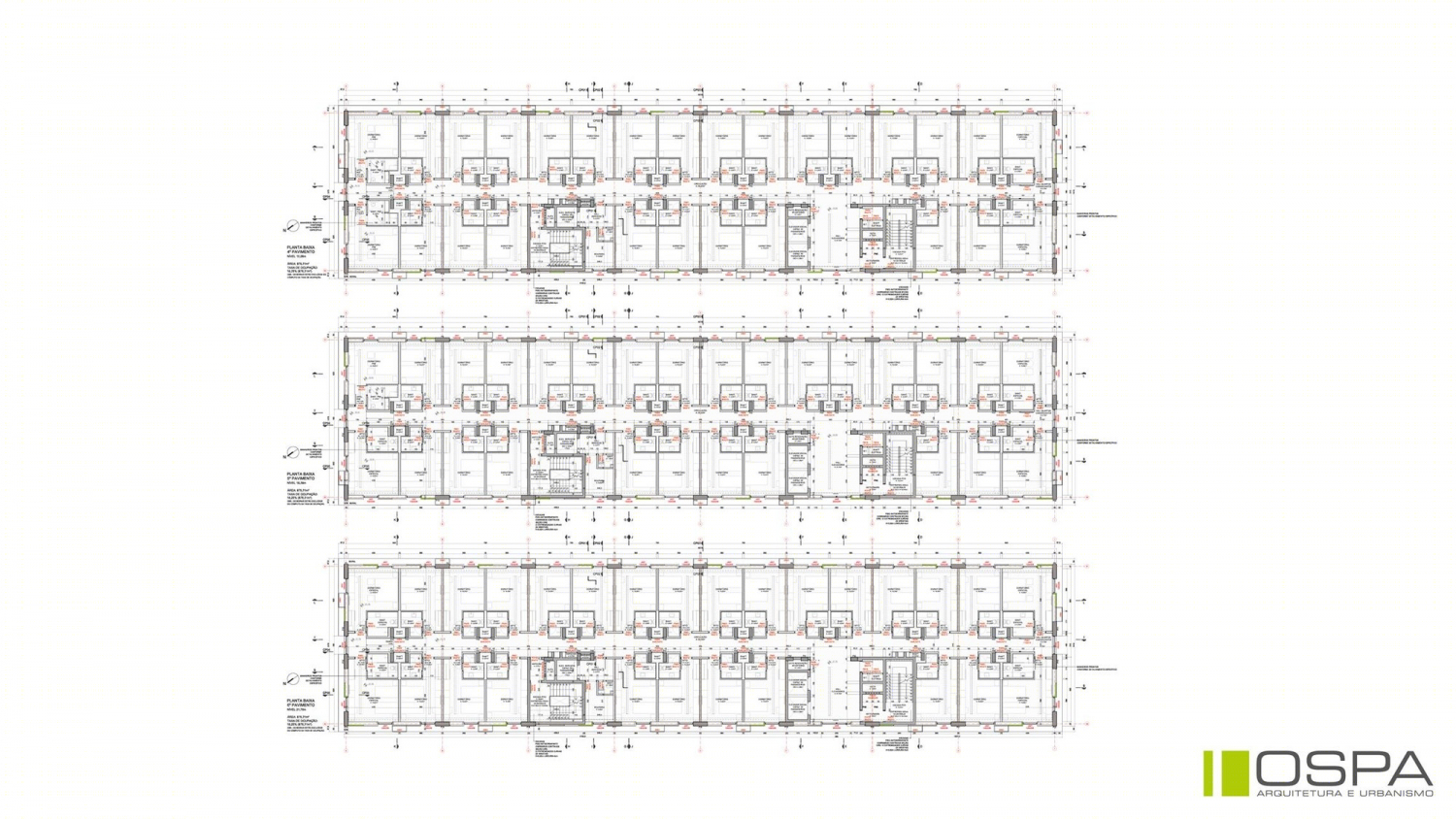

加利昂国际机场林克斯酒店二层平面图

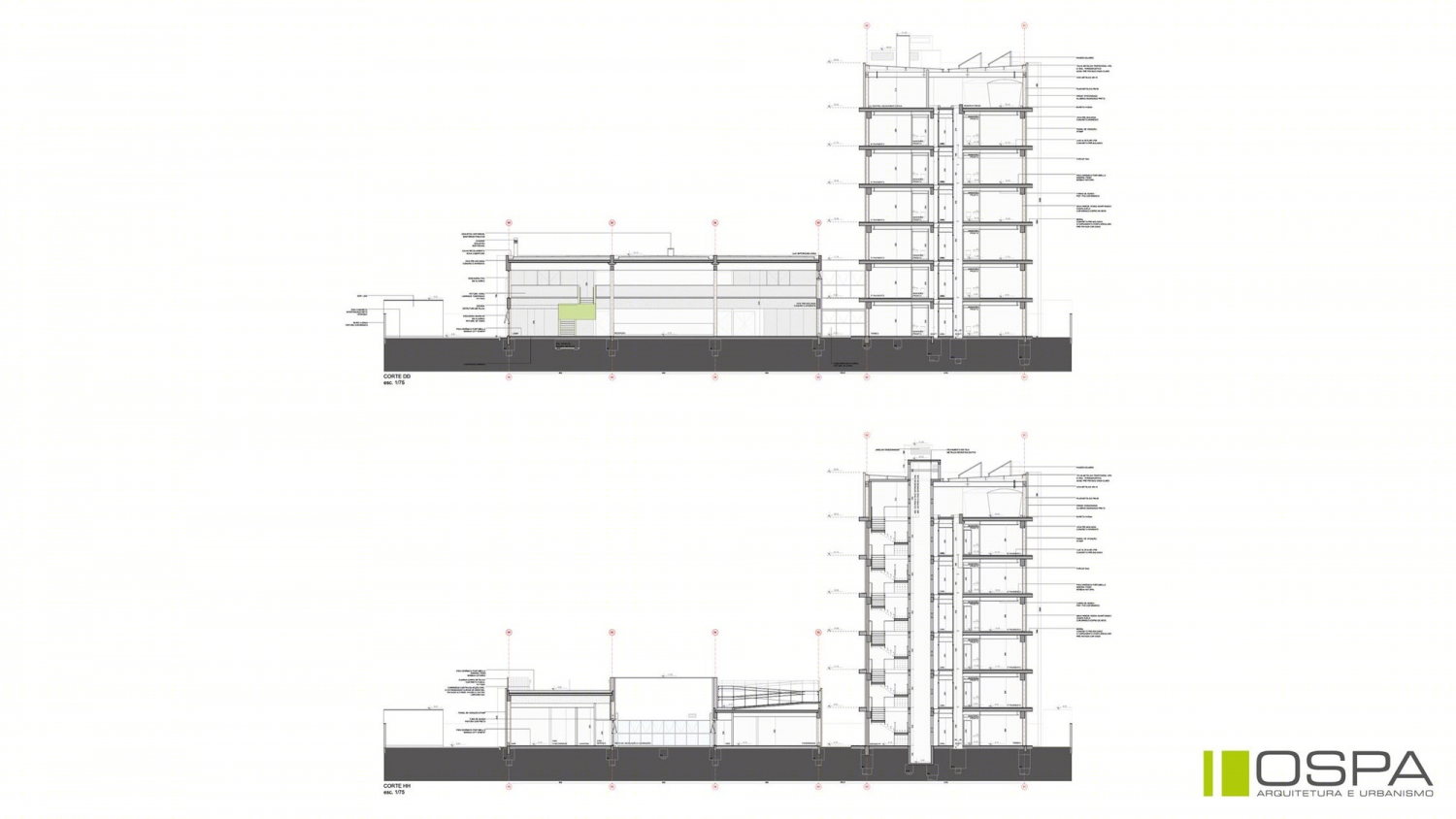

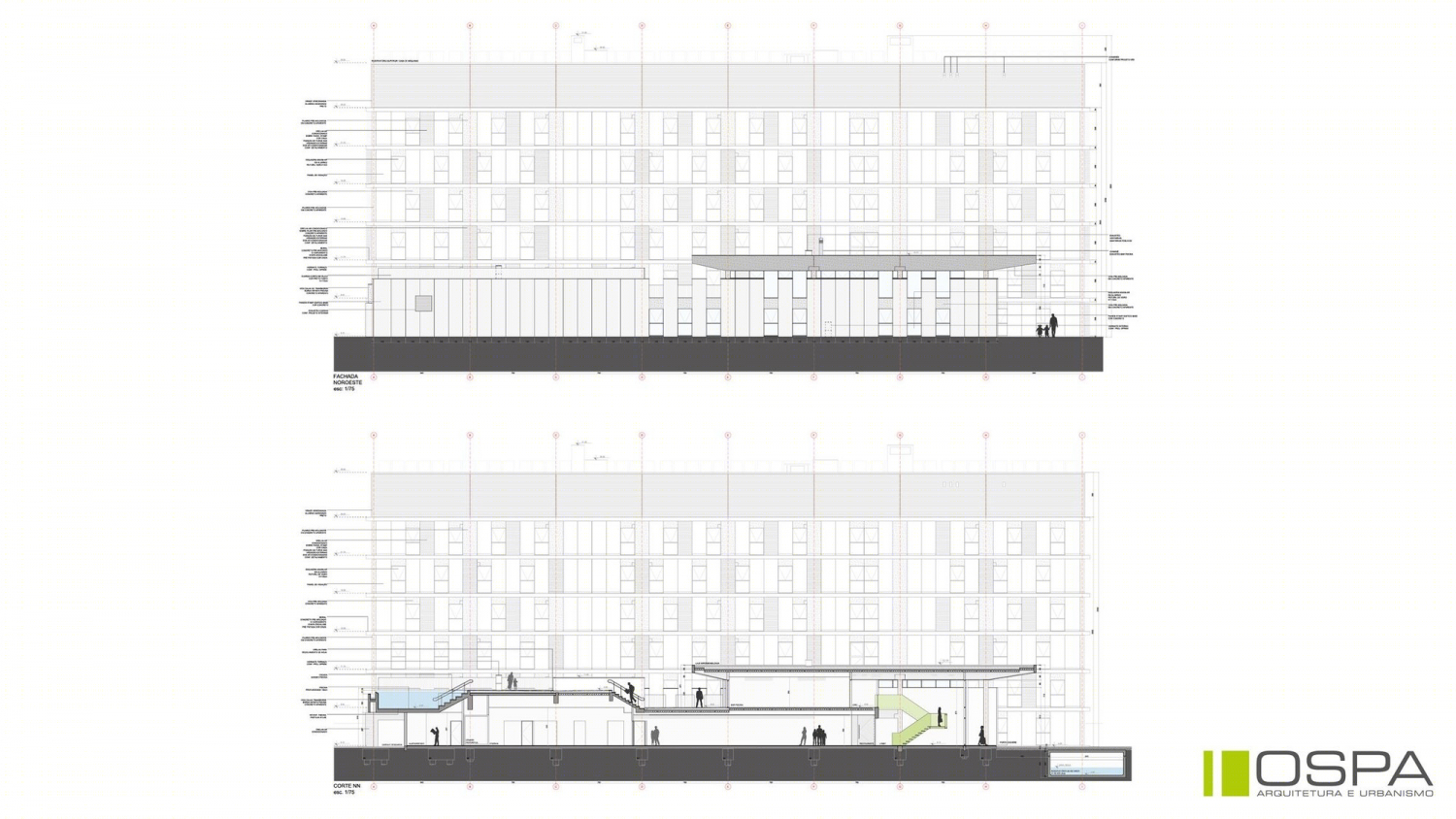

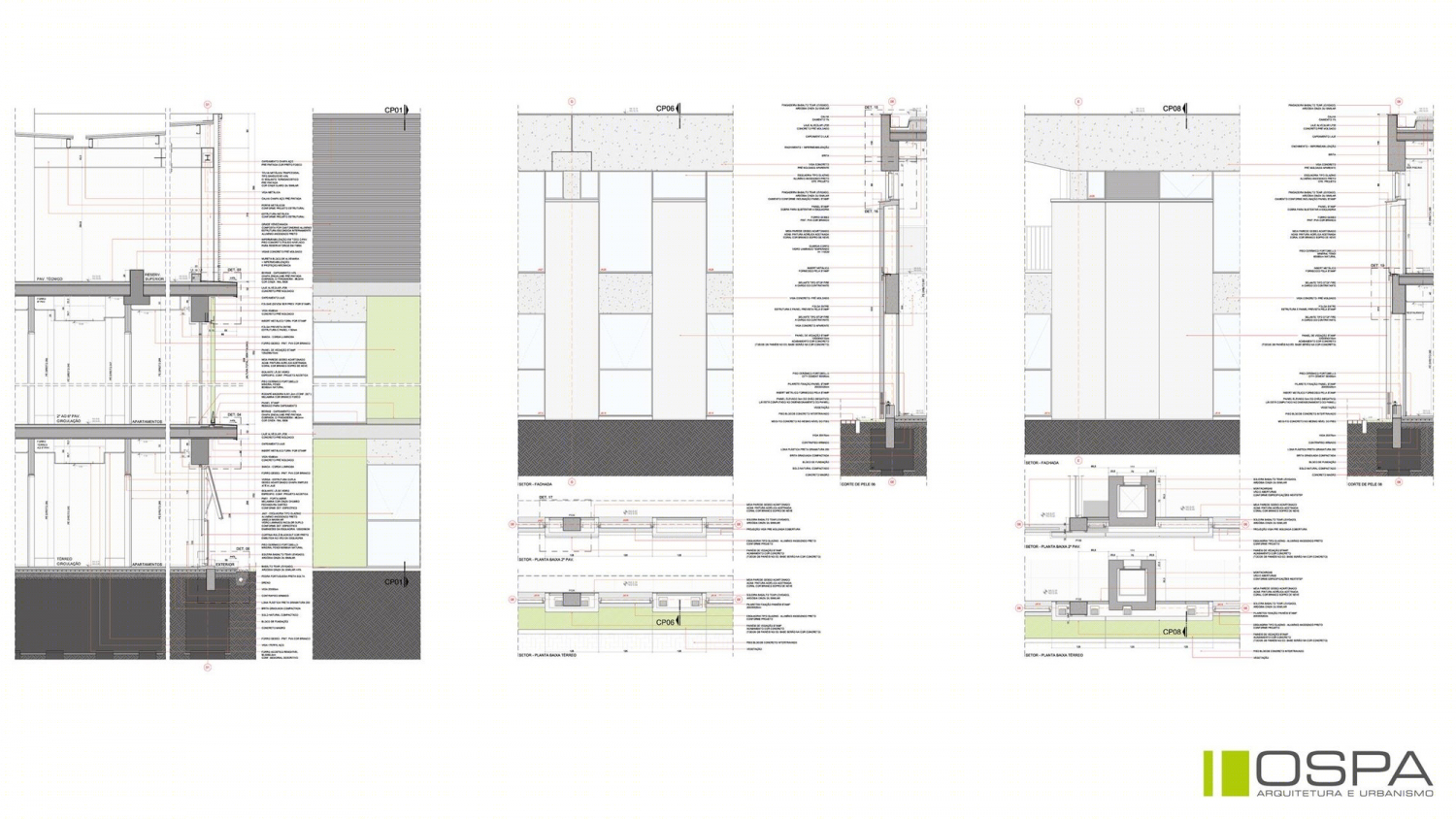

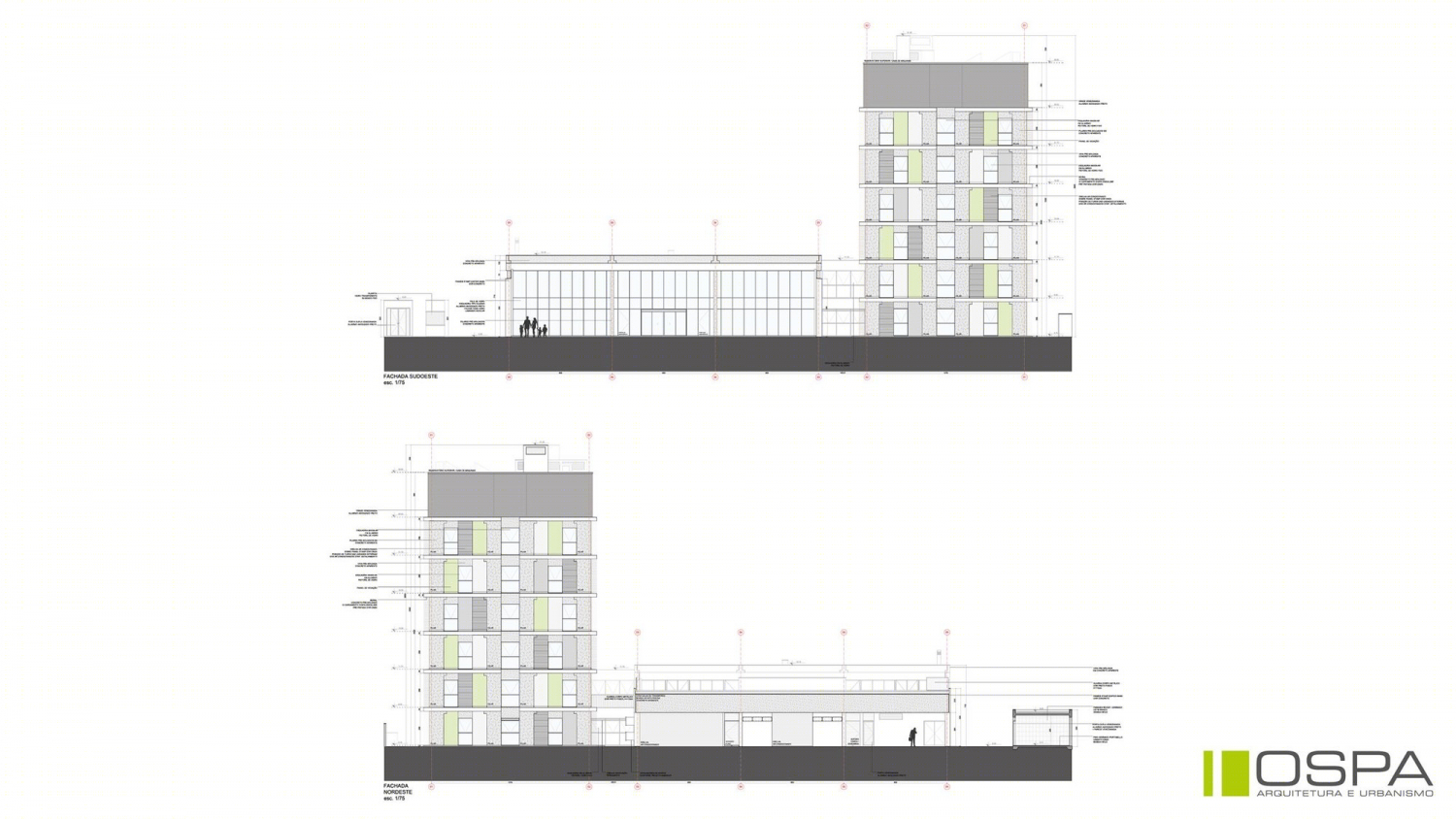

加利昂国际机场林克斯酒店截面图

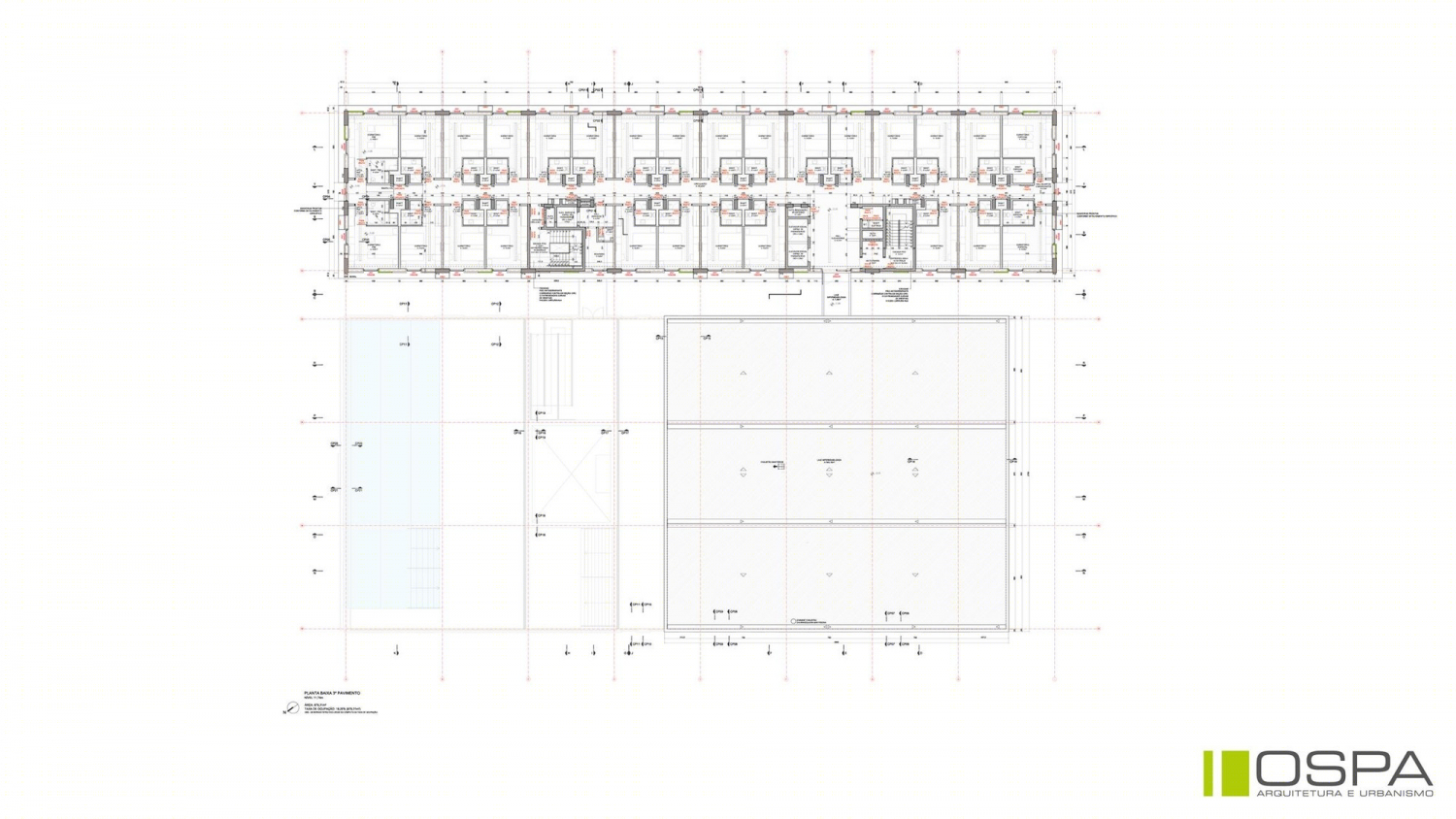

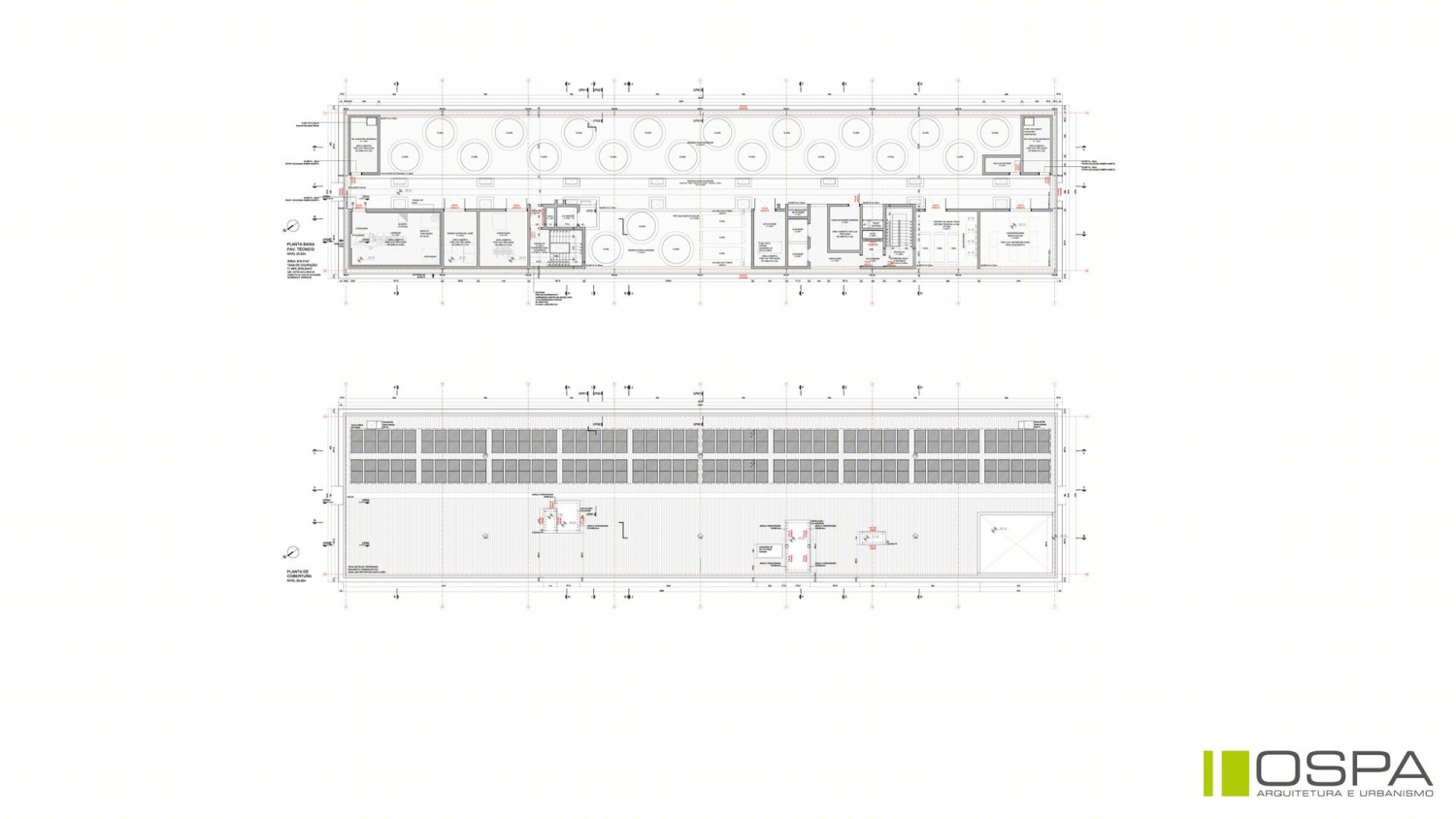

加利昂国际机场林克斯酒店三层平面图
