四川达州公共图书馆

Sichuan Florida Public Library

设计方：中国东南大学建筑设计研究院

位置：四川 达州

分类：文化建筑

内容：实景照片

设计团队：Zhou Xuefeng, Han Fei, HouYinyin, Ren Ye, Lu Ting, Zhang Yu, Liu Wei, Deng Hong, Jiang Haibo, Liu Xi

图片：24张

摄影师：ARCH-EXIST

这是由中国东南大学建筑设计研究院设计的达州公共图书馆。该项目位于中国西部的达州市，该城市人口约58万。该项目将作为文献信息资源的收集中心，以及城市交流/服务中心。它是达州市的文化发展的重要象征。场地狭窄，南北方向有着4米左右的高差。主体建筑由2层的地下停车库与5层的开放式布局空间组成，首层设置了展览厅、课室、咖啡厅，二层布置了主入口、讲学厅、儿童阅览室，三四层为开放式阅览空间，而五层为馆长办公室。

译者：筑龙网艾比

From the architect. Located in west China, Dazhou city has a population of around 580 thousand. Dazhou Public Library serves as the collection center of literature information resource, as well as the communicating/service center of the city. It is a significant symbol of Dazhou’s culture development.The project site is quite narrow with a height difference of about 4 meters from north to south. The main volume consists of a 2-storey underground garage and a 5-storey building with an open layout aboveground. The building Includes exhibition, classroom, café at the first floor, main entry, lecture hall, kids’ reading room at the second, open reading space at level three to four and the curator office at level five.

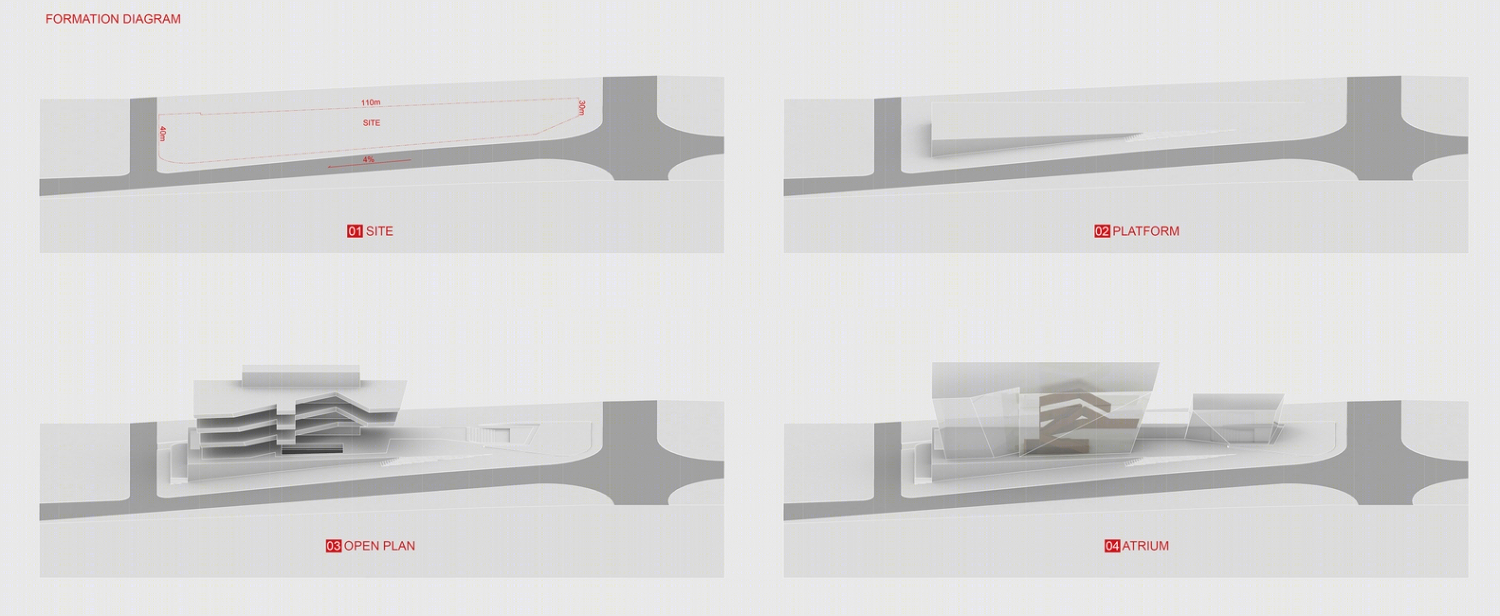

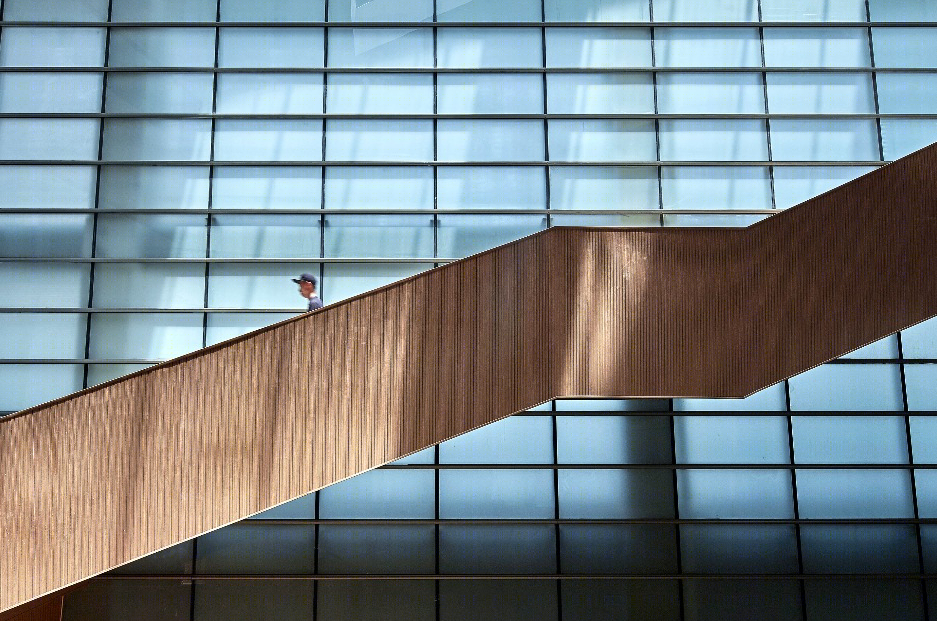

Utilizing relative altitude of the site, the design placed main entry on the second level. Lecture hall was placed to the north of the main volume, separated from the south-part reading space. The reading space was composed around a skylight atrium, from which one can take in the whole reading room in a glance. Readers can reach each floor with the stair in the atrium. The changing direction and altitude of the stair expressed an image of ‘mountian road’, which indicated Dazhou’s mountainous geographical environment.To avoid the bad influence of direct sunshine from both east and west, the long side wall of reading room consists of two layers of glasses, the outer Ceramic Fritted glass and the inner frosted glass. The double glazing provides a stable diffused light environment which meanwhile insulates noise from street, thus making a high-quality reading environment. The staircases and washrooms are placed to the west so as to insulate heating in the afternoon, saving energy for air conditioning. This kind of distribution also liberates whole floor space for arranging reading function freely.

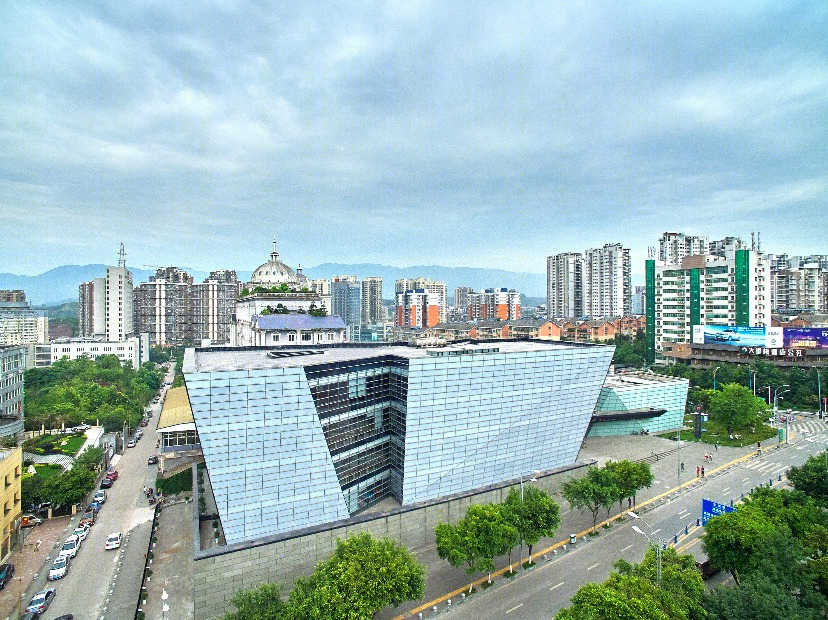

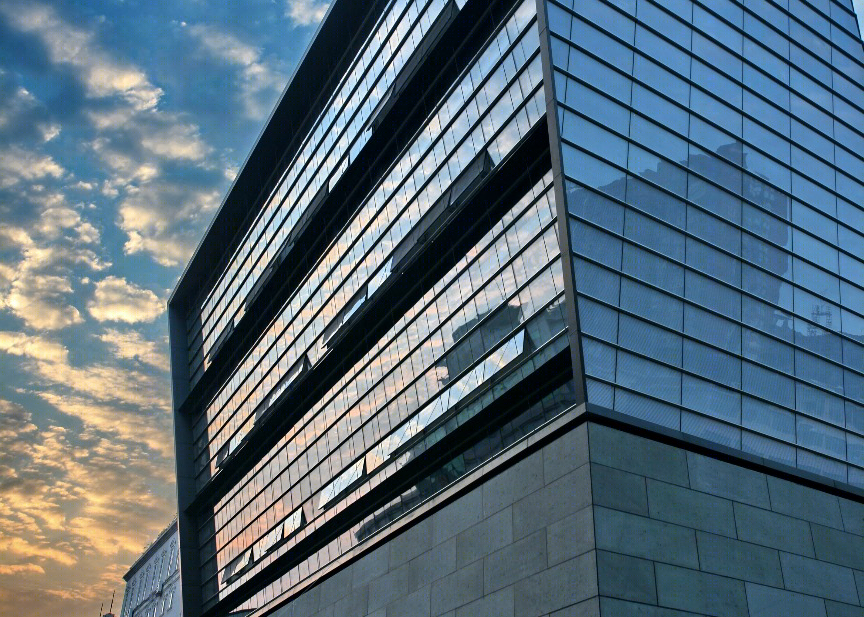

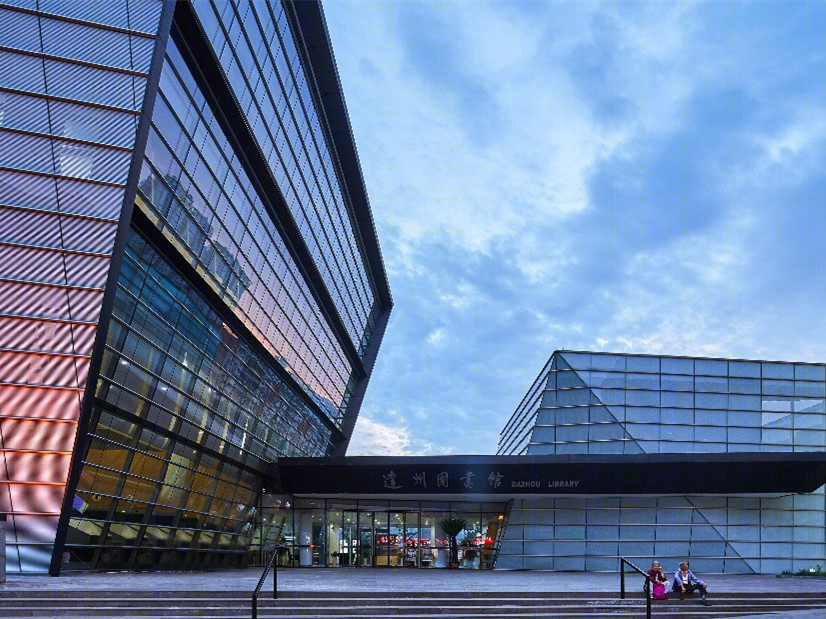

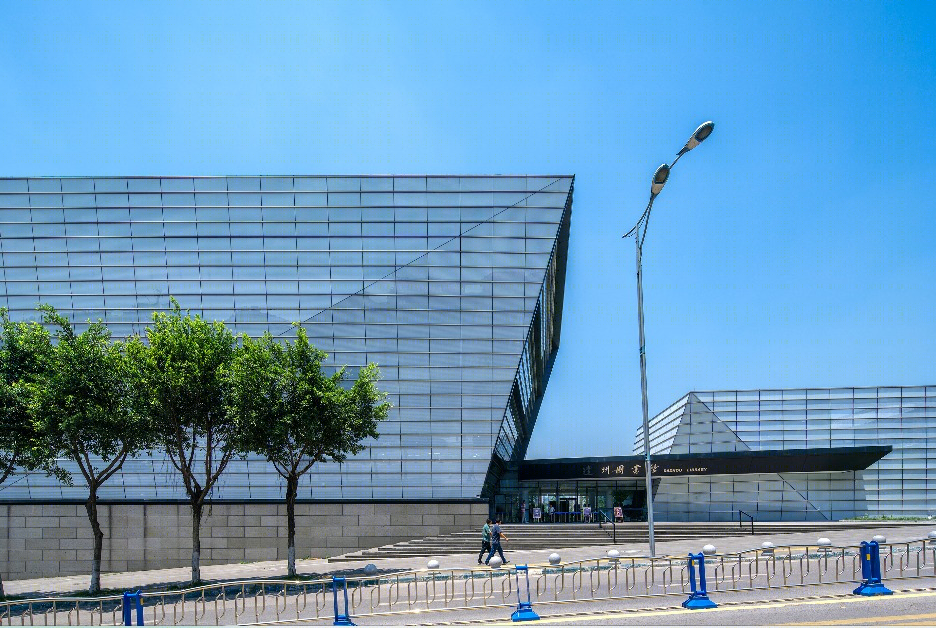

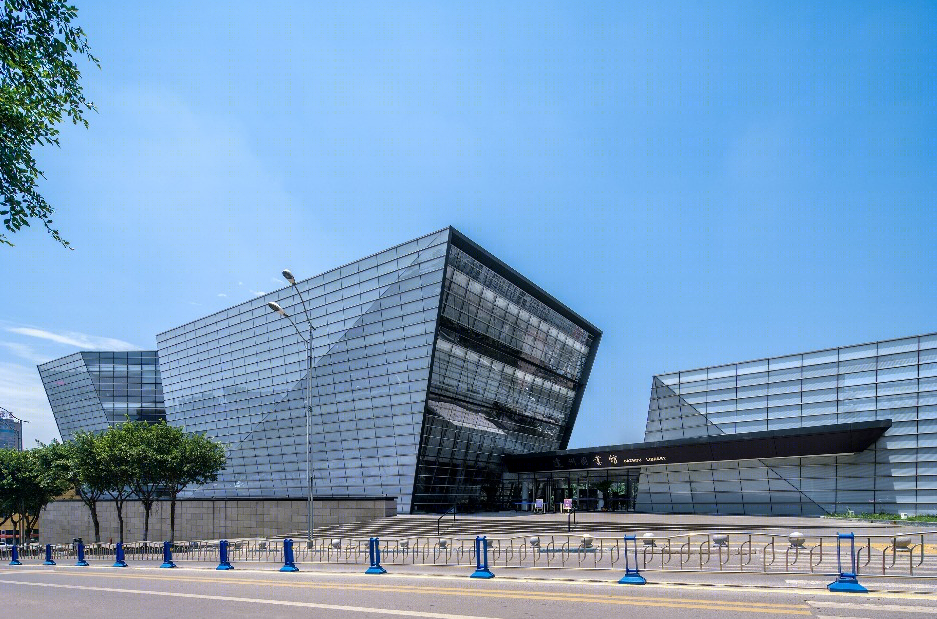

四川达州公共图书馆外部实景图

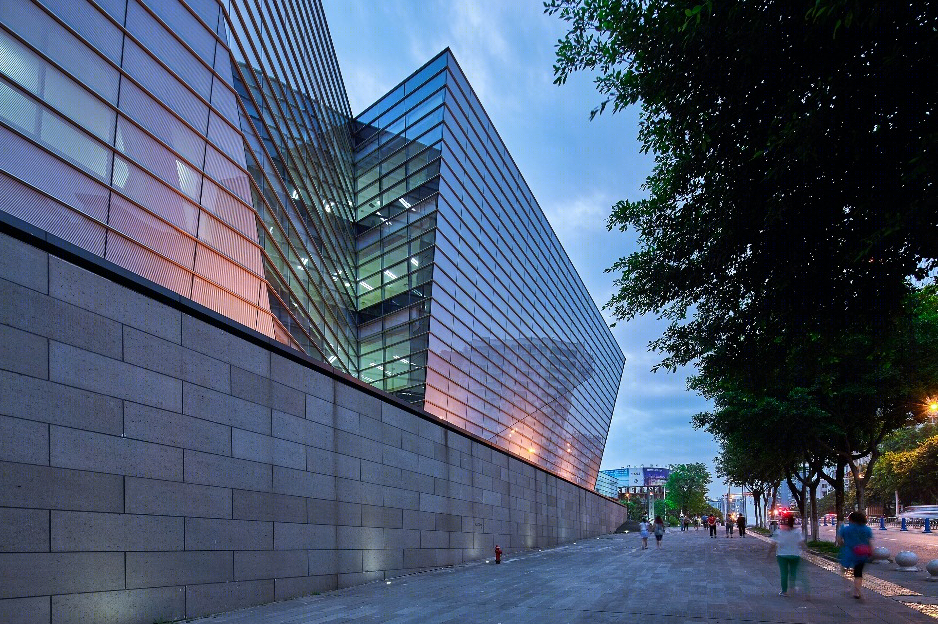

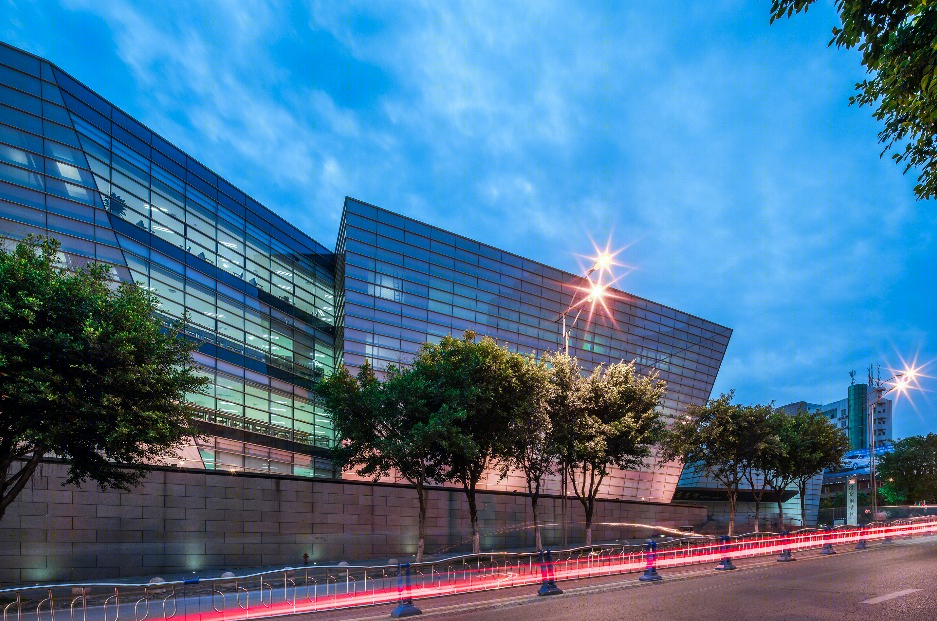

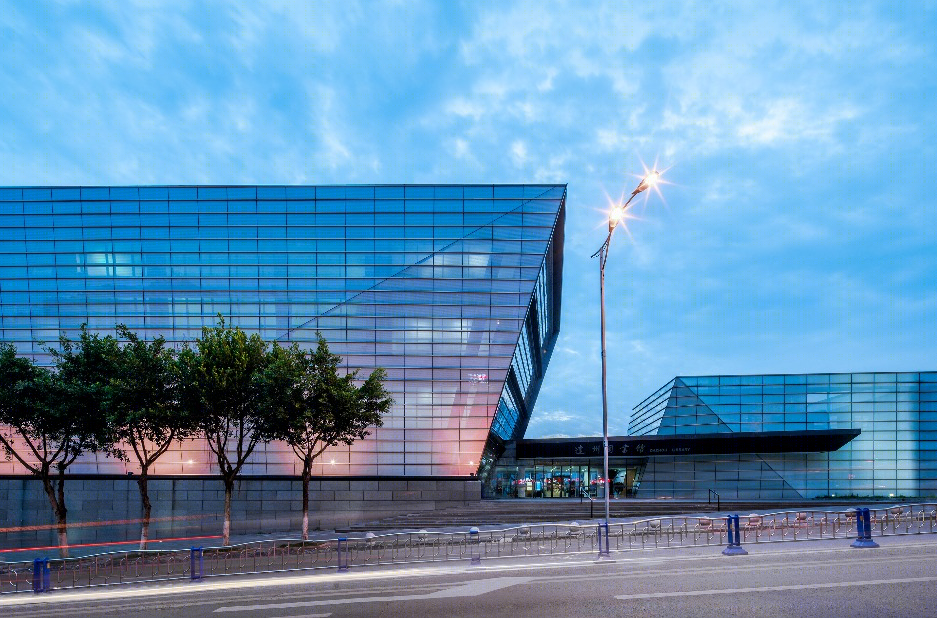

四川达州公共图书馆外部夜景实景图

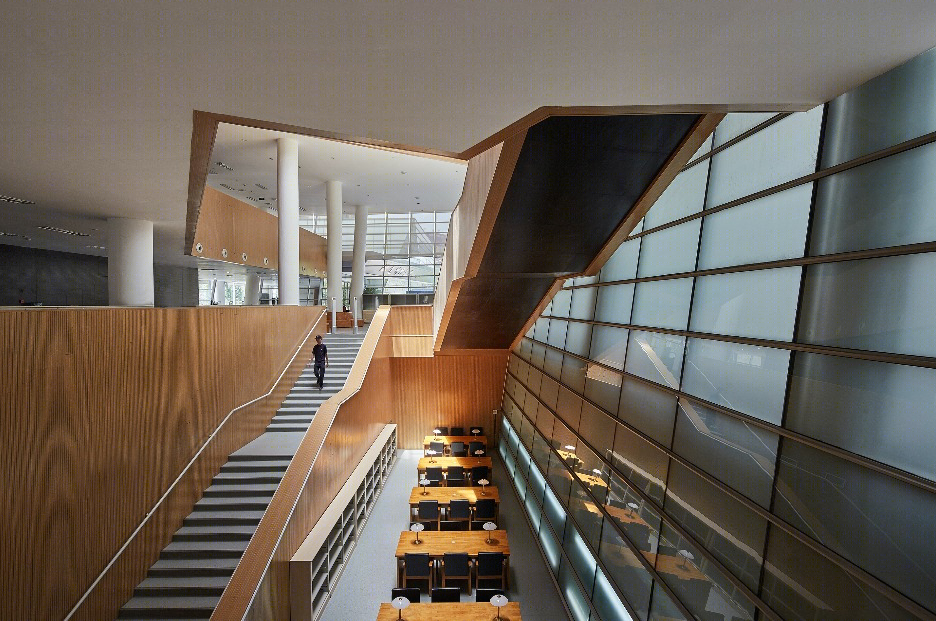

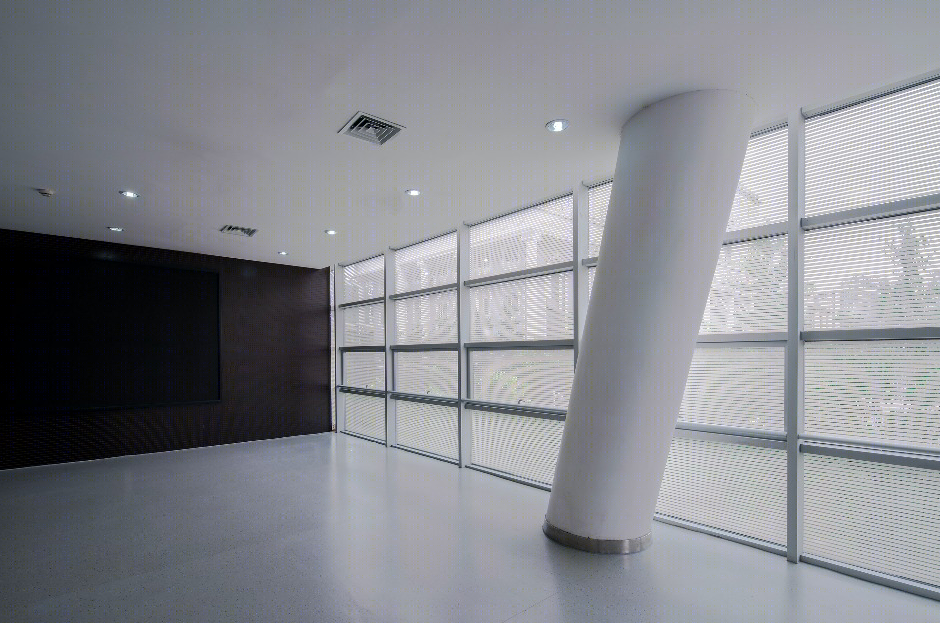

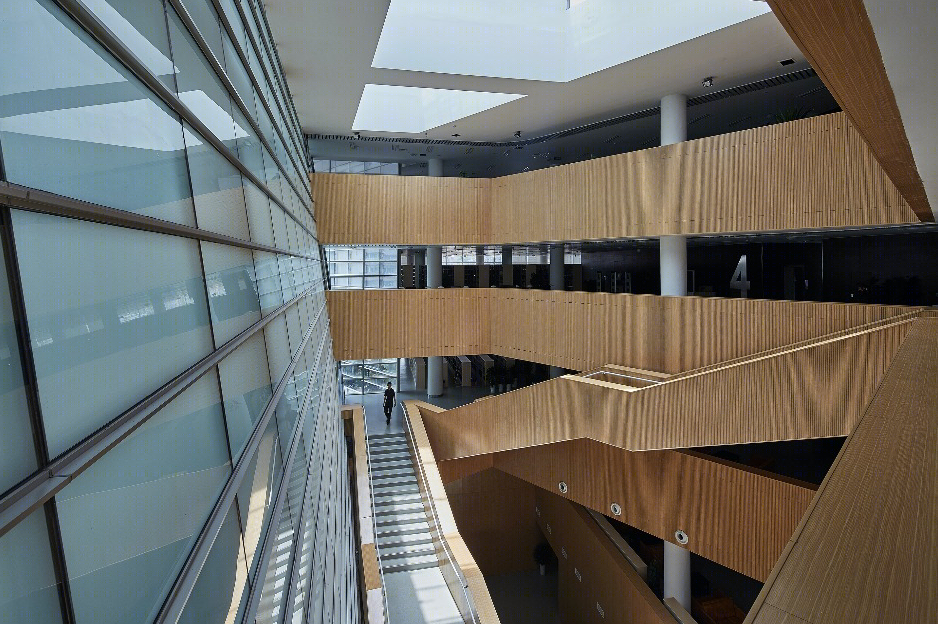

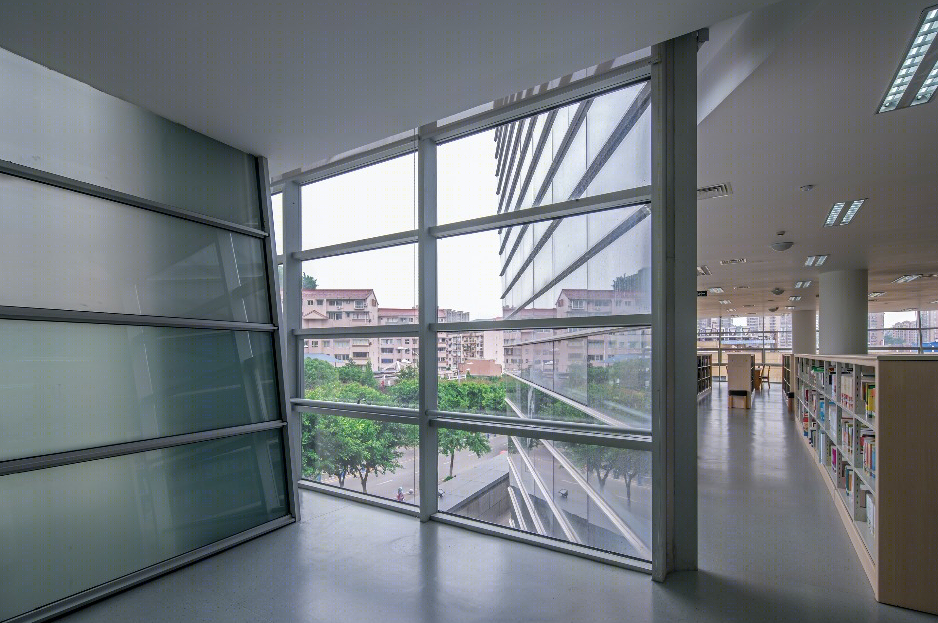

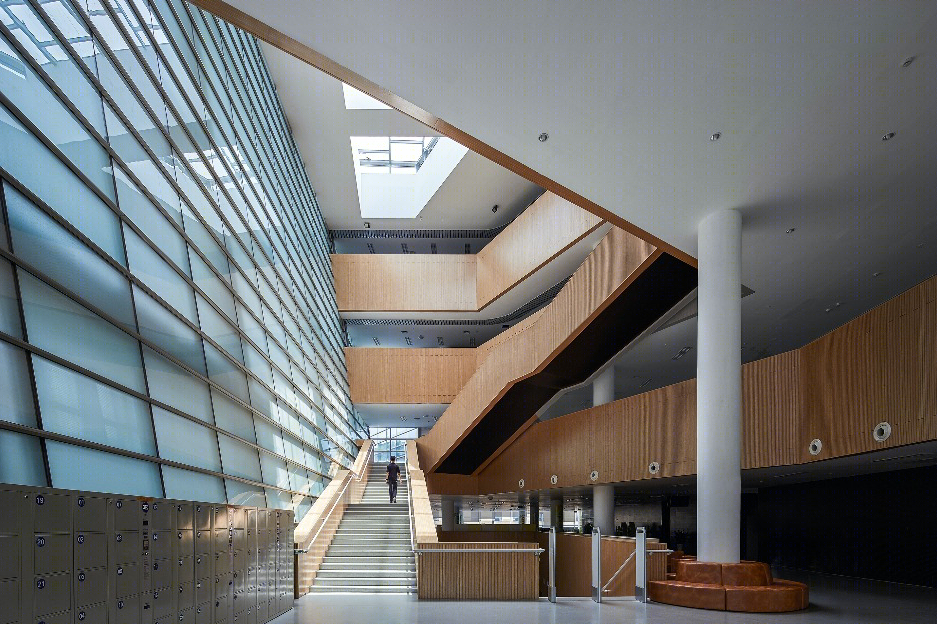

四川达州公共图书馆内部实景图

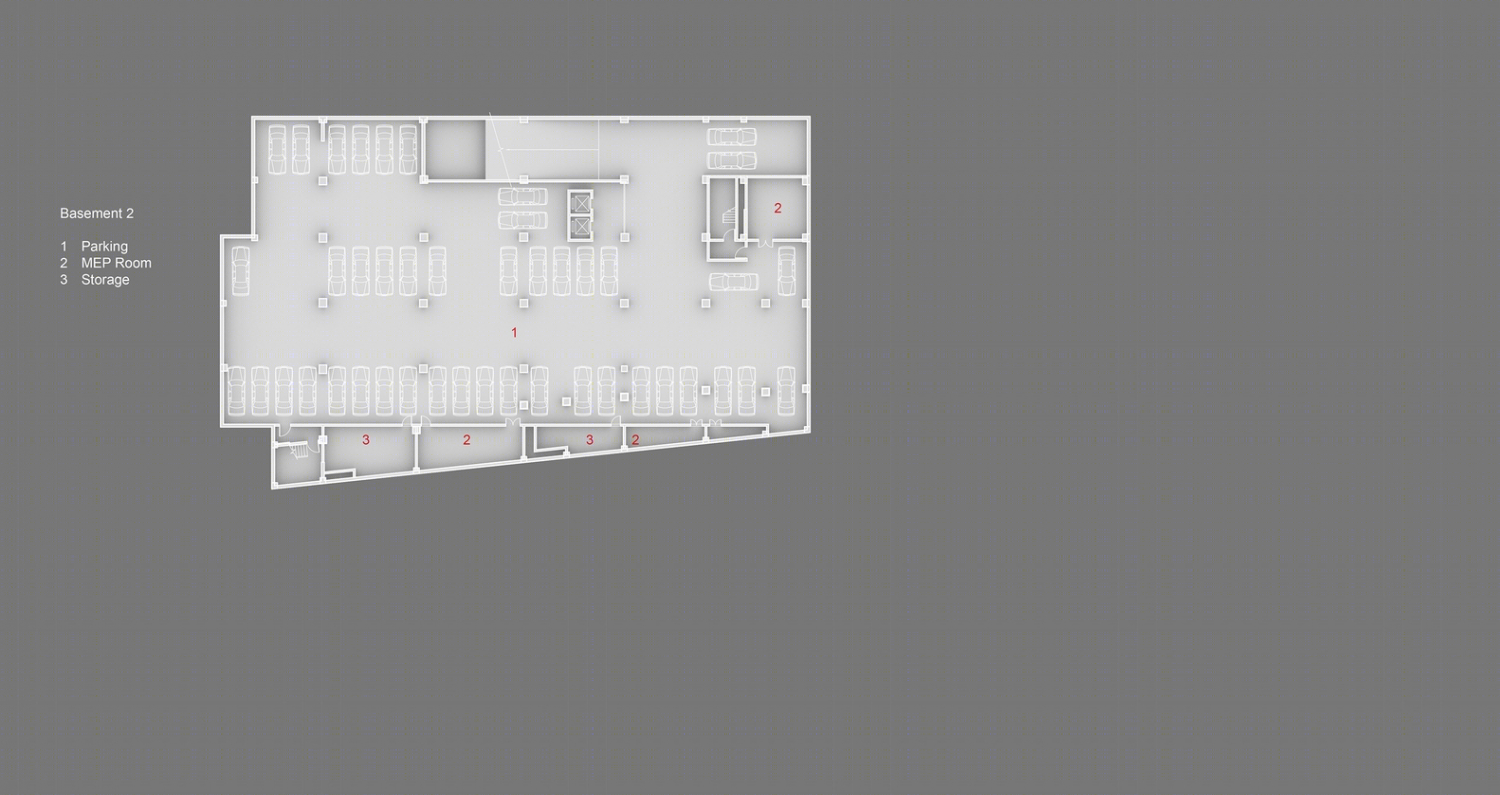

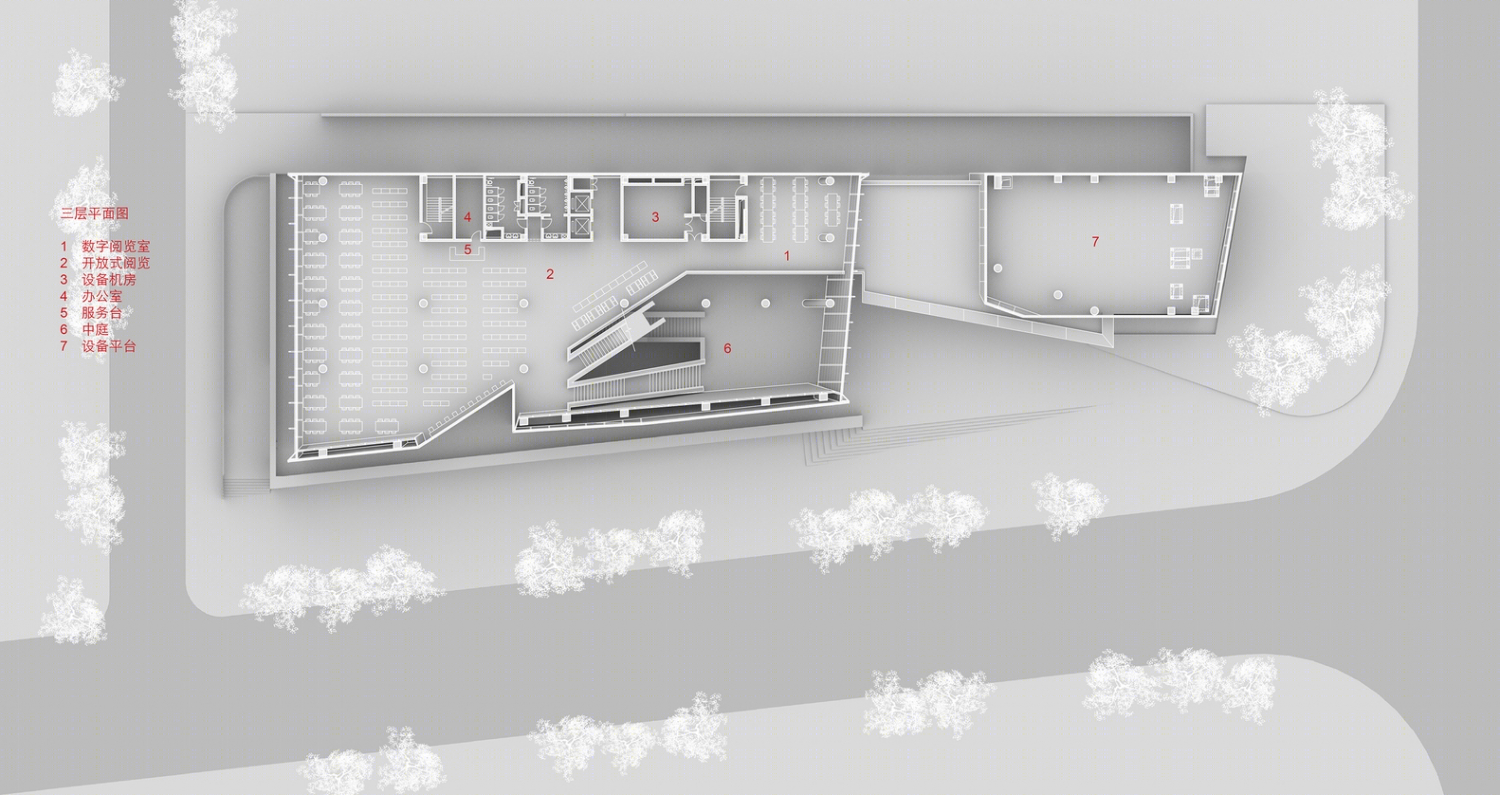

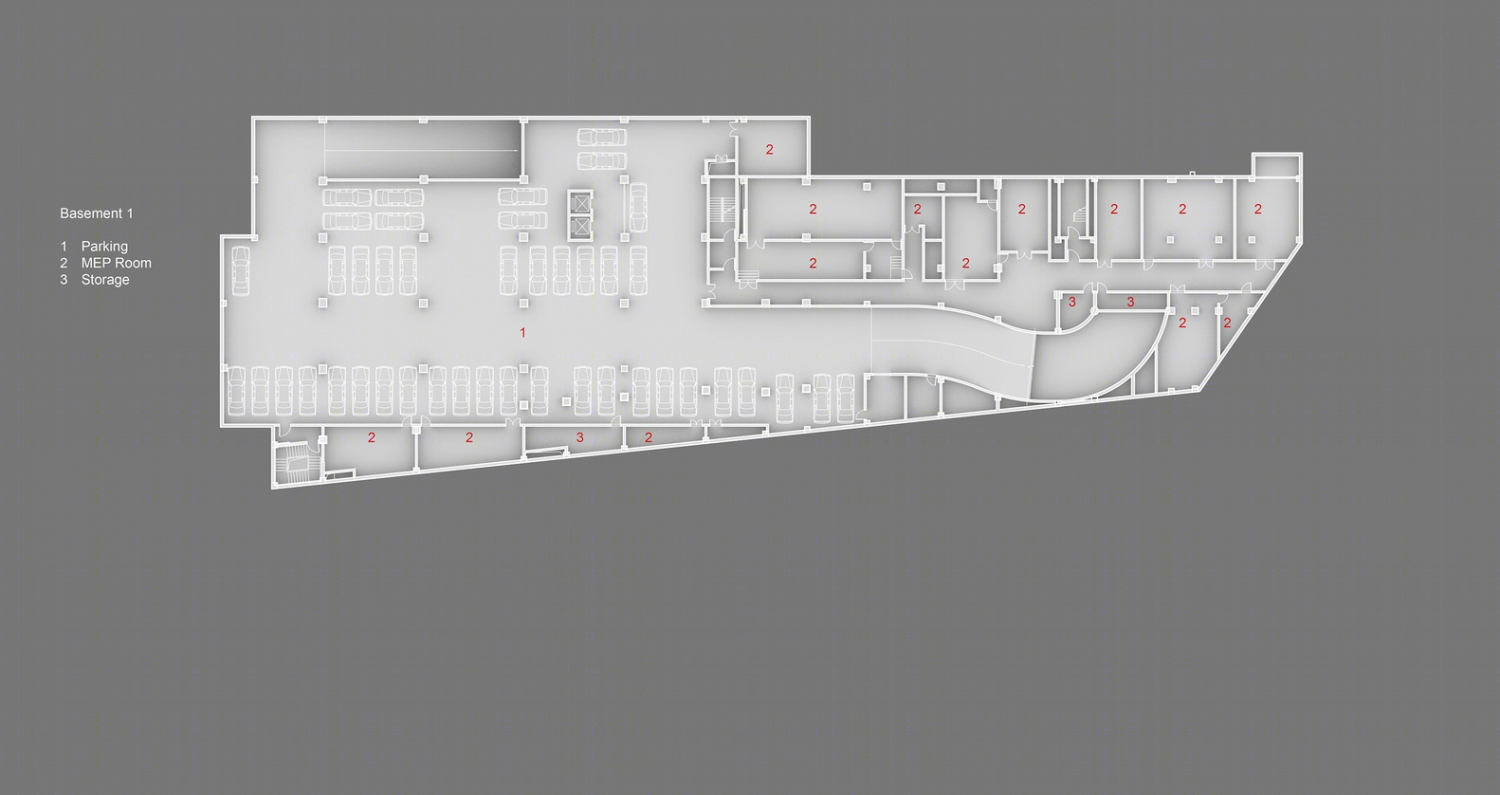

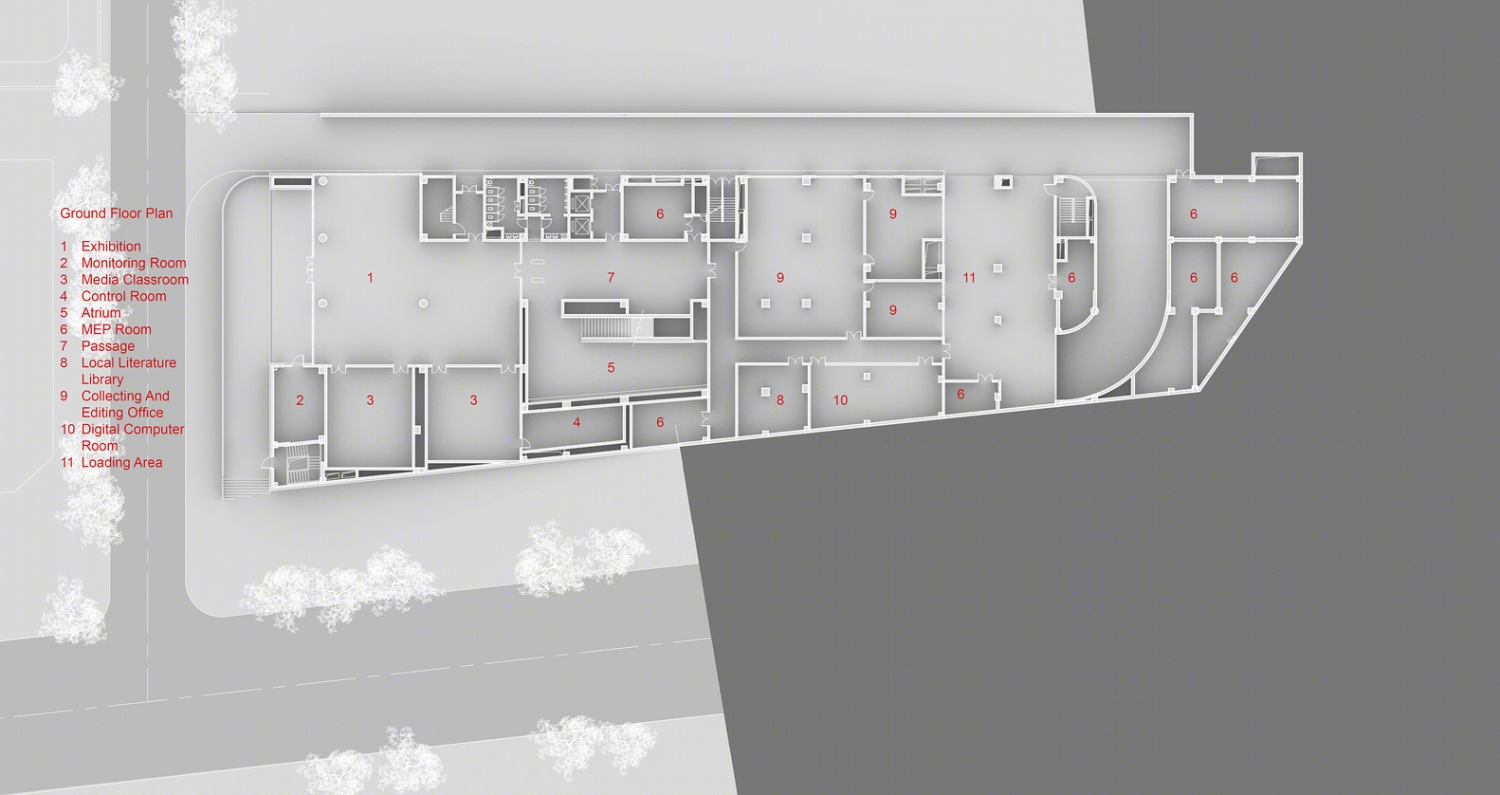

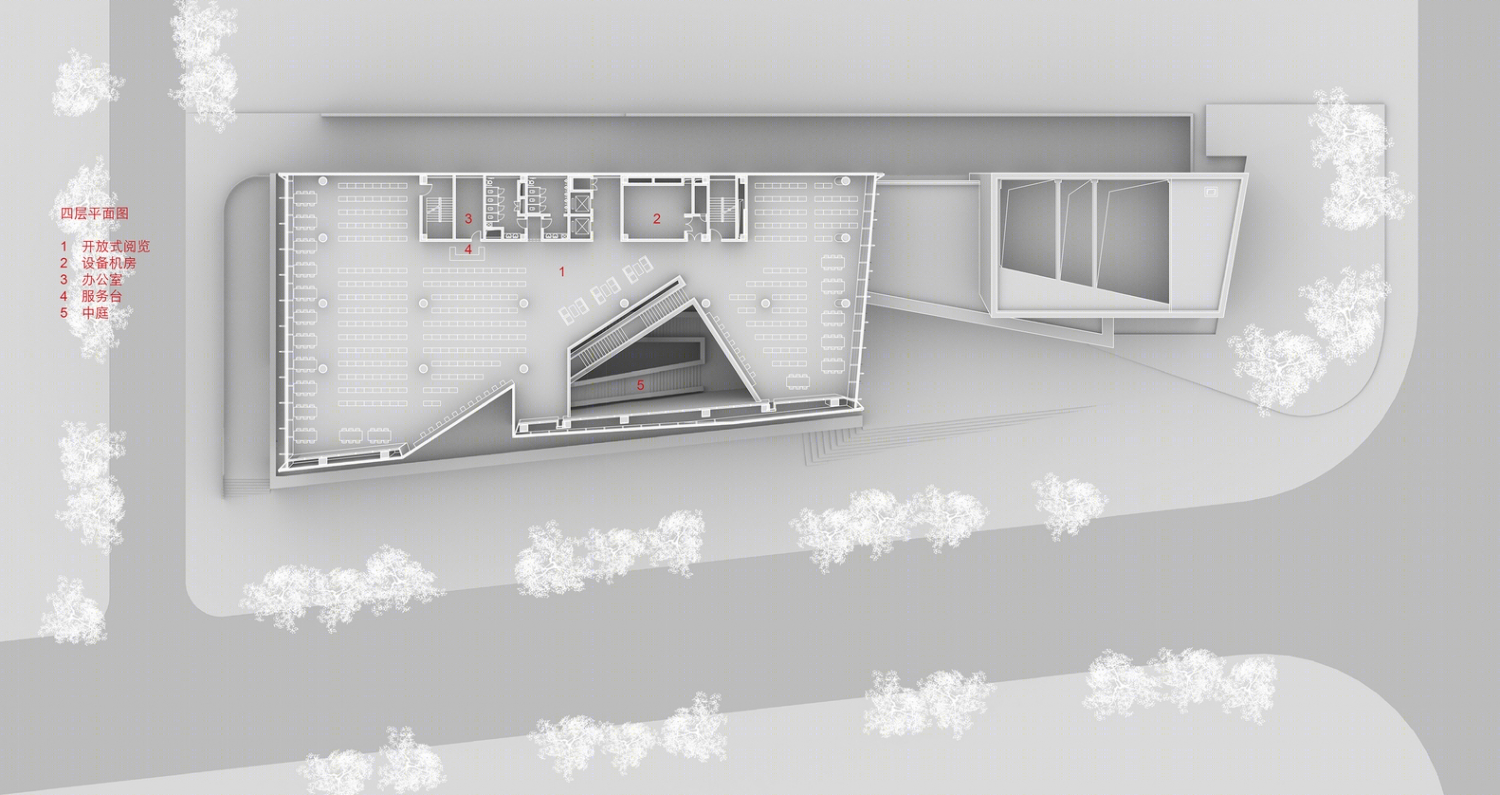

四川达州公共图书馆平面图

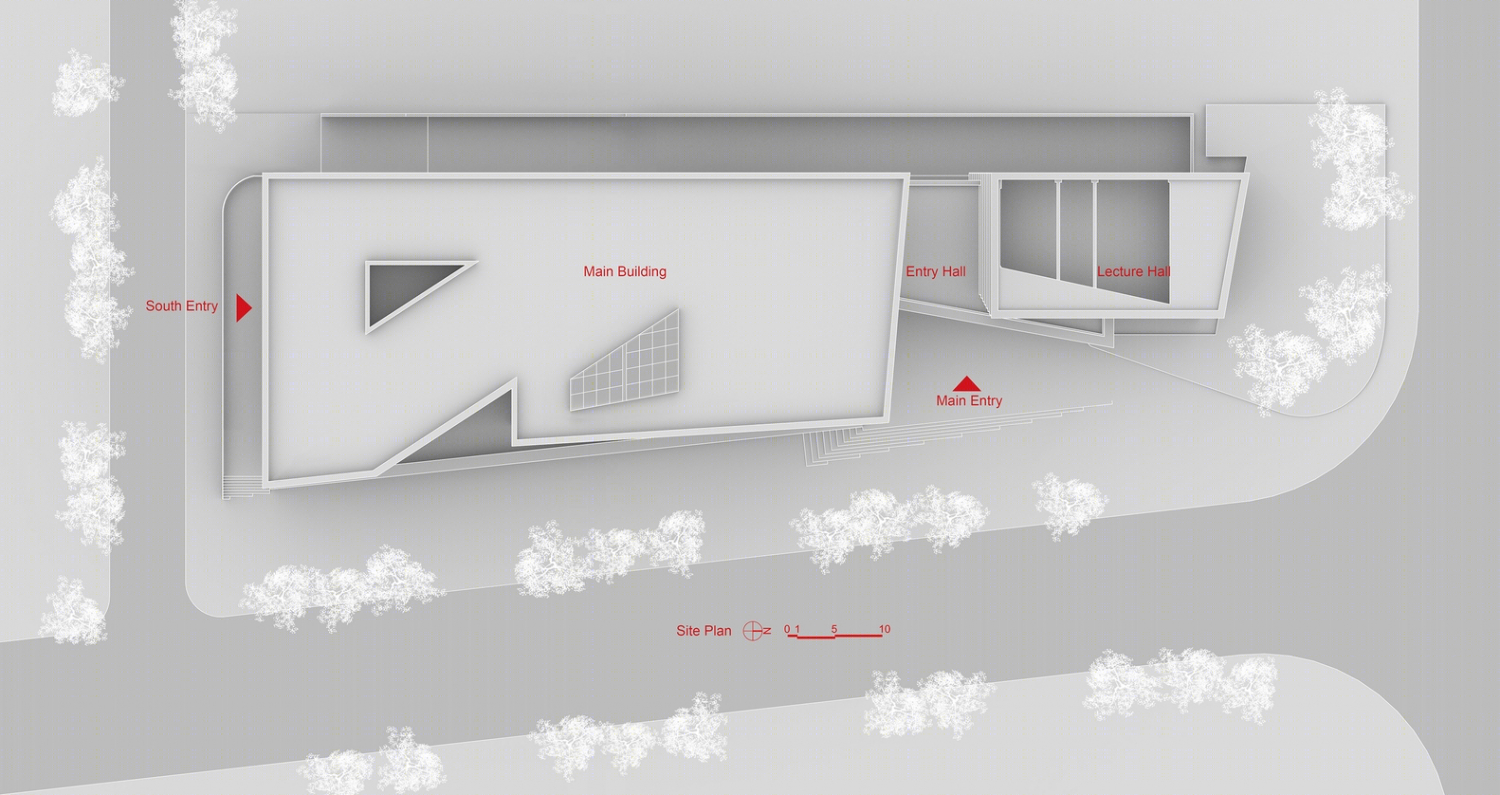

四川达州公共图书馆平面和模型图

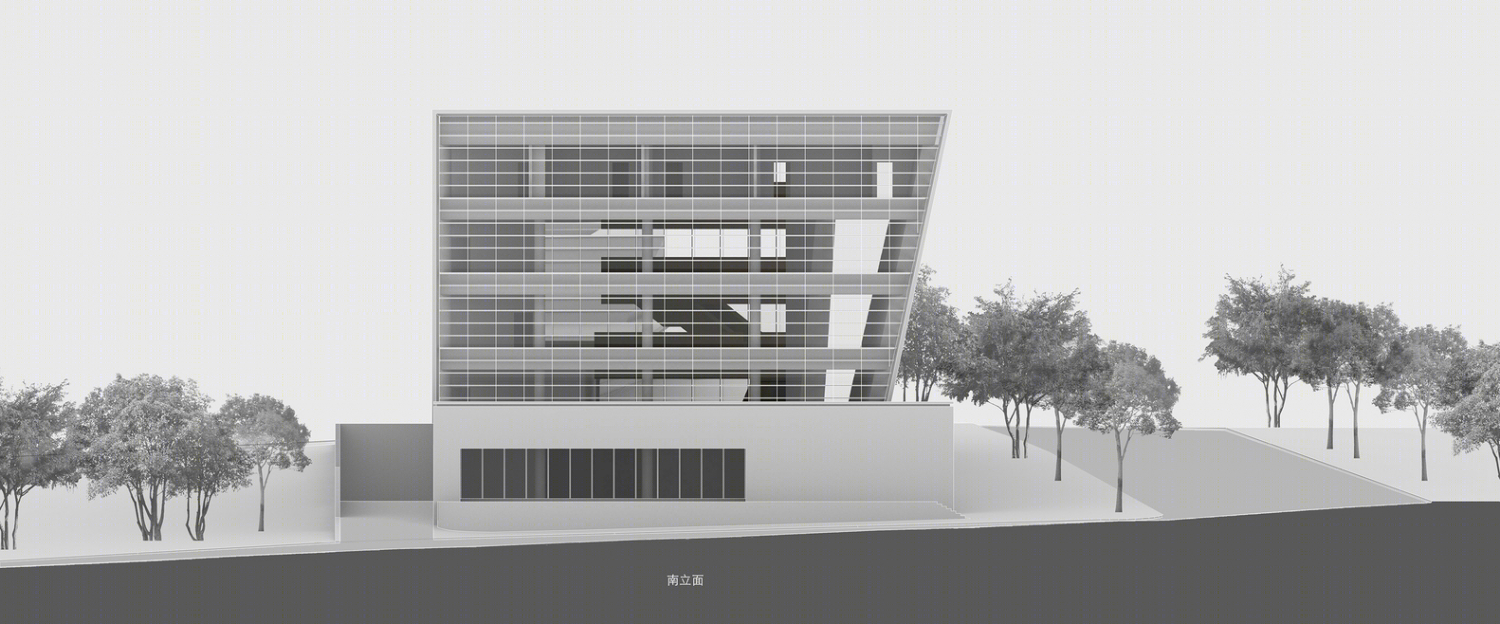

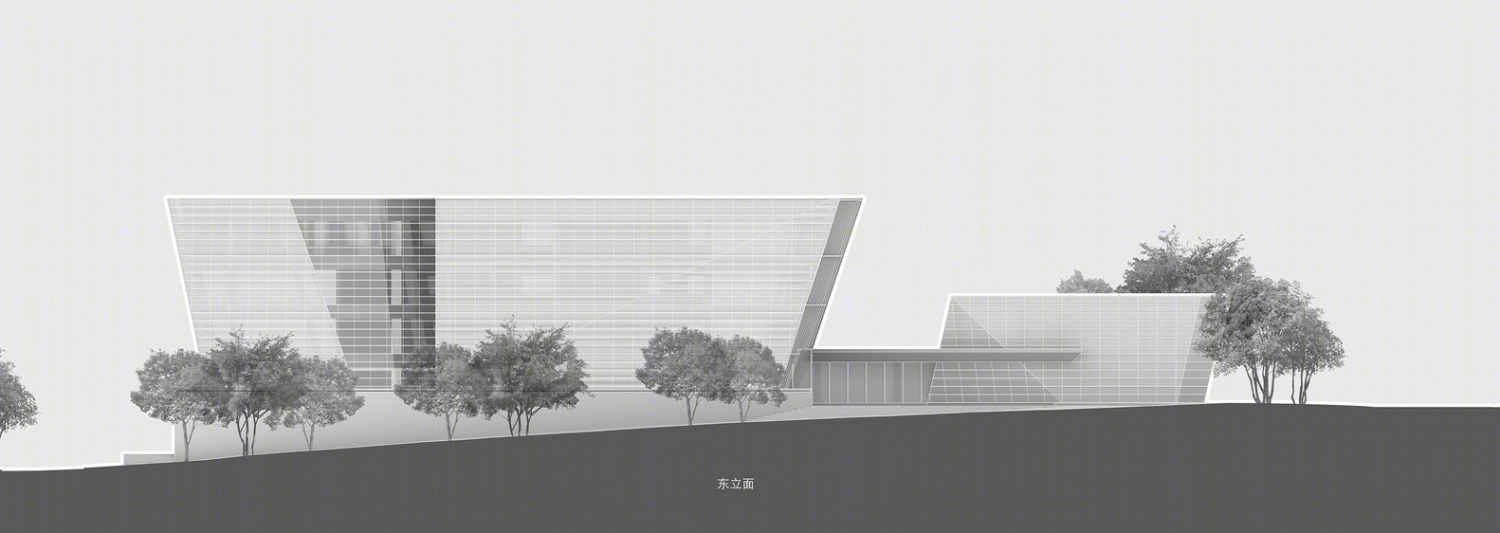

四川达州公共图书馆立面图
