Hupei Enshi Reading Room
设计方:SLOW Architects
位置:湖北 恩施
分类:文化建筑
内容:实景照片
图片:23张
这个教学点坐落在湖北省,恩施州的一个山区中,并位于三个县的交界上。这个区域的学生们都离三个县的中心学校很远,所以教学点就因为实际的需要被保留了下来。但是却没有办法得到更多的资金支持来提高硬件水平。我们的朋友徐志刚先生对教学点进行了捐助,为这个教学点修建一个阅览室,他找到我们来负责项目设计和材料的计算,因为要找一个承包商进入这样的大山并负责项目是很困难的,项目的建设也是由一些朋友和我们的一个同事进行的。
考虑到场址的条件,我们决定了设计的原则是使用木结构,项目的大部分构建都在恩施州的城区预先构造好,然后就只需要在大山中将他们快速的装配起来就可以了。基于这样的原则,我们对项目的设计和构造细节进行了反复的讨论。我们开始设想整个建筑体量的面积是15-20平方米,但是到了后来变成了25平方米,我们将灰色空间包括进来了。项目的设计被期望着在这个小的建筑体量中创造出尽可能多的空间体验,以引发孩子们的想象力。
译者:蝈蝈
This teaching school locates in the mountain area of Enshi City, Hubei province and at the intersection of three counties. The students in this area live far away from any of the central school of the three counties, so the teaching school is reserved because of the actual need. But it could not get more financial support to improve its hardward.Our friend Mr. Xu Zhigang initiate this endowment to build a reading room for this teaching school and find us to take charge of the design and material counting; because it would be too difficult to find contractor to go into the mountain, the construction will also be done by a few friends and one of our colleague.
Considering the site condition, we decide the principle of the design is to use wood structure, make most component prefabricated in urban area of Enshi City and only assemble them rapidly on the mountain. Based on this principle, we discussed the design and the tectonic details back and forth.The entire building is supposed to be 15-20sqm,and finally it comes to 25sqm including the grey space. The design hopes to create possibly rich spacial experience in such a small building, so that to provoke the imaginations of the children.

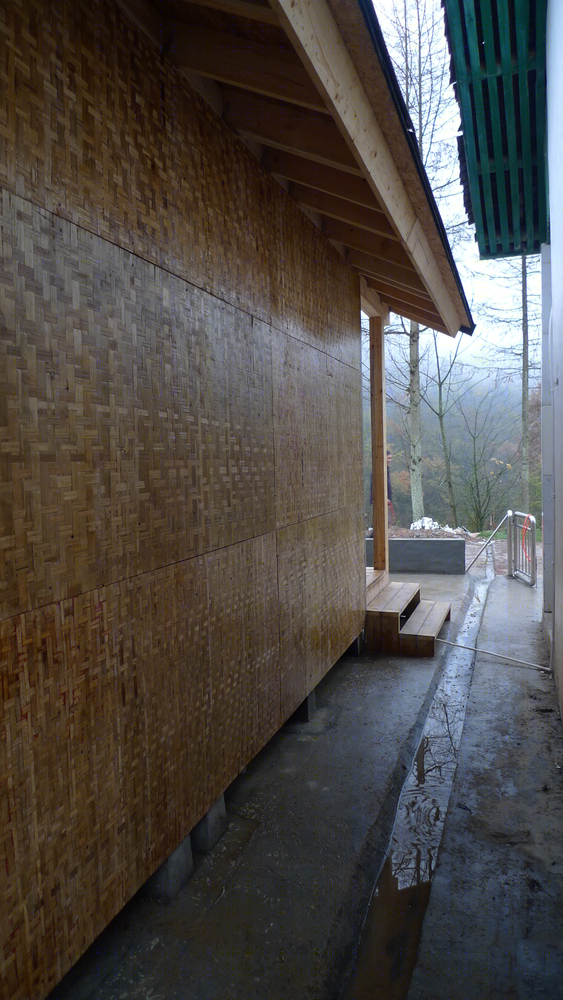

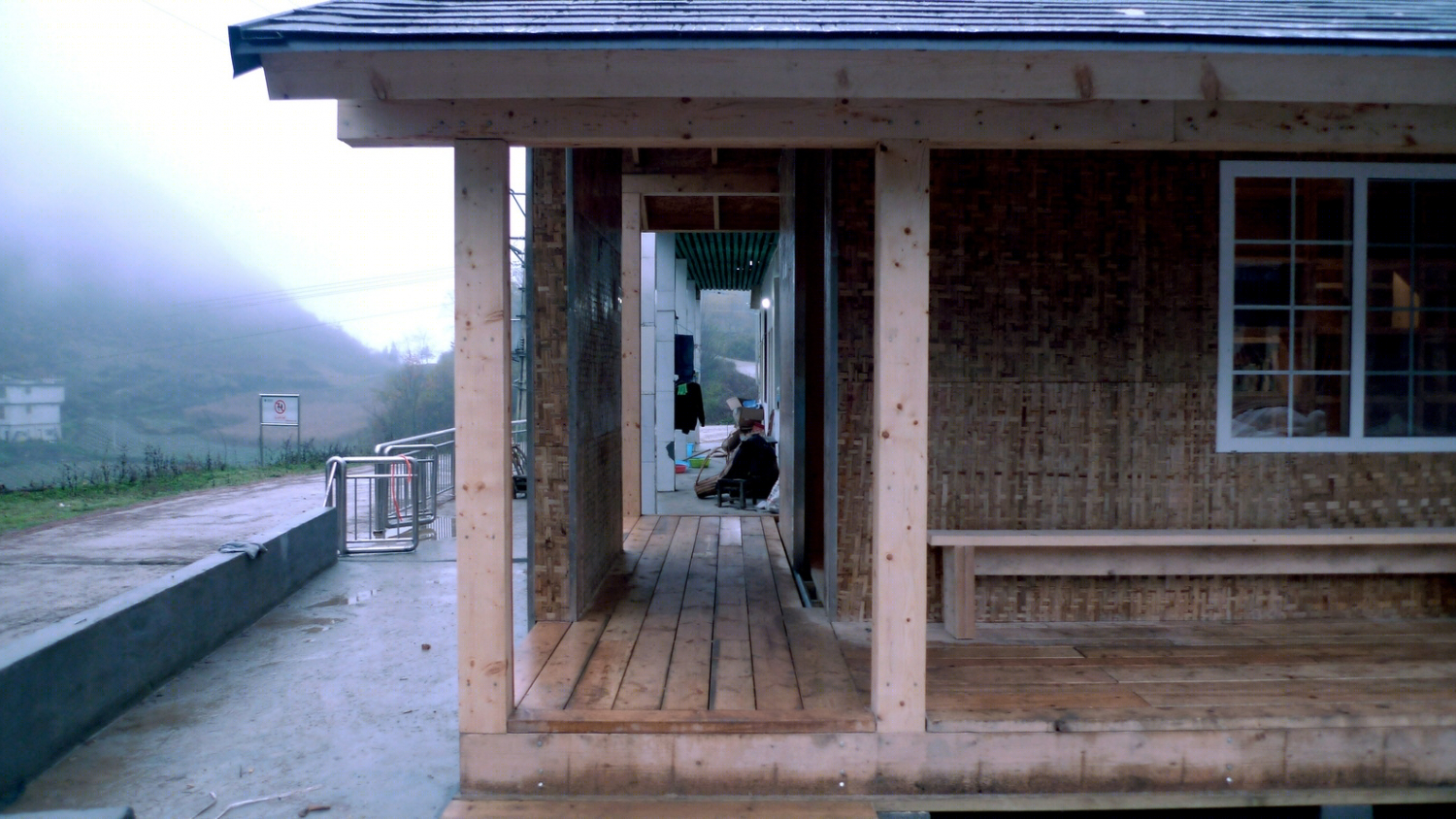

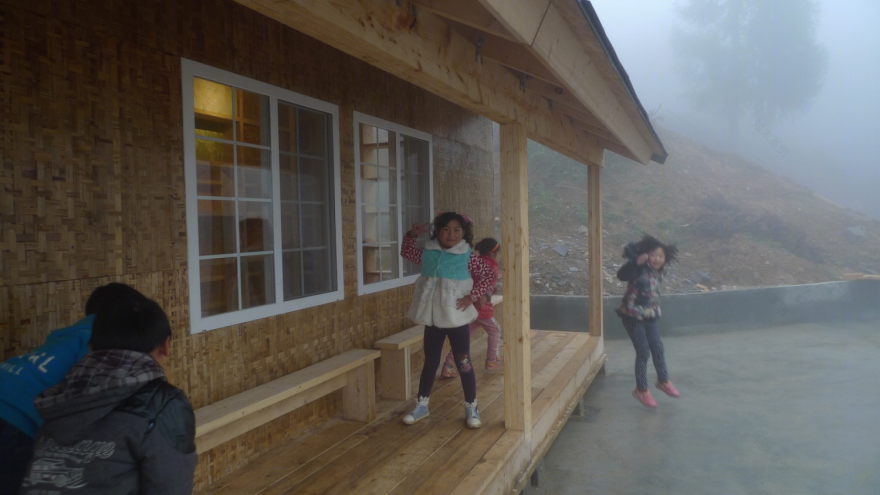

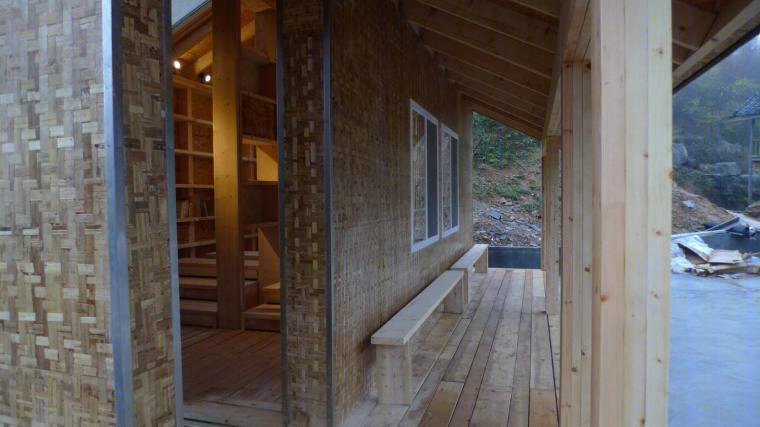

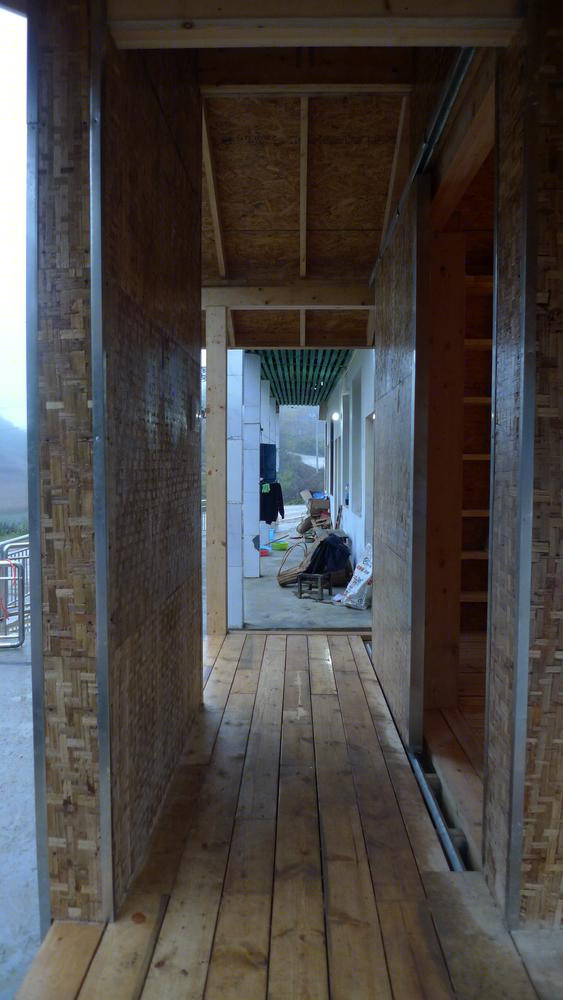

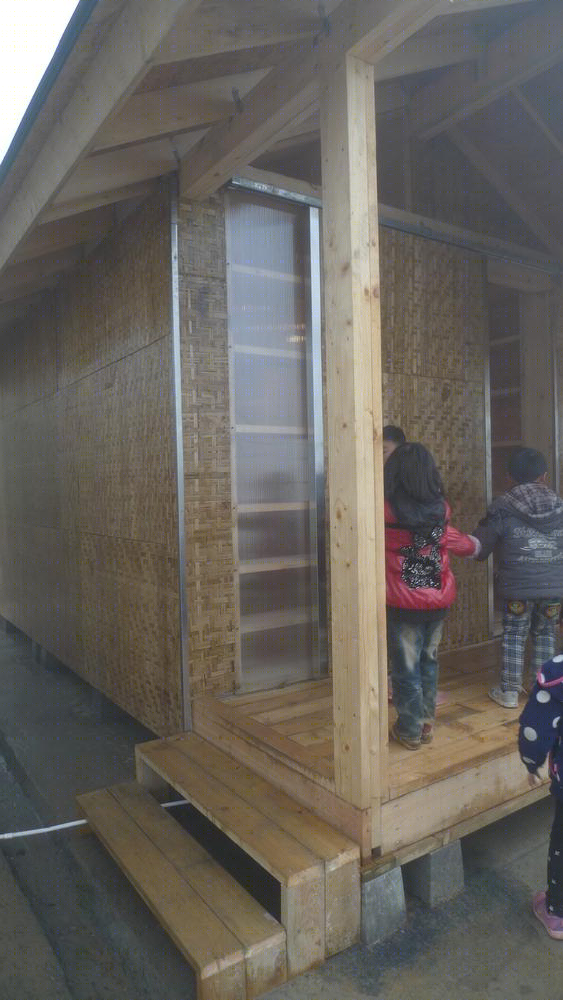

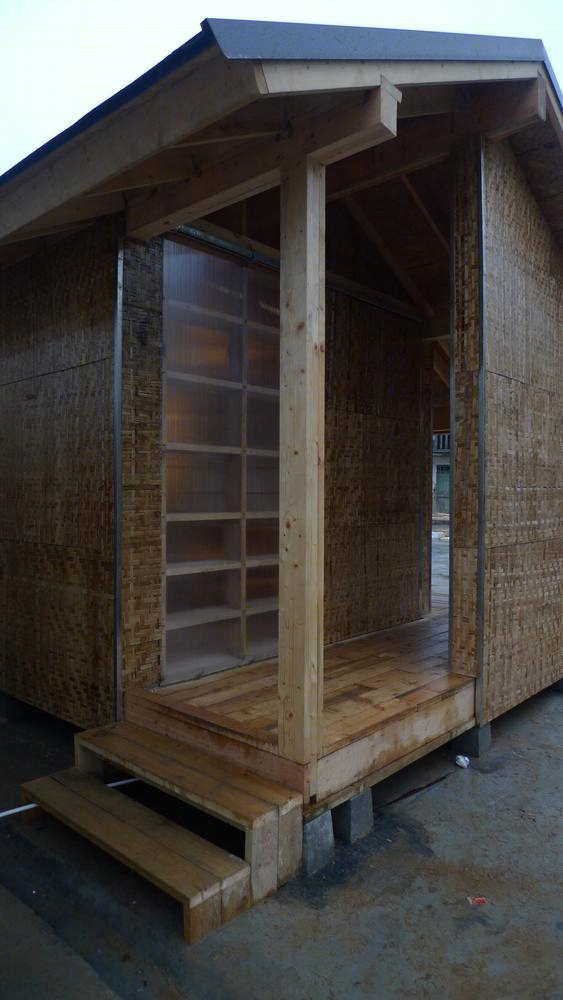

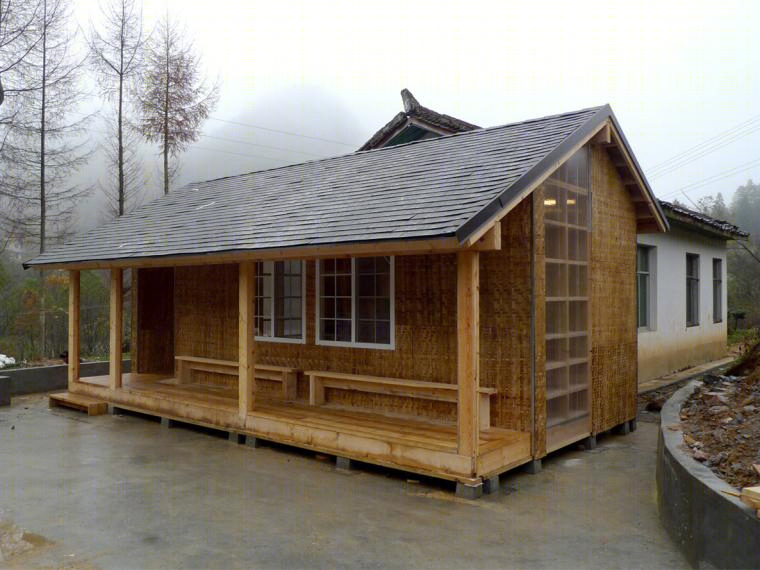

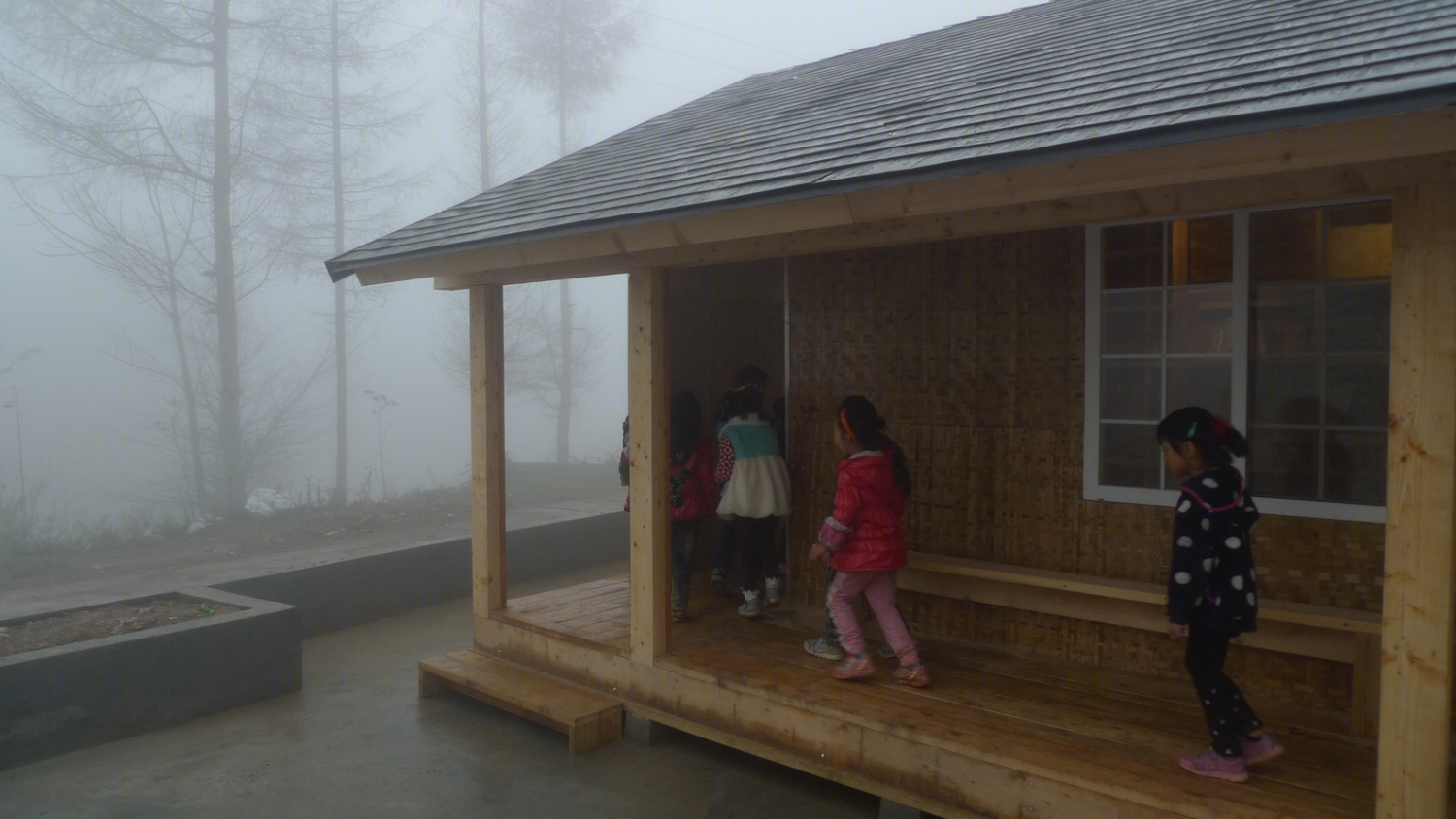

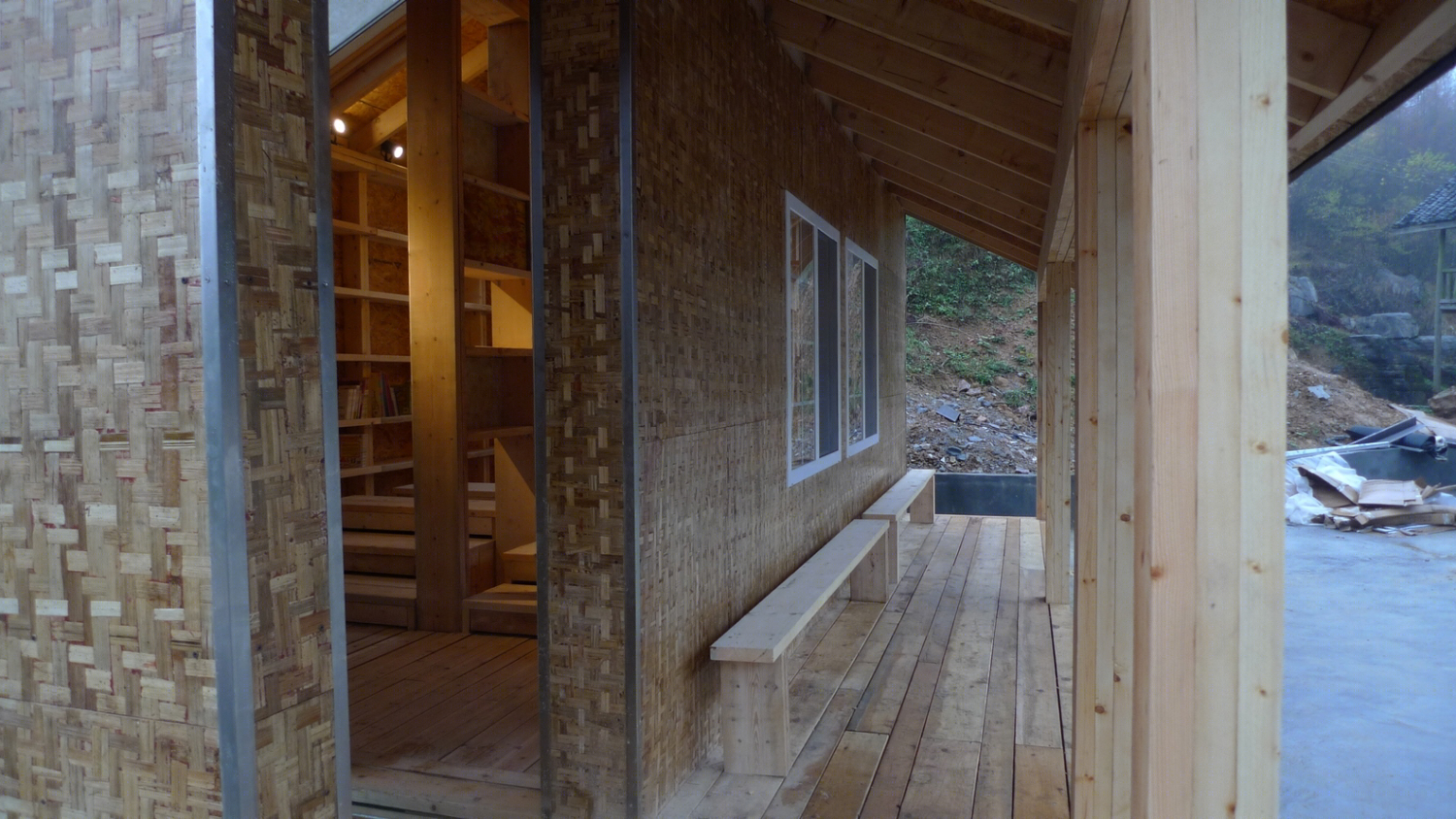

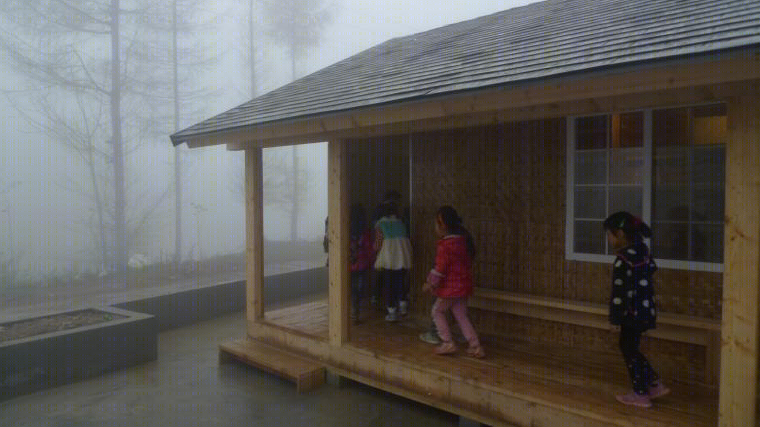

湖北恩施阅览室外部实景图

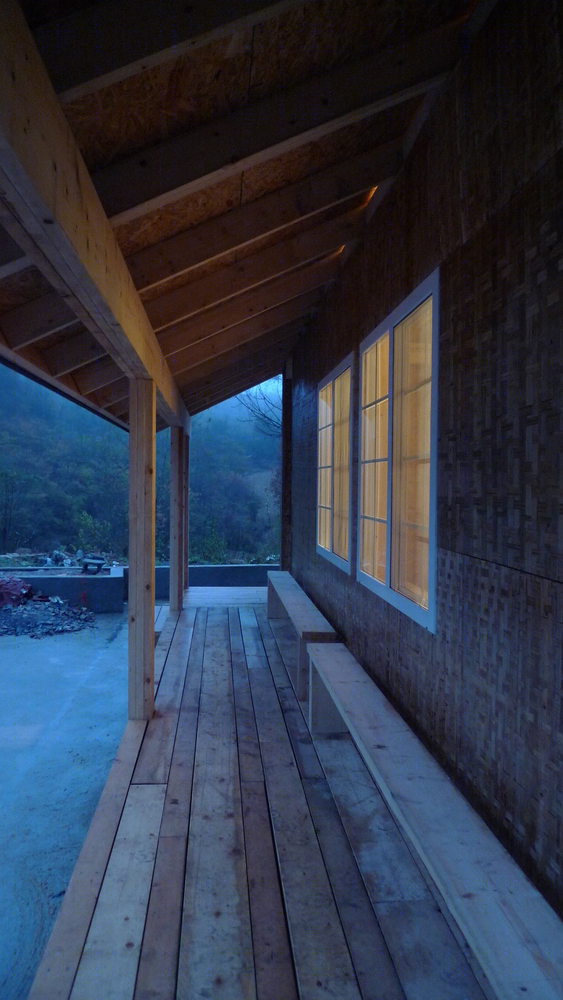

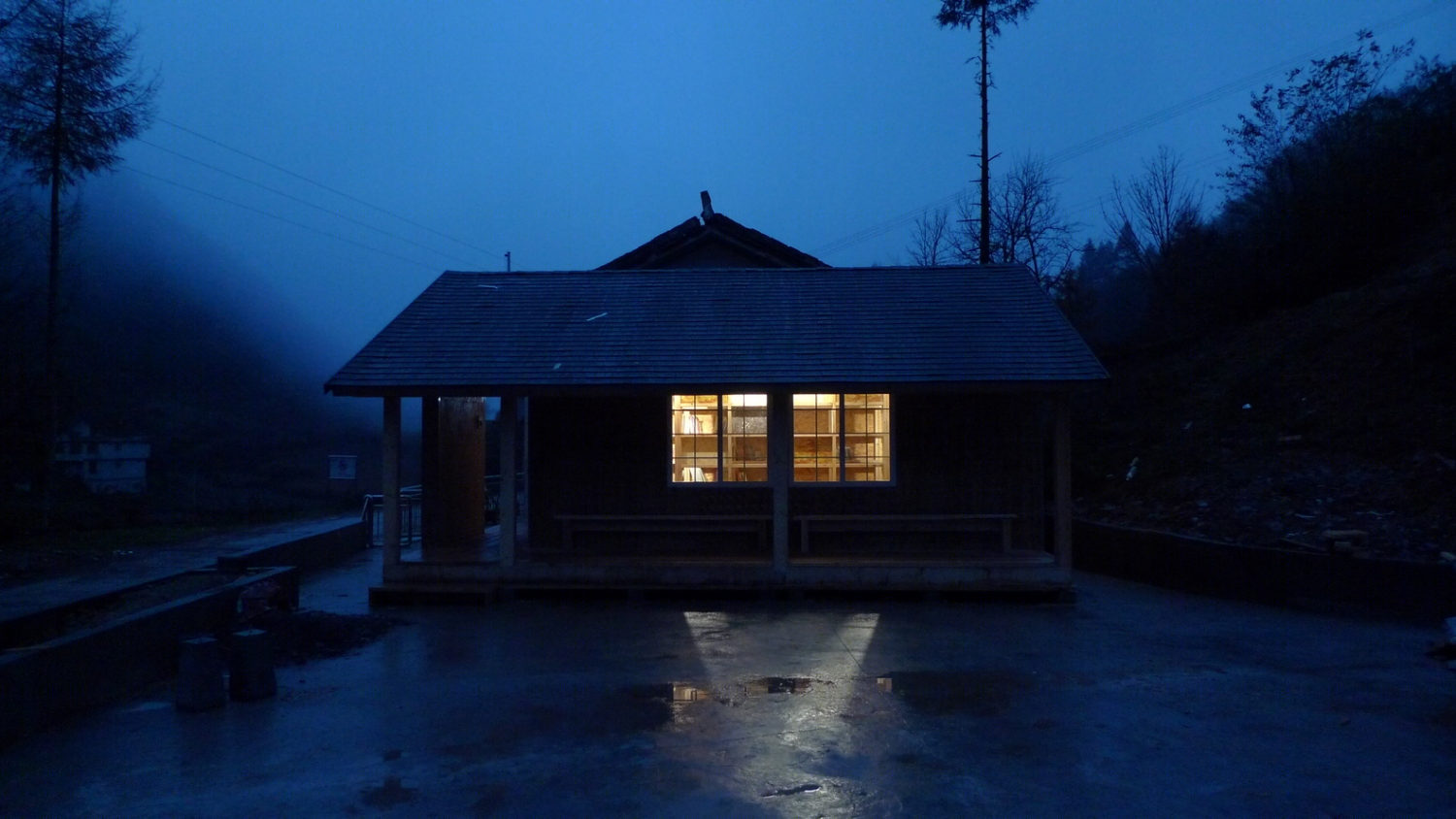

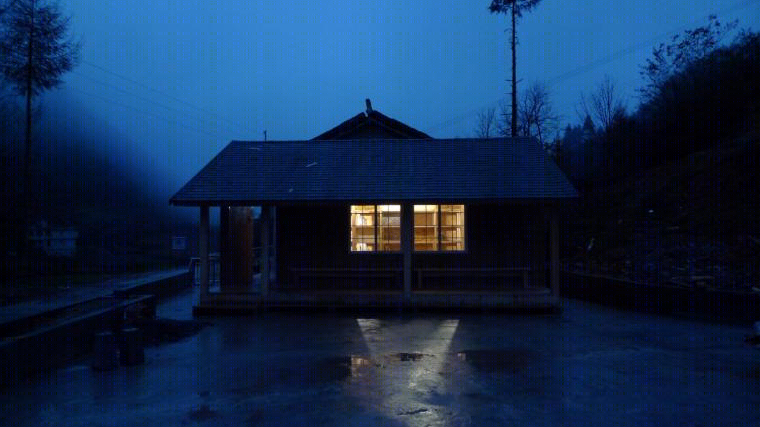

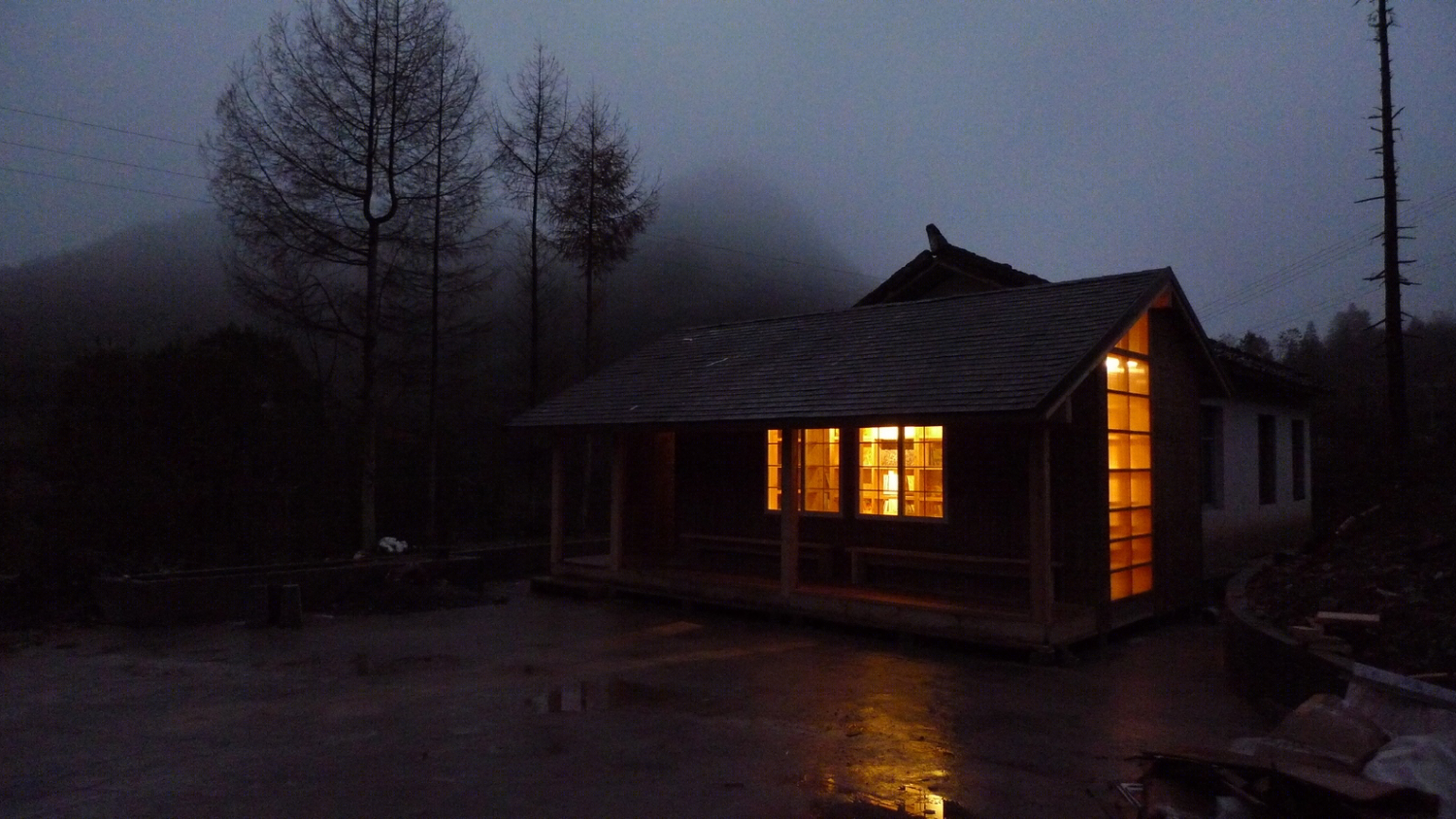

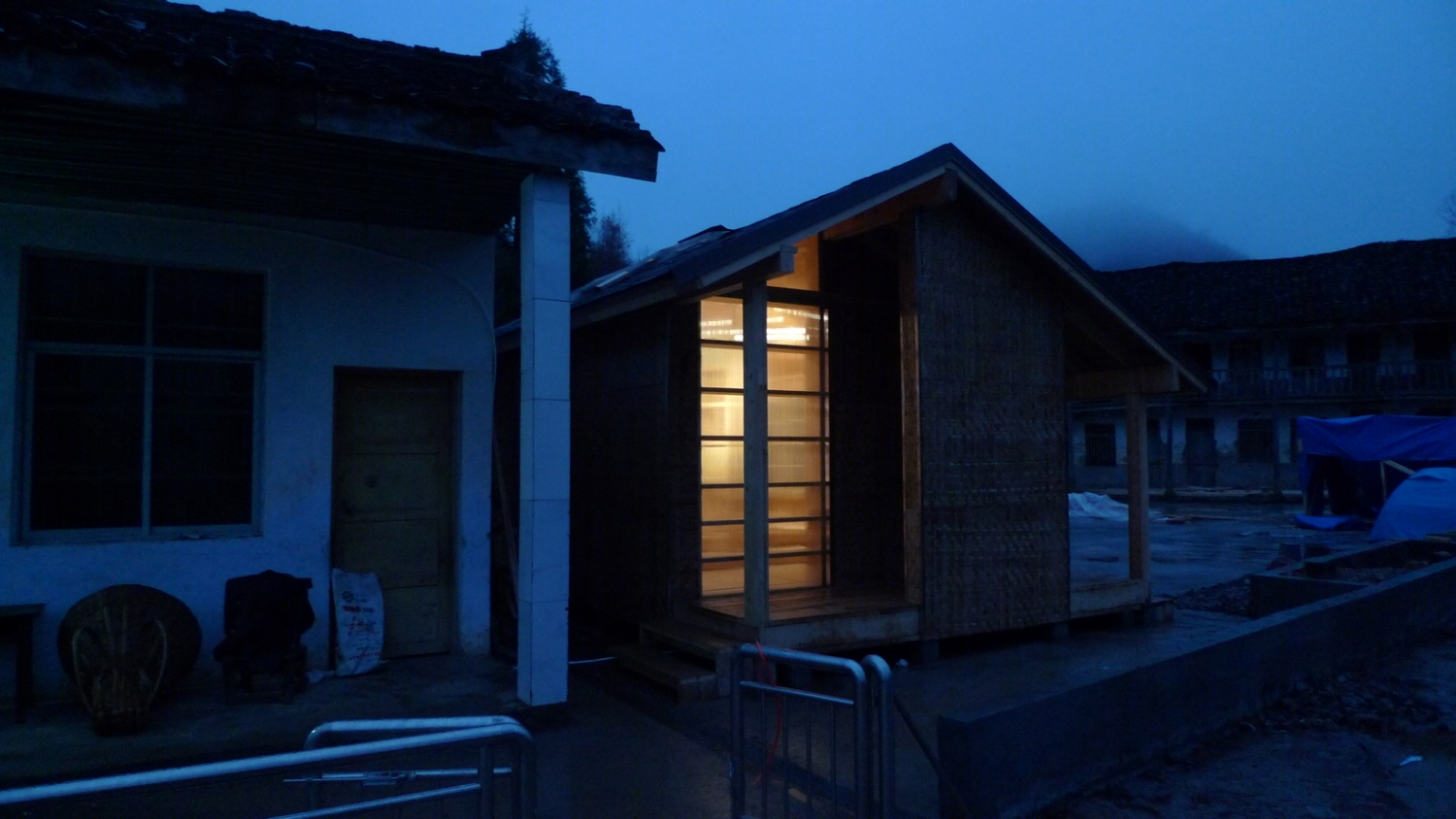

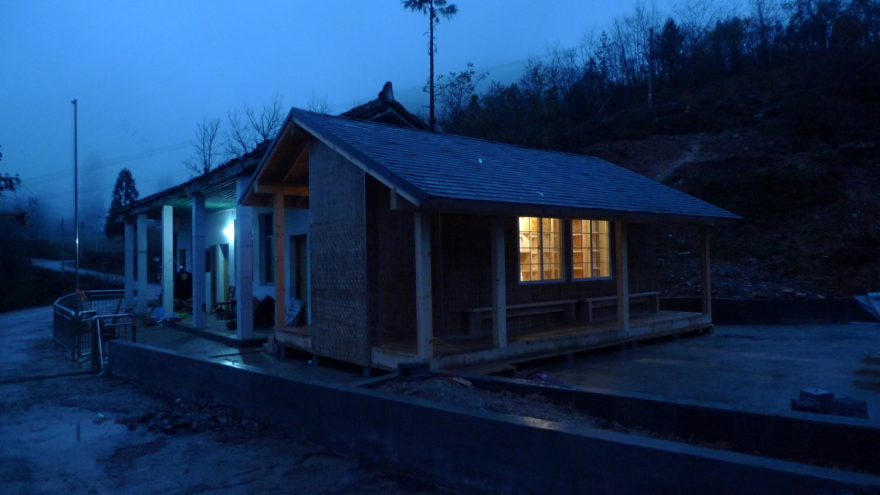

湖北恩施阅览室外部夜景实景图

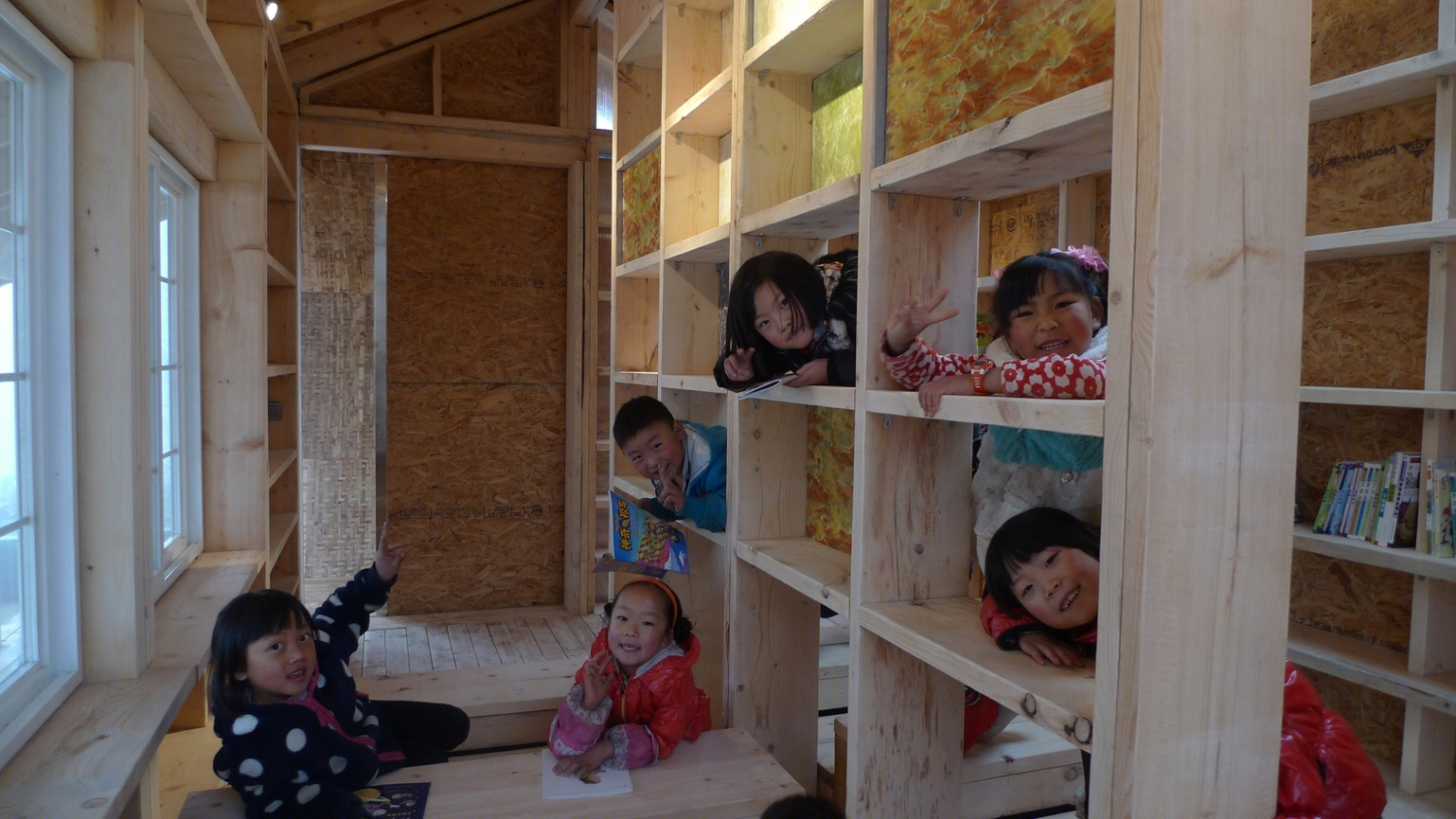

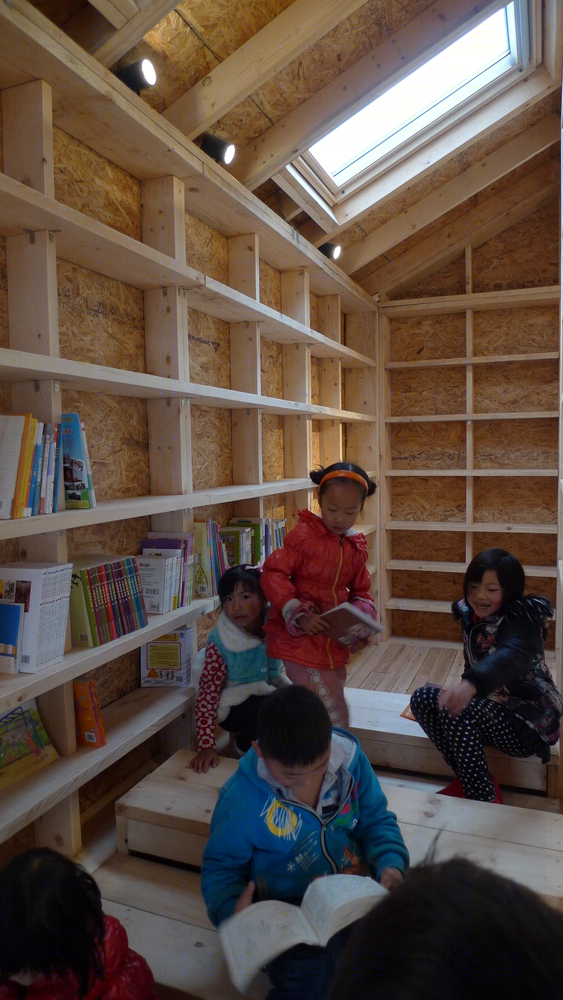

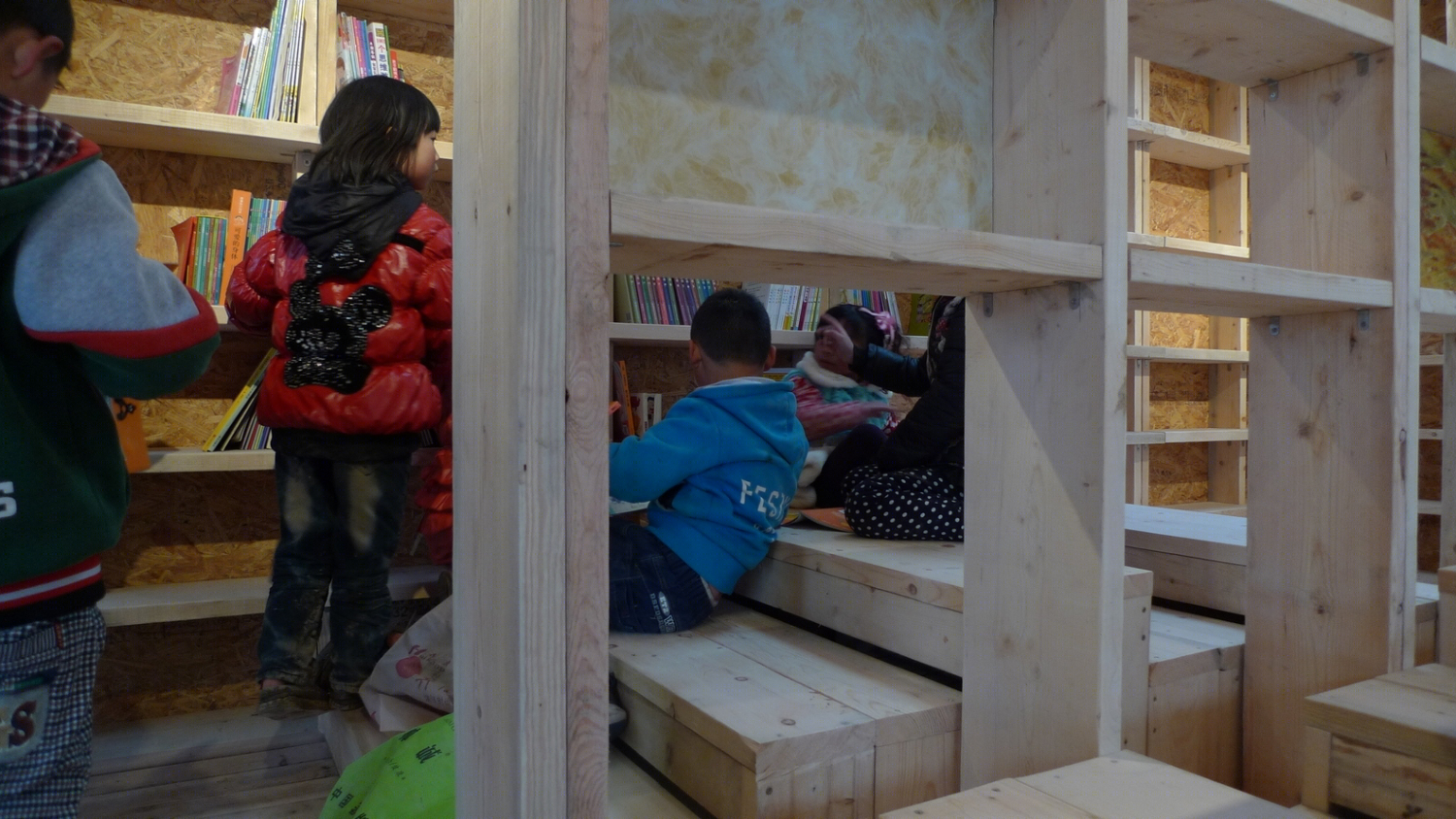

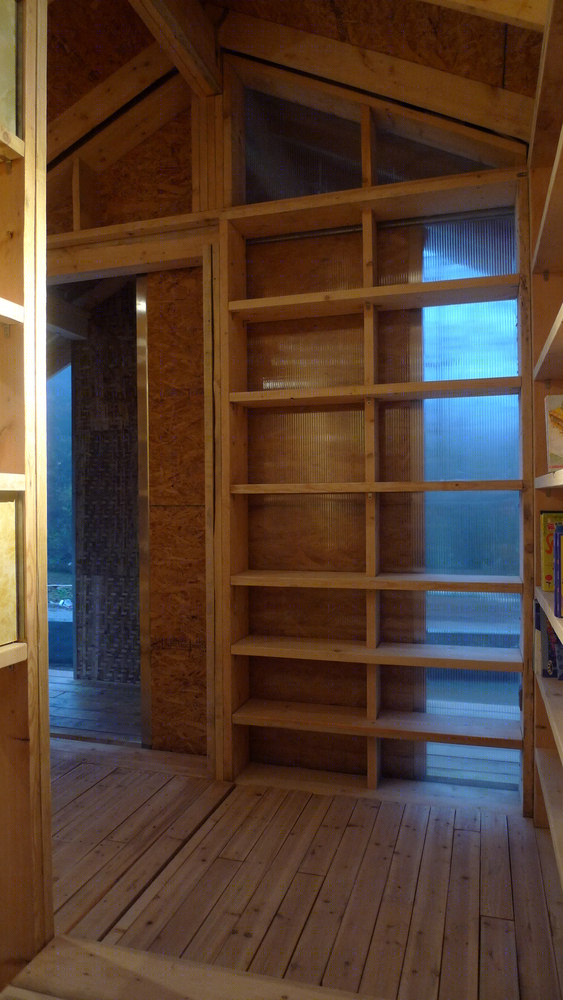

湖北恩施阅览室内部实景图

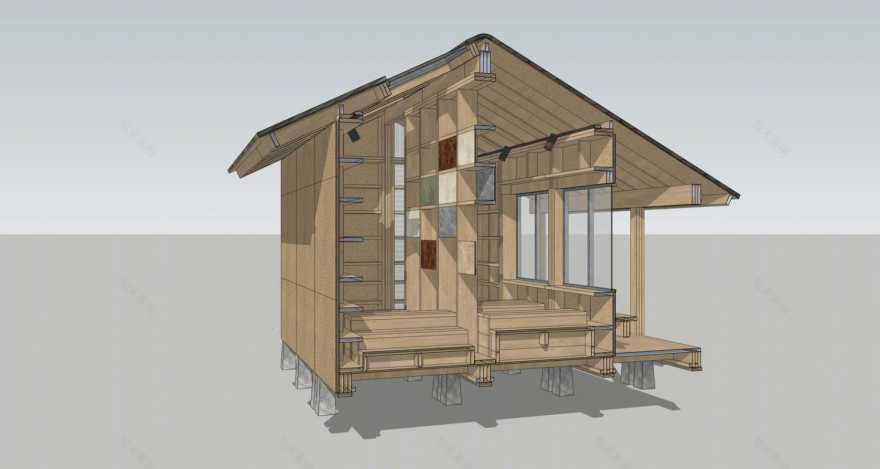

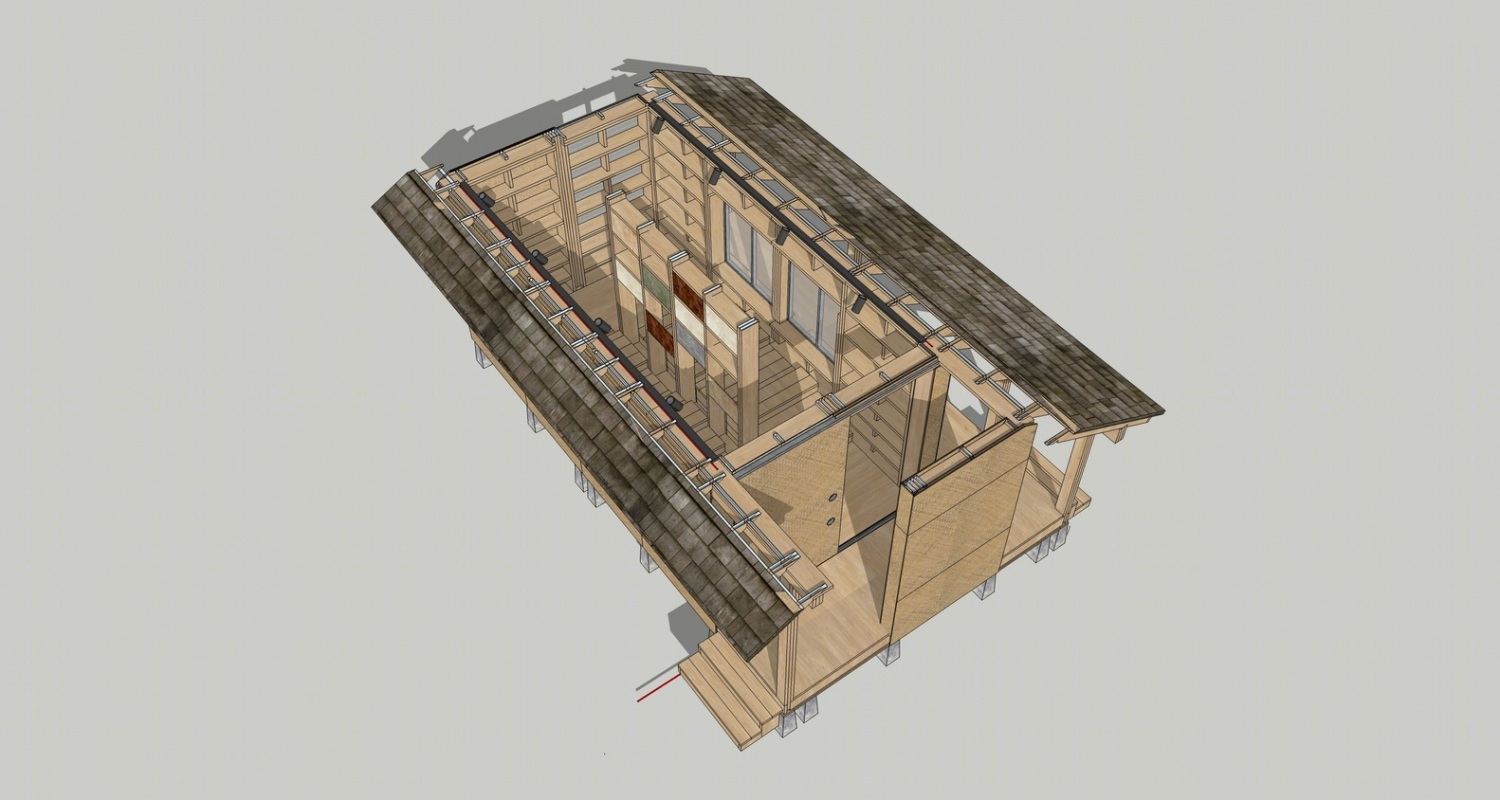

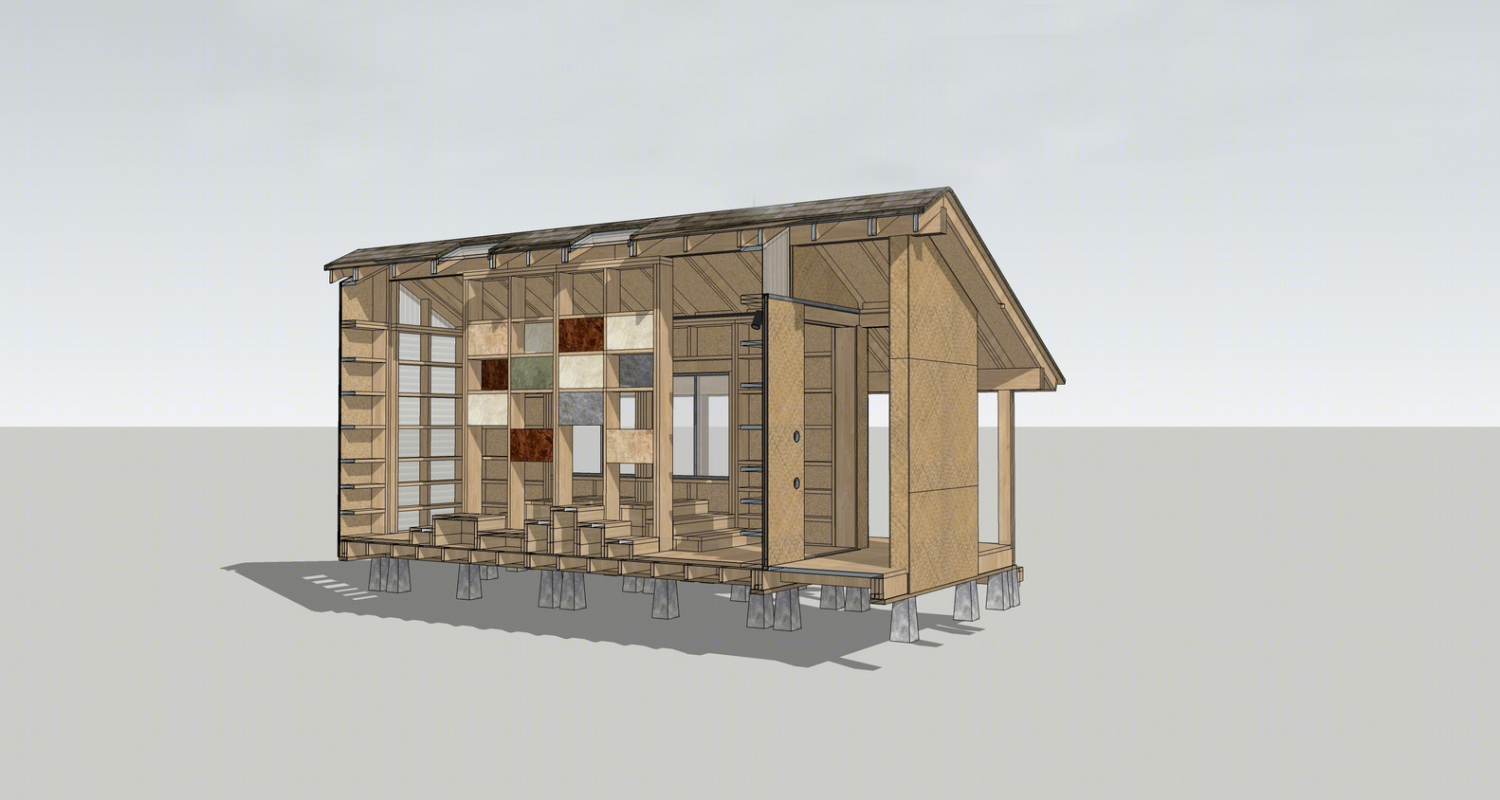

湖北恩施阅览室模型图

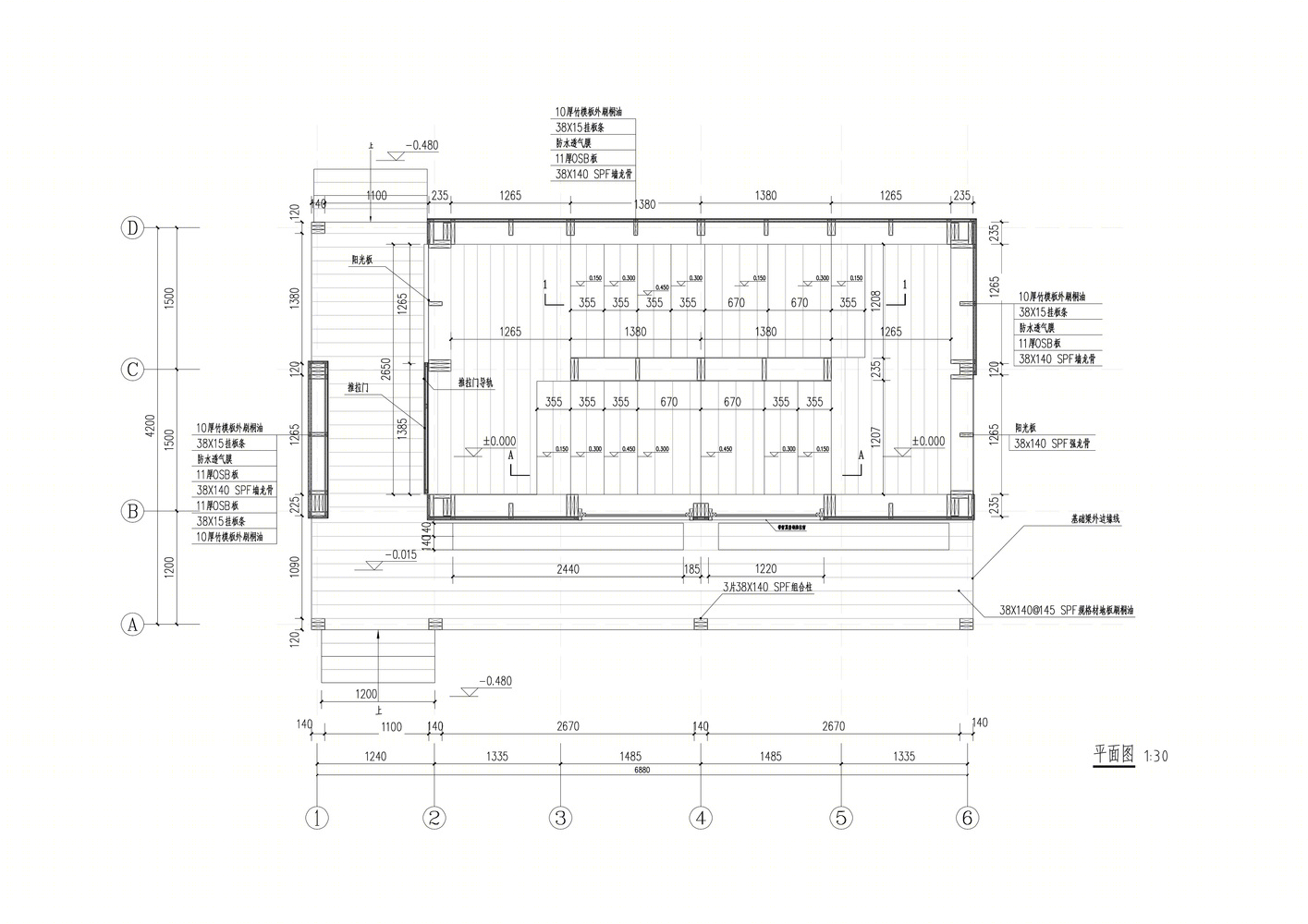

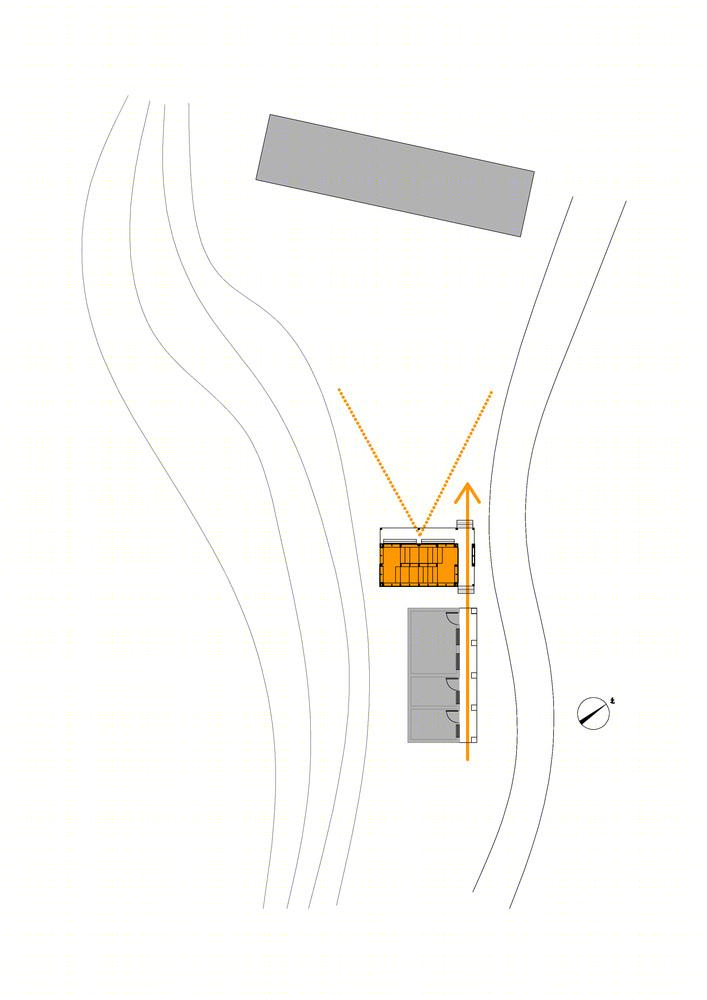

湖北恩施阅览室平面图
