巴克维哈精品城及墨丘利剧院丨Project Meganom

Buck d ha high-quality goods city and mercury theatre

设计方：Project Meganom

位置：俄罗斯 莫斯科

分类：文化建筑

内容：实景照片

建筑设计负责人：Yu. Grigoryan, A. Pavlova, I. Kuleshov, P. Ivanchikov

承包人：PSP FARMAN Company

图片：27张

摄影师：Project Meganom

这是由Project Meganom设计的巴克维哈精品城及墨丘利剧院。这个奢侈品购物村位于巴克维哈村和茹科夫卡村之间，场地毗邻Rublyovo-Uspenskoye高速公路，长达600米。蜿蜒的步行街两侧是带状的商店，其间设有5个广场。步行街的一端是水疗酒店，另一端是剧院。商业建筑的首层和二层共用地下停车库、储藏室和设备用房。景观方面由West 8设计工作室负责。墨丘利剧院使用了木条，营造了波浪状的、动态的而又稳定的建筑立面。剧院大厅可以在四种功能模式中变换：剧院、歌舞表演、时装表演或演讲台。剧院大厅提供了八个液压机械装置，可以降低或抬高地板约五米。当剧院大厅是作为戏剧表演时，观众席可容纳600人，并提供17个VIP包厢可容纳超过50人。

译者： 艾比

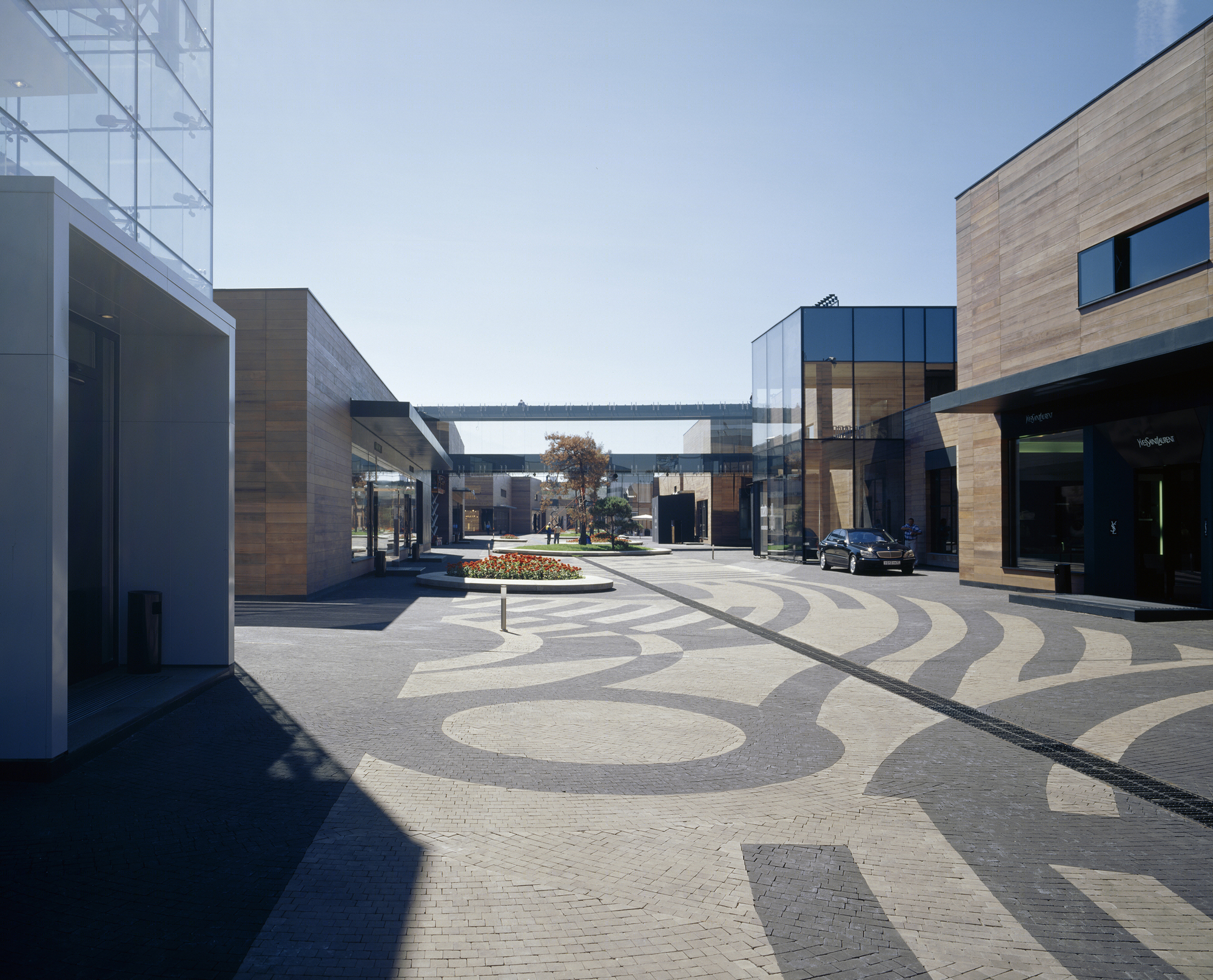

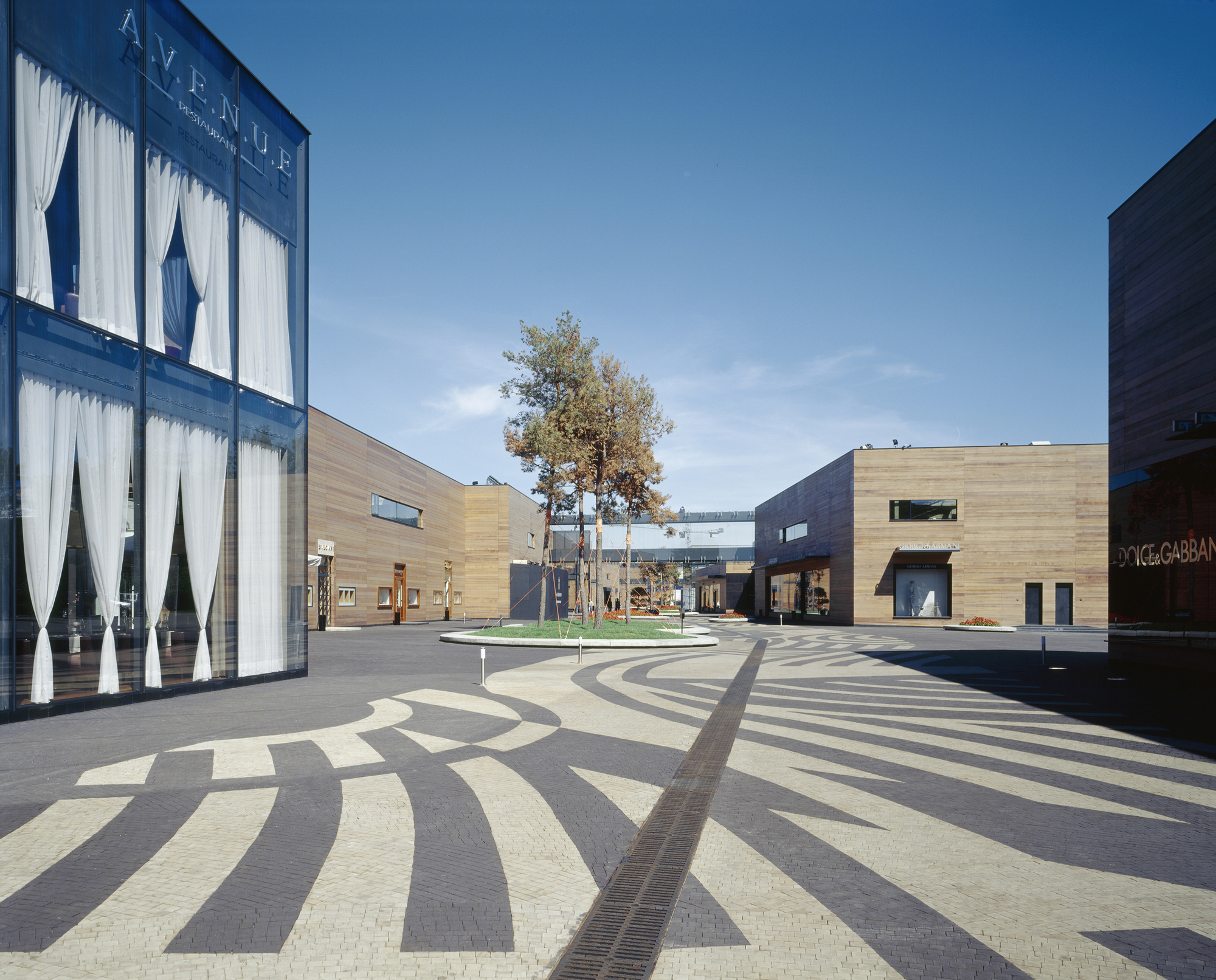

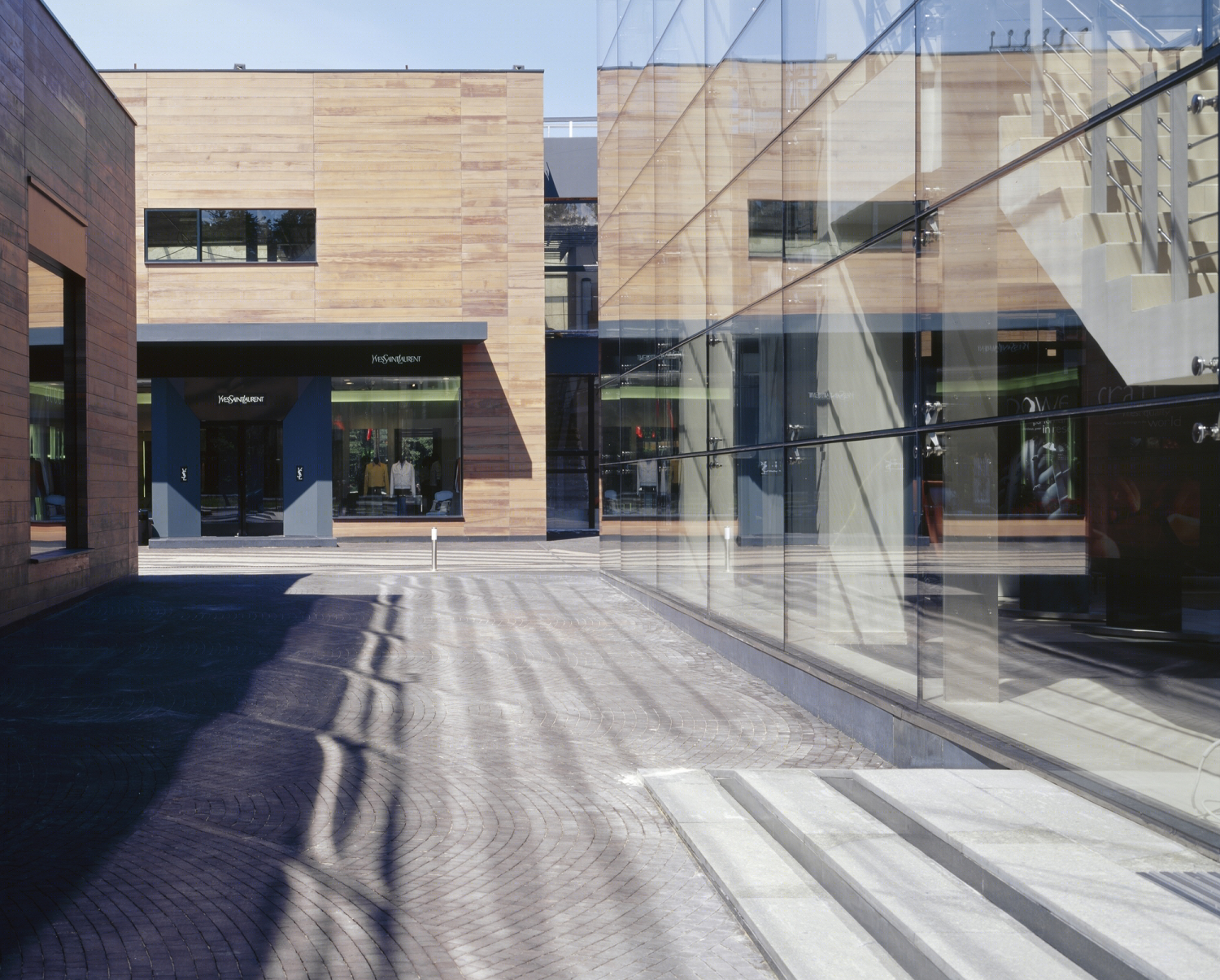

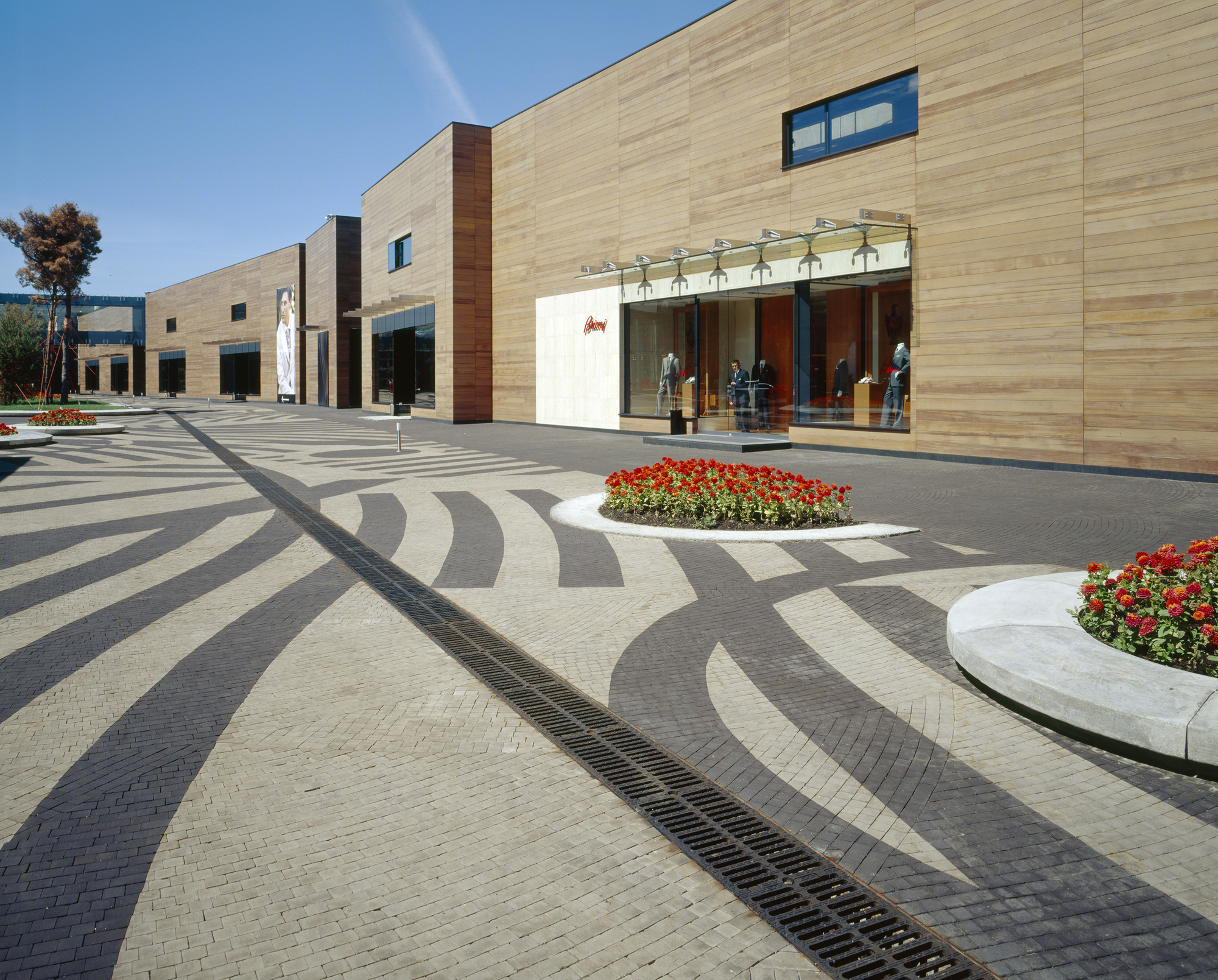

The Luxury Village shopping complex occupies an elongated site of 600 m along Rublyovo-Uspenskoye Highway, between the villages of Barvikha and Zhukovka. A crooked pedestrian street between two elongated strips of shops connects 5 squares. The street runs from a spa hotel on one end to a theatre on the other.The one- and two-storey shop buildings share a common basement with underground parking, storage and technical rooms. The landscape solution was created by the West 8 design team.

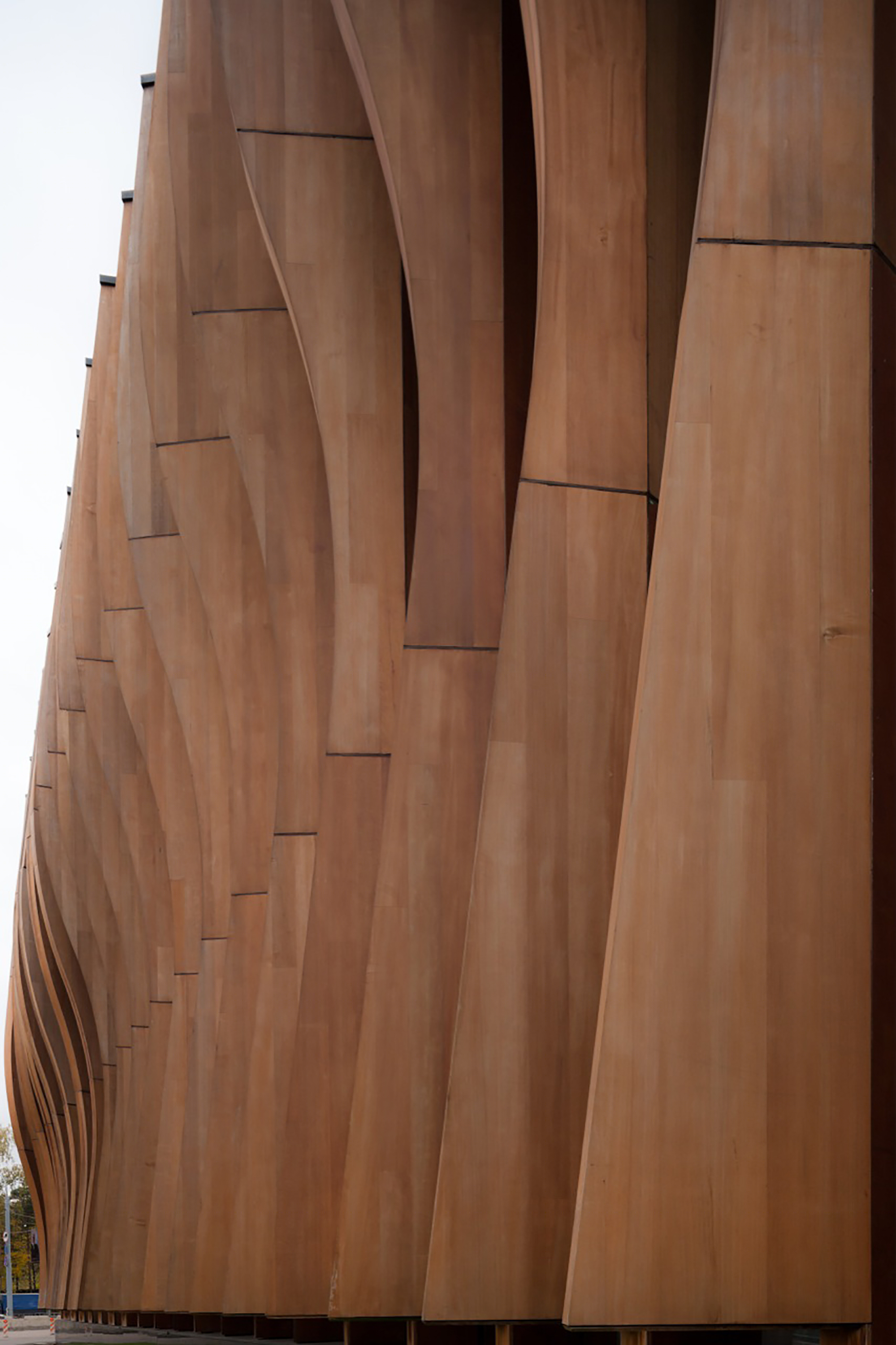

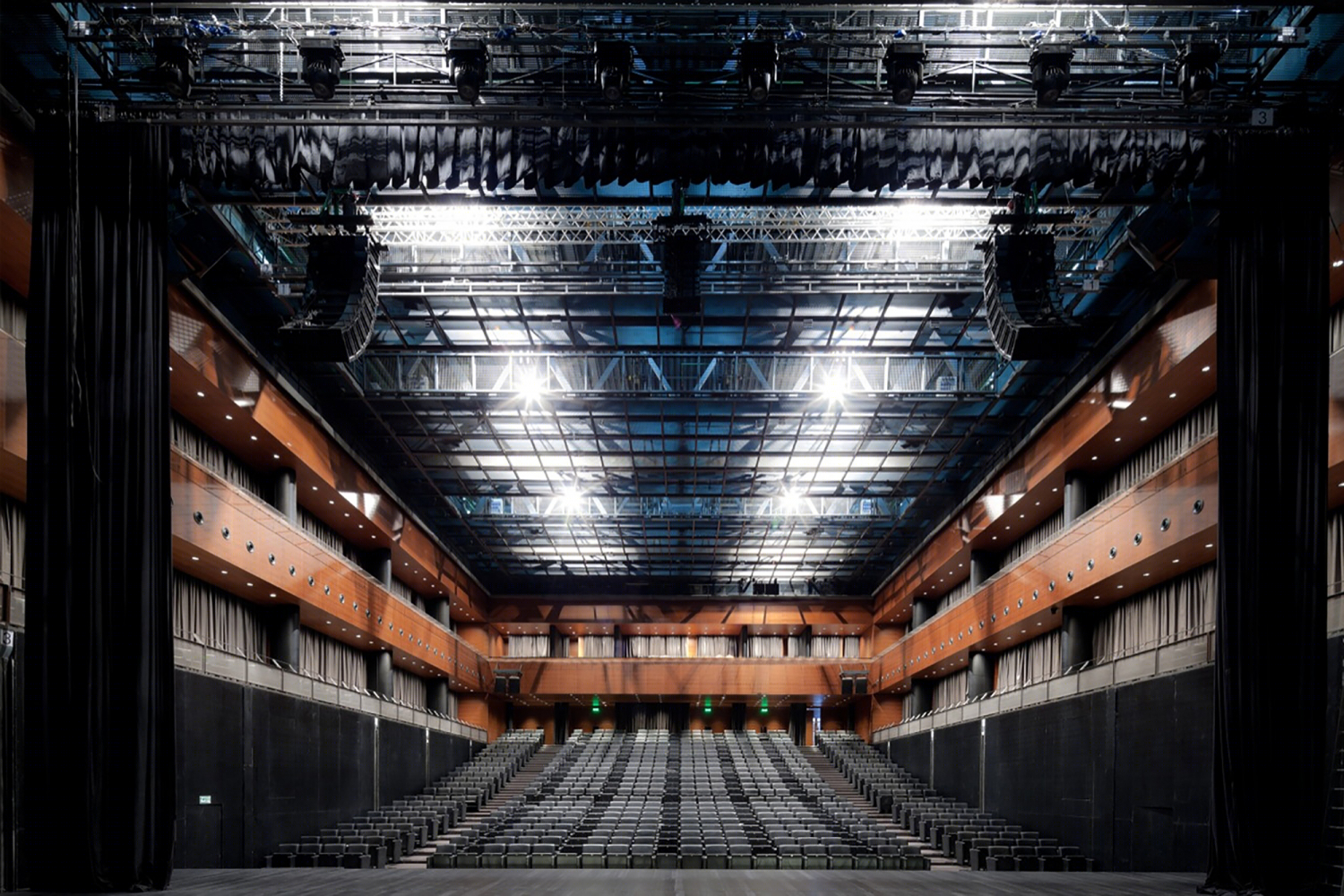

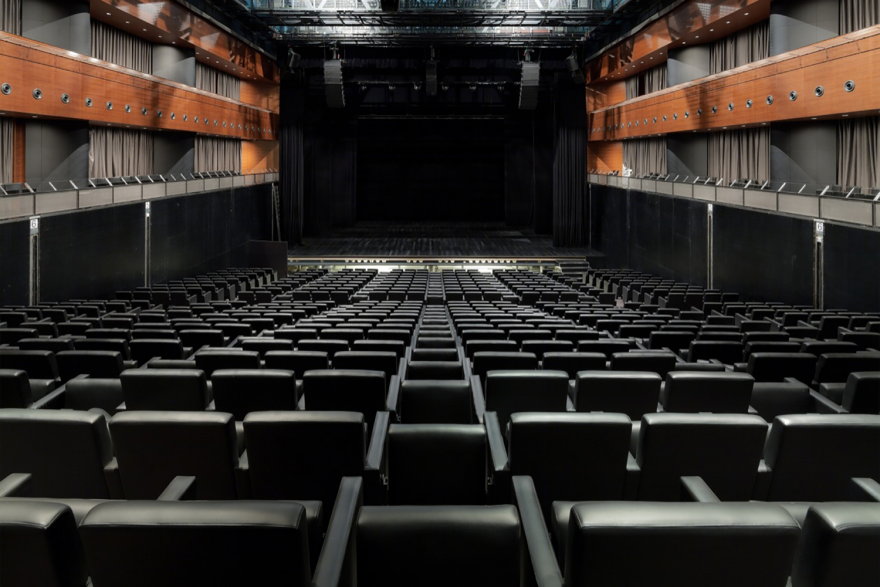

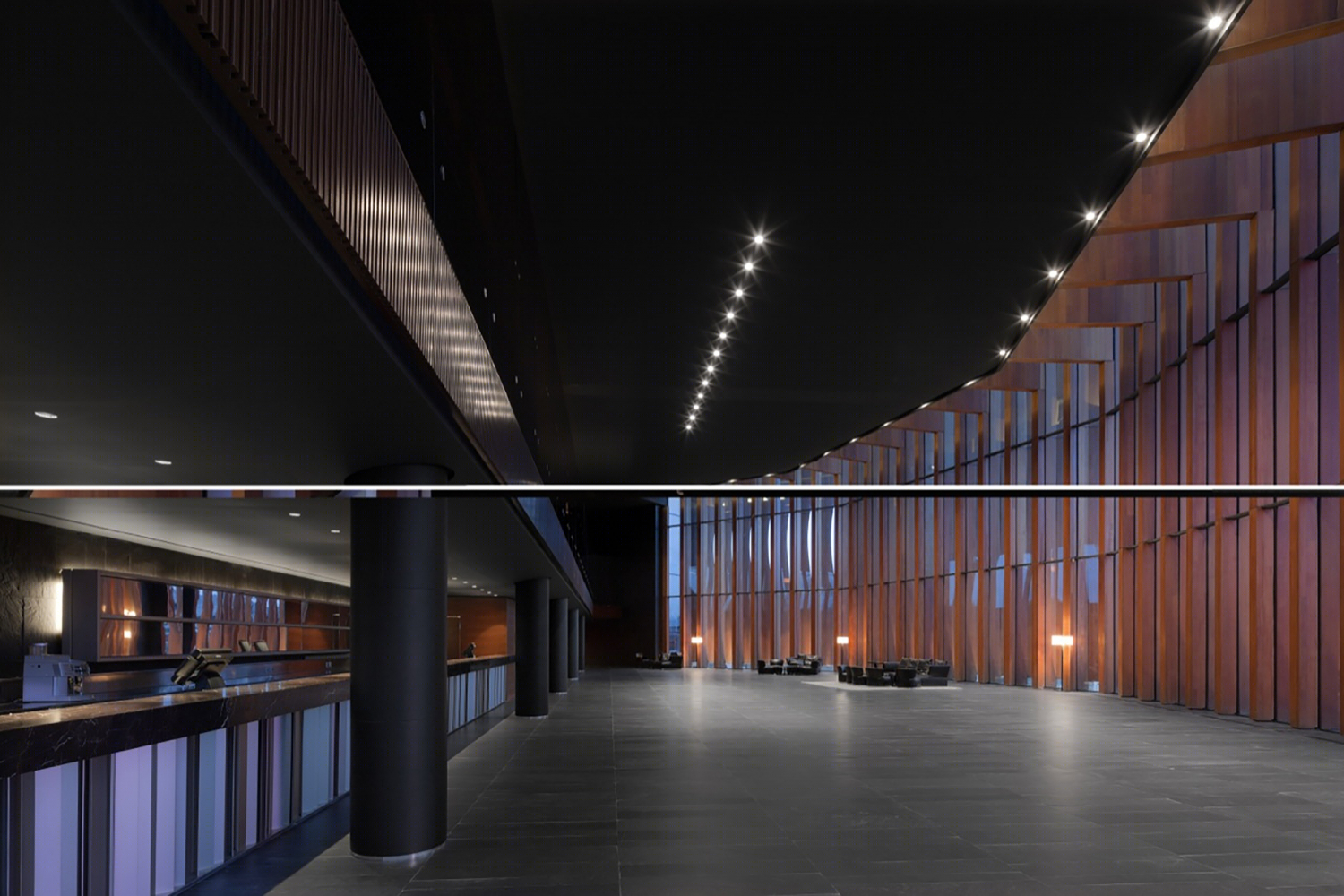

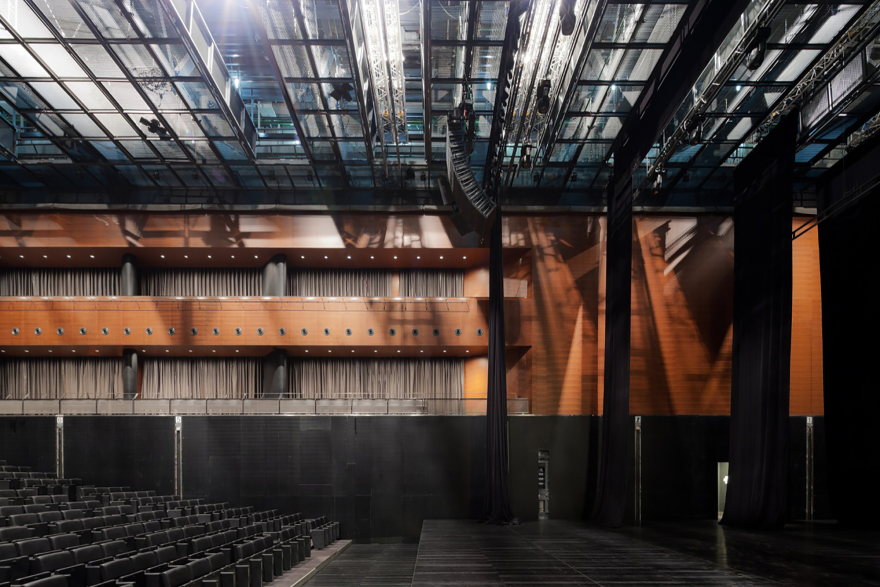

The street promenade leads to a theater. The interior of the foyer forms a continuation of the theater square.A deep facade of wooden blades, designed in a wave-shape, gives the building dynamics, while remaining stable. The motion effect is observed by both the theater visitors walking around the foyer and people looking from their cars.The transformer hall can operate in four modes: as a theater, a cabaret, and a stage for fashion shows or presentations. Hall transformation is provided by eight hydraulic mechanisms, which can lower or raise the floor platforms by five meters.When modified for theatrical performances, the hall can accommodate about 600 people in the stalls and over fifty in the seventeen VIP-boxes, located two levels above the ground, with a special bar on the second level.

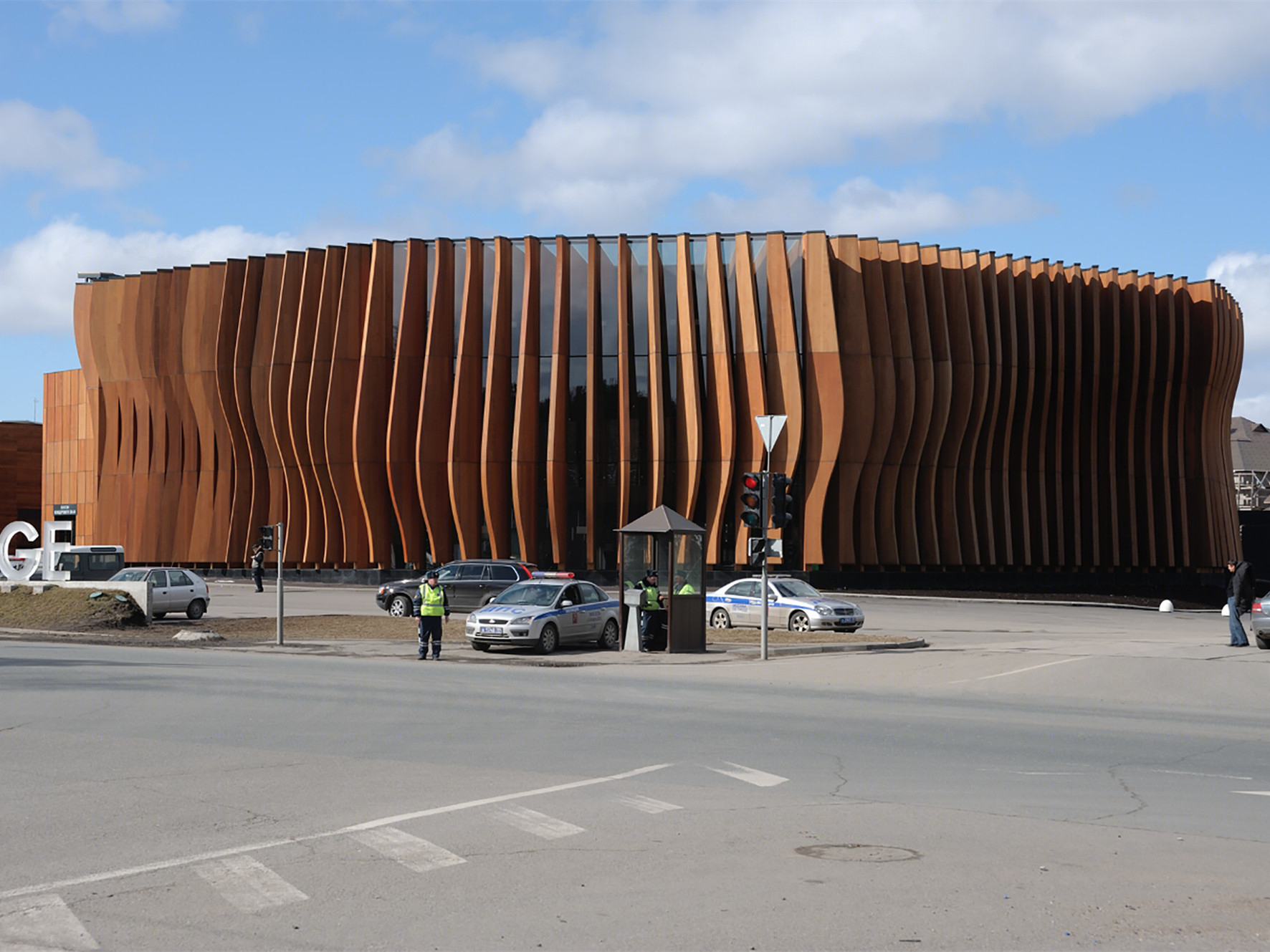

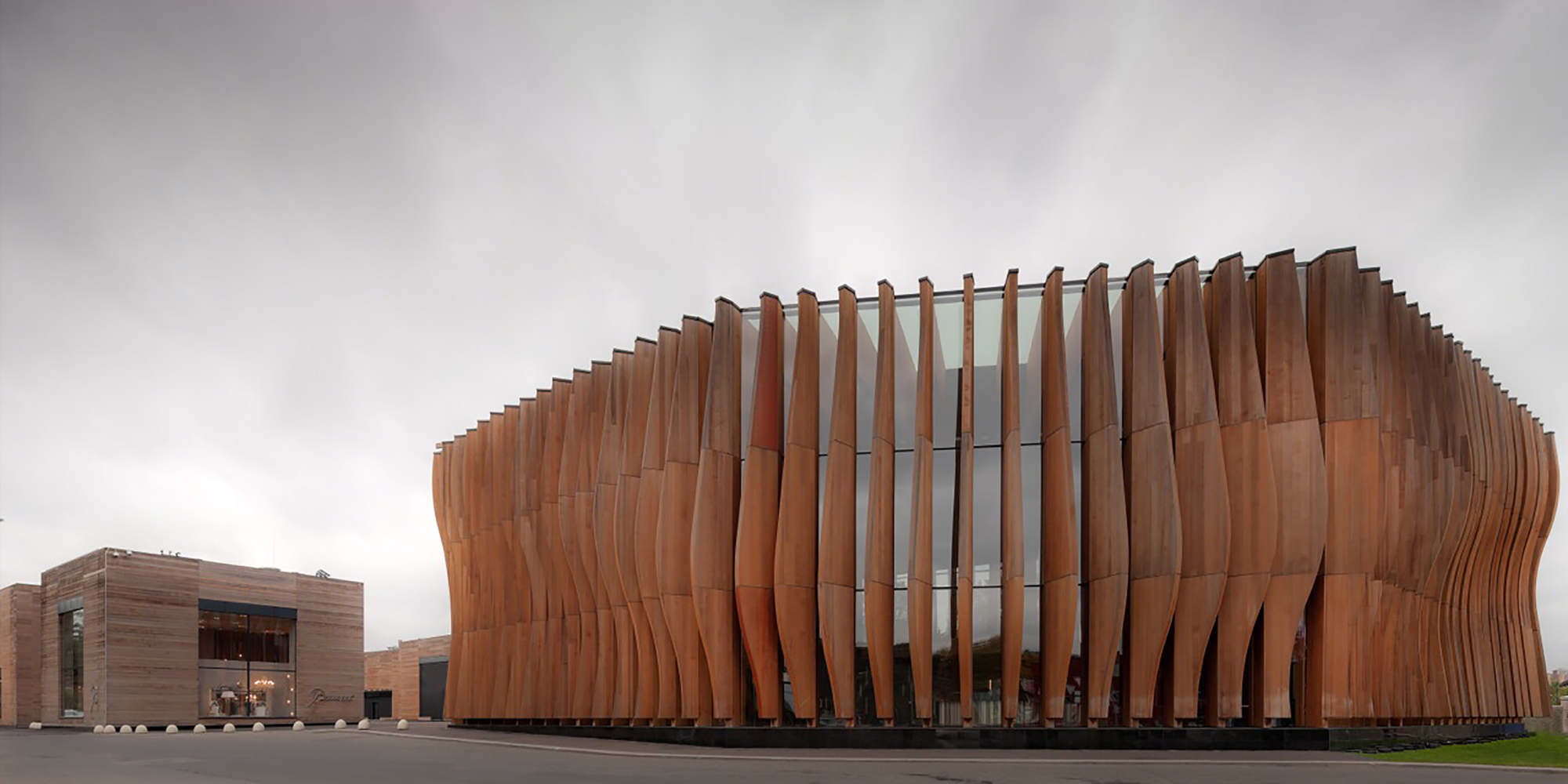

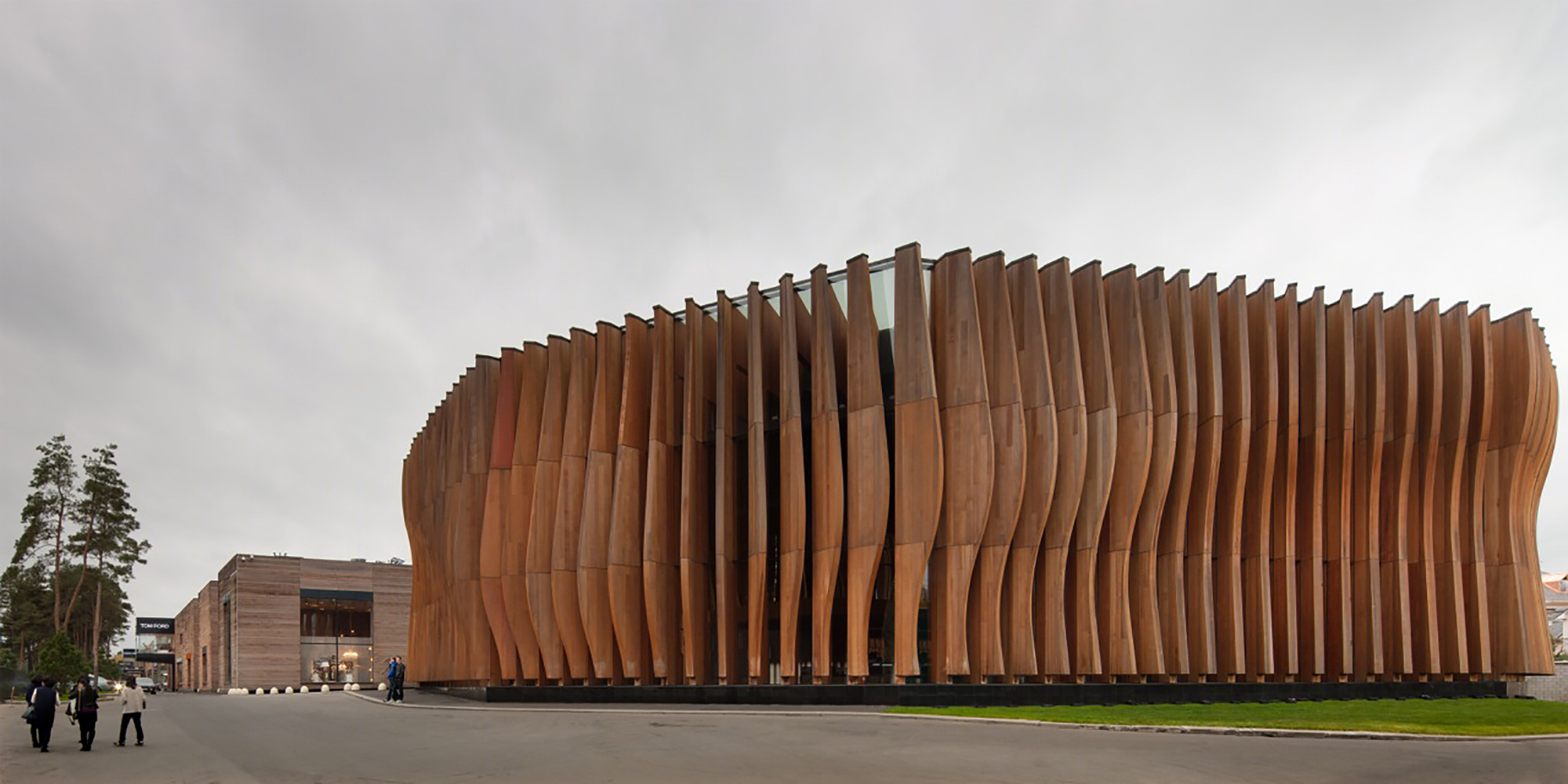

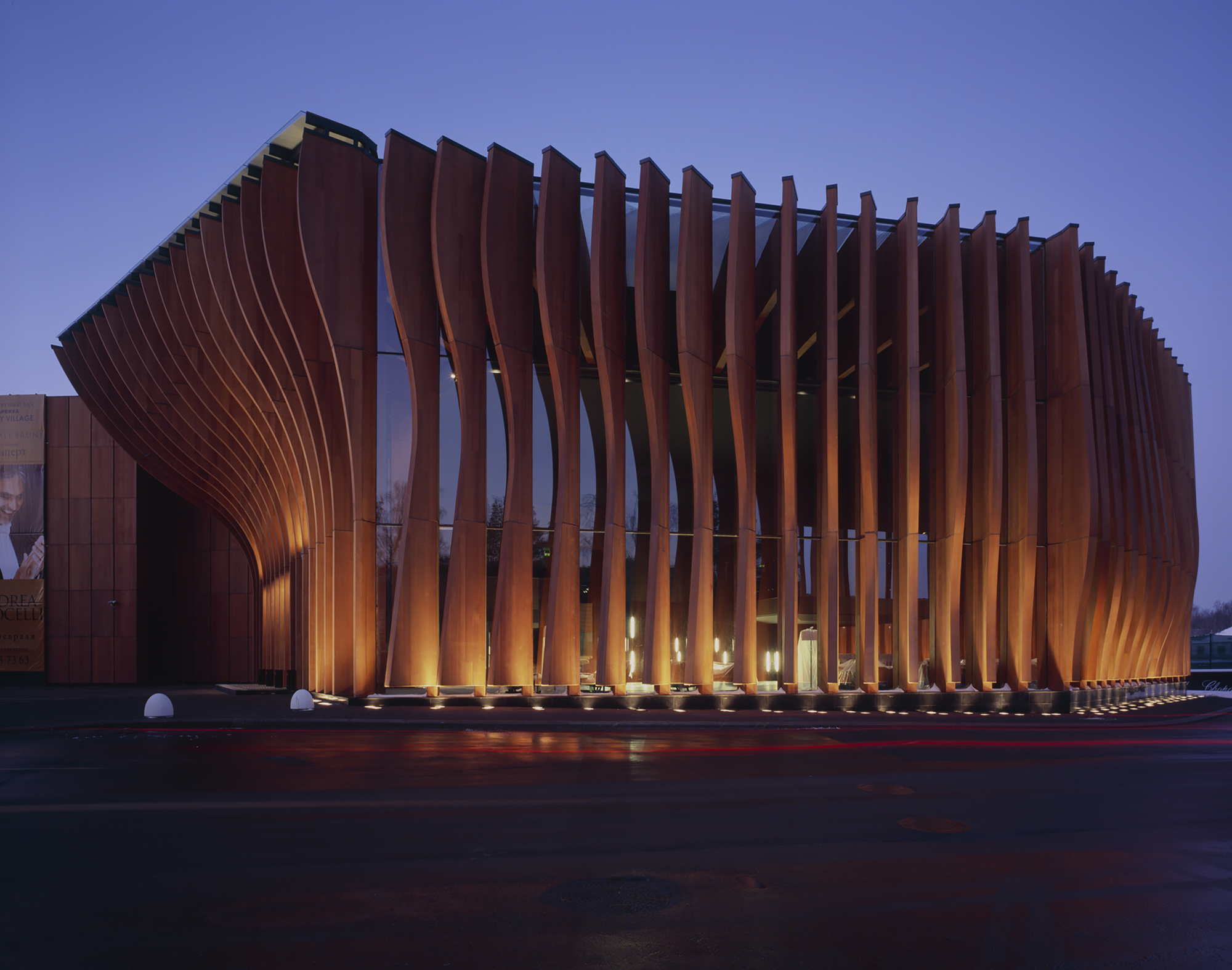

巴克维哈精品城及墨丘利剧院外观图

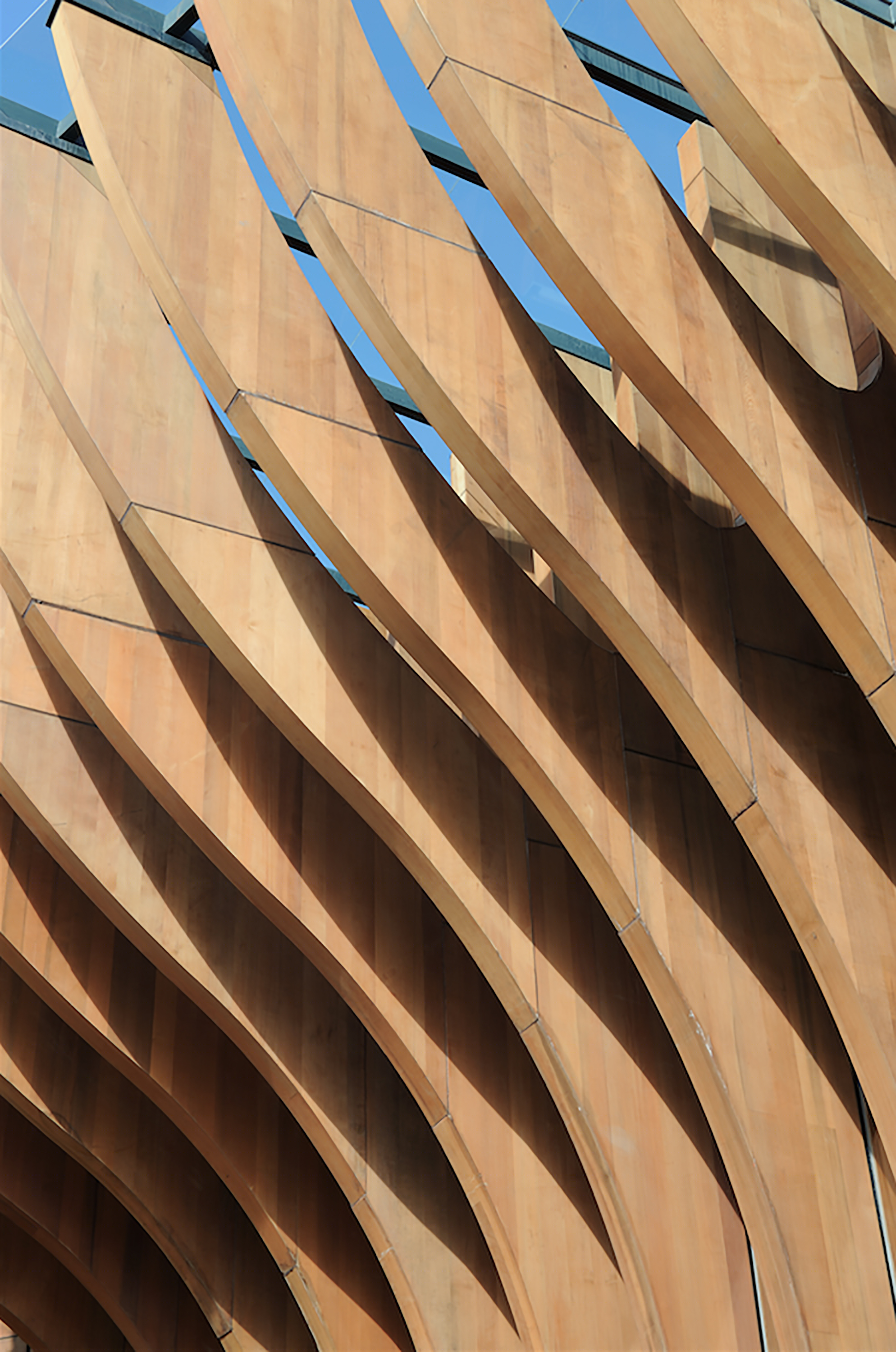

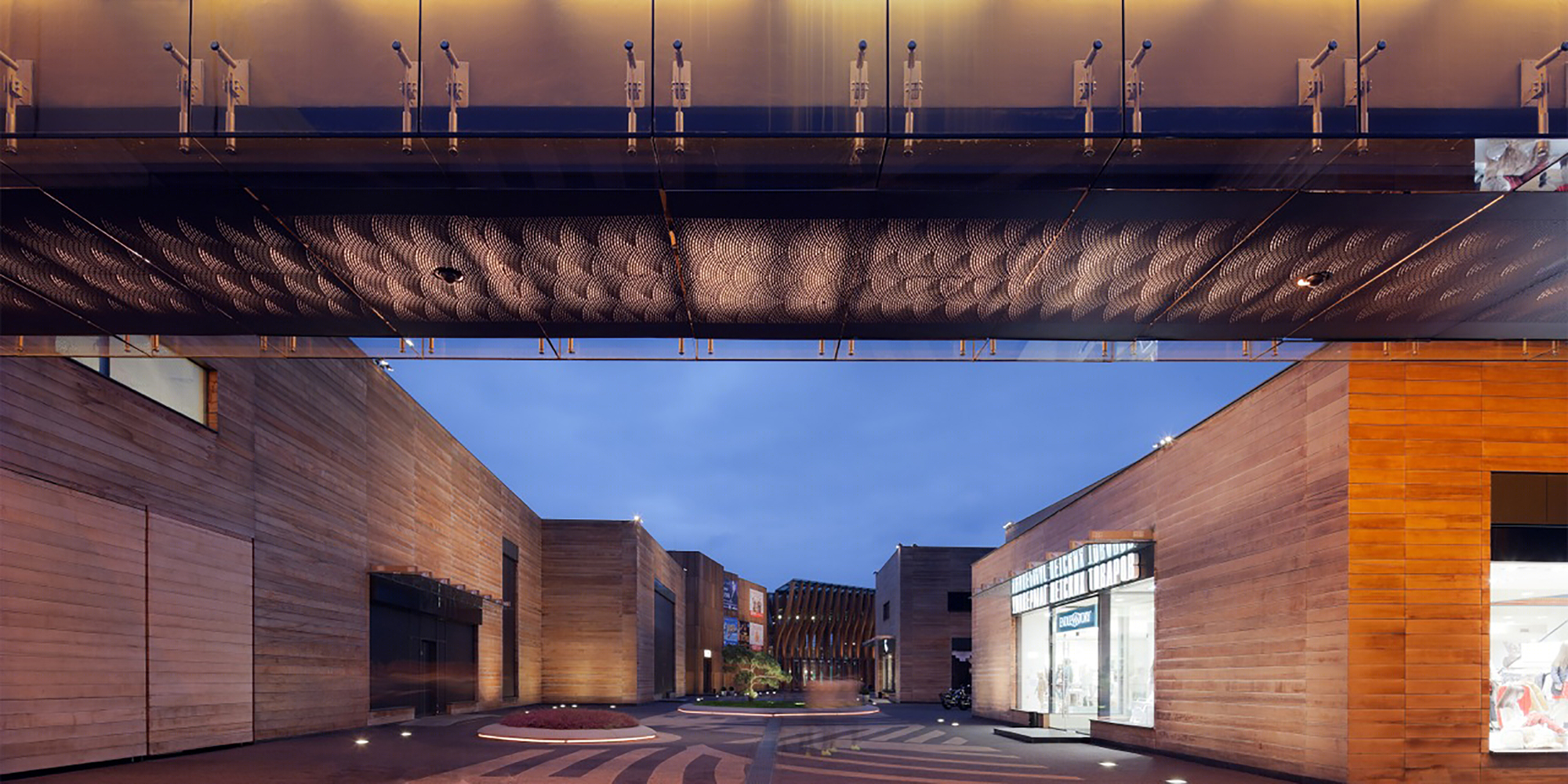

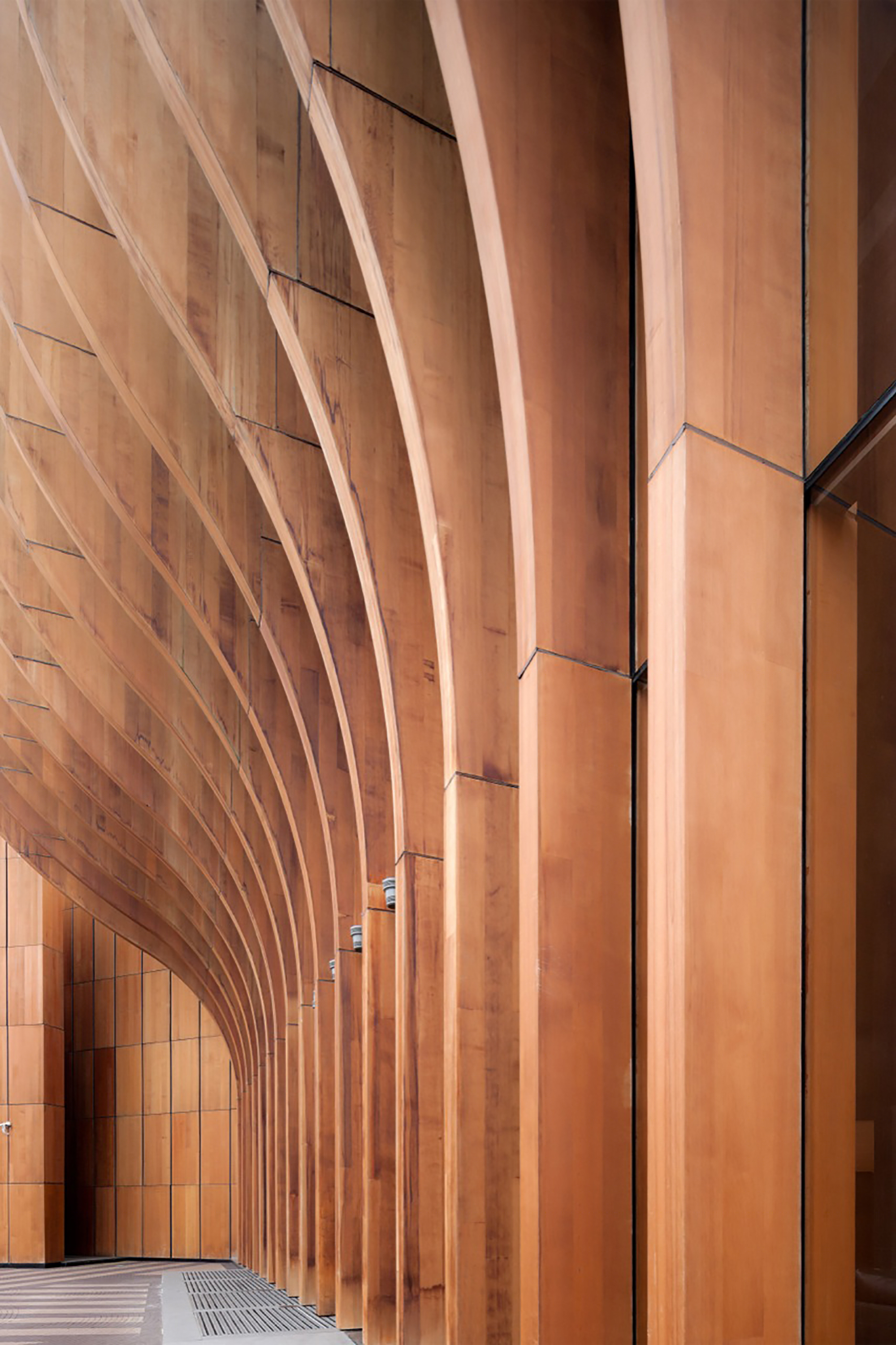

巴克维哈精品城及墨丘利剧院外部局部图

巴克维哈精品城及墨丘利剧院

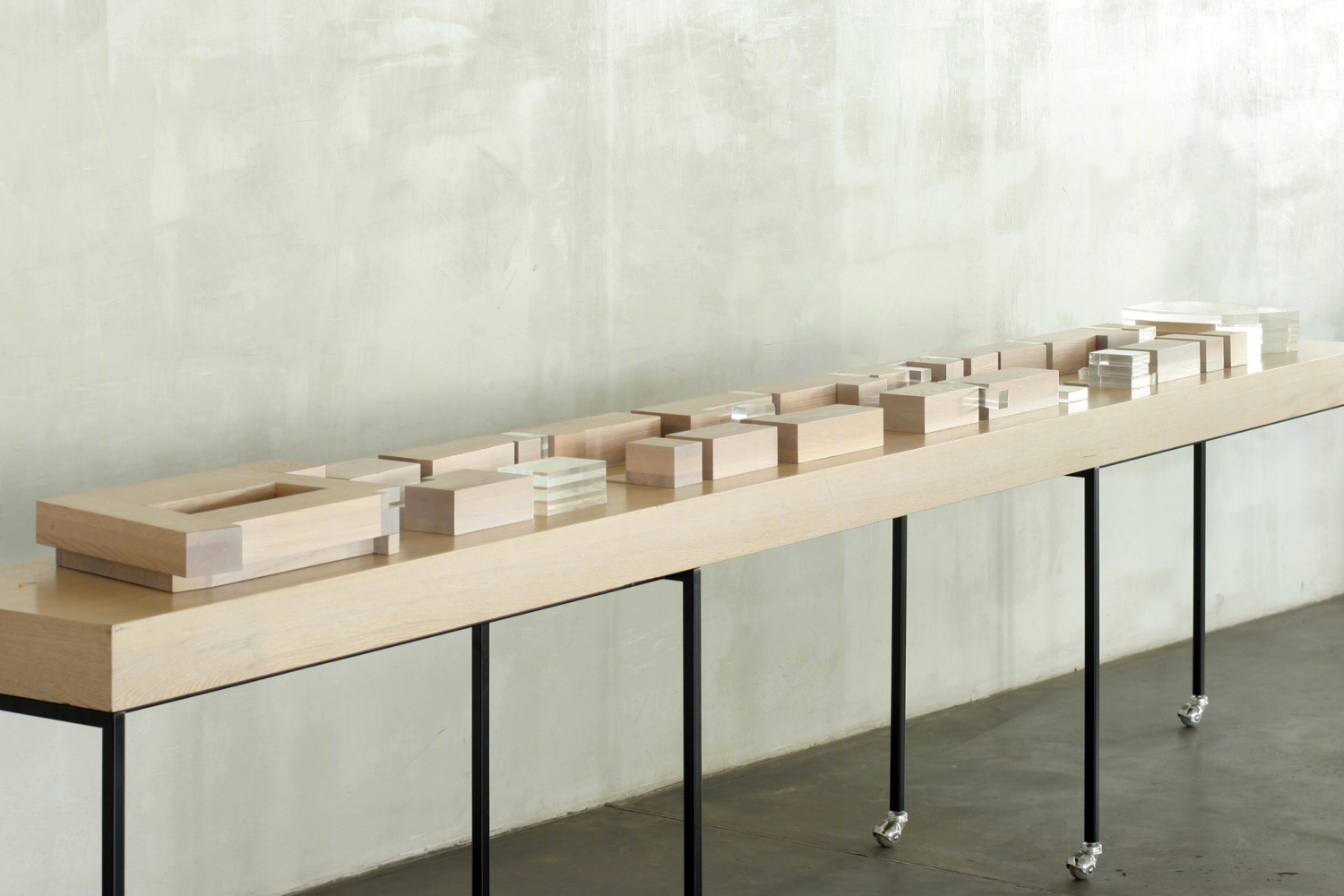

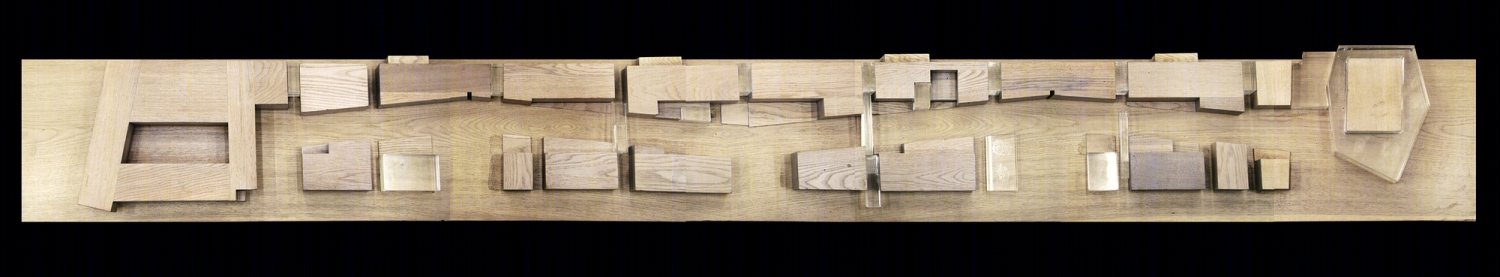

巴克维哈精品城及墨丘利剧院模型图

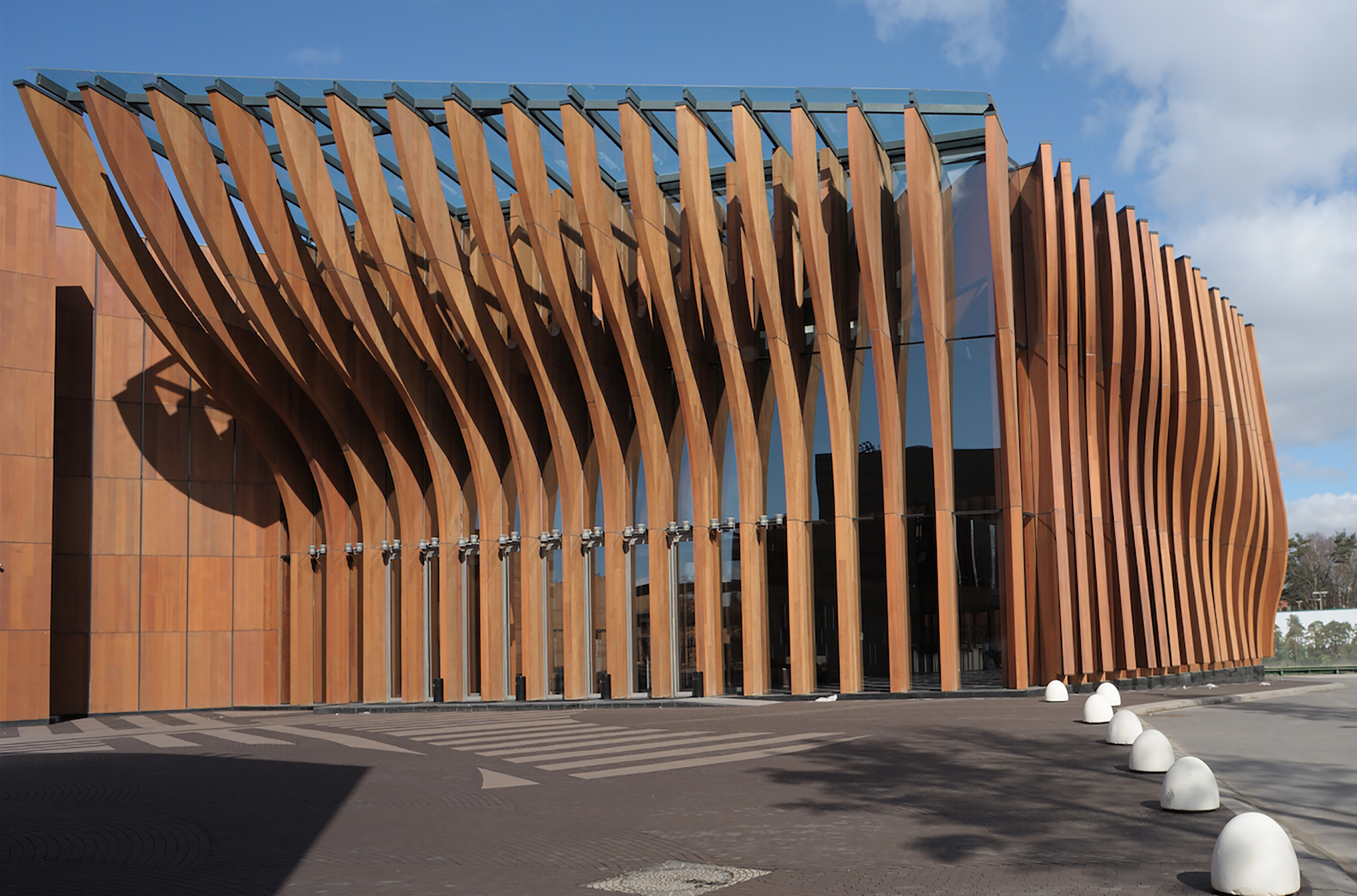

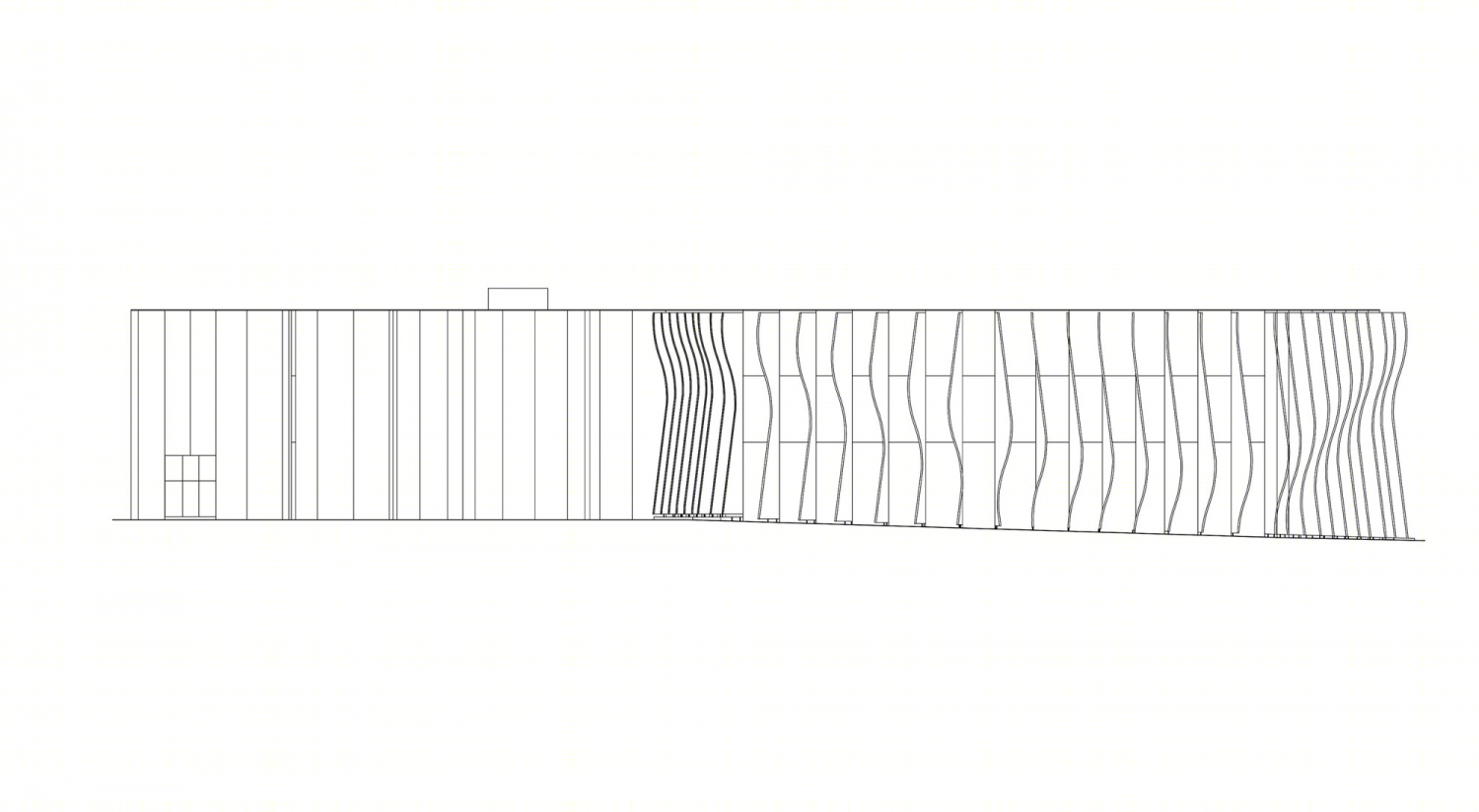

巴克维哈精品城及墨丘利剧院正面图

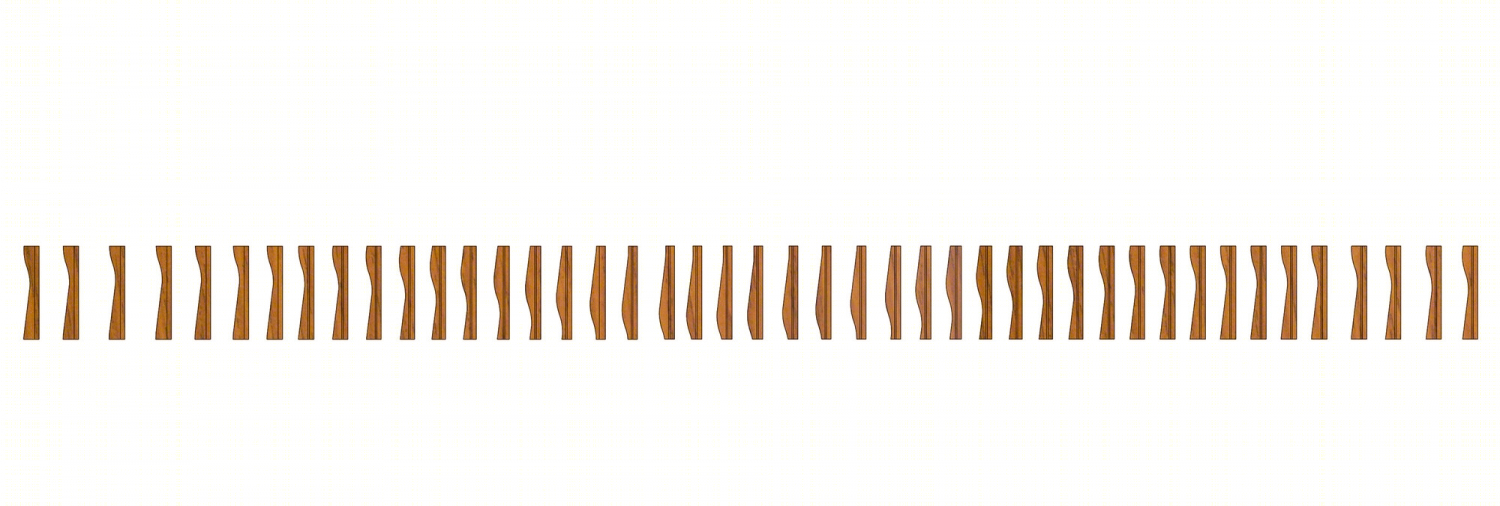

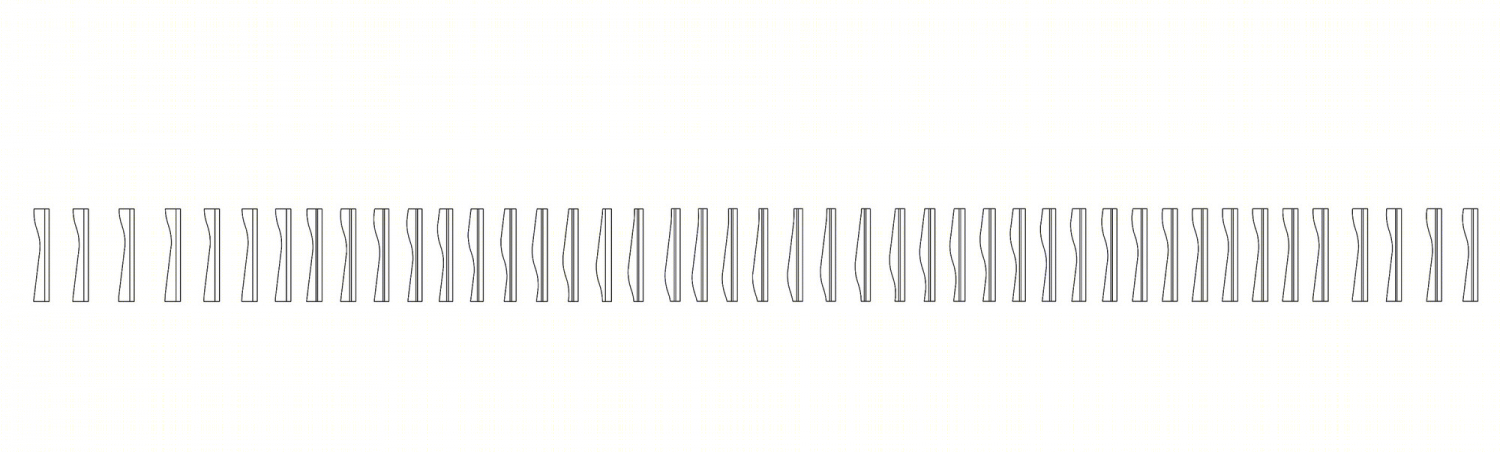

巴克维哈精品城及墨丘利剧院详图

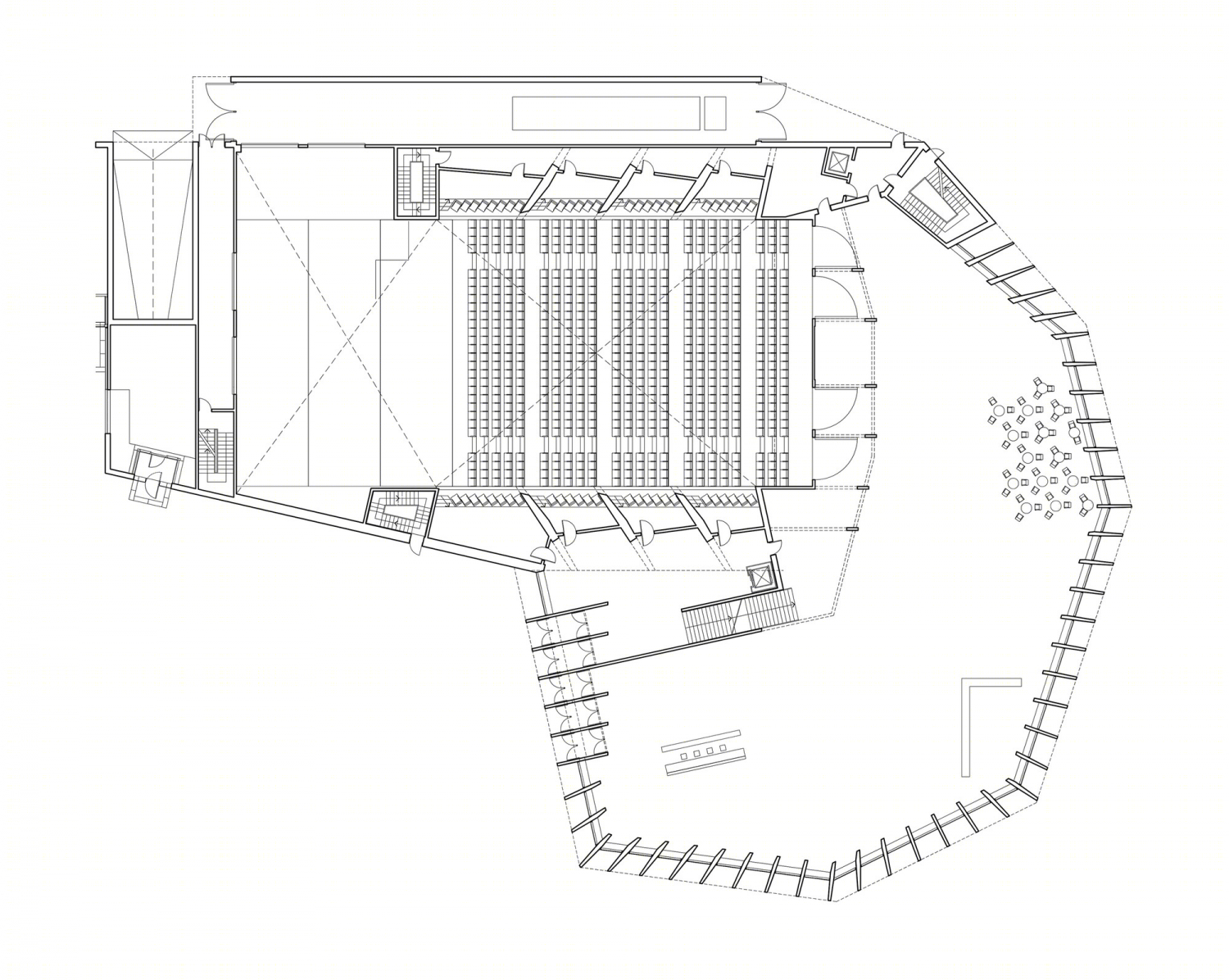

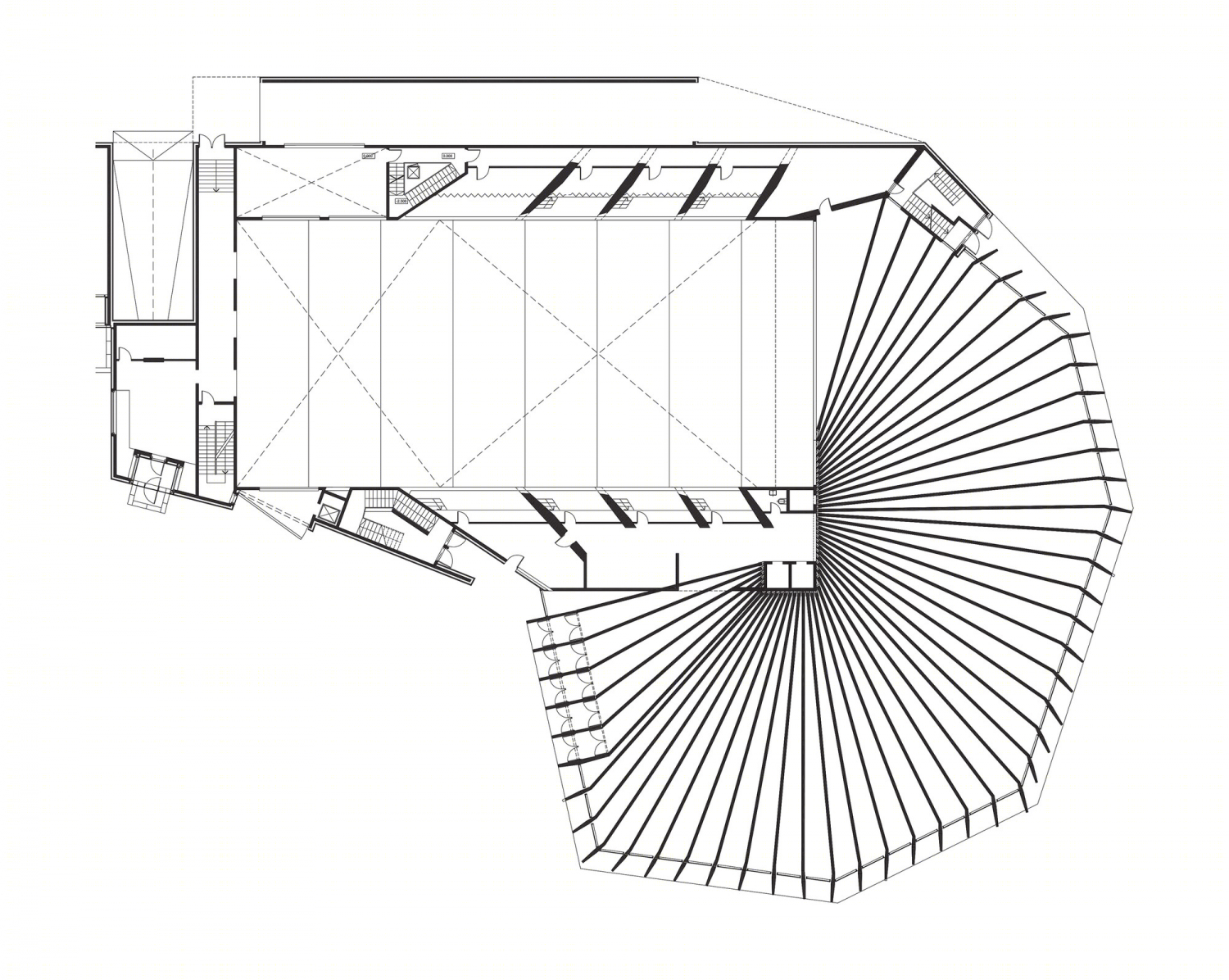

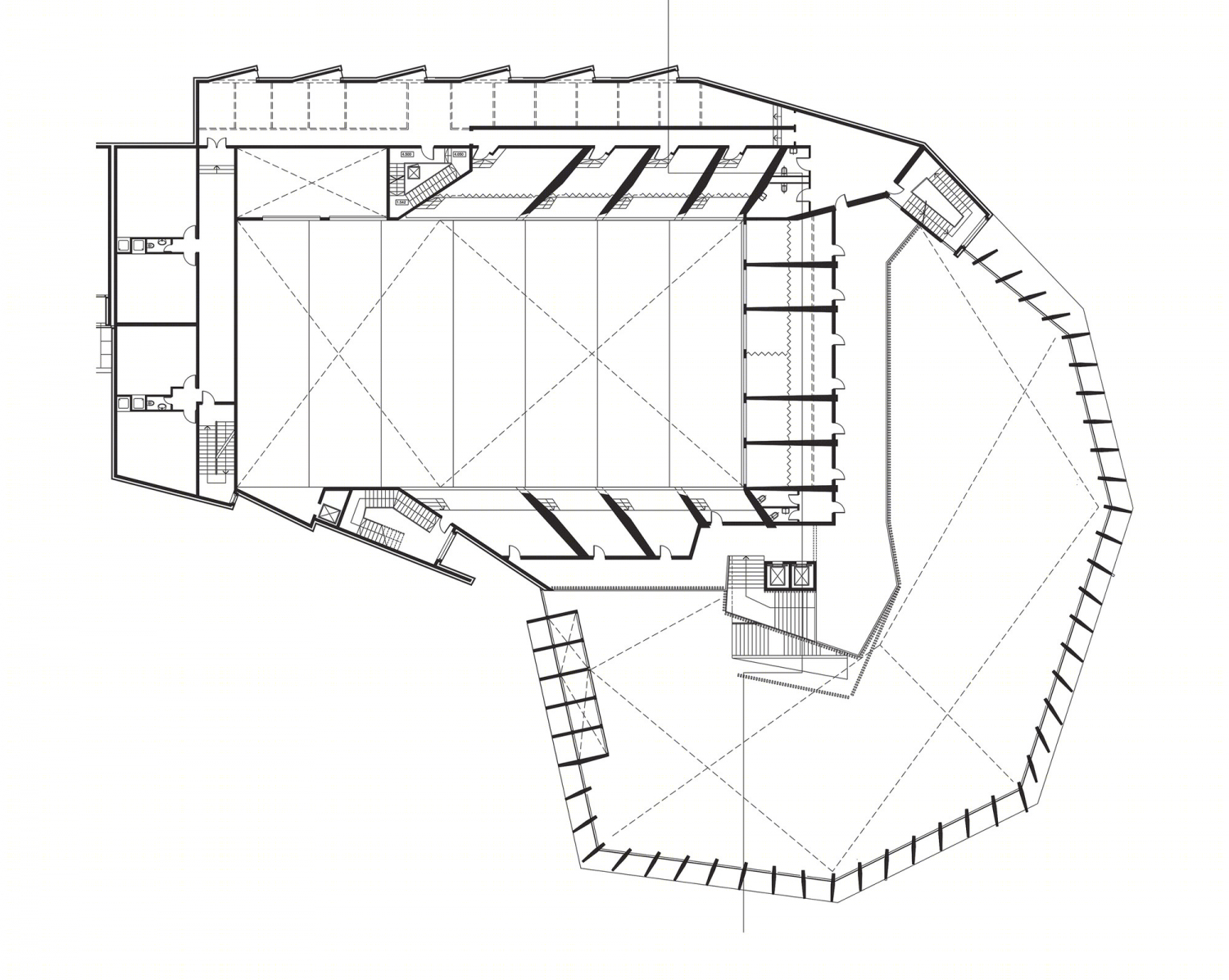

巴克维哈精品城及墨丘利剧院二层平面图

巴克维哈精品城及墨丘利剧院三层平面图

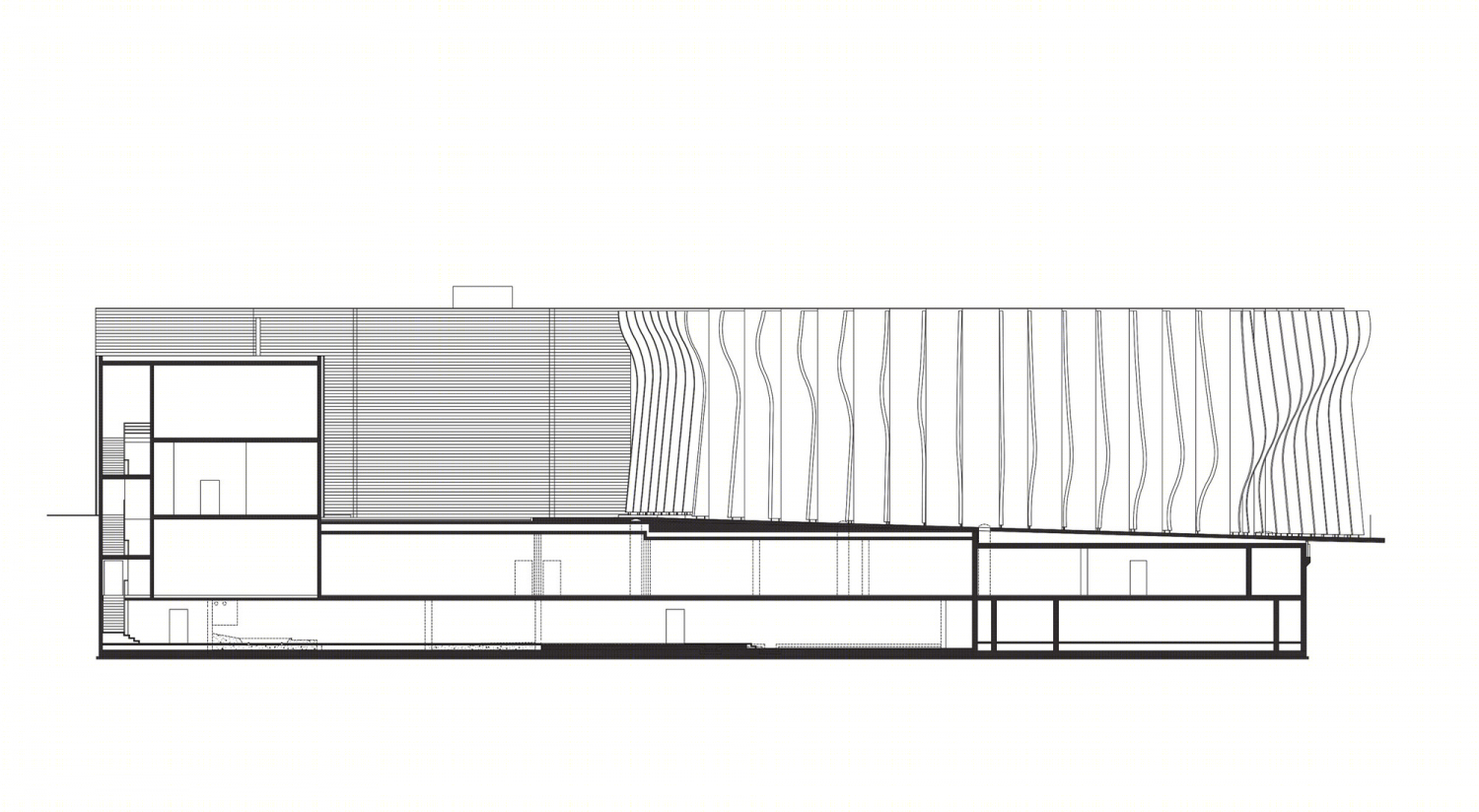

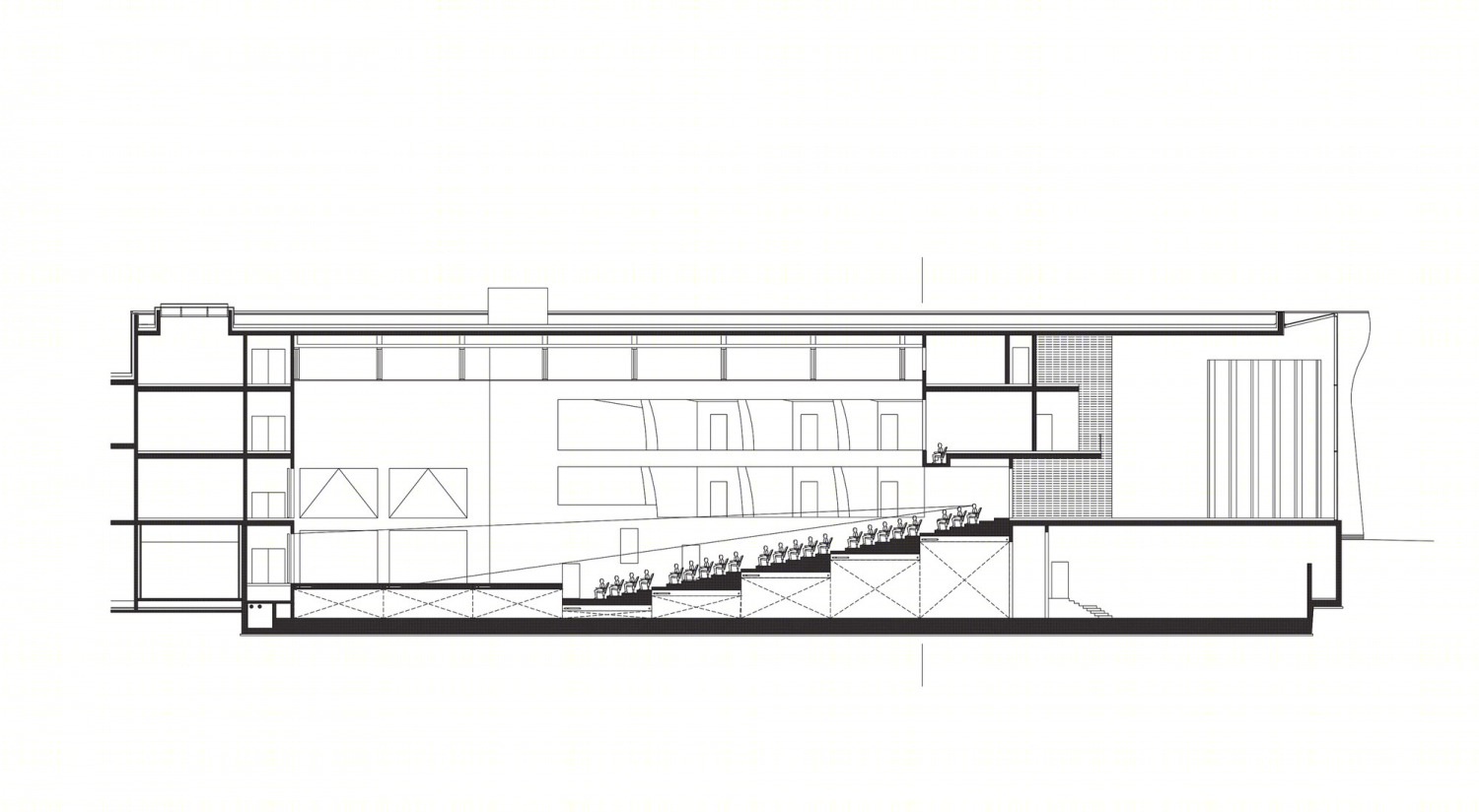

巴克维哈精品城及墨丘利剧院截面图
