西班牙农村住宅设计丨Borja Gómez,Roberto Lebrero

Architects:Borja Gómez, Roberto Lebrero

Area :214 m²

Year :2020

Photographs :Imagen Subliminal

Manufacturers :  JUNG, Keraben, Neff, Thermochip, Uniform, Covert, Piedra de Campaspero, Roca, VeluxJUNG

Lead Architect :Roberto Lebrero, Borja Gómez

Structure : Euteca - Juan de la Torre

MEP : Mariam González Moya

Execution : Ángel Montalvillo

Construction Management : Roberto Lebrero, Borja Gómez

Builder : Francisco Muñoz

City : Frumales

Country : Spain

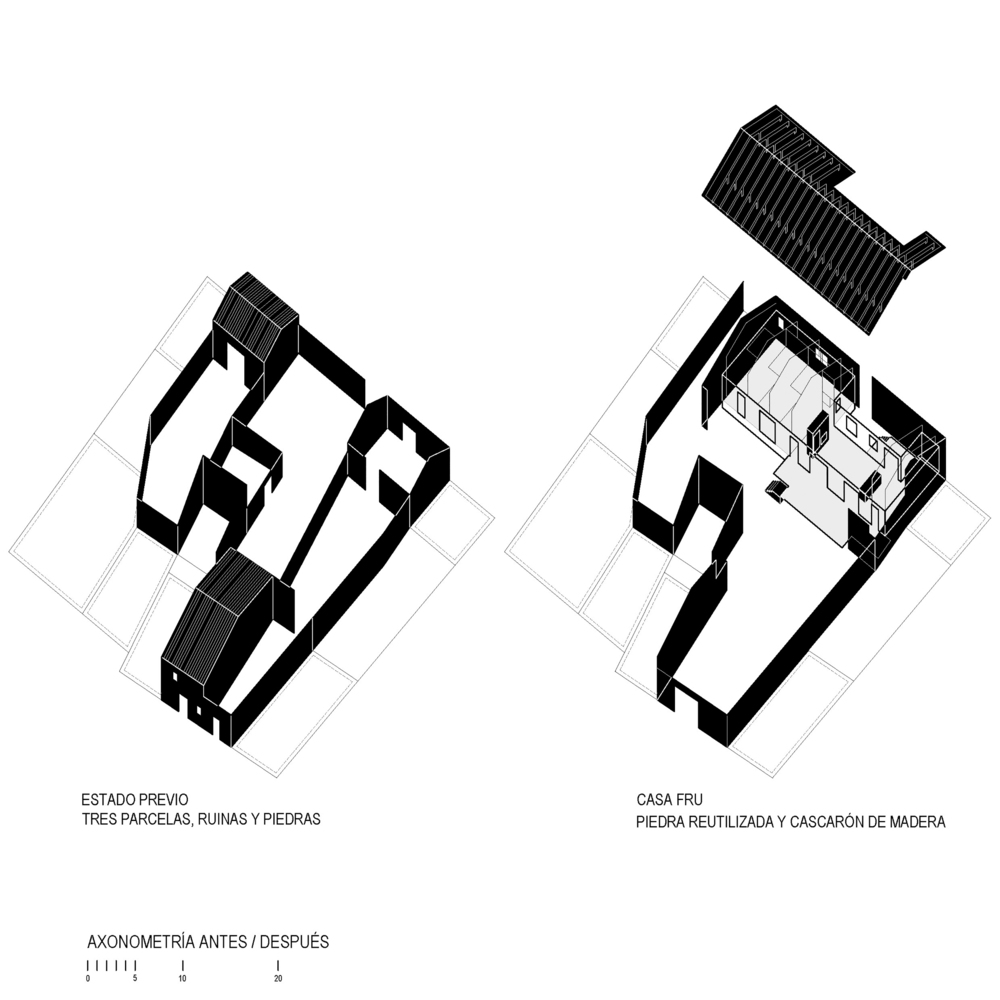

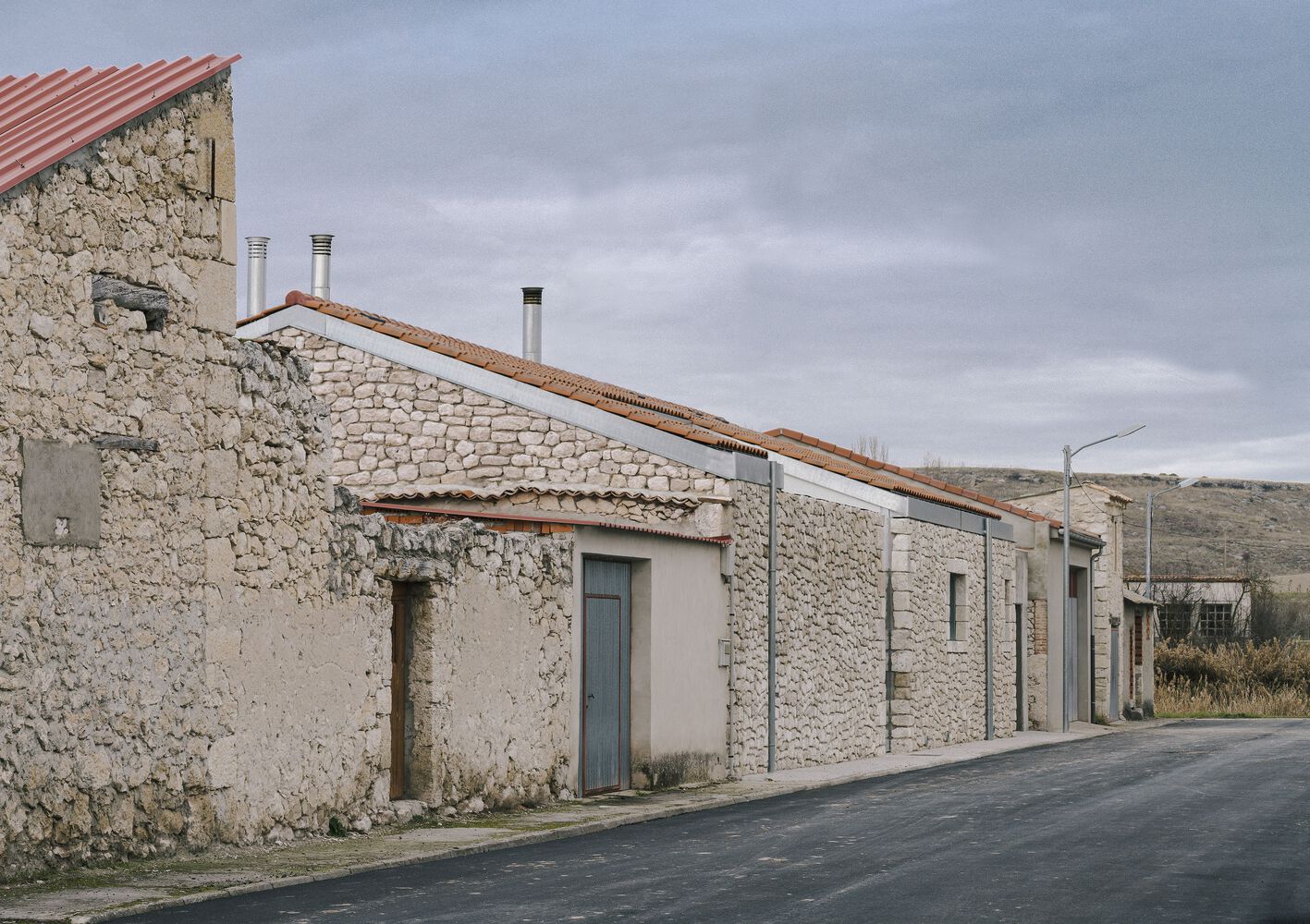

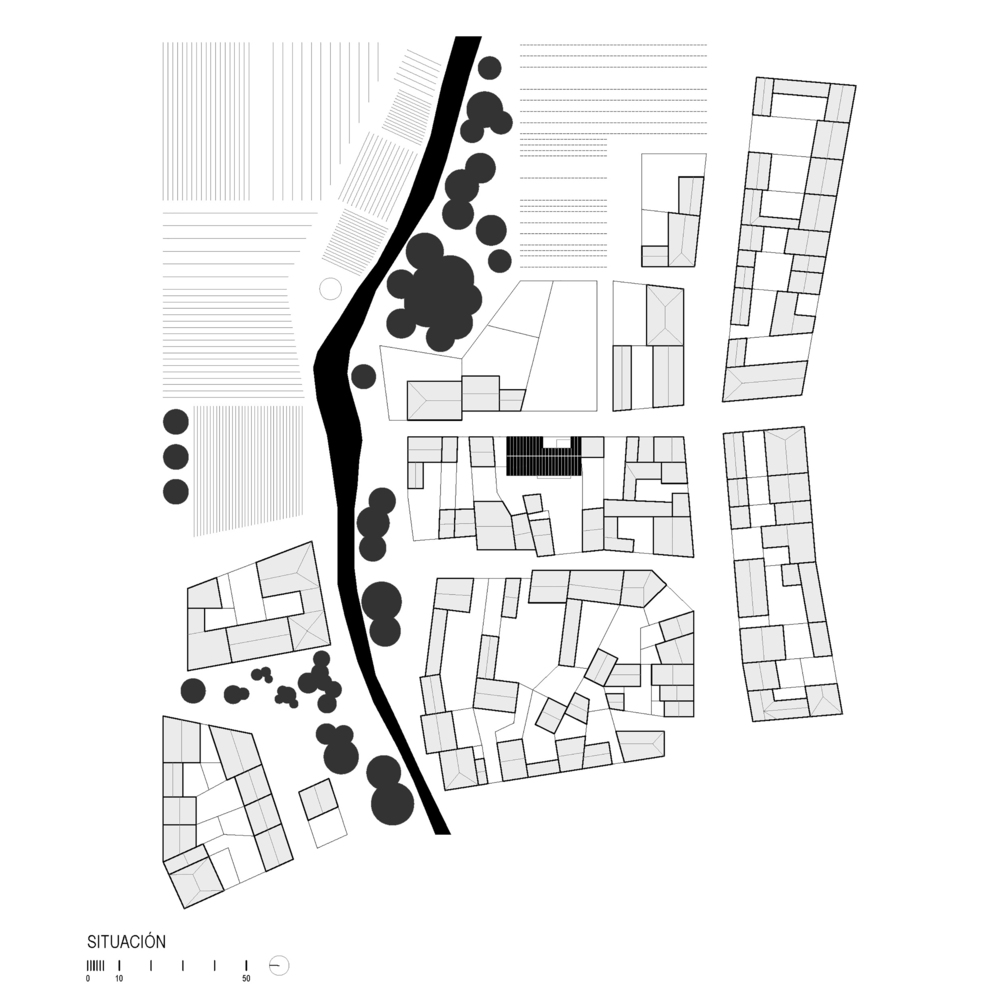

Frumales is a small village located in a pine valley in Segovia, Spain. Frumales’ beautiful city center is surrounded by farmlands and stone-made country houses. The site results from the aggregation of three lots containing masonry-ruined buildings.

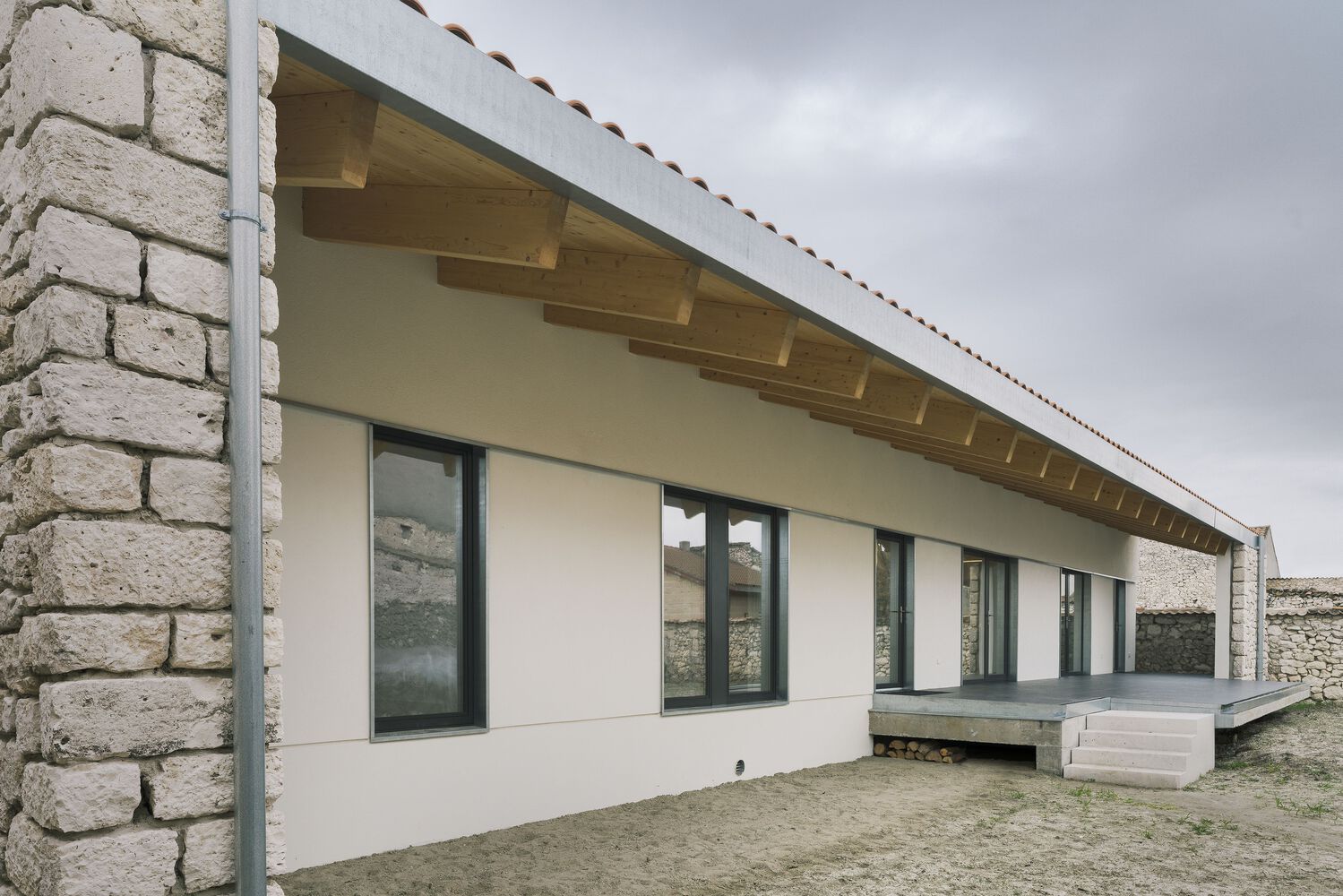

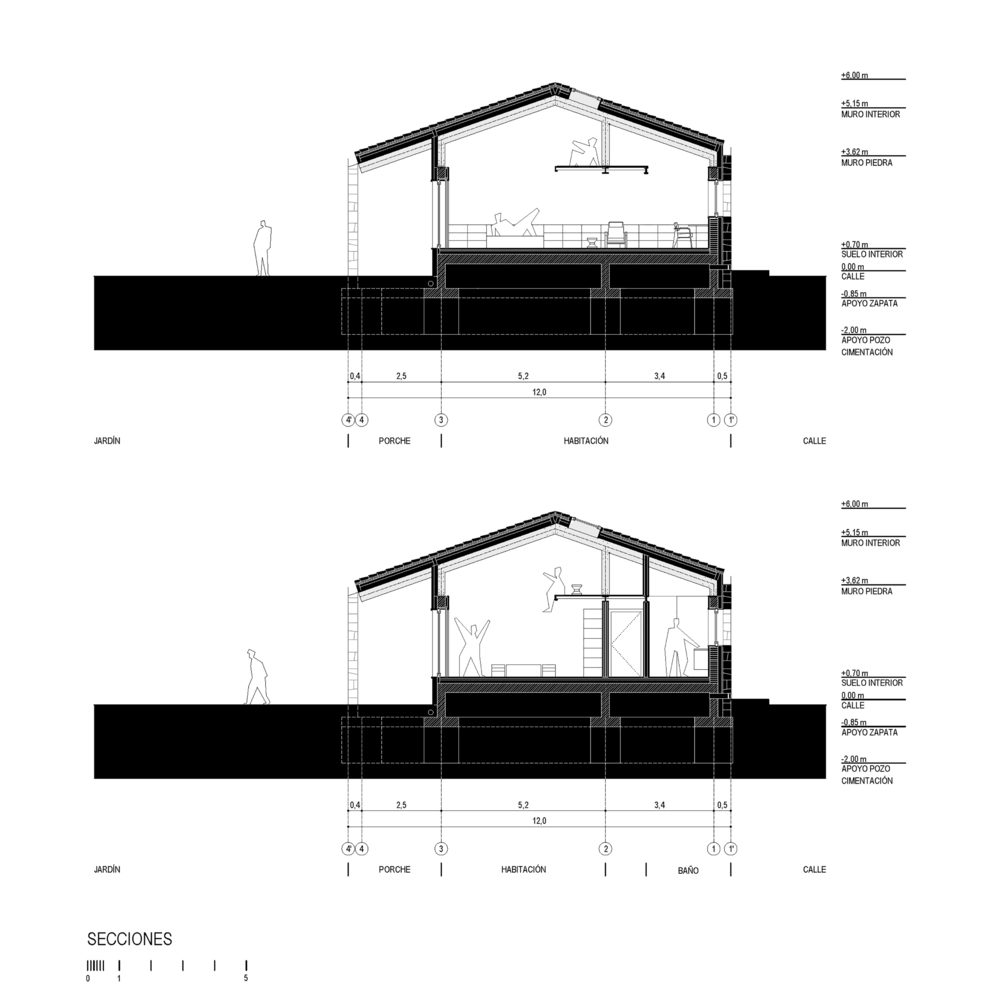

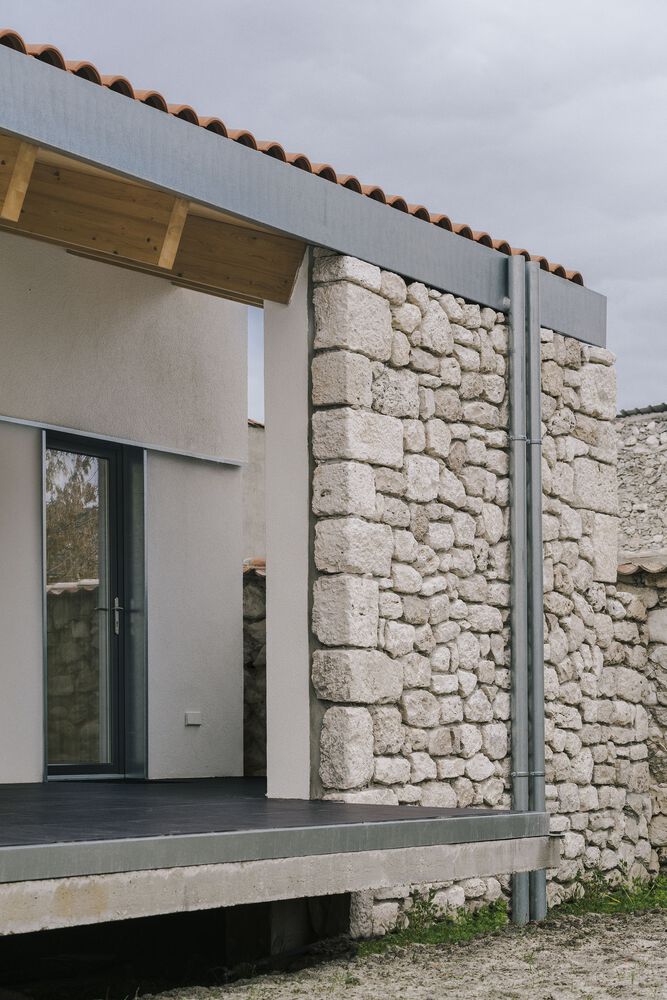

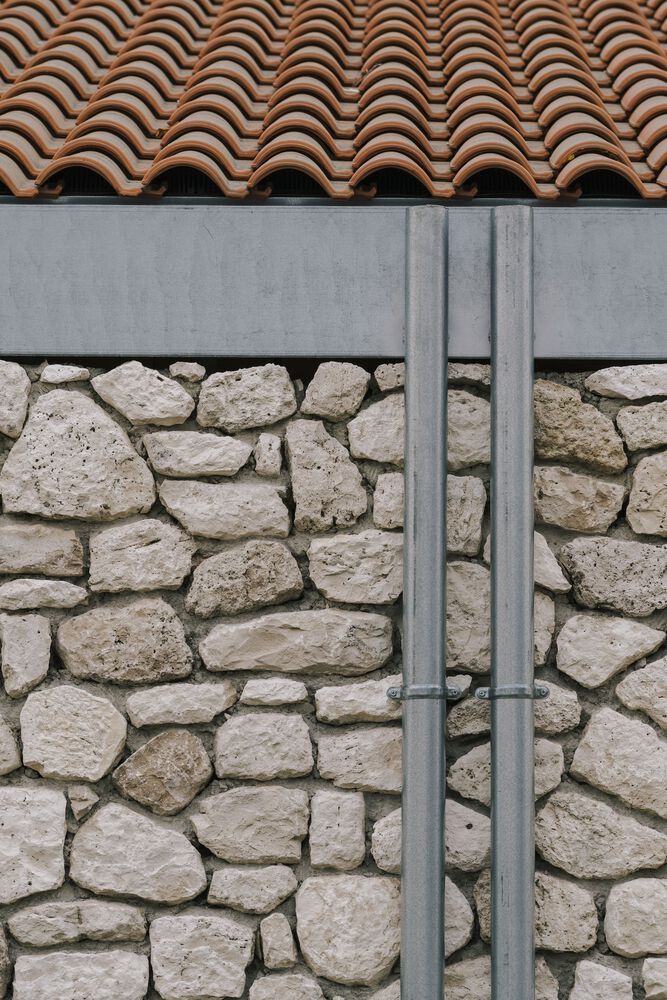

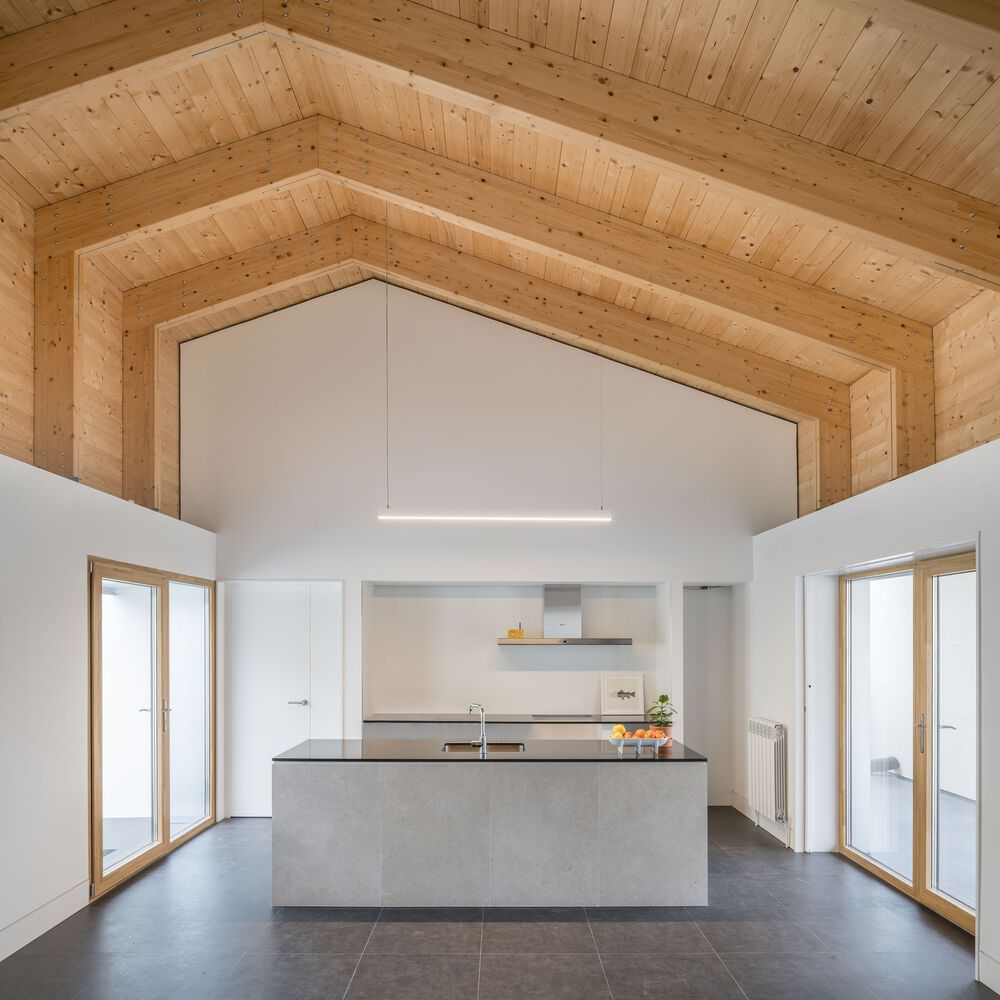

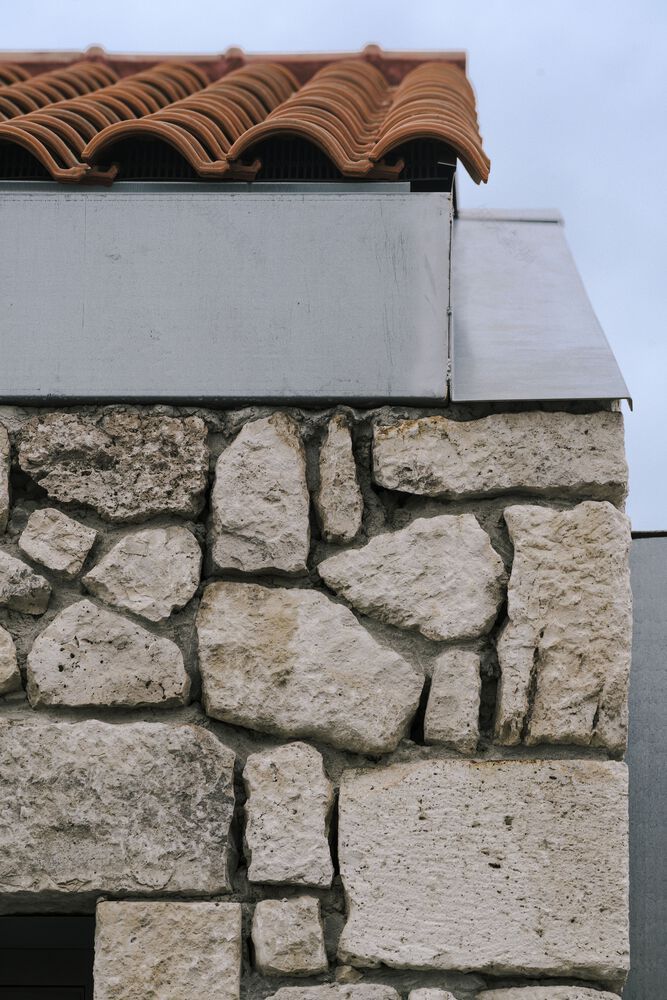

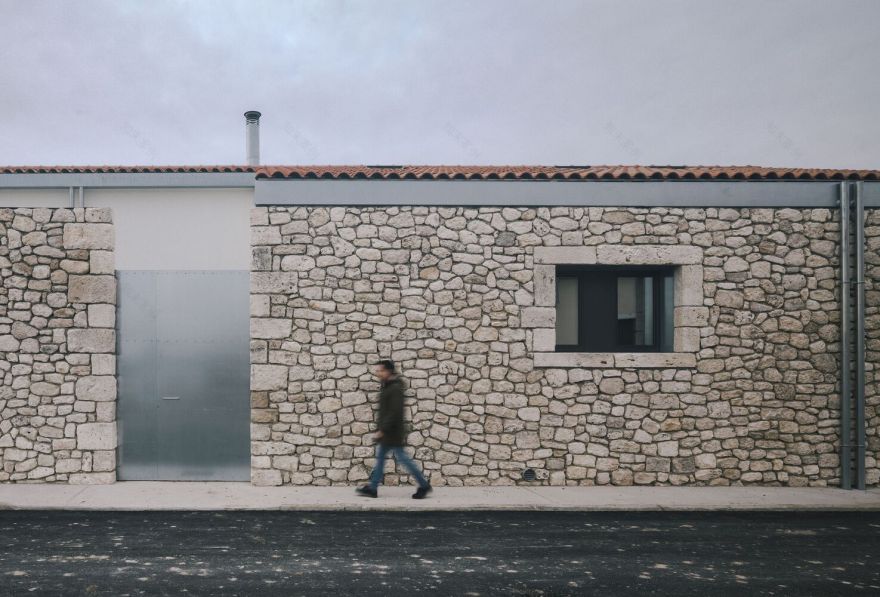

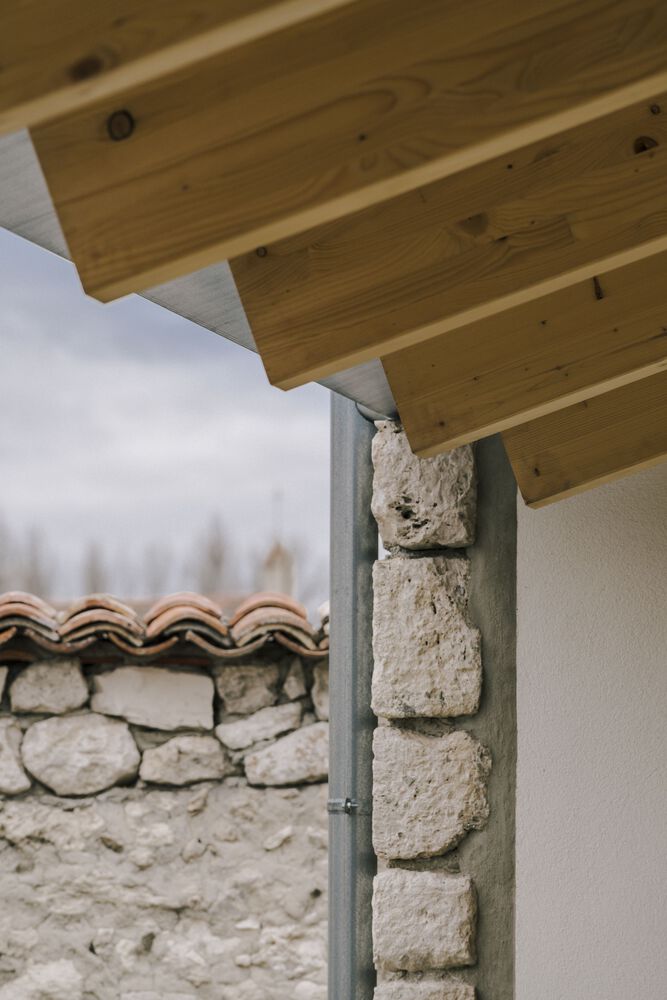

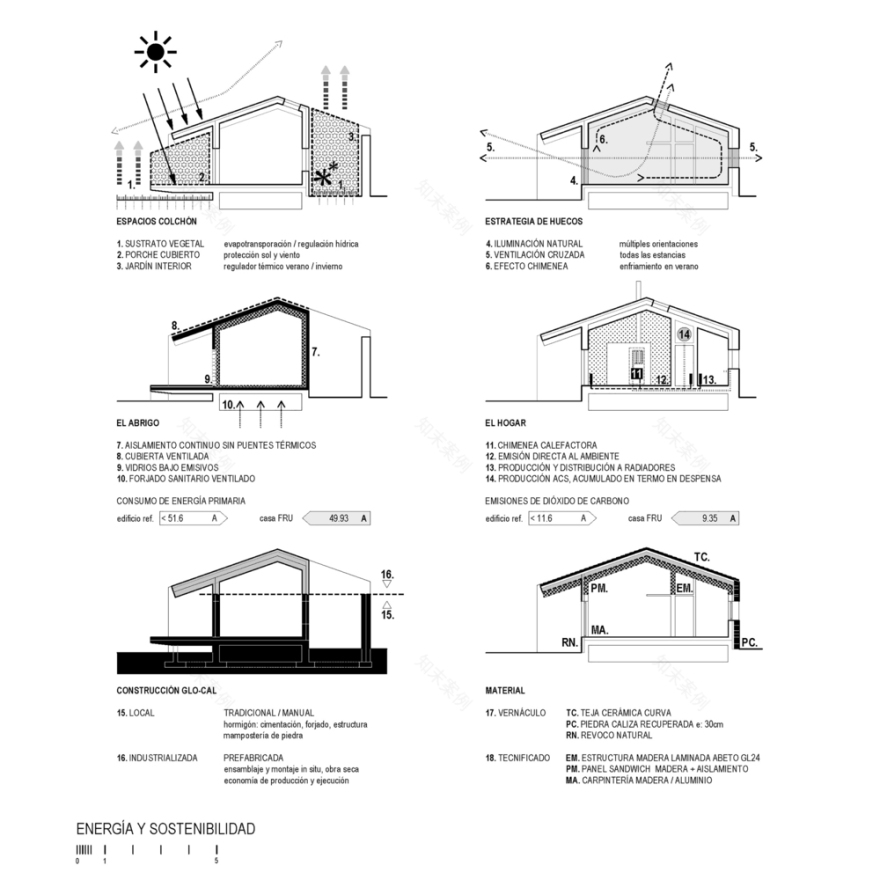

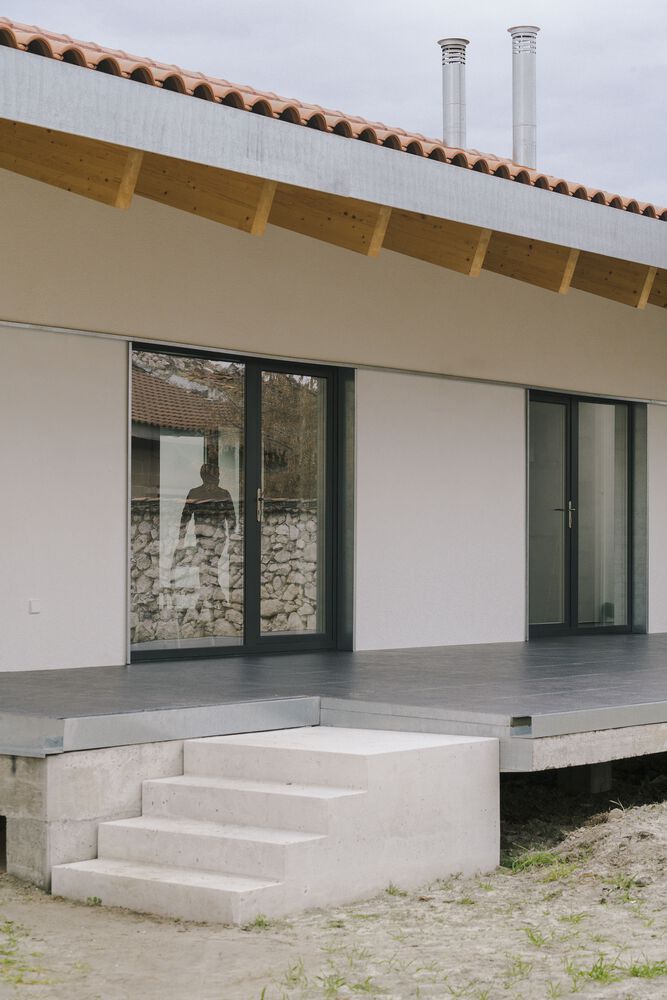

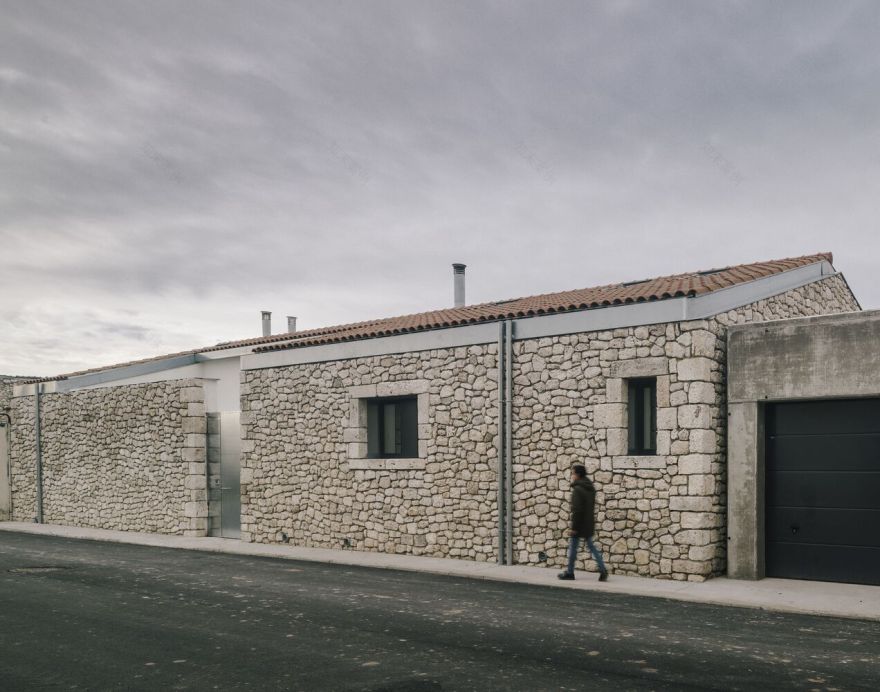

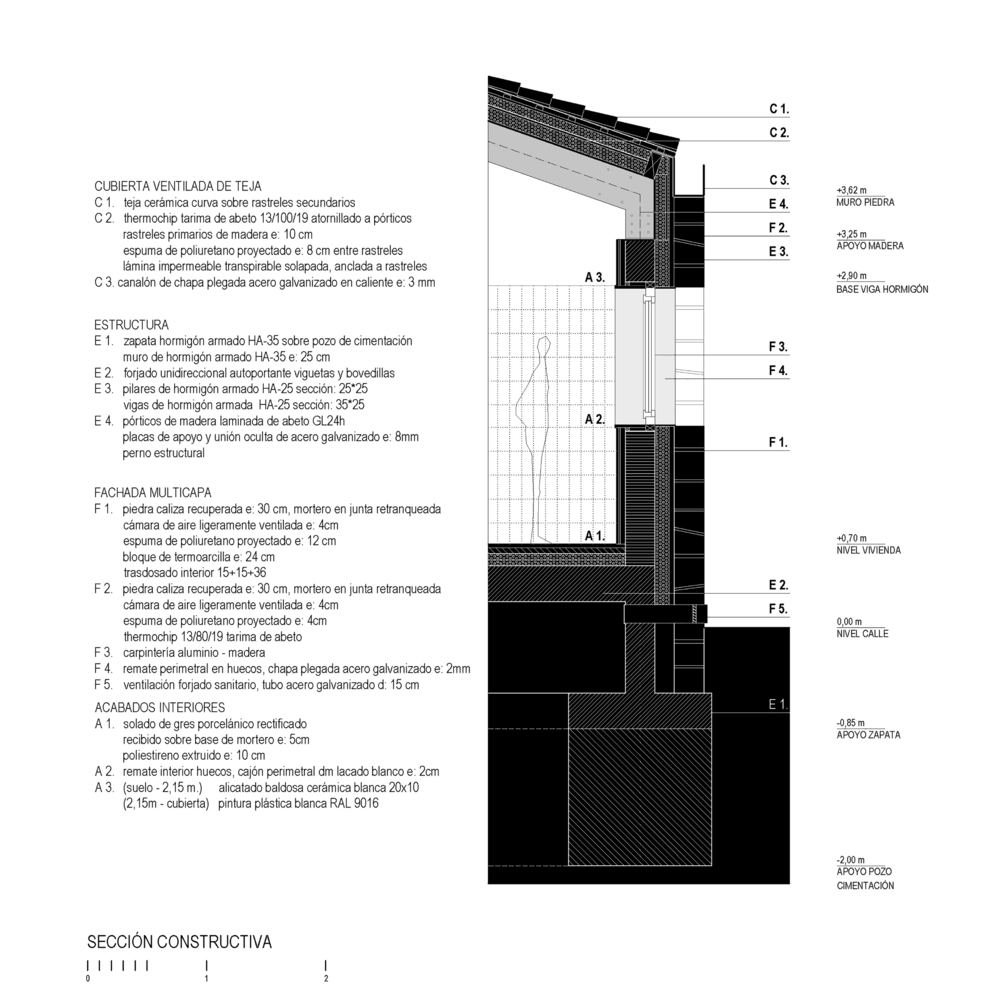

The ruins are inhabited through a design that embraces the place and the value of the old material. It sets this as a starting point. Reusing the material, understanding old local construction techniques, and choosing the right structural system lead to the final solution. Through a structural concrete frame, the livable plane is elevated above the terrain. This structural frame sets the master line from which a light self-standing wood structure defines the light roofing. This wood-frame structure is carefully designed, cut, and set in place in order to define the geometry, volume, and materiality of the space. The multilayered stone façade surrounds the building providing excellent insulation and thermal inertia. The ceiling height and the location of the openings provide either cross-ventilation or chimney effect when requested.

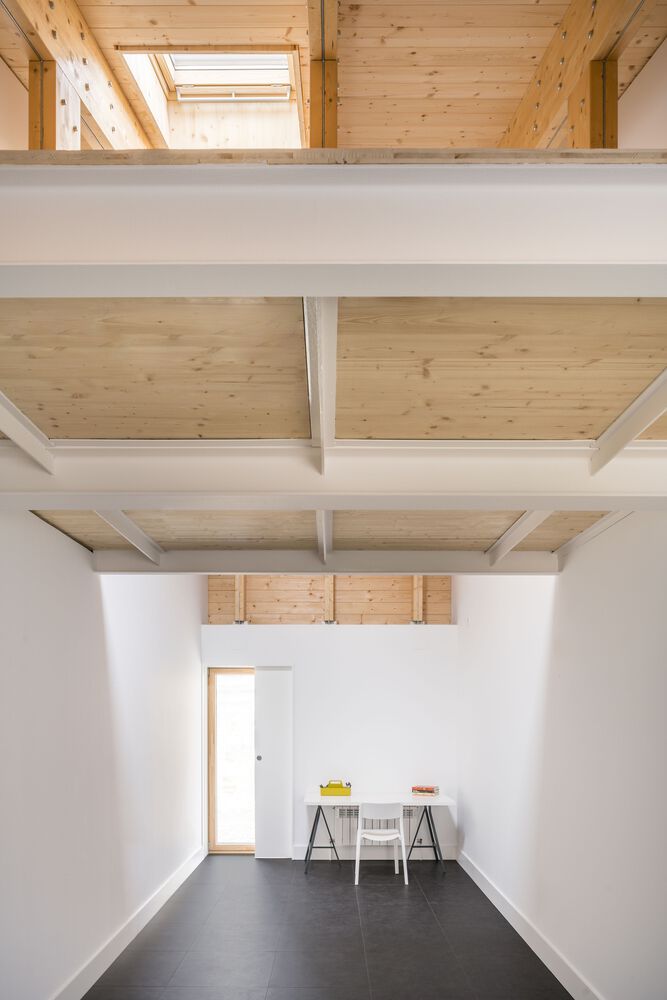

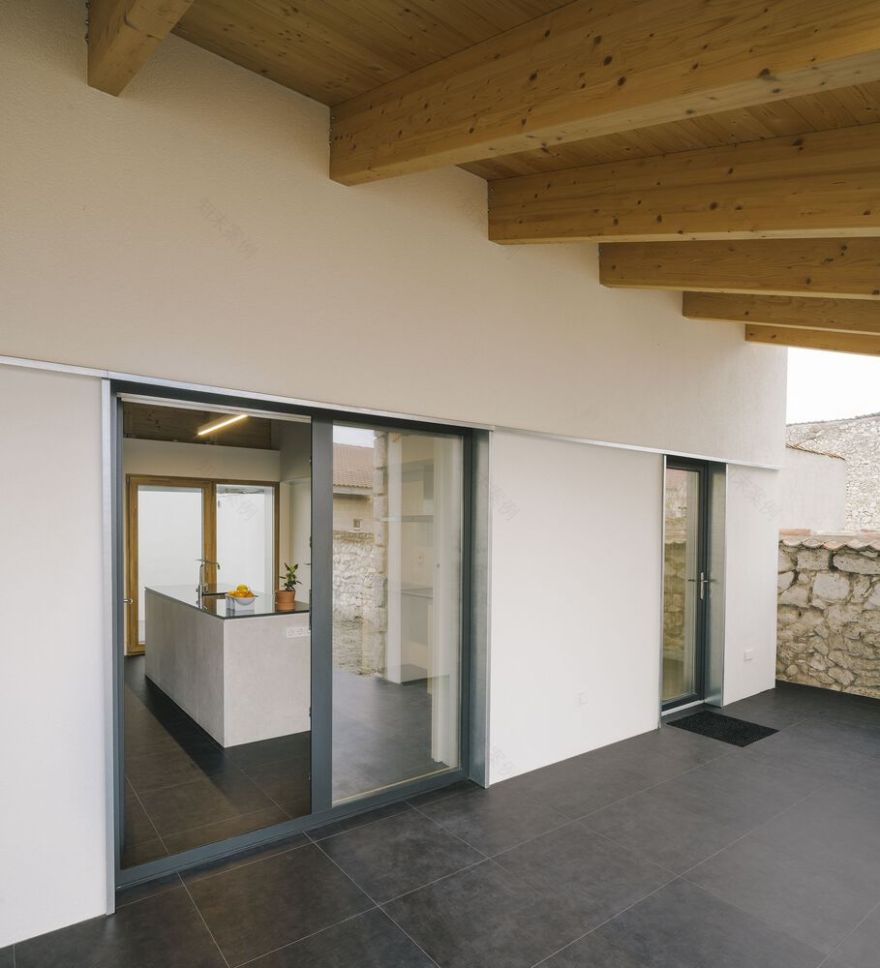

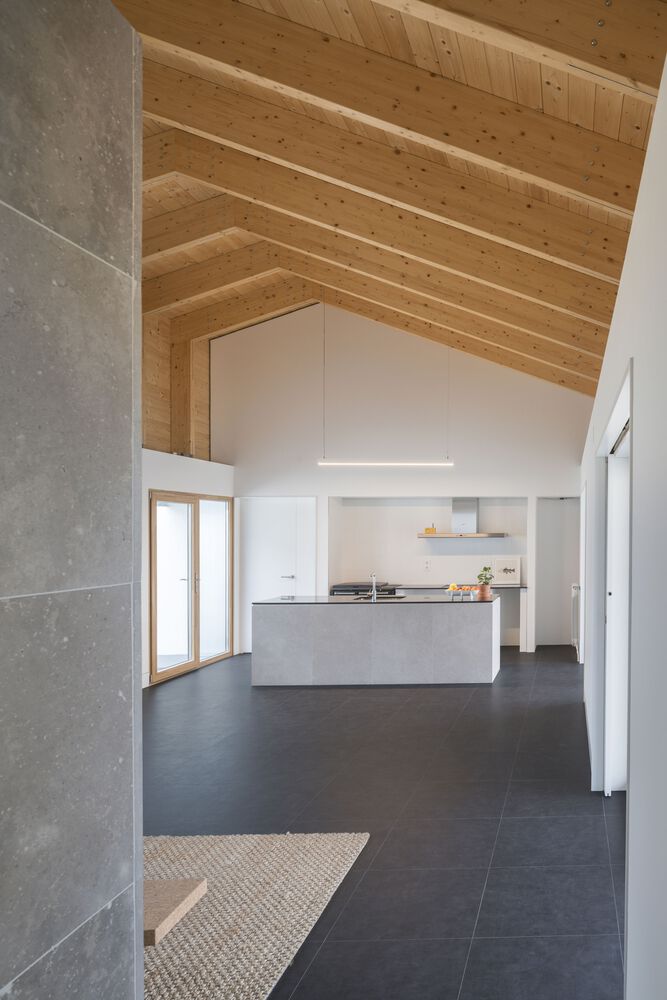

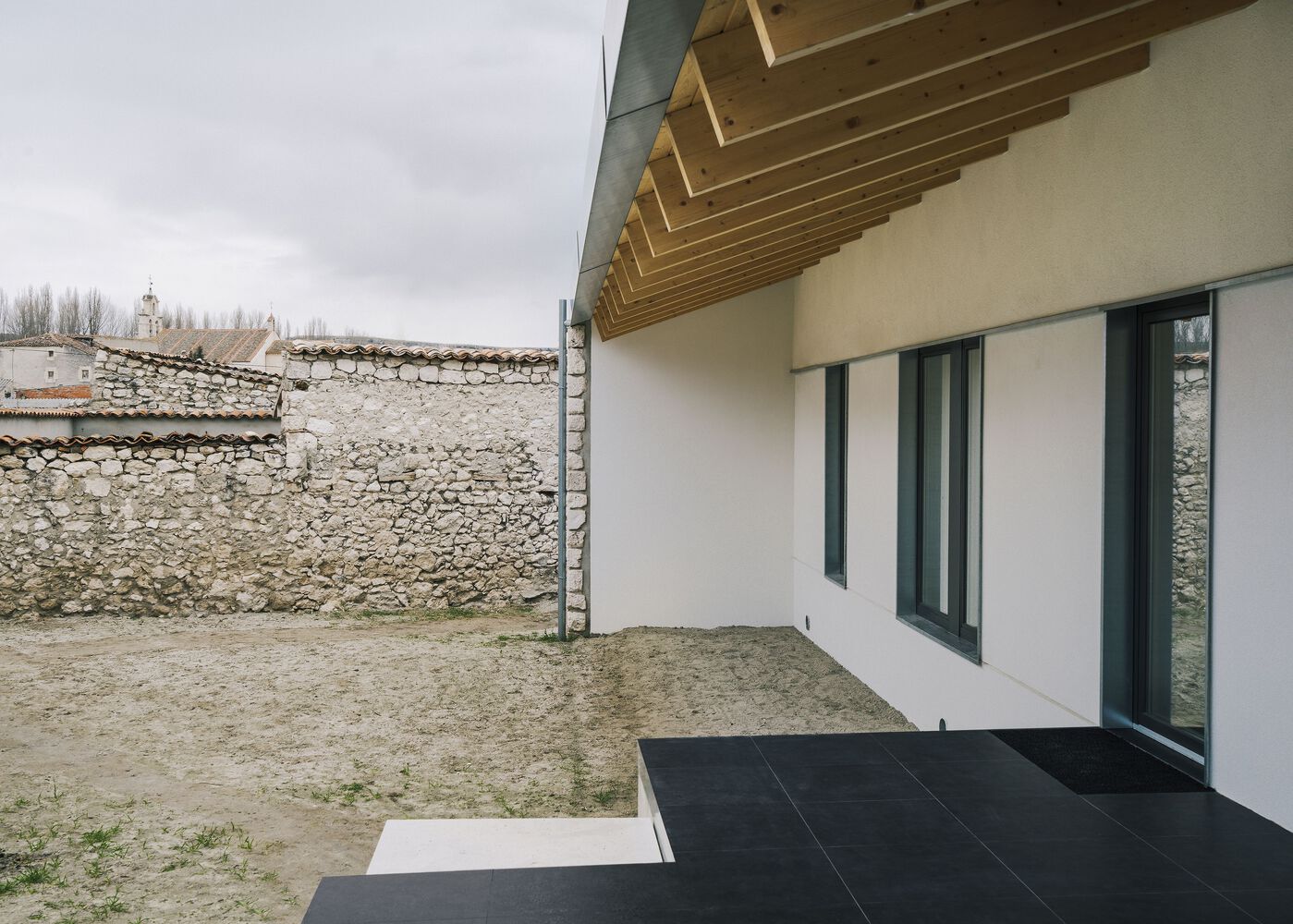

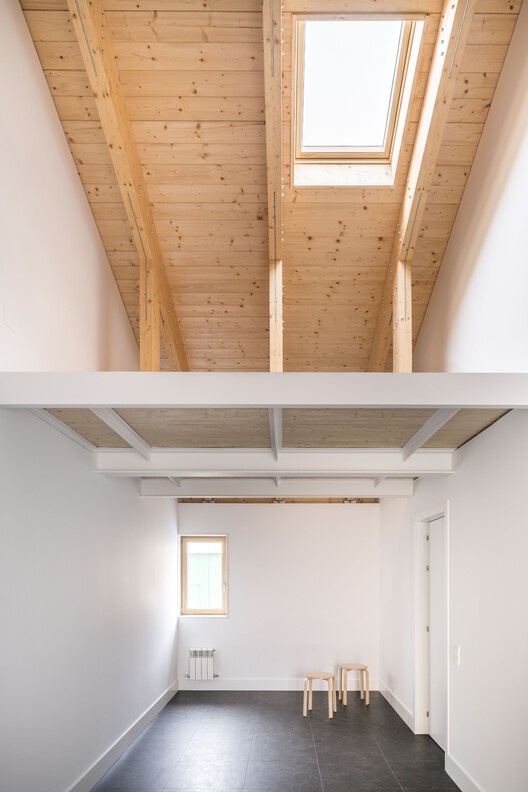

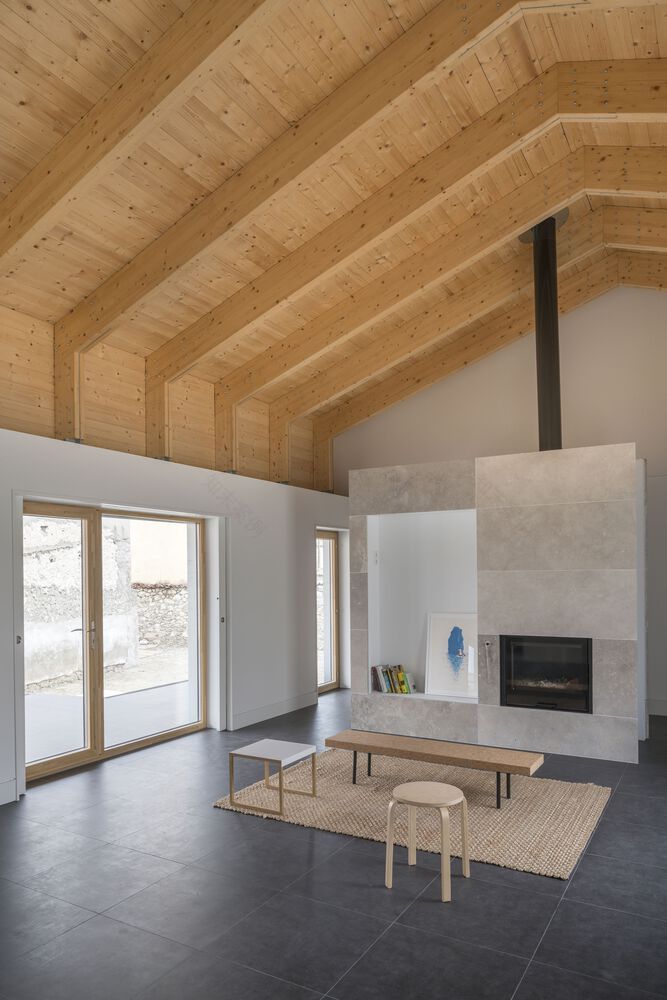

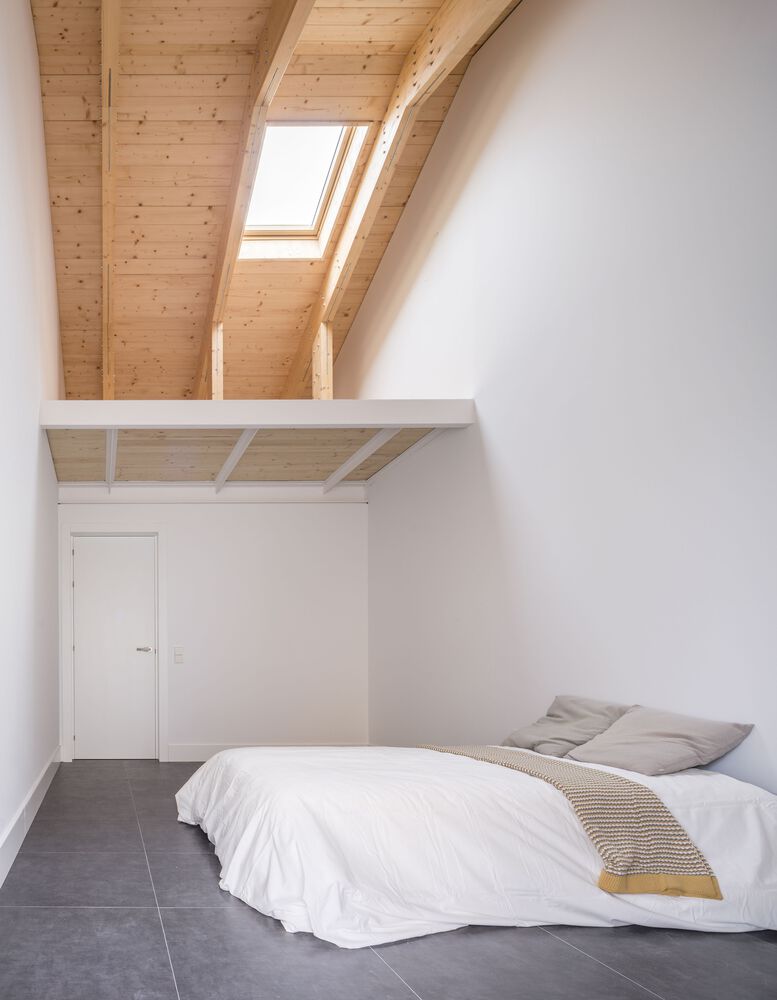

The interior is designed as an open, flexible space filled with the program. Aside from the street, the functional program is set, toward the patio, and the private spaces are located. The room’s height is limited by the use of the ‘Spanish sobrado’ The windows are carefully set to capture views and light, allowing multiple cross-views. The spatial sequence provided by the patio, terrace, and garden interlaces interior and exterior through a series of intermediate spaces that provide cross-views, transparencies, and reflections.
