马德里贮水池改造住宅

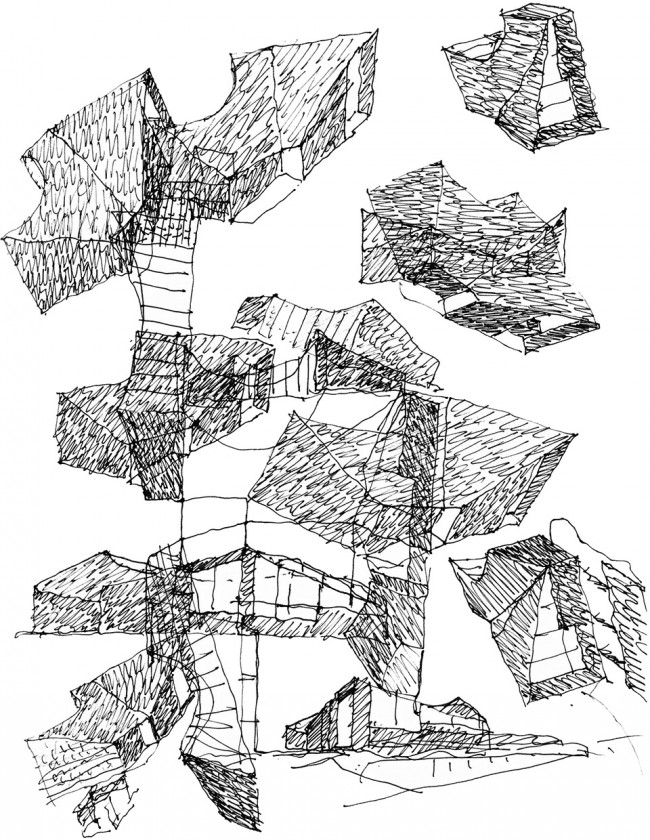

▼手绘图，Sketch

▼轴测图，Axonometric

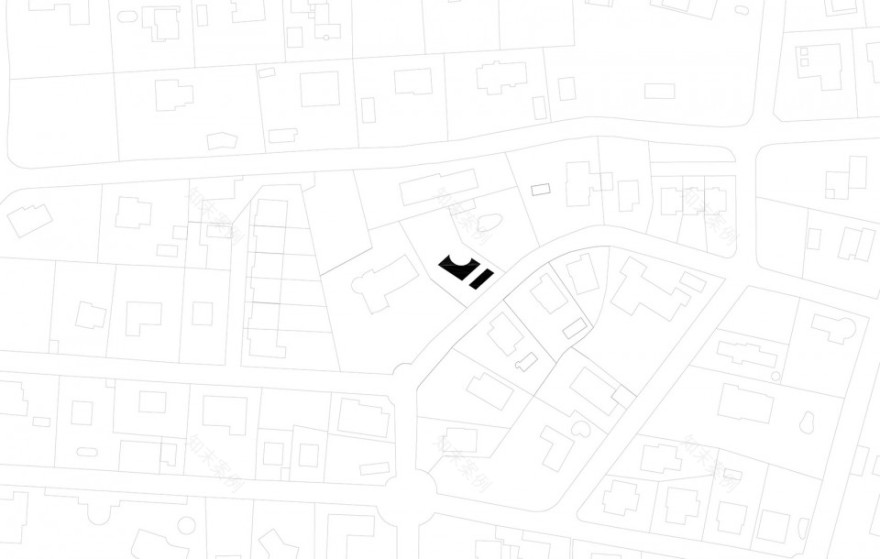

▼总平面，Master Plan

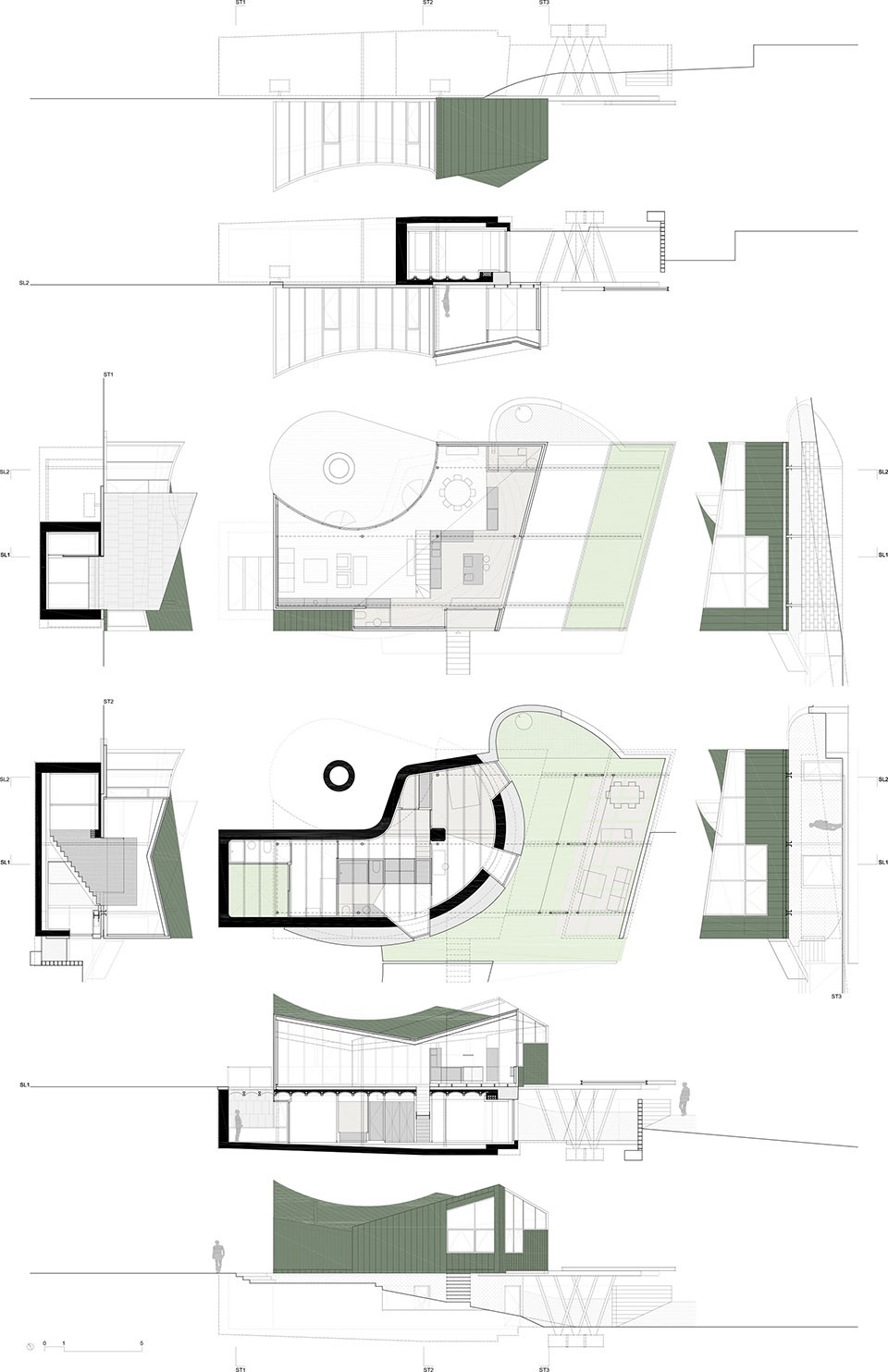

▼三视图，orthographic views

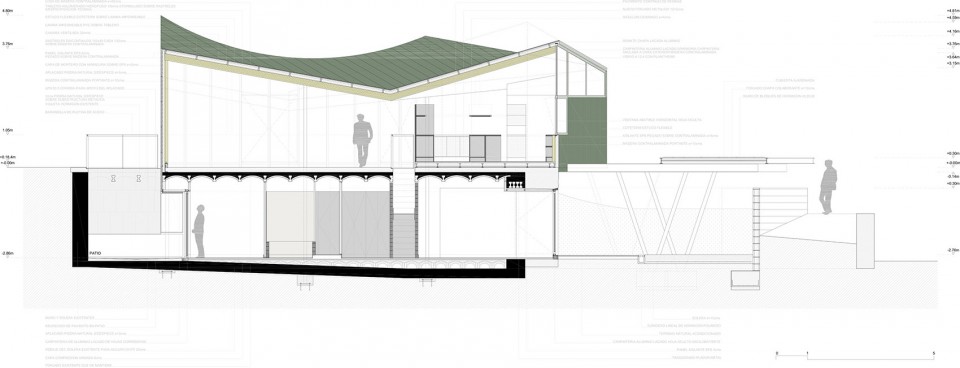

▼剖面图，Section

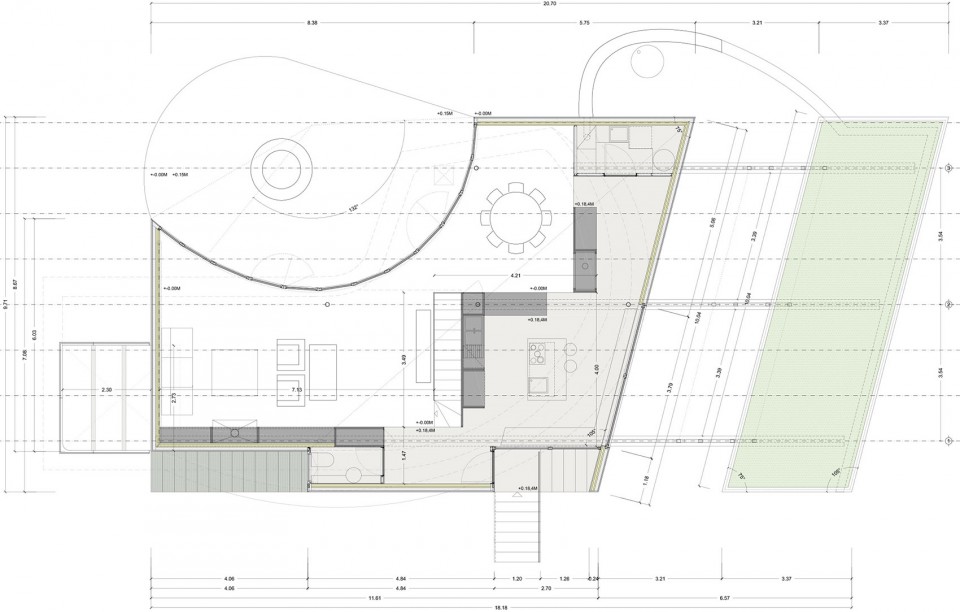

▼首层平面图，Ground Floor Plan

▼地下层平面图，B1 Floor Plan

Location: Alpedrete, Madrid, Spain

Architect: Alejandro Valdivieso – Valdivieso Arquitectos

Ángel L. Valdivieso, architect; David Verdú, quantity surveyor; Fernando de la Torre, Carmen Bruna y Patricia Lobo; students

Project Management:
Alejandro Valdivieso (architect)
Joaquín Jesús Cepas Flores (quantity surveyor)

Consultants
: Miguel Nevado – KLH Systems Austria (cross-laminated timber panels)
Contractor
: Construcciones Eugenio Herranz S.L.
alterMATERIA (management and assemblage de cross-laminated timber panels)

Total cost (excluding VAT):
203.651,40 euros

Cost /sqm (excluding VAT)
: 1025,33 euros/sqm

Built-up area:
198,62 sqm

Photographs
: David Frutos

Design years
: September 2012 – September 2013

Construction years: December 2013 – February 2015
