红砖艺术打造的法国母婴之家

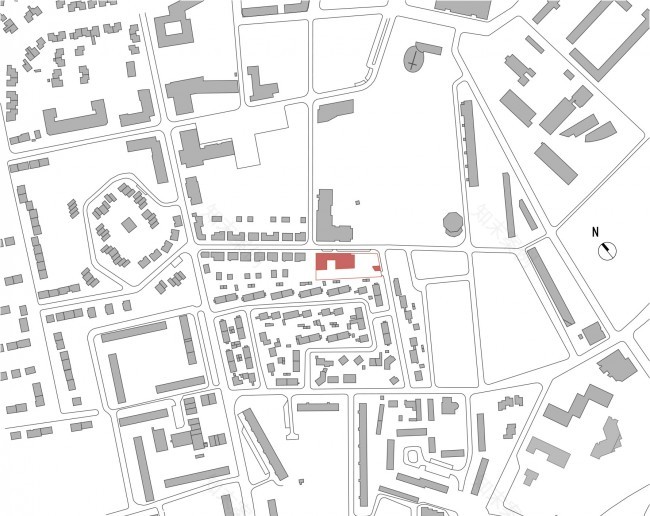

▽平面图 plans

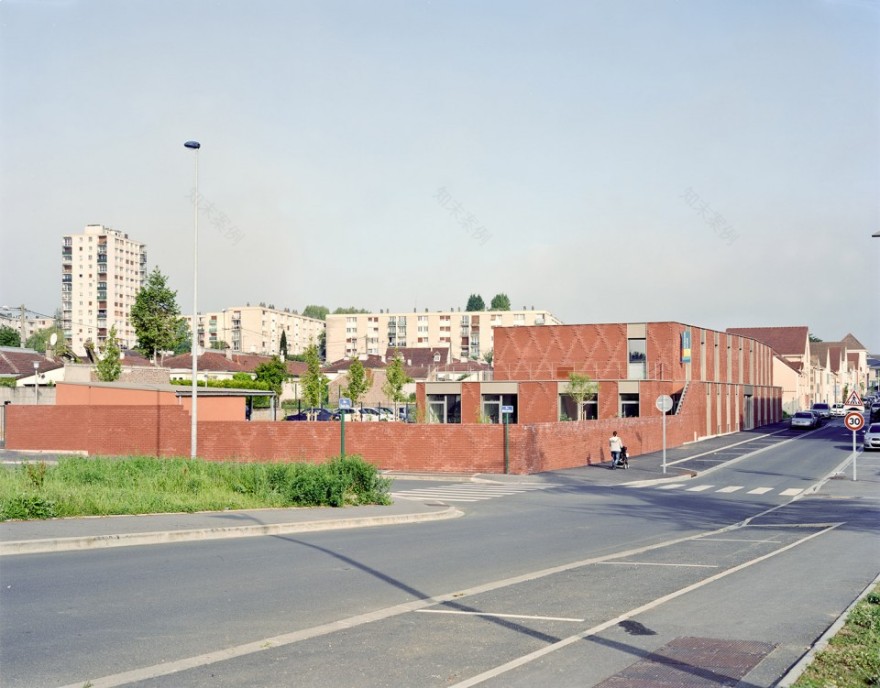

“母婴之家”该地区快速发展中的重点项目之一，为这一略显荒凉的地方带去了一丝祥和宁静，其中对红砖的运用起到了相当的作用。作为对Beauvais地区建筑立面的致意之作，建筑师通过砖的运通表现出敏感而细腻的情感，同时欢迎这种材料再度回到今天的建筑之中。使用空心墙体隔离技术，每一块砖都经过单独的设计。建筑师为约38,000块砖计算它们的砌法。通过7种不同的叠加、悬挑、扭转的方式，构成了别具一格的立面。在设计过程中运用BIM技术以及自制的参数化工具。这样的技术使得建筑项目的建造和立面纹理的编织可以同时进行，也上设计更多样更灵活，跟建筑公司的沟通更容易，现场对砖块的梳理更轻松。

The House for solidarity is a key project in this fast changing district, a place of appeasement in a rough area. The use of brick plays a part in this achievement. A tribute to the diversity of facades in Beauvais, its use expresses a sensitive and welcomed return of this material in todays architecture. Using the cavity wall insulation technique, every single brick of this peculiar patterned façade has been designed individually. We counted about 38 000 bricks. The pattern is created by overlapping, overhanging and rotating each brick in 7 different manners. It was designed using a complete 3D model (BIM) with homemade parametric tools. The use of such tools allowed to develop simultaneously and almost independently the architectural project and the weaving pattern. It allowed a versatile and adaptable design, facilitating communication with all construction companies and the mounting of the bricks on the construction site.

▽立面纹理，the texture on the facade

白色

▽立面图 facades

设计团队：EllenaMehl : architects;Atelier Frederique Garnier:landscape designer GEC;Ingénierie : structural and technical engineer

竣工日期：2015.02

面积：总楼层面积1,127㎡，净楼层面积970㎡

摄影：HervéEllena Philippe Caron

Program:Social welfare departmental center Mother and child welfare center Medical center

Location:Rue Jean-Rebour, Beauvais, Oise, France

Client:ConseilGénéral de l’Oise

Design Team:EllenaMehl : architects;Atelier Frederique Garnier:landscape designer GEC;Ingénierie : structural and technical engineer

Schedule:Competition : December 2012 Building delivery : February 2015

Cost:1.884.300 € ex. VAT

Surface area:1,127 m2 gross floor area 970 m2 net floor area

Photographers:HervéEllena Philippe Caron

English Text:Ellenamehl architects
