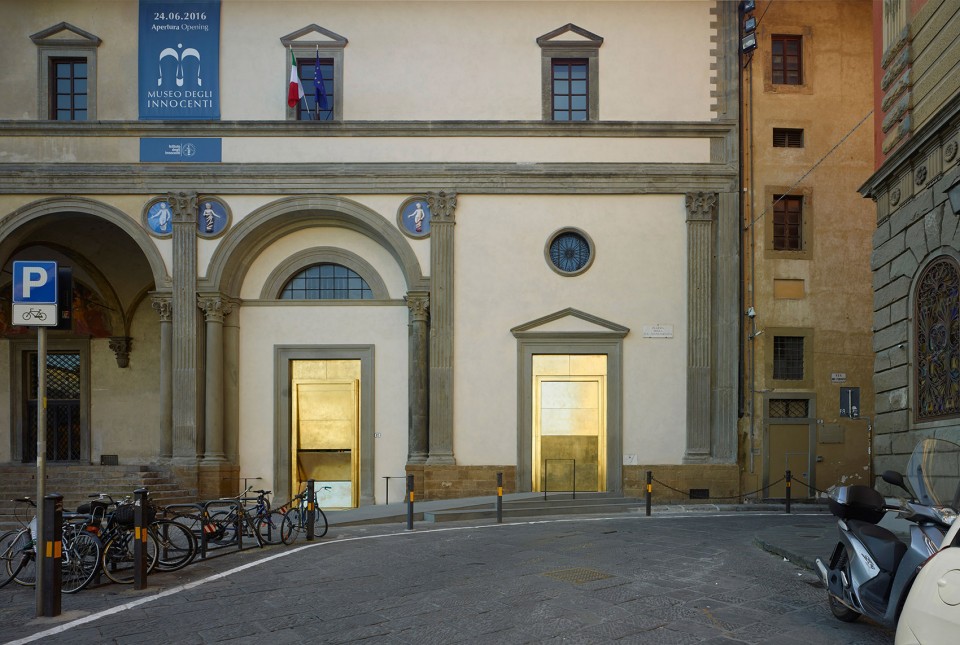

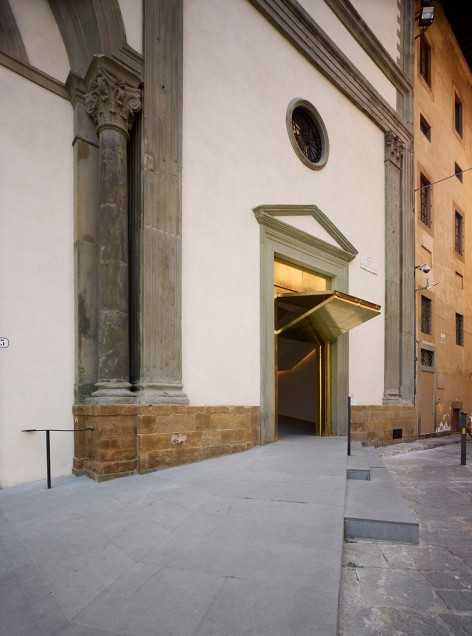

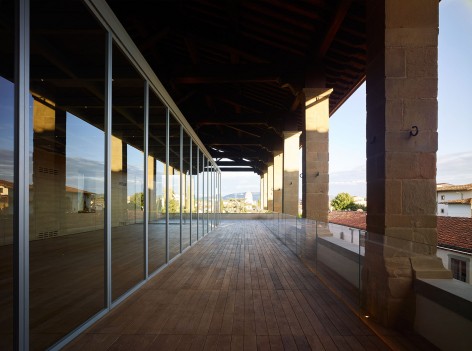

佛罗伦萨孤儿院博物馆

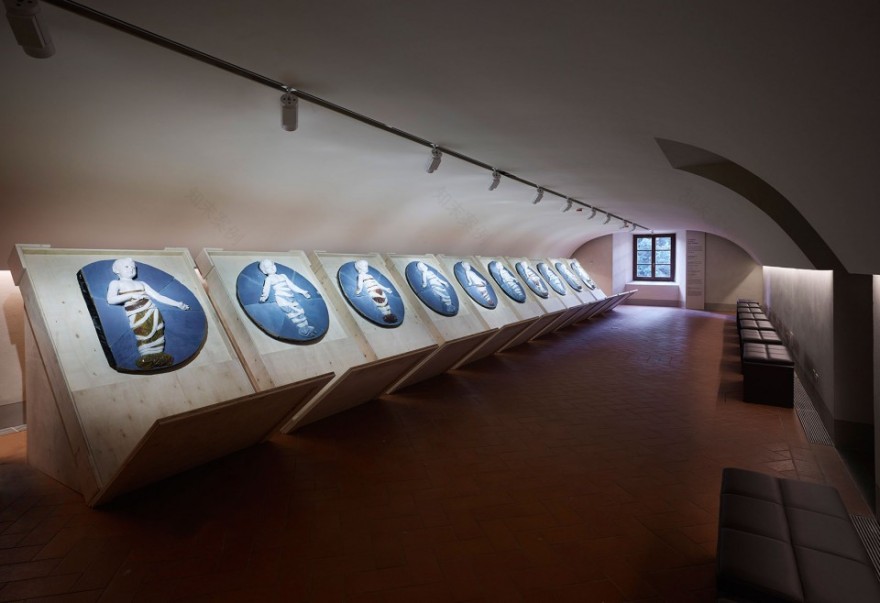

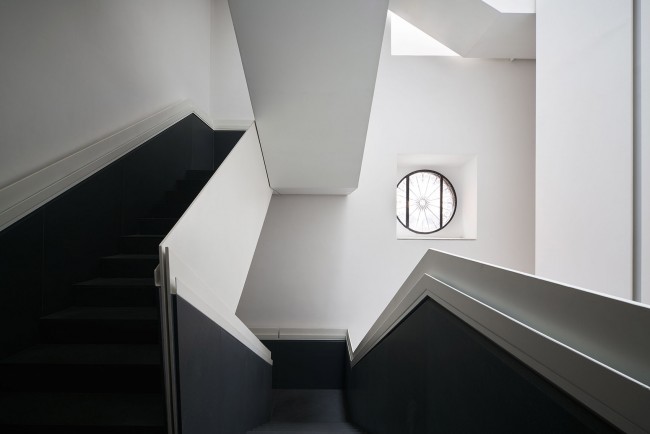

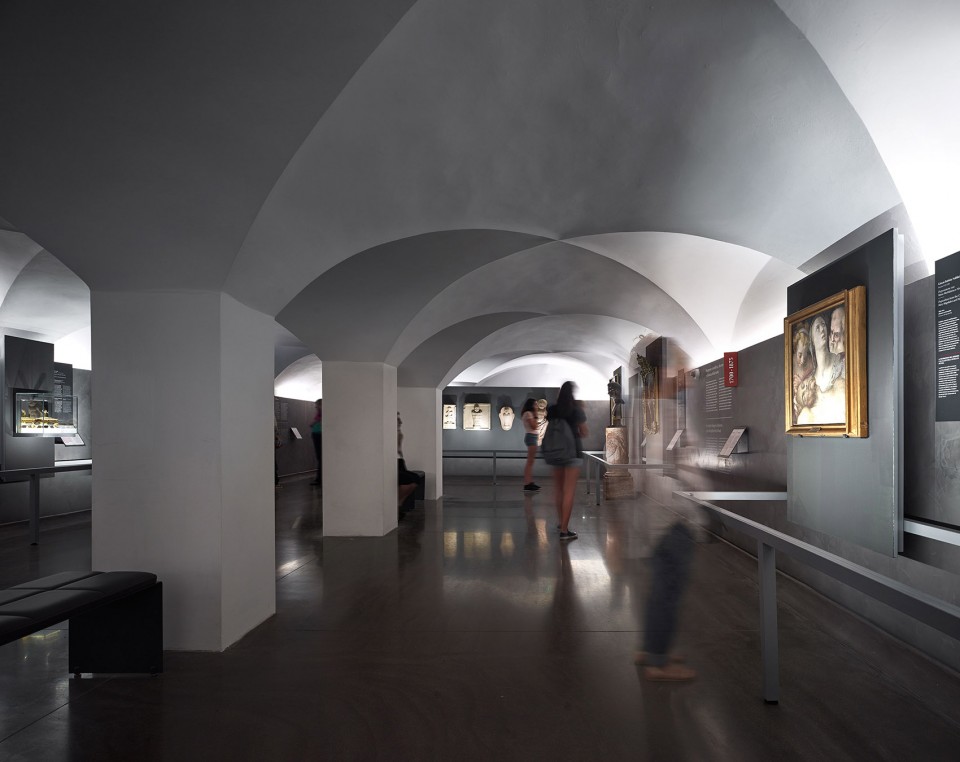

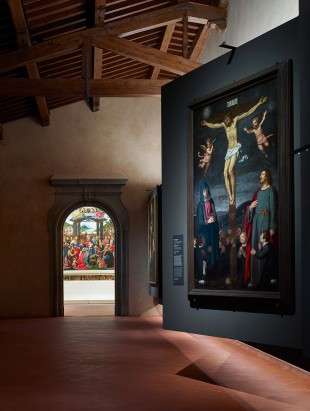

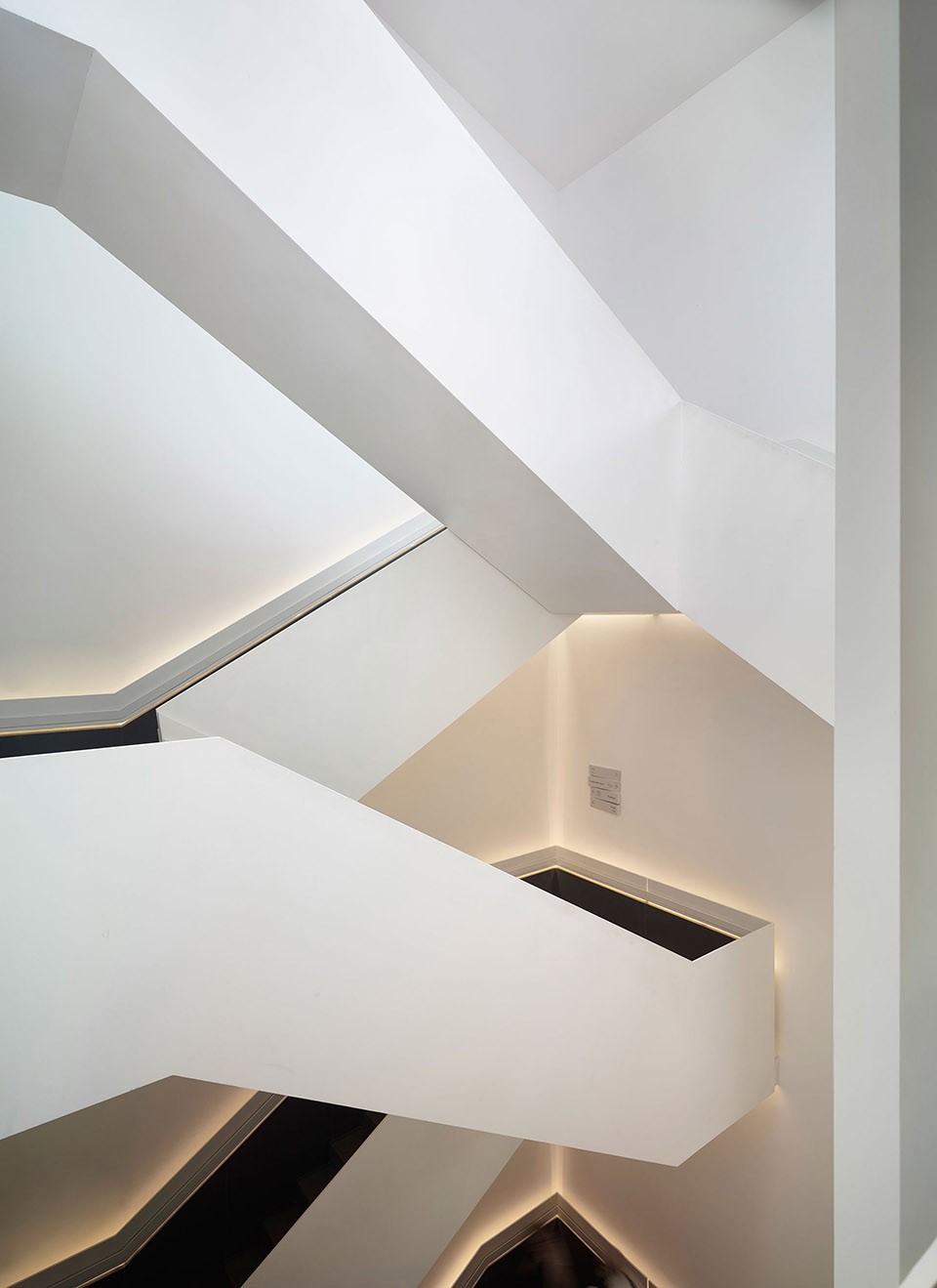

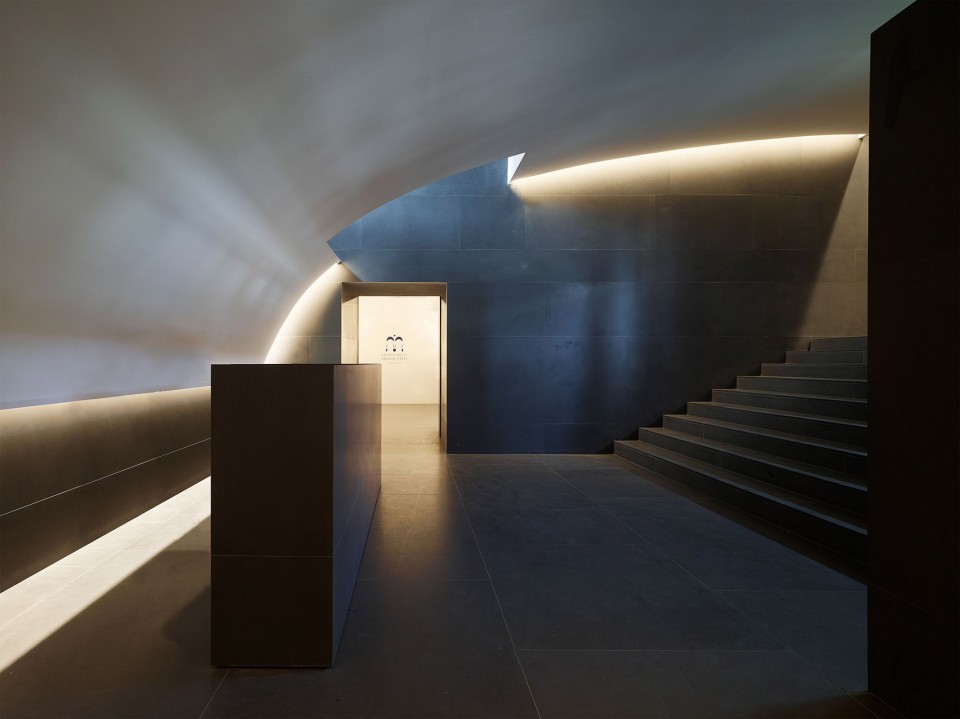

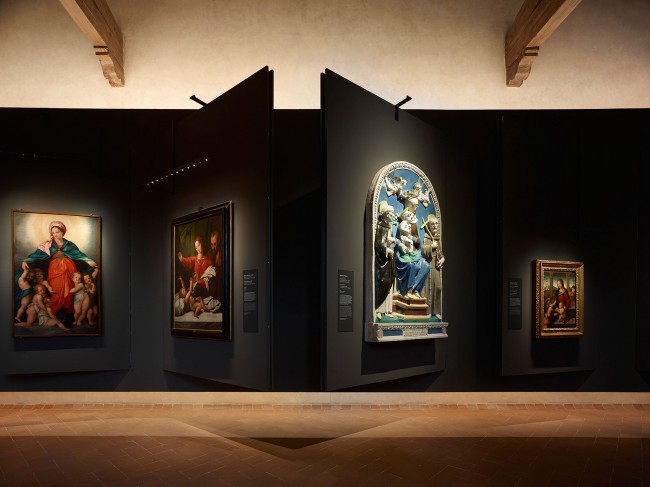

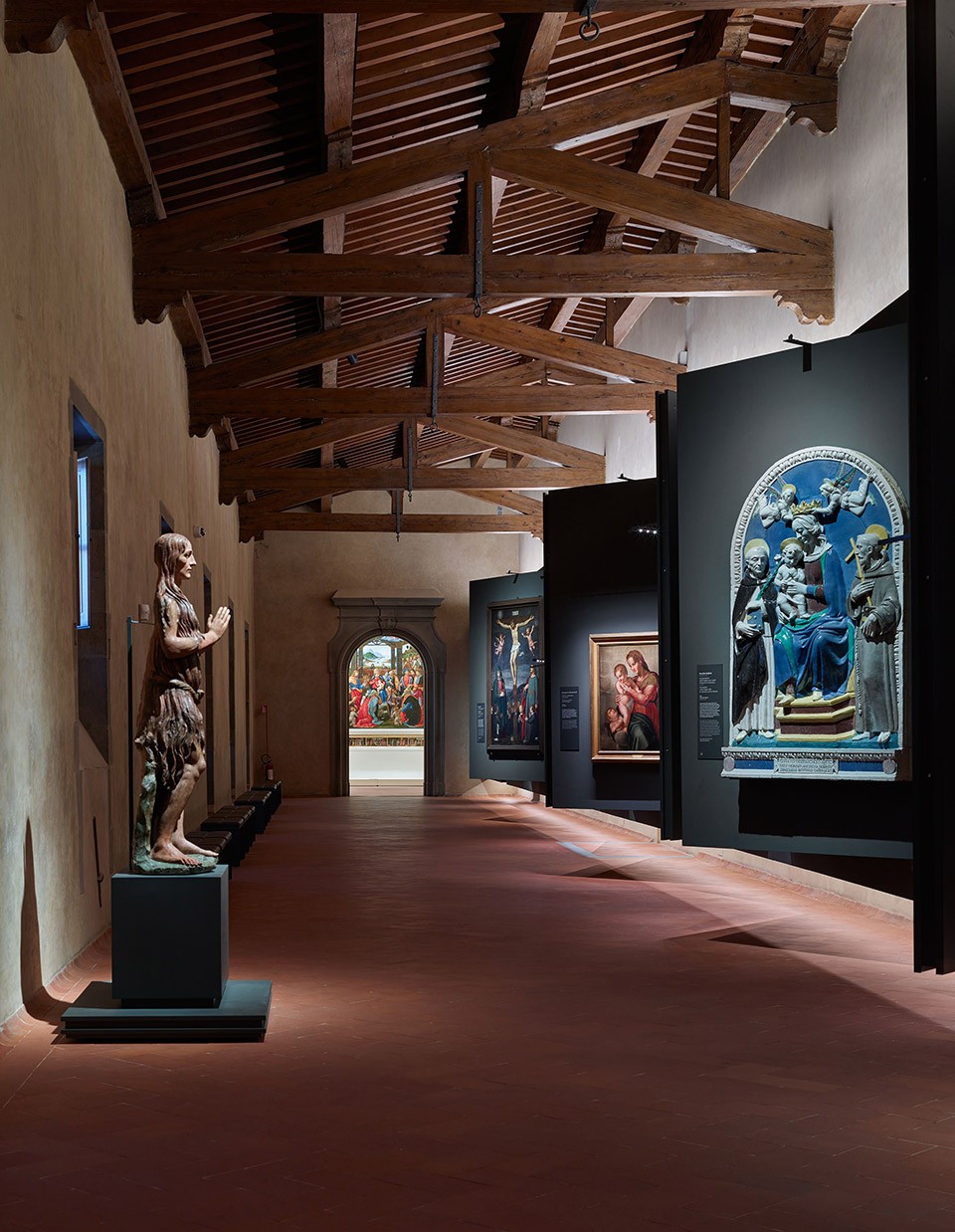

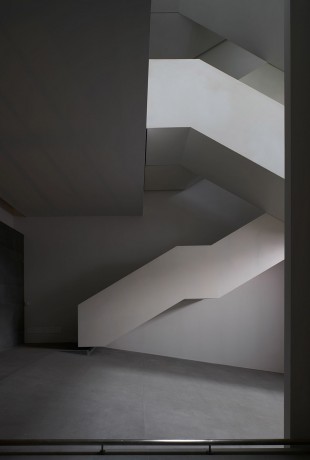

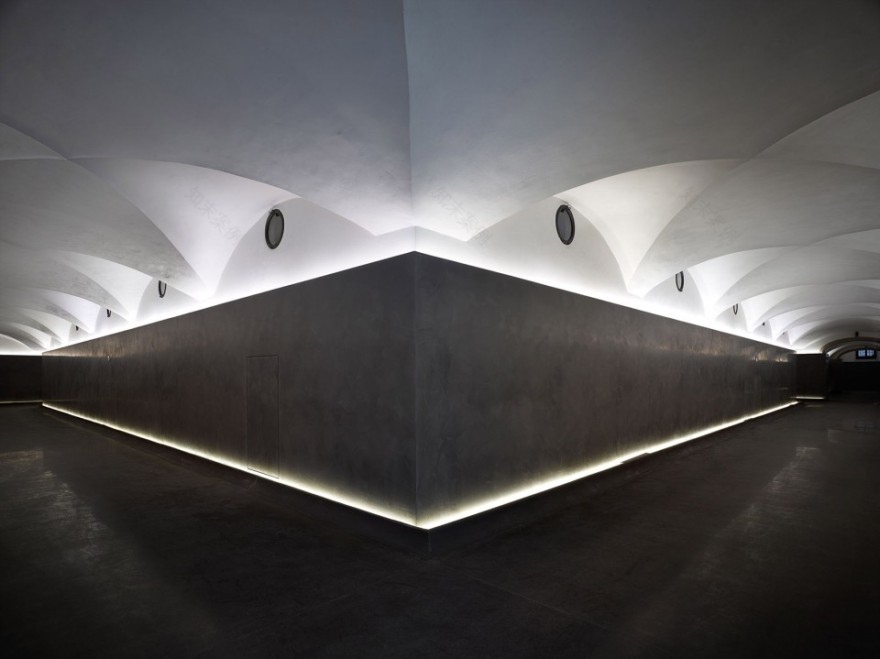

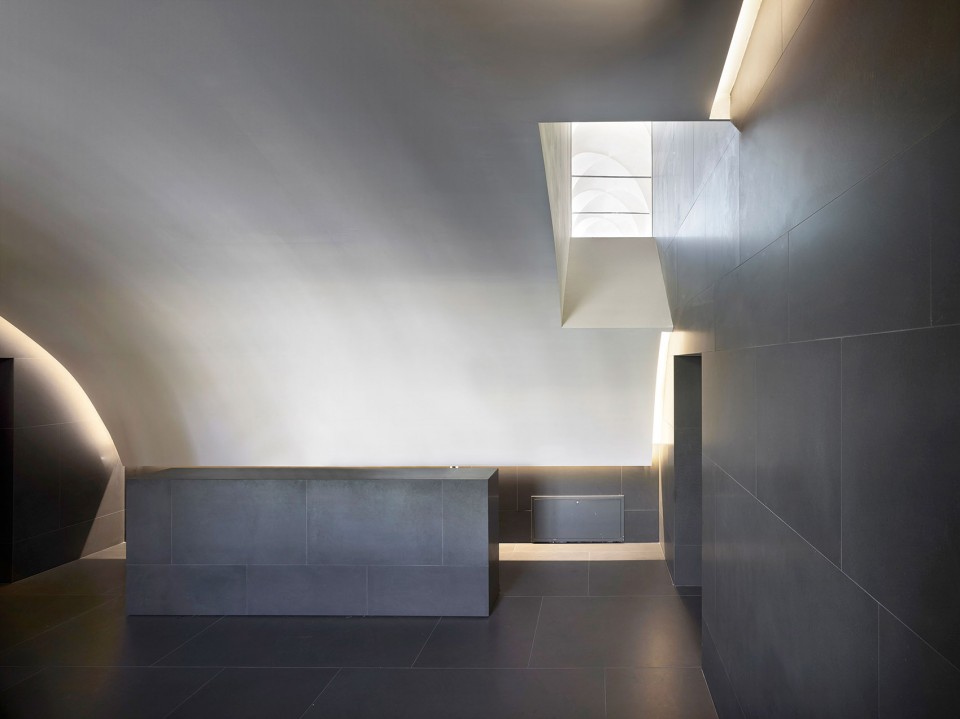

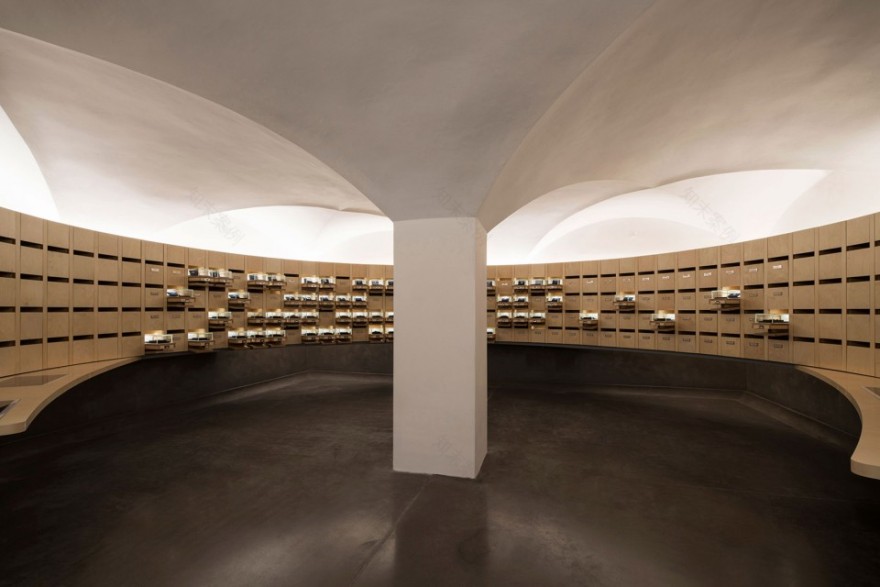

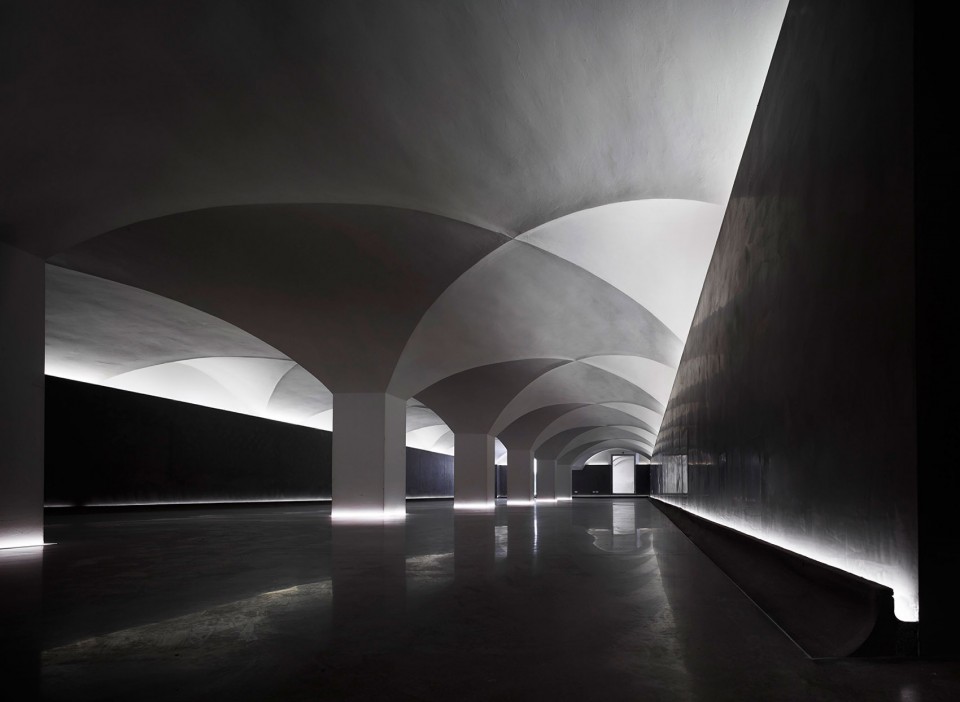

平面图标红部分为建筑的改造部分。建筑地下层为博物馆，首层至三层为孤儿院以及其他空间。

Red area in plans are the renovation part. Basement fllor is the new museum，and from ground floor to 3rd floor are insititude and the rest area.

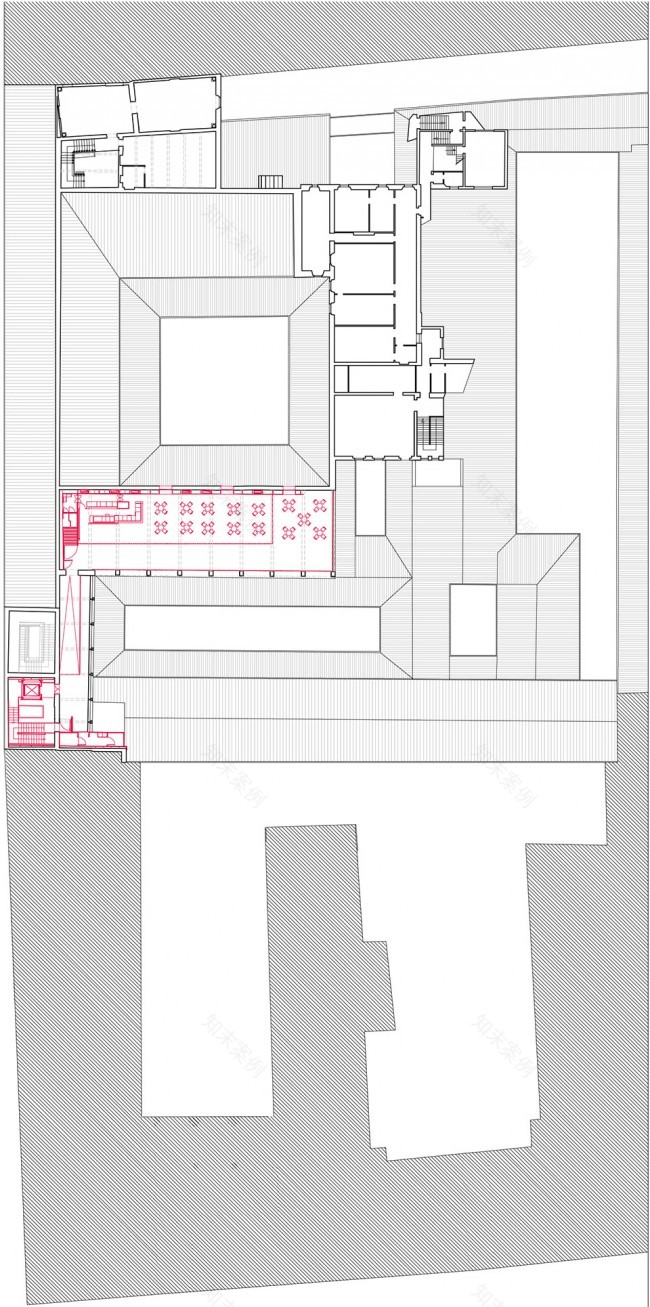

▼地下层平面图-博物馆，B1 Floor Plan-Museum

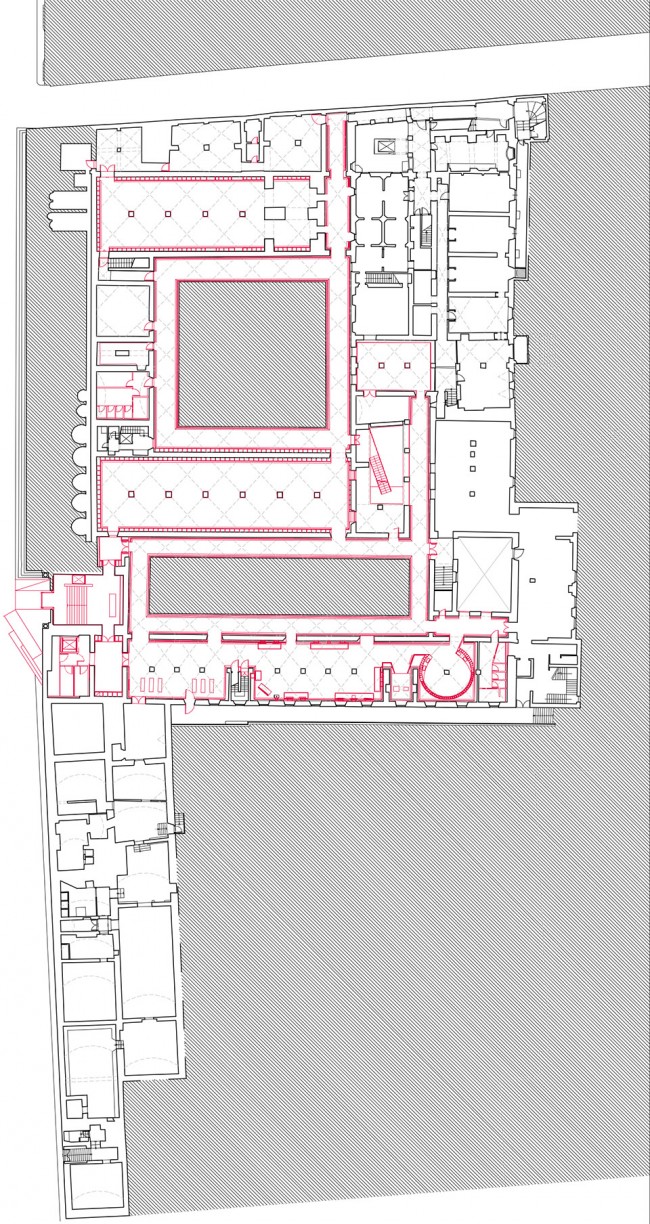

▼首层平面图，Ground Floor Plan

▼一层平面图，1st Floor Plan

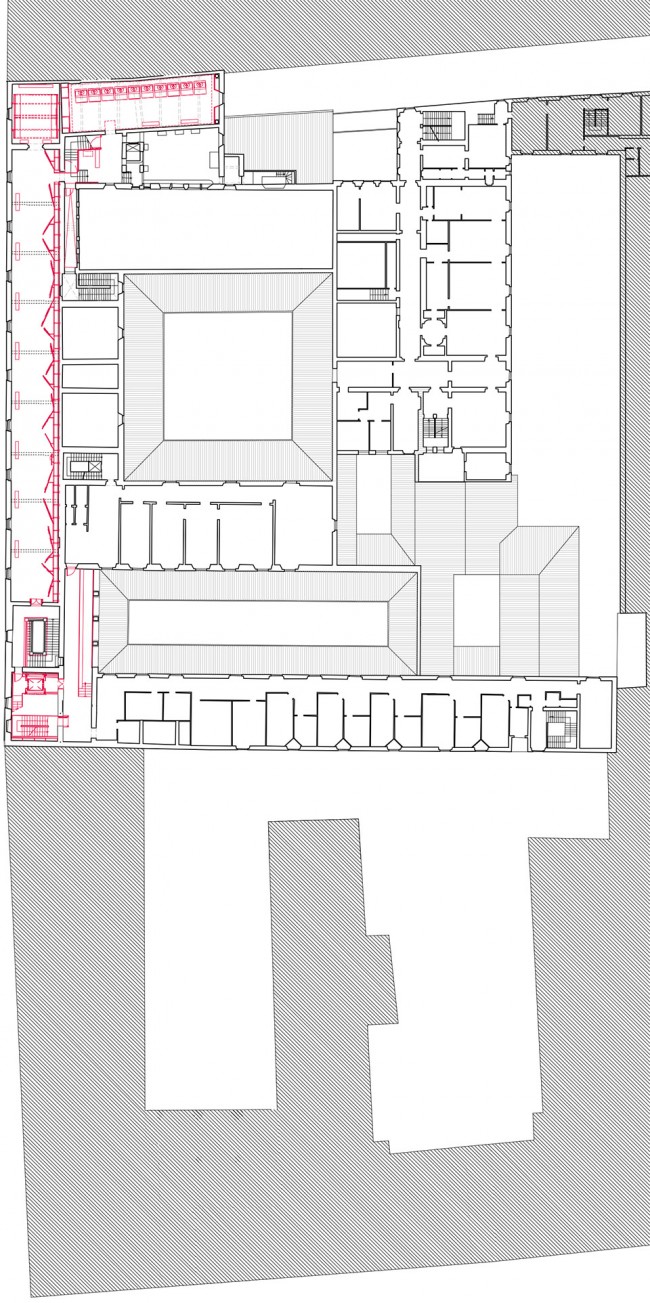

▼二层平面图，2nd Floor Plan

▼三层平面图，3rd Floor Plan

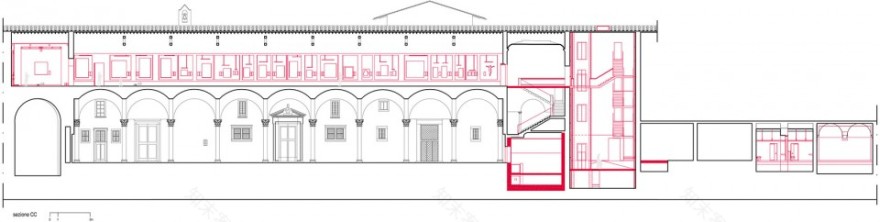

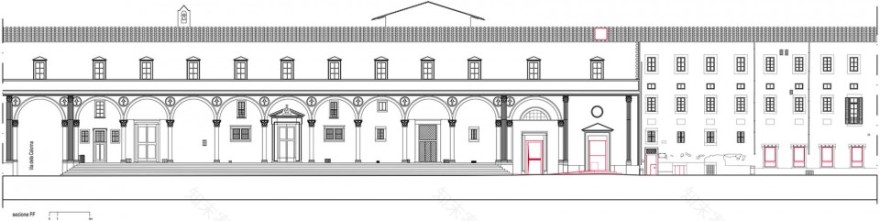

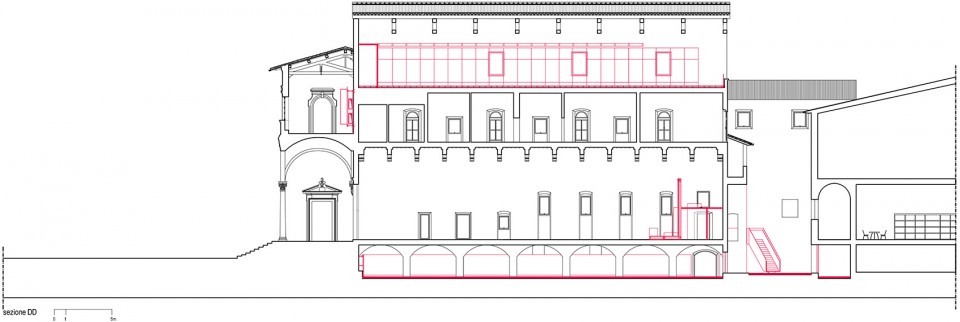

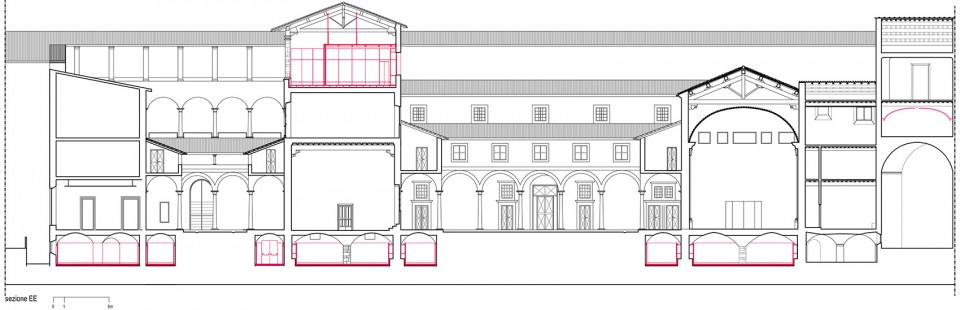

▼剖面图，Section

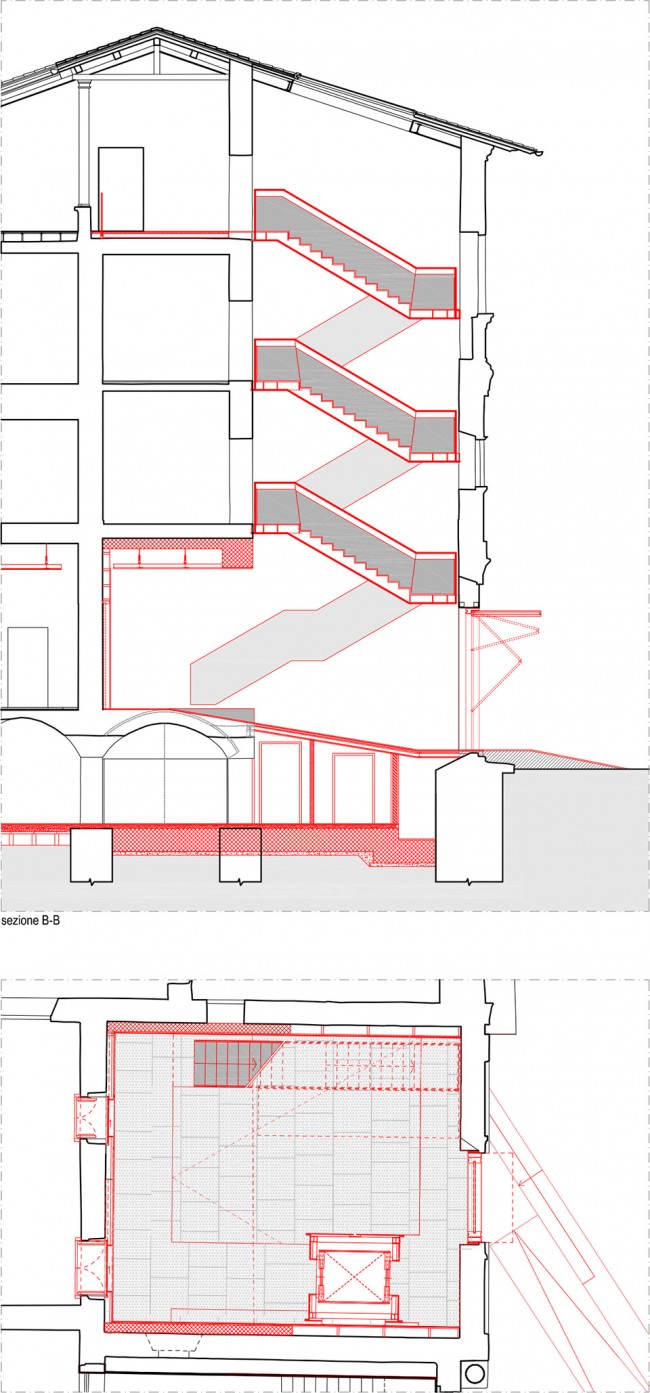

▼剖面图- 孤儿院入口，Section- Entrance to the institute

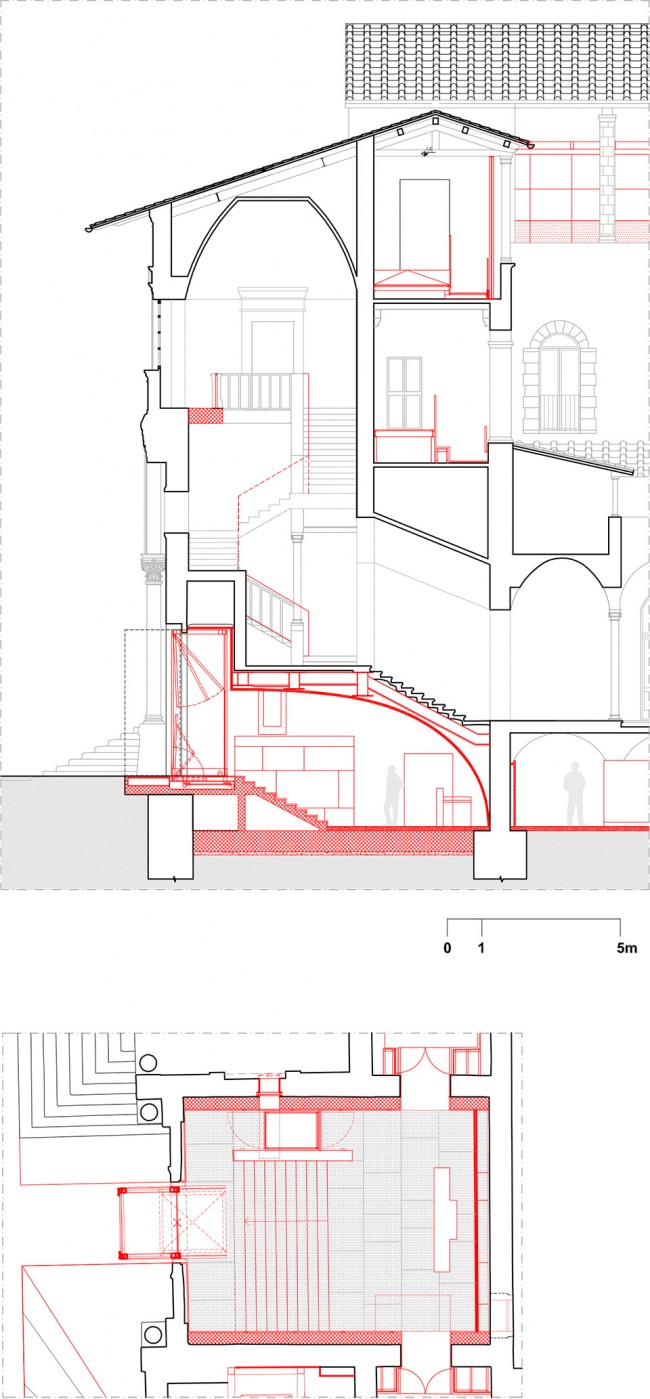

▼剖面图- 博物馆入口，Section- Entrance to the museum

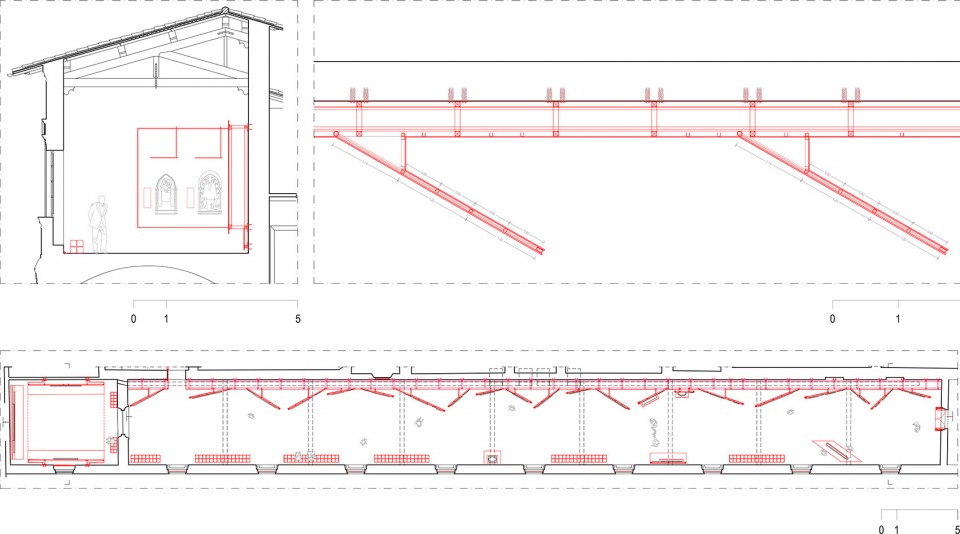

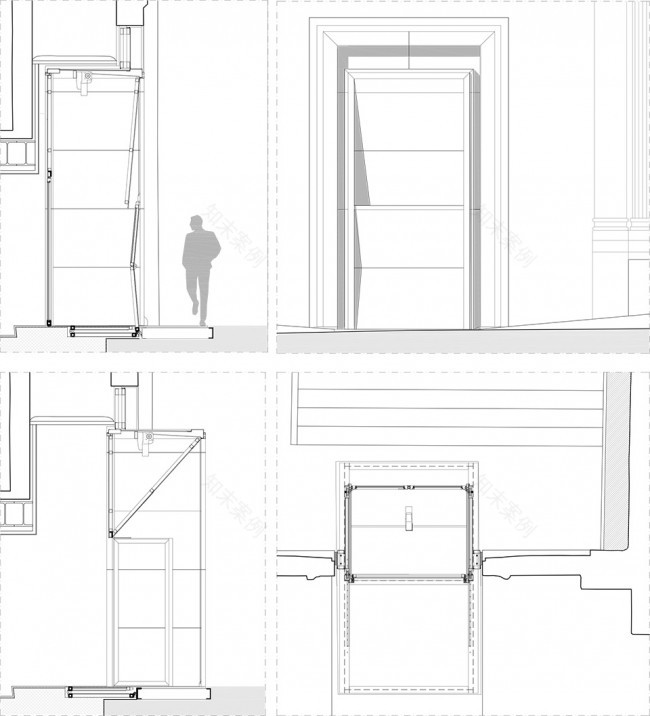

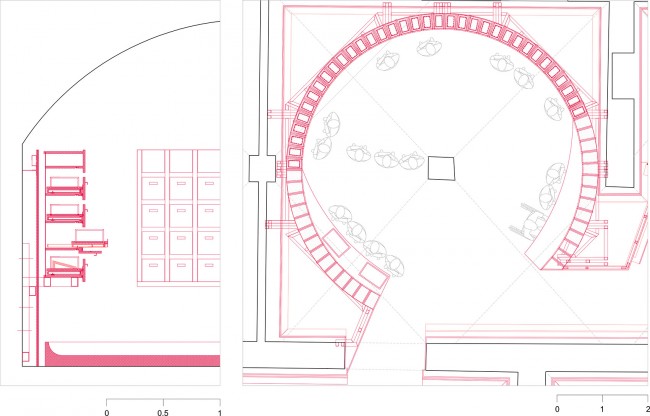

▼建筑细节，Detail Drawings

CREDITS

International design competition, 1st prize

client: Istituto degli Innocenti

structure: Favero&Milan Ingegneria, aei progetti

location: Florence

design: 2008-2010

construction: 2012-2016

total surface: 4.000 sqm

cost: 6.723.500,00 euro

program: Museum Permanent exhibition, conference area, new entrance to the museum, new entrance to Istituto degli Innocenti, Verone café, playroom “la Bottega dei ragazzi”, bookshop
