Larkin 变电站扩建项目是首个获得 ILFI“生命建筑挑战”评级的以净零能耗为目标的电站设施项目。设计团队在与 ILFI 的合作下建立了一个为前所未有过的建筑类型而设定的评级系统。

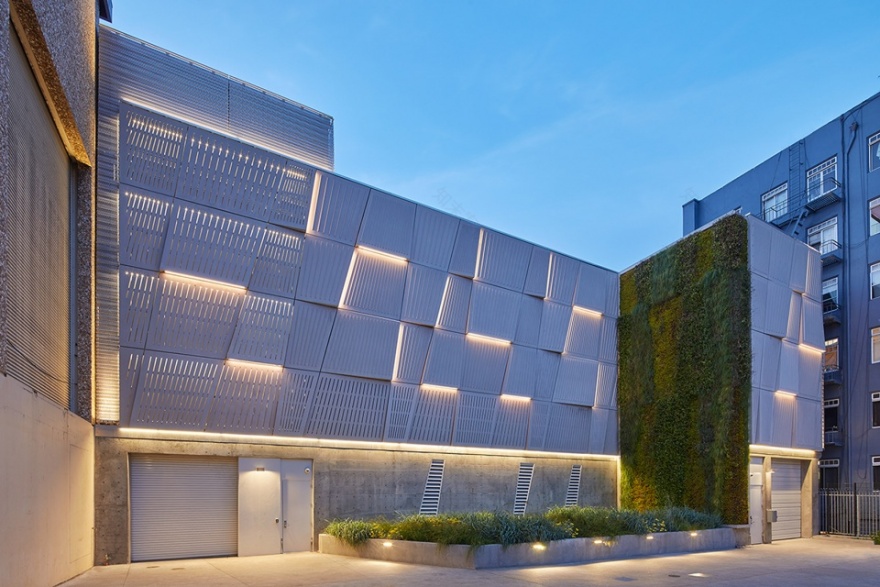

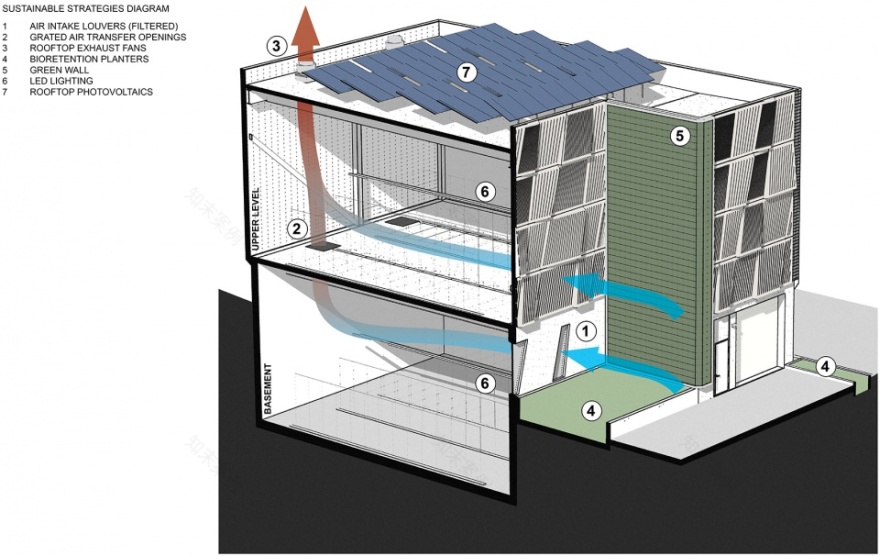

The PG&E Larkin Substation addition is the first targeted net-zero electrical switchgear utility building to get a rating from the International Living Future Institute’s (ILFI) Living Building Challenge. The design team collaborated with ILFI in order to establish a rating system for registering the unprecedented building type.

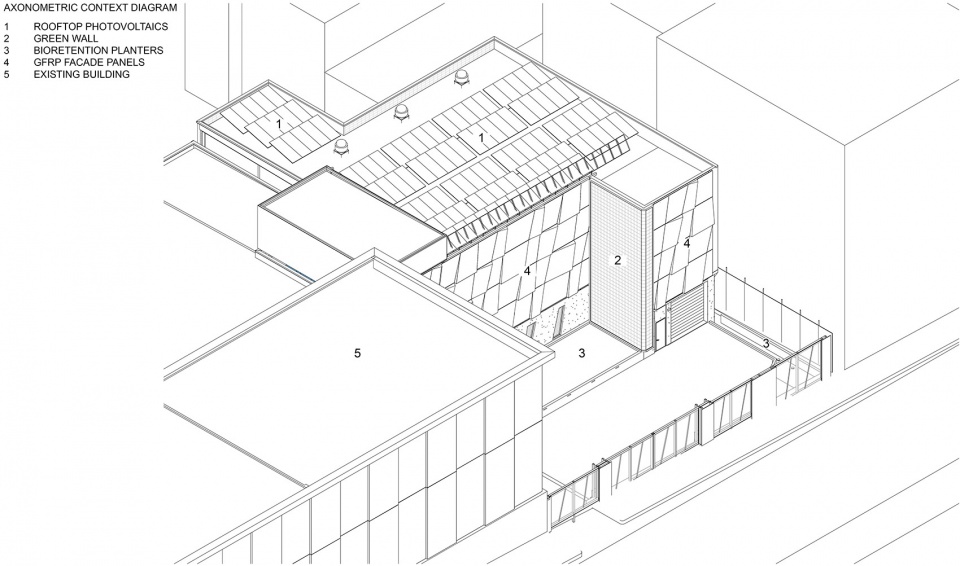

▼轴测图,Axon
©TEF Design
Larkin 变电站扩建丨TEF Design-13

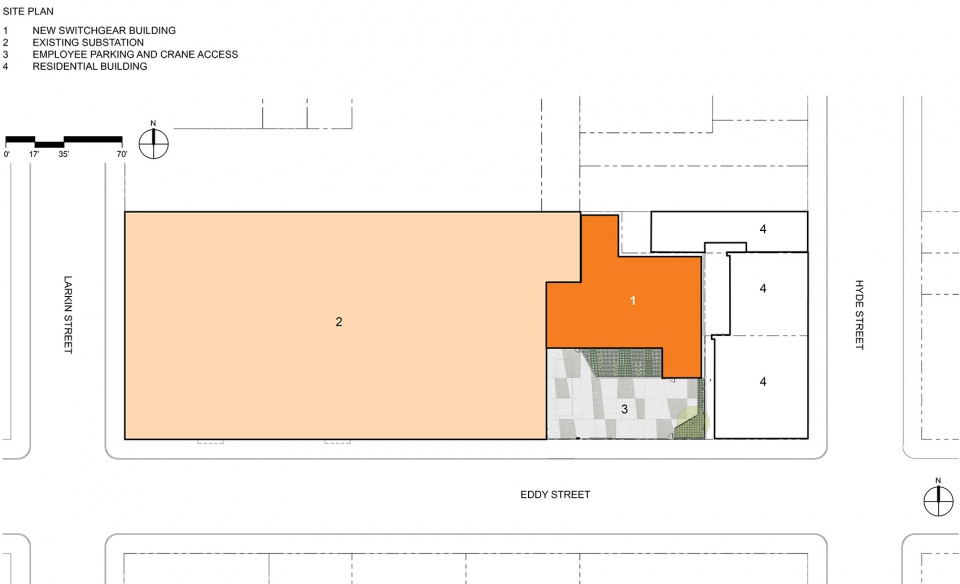

▼场地平面图,Site plan
©TEF Design
Larkin 变电站扩建丨TEF Design-16

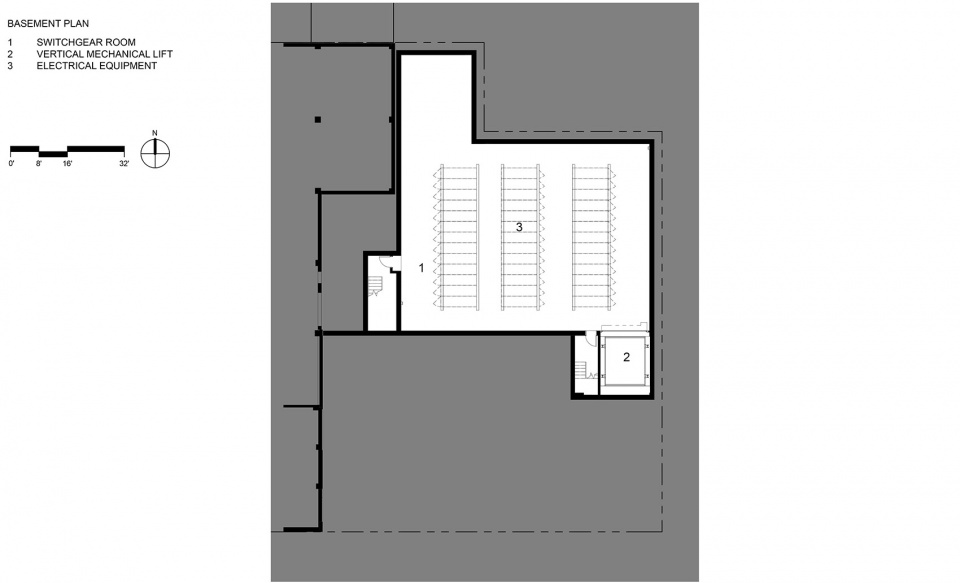

▼地下一层平面图,Basement plan
©TEF Design
Larkin 变电站扩建丨TEF Design-19

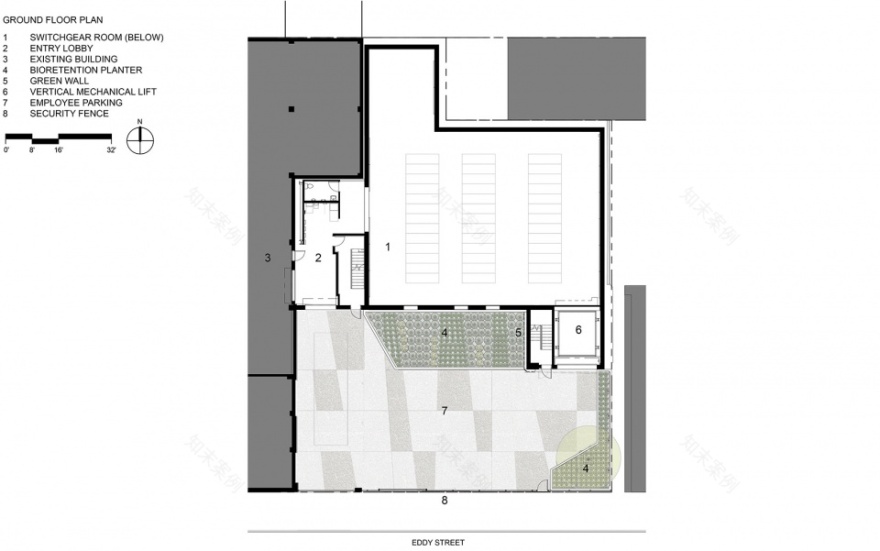

▼一层平面图,Ground floor plan
©TEF Design
Larkin 变电站扩建丨TEF Design-22

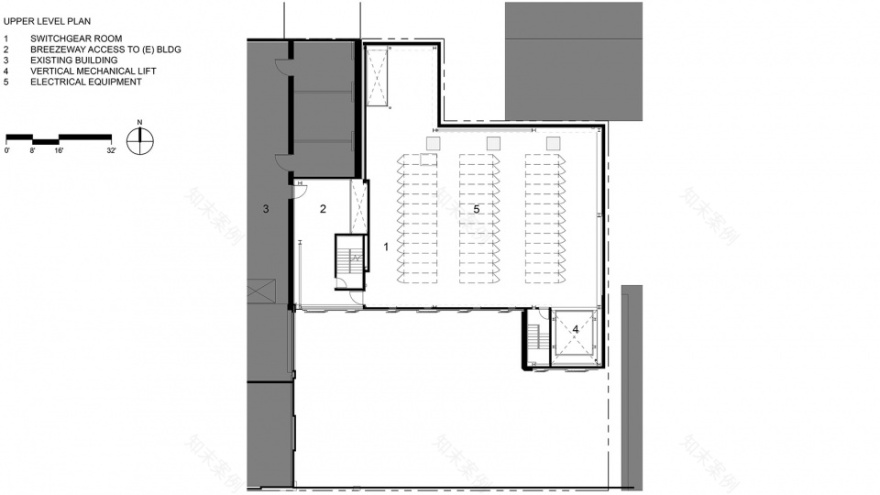

▼二层平面图,Upper level plan
©TEF Design
Larkin 变电站扩建丨TEF Design-25
TEF Design team
Andrew Wolfram, AIA (Principal-In-Charge)
Paul Cooper, AIA (Project Manager)
Justin Blinn, AIA (Project Designer)
Project team
TEF Design (architecture)
Plant Construction Company, LP (general contractor)
Creo Landscape (landscape architecture)
BFK Engineers (civil engineering)
Rutherford + Chekene (structural engineering)
MHC Engineers, Inc. (MEP engineering)
Horton Lees Brogden Lighting Design (lighting)
Urb-in (utility consultant/owner’s representative)
Thornton Tomasetti (sustainability consultant)
Photography
Mikiko Kikuyama
Materials/Products
Structural System
Foundation System: 3’ thick concrete mat slab designed to resist high ground water level
Lateral System: Buckling-Restrained Braced Frames with moment resisting beam-column connections; designed under Risk Category IV with Importance factor of I=1.5 with anticipation facility will be operational after a major earthquake
Exterior Cladding
Masonry: Basalite Concrete Products
Rainscreen: Nvelope
Moisture barrier: Vaproshield

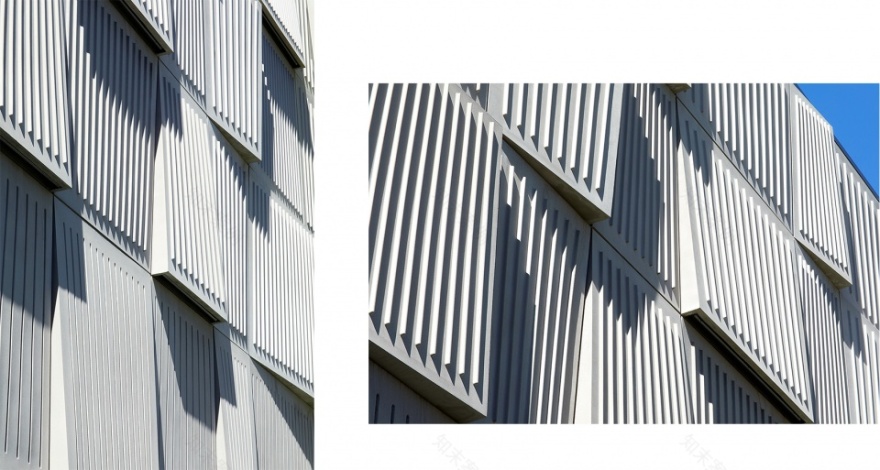

Fiber Reinforced Polymer (FRP) Panels: Kreysler & Associates
Decorative Metal Screen: Cambridge Architectural
Roofing
Built-up roofing: Johns Manville
Traffic Coatings: Kemper System
Doors
Metal doors: Stiles Custom Metal
Fire-control doors, security grilles: Cornell Iron
Special doors: The Smith Company
Hardware
Locksets: Schlage
Closers: LCN
Exit devices: Von Duprin
Interior Finishes
Paints and stains: Benjamin Moore
Floor and wall tile: Crossville, Heath Ceramics
Lighting
Interior ambient lighting: Lithonia, ALW
Exterior: Ecosense, Luminii, iLight, Bega, Hydrel, Cree
Lighting controls: Acuity Controls
Exterior facade lighting controls: ETC
Conveyance
Elevators/escalators: Pflow Industries
Mechanical
Exhaust Fans – General Room: Greenheck
Exhaust Fans – Restrooms: Panasonic
Plumbing
Sump Pump: Weil
Water Heater: Chronomite
Water Closet: Kohler
Urinal: Kohler
Lavatory: Kohler
Water Closet Flush Valve: Sloan
Urinal Flush Valve: Sloan
Lavatory Faucet: Kohler
Roof Drain: Zurn
Backflow Preventer: Watts
Energy
Photovoltaic system: Sun Light & Power

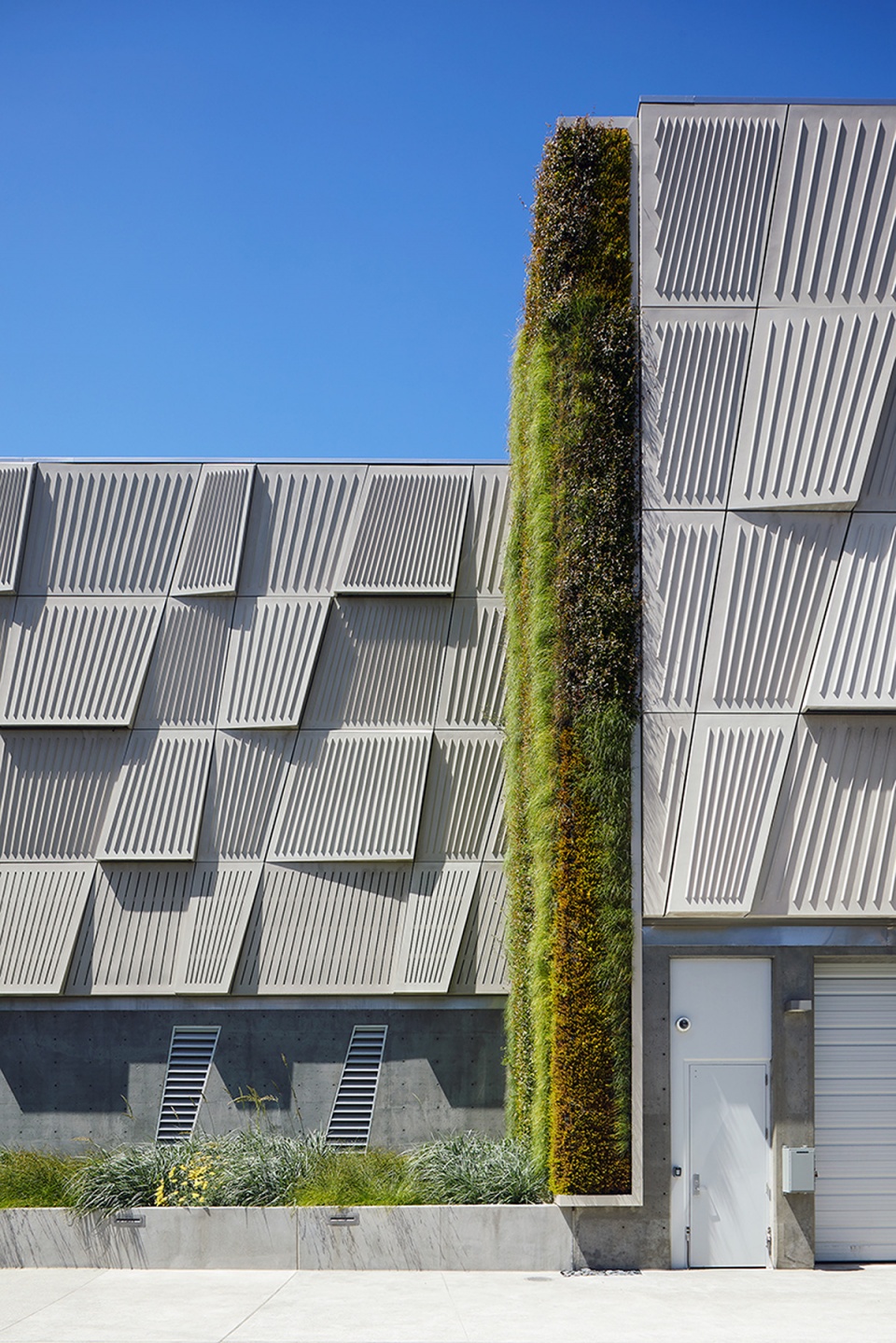

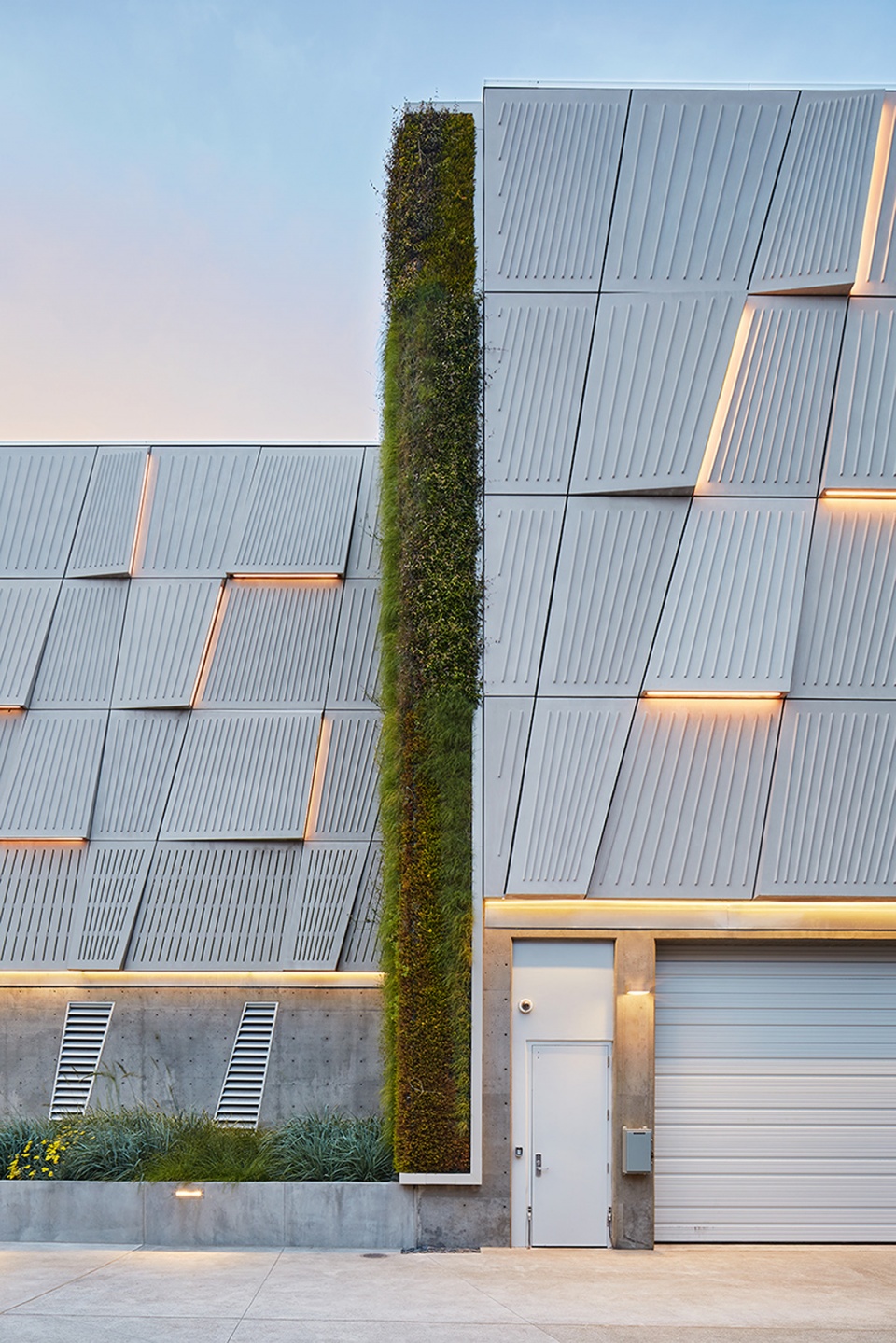

Landscape Wall: GSky
