Agora 运动场设施

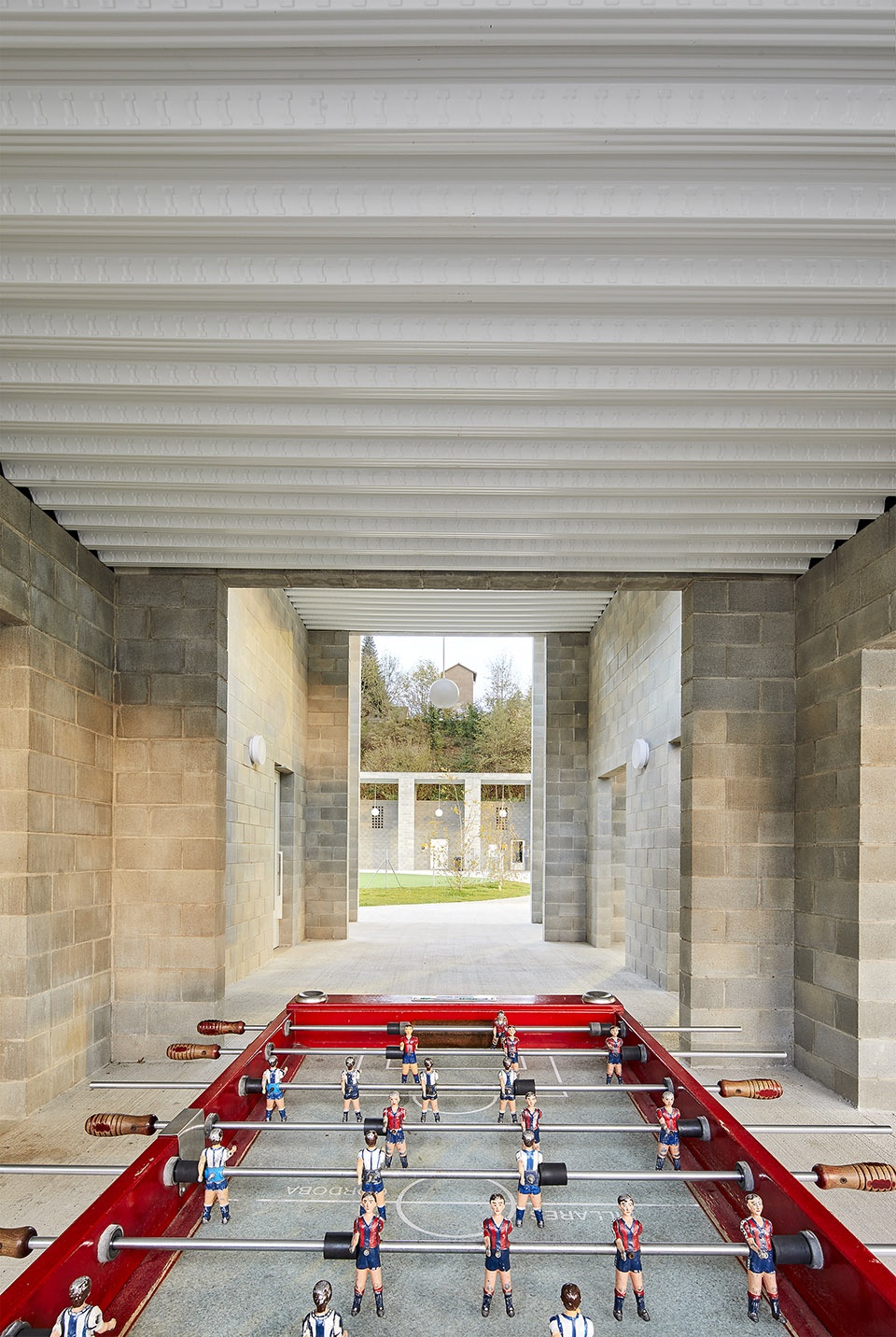

▼从门廊内部望向中央空间，view to the central space from the internal space

©José Hevia

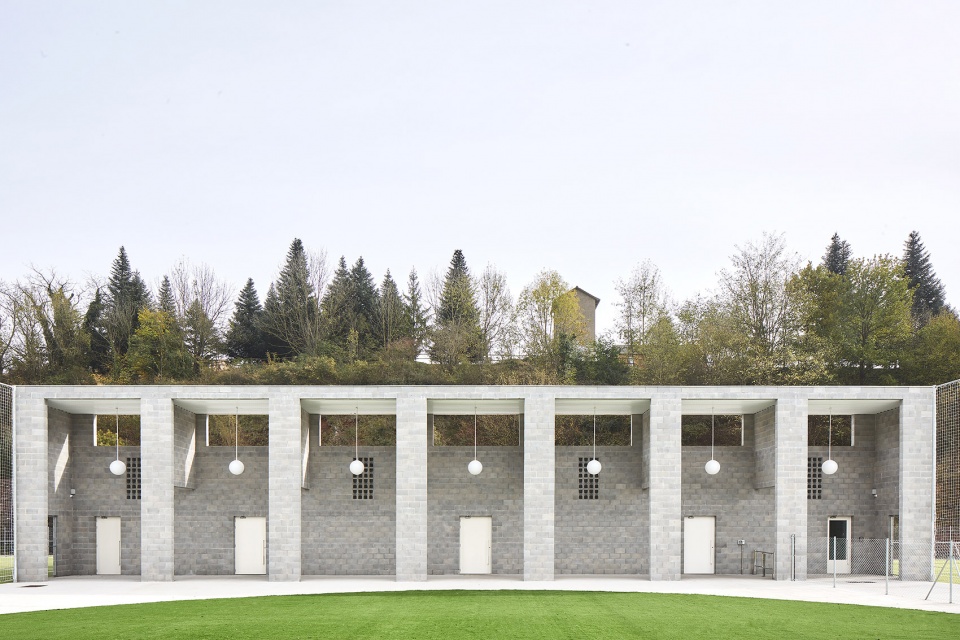

两侧的建筑彼此呼应但不完全相同，它们享有同样的轮廓和门廊，在位置和用途上则呈现出差异：一个用作更衣室，另一个则用作接待空间、自助餐厅和其他设施。根据广场的比例、内部空间的组织以及基座的位置，两个体量在尺度上进行了相应的调整。

The pavilions are twins but not equal. They share profile and porches, but they maintain the differences deriving from their position and use: one is used for changing rooms and the other one for reception, cafeteria and other facilities. Their scaled volume adjusts to the proportions of the square, their internal organisation and the horizontality of the base.

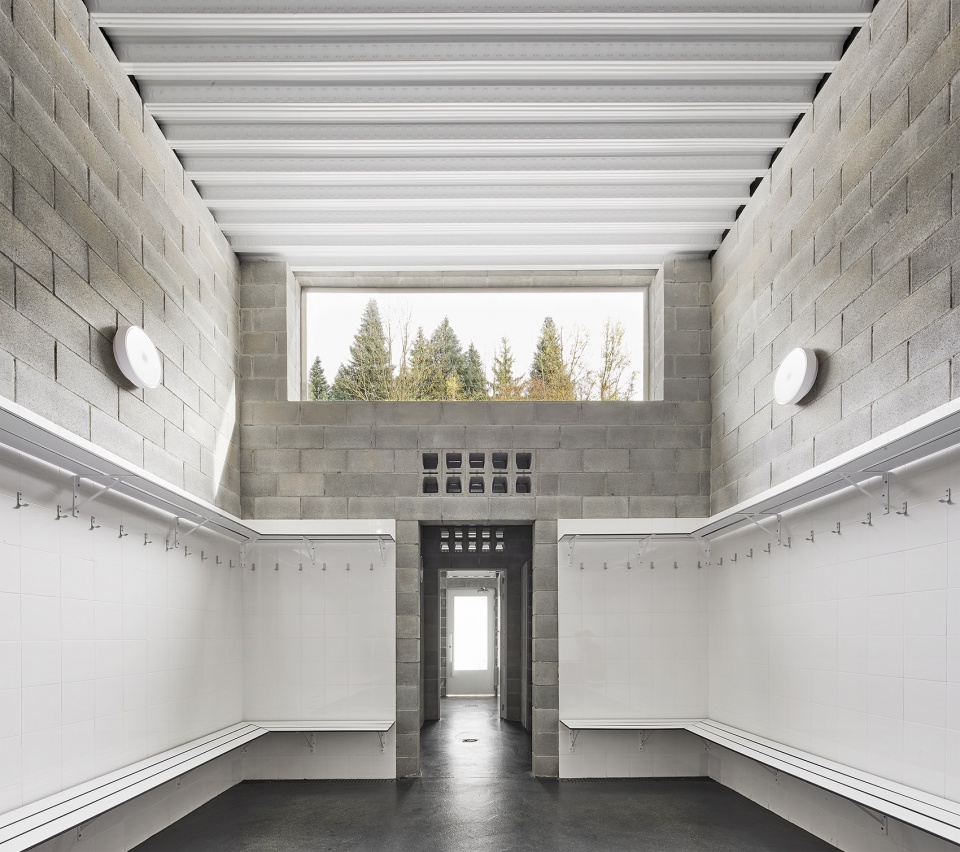

▼更衣室，changing room

©José Hevia

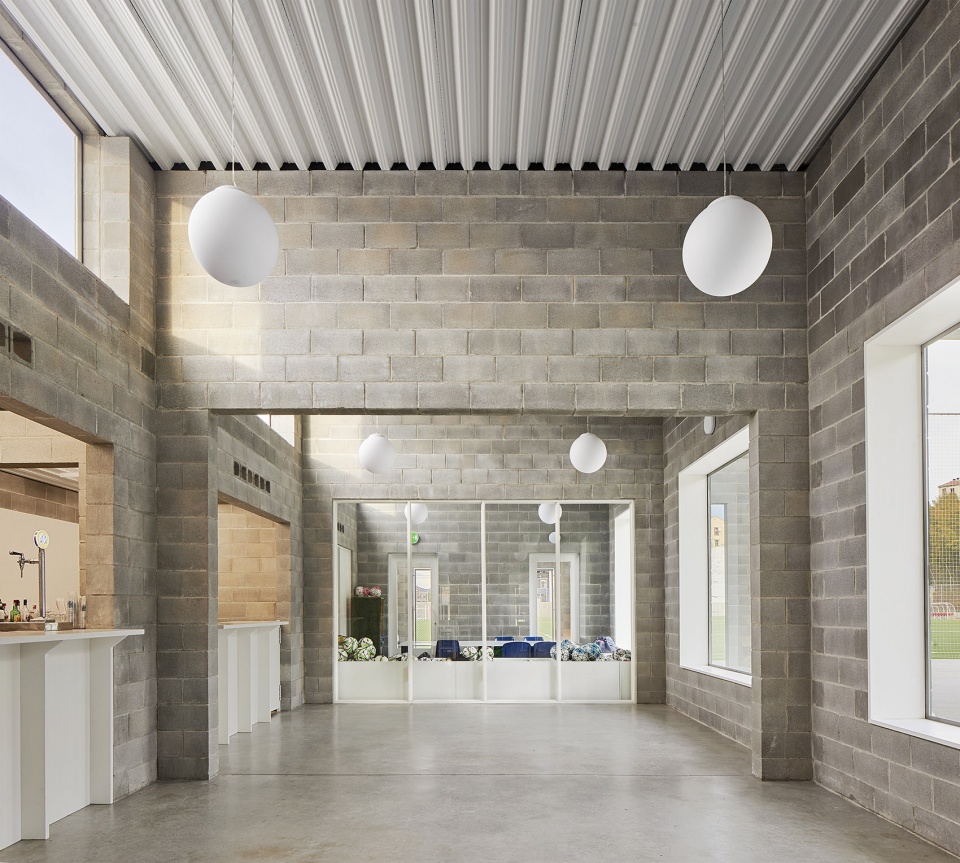

▼服务设施，service facilities

©José Hevia

整个项目即结构本身。为了减少成本，设计只关注了最重要的三个因素，即激活共享空间、营造宽敞开阔的室内空间，以及引入自然光线。从这个层面上看，承重混凝土墙的建造可谓简单易行，其外部造型完全遵照了内部空间的逻辑。

Everything is structure. Keeping to the reduced budget, investment is made in what is important: the activation of a shared space, the generous volume of the interiors and the entrance of natural light. In this sense, the construction with load-bearing walls of concrete blocks is simple and easy to build. Its internal logic defines the calligraphy of the construction.

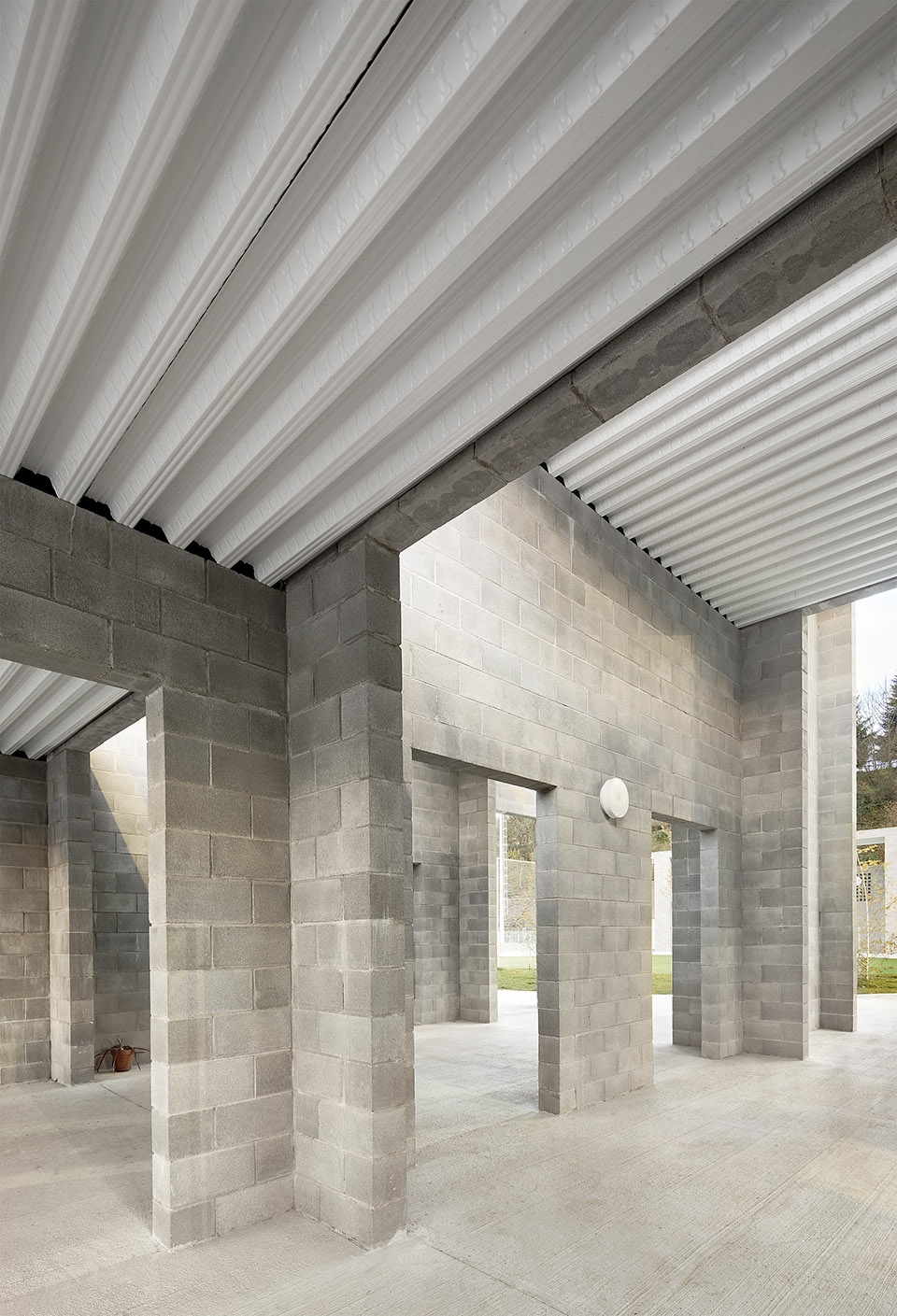

▼空间细节，detailed view

©José Hevia

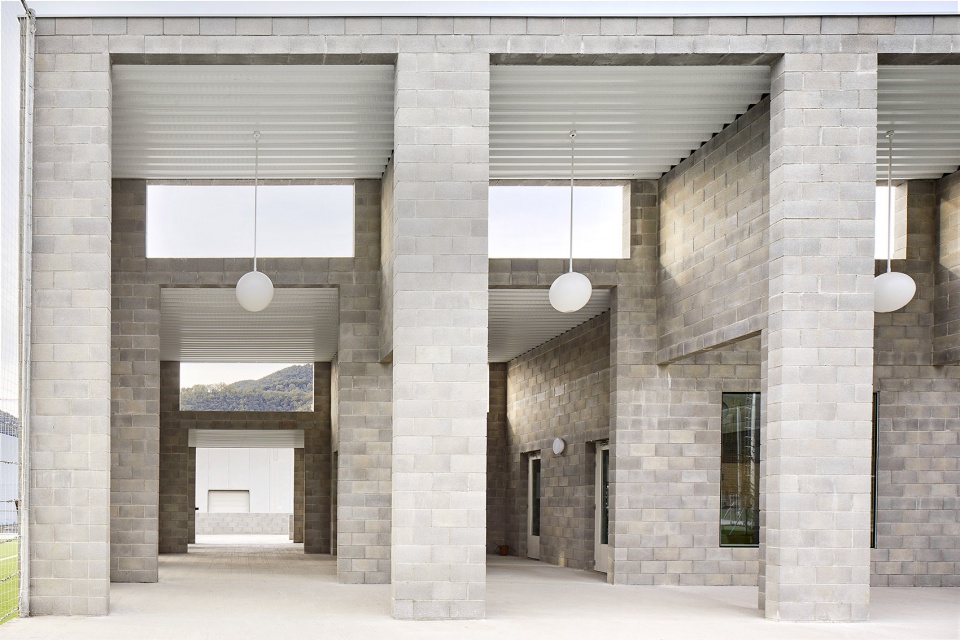

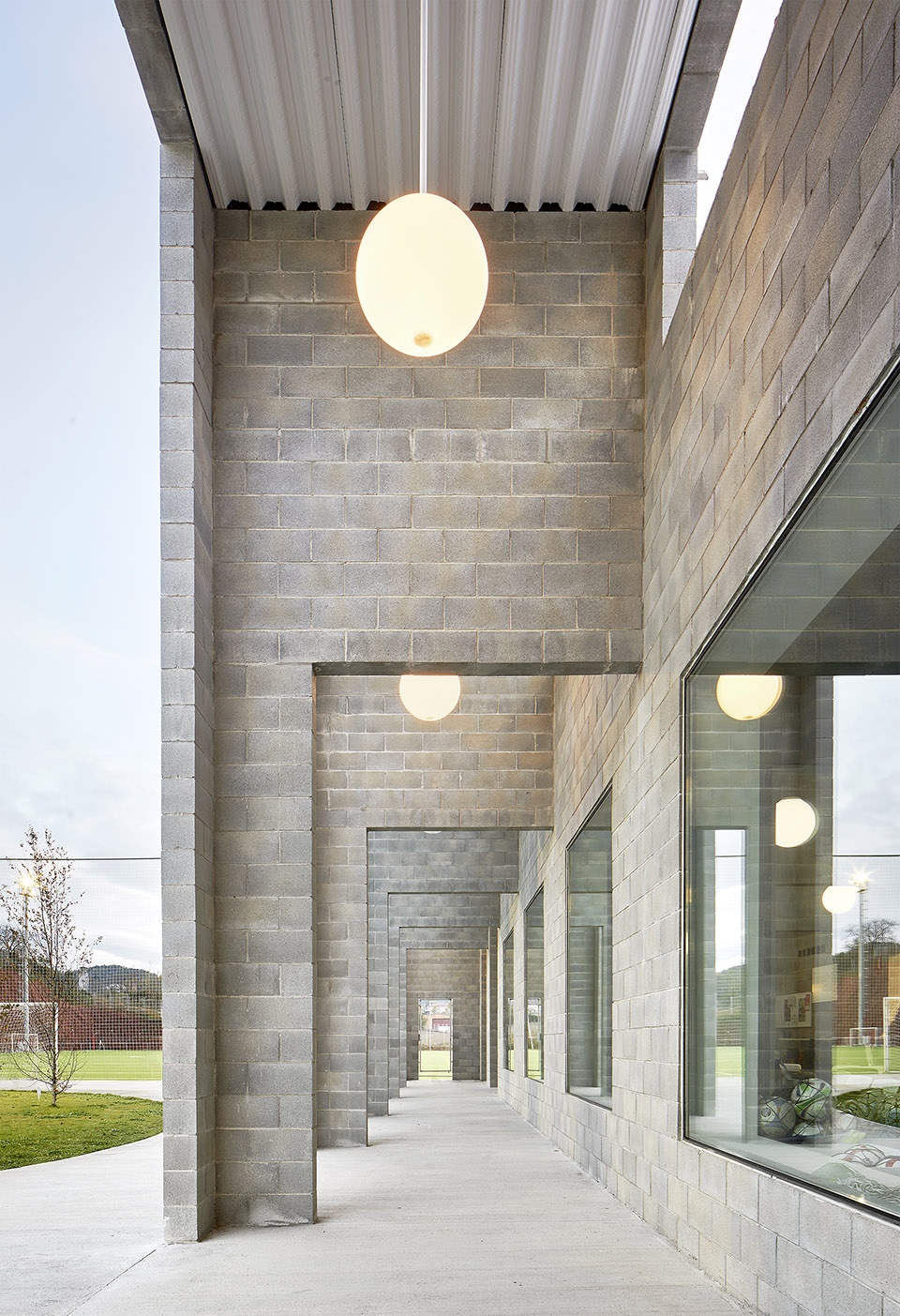

▼门廊近景，a close view to the porch

©José Hevia

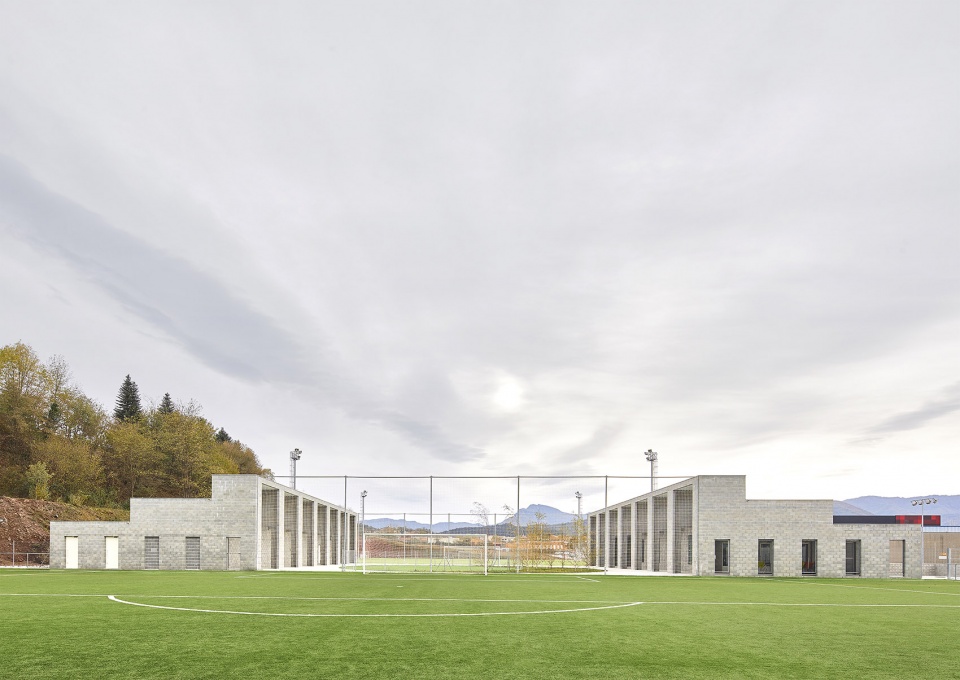

彼此相对的两个体量体现了一种社交属性，这也是年轻人最希望从运动中获取的宝贵价值之一。

The two pavilions facing each other dress a setting to cultivate one of the most appreciated values of sports for young people: socialisation.

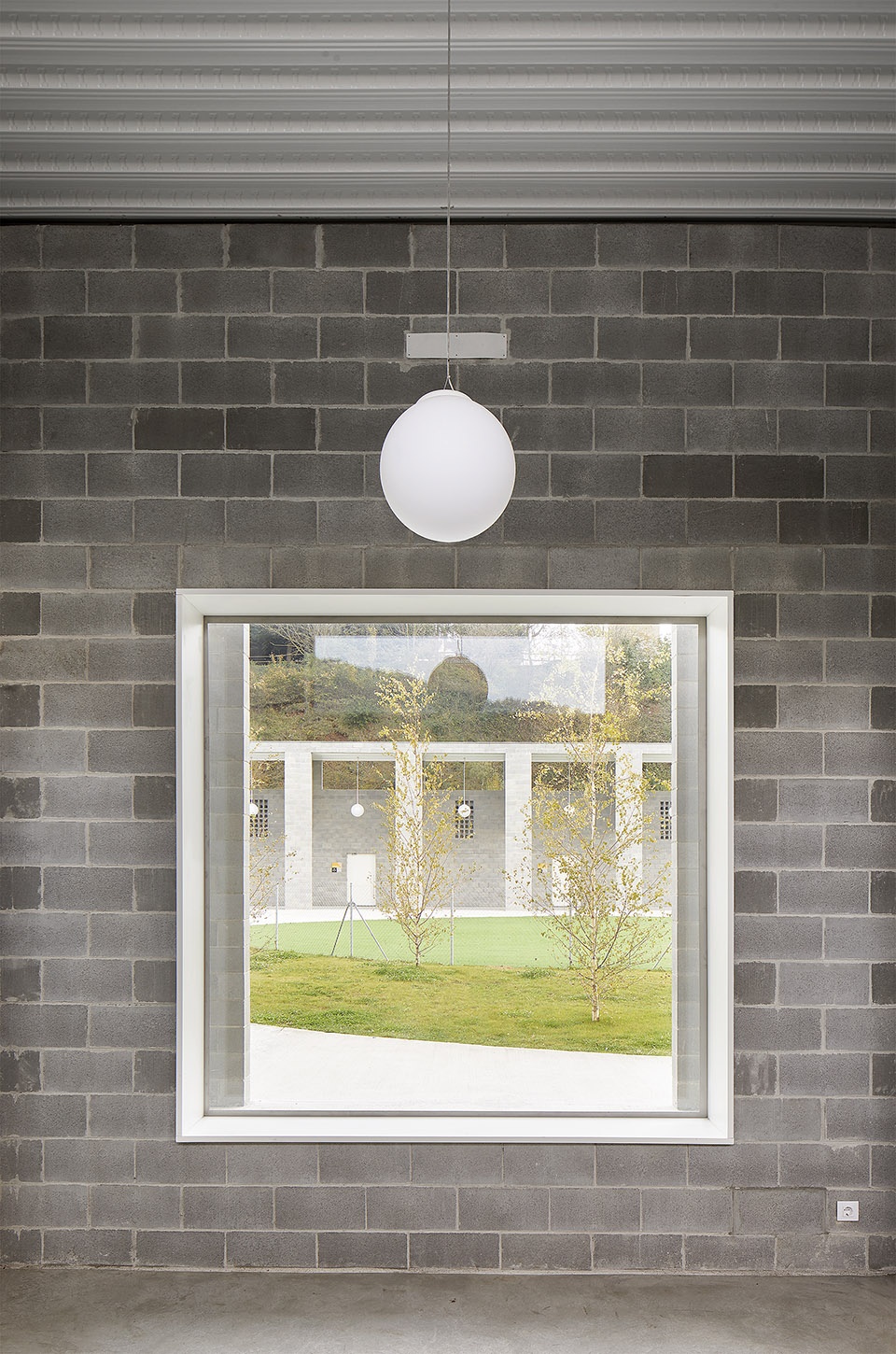

▼相互对应的窗景，the corresponding views

©José Hevia

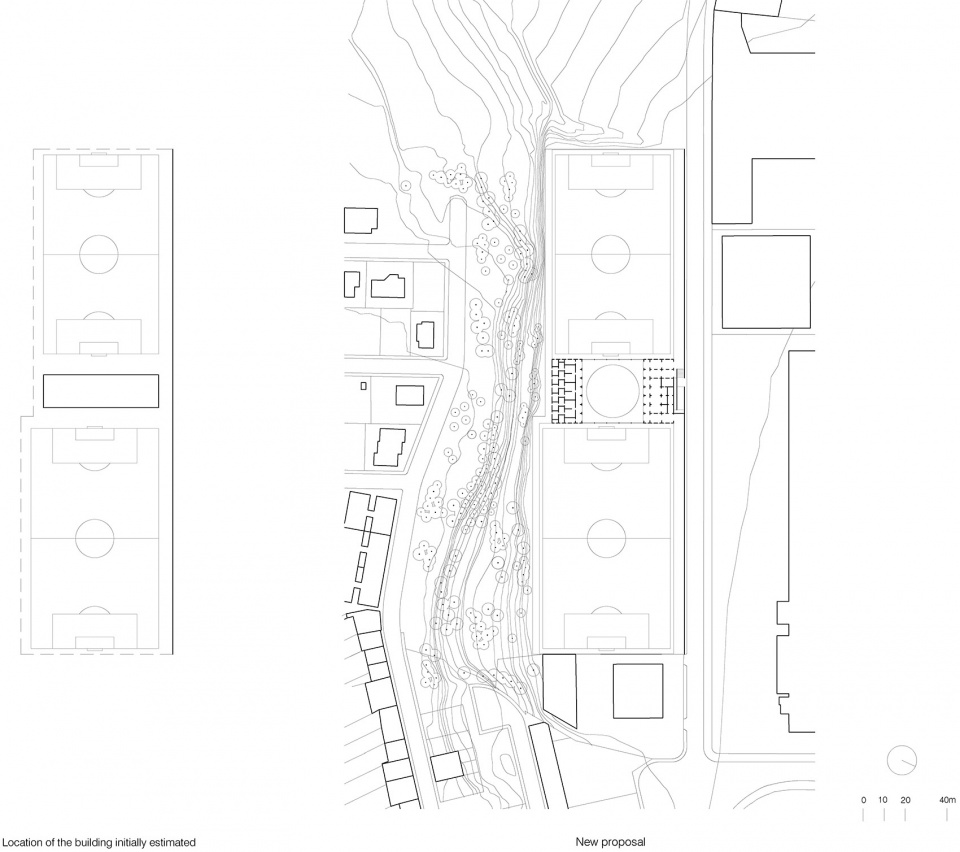

▼场地平面图（前后对比），site plan (initial vs. new)

©unparelld’arquitectes

▼平面图，plan

©unparelld’arquitectes

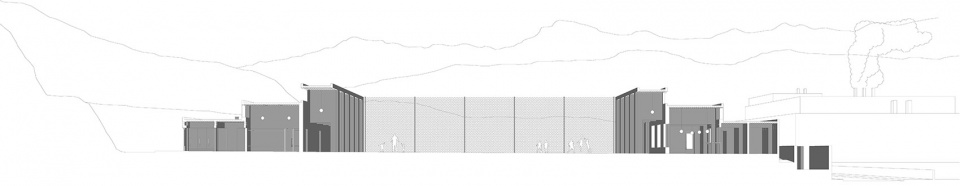

▼平面-立面图，plan-elevation

©unparelld’arquitectes

▼结构剖面图，constructive section

©unparelld’arquitectes

Agora

Facility building in El Morrot sports complex

Olot, 2017

Credits

Situation: Carrer de França, 30-32. 17800 Olot. Catalonia, Spain,42.191038, 2.482055

Authors: unparelld’arquitectes: Eduard Callís, Guillem Moliner

Collaborators:

Xevi Rodeja, Jordi Moret

Paula Alejandro, Mariona Planiol, Thommy Parra, Sara Palmada, Sergi Jiménez

Jesús Bassols, building engineer

Lluís Guanter, David Codinach, structural designers

Lluís Parés Massa, industrial engineer

Building engineer: Albert Casademont (Colomer-Rifà)

Client: Ajuntament d’Olot

Builder: Argón Informática, S.A.

Photographs © José Hevia

Surface: 2.083 m²

Project: 2016

Construction: 2016 – 2017
