玻利维亚 Quinta Quebracho 周末之家丨玻利维亚圣克鲁斯丨BAC Arquitectura

Architects:BAC Arquitectura

Area :230 m²

Year :2022

Photographs :Bernardo Boehme

Manufacturers :  AutoDesk, Dienzo Mobili, Eliane, FV, Incepa, Nemetscheck, Savane, Sorimen, Trimble Navigation, TumparAutoDesk

Lead Architect :Bruno Aragonés

City : Santa Cruz de la Sierra

Country : Bolivia

@media (max-width: 767px) { :root { --mobile-product-width: calc((100vw - 92px) / 2); } .loading-products-container { grid-template-columns: repeat(auto-fill, var(--mobile-product-width)) !important; } .product-placeholder__image { height: var(--mobile-product-width) !important; width: var(--mobile-product-width) !important; } }

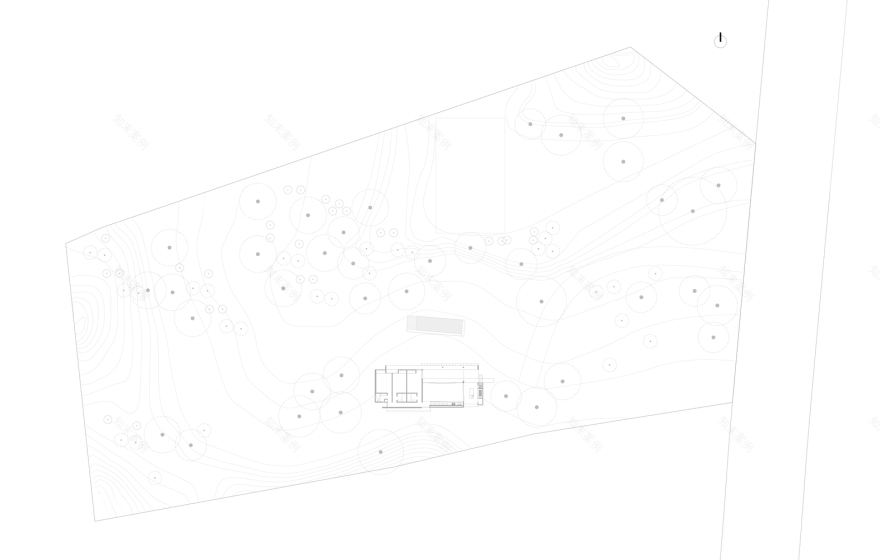

Casa de Campo Quinta Quebracho is a weekend home and is located on a one-hectare property located in a rural community twenty-five kilometers from the city of Santa Cruz de la Sierra, Bolivia. Starting from the construction of the entrance to the property that did not exist before, we propose a path that will take us to the house located in the highest part of the place, within an irregular topography and surrounded by a native forest of exuberant vegetation.

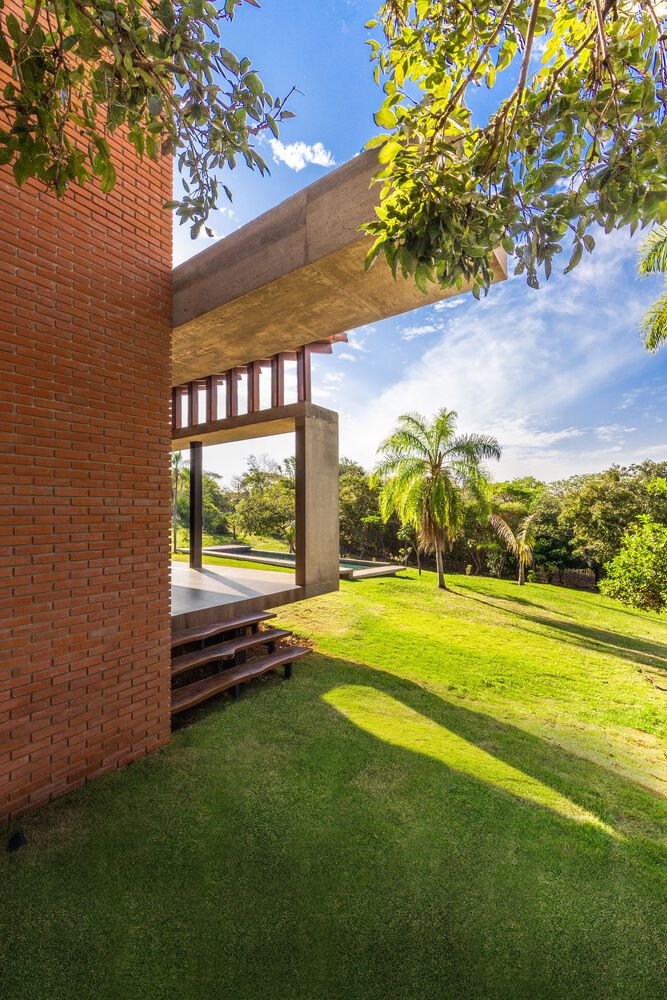

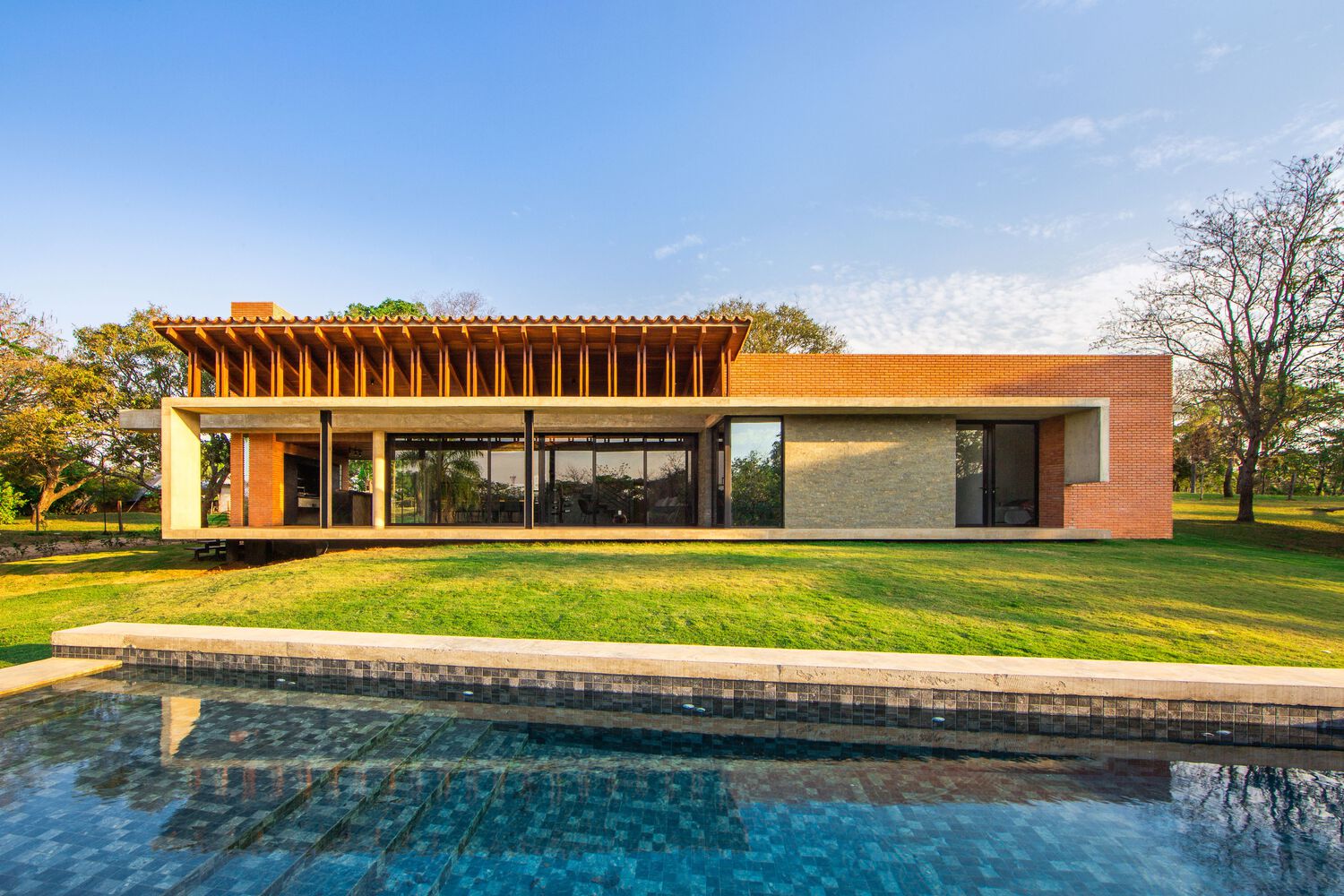

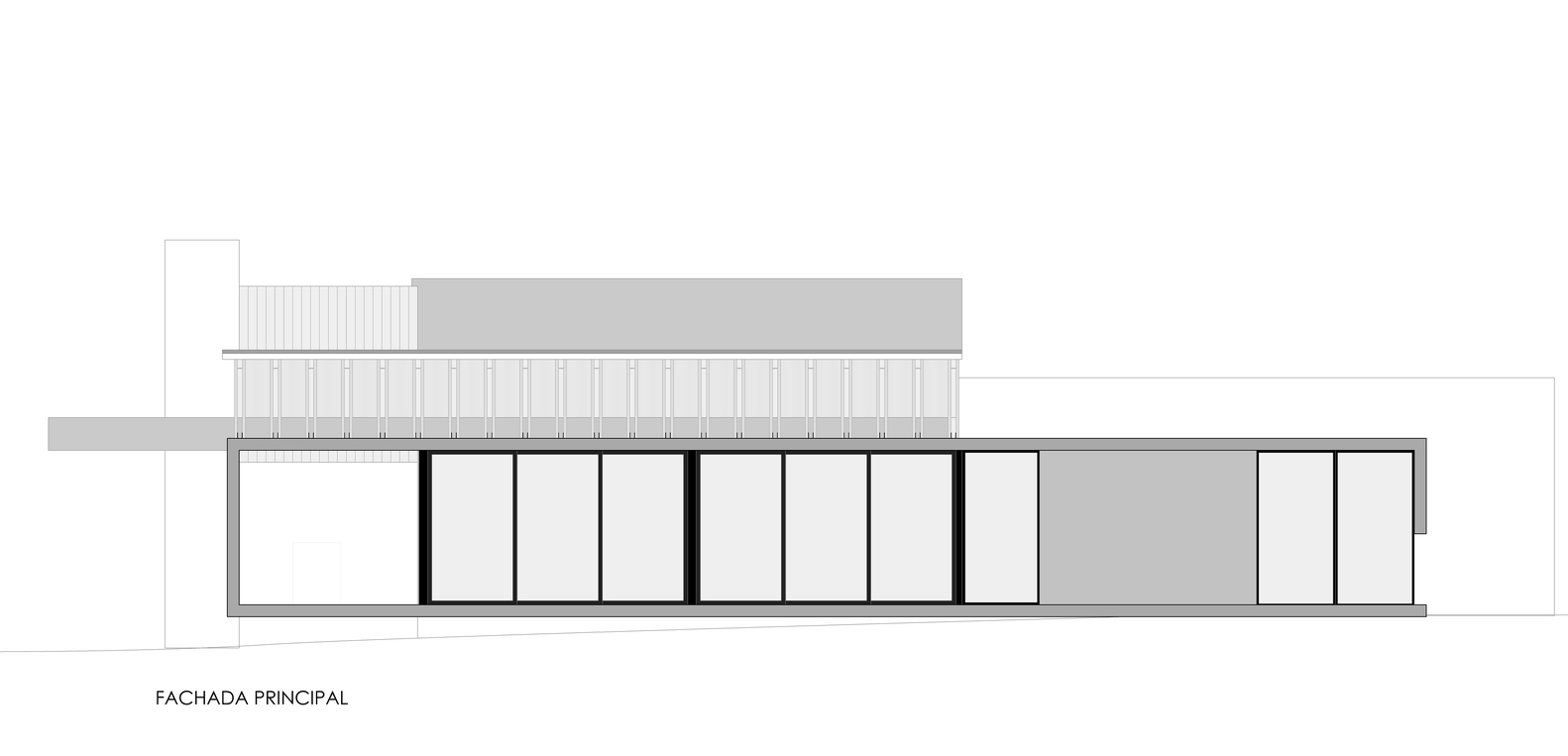

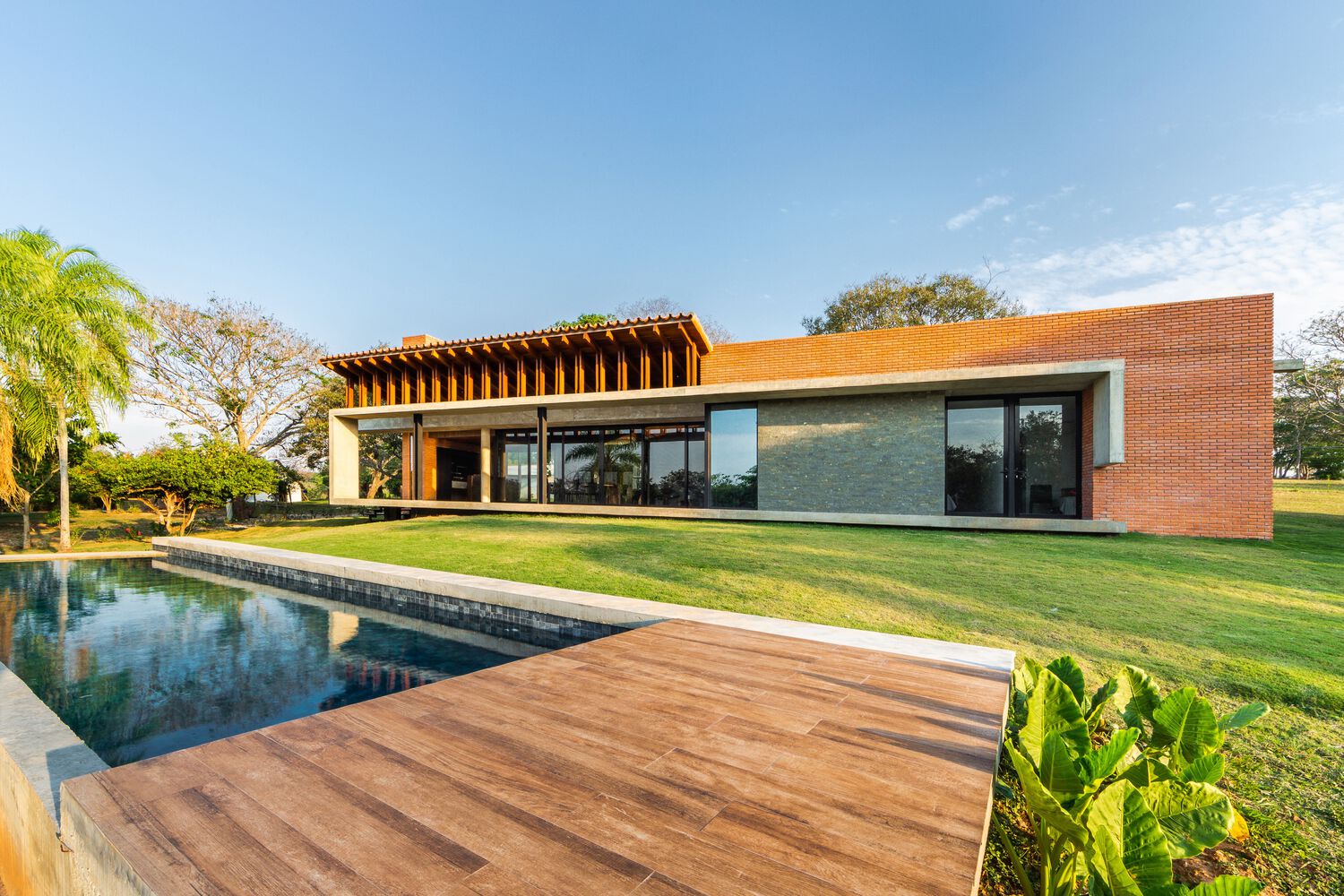

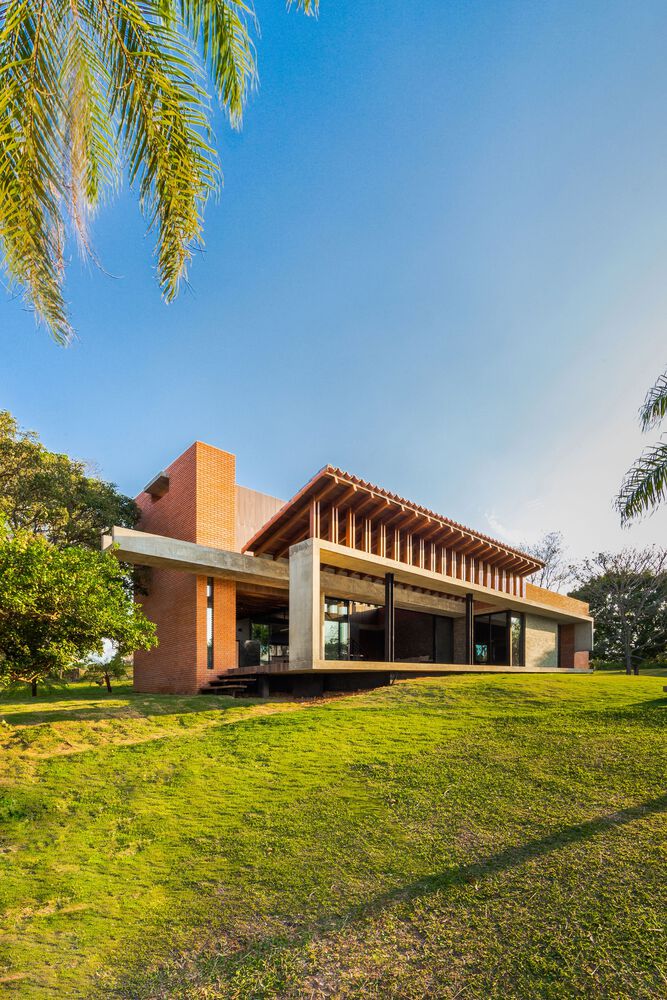

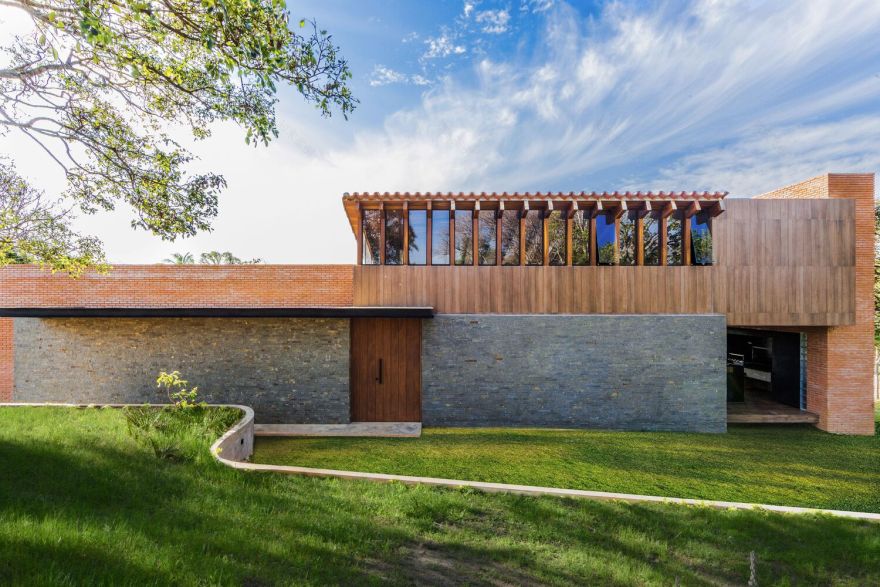

Based on this premise, we propose that all the rooms have a view of the forest, therefore, the house adopts a rectangular shape delimited by two tree masses and by the unevenness of the land, which was fully respected. The house is oriented from north to south with optimal lighting and natural ventilation, the circulation was located to the south next to the service area as protection from winter winds. At the north end, there are double wooden beams in the form of a parasol that rest on a concrete strip to protect both the social area and the bedrooms from the afternoon sun and allow the façade to be unified.

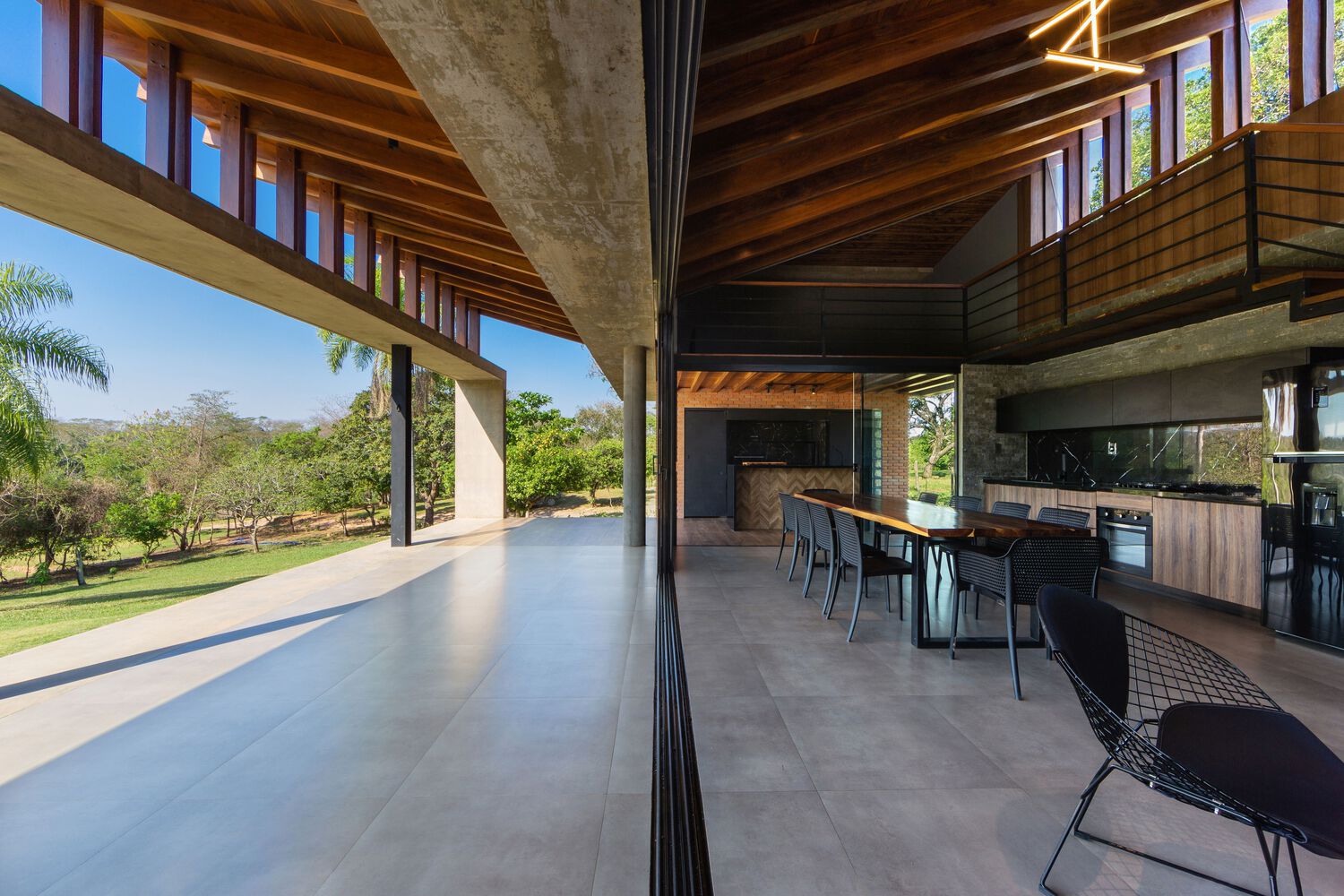

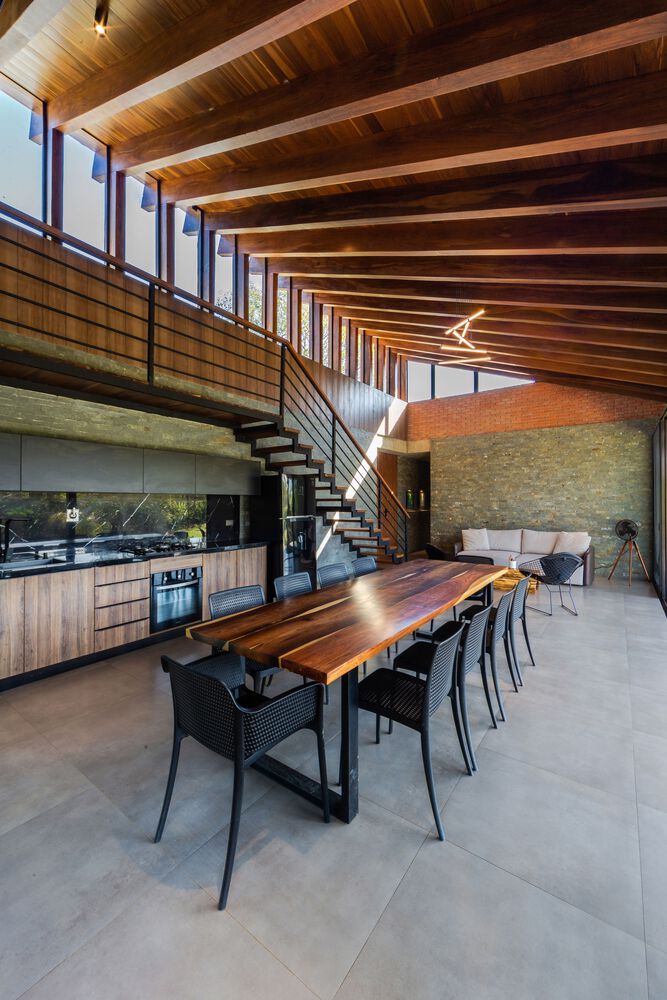

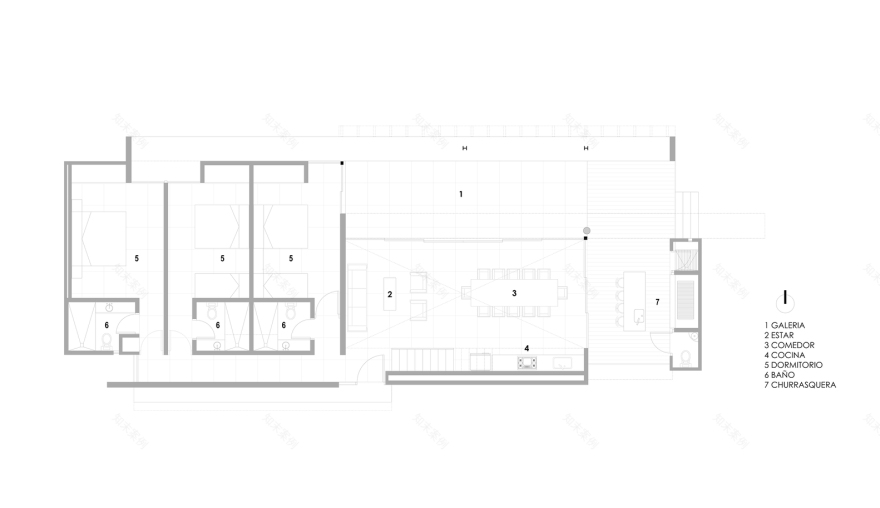

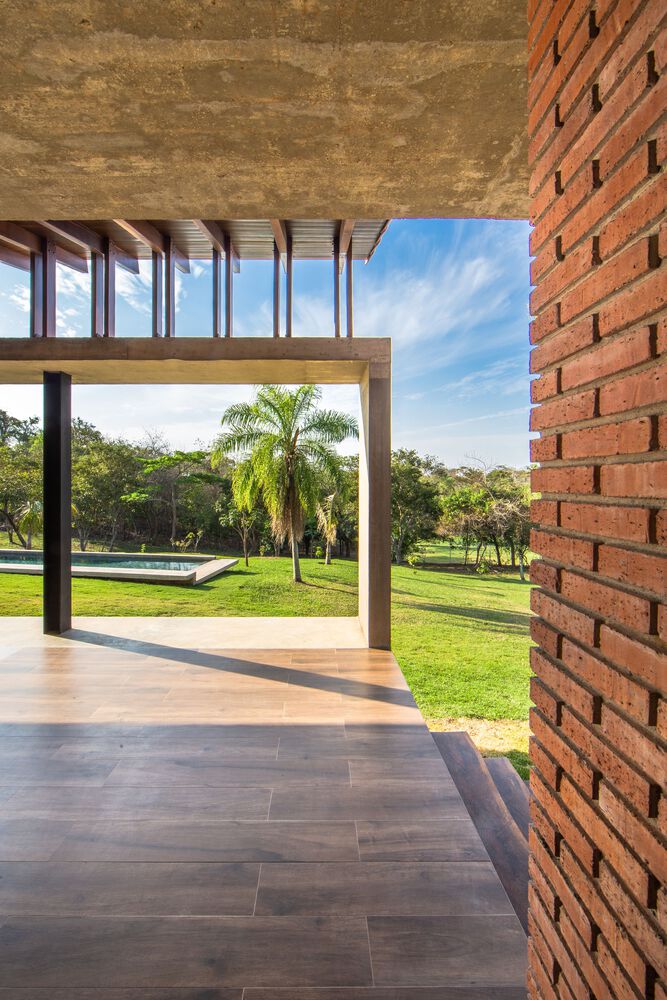

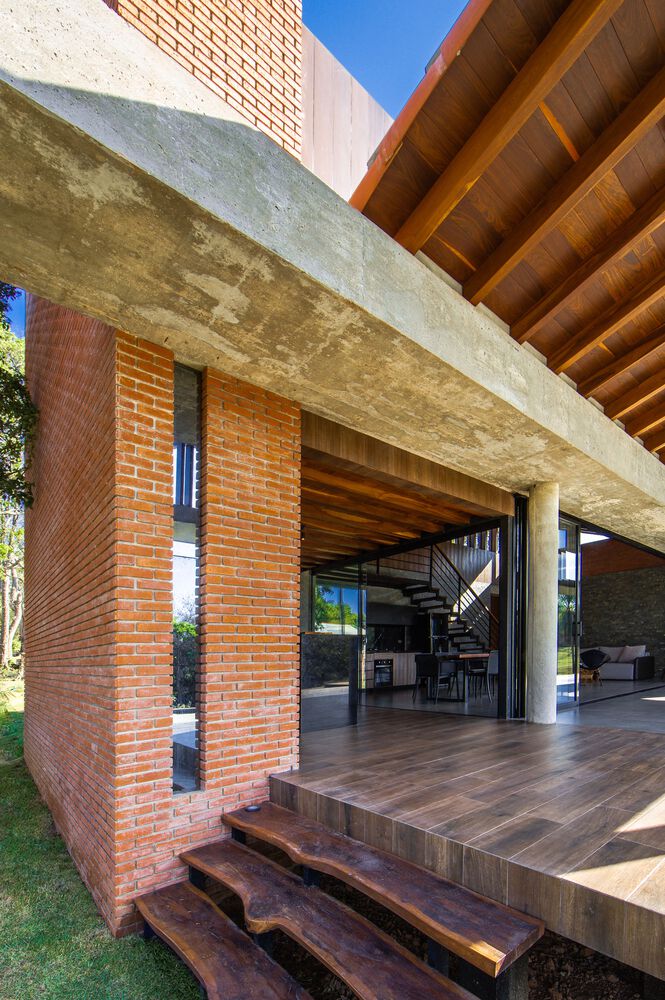

The private area is divided from the social area and in it we project a double height in order to maintain a regulated bioclimatic environment, this double-height gives us the possibility of taking advantage of the space as a mezzanine over the steakhouse with a balcony towards the dining room. The gabled roof sits on a fair-faced concrete channel that works structurally and allows there to be no intermediate supports with a span of nine meters, in this way the social area opens completely towards the gallery, blurring the boundaries between the outside and the inside.

▼项目更多图片
