西班牙 Sant Martí Sarroca 图书馆丨ValorLlimós

Architects:Valor-Llimós

Area :6997 ft²

Year :2020

Photographs :Simón García · arqfoto

Manufacturers :  Rockfon, Viroc, Artigo, ZincoRockfon

Design Team : Jaume Valor, Laura Llimós

Measurement And Budget : Rossell-Giner

Structural Calculation : Bernuz-Fernandez

Installations : Mafo

Builder : Bigas Grup

City : Sant Martí Sarroca

Country : Spain

@media (max-width: 767px) { :root { --mobile-product-width: calc((100vw - 92px) / 2); } .loading-products-container { grid-template-columns: repeat(auto-fill, var(--mobile-product-width)) !important; } .product-placeholder__image { height: var(--mobile-product-width) !important; width: var(--mobile-product-width) !important; } }

The construction of the new Sant Martí Sarroca library is an opportunity to organize the space of the park and visually connect all the inhabited areas of the municipality.

For this reason, the proposed project is an elevated vantage point, a promenade that connects the existing unevenness..., but above all, it is a piece of the park under which readers take shelter.

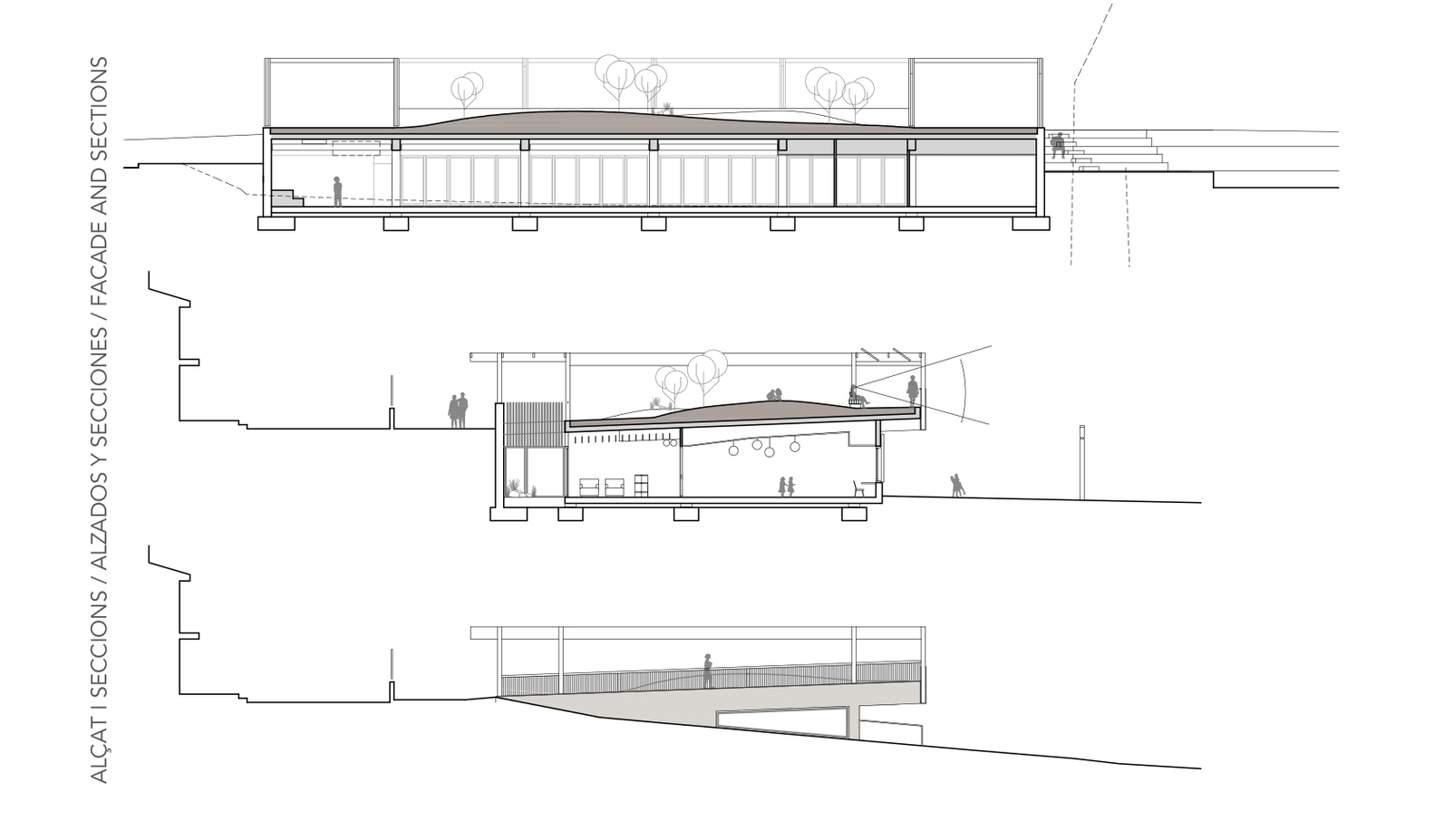

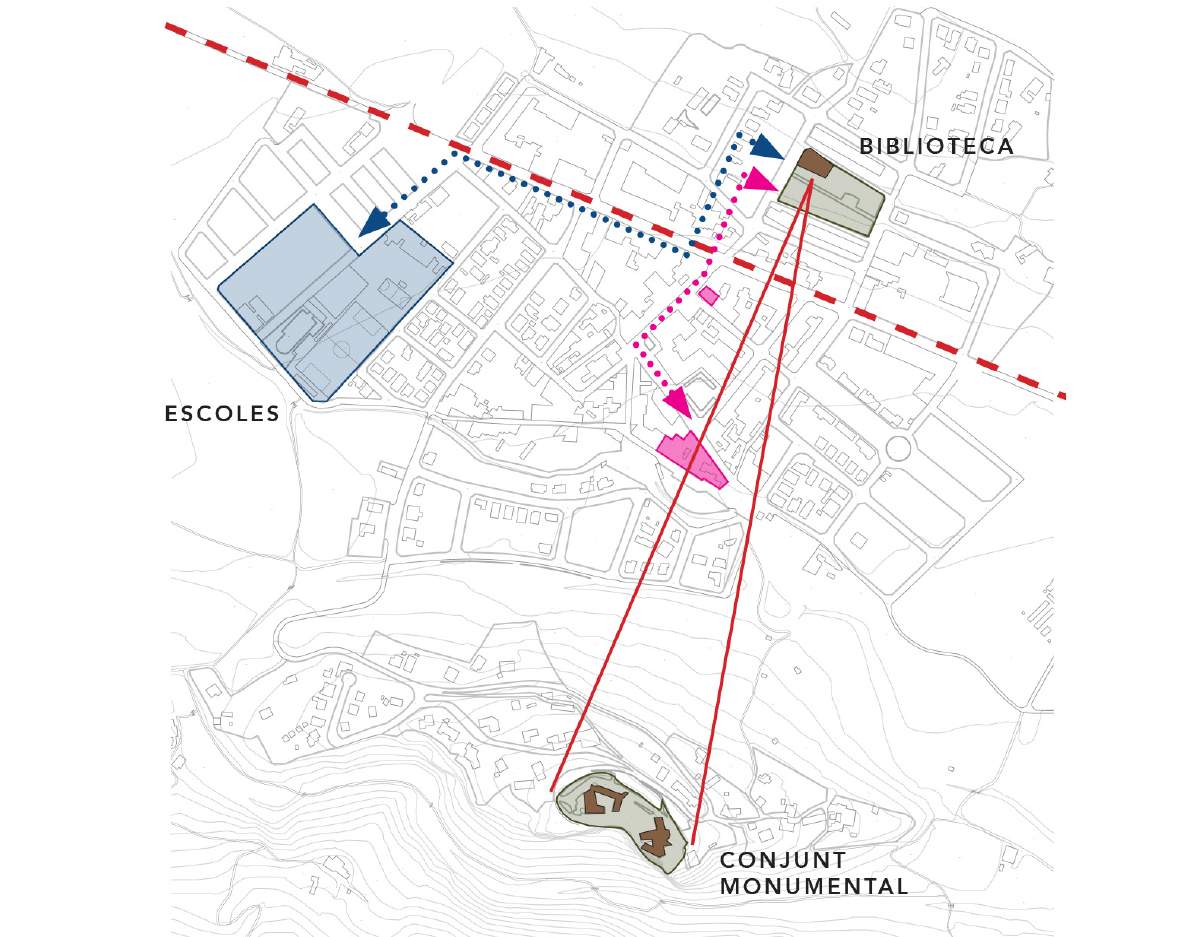

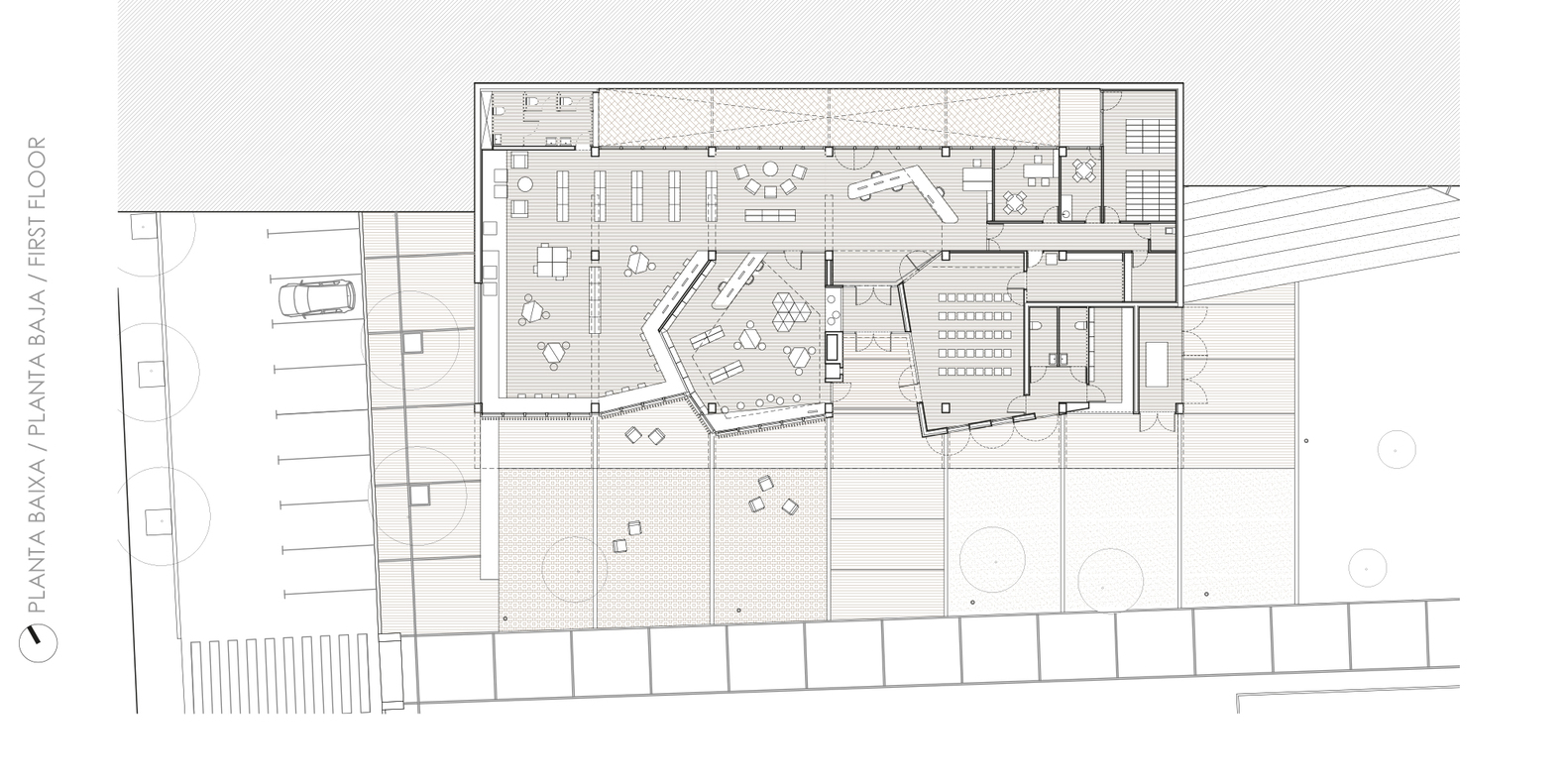

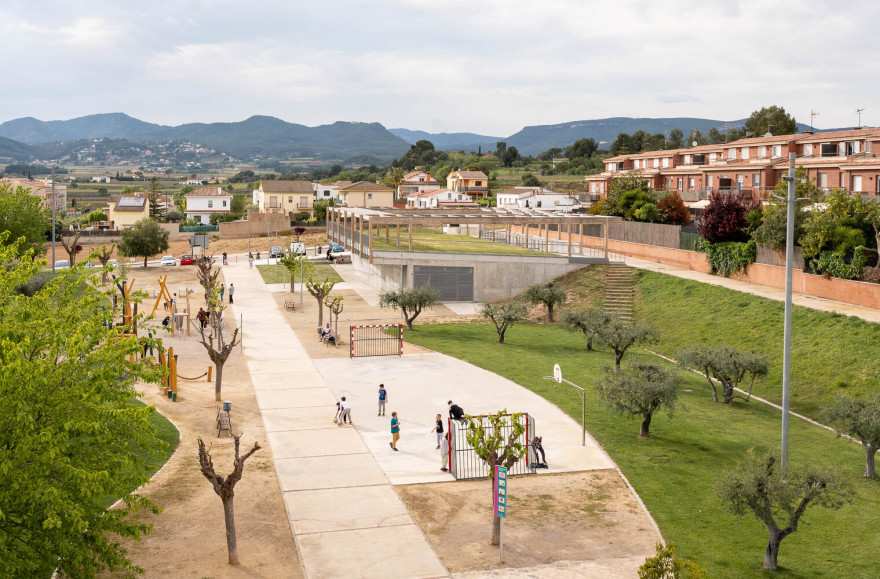

The new library is located inside the Parc de la Pau. A one-story volume is proposed, semi-buried to the north and open to the south, adapting to the existing slope. The landscaped roof wants to restore the park that the building will occupy and becomes an elevated vantage point from which, taking advantage of the topography of Sant Martí Sarroca, all the inhabited areas of the town can be seen crosswise, from the northern expansion to the Historic-monumental ensemble of the castle to the south, passing through the old quarter, in the center of the valley.

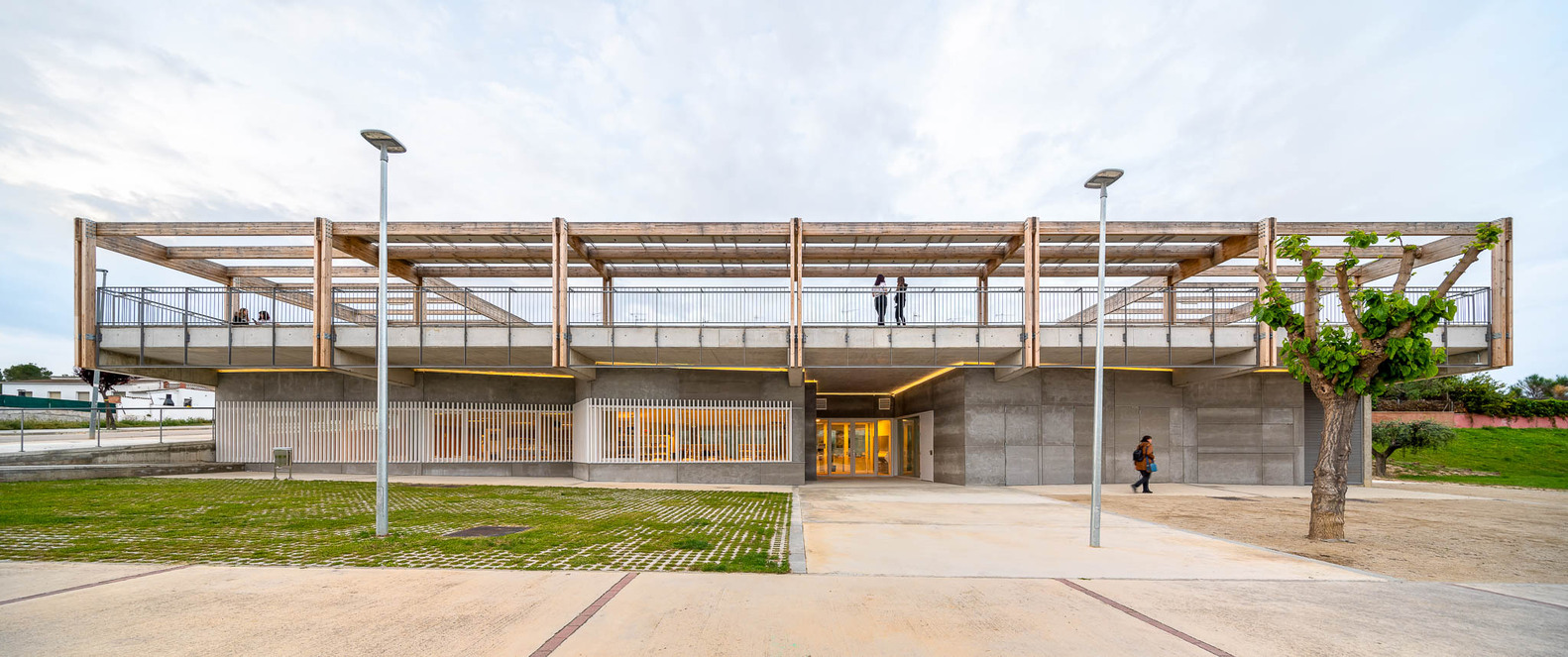

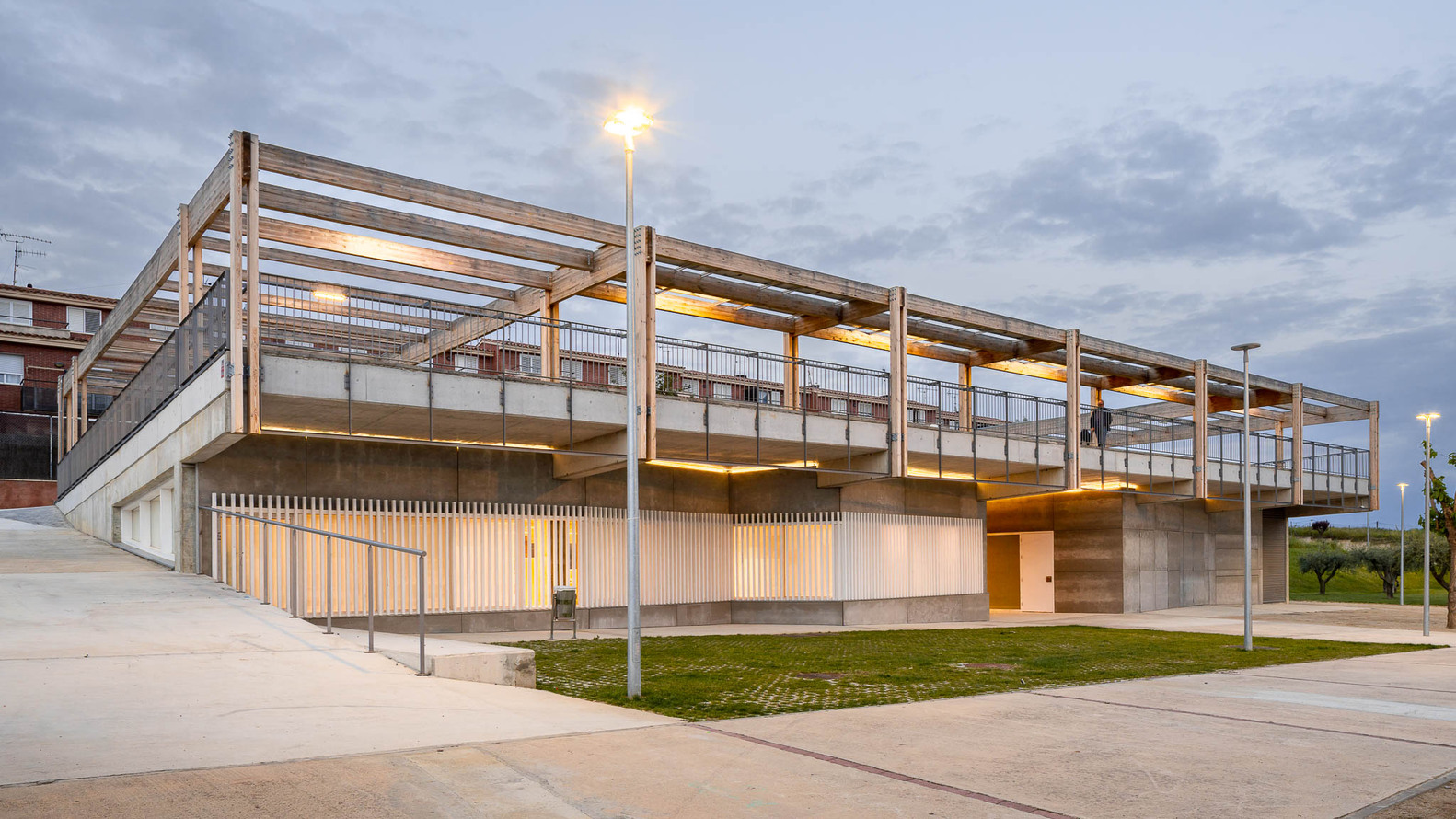

The canopy makes a large overhang to the southwest corner that greets pedestrians and escorts them into the building.

The building is a Near Zero Energy Building (nZEB) and energy certified "A". To achieve this, the following strategies have been used:

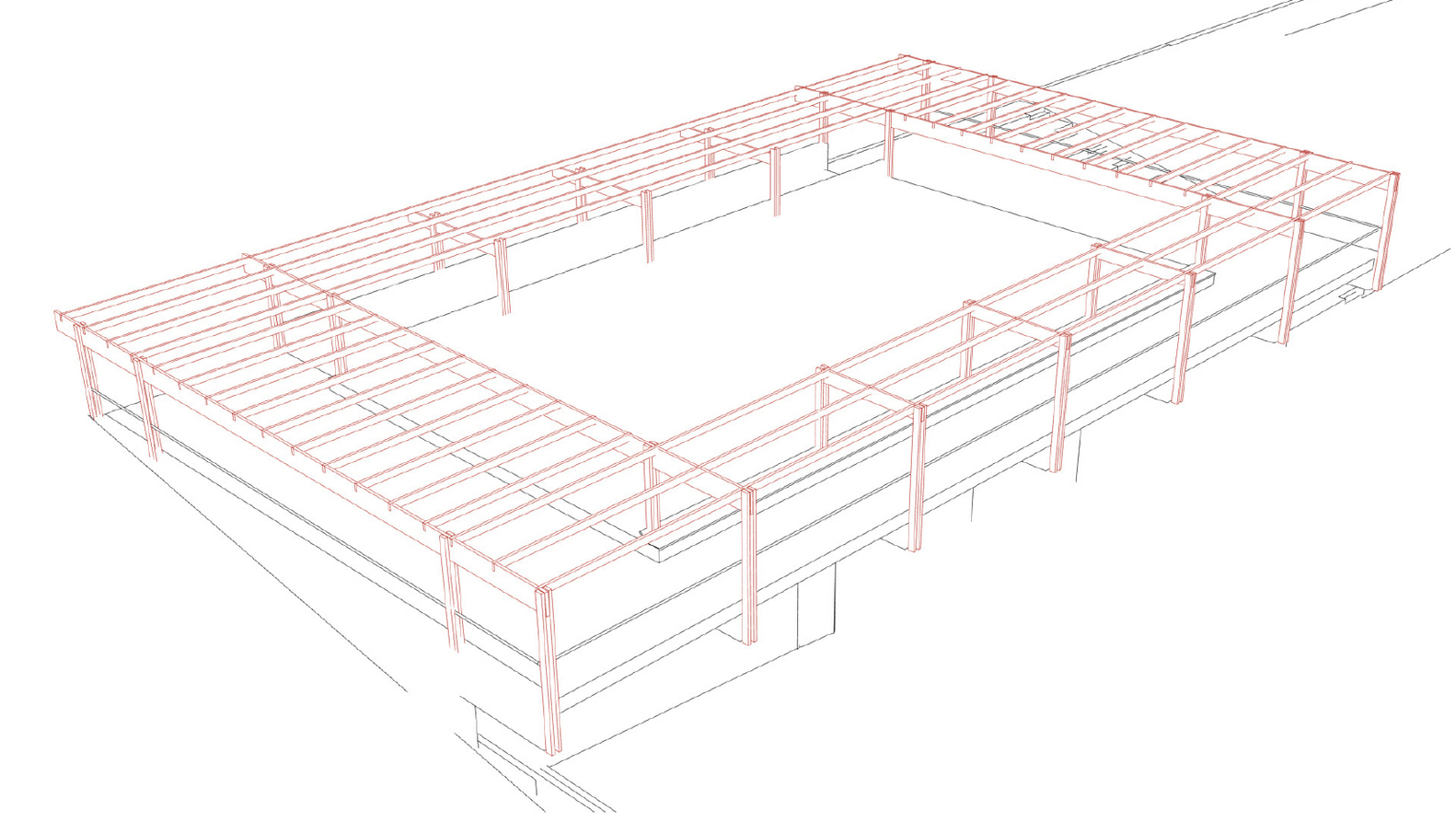

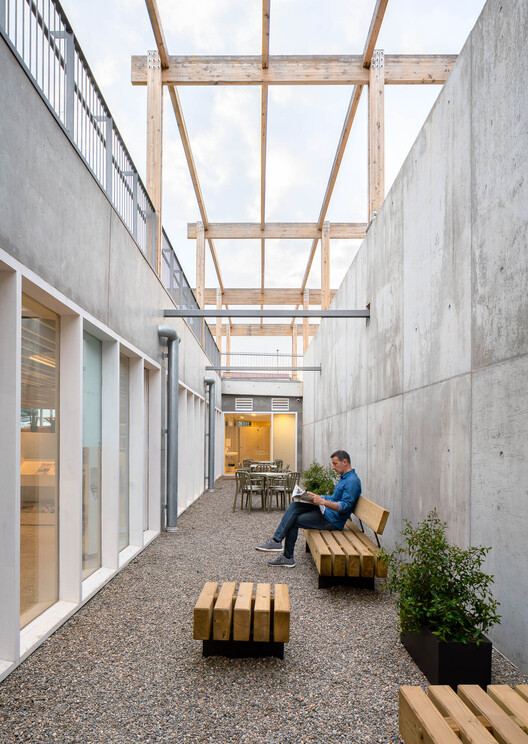

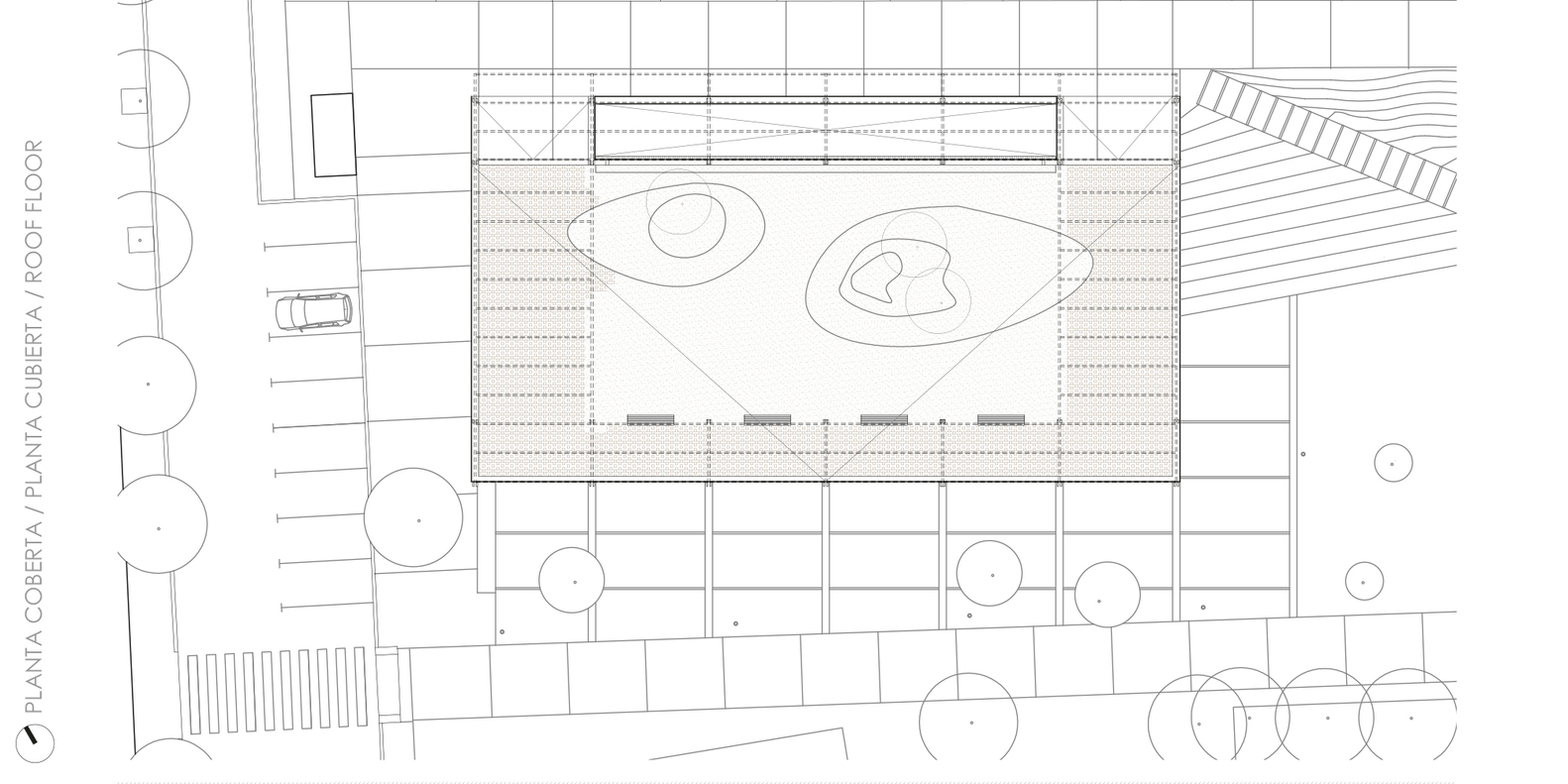

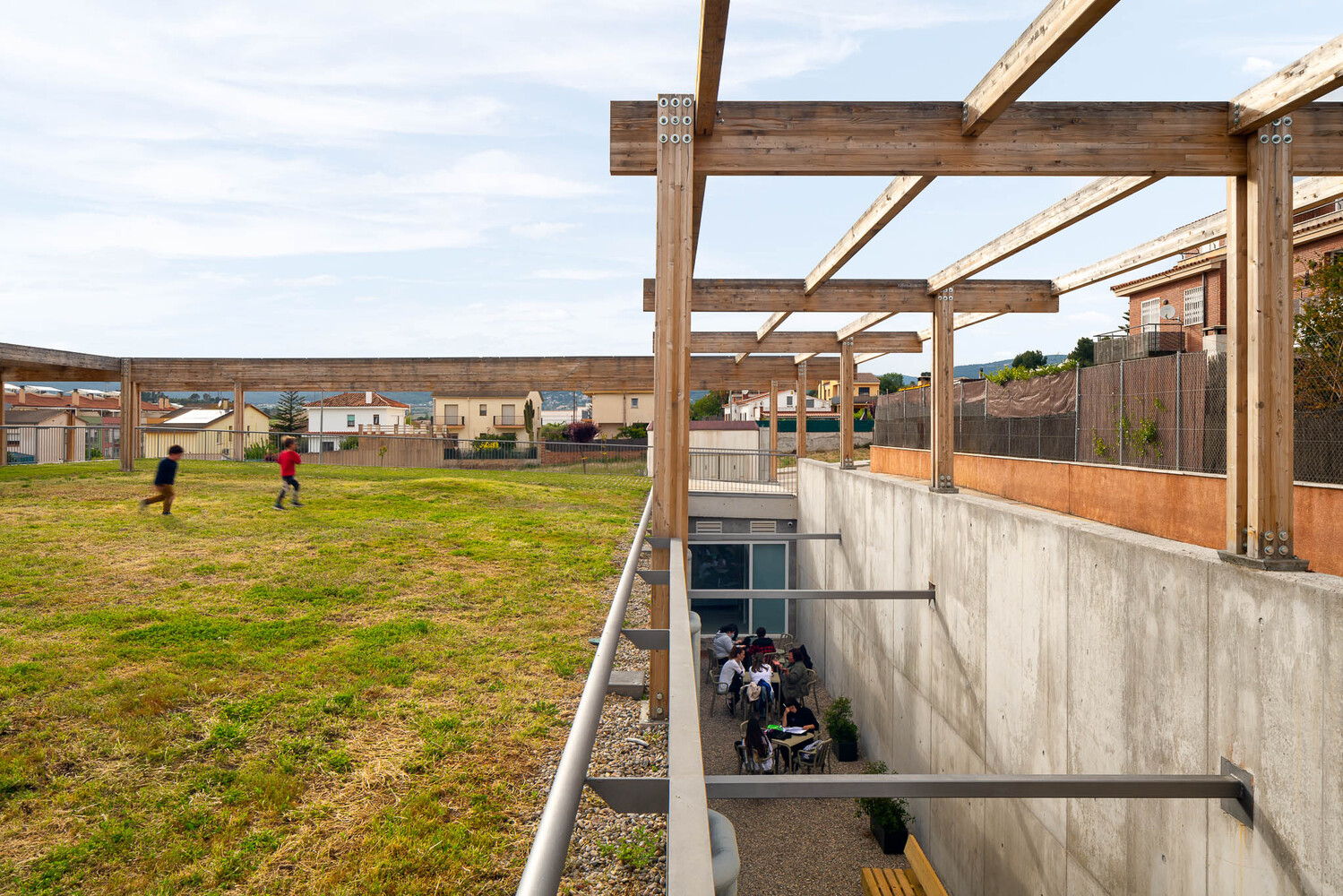

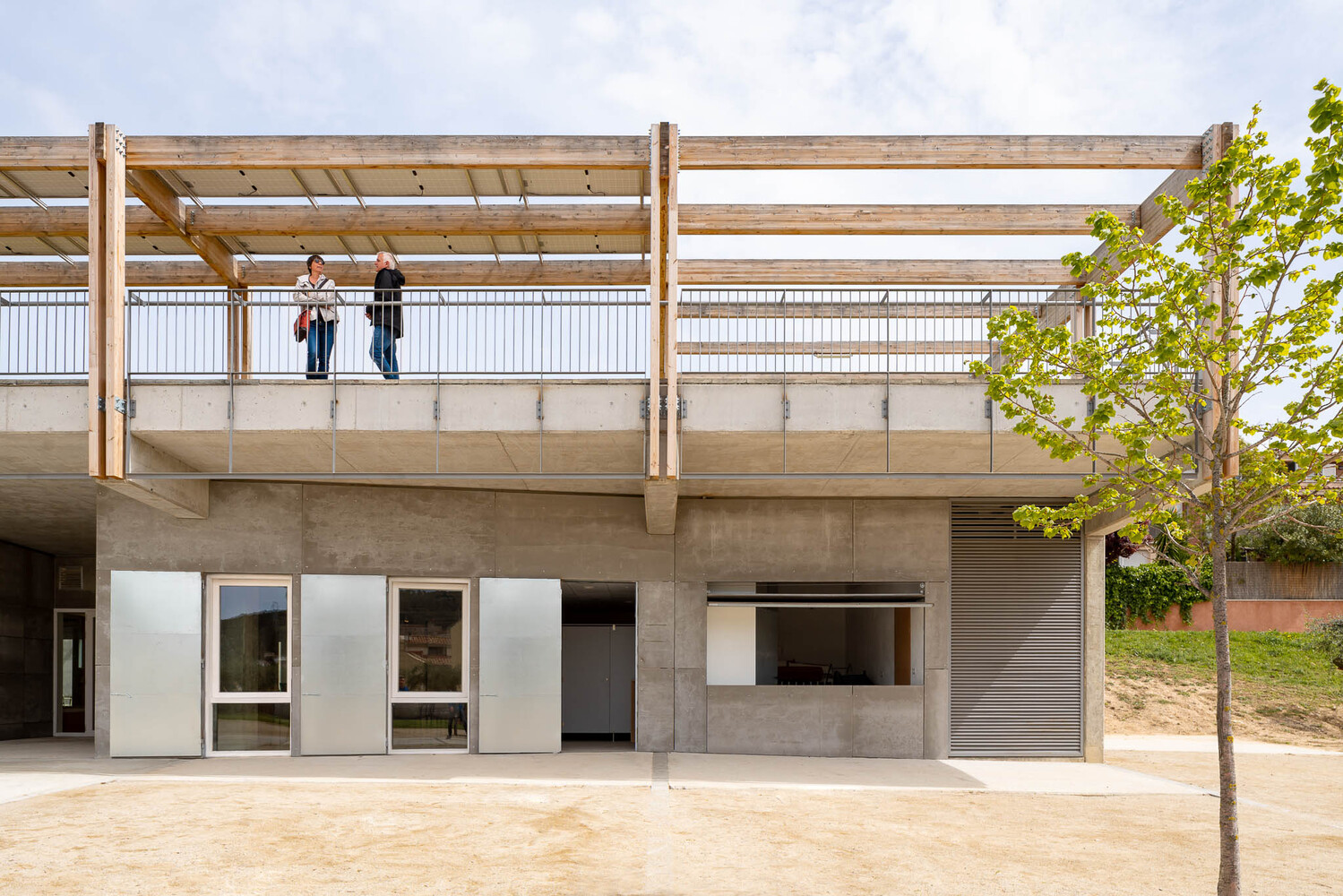

A green roof contributes to capturing CO2 and suspended particles, the thermal stability of the last slab, acoustic insulation, and buffering of runoff in the event of torrential rains typical of the Mediterranean climate. Orientation that allows direct solar capture in winter, and protection from direct sun in summer through the porch and wooden slats in front of the openings. Installation of a pergola on the roof of the building, which on the one hand shades the walkway and lookout area, and on the other serves to install photovoltaic panels that feed a high-performance aerothermal machine, and which represents a contribution of 70% of the electrical consumption of the nZEB building.
