法国圣西尔学校的绿色环保设计

Architects:Atelier Didier Dalmas

Area :3533 m²

Year :2013

Photographs :Erick Saillet

Acoustics :Acouphen

Landscaping :Atelier Anne Gardoni

Structural Engineering :SNC Lavalin

Construction Economy And Structural Engineering : SNC Lavalin

Architect In Charge : Didier Dalmas

Construction Economy : SNC Lavalin

City : Saint-Cyr-l'École

Country : France

The objectives of the implantation of the project are multiple:

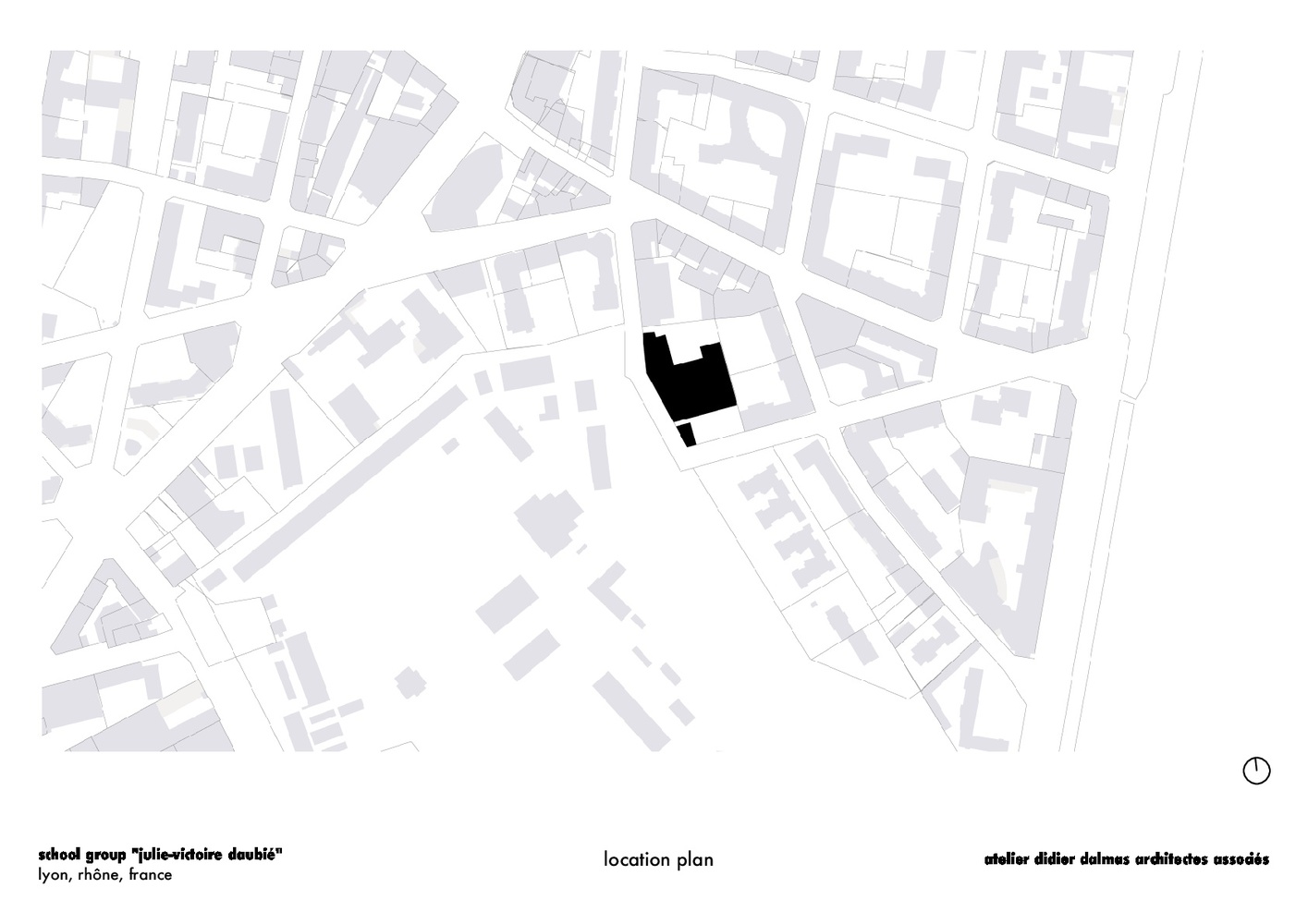

Maintain a built front along « Victorien Sardou Street » to maintain an urban alignment. Develop a large south facing linear to meet the energy guidelines Guarantee optimum sunlight for the photovoltaic panels required for this program, despite the presence of buildings of considerable height in the immediate environment. Respect the adjoining green spaces by avoiding creating uncomfortable opposite.

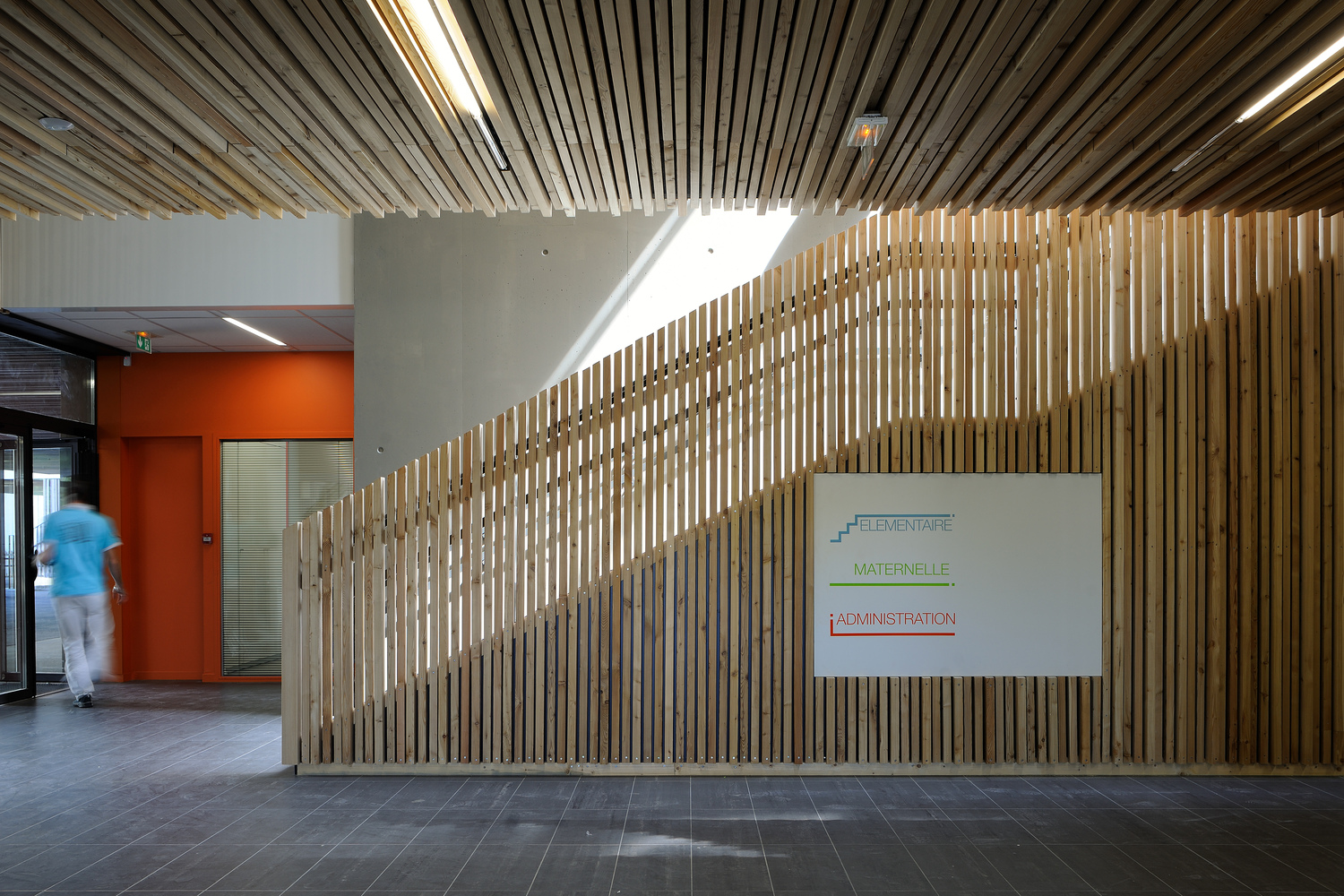

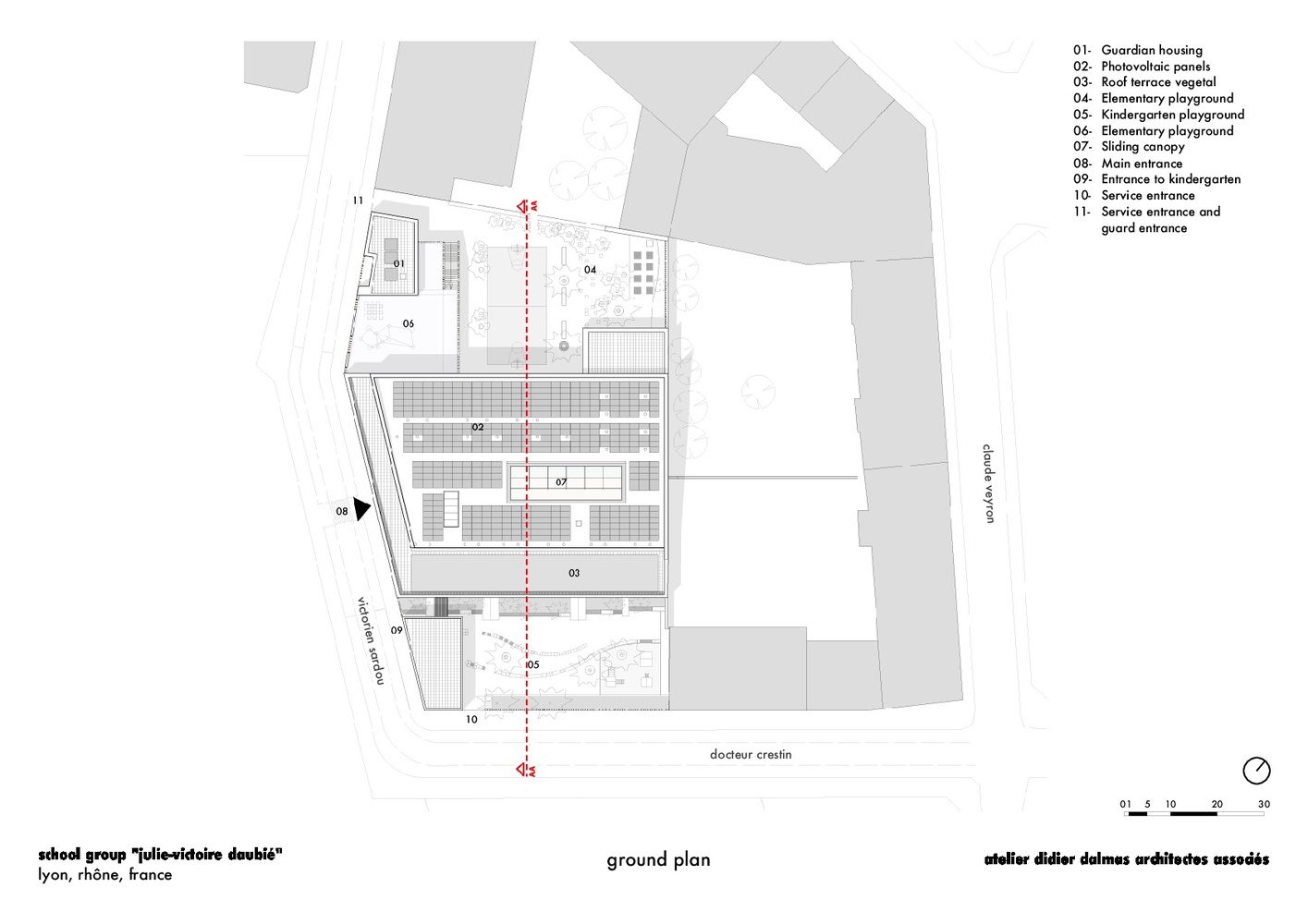

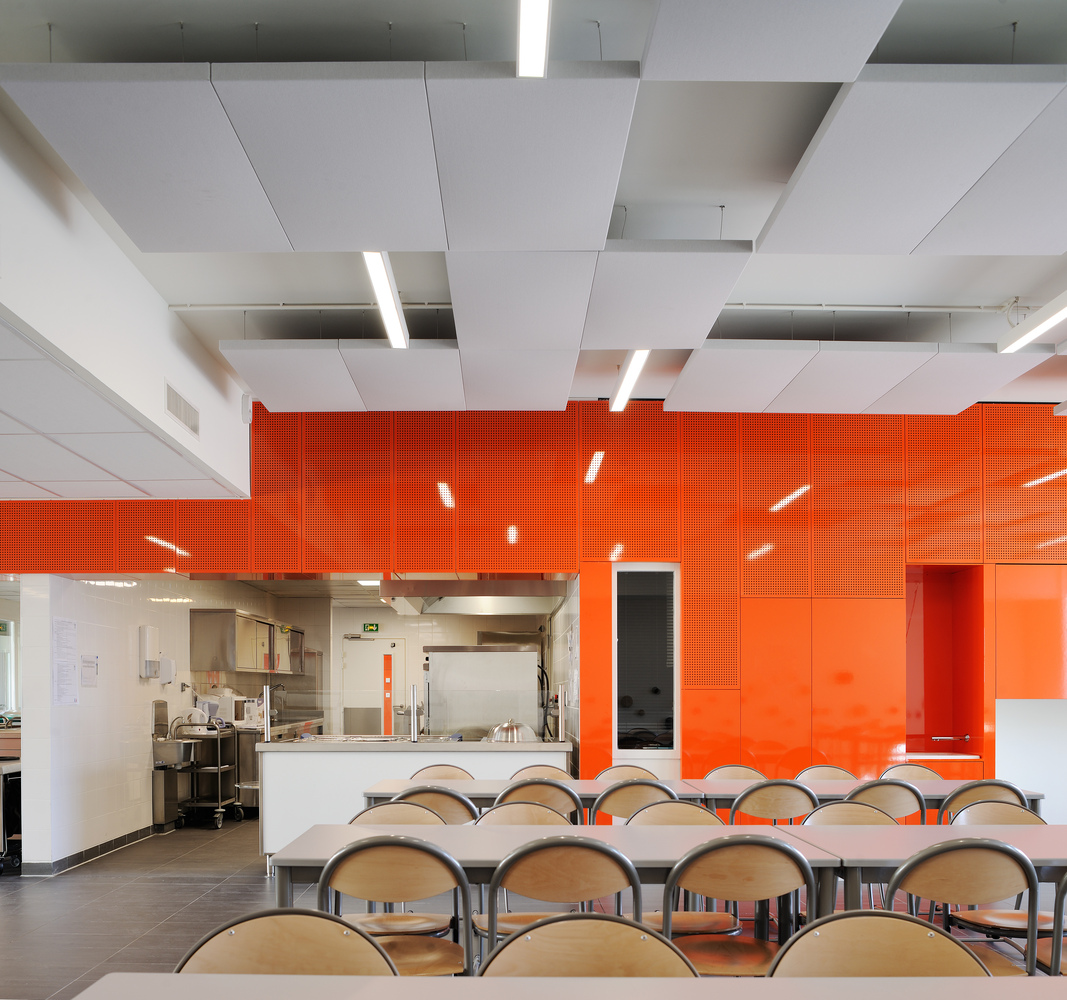

For this, we have positioned a building with a thick floor in the central part of the site. It integrates all the premises necessary for teaching. Perpendicularly, the restaurant, the technical rooms and the caretaker's house are positioned along the street. They have direct access from the street and are not consumers of delivery spaces on the plot. At the articulation of these 2 volumes is the entrance porch / forecourt of the equipment.

The two main objectives that are requested in this project are:

The realization of a building with positive energy and, The design of a school equipment with optimal functionality.

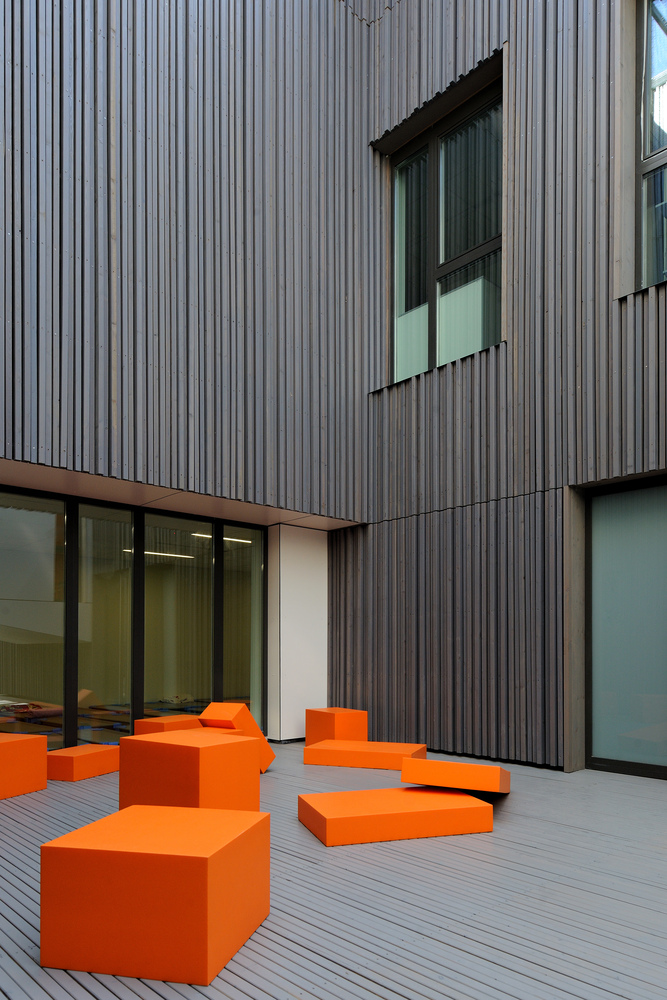

These two objectives lead us towards the design of a compact and thick building. It is south facing and has a central patio. This device makes it possible to obtain remarkable thermal performance. Our desire is to develop the curriculum on 2 levels only. This guarantees a quality of operation.

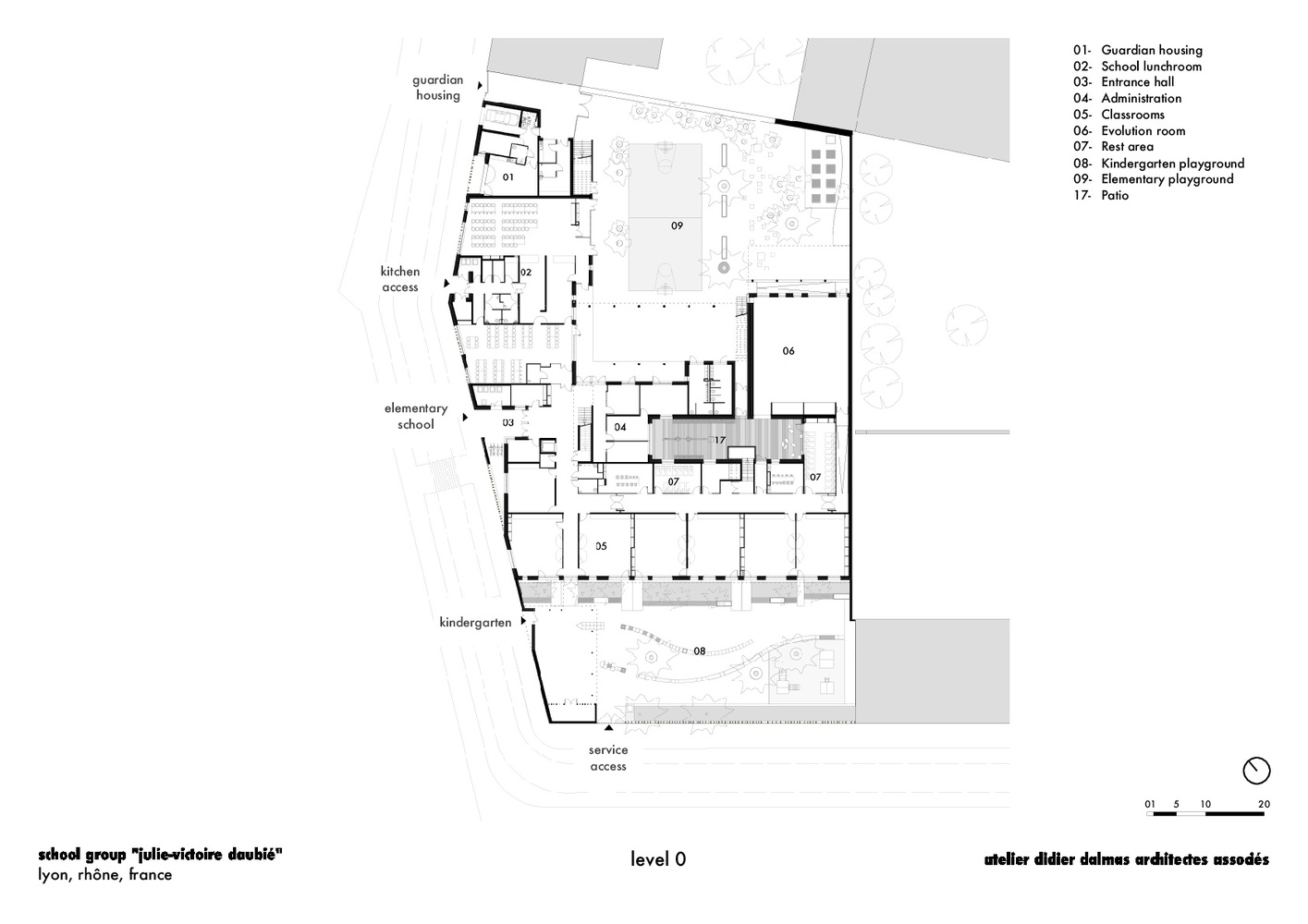

This configuration offers the advantage of positioning the entire kindergarten on the ground floor.

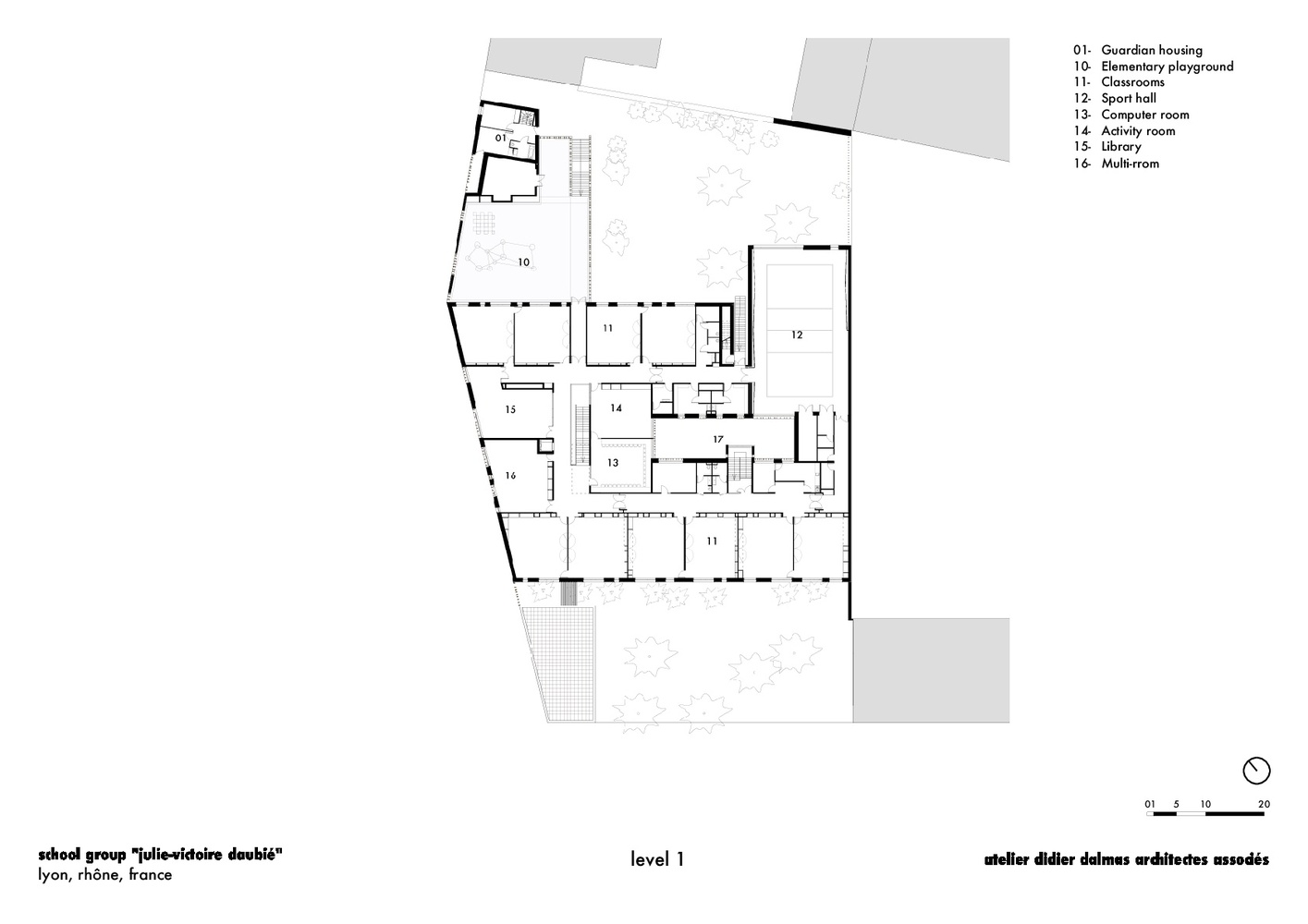

The elementary part and the extracurricular pole are on the floor.

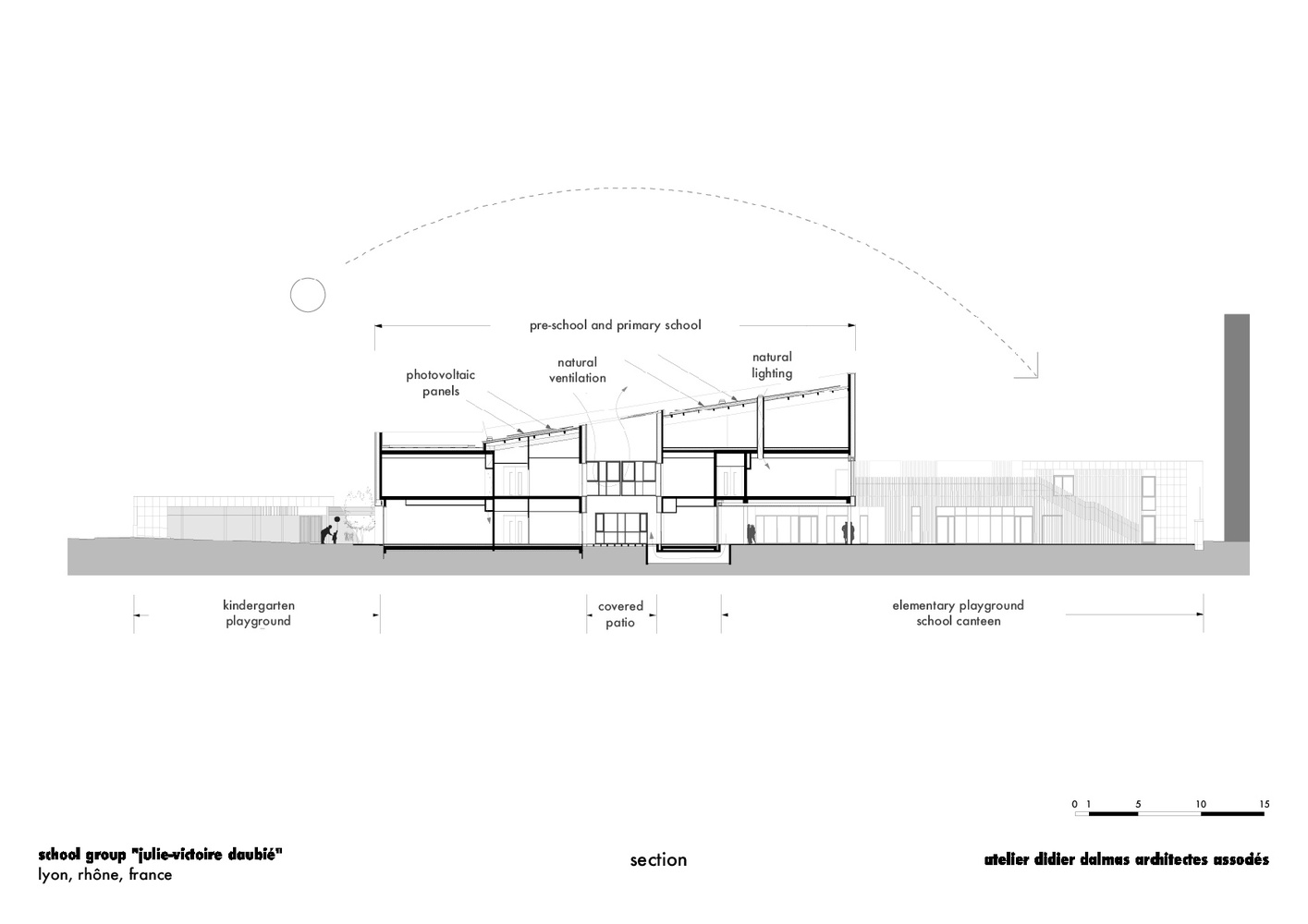

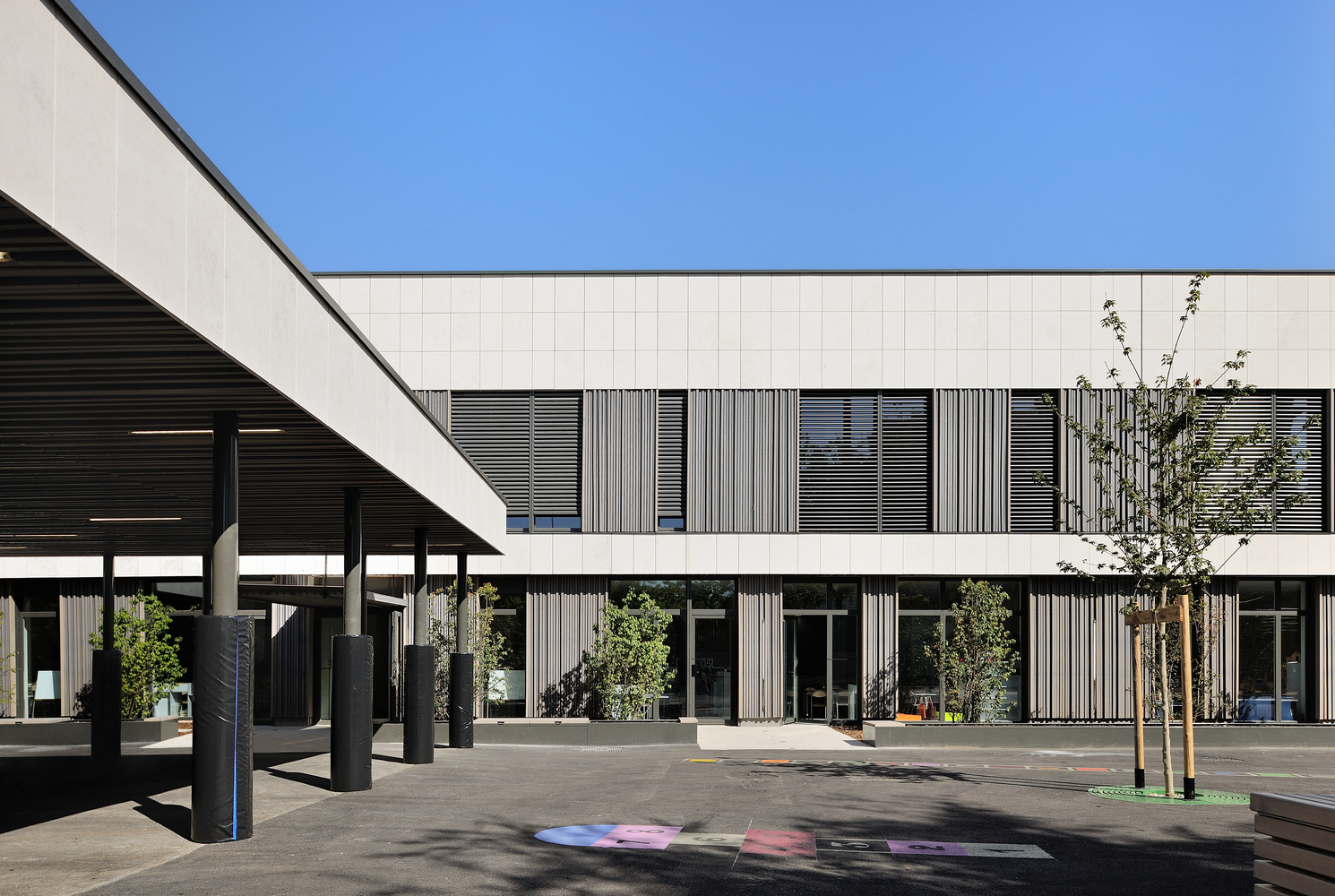

The orientation of the building offers a maximum of classrooms in the South (12 of 16). This simple volume is enhanced by a technical floor covered by a roof of photovoltaic panels. Its size is in line with the energy objectives.

This spanning allows to remain respectful of buildings and adjoining green spaces.

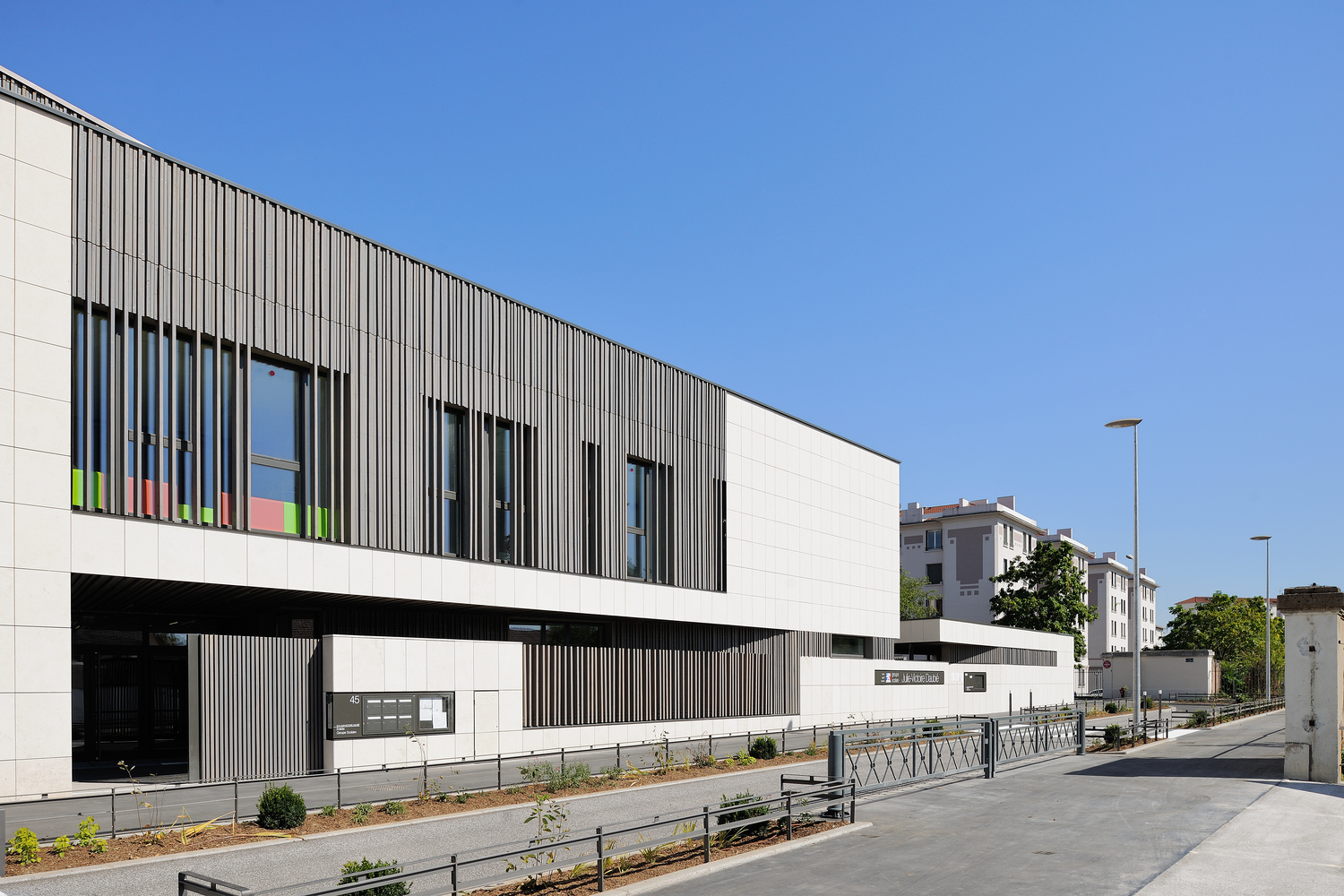

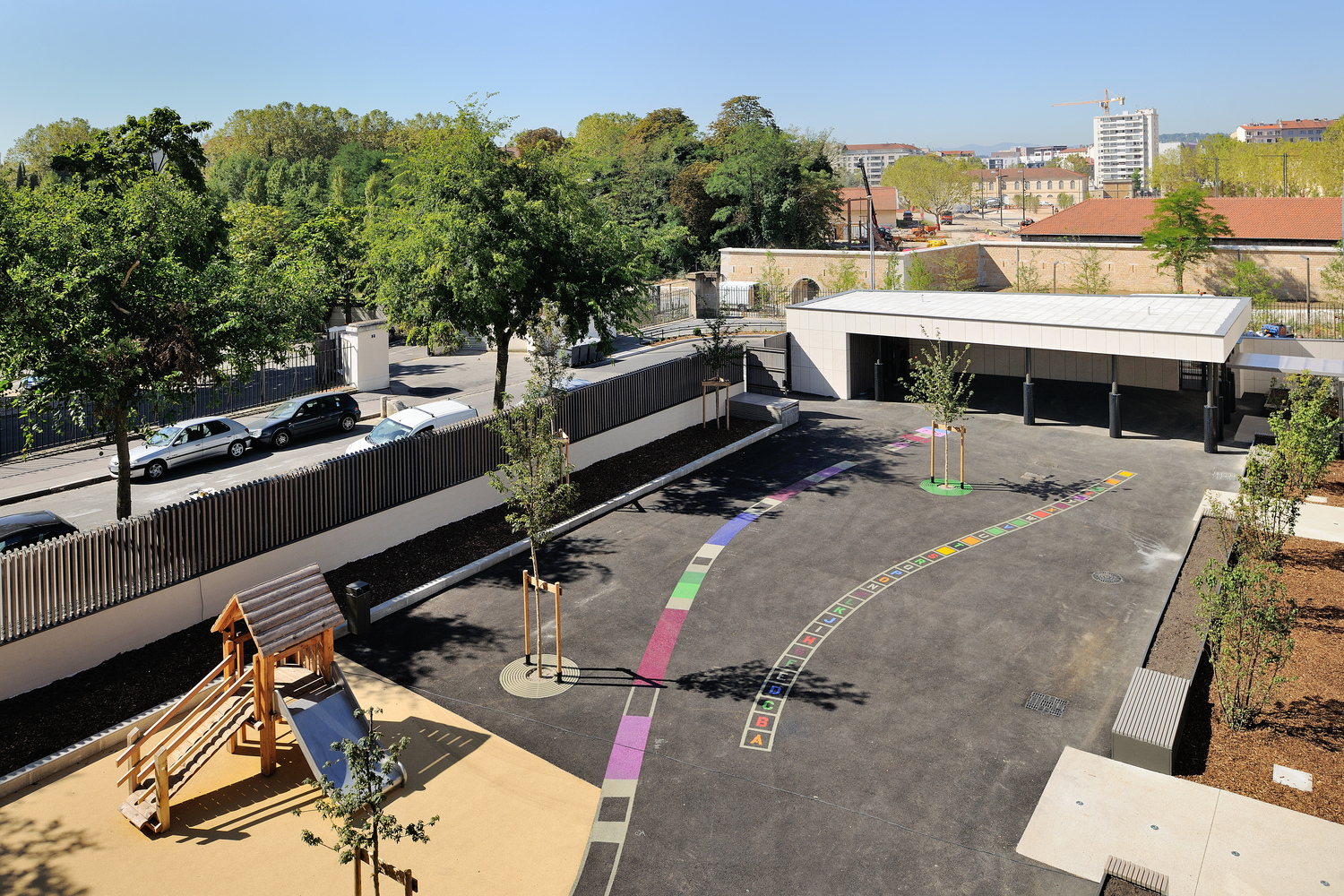

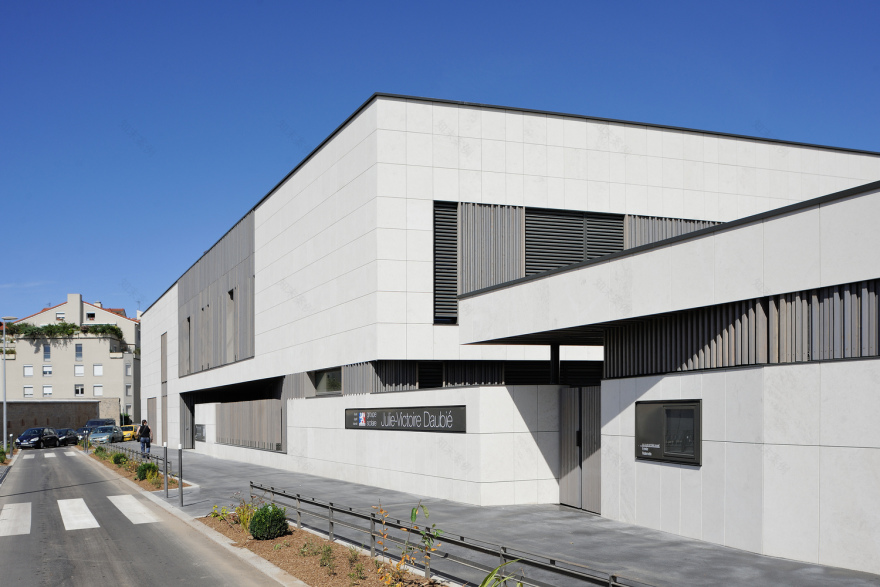

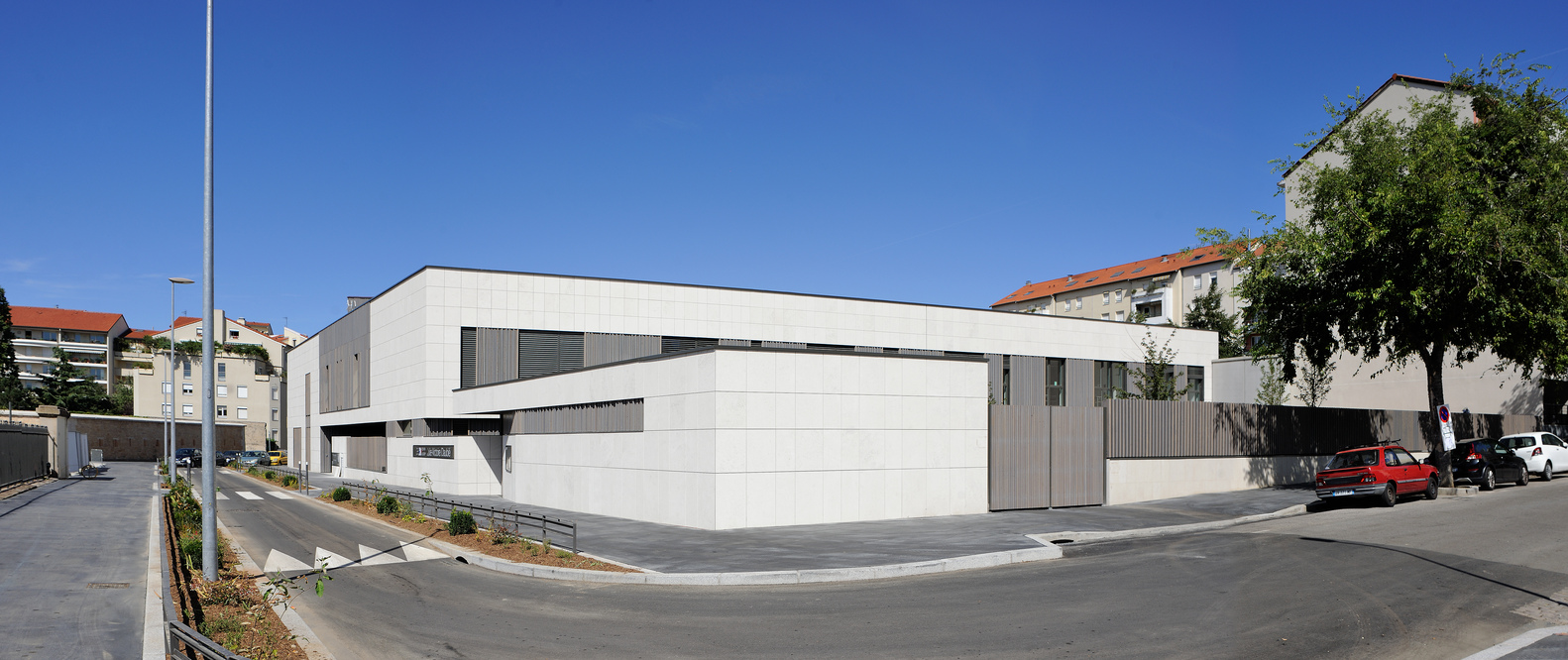

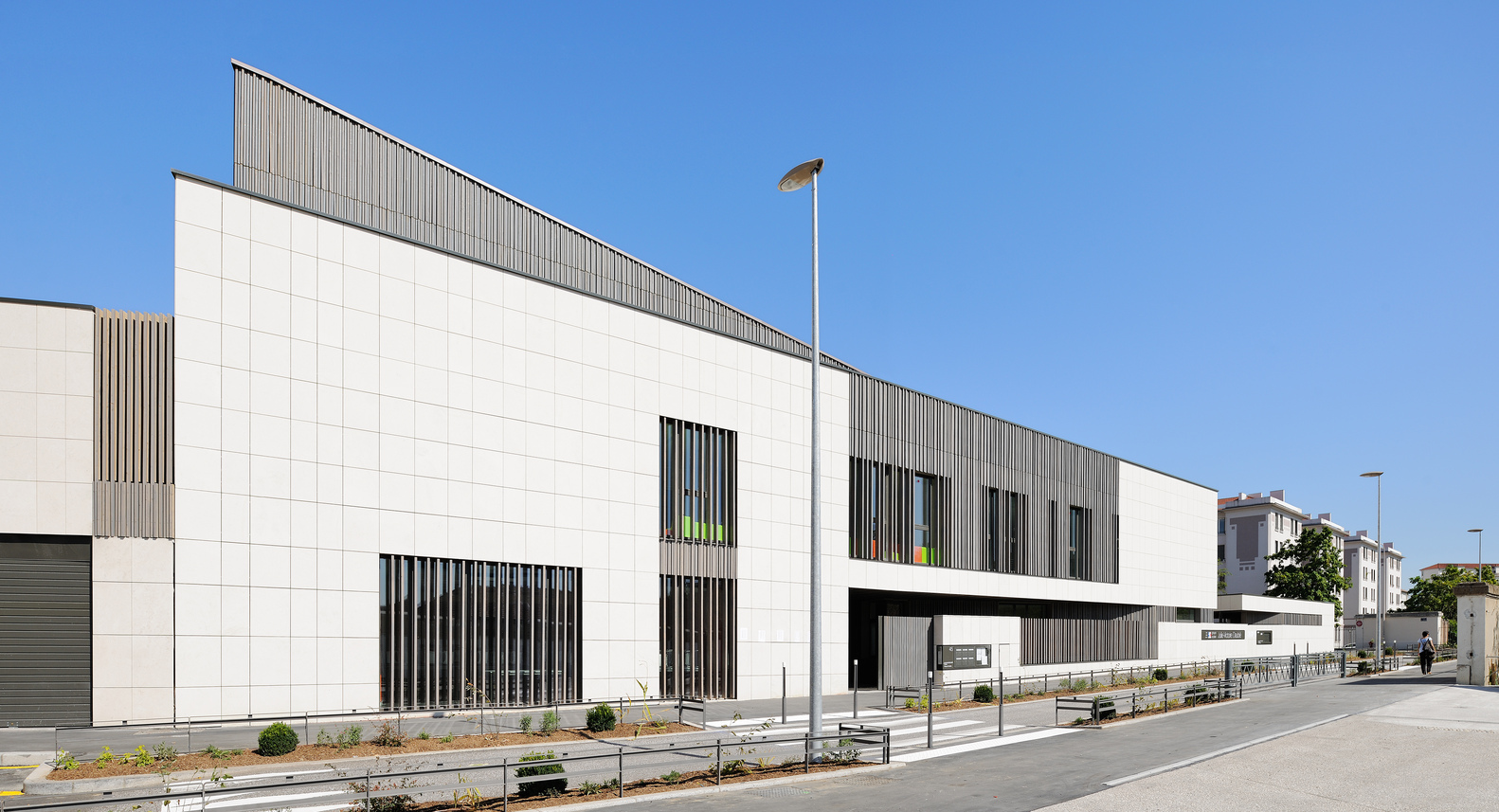

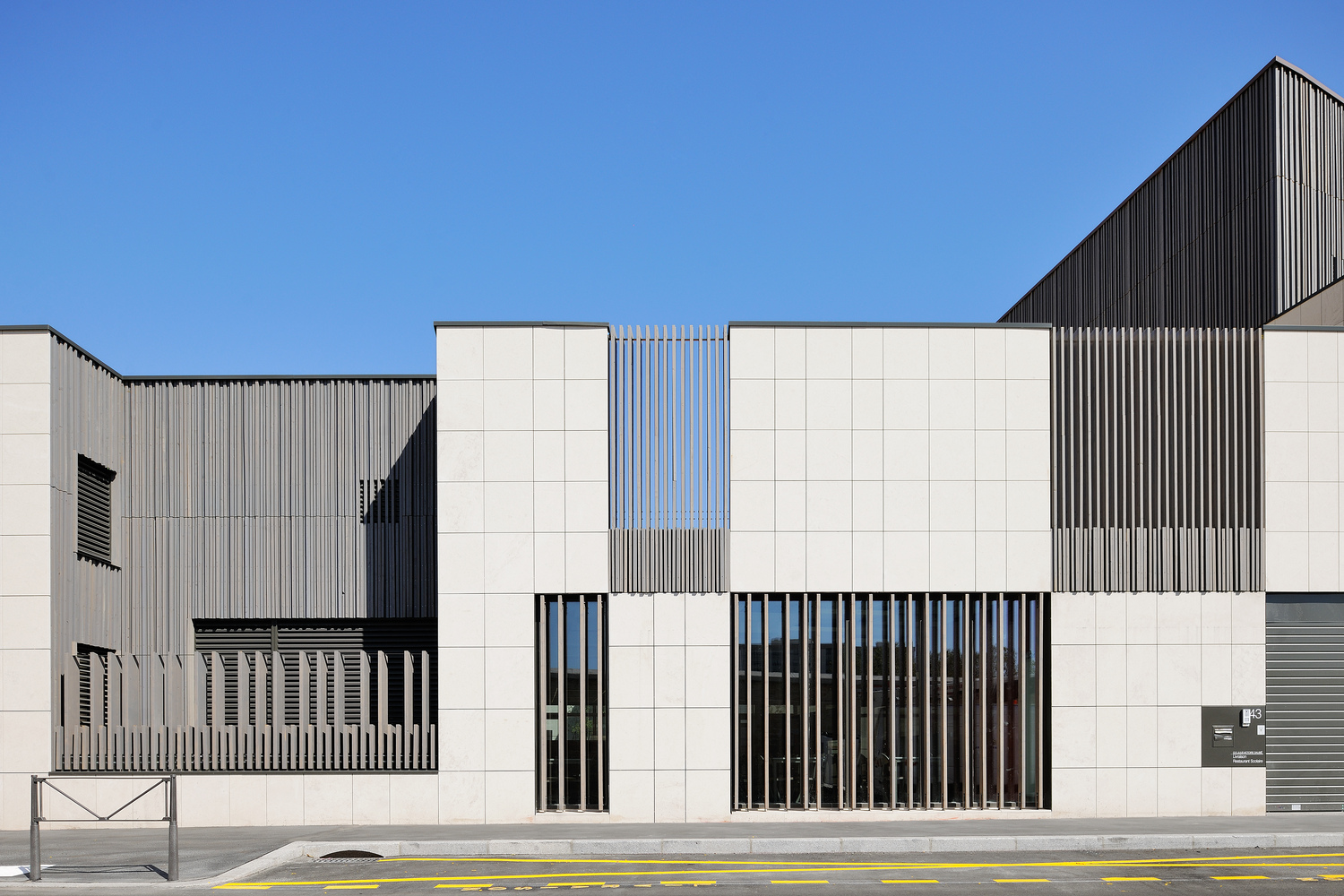

The building takes the whole width of the plot and offers an entrance facade that integrates the porch and the forecourt. The other elements of the program (restaurant / housing / yard) allow continuity built on the street.

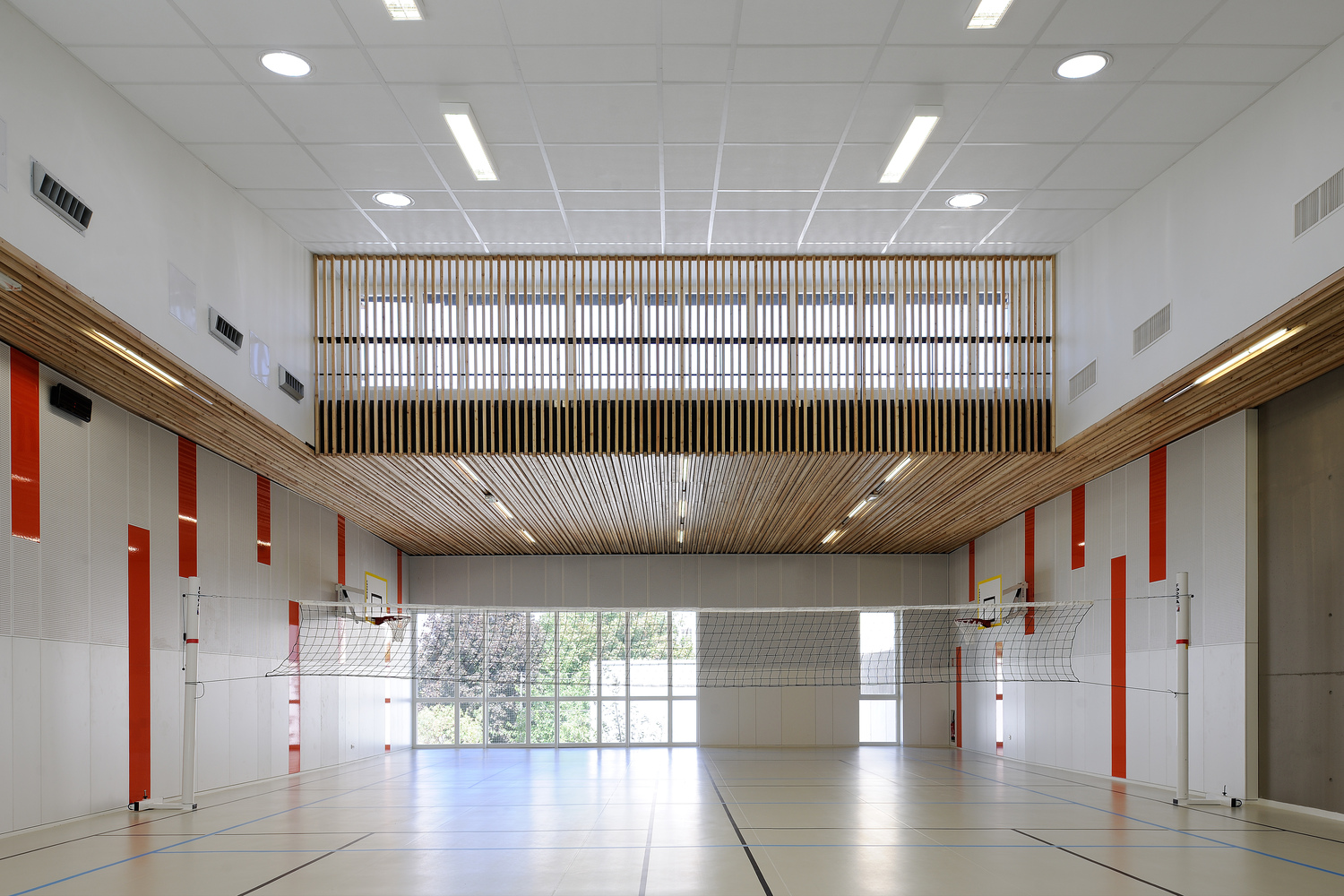

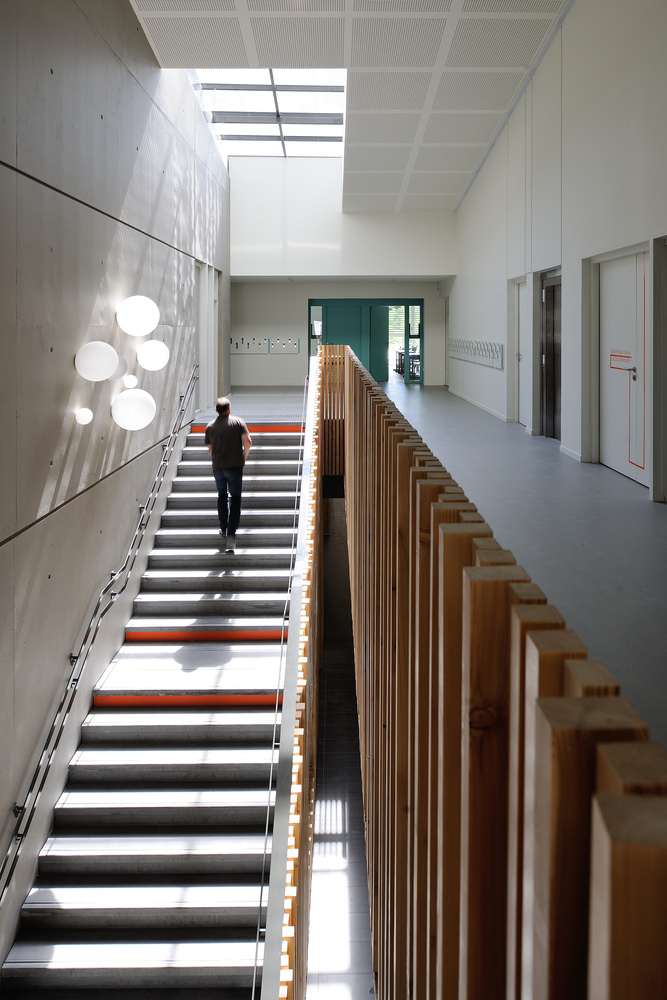

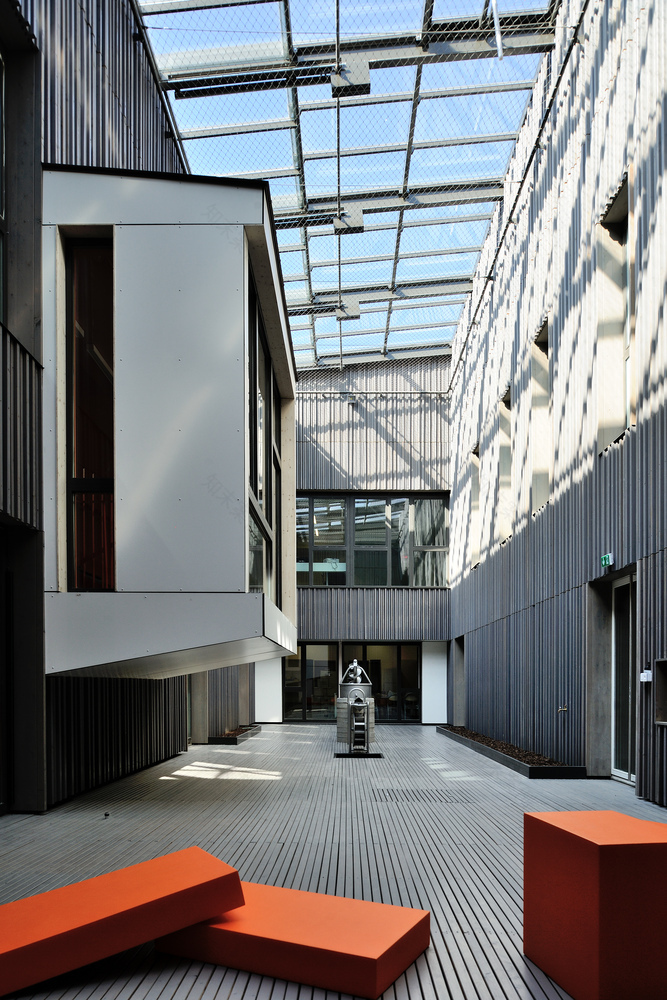

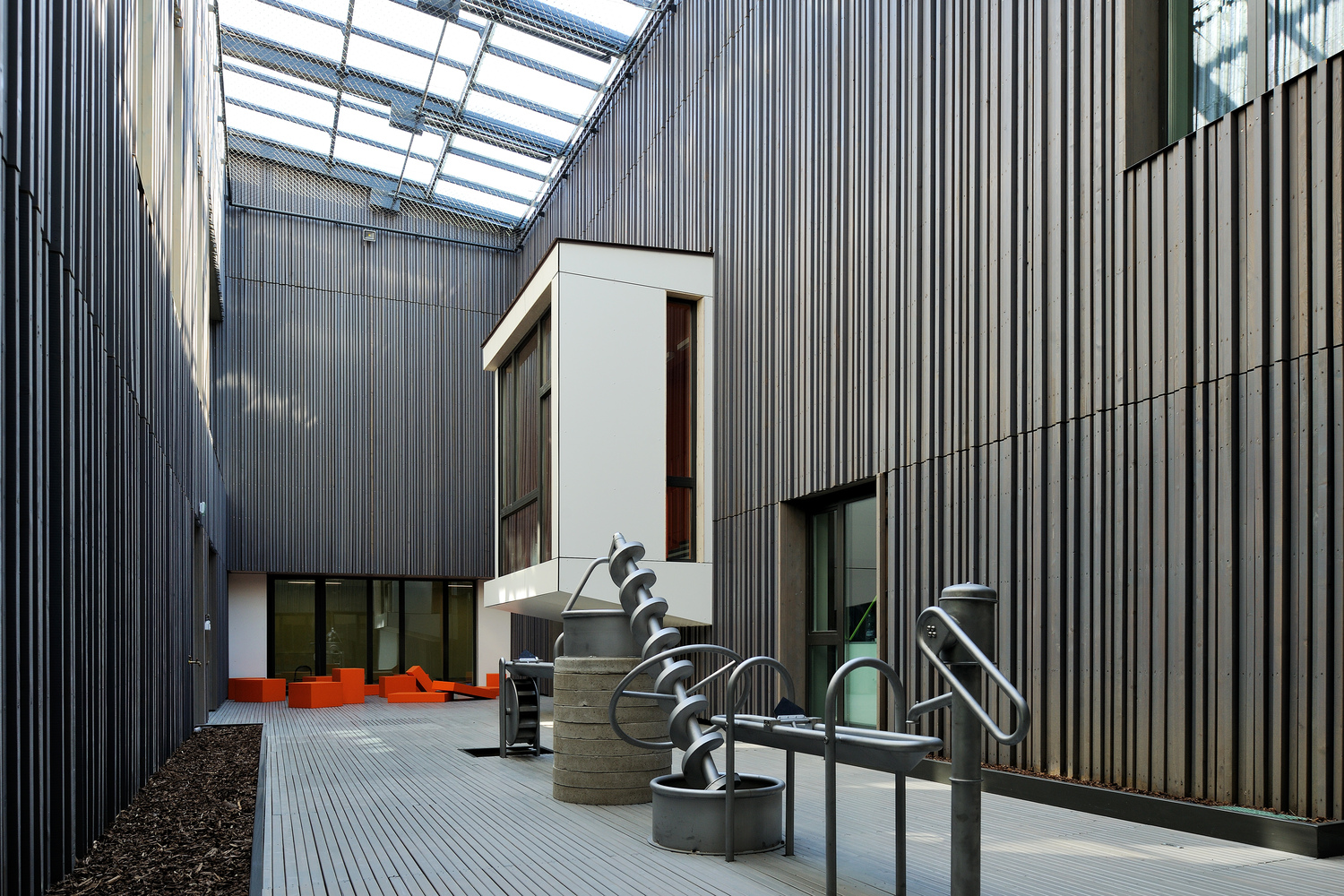

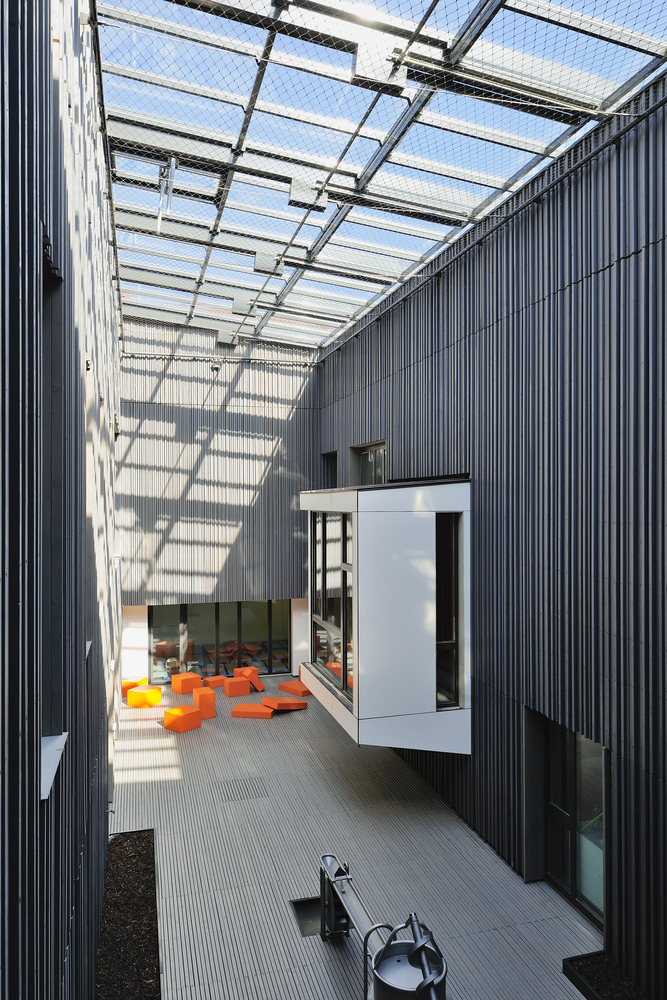

Despite its thickness, each room benefits from natural lighting thanks to the patio. It helps to guarantee the required natural light requirements. Also, the deepest rooms (classrooms / exercise rooms / gyms) benefit from additional light inputs. Skylights provide the dual function of natural lighting circulations and lighting of the backs of rooms.
