公园 8X 公寓丨加拿大温哥华丨GBL Architects

Architects:GBL Architects

Area :33909 m²

Year :2021

Photographs :Ema Peter

Manufacturers :  Cosentino, EQUITONE, Alucobond, Glastech Glazing, Guardian Glass, Inland Glass and Aluminum, Starline WindowsCosentino

Lead Architects :Joey Stevens, Andrew Emmerson, Stu Lyon, Scott Restemeyer, Rod Forbes

General Contractor :Ledcor Group

Interior Designer :BYU Design

Landscape Architect :PFS Studio

Structural Engineer :Glotman Simpson

Mechanical Engineer :Integral Group

Electrical Engineer :Nemetz S/A & Associates

Geotechnical Engineer :GeoPacific Consultants

Sustainability Consultant :Kane Consulting

Project Architect & Design : Joey Stevens, Andrew Emmerson

Principal & Design : Stu Lyon

Design Details & Construction Coordination : Scott Restemeyer

Construction Adminstration & Coordination : Rod Forbes

Owner / Developer : Brenhill

Building Envelope Consultant : Level 5 Consulting

Code Consultant : Protection Engineering

City : Vancouver

Country : Canada

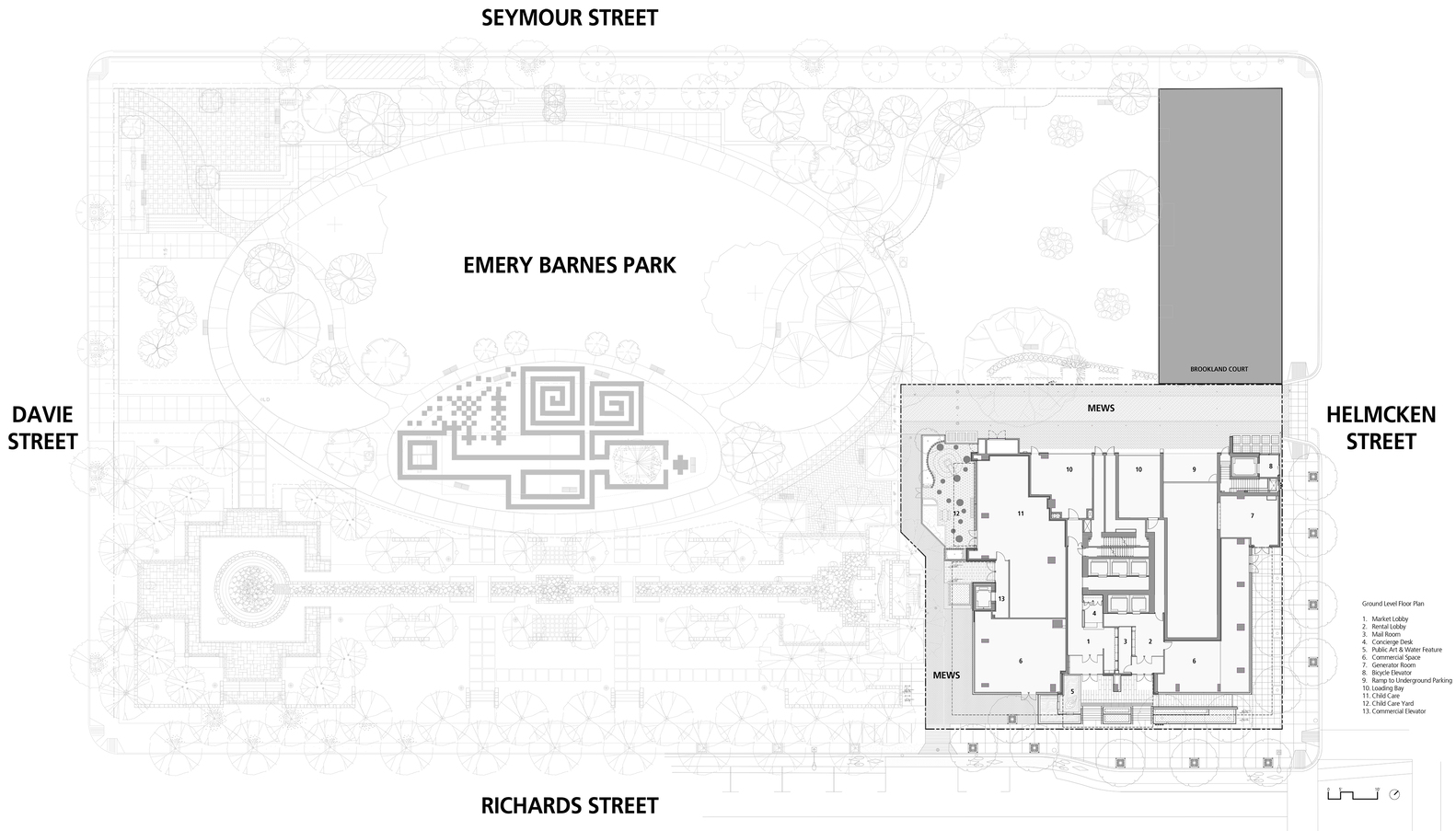

Brenhill Development’s 8X On The Park by GBL Architects sits along the edge of Emery Barnes Park in the City of Vancouver’s vibrant Yaletown neighborhood. This 35-storey mixed-use residential development is LEED Gold certified and integrates market and rental housing with retail and childcare at grade.

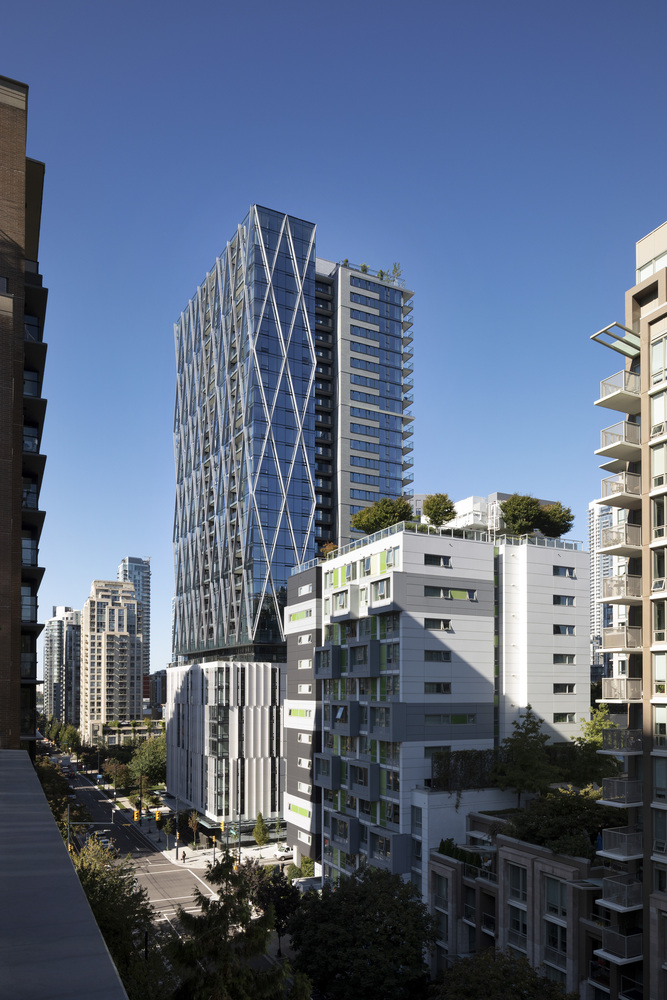

The tower's design addresses multiple contextual variables, including a neighboring heritage apartment that establishes an urban scale and cadence along one side and numerous buildings of varying heights that reflect the increasing densification of Yaletown. Emery Barnes Park presents a critical third contextual zone, offering proximity to public space.

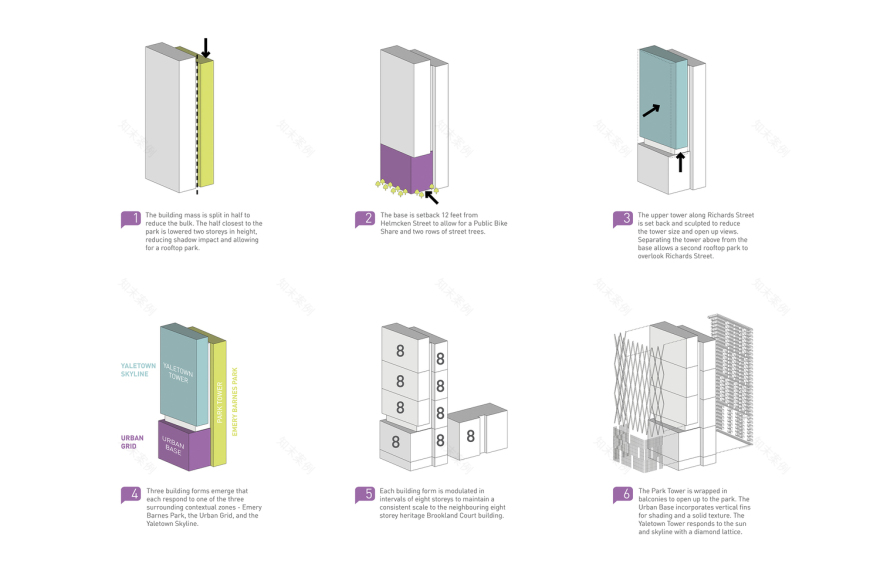

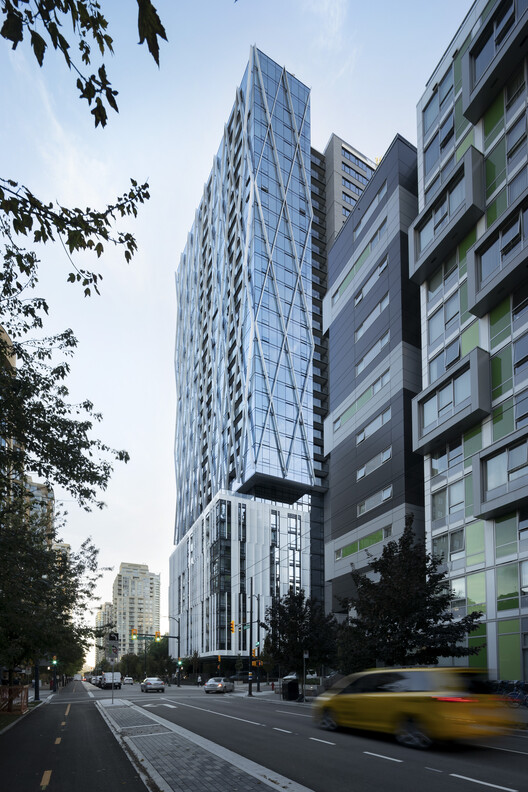

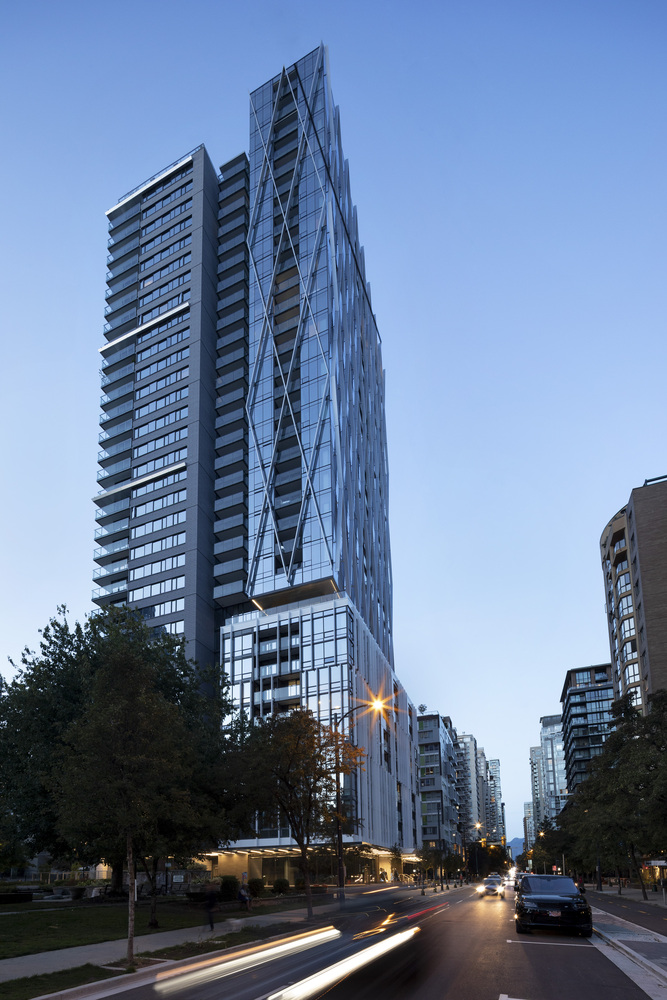

To address these variables as well as physical constraints presented by a compact site and two protected view corridors, the tower is subdivided into multi-faceted contextual zones, each with specifically tailored functional and aesthetic characteristics. The building is bisected along its north/south axis into two volumes. The base is further articulated with a third volume that echoes the scale of the heritage building to the west. Continuity is maintained across these volumes through repeating eight-story modules that reference the adjacent structure.

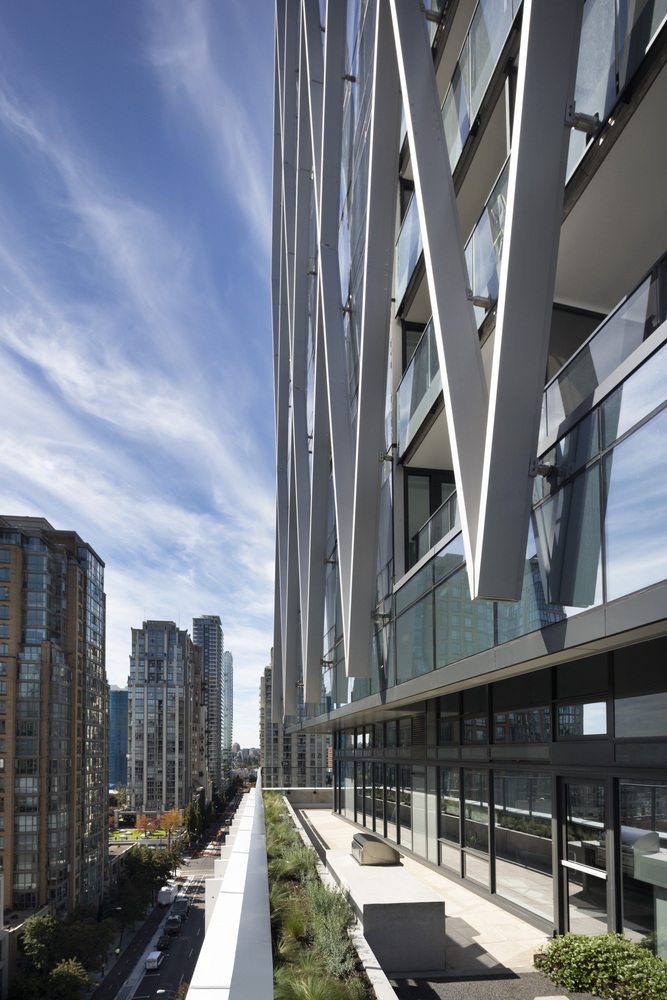

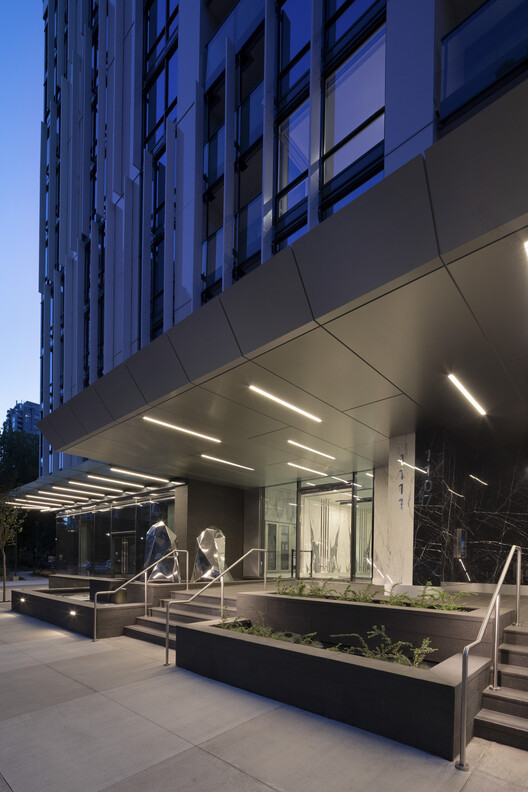

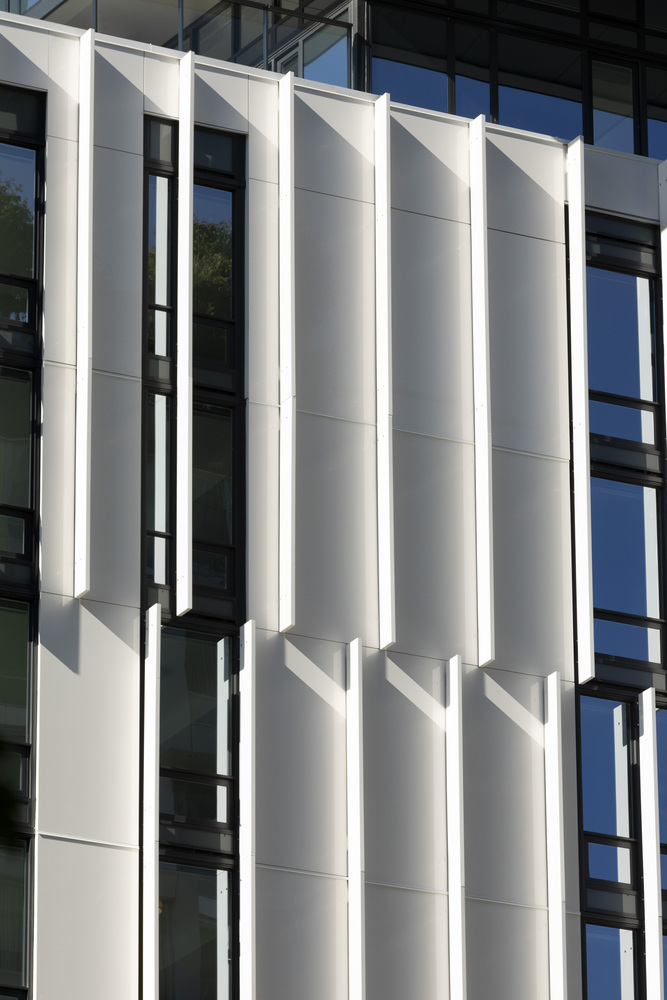

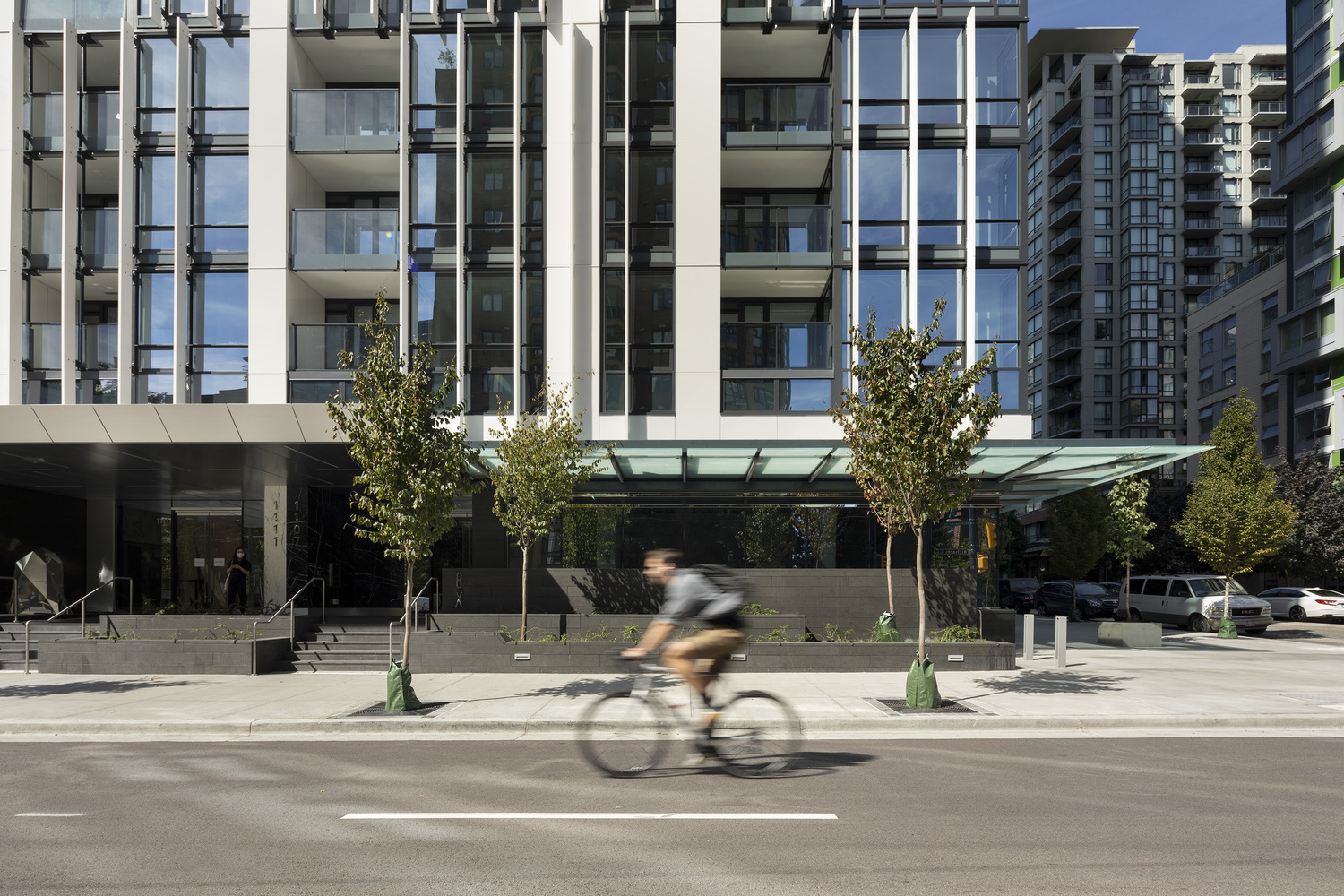

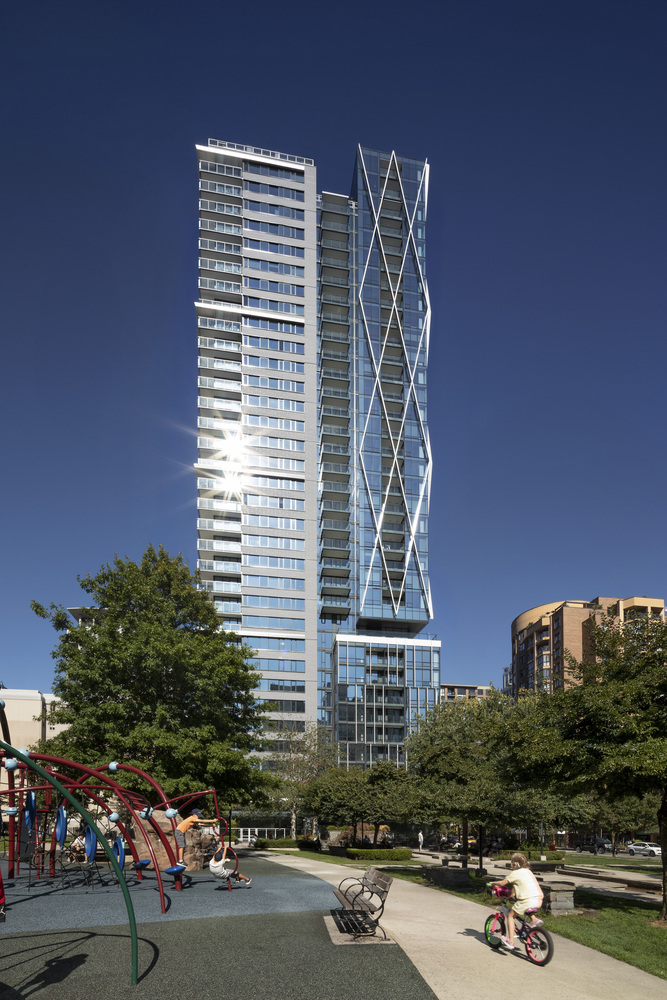

The base addresses the immediate urban context with stone cladding and vertical fins that appear monolithic when viewed obliquely. The west half of the bisected tower addresses the park with a horizontal expression of balconies to offer expansive outdoor spaces. Four modules, each delineated by a continuous metal-clad band that relates to the prominent heritage building cornice, have varied balcony extents that minimize overlook at lower floors and maximize views at higher floors.

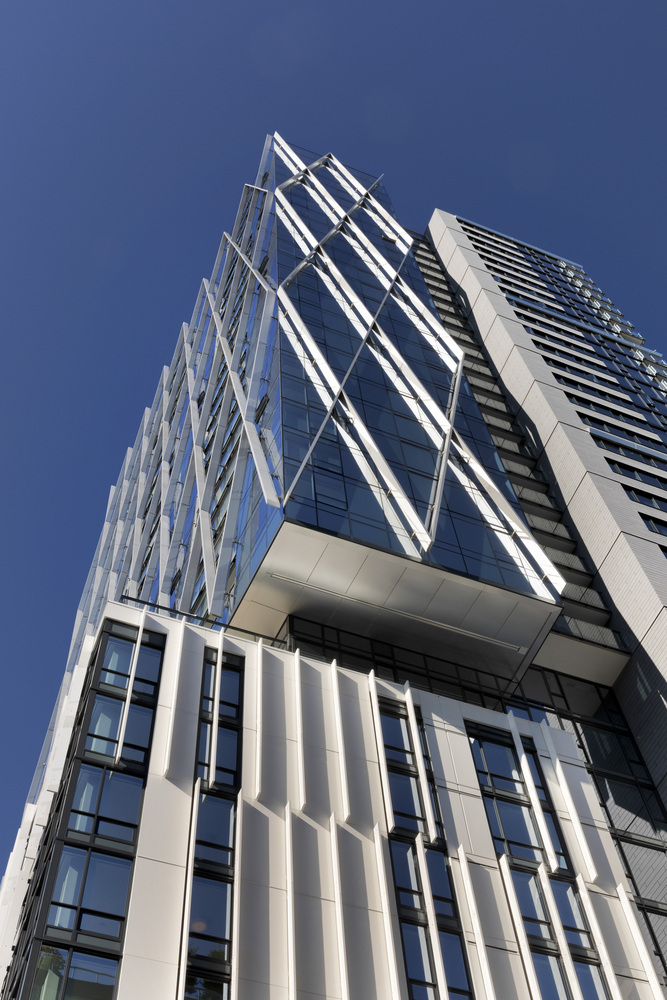

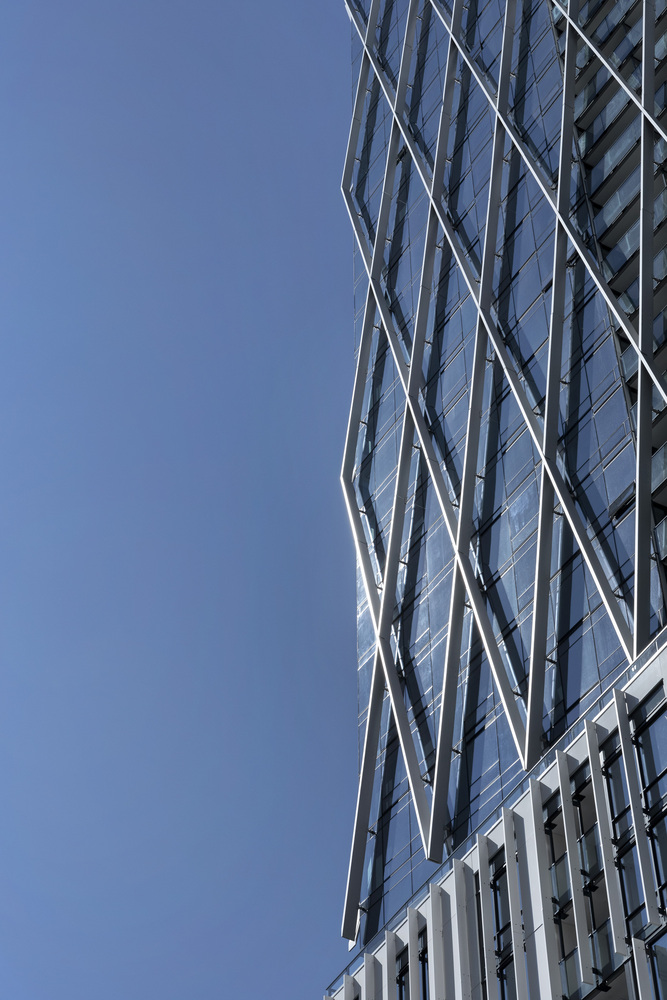

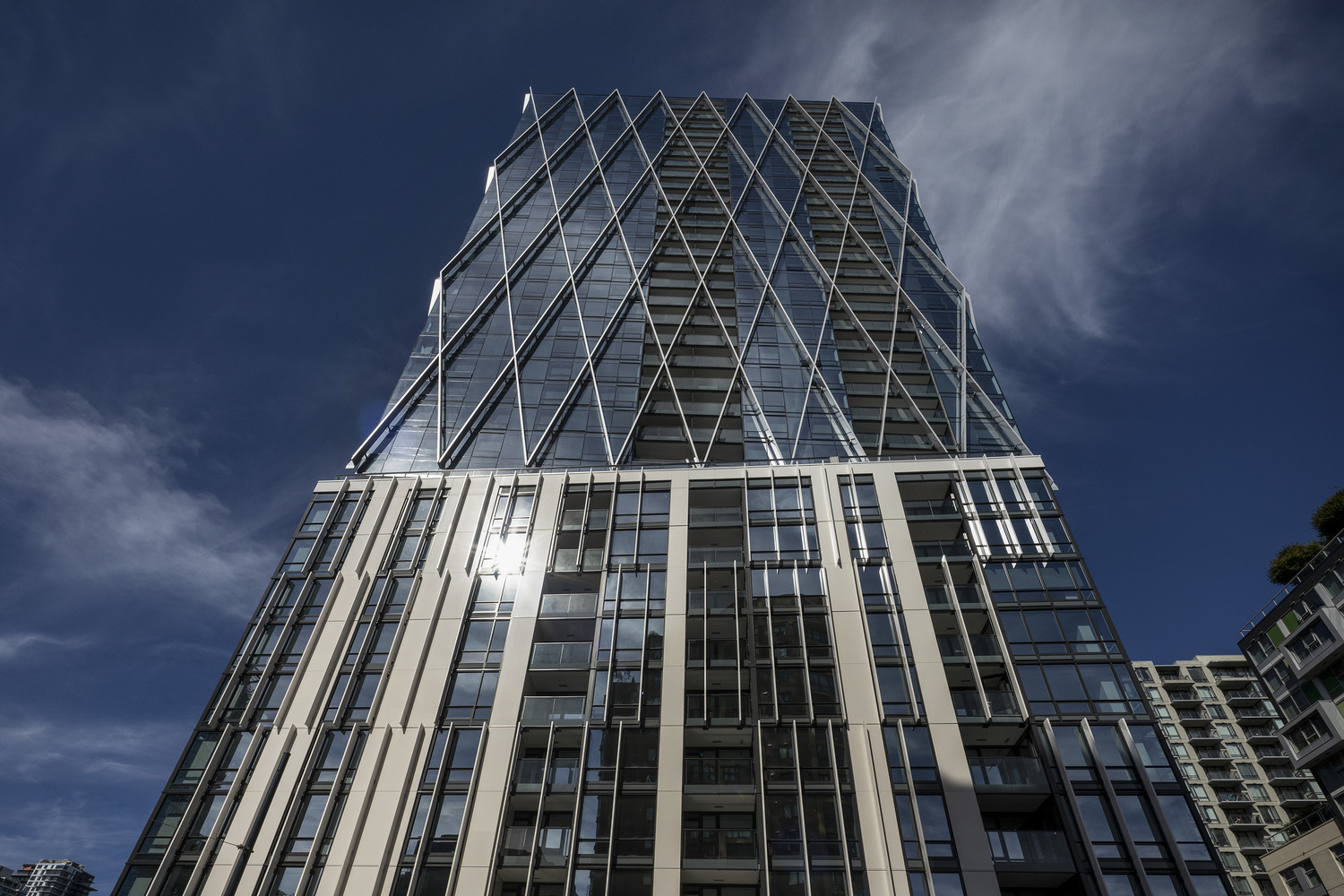

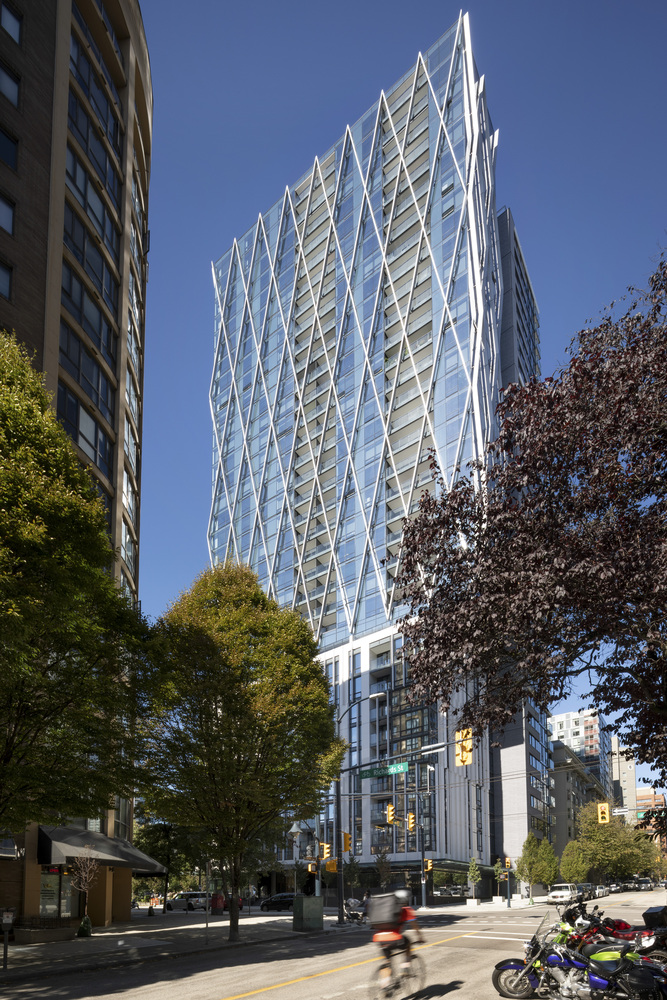

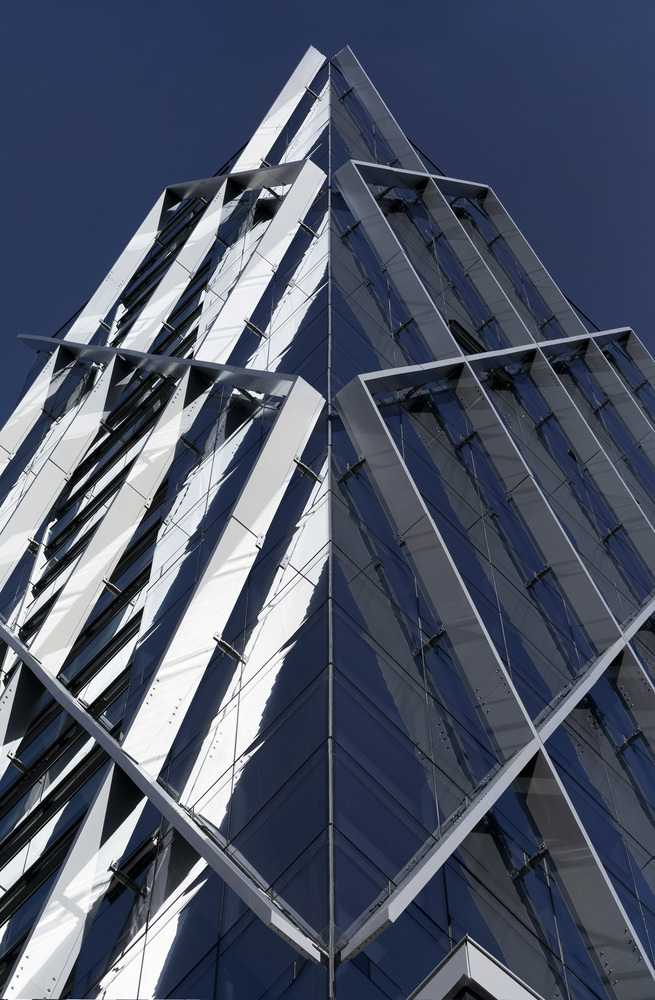

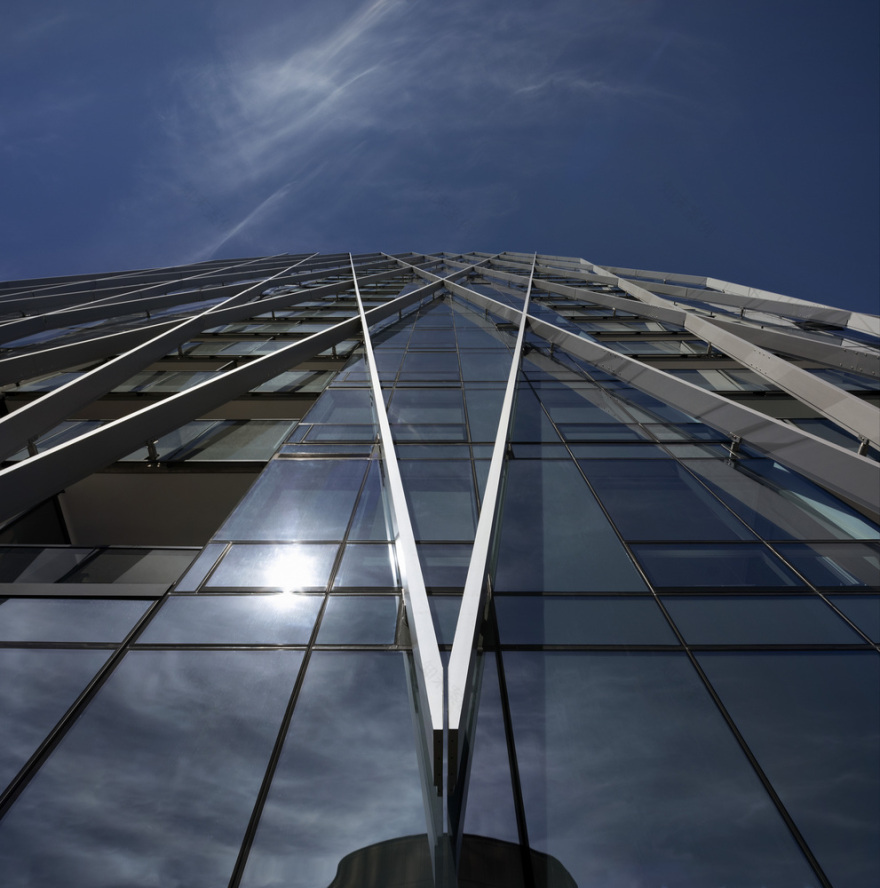

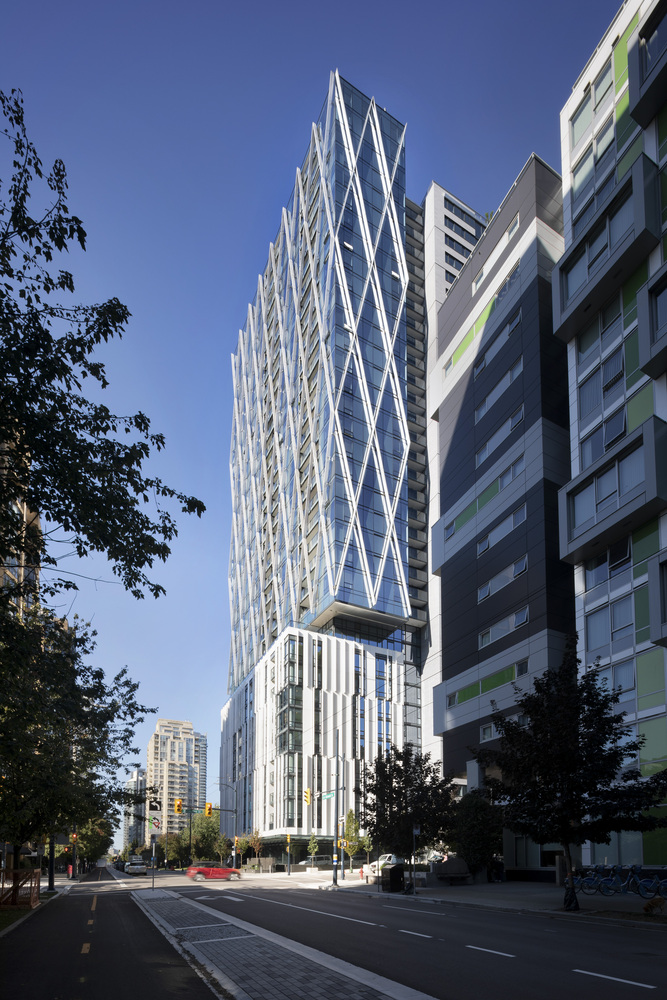

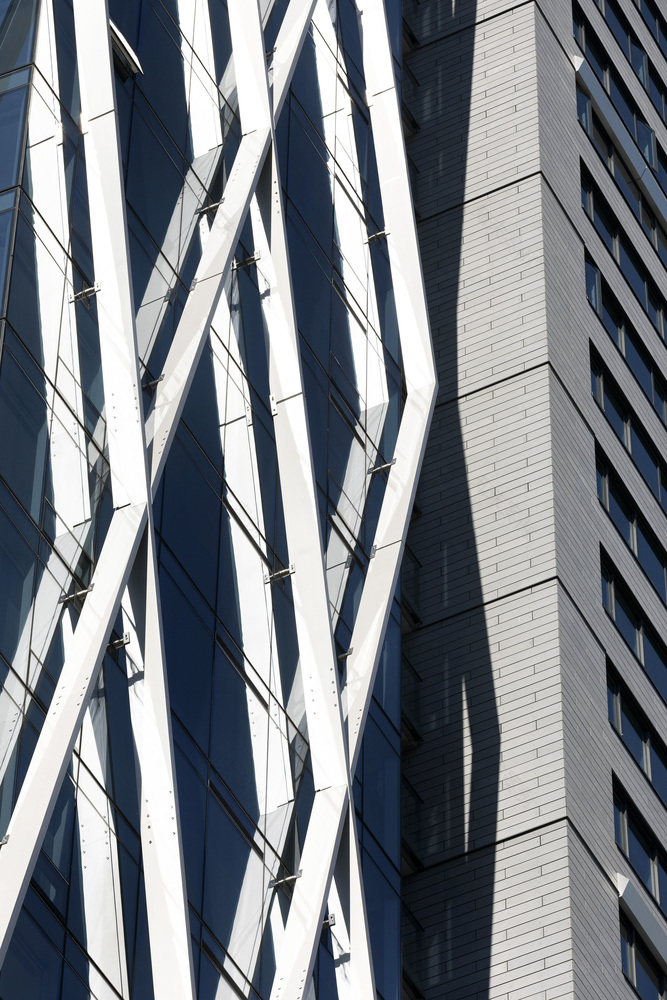

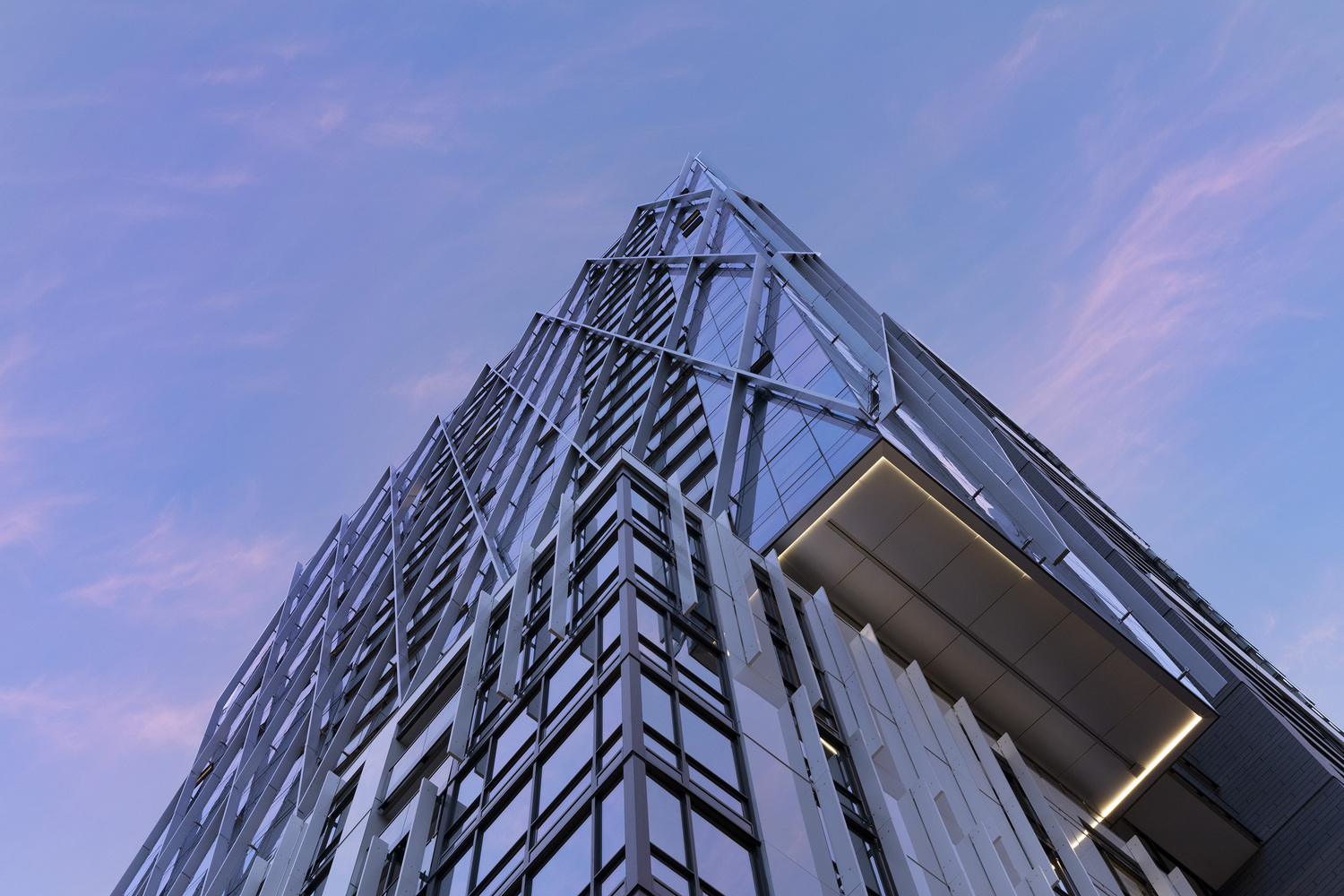

The east half of the tower is fully glazed with inset balconies for the minimal vertical interruption. The southeast curtain wall is wrapped with diagonal louvers to mitigate solar gains. The shading devices balance solar shading with light infiltration and views, creating an engaging visual pattern that gives the tower a striking presence in the skyline.

In addition to these passive features, active building systems include efficient geothermal exchange heat pumps and are monitored through enhanced commissioning analysis. Together, the comprehensive program of sustainability strategies results in LEED Gold certification for the project.

8x On The Park is a compelling example of a project that builds a narrative and relationship between its large-scale urban gestures and its corresponding architectural details. Each gesture in massing – reflecting both conceptual and tangible contextual cues – is resolved with a novel and innovative solution to the associated design challenge.
