荷兰阿姆斯特丹 Scarwafa Co·Housing · 极简集体住宅的共生设计

Architects:Krft

Area :647 m²

Year :2016

Photographs :Christian van der Kooy

Lead Architects :Thomas Dieben, Oscar Vos

Structural Engineer :Arup, Landman Bouwconstructie

Contractor :Bouwbedrijf Van Schaik

Collaborators : Oscar de Blanken, Nick Krouwel, Anna Noyons

Clients : Anna & Rens, Anna & Casper, Arne & Sandrijn

City : Ámsterdam

Country : The Netherlands

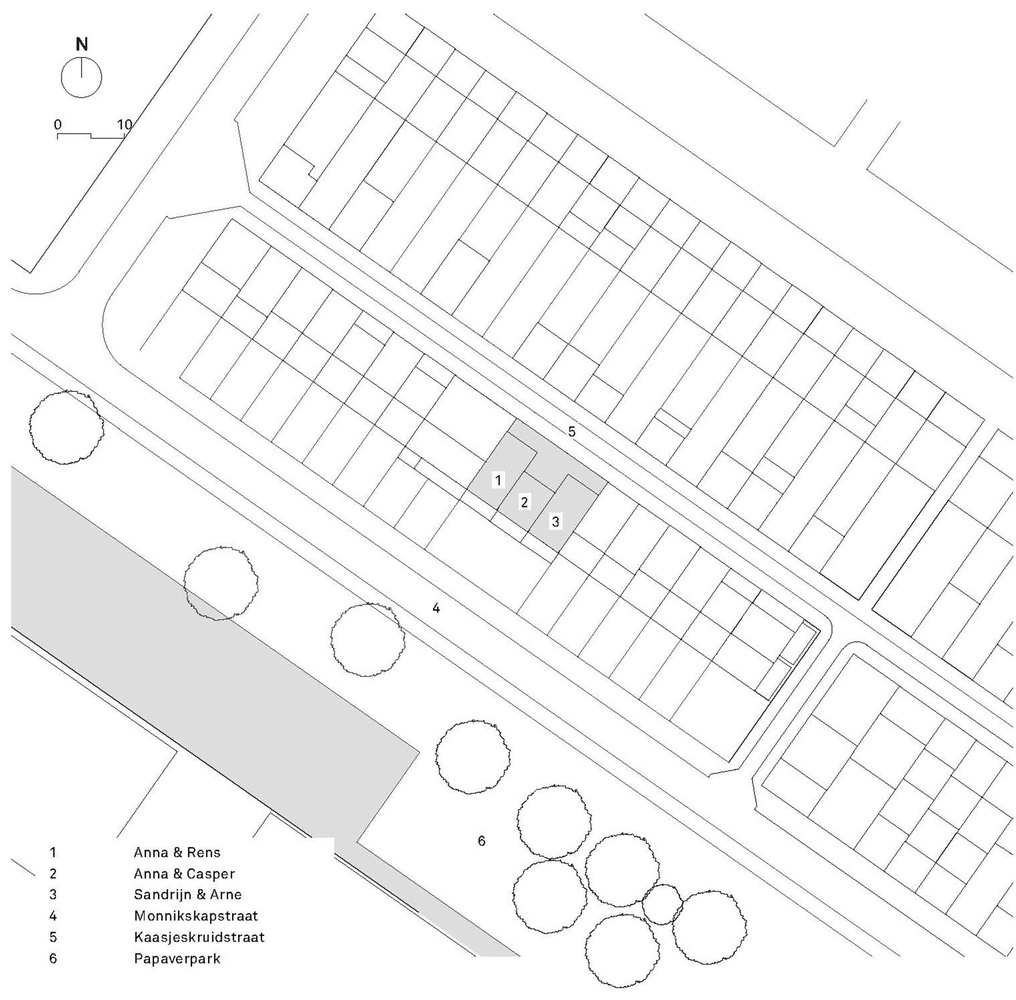

Scarwafa (an acronym for the 6 owners) is a small-scale cohousing project of 3 befriended young families, who acquired three neighboring plots in the Buiksloterham area in Amsterdam, at the height of the last financial crisis. From the start, collectivity and simplicity were the guiding motives. The thin budgets demanded conservativeness in form and materialization. By developing a coherent, collective architectural language, there was an effectiveness in basic detailing and cost savings in implementation. With these basic details in hand, 3 individualized homes with different spatiality have been designed to fit the individual needs.

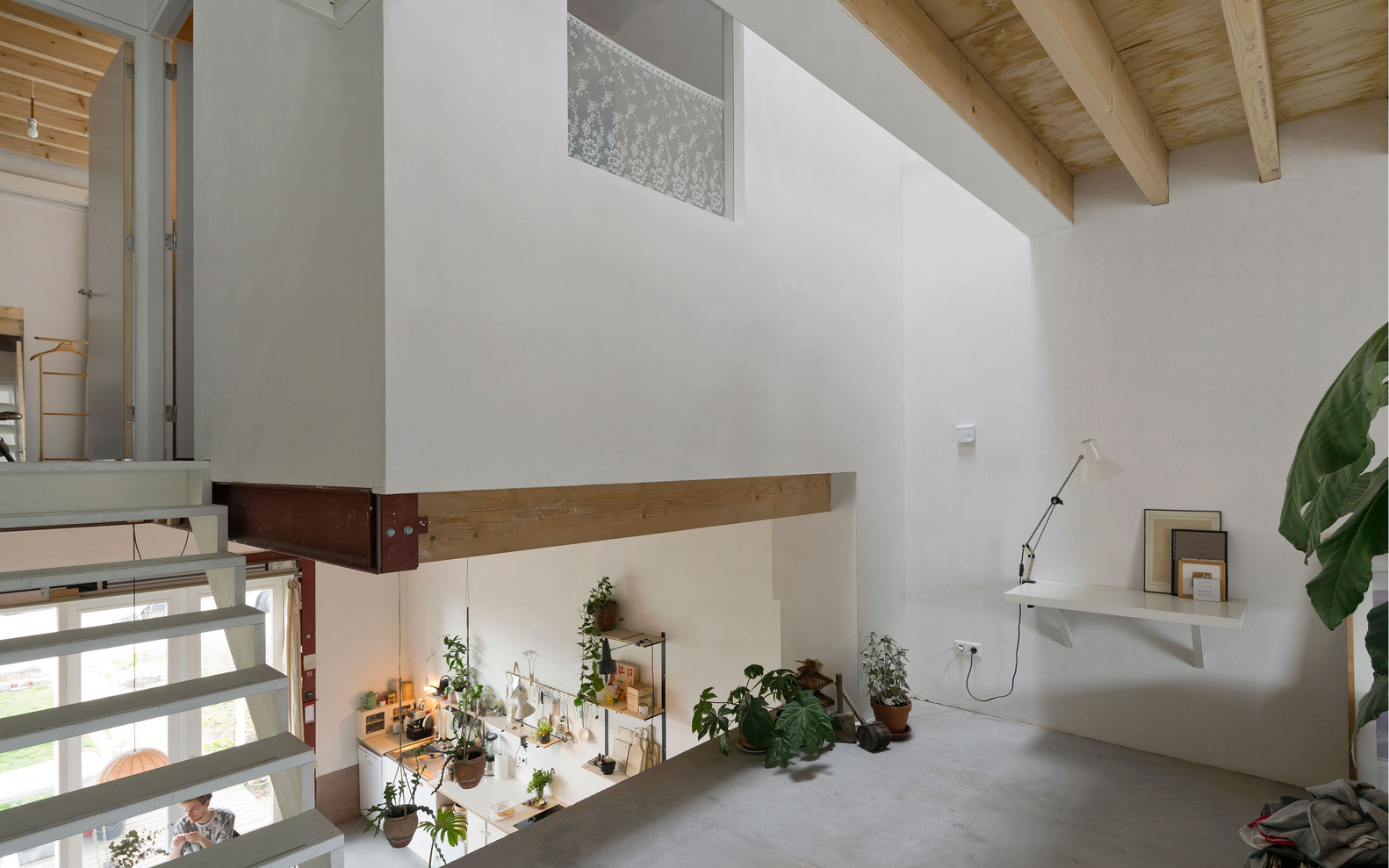

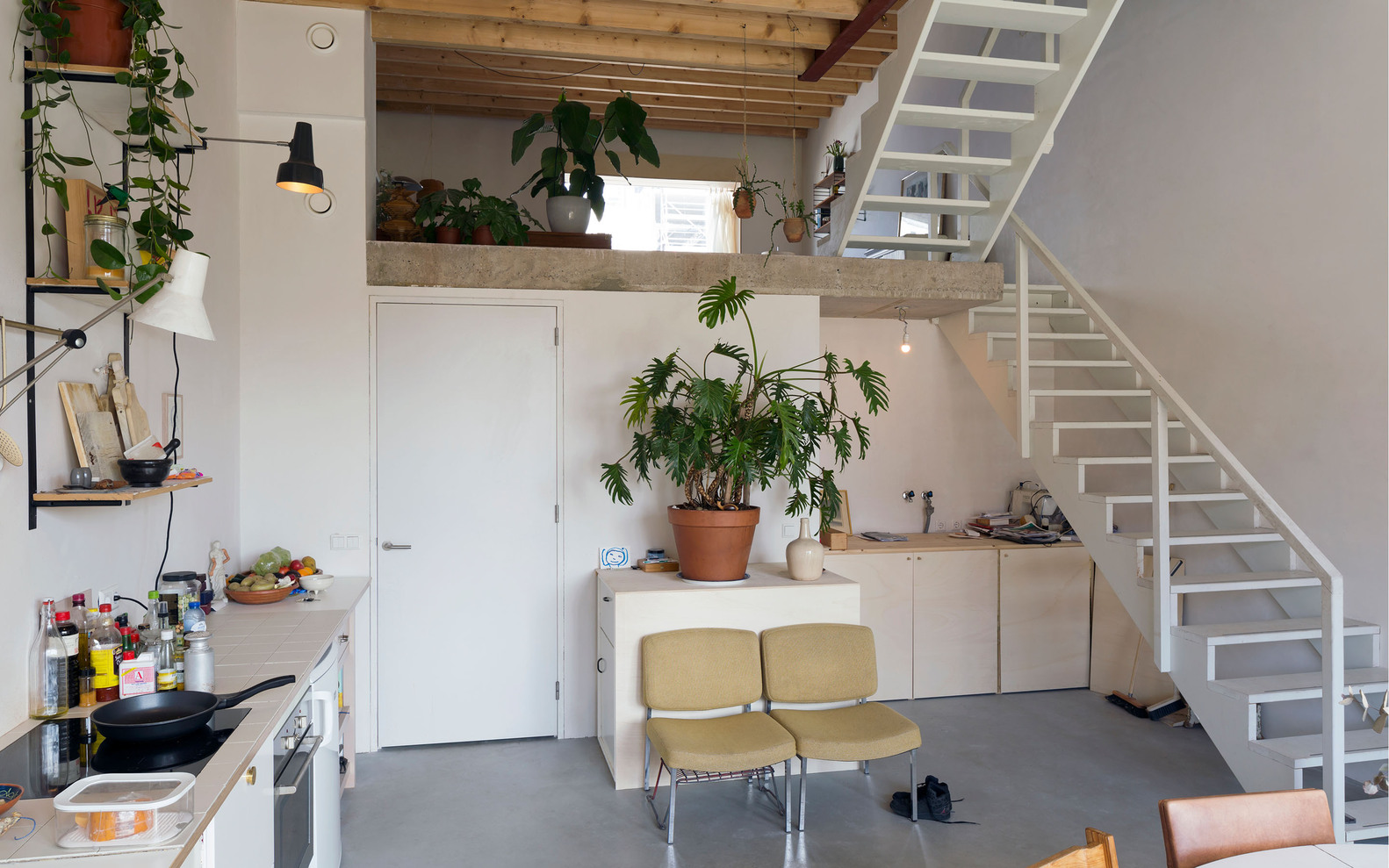

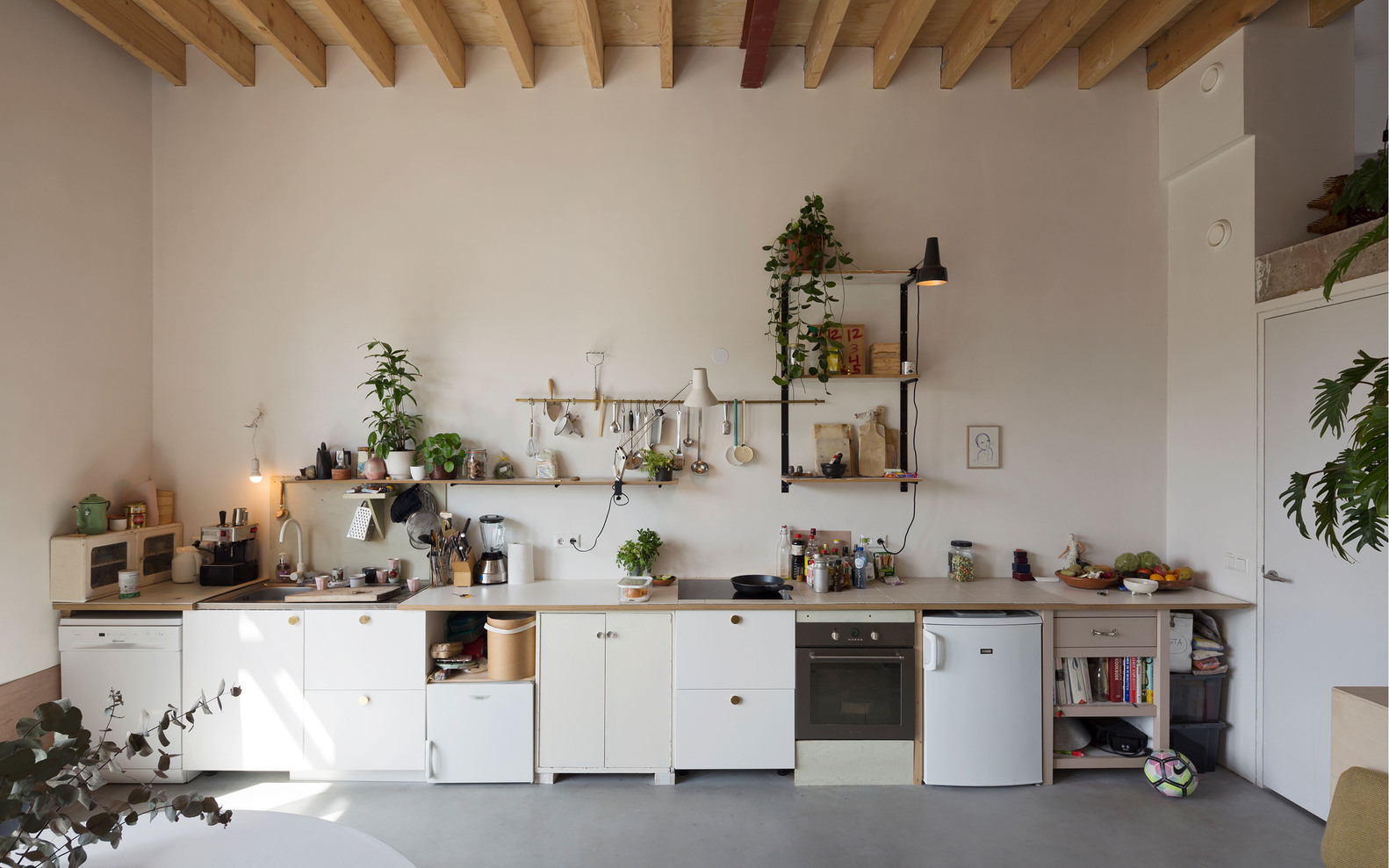

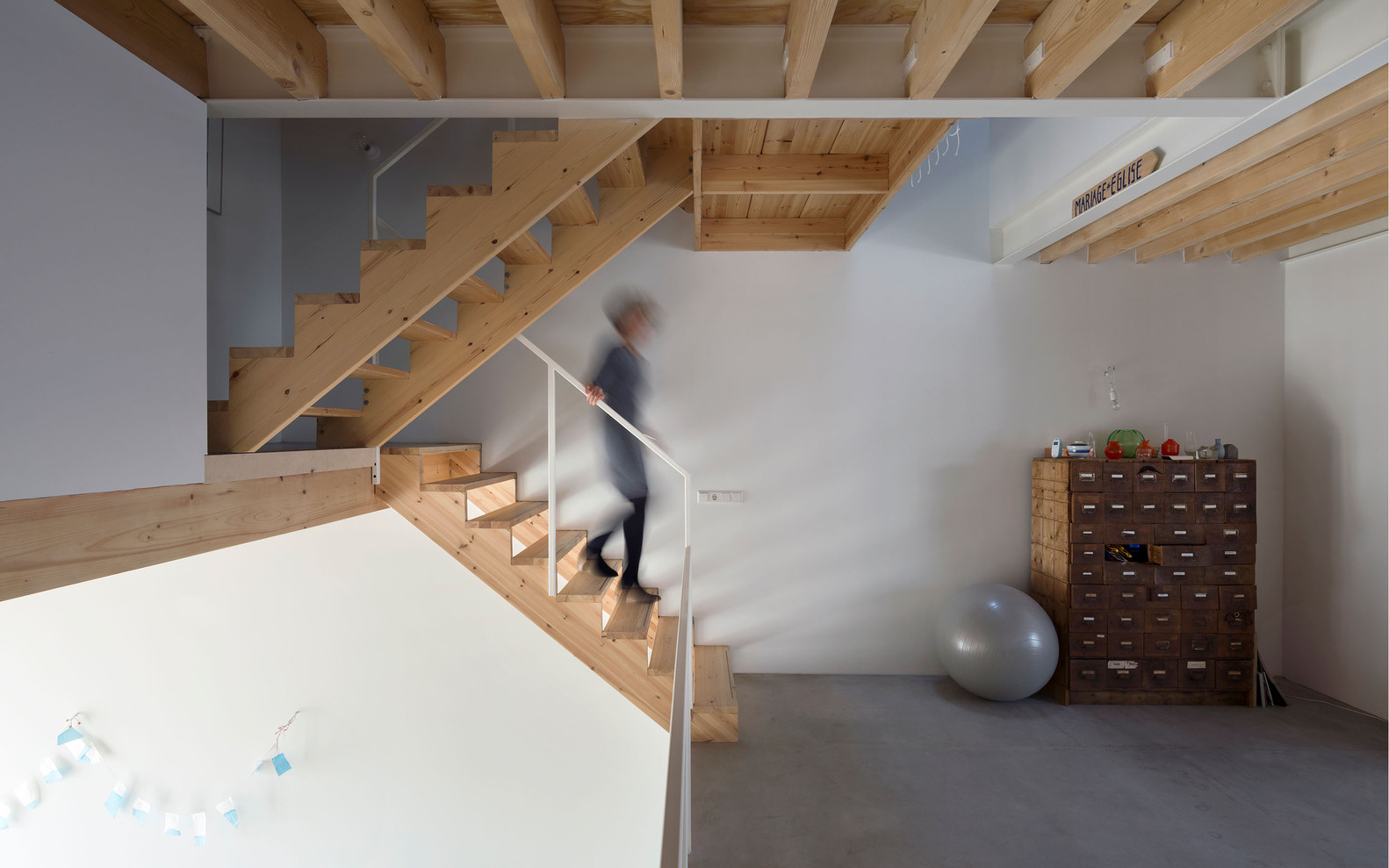

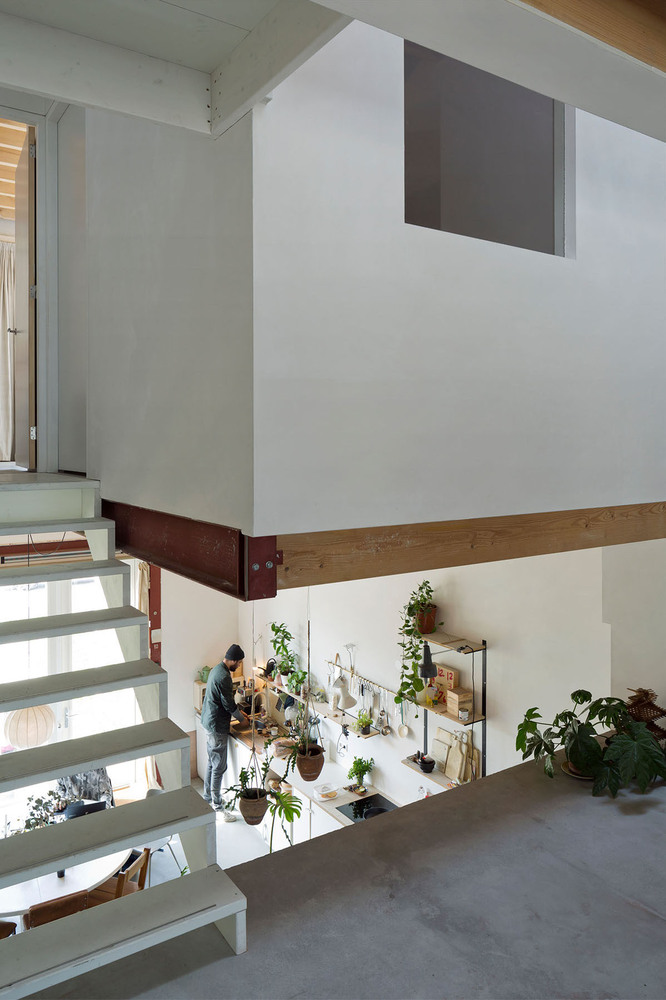

In the construction method, the choice was made to undress traditional building and to omit the usual added layers to the "bare necessities": construction turned into aesthetics. Floors are unfinished on both top and bottom. For this purpose, a combined wood-concrete floor was designed together with constructor Arup Amsterdam, in which a traditional wooden beam layer acted as a lost formwork for a concrete floor poured into the work, structurally coupled with diagonal nails. This was made by carpenters themselves, without subcontractors.

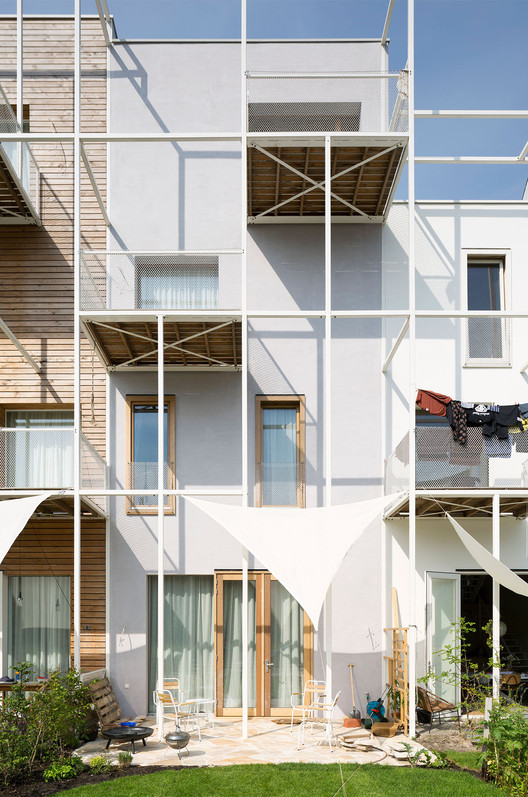

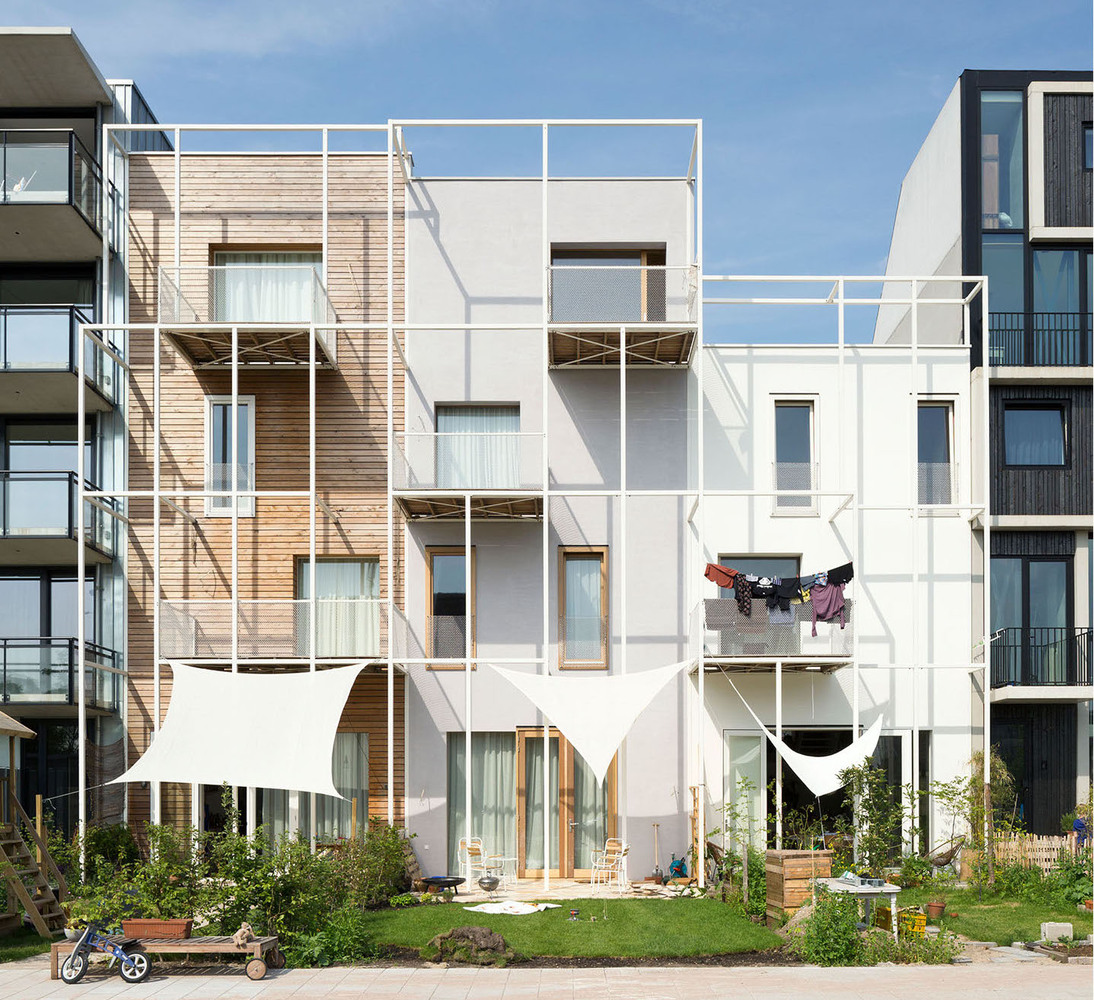

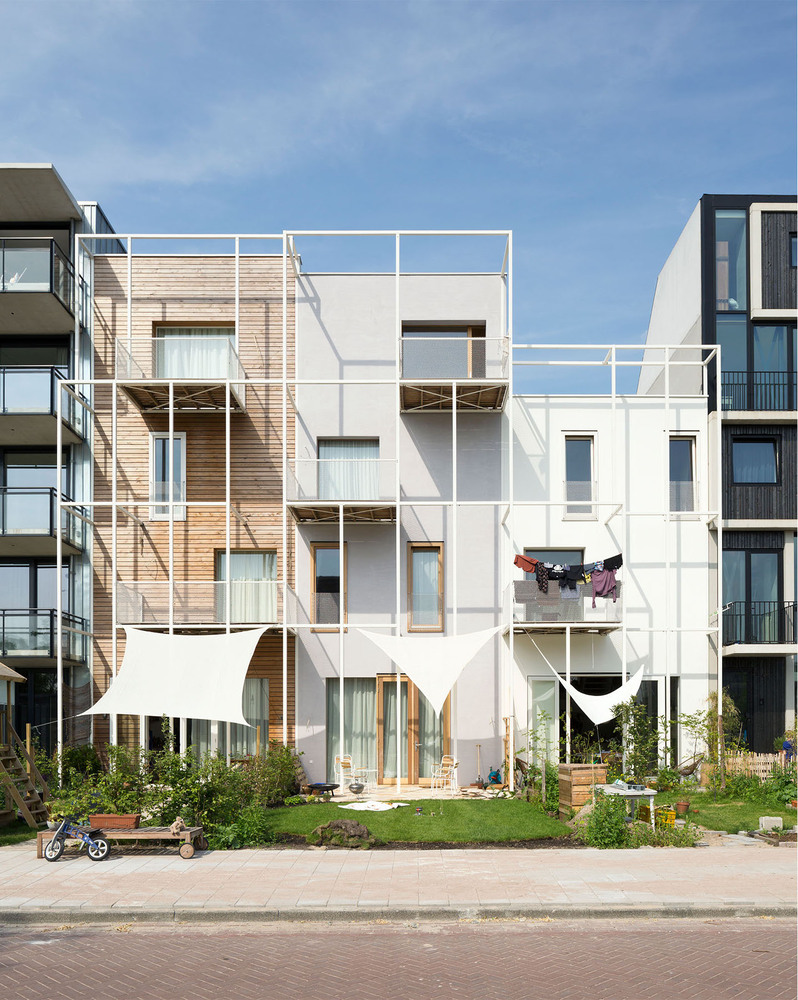

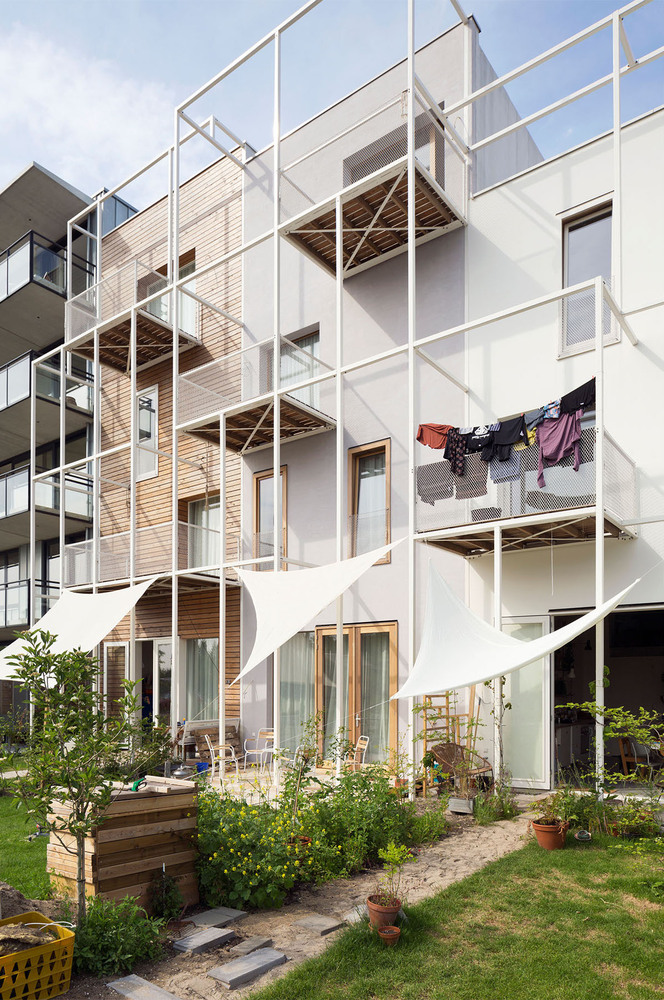

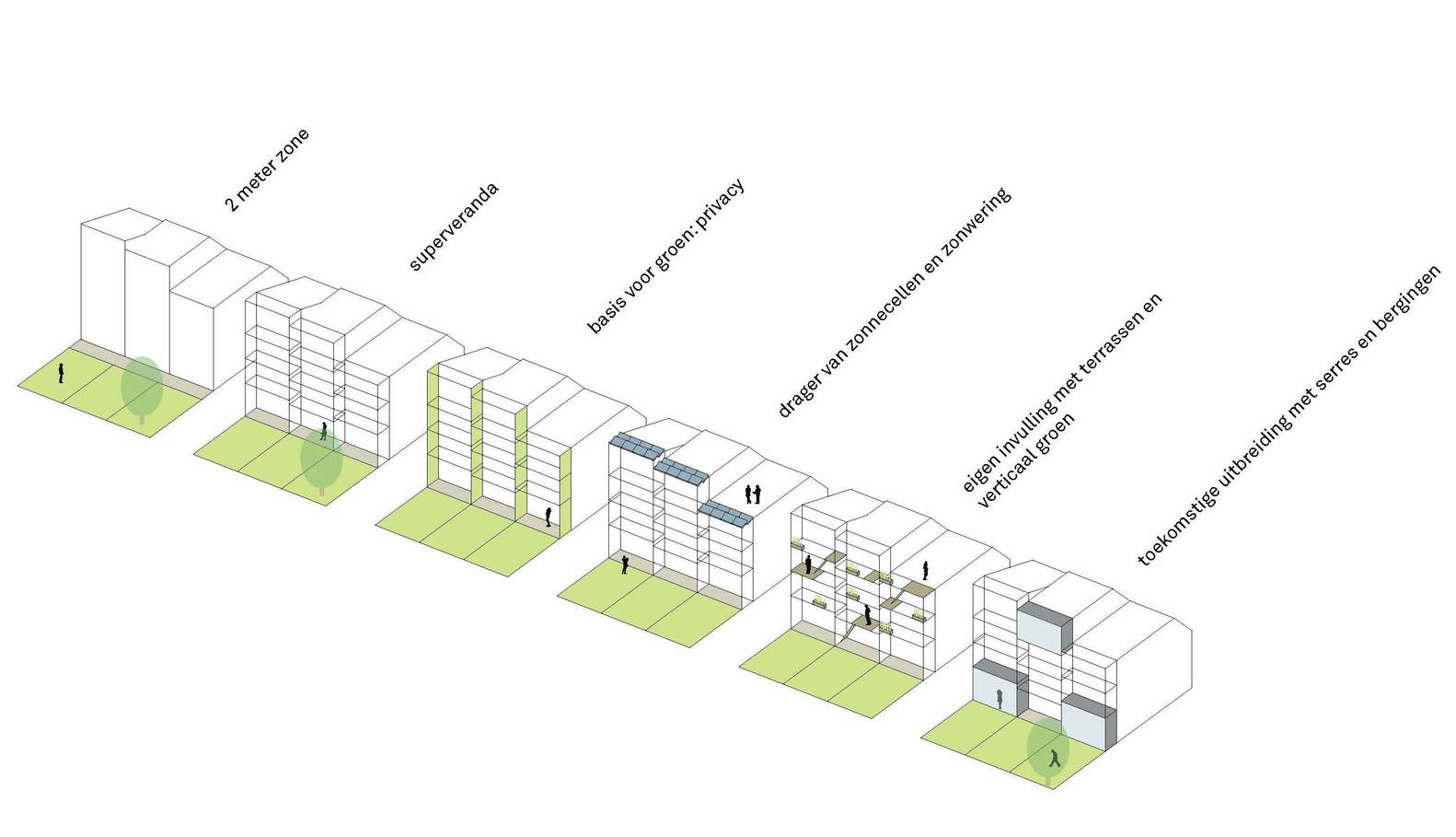

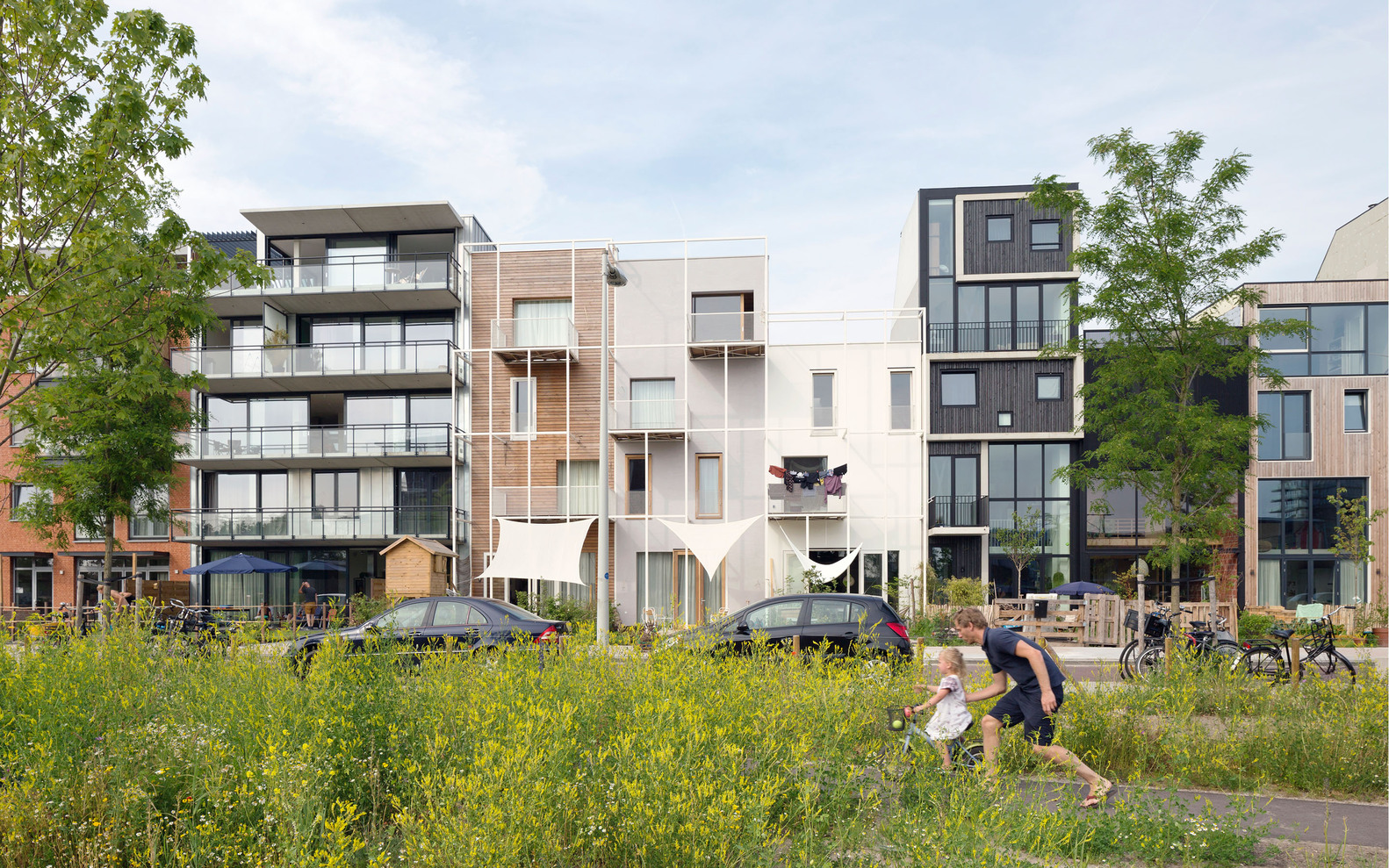

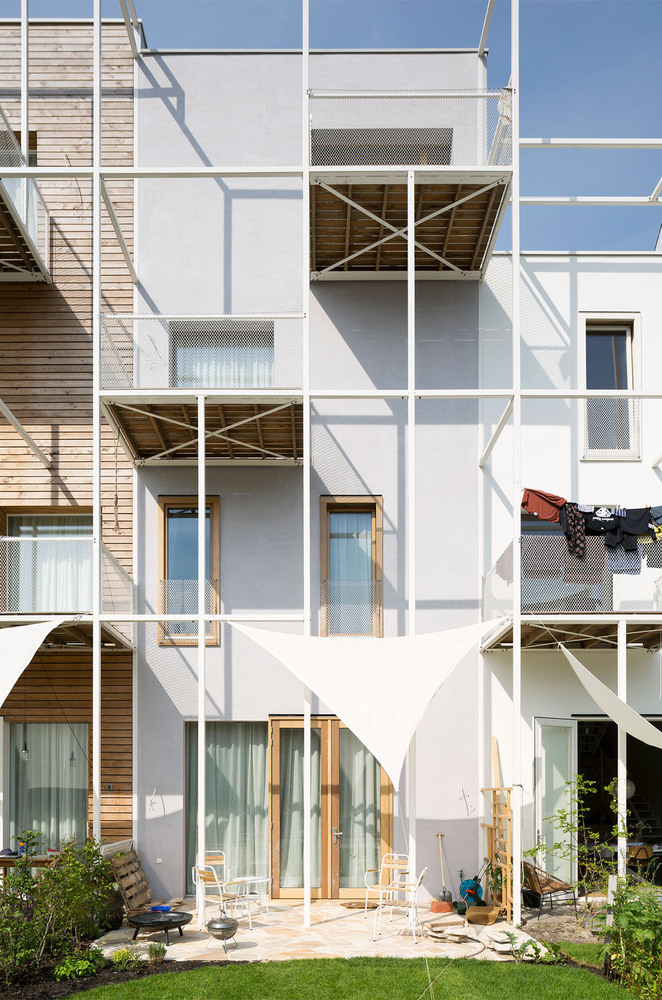

The collectivity was not only found in a common building system, but also in the facade. The houses have the same facade details, but an individual materialization. The three facades are connected again by the "super veranda". A steel frame – an abstraction of a traditional canal house façade - serves as a rack for individual interpretation: balconies, sun blinds, façade greenery, pv cells, laundry. With this element, a coherent project is set up, with 3 unique houses within.
