皮影戏

Architects:Howeler + Yoon Architecture

Year :2015

Photographs :Matt Winquist

Scope / Service : Architectural Installation

Client / Commissioning Entity : City of Phoenix

Area / Dimension : 100’ x 150’ x 15’

City : Phoenix

Country : United States

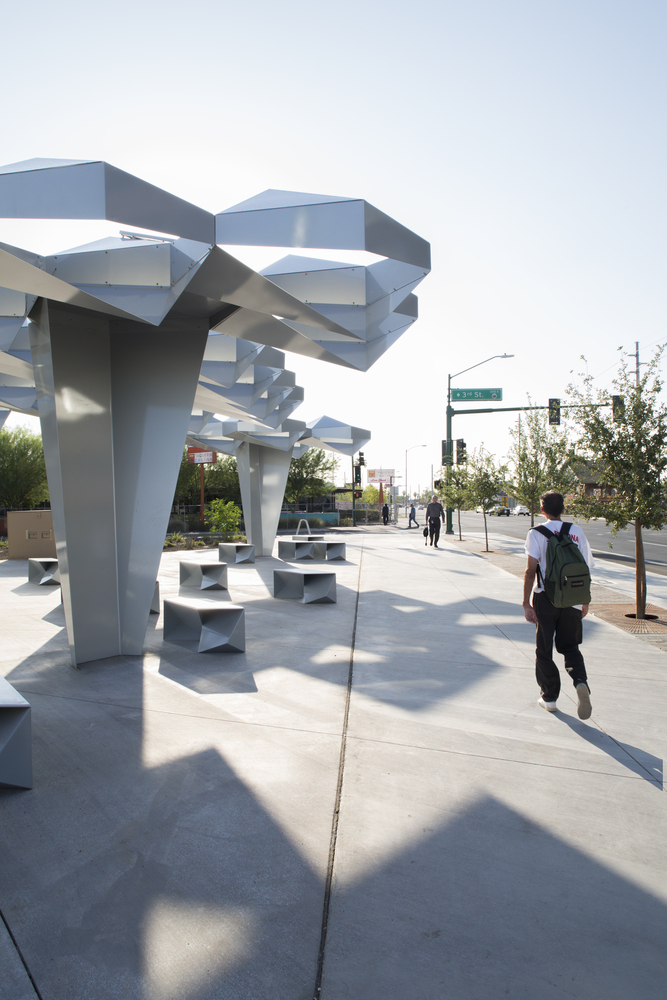

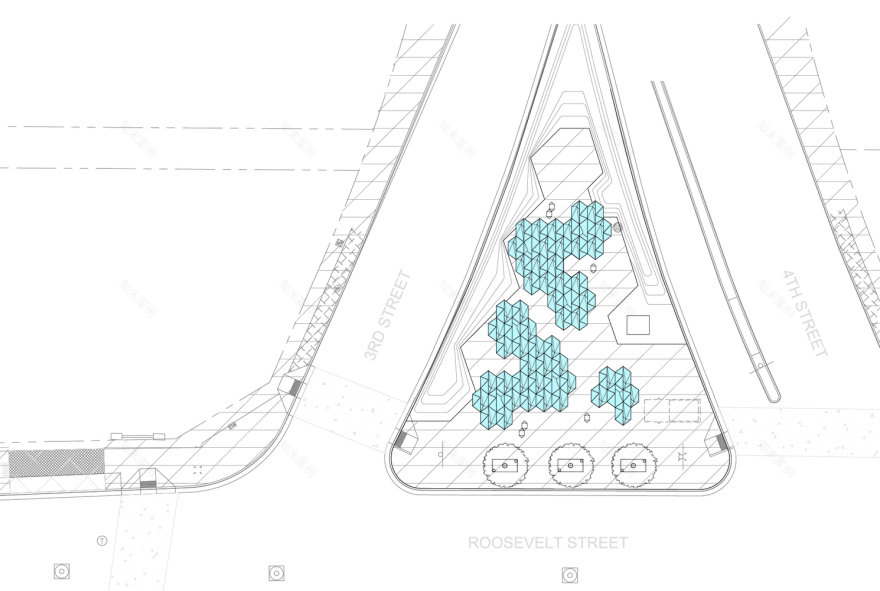

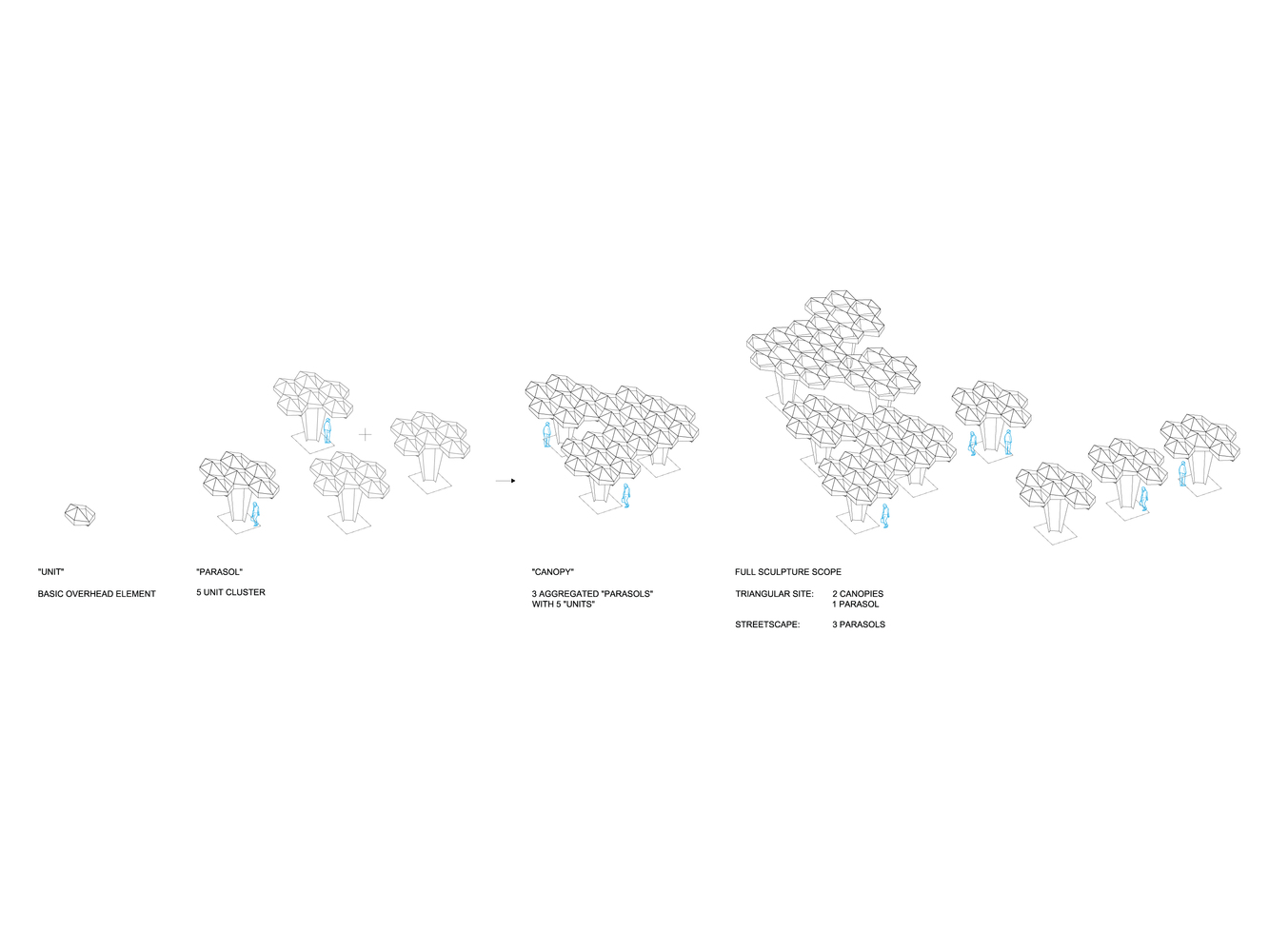

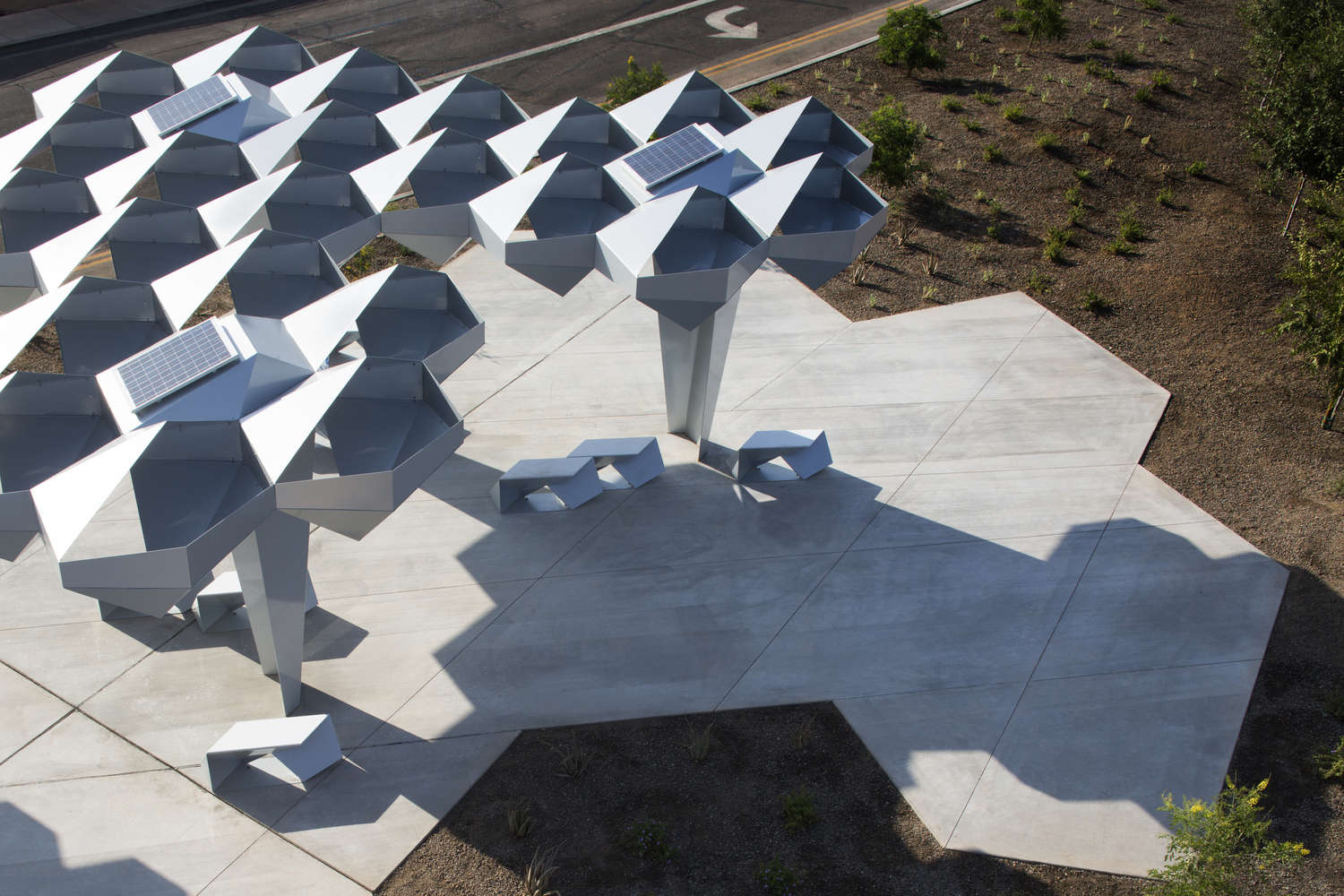

By transforming a traffic median into a public space, Shadow Play fosters pedestrian life and improves the downtown Phoenix streetscape at Roosevelt Row. Clusters of shade structures create respite from the desert sun by offering a public parasol at an urban scale. Shadow Play's hovering canopy is formed from an aggregation of identical geometric modules.

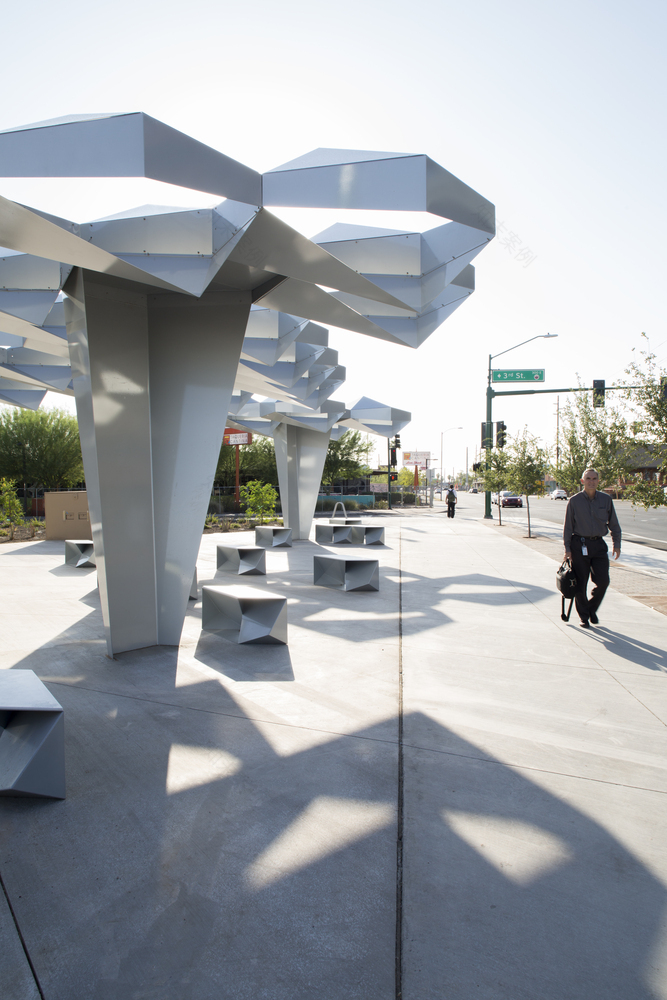

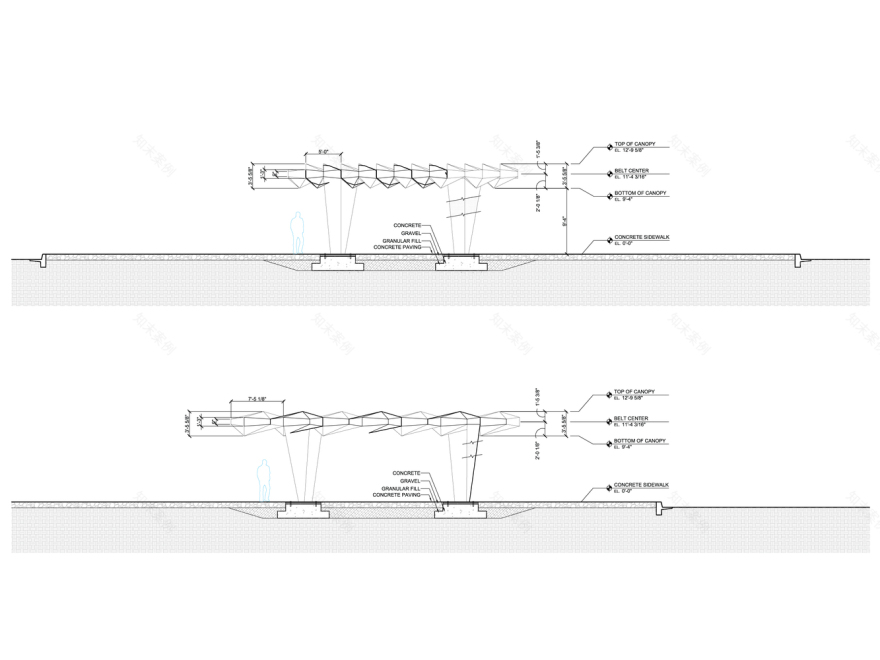

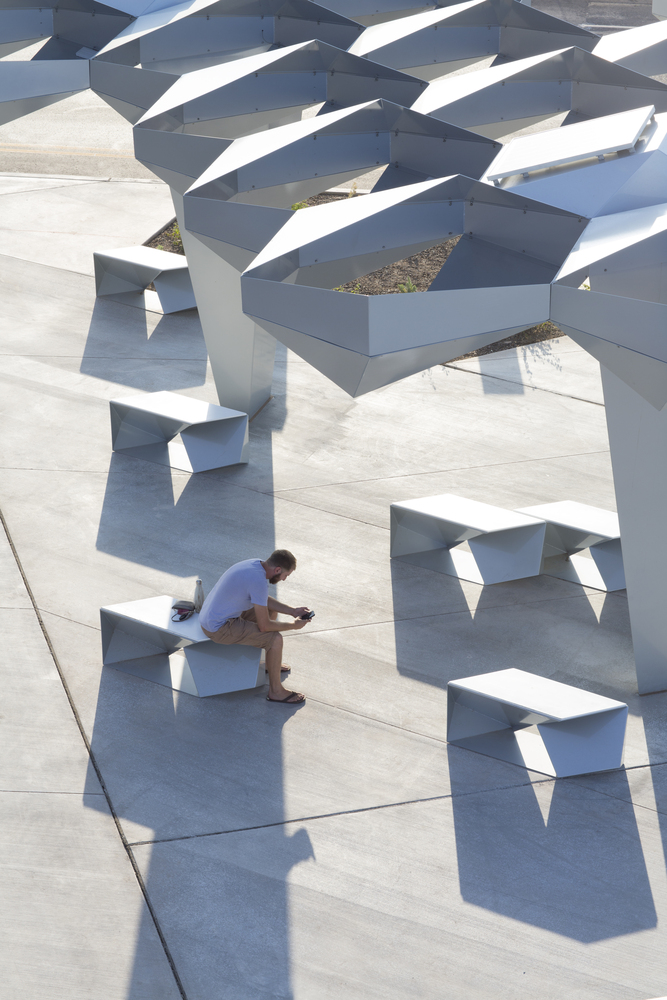

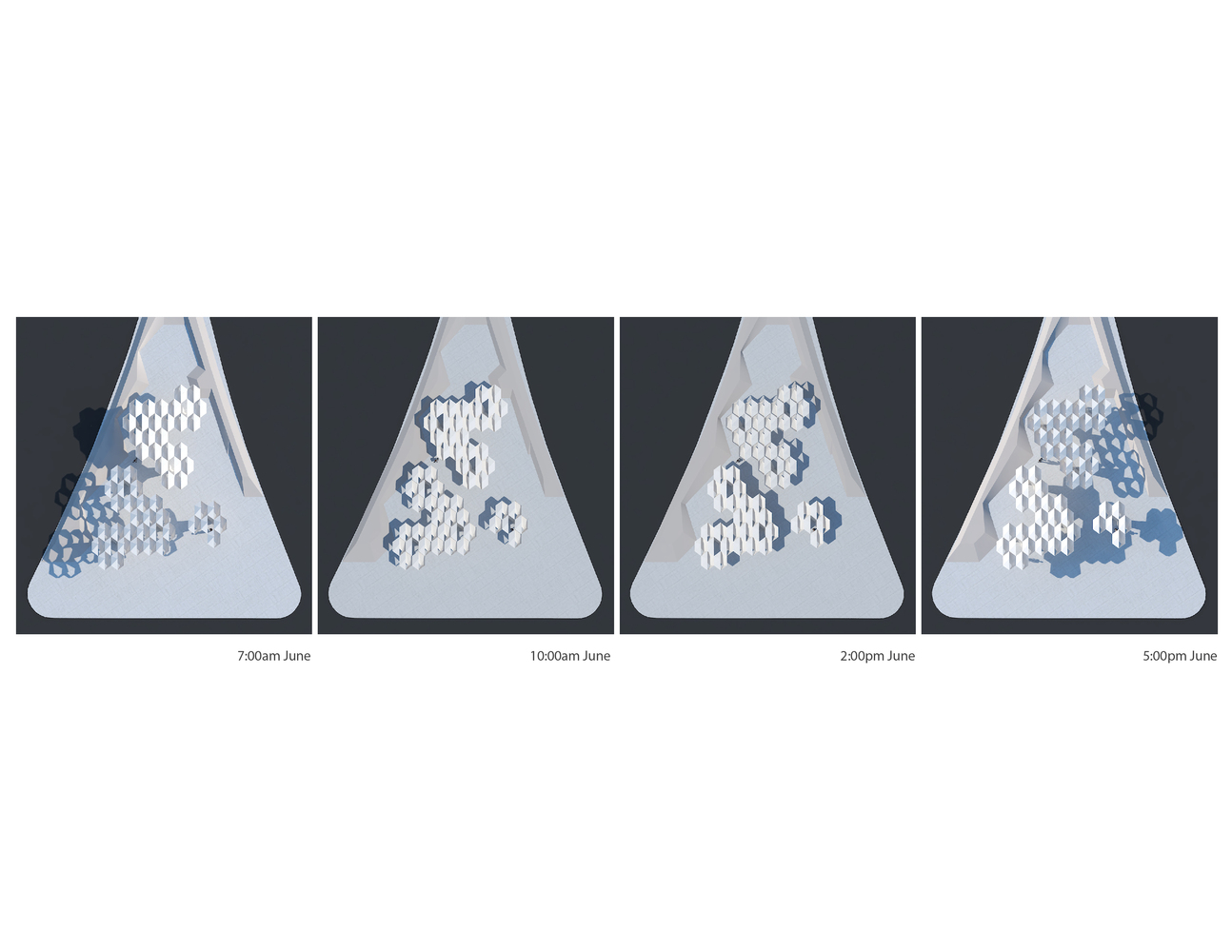

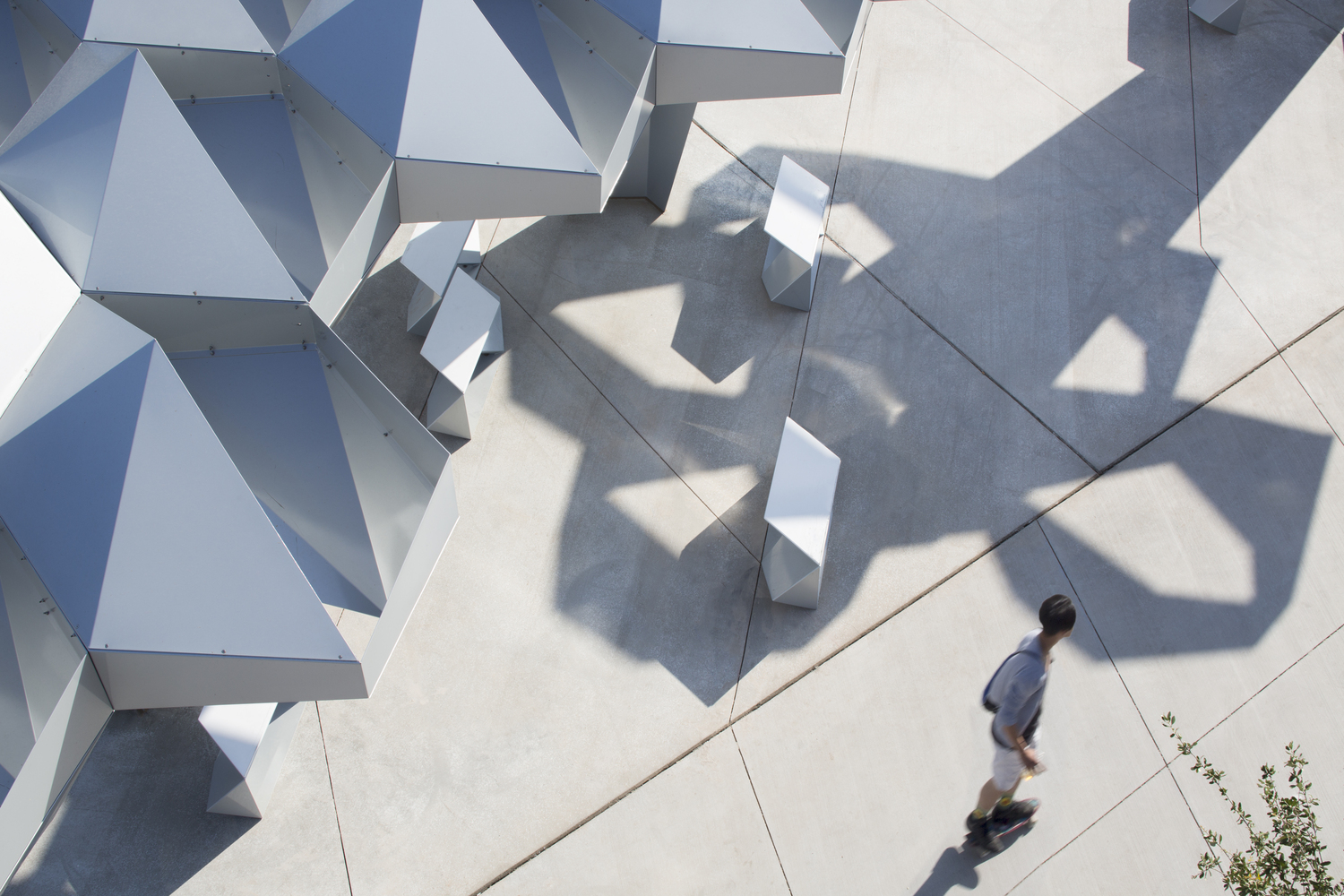

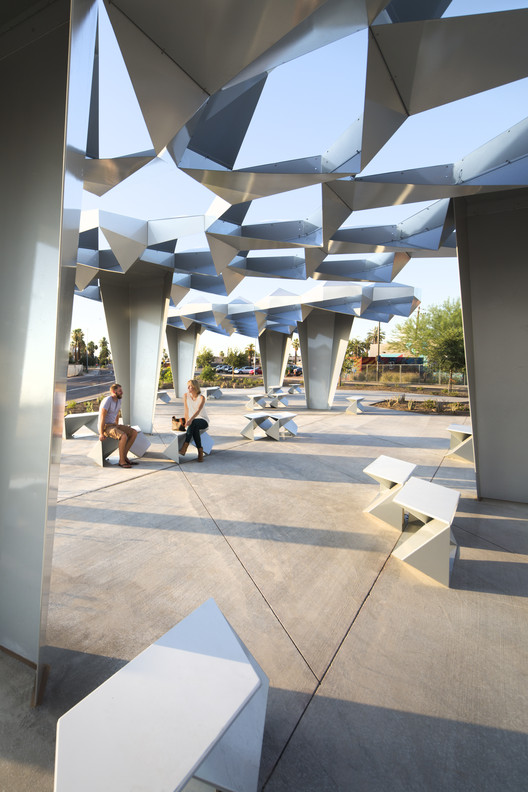

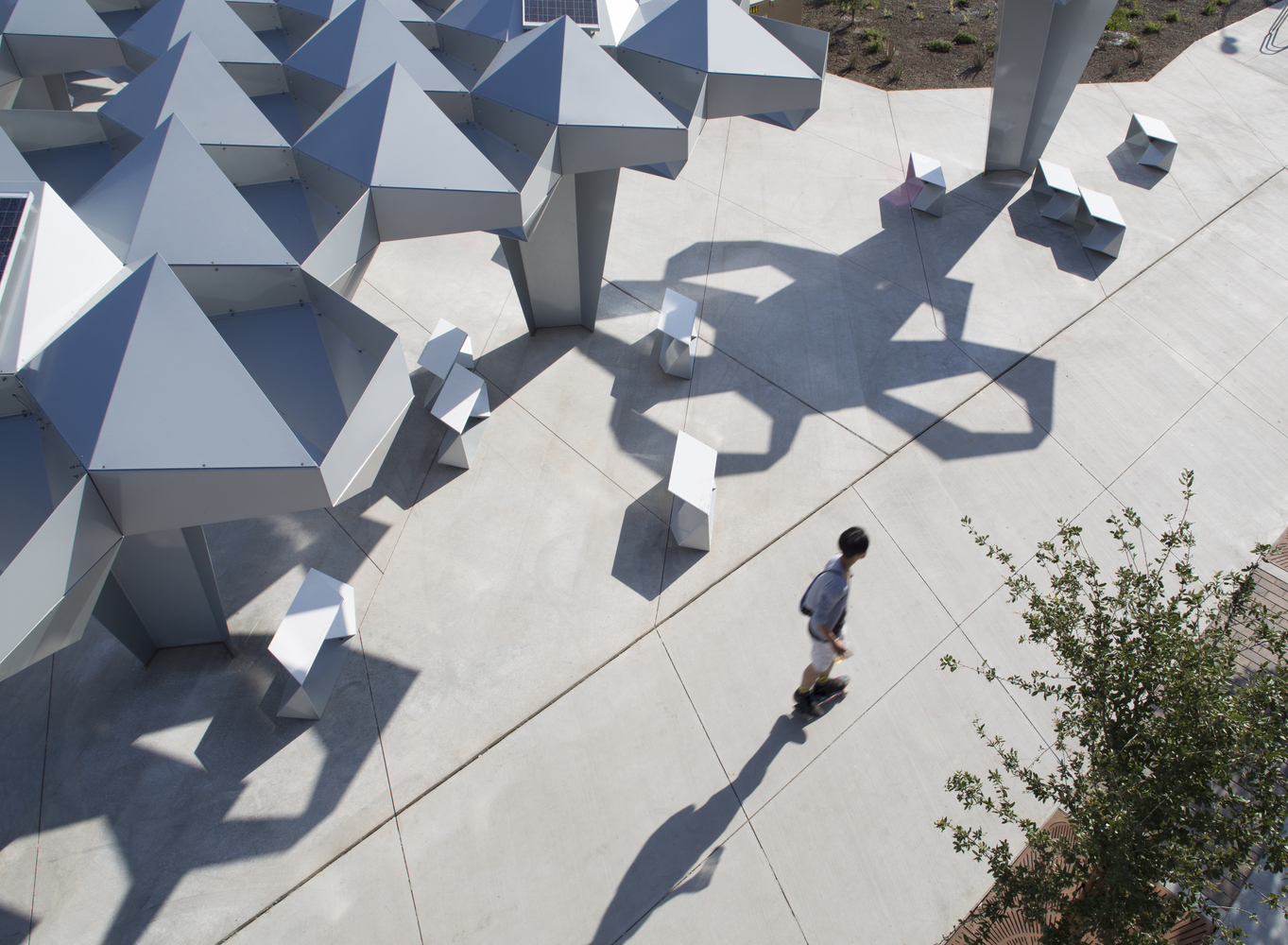

Each module is fabricated from a steel plate to create a thin but structurally rigid cell. The aggregation of individual cells form clusters that span between vertical supports to create an angular canopy of open cells. The folded steel cells filter the intense sunlight, casting shadows on the ground and creating local micro-climate in the shade. The geometry of the canopy maximizes the production of shade and shadow while allowing for breezes and air movement.

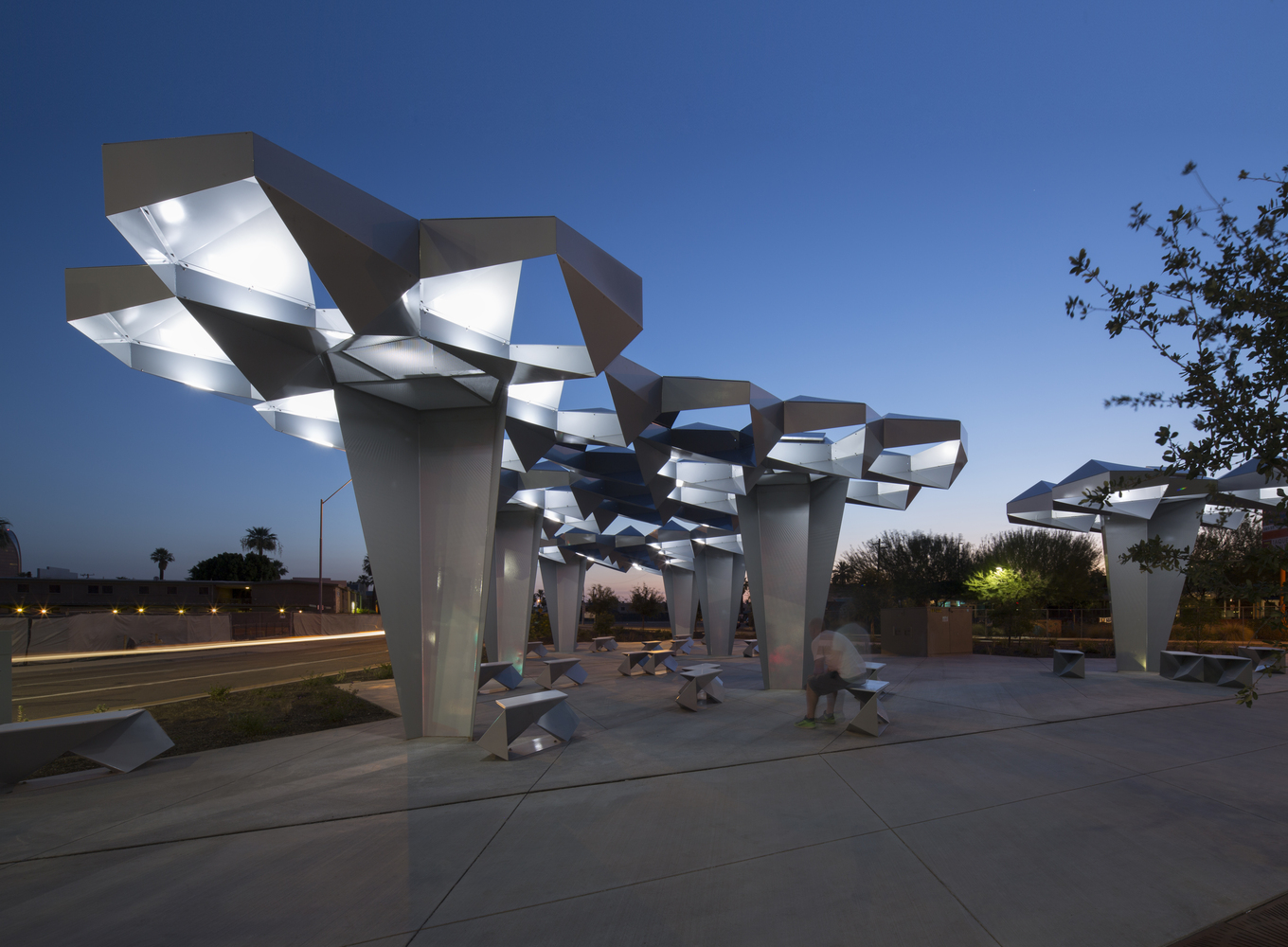

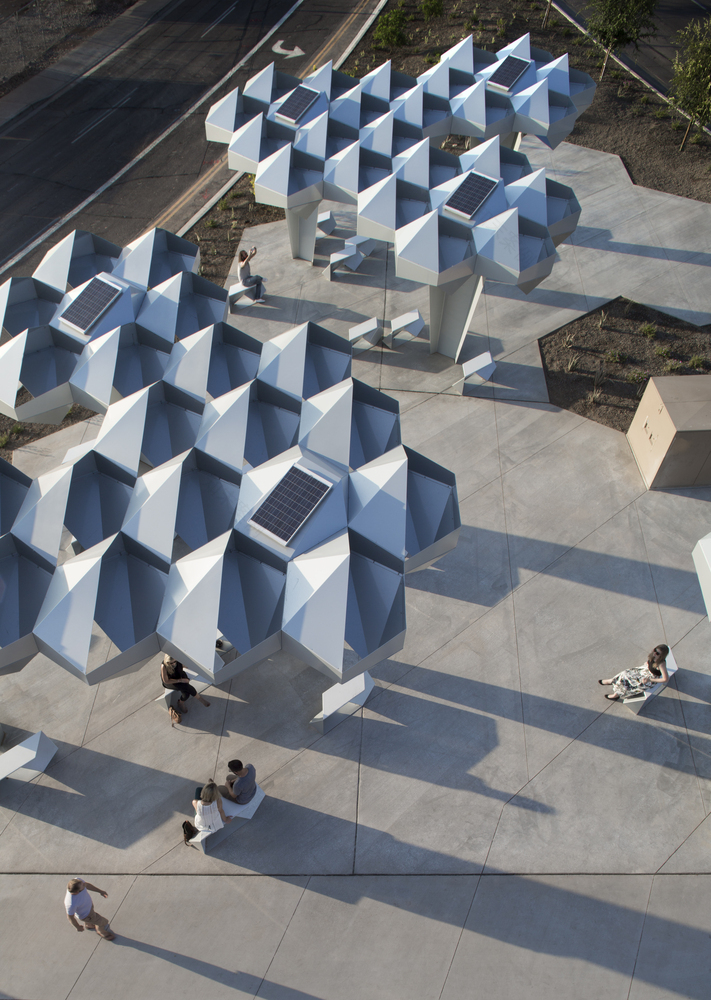

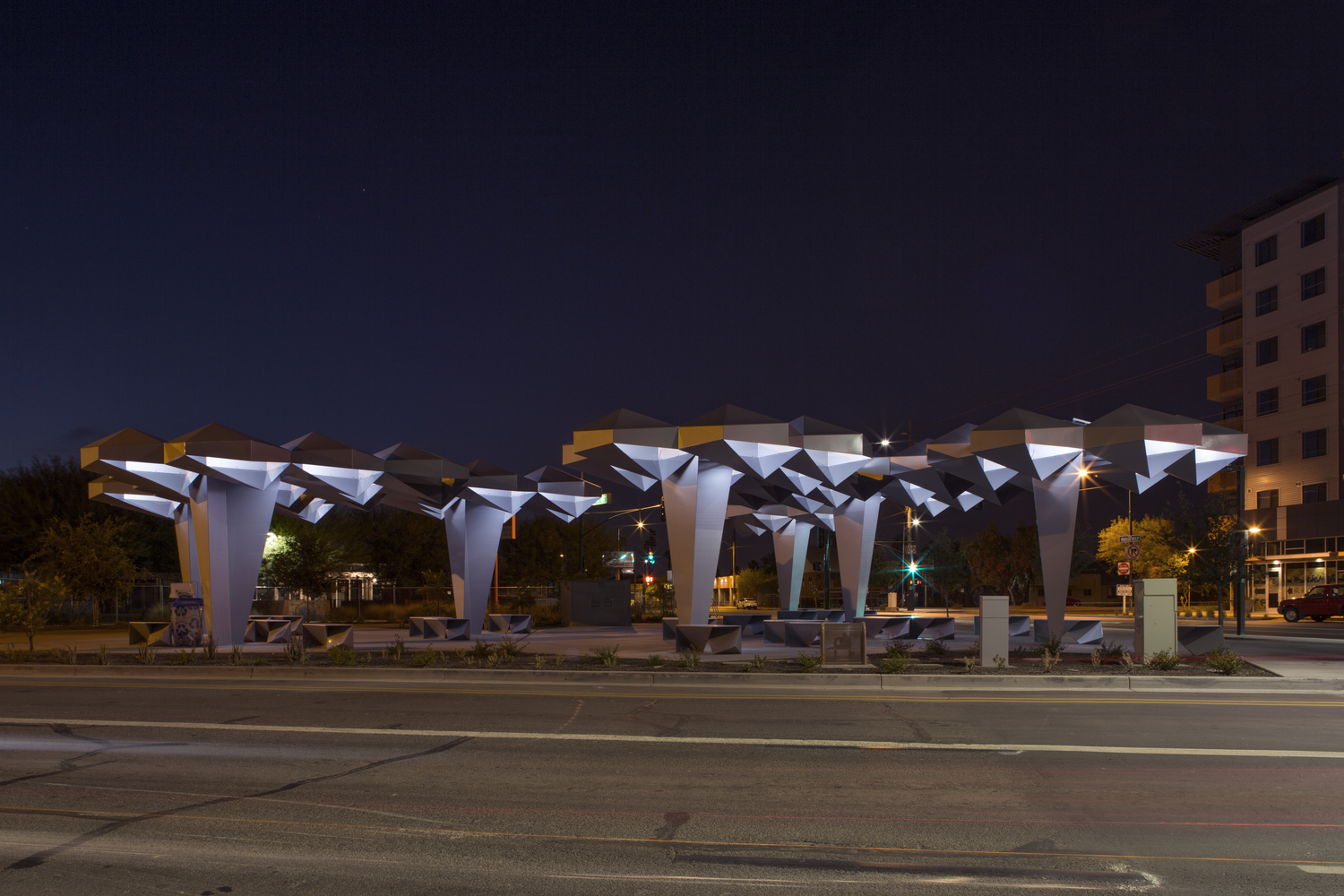

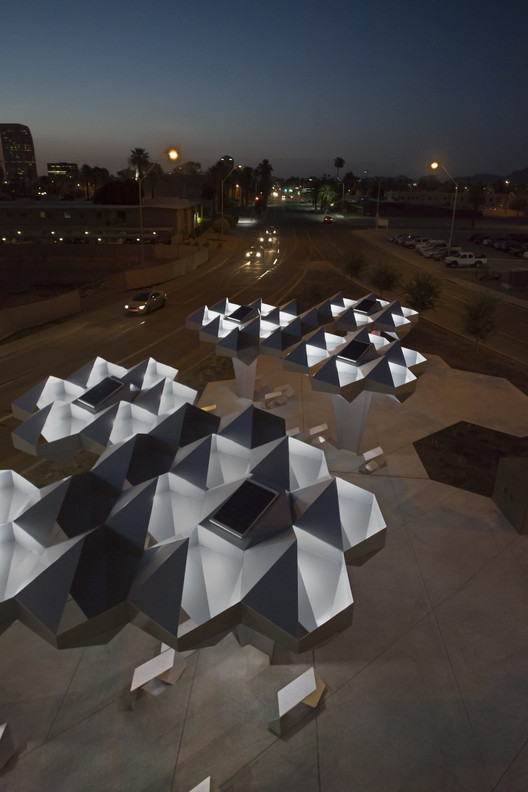

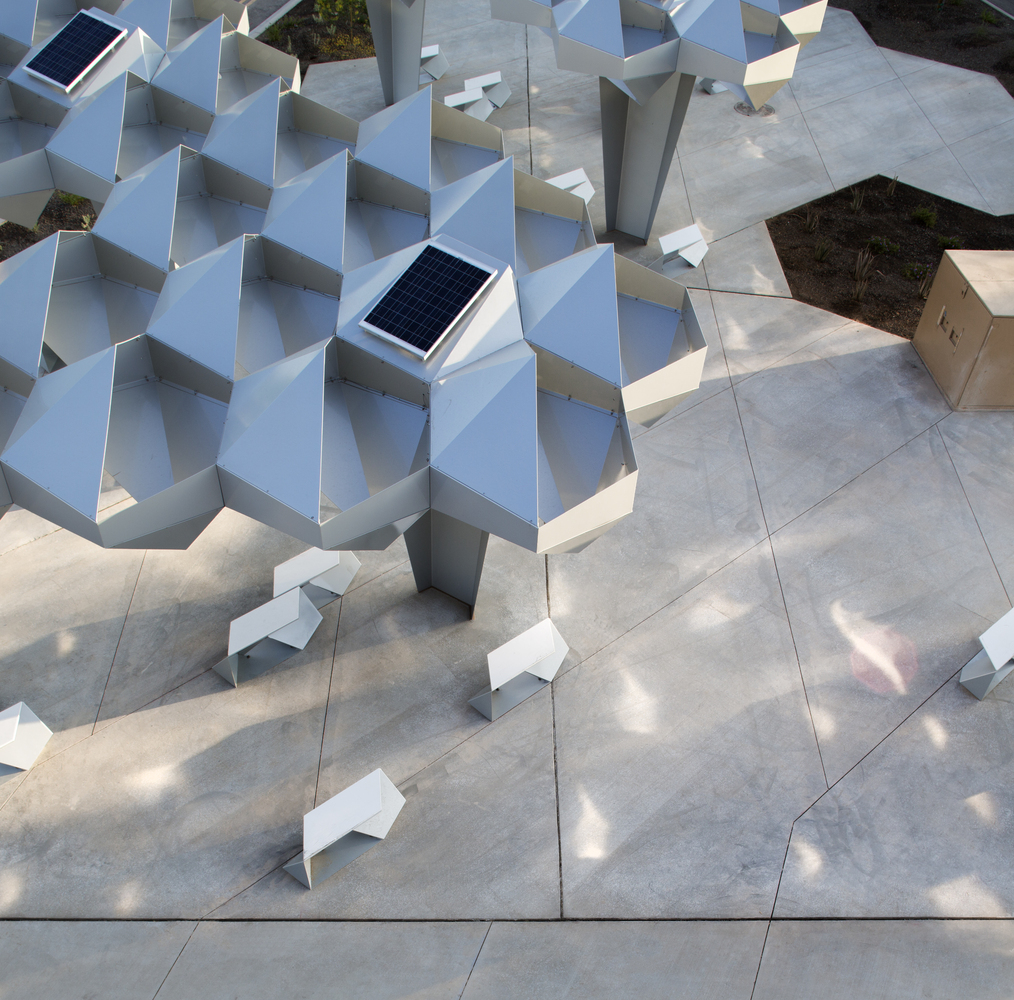

Photovoltaic panels are mounted to the top surface of the canopy, taking advantage of the optimally oriented geometry of the steel cells. Power generated by the photovoltaic panels is stored in batteries, allowing the canopy to be illuminated from within in the evening time.

As an urban platform to reclaim under-used public space, Shadow Play foregrounds its environment to create a site-specific collective place within downtown Phoenix.
