颠覆常规的空中别墅 · Z·5 Design Building

Architects:Amir Mann-Ami Shinar Architects and Planners

Area :8500 m²

Year :2019

Photographs :Omri Amsalem

Landscape :Noga Altar

Architect In Charge : Ami Shinar

Design Team : Barak Levy, Yahav Lederer

Clients : Zalman Zecharya Investments

Engineering And Construction : Yaacov Guttman

Collaborators : Zigi Zohar, Lobby design

Engineering : Yaacov Guttman

Construction : Yaacov Guttman

City : Ramat Hasharon

Country : Israel

Following our award winning Z Design building of 2013, Z-5 building, completed recently, takes even a further step in sharpening the "villa in the air" concept. We aim to present here another alternative typology vs. the too common "apartment block", so typical of contemporary residential architecture all around us.

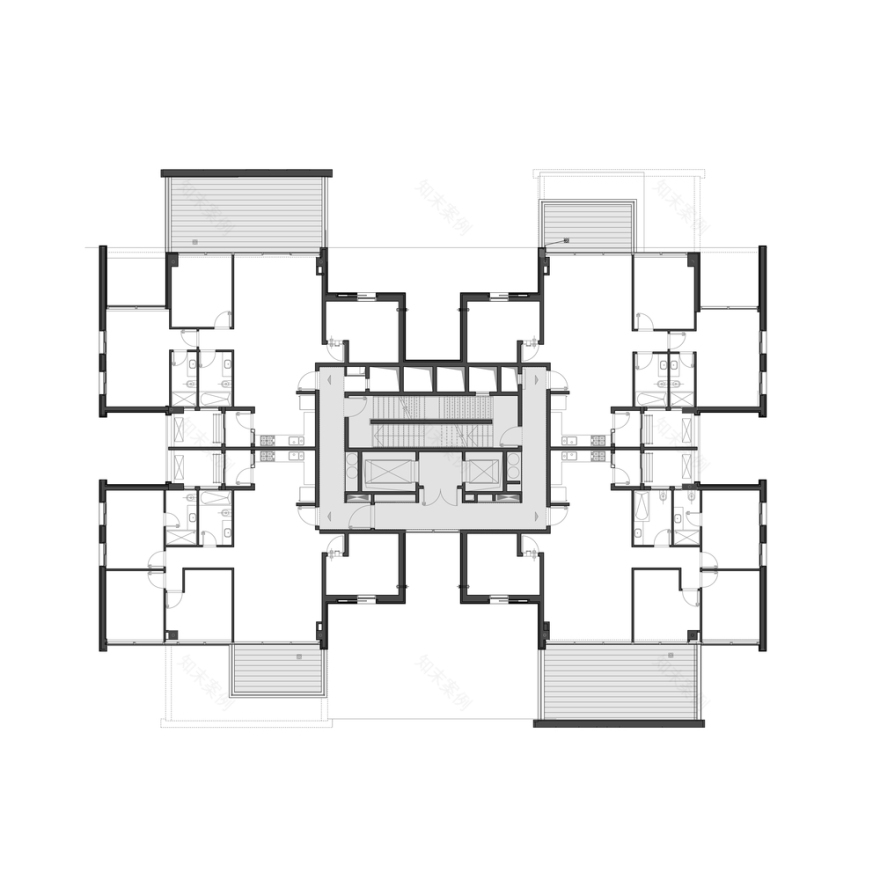

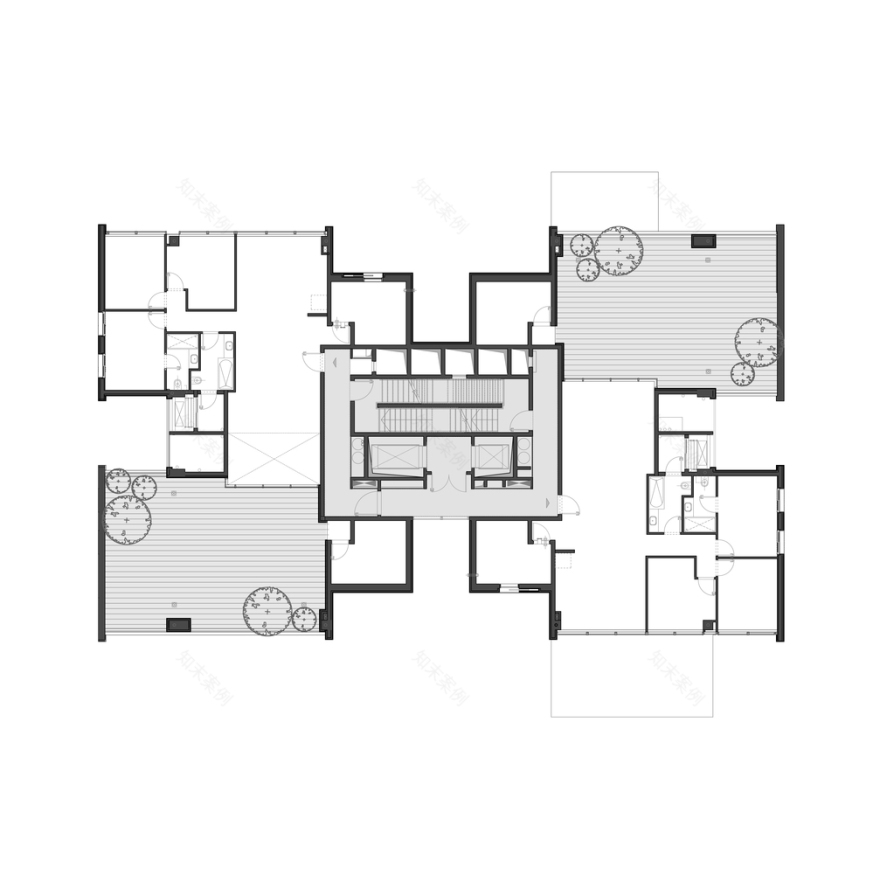

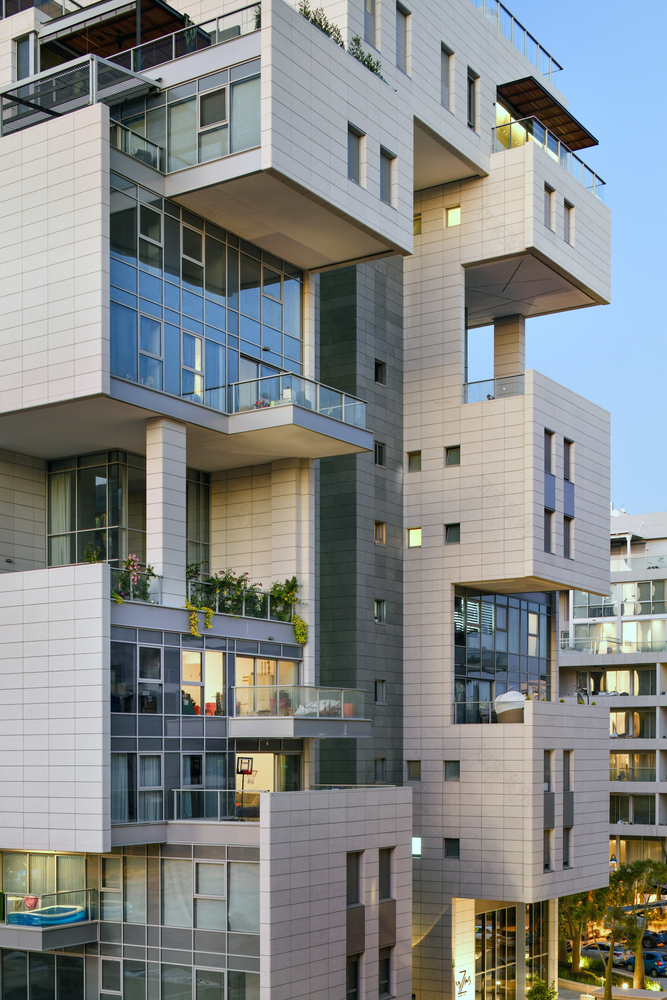

The plan is basically simple, comprised of four units per floor. But there is no "typical floor". By rotating some of the 33 units and subtracting others in certain floors, we break the uniform block: a three dimensional composition is achieved. Thus, while all apartments are "planted" around the building core, each is almost disconnected from its neighbors. As a by-product of this composition, various private roof terraces are created, some are small -15 sqm, and some large - 100 sqm.

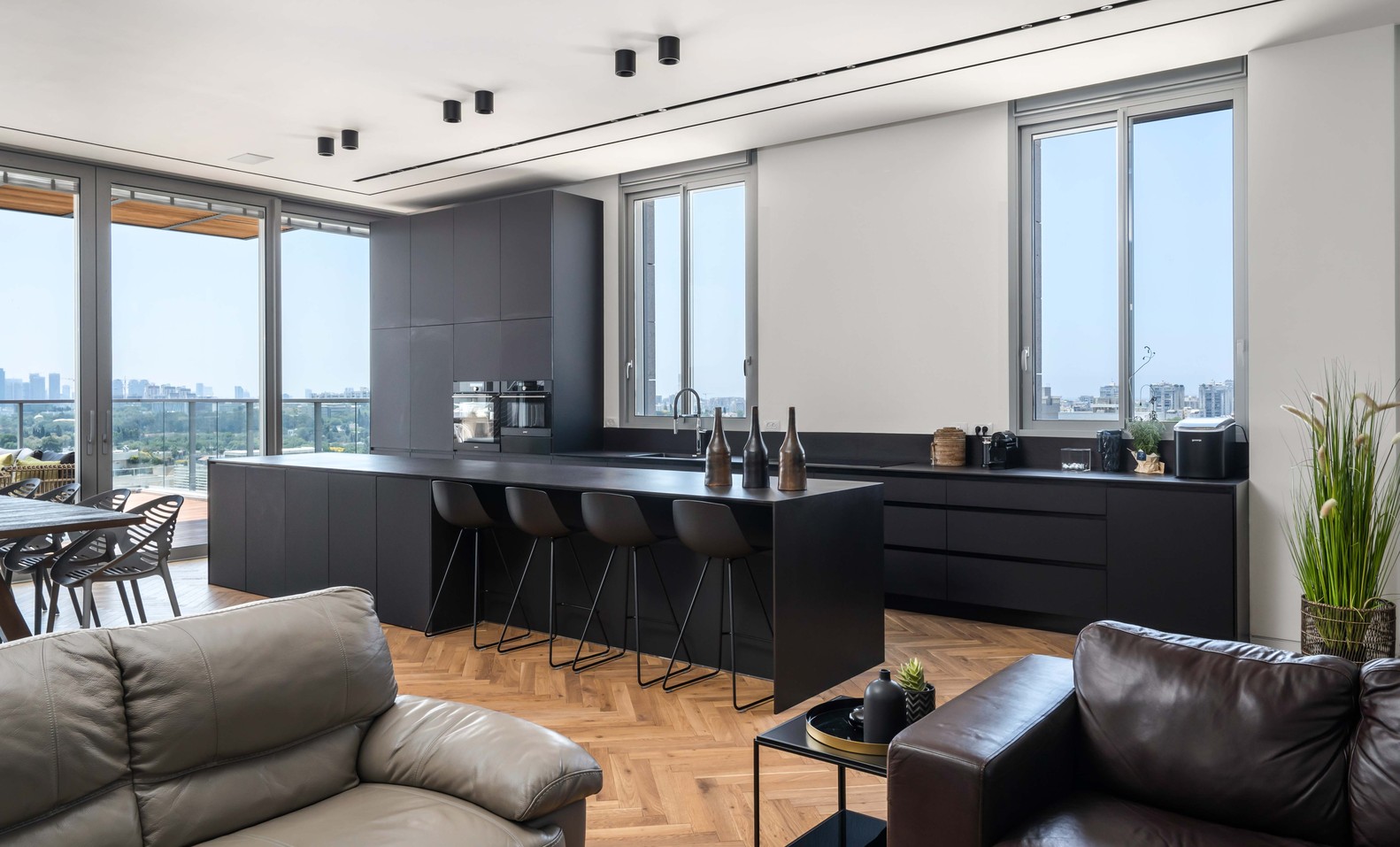

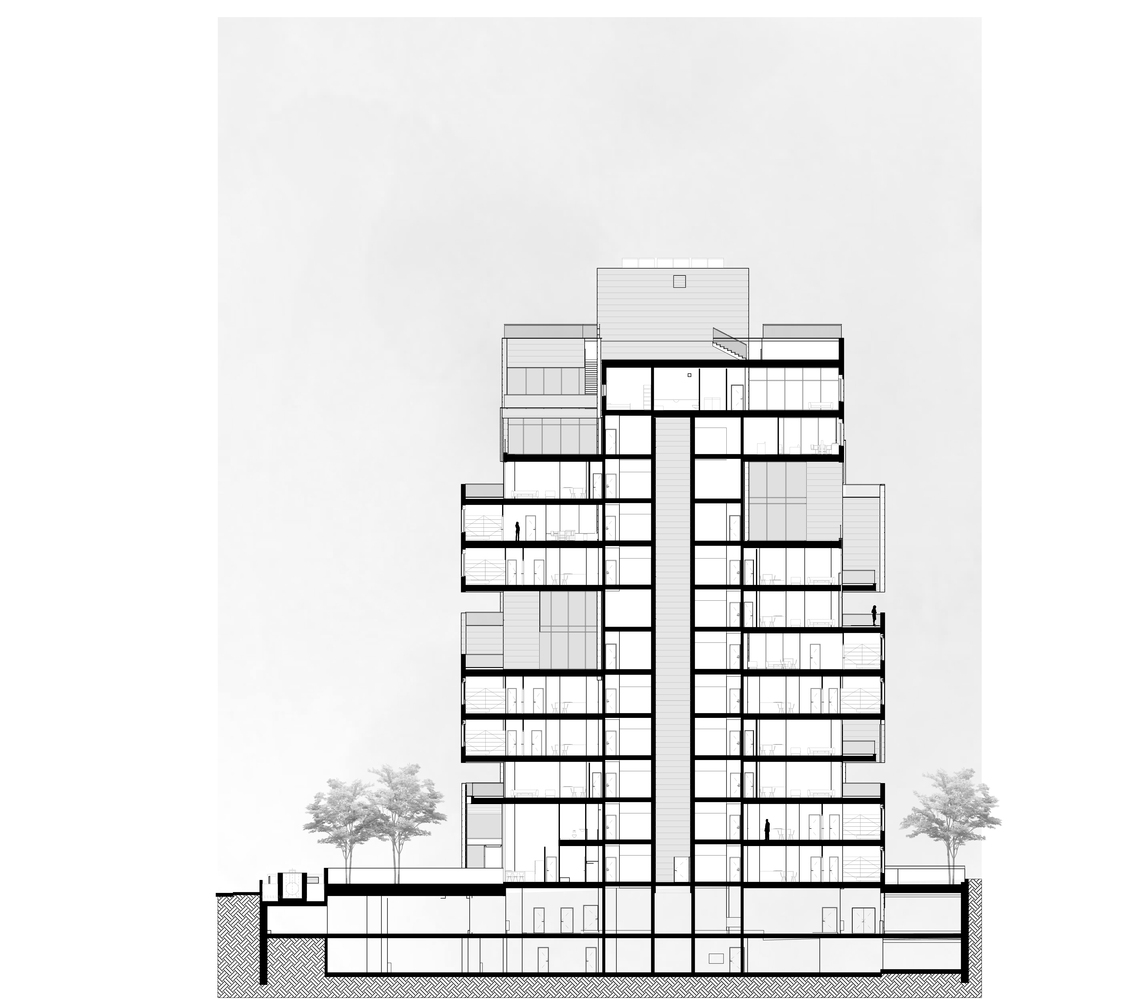

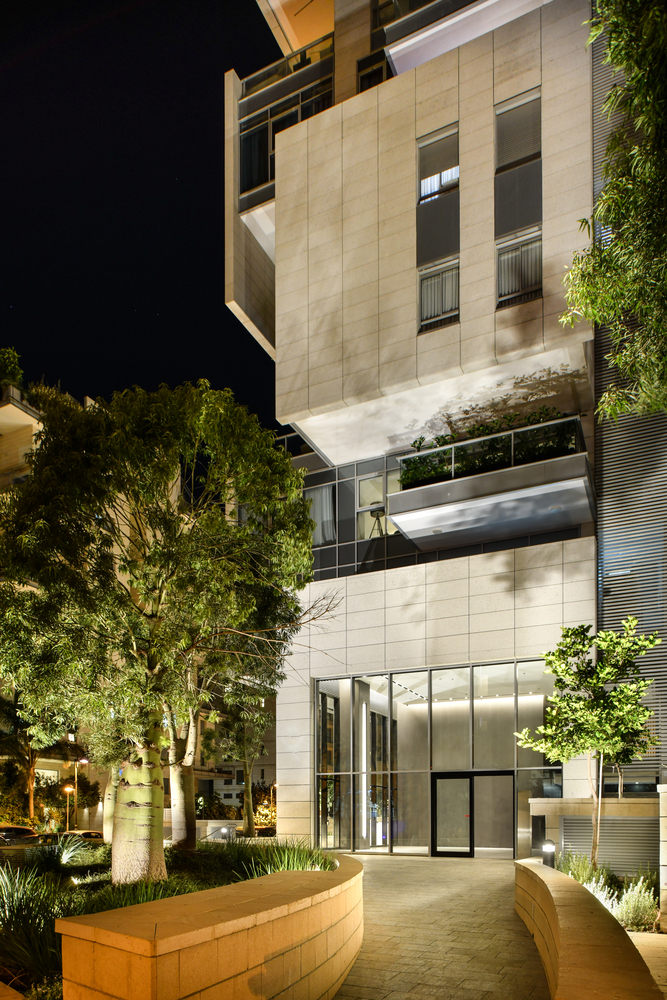

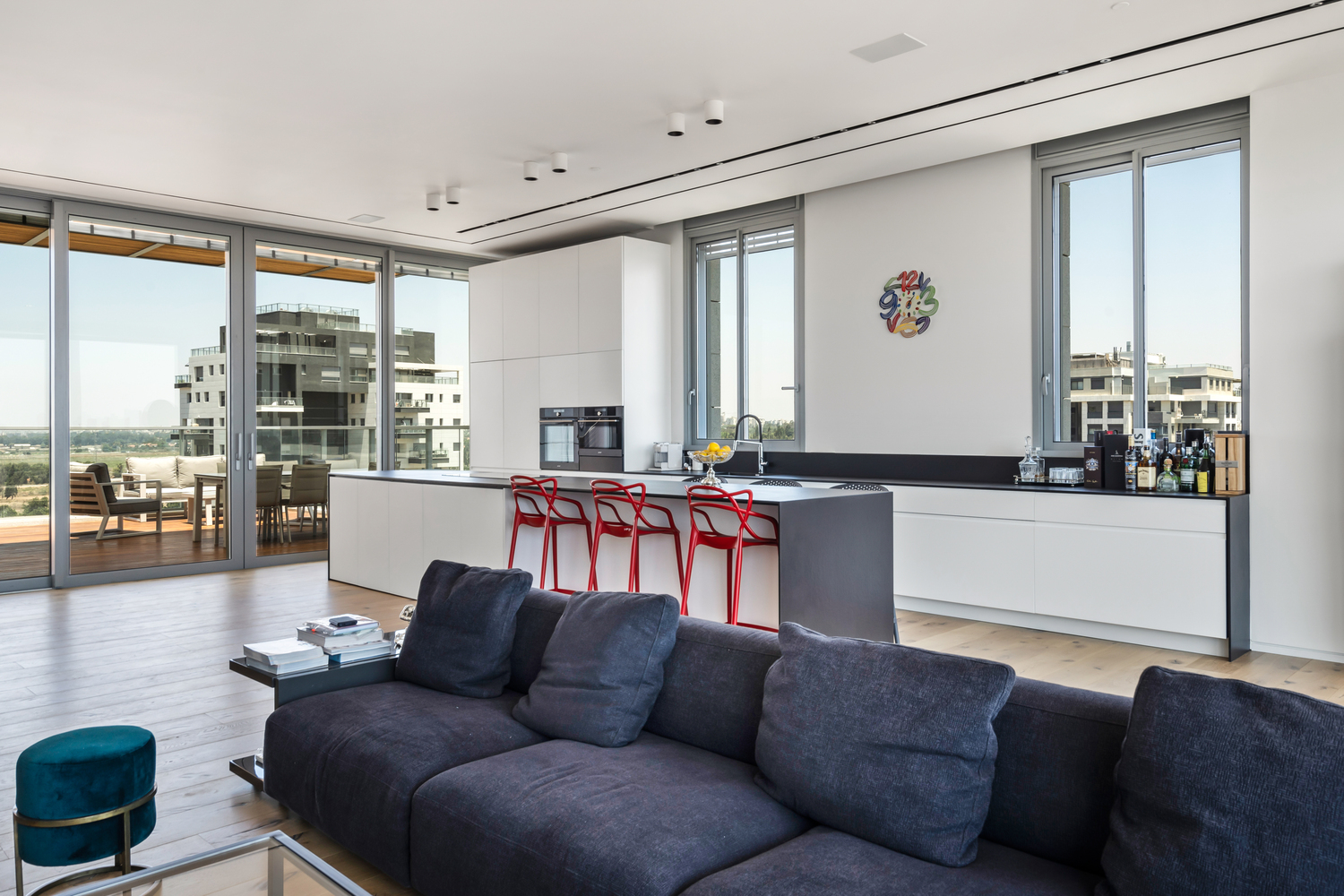

The structure is basically 35 cm thick cast in place concrete slabs with no columns inside any of the units. exterior walls are cladded with dry mounted off-white granite. Living rooms and some adjacent bedrooms are enclosed by aluminum and glass curtain walls, enhancing the contrast between transparency and opaqueness.
