西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects

2022/07/22 09:18:07
查看完整案例
微信扫一扫
收藏
下载
翻译
Architects:SALA FERUSIC Architects
Area :5382 ft²
Year :2017
Photographs :SALA FERUSIC Architects
Lead Architects :Carles Sala, Relja Ferusic
Main Contractor : Beta Conkret
Metalwork And Metallic Structure : Serrallería Belluch
Structural Calculation And Executive Construction Management : Josep María Estivill
Country : Spain
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-9
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-10
After a brief but successful trajectory of almost a decade of making excellent quality wines, the need for a space for logistics, bottle aging, and wine tasting arises in Mas Rodó. The program urges to articulate and organize the space between the existing shipments building and the winery located in an old renovated Catalan cottage, while it has to provide a response to a dual program.

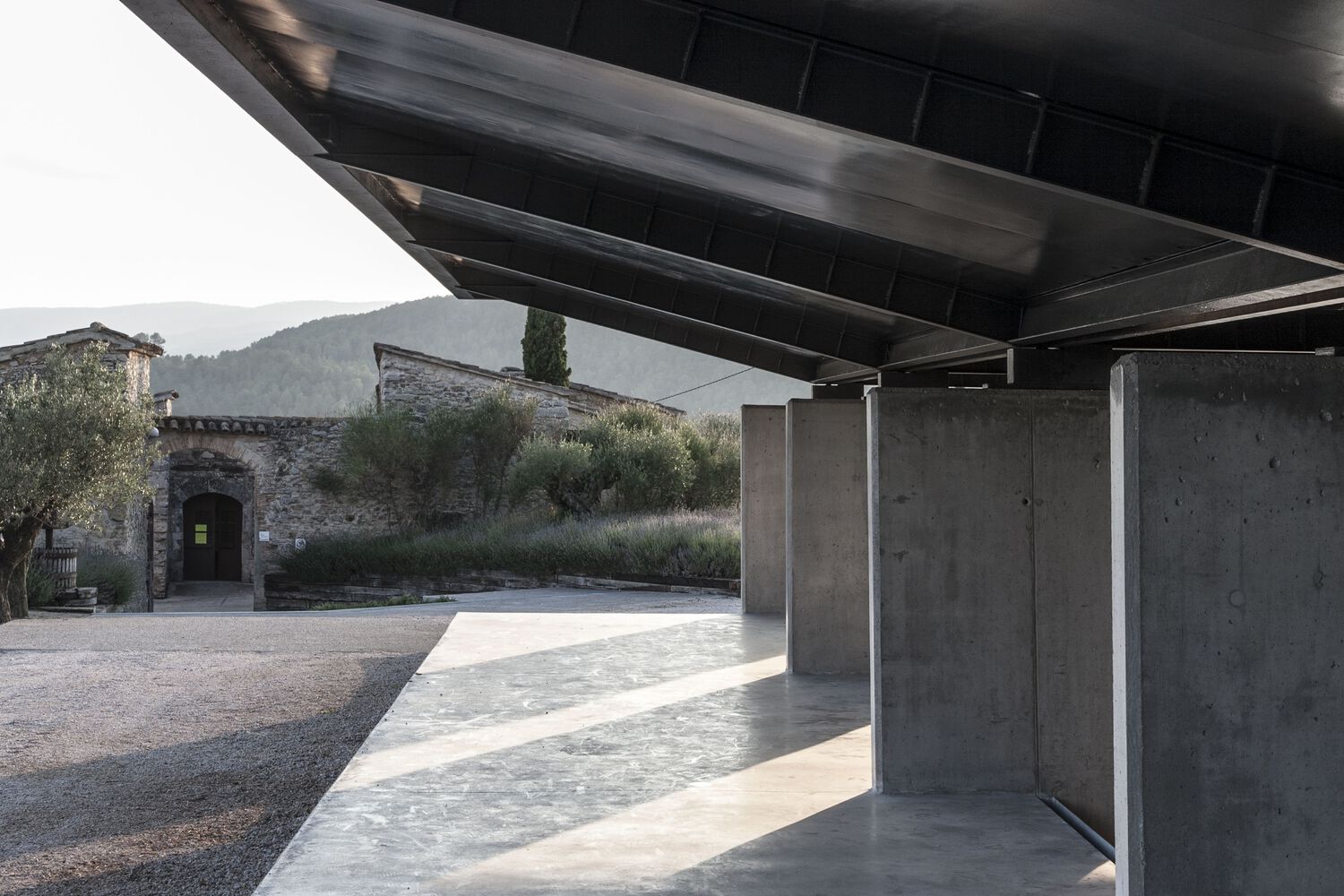

西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-12
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-13

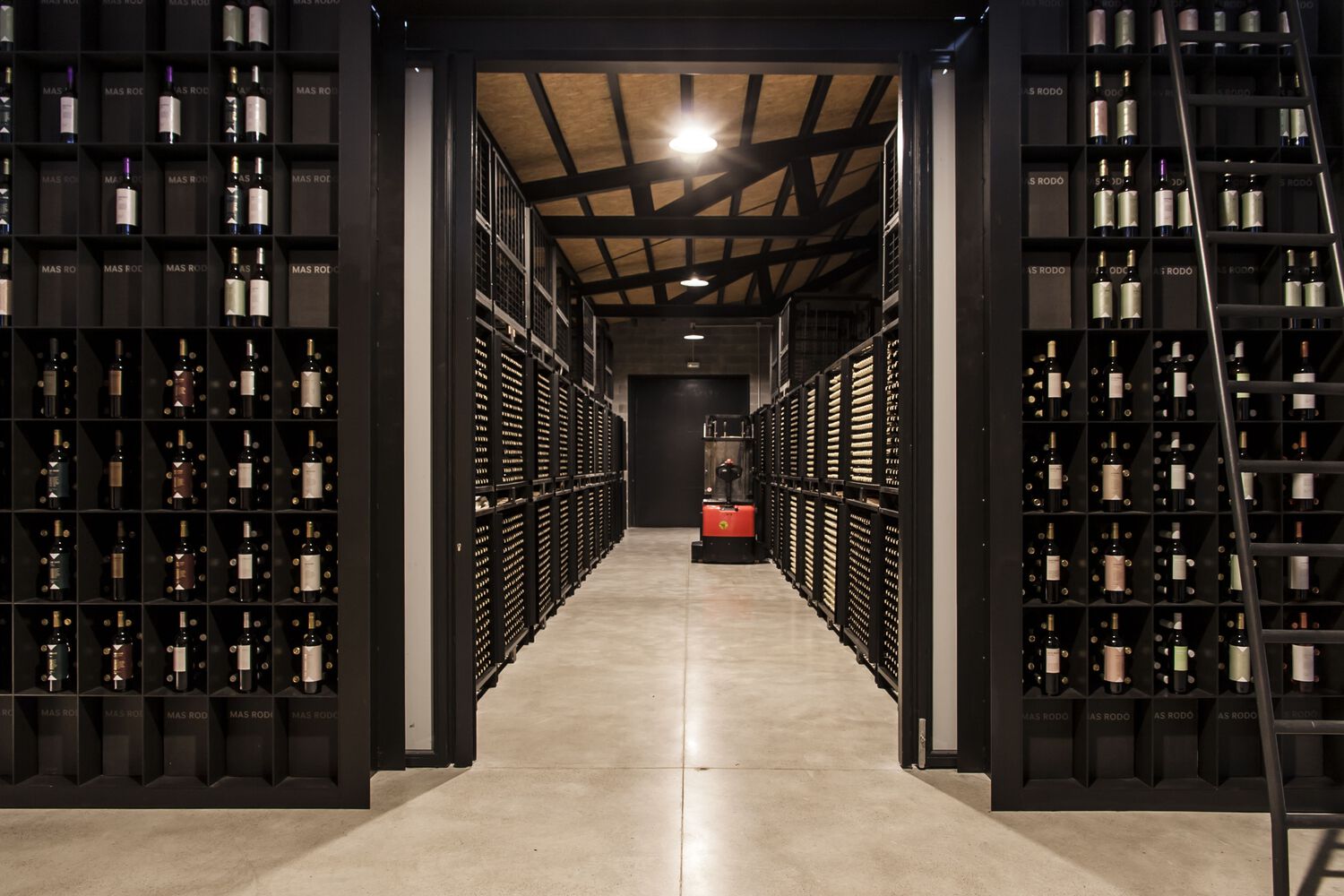

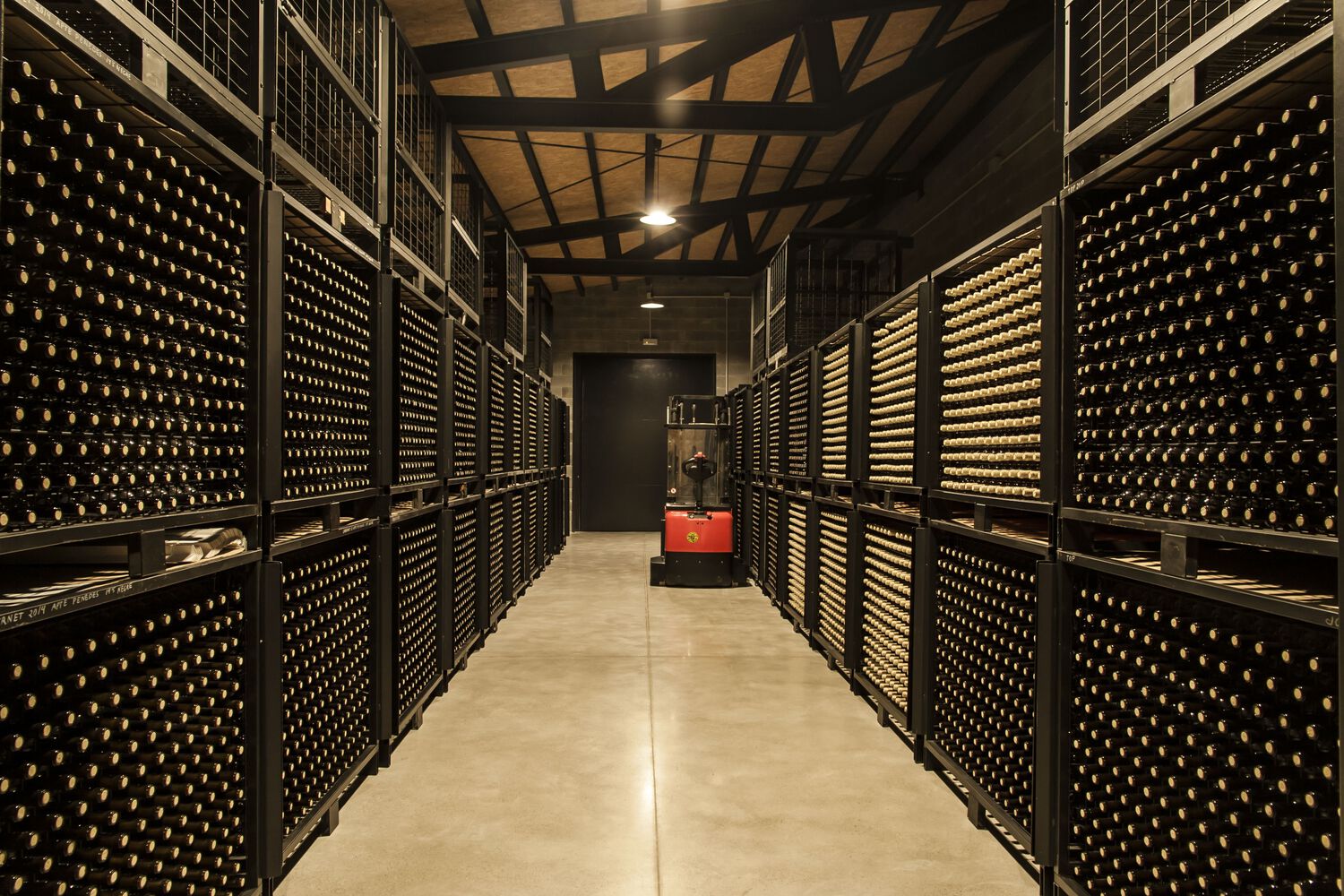

On the one hand, the new building has to accommodate a building for the aging of wine in bottles, organized in stacked steel cages, as well as streamline the logistics, while providing appropriate communication with the warehouse for the finished product and shipments. On the other, it has to complement the activity of the winery with a space for the tasting and the exhibition of the Mas Rodó wines open to the public, looking for a direct link between the environment and the winery.
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-15
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-16
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-17

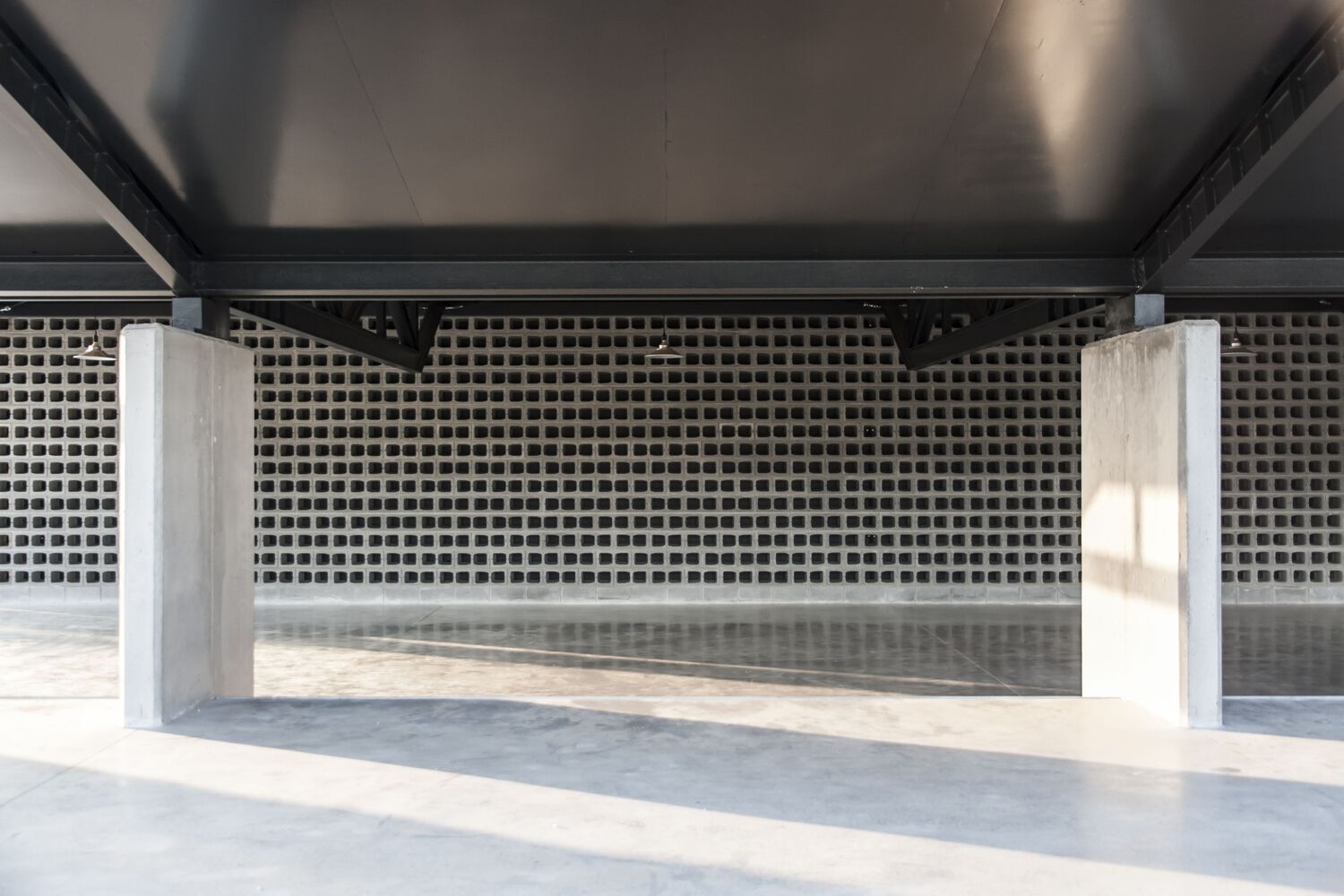

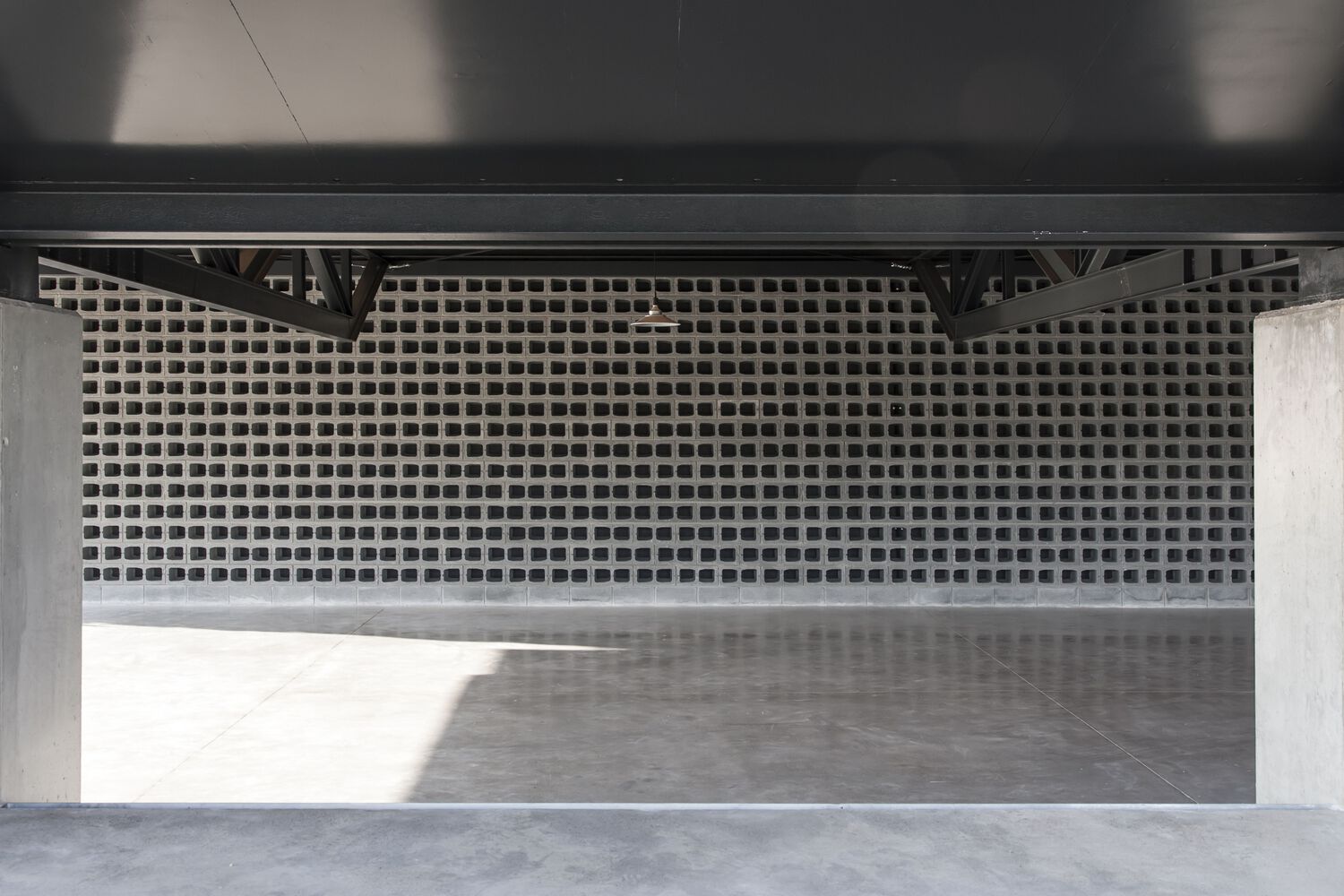

The first calls for a quiet, dry, tempered, and dimmed space. As a result, attached to the old warehouse, a semi-basement is proposed. This makes of the polyvalent porch a ‘pillow space’ that protects it from the radiation of the south, while a ventilated façade of concrete blocks allows the cooling down of the interior environment, conceived as a passive system.
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-19

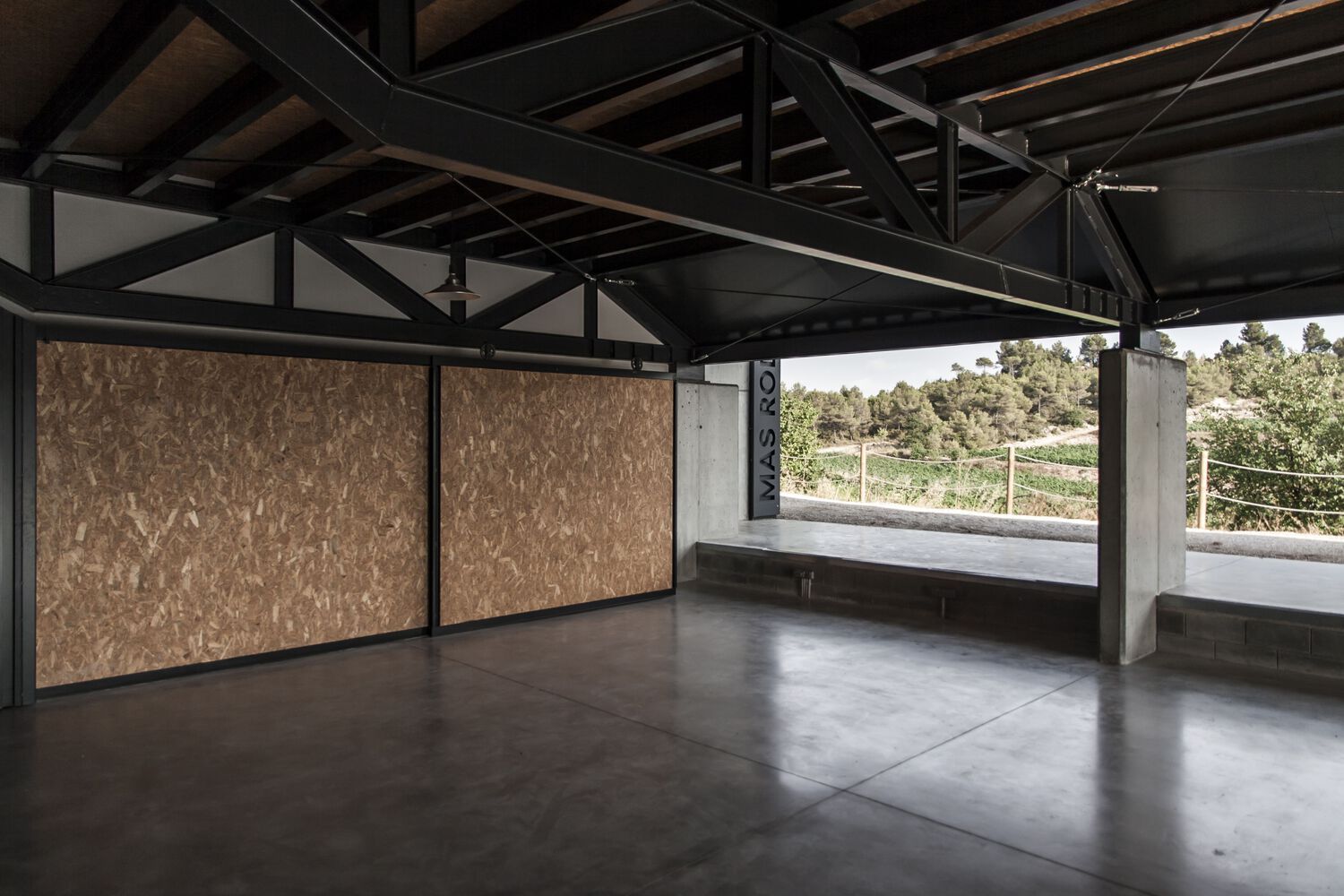

On the contrary, the latter is proposed as a semi-exterior space open to the environment. A 45-centimeter leap in height allows to contract the interior space, frame the landscape, and offer a place to sit, while it does connect the access level with the path leading to the vineyard.
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-21
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-22
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-23
Between both, a transition space articulates both programs: a historical archive of wines of all vintages can be visited, while vertical tastings - same wine, different harvest year – can take place for exclusive visits or professionals.
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-25
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-26

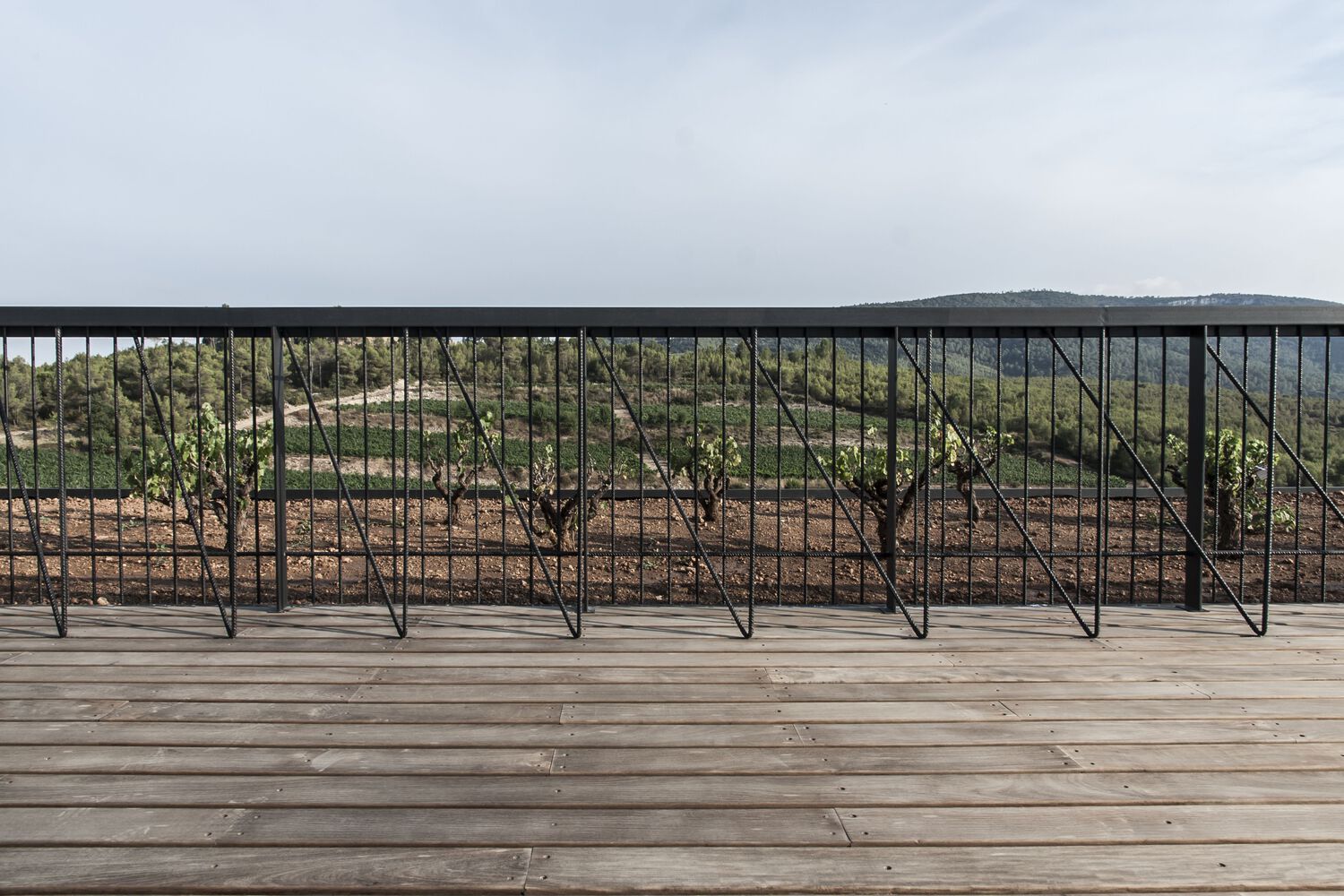

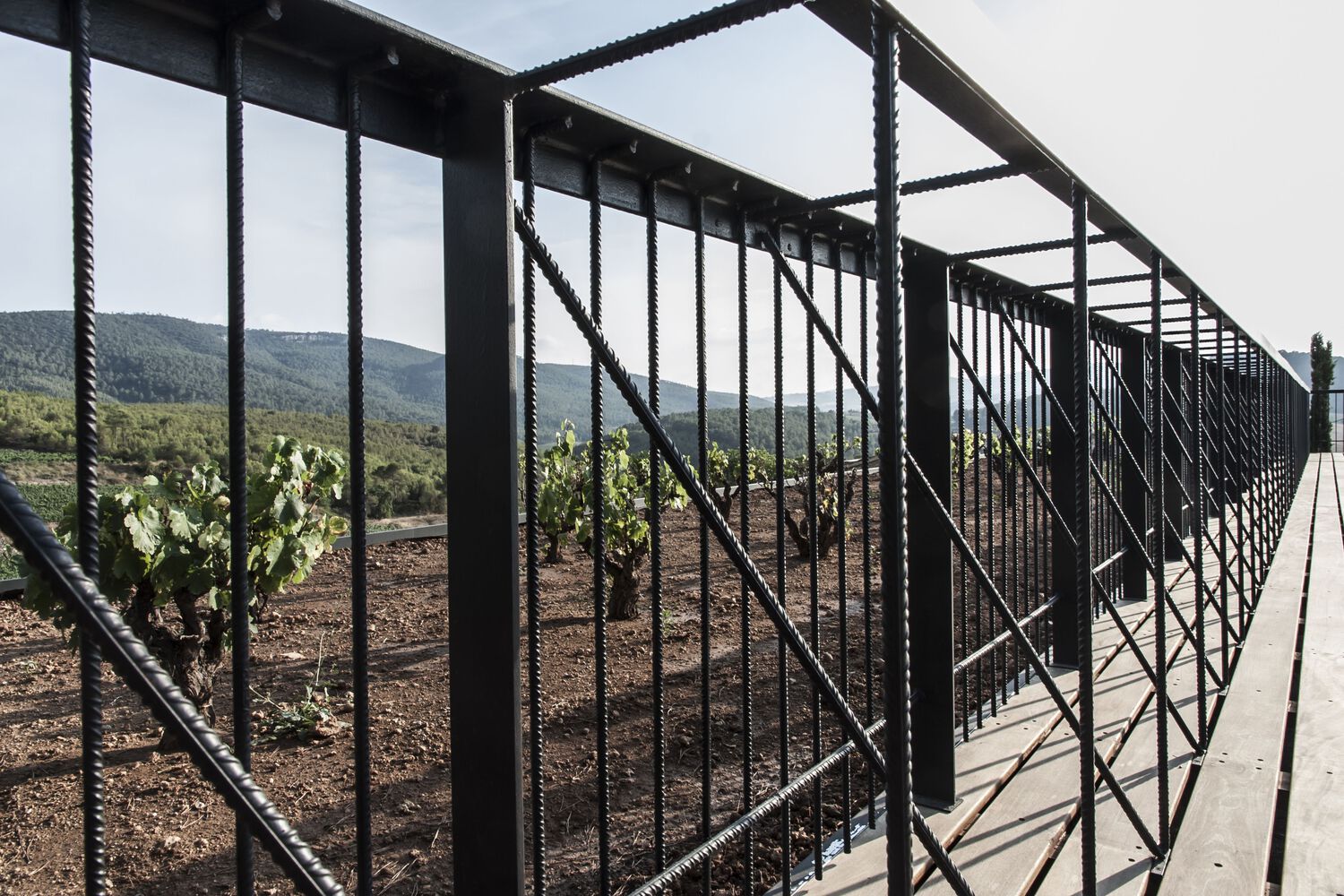

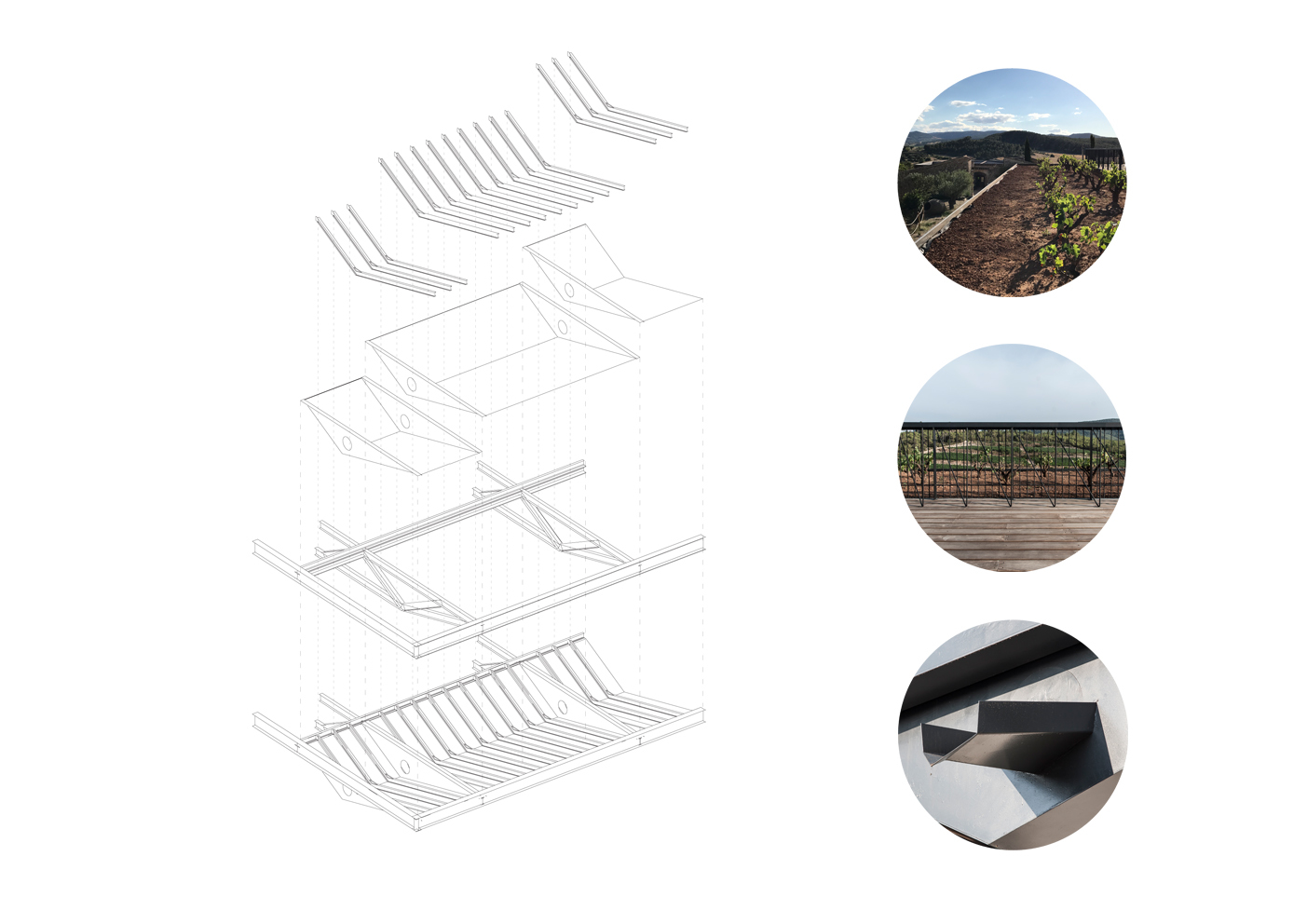

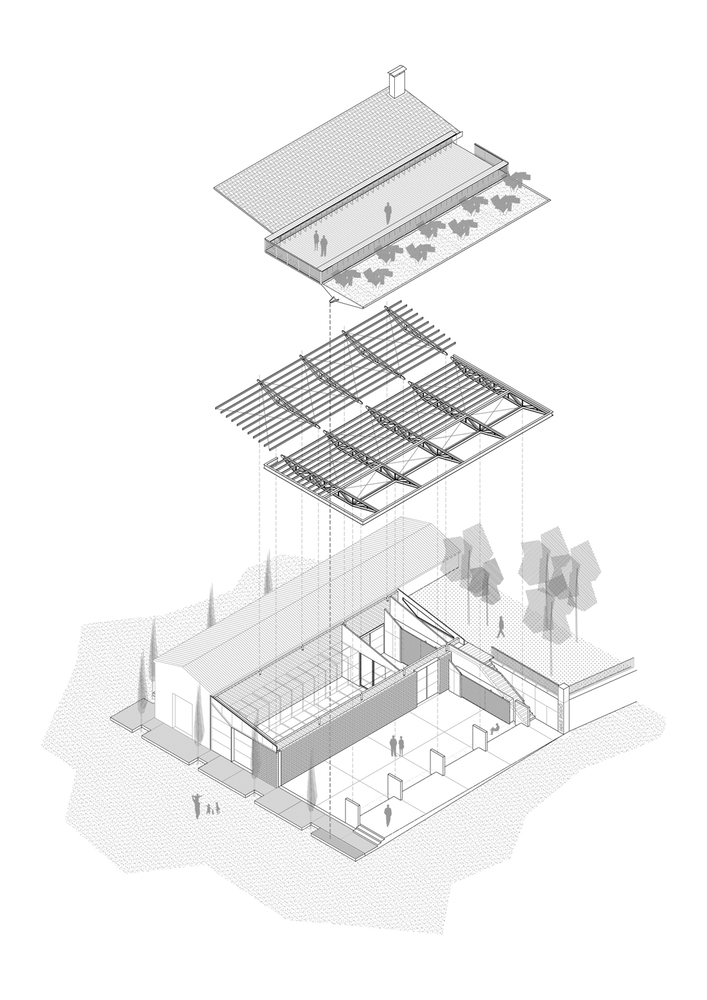

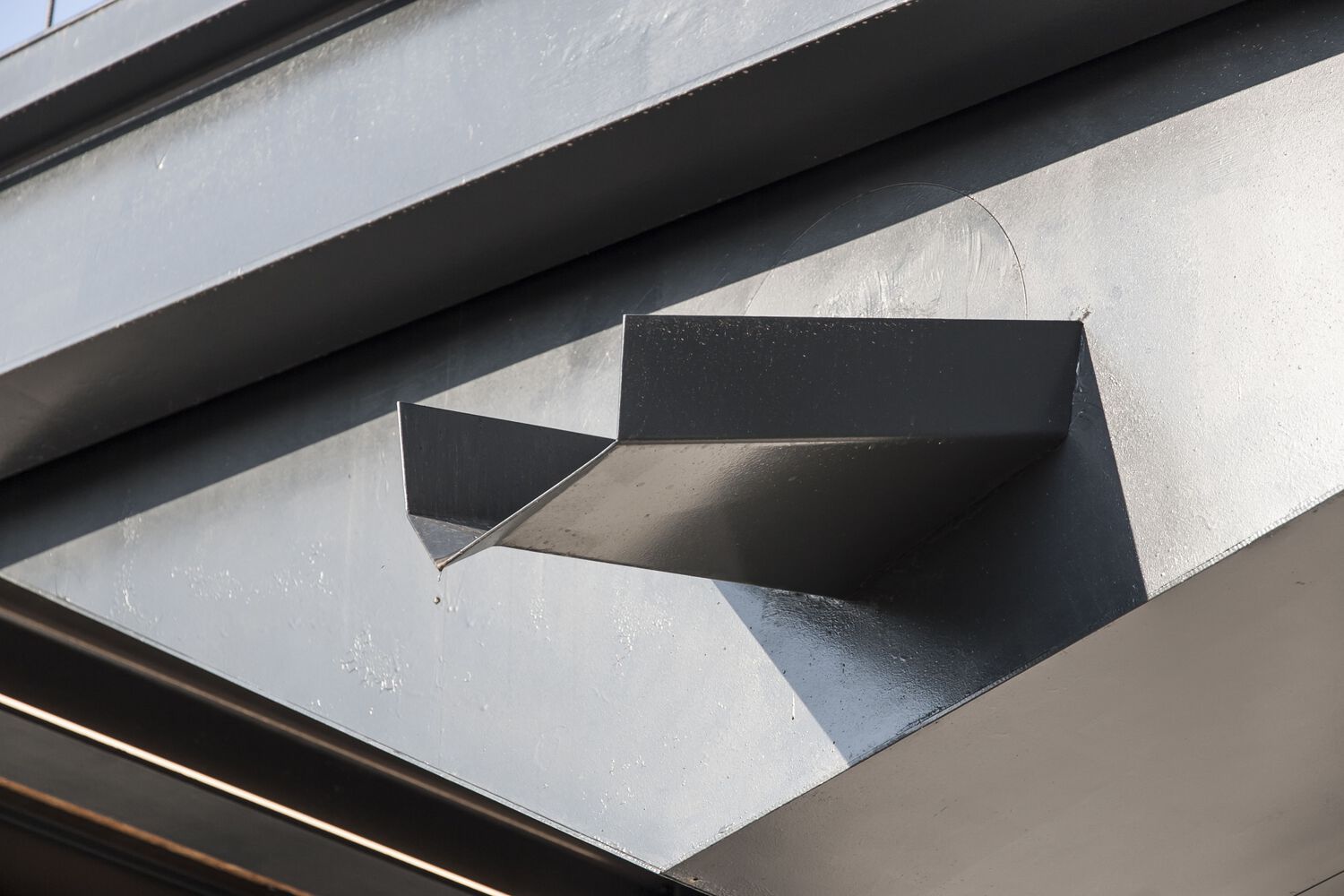

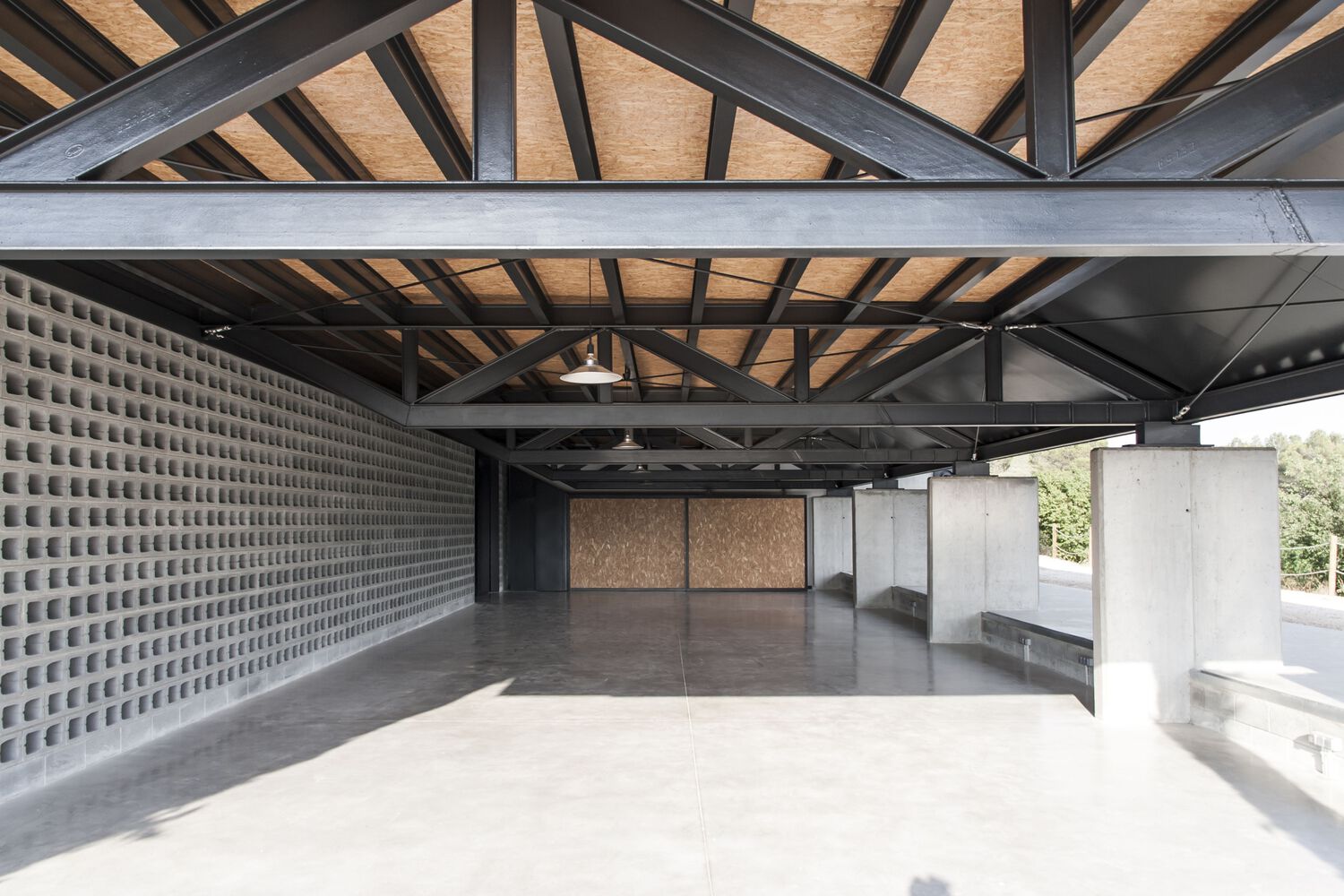

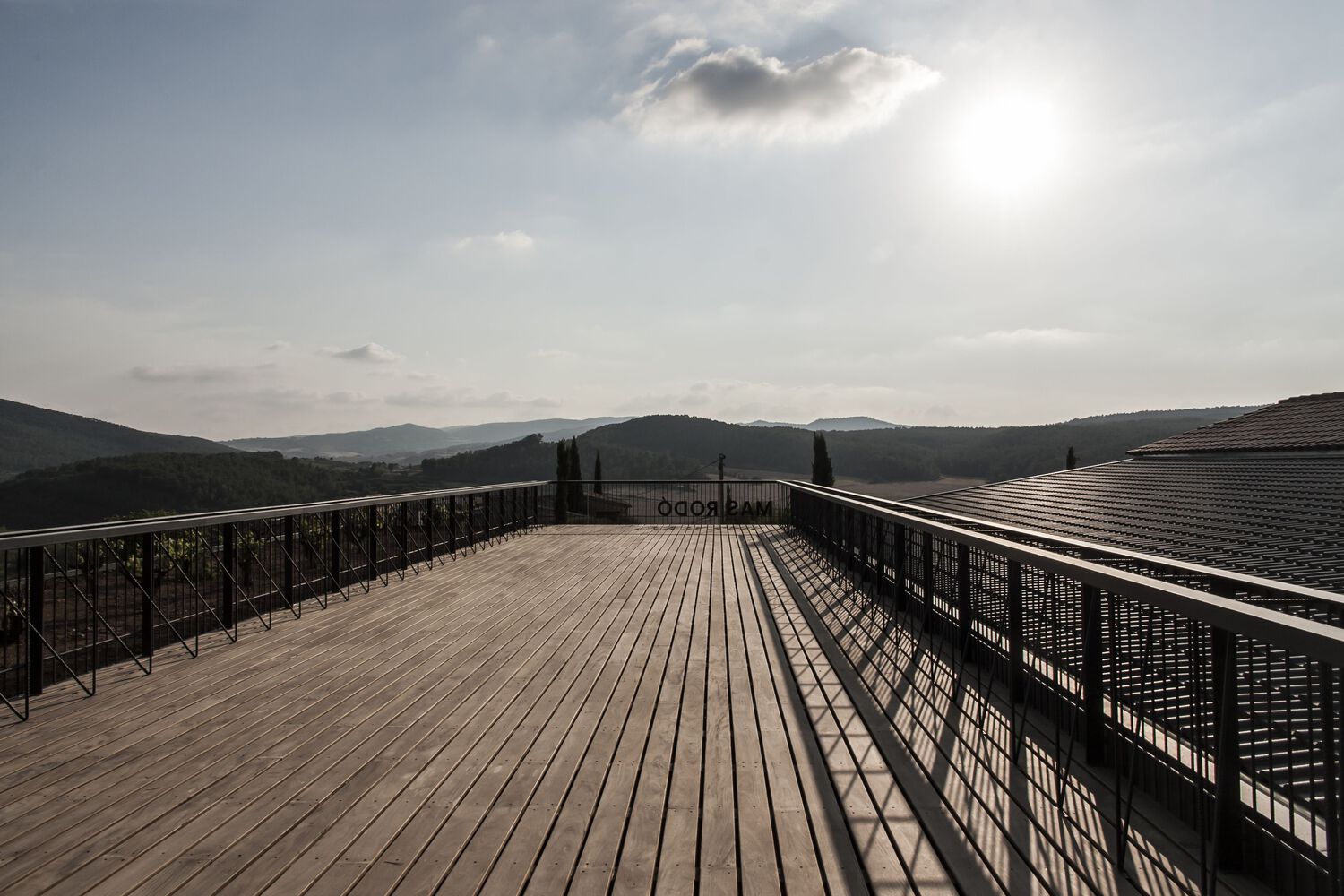

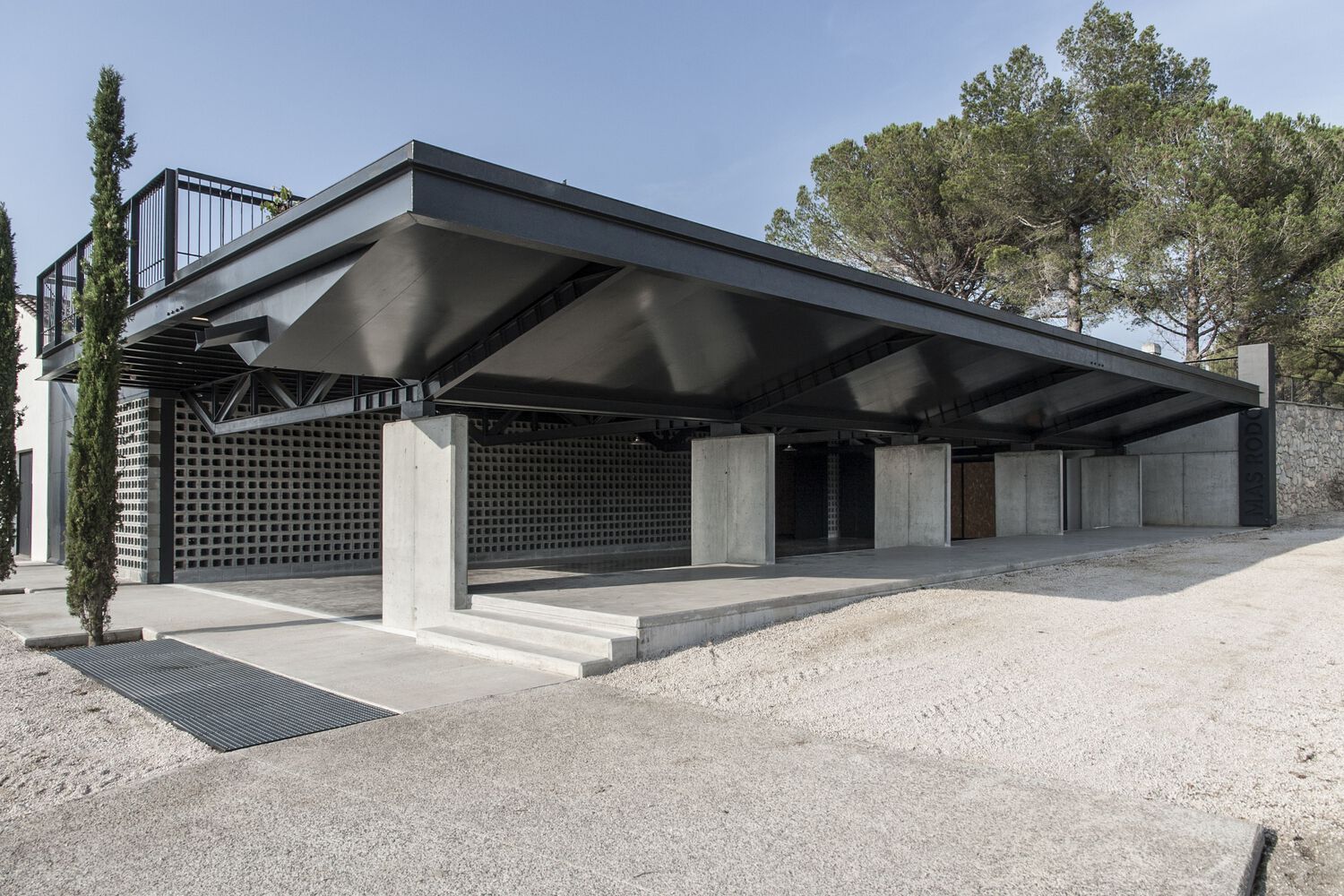

A structural system of walls and concrete screens is conceived, as a continuity of the pavement - massive and resistant - that supports a light system of metal trusses. A lightweight – almost weightless roof – seeks to cover the space with three different uses: a roof of concrete tiles for the aging in bottle program, an accessible deck in wood which dominates the landscape - in relation to the garden of the house - closed by a handrail in the form of a bar for tasting; and a green cantilever with different vine varieties - all existing within the Estate – which drains through an expressive gargoyle.
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-28

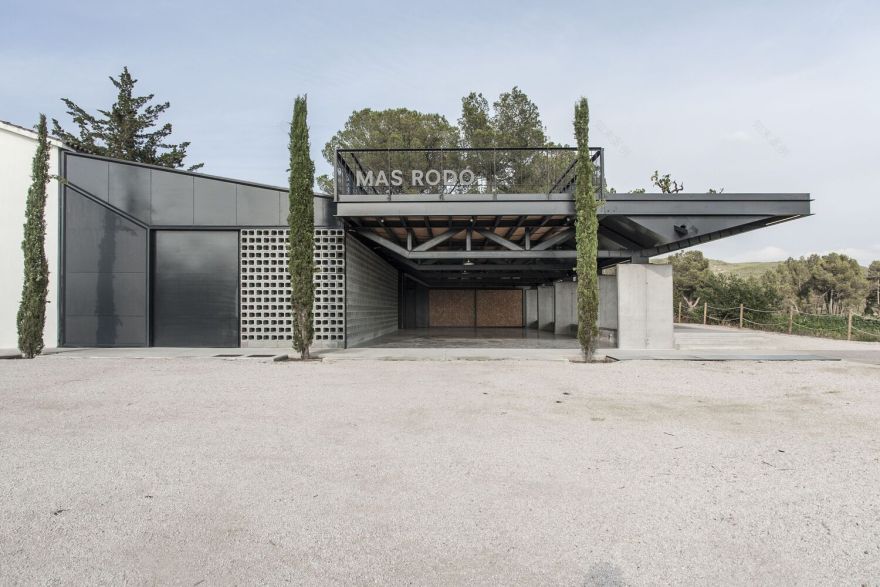

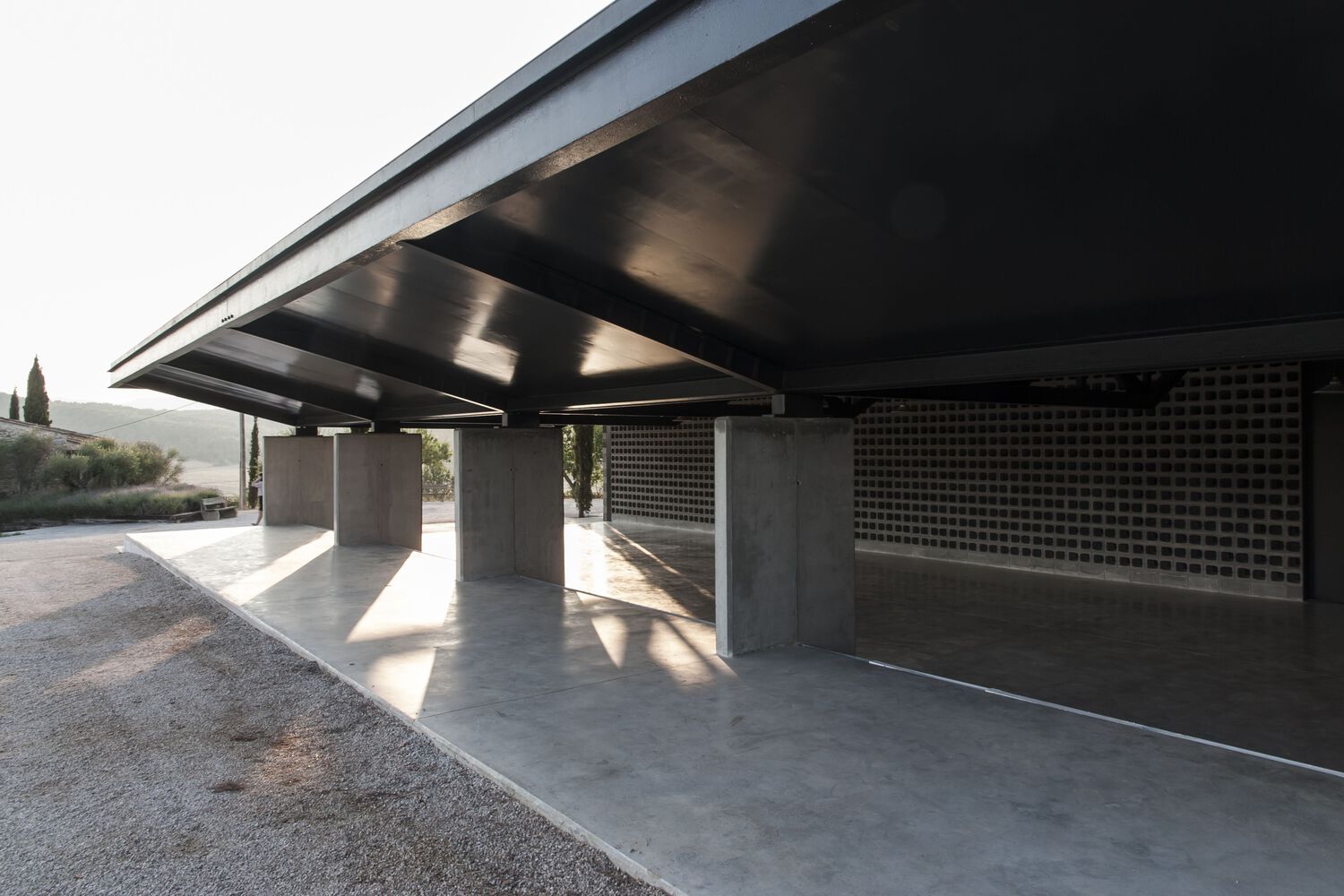

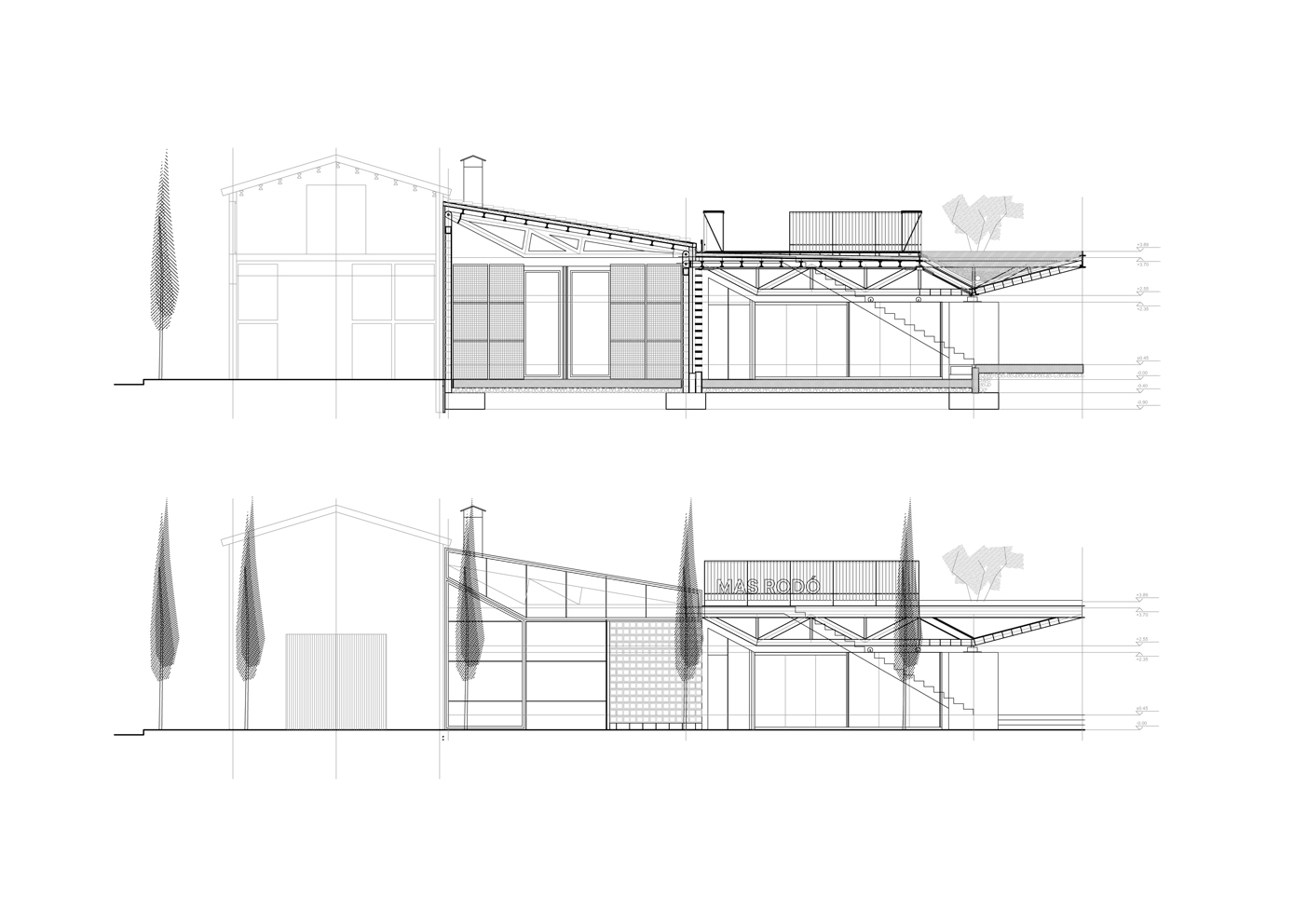

The geometry of the cantilever follows the roof inclination of the old cottage - the winery - with which it does dialogue. It is conceived as a cantilever covering the terrace of the porch, as a visor to provide shade and contract the space below while it does bring freshness through the thermal mass of the soil contained. It is therefore a light structure for an elevated vineyard. A weightless vineyard.
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-30
▼项目更多图片
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-32

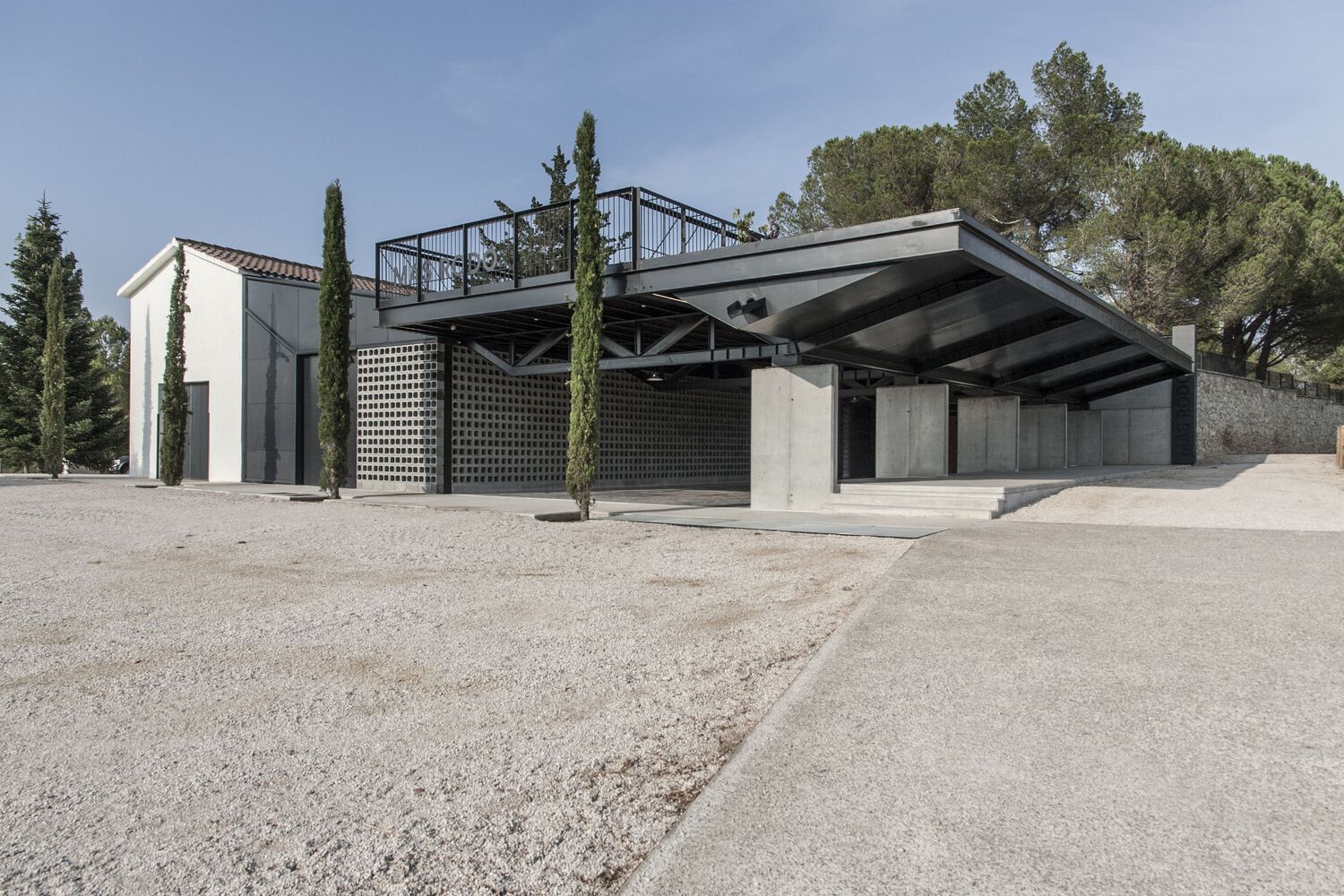

西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-33
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-34

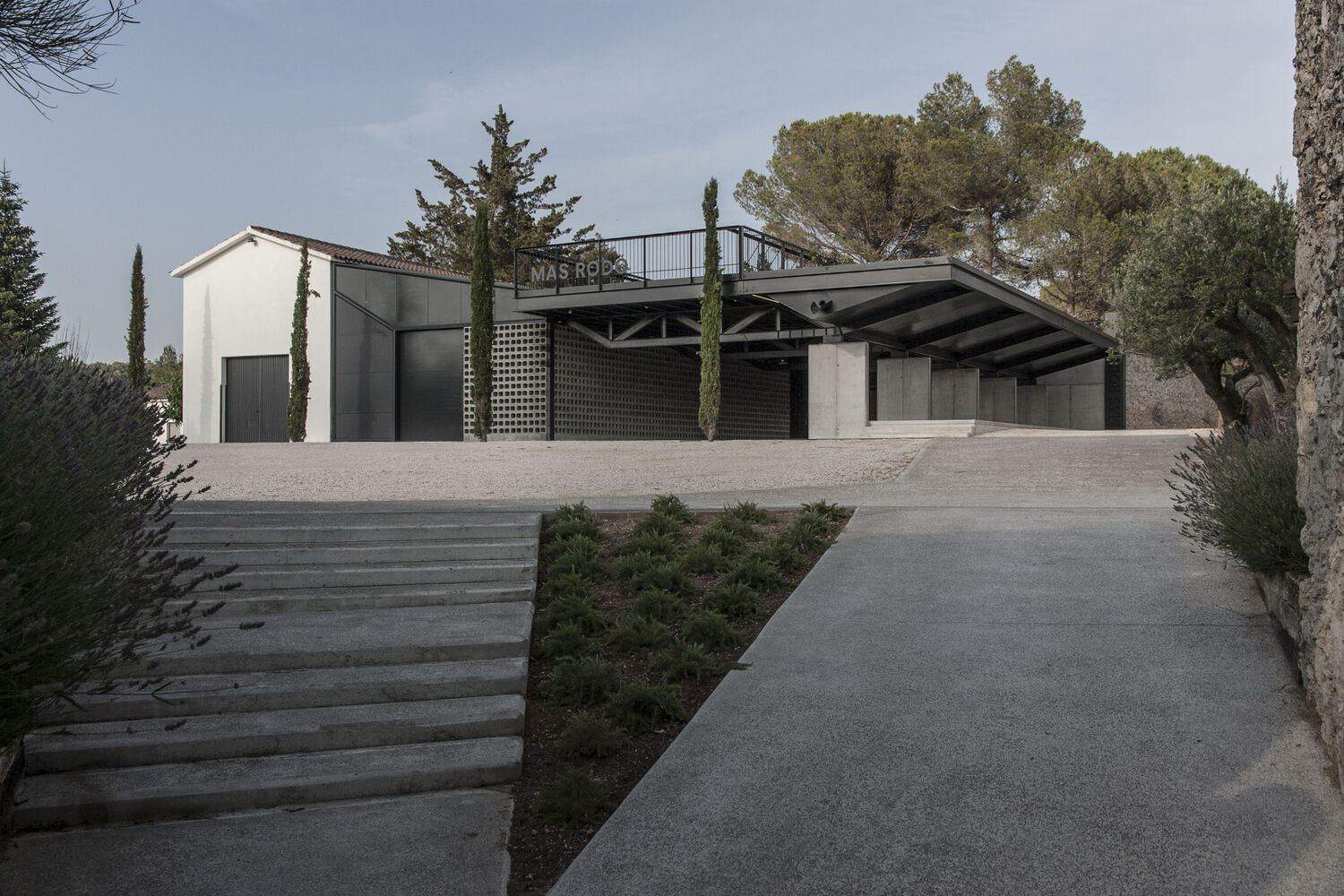

西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-35

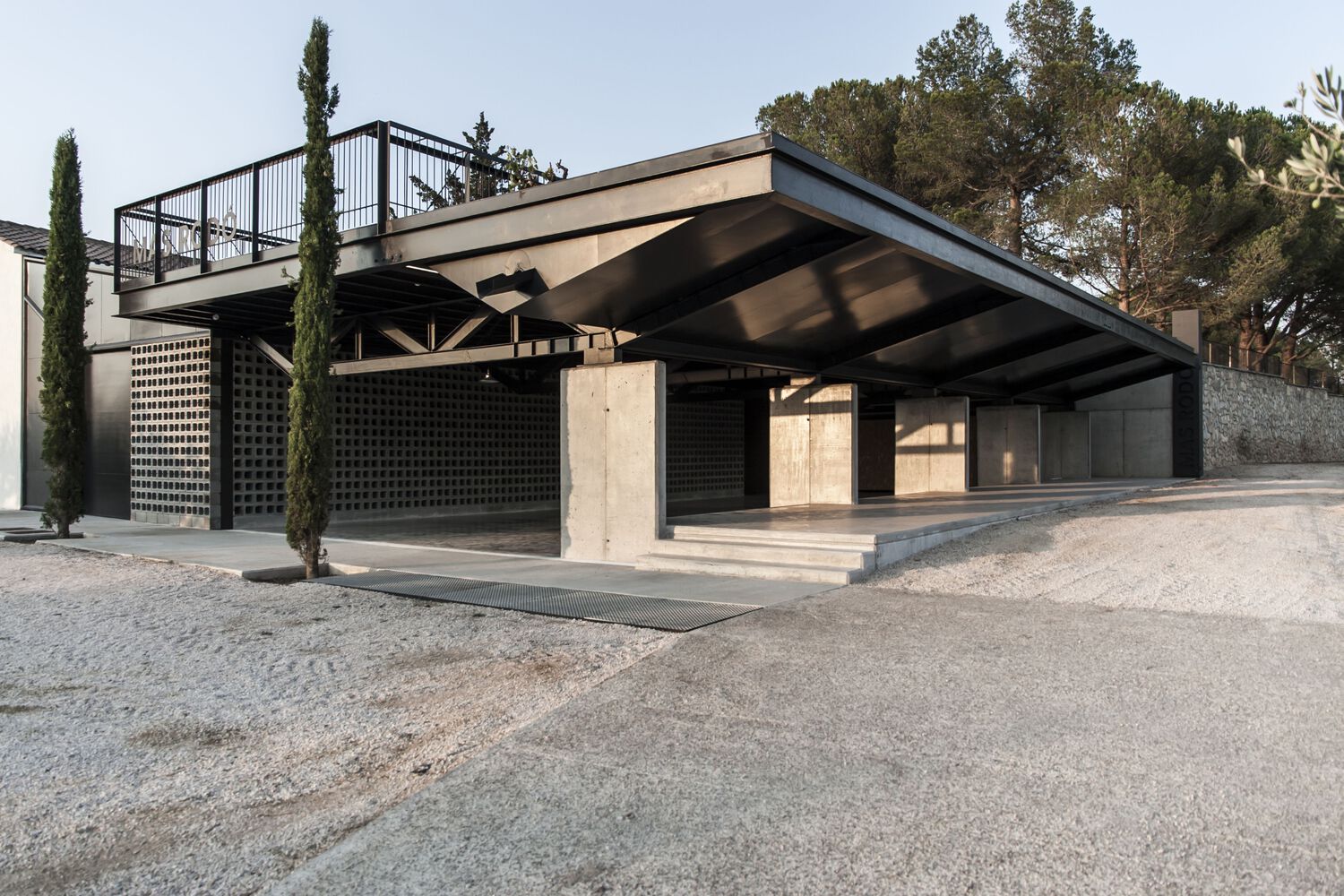

西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-36
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-37

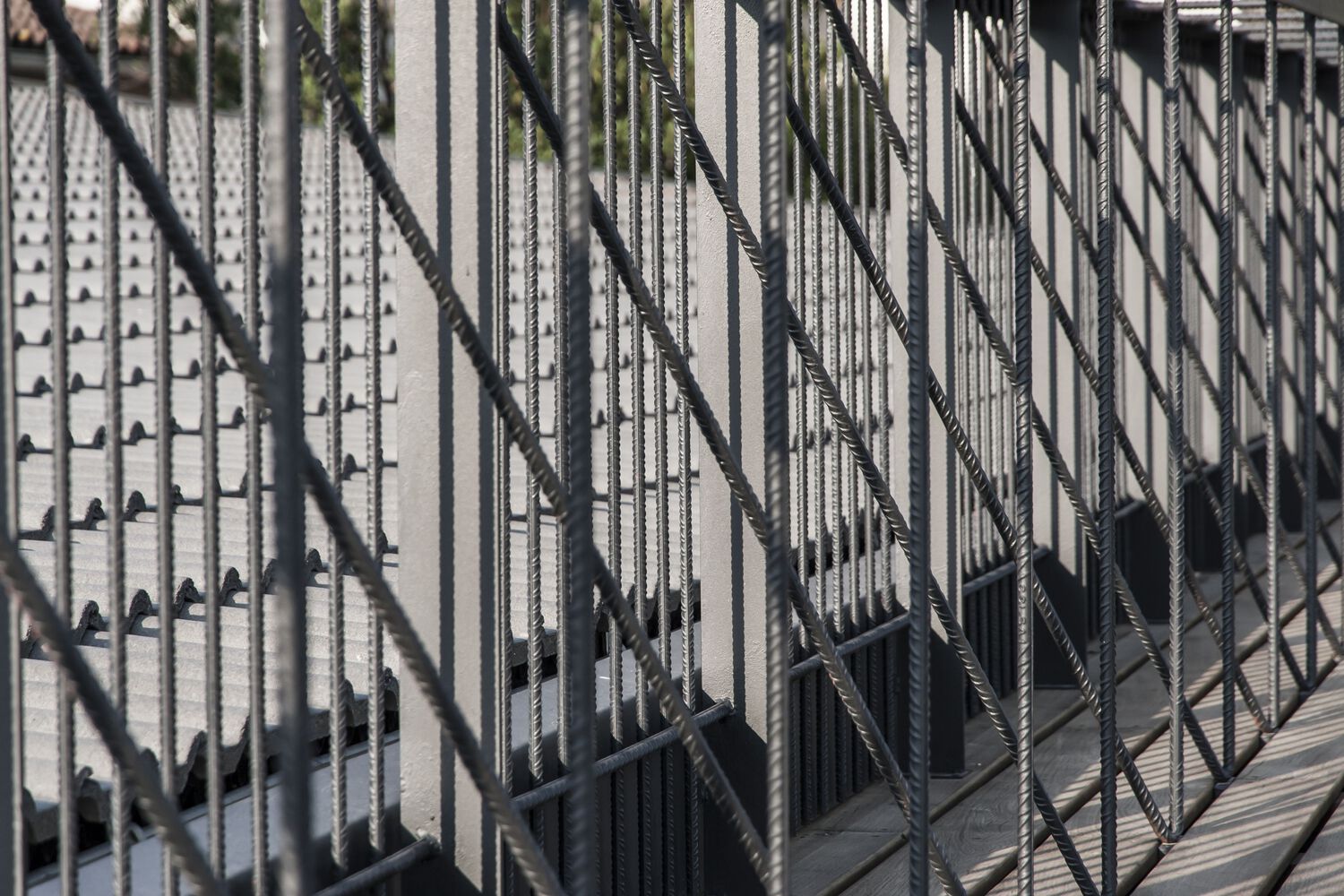

西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-38
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-39
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-40
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-41
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-42
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-43
西班牙 Ingravits 酒庄仓库丨SALA FERUSIC Architects-44
