西班牙"Tino House"海滩风格住宅丨Emac Arquitectura

Architects:Emac Arquitectura

Area :256 m²

Year :2018

Photographs :Milena Villalba

Lead Architect :Miguel Martínez Castillejo, Pau Batalla Soriano

Client : Agustín Francisco Gómez-Miranda Villanueva

Constructor : Blamacor S.L.

Collaborators : Lara Llop Font, Rafael Duet, Luis Ros Serrano-TEMCCO

City : Sagunto

Country : Spain

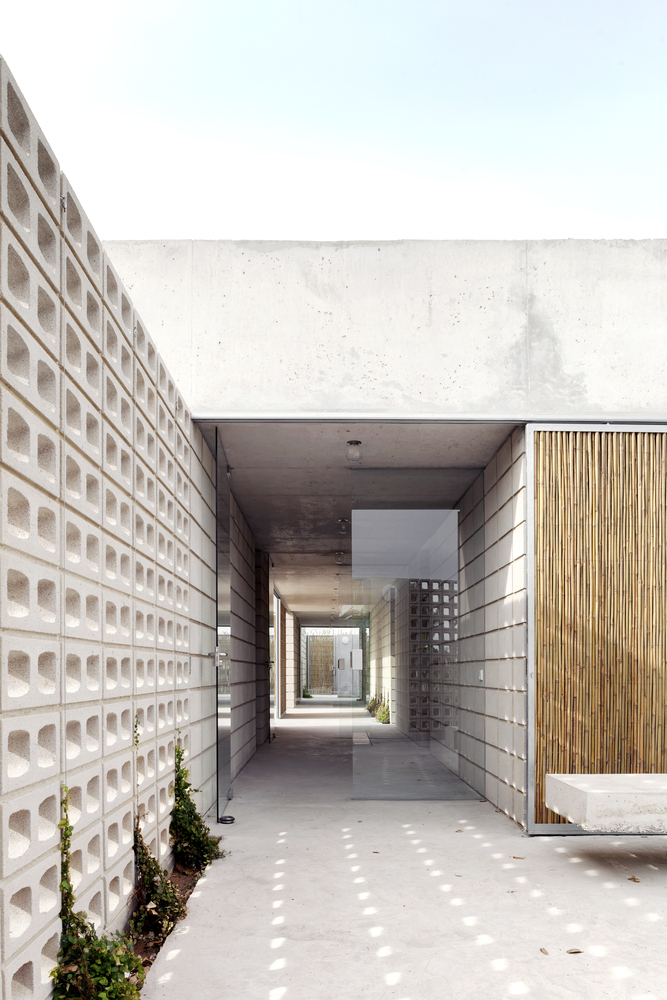

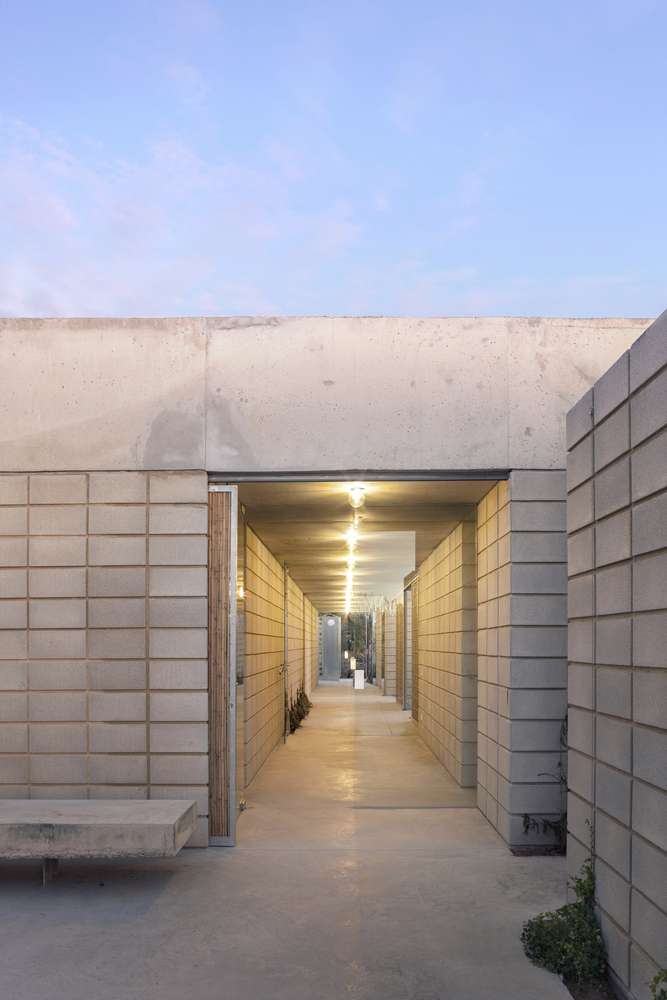

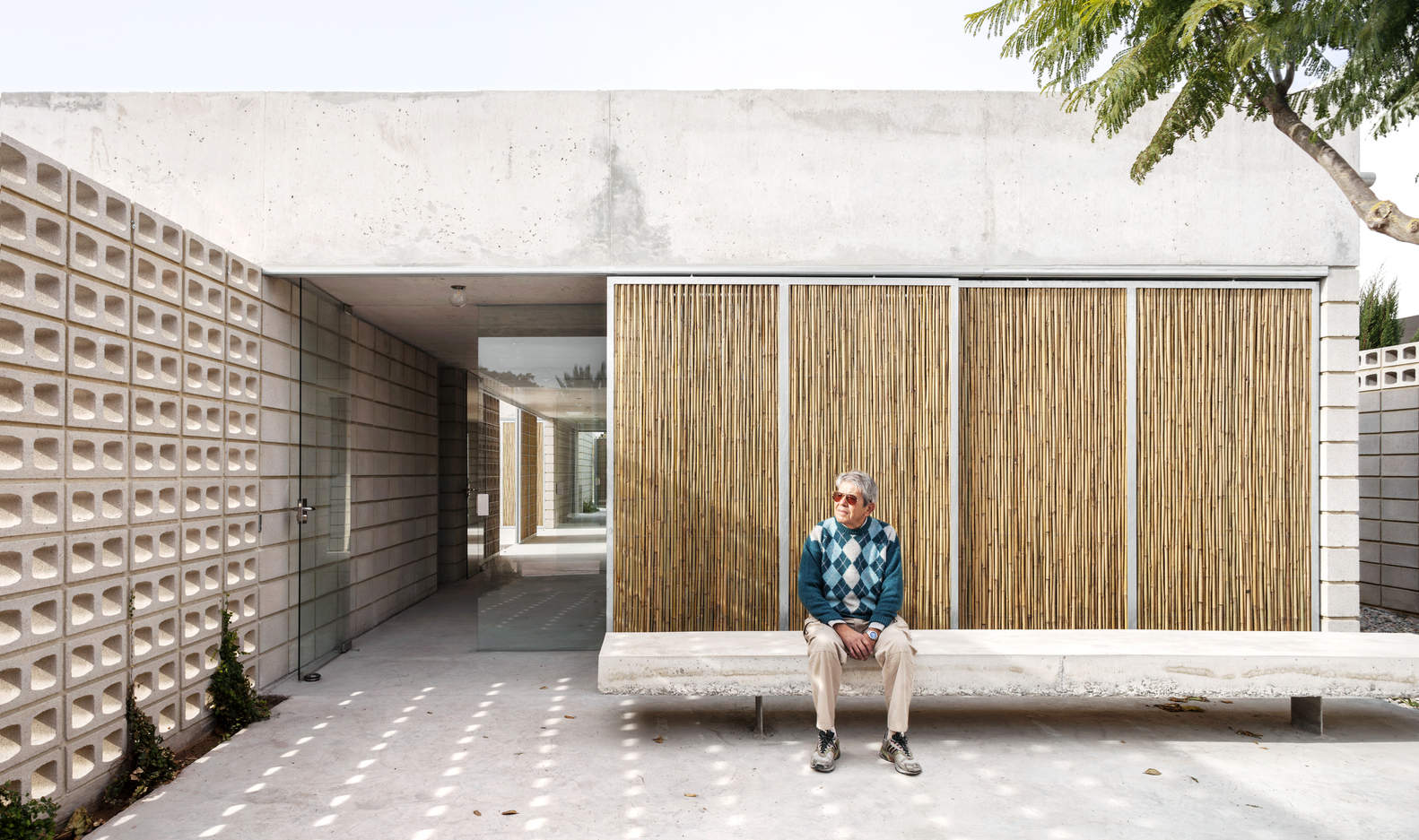

The access to the house occurs interchangeably through the back and front side of the plot, through two entrance yards with a jacaranda tree and a concrete bench. The approaching of the house happens in a frontal and horizontal way, through a vacuum in which the spaces of sun and shadow alternate almost infinitely. This threshold-gallery invites to cross the house from part to part without having to access the private areas, tangentially crossing the different spaces with a spine-like articulation.

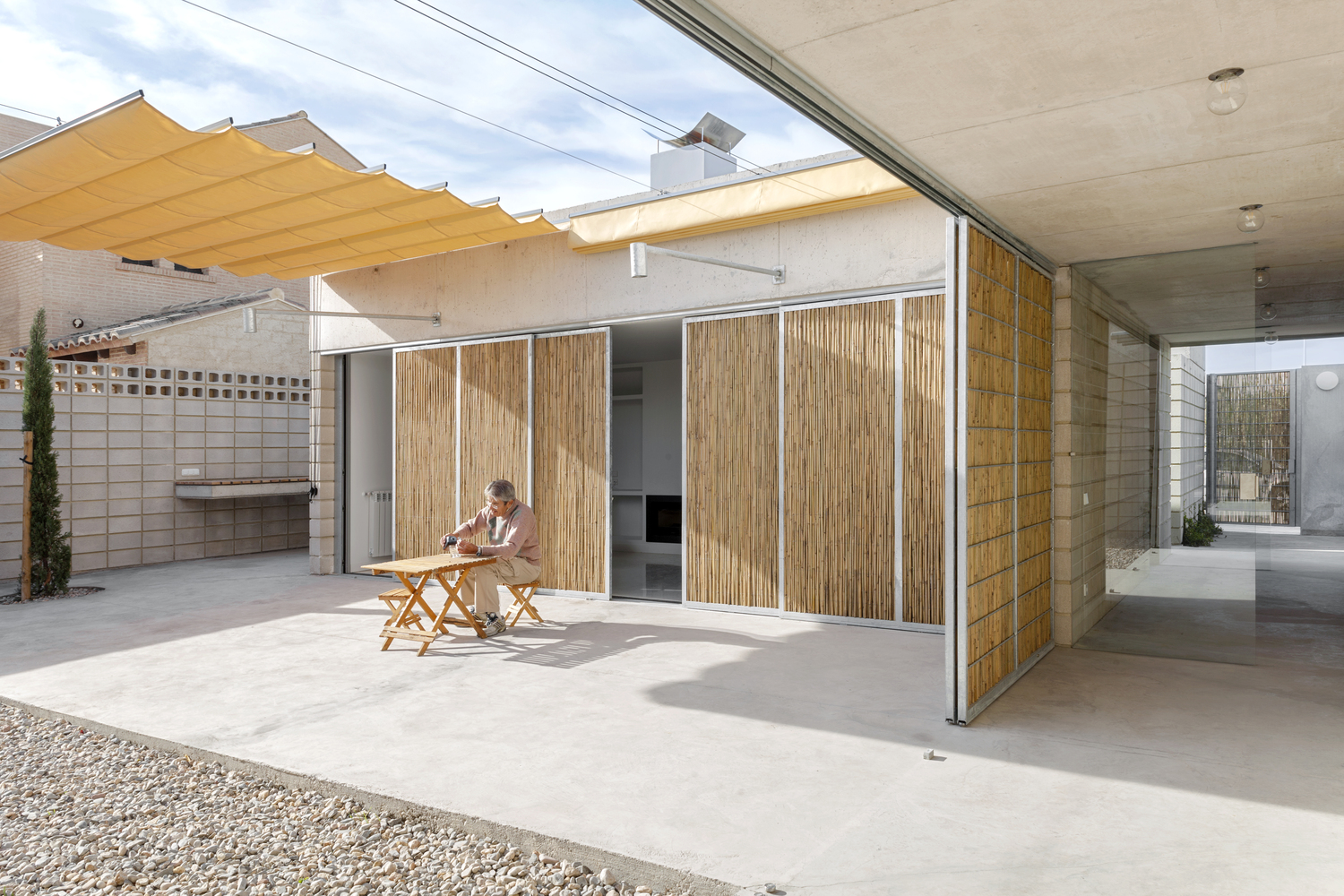

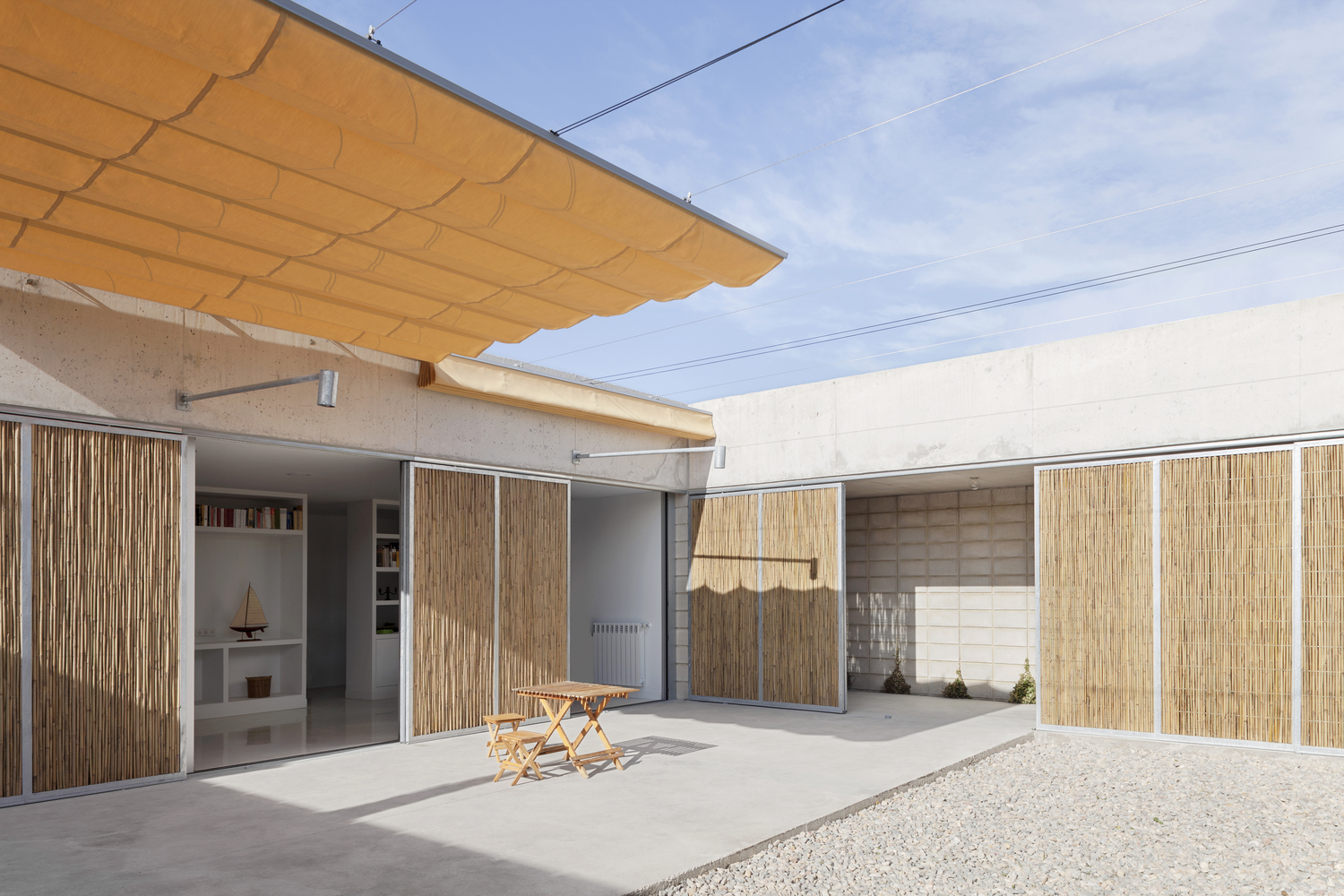

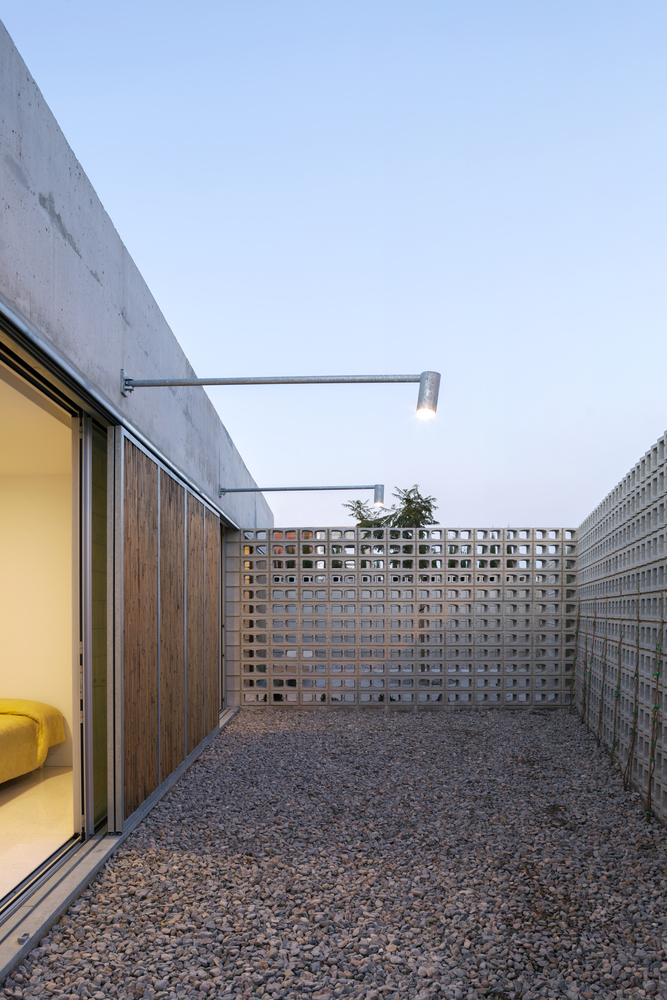

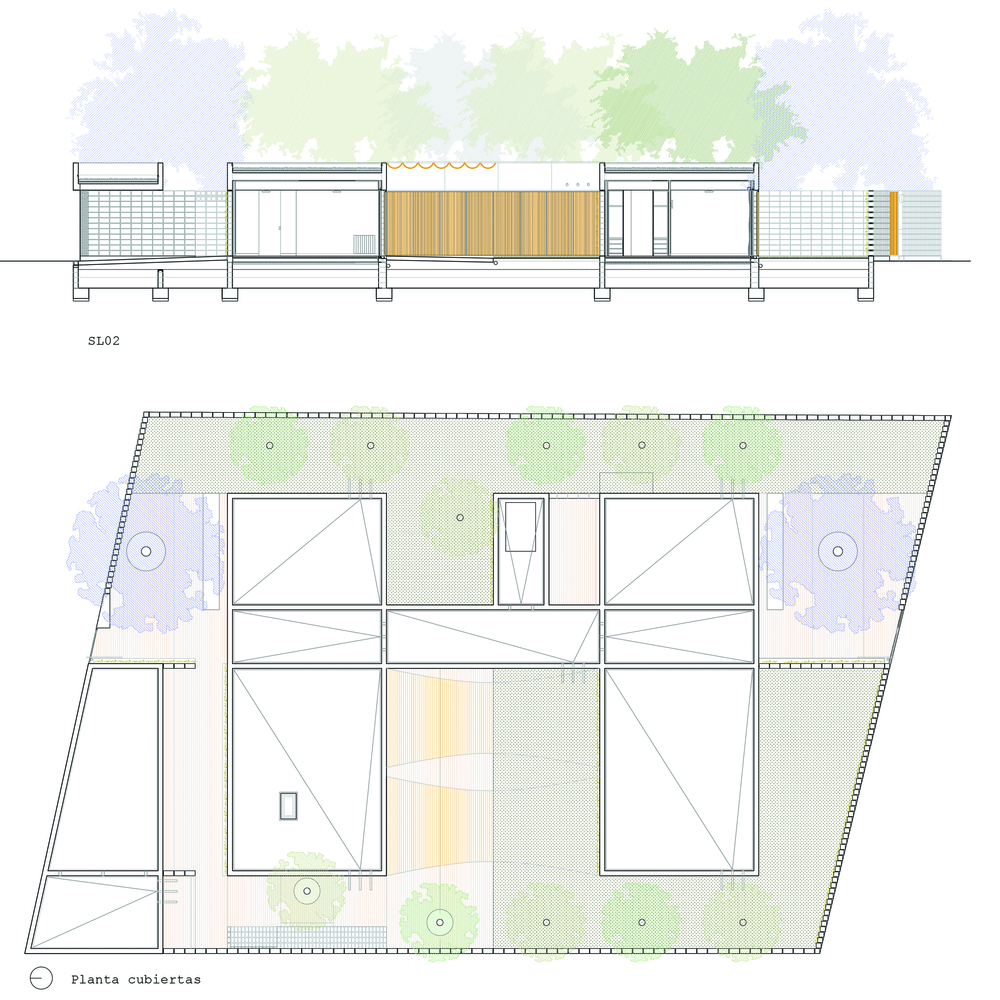

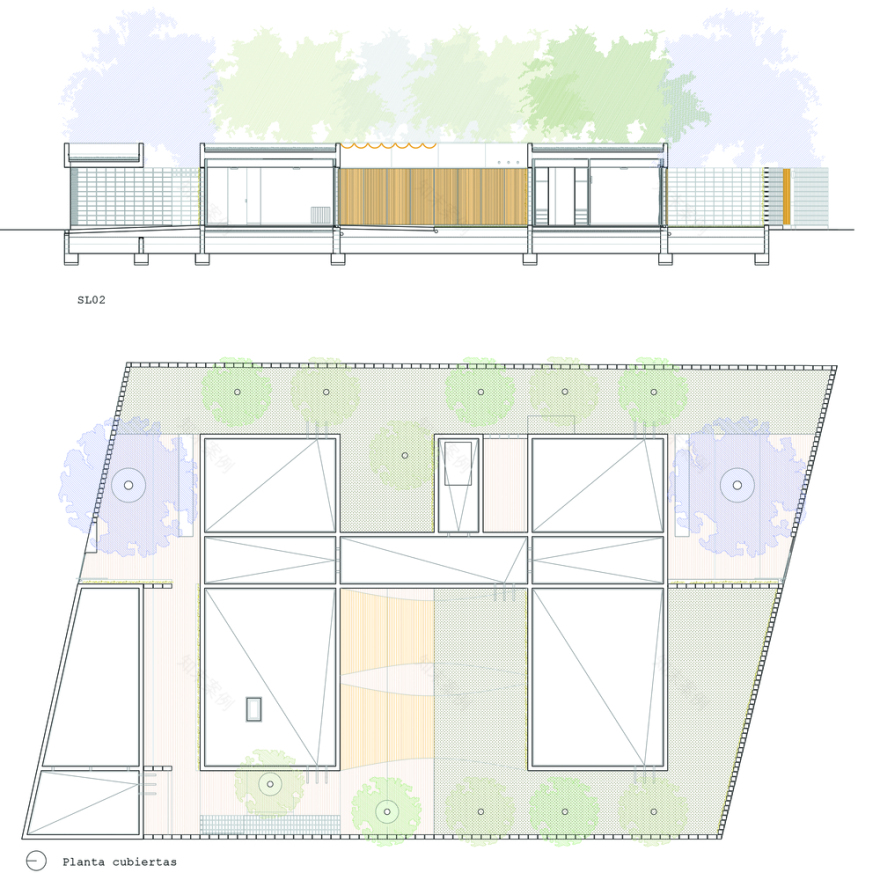

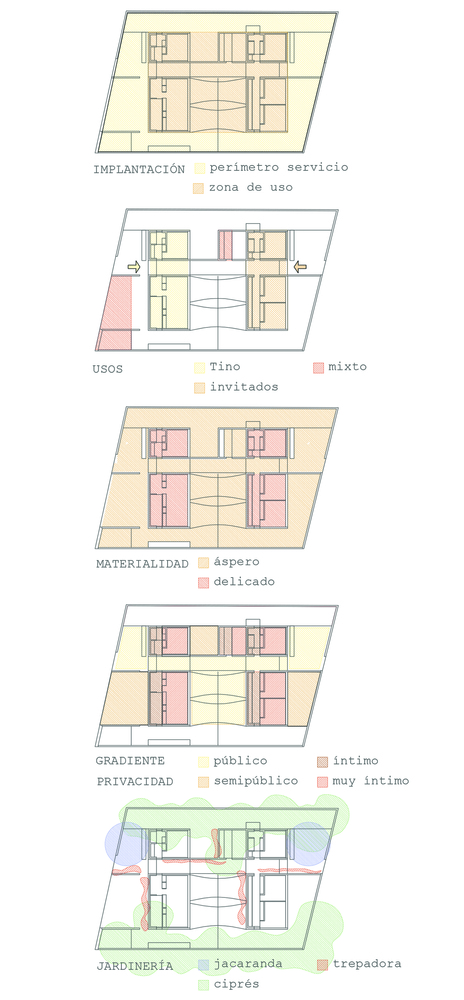

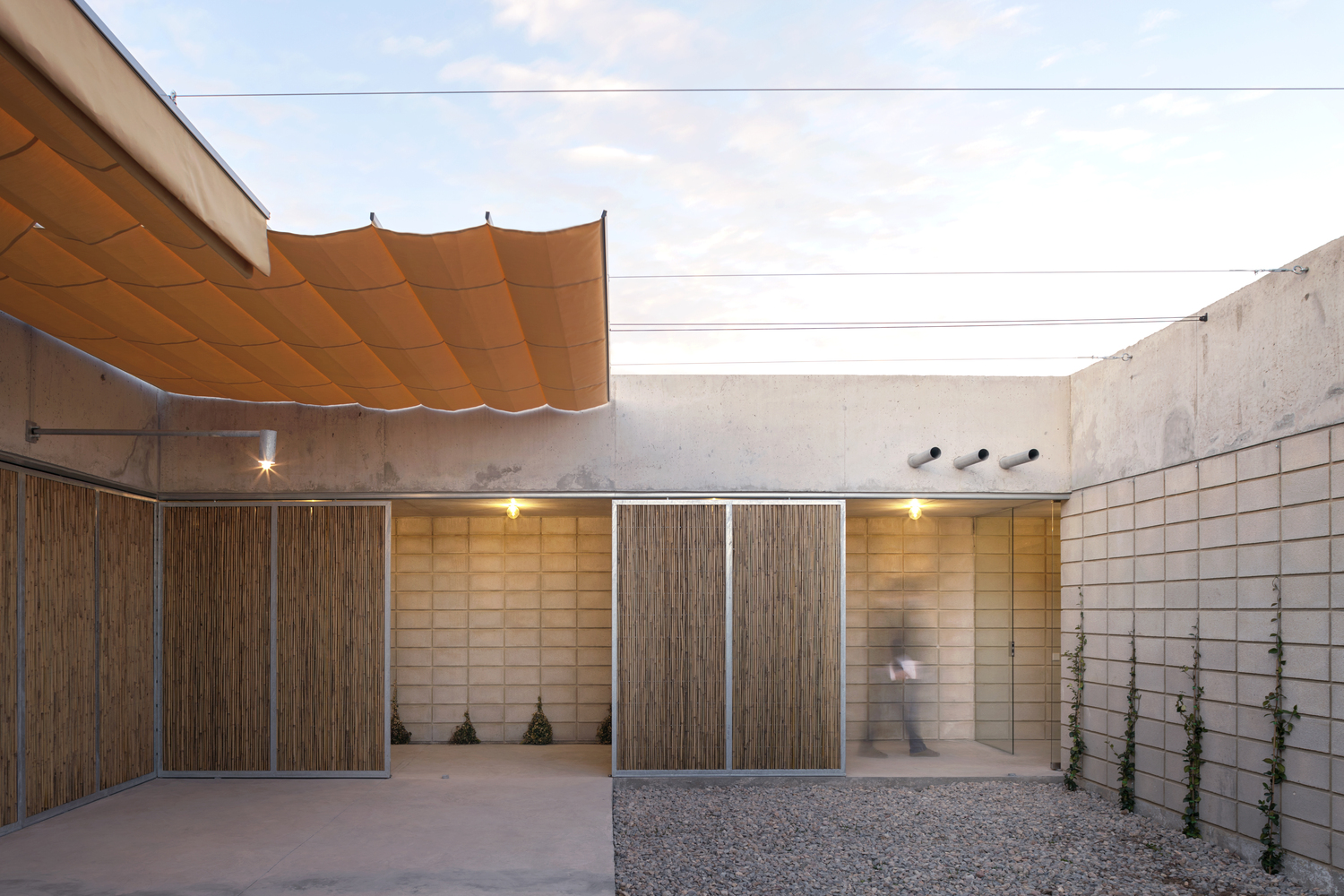

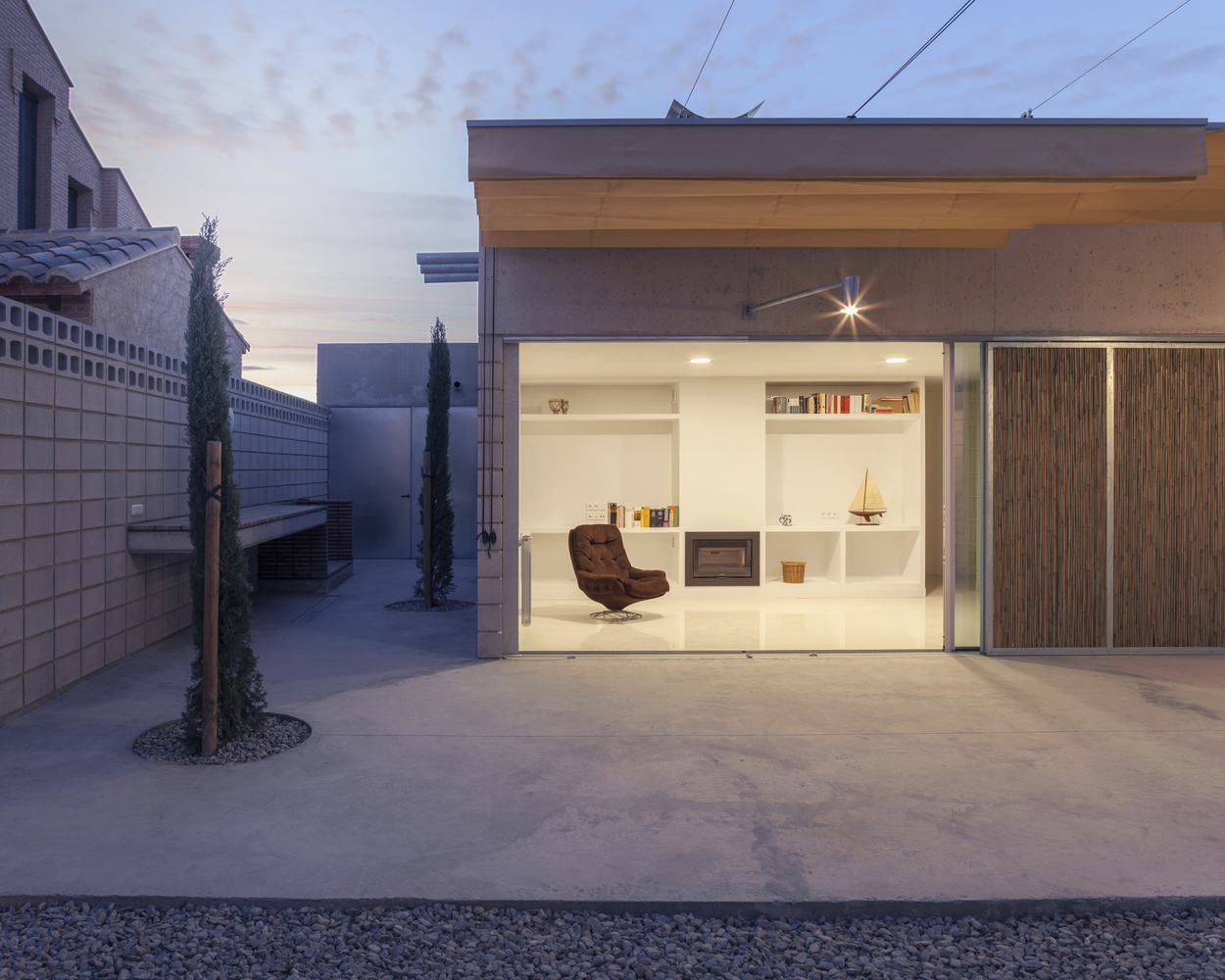

The proposal can be understood as a single H-shaped house, but also as two modules linked by a gallery, or perhaps by four cells all surrounded by courtyards that guarantee different degrees of privacy and an intense interior-exterior relationship. The guest module is located to the west. The main courtyard around which the whole is organized is located on the north side. The service areas are placed to the west as well. The toilets are placed on the north side while the corridors are on the south side.  The living spaces open up with large sliding doors. This arrangement allows long visuals in the two axes of the house as well as cross-ventilation.

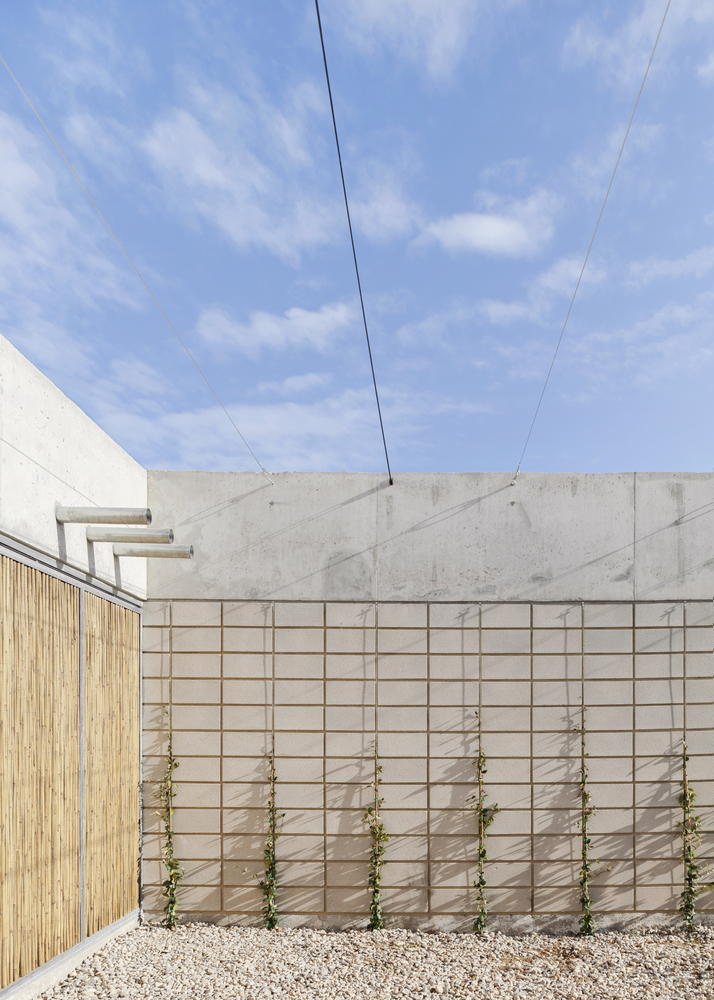

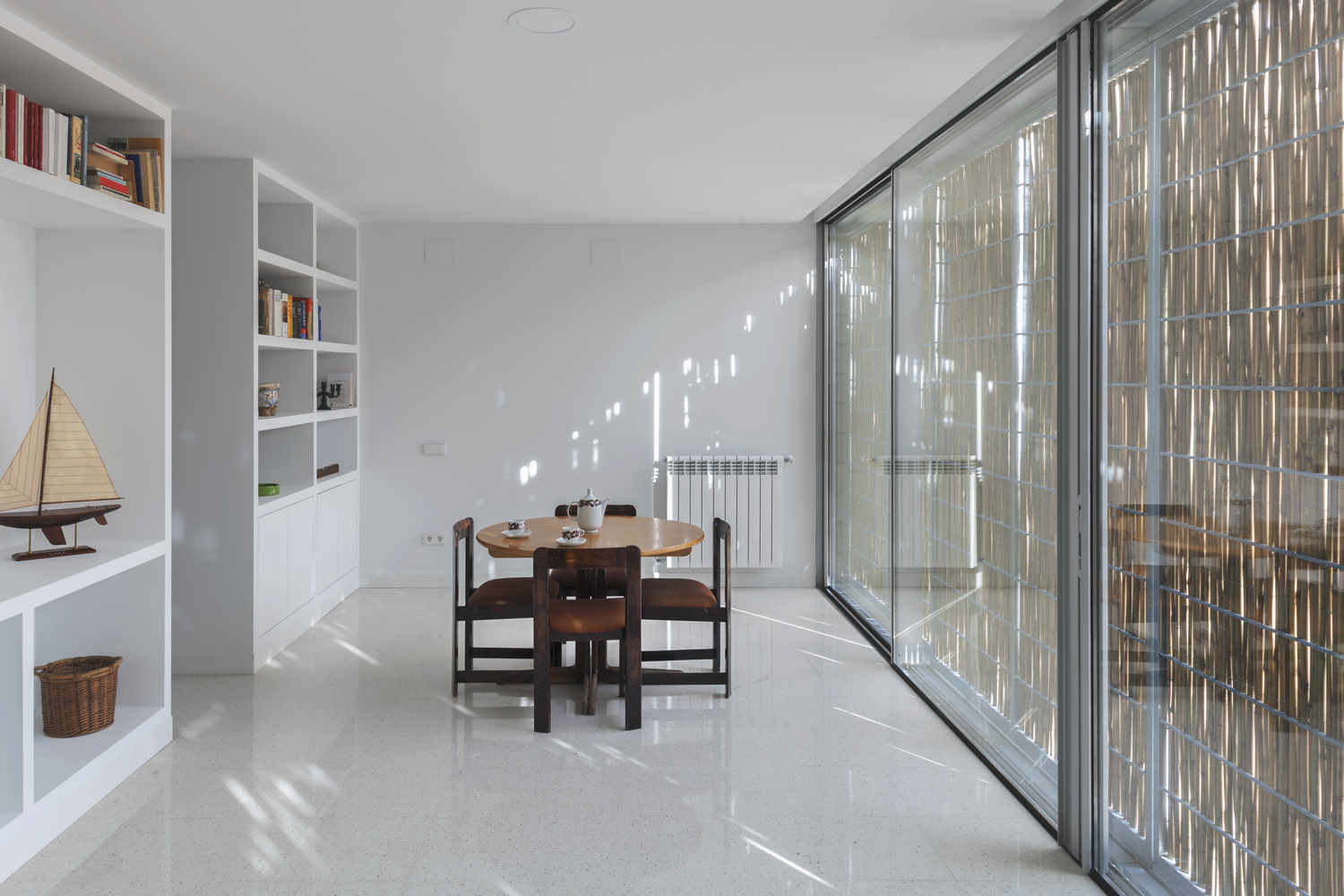

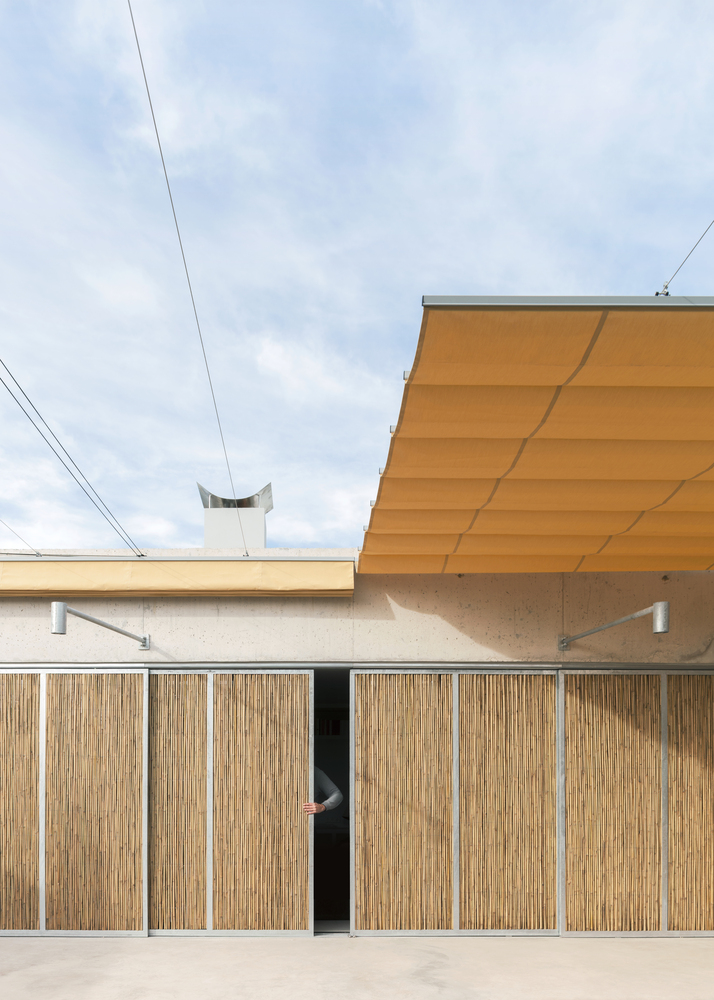

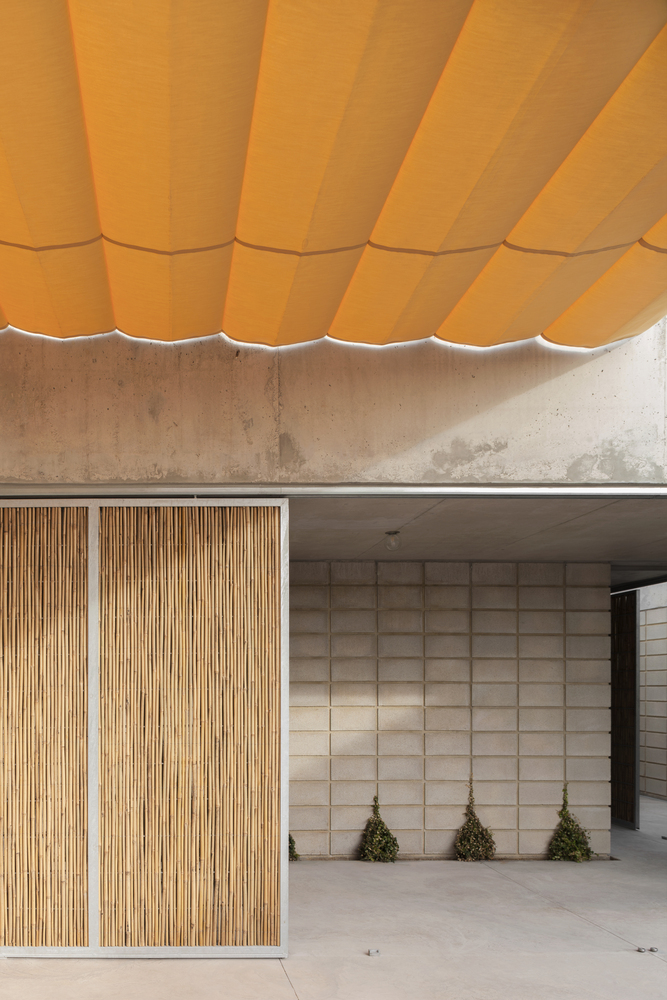

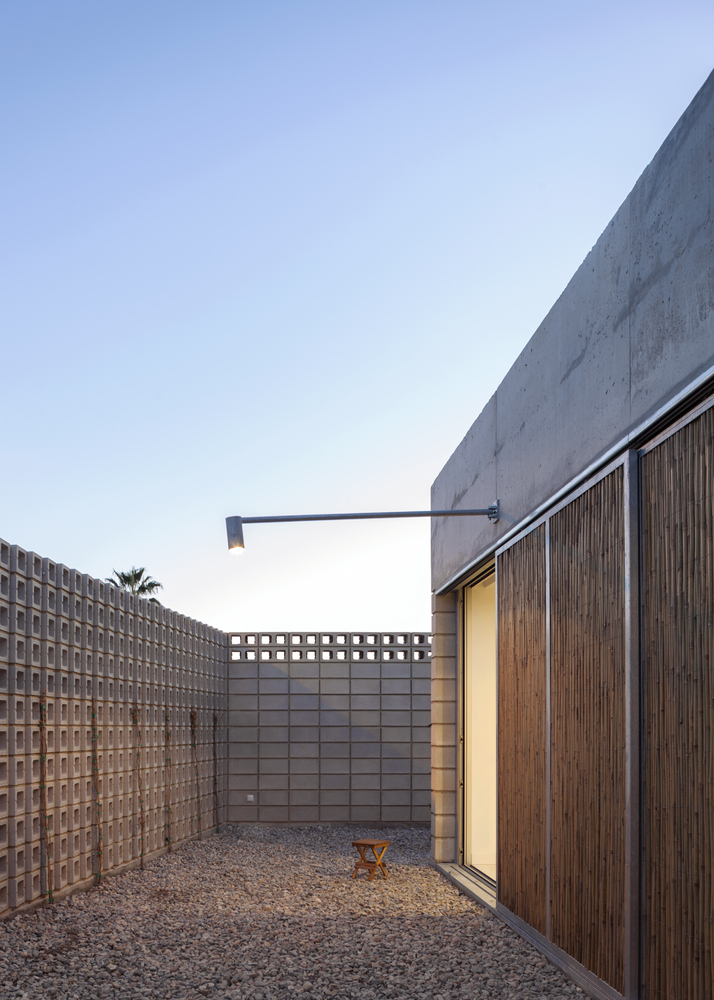

The house is materialized by load-bearing walls based on 39.19.19cm water-repellent concrete blocks, armed and not locked, crowned by a beam of the same width of 19m with thick girders of 106cm, salvaging a maximum amount of light. The public circulation areas are accompanied by floors of bare scrubbed concrete slabs. The private spaces are clad with painted laminated plasterboard, coated DM panelling and small grain terrazzo tiles distinguishing the "grey and rough" exterior from the "white and delicate" interior. The cane lattices, the concrete and the water that the gargoyles pour over the courtyards allude directly to the Marjal and Almardà beach.
