巴西 Fortaleza 地铁延伸线丨Fernandes Arquitetos Associados

Architects:Fernandes Arquitetos Associados

Area :114183 ft²

Year :2012

Photographs :Pedro Mascaro

Manufacturers :  AutoDesk, Arkos, Deca, Docolo, Dânica, ElianeAutoDesk

Lead Architect :Daniel Hopf Fernandes

Project Team : Willian T. S. Miyagui, Paulo Eduardo Jr, Leonardo Bachiega, Celso Nawa

Estagiários : Izabella Micheletto, Karen Sato

Engineering : SETEC Hidrobrasileira - Empresa coordenadora de Projetos

Landscape : Rodolfo Geisel, Christiane Ribeiro

Electrical And Hydraulic Installations : SETEC Hidrobrasileira

Structure : MRS Engenharia

Country : Brazil

Design for METROFOR - Fortaleza Metro, with nine stations of the Parangaba-Mucuripe line that has an overground track. This extension has three main typologies.

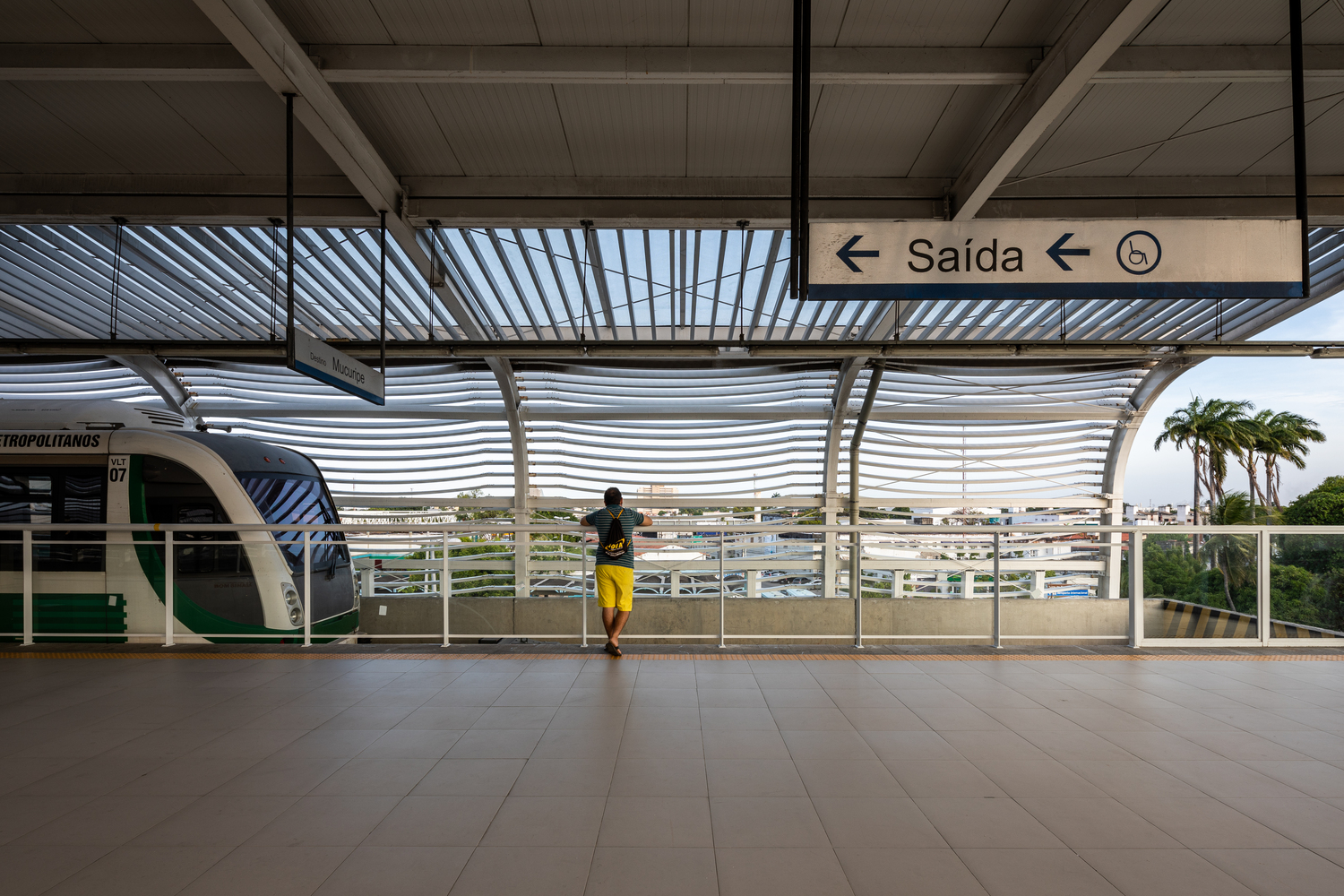

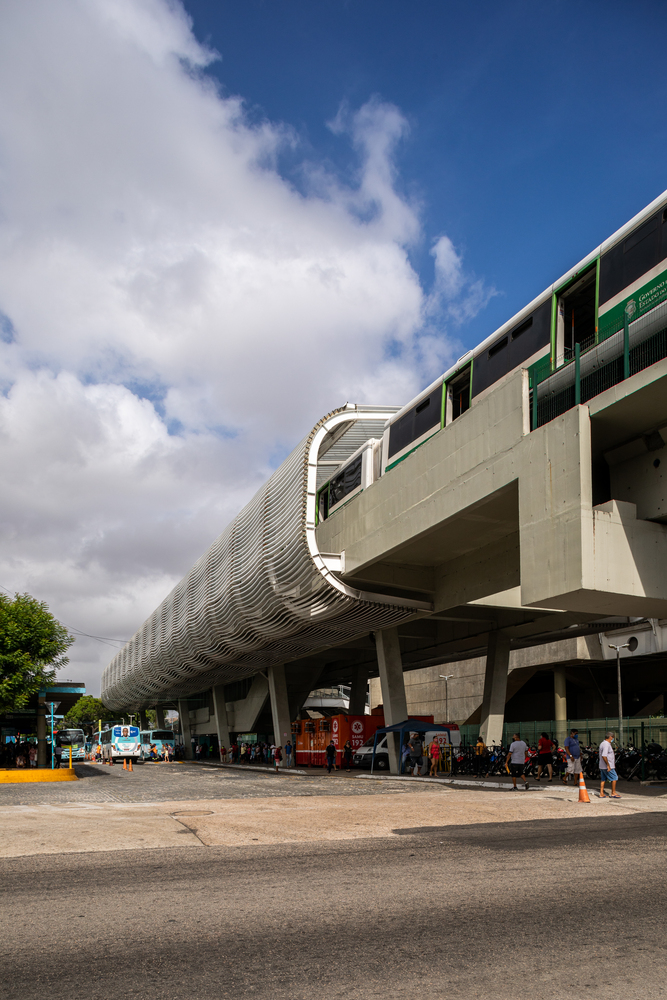

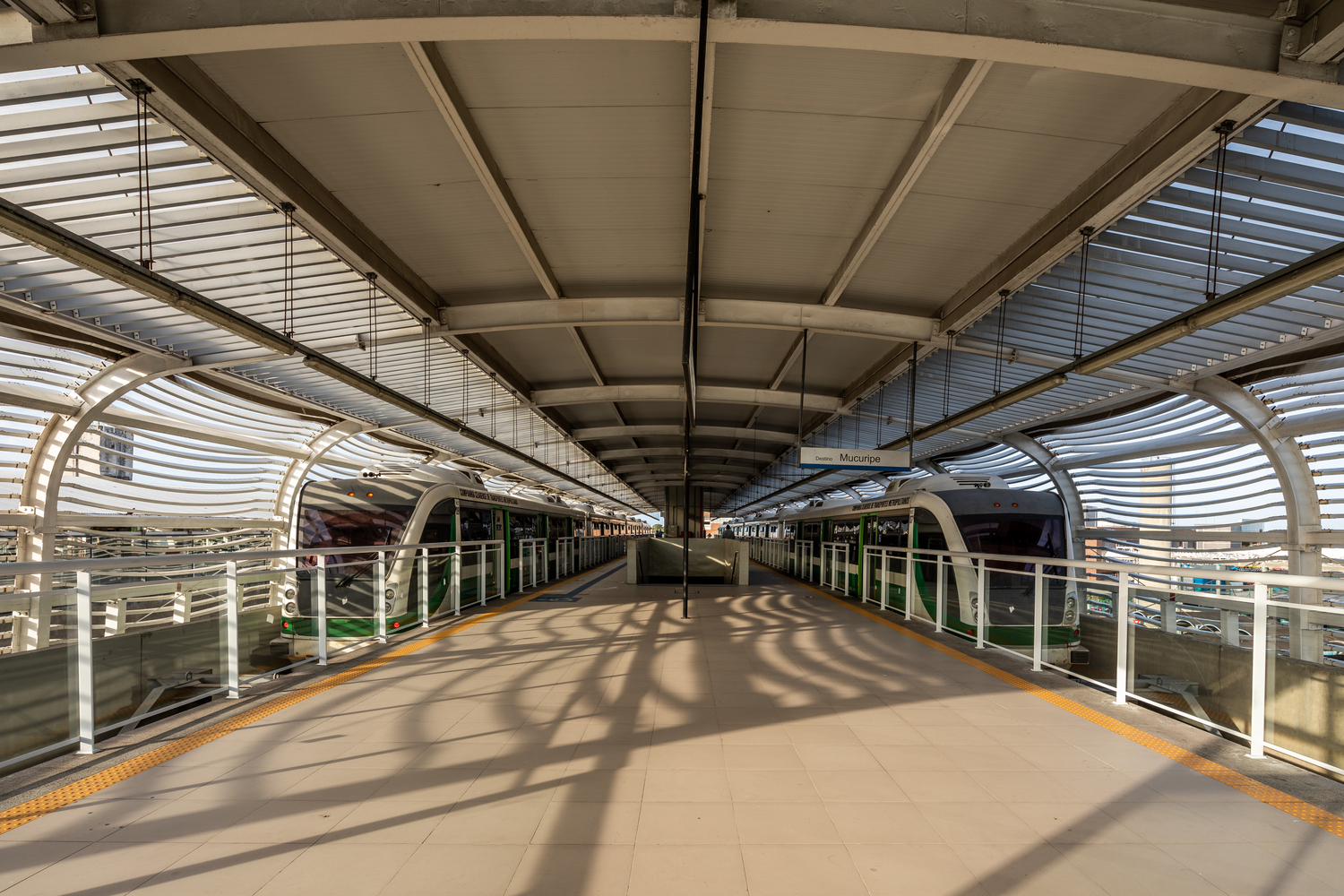

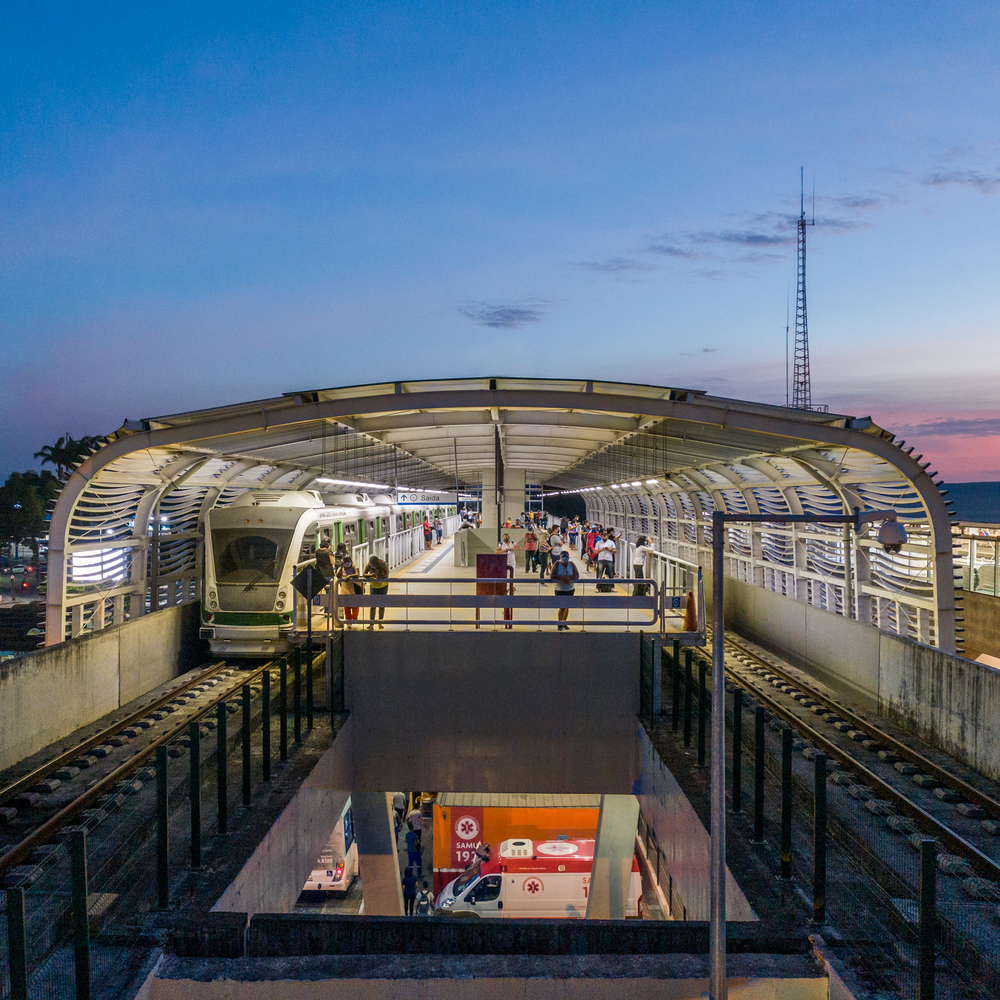

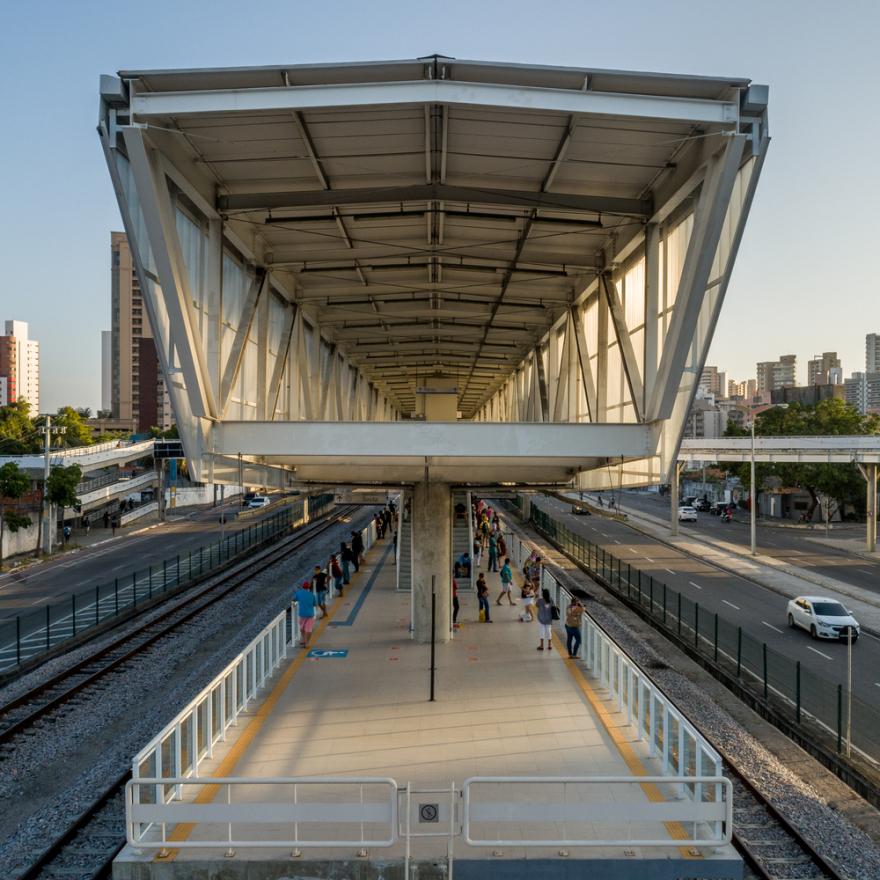

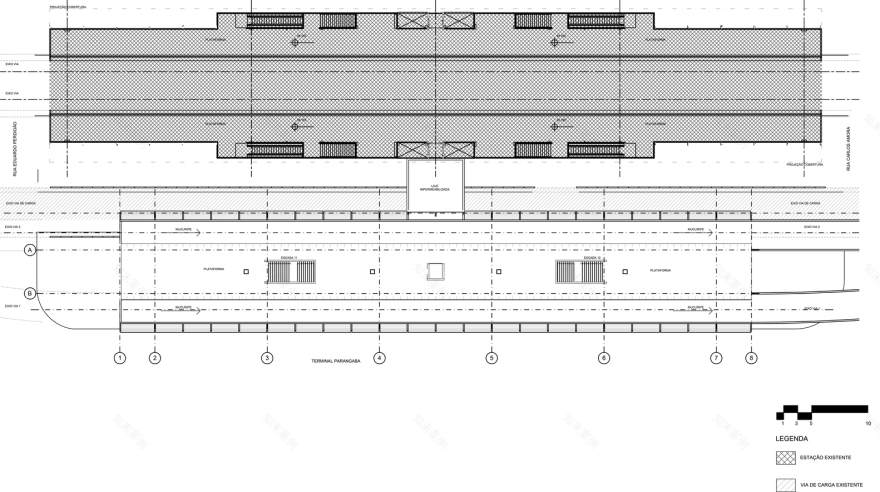

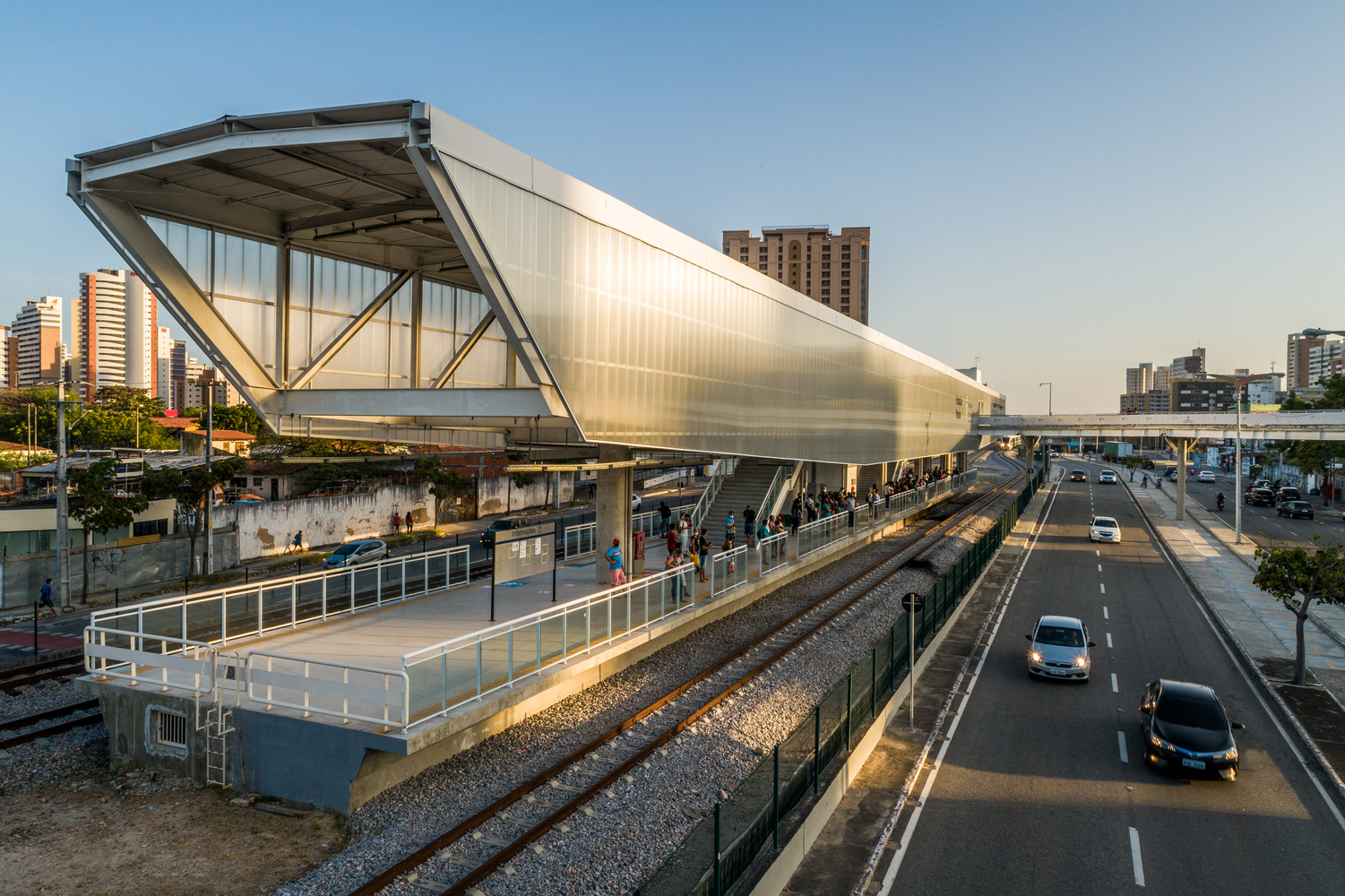

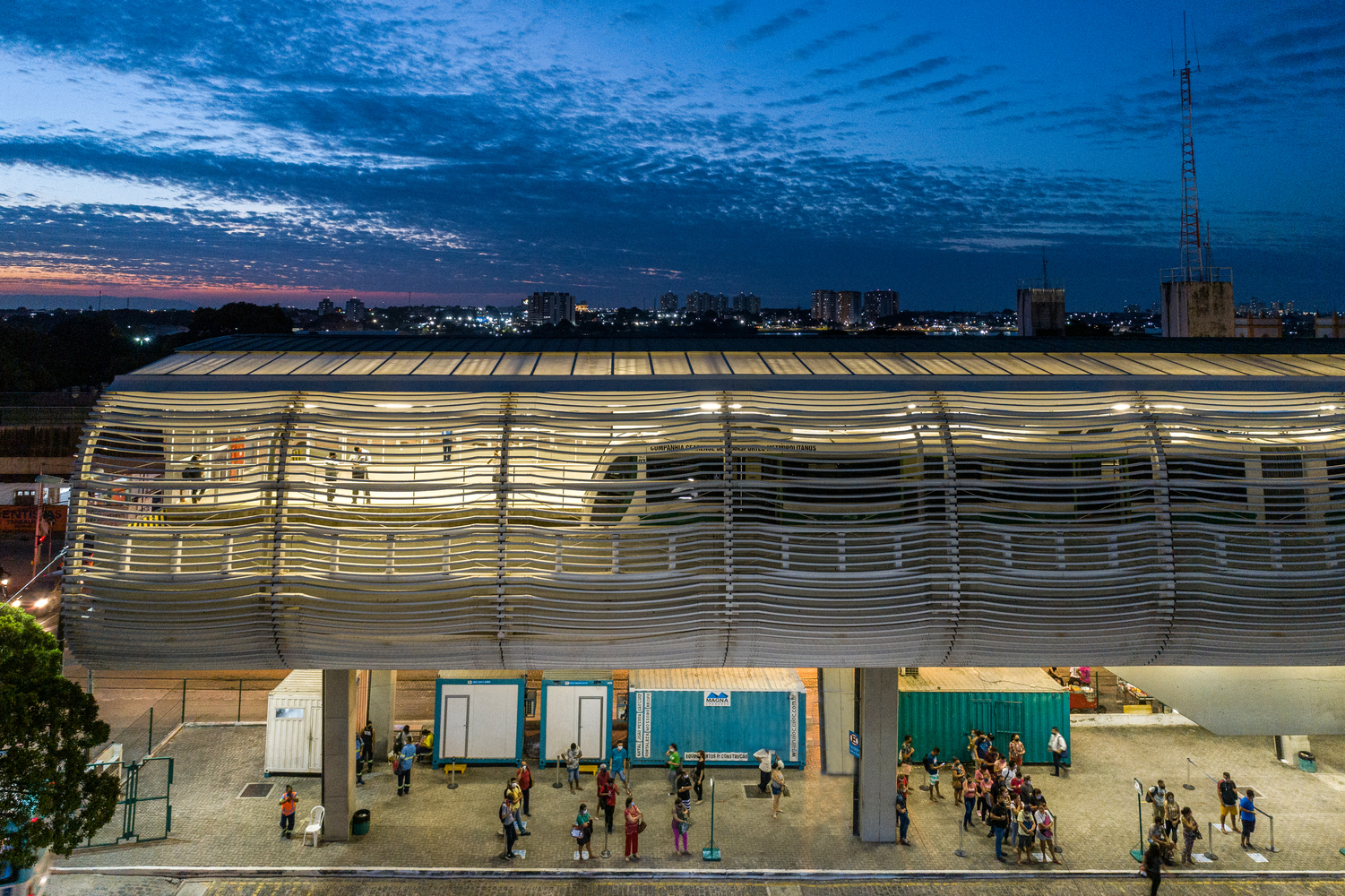

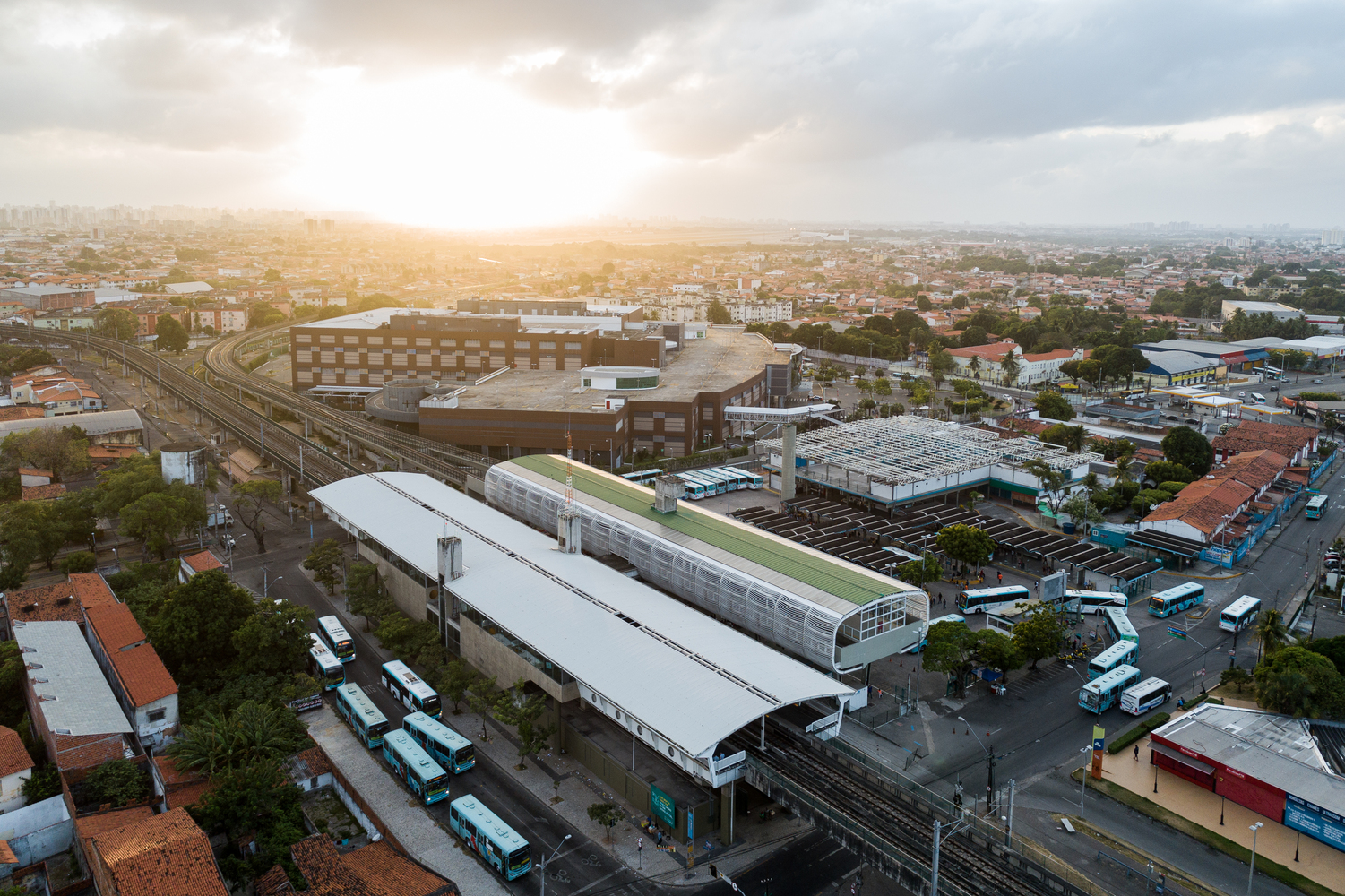

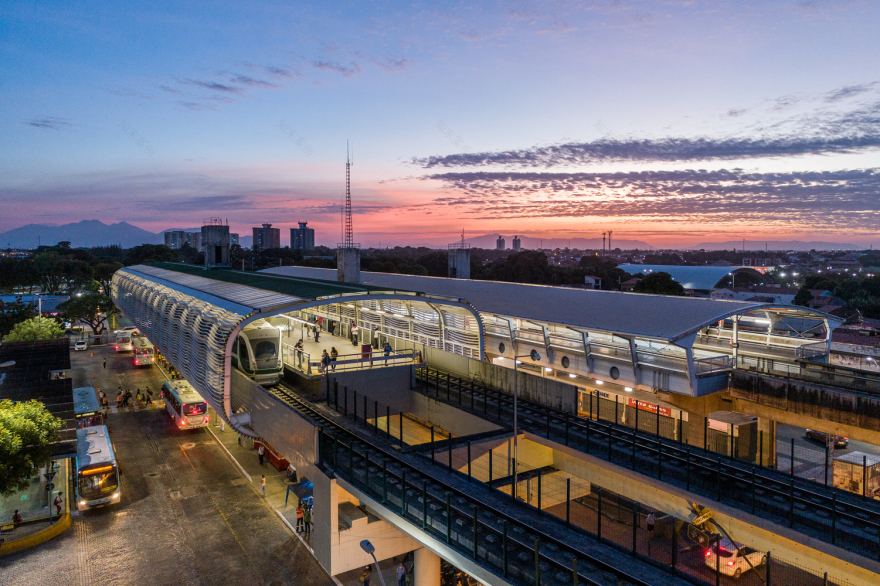

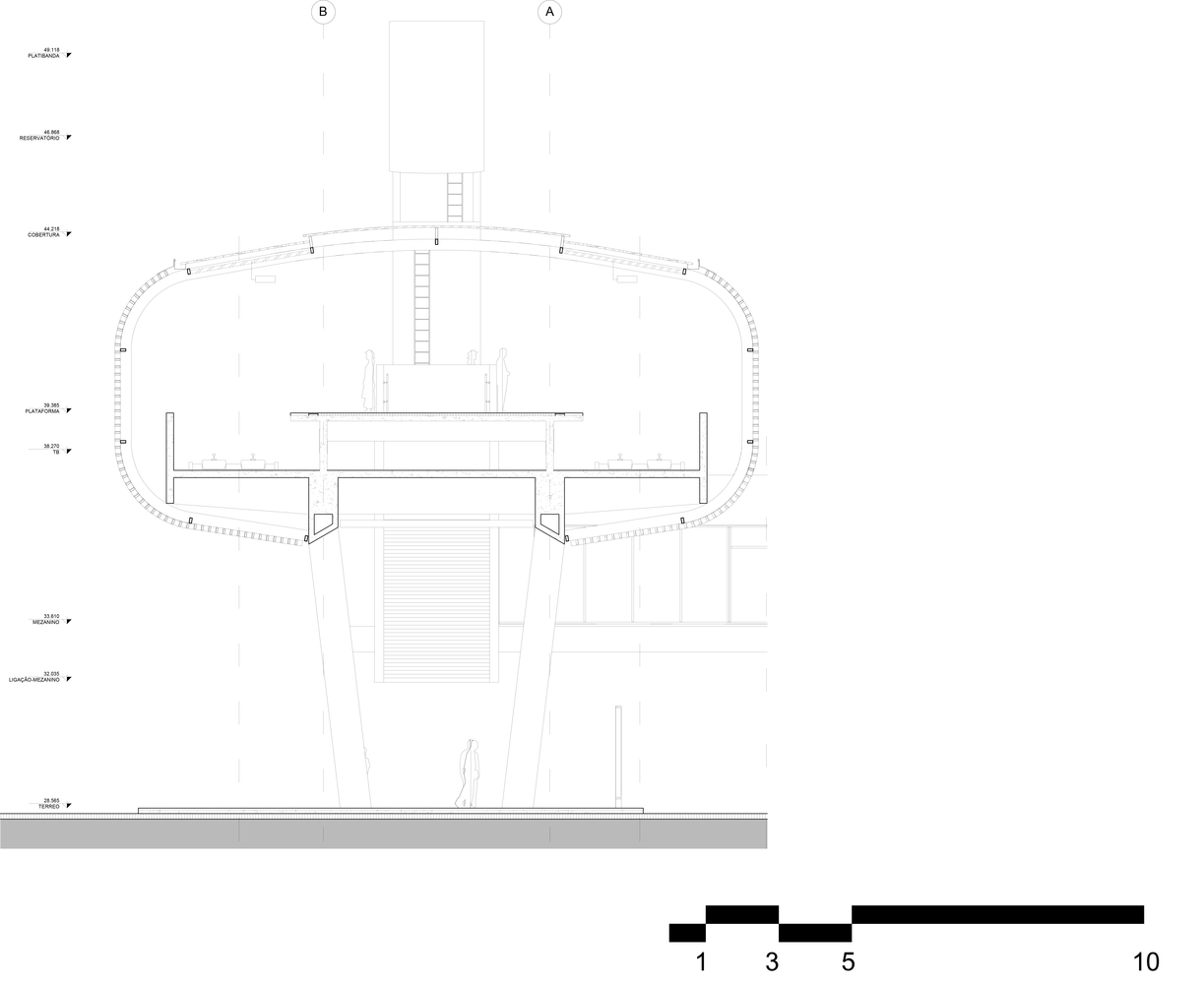

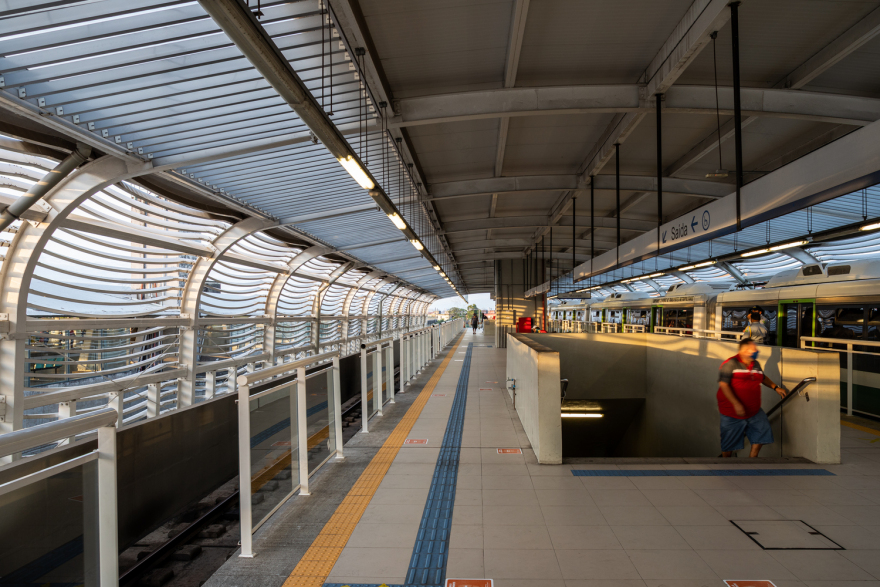

The Parangaba Station, connecting with the South Line is an elevated station of different architectural features of the current station- in concrete and platforms on the sides - is modern with materials that enable transparency and a sensation of lightness. The cover and its envelope are composed of steel frames, which support and bear a brise-soleils system also metal, which softness the light in the platform, and an industrial tile with thermal insulation.

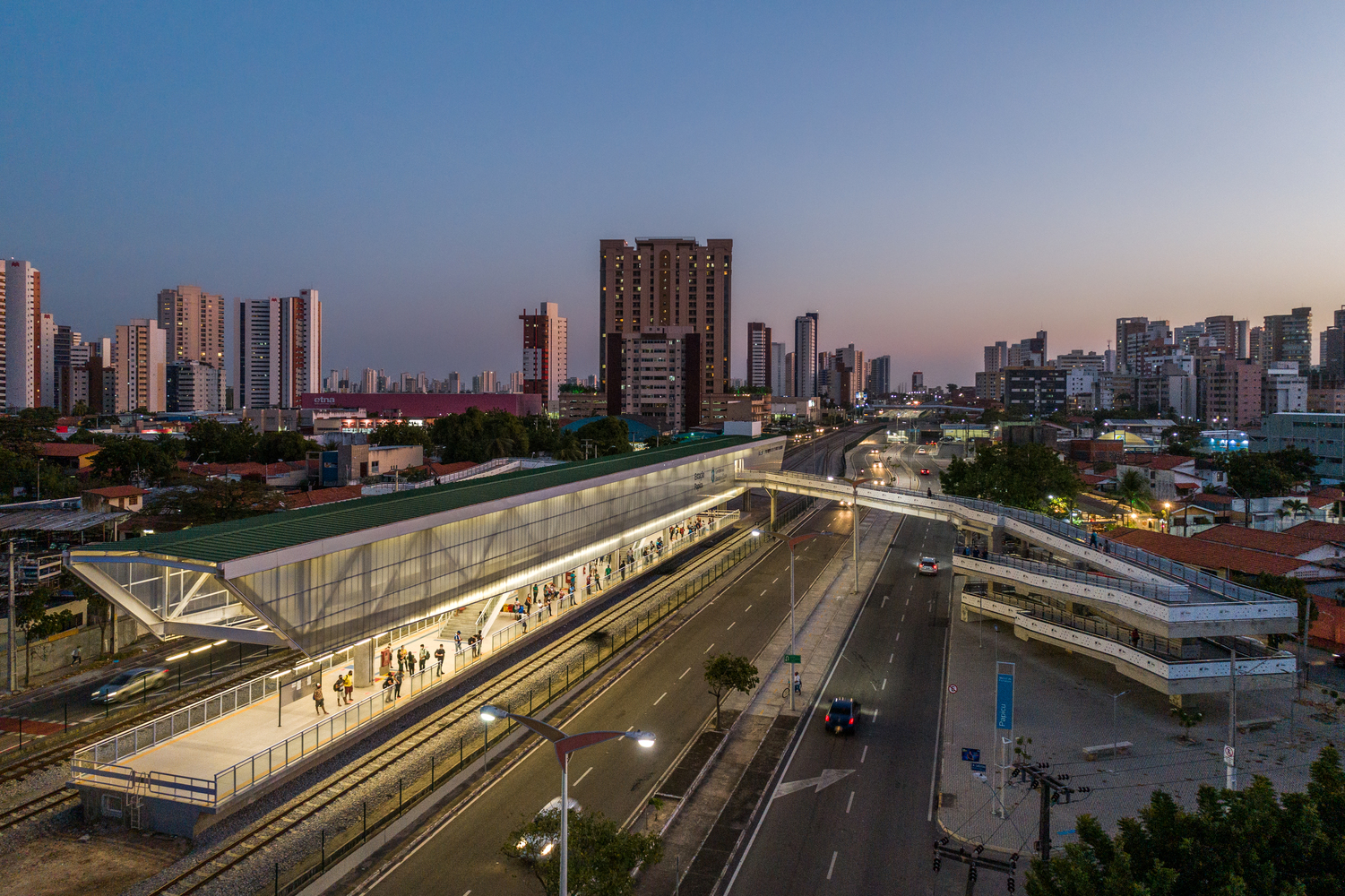

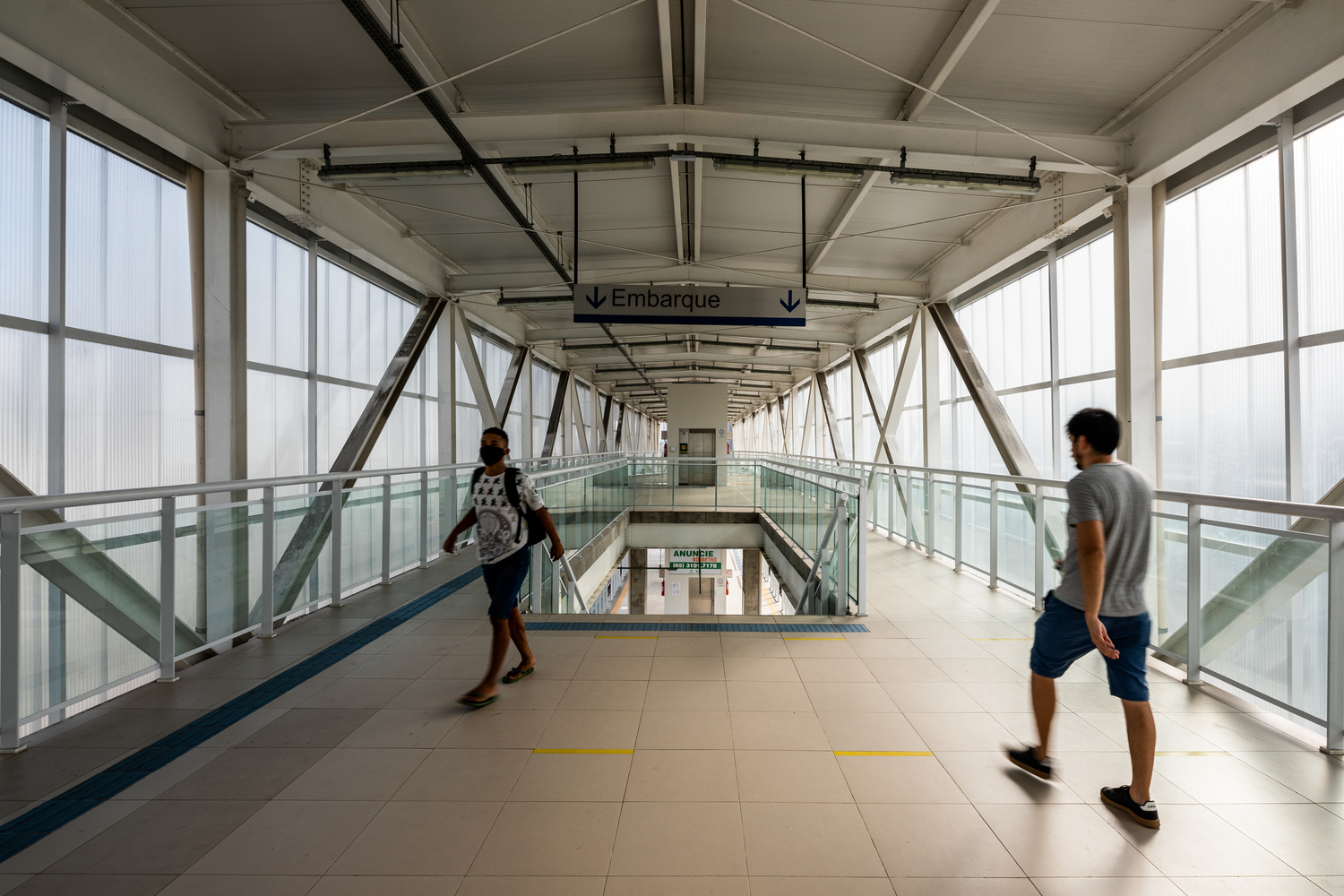

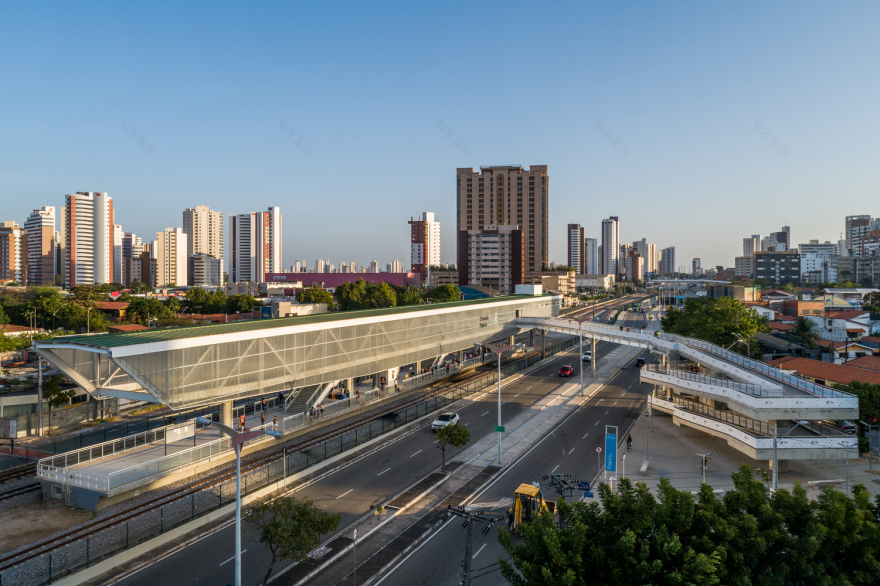

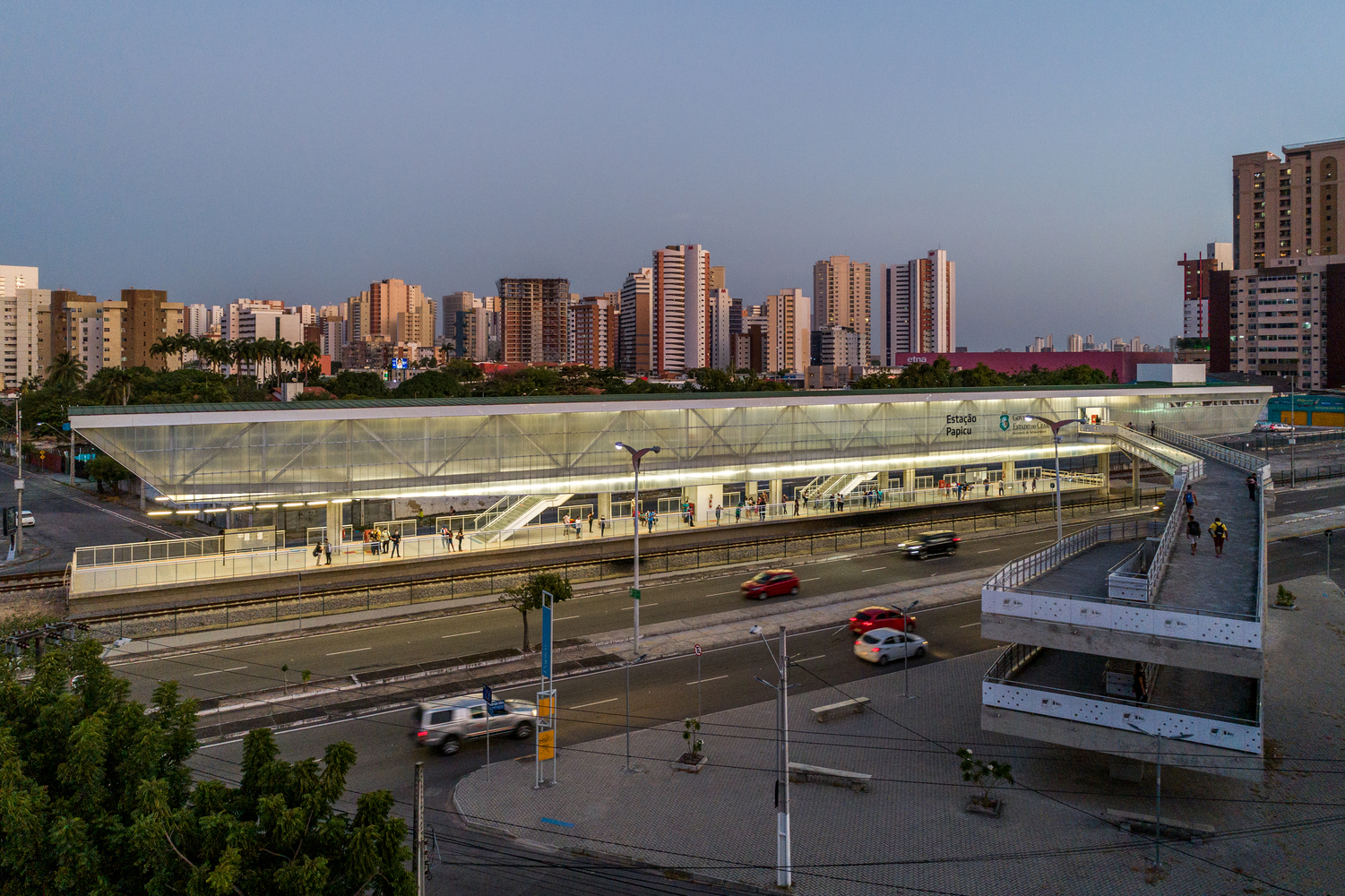

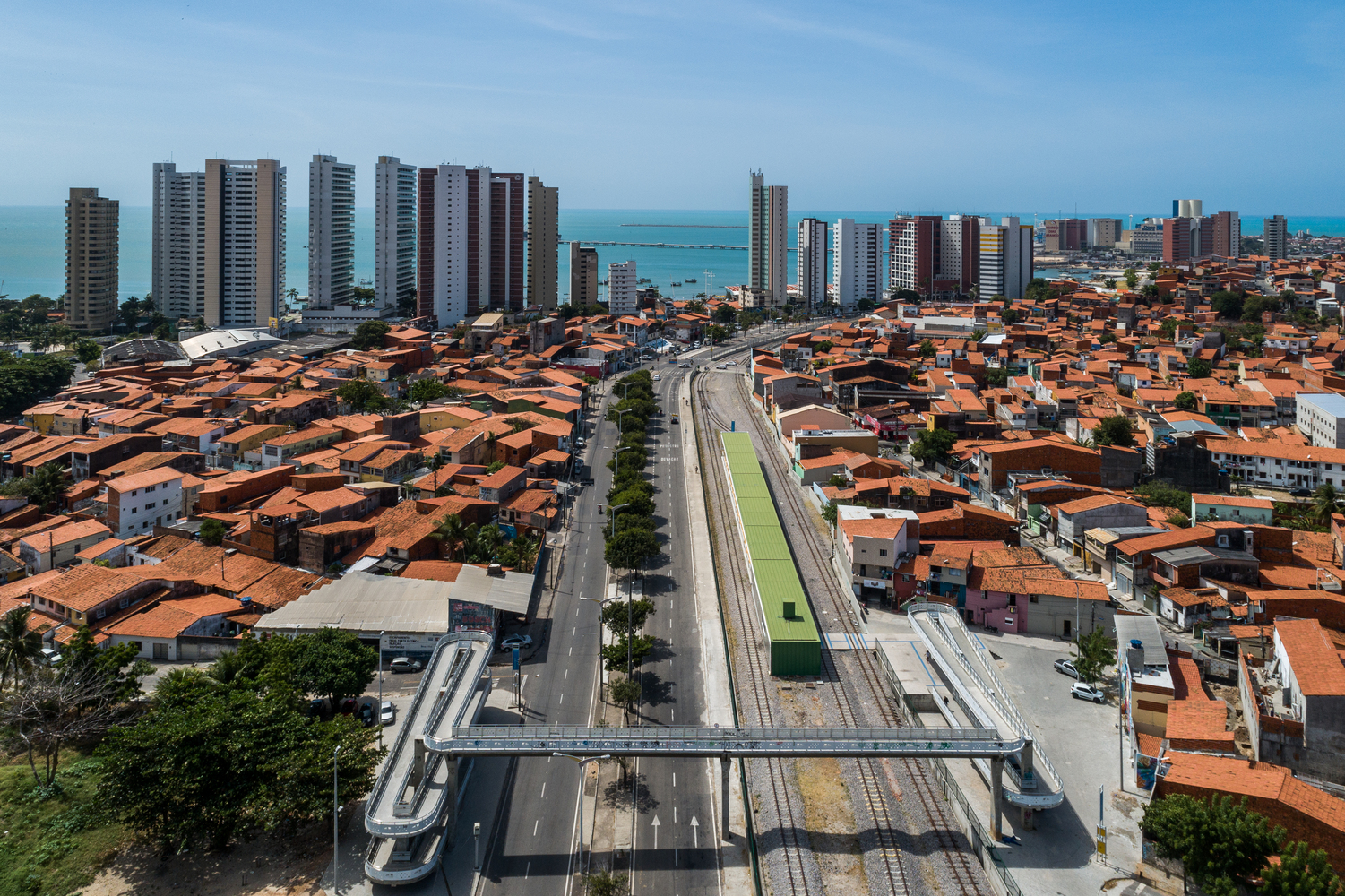

The Papicu station, overground typology, received the solution in footbridges with access through a mezzanine, being in connection with the Papicu Bus Terminal and connected to the future East station.

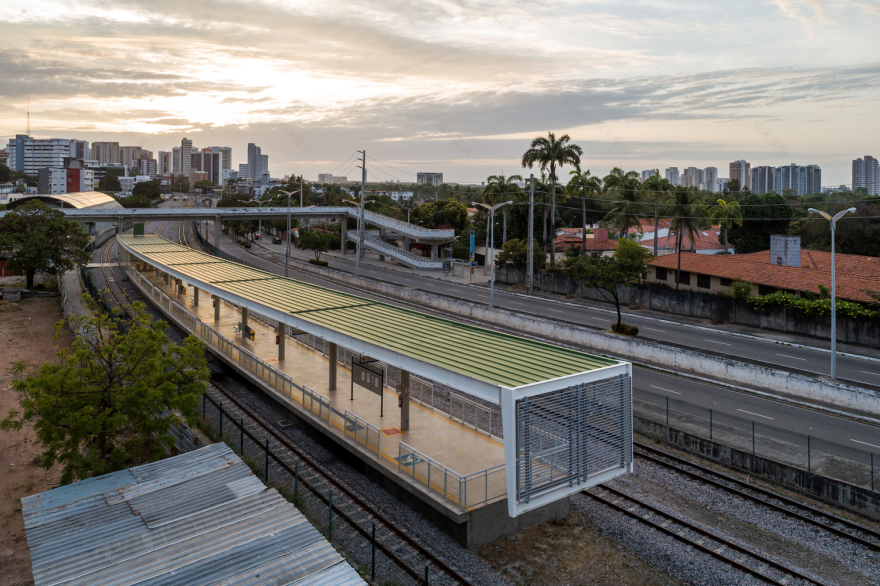

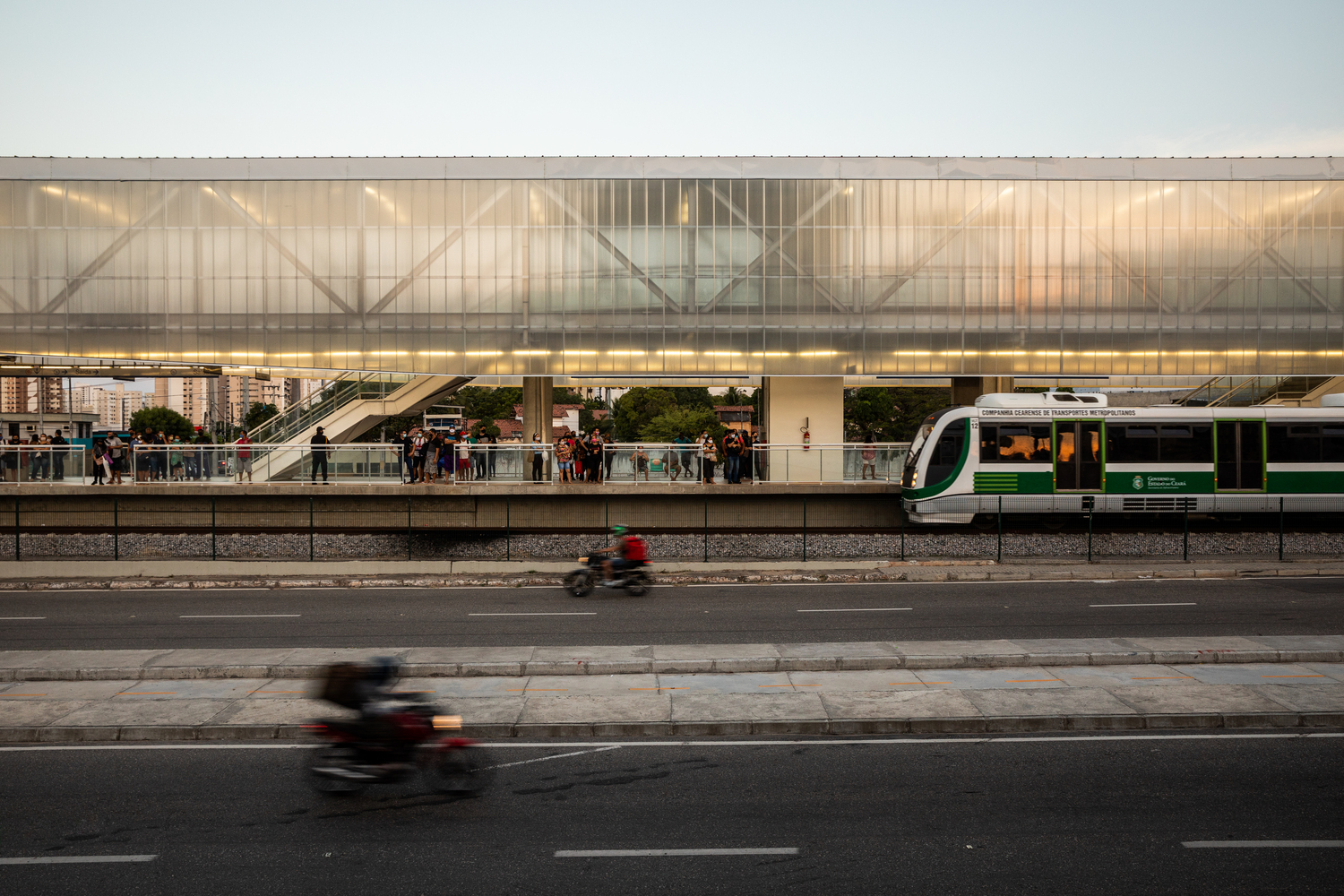

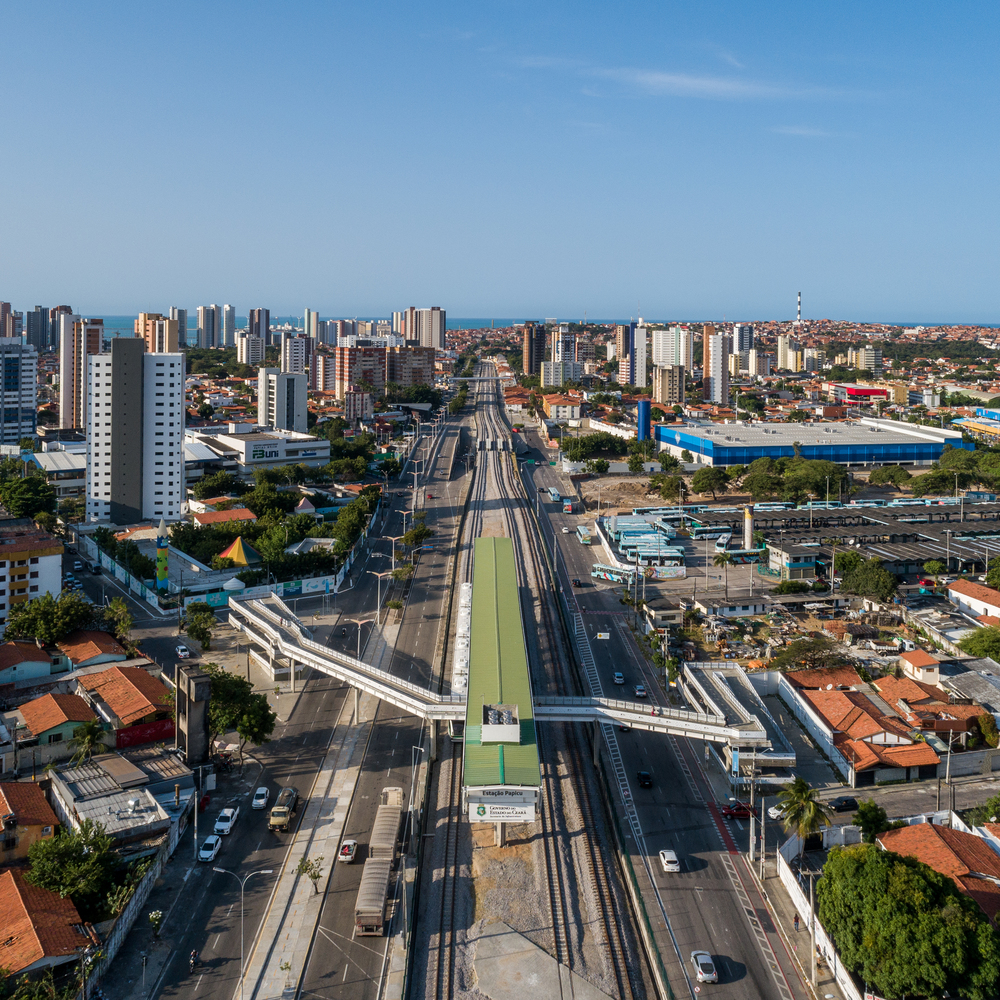

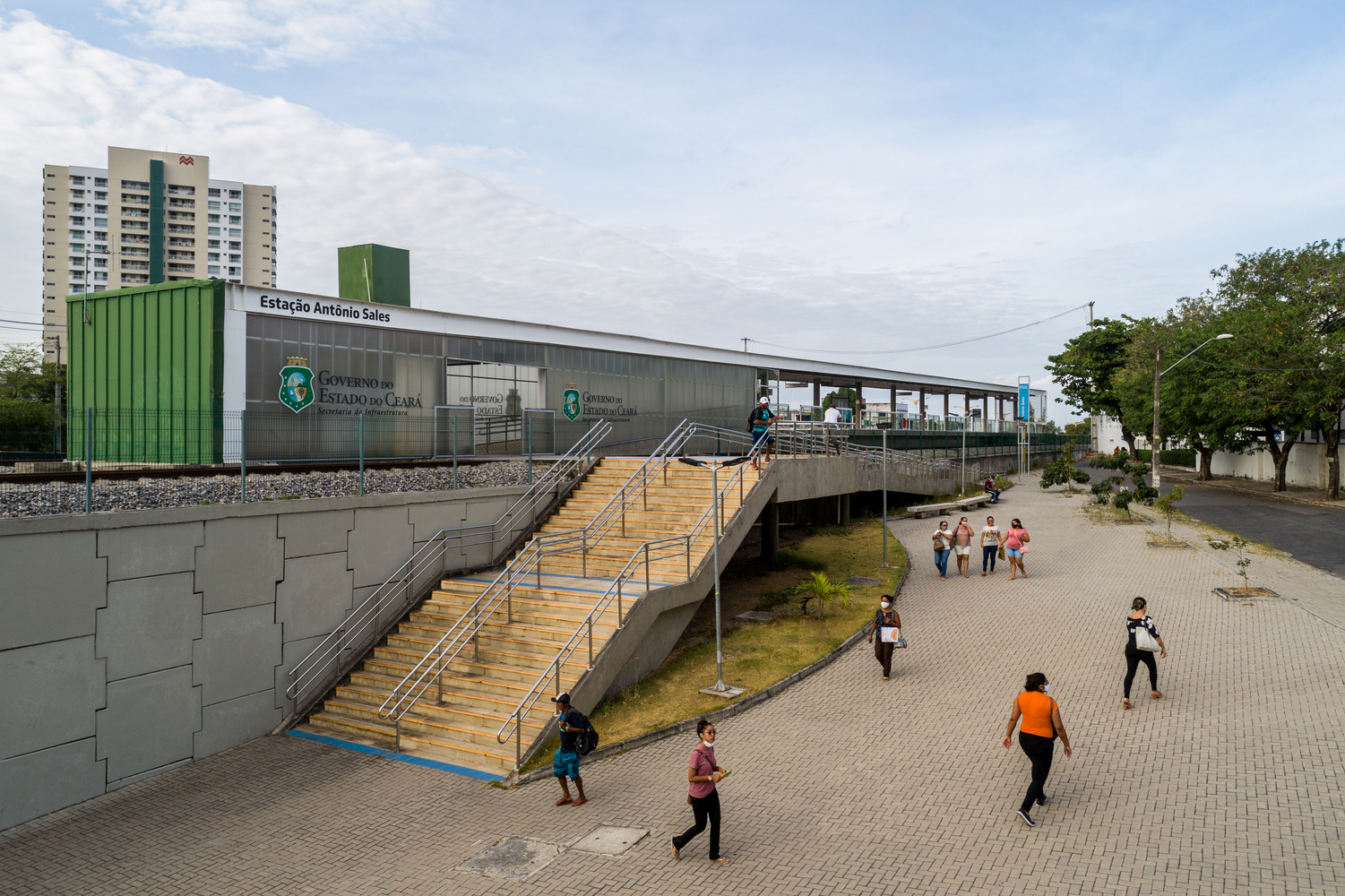

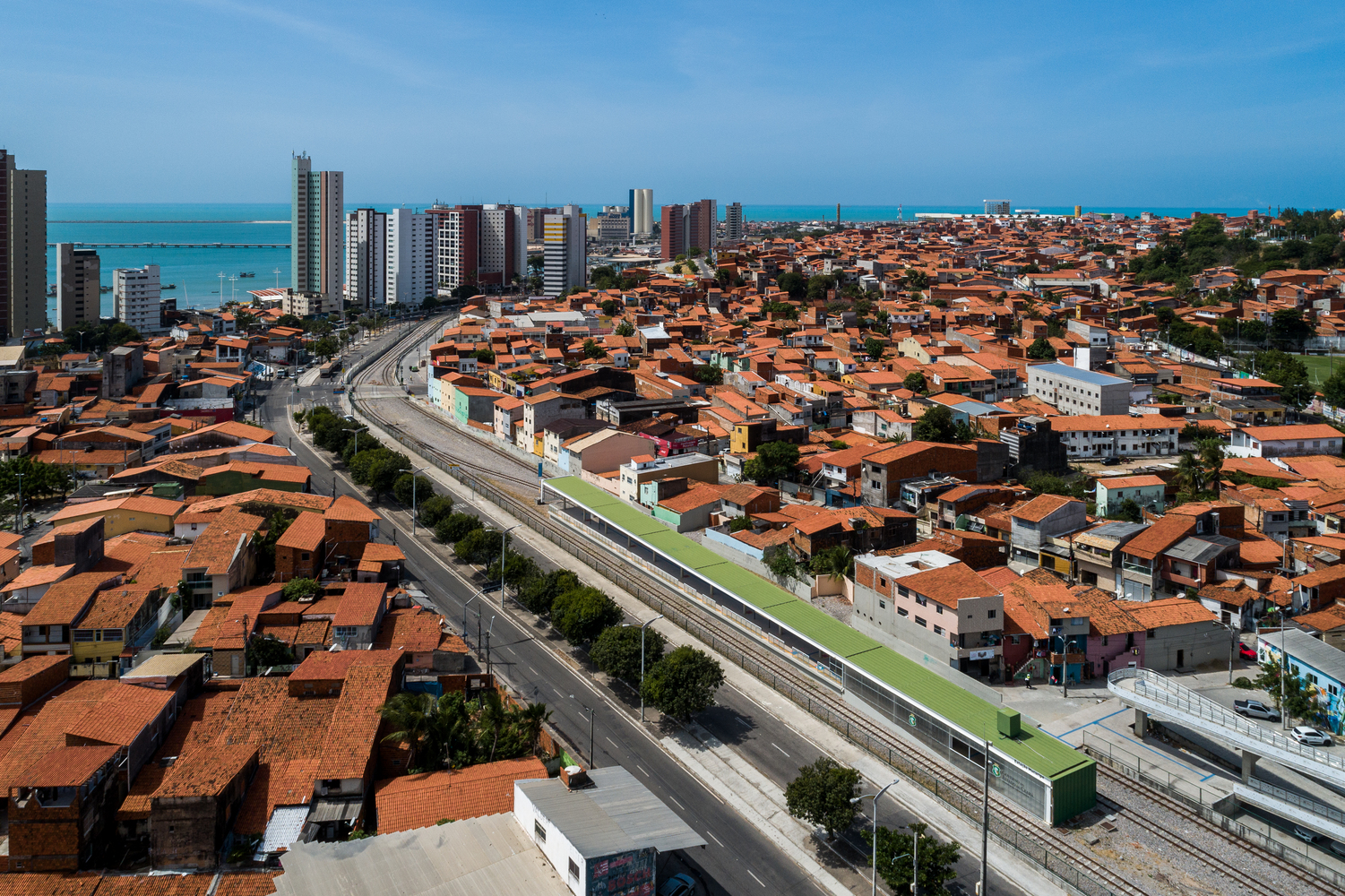

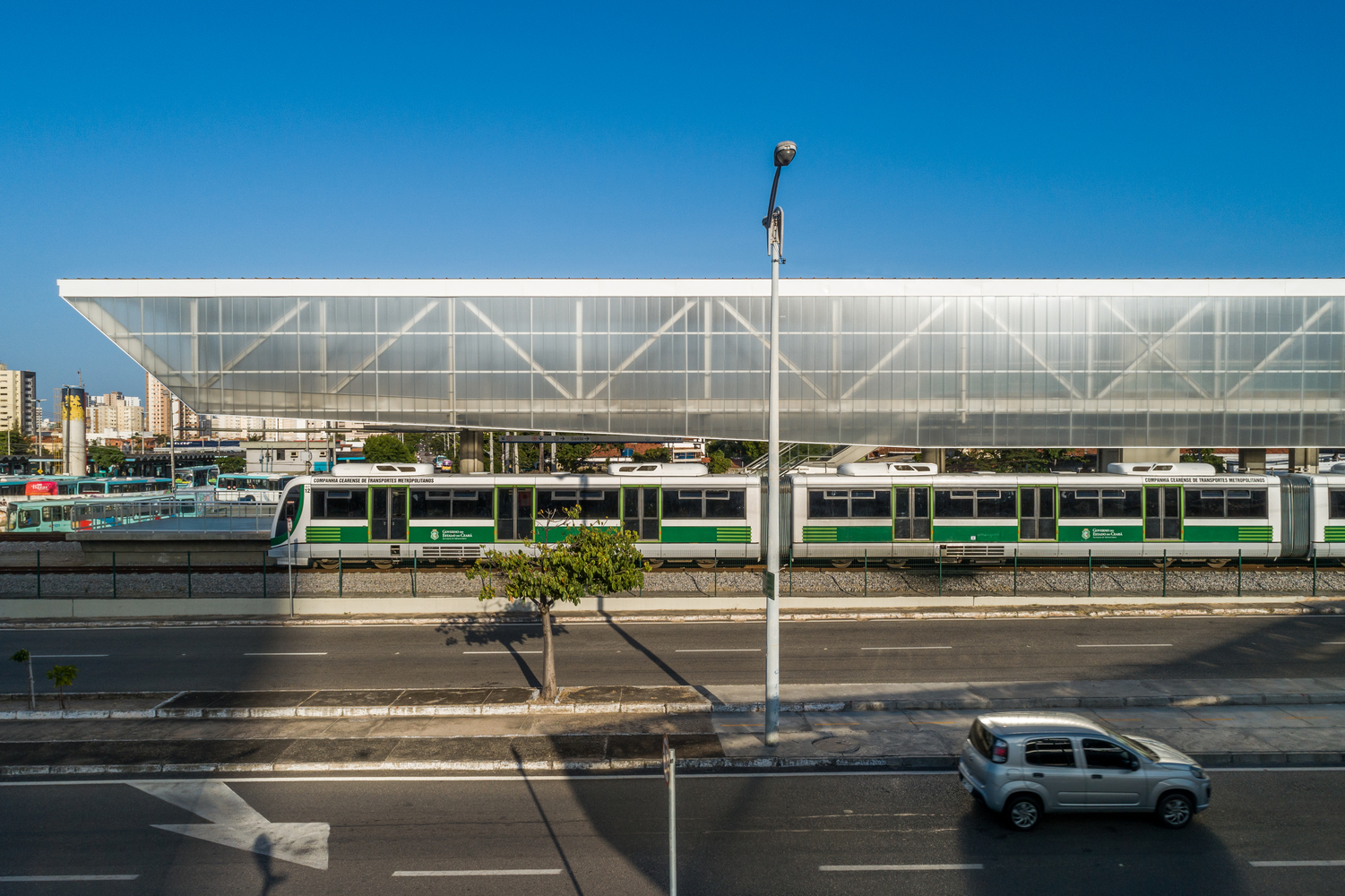

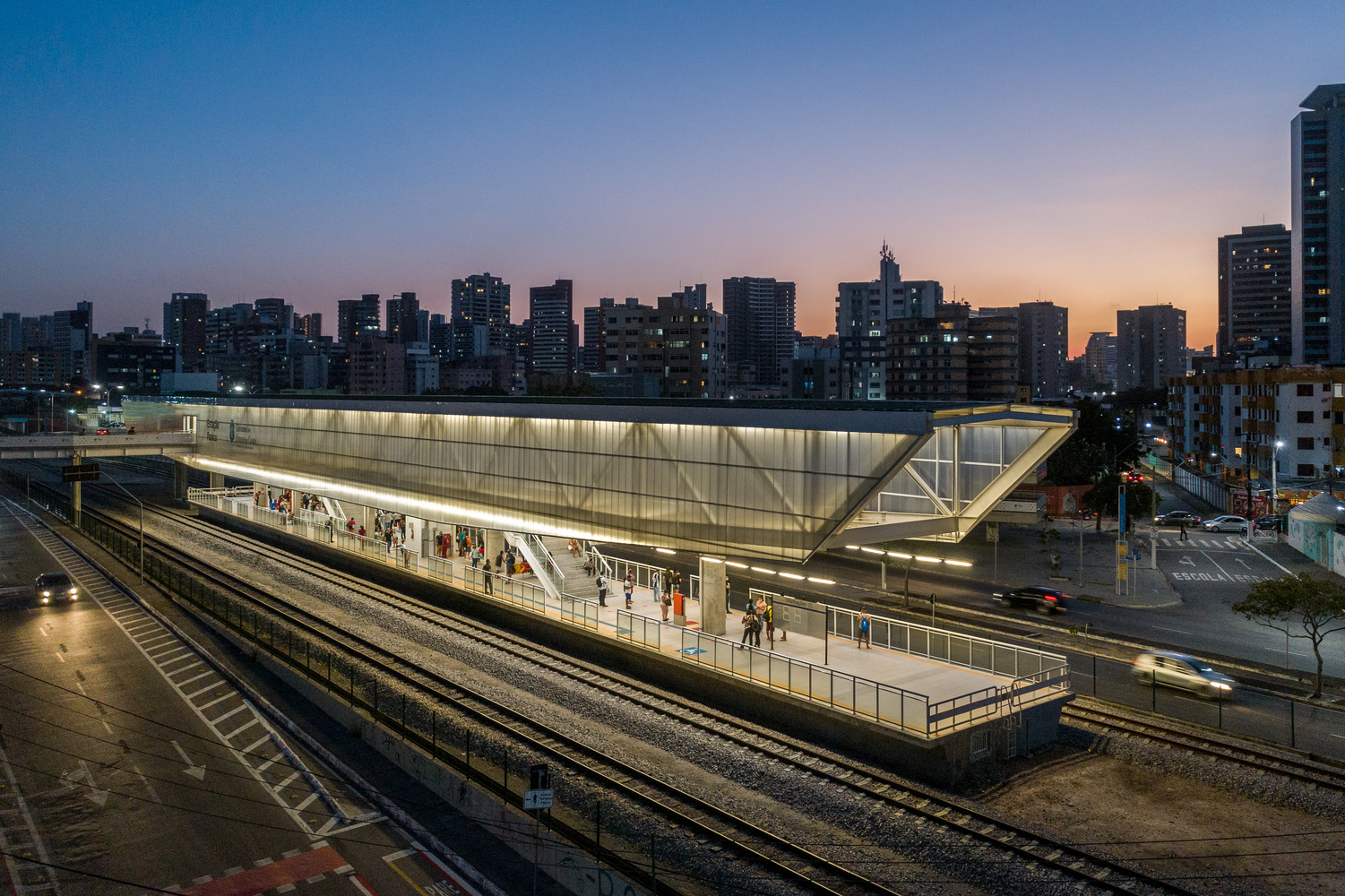

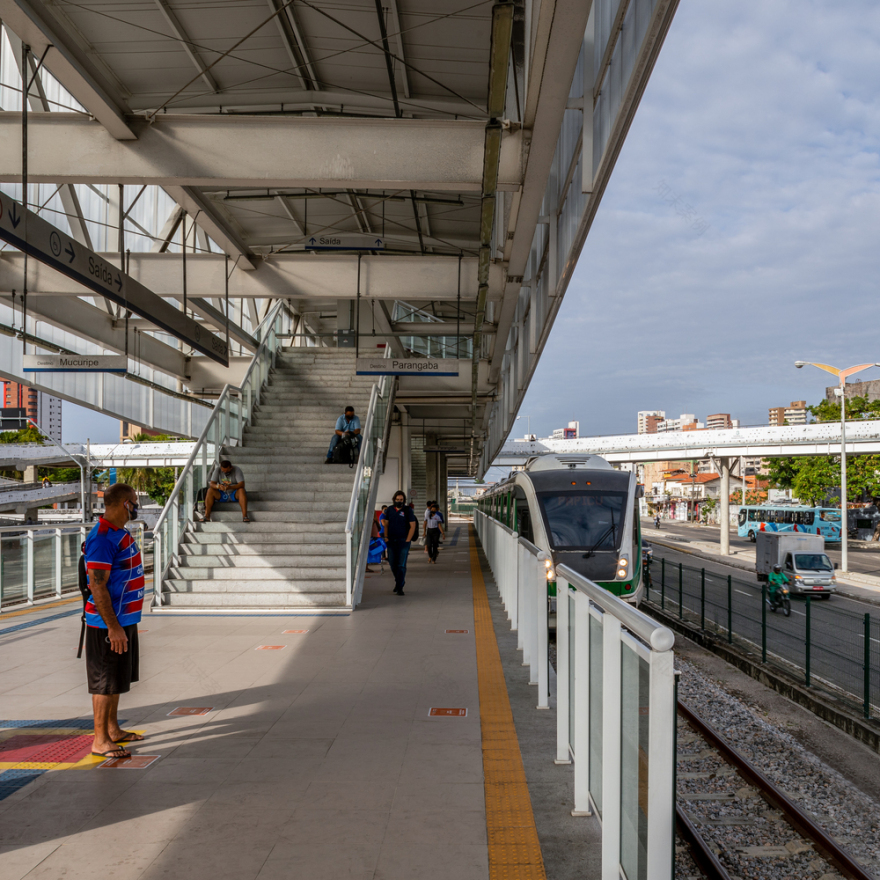

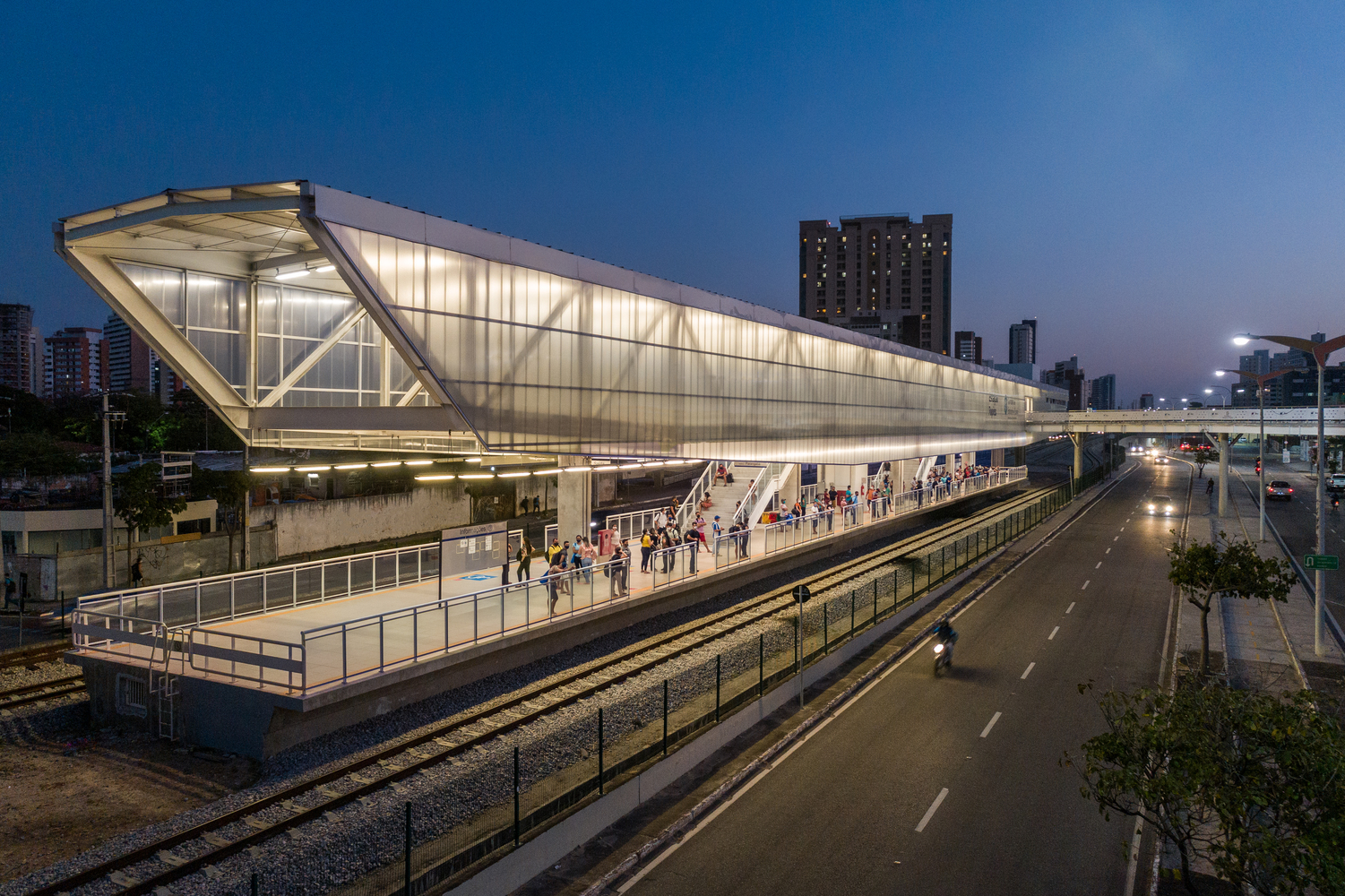

The other stations, as overground type, and in order to obtain a reduction in deployment costs and decrease the problem of expropriations, the access is direct on the same level. All proposals stations, are noted for promoting the use of natural light of the city and rely on materials that soften the impact of high local temperatures.
