巴塞罗那 Tubella 住宅

该住宅位于Tubella街道上的一栋保护建筑的顶层。这些成对分布的住宅建筑建于1925年，旨在为社区内各行各业的工人提供生活保障。

We are on the top floor of a cataloged house located on the Tubella Promenade. A private passage of paired houses, projected in 1925, to offer a healthy life to the workers of the various industries of the neighborhood.

▼建筑位于一栋保护建筑的顶层，the porject is located on the top floor of a cataloged house

住宅与对面的Benet Campabadal纺织厂仅一墙之隔，该项目的业主希望在住宅中设置一个办公空间，以改善住宅的功能。

Sharing a partition wall with the Benet Campabadal Spinners factory, our client proposed introducing a work space in the house and improving the use of housing.

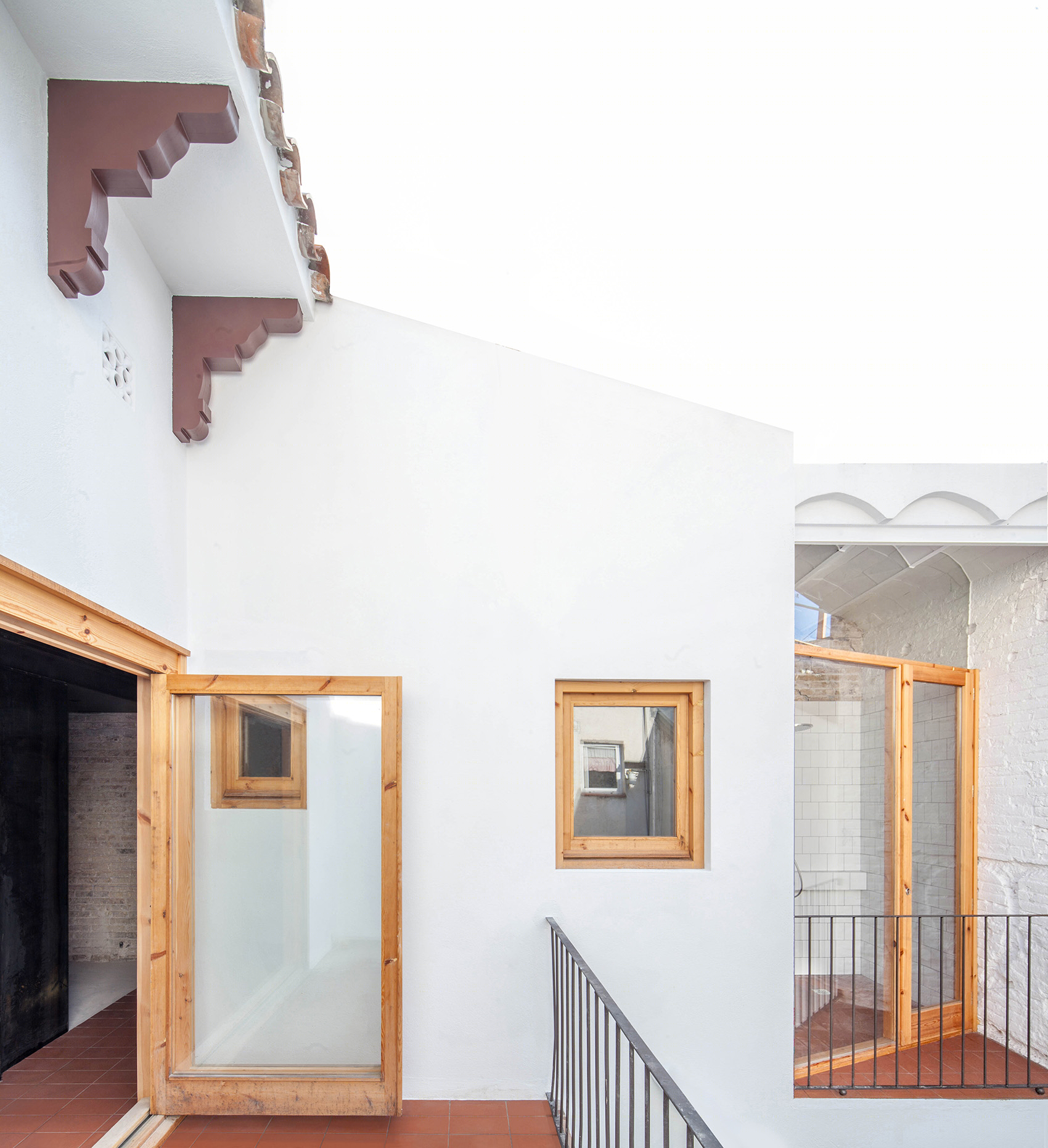

▼住宅外观，exterior view

设计师在既有建筑中发现了一些不和谐的空间，包括一条封闭的走廊，和一个被掩盖住的露台。通过移除干扰因素，露台和走廊得以再度利用，同时令室内中庭与外界环境形成对话。清扫工作也使空间的本质重新显现出来。新置入的黑色铁制结构与周围的工业建筑建立了关联，并悄无声息地将居住和工作空间容纳在内。

We discovered some non-conforming volumes, a blinded gallery and a buried terrace, separated from the original values. A demolition, frees the terrace and the gallery outside, getting the interior patio to dialogue again with the open spaces of the context. A clearing, shows inside the lifeblood of a continent. Black iron artifacts are deposited in the interior establishing a link with the industrial world of the surroundings. Silently they contain the housing and work program of the house.

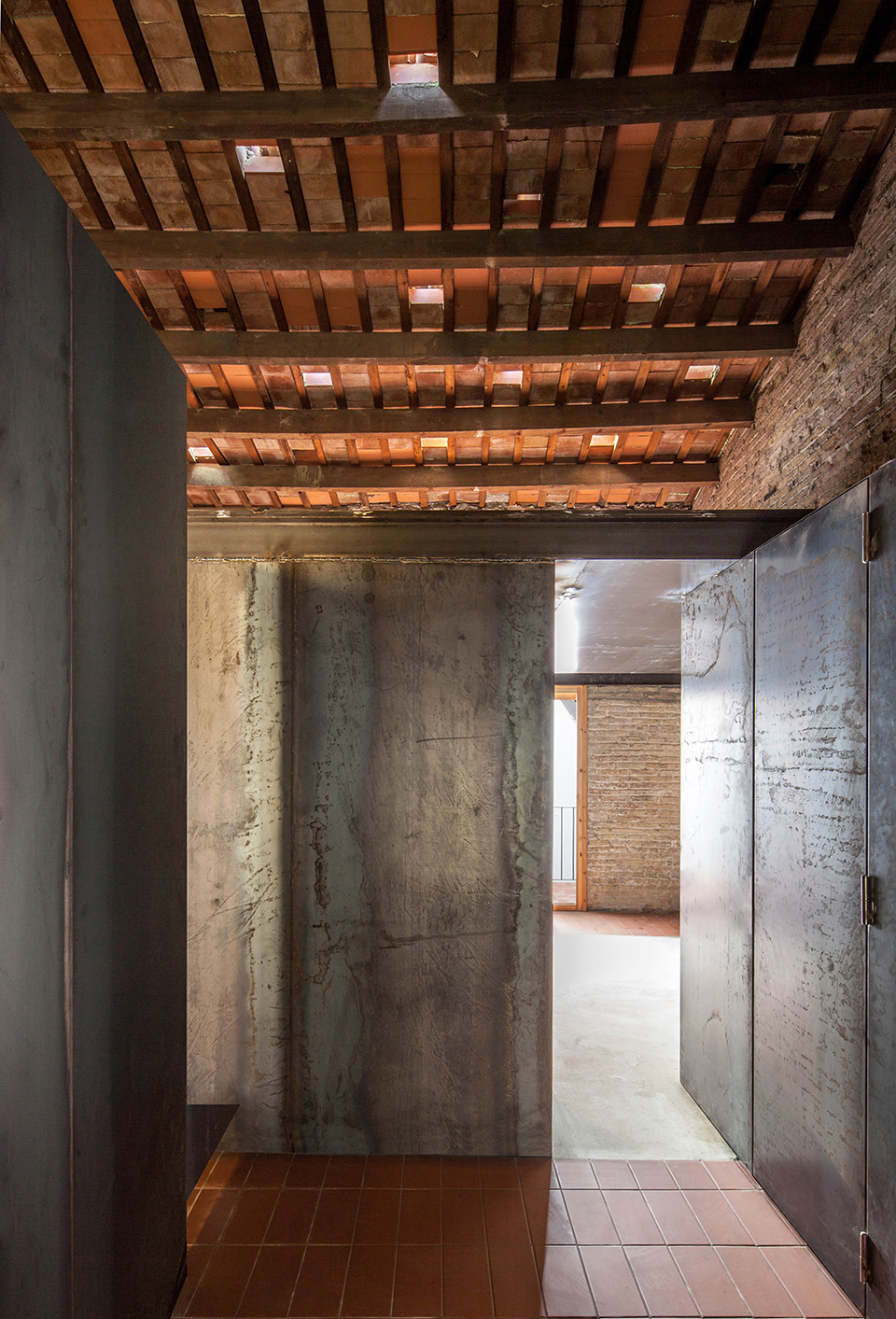

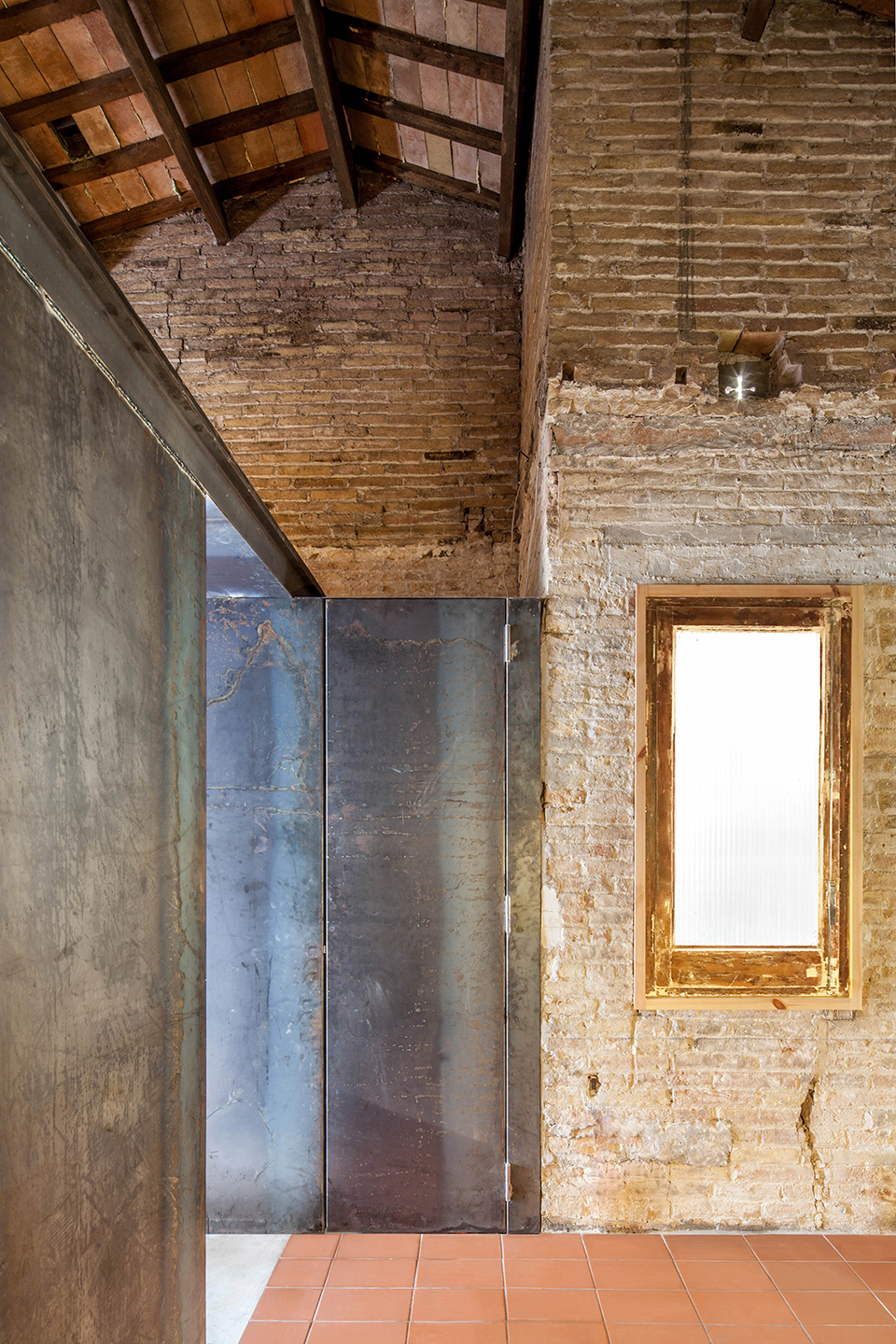

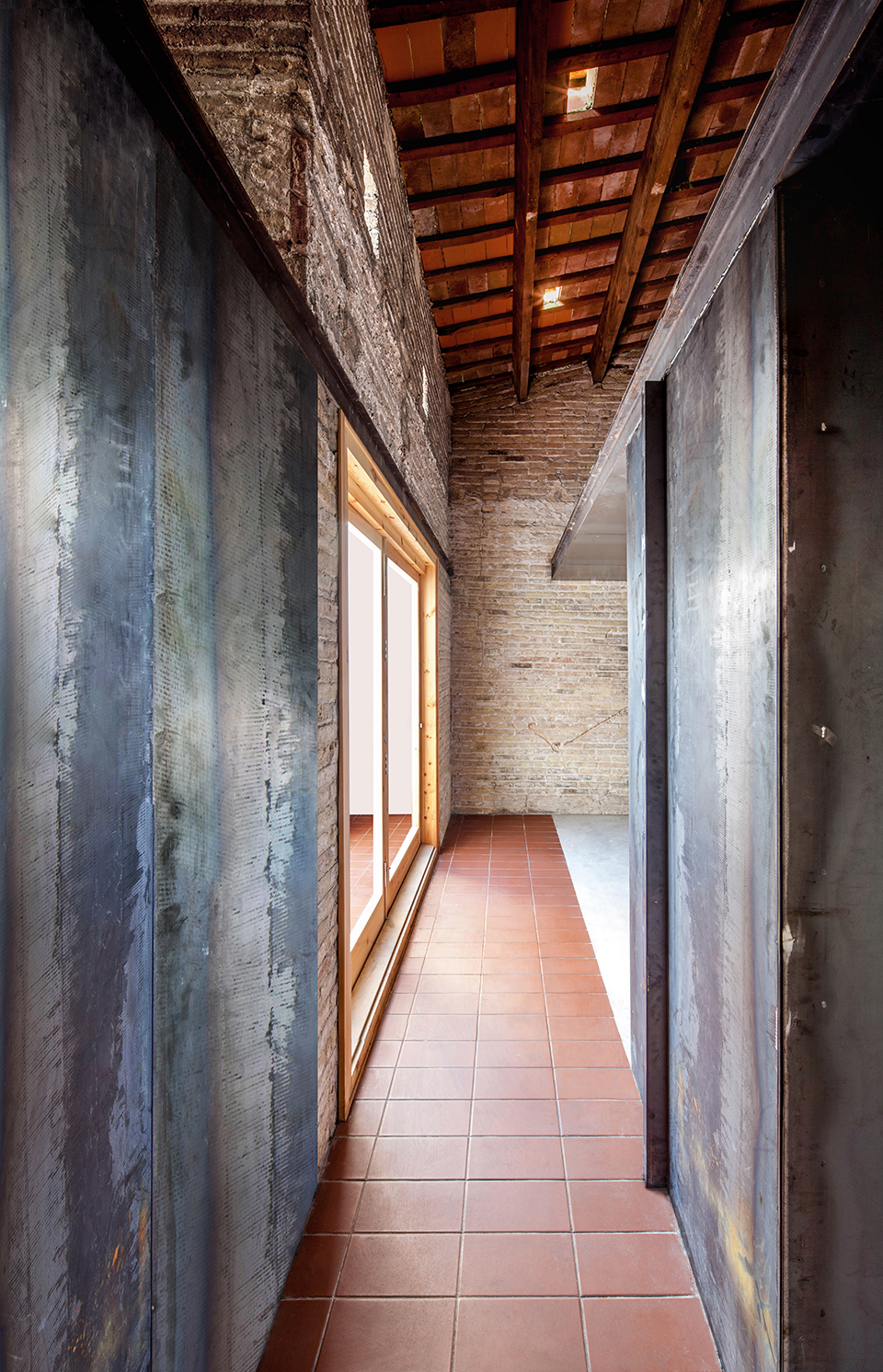

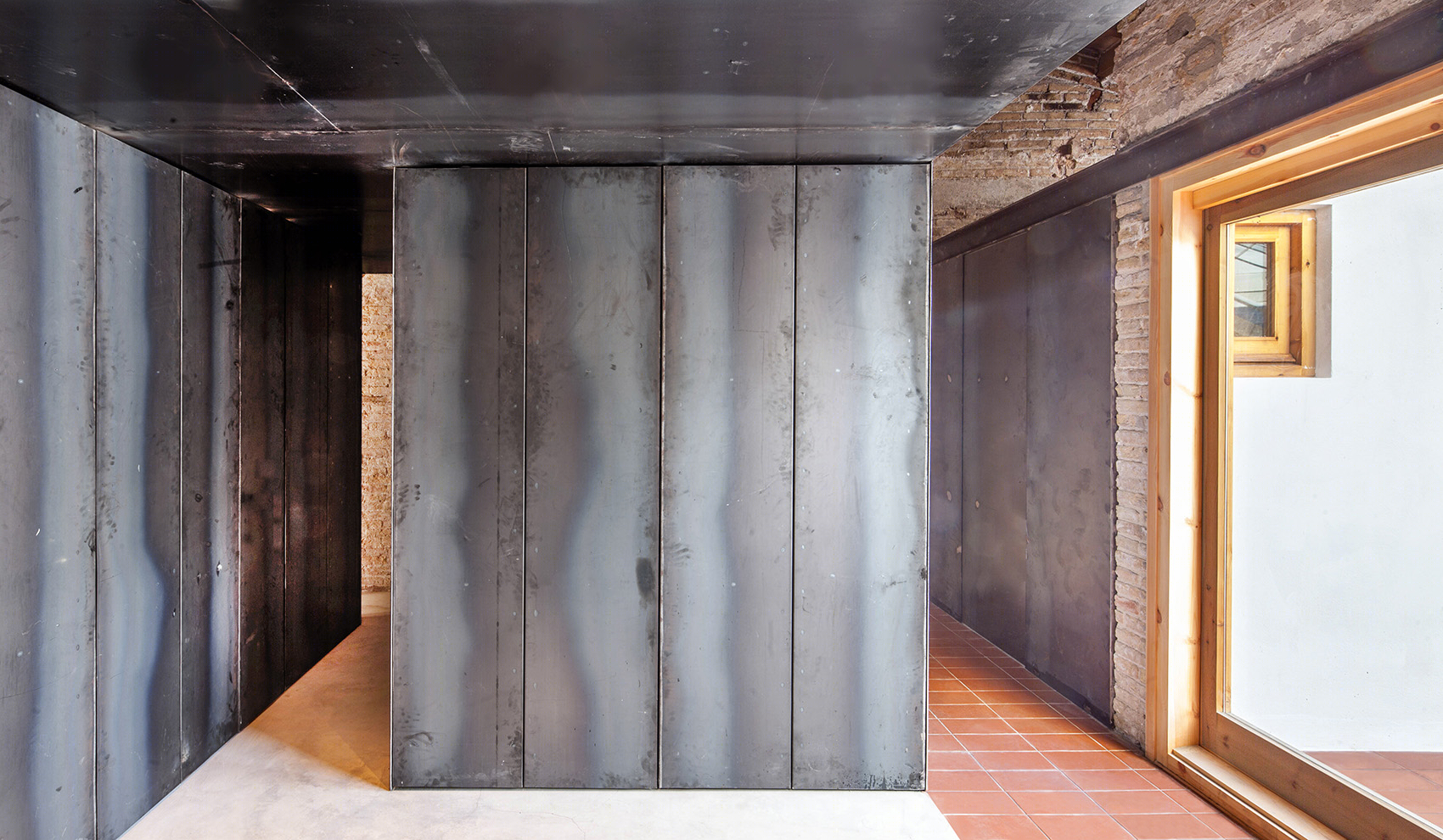

▼新置入的黑色铁制结构与周围的工业建筑建立了关联，black iron artifacts are deposited in the interior establishing a link with the industrial world of the surroundings

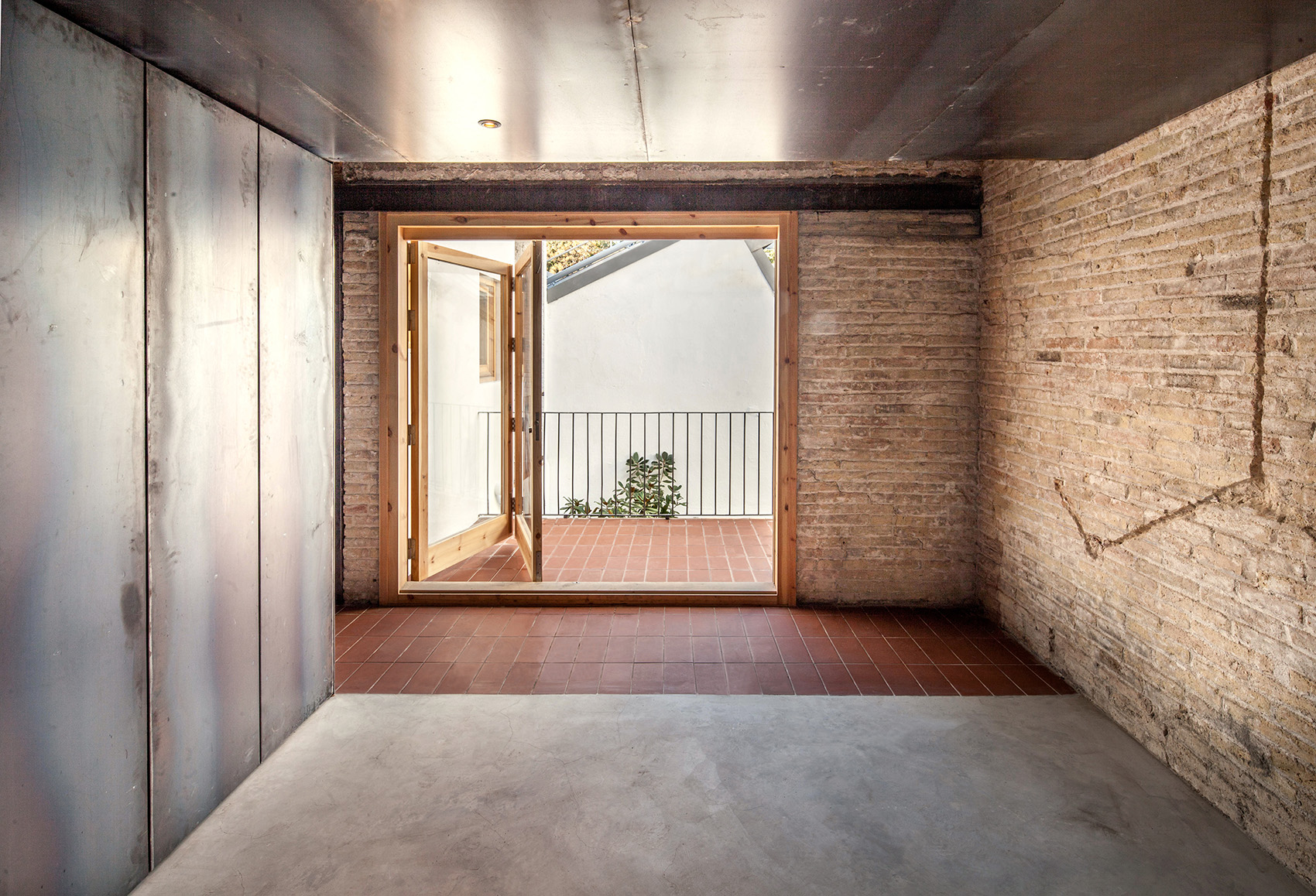

▼室内中庭与外界环境形成对话，the interior patio dialogues again with the open spaces of the context

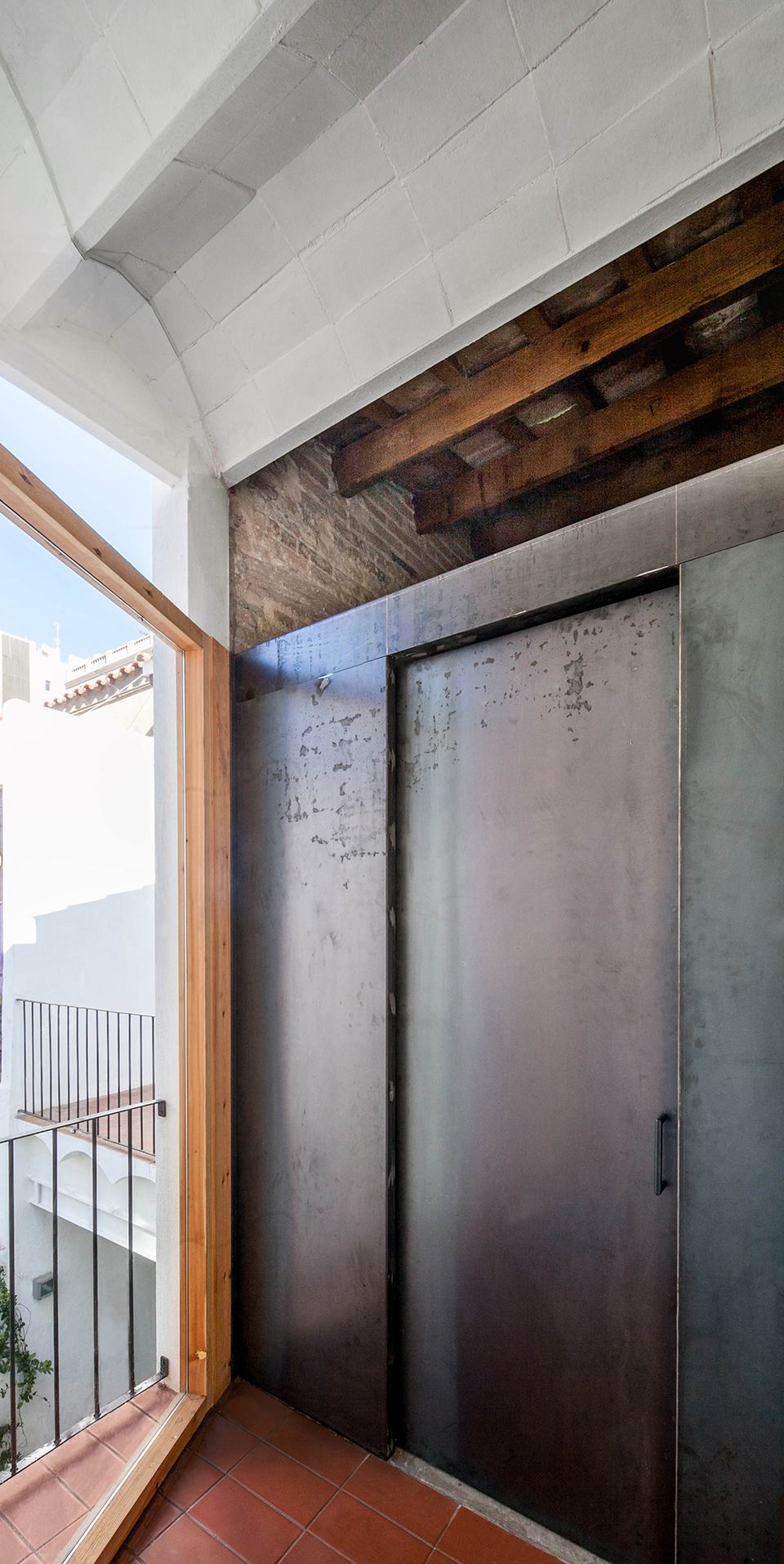

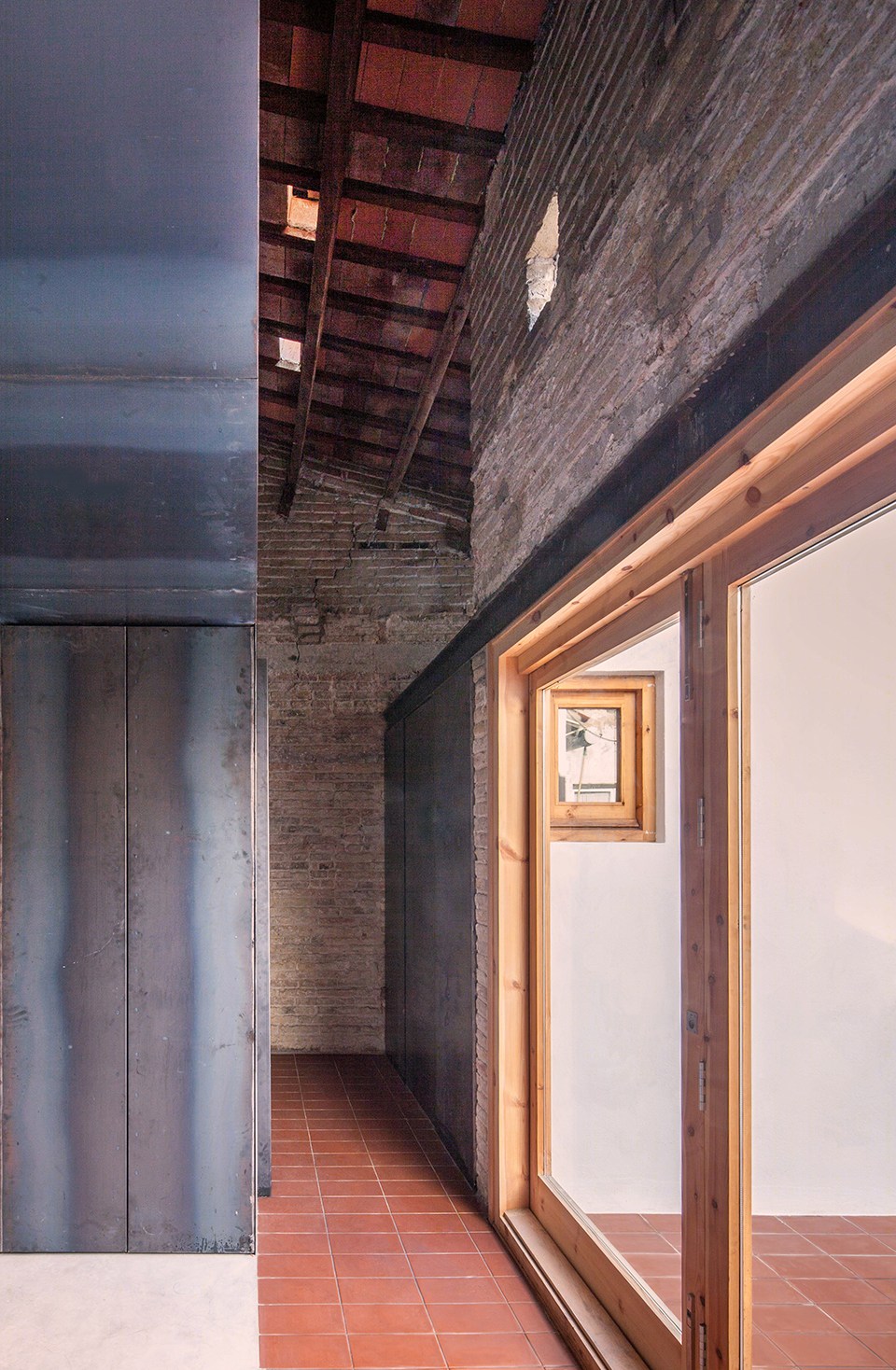

▼室内细部，detailed view

楼梯通往一个密闭的大厅，只有房主才能够进入。外人则可以通过另外一座楼梯进入房子的阁楼，方便使用内部的工作空间。住宅内部还设有两个以更衣室相连的房间，能够以私密的方式形成连接。

A staircase leads to an hermetic hall. Only the owner will be able to penetrate. A staircase will be offered to the stranger to access a loft to which the workspace is reserved, responding to new industrial demands. Behind the hermeticism, two rooms connected through a dressing room allow to circulate freely in privacy.

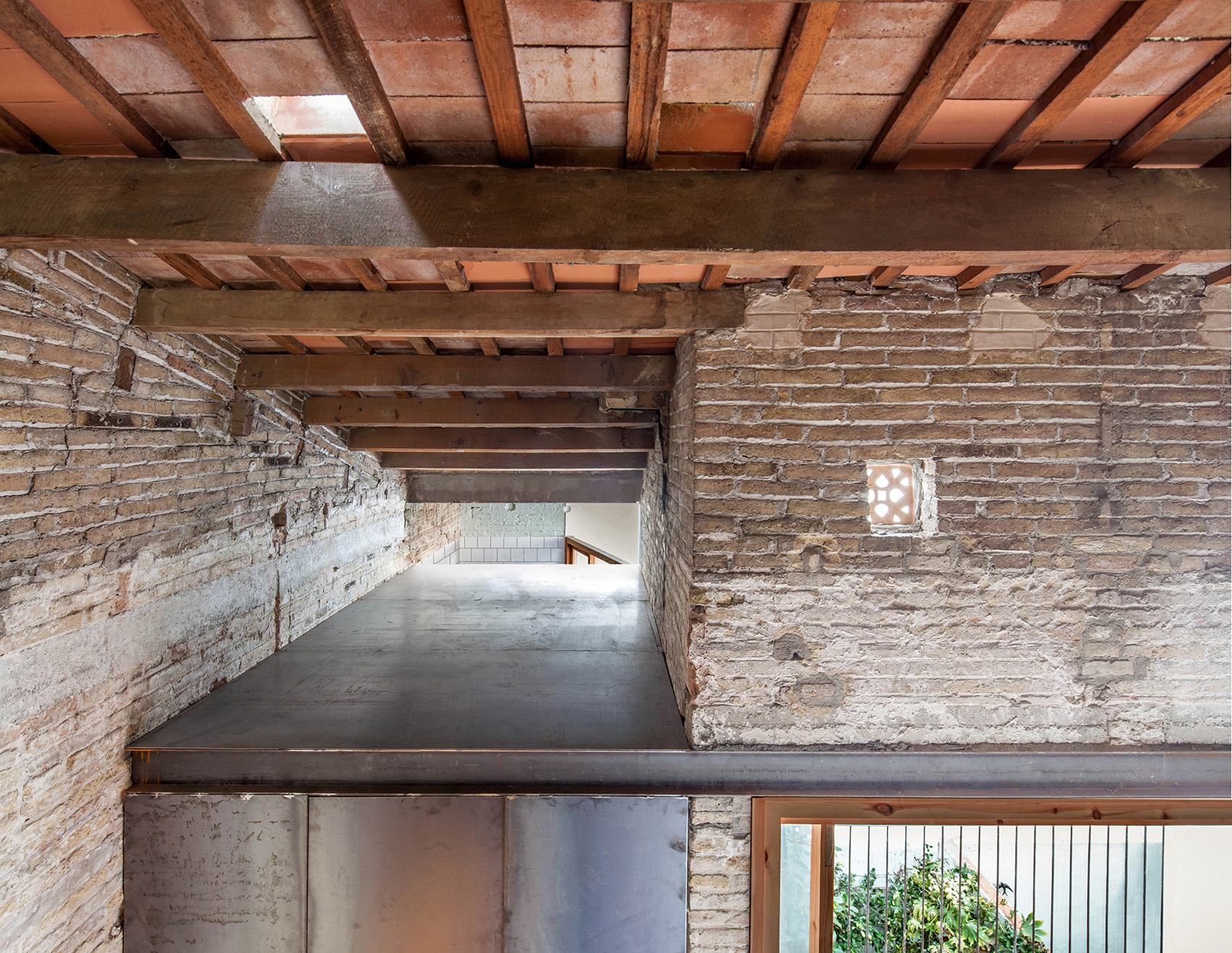

▼阁楼，loft

室外的露台仿佛要侵入房屋内部，暗示了住宅与曾经的工作环境之间的关系。主浴室位于住宅最内侧，新增的淋浴房则取代了旧的洗衣房，从而拆分出新的空间。

A terrace on the outside seems to invade the interior, suggesting a relationship between the house and its old working environment. Going through a last threshold that contains the main bathroom of the house, a new shower replaces the old laundry whipping up the disjunction.

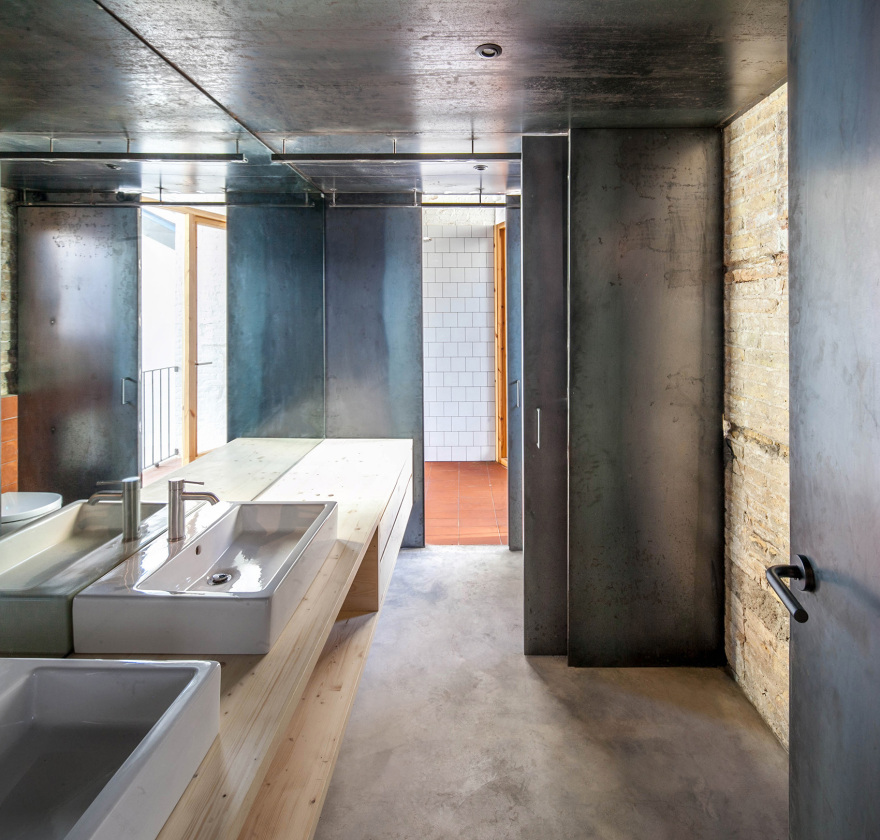

▼浴室，bathroom

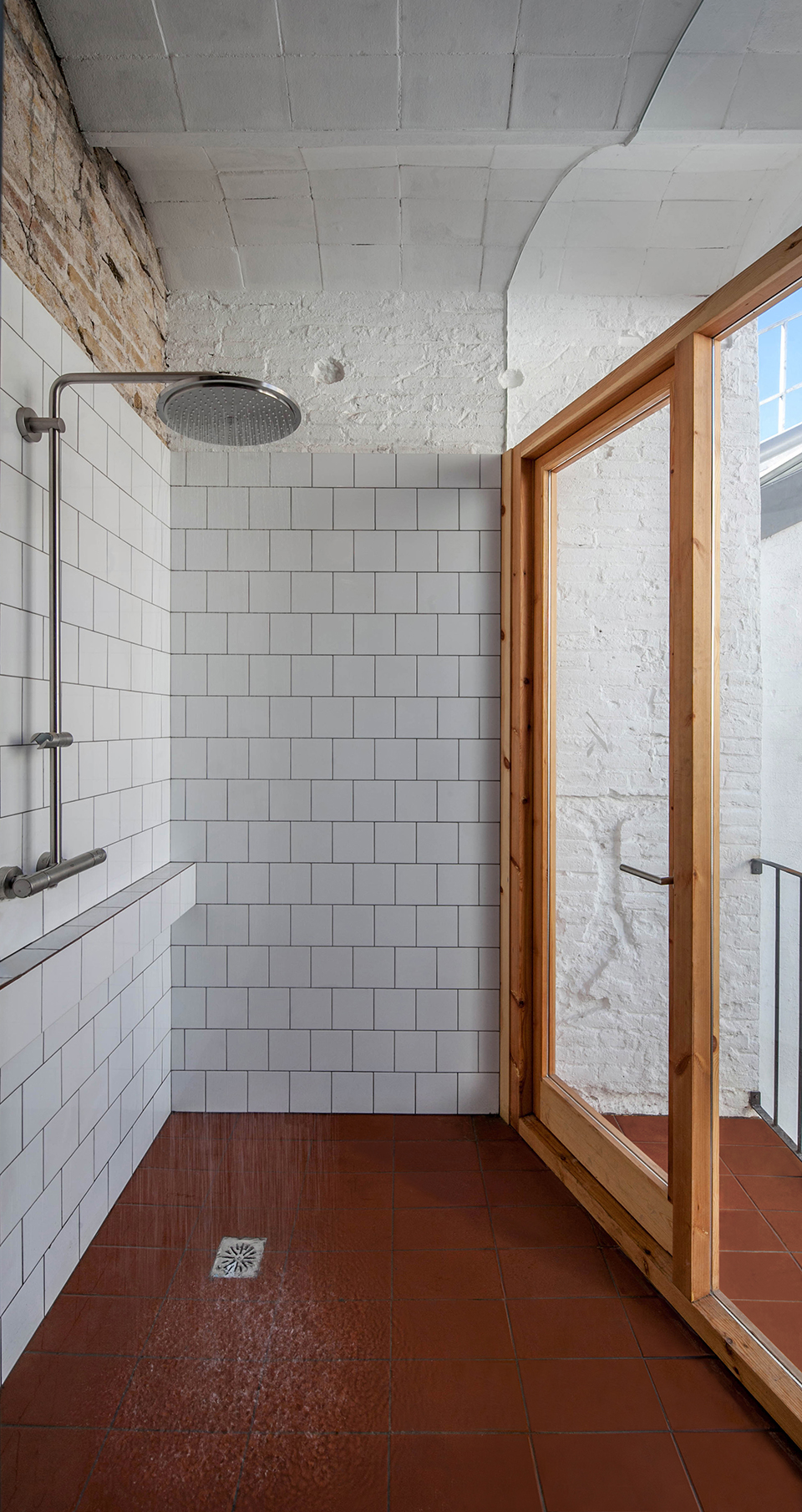

▼淋浴房，shower room

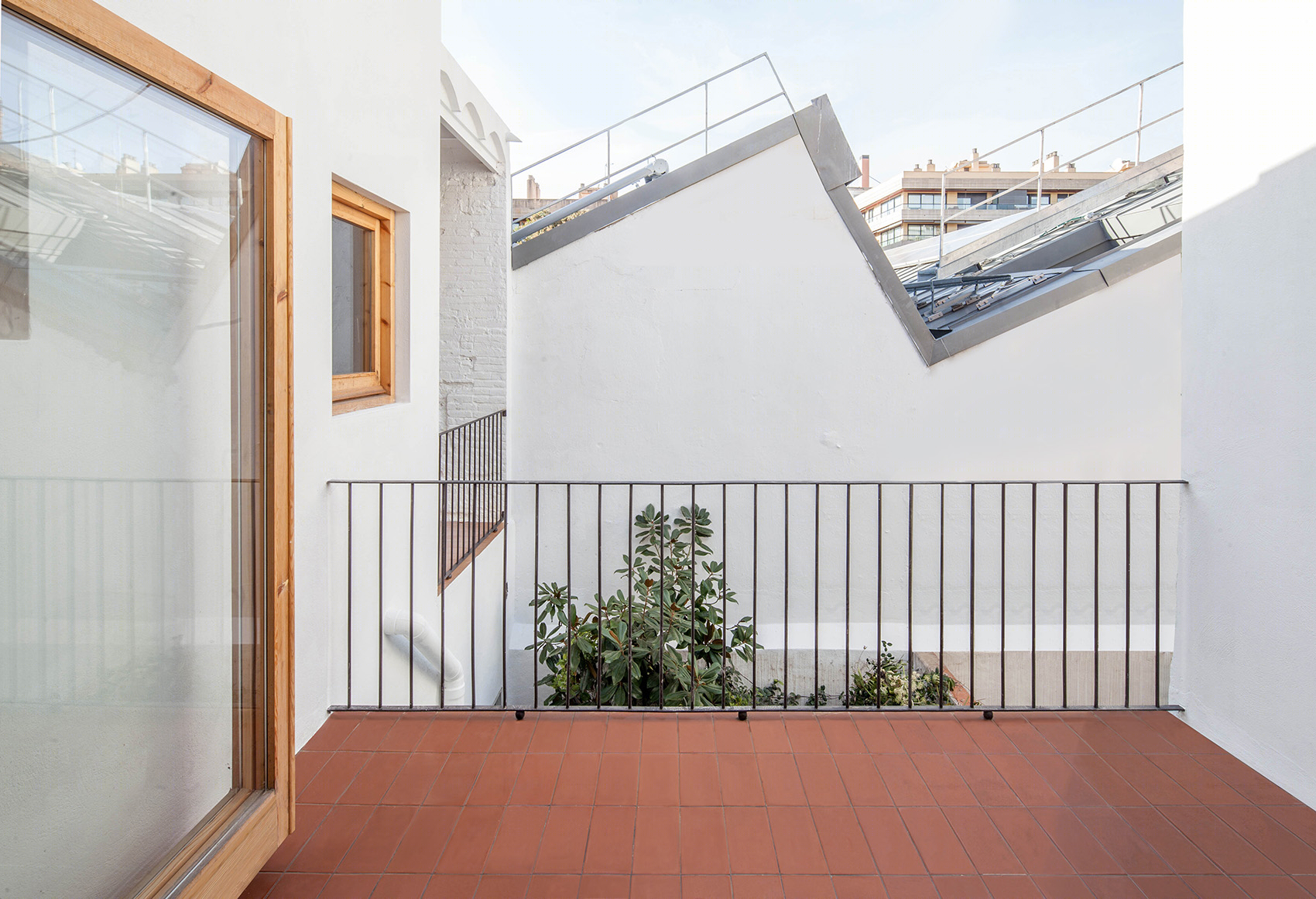

▼室外露台，outdoor terrace

▼轴测图，axon diagram

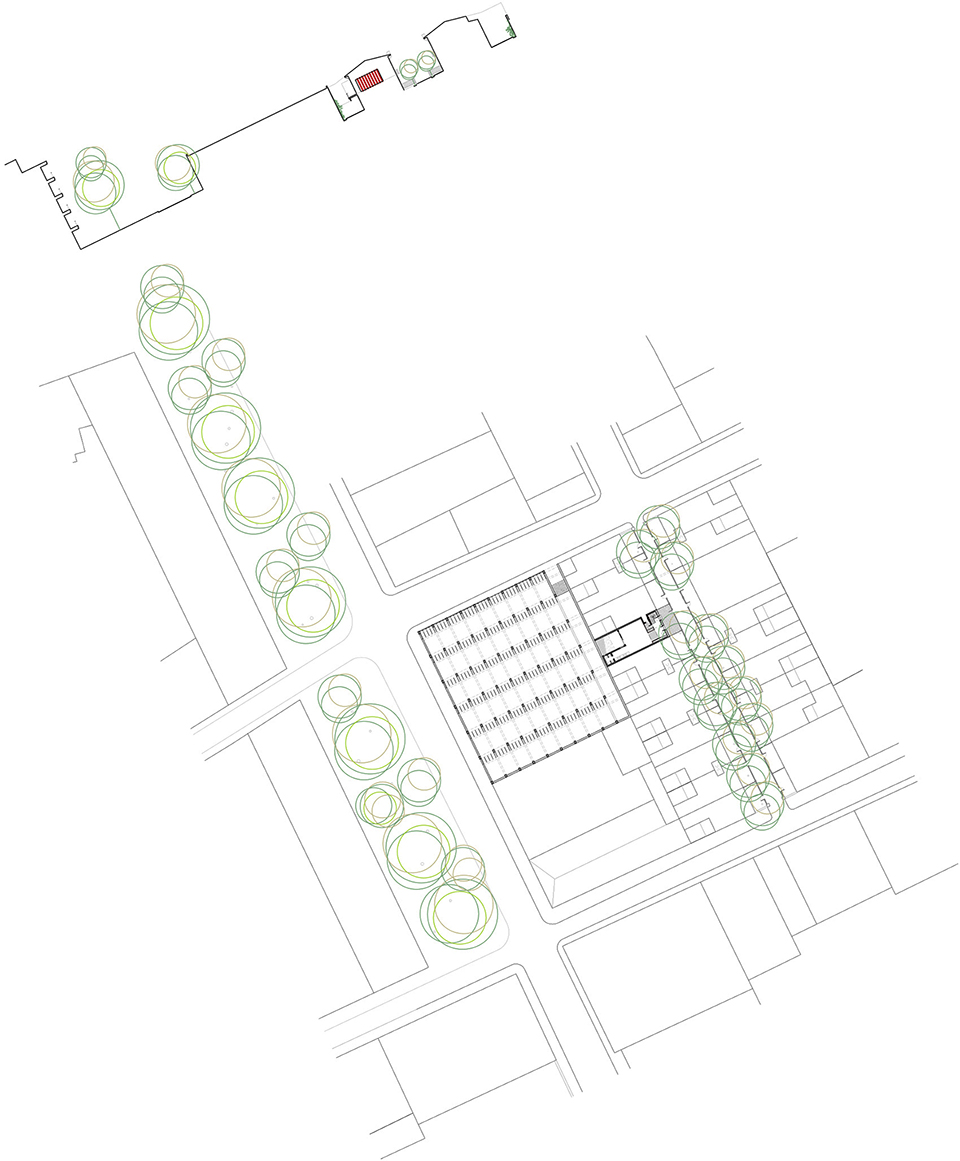

▼场地平面图，site plan

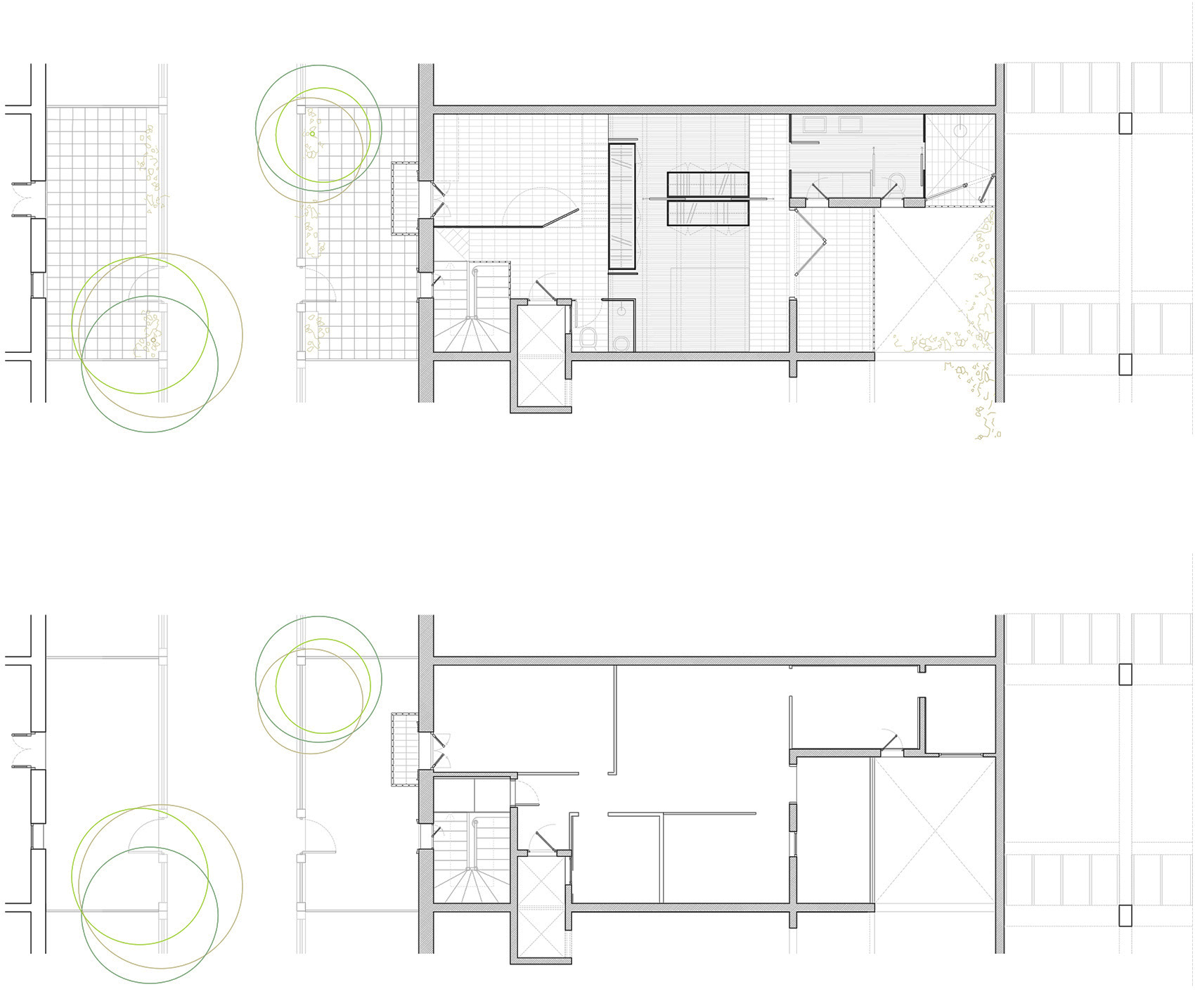

▼平面图，floor plans

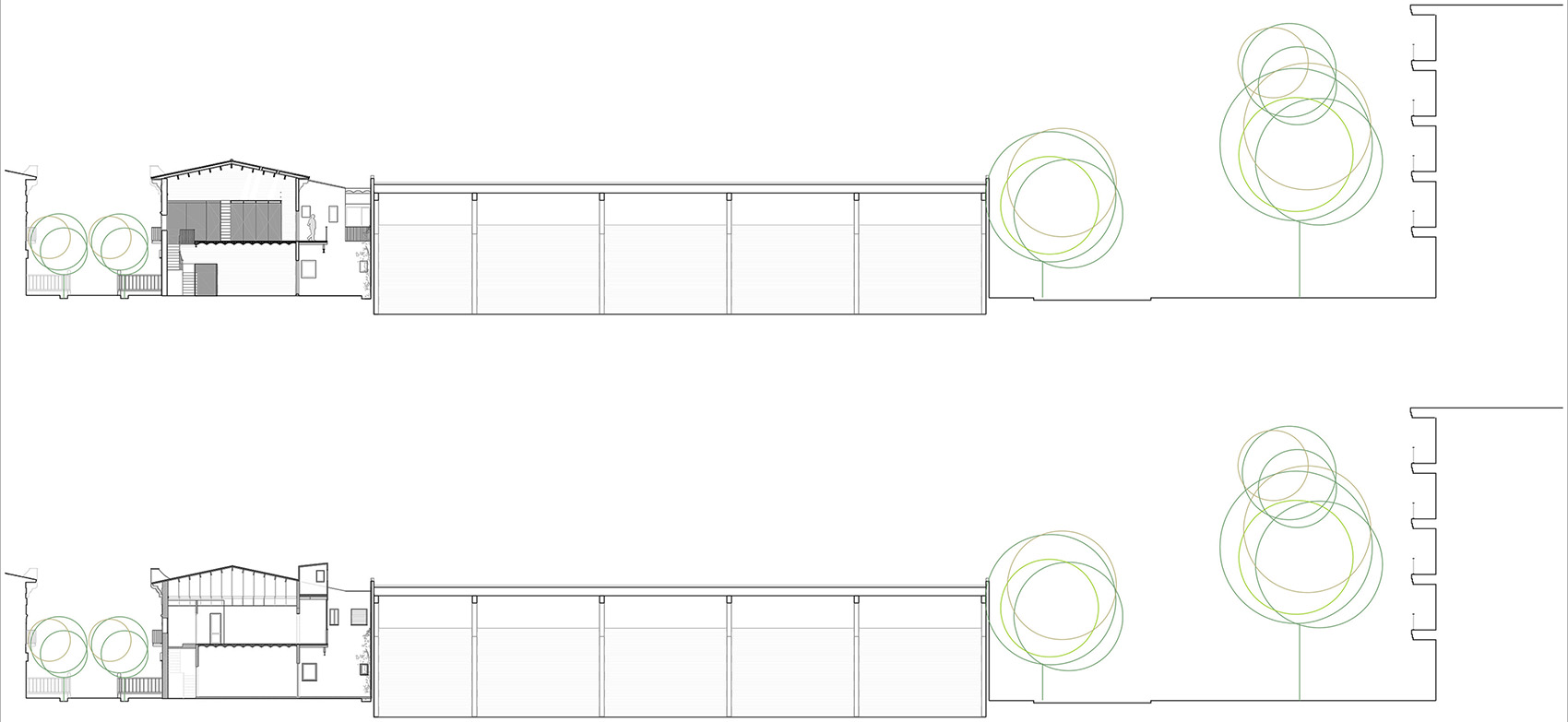

▼剖面图，sections
