武汉理工大学南湖校区图书馆

楚风汉韵 | Airs of Chu＆Songs of Han

筑楚台

Construct high-platform building as Chu’s charm

图书馆位于平坦宽阔的轴线中心，是整个校园的标志性建筑。建筑必须有足够大的体量创造具有控制力的广场界面。因此，设计将首层设计为基座—五级的跌台绿化，图书馆主体立于高台之上。

The library located in the center of the flat and broad axis ,which as the landmark of the whole campus. The building must be large enough to create a controlled square interface. Therefore,the first floor is designed as a foundation base which have five level greening, the main body of the library on top of the platform.

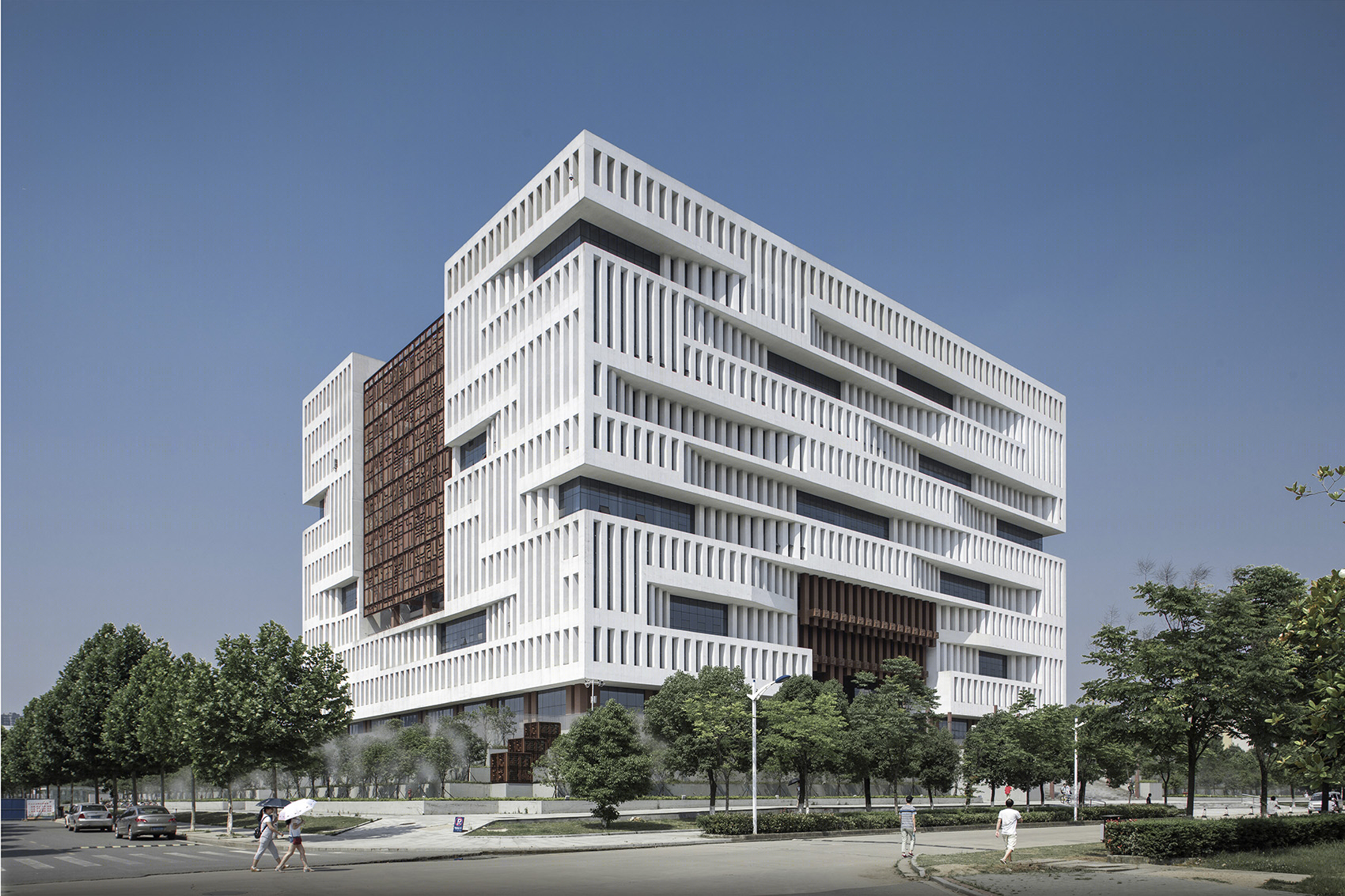

▼建筑外观，exterior view

传统木构件的现代演绎

Modern expression of traditional wooden frame

图书馆主入口通过对传统斗拱、排架的拆分和重组，以钢结构构架演绎传统木构的形态。东西立面覆以木色金属板，并将校园历史文化通过抽象篆书文字镂刻之上。将楚文化进行抽象和演绎，使历史底蕴在新建筑上得以延续和传承。

The main entrance of library use the steel structure frame to interpret the traditional wood structure by disassembly and reorganization of the traditional Dougong and Brackets. The east and the west elevation covered with wood colored metal plates and carved with seal character which abstract from campus history and culture. Abstract and deduce the Chu culture, continue and inherit the historical background in the new building.

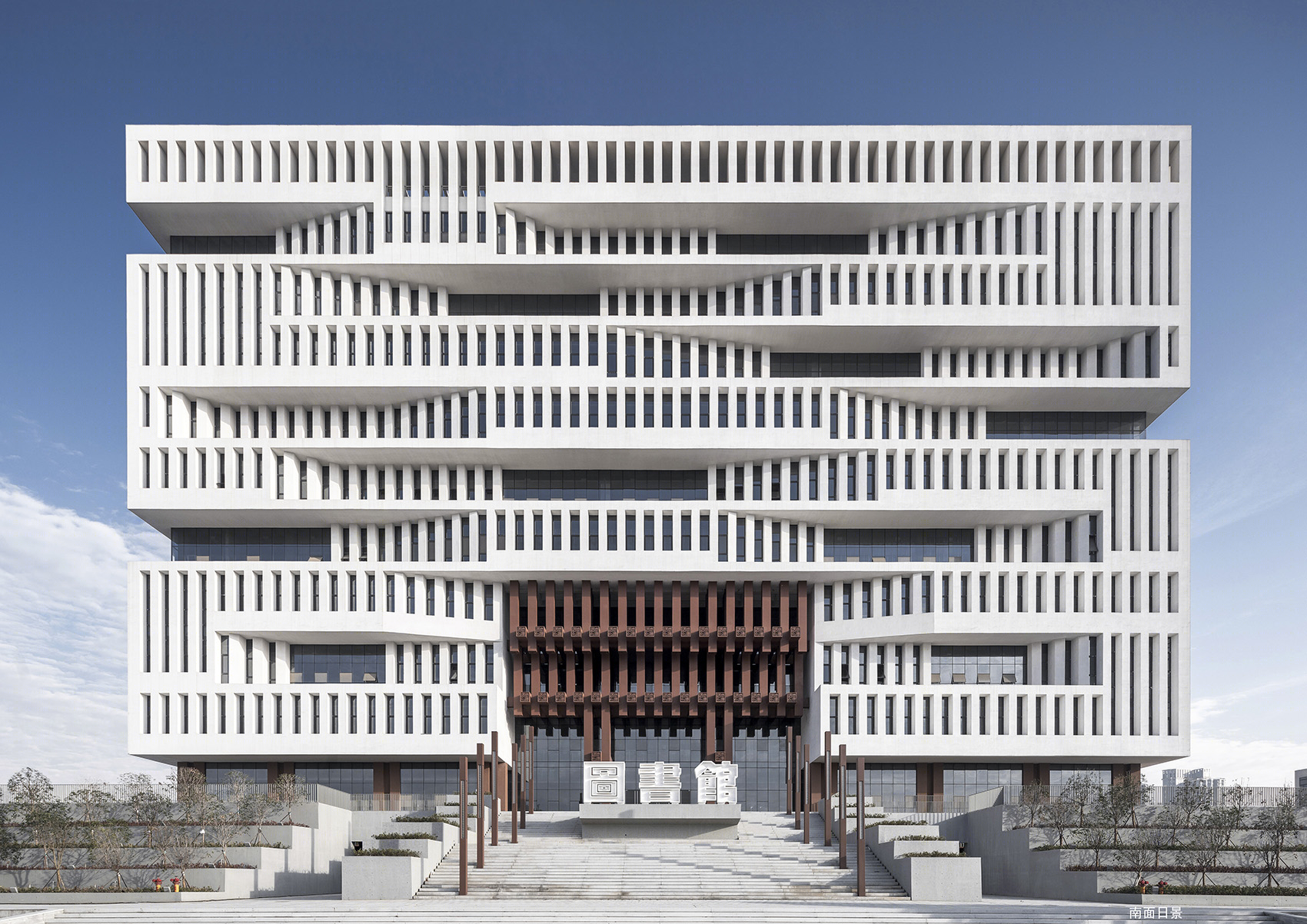

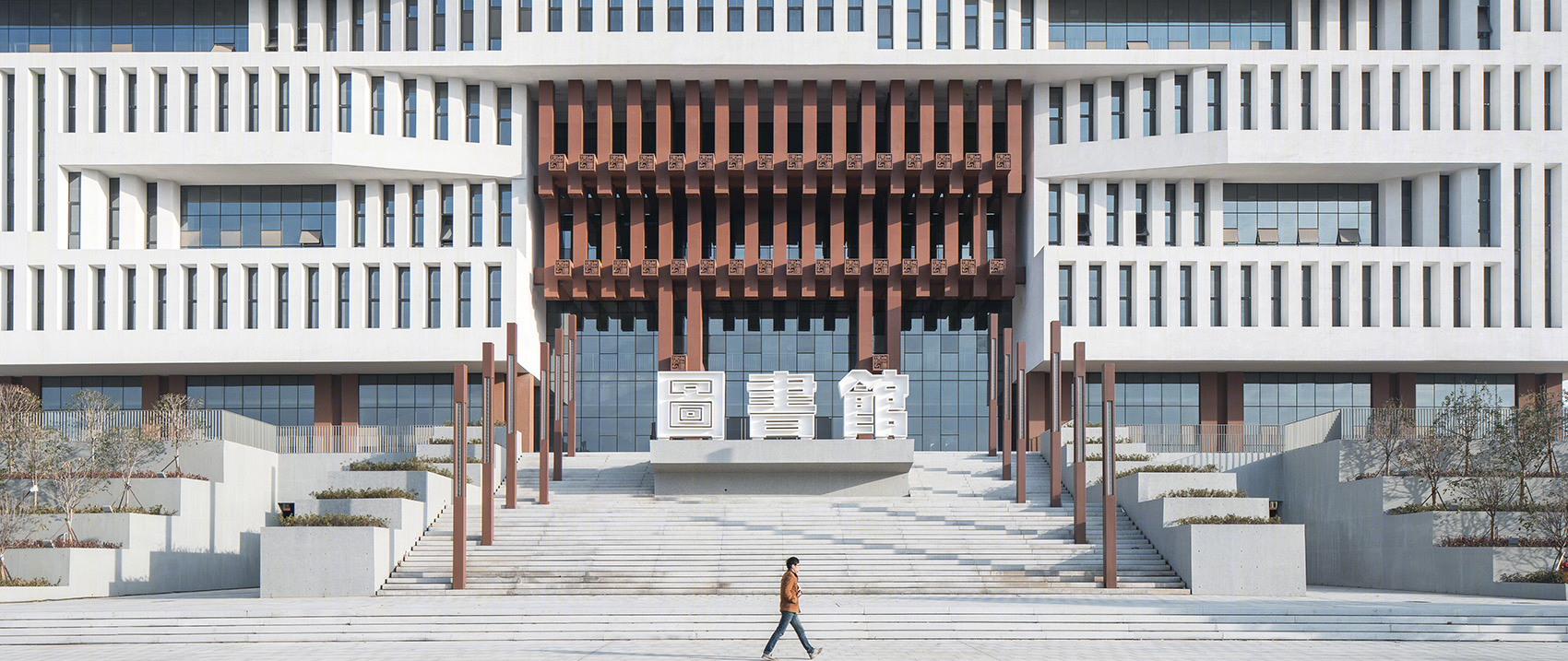

▼南立面，south facade

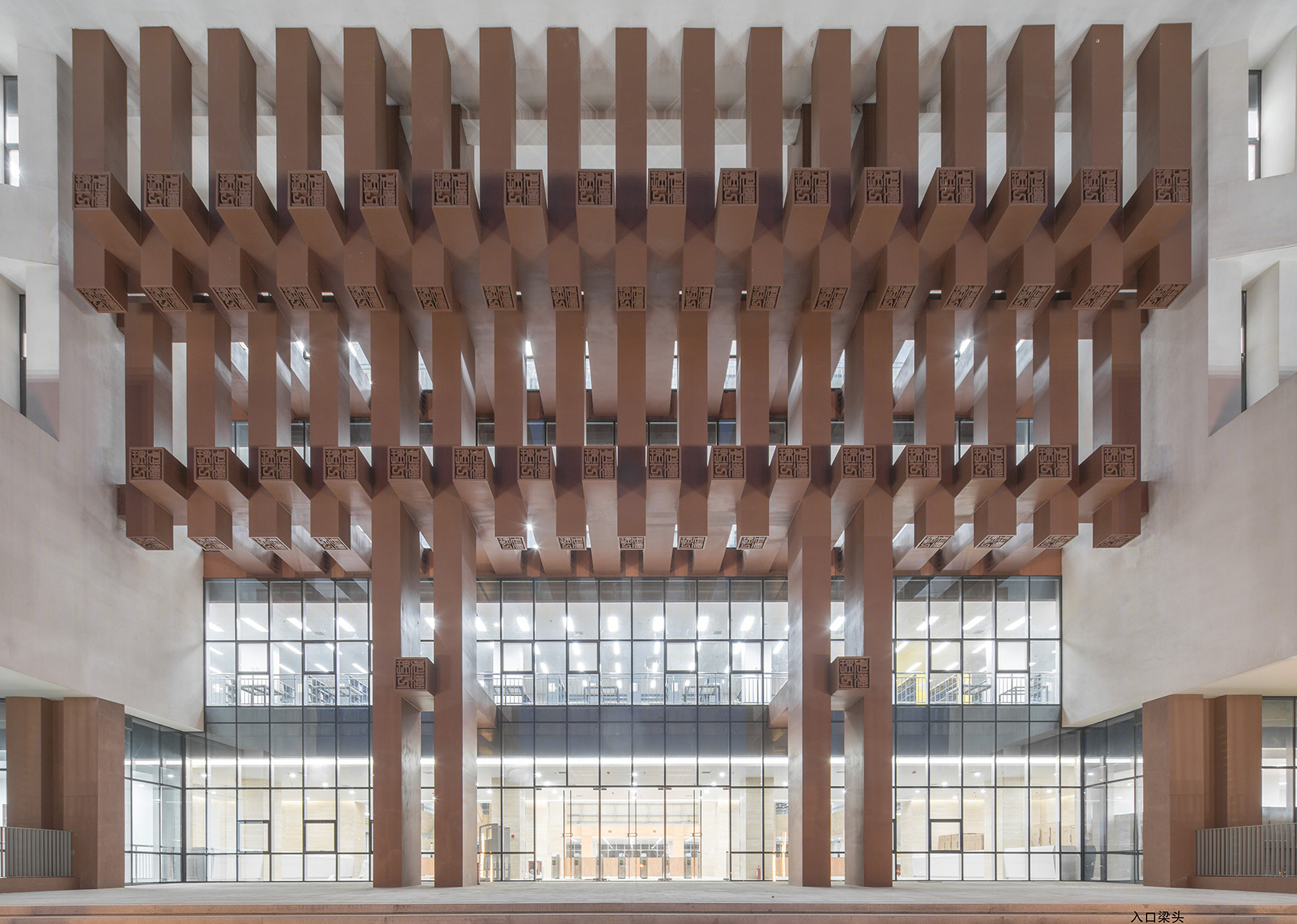

▼主入口，main entrance

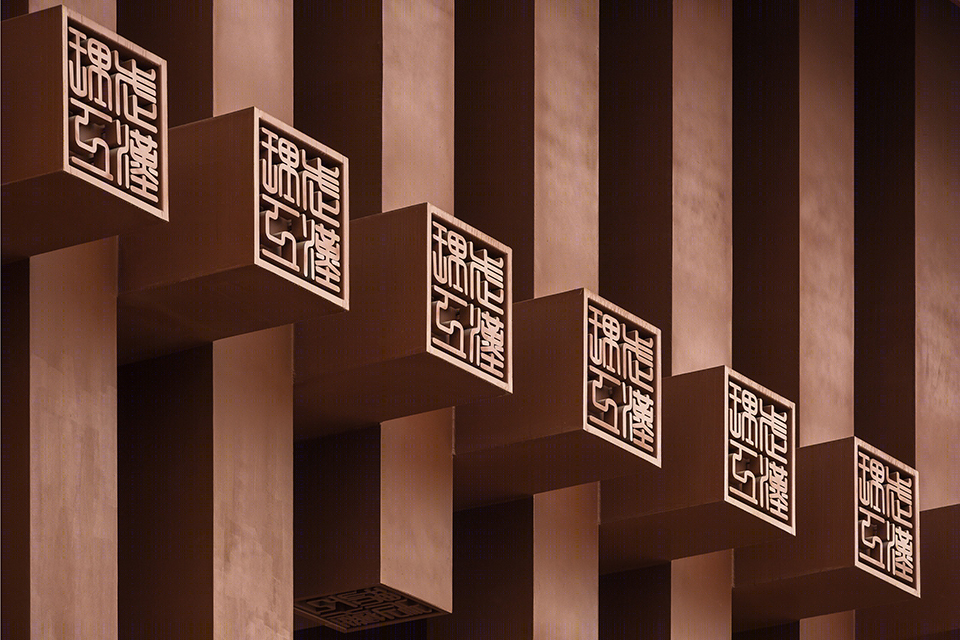

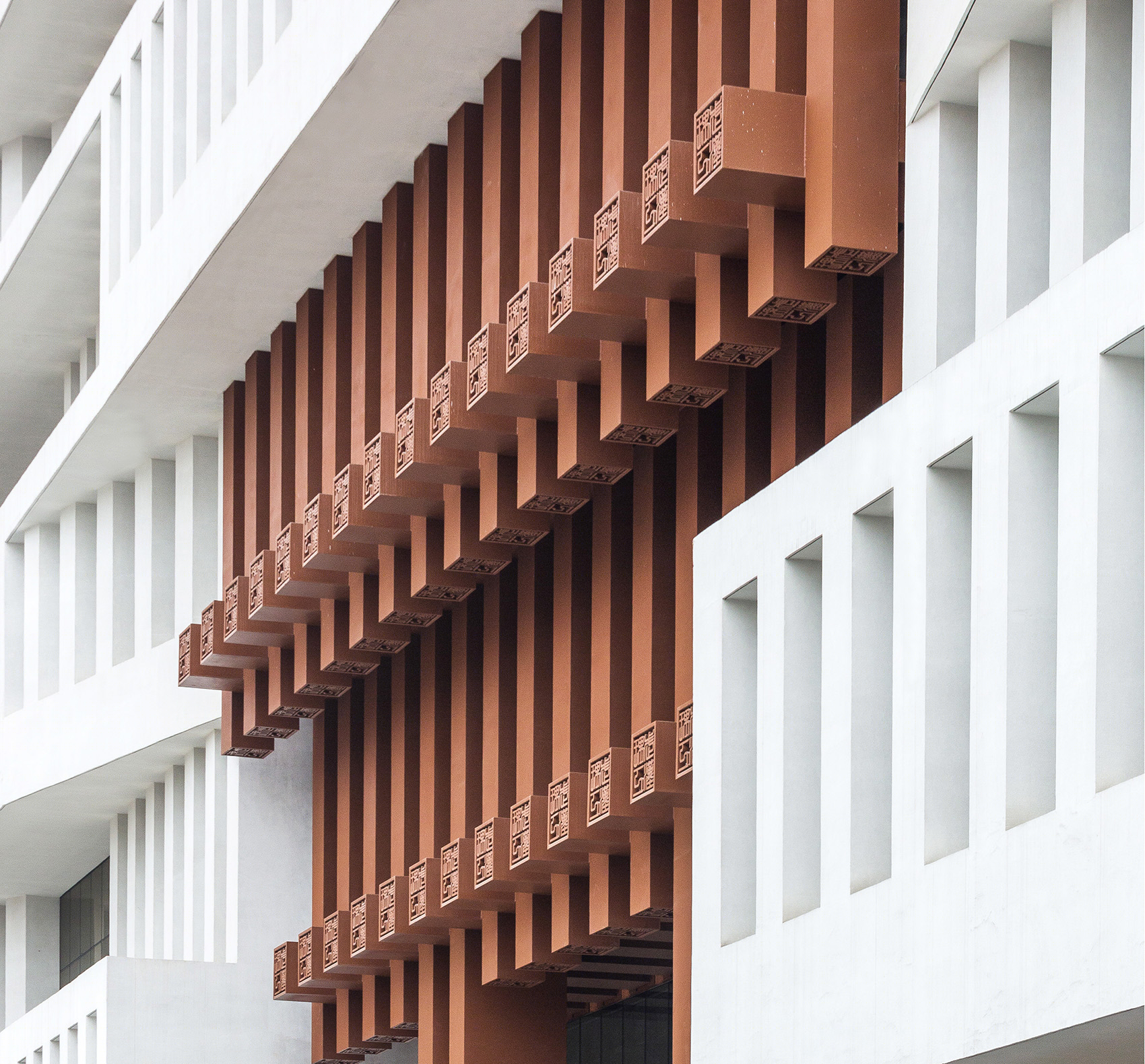

▼入口梁头细部，a close view of the beam structure

▼入口夜景，night view of the entrance

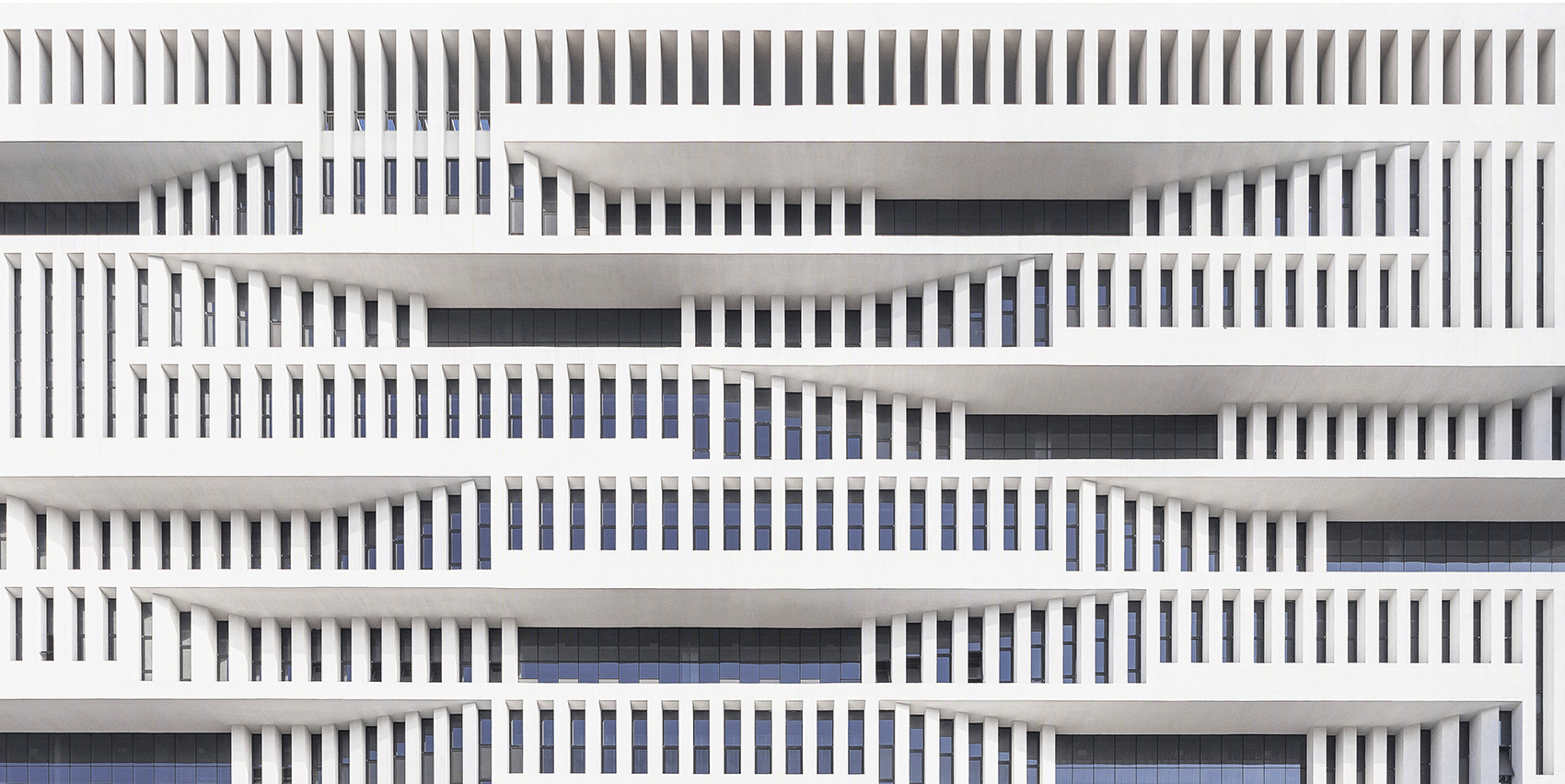

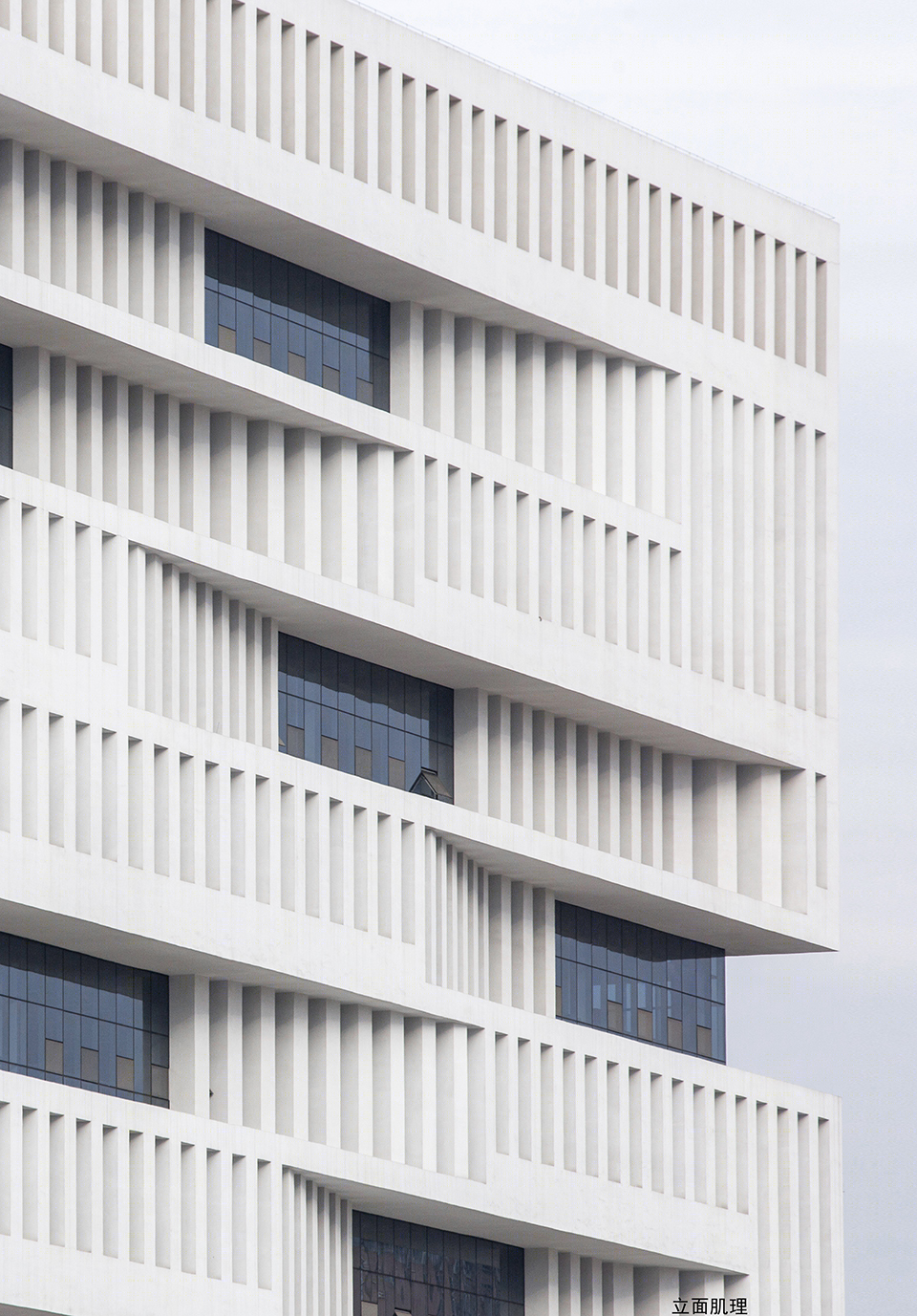

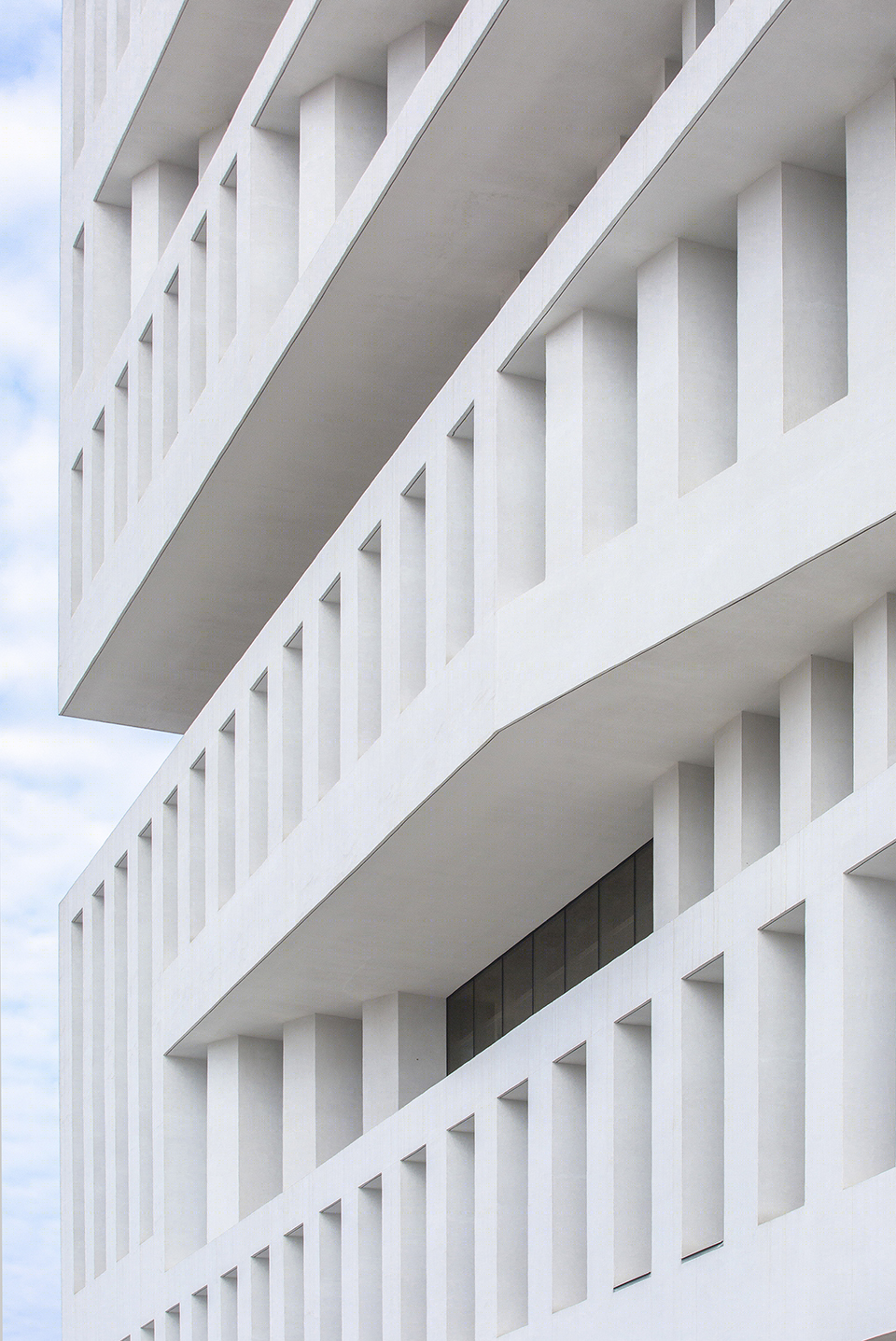

▼立面细部，facade detail

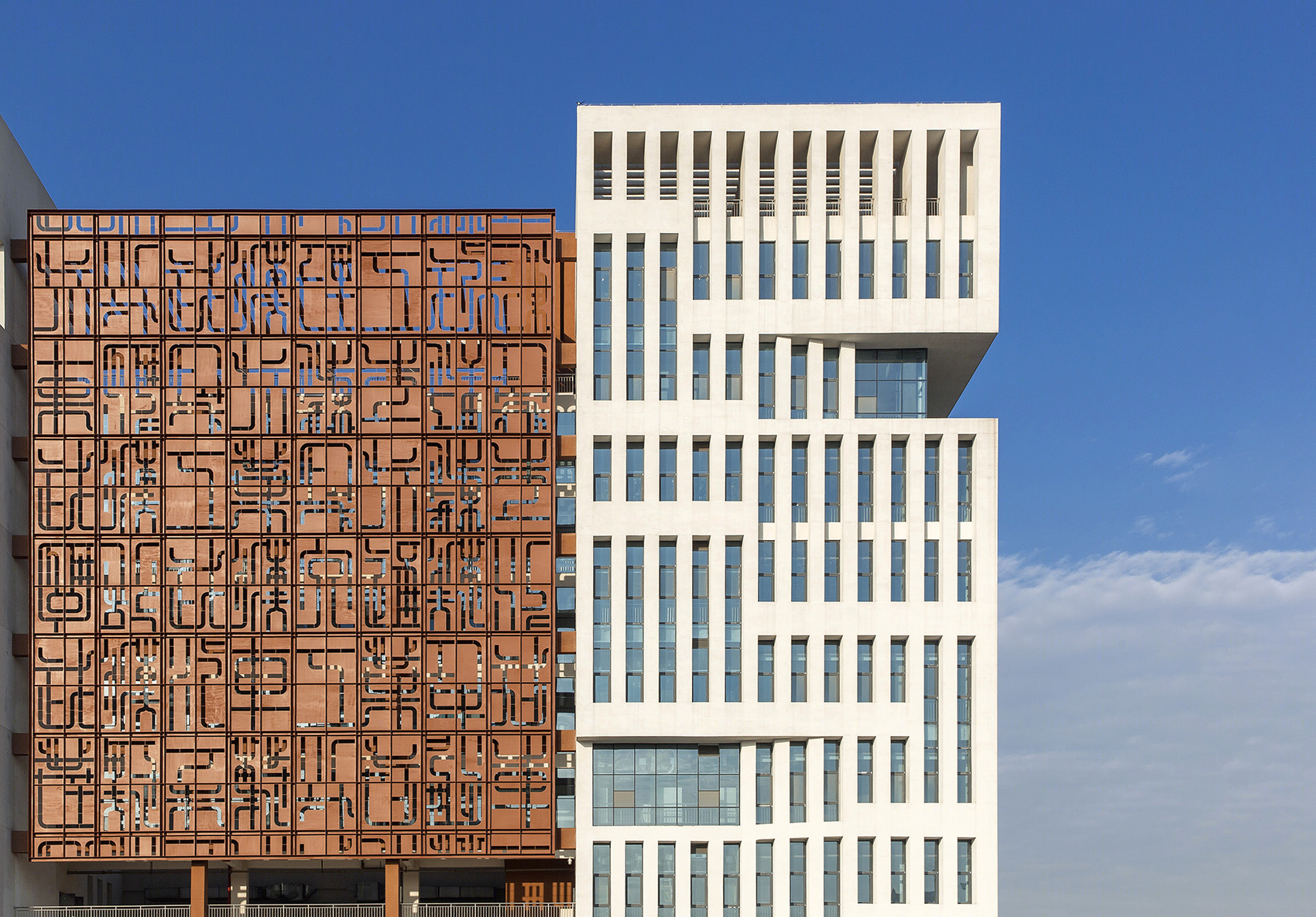

▼东西立面覆以木色金属板，the east and the west elevation covered with wood colored metal plates

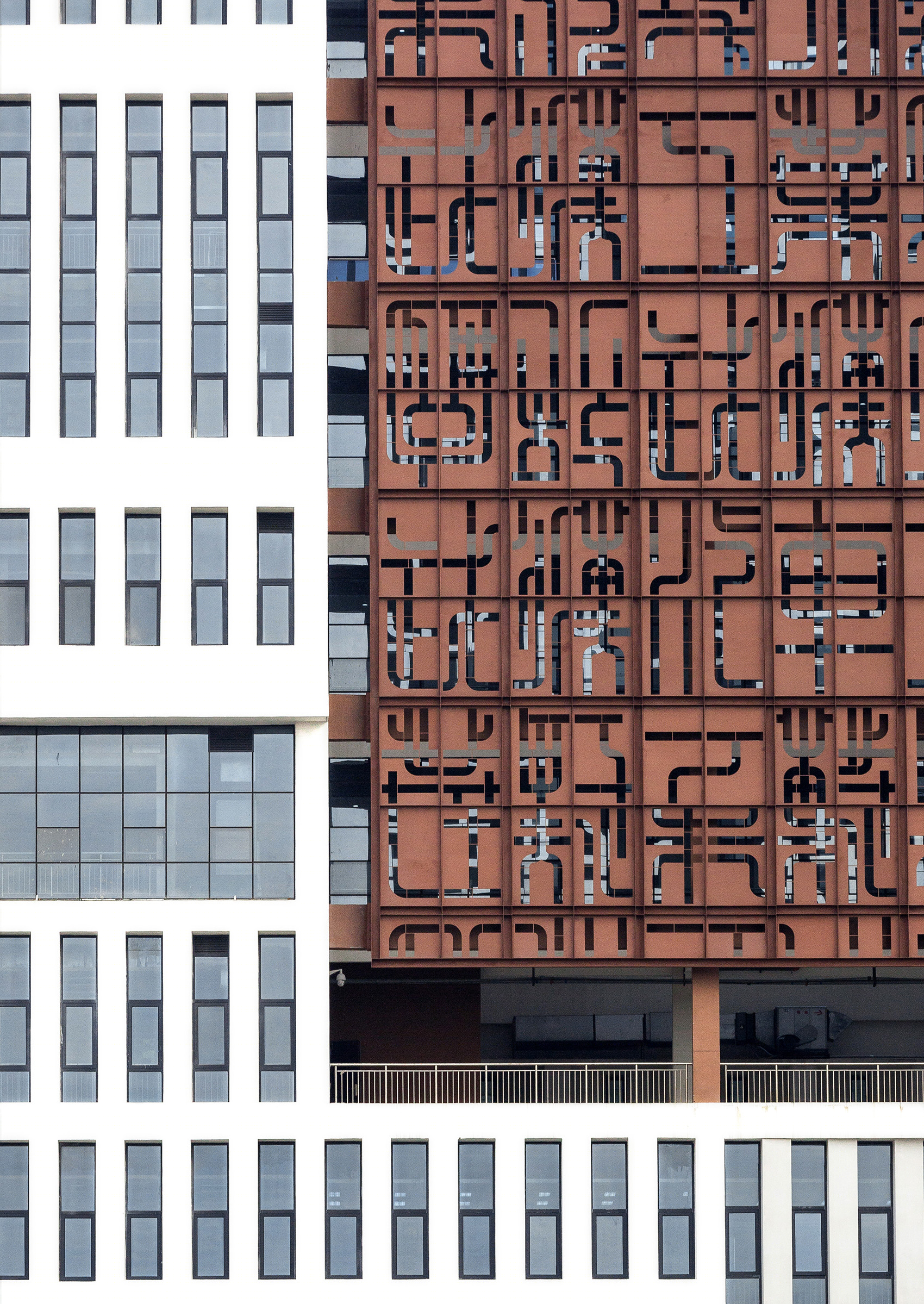

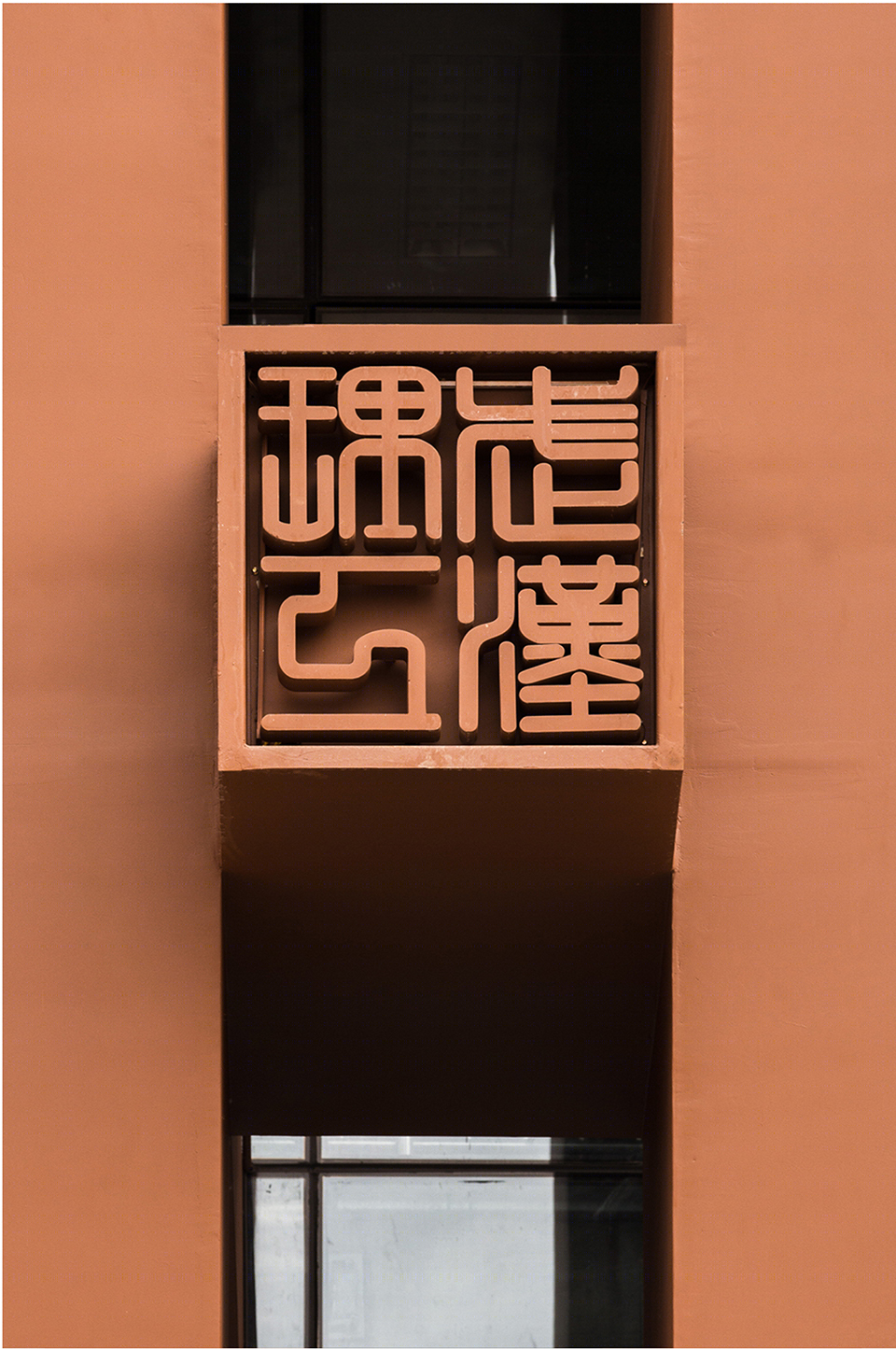

▼校园历史文化通过篆书文字镂刻在立面上，metal plates were carved with seal character which abstract from campus history and culture

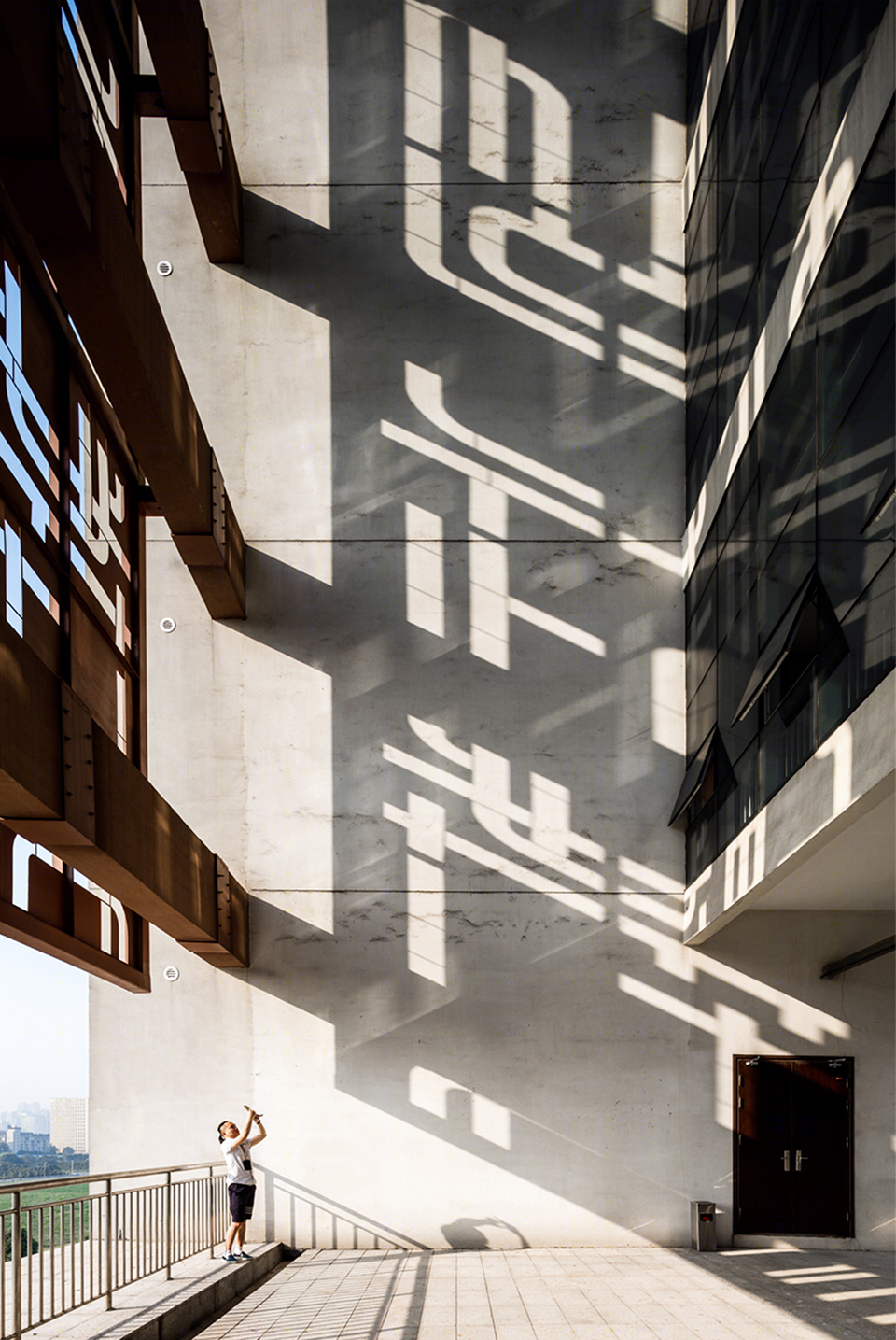

▼光影，lights and shadows

书山绿谷 | Book mountain ＆ Green valley

设计提取传统院落的精粹，以立体庭院的方式营造绿谷的意向。玻璃中庭悬挂绿色垂幔，形成对直射阳光的有效遮挡，也营造出绿意盎然的中庭效果。同时在首层基座跌台绿化设置雾喷，改善图书馆建筑的微气候。

The design essence the extraction of traditional courtyard, display a green valley intention by stereoscopic courtyard. The glass atrium hang green mantle to shield direct sunlight effectively, also create atrium atmosphere full of green and vigour. At the same time, the fogging fountain in the first floor foundation base afforestation to improving the microclimate of library buildings.

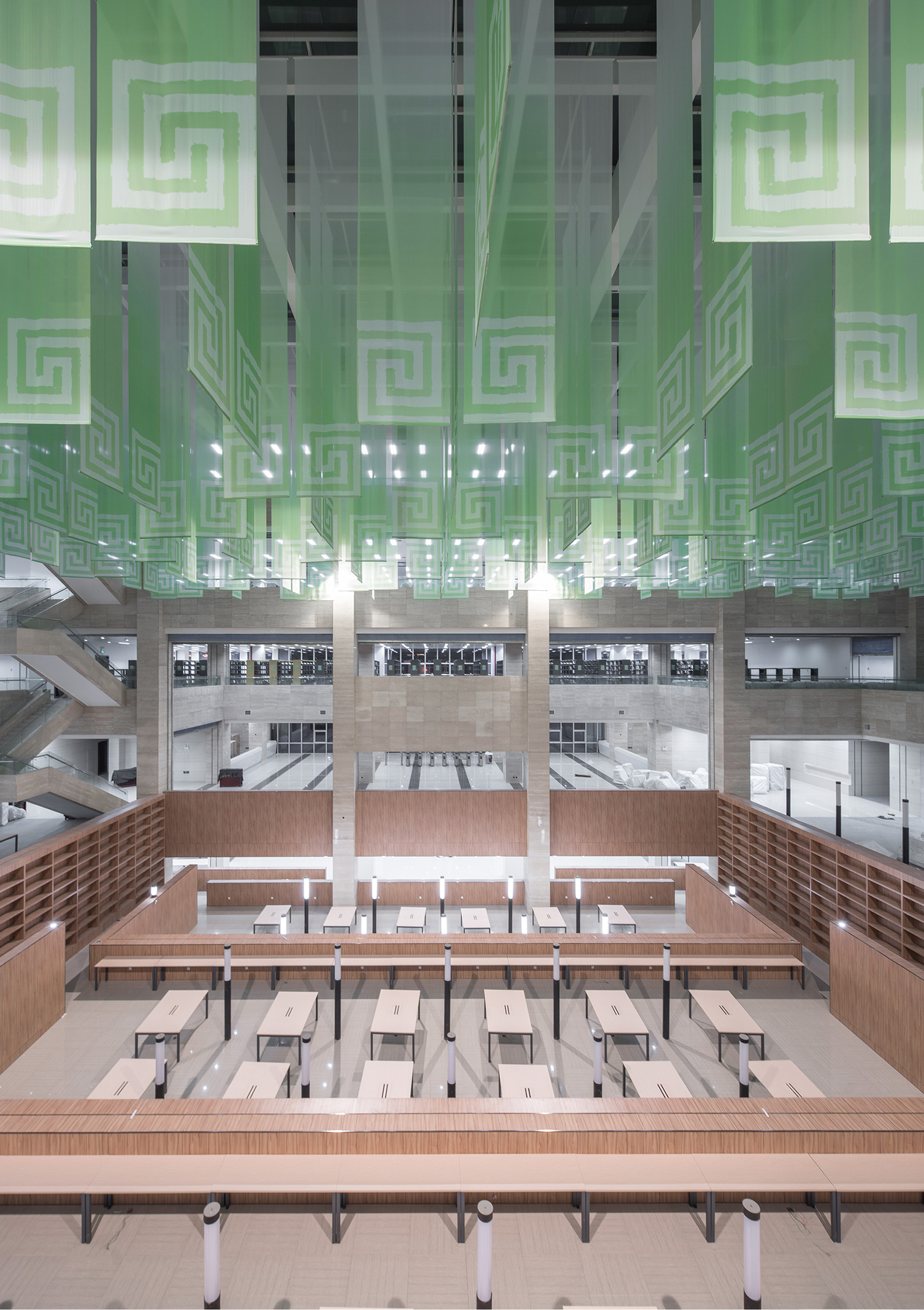

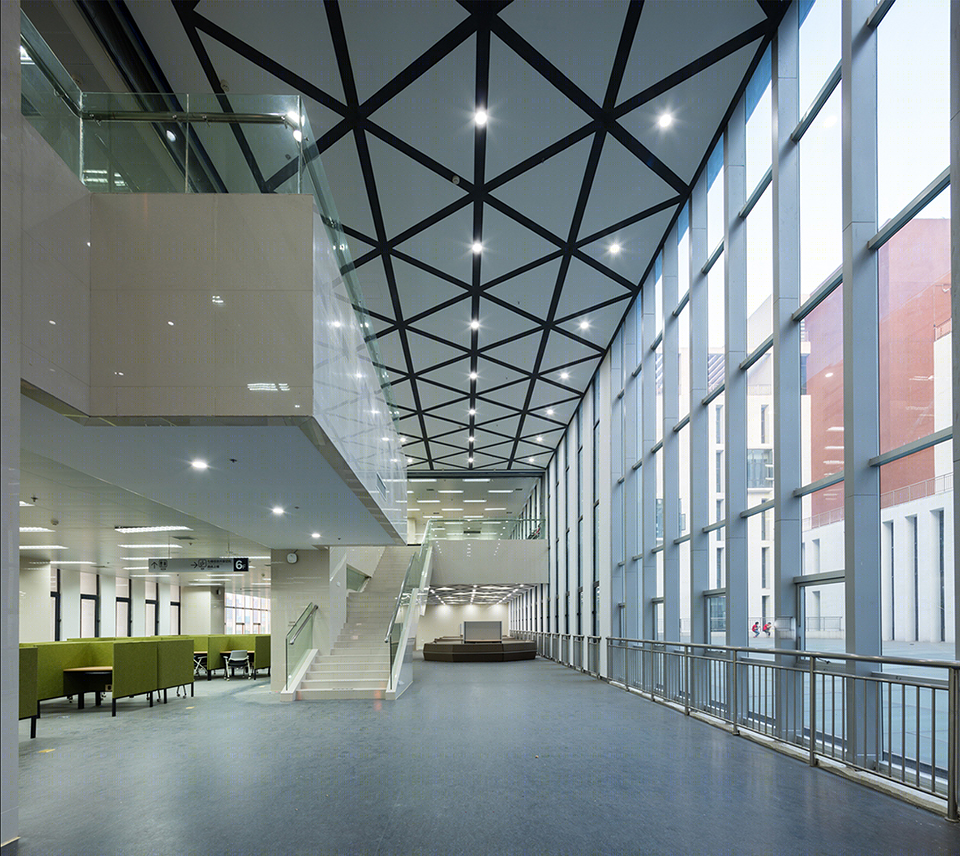

▼室内设计以立体庭院的方式营造绿谷的意向，the interior design displays a green valley intention by stereoscopic courtyard

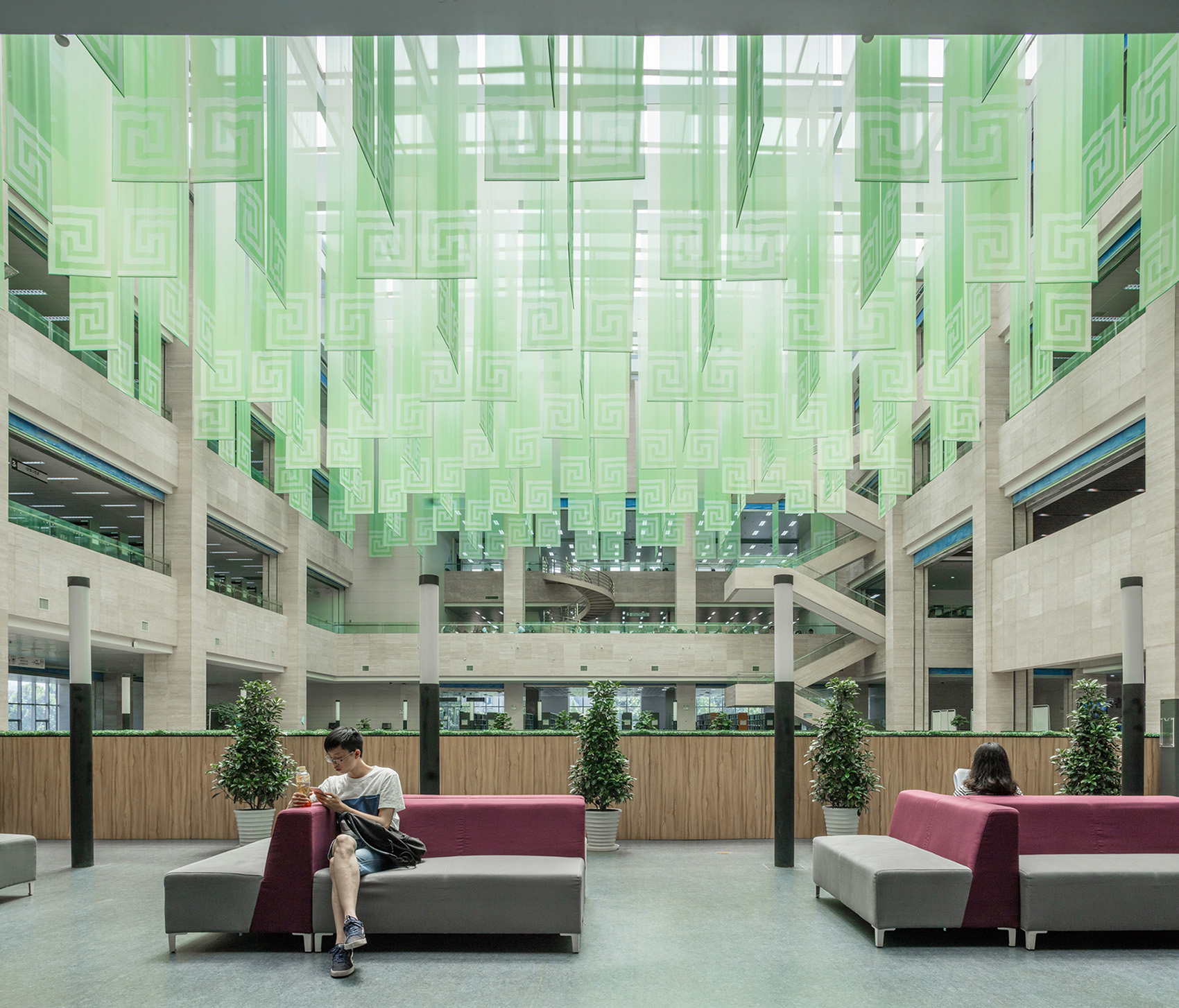

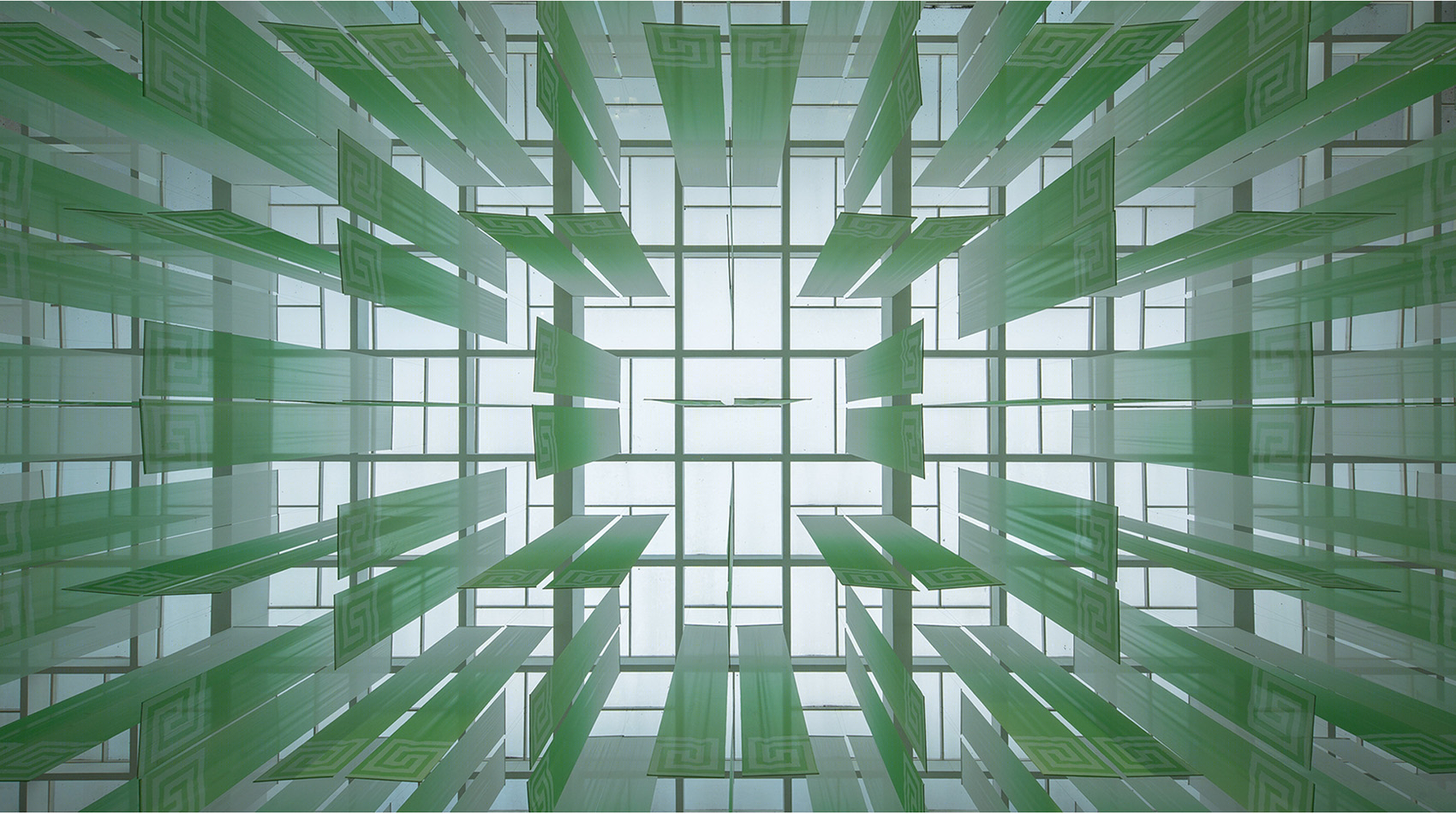

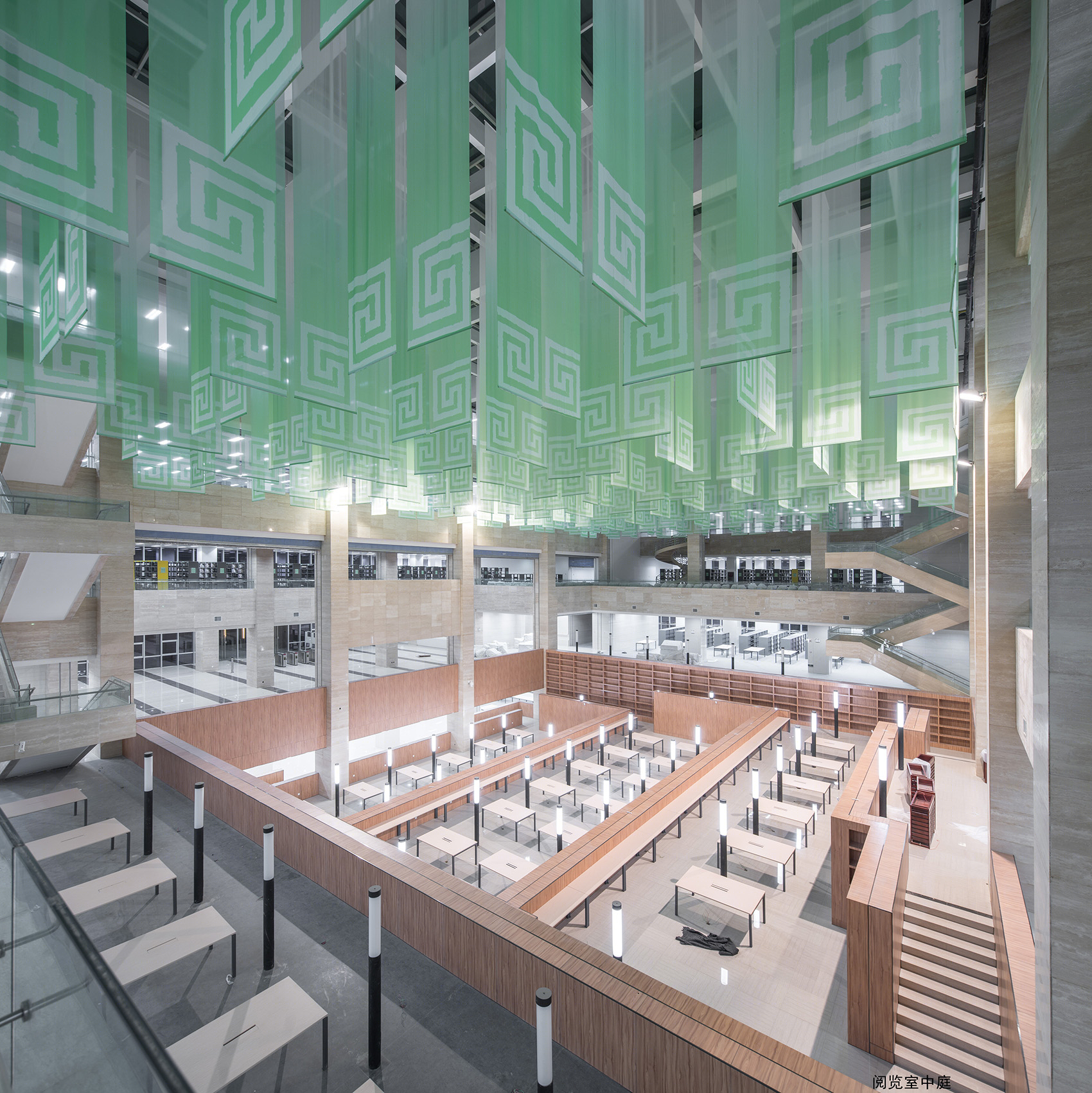

▼绿色垂幔形成对直射阳光的有效遮挡，the green mantles protect the reading atrium from direct sunlight

▼细部，detail

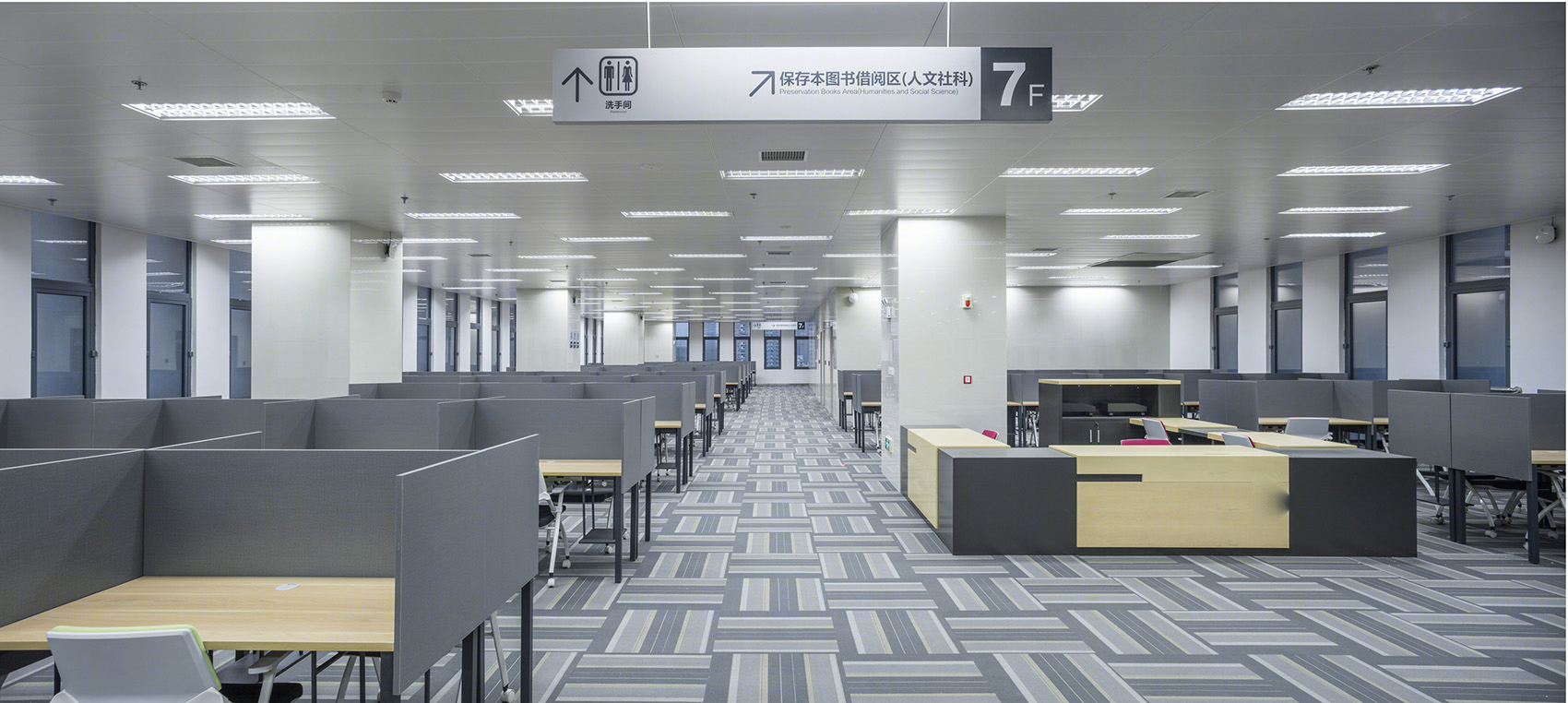

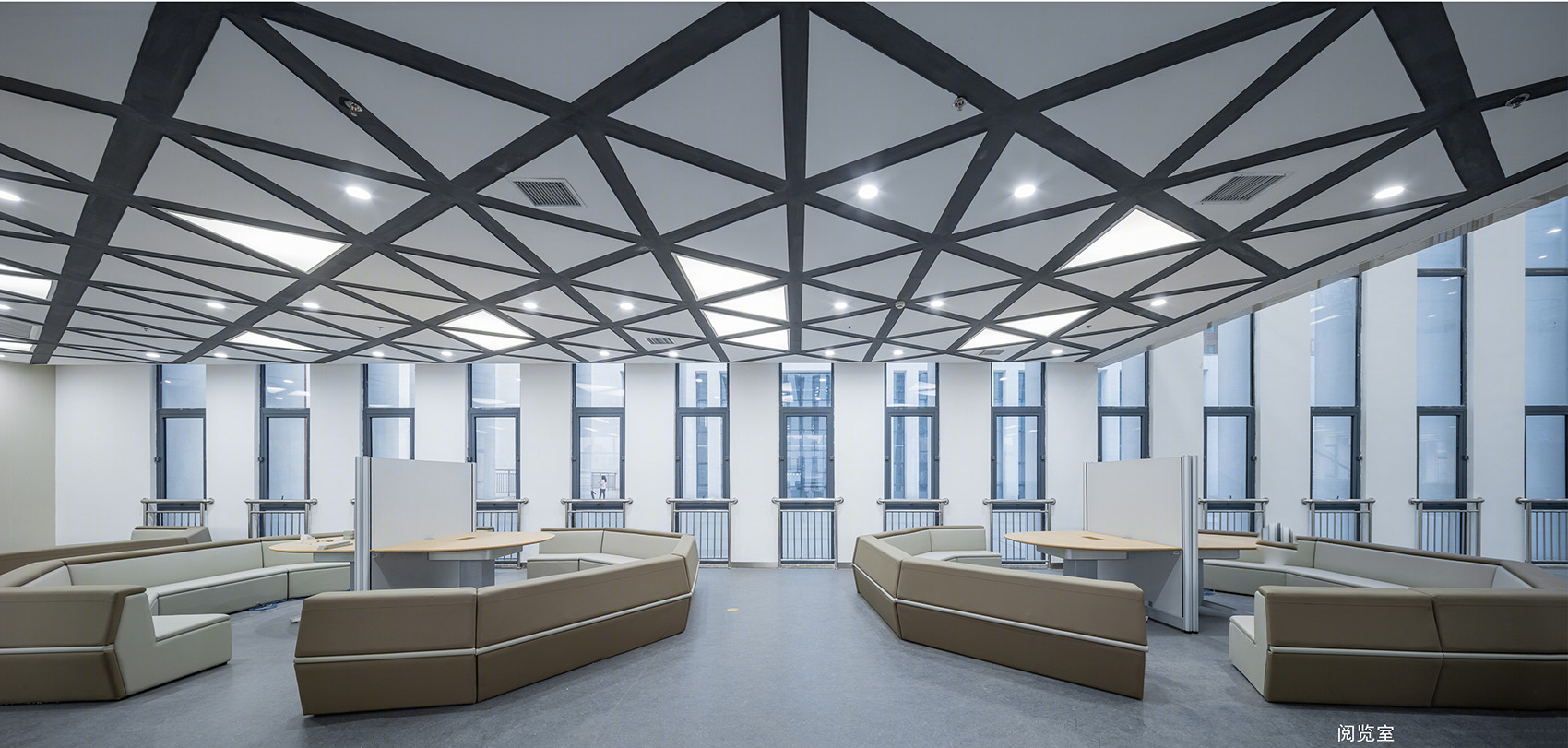

▼阅览室，reading rooms

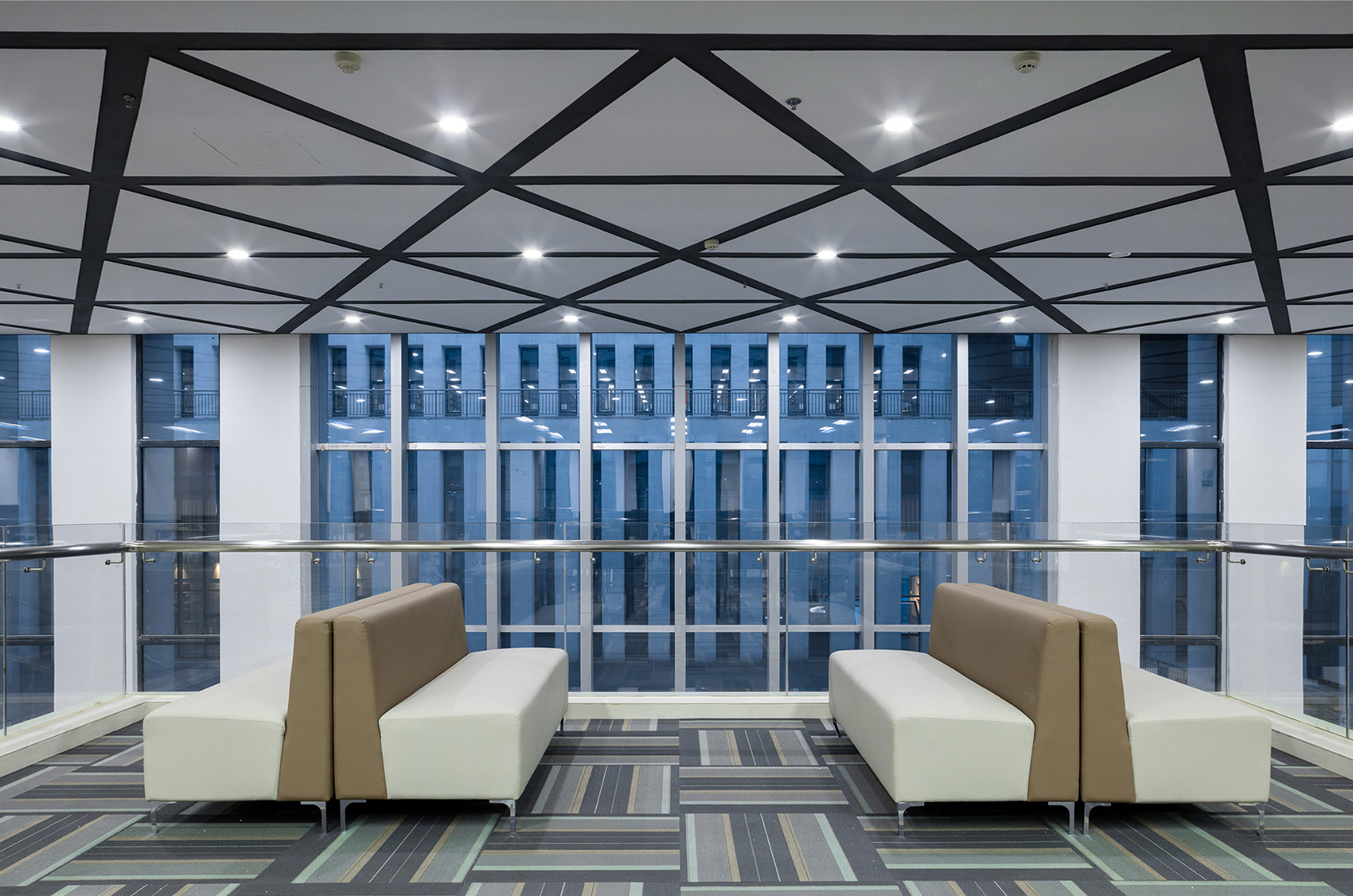

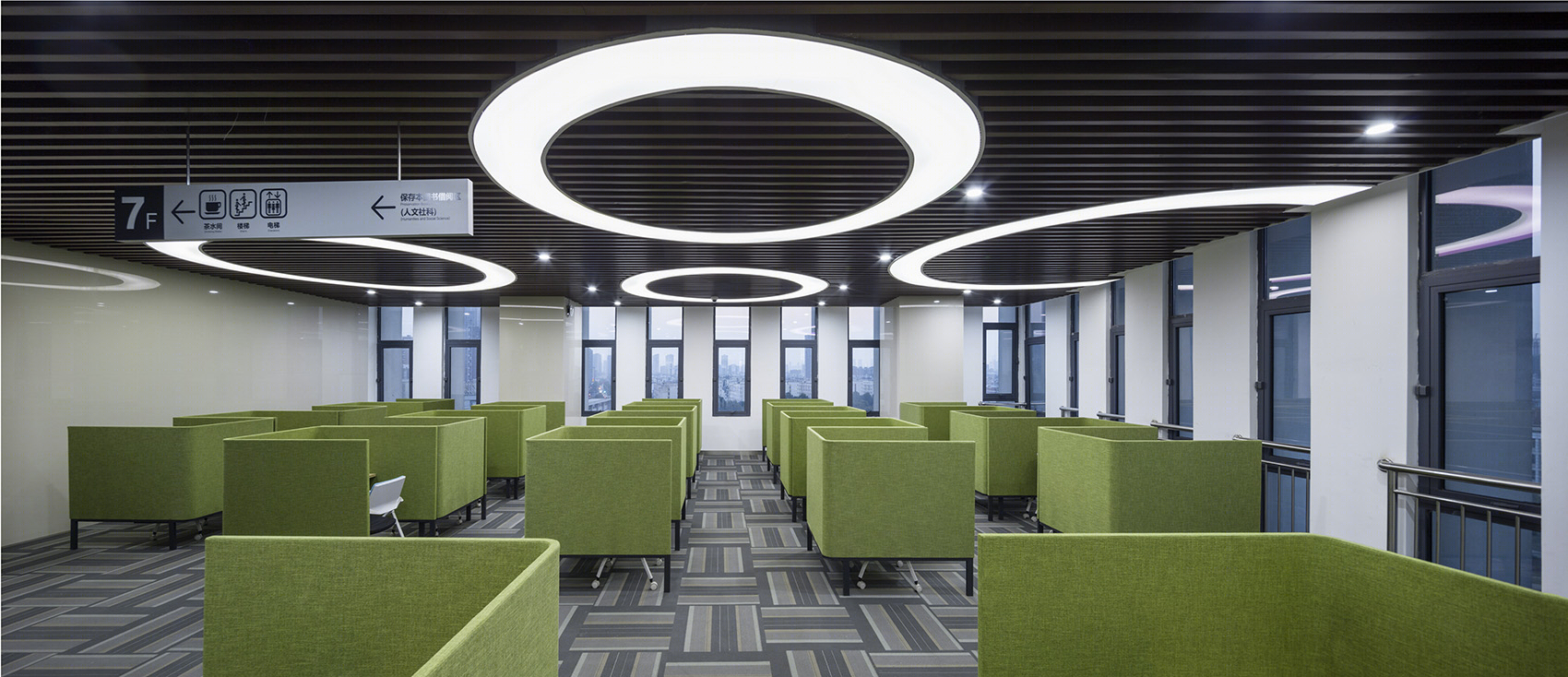

▼独立阅读空间，individual reading space

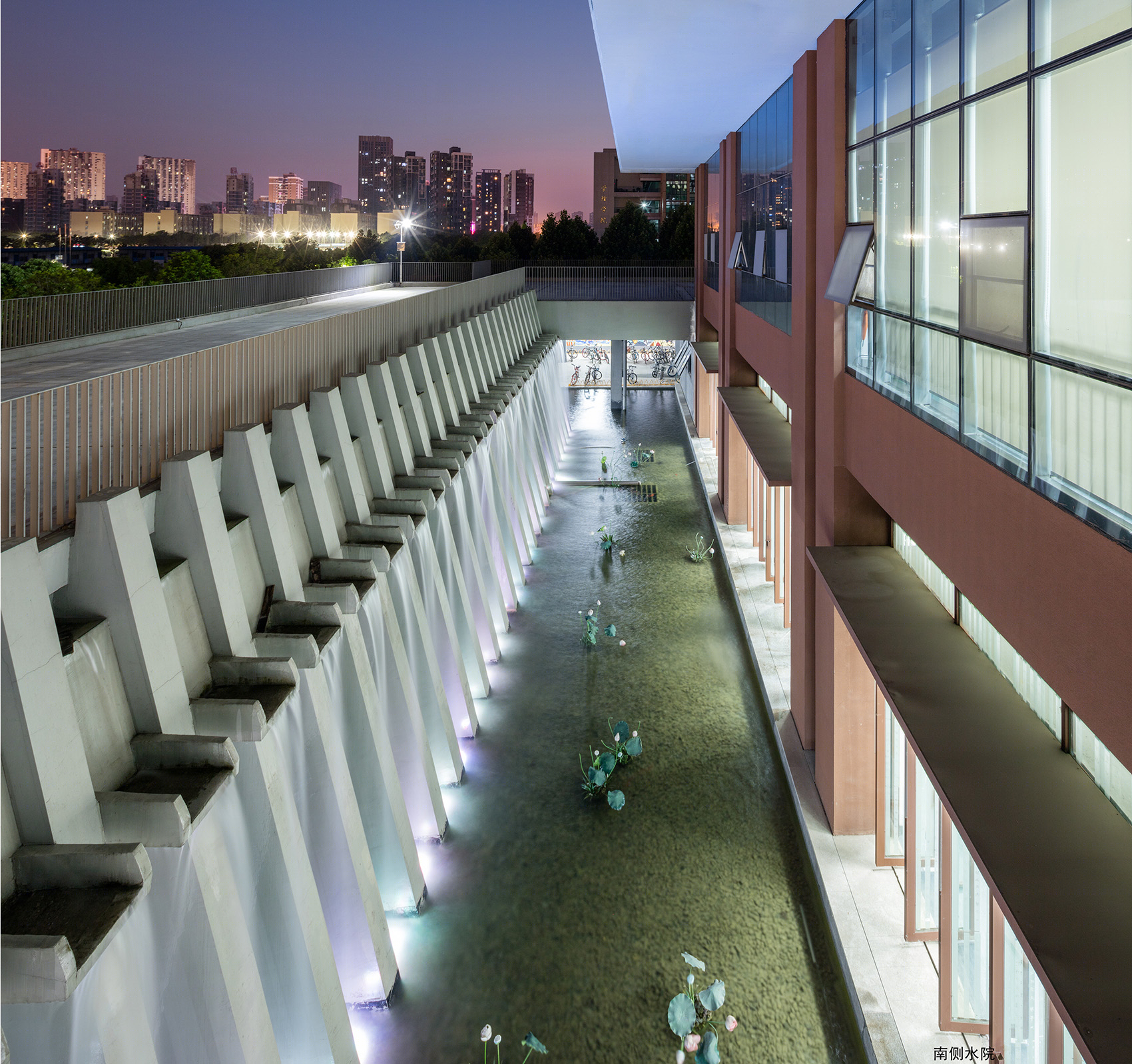

▼南侧水院，waterscape on the south side

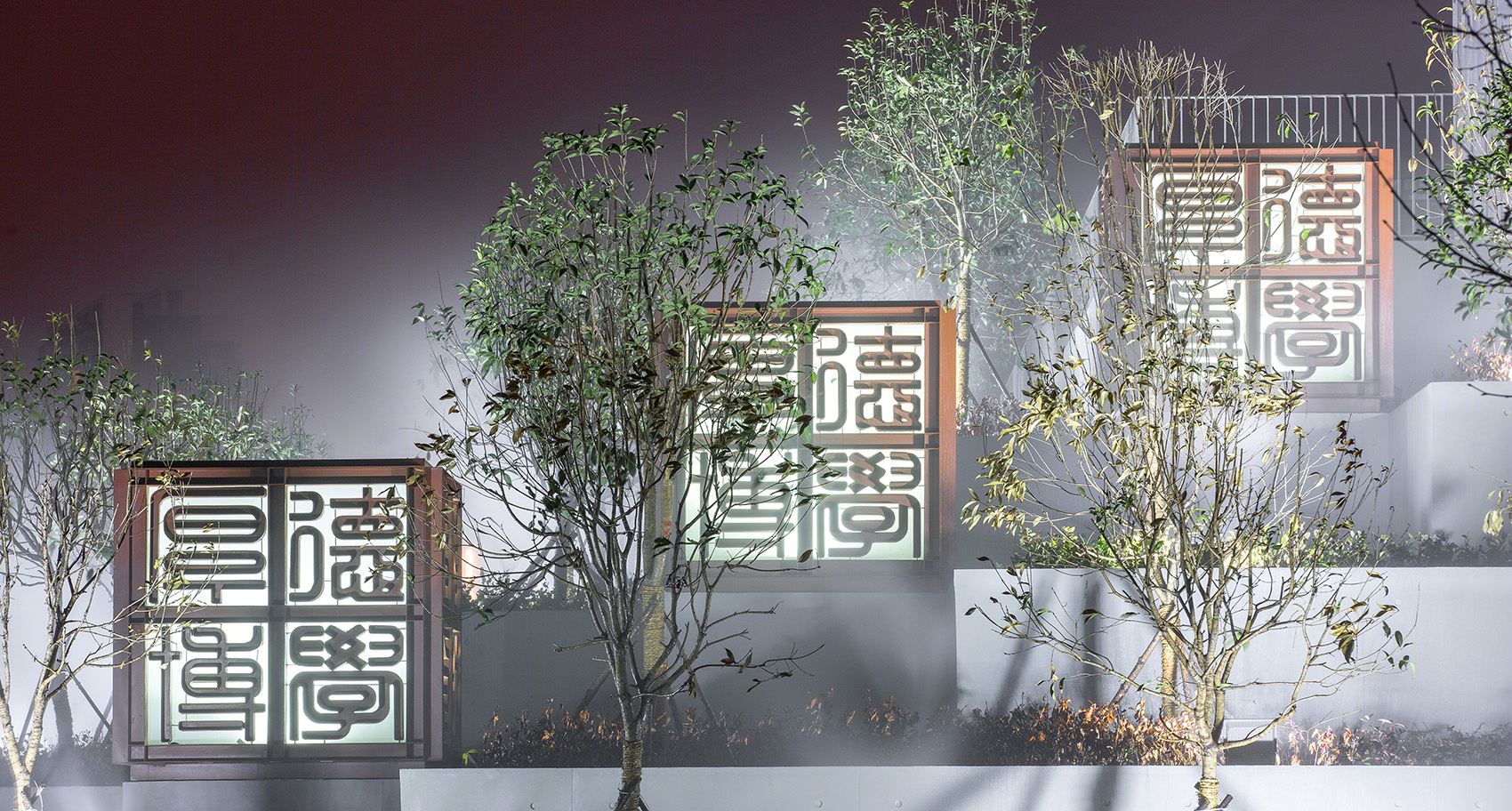

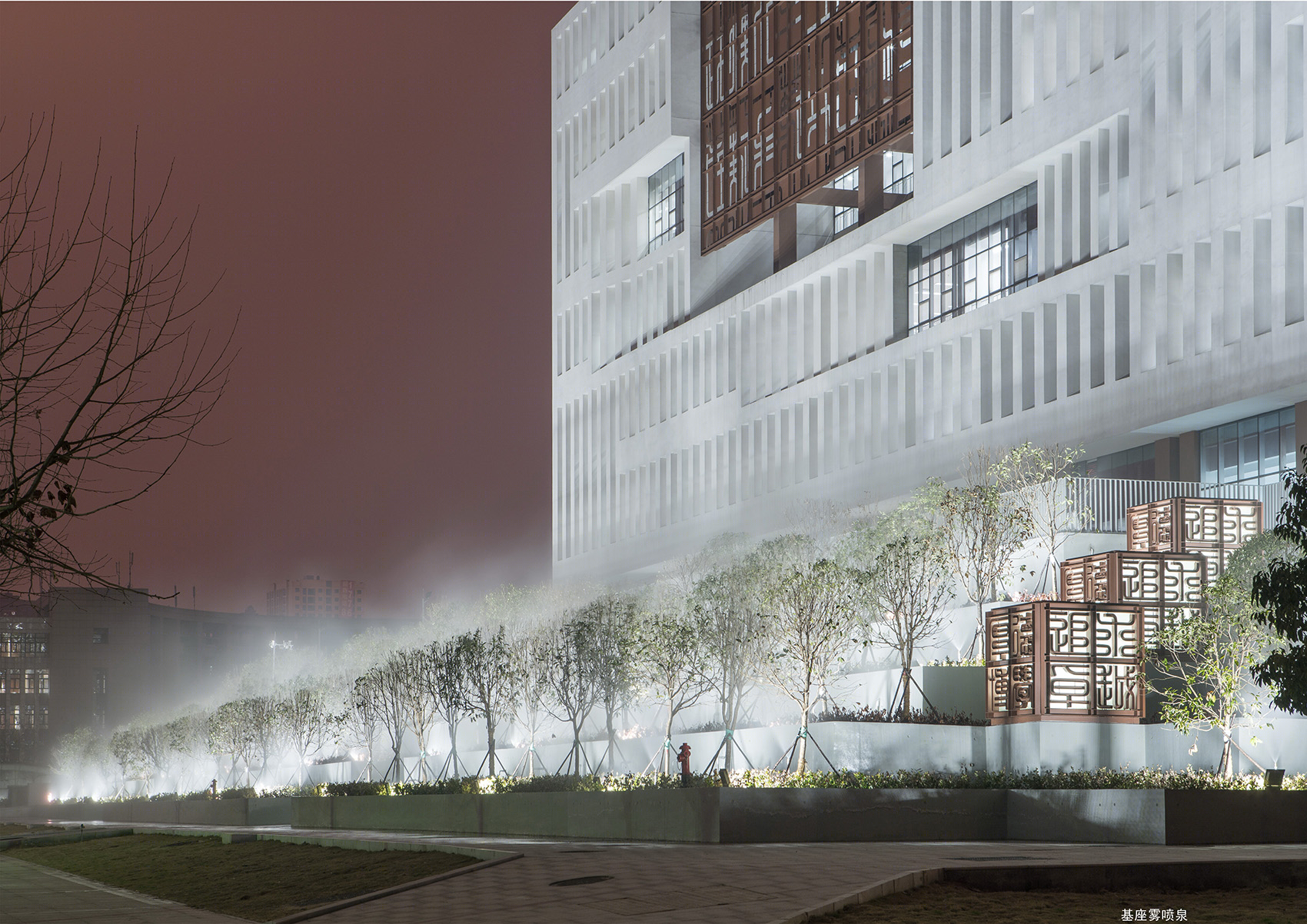

▼基座雾喷泉，fogging fountain

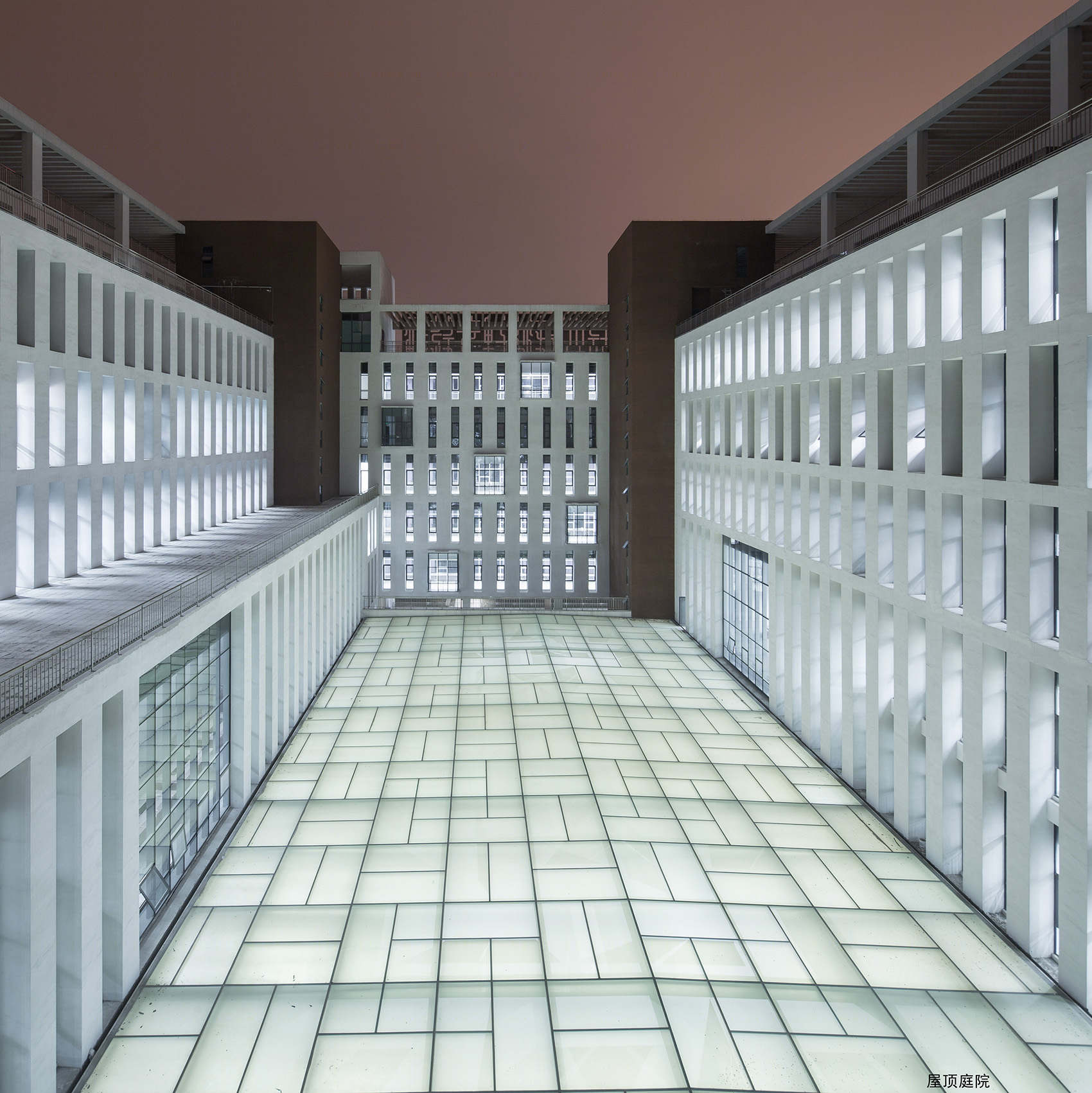

▼屋顶庭院，roof terrace

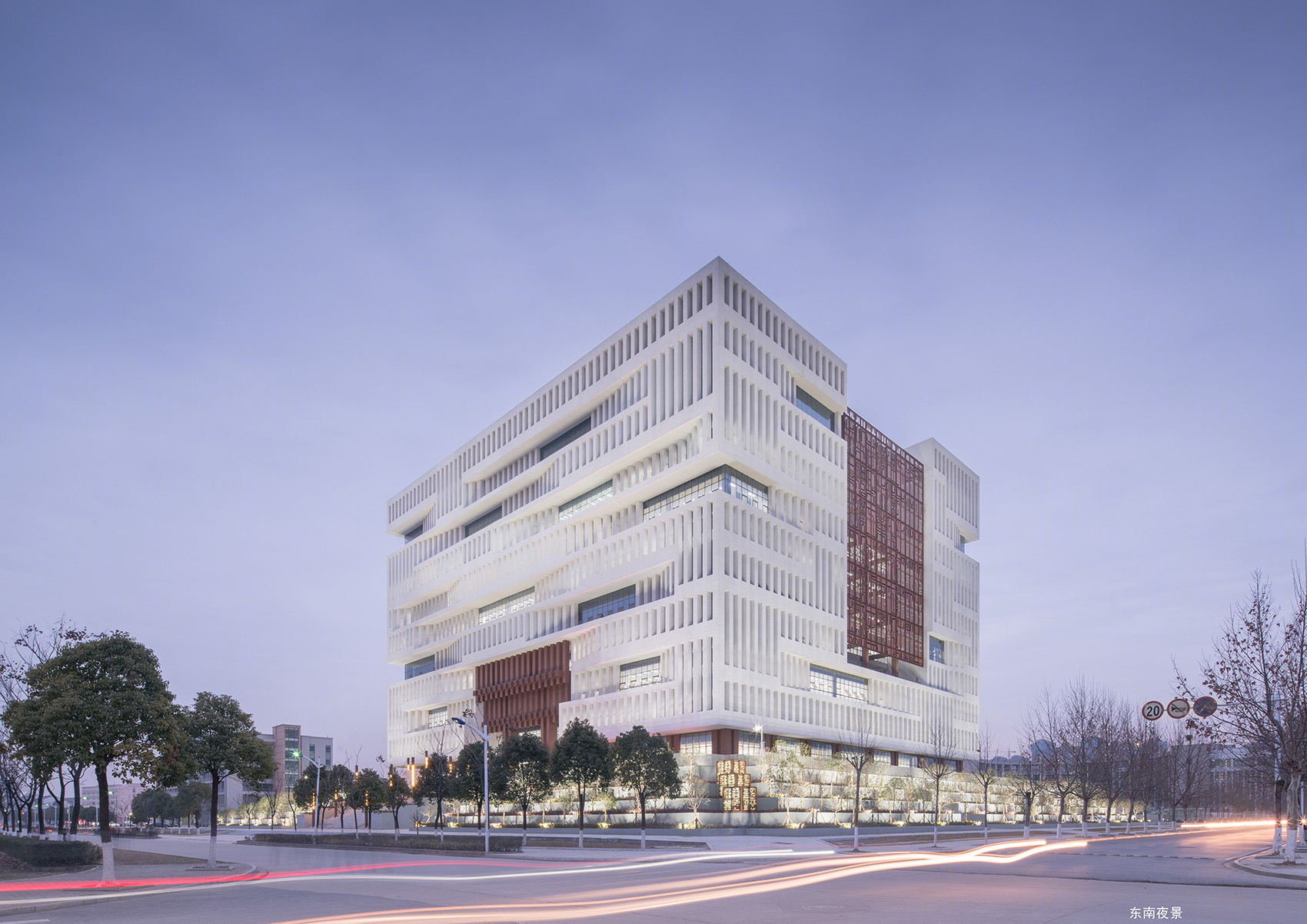

▼夜景，night view

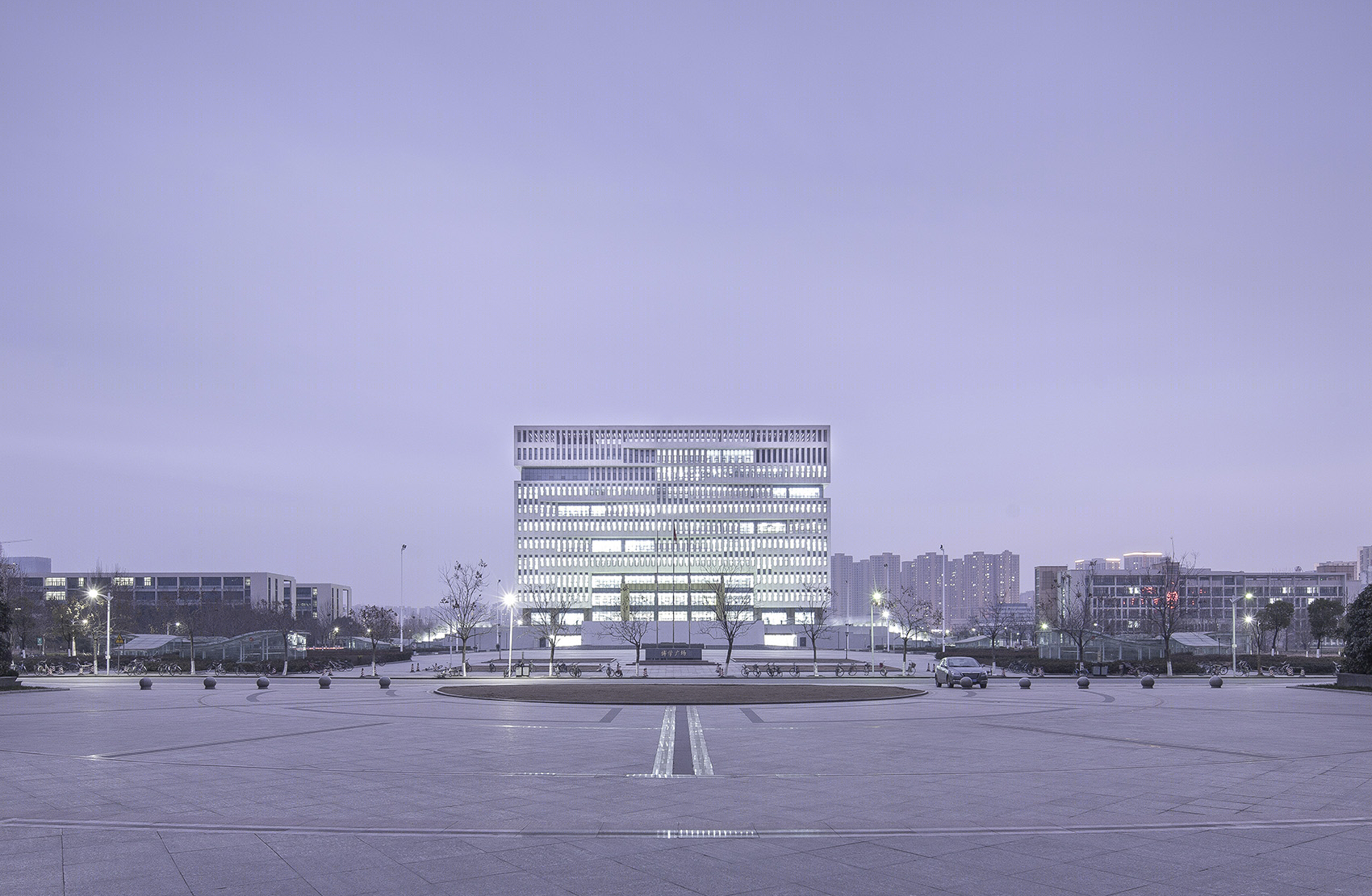

▼北广场视角，view from the north plaza

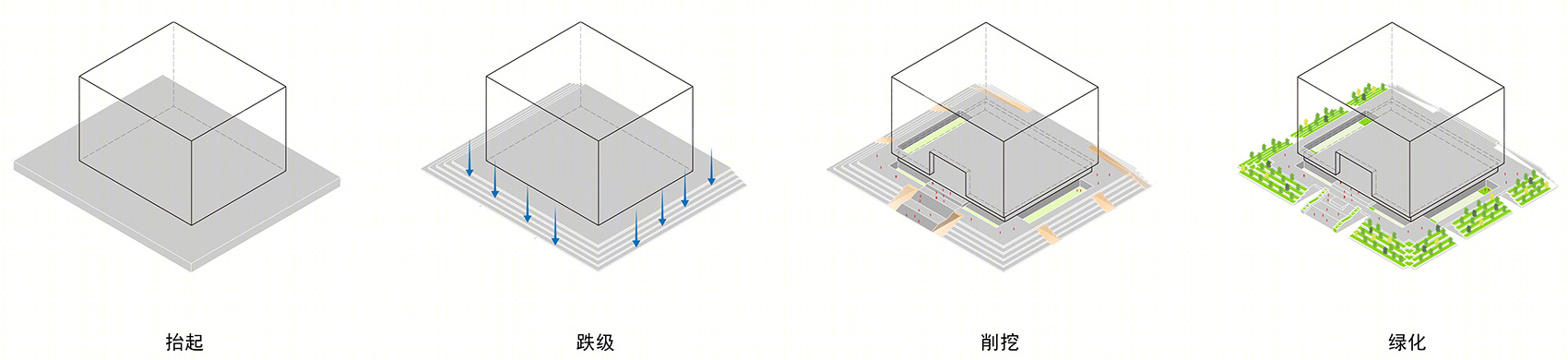

▼体块生成示意，massing diagram

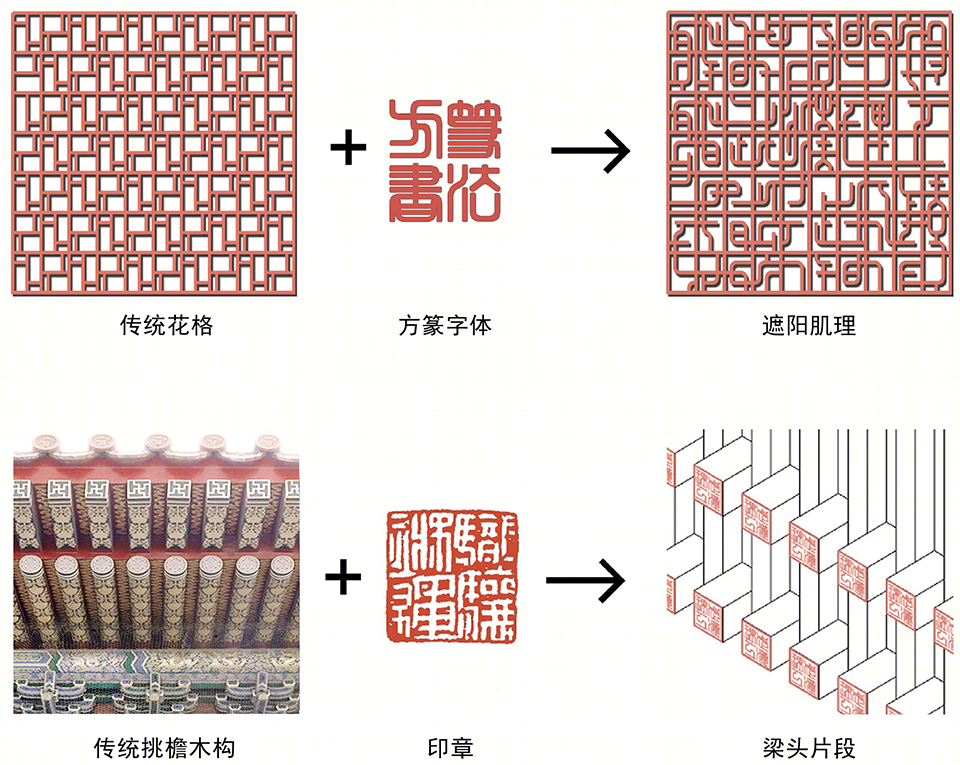

▼立面示意图，facade diagram

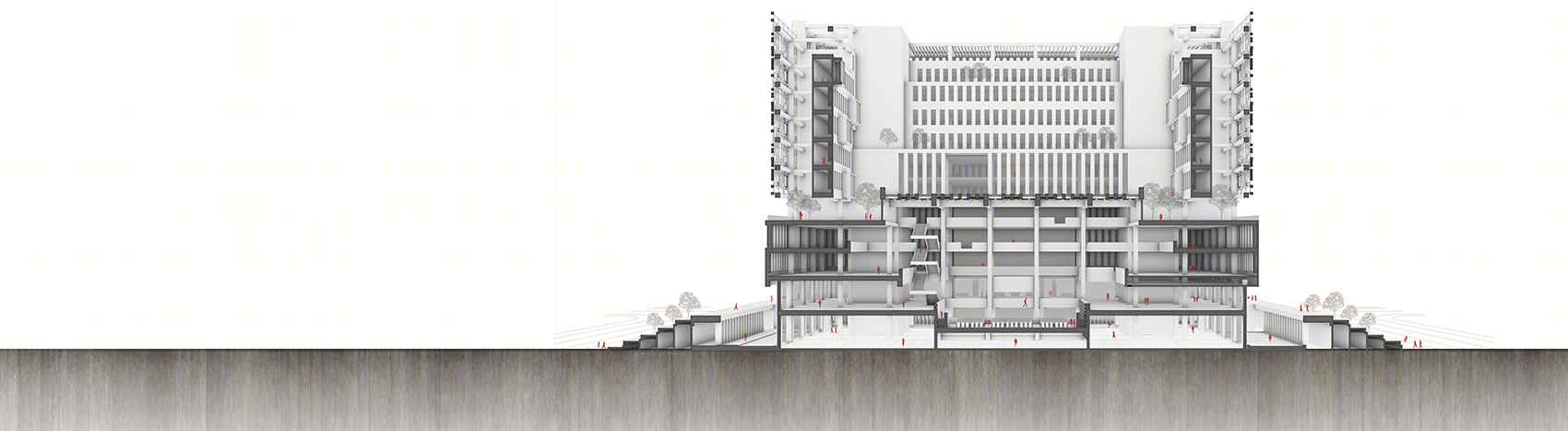

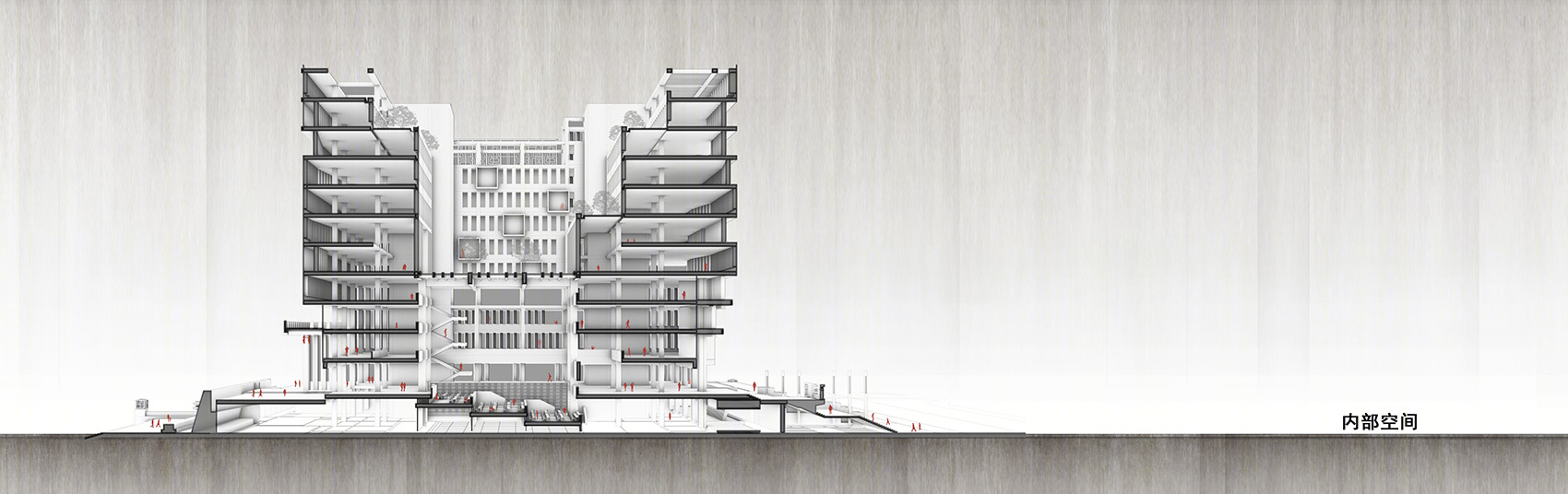

▼剖透视图，sectional perspective

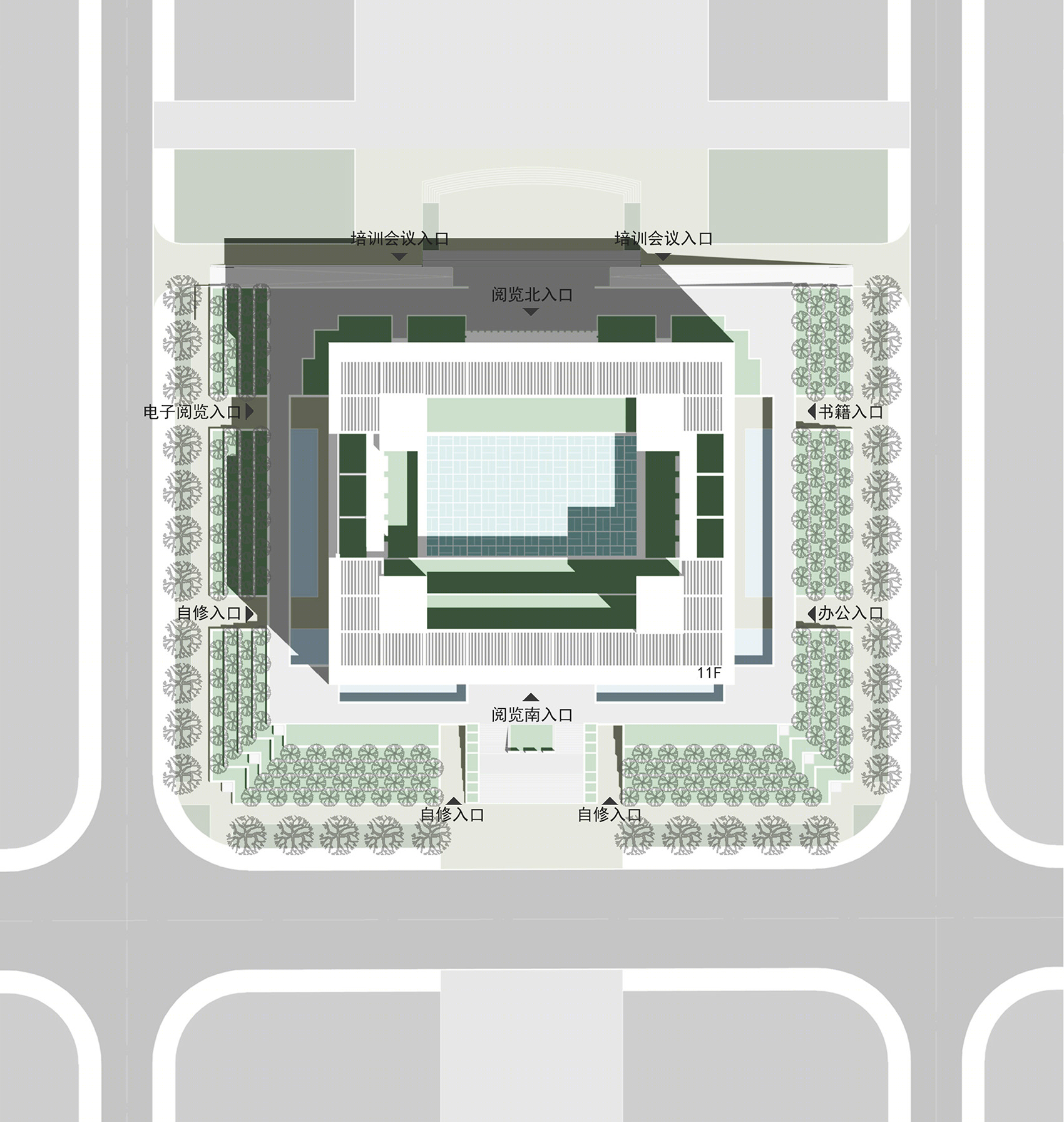

▼场地平面图，site plan

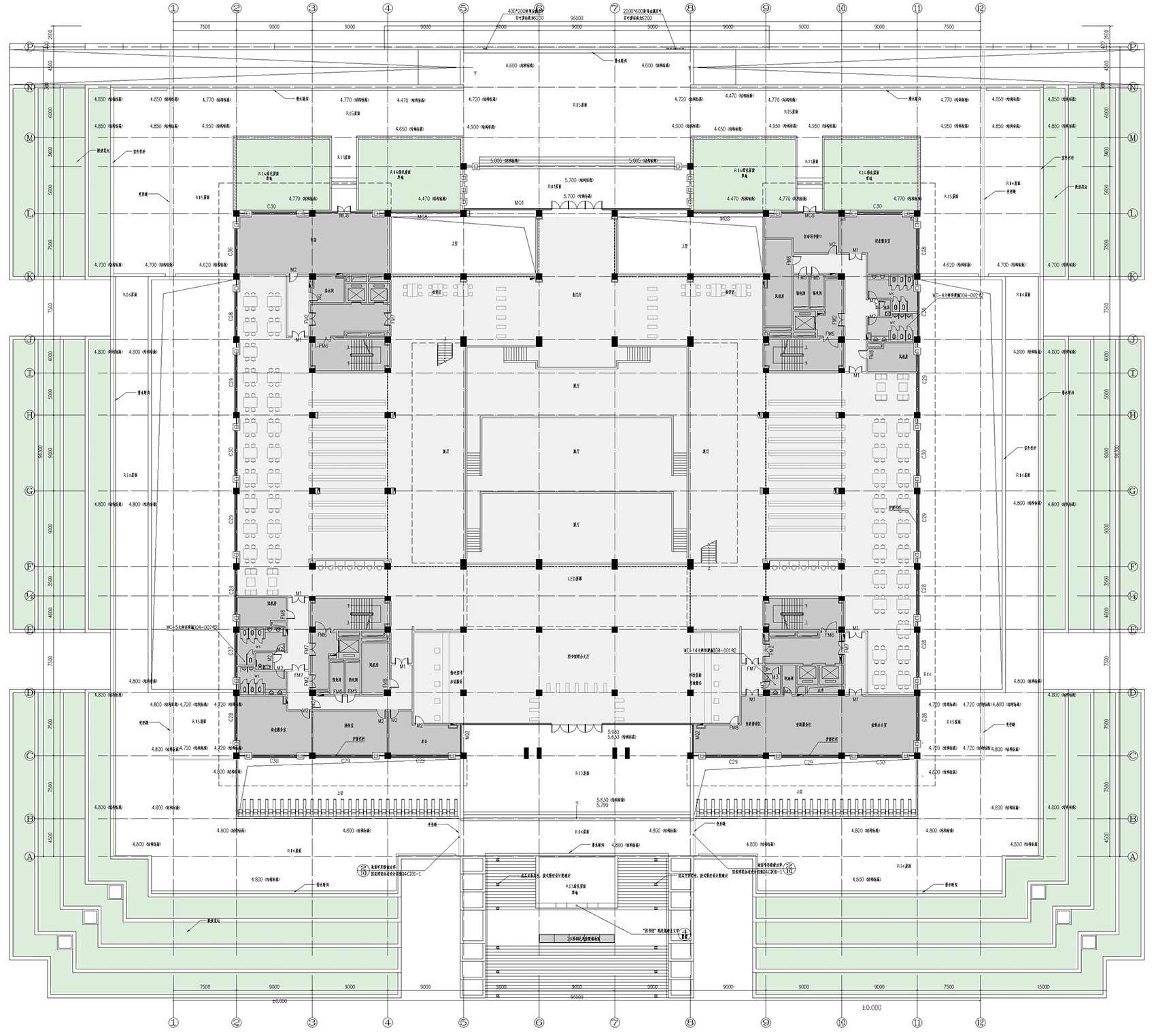

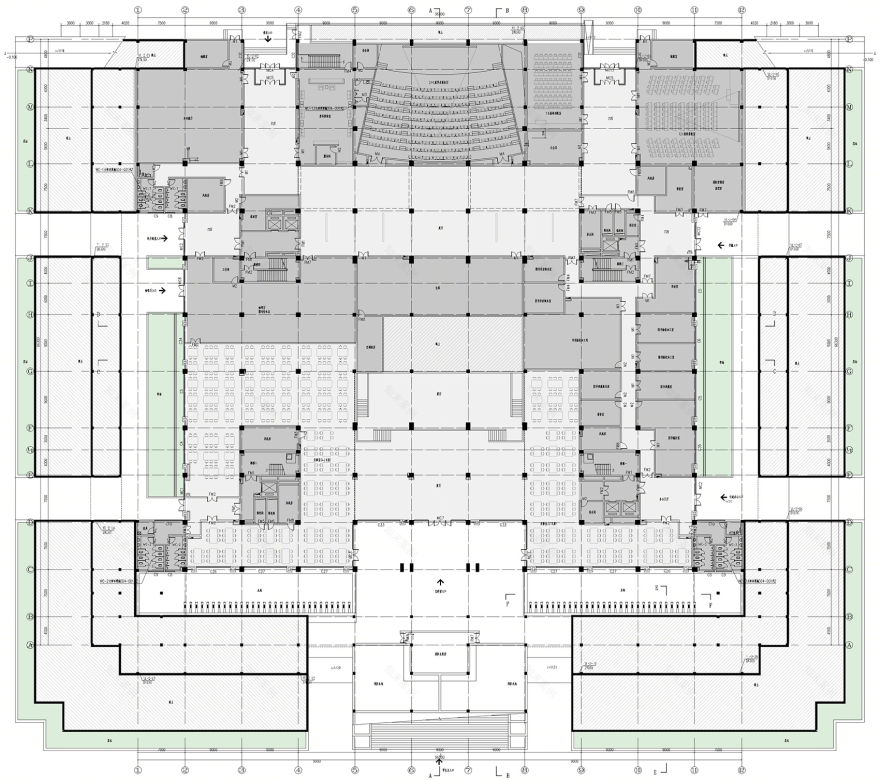

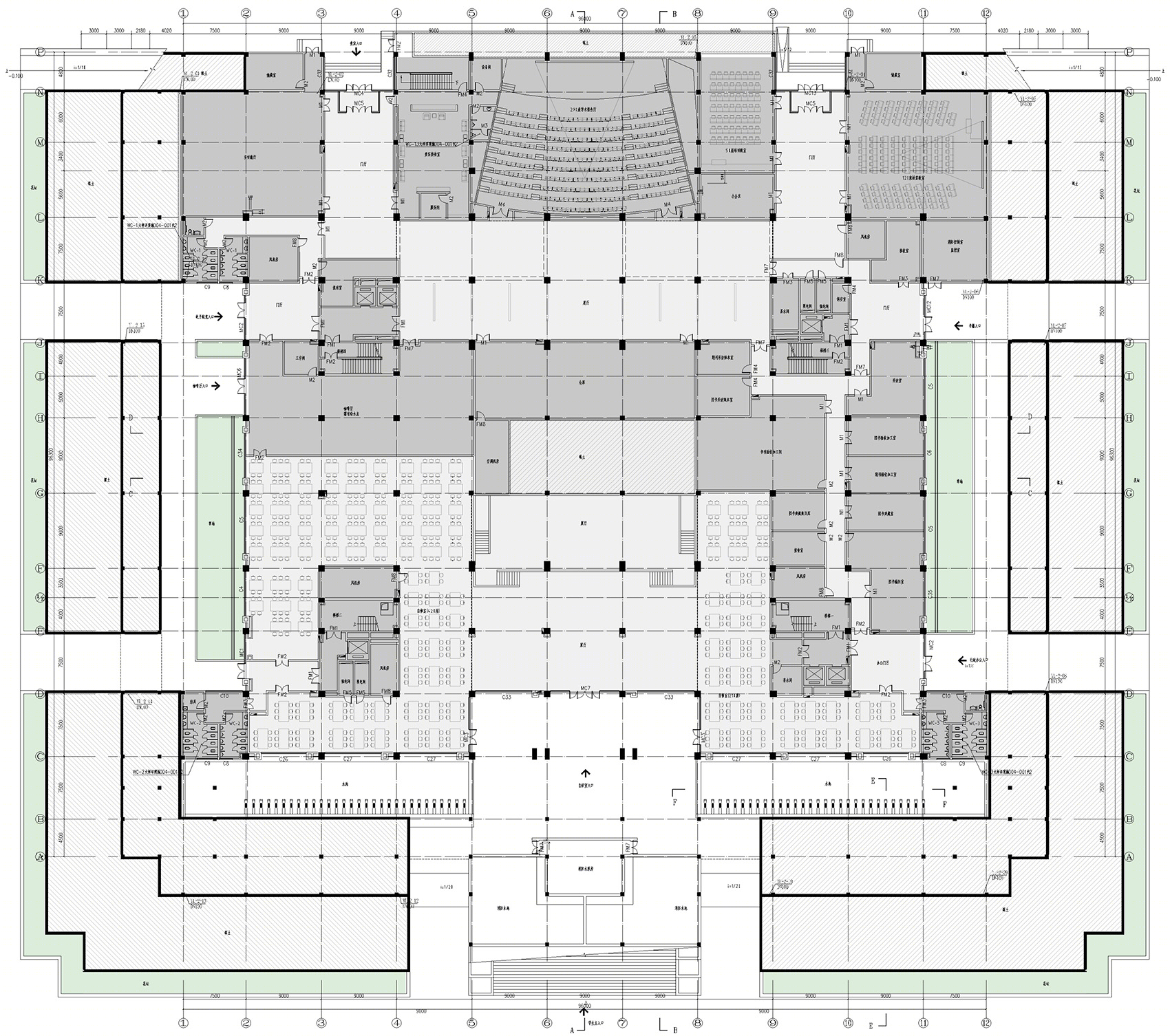

▼首层平面图，ground floor plan

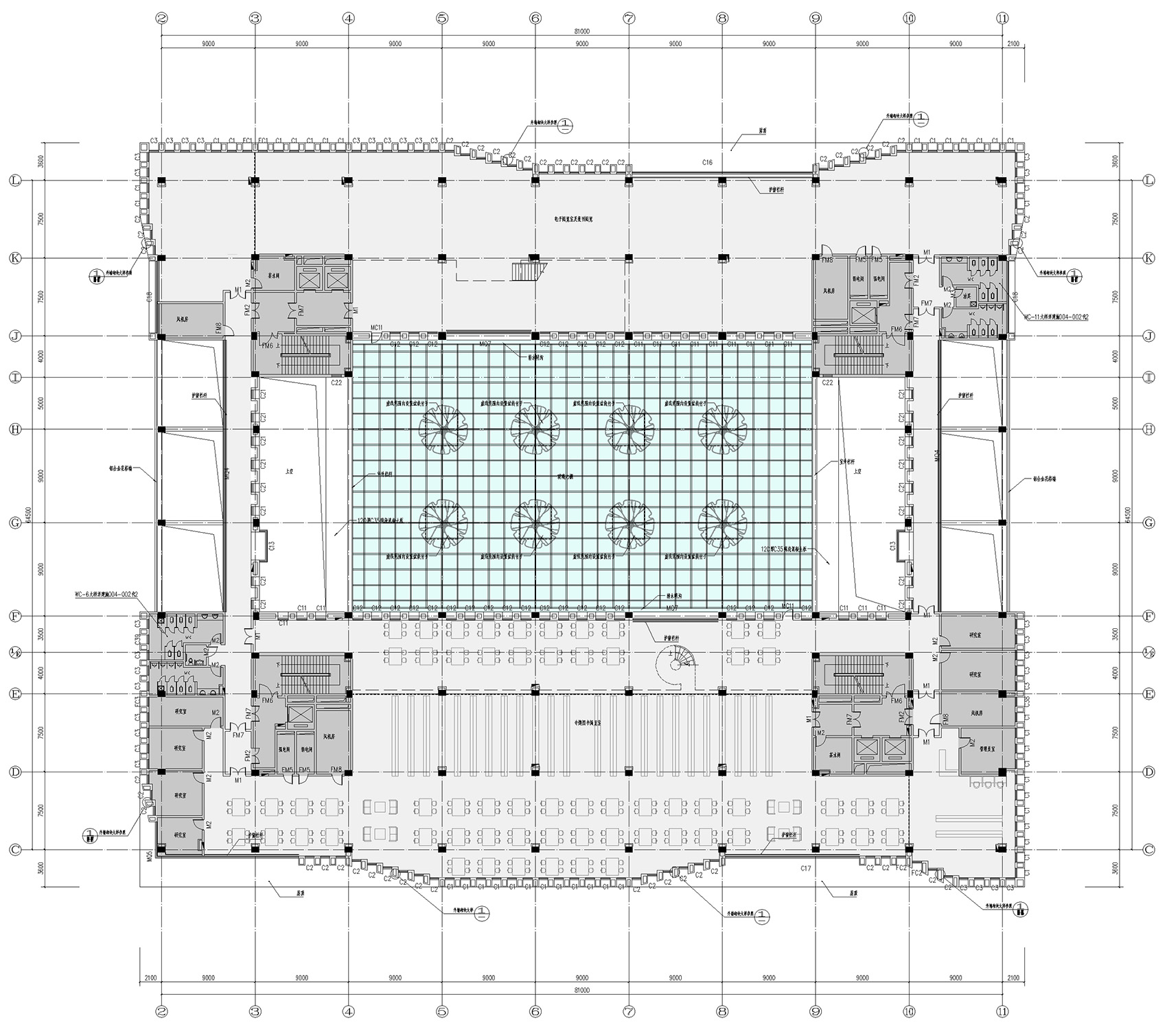

▼二层平面图，plan level 1

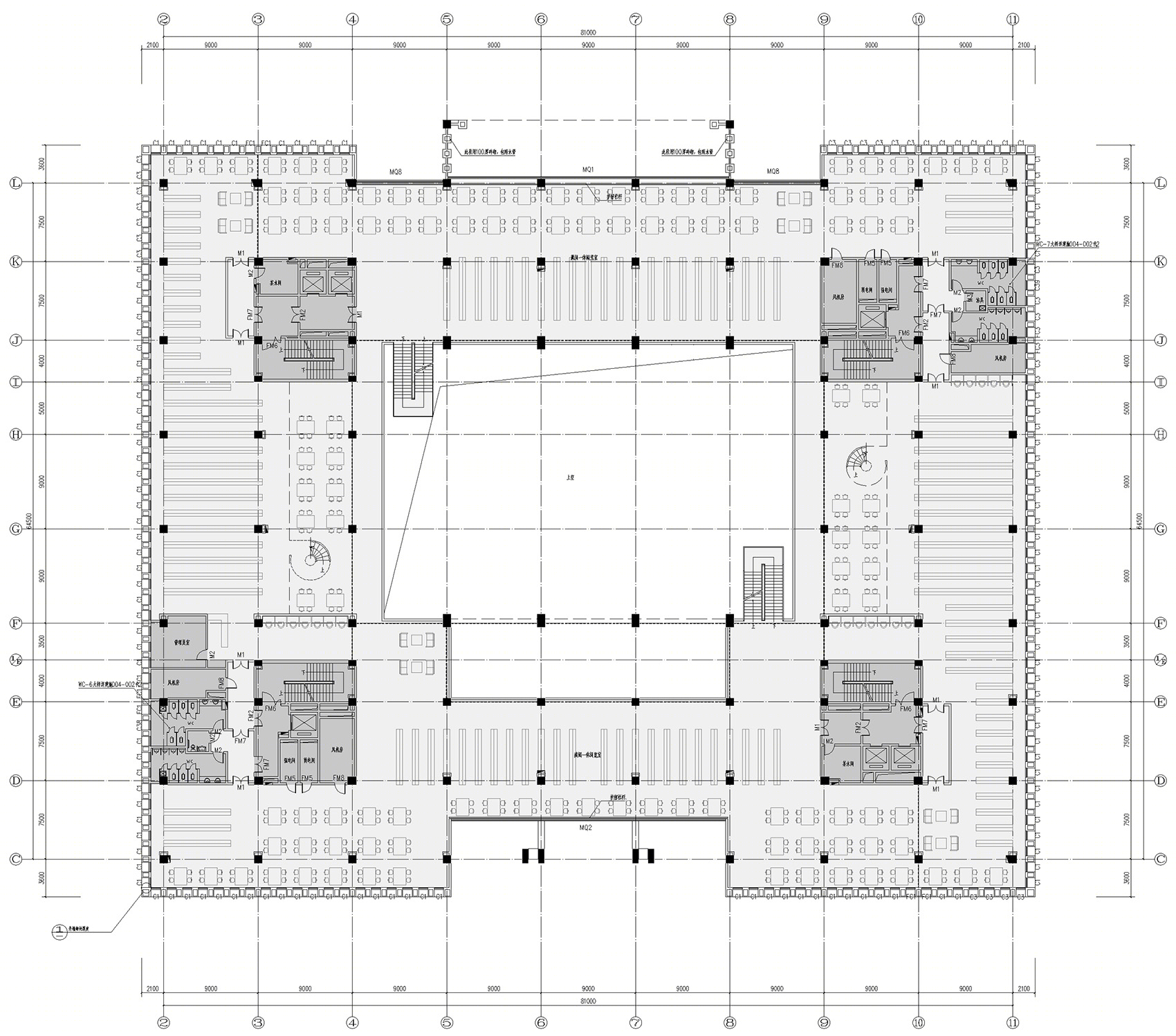

▼三层平面图，plan level 2

▼六层平面图，plan level 5

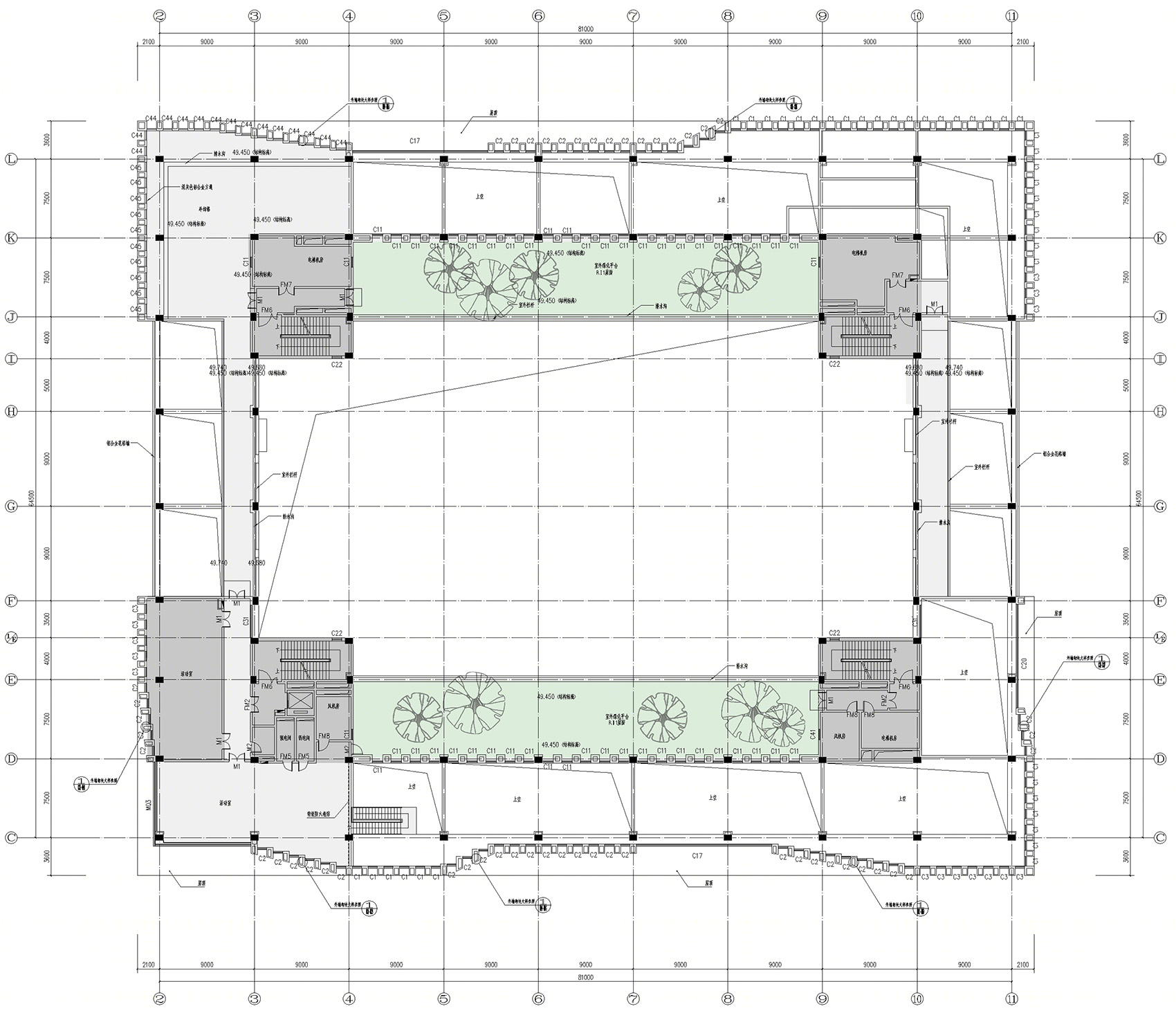

▼十一层平面图，plan level 10

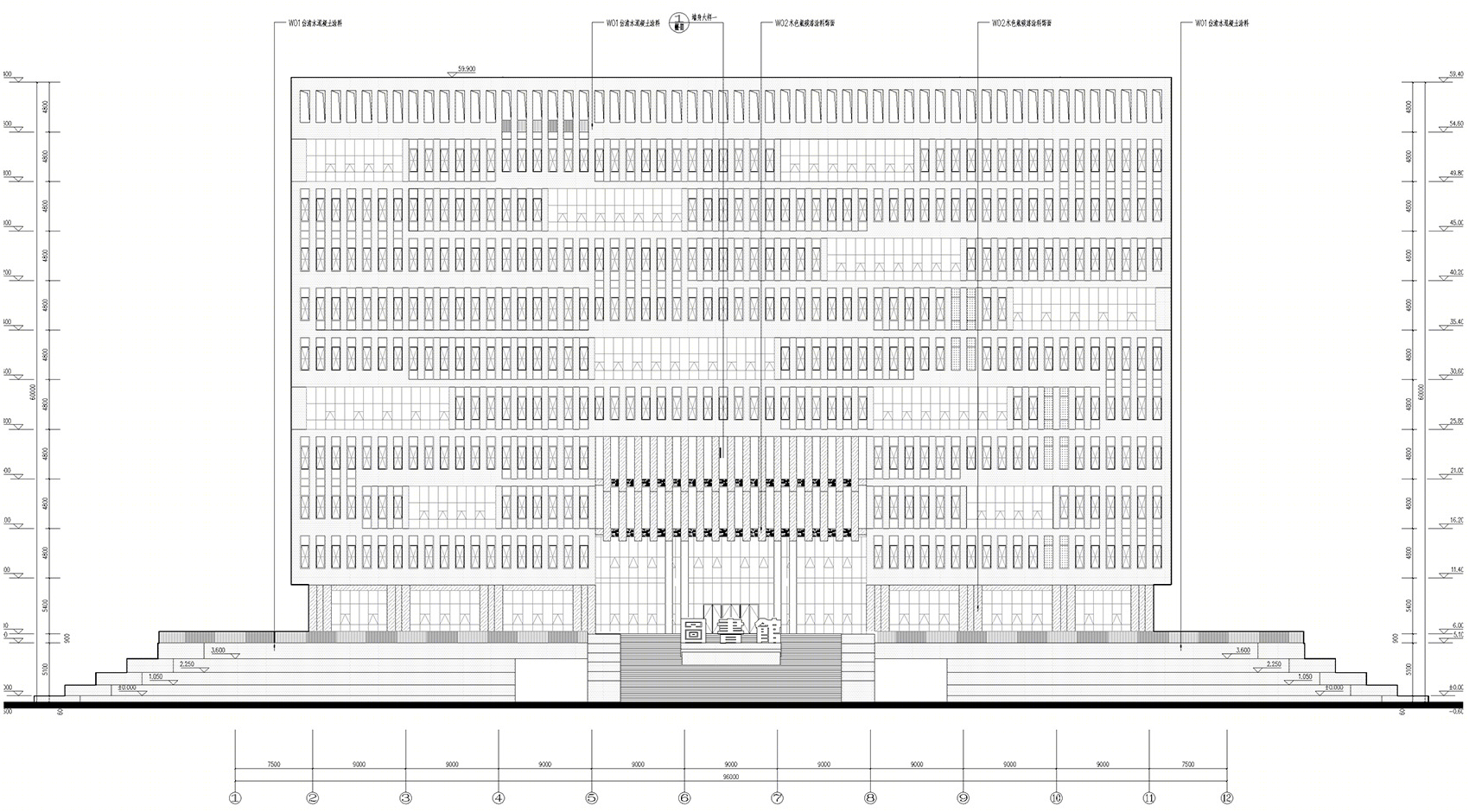

▼南立面图，south elevation

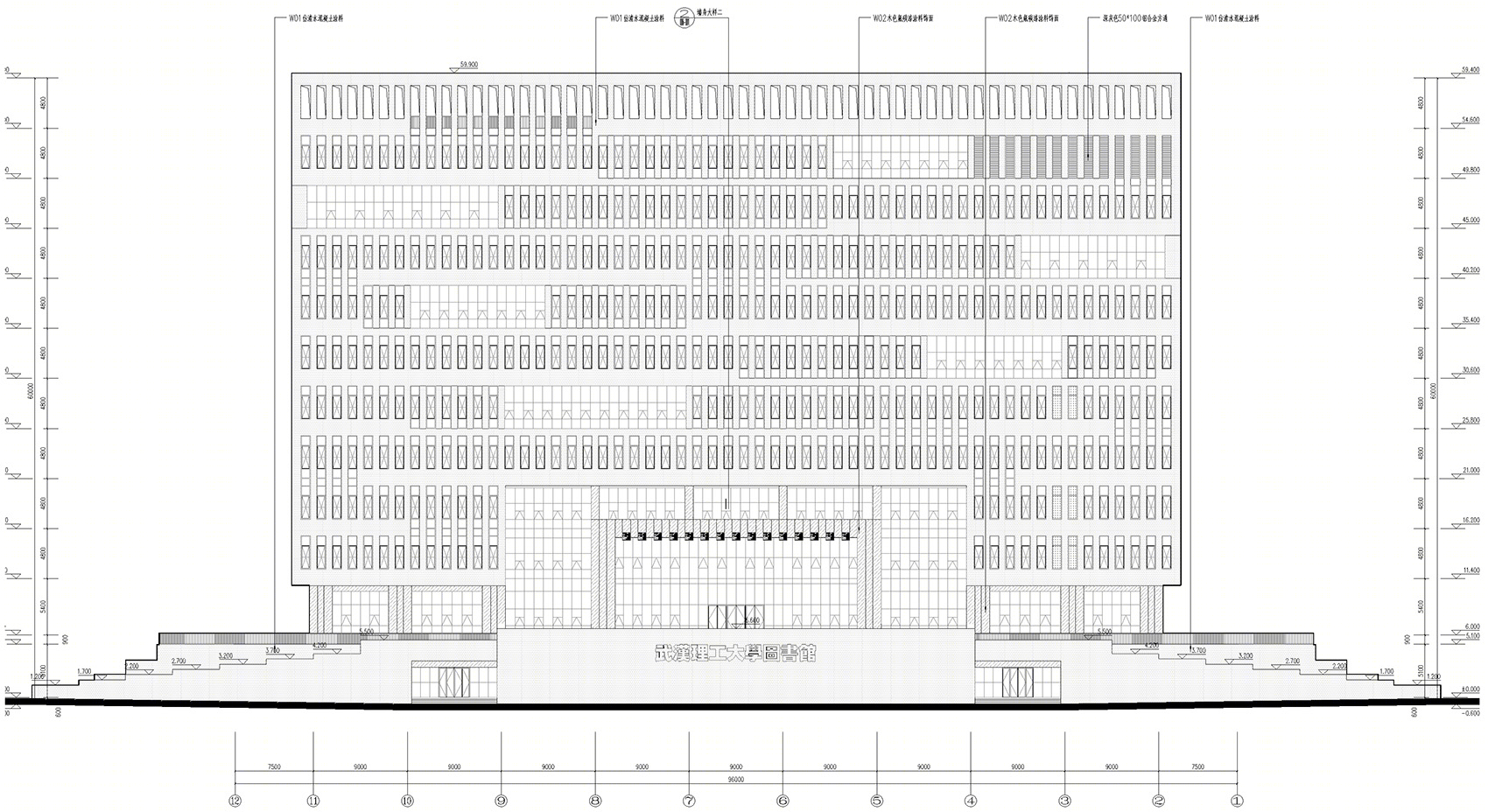

▼北立面图，north elevation

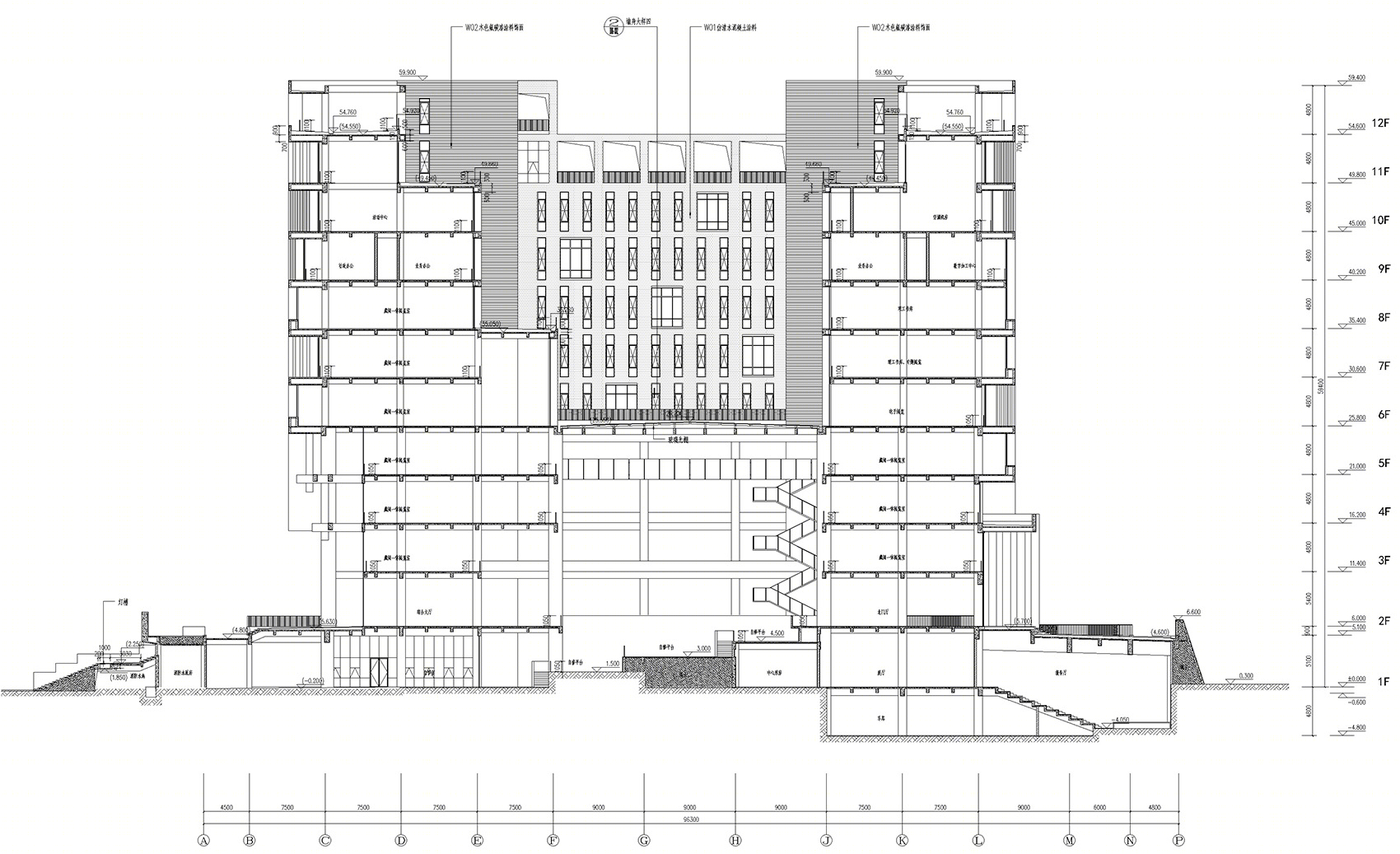

▼剖面图，section

武汉理工大学南湖校区图书馆

地点/Location

湖北省武汉市洪山区珞狮路122号/No. 122, Luoshi Street, Hongshan District, Wuhan City, Hubei Province

业主/Client

武汉理工大学/Wuhan University of Technology

设计团队/Project Team

华南理工大学建筑设计研究院 陶郅大师工作室

[建筑] 陶郅 郭钦恩 陈健生 陈向荣

[结构] 柳一心 舒宣武

[给排水] 王学峰

[电气] 黄晓峰 伍尚仁

[空调] 张毅 郭宇

[景观] 陈天宁 刘伟庆 邓寿朋

施工单位/Constructor

中建三局集团有限公司

设计时间/Design Period

2010.10 – 2015.01

建造时间/Construction Period

2012.01 – 2015.01

基地面积/Site Area

18914 m2

建筑面积/Floor Area

47557.6 m2

层数/Storey

地上11层，地下1层/11 storeys overground, 1 storey underground

结构形式/Structure

钢筋混凝土框架结构/ Concrete Frame structure

所获奖项

获2016年中国建筑学会建筑创作奖银奖（公共建筑类）

获2017年度教育部优秀勘察设计优秀建筑工程类一等奖

获2017年度全国优秀工程勘察设计奖一等奖

摄影/Photography

邵峰
