大连国际会议中心位于中国重要的港口城市大连，是一栋手法现代构成理性的建筑。大连国际会议中心拥有会议中心，剧院和歌剧院，会展中心，地下停车场这四大功能区域。建

筑旨在成为未来城市发展区中轴线终点上的地标建筑。

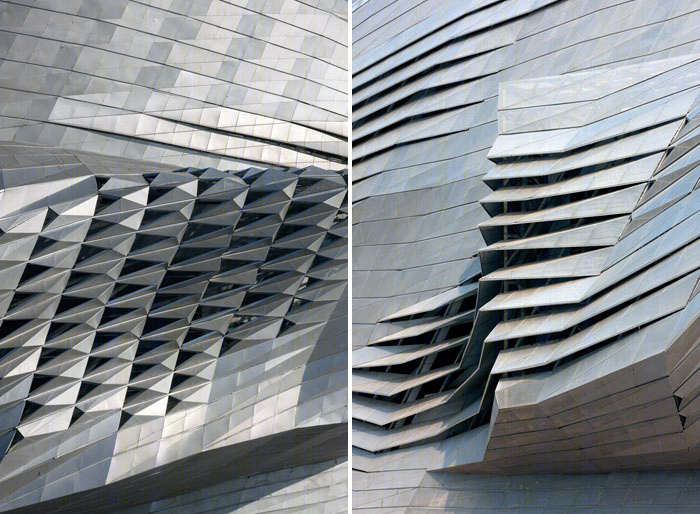

建筑形体不规则，向外悬挑的部分形成丰富空间，并与环境关联密切。表皮上的开缝可以保证充足的日光，视线，还有空气进入剧院和各个空间。

Project

Dalian International Conference Center, Dalian, China (2008-2012)

The building has both to reflect the promising modern future of Dalian and its tradition as an important port, trade, industry and tourism city. The formal language of the project combines and merges the rational structure and organization of its modern conference center typology with the floating spaces of modernist architecture.

Dalian is an important seaport, industrial, trade, and tourism center, located in the southernmost part of the Liaodong Peninsula in the Chinese Liaoning Province.

The city is currently undergoing a wave of transformation on coastal brownfield and reclaimed land which will entirely change the city’s face within the next decade.

The key developments are:

• Dislocation of container port away from the dense city area

• Establishment of international port for cruise ships

• New development of a „CBD – Central Business District“ on reclaimed land

• Bridge over the sea to connect with the special economic zone

The urban design task of the Dalian International Conference Center is to create an instantly recognizable landmark at the terminal point of the future extension of the main city axis. As its focal point the building will be anchored in the mental landscape of the population and the international community.

The footprint of the building on the site is therefore arranged in accordance with the orientation of the two major urban axis which merge in front of the building.

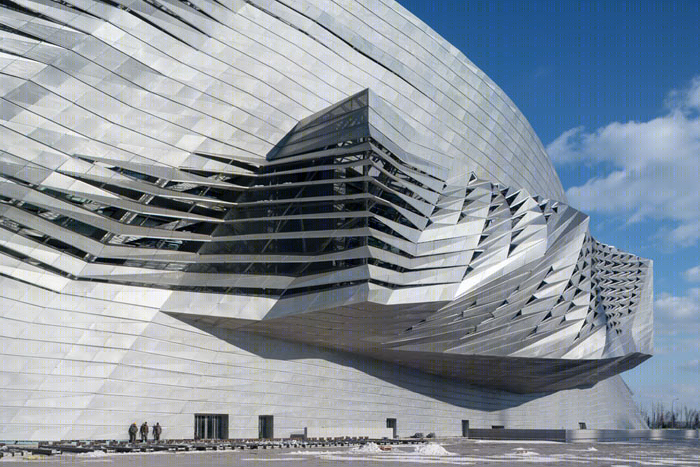

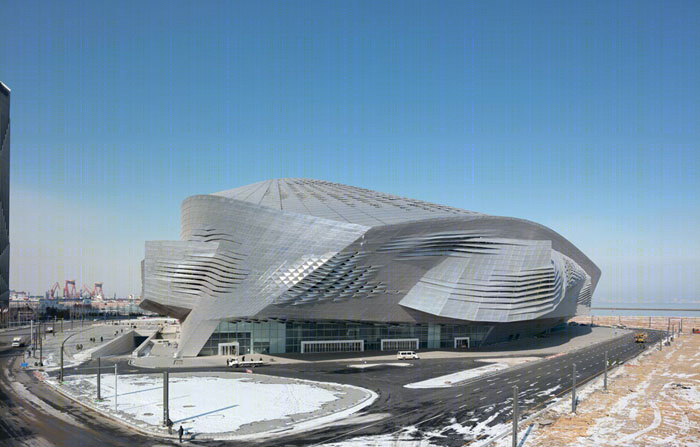

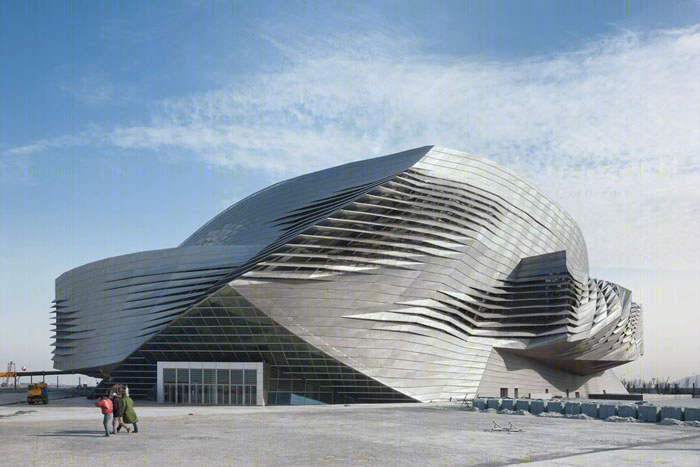

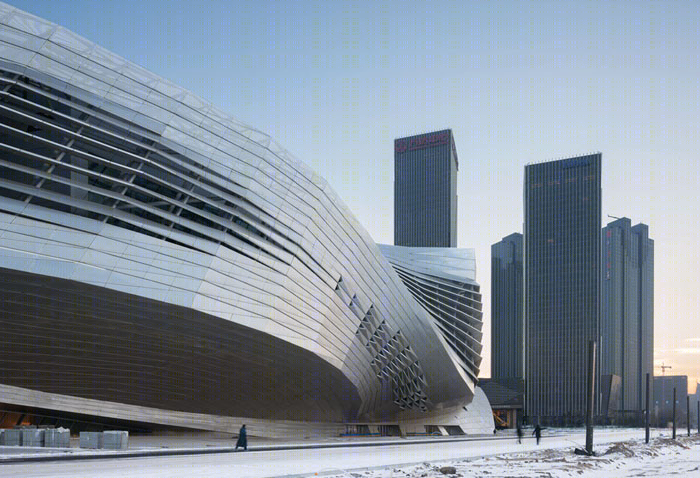

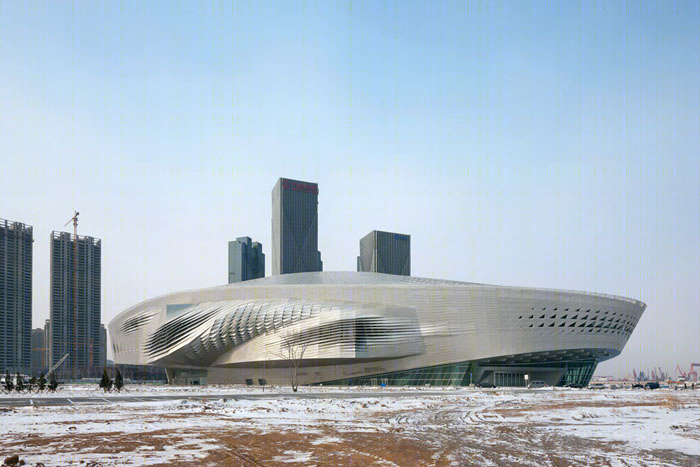

The cantilevering conference spaces that penetrate the facades create a spatially multifaceted building volume and differentiate the close surroundings.

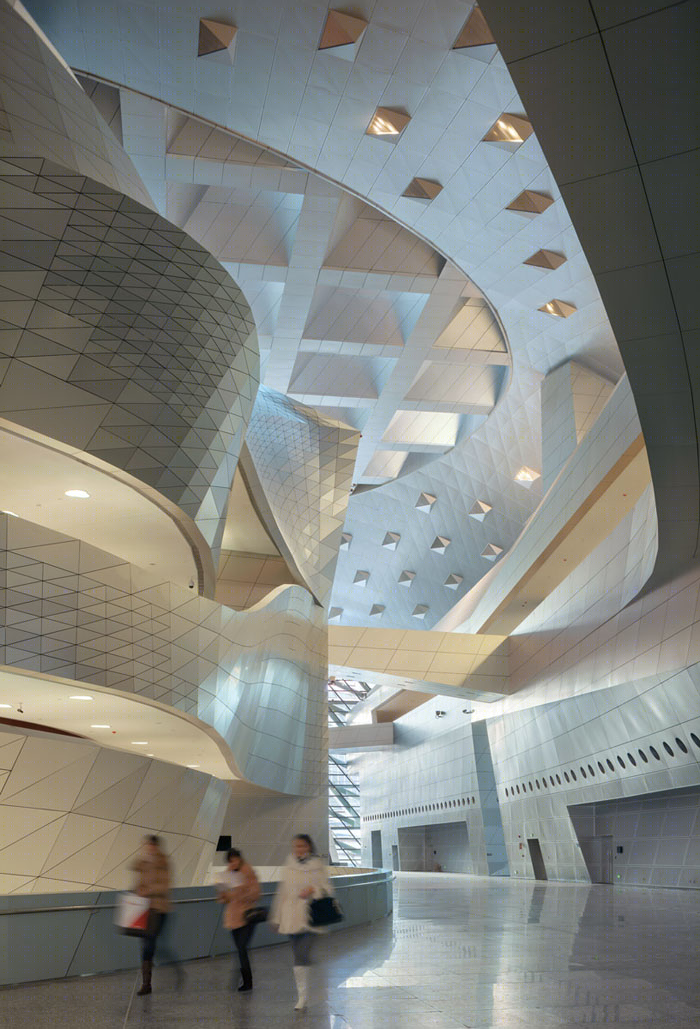

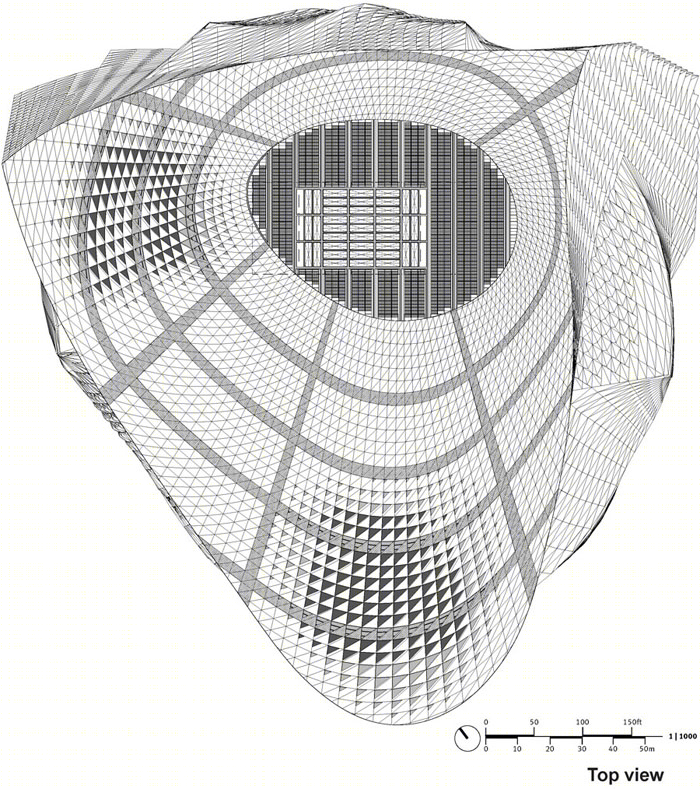

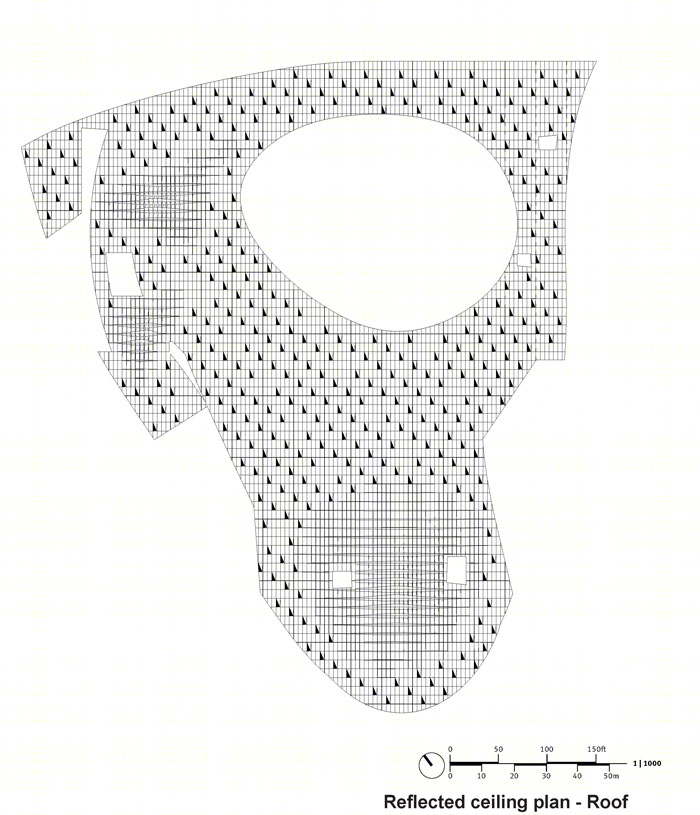

The various theaters and conference spaces are covered by a cone-shaped roof screen. Through controlled daylight input good spatial orientation for the visitors and atmospheric variety is assured.

The project combines the following functions within one hybrid building with synergetic effects of functionality and spatial richness.

• Conference Center

• Theater and Opera House

• Exhibition Center

• Basement with Parking, Delivery and Disposal

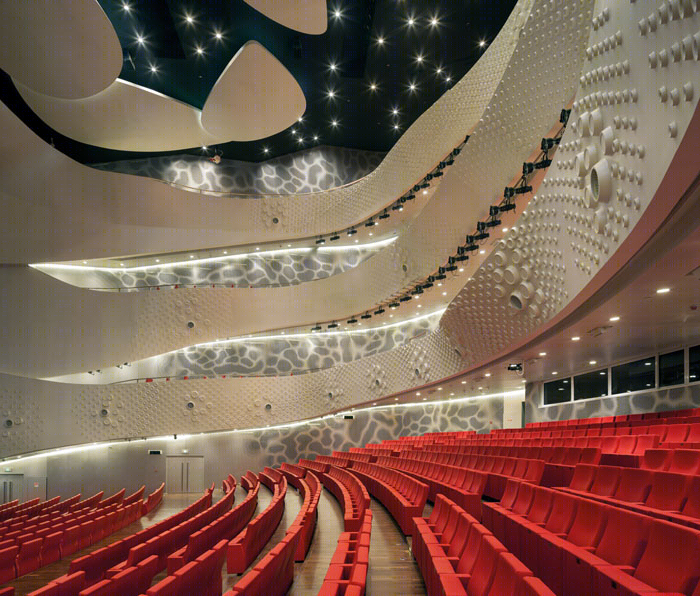

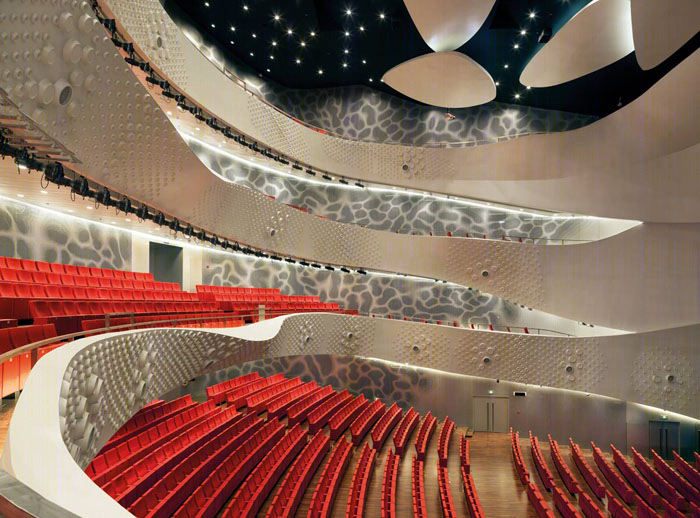

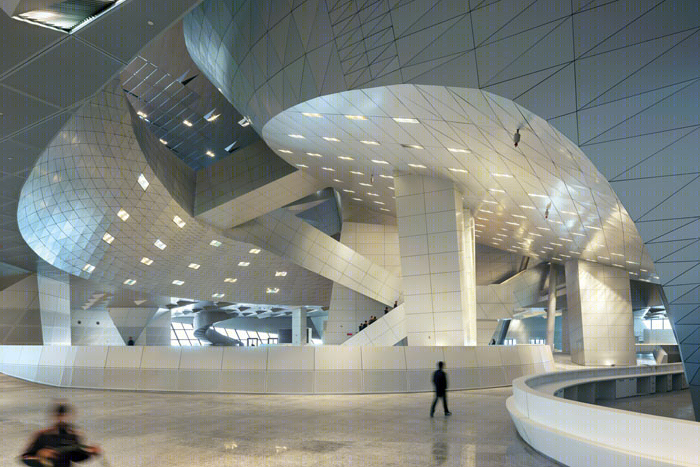

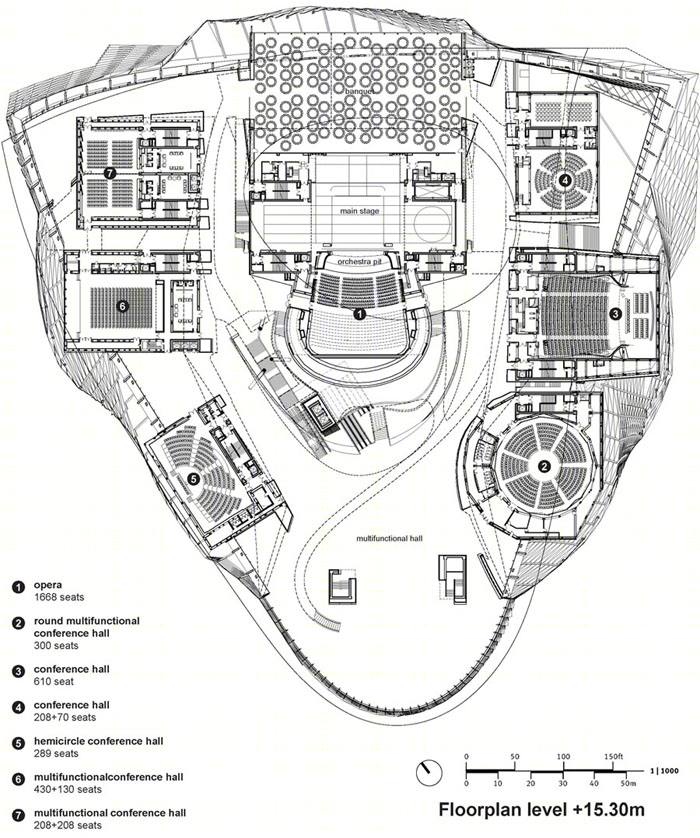

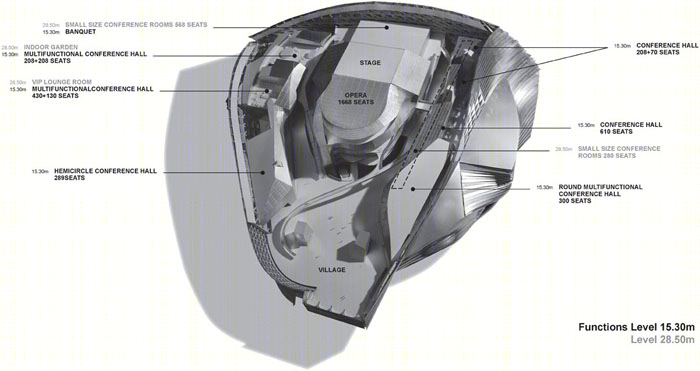

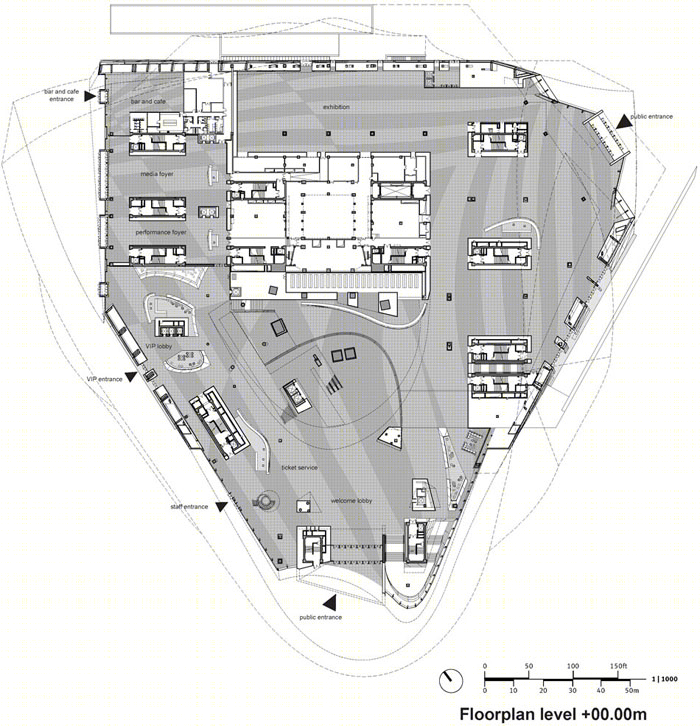

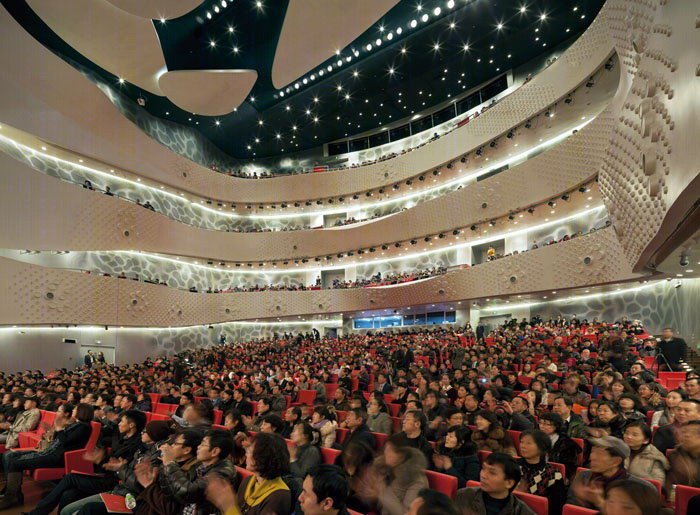

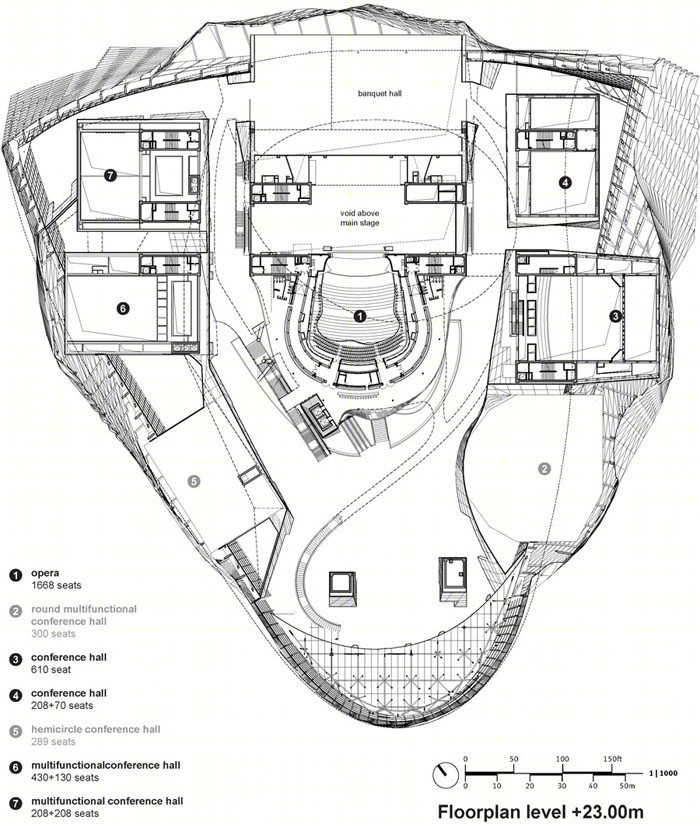

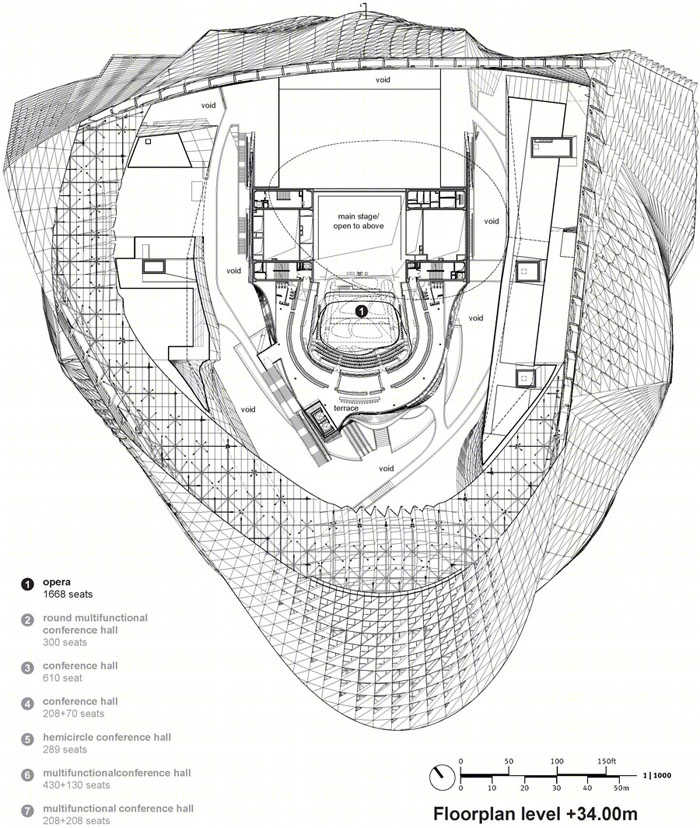

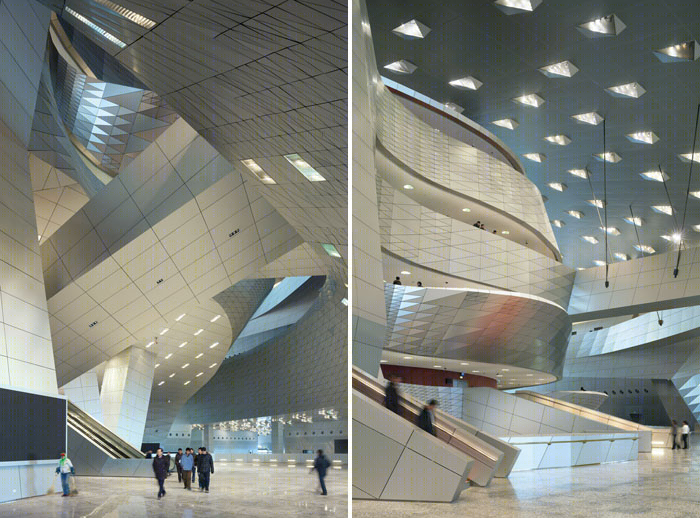

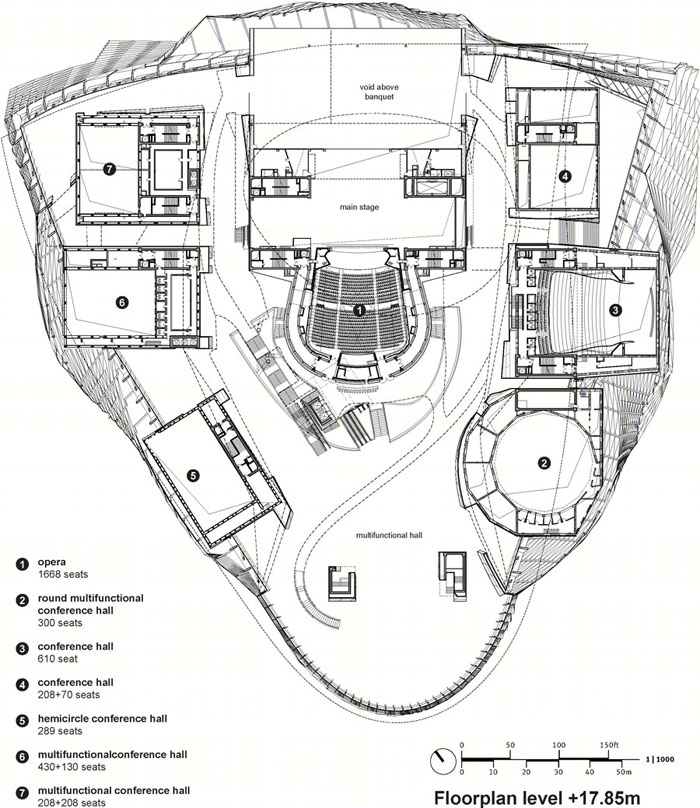

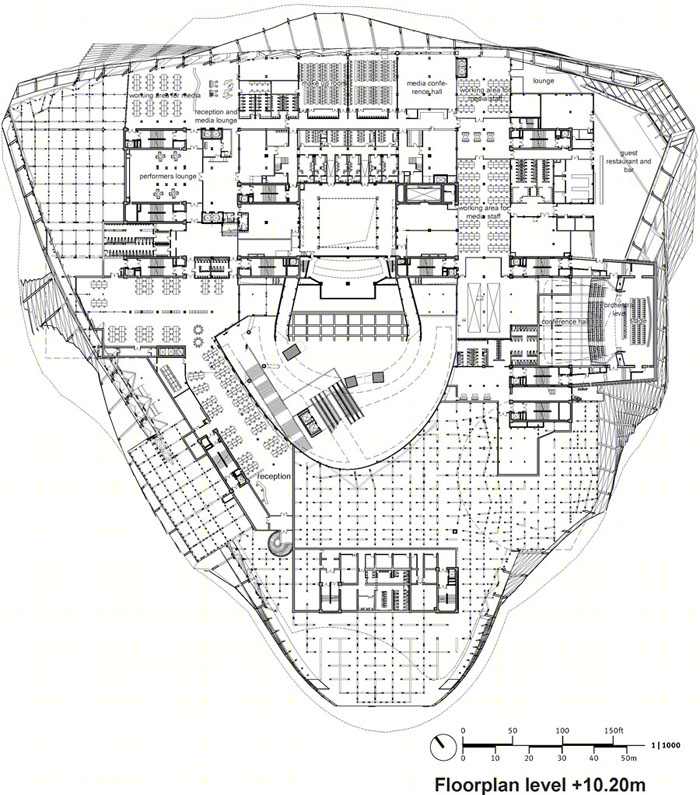

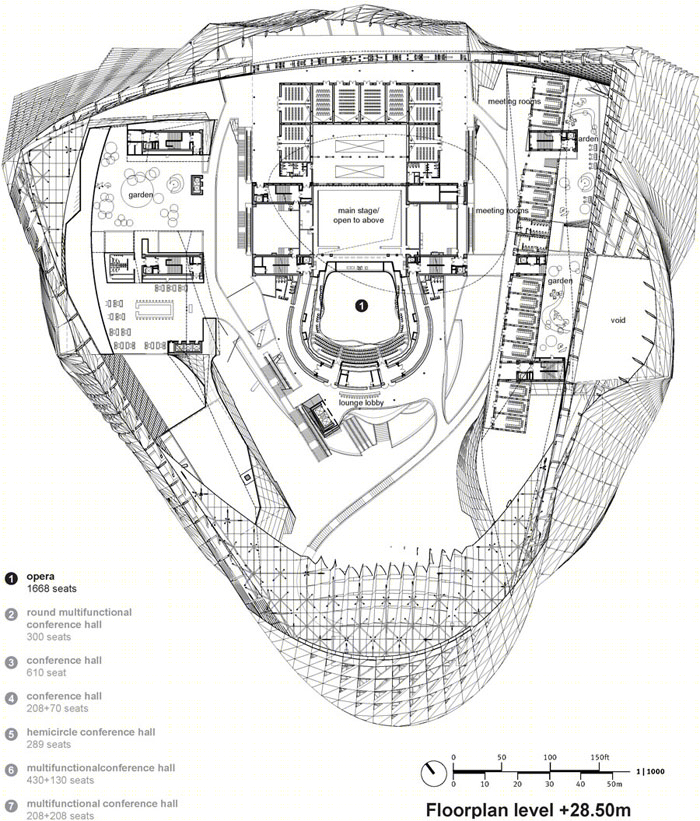

A public zone at ground level allows for differentiating accessibility for the different groups of users. The actual performance and conference spaces are situated at +15,30 m above the entrance hall. The grand theater, with a capacity of 1.600 seats and a stage tower, and the directly adjacent flexible conference hall of 2.500 seats, are positioned at the core of the building.

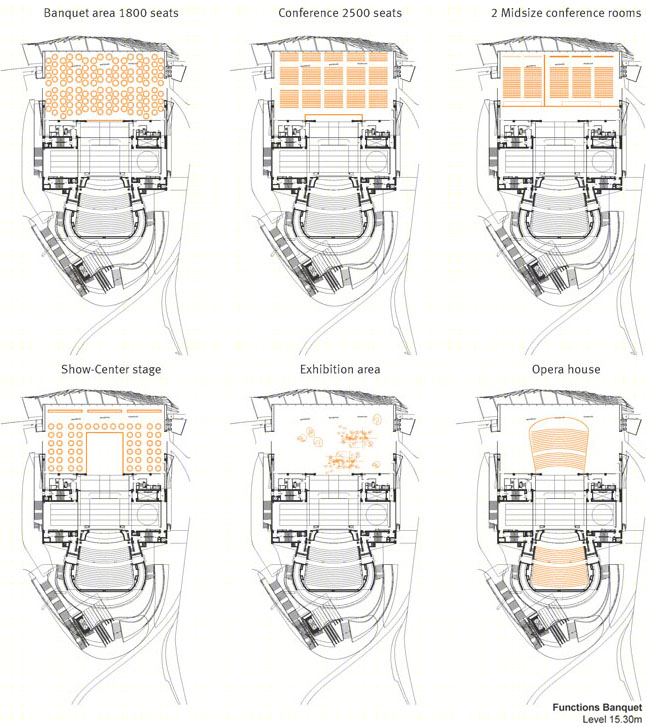

With this arrangement the main stage can be used for the classical theater auditorium as well as for the flexible multipurpose hall. The main auditorium is additionally equipped with backstage areas like in traditional theaters and opera houses. This scheme is appropriate to broaden the range of options for the use of this space: from convention, musical, theater even up to classical opera, with very little additional investment.

The smaller conference spaces are arranged like pearls around this core, providing very short connections between the different areas, thus saving time while changing between the different units. Most conference rooms and the circulation areas have direct daylight from above.

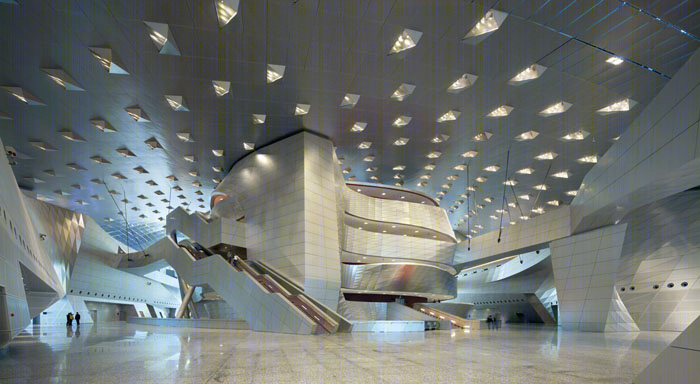

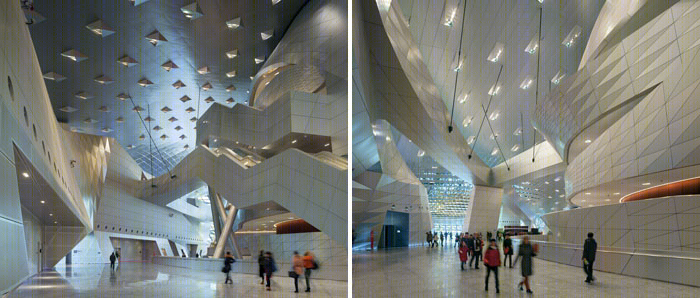

Through this open and fluid arrangement the theater and conference spaces on the main level establish a kind of urban structure with “squares” and “street spaces”. These identifiable “addresses” facilitate user orientation within the building. Thus the informal meeting places, as well as chill-out and catering zones, and in between the halls, gardens with view connection to outside are provided as required for modern conference utilization.

The access to the basement parking garage, truck delivery and waste disposal is located at the southwest side of the site, thus freeing the front driveway to the entrances from transit traffic. The main entrance from the sea side corresponds to the future developments, including the connection to the future cruise terminal.

建筑拥有1600席的大剧院，同时与会议室相联系，可灵活的转变为2500座的礼堂。灵活的空间适应多种用途。大多数的会议室和交通空间都有自然光倾入。建筑师力求在剧场和会议场所之间的空间建立起宛如城市广场和街道那样的结构，方便用户定位和记忆。此外非正式的空间如餐厅等能够看到外面的公园。地下车库与未来的邮轮码头相联。

技术，气候，环境的处理上，尽最大努力整合资源，减少建筑的能耗。具体措施有使用海水取暖或降温，建筑中庭实现自然通风，最少的安装机械通风设备，积极利用日光减少照明能耗，贴着建筑表皮布置恰当的太阳能发电板。

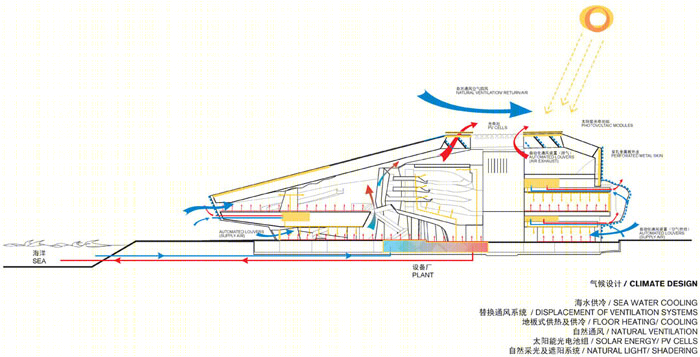

Technical, Climatic and Environmental Concept

The focus of the architectural design and project development lies on technology, construction and their interplay. The technical systems fulfil the tasks required for the spatial use of the building automatically, invisibly and silently.

With the Dalian International Dalian Conference Center, these systems work like a hybrid city within a building. For the technical infrastructure of the building this means, that we have to consider a huge amount of people circulating inside the building at the same time, who expect high standards in circulation and comfort as well as a state of the art building with respect to high flexibility, low energy consumption and low use of natural resources.

Technical areas in the basement supply infrastructure within a rectangular grid, mainly inside the vertical cores. In particularly the conference zone has to be provided with a sufficient amount of air in order to maintain a high level of thermal and acoustical comfort. Therefore the conditioned air will be silently injected into the rooms via an inflated double flooring underneath the seating. Air blowout units inside the stairs will ensure consistent air distribution. Due to the thermal uplift, the heat of the people ascends to the ceiling and is extracted by suction.

One of the major tasks of sustainable architecture is the minimisation of energy consumption. A fundamental contribution is to avoid considerable fluctuations in demands during the course of the day. Therefore it is essential to integrate the natural resources of the environment like:

• Use the thermal energy of seawater with heat pumps for cooling in summer and heating in winter

• General use of low temperature systems for heating in combination with activation of the concrete core as thermal mass in order to keep the building on constant temperature

• Natural ventilation of the huge air volumes within the building allows for minimization of the mechanical apparatus for ventilation heating and cooling. The atrium is conceived as a solar heated, naturally ventilated sub climatic area.

• In the large volume individual areas can be treated separately by additional measures such as displacement ventilation

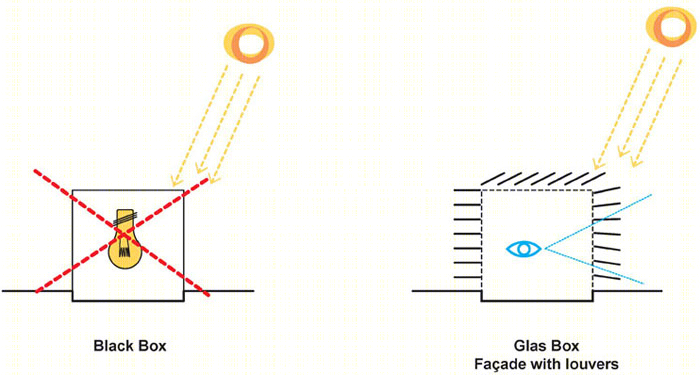

• A high degree of daylight use is aspired both for its positive psychological effect and for minimizing the power consumption for artificial lighting

• Energy production with solar energy panels integrated into the shape of the building.

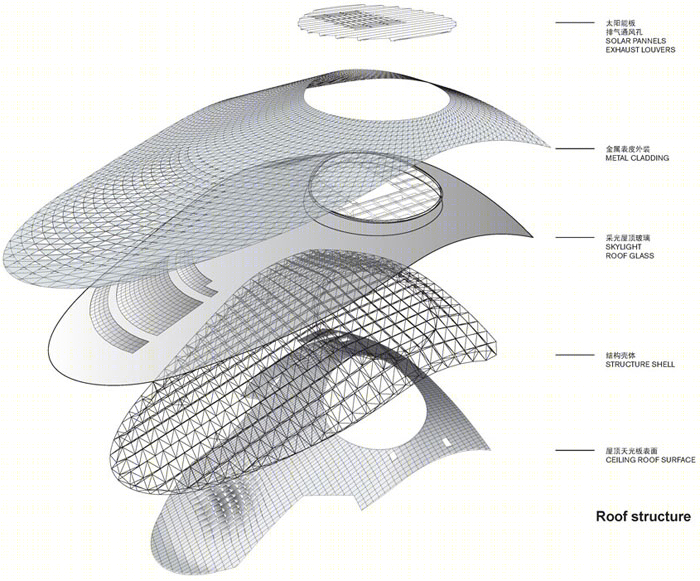

Structural Concept

The structural concept is based on a sandwich structure composed of 2 elements: the “table” and the roof.

Both elements are steel space frames with depths ranging between 5 and 8 meters.

The whole structure is elevated 7 meters above ground level and is supported by 14 vertical composite steel and concrete cores.

A doubly ruled façade structure connects the two layers of table and roof, creating a load-bearing shell structure.

The application of new design and simulation techniques, the knowledge of local shipbuilders to bend massive steel plates, and the consumption of more than 40,000 tons of steel enables breathtaking spans of over 85 meters and cantilevering of over 40 meters.

Team

Planning

COOP HIMMELB(L)AU

Wolf D. Prix  & Partner ZT GmbH

Design Principal: Wolf D. Prix

Project Partner: Paul Kath (until 2010), Wolfgang Reicht

Project Architect: Wolfgang Reicht

Design Architect: Alexander Ott

Design Team: Quirin Krumbholz, Eva Wolf, Victoria Coaloa

Project Team: Nico Boyer, Liisi Salumaa, Anja Sorger, Vanessa Castro Vélez, Lei Feng,

Reinhard Hacker, Jan Brosch, Veronika Janovska, Manfred Yuen, Matthias Niemeyer,

Matt Kirkham, Peter Rose, Markus Wings, Ariane Marx, Wendy Fok, Reinhard Platzl,

Debora Creel, Hui-Cheng, Jessie Chen, Simon Diesendruck, Yue Chen, Thomas

Hindelang, Pola Dietrich, Moritz Keitel, Ian Robertson, Keigo Fukugaki, Gaspar

Gonzalez Melero, Giacomo Tinari, Alice Gong

Model Building: Nam La-Chi, Paul Hoszowski, Taylor Clayton, Matthias Bornhofer,

Katsyua Arai, Zhu Juankang, Lukas Allner, Phillip Reiner, Moritz Heinrath, Olivia

Wimmer, Silja Wiener, Katrin Ertle, Maria Zagallo, Logan Yuen, André Nakonz, Arihan

Senocak, Rashmi Jois, Sachin Thorat, Marc Werner

Photography: Markus Pillhofer

Local Partner:

DADRI Dalian Institute of Architecture Design and Research Co. LTD

UD Studio, Dalian, P.R. China

J&A Interior Design, Shenzhen, P.R. China

Client: Dalian Municipal People’s Government, P.R. China

Structural Engineering:

B+G Ingenieure, Bollinger Grohmann Schneider ZT-GmbH, Vienna, Austria

DADRI Dalian Institute of Architecture Design and Research Co. LTD, Dalian, P.R China

Acoustics: Müller-BBM, Planegg, Germany: Dr. Eckard Mommerz

Stage Design: BSEDI Beijing Special Engineering Design and Research Institute, Beijing, P.R. China

Lighting Design: a•g Licht, Wilfried Kramb, Bonn, Germany

Audio & Video: CRFTG Radio, Film and Television Design & Research Institute, Beijing, P.R. China

Climatic Design: Prof. Brian Cody, Berlin, Germany

HVAC, Sprinkler:

Reinhold A. Bacher, Vienna, Austria

DADRI Dalian Institute of Architecture Design and Research Co. LTD, Dalian, P.R. China

Façade : Meinhardt Facade Technology Ltd. Beijing Branch Office, Beijing, P.R. China

Photovoltaic: Baumgartner GmbH, Kippenheim, Germany

General Contractor: China Construction Eight Engineering Division, Dalian, P.R. China

Chronology

Competition: 03/2008

Start of Planning: 07/2008

Start of Construction: 11/2008

Completion: 2012

Project Data status of 02/2011

Site Area: 40,000 m²

Gross Floor Area Conference Center: 91,250 m²

Gross Floor Area Parking: 24,400 m²

Gross Floor Area total: 117,650 m²

Footprint: 33,000 m ²

Gross Cubage above ground: 1,250,000 m³

Gross Cubage underground: 220,000 m³

Façade Area: 30,600 m²

Roof area: 28,000 m²

Building Height: 60 m

Building Length: 220 m

Building Width : 200 m

Number of Floors: 8
