斯洛文尼亚 T 别墅绿色扩建

原有建筑是1932由建筑师Costaperaria设计的别墅，是一个拥有屋顶花园的白色立方体，四周是花园。现在这个房子每层有都不同的家庭居住，其中一层的家庭委托建筑师在南侧进行重扩建。这个家庭是一对夫妇，他们有三个孩子和一条狗。

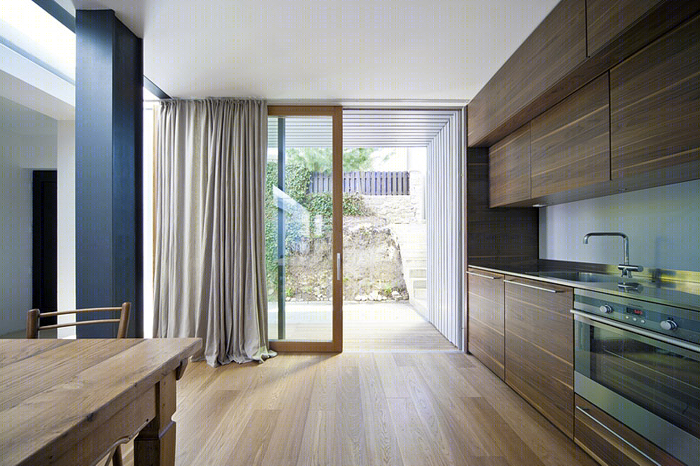

新增空间为起居厅和用餐区，以及车库顶棚。设计设置了无障碍坡道允许轮椅通过。一个悬臂式的凉亭就是车库的屋顶，上面覆盖着绿色的有机玻璃。生活空间安装着大的玻璃推拉门，可以直接和花园连接。材料采用的是漂白落叶松，尺寸是2×2, 3×3 及 4×4 厘米，木材交替排布形成有趣的节奏感。

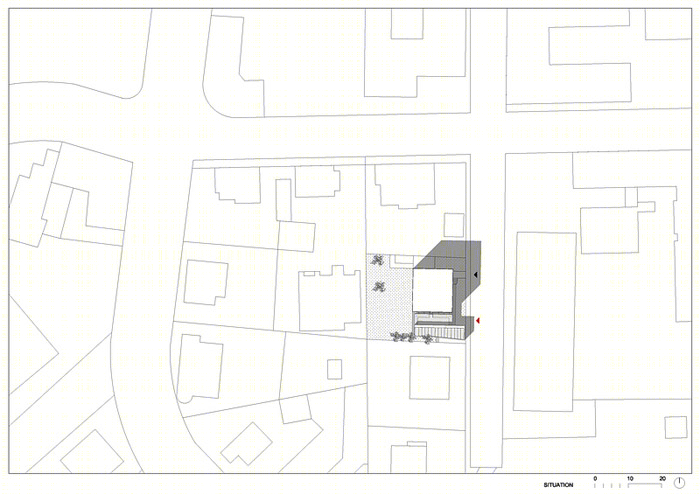

Villa Dular is a typical modernistic villa originally designed in 1932 by architect Costaperaria; a white cube with an extensive roof terrace and a top volume finished in wooden cladding. It is surrounded by a garden and other similar residences of its time. The villa is currently inhabited by different owners on each floor. The family, who lives on the ground floor, commissioned the redevelopment on the south side of the existing building. The client has a functional disability and is restricted to a wheelchair. He lives with his wife, three children, and a dog.

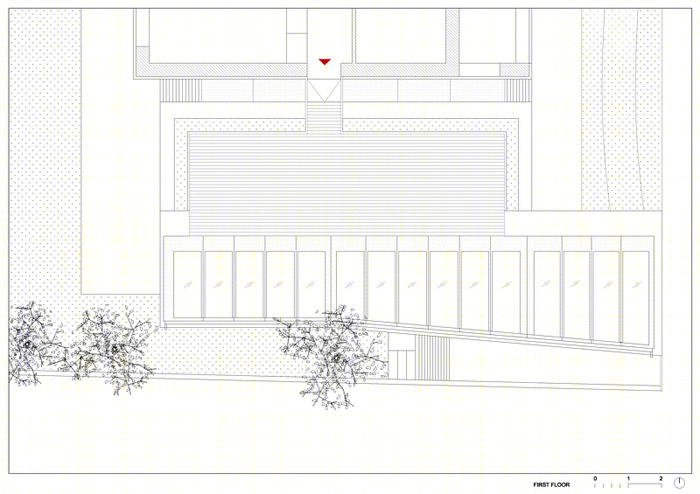

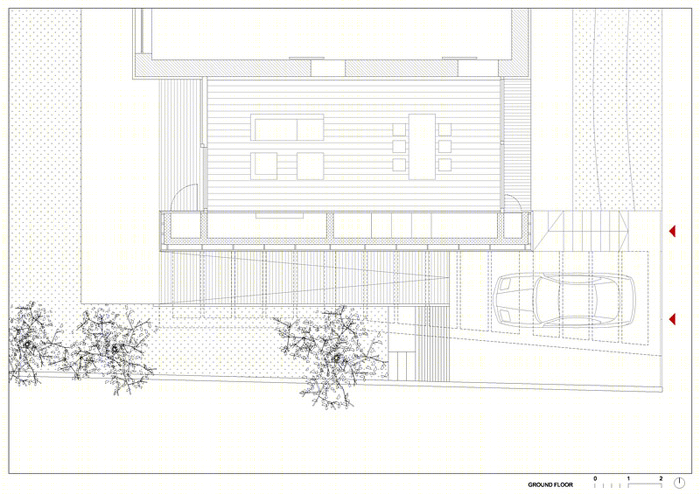

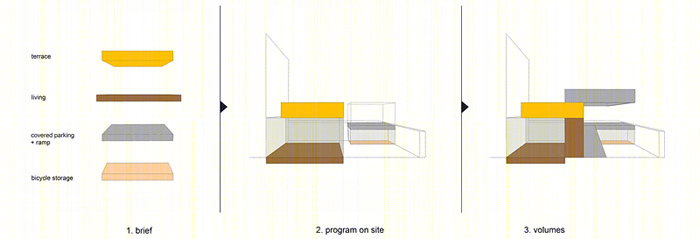

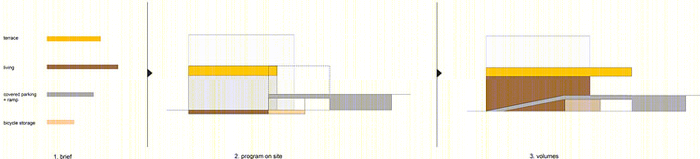

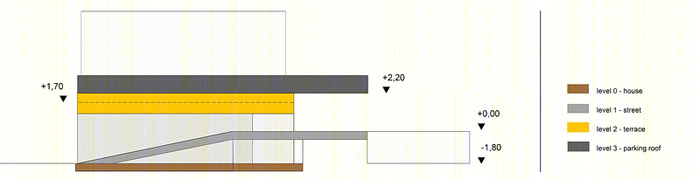

The task at hand was to design a new extension to the ground floor with a dining area and living space, including a covered parking for a car and a storage space for bicycles. The client requested the roof be used as a terrace for the apartment on the first floor. All floor surfaces were designed with slopes and wheelchair access in mind.

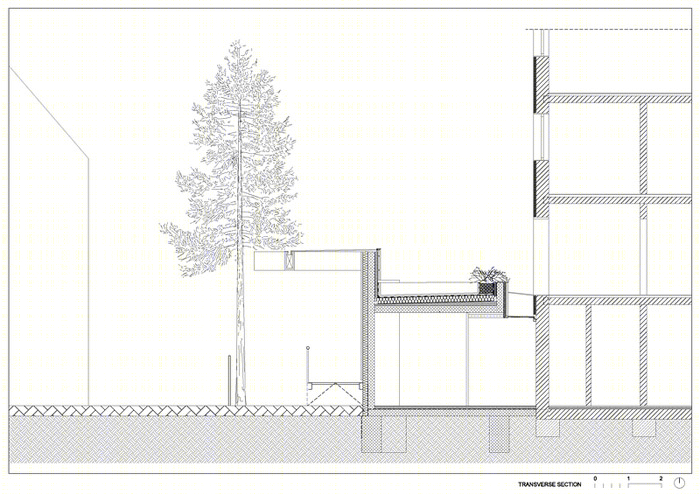

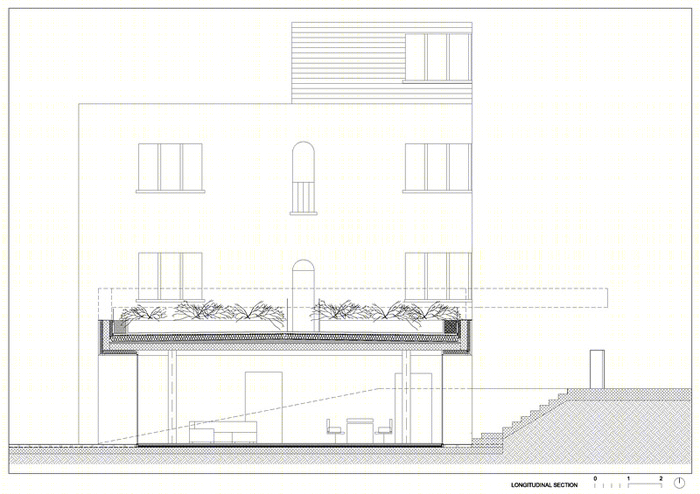

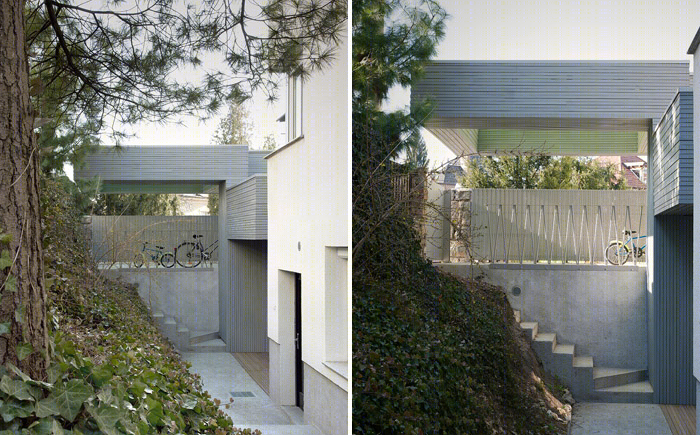

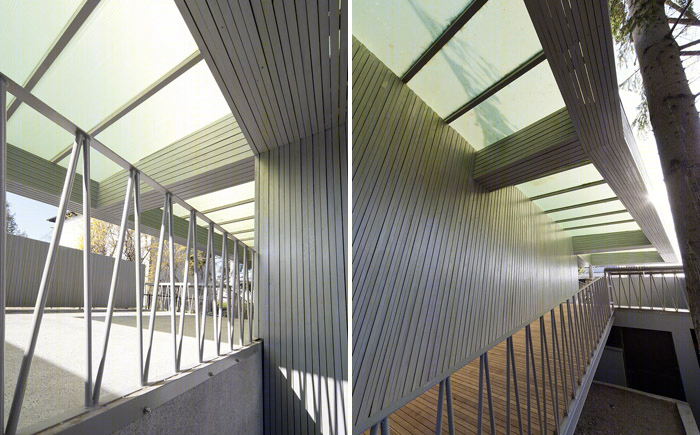

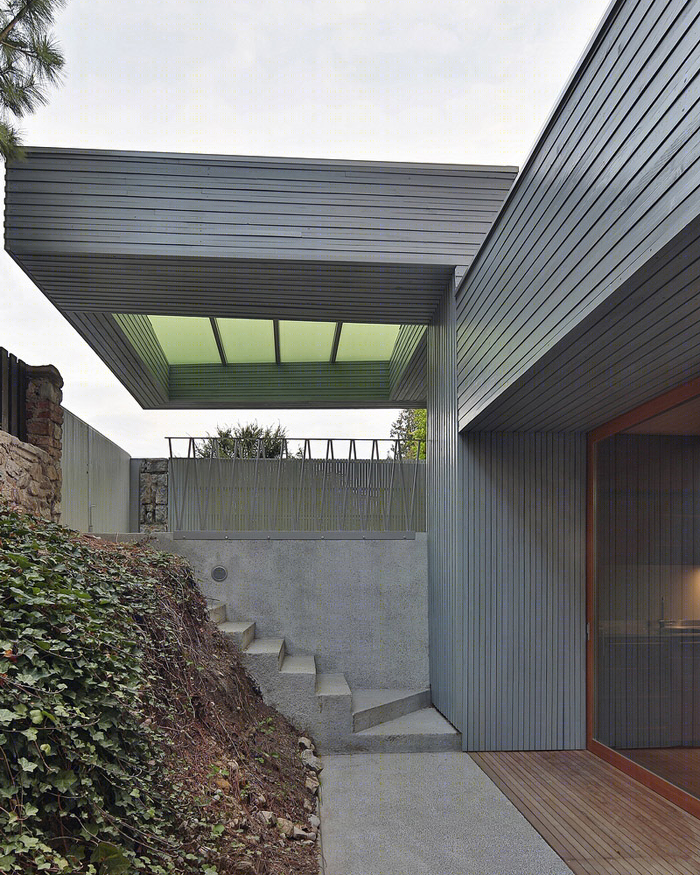

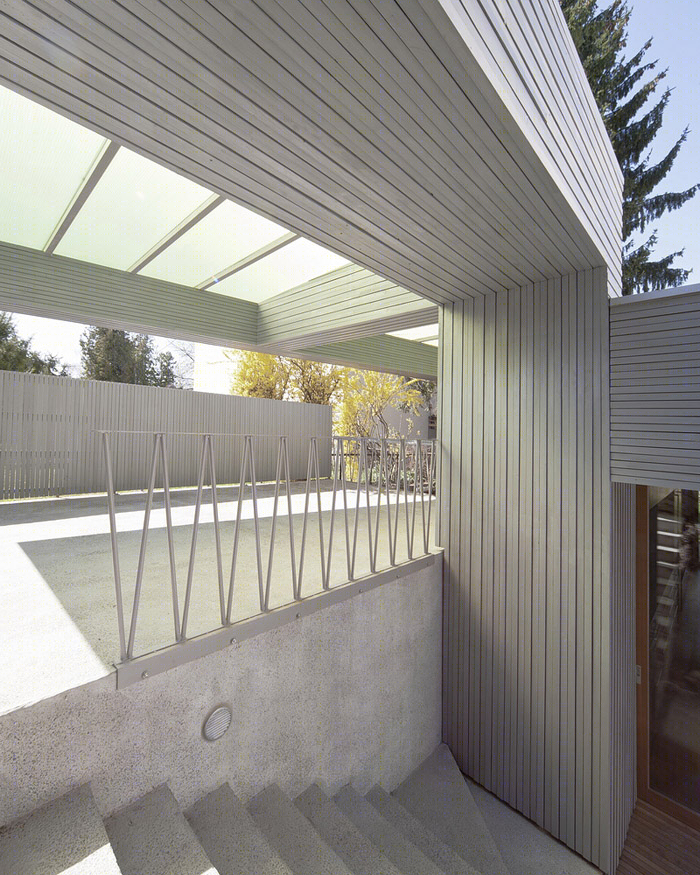

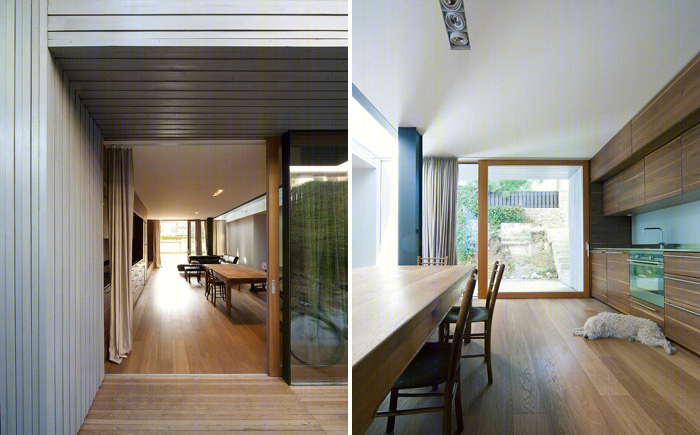

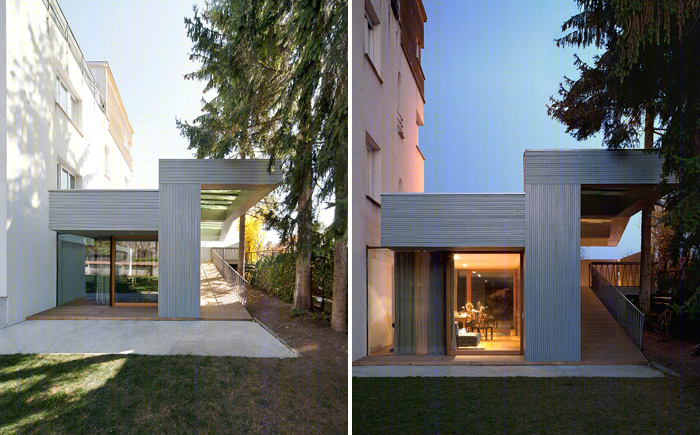

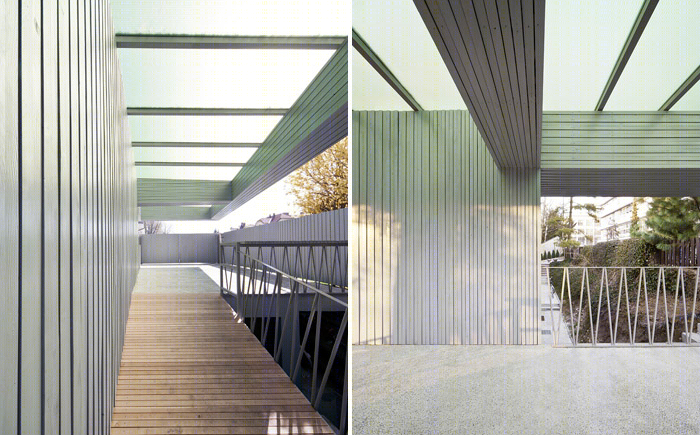

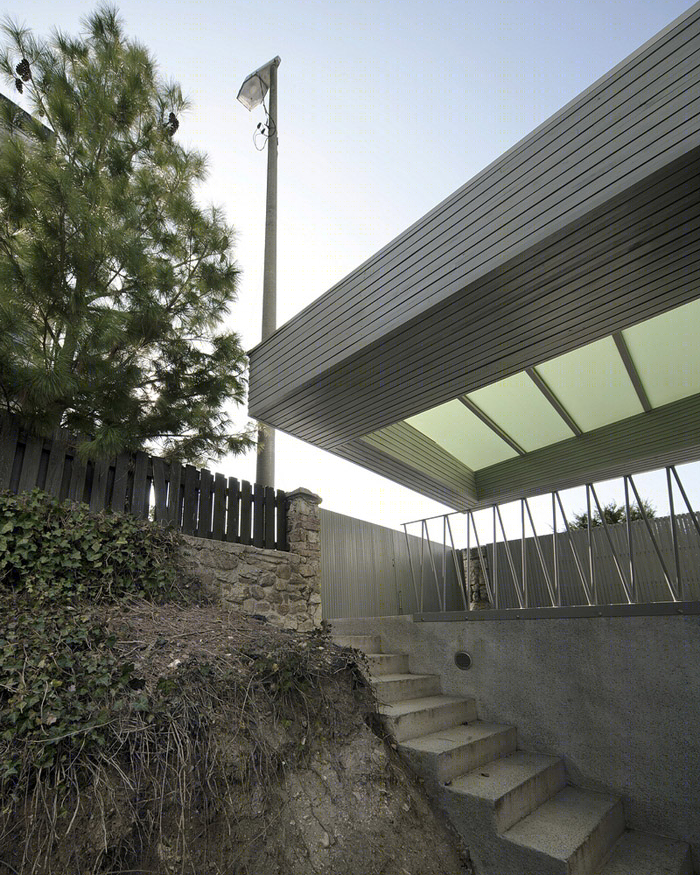

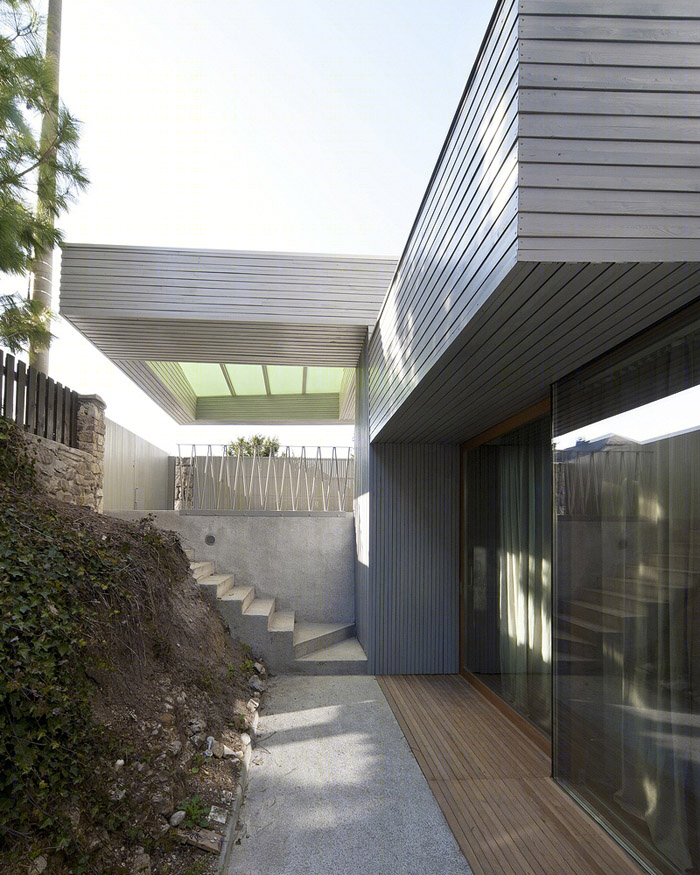

The T shape extension works as an umbrella above the living space: supporting the terrace on one side and creating a parking roof on the other side. The roof over the parking and ramp is a cantilevered pergola covered with Perspex panels in a light green color. The connection between the existing villa and the intervention is a glass volume as part of the living space. The sides that face the garden and the entry courtyard are large panoramic glass walls with a framed sliding window in oiled oak.

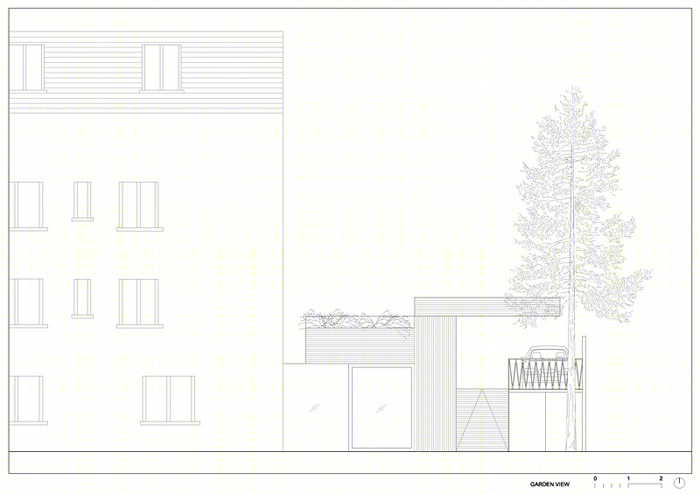

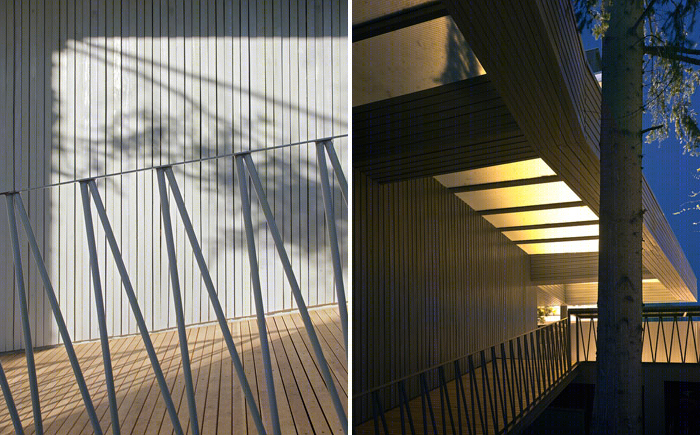

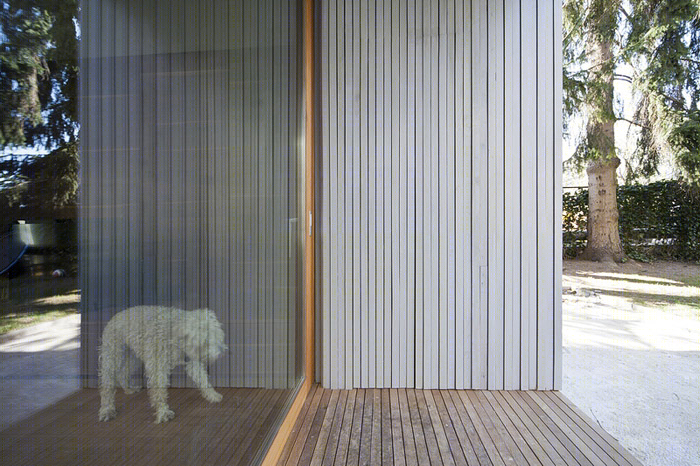

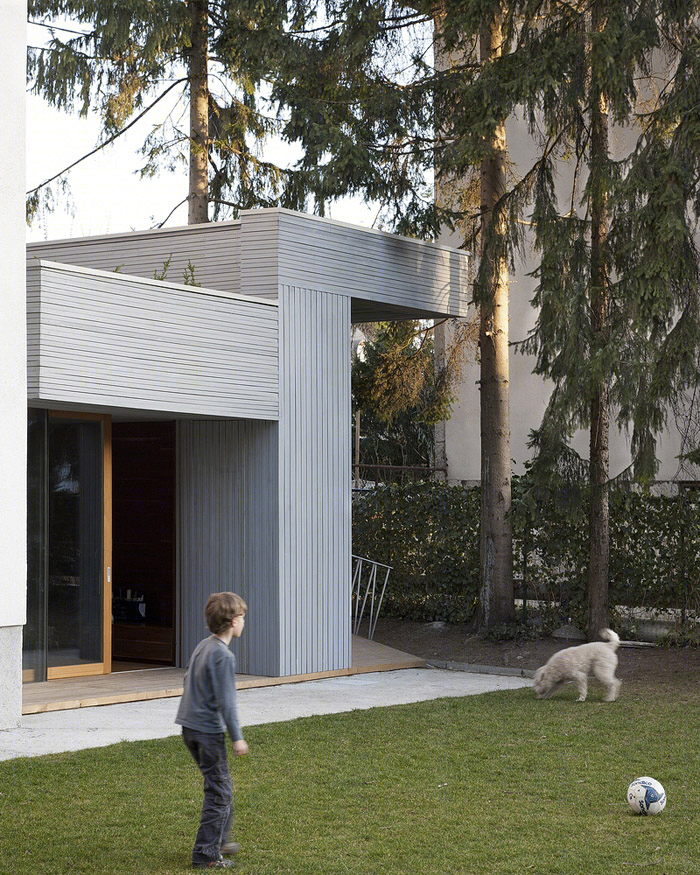

The cladding of the new extension is an assembly of bleached larch wood verticals in 2×2, 3×3 or 4×4 cm, in a rhythm that creates a pleated texture.

location

Ljubljana, Slovenia

status

project 2009

construction start 2010

completion 2012

program

dining area, living space, covered parking, storage

details

historical residential area, villa extension

type

house extension

client

private

area

site 748 m2; building 56,60 m2; gross floor area 43,60 m2

dimensions

4,75 m max height

materials

bleached larch wood, oiled oak Perspex glass

structure

reinforced concrete and steel

project team

Rok Oman, Spela Videcnik

Andrej Gregorič , Tomaz Gregorič, Janez Martincic, Janja Del Linz, Will Gibson,

Andrej Kacera, Jan Smejkal

photography

Tomaz Gregorič

technical team

Structural engineering: Projecta d.o.o.

Mechanical engineering: Jelen & Zaveršnik d.n.o.

Electrical engineering: Jelen & Zaveršnik d.n.o.
