东京博物馆大厦京桥丨日本东京丨日建设计

▲

更多精

品

，点击

关注

“

搜建筑

”

2019 年 7 月，由 Nikken Sekkei 设计的博物馆大厦京桥竣工。位于较低楼层的 Artizon 博物馆于 2020 年 1 月 18 日开放。约 150 米高的博物馆大厦京桥内设有高级租户办公室美术馆位于东京站前的京桥。

为了纪念普利司通轮胎（现在的普利司通）创始人石桥正次郎的理念，他于 1951 年建造了普利司通艺术博物馆——Artizon 博物馆的前身和当时最先进的结构——这个客户合作设计是旨在创造一个体现2020年社会环境和尖端技术的建筑新时代。

Construction was completed on the Museum Tower Kyobashi, designed by Nikken Sekkei, in July 2019. The Artizon M

useum, located on the lower floor, opened on January 18, 2020. The approximately 150-m high Museum Tower Kyobashi housing high-grade tenant offices and an art museum is located in Kyobashi in front of Tokyo Station. Honoring the philosophy of the founder of Bridgestone Tire (present Bridgestone) Shojiro Ishibashi who built the Bridgestone Museum of Art in 1951—forerunner to the Artizon Museum and a state-of-the-art structure at the time—this client-collaborative design was intended to create a new era of architecture embodying the social environment and cutting-edge technologies of 2020.

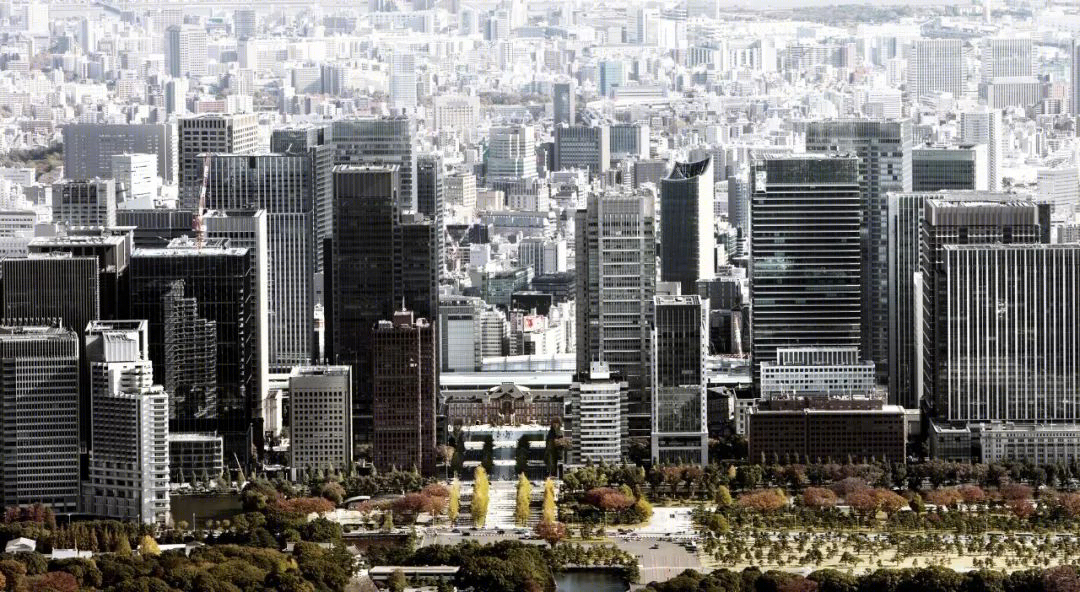

京桥是江户时代（1603-1868 年）历史悠久的地区。它位于银座和日本领先的商业区之一日本桥之间，将其定位为商业、办公和文化融合的地方，以及未来将成长为新城市的地区。拥有博物馆和高层办公楼的博物馆大厦京桥已经达到了追求完美契合此类区域的拼图的目标。

Kyobashi is an area with a rich history dating back to the Edo period (1603–1868).  Its location between Ginza and Nihonbashi, one of Japan’s leading commercial areas, positions it as a place where commerce, offices and culture blend together and an area that will grow into a new city in the future. With a museum and high-rise offices, the Museum Tower Kyobashi has reached its goal in pursuit of the piece of the puzzle that fits perfectly with this type of area.

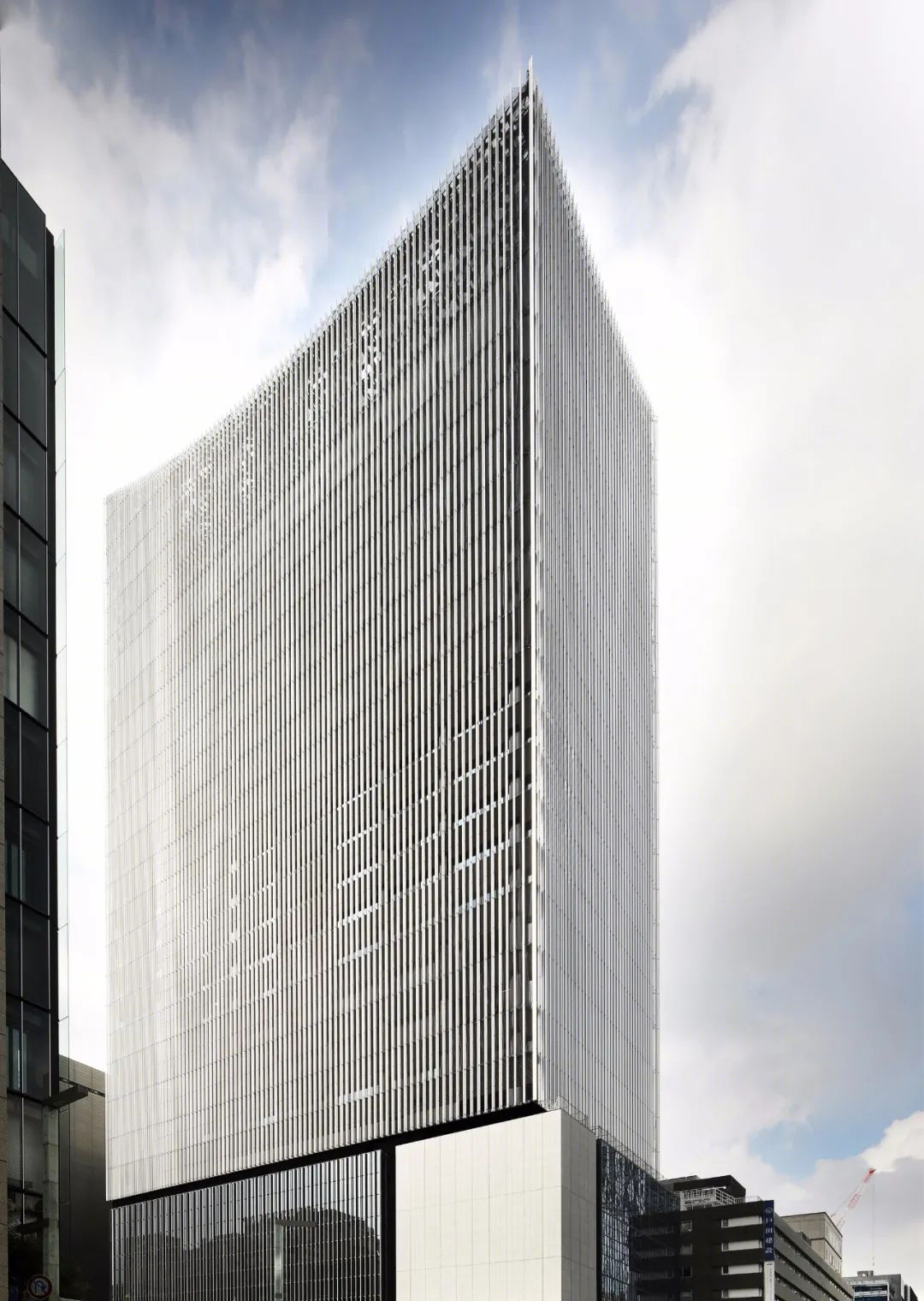

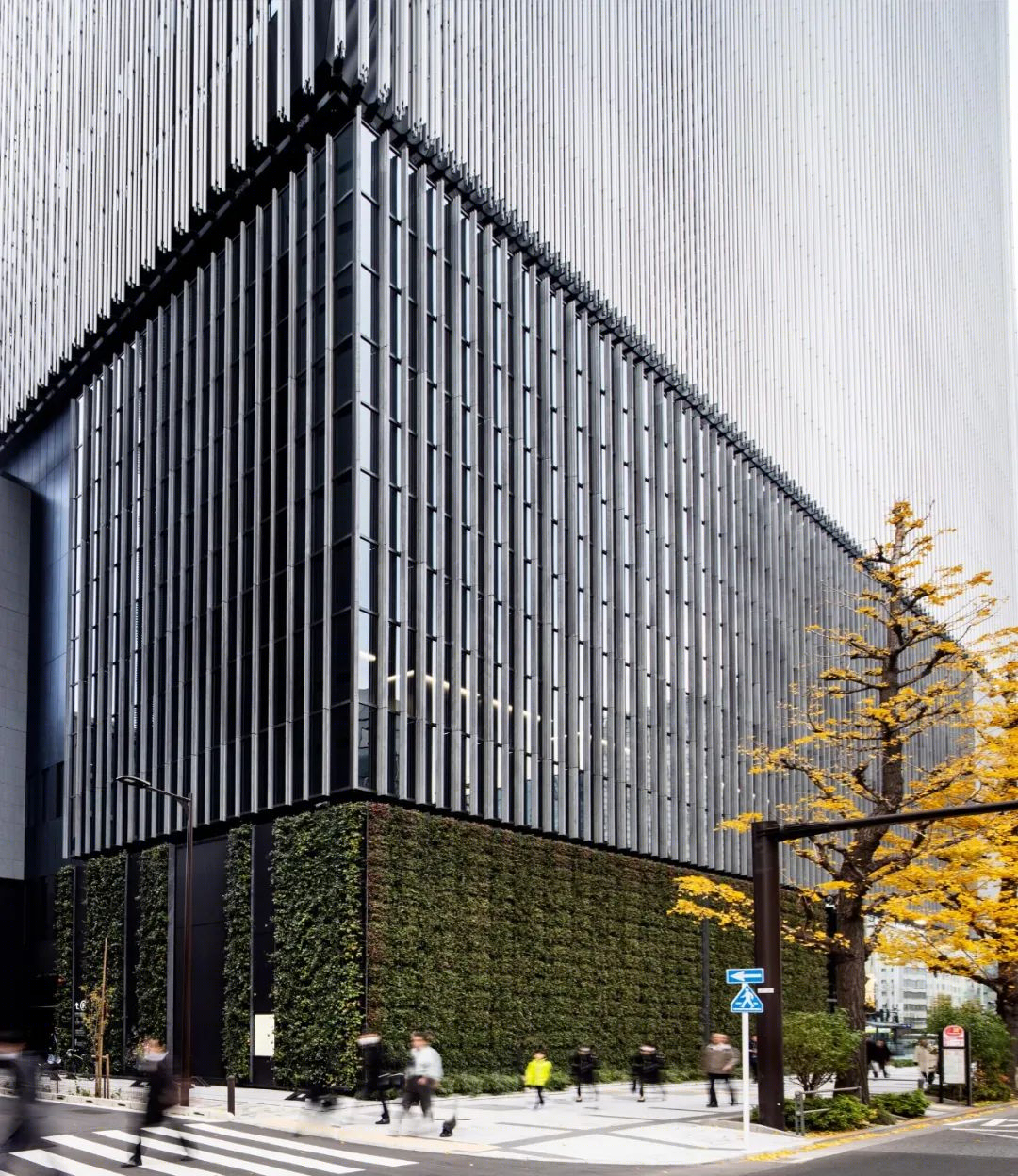

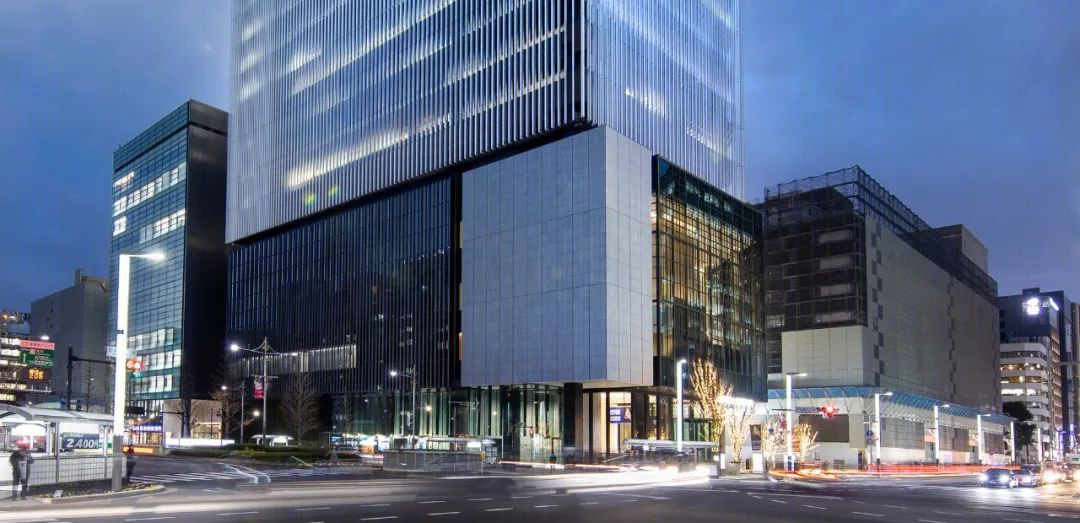

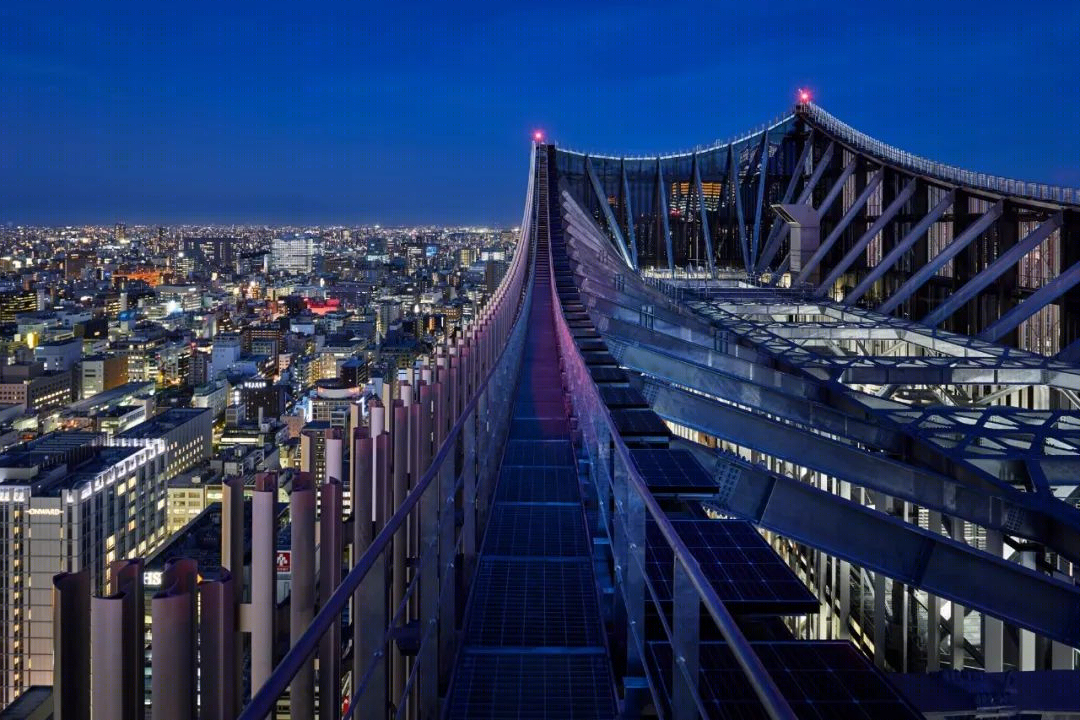

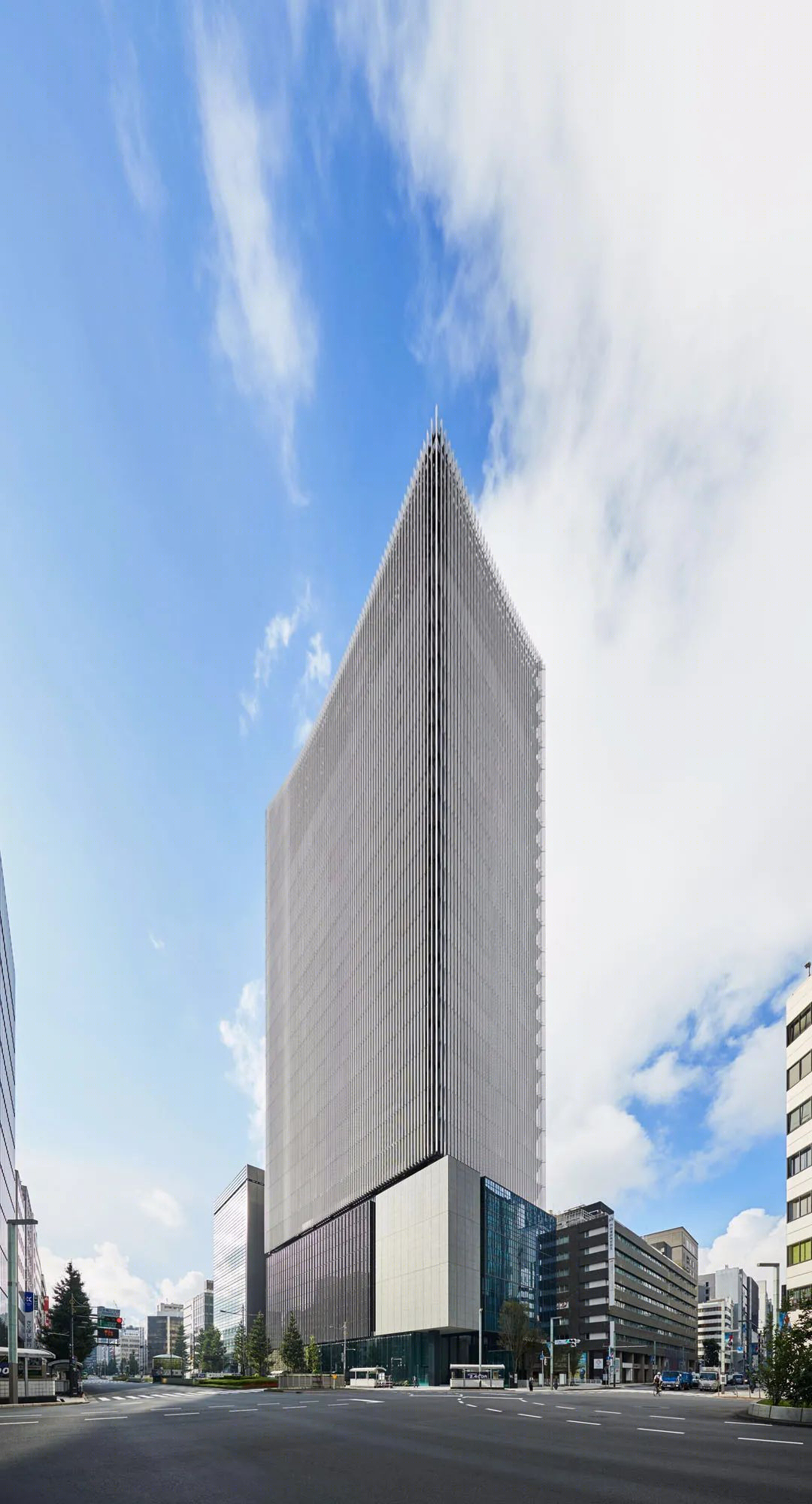

通过艺术和文化与城市建立联系 -京桥博物馆大厦的标志性特征是其标志性的弯曲屋顶被裁剪成半径为 63 米的球体形式，可以在地面上找到。这座高层建筑突然出现在一个似乎被时间冻结的区域，其设计旨在适应现有的城市景观，并根据周围建筑的规模对上下两层的材料进行了改变。

Creating connections with the city through art and culture - The hallmark of the Museum Tower Kyobashi, with its signature curved rooftop cropped into the form of a 63-meter radius sphere, can be found at the ground level. This high-rise building that emerges suddenly in an area seemingly frozen in time has been designed to adapt to the existing cityscape with changes made to materials on the upper and lower floors in line with the scale of surrounding buildings.

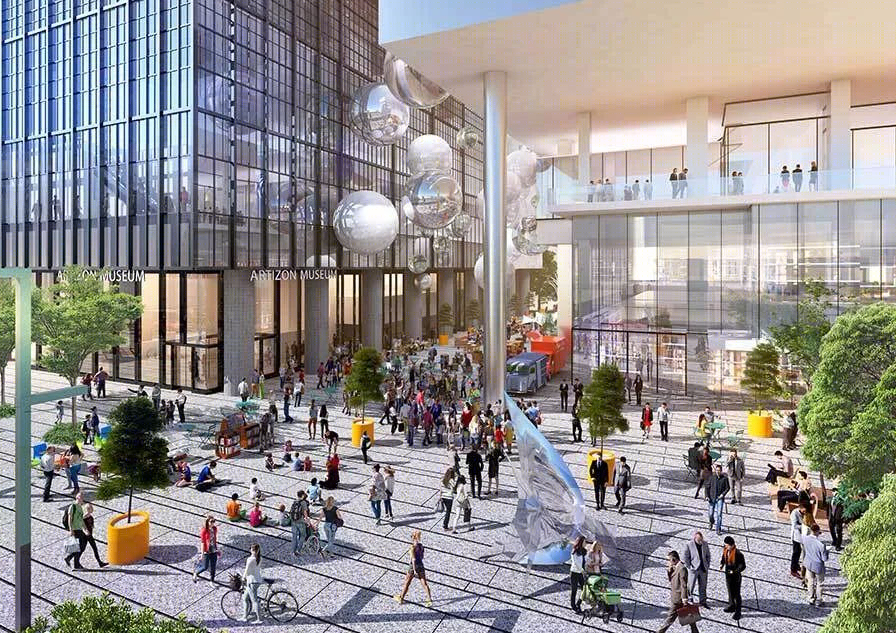

该建筑位于一个名为京桥西区的街区，旨在与相邻街区正在建设的新TODA大楼（暂名）一起创造一个以艺术和文化为核心的区域。除了博物馆和文化设施外，还计划在两个街区之间建立一个名为“艺术广场”的广场（计划于2024年完工），以创造一个标志性的空间。

The building is located in a block called Kyobashi Saiku that aims to create an area with art and culture at its heart together with the New TODA building (tentative name), which is currently under construction in an adjacent block. Sandwiched between two blocks, a plaza called “Art Square” (slated for completion in 2024) is also planned in addition to the museum and cultural facilities to create an iconic space.

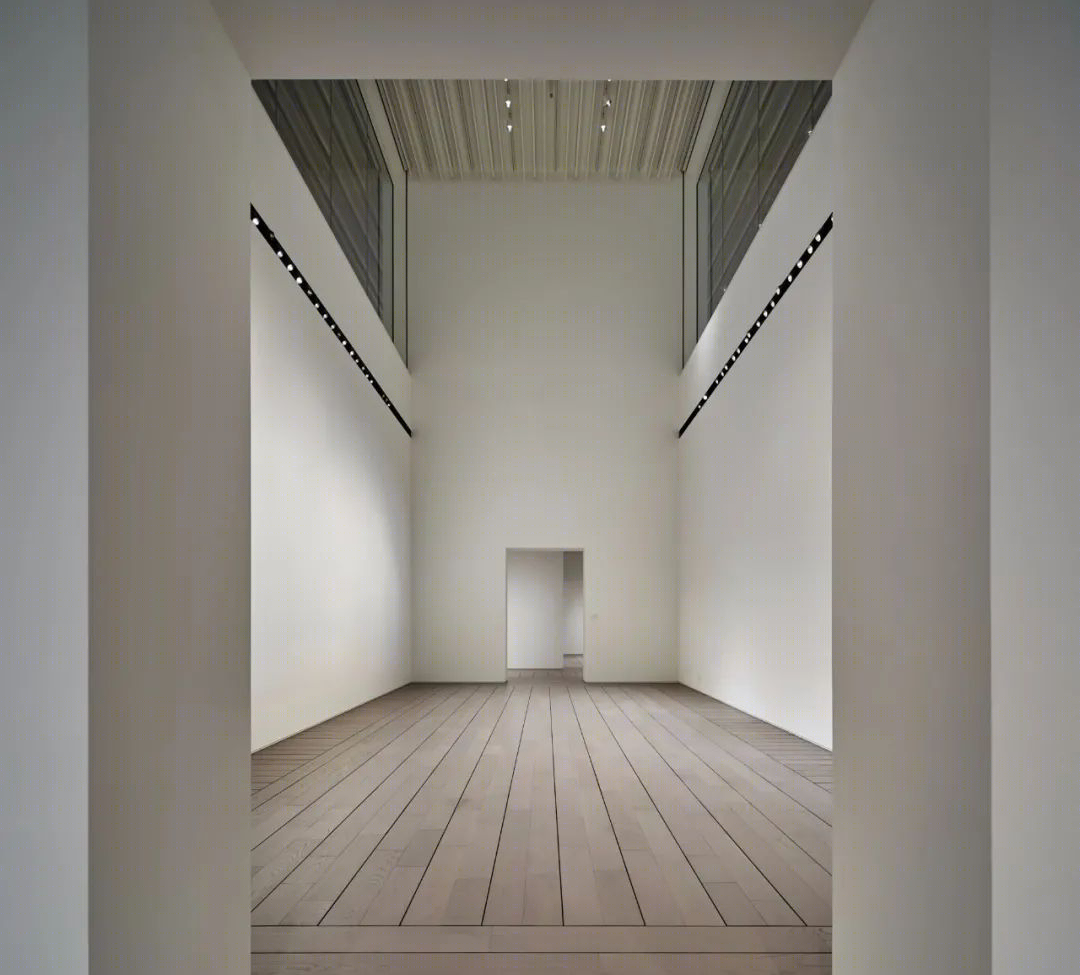

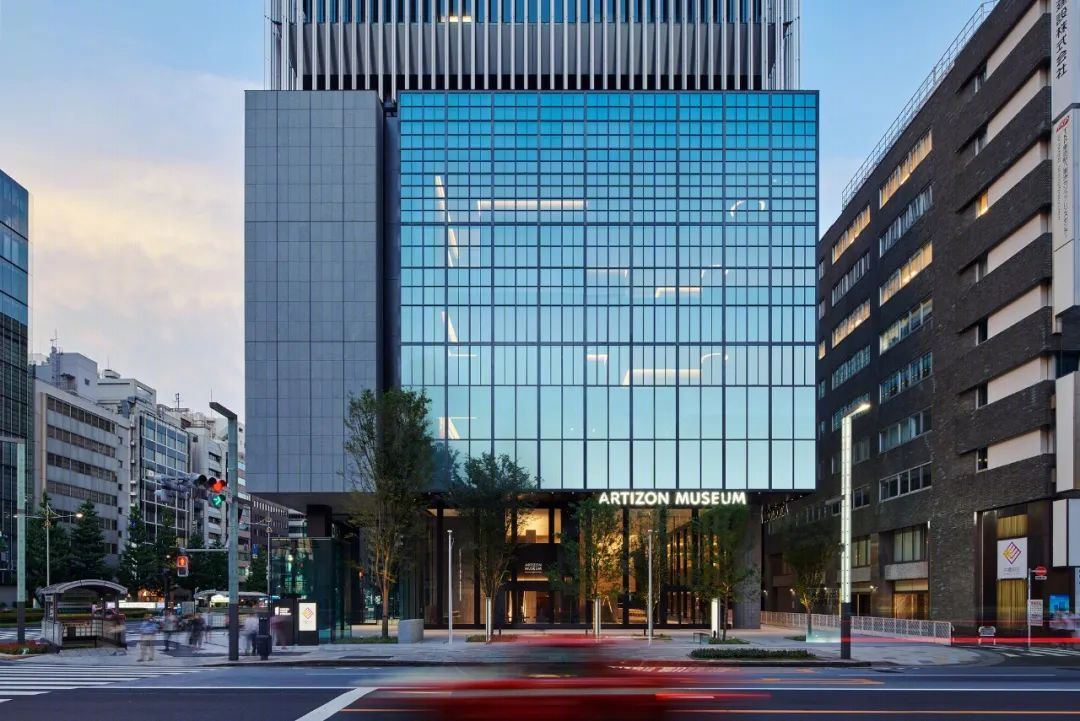

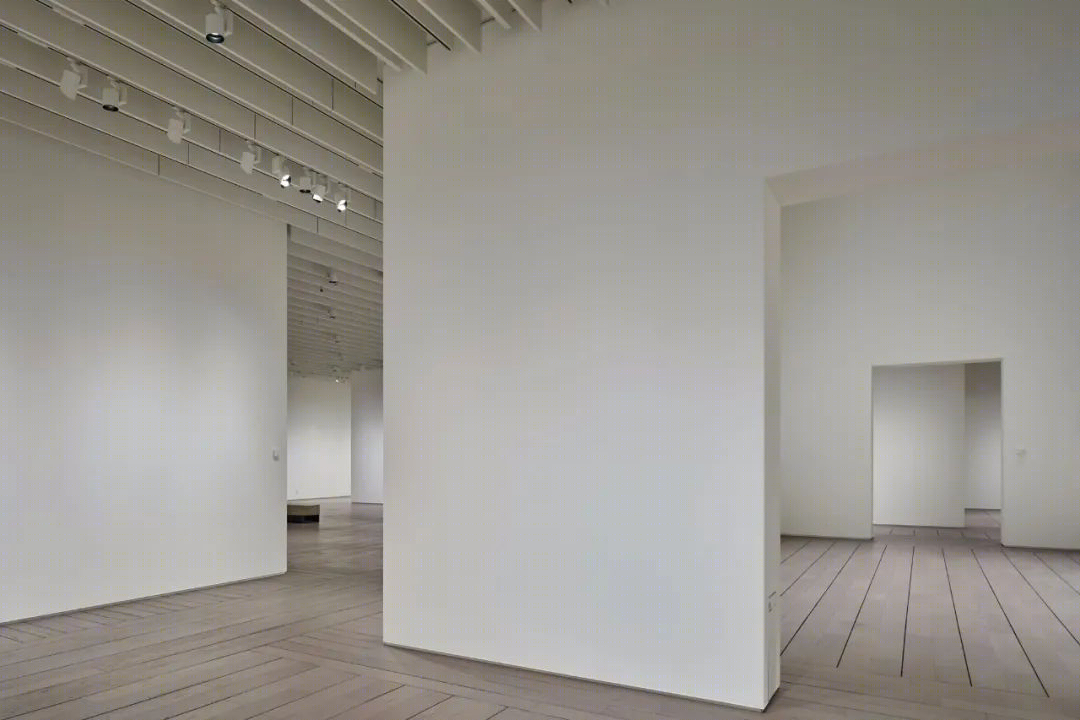

前身为普利司通美术馆，新更名为Artizon Museum，位于大楼的1至6层，是一座以石桥正次郎的藏品为基础，致力于艺术史的美术馆。博物馆的内部被设计成一个具有不同宽度、深度和高度的空间的结构，这些空间以结构不连续的方式排列，创造了一个类似于三维小巷的空间。游客可以在京桥漫步时随意走进博物馆，在附近转一圈时自然会遇到艺术。

Formerly the Bridgestone Museum of Art, the newly-renamed Artizon Museum, located on the first to sixth floors of the building, is an art museum dedicated to the history of art built on the collections of Shojiro Ishibashi. The interior of the museum has been designed in a structure with spaces of diverse widths, depths and heights that have been arranged with a structural discontinuity, creating a space similar to a three-dimensional alleyway. Visitors can casually walk into the museum as they stroll around Kyobashi, naturally encountering art as they take a turn around the neighborhood.

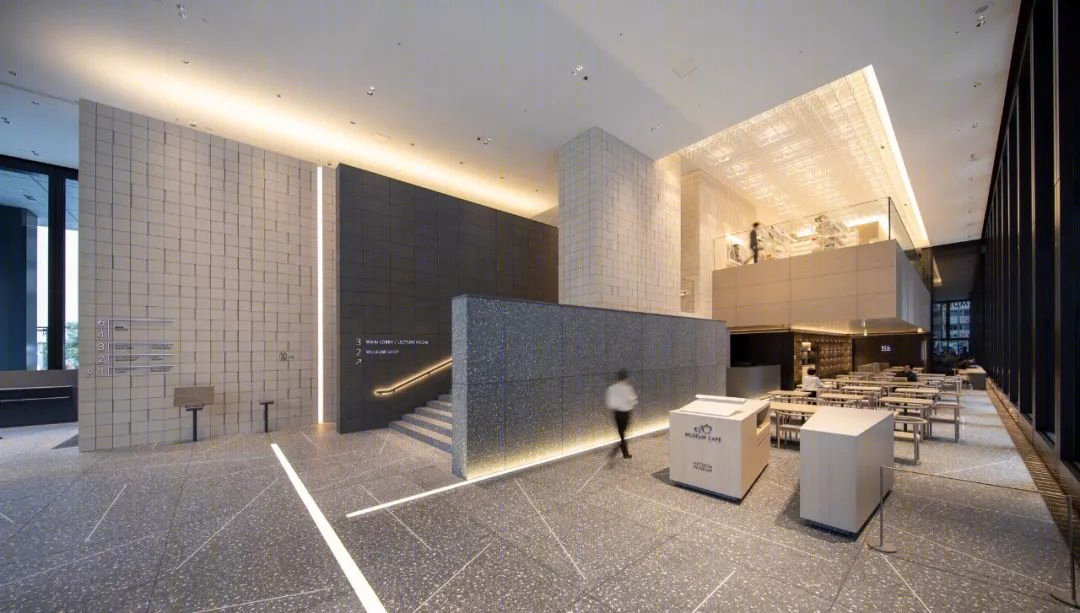

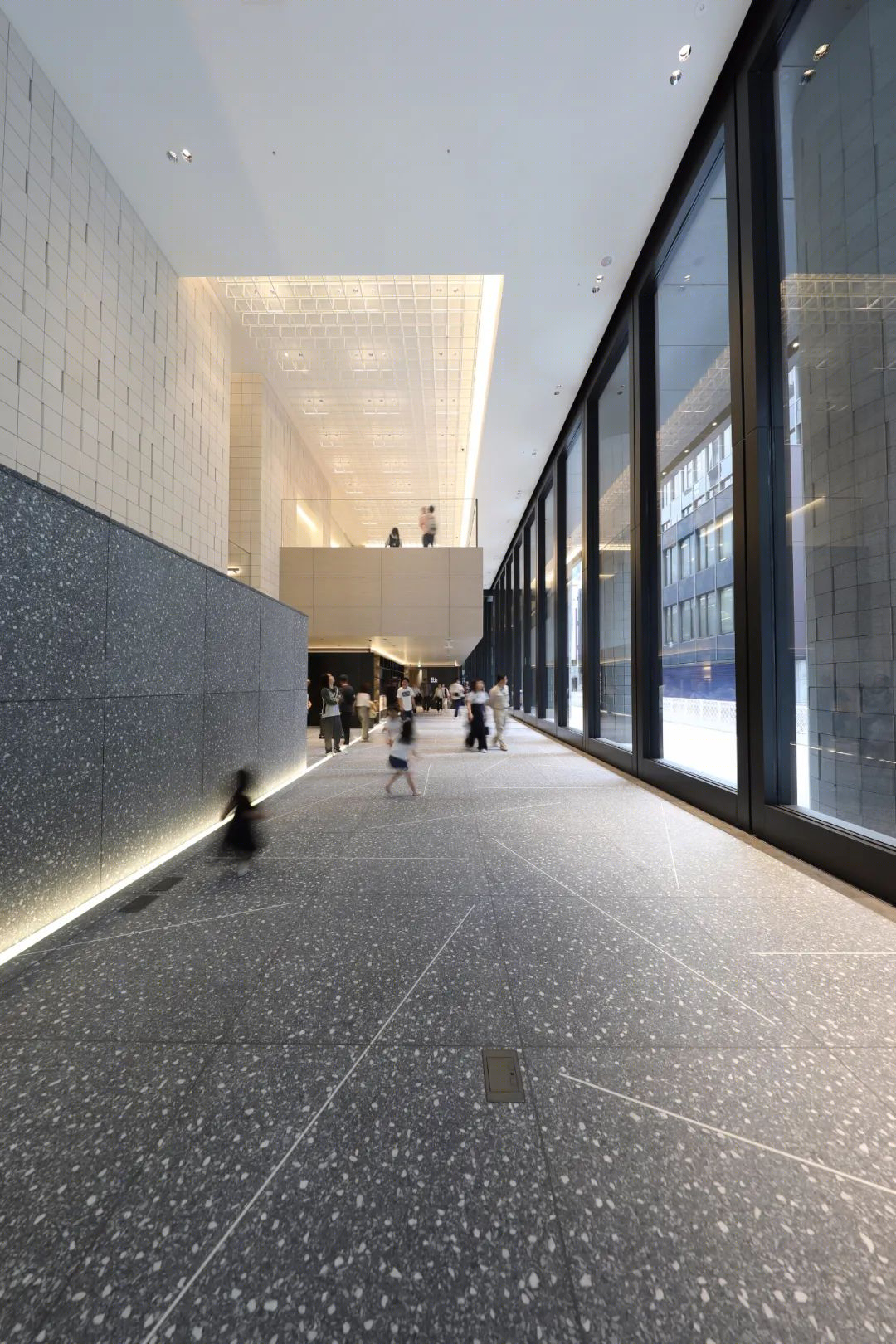

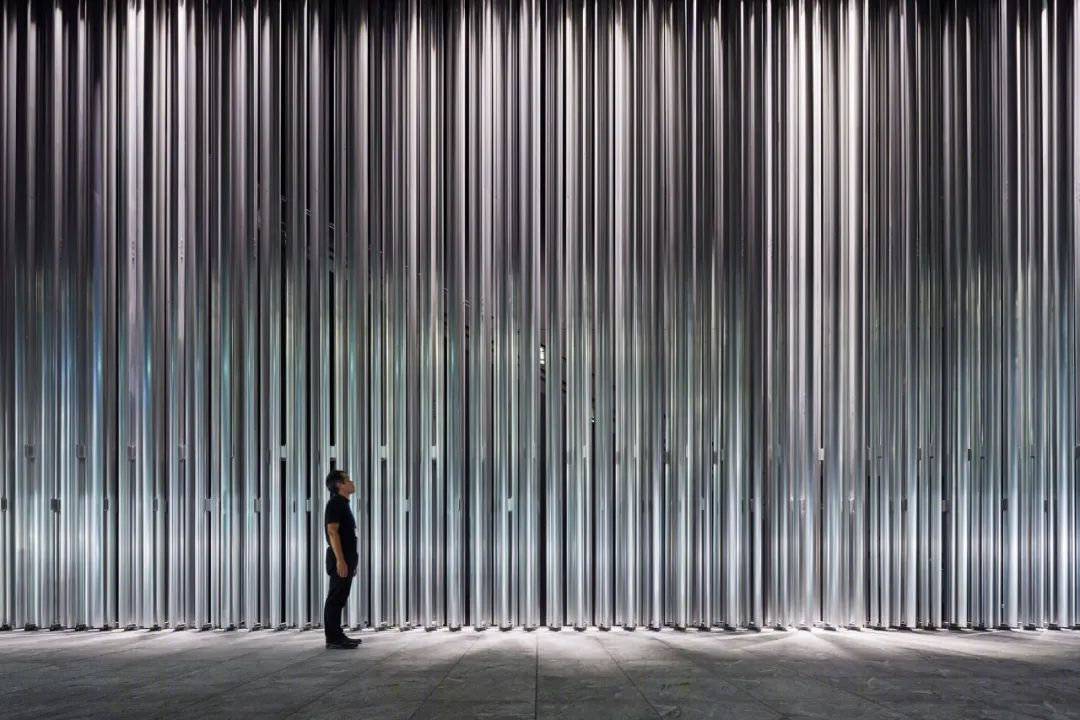

一楼博物馆咖啡厅的门是一连串九个 8 米高的互锁旋转门。一旦艺术广场向公众开放，这些大门将通向广场，将博物馆与广场融为一体，并与该地区建立无缝连接。

The doors to the museum café on the first floor are a series of nine 8-meter high interlocking revolving doors. Once the Art Square is open to the public, these doors will open up onto the plaza, integrating the museum with the square and creating a seamless connection with the area.

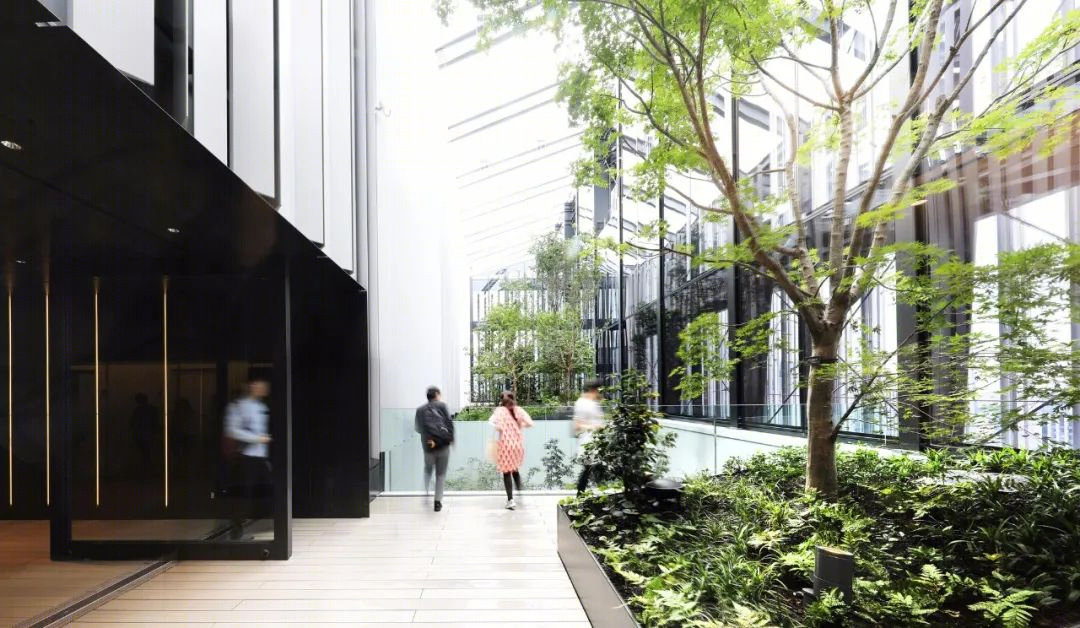

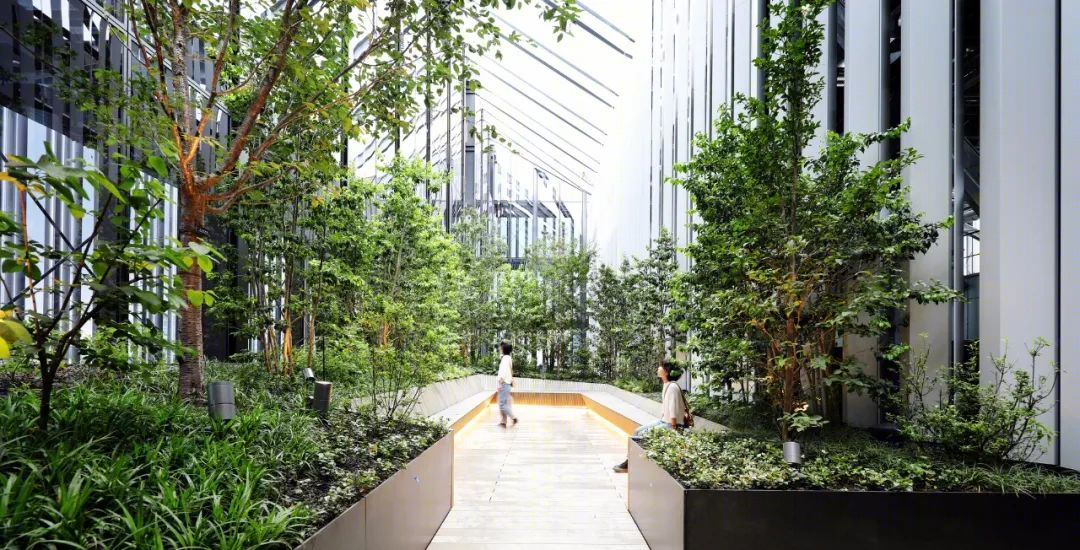

摩天大楼与自然融为一体——虽然摩天大楼的办公空间有与自然环境分离的趋势，但这座建筑在21至23层设有跳楼式屋顶花园。该建筑采用平面结构设计，屋顶花园与办公空间的内部区域相连。

Skyscraper blending in with nature - Although there is a tendency for office spaces in skyscrapers to be separated from the natural surroundings, this building has a skip floor-style rooftop garden on the 21st to 23rd floors. The building has been designed in a planer configuration in which the rooftop garden edges into the interior area of the office space.

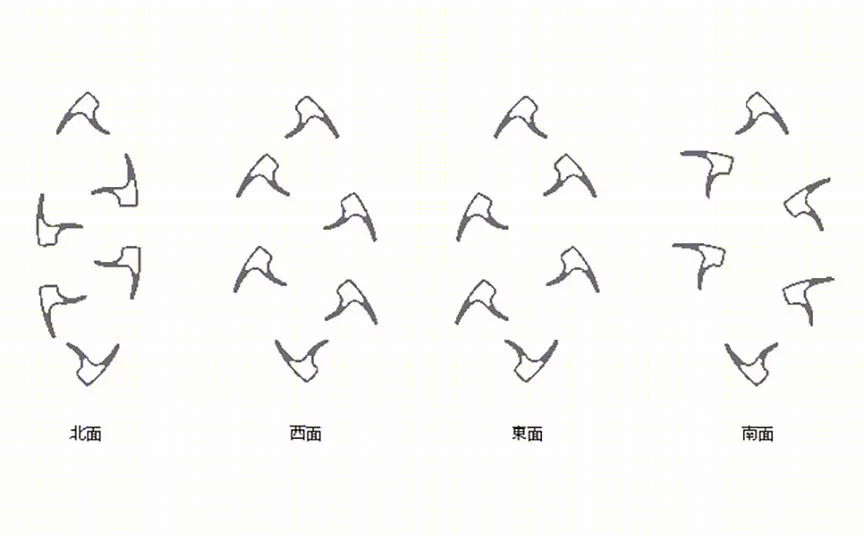

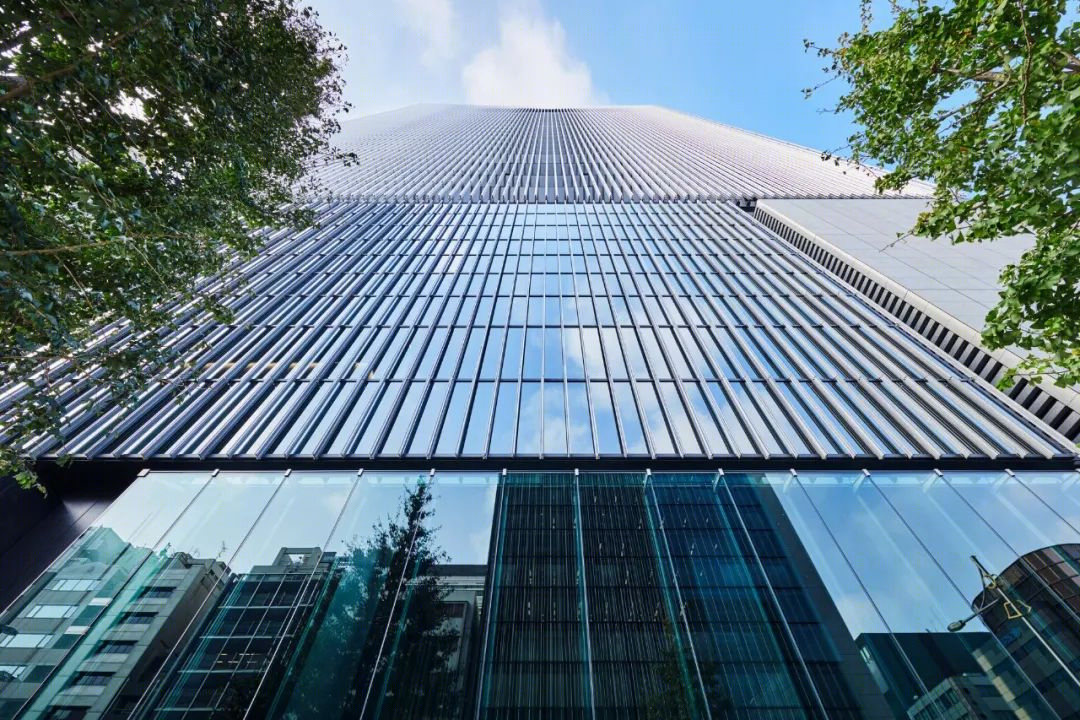

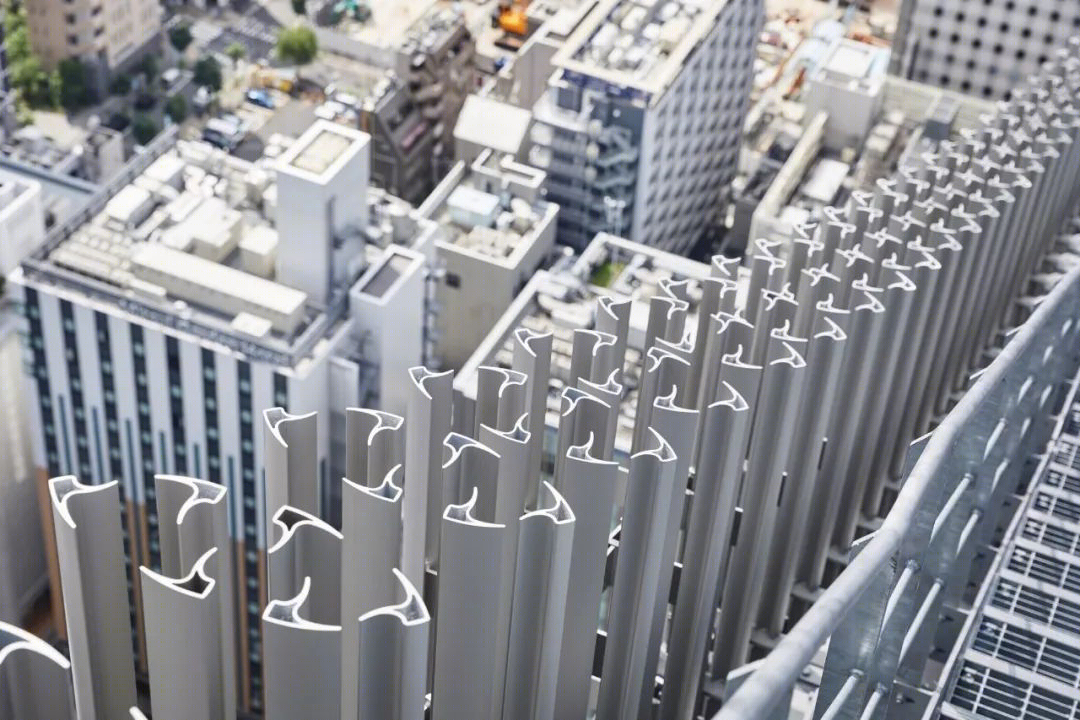

高层建筑的外立面覆盖着由六个具有相同轮廓的铝框架组成的百叶窗。这些百叶窗是一种巧妙的方法，可以减少从周围区域反射到建筑物上的光线的影响，并通过改变建筑物四个侧面的六个铝框架的组合来控制入射光，以确保适当的光线量从内部看时充满了建筑物。铝制框架的组合使用计算设计分析进行了优化。

The façade of the high-rise building is covered with louvers consisting of six aluminum frames with the same profiles. These louvers are an ingenious way to reduce the impact of light reflected on the building from the surrounding area and to control incoming light by changing the combination of the six aluminum frames for each of four sides of the building to ensure that a suitable amount of light fills the building when viewed from the inside. The combination of the aluminum frames are optimized with the use of computational design analysis.

2019年春季，作为全市建设开放型艺术文化中心的贡献之一，该街区的片区管理活动启动。以传播活力为目标的艺术文化公共空间示范工程一直在运行不仅是大楼，而是整个街区，以及京桥周边地区。

Area management activities for this city block, one of the contributions of the city in forming an open artistic and cultural center, started in the spring of 2019. The demonstration project for the arts and cultural public space has been running with the aim of spreading vitality not only to the building, but to the entire city block, as well as the area around Kyobashi.

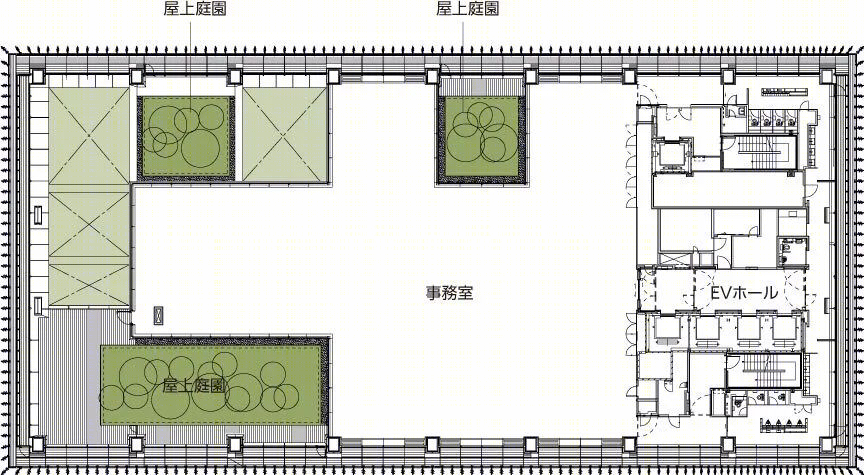

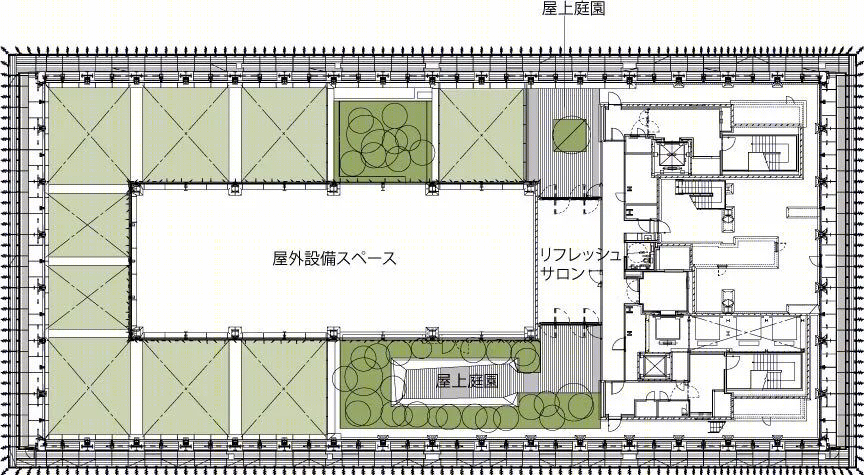

平面图

建筑师：日建设计

地点：日本

面积：41829平方米

年份：2019
