锯齿建筑群中的新型多功能住宅楼丨新西兰丨HILBERINKBOSCH 建筑师事务所

▲

，

点击上面“搜建筑” 关注即可

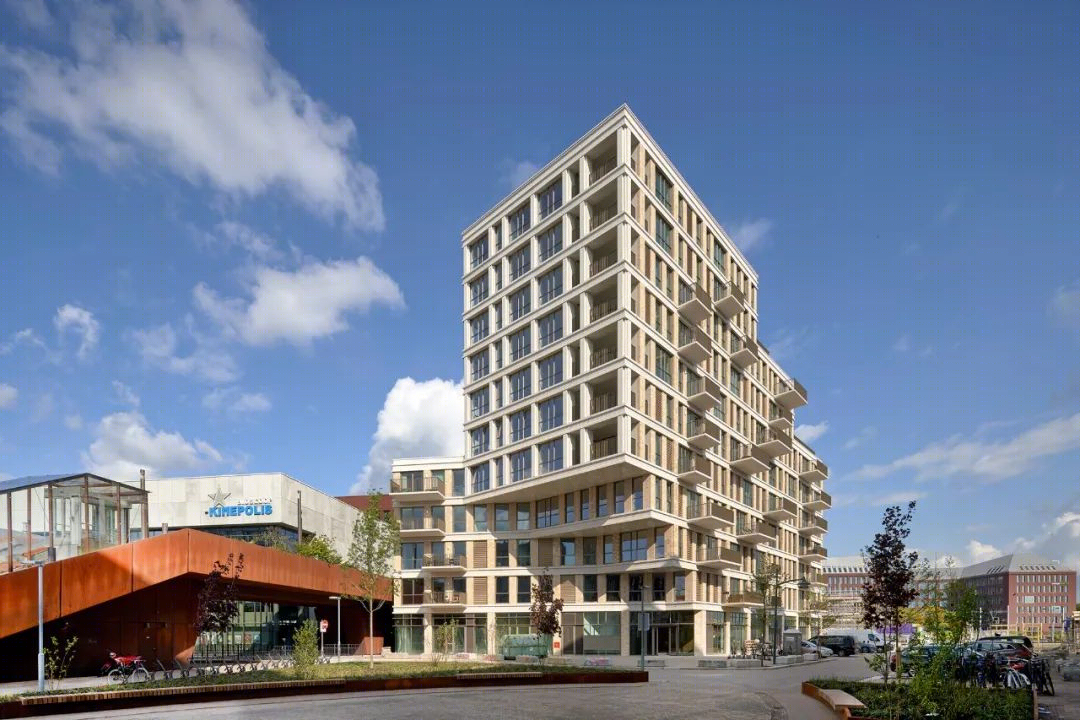

自1995年以来，贯穿's-Hertogenbosch的铁路以西的一个工业区正在被重新开发成一个新的高级住宅区。偶尔有一些工业遗迹，如锯齿综合体，也被纳入开发计划。在2016年赢得了建筑师的选择，从而在该区最小的地块上设计了一座住宅楼。

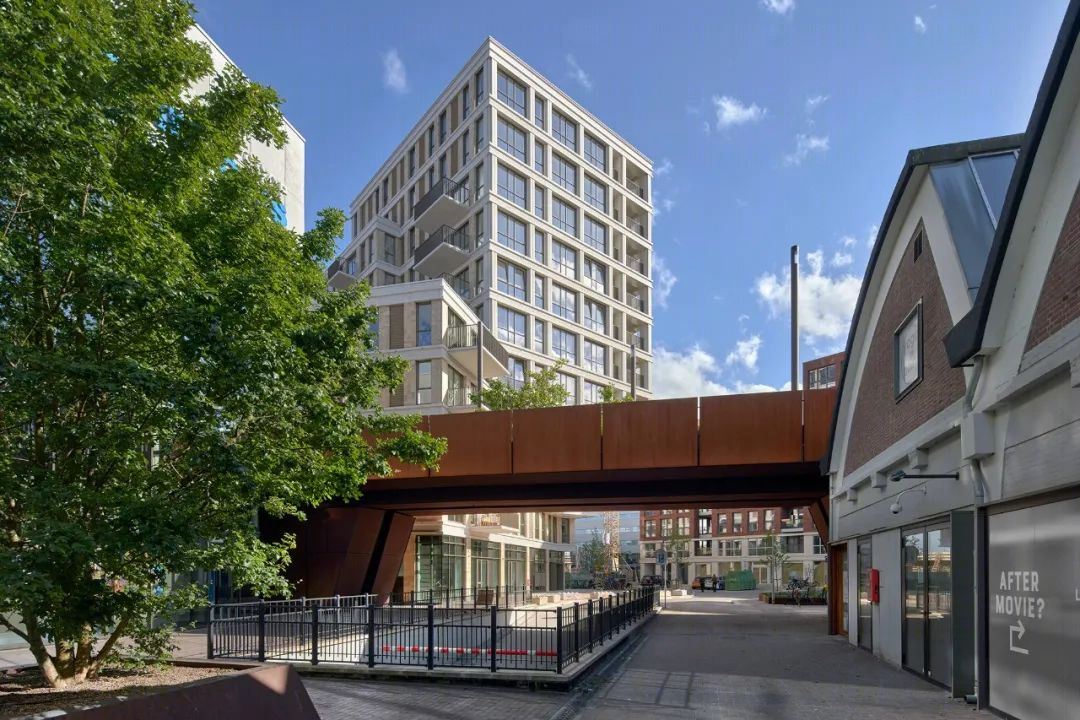

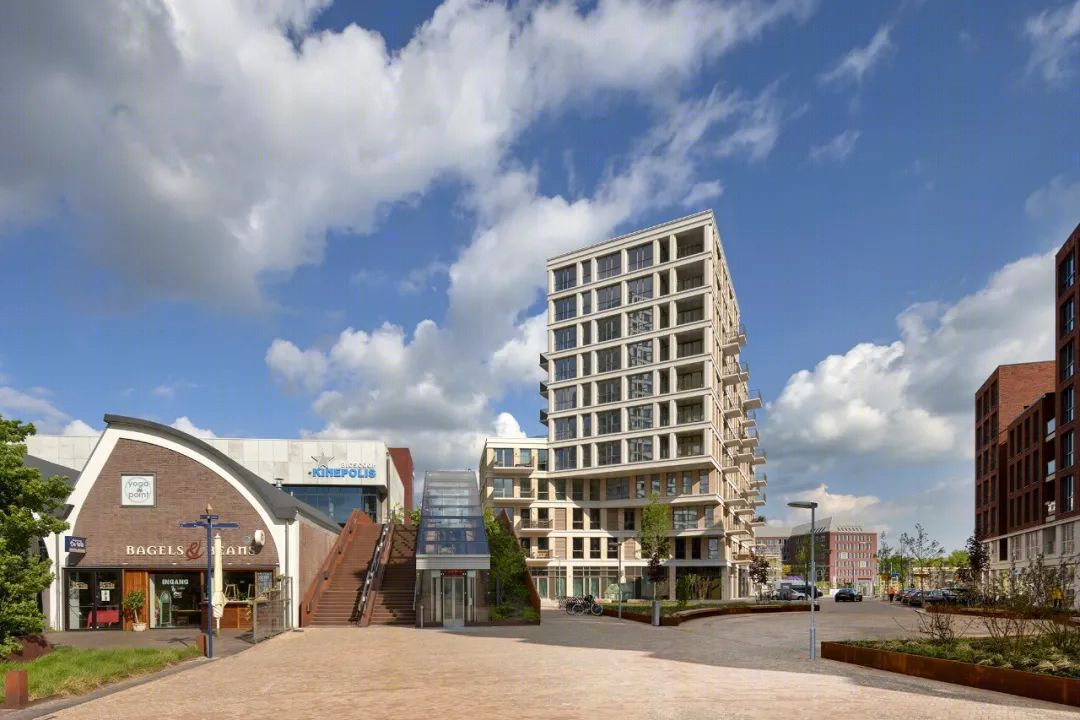

Bordeslaan和Vijverlaan交汇处的1050平方米的地块隐藏在锯齿建筑群的后面，旁边是由Corten钢制成的6米高的桥，该桥横跨铁路，将本区和历史悠久的市中心连接起来。在西边，一家新酒店将把住宅区与铁路隔离开来。

Since 1995, an industrial area west of the railroad that runs through ‘s-Hertogenbosch is being redeveloped into a new premium residential quarter. An occasional industrial relic, like the saw-tooth complex, has been included in the development plan. Winning the architects selection in 2016, led to the design for a residential building on the smallest plot in the quarter. The 1050 m2 plot on the intersection of the Bordeslaan and the Vijverlaan is tucked away behind the saw-tooth complex, and next to the six-meter-high bridge made of Corten steel that crosses the railways to connect the quarter with the historic city centre. To the west, a new hotel will shield the residential area from the railway.

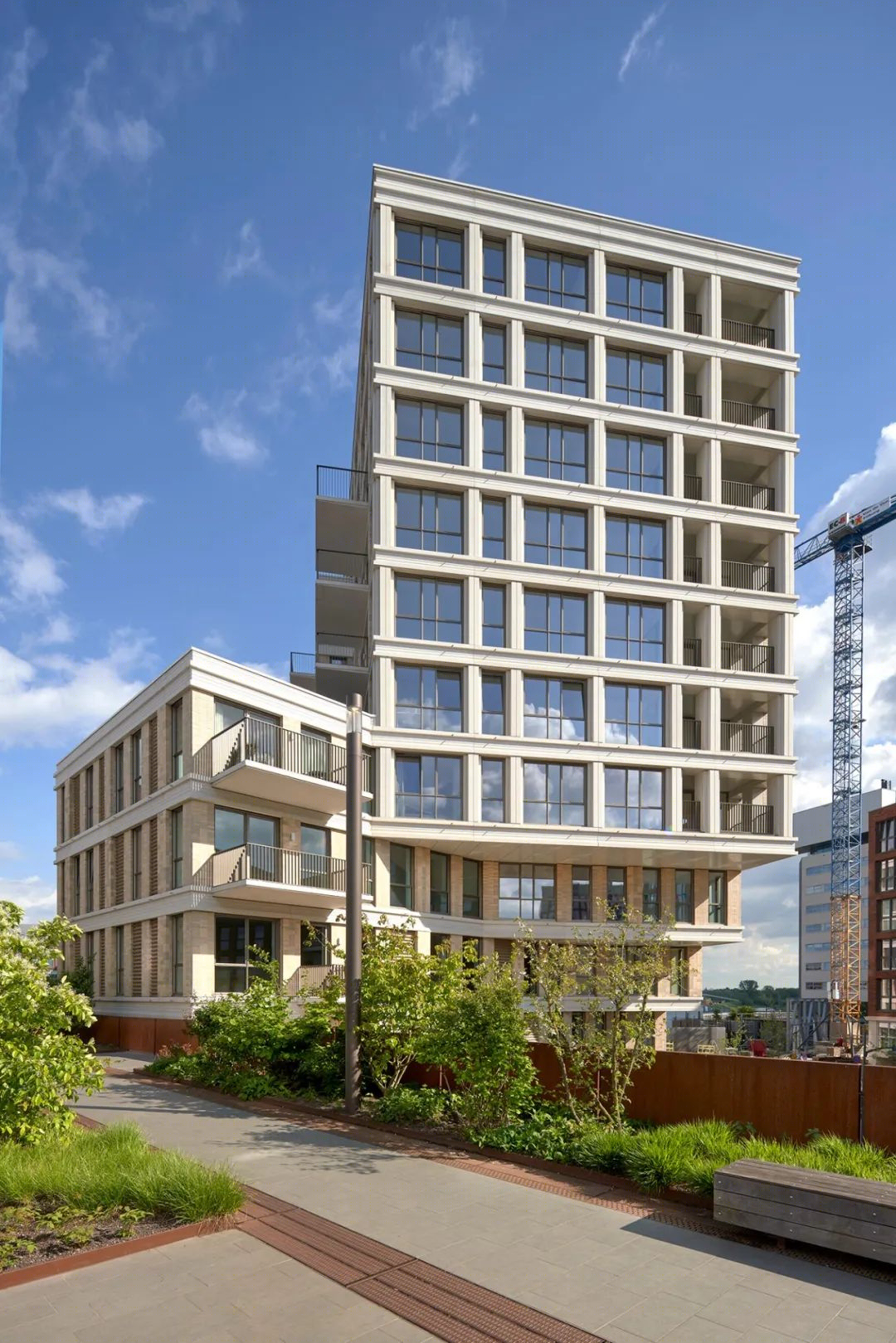

商业基座的层高增加，紧贴地块的边界。在这个基座之上，设计了一栋10层的住宅楼，提供7种不同尺寸的公寓，从49平方米的小单间到近150平方米的大公寓。

这些公寓遵循Vijverlaan和Bordeslaan的线条，在大楼的左侧为一楼的社区屋顶花园创造了空间。

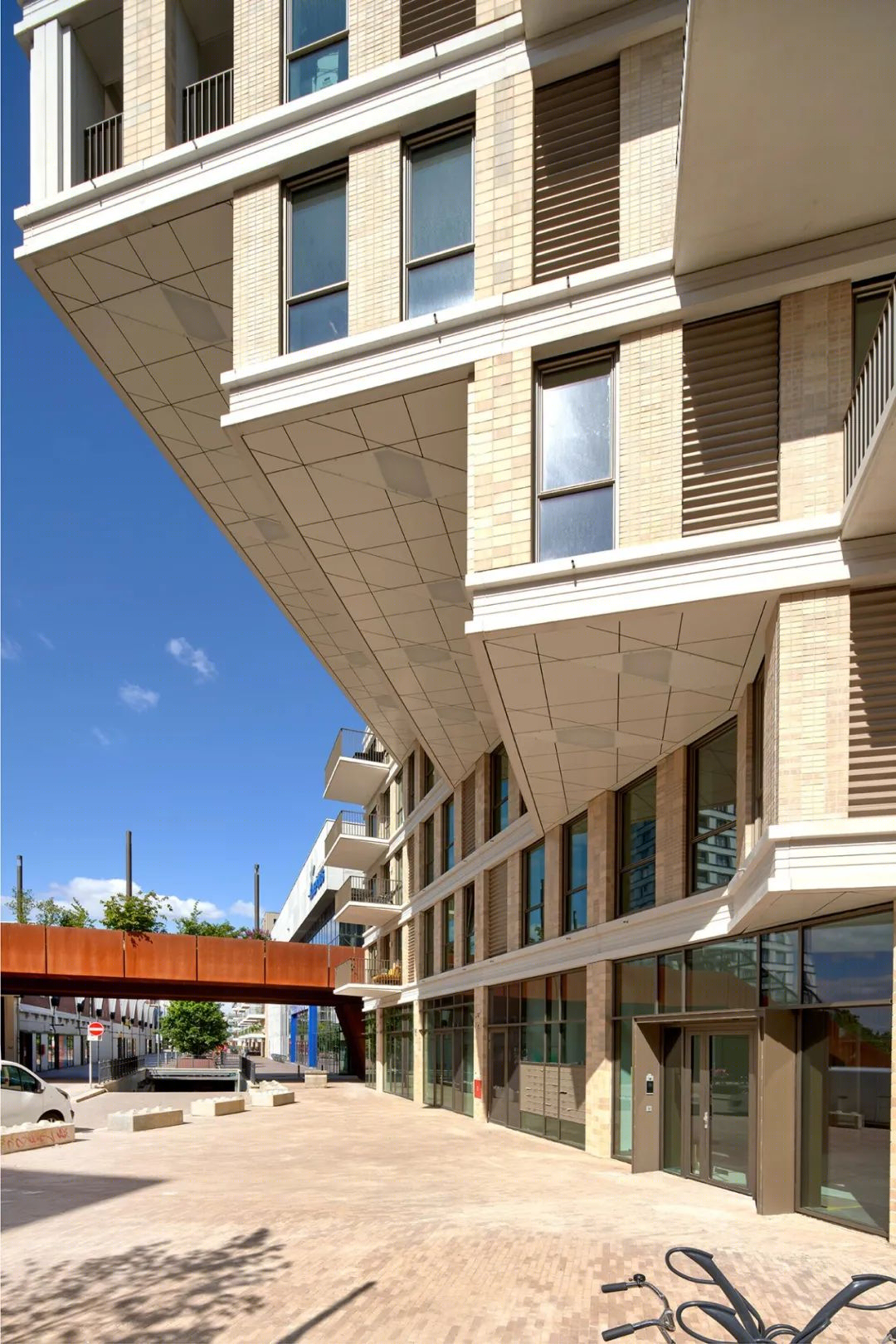

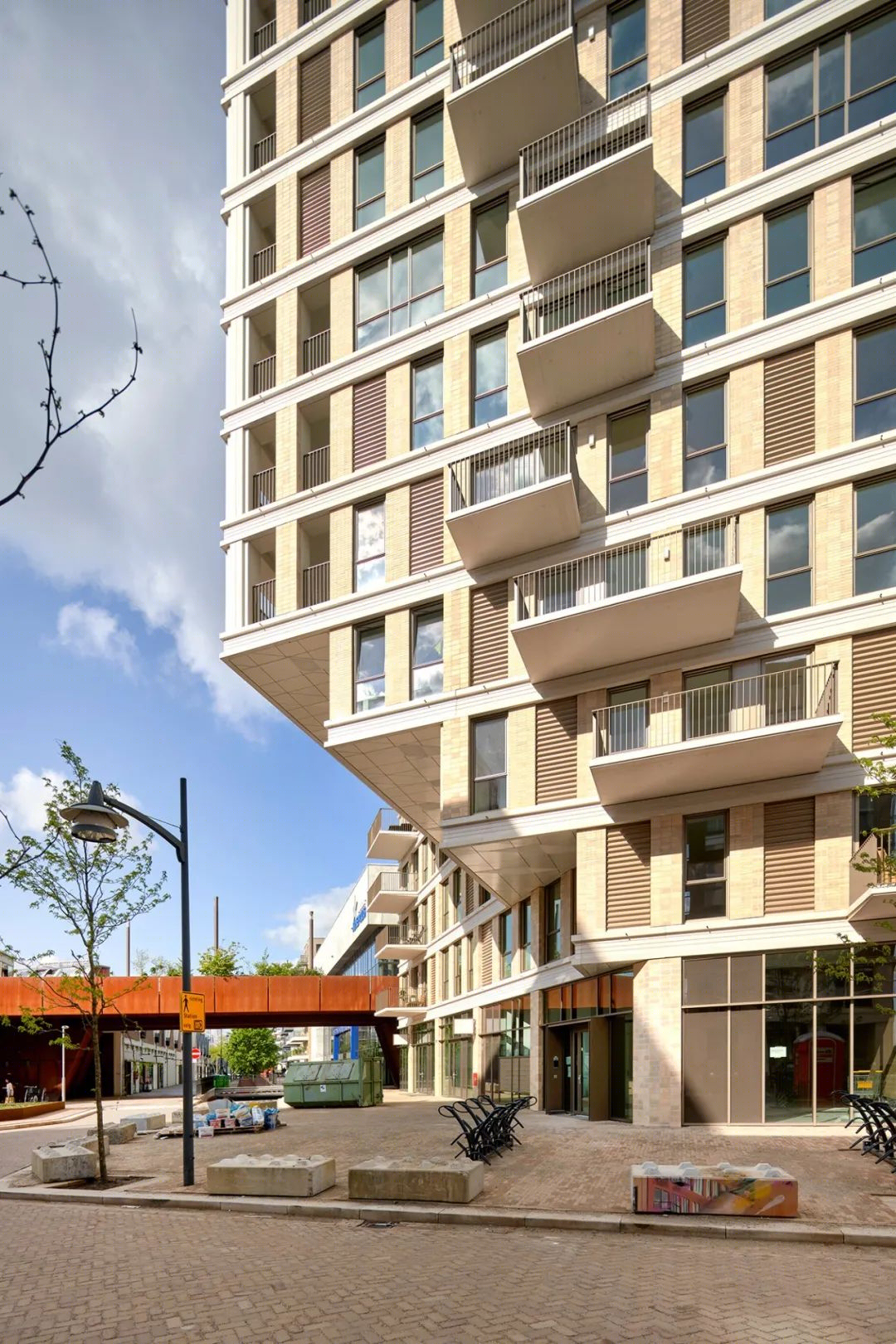

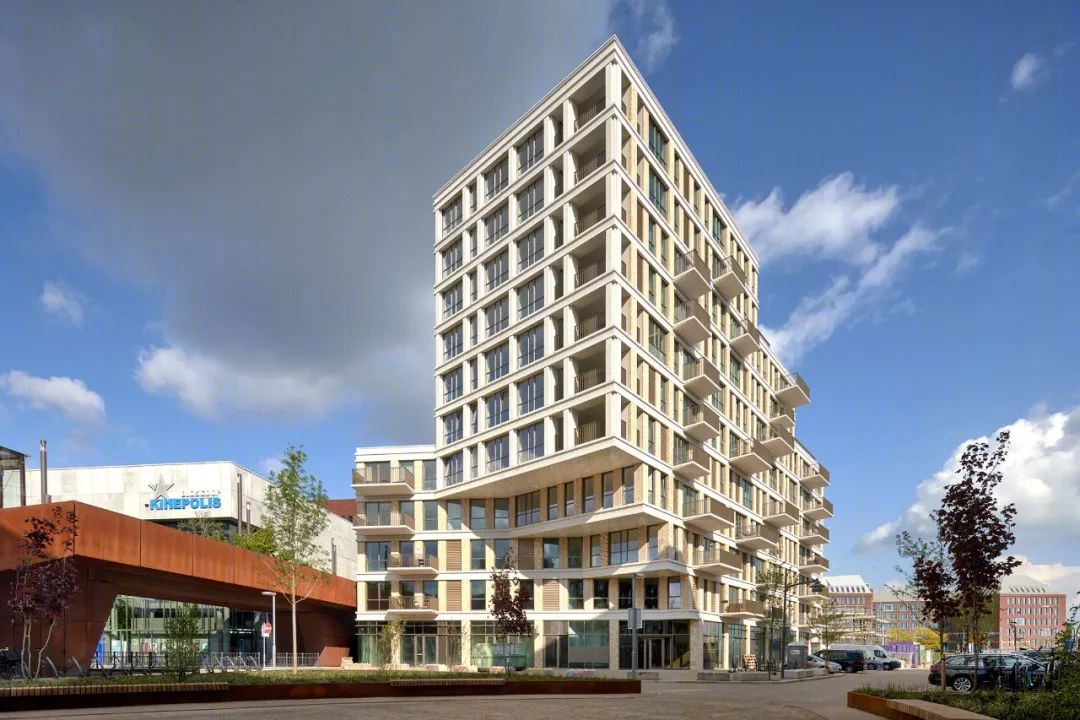

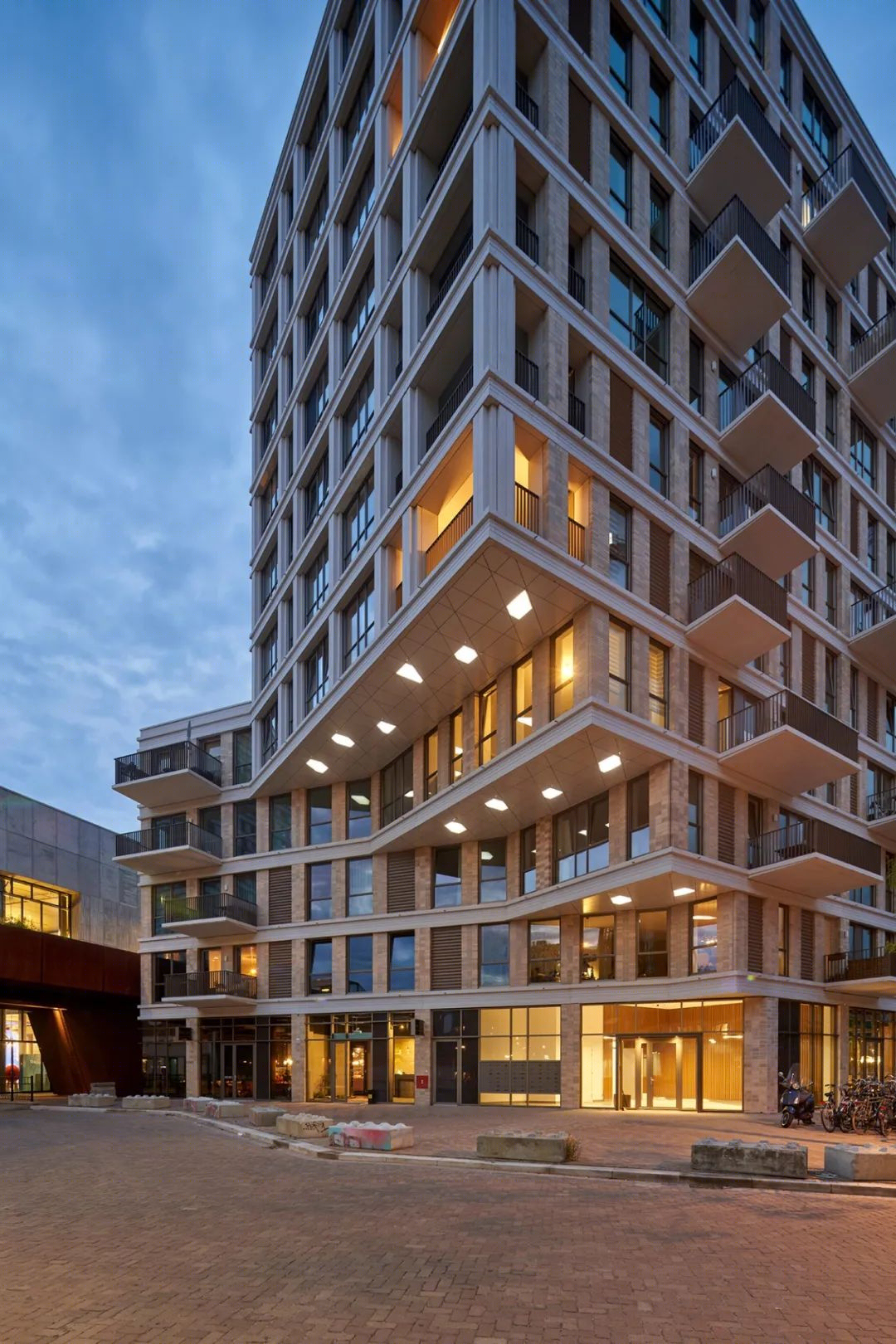

前四层从Vijverlaan慢慢扇出，盘旋在Bordeslaan之上，最终达到一个超过10米的无柱悬臂。这为建筑提供了一个面向Paleiskwartier的突出面。

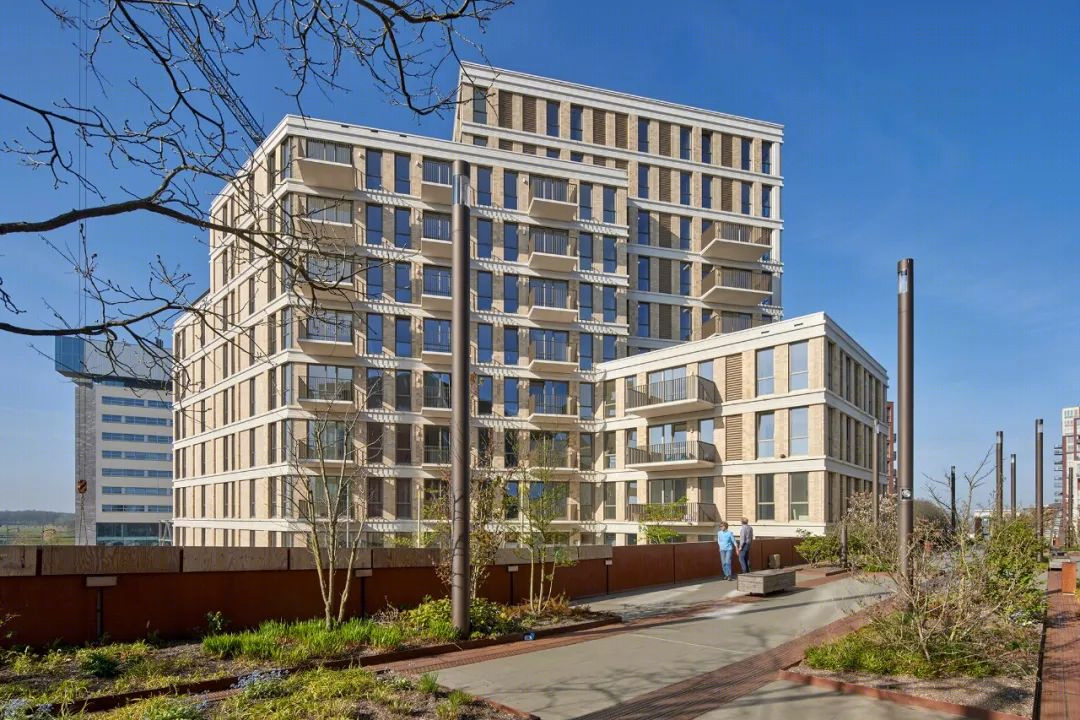

博得斯兰大街上的7层建筑的整个立面都是用白色的混凝土和大面积的玻璃幕墙来装饰的。其他的立面则表现出水平带和网格的微妙变化，垂直填充物为砖、窗框和铝板。

The commercial plinth, with its increased storey height, tightly follows the plot’s boundaries. On top of this plinth a 10-storey residential block has been designed, featuring a varied apartment programme of 7 sizes, ranging from small 49 m2 studios to large apartments of nearly 150 m2. The apartments follow the lines of the Vijverlaan and Bordeslaan, creating space in the lee of the block for a community roof garden on the first floor. The first four floors slowly fan out from the Vijverlaan to hover over the Bordeslaan, eventually reaching a columnless cantilever of over 10 meters. This provides the building with a prominent face towards the Paleiskwartier. The entire façade of this 7-layer accent on the Bordeslaan has been executed in a white concrete with large glass fronts. The other façades manifest a subtle play of horizontal bands and a grid with vertical fillings of brick, window frames and aluminium panels.

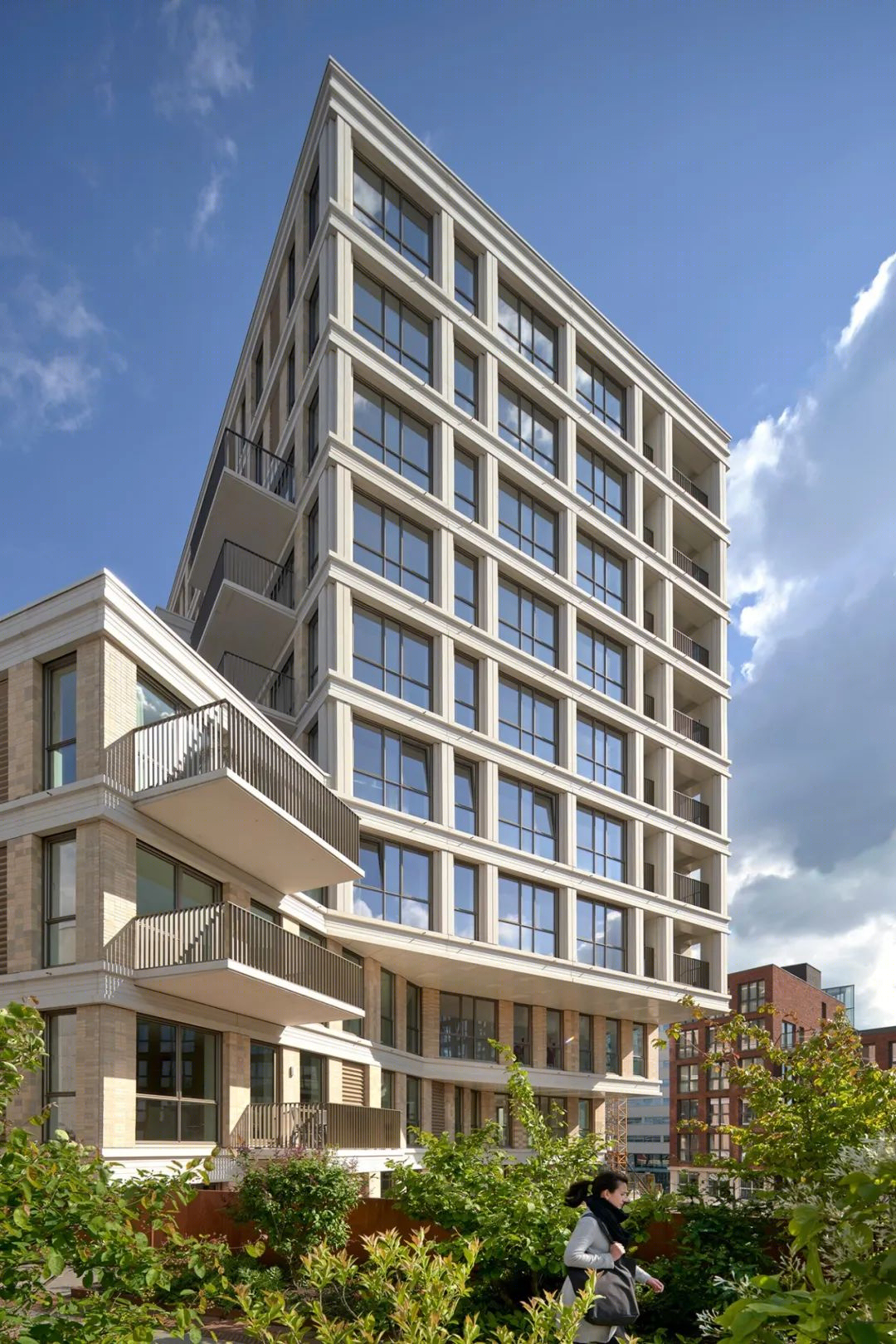

横向的带子一直延伸到建筑周围。白色的混凝土浇筑而成，边缘有微妙的阴影，这些带子代表着不同的楼层。

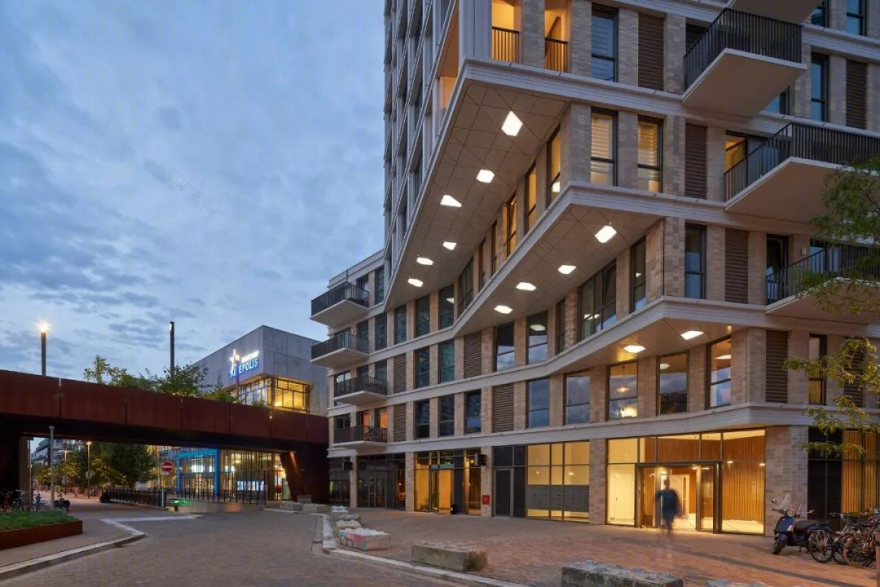

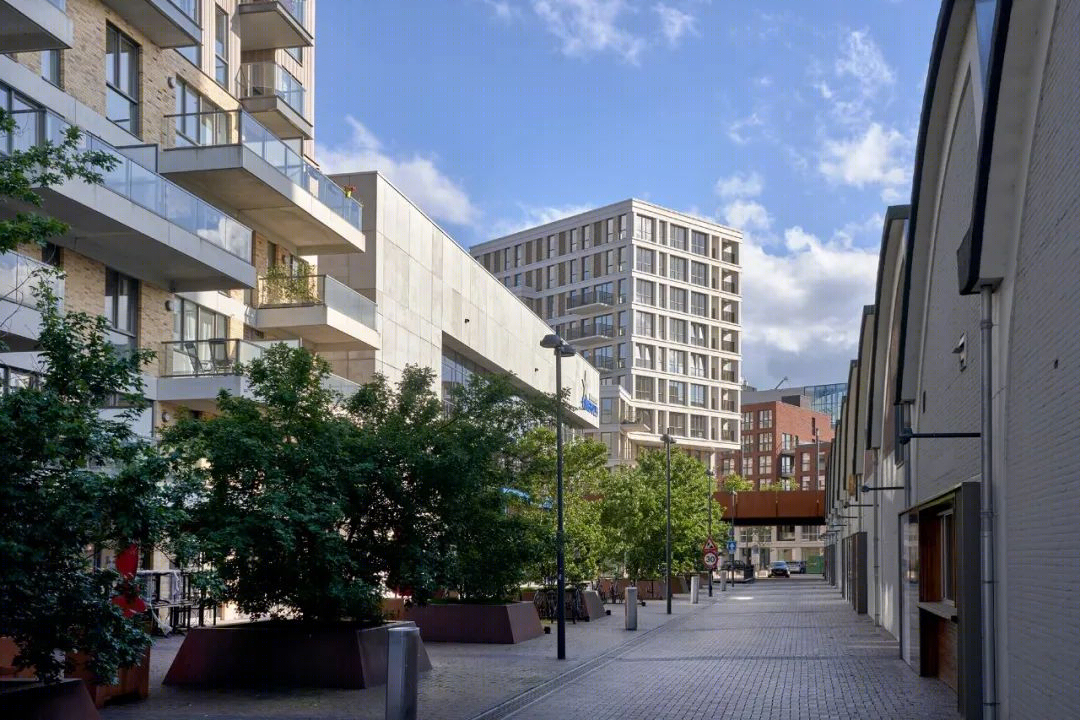

悬臂式阳台从这些混凝土带中涌出。用柔和的黄色双瓦型砖砌成的壁柱条形成了垂直框架，其内有凹陷的砖砌门楣。

这些凹槽是用同色砖砌筑的，但尺寸较小，并有一个假接缝，在这里可以出现更精细的叠合。浅铜色的铝制窗框和面板填充在开口处。

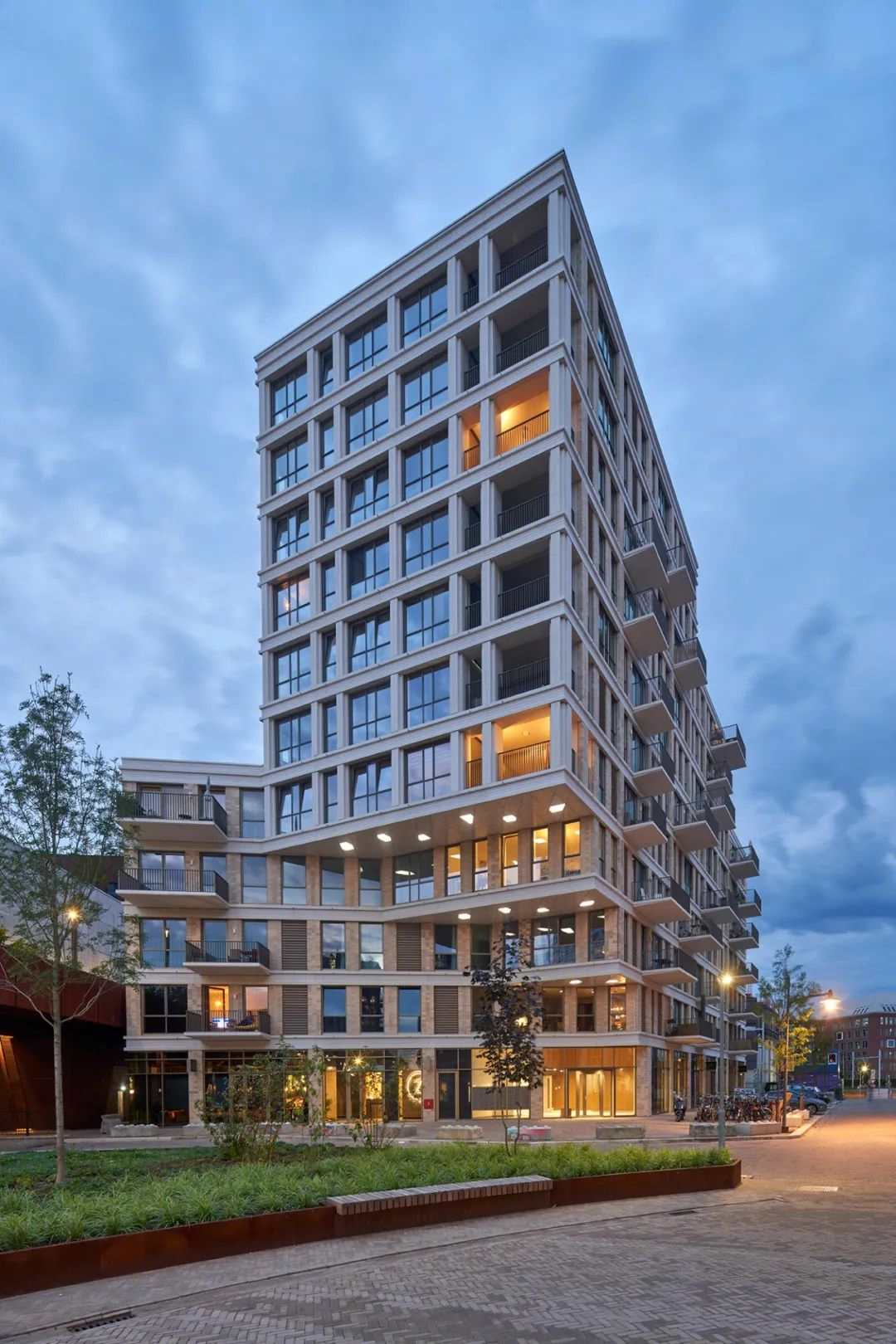

高质量材料的使用和精心的细节处理使建筑具有突出的特点。这座11层高的建筑群与扭曲的塔楼在Paleiskwartier新的城市景观中达到了它的轮廓。

The horizontal bands run all the way around the building. Cast in white concrete with subtle shadow edges, the bands designate the separate storeys. Cantilevering balconies spring forth from these concrete bands. Pilaster strips built with a soft-yellow double Waal-format bricks form vertical frames with recessed brickwork penants positioned inside them. These penants are masoned in a brick of the same colour, but smaller in size, with a false joint that here allows for a finer stack bond to appear. Aluminium window frames and panels in a light bronze colour fill in the openings. The use of high-quality materials and careful detailing gives the building an outstanding character. The eleven-storey complex with the twisted tower has attained its contour in the new urban landscape of the Paleiskwartier.

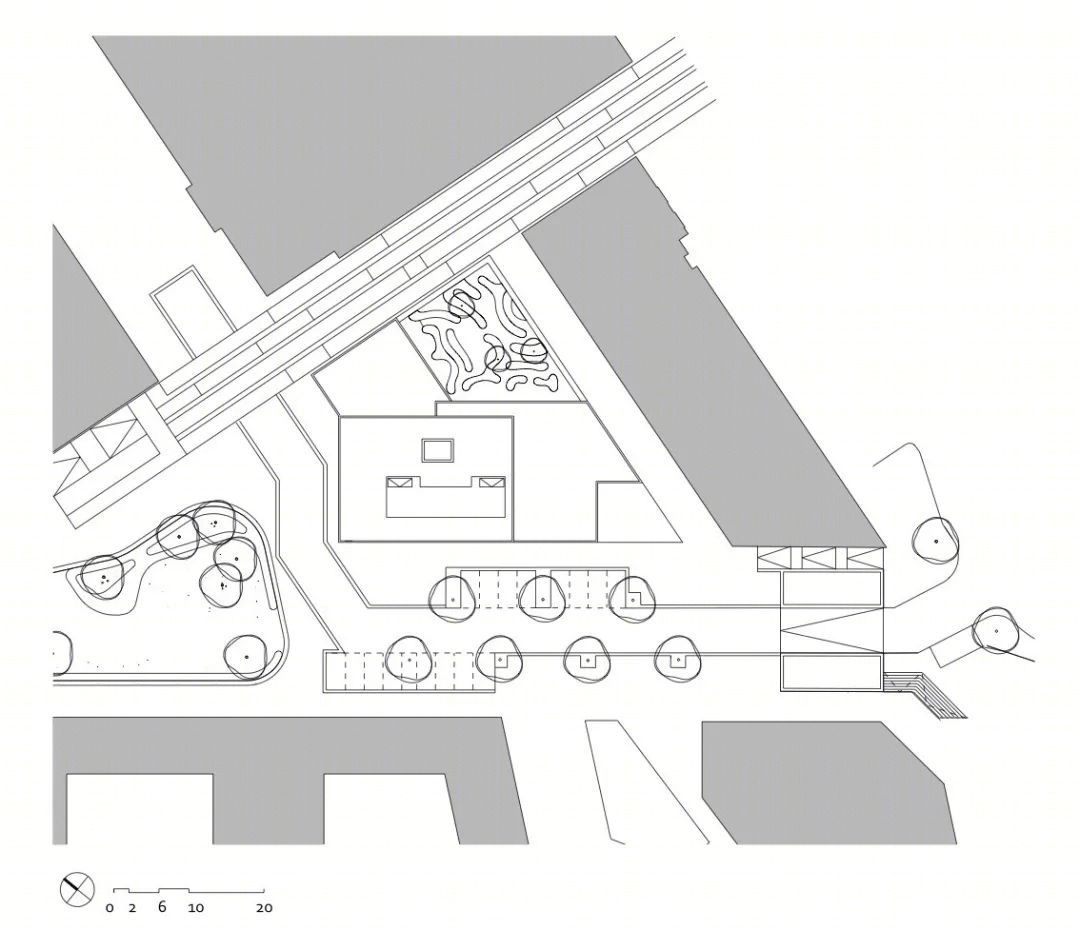

区位图

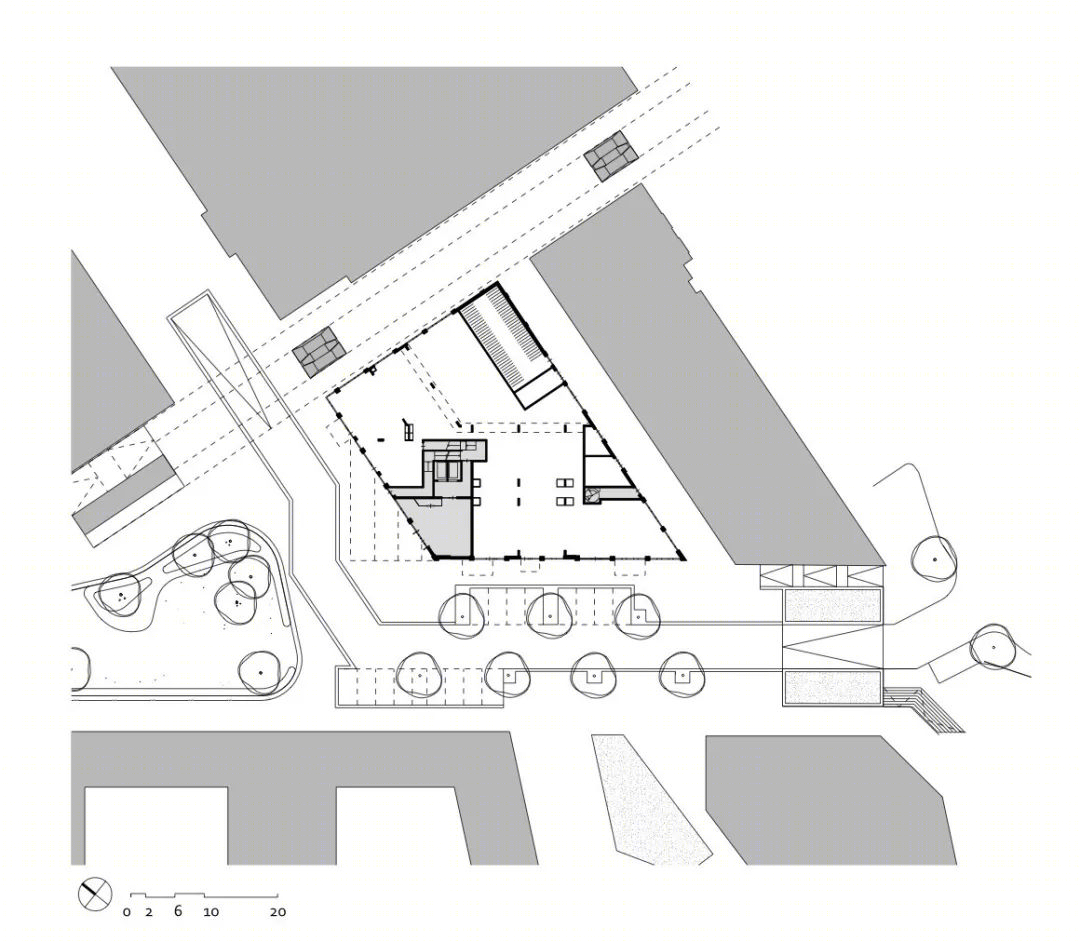

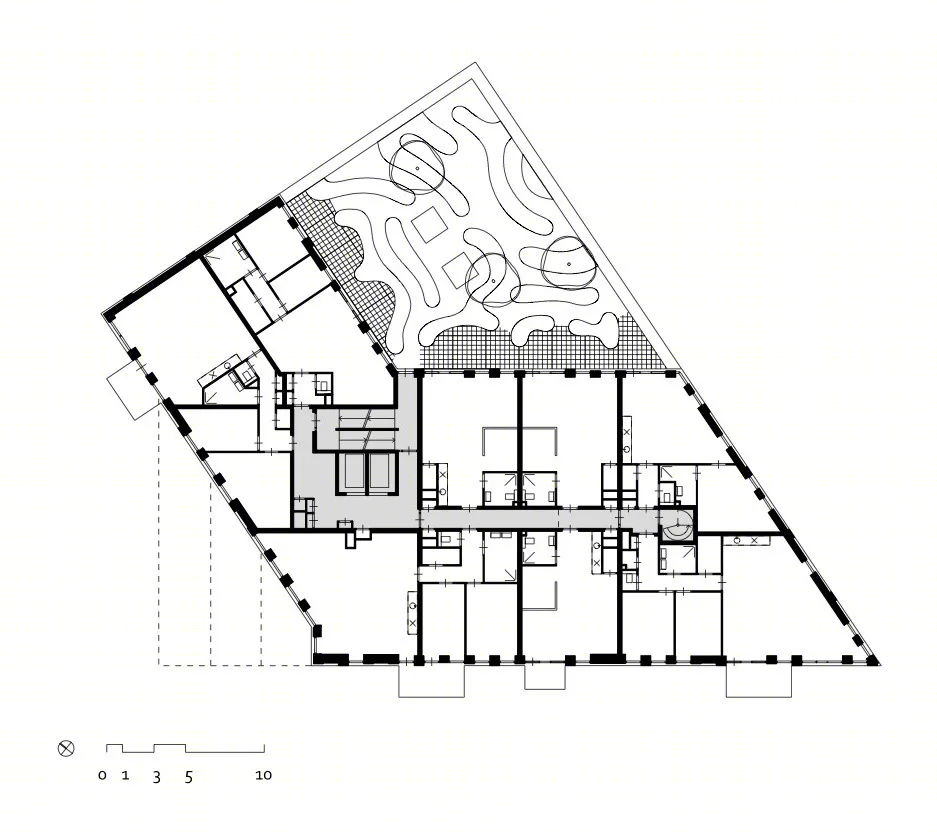

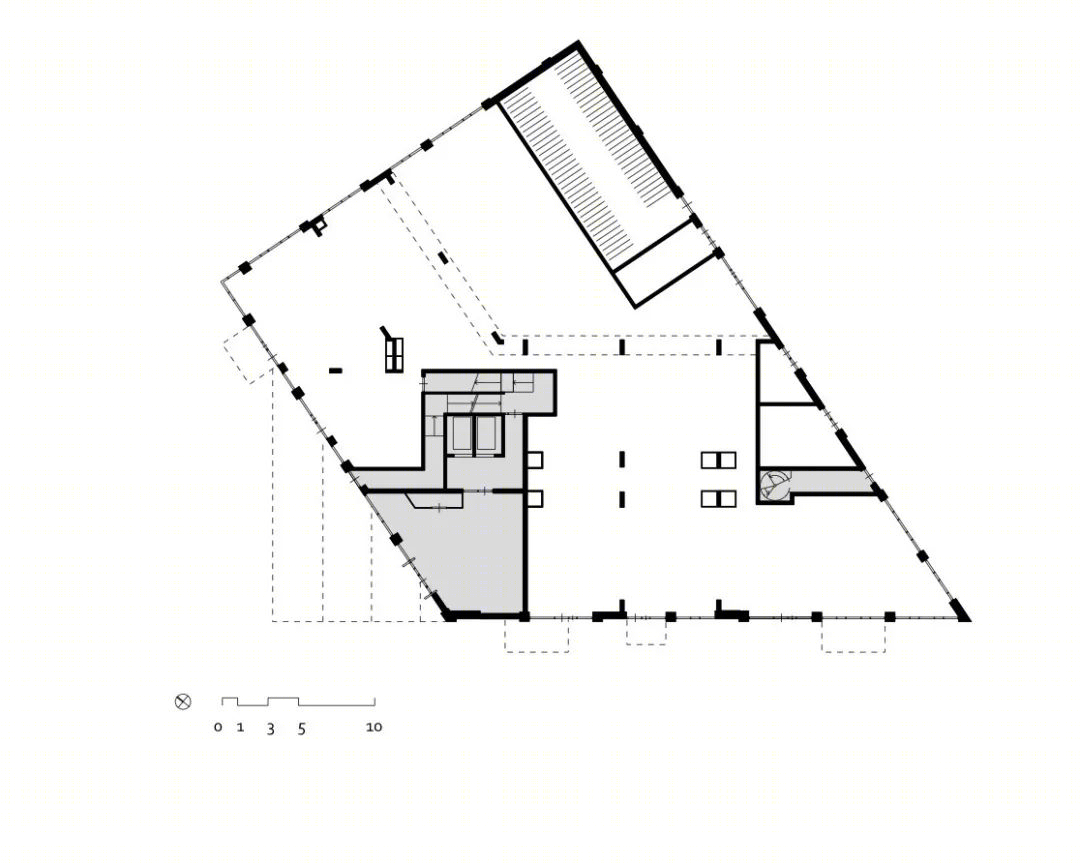

地面平面图

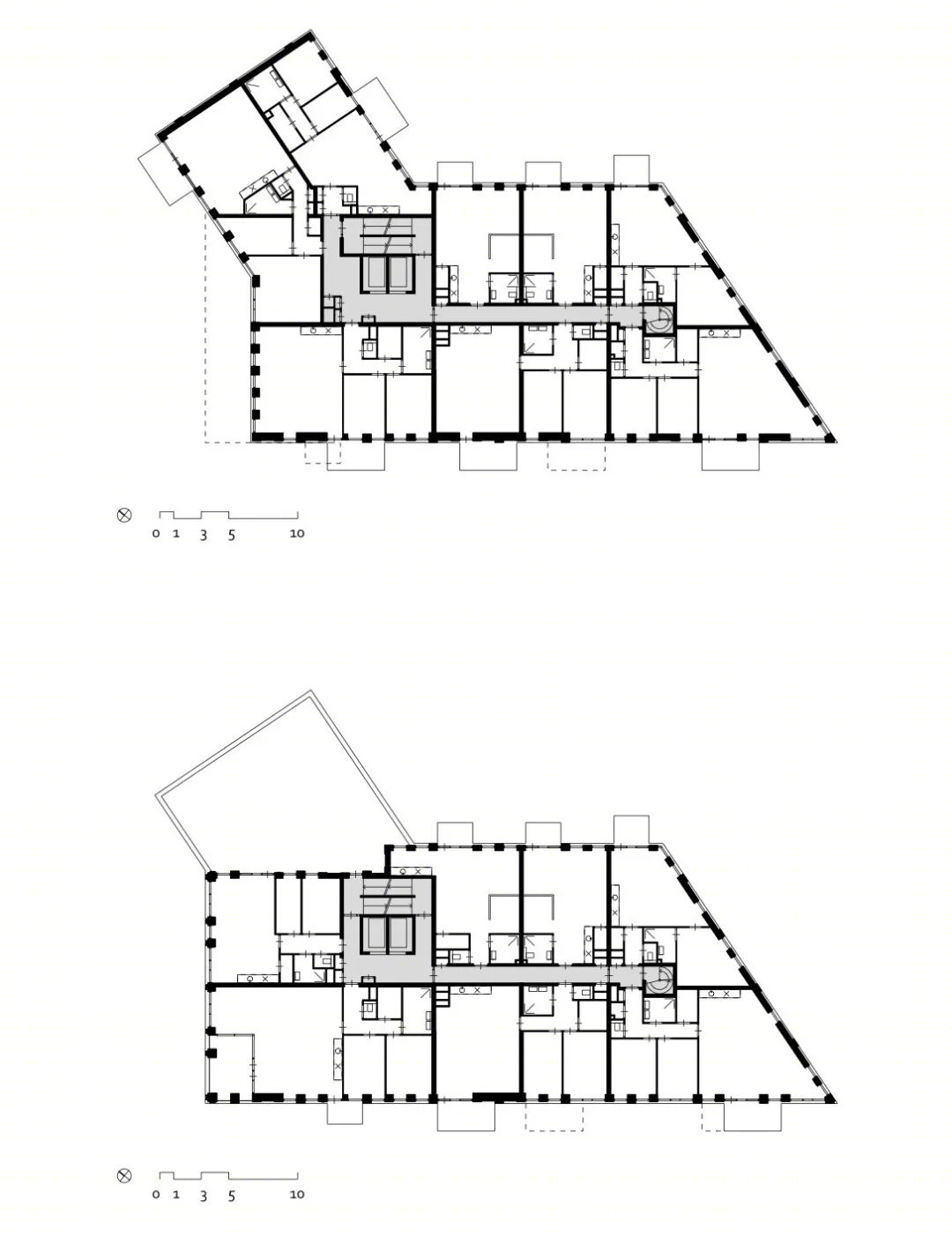

1层平面图

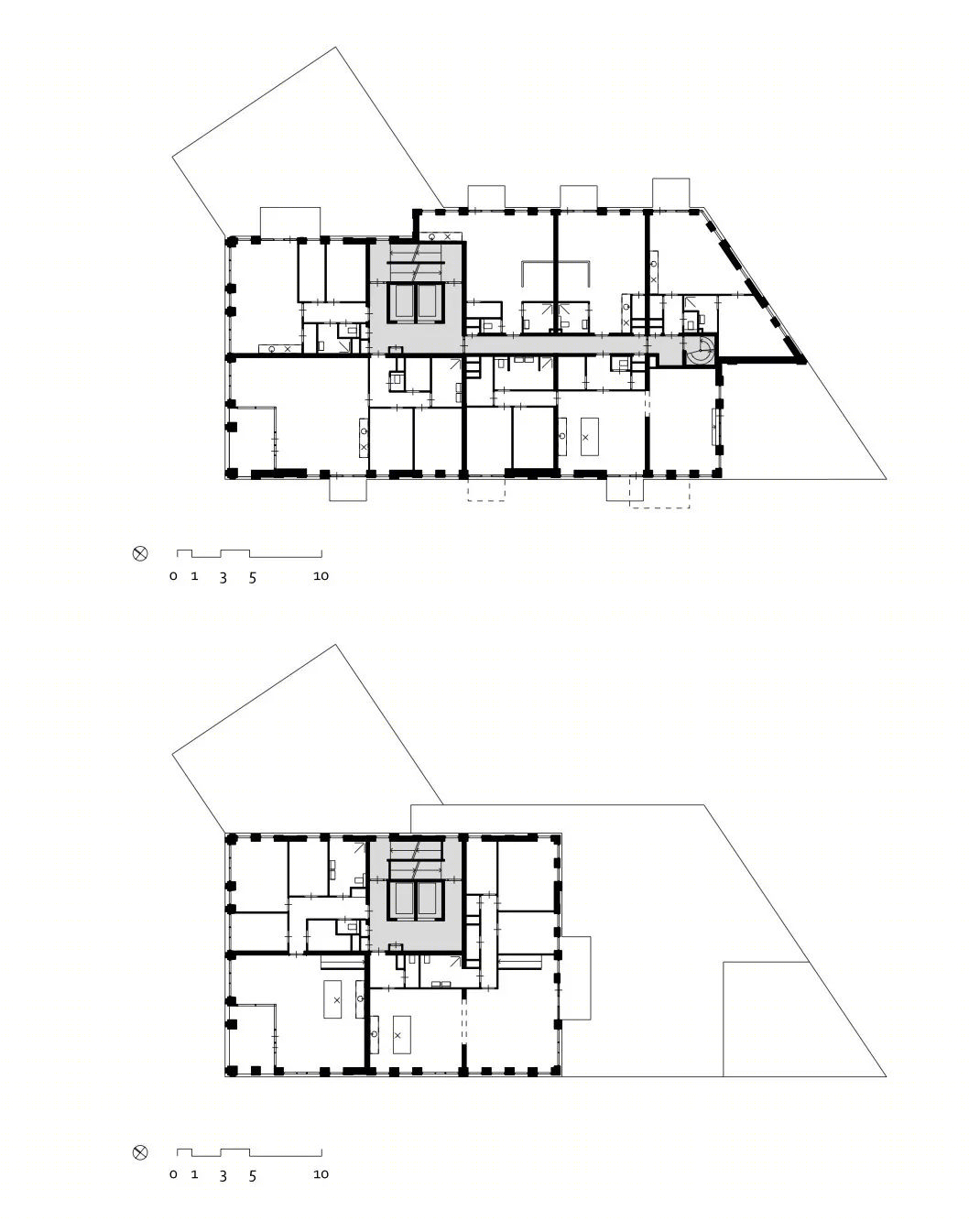

3层平面图

7层平面图

屋顶平面图

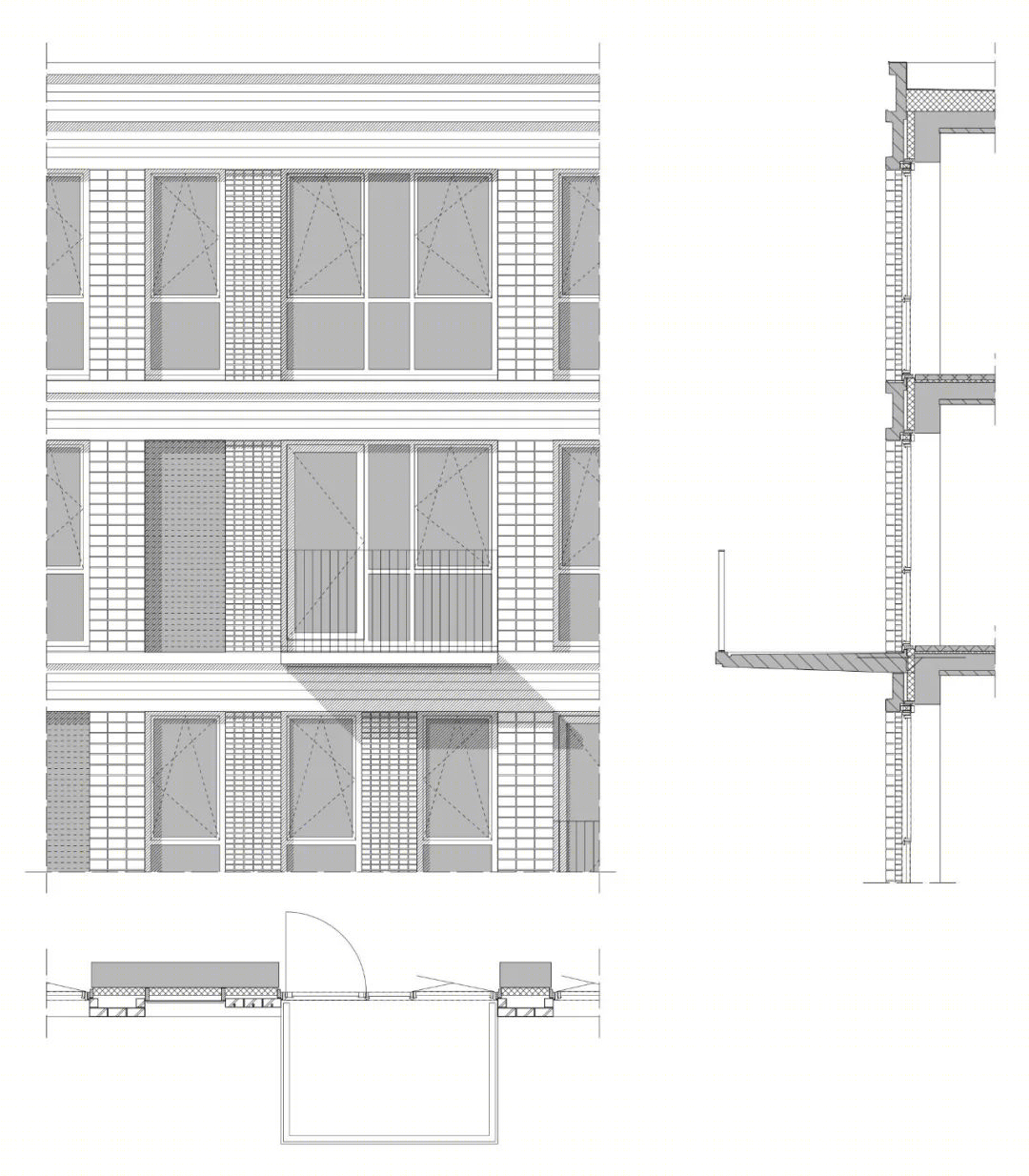

细部图

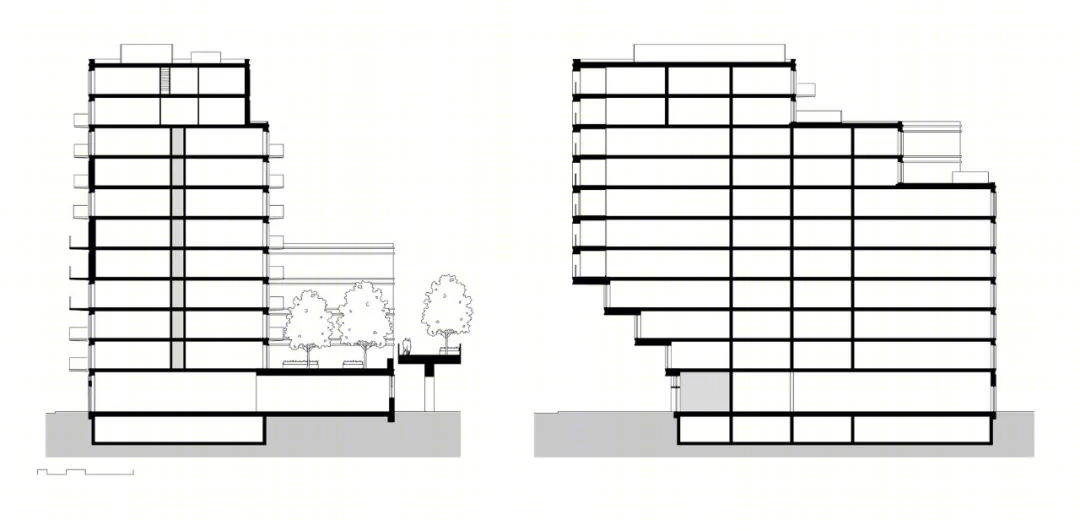

剖面图

建筑师：HILBERINKBOSCH建筑师事务所

地点：新西兰

面积：28916m²

年份：2020
