柏林格瑞斯瓦尔得街办公大楼

Firm： TCHOBAN VOSS Architekten

Type： Commercial › Office

STATUS： Built

YEAR： 2019

SIZE： 10,000 sqft - 25,000 sqft

Architect: Sergei Tchoban, TCHOBAN VOSS Architekten

Address: Greifswalder Str. 226 / Heinrich-Roller-Str. 13, 10405 Berlin

Client: Grundstücksgesellschaft Greifswalder Strasse 226 bR, Berlin, a company of the GbR Nagel & Padovicz

GFA: approx. 2,100 sqm

Completion: September 2019

Service stages: 1–7

Project partner and -leader: Axel Binder, Liza Gradinarova

Team: Katja Fuks, Valeria Kashirina, Andrea Moritz, Ramona Schwarzweller, Ingo Schwarzweller, Evgenia Sulaberidze

Project management: M.F.P.N. Projektmanagement GmbH & Co. KG, Berlin

Structural engineering: Ingenieurbüro Bendel Bradke & Lang GmbH, Berlin

Building equipment: PlanB - Beratende Ingenieure GmbH, Berlin

Shell: Mastiok Bau GmbH, Berlin

Façade, concrete parts: GBJ Geithner Betonmanufaktur Joachimsthal GmbH, Ziethen

Planning details façade: IBF Ingenieurbüro Franke, Glienicke

Windows / sun protection: Hans Timm Fensterbau GmbH & Co. KG, Berlin

Metal construction: Metallbau Holger Gottschalk, Berlin

Ventilation system: ST Gebäudetechnik GmbH, Potsdam

Heating, sanitation: WES GmbH, Schöneiche

Elevators: Schindler Aufzüge und Fahrtreppen GmbH, Berlin

Car elevators: Tepper Aufzüge GmbH, Berlin

Fire protection: Ingenieurbüro Arndt-Weiher-Koch, Berlin

Sound insulation and room acoustics: Ingenieurbüro Axel C. Rahn GmbH, Berlin; Akkustikbüro Hoffmeier, Berlin

Photographer: © Roland Halbe

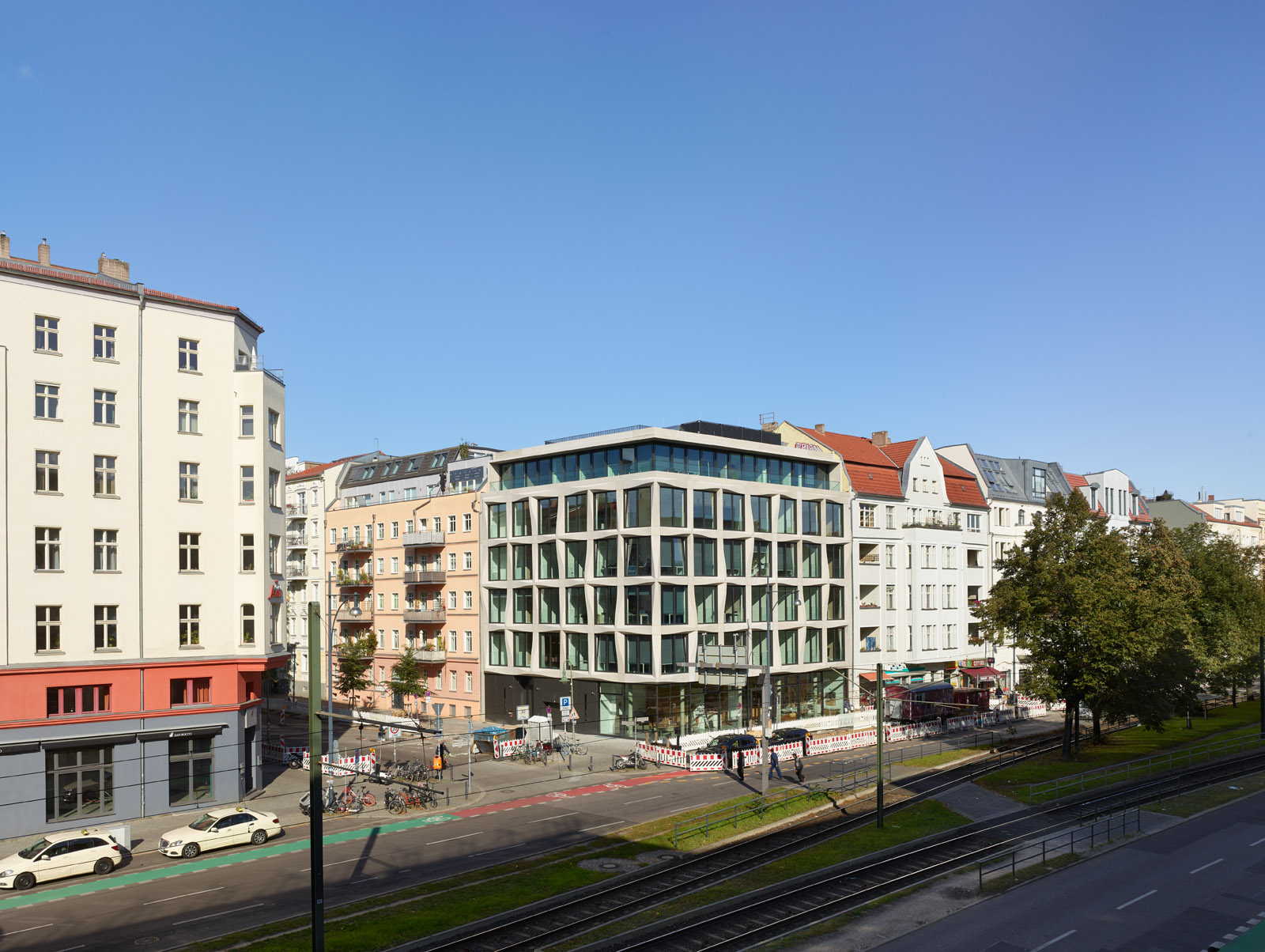

On the 464 m² corner site between Greifswalder Strasse and Heinrich-Roller-Strasse in the Berlin district of Pankow, Prenzlauer Berg, an office building was created whose expressive, lively main façade with its floor-to-ceiling, square grid structure of light architectural concrete prefabricated parts immediately strikes the eye.

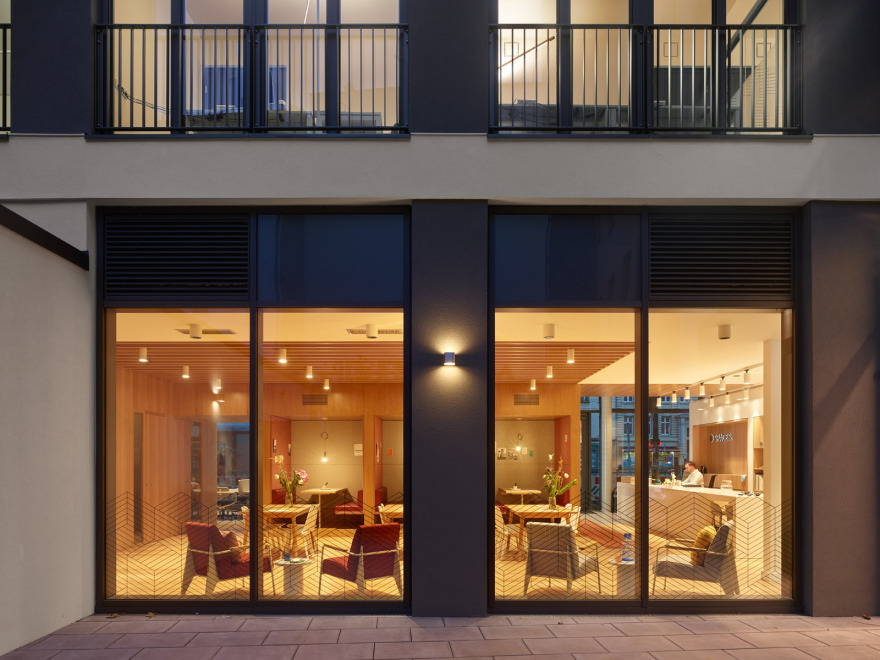

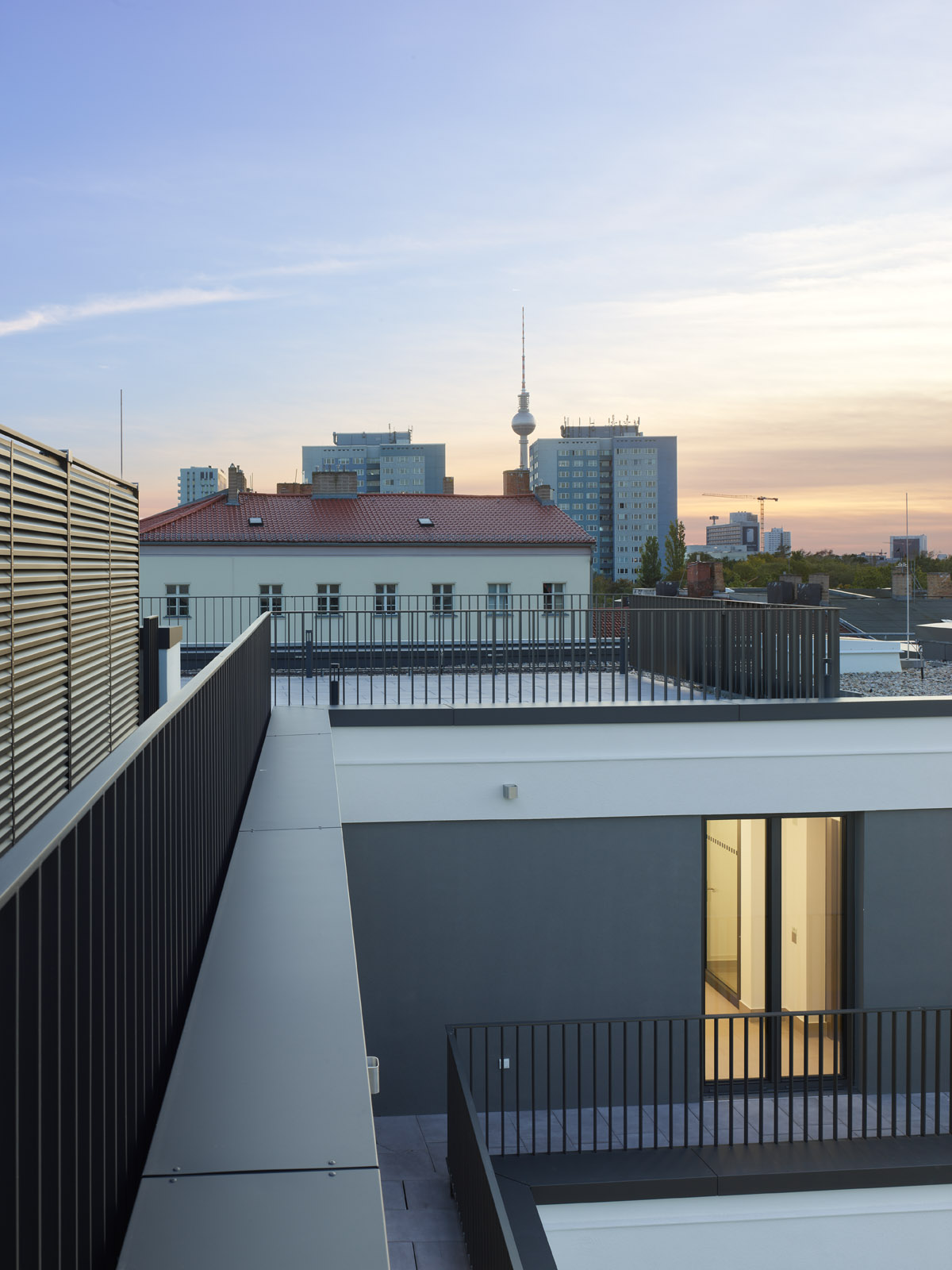

The structure comprises six full storeys, which can be used per rental unit as flexible combinations of open-plan offices, individual offices, conference and meeting rooms as well as coworking spaces. On the ground floor there is an office unit with meeting areas and open-space workplaces. The top floor is set back by approx. 1.60 m on the street side. The roof area, which is accessed via the 5th floor, is greened and partly designed as a roof terrace. The basement is intended for parking spaces for cars, bicycles and technical rooms.

The new building, which is used as a modern office business centre, follows the line of the building on the street side and connects to the fire walls of the neighbouring buildings while maintaining the spacing in the courtyard and exploiting the maximum building depth. All new building parts have flat roofs.

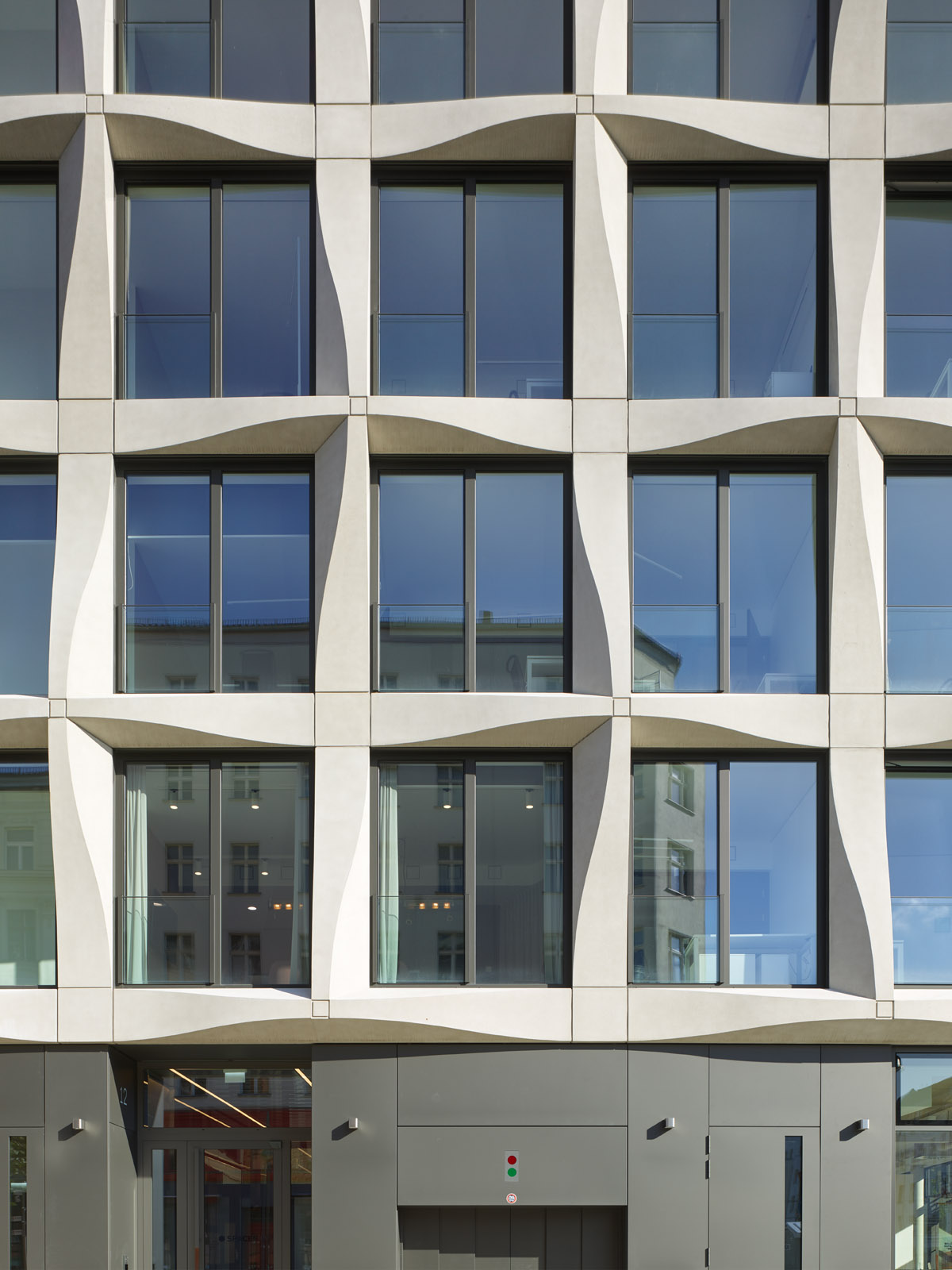

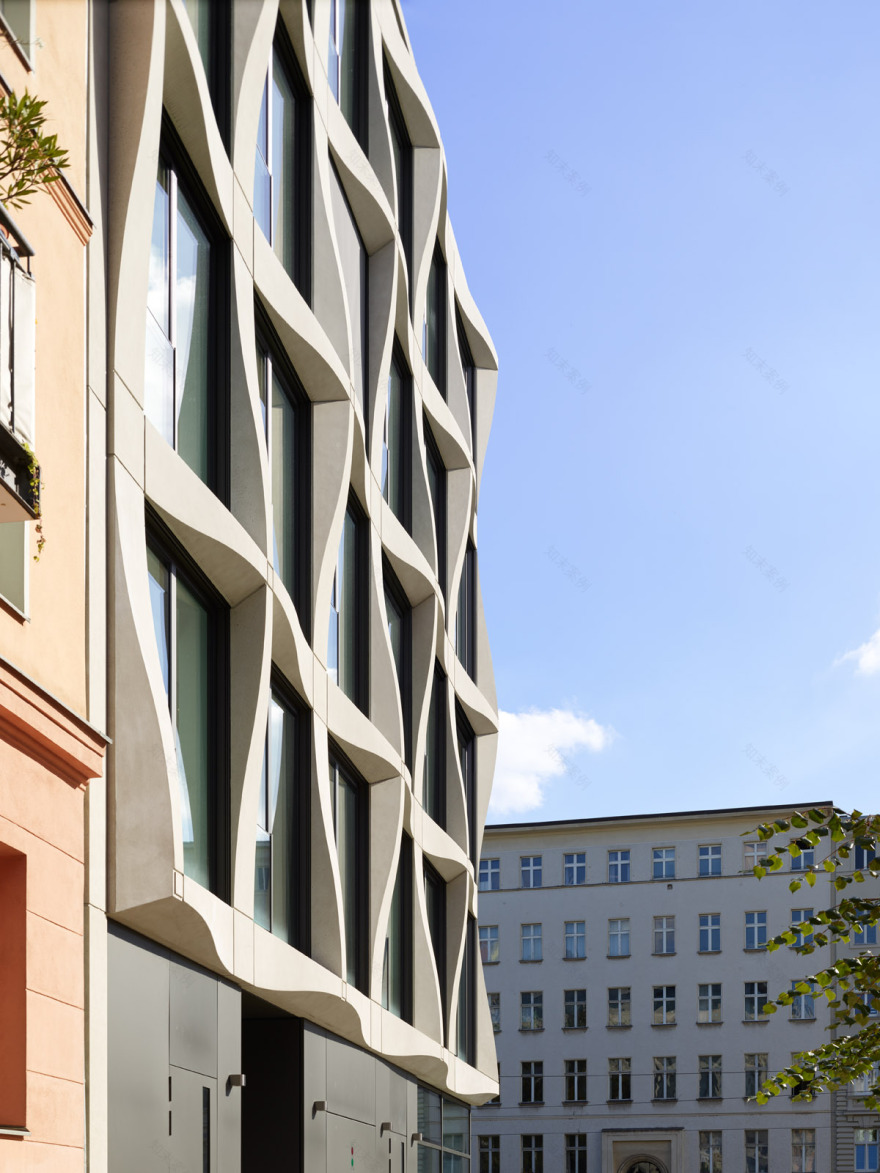

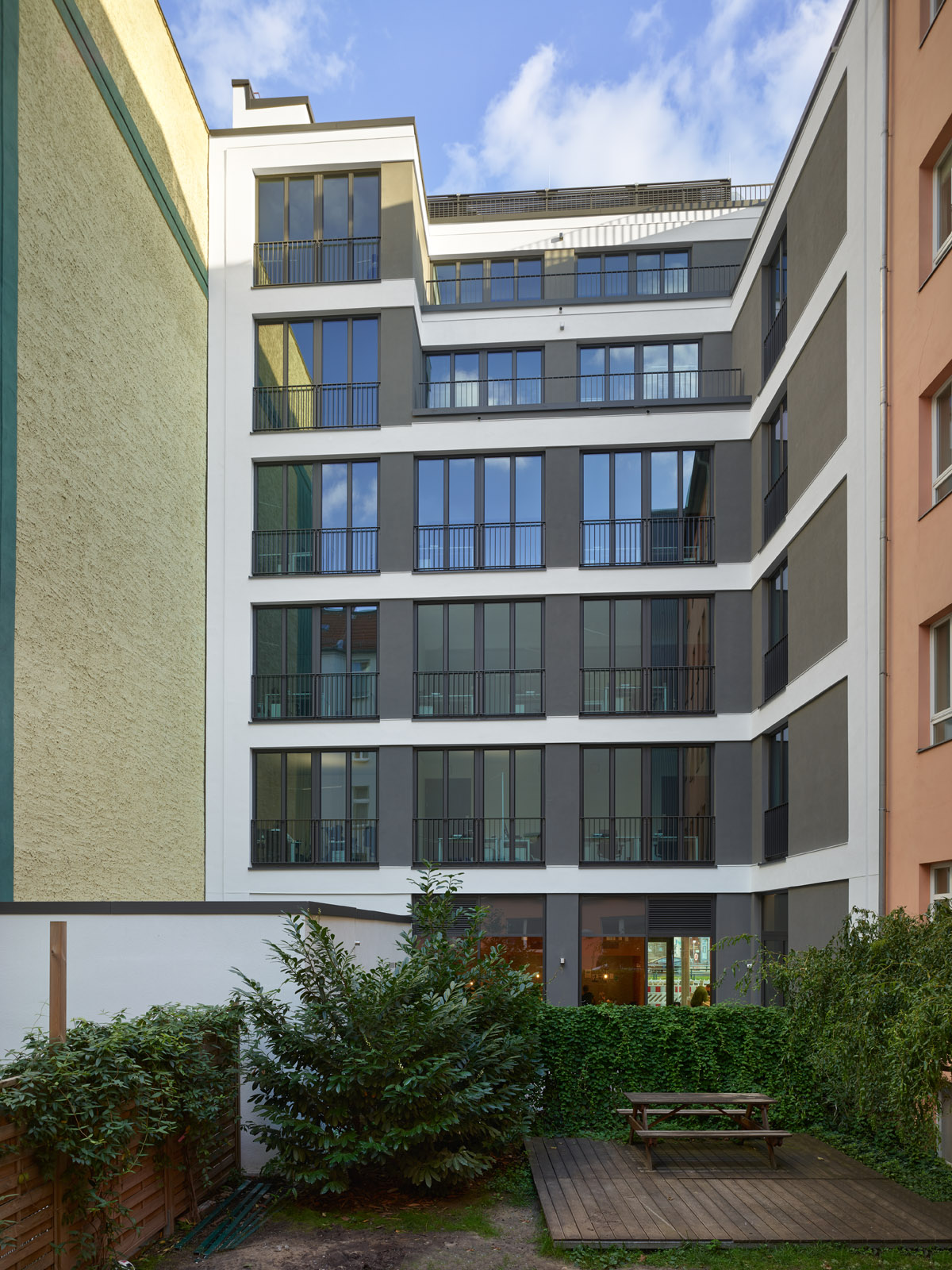

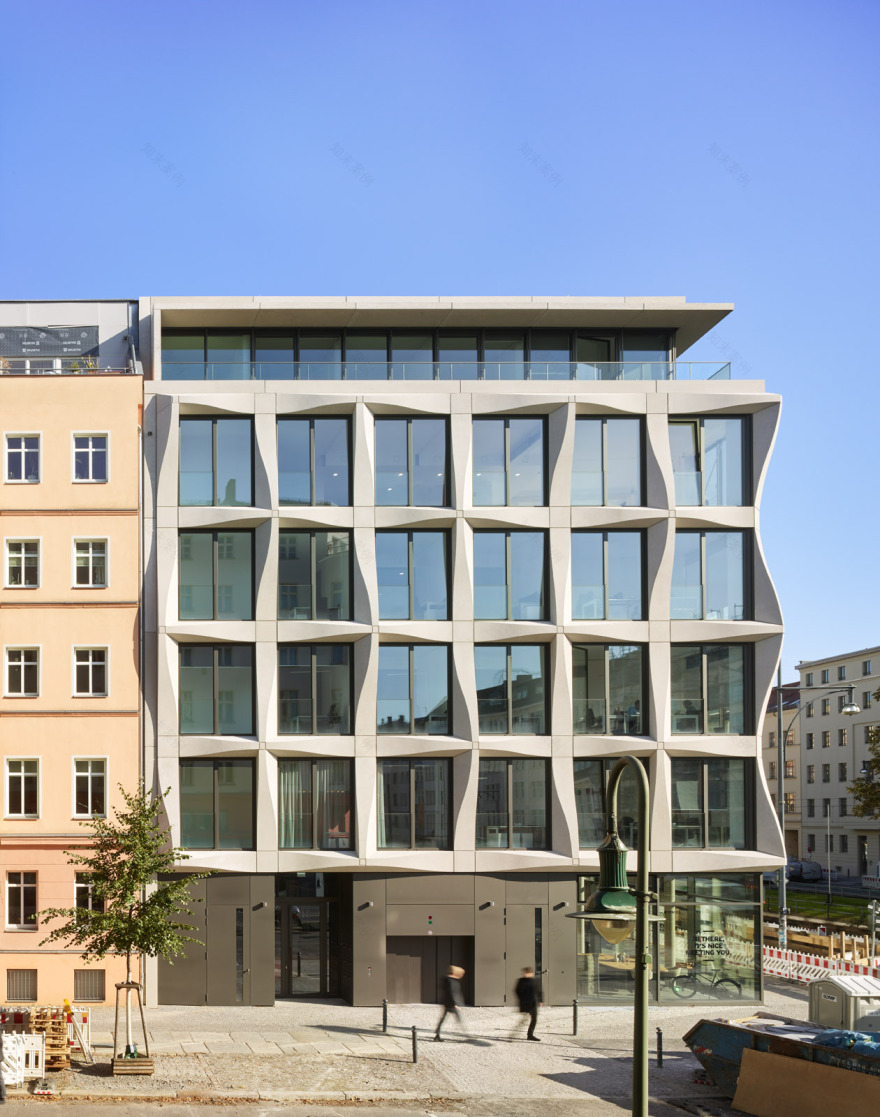

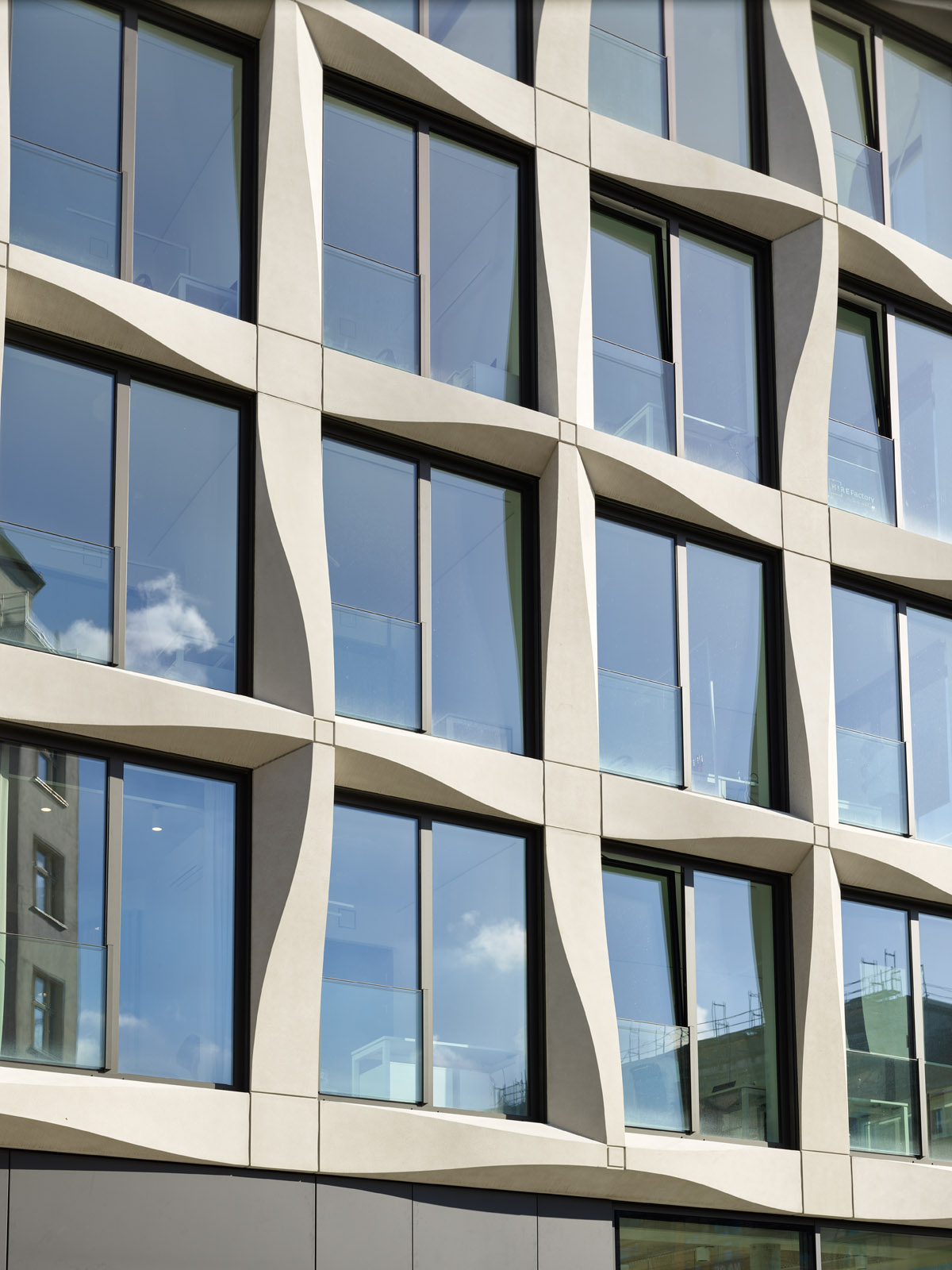

The street façade on the ground floor consists of large-format insulating glazing in mullion-transom construction. From the first to the fourth upper floor, the façade is constructed in a square grid of architectural concrete. The slightly twisted pillars and floor slab strips meet alternately at either a high or low point and form a coherent, dynamic, organic-flowing structure. At the high points of the grid structure, the façade protrudes 50 cm above the building line. The inner courtyard facades were realized as plaster façades with circumferential window bands with metal railings. The roof area with its restrained glass façade forms the clear, calm end of the building.

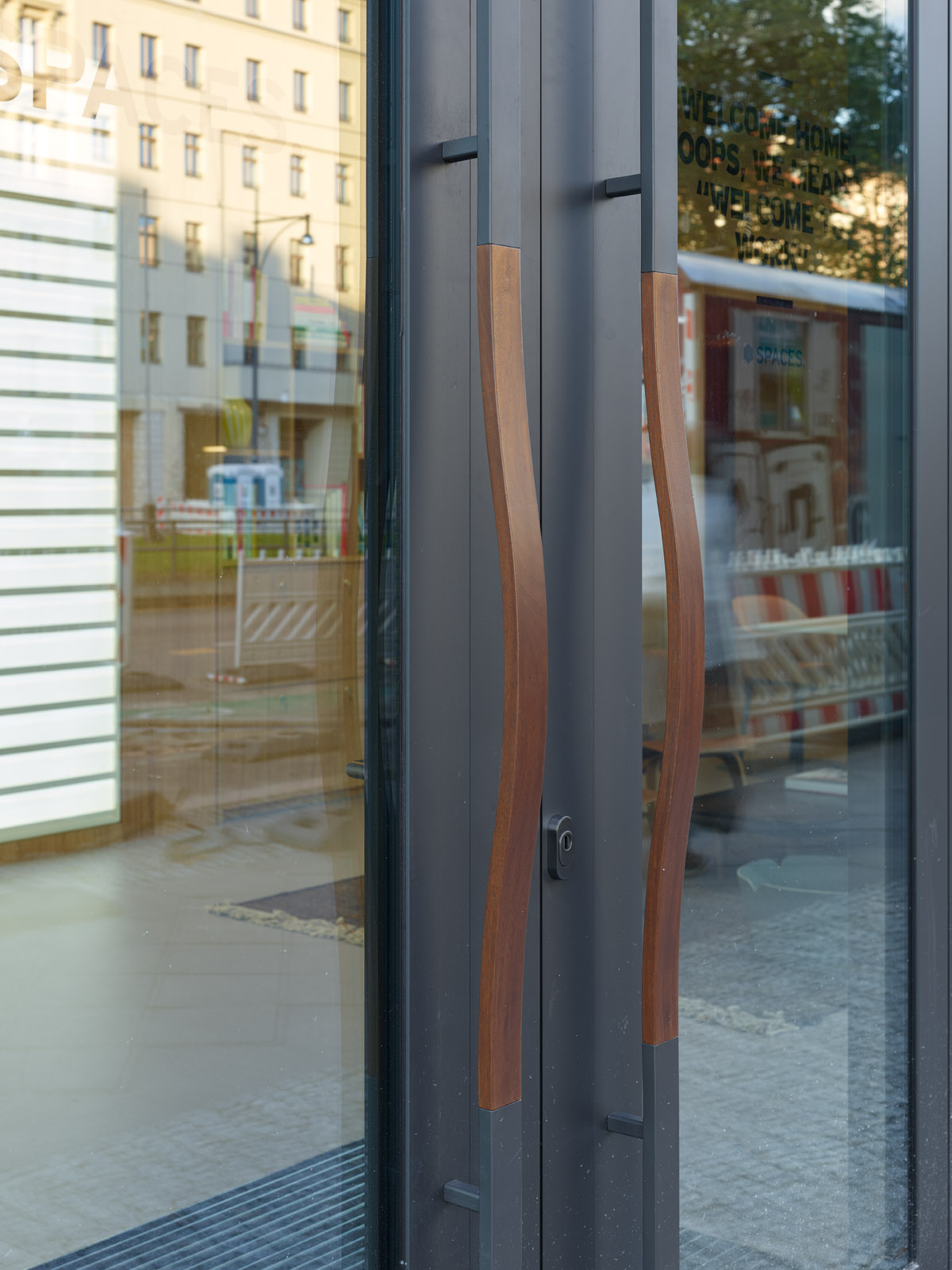

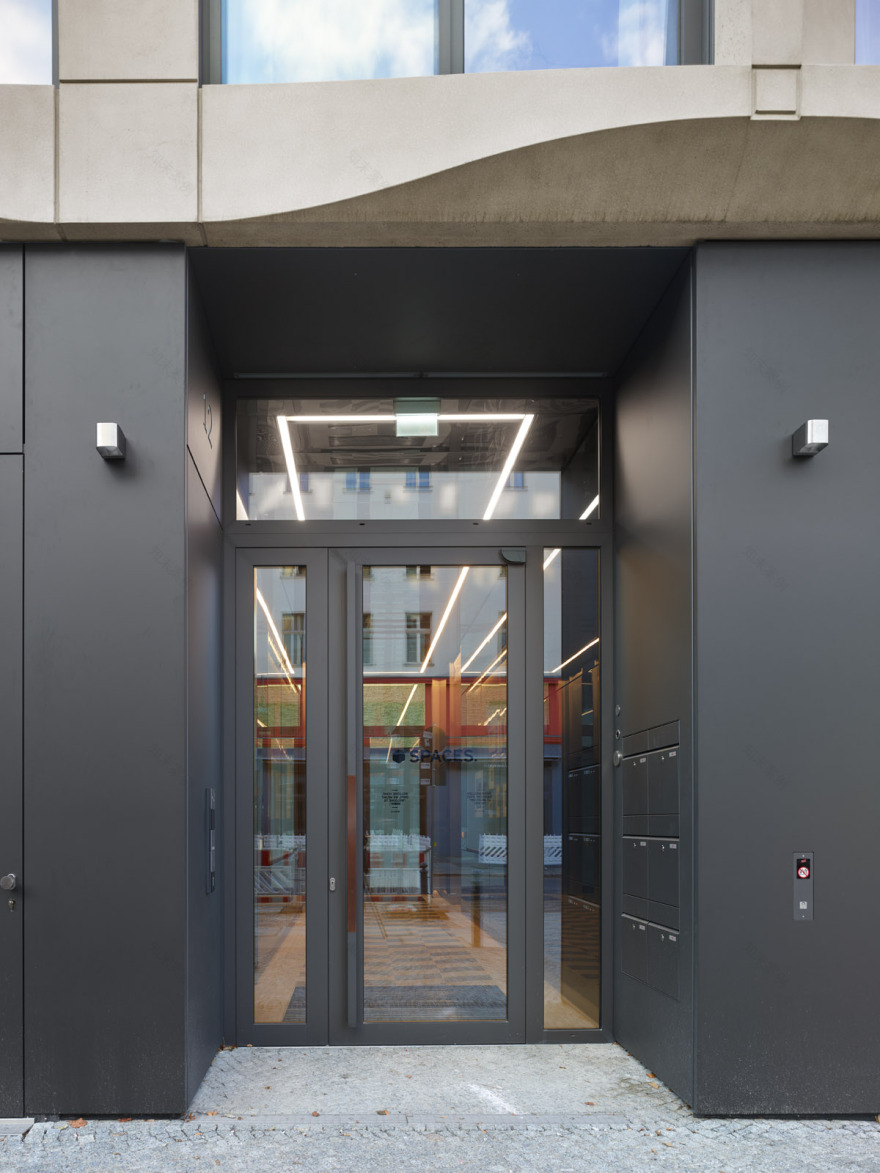

The representative foyer of the main entrance is accessed from Heinrich-Roller-Strasse. As a special design element, the lighting is integrated into the ceiling, backlit showcases in the walls are intended for the exhibition of works of art.
