Architect：Studio BAM!

Location：South east London, UK; | ;

Project Year：2017

Category：Private Houses

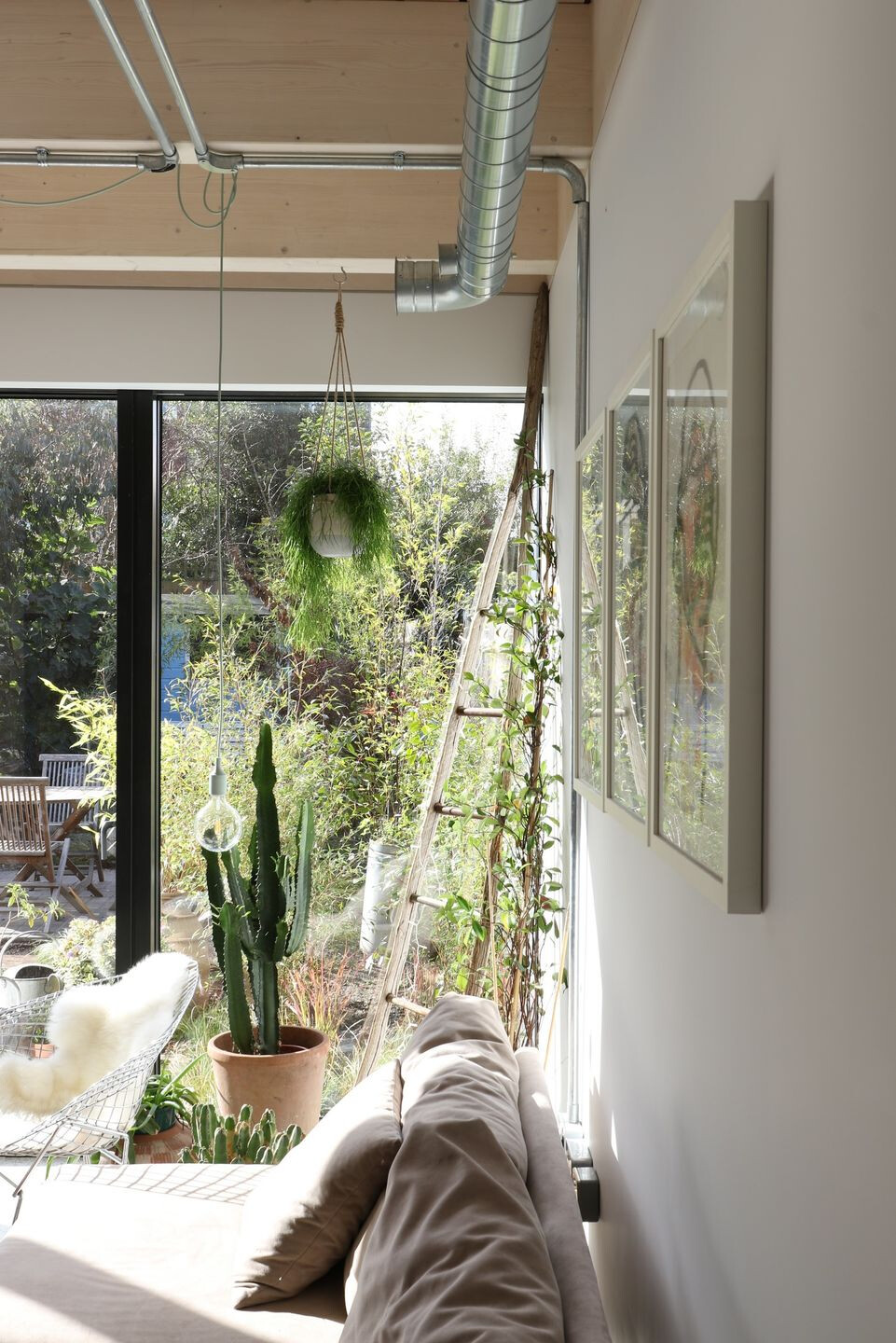

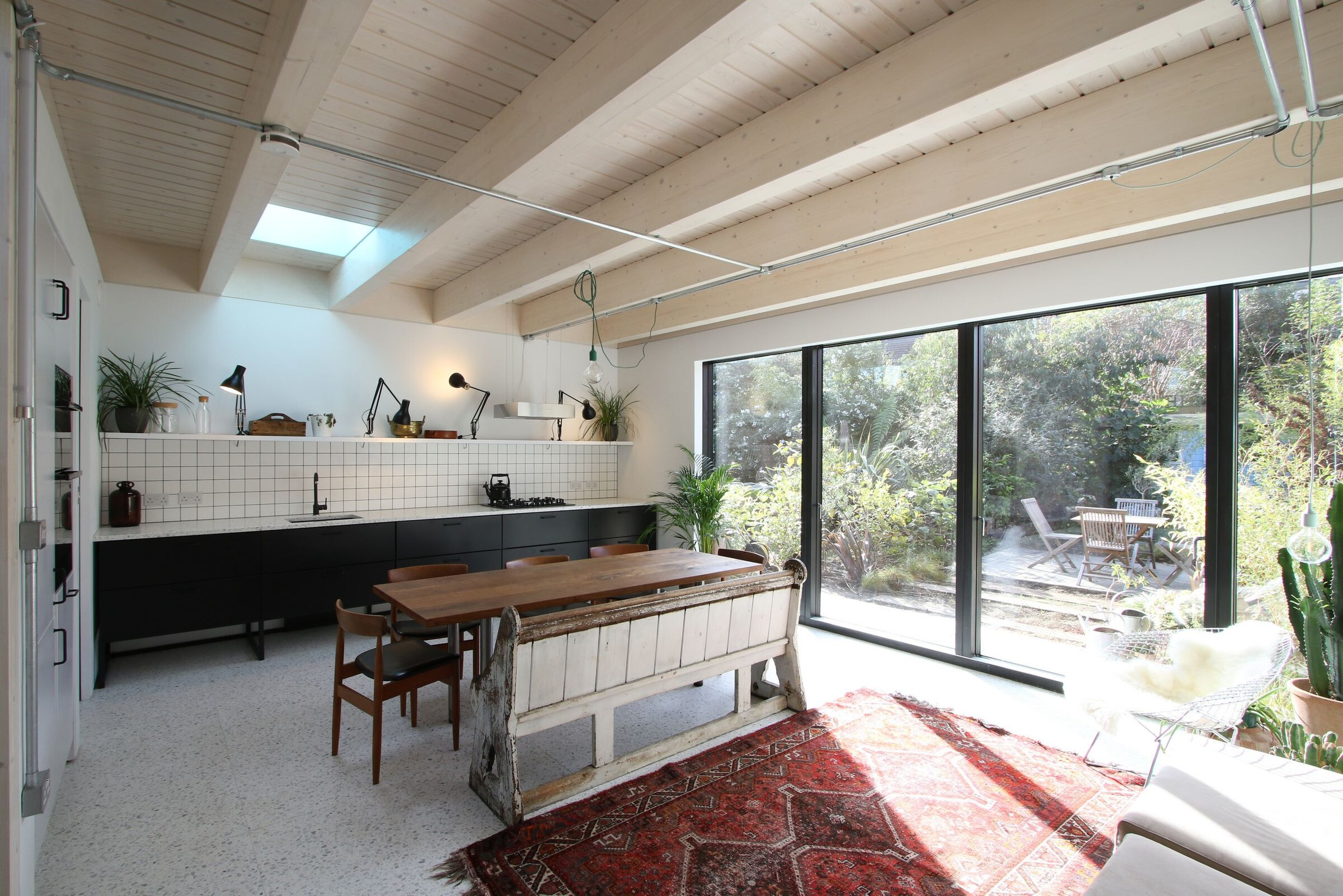

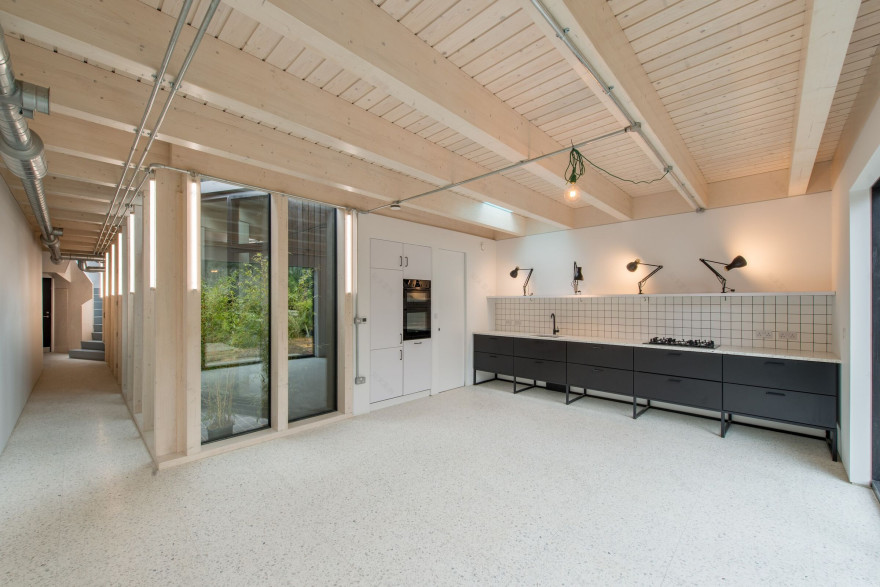

This newly completed two bedroom house occupies an eccentrically shaped site in the garden of a Victorian end-of-terrace property.The triangular plot tapers from 7 metres (facing the rear garden) to 2 metres at the street frontage, tucking in next to the client’s existing house. To rationalise the unusual shape of the site we introduced a triangular courtyard, which accommodates a series of adjacent rectangular rooms. This courtyard affords daylight and ventilation to the ground floor bedroom, loggia and living space.  To the rear sits a large garden, accessed by sliding doors from the multi purpose living space.

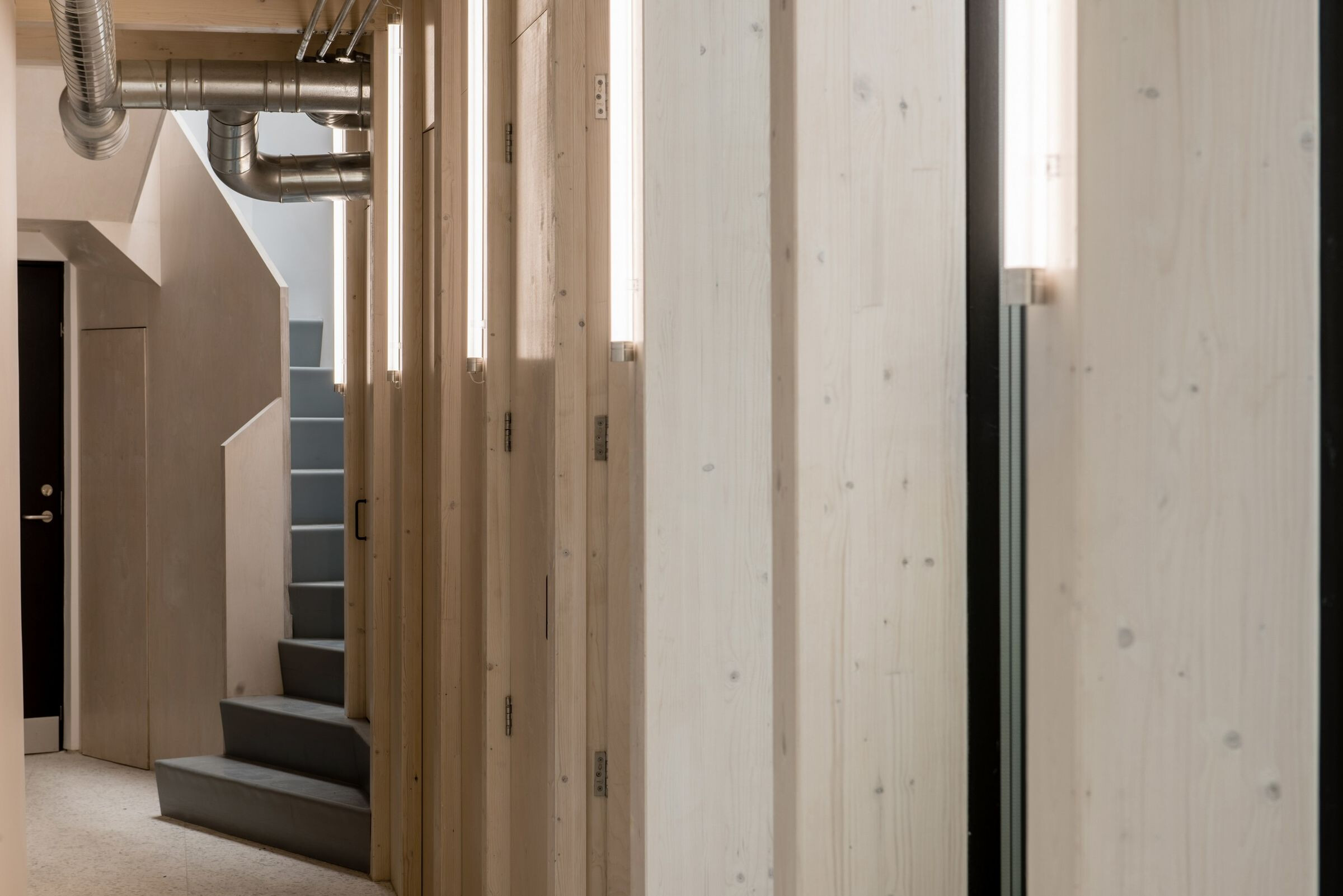

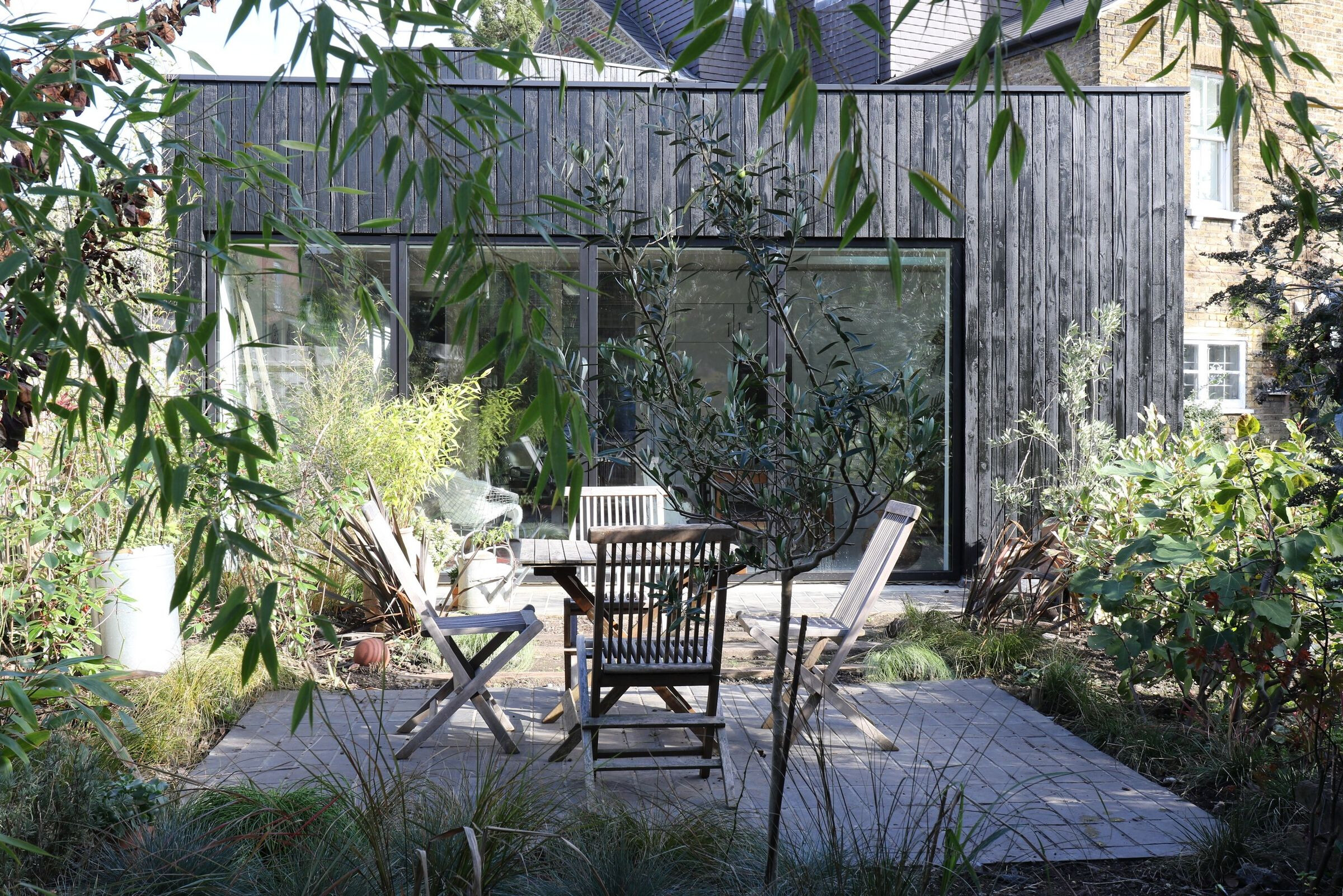

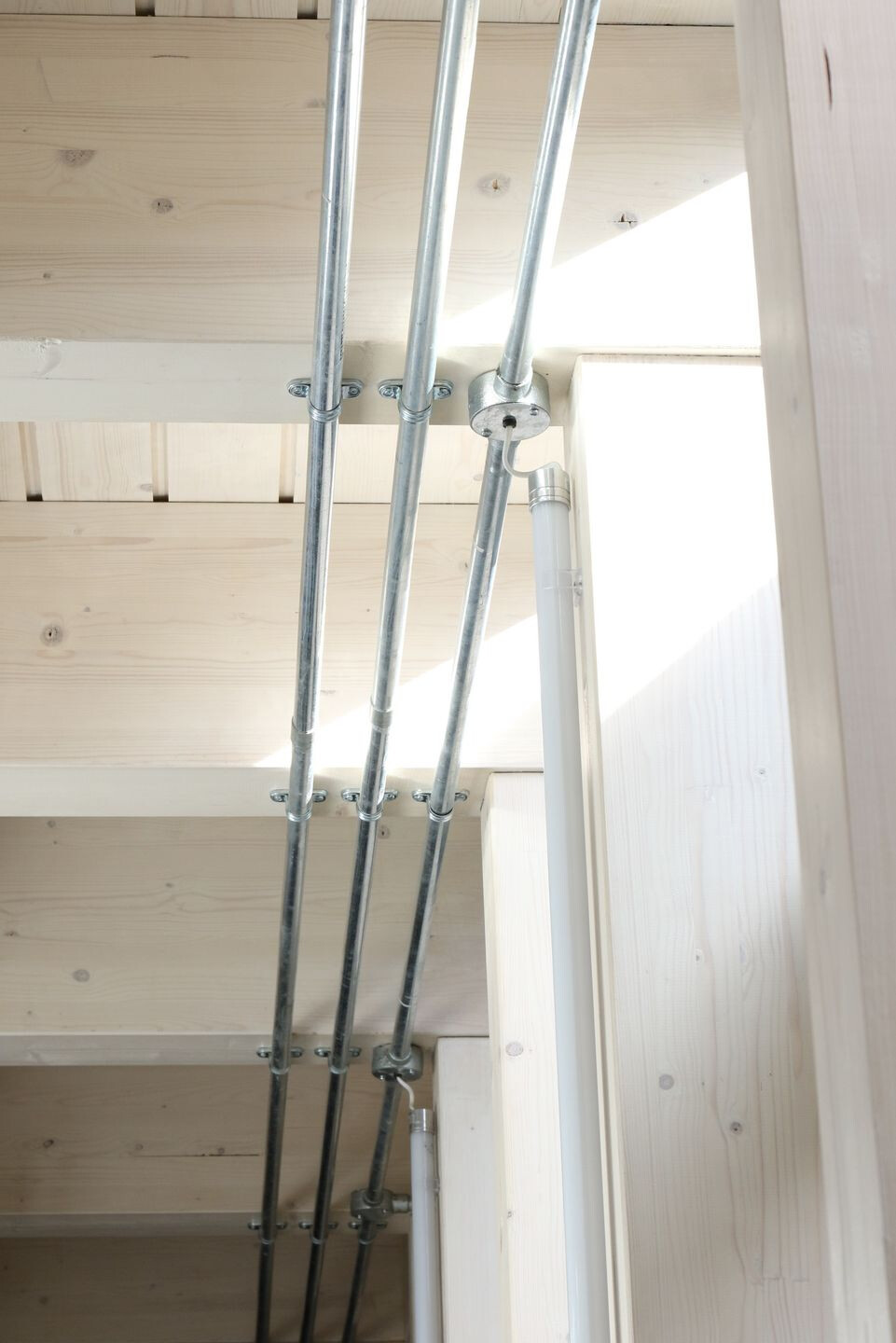

We limited the material palette to a carefully considered selection, which was applied throughout. The dark, burnt cedar exterior is intended to act as a counterpoint to the neighbouring Victorian buildings, whilst the form of the front elevation mimics the protruding bay windows along the terrace.  Internally the space is bright and calm, with the natural textures of whitewashed spruce, pale terrazzo and birch plywood acting as a foil to the galvanised steel services runs and black metal fixtures.

A limited budget guided the design towards an economical timber framed construction, which in turn allowed resources for good quality finishes, services and fixtures.   An emphasis was placed on robust, simple detailing to make the building both legible and honest.

1. Timber frame superstructure - Anson Timberworks, whitewashed spruce

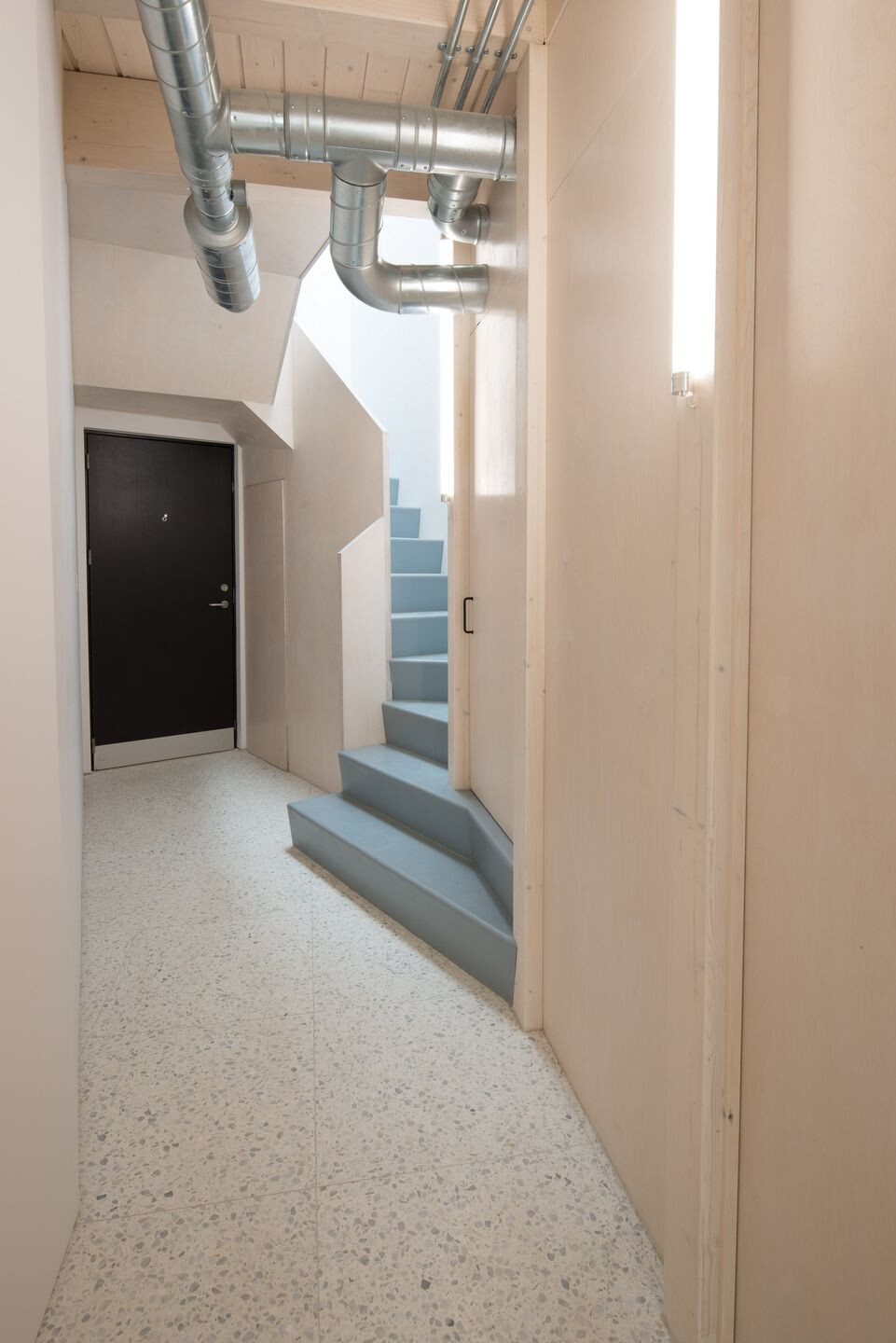

2. Mechanical Ventilation and Heat Recovery system - Built Environment Technology Ltd., Lindab ducts, attenuators and valves supported on Gripple hangers.

3. Glazing - Velfac 200 system

4. Terrazzo tiles - In Opera

5. MVHR unit - Zehnder ComfoAir Q350

6. Boiler - Vaillant Ecotec

7. Rooflights - Roof Glaze

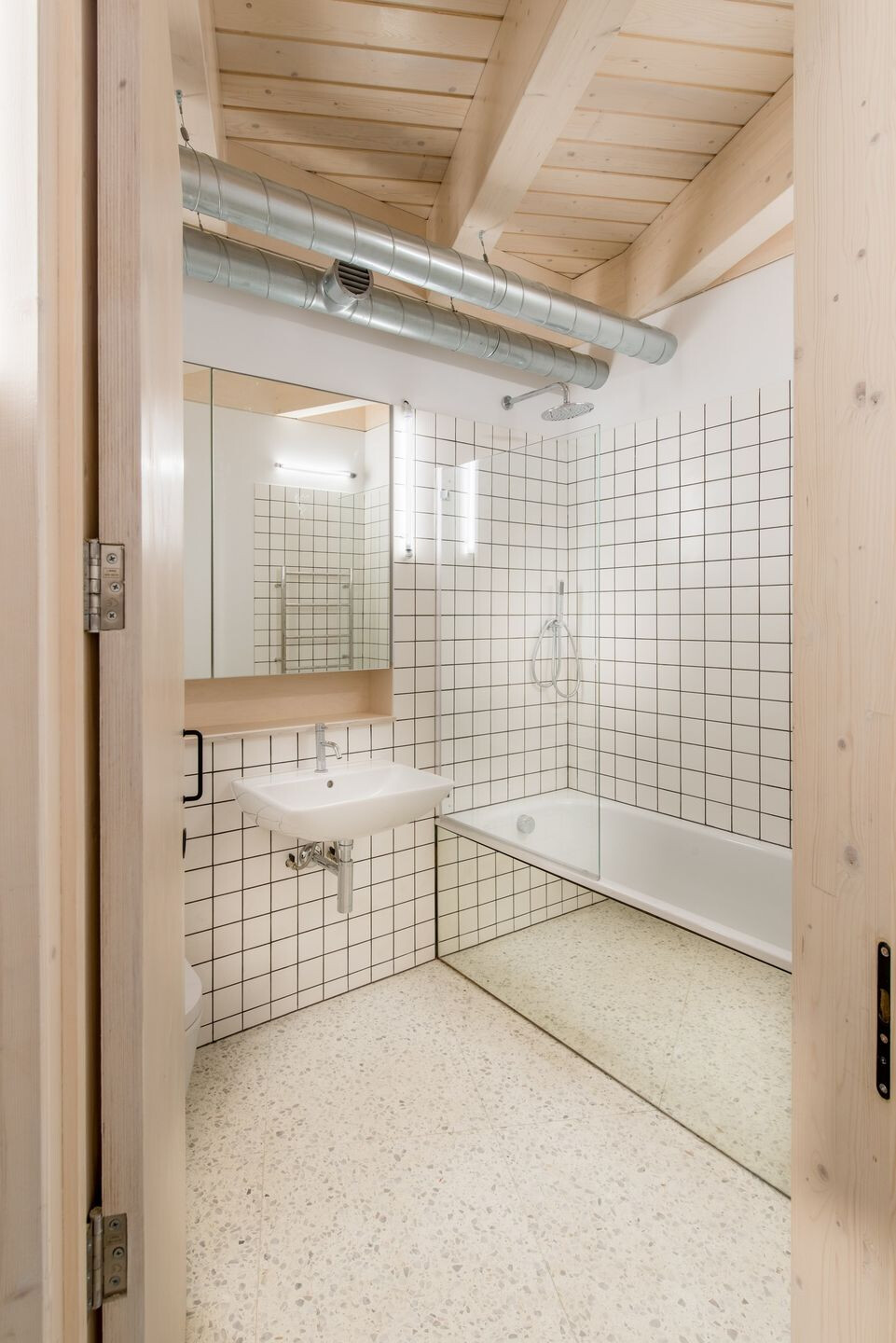

8. Bathroom wall tiles - Primus Vitoria

9. Staffordshire blue quarry tiles and engineering brick - Ketley Brick

10. LED tube light fixtures - Encapsulite

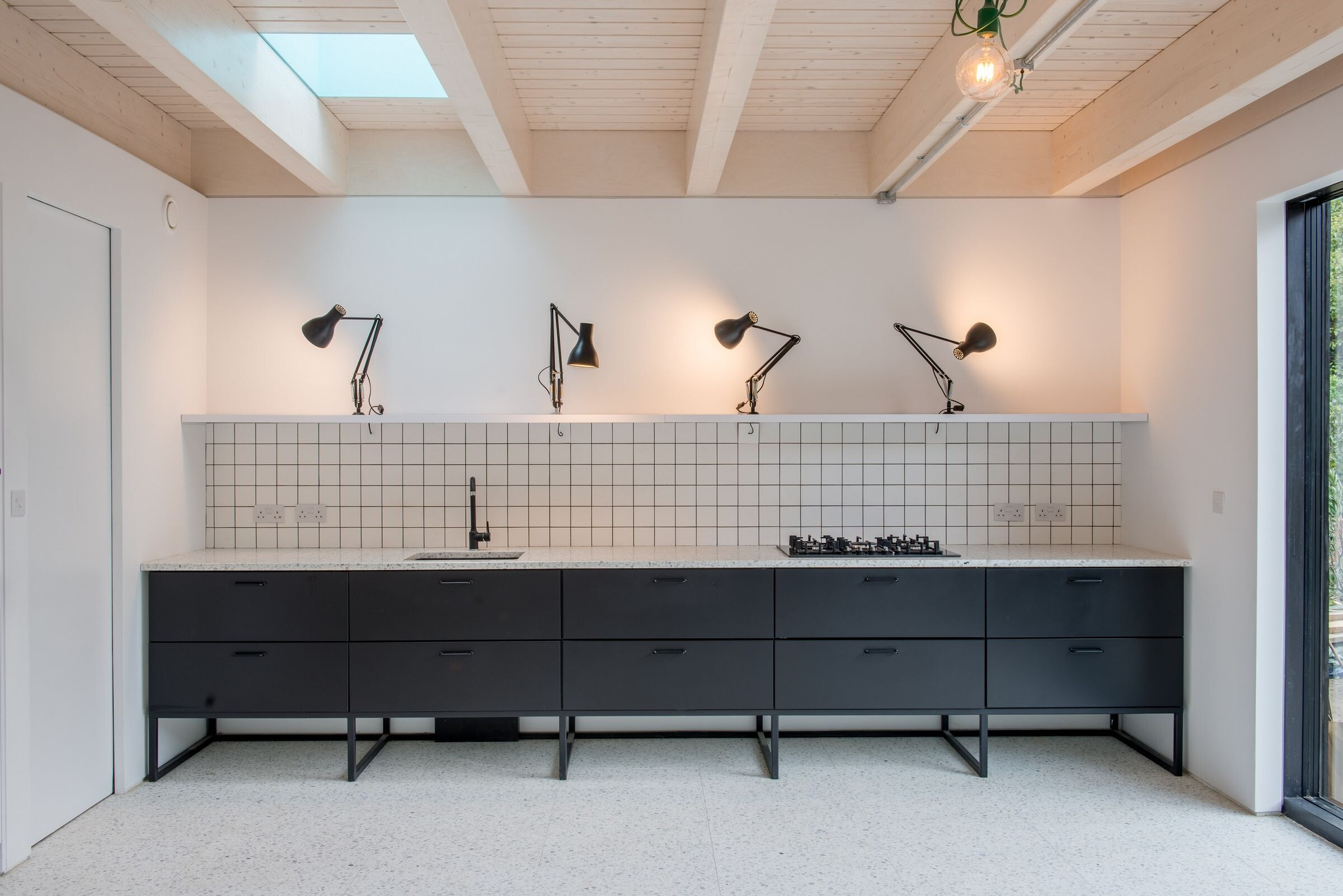

11. Kitchen wall lighting - Anglepoise

12. Pendant lights - Muuto E27
