Piedrabuena House

The ceramic in the Piedrabuena house acquires diverse qualities as a relevant element. The continued presence of this material in the town and the limited budget suggested a proposal that reread its more material condition.

Courtesy of MUKAarquitectura

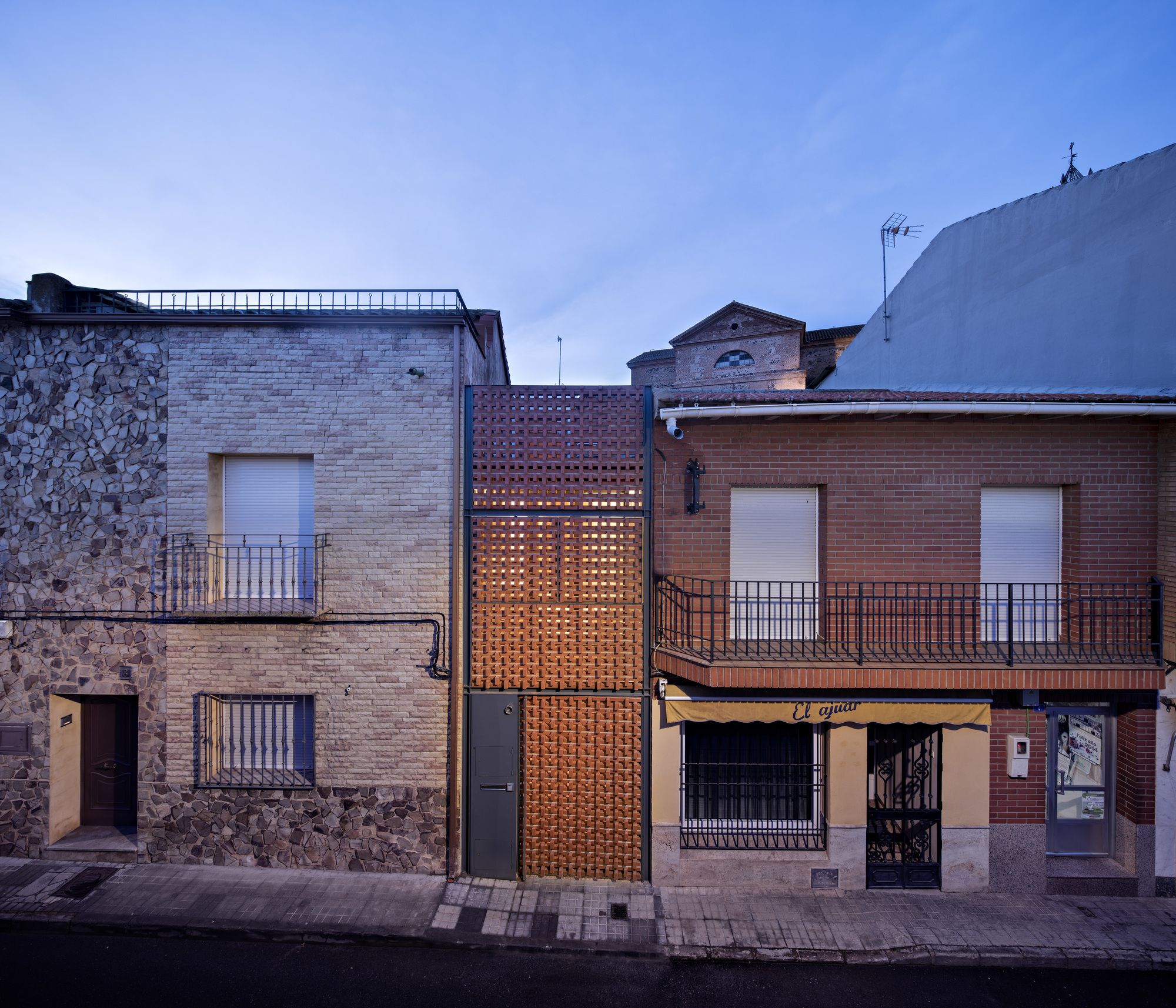

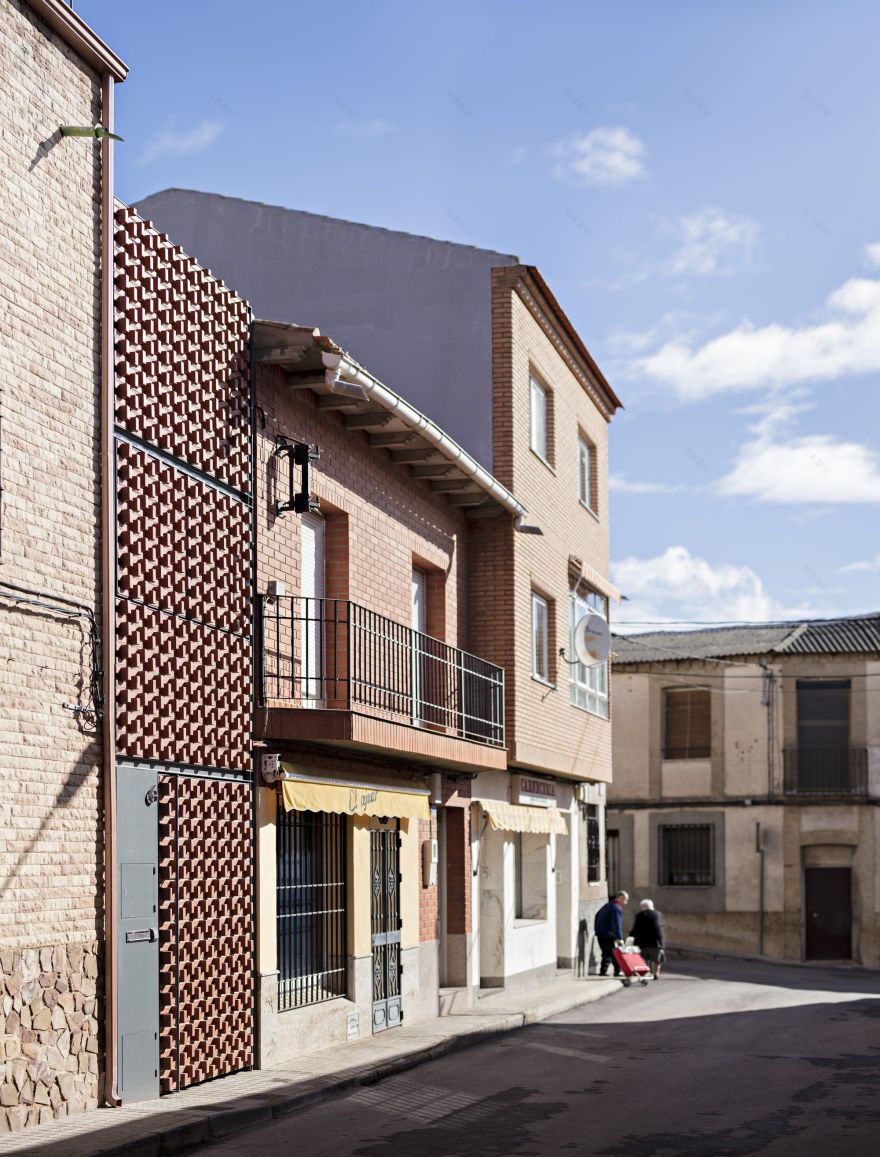

In a plot of two and a half meters of façade, the use of a paving of pressed clay off the edges of the floors acts as if it were a ceramic curtain. A curtain that hides any reference to the domestic size of the voids and proposes to unify the adjoining facades. The scale disappears and the proposal highlights the link between existing buildings.

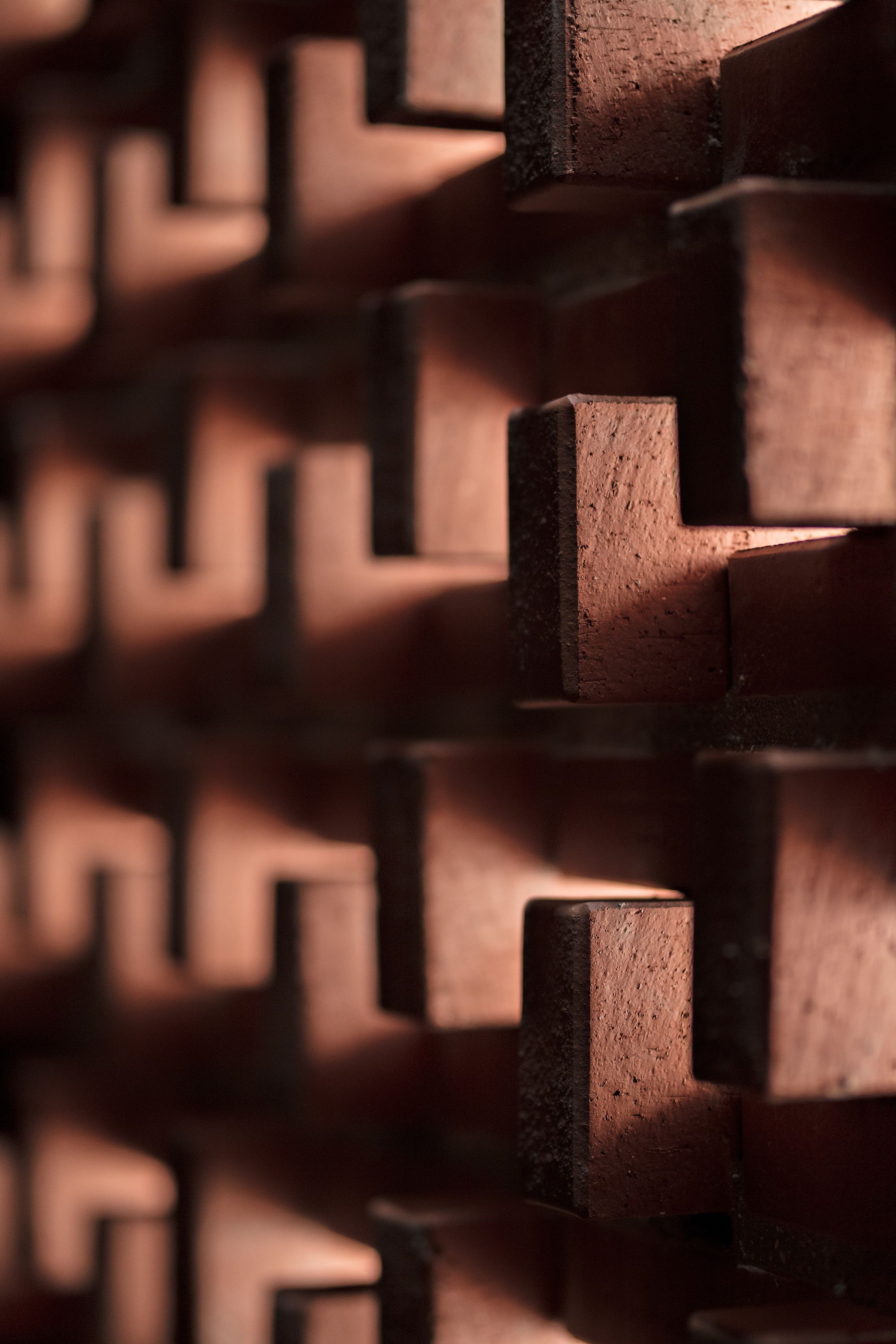

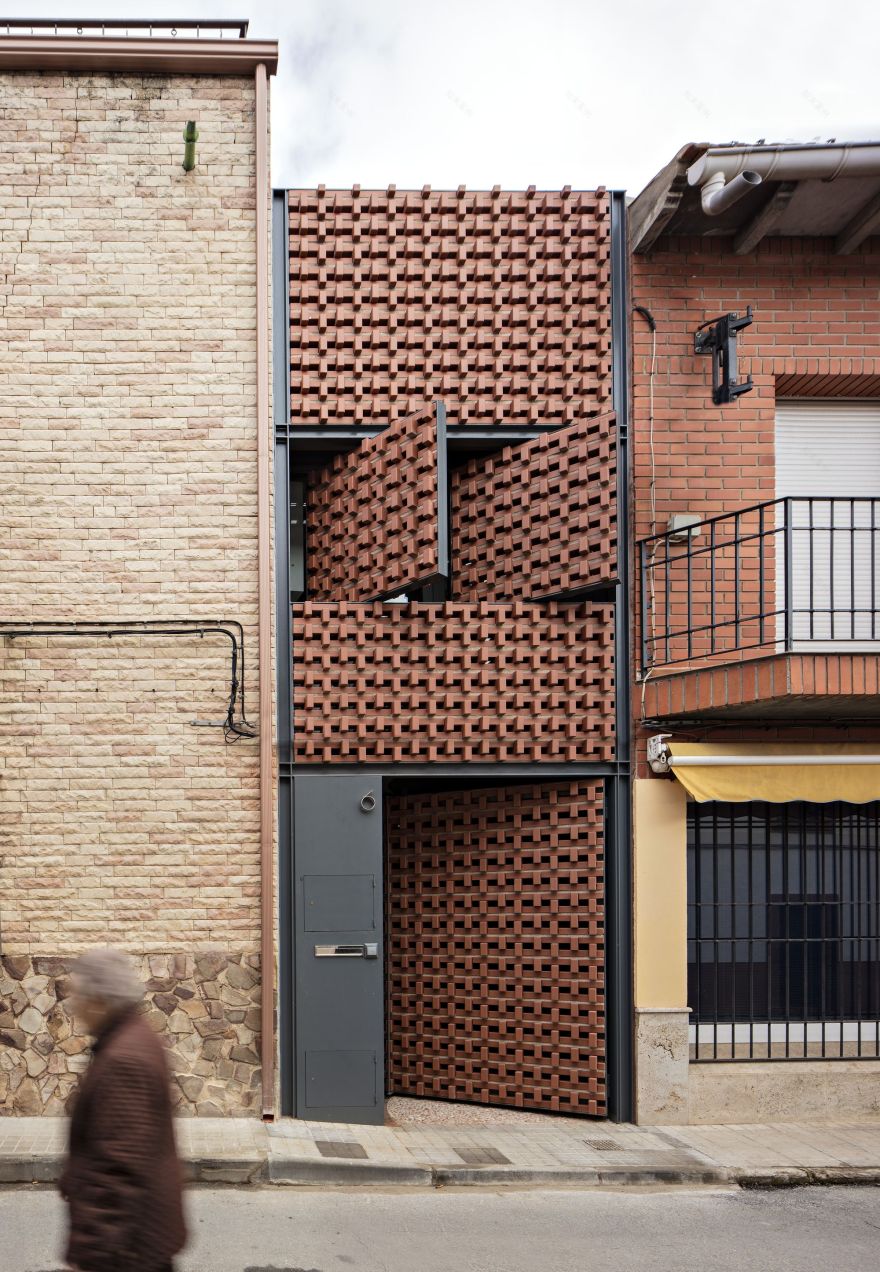

The alternating arrangement of the module with rope and rowlock draws a vibrant and porous latticework. Vibrant is the play of shadows, and porous because it filters the direct light that penetrates the interior of the house on the vertical glass cloth behind it. This light is molded by the pieces of clay and go through the interior of the house over the day. When the sun’s rays do not directly affect the façade, the set of folding and pivoting parts offers a new relationship between the interior and the exterior.

Courtesy of MUKAarquitectura

The different delayed positions of the glass create intermediate spaces such as the access and terraces. The façade is present in all the interior rooms, since the plan proposes the diagonal as a spatial relationship scheme: extending the distances of a narrow plan and the perception of its limits. The possibility of moistening the ceramic pieces periodically proposes a bioclimatic system of natural ventilation in the interior.

The air that penetrates through the wet lattice elevates its relative humidity and accesses the home to improve the comfort.

Courtesy of MUKAarquitectura

Project Info: Architects: MUKAarquitectura Location: Piedrabuena, Ciudad Real ,Spain Area: 135 m² Project Year: 2017 Photographs: Courtesy of MUKAarquitectura Manufactures: Cerámica Malpesa, Intelec, Sanpec

Courtesy of MUKAarquitectura

Courtesy of MUKAarquitectura

Courtesy of MUKAarquitectura

Courtesy of MUKAarquitectura

Courtesy of MUKAarquitectura

Courtesy of MUKAarquitectura

Courtesy of MUKAarquitectura

Courtesy of MUKAarquitectura

elevation

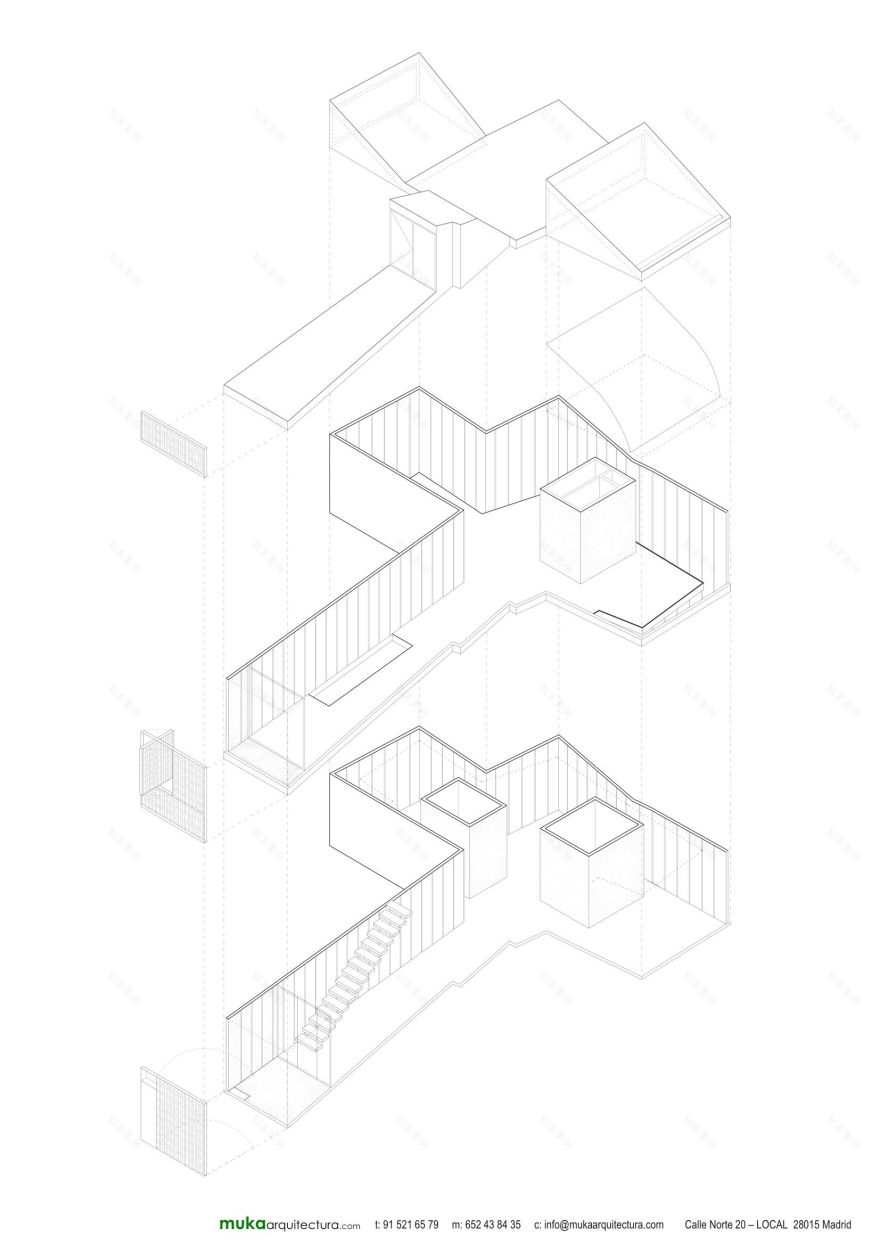

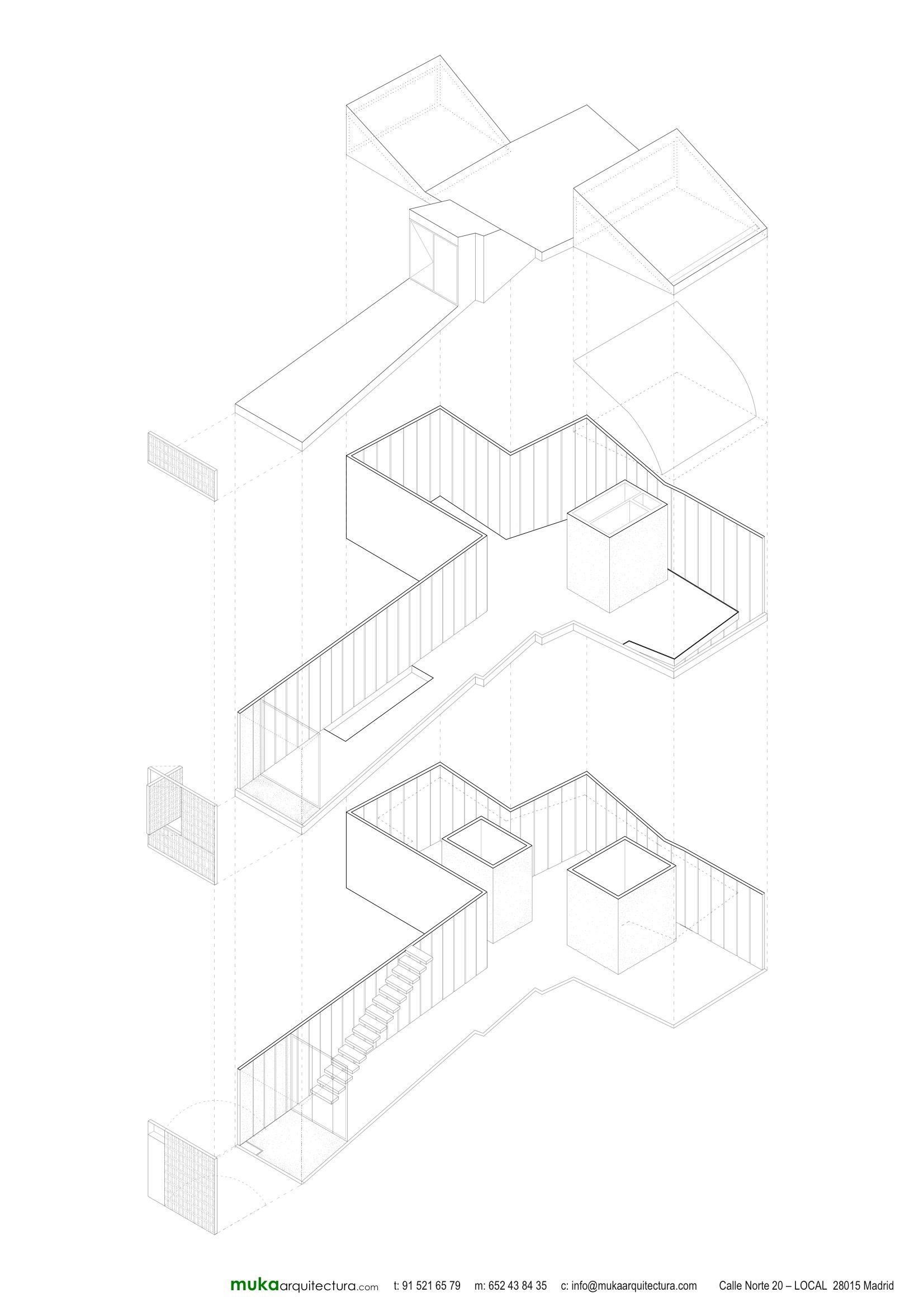

Axonometric

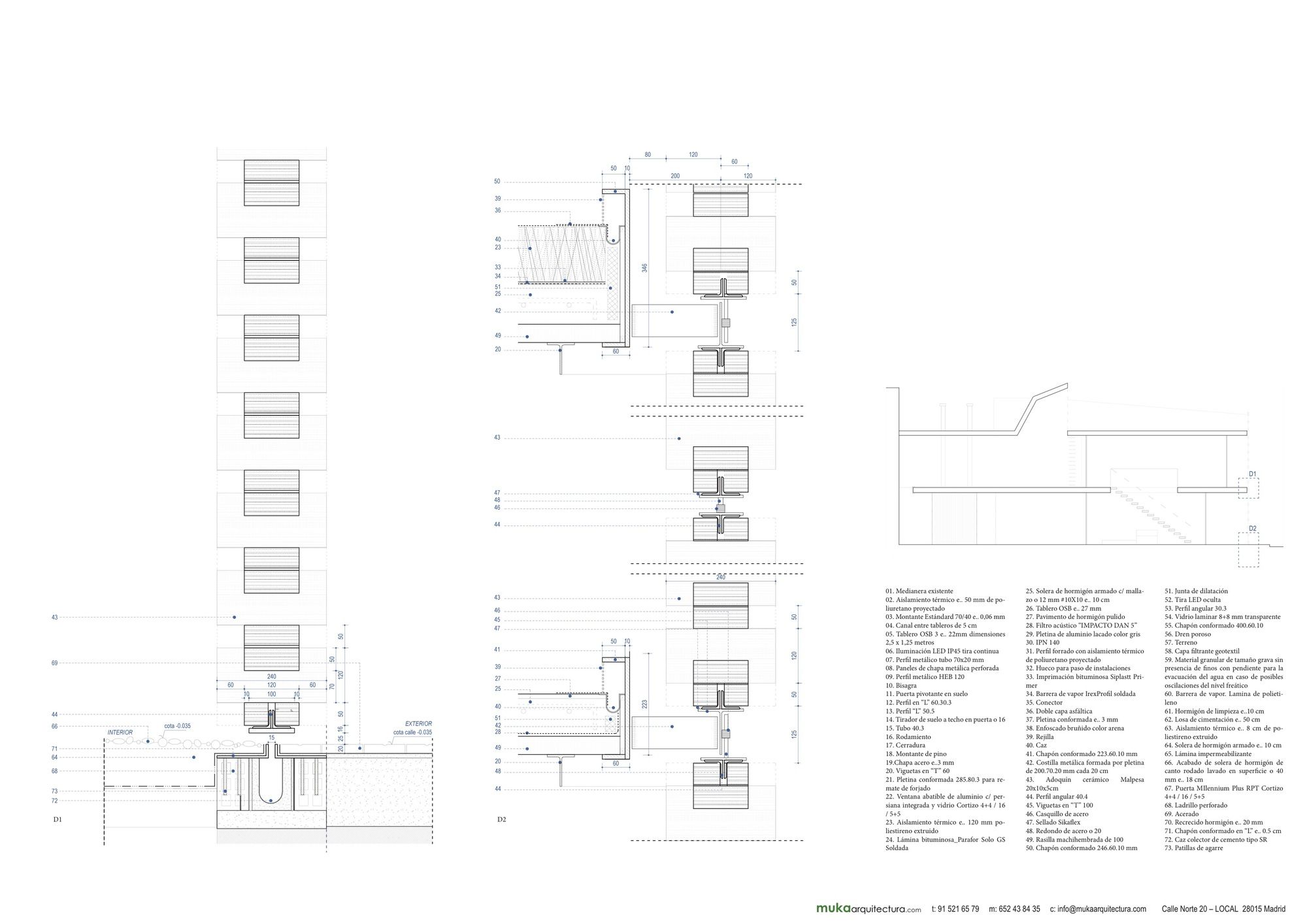

Details

Details

Site Plan

Location

Floor Plans

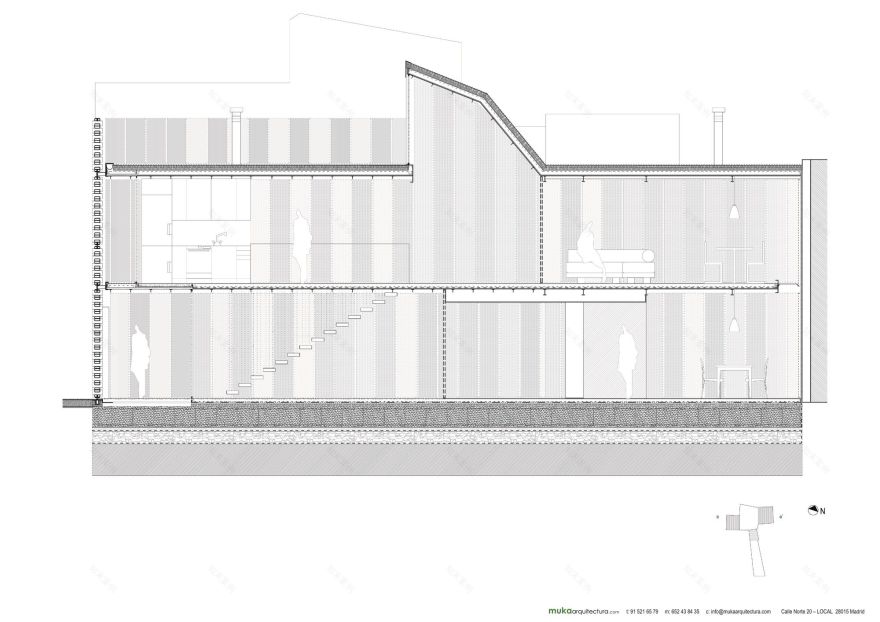

Longitudinal Section

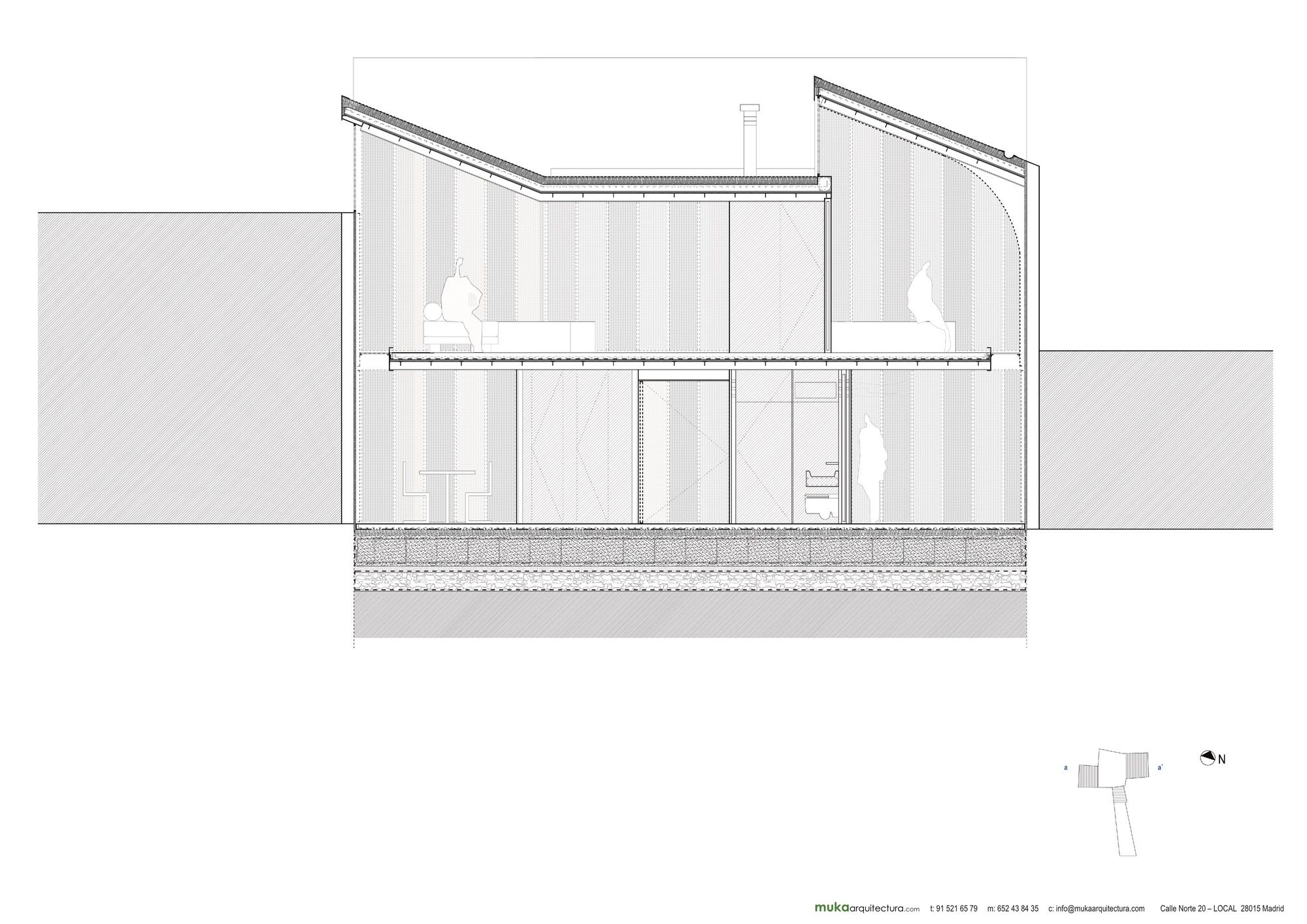

Cross Section
