House in Melgaço
The house to be extended, a very small rural stone building, formerly inhabited by a family of 11 members, fits into the rough terrain of a large plot of land in Melgaço, in the interior of Minho, in Northern Portugal.
The powerful landscape and the character of the existing ruin suggested an extension to the house like a timeless construction, with no defined boundaries, but limited by the local materials.
The extension to the house, which accommodates the lounge and three bedrooms, is an underground body which lets in natural light through the opening of a courtyard to the east, cut out from the land, and the west extension of the original façade: a granite wall made of stones from another local building since demolished.

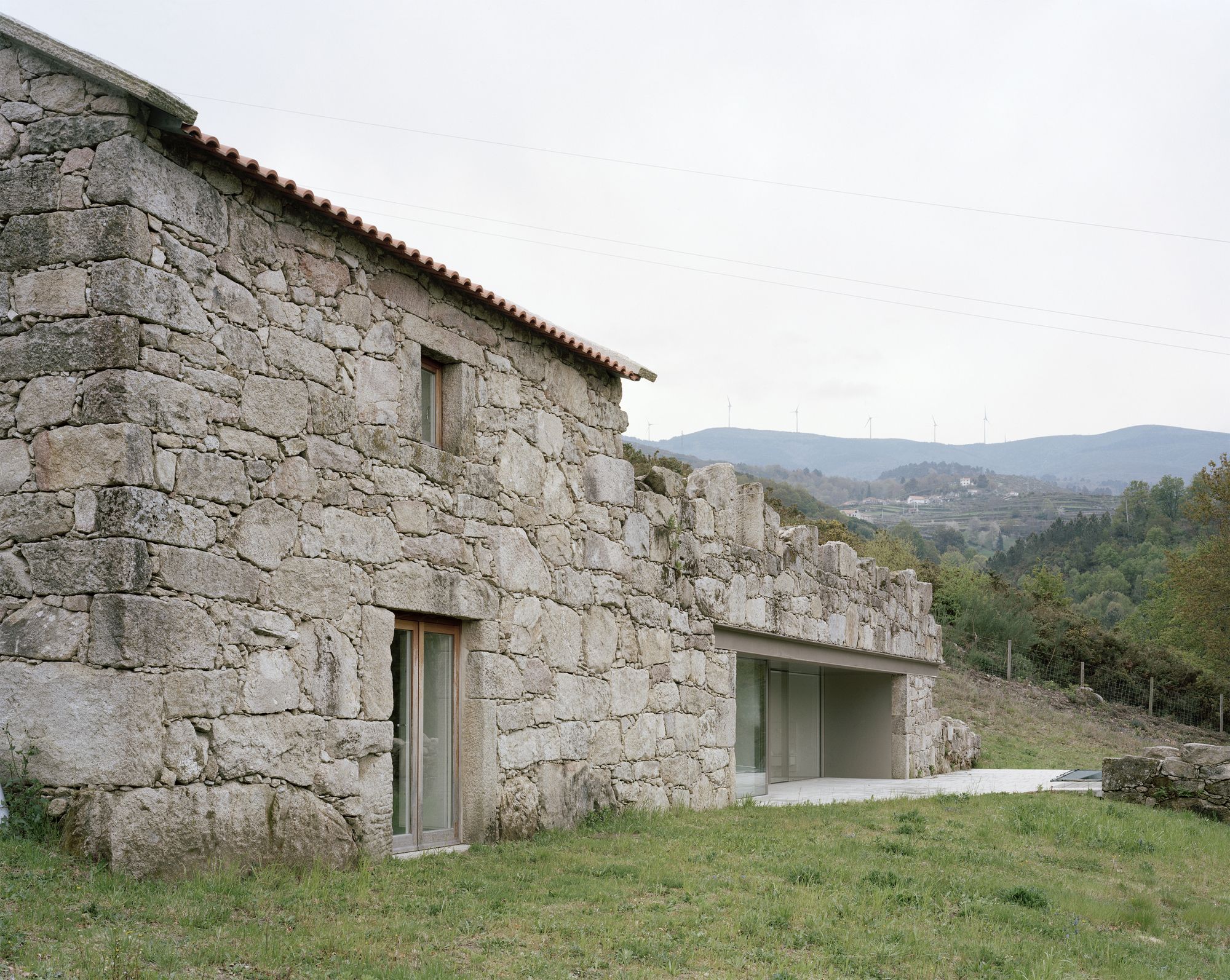

葡萄牙 Melgaço 乡村住宅扩建-4
photograph by © André Cepeda
The small house contains the dining and cooking areas on two floors, connected by an interior staircase against the north façade.
To complete domestic life, three small bodies are built which are independent of the main construction in terms of volume:To the east, a concrete canopy for car parking and protection and to store firewood, and a glazed body for a small kitchen garden, and to the west a swimming pool, enclosed by a dressed stone wall to accommodate the tank.

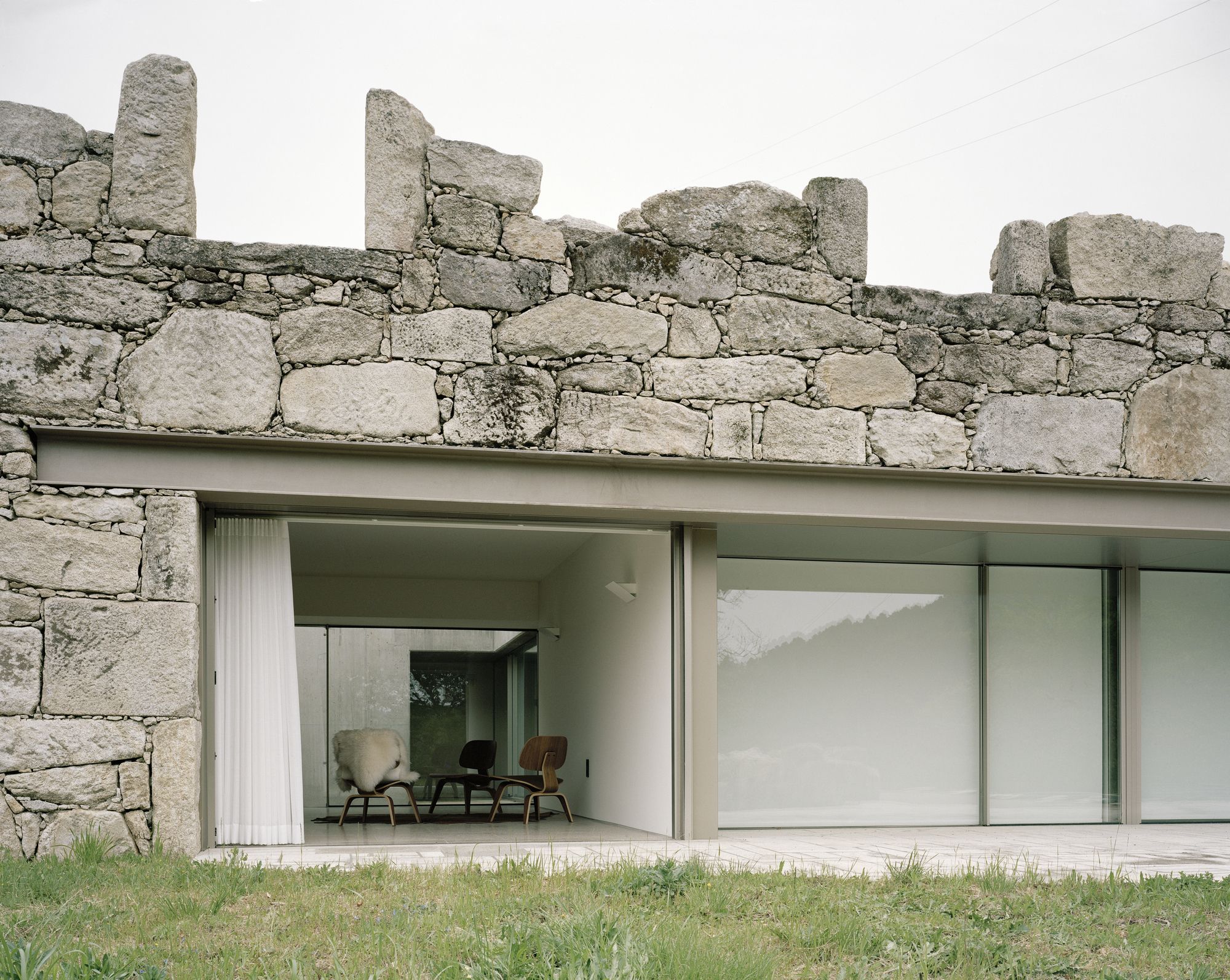

葡萄牙 Melgaço 乡村住宅扩建-8
photograph by © André Cepeda
The house has two distinct sides in shape and function: To the east, the organic arrangement of the bodies and walls built into the terrain, and their routine function, confer a homely informality on the construction.
To the west, the relationship between the façades and the swimming pool tank creates an organic setting which eludes the period of each building and stabilizes the relationship between the house and the landscape.

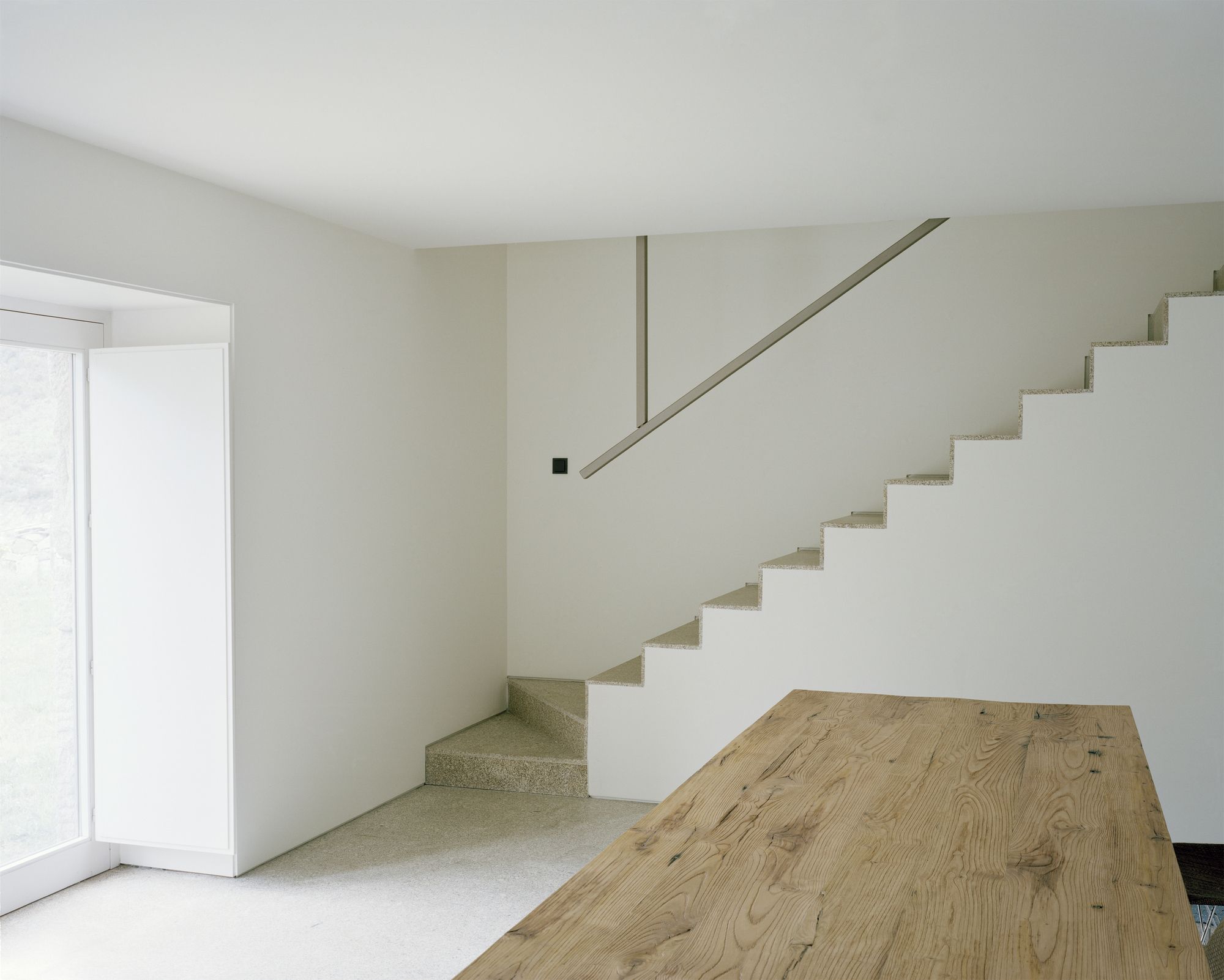

葡萄牙 Melgaço 乡村住宅扩建-12
photograph by © André Cepeda
Project Info Architects : Nuno Brandão Costa Location : Portugal Year : 2016 Type : Residential Photographs : André Cepeda
photograph by © André Cepeda

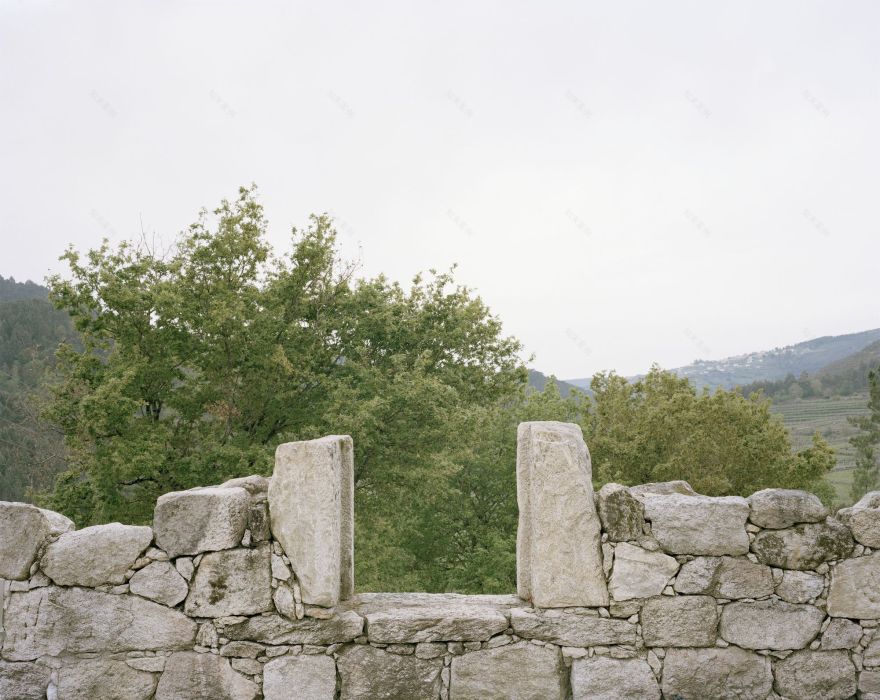

葡萄牙 Melgaço 乡村住宅扩建-16
photograph by © André Cepeda

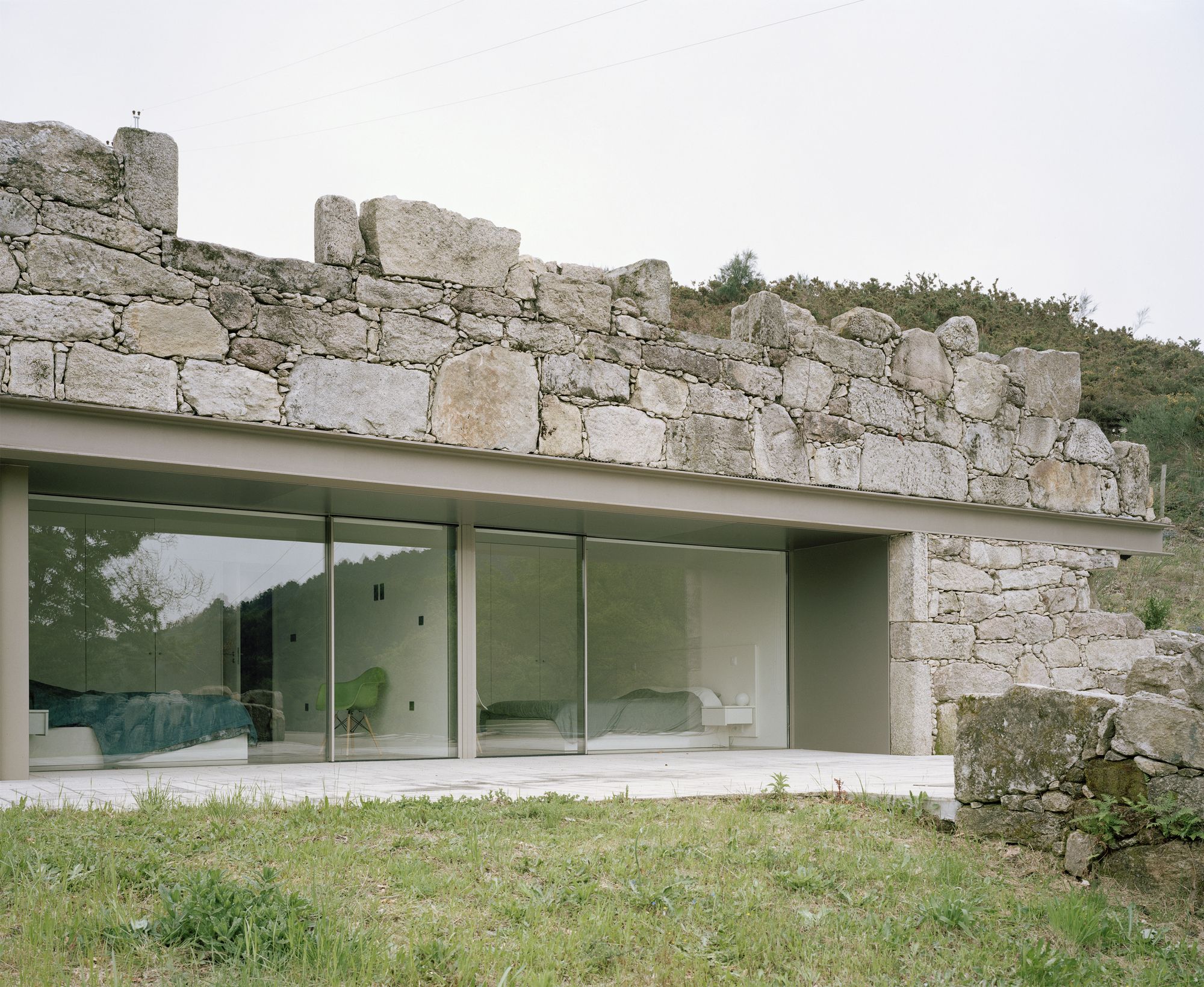

葡萄牙 Melgaço 乡村住宅扩建-18
photograph by © André Cepeda
photograph by © André Cepeda

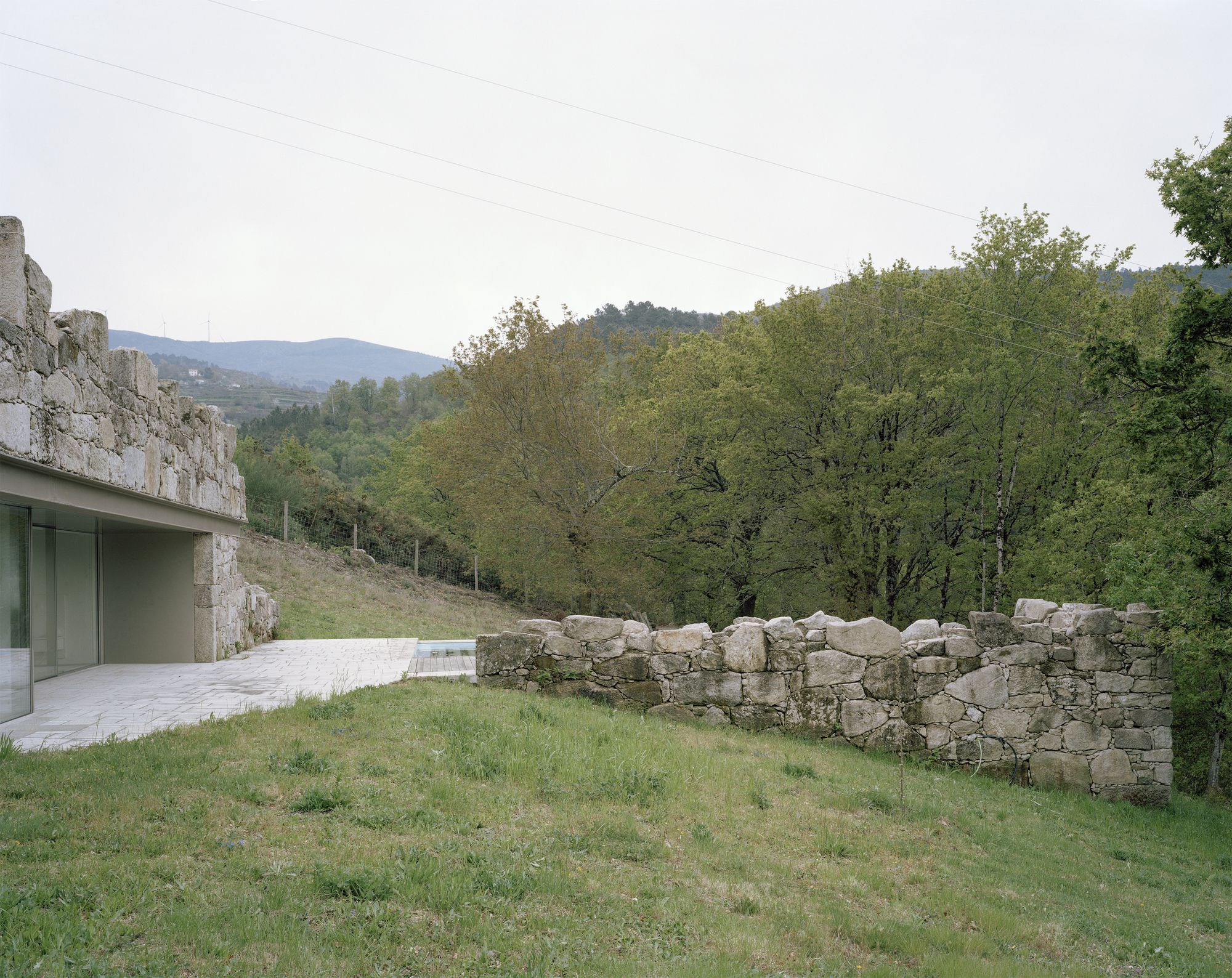

葡萄牙 Melgaço 乡村住宅扩建-21
photograph by © André Cepeda

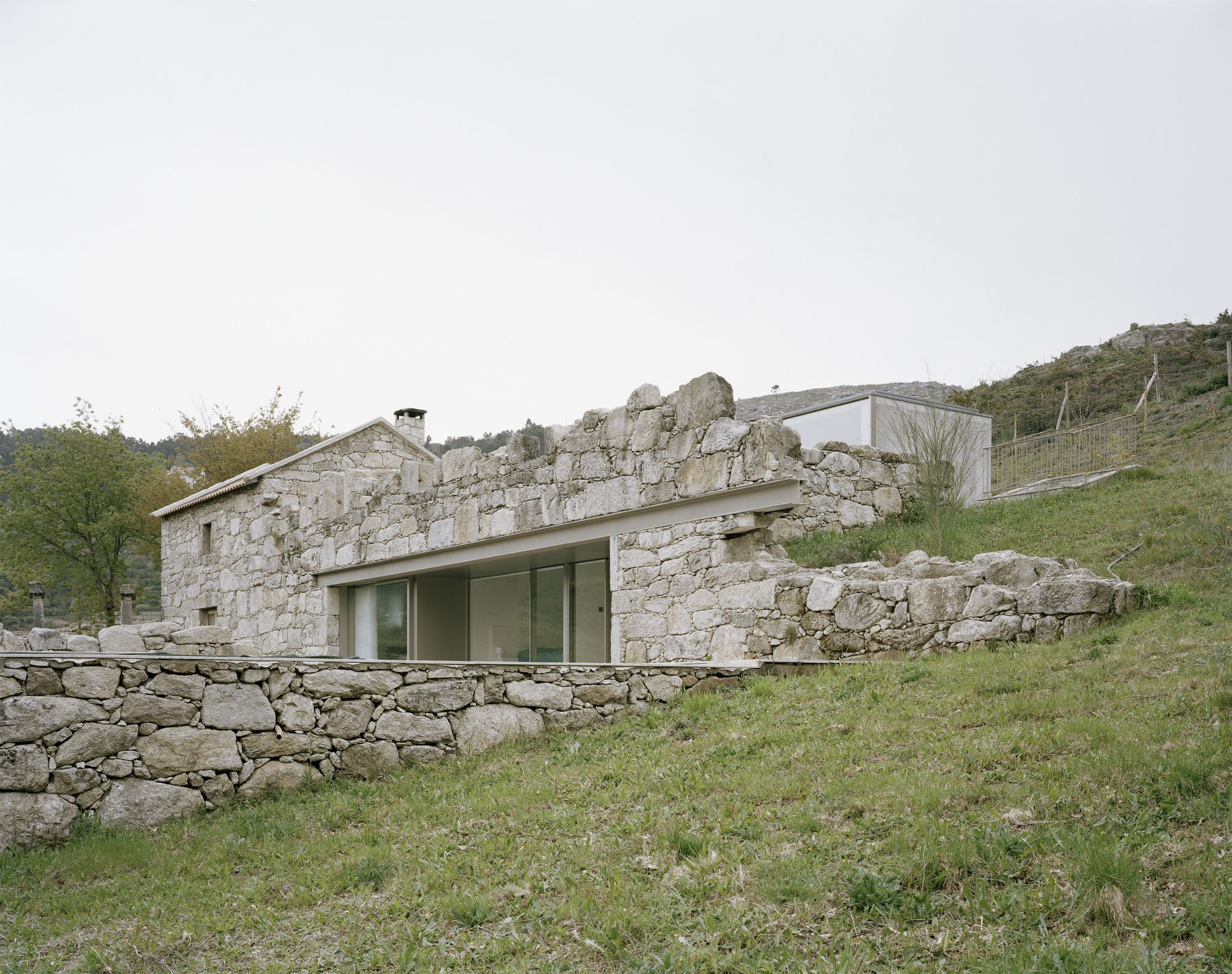

葡萄牙 Melgaço 乡村住宅扩建-23
photograph by © André Cepeda
photograph by © André Cepeda

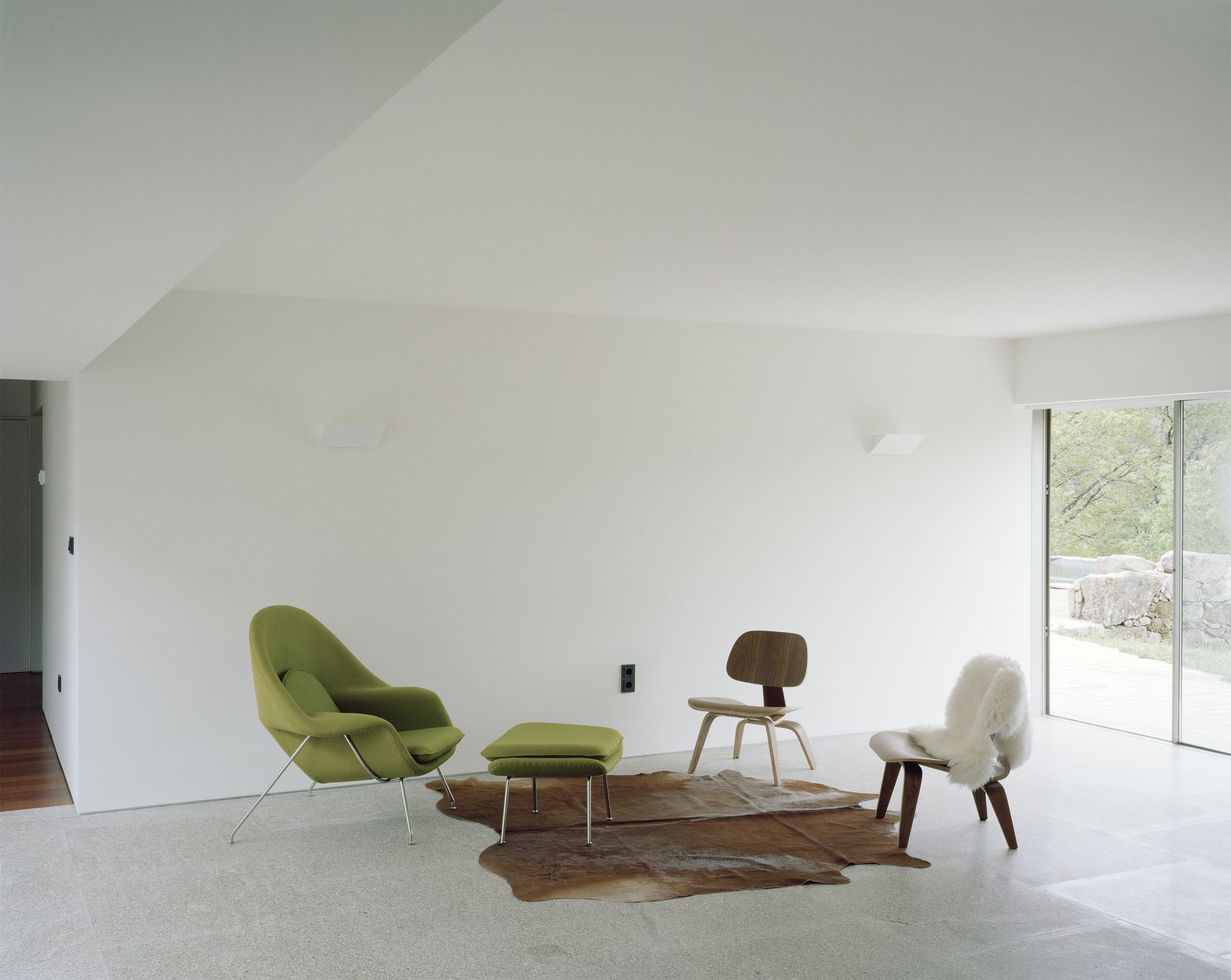

葡萄牙 Melgaço 乡村住宅扩建-26
photograph by © André Cepeda

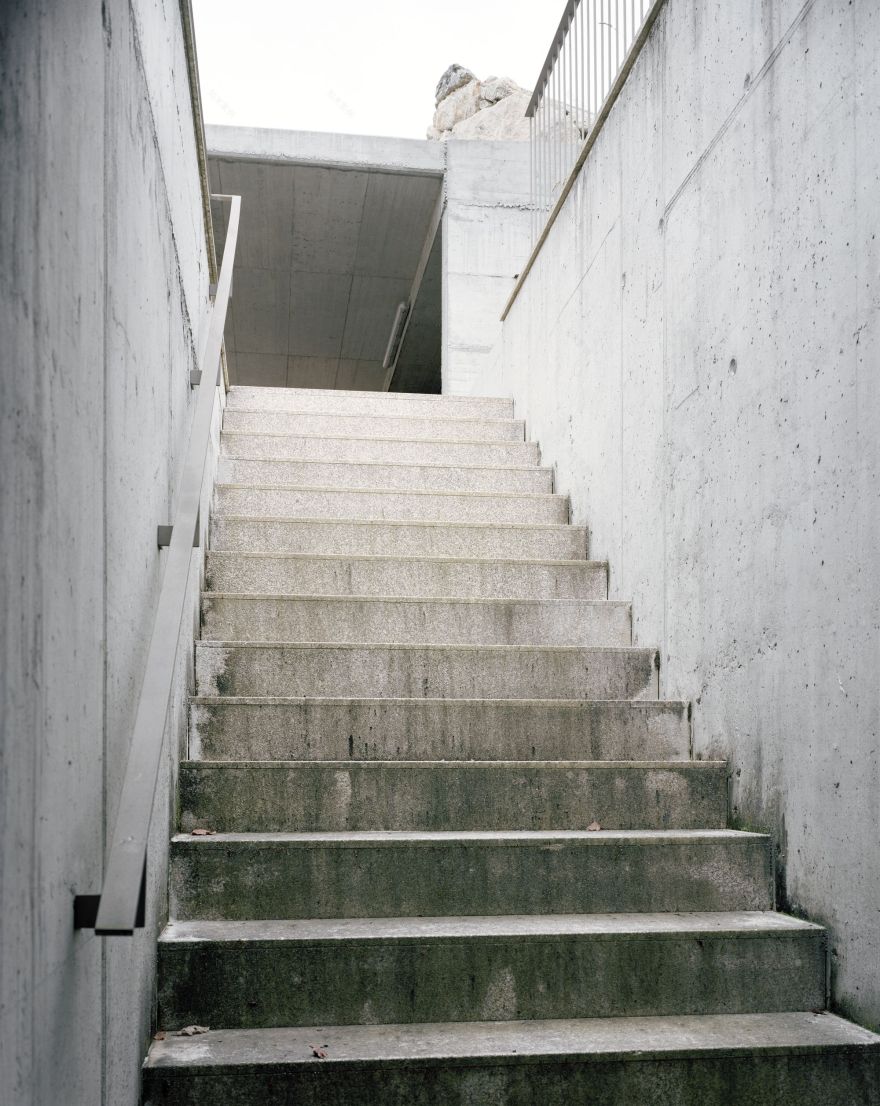

葡萄牙 Melgaço 乡村住宅扩建-28
photograph by © André Cepeda
葡萄牙 Melgaço 乡村住宅扩建-30
Elevation

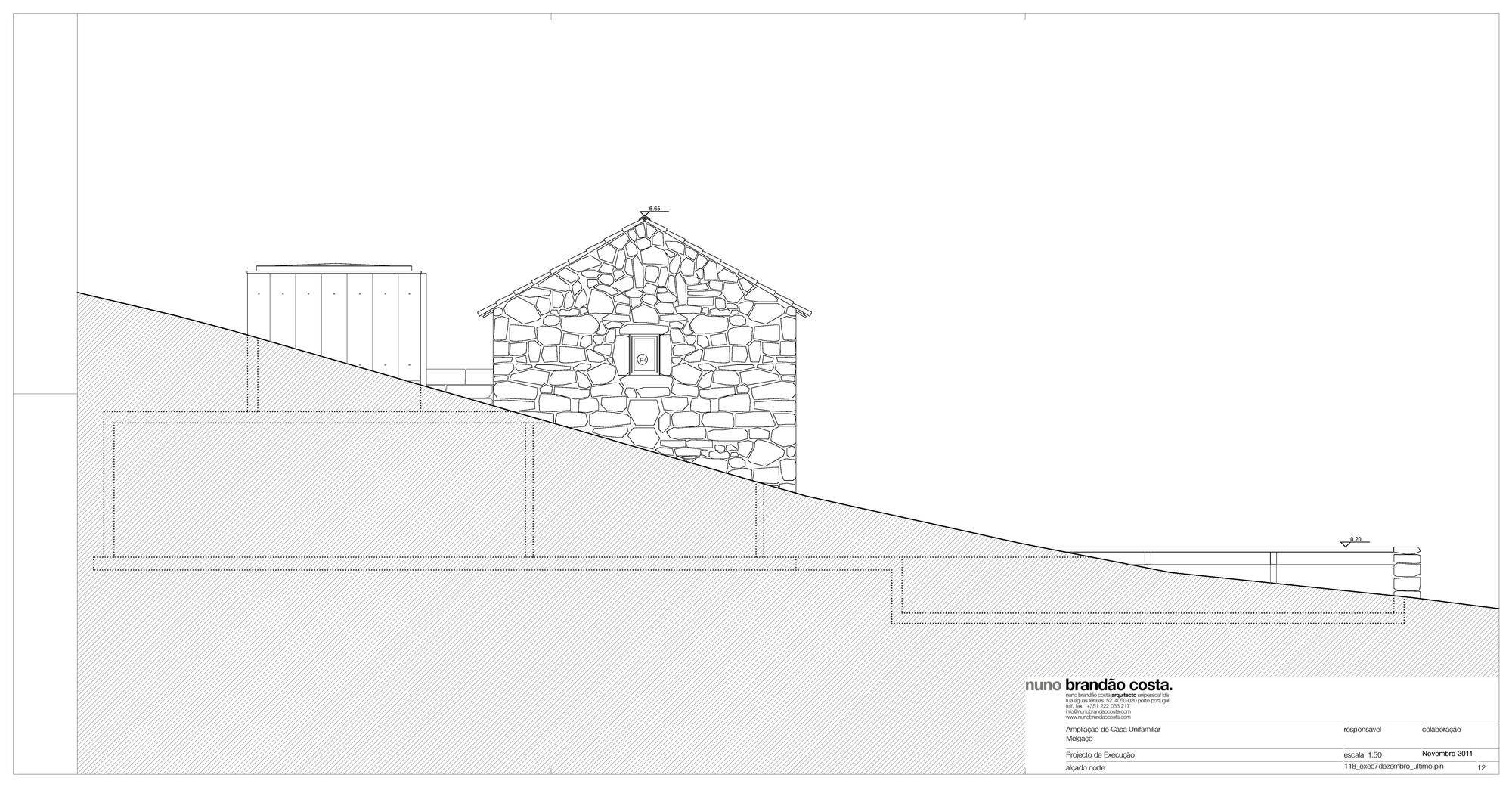

葡萄牙 Melgaço 乡村住宅扩建-32
Elevation
葡萄牙 Melgaço 乡村住宅扩建-34

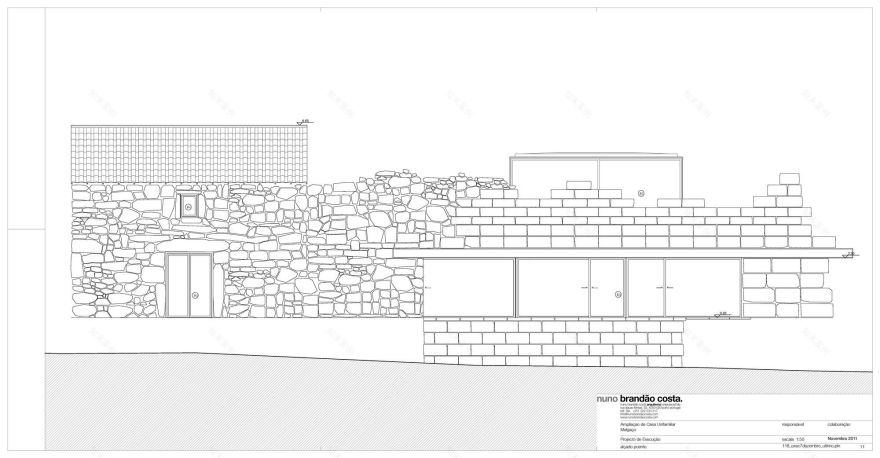

Elevation
葡萄牙 Melgaço 乡村住宅扩建-36

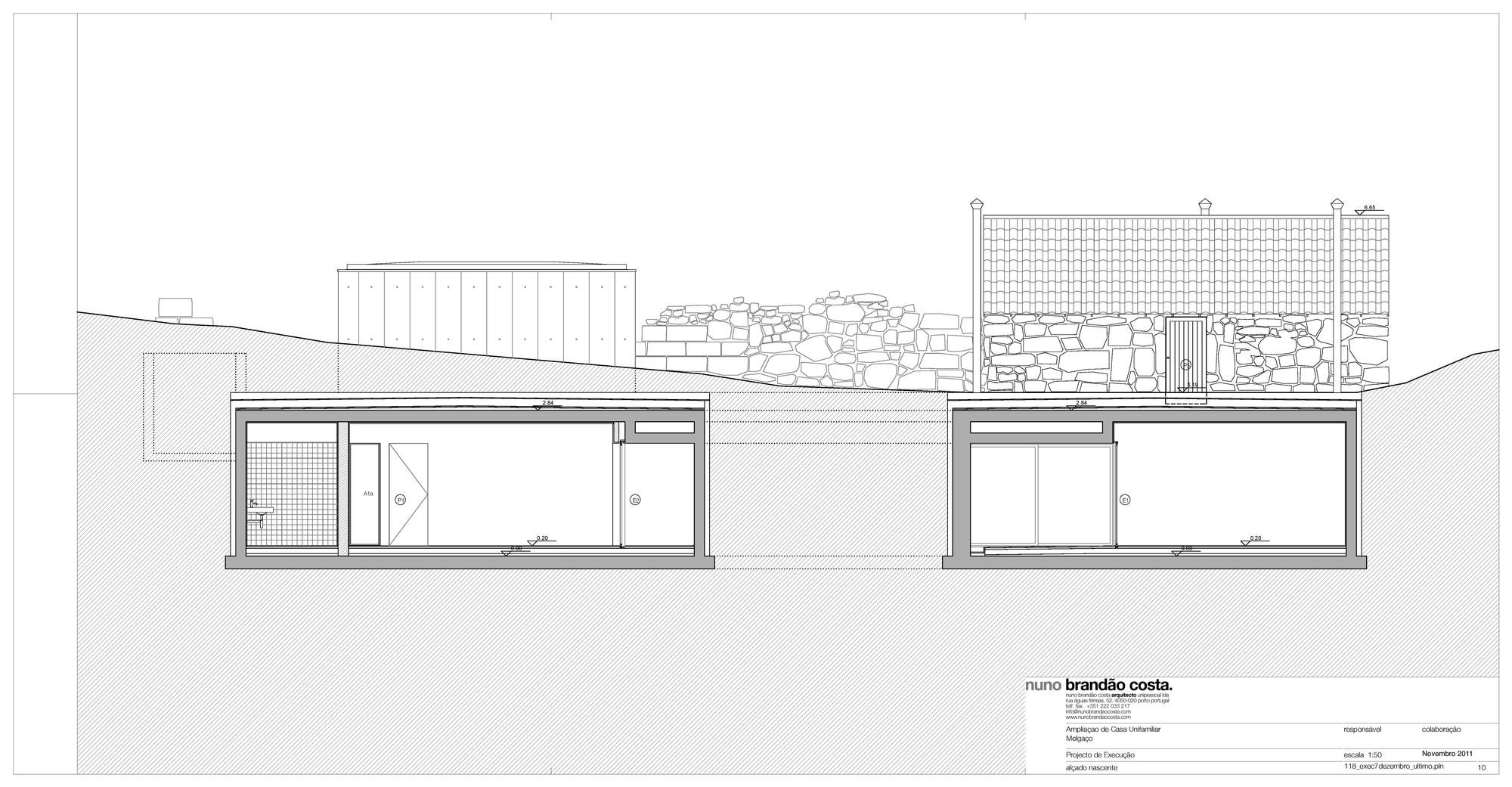

Section

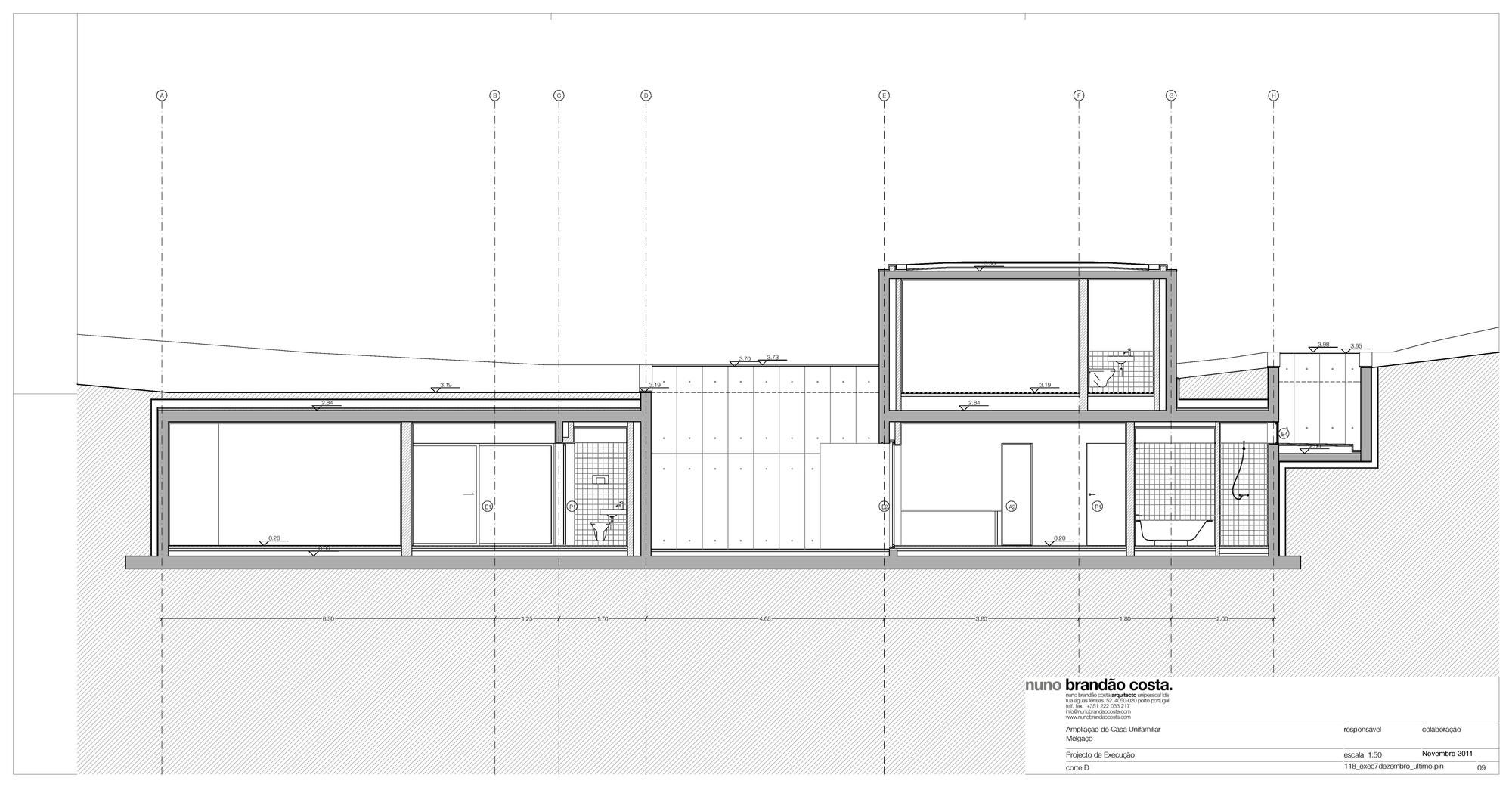

葡萄牙 Melgaço 乡村住宅扩建-38
Section
葡萄牙 Melgaço 乡村住宅扩建-40
Section

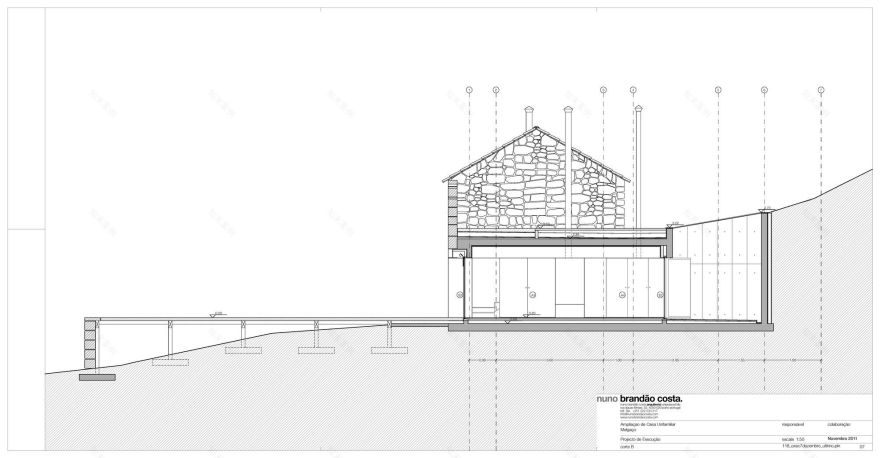

葡萄牙 Melgaço 乡村住宅扩建-42
Section

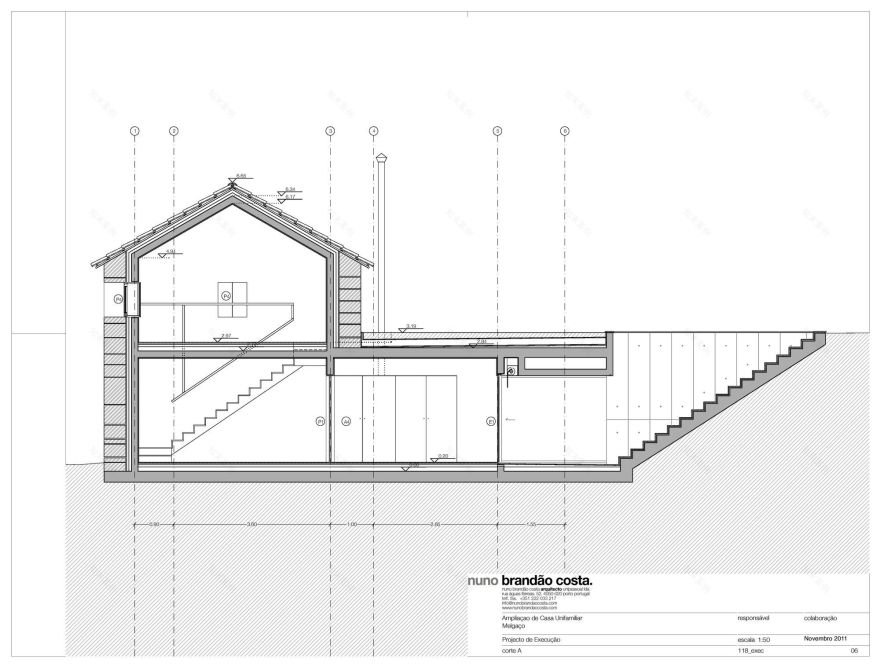

葡萄牙 Melgaço 乡村住宅扩建-44
Section

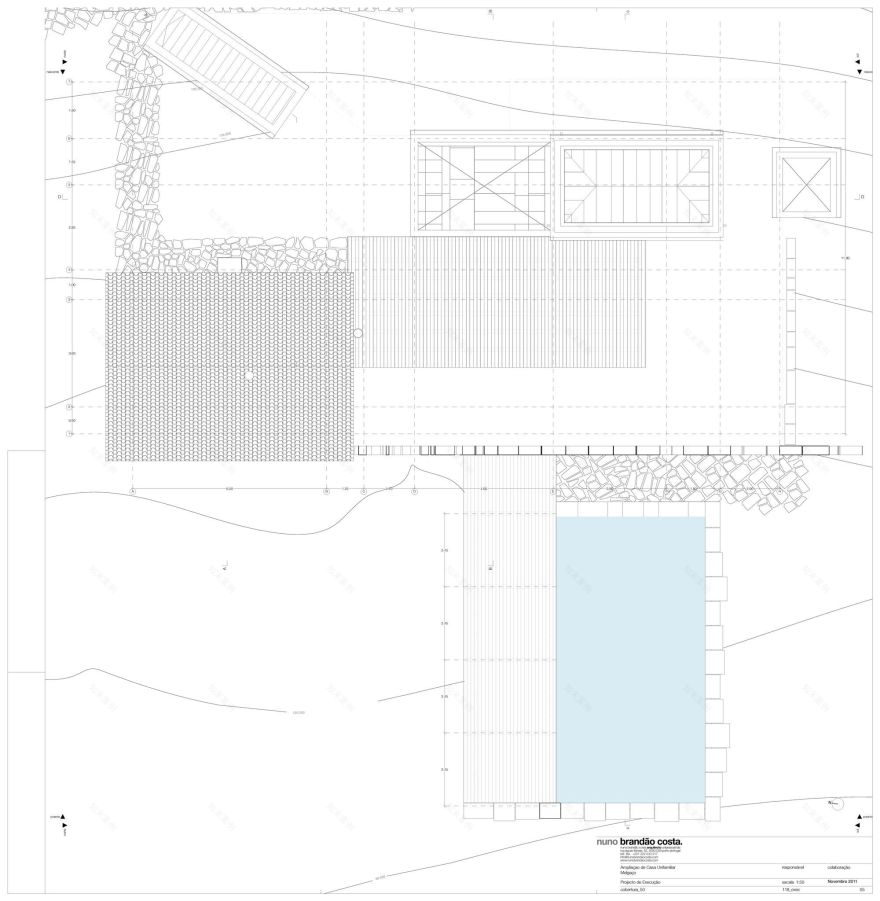

葡萄牙 Melgaço 乡村住宅扩建-46
Roof Plan

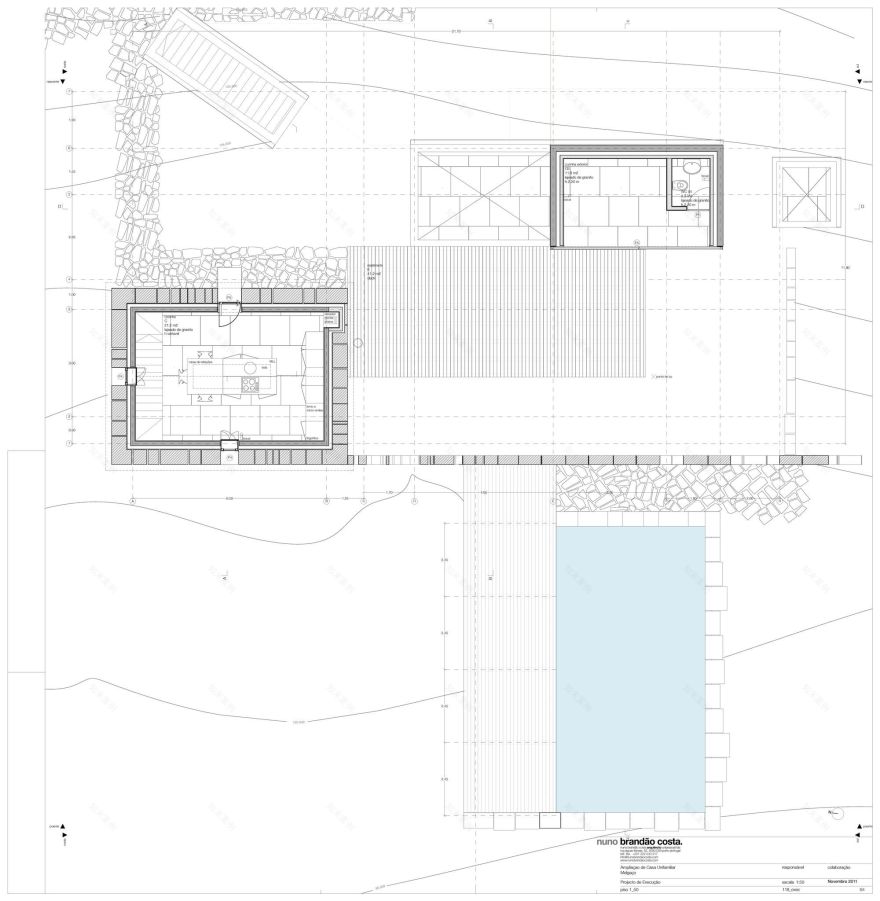

葡萄牙 Melgaço 乡村住宅扩建-48
1st Floor Plan
葡萄牙 Melgaço 乡村住宅扩建-50

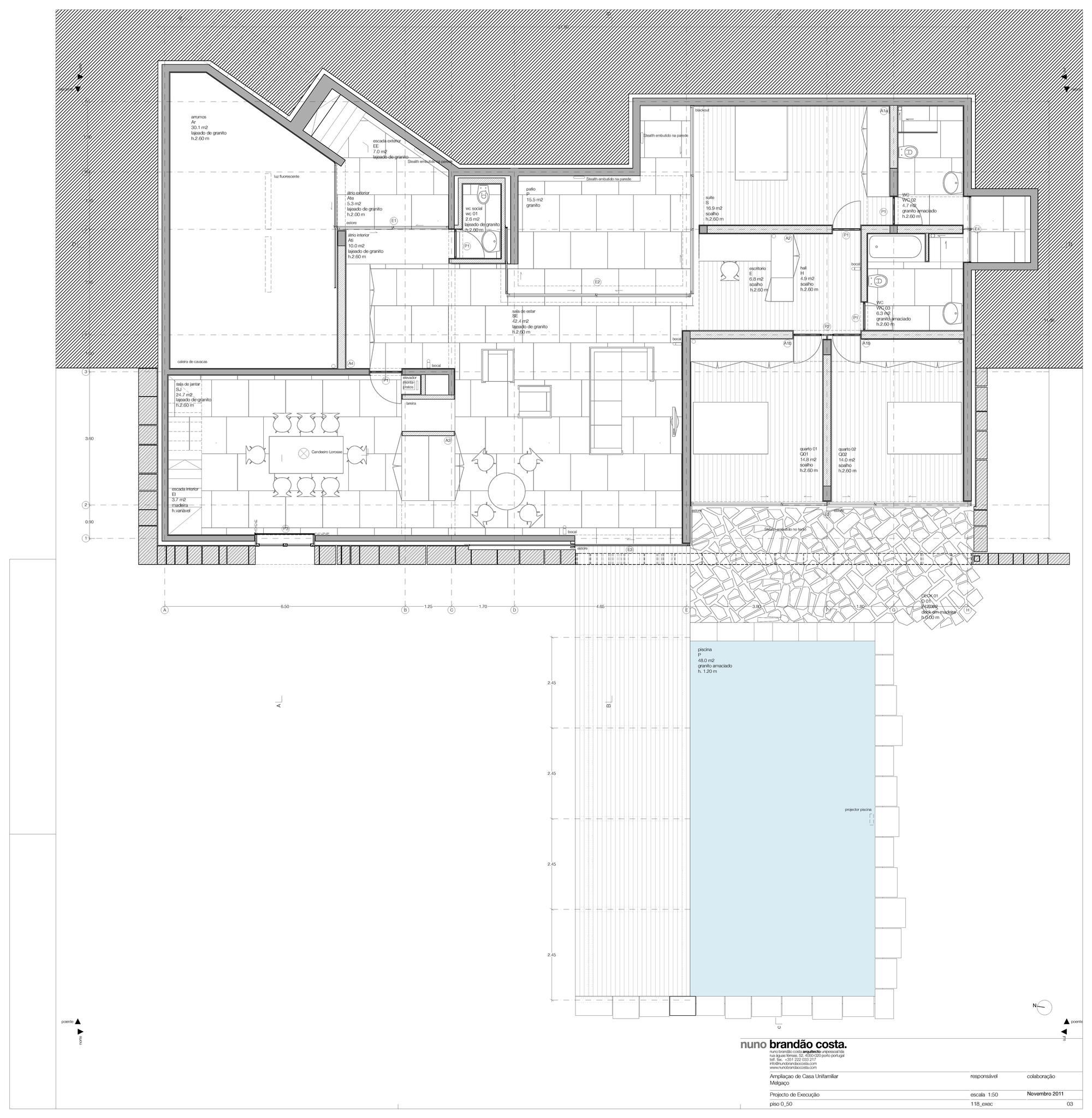

Ground Floor
