Church Hill Barn was designed by David Nossiter Architects, The site, situated on the Essex/Suffolk borders within the landscape immortalized by Constable was originally the home farm of the nearby estate, destroyed by fire in the 1950s. It consists of a collection of farm buildings forming a courtyard. The centerpiece of the site with views over the rural landscape is a large barn of cathedral-like proportions.

Photography by© Steve Lancefield

Cruciform in plan with a collection of smaller spaces surrounding it, the arrangement sought to provide shelter for different farming activities under a single roof. The barn complex is the legacy of the model farm movement. The clients purchased the buildings in a dilapidated condition. Having sold their own property in nearby Colchester they decided to reside in a caravan on the site during the build. David had worked on a previous project and was the natural choice of architect.

Photography by© Steve Lancefield

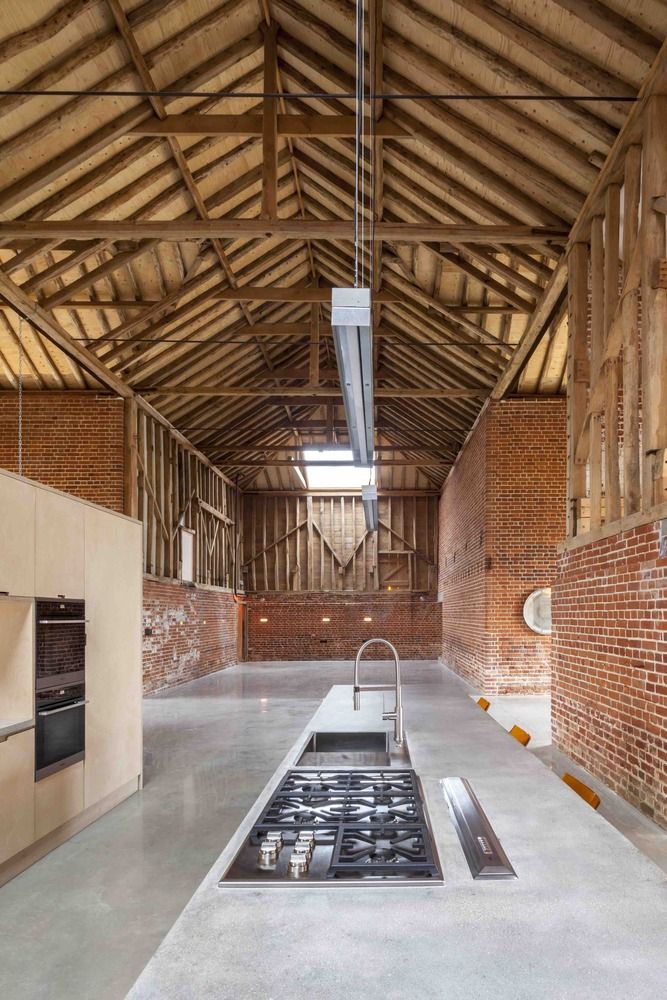

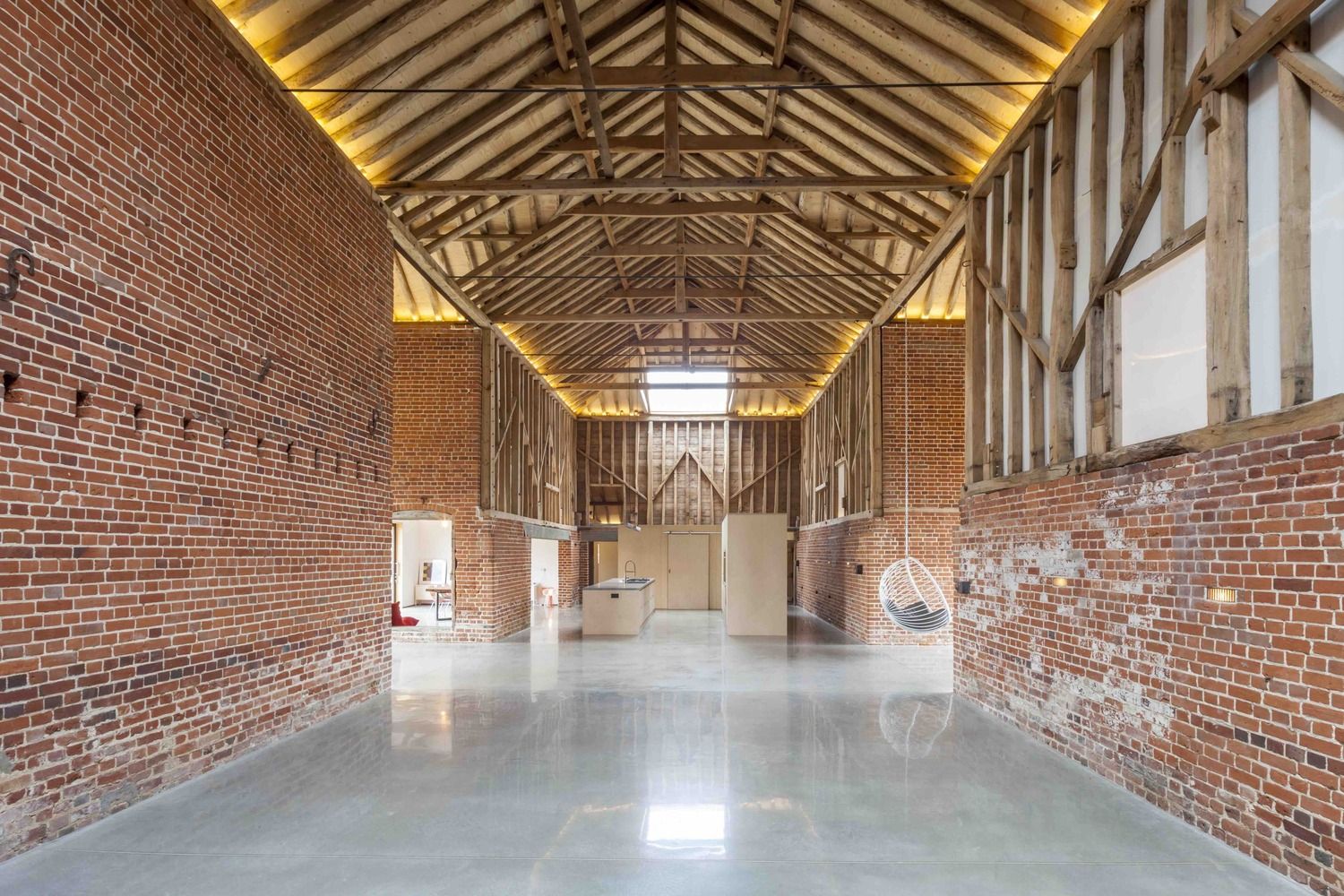

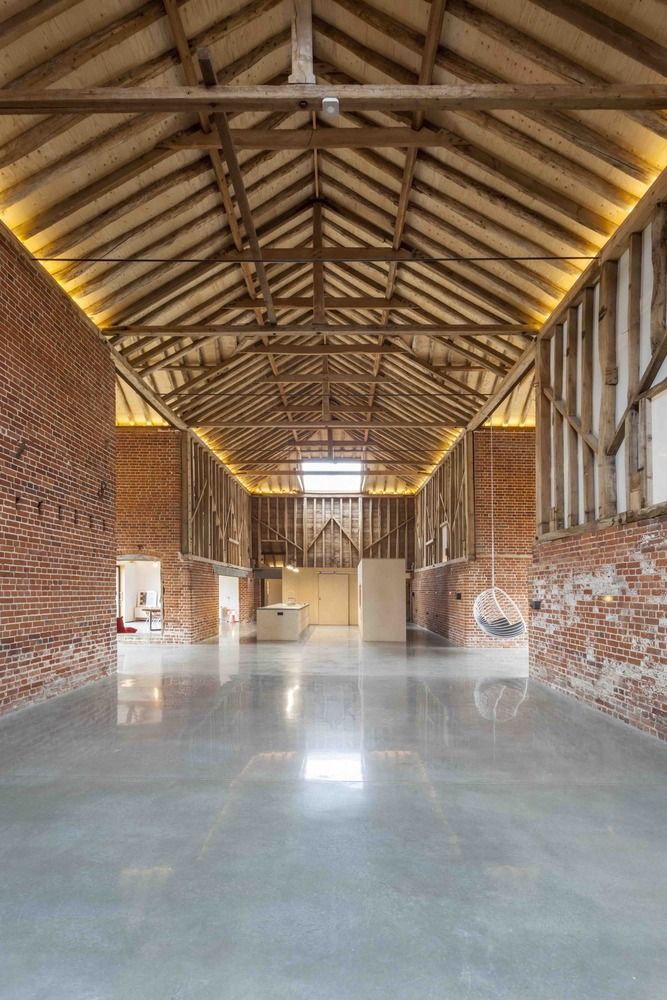

The barn is a Listed structure and the contemporary refurbishment required lengthy agreements with the local planning authorities. A large component of the renovations consisted of the refurbishment of the roof. Roofing slates and timber materials were salvaged from the other agricultural structures on the site that were too decayed to be usefully renovated. In order to allow the existing structure to be viewed internally but still conform to modern standards of thermal performance, the roof is a ‘warm roof construction’ meaning that all of the insulation is located on the exterior of the roof above a new timber deck.

Photography by© Steve Lancefield

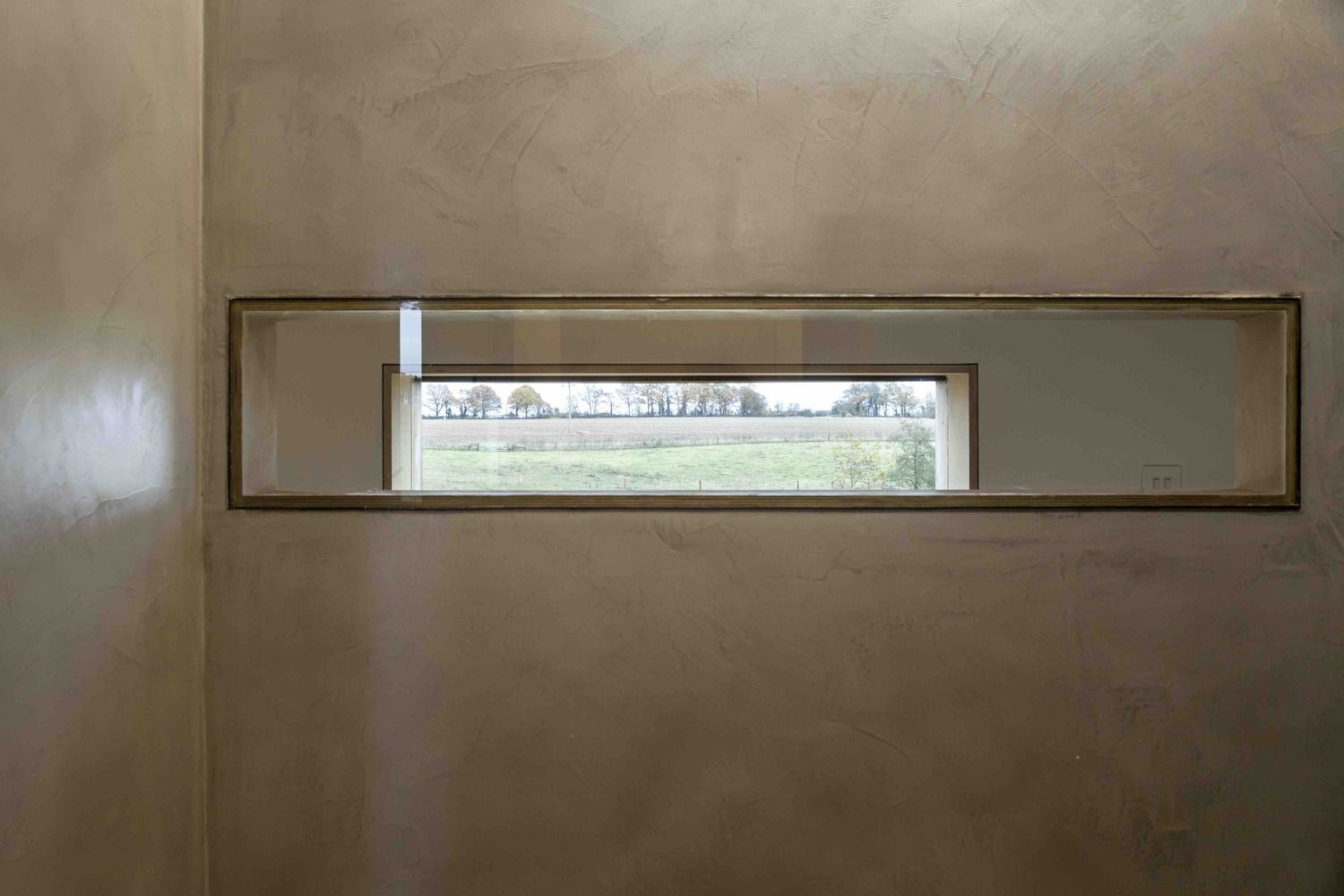

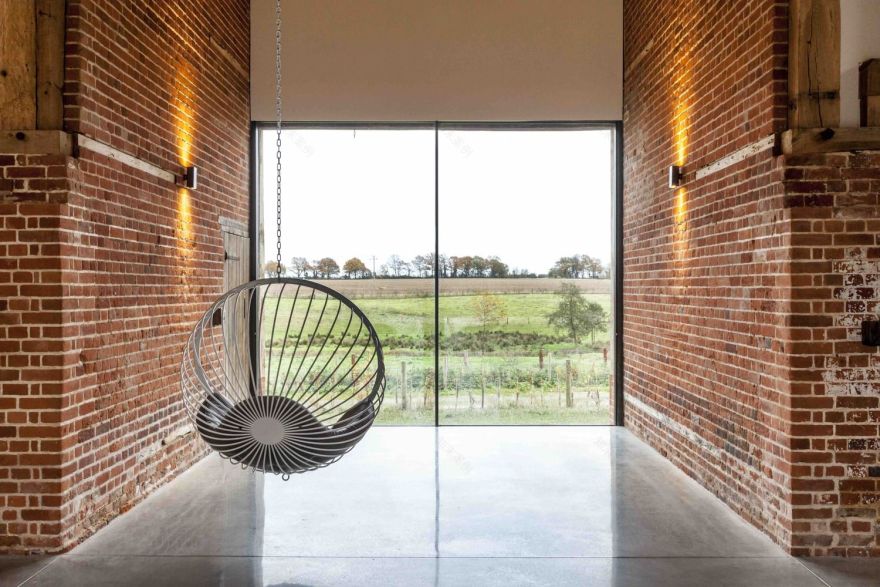

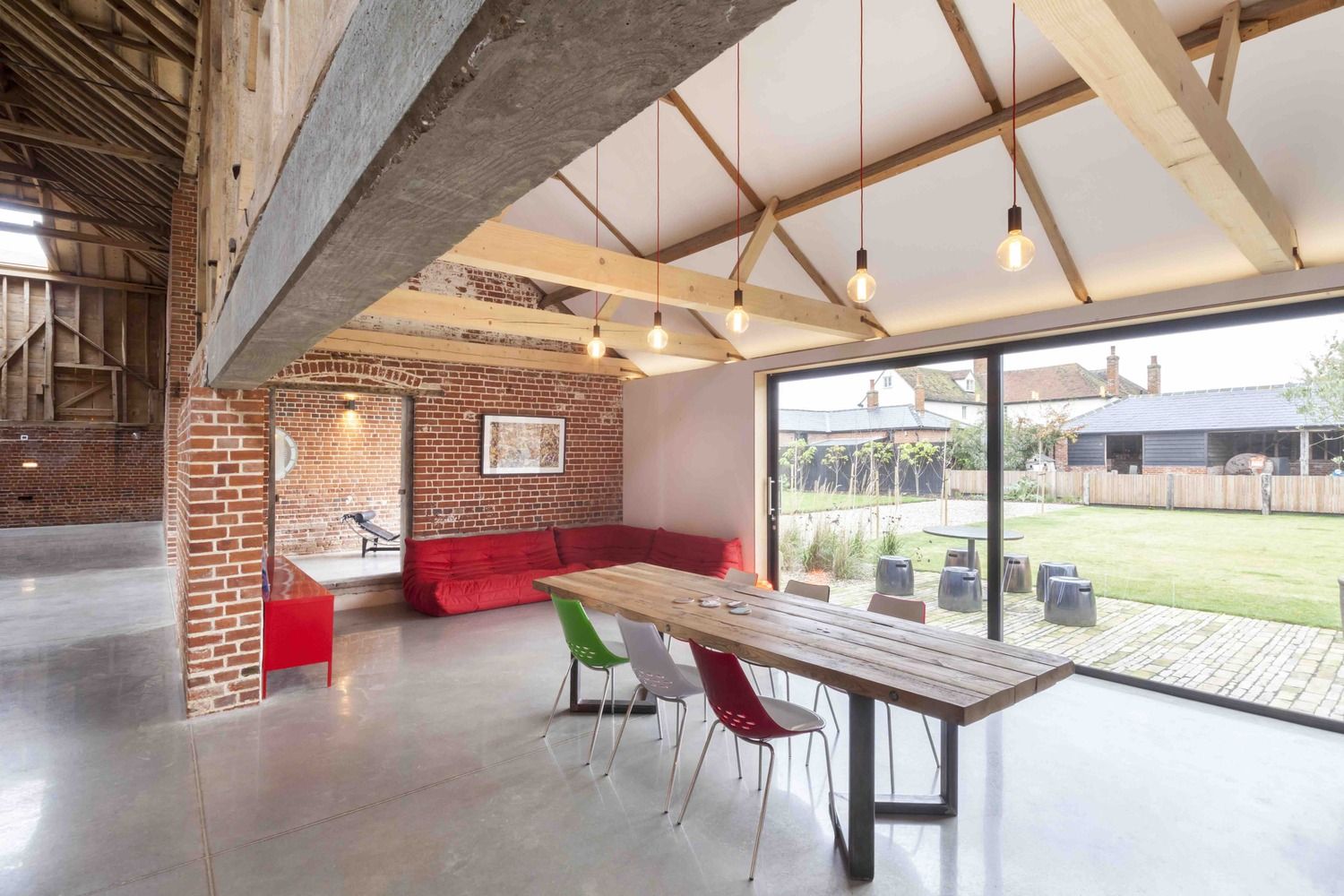

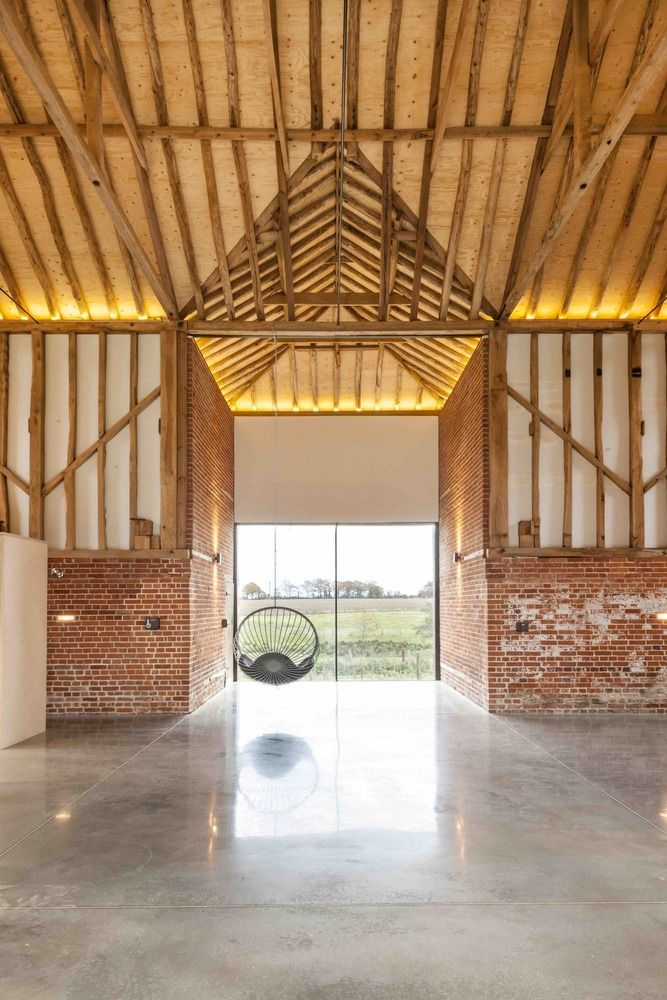

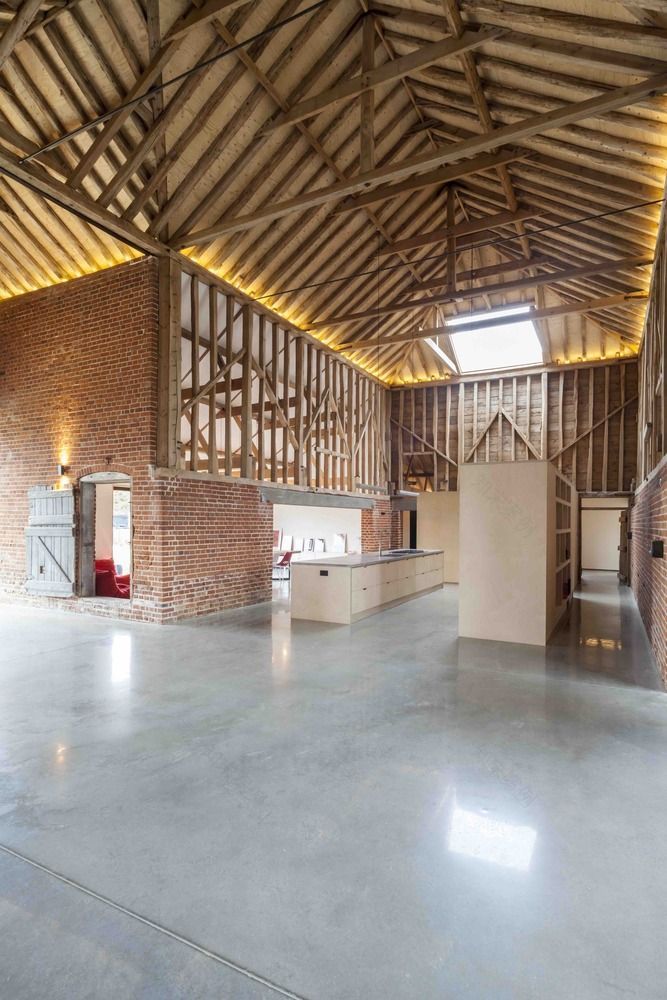

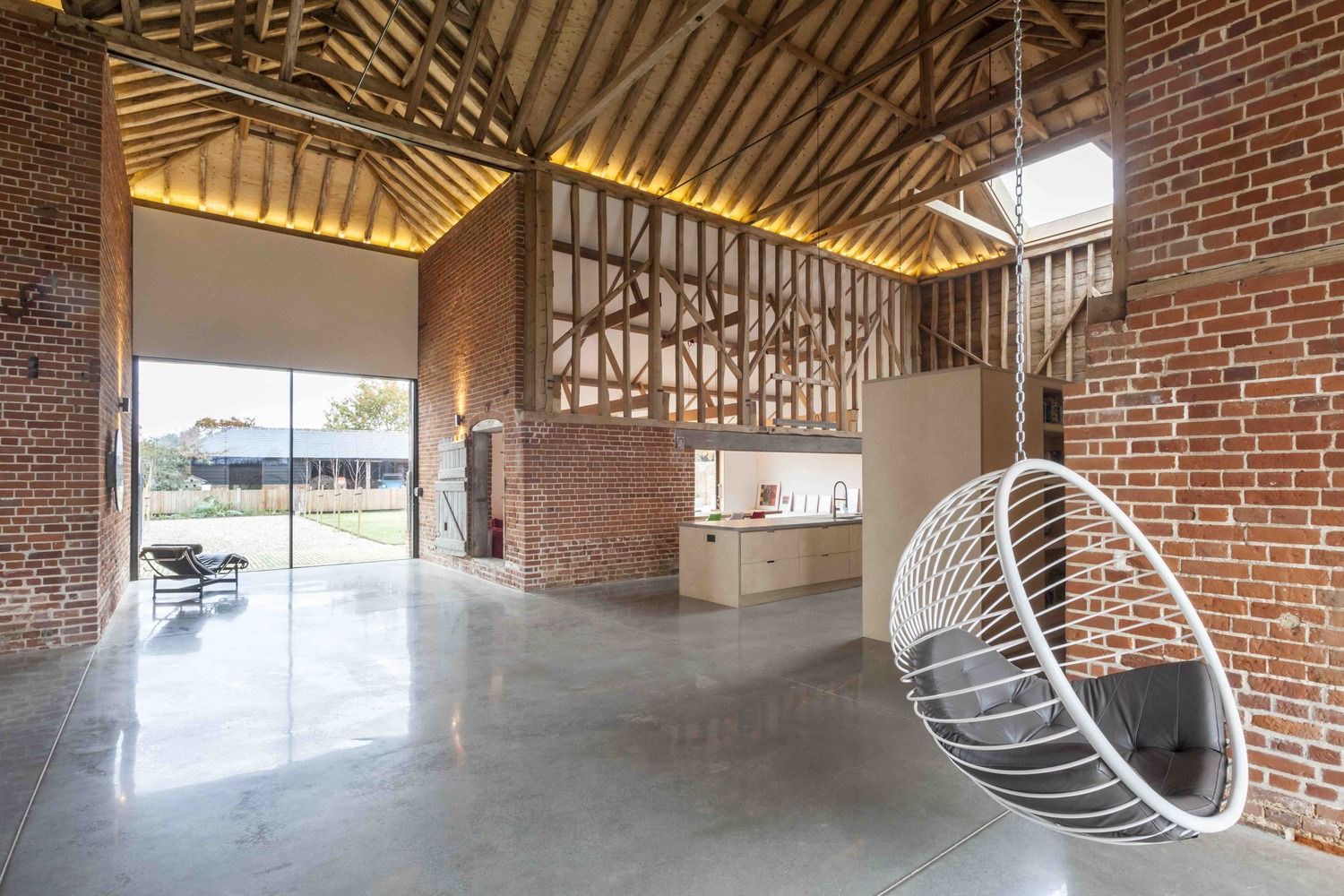

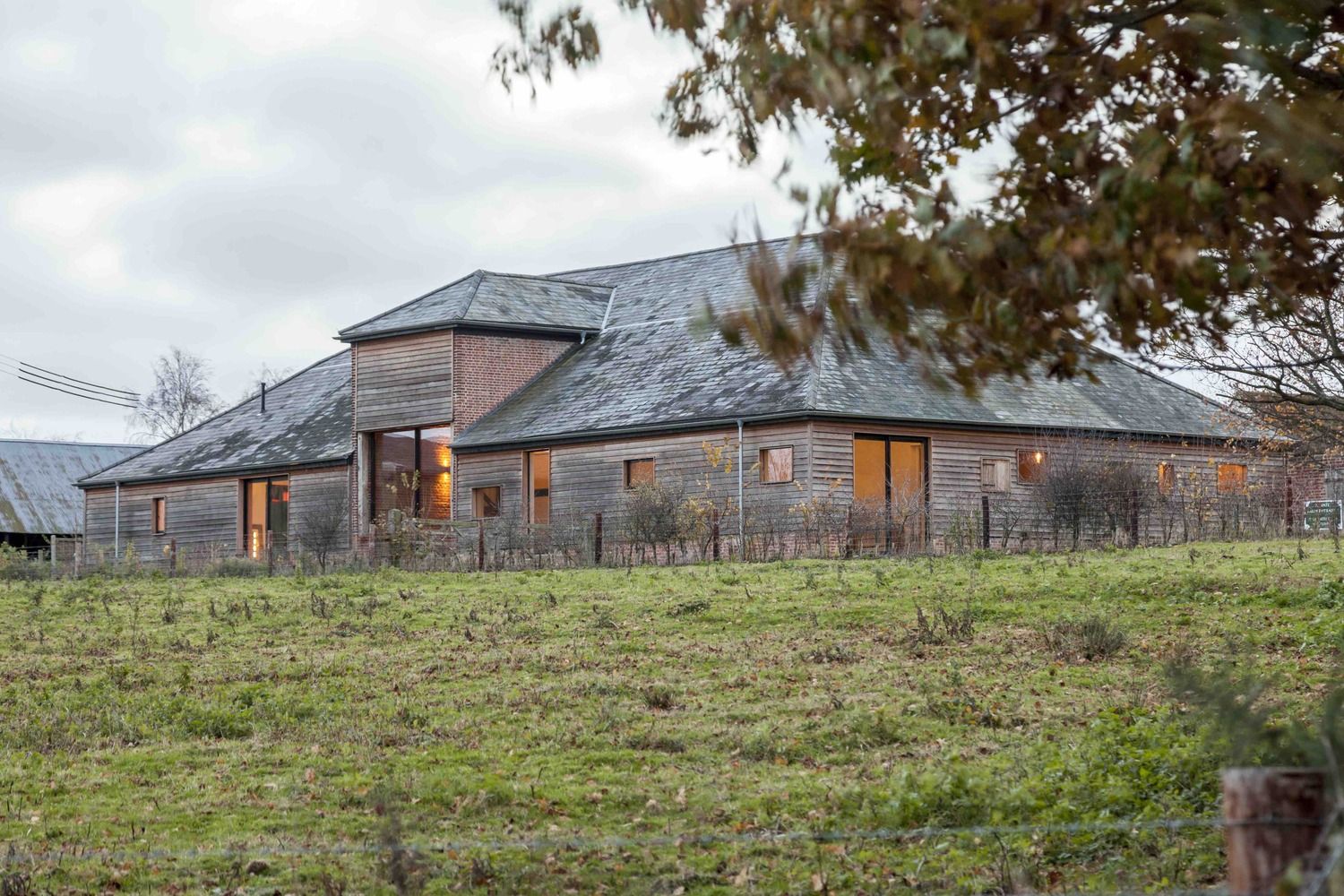

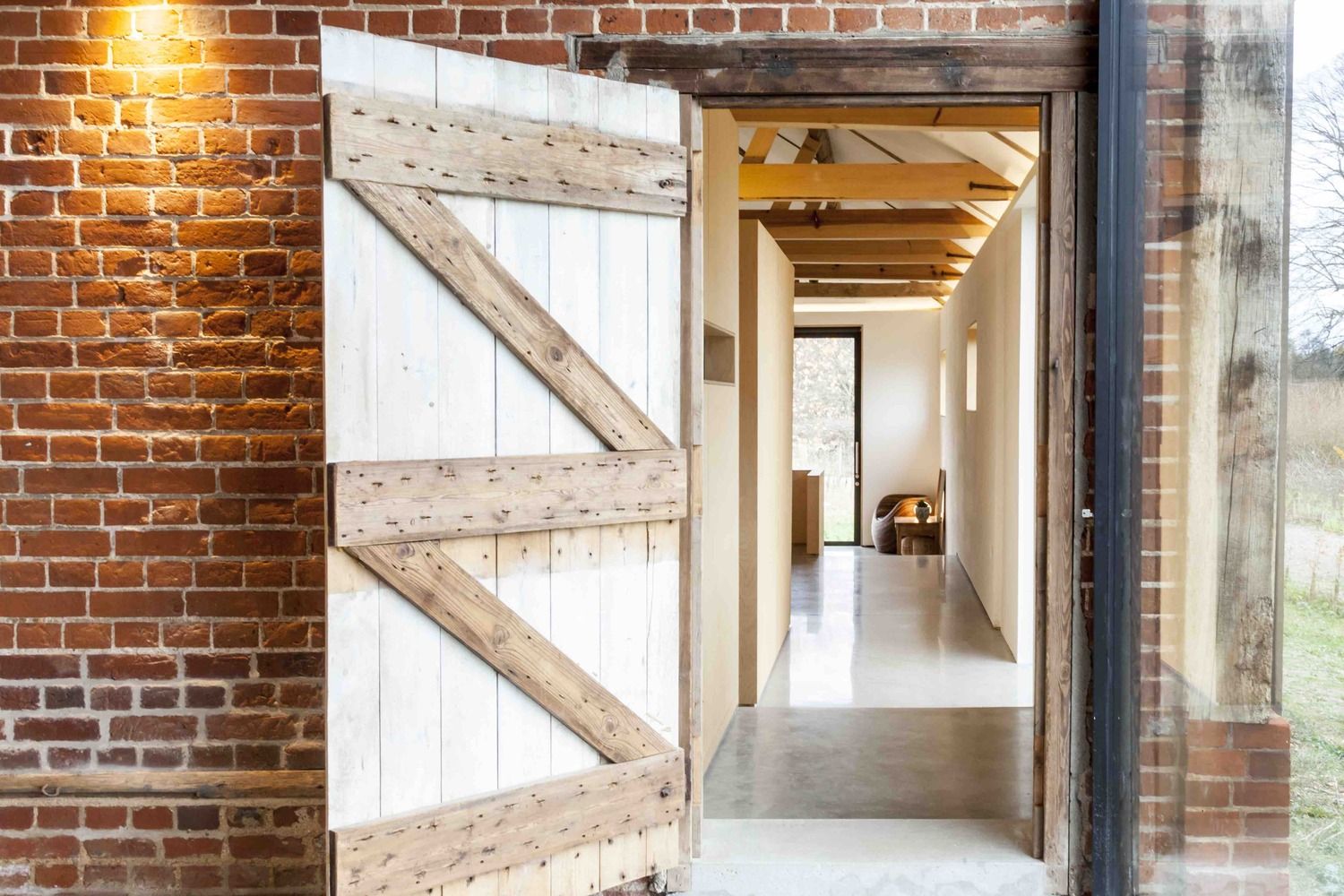

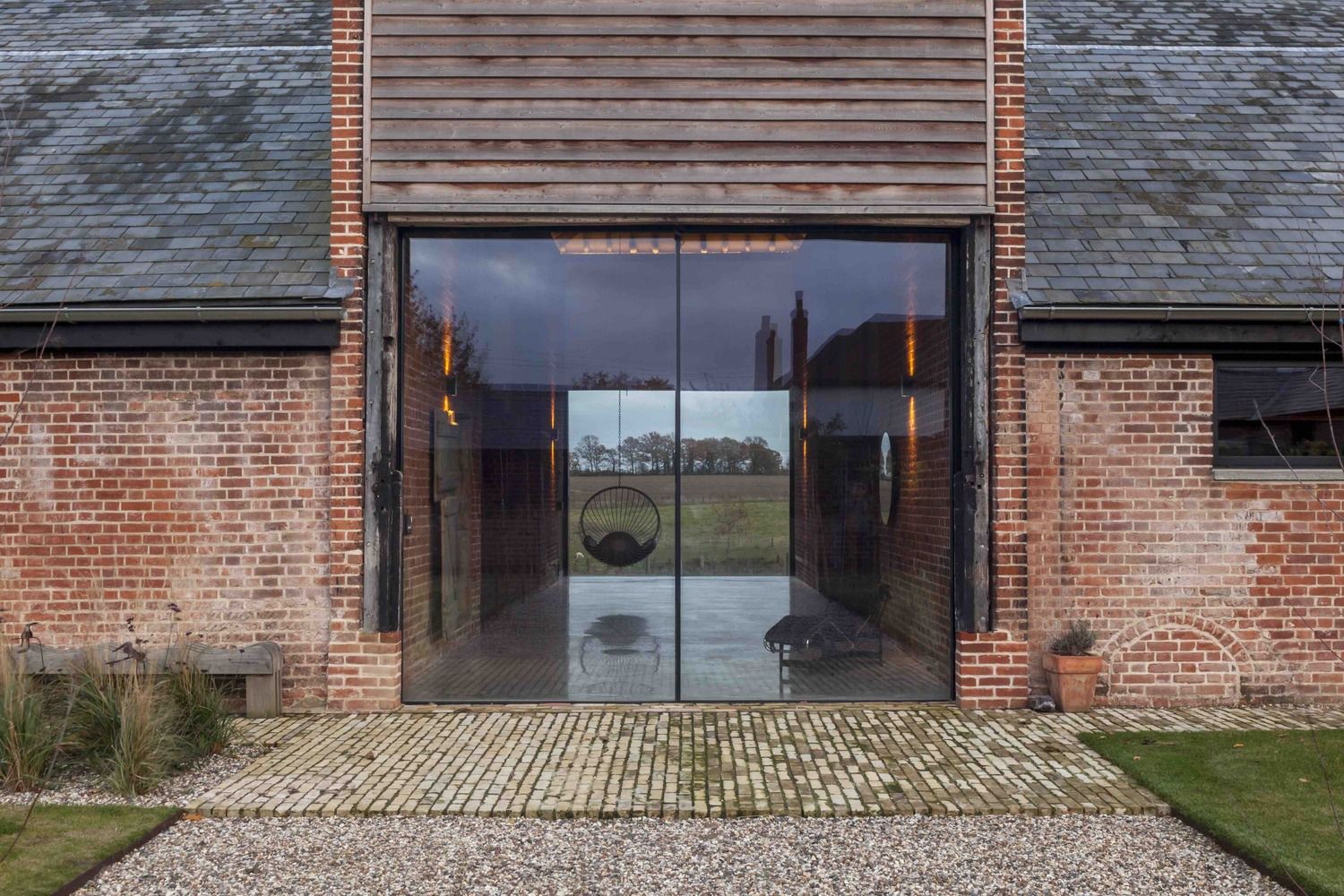

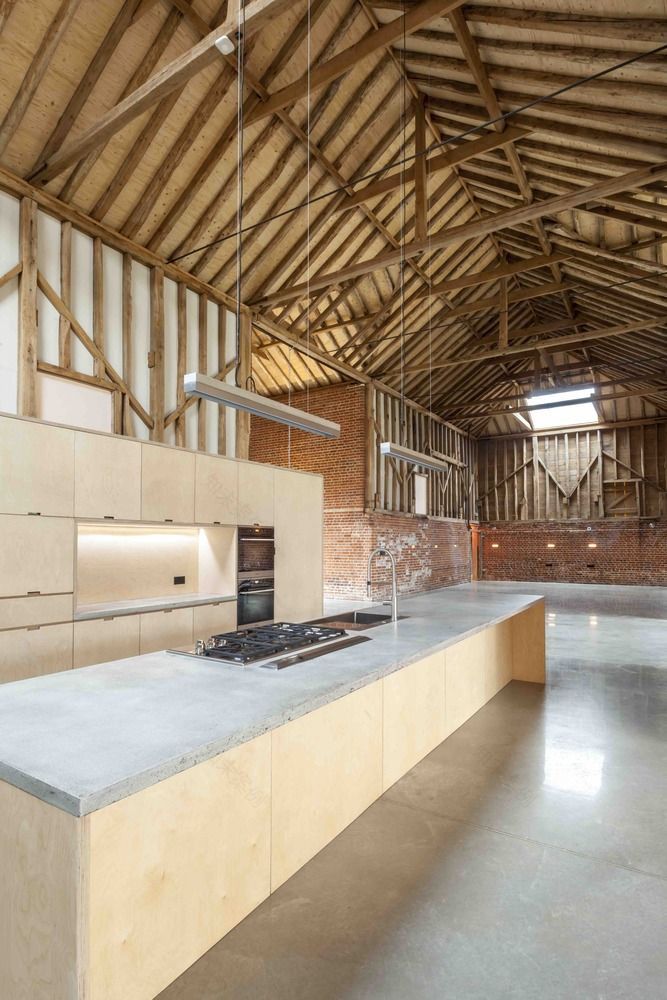

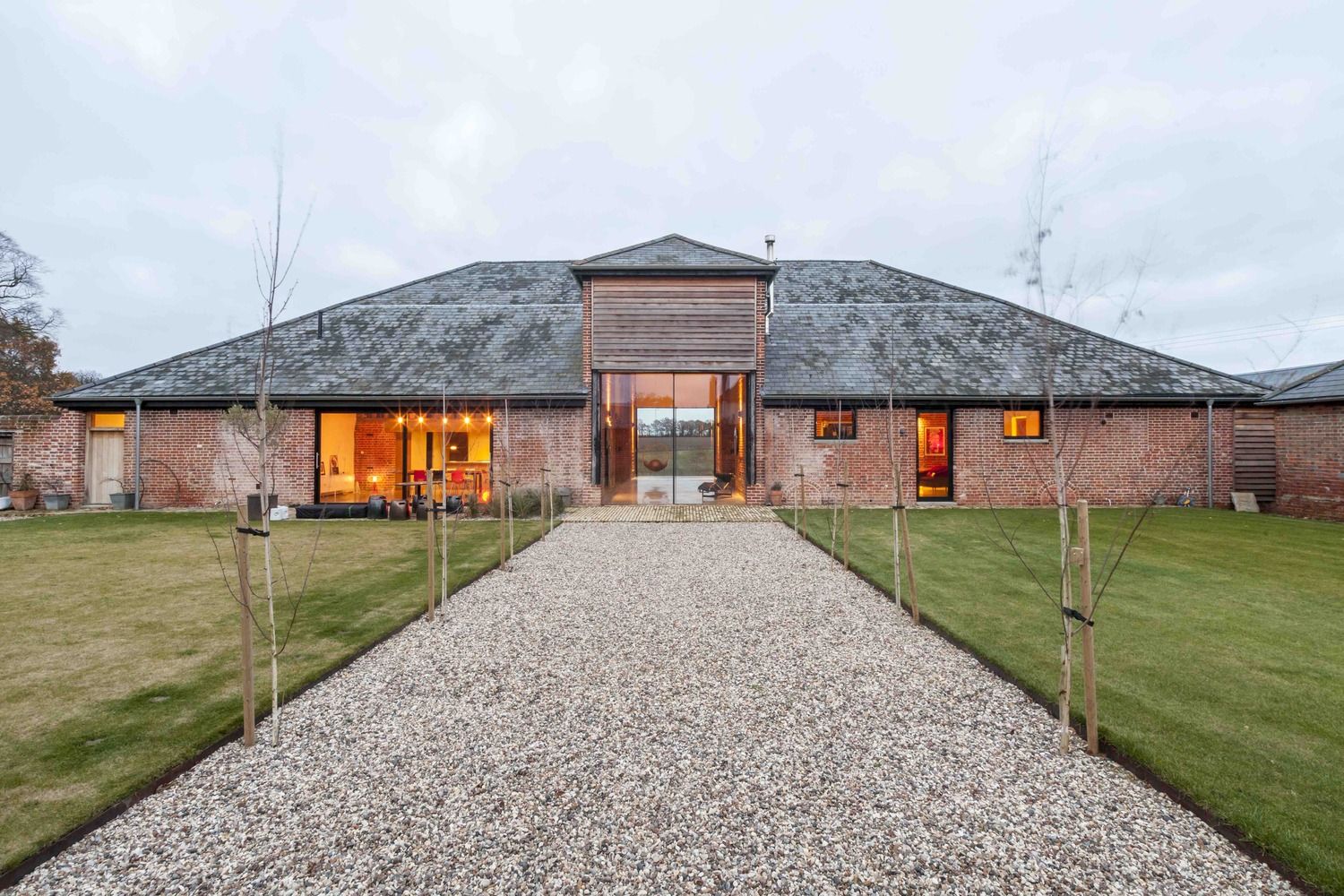

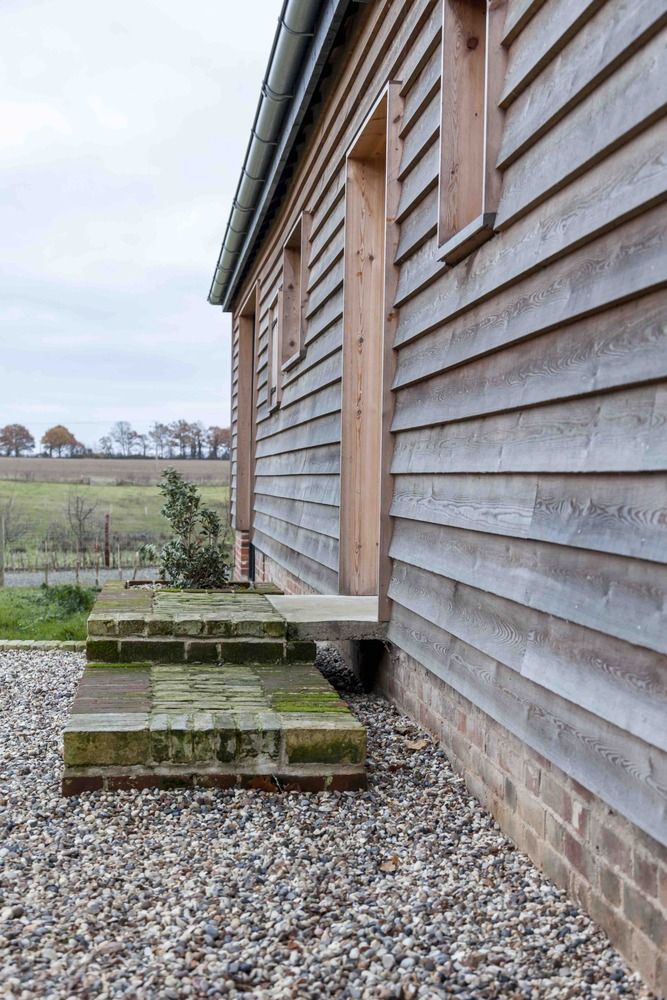

The external walls were insulated with sheep’s wool and clad with larch timber, which has been left to weather naturally. The original openings have been simply fenestrated with glazing set back from the external wall line. Oversized bespoke glazed sliding doors fill the hipped gable porches, allowing views from the courtyard towards open fields. Two three- meter square roof lights allow daylight deep into the interior of the eight-meter tall central spaces.

Photography by© Steve Lancefield

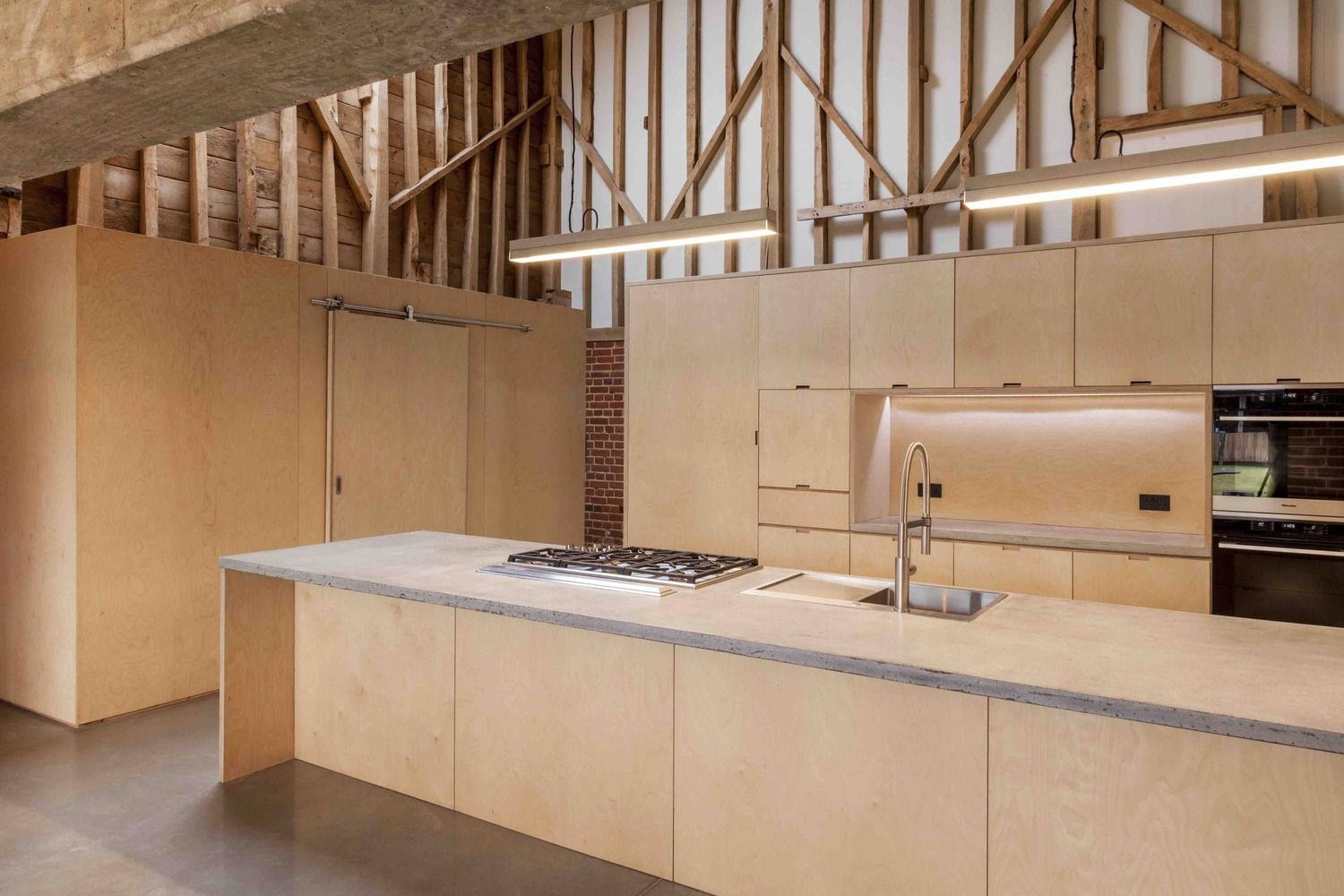

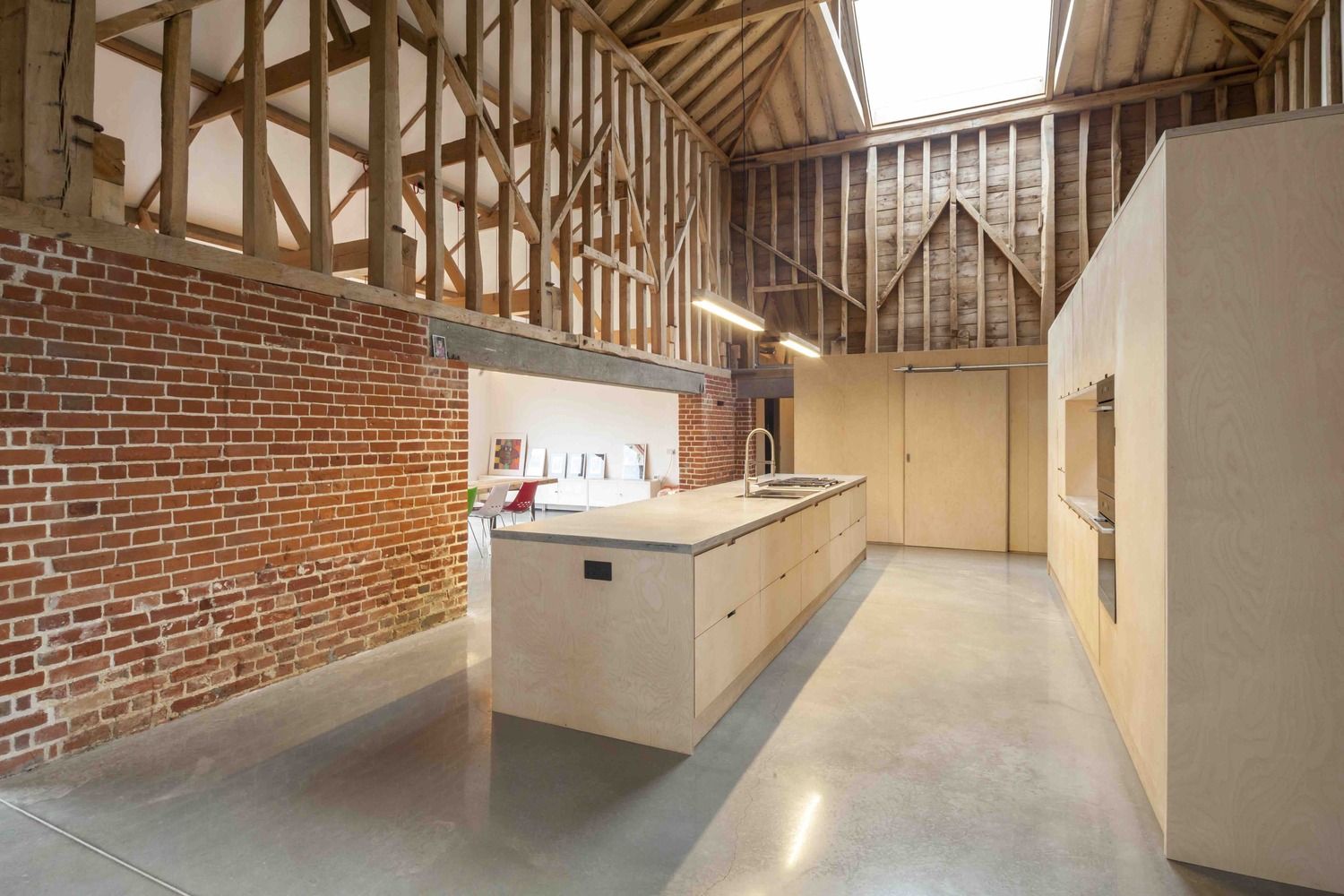

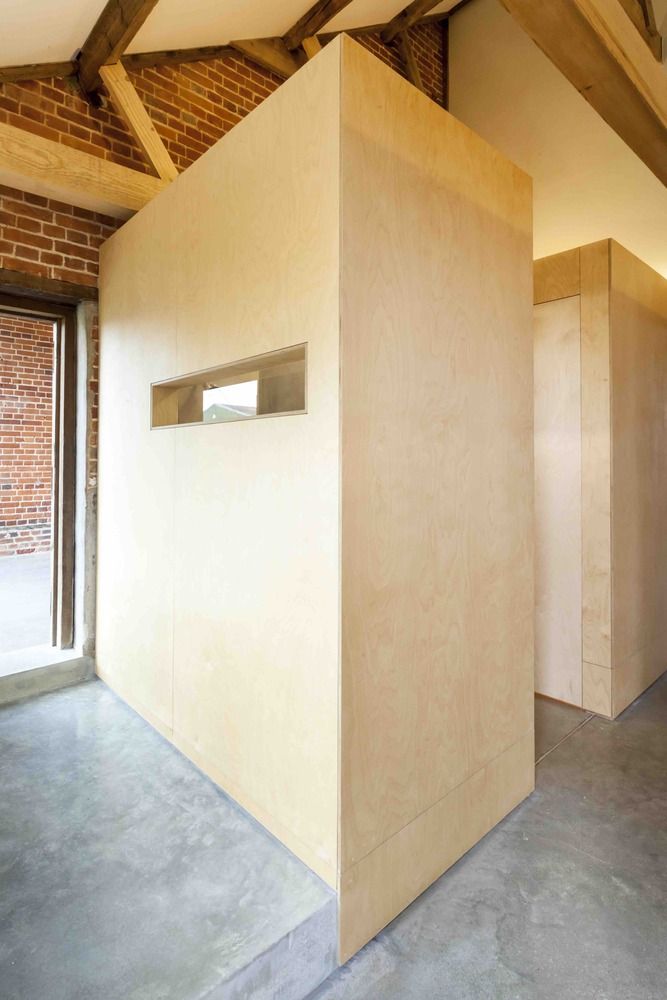

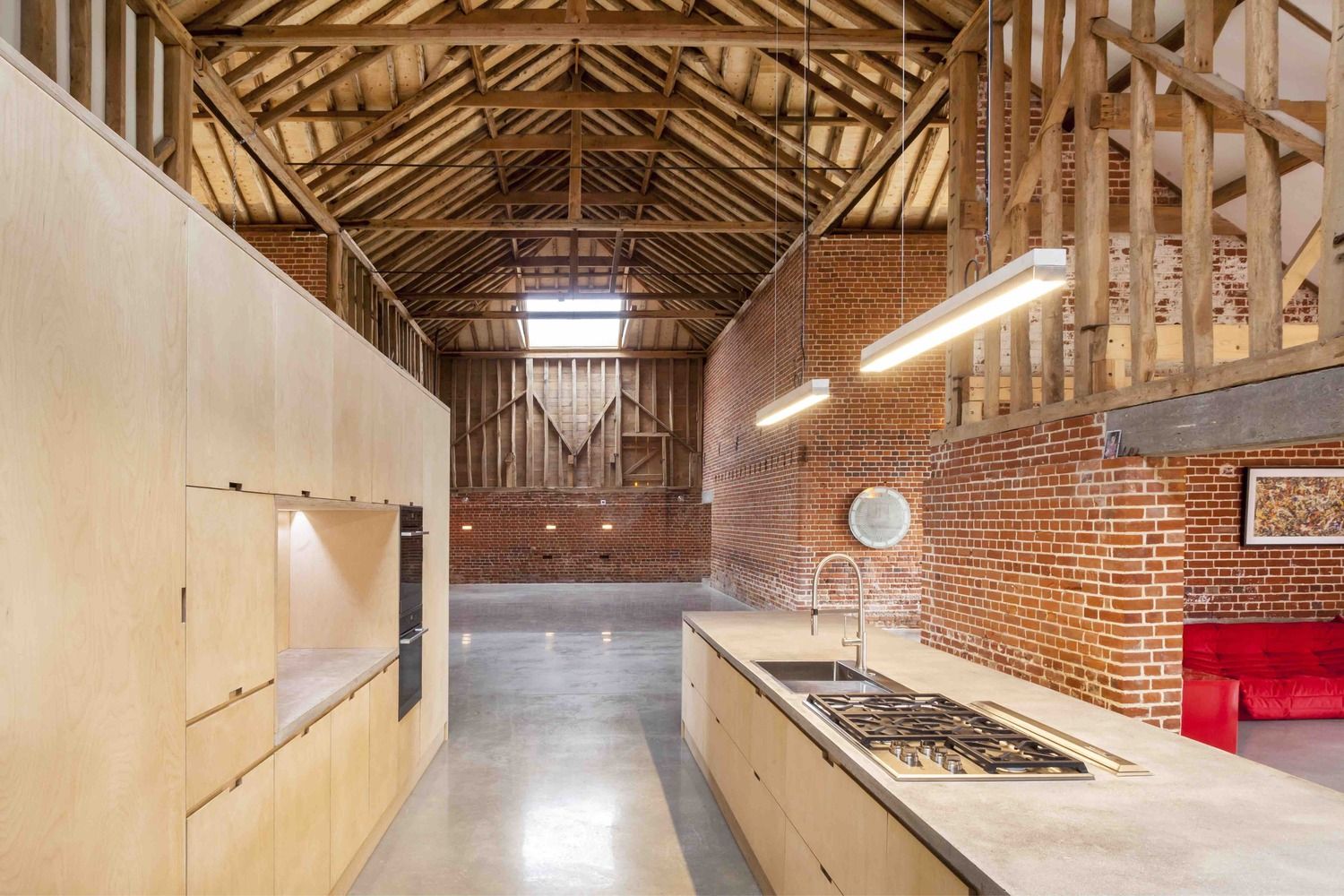

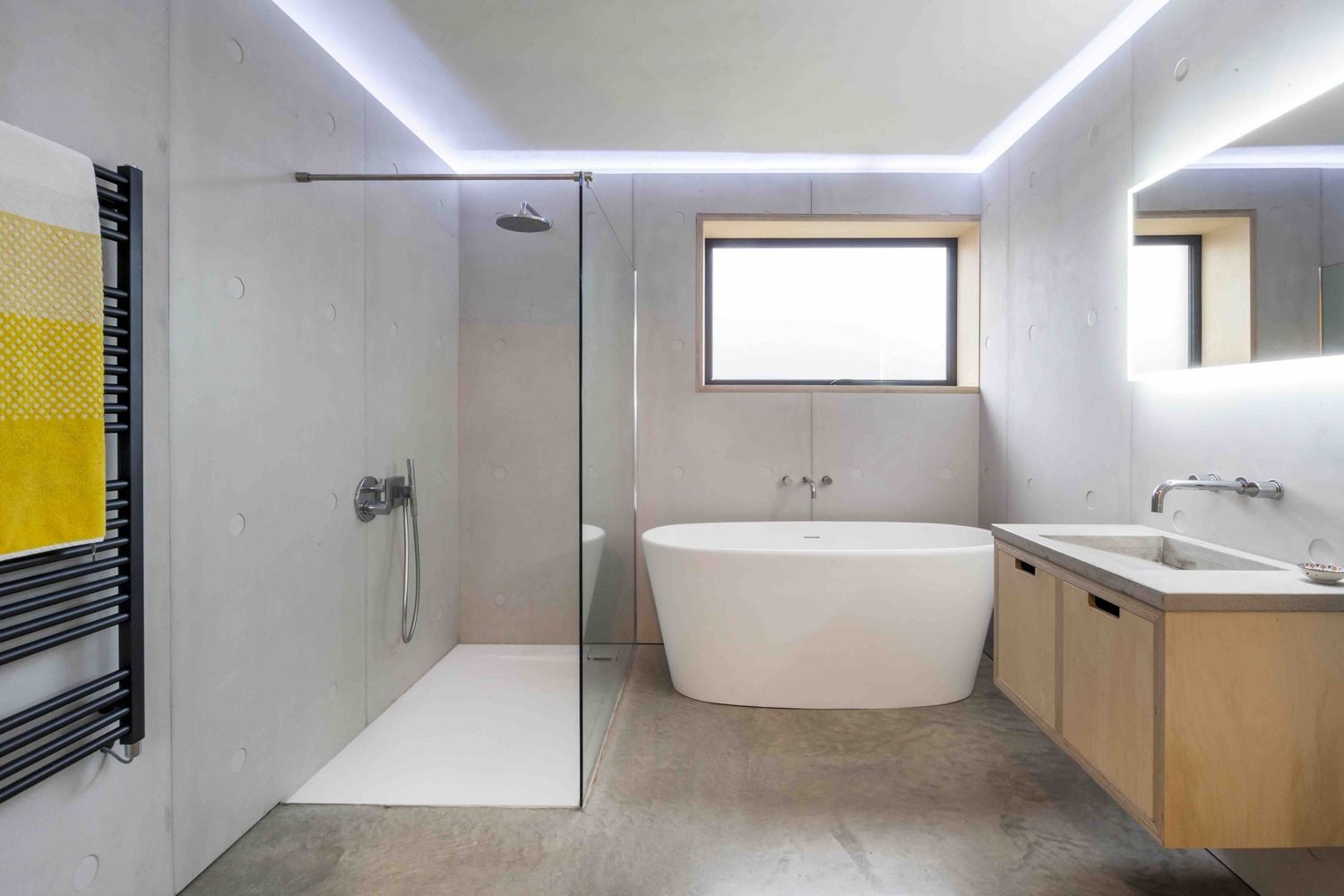

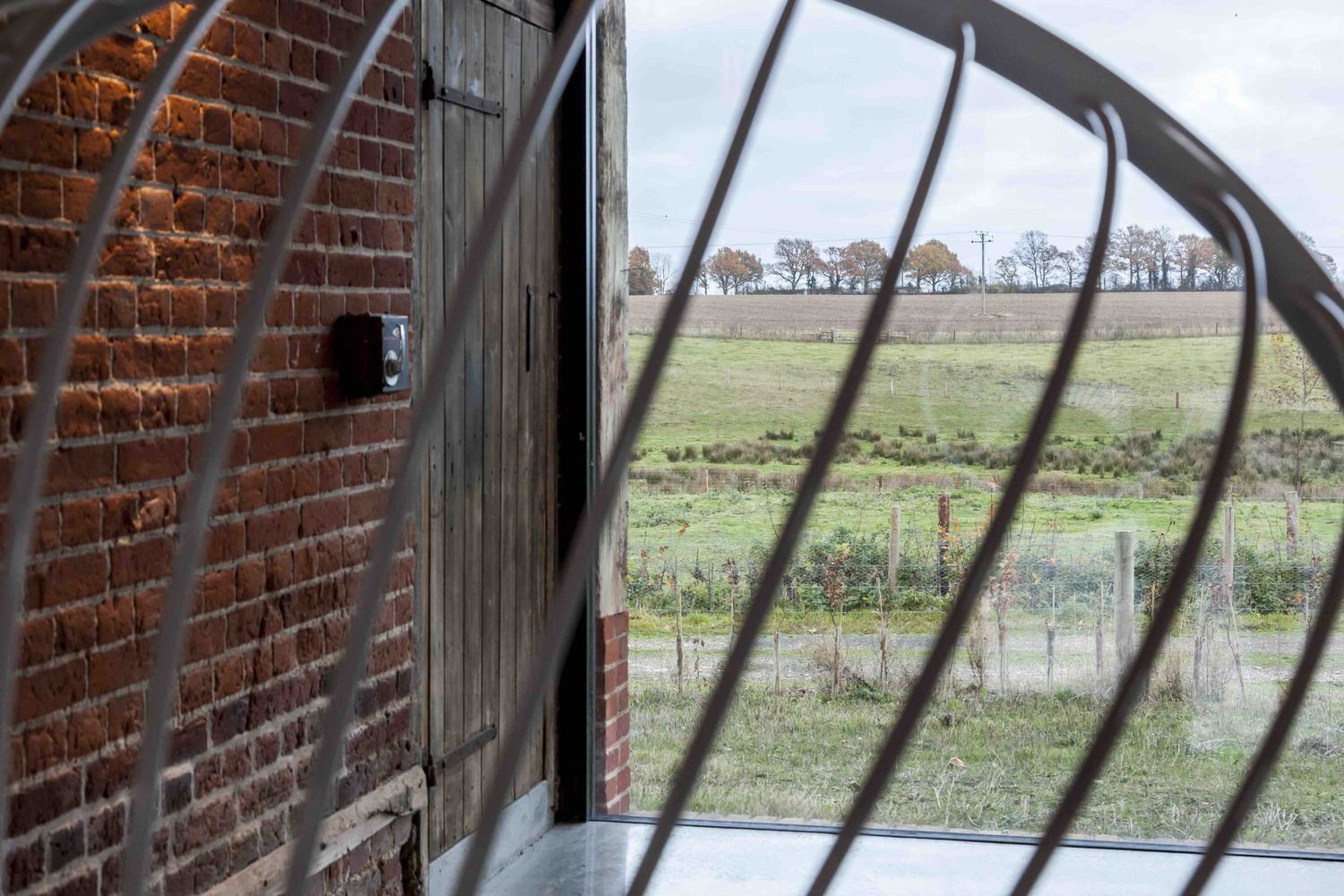

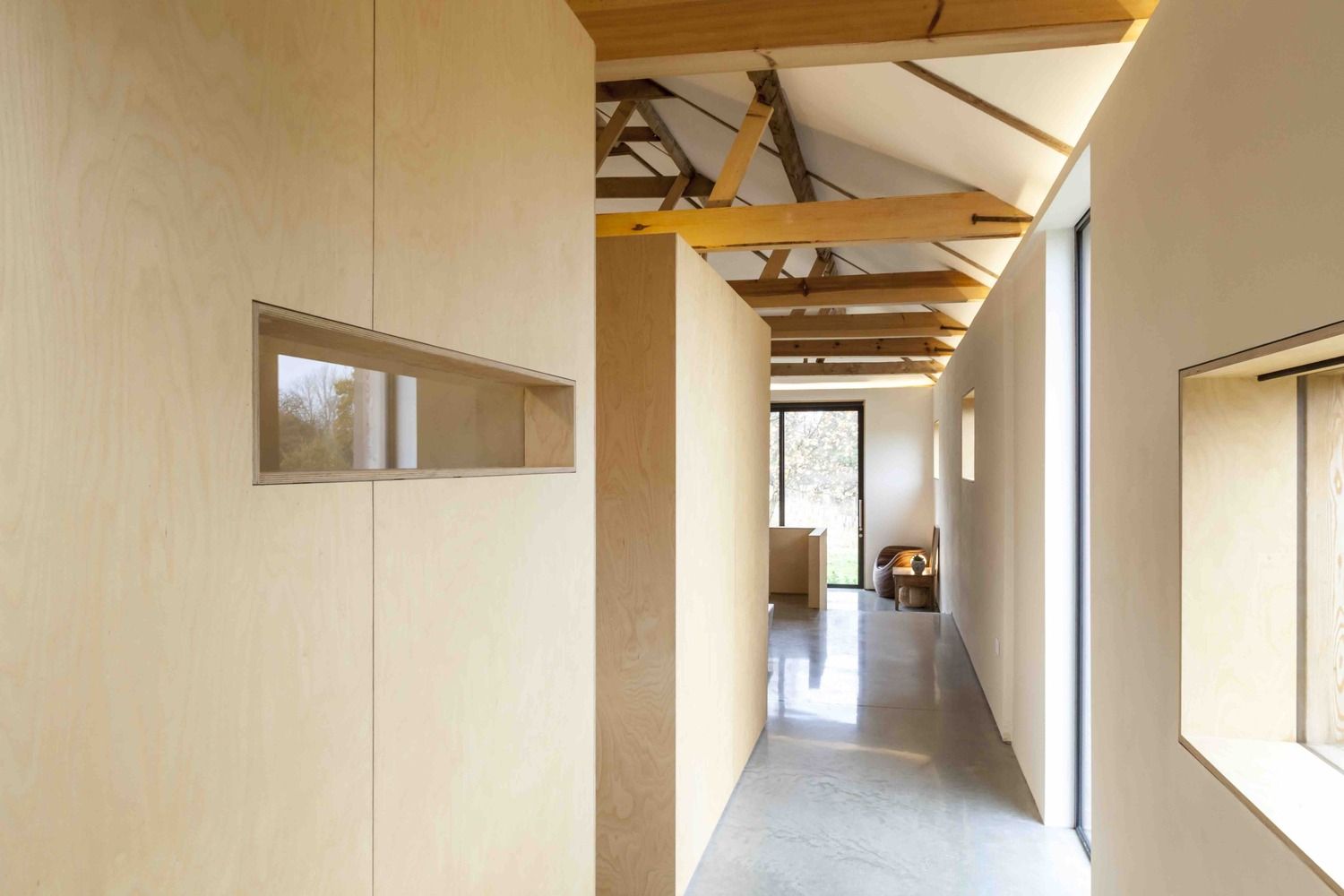

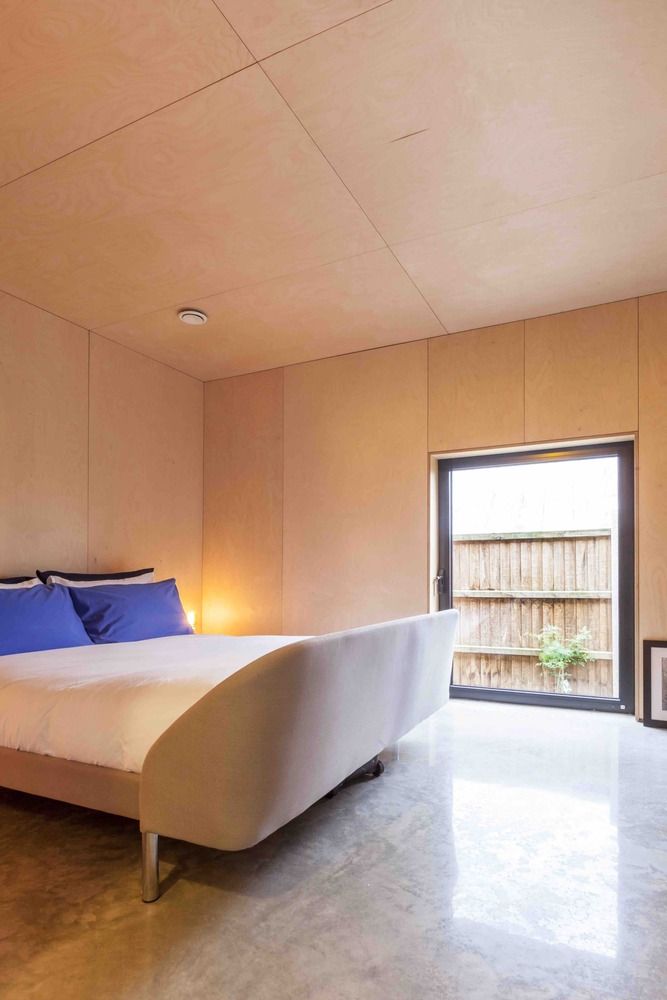

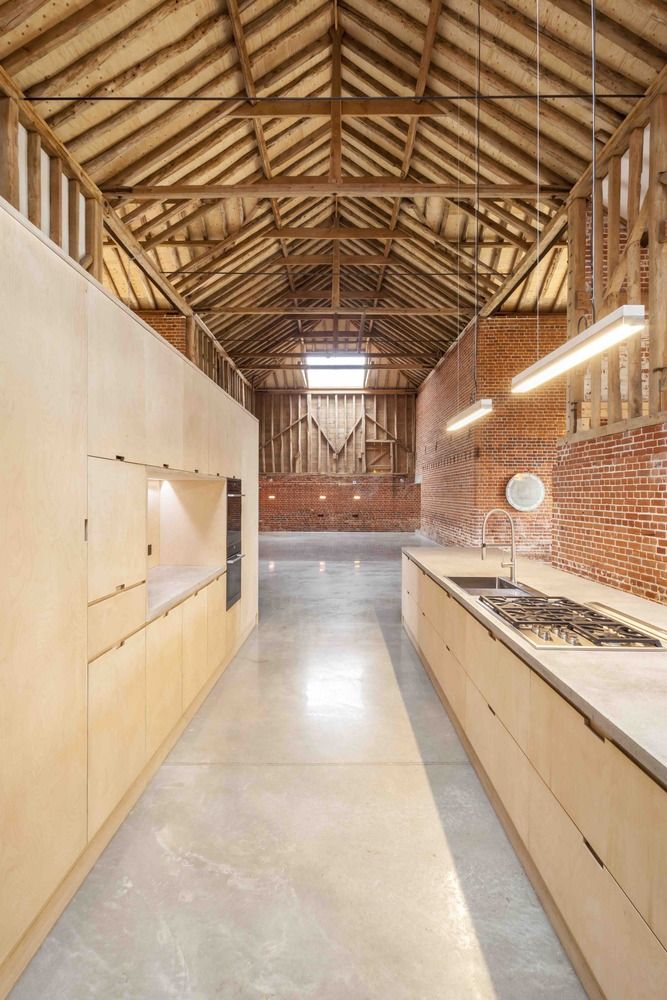

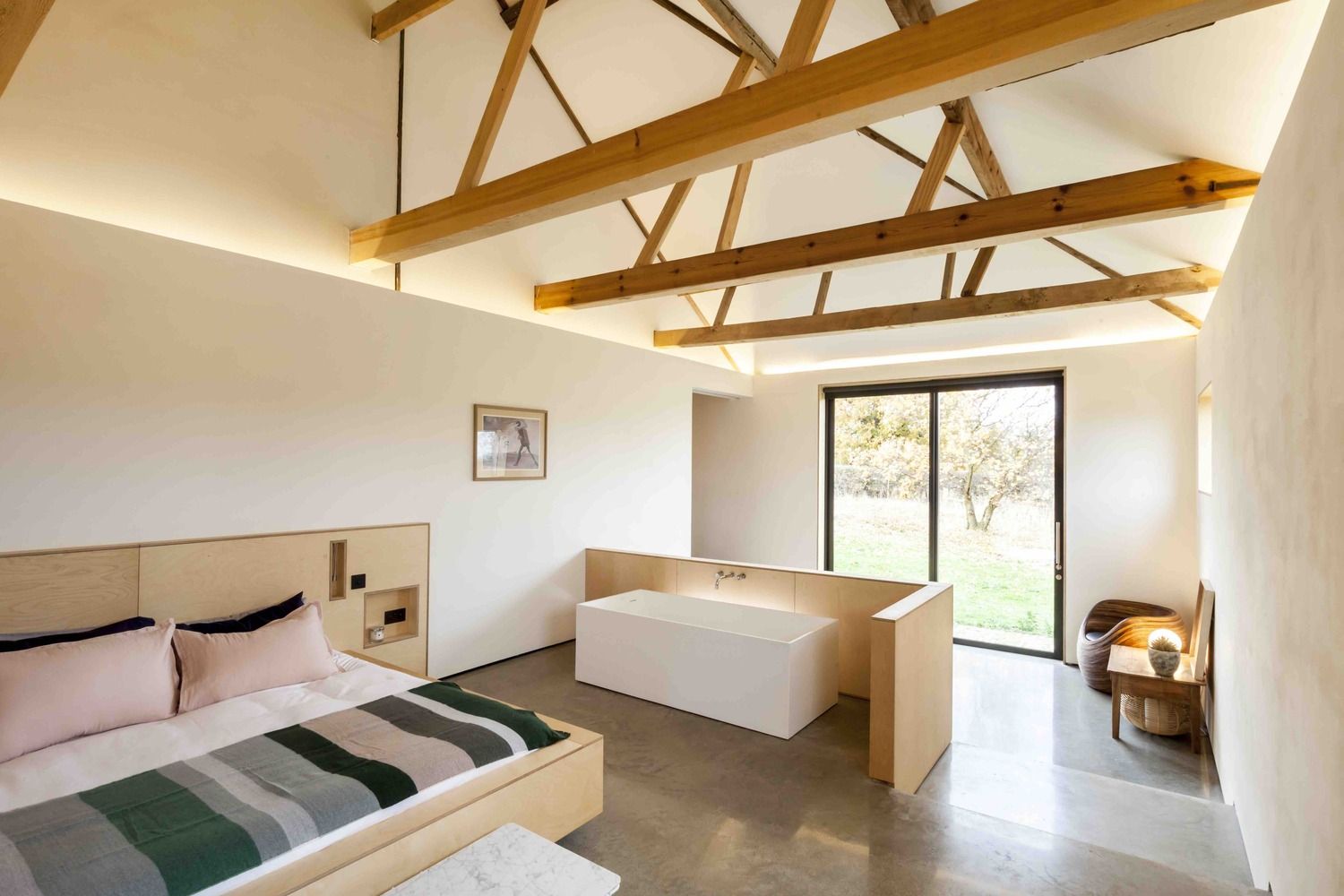

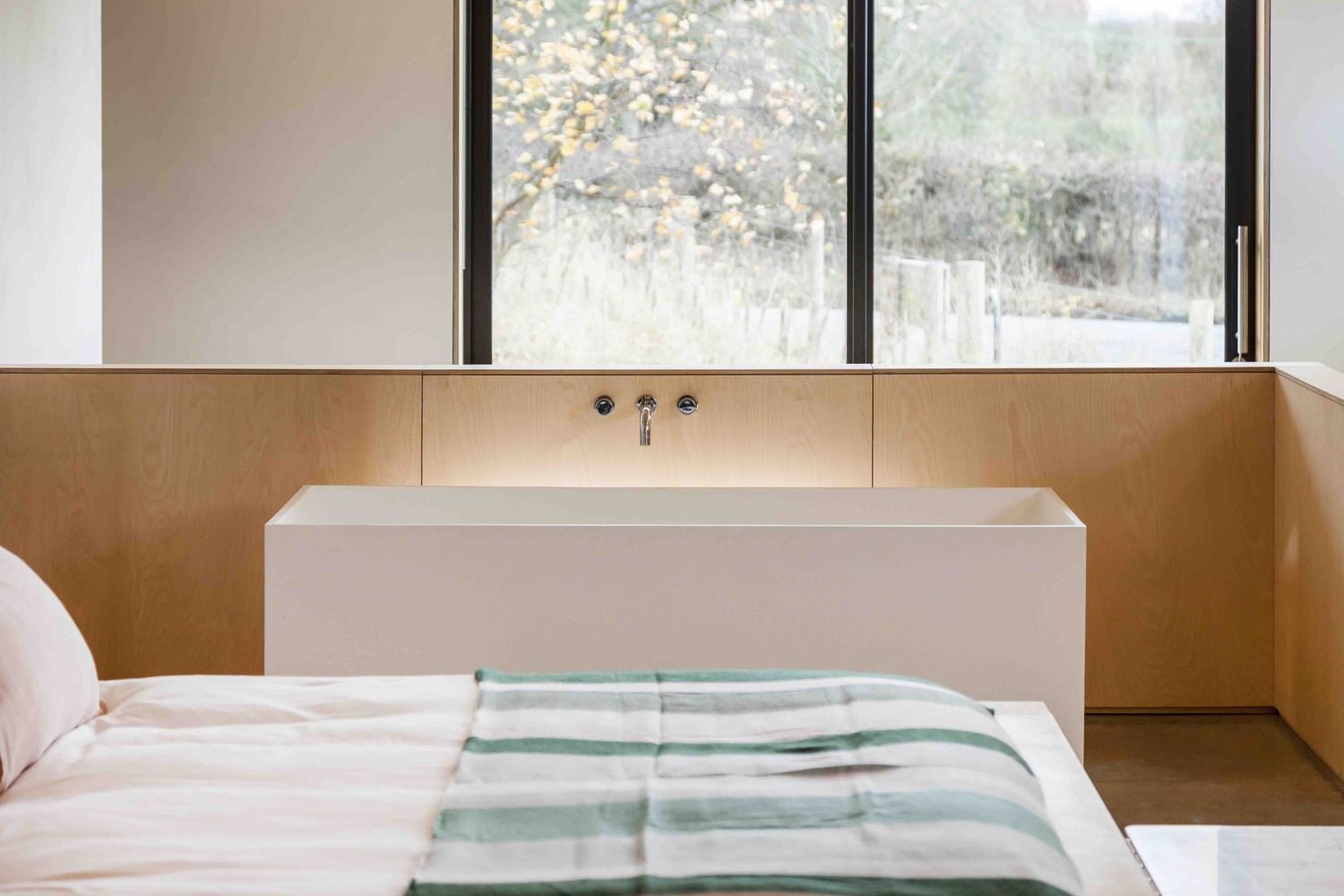

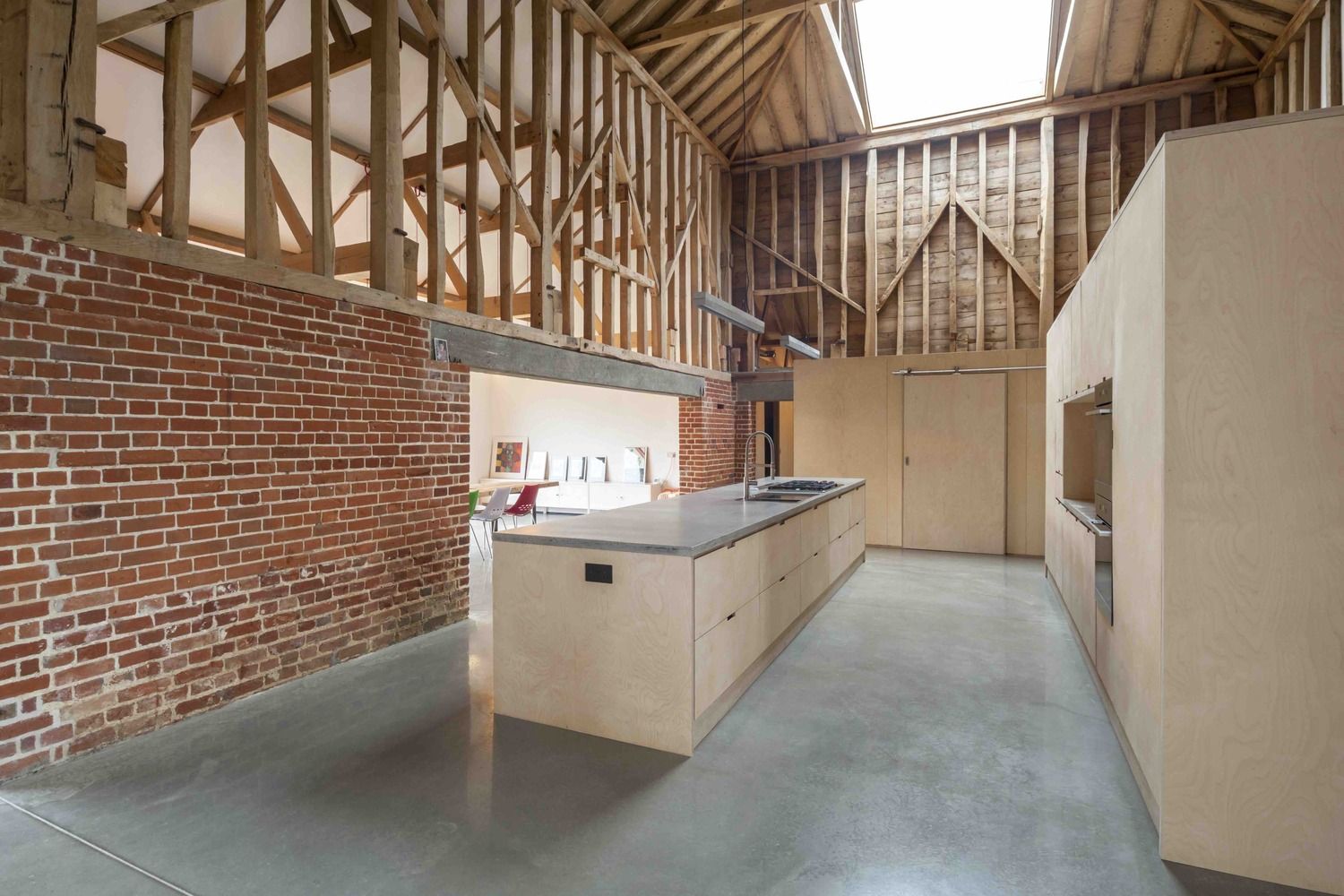

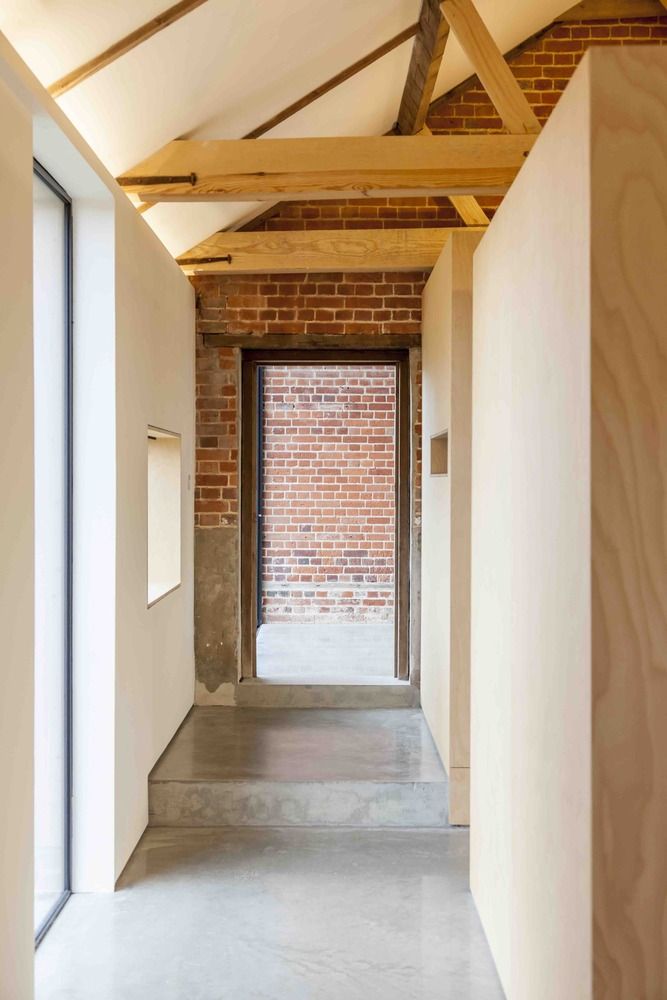

It was decided early on during the design process to keep the spaces as open plan as possible. Where necessary partitions and screens are designed as overscaled freestanding furniture. Constructed from birch faced plywood sheets, they organize the spaces, providing privacy for bathrooms and sleeping areas. A reminder of the barn’s agricultural past, lighting is operated using existing switch boxes and concealed within the existing structure, existing metal grilles and new joinery.

Photography by© Steve Lancefield

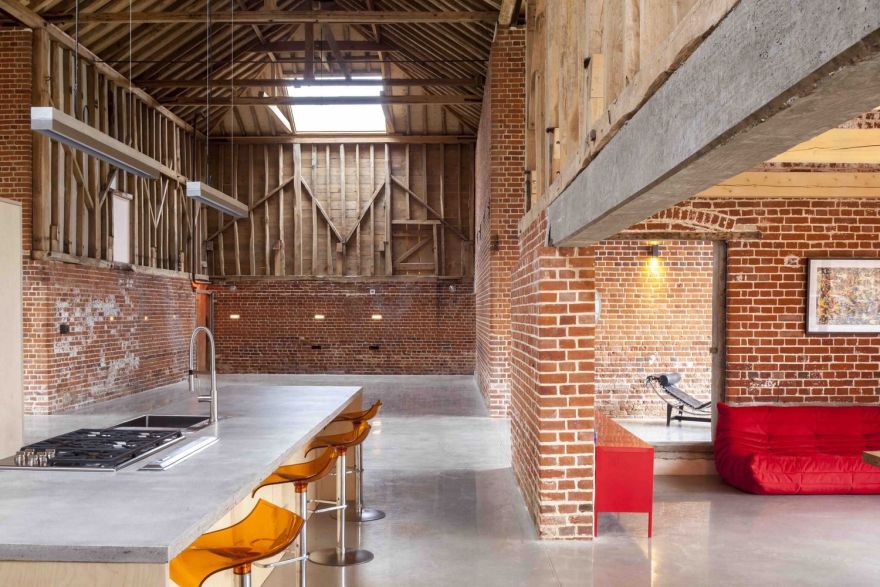

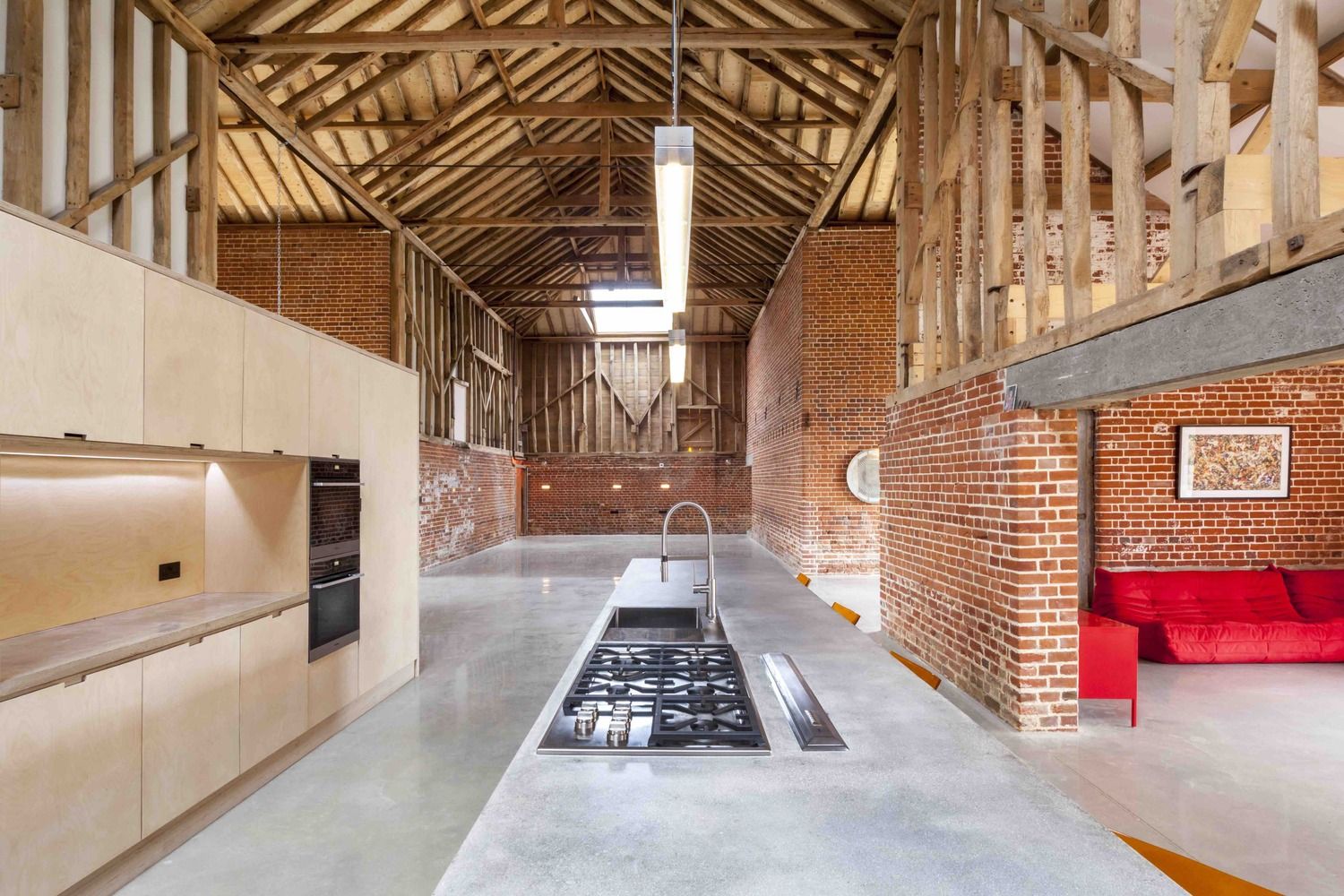

Polished concrete flooring flows throughout with 10mm floor joints aligning with the spatial demarcation. A biomass boiler is assisted by a mechanical ventilation and heat recovery system that recirculates warm air stacking in the taller spaces. Landscaping and planting reflect the internal spaces and is kept simple with wildflower planting and brick paving salvaged from the existing barn complex.

Photography by© Steve Lancefield

Project Info: Architects: David Nossiter Architects Location: Suffolk, United Kingdom Structural Engineer: AFP Consult Ltd Project Year: 2016 Photographs: Steve Lancefield Manufacturers: Glazing Vision, James Latham, Cantifix, Thermotec, GEZE, Cellotex Project Name: Church Hill Barn

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

Photography by© Steve Lancefield

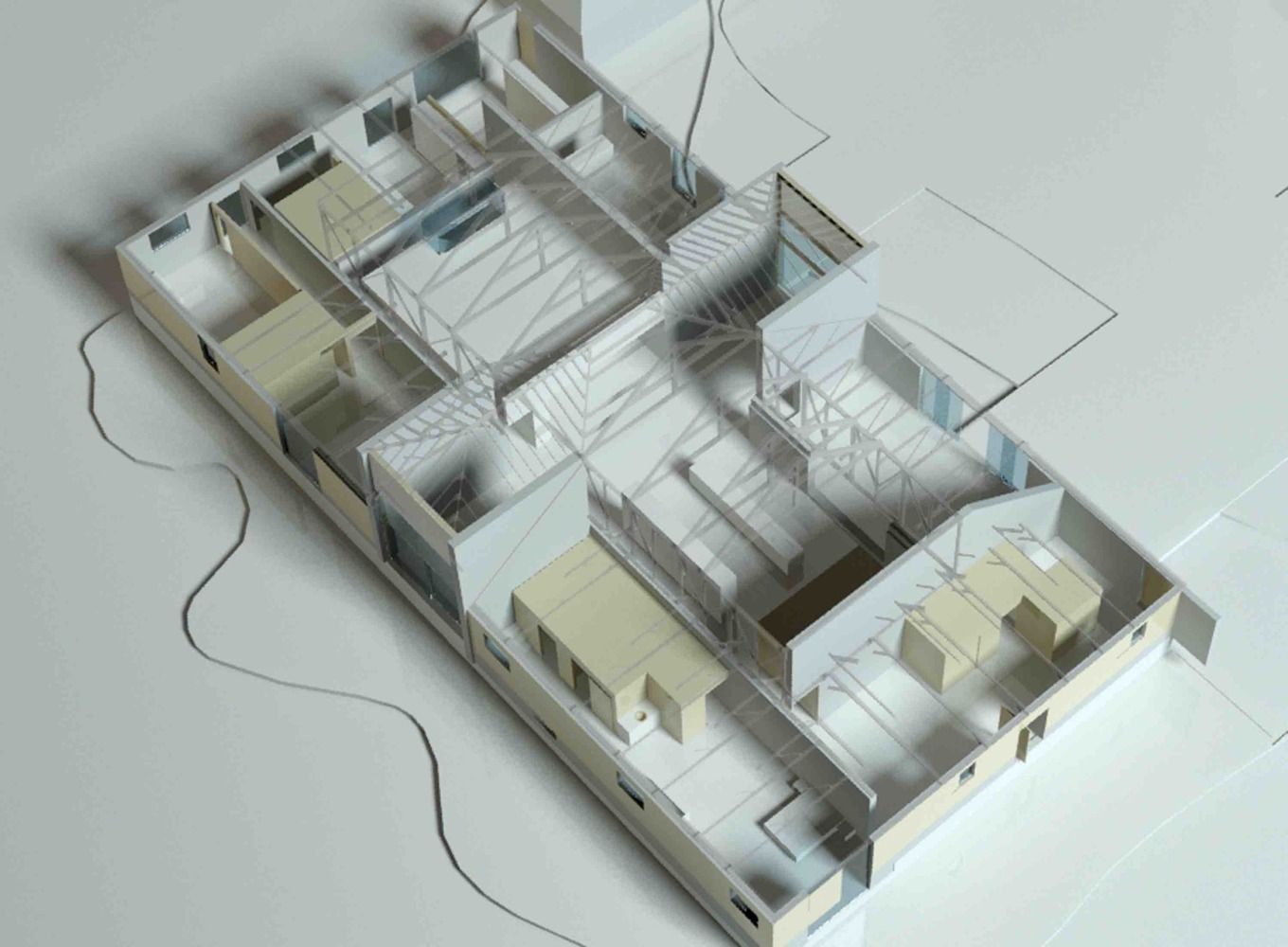

Model

Model

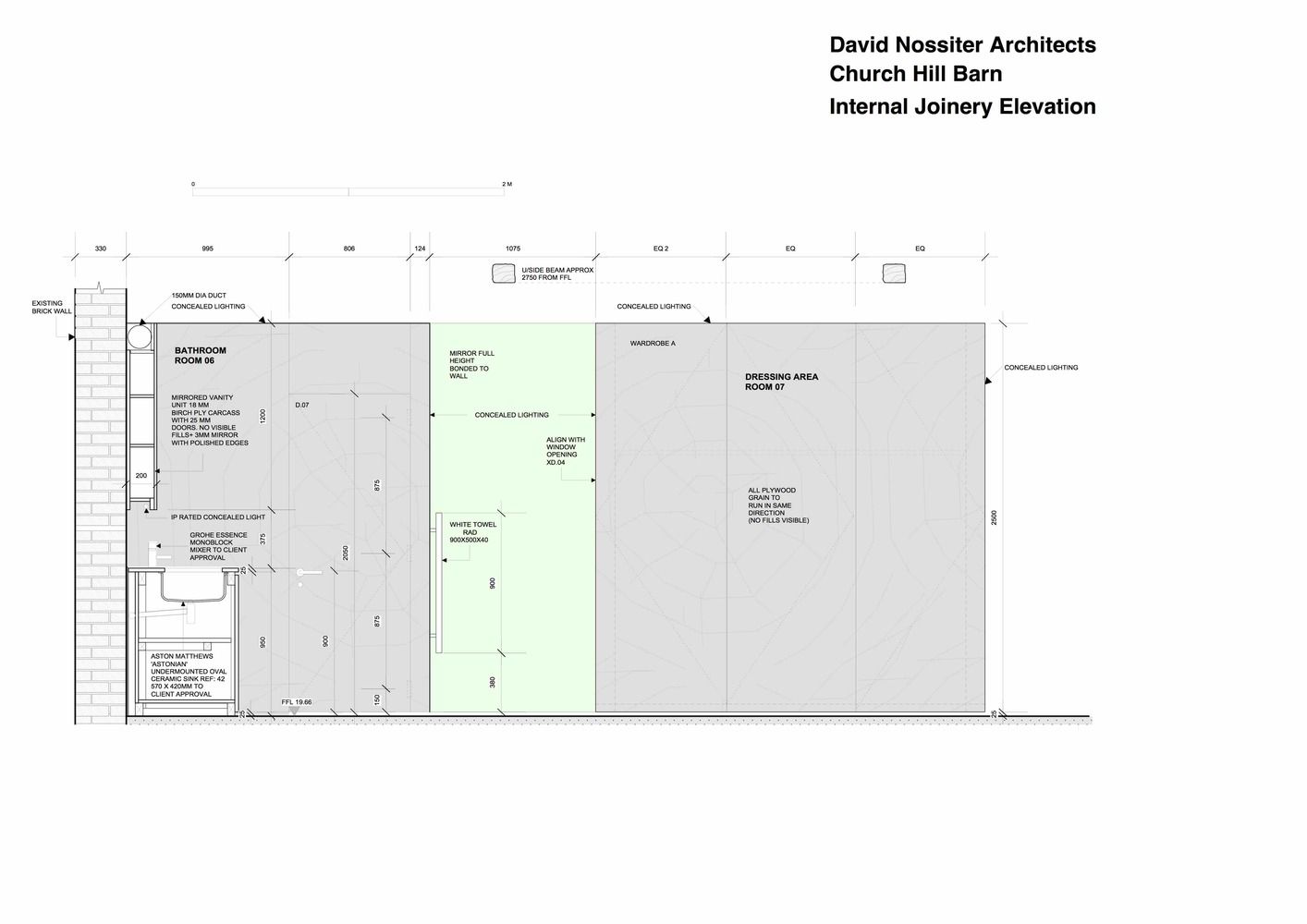

Internal Joinery

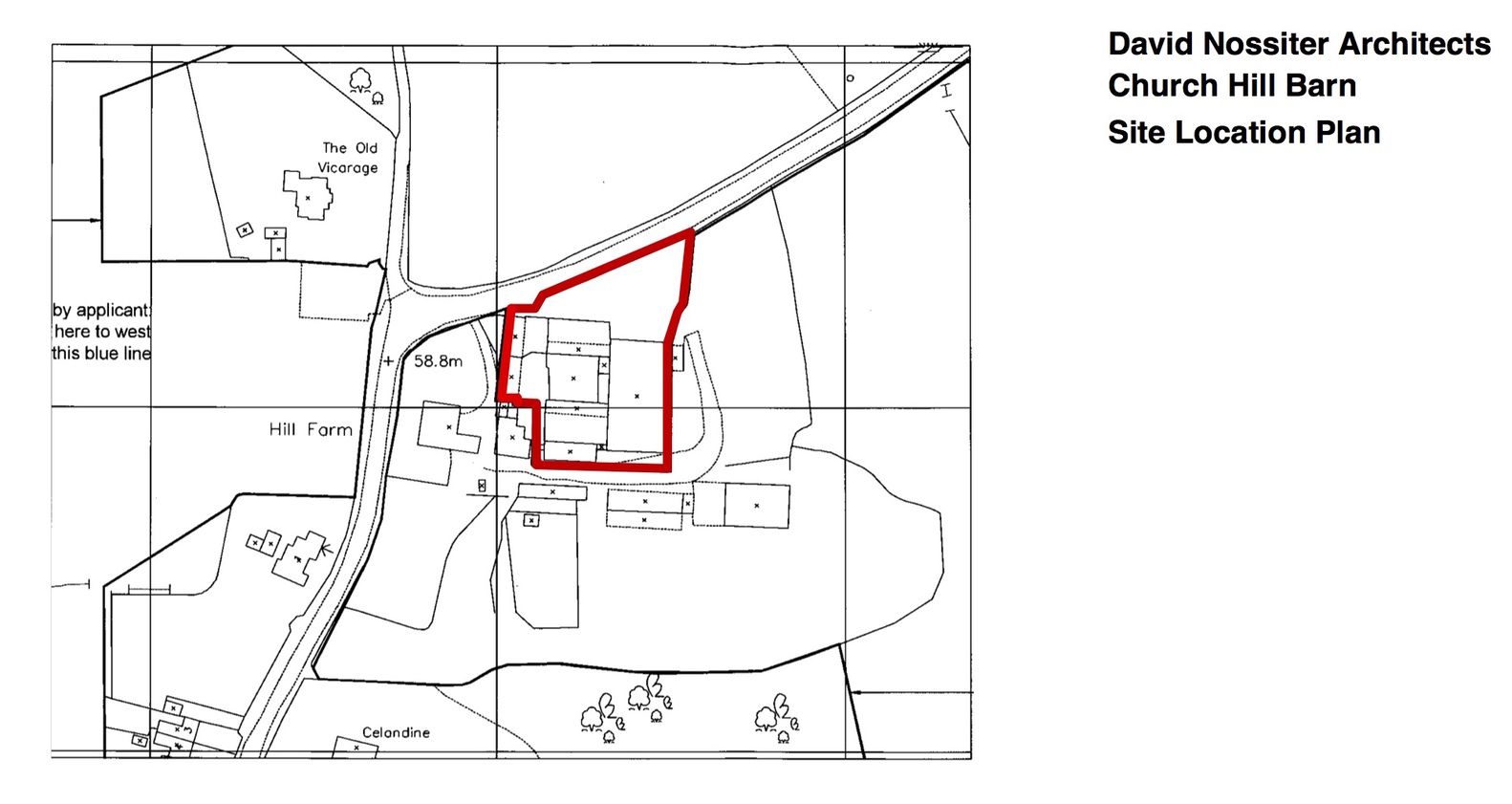

Site Location

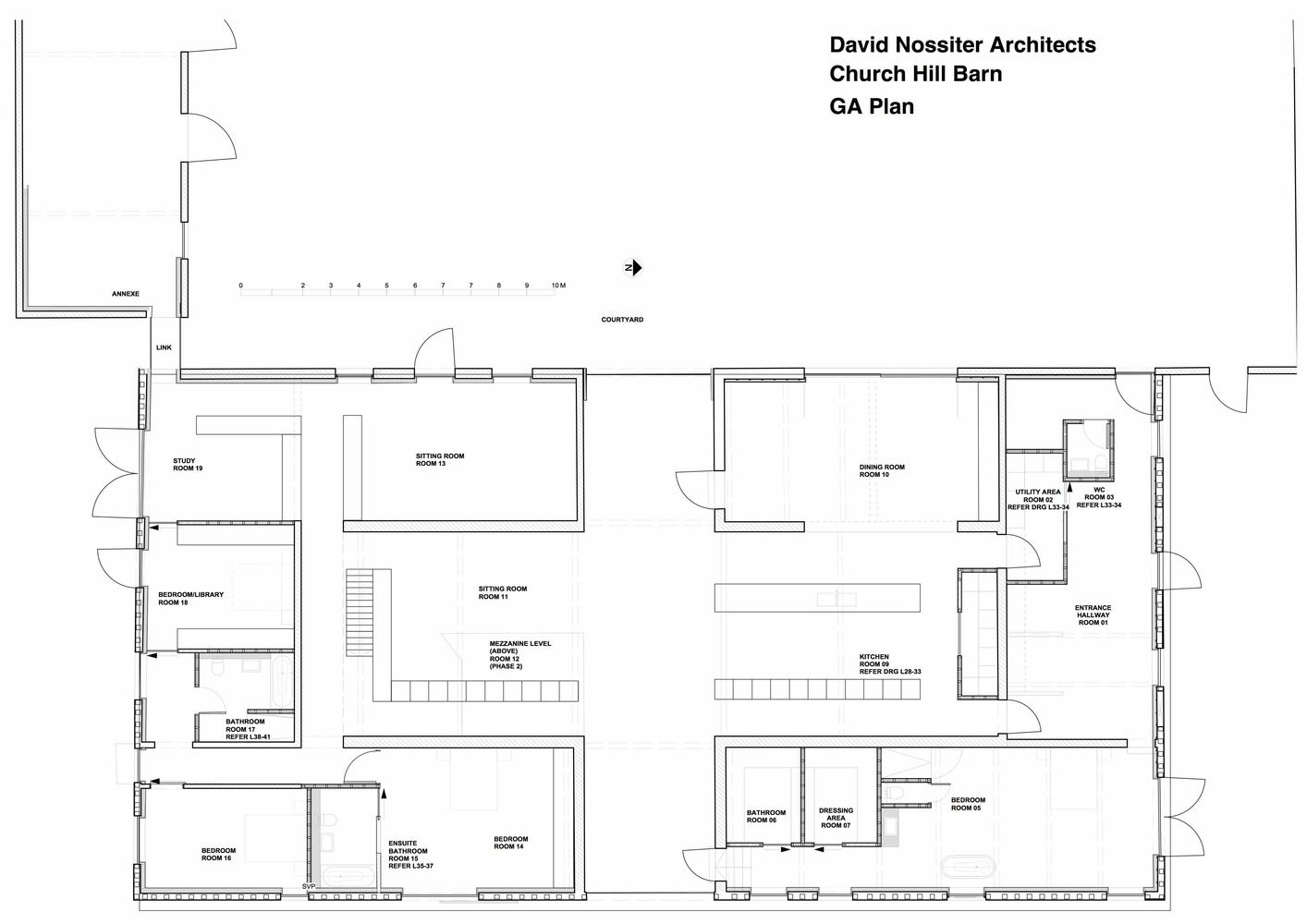

Floor Plan

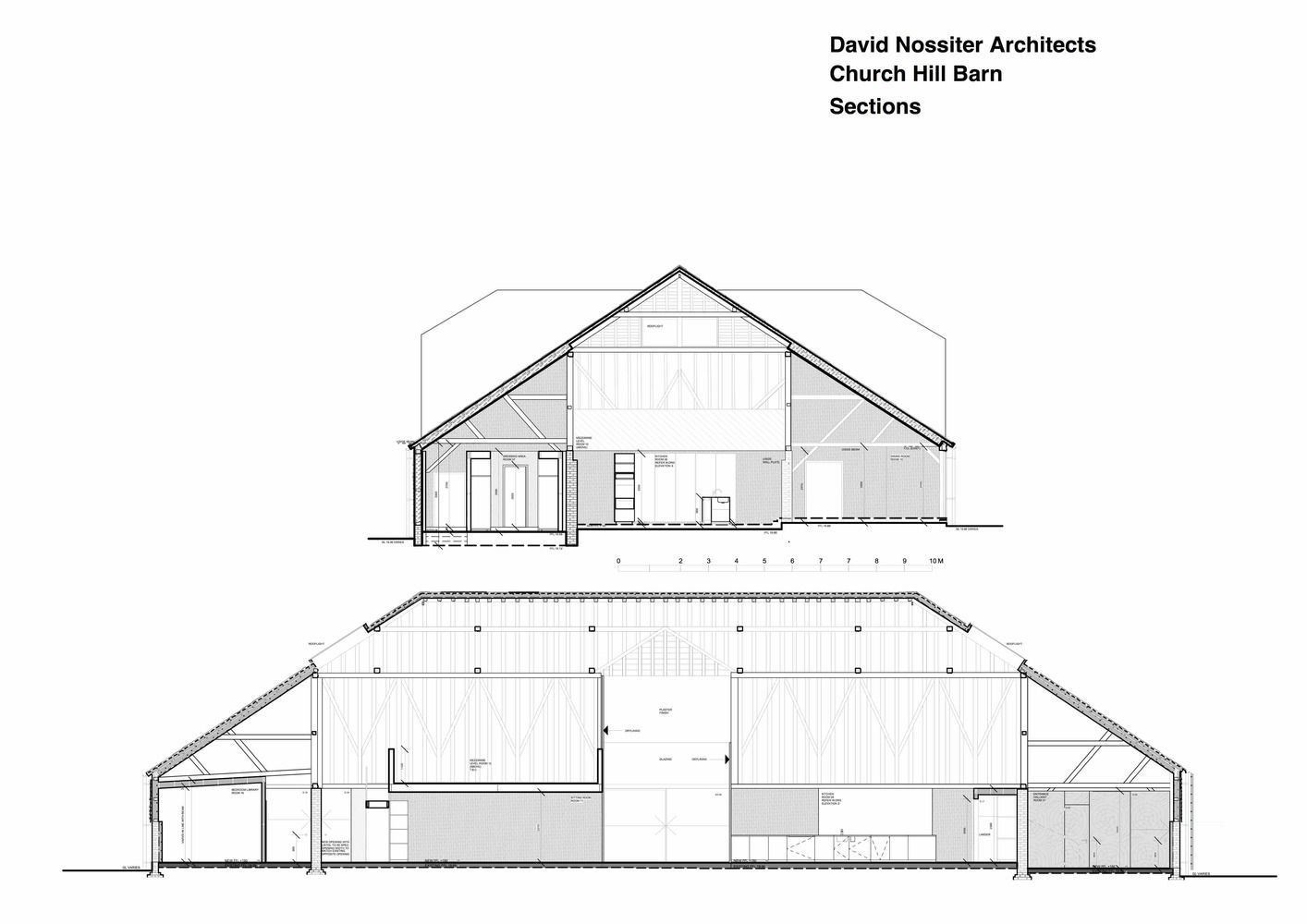

Sections
