杭州 H3C 总部景观设计 | 生态至简大道、创意人性空间

创意人性空间、生态至简大道

概况

OVERVIEW

杭州华三通信技术有限公司（简称H3C）坐落在杭州滨江区，复兴大桥的南端，长河路与滨安路交叉口的东南面。阿里巴巴集团总部、网易总部与其相邻，基地周边为东惠科技园、中南集团、拓森科技园等企业办公大楼，是高新技术聚集地。

New H3C

is located at the south end of Fuxing Bridge, in the Binjiang District of Hangzhou, at the intersection of Changhe Road and Bin'an Road. The headquarters of Alibaba Group and NetEase headquarters are adjacent to each other. The bases around the base are the enterprise office buildings of Donghui Science Park, Zhongnan Group, and Tengsen Science Park, which are high-tech gathering places.

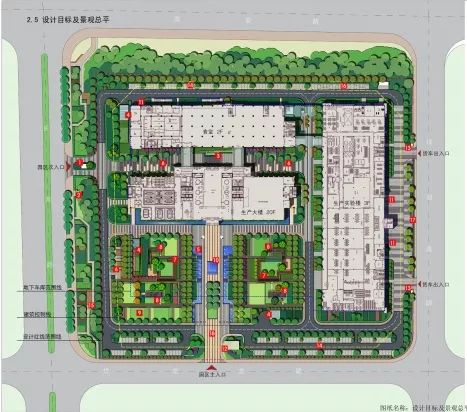

▲ 区位、总平及鸟瞰图

规划用地总面积为

59920㎡

，其中建筑占地面积为

19107㎡

，景观用地面积为

41723㎡

，建筑总面积为

14.38万㎡

。基地内主要有三幢建筑，相互之间用连廊进行连接，园区景观处于地下车库上方，地势平坦，覆土约为

1.35M

。

The total planned land area is

59,920㎡

, of which the building area is

19107㎡

, the landscape land area is

41,723㎡

, and the total building area is

143,800㎡

. There are three main buildings in the base, which are connected by a corridor. The landscape of the park is above the underground garage. The terrain is flat and the earth cover is about

1.35M

.

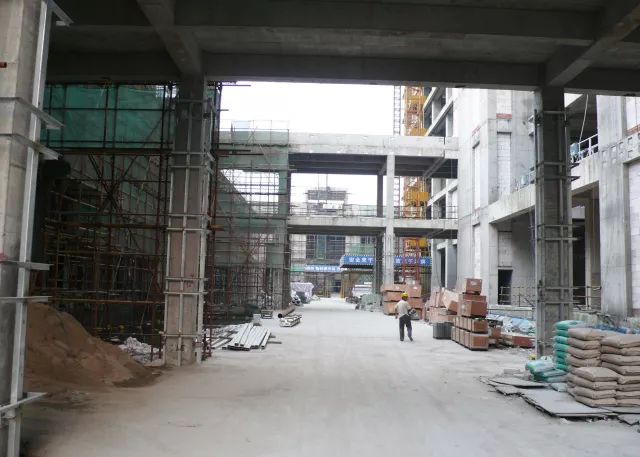

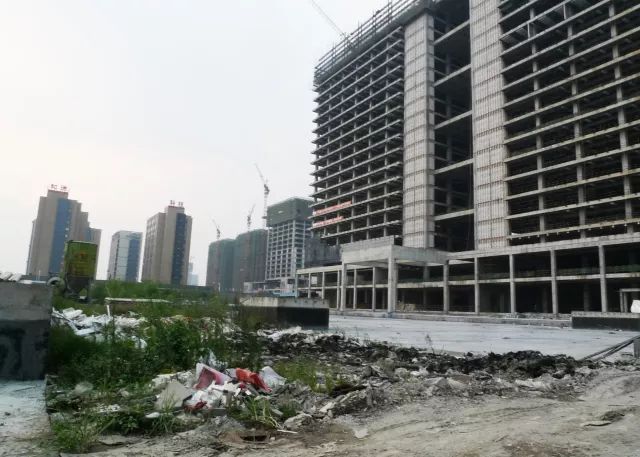

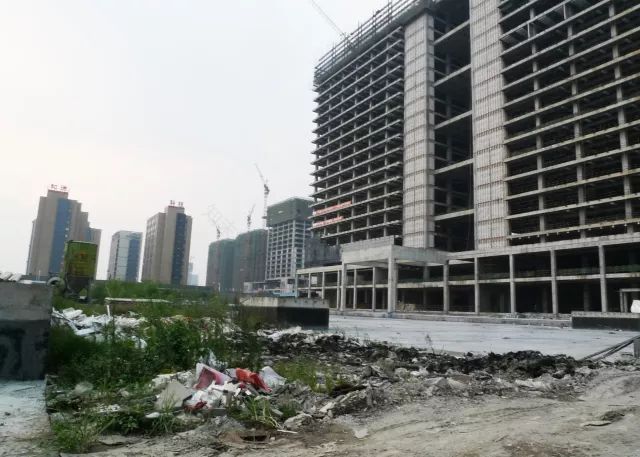

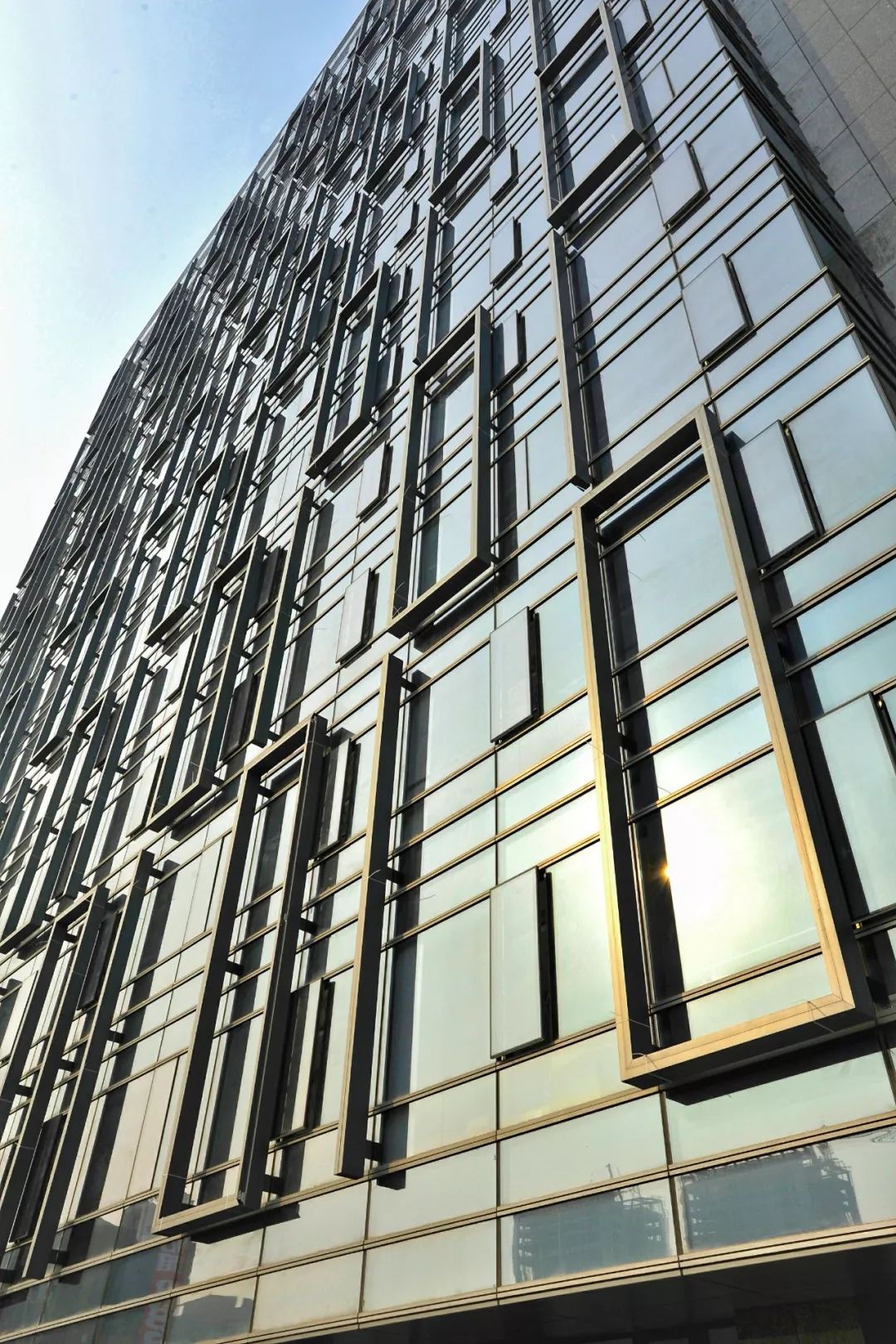

▲ 现状照片

场地思考

FIELD THINKING

▷ 在车库顶板上如何解决好景观空间的竖向层次，深根系植物的考虑及场地排水等问题？

▷ 如何做到人与景观空间的互动、体验？

▷ 建筑与景观一体化及企业文化在景观中如何体现？

▷ How to solve the vertical level of the landscape space, the consideration of deep root plants and the drainage of the site on the roof of the garage?

▷ How to achieve the interaction and experience between people and landscape space?

▷ How is architecture and landscape integration and corporate culture reflected in the landscape?

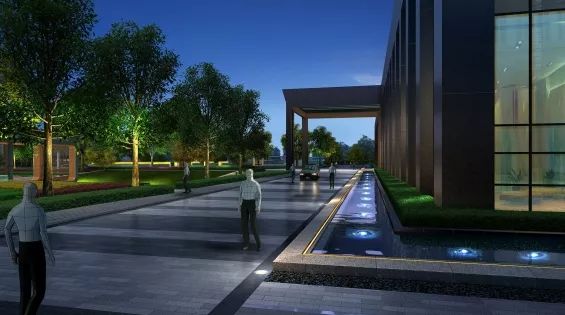

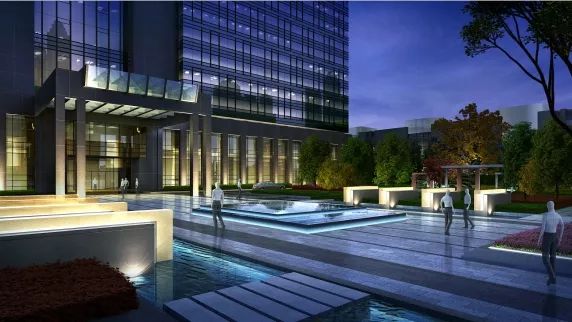

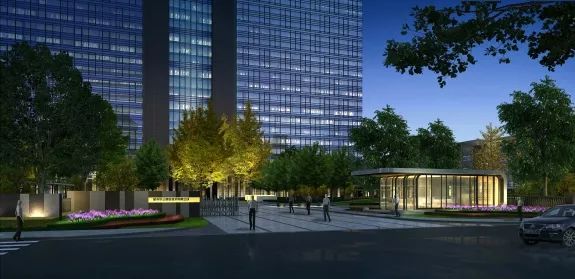

▲ 效果图展示

特色

FEATURES

关键词：建筑元素、企业性质、建筑连廊、企业标志

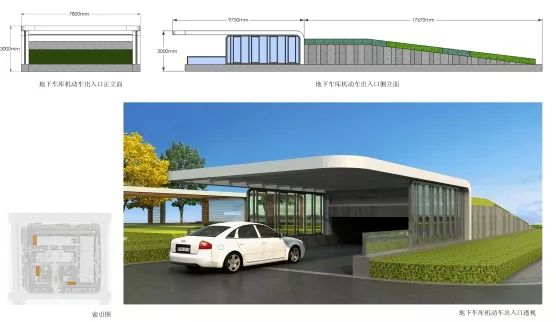

设计构思布局将建筑立面肌理构成“倒影”至场地空间。通过对建筑元素的提炼和重组，结合计算机二进制语言“0”、“1”的抽象化利用，建筑连廊概念的运用及企业LOGO衍生“流线型”设计语言，主次入口门卫房、地下车库及人行出入口等附属设施设计，以“H3C”中的“C”为母体进行创新演变，虚实结合与建筑形成呼应。整体统一、简洁大气，形成室内与室外、建筑与景观的空间对话，充分展现建筑景观一体化的风格特色。

Keywords: architectural elements, corporate nature, architectural corridors, corporate logos

The layout of the design concept creates a “reflection” of the architectural facade to the site space. Through the abstraction and reorganization of architectural elements, combined with the abstract use of computer binary languages “0” and “1”, the use of the concept of architectural corridors and the “streamlined” design language derived from corporate LOGO, primary and secondary entrance guard rooms, and underground garages. Design of ancillary facilities such as pedestrian entrances and exits, innovation and evolution based on the "C" in "H3C", and the combination of actuality and actual construction. The overall unity, concise atmosphere, the formation of space and dialogue between indoor and outdoor, architecture and landscape, and fully demonstrate the style characteristics of architectural landscape integration.

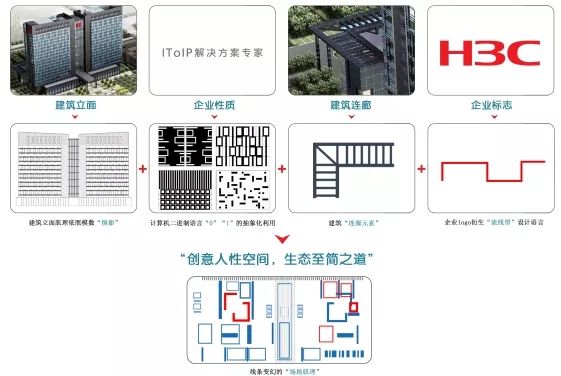

▲ 企业文化及元素演变

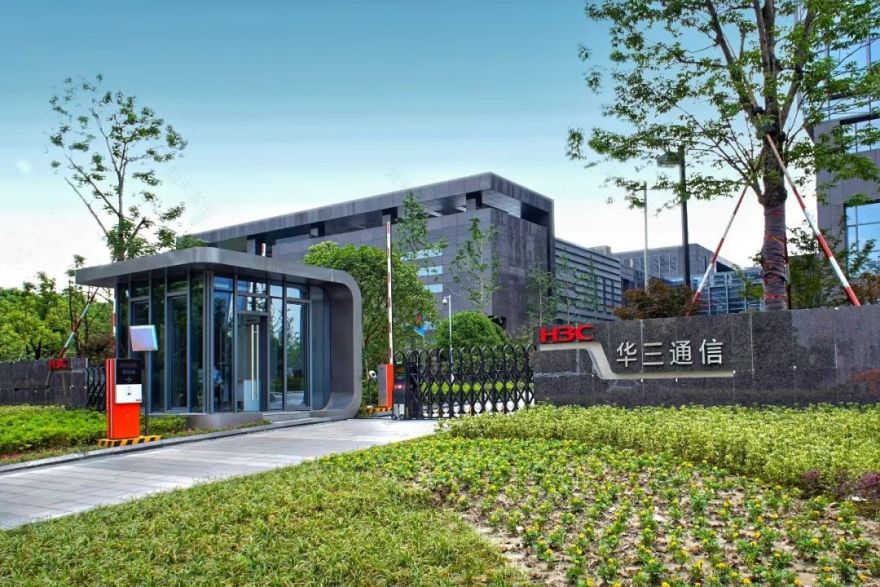

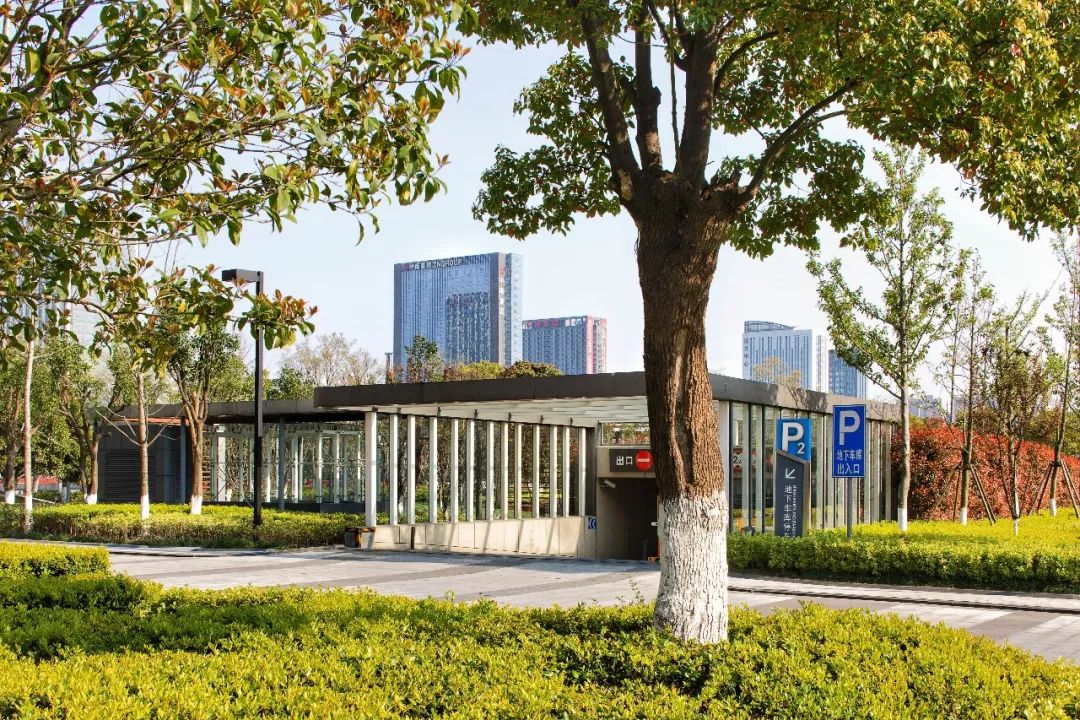

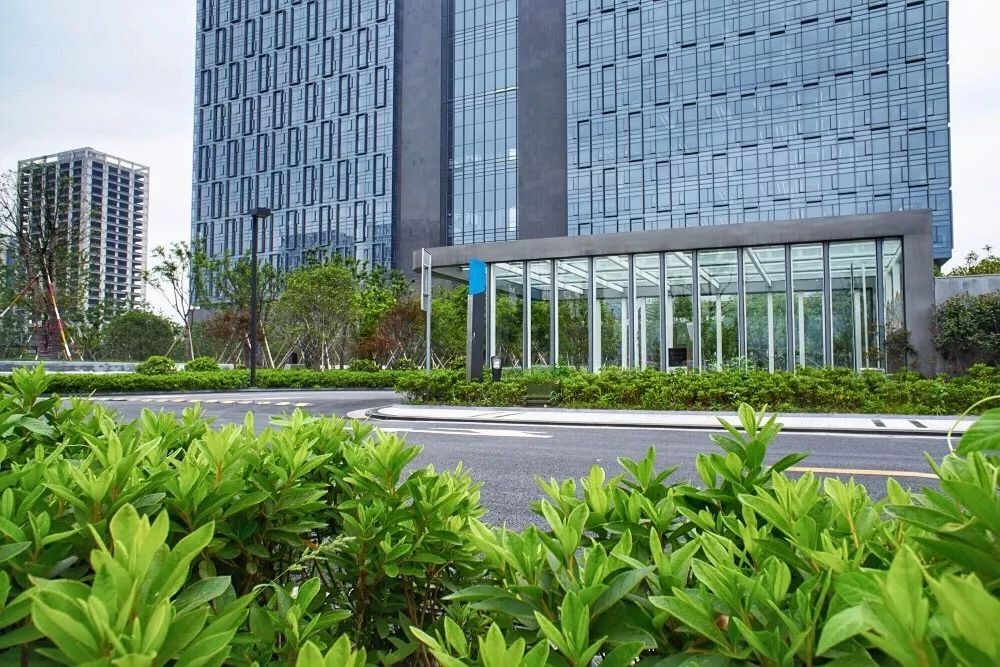

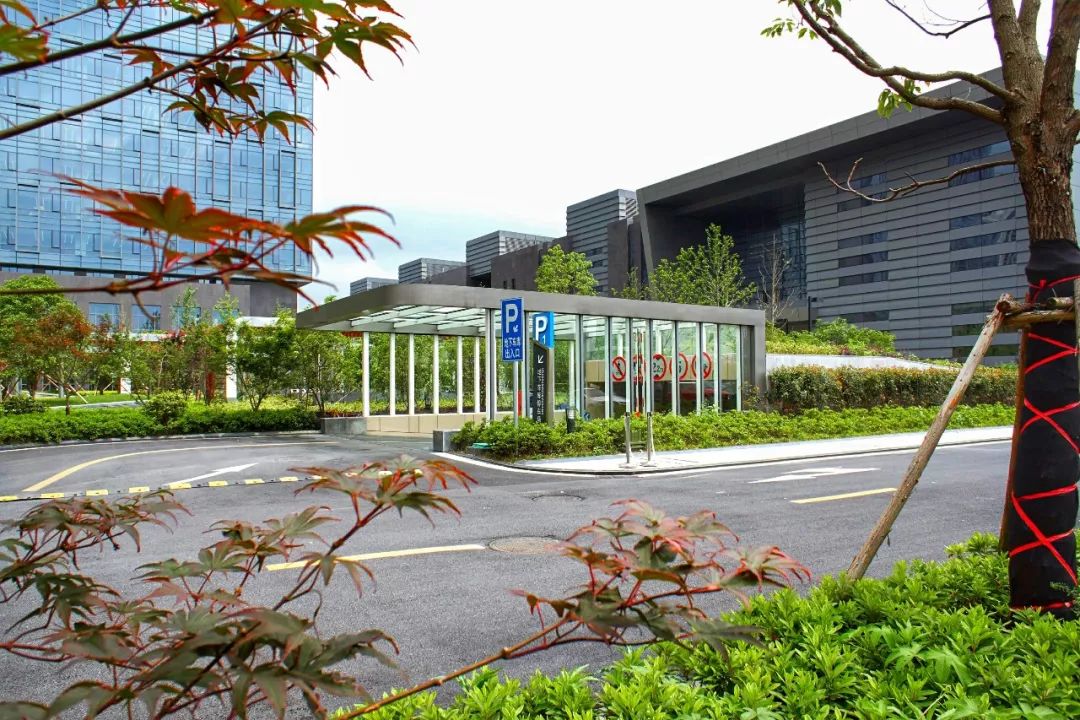

▲ 实景照片

构成

CONSTITUTE

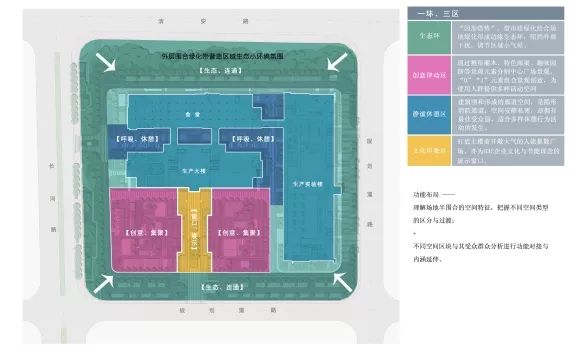

现状场地为半围合式的空间特征，设计充分把握不同空间类型的区分与过渡。从功能布局到空间行为，分为

一环三区

的特色布局形式。

一环——生态绿环：生态、连通

区域类型为自然呼吸与有氧运动，区域特色为疏林景观，曲径通幽。

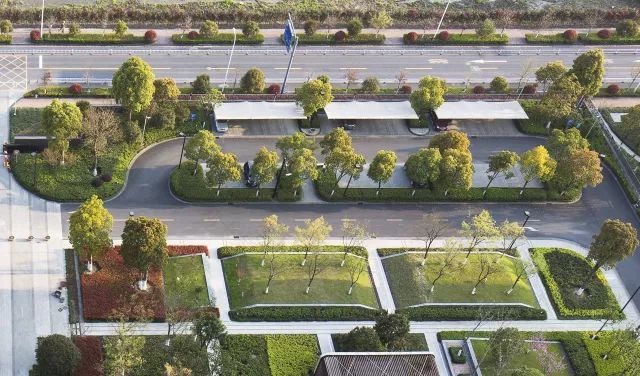

设计利用园区北侧市政绿化带作为园区屏障，西侧绿化带设计相对开敞。“巧于因借、精在体宜”，通过林间游步道对绿化体块的合理划分，营造不一样的有氧活动空间。东侧与南侧绿化结合园区停车功能，作为生态停车场。

The current site is a semi-enclosed space feature, and the design fully grasps the differentiation and transition of different space types. From functional layout to spatial behavior, it is divided into three parts of the characteristics of the layout.

One Ring - Ecological Green Ring: Ecology, Connectivity

The area type is natural respiration and aerobic exercise, and the area is characterized by sparse forest landscapes and winding paths.

The design uses the municipal green belt on the north side of the park as a barrier for the park, and the design of the green belt on the west side is relatively open. “Because of borrowing and fineness in the body”, we can create a different aerobic activity space by rationally dividing the greening blocks through the forest walks. The greening of the east side and the south side combined with the parking function of the park serves as an ecological parking lot.

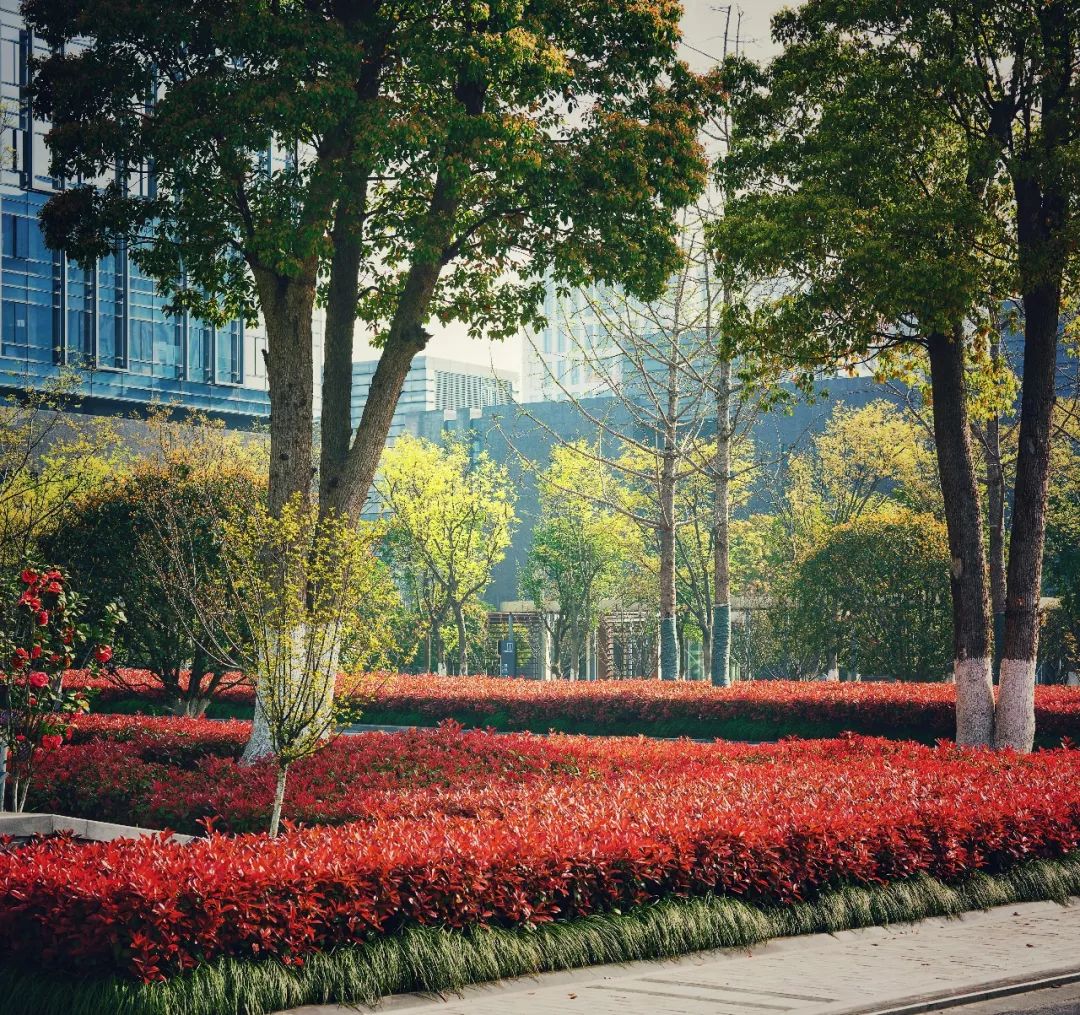

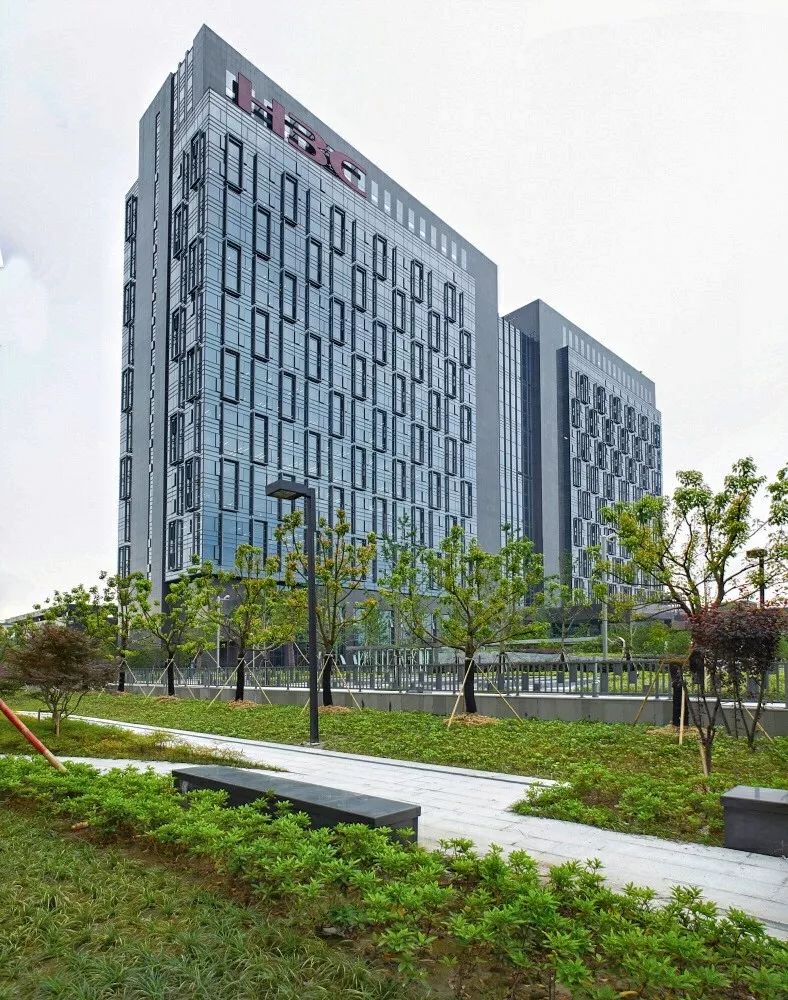

▲ 实景照片

【

三

区】

创意律动区——创意、集聚

区域类型为创意文化展示地—景观与文化的碰撞。区块特色为连廊、复合空间。

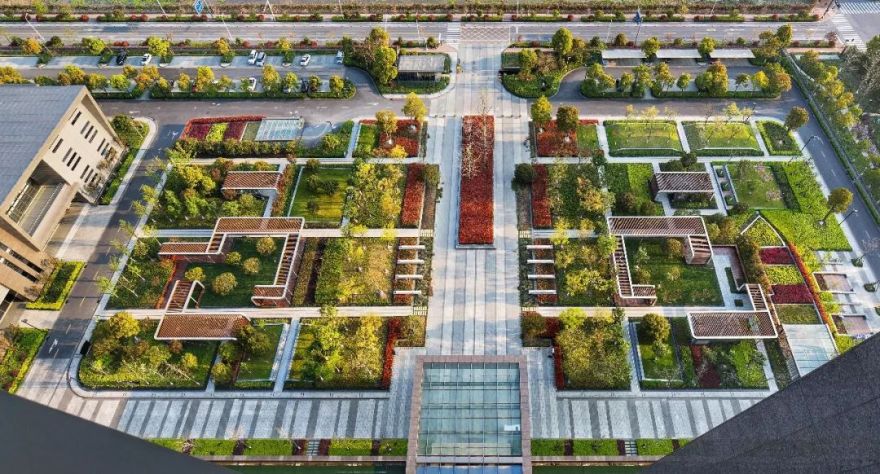

该区块是基地最主要的景观片区，营造半开敞交流空间，是创意、节能、绿色文化的集大成体现，景观平面在延续建筑幕墙块面肌理的基础上，通过景观连廊丰富空间类型，营造休憩空间。利用“0”“1”模纹灌木塑造景观肌理，呼应主题，从细节设计上更好的体现景观完整性。同时，景观造景运用节能环保材料，满足景观效果的同时展现绿色节能文化。

【Third District】

Creative Rhythm Zone - Creative, Agglomeration

The type of area is the collision of landscape and culture in a place of creative culture. The block features corridors and compound spaces.

The block is the most important landscape area of the base, creating a semi-open communication space, which is a manifestation of creativity, energy conservation, and green culture. The landscape plane continues to enrich the spatial structure of the building's curtain wall based on the surface texture of the building. Create a rest space. Using "0" and "1" model bushes to shape the landscape texture, echo the theme and better reflect the landscape integrity from the detail design. At the same time, landscape architecture uses energy-saving and environmental-friendly materials to meet the landscape effect while demonstrating a green and energy-saving culture.

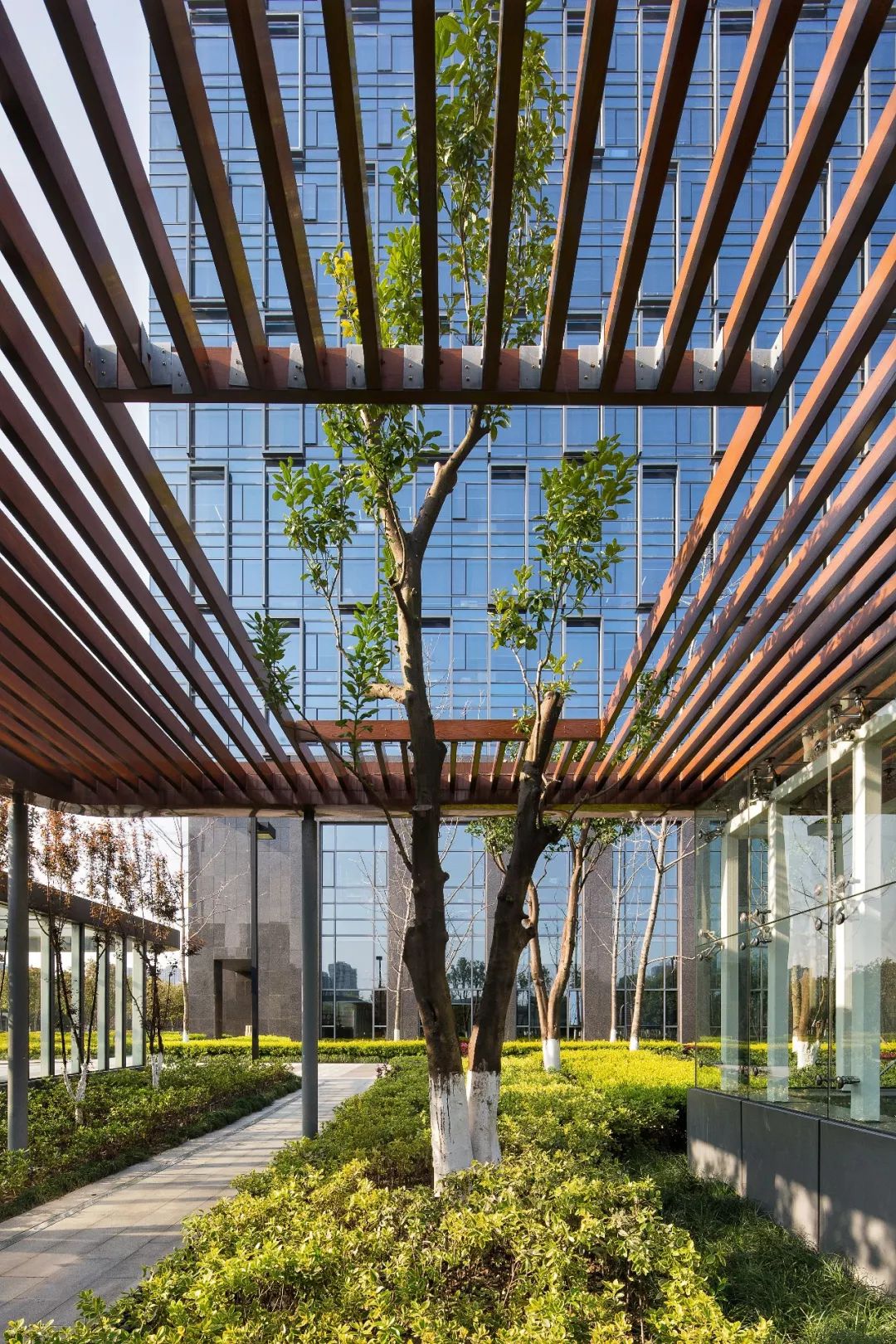

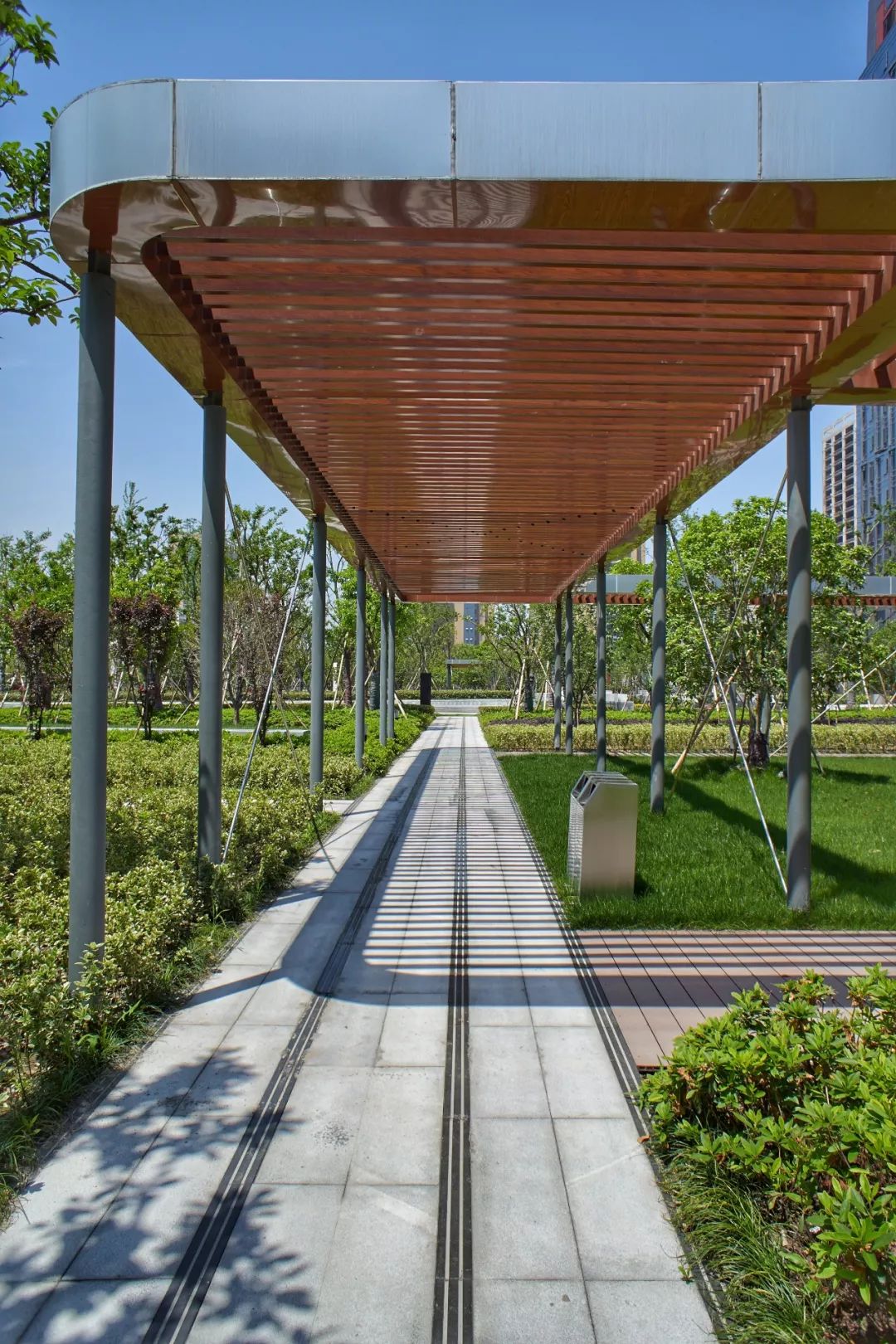

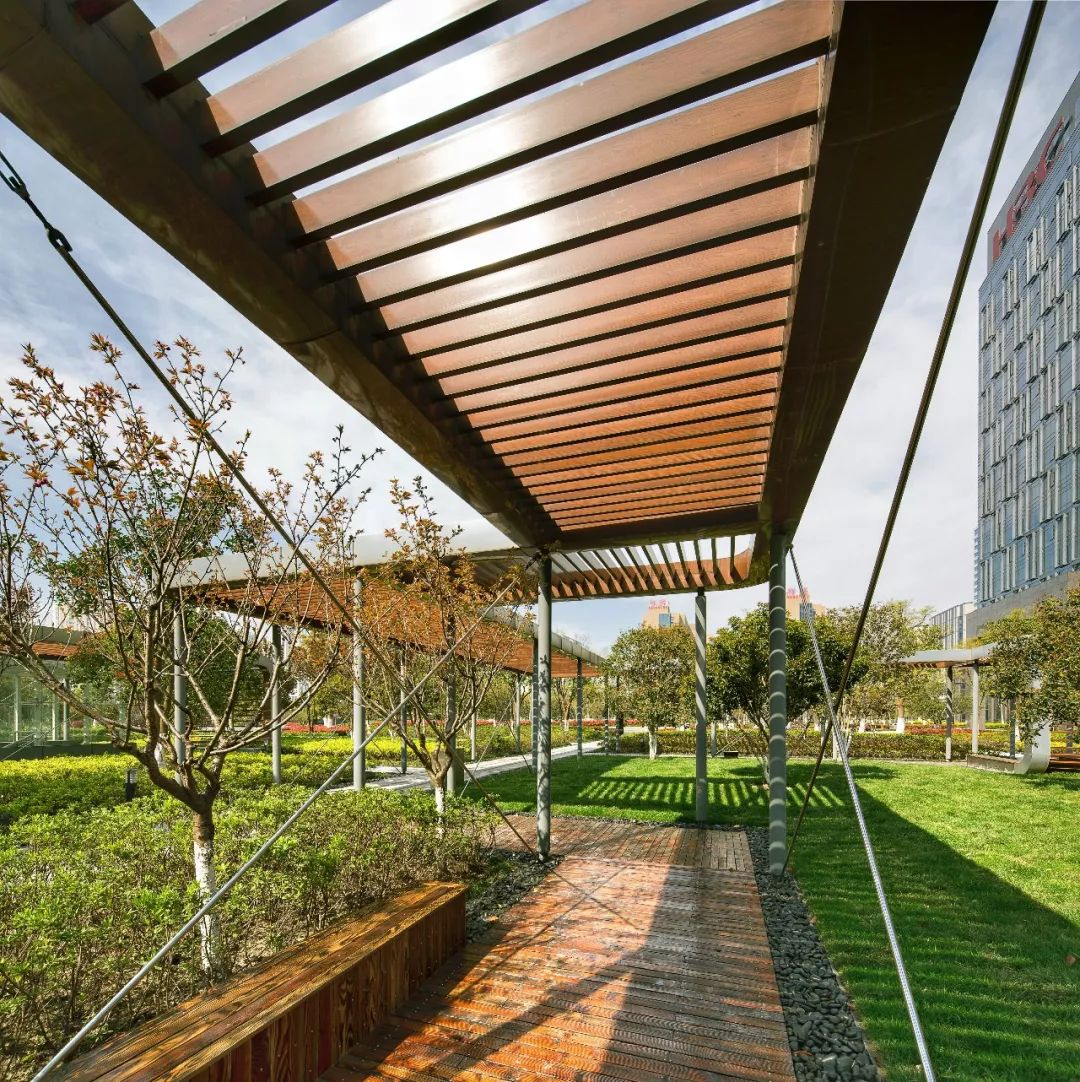

▲ 实景照片

静谧休憩区——呼吸、休憩

区域类型为楼间庭院廊道—忙里余闲的工作状态。区块特色为休憩长廊、节点庭廊。

理解场地双面围合的连廊空间特性，景观设计满足员工休憩、交流的私密空间需求，在满足消防通道使用功能的前提下，结合线形铺装、创意休闲坐凳、植被绿化的设计，更好的连接楼宇之间的过渡，体验轻松的工作环境。

Quiet rest area - breathing, rest

The area type is the courtyard corridor of the building - the busy working state. The block features a Restoration Gallery and a Node Gallery.

Understand the space characteristics of the double-sided enclosure of the site, the landscape design meets the private space requirements of employees' rest and communication, and under the premise of meeting the function of fire channel, combined with the design of linear paving, creative leisure bench and vegetation greening, Good connection between buildings to experience a relaxed working environment.

▲ 实景照片

文化印象区——窗口、展示

区域类型为特色主轴广场—形象展示窗口。区域特色为现代化铺装艺术广场、时尚文化窗口。

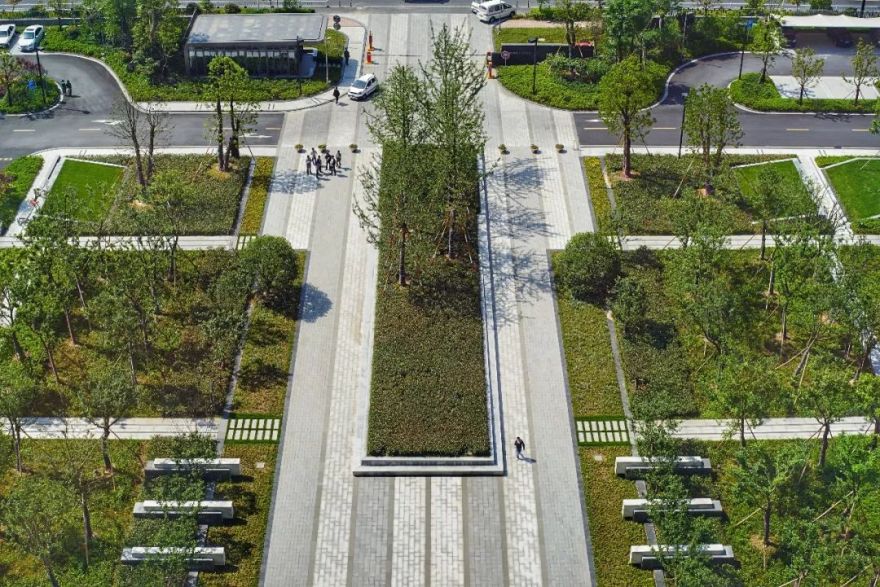

在园区南入口营造大气的开敞空间，强化中轴线，合理组织人行及车行。中轴线的树阵绿化设计，将人行通道两侧分流，并结合带状花池，设计发光体景墙，以“0”“1”为元素，延续建筑立面线条、依照模数倒影平面肌理的硬质铺装，更强化了其功能性与视觉空间的纵深感，开合有致的布局形式及空间的节奏变化，将入口广场打造成为企业文化与节能理念的展示窗口。

Cultural Impression Area - Window, Display

The area type features a spindle square - an image display window. The regional features are a modern paving arts plaza and a stylish cultural window.

At the south entrance of the park, we will create an open space for the atmosphere, strengthen the central axis, and organize people and vehicles rationally. The tree line greening design of the central axis diverts the sides of the pedestrian passage and combines the banded flower pool to design the luminous body landscape wall. The “0” and “1” are used as the elements to extend the line of the building facade, and the texture of the building is reflected in the modulus. The hard pavement enhances the sense of depth of its functionality and visual space, the layout of the opening and closing, and the rhythm of the space, creating the entrance plaza as a display window for corporate culture and energy-saving ideas.

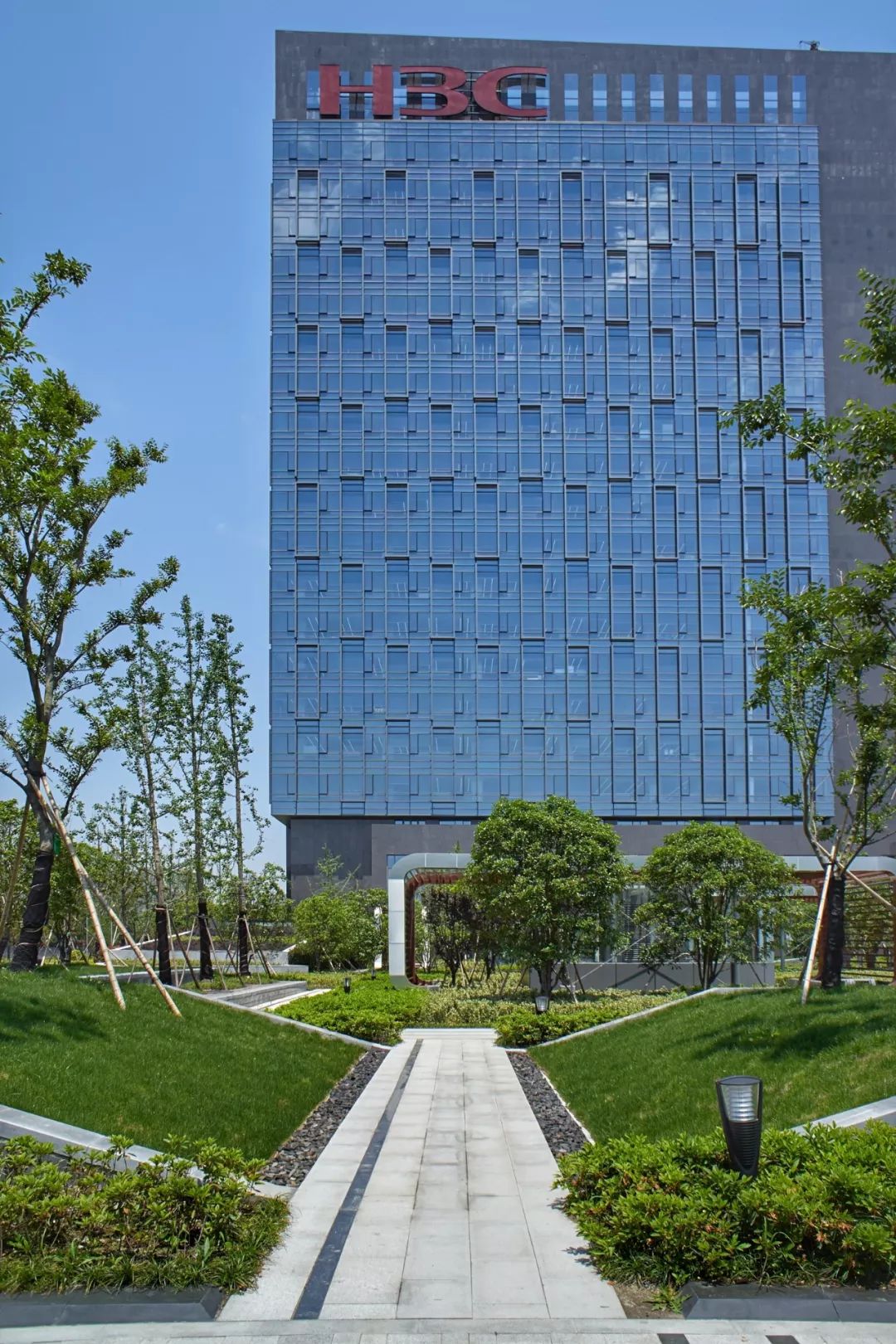

▲ 实景照片

结语

CONCLUSION

Through the design and innovation of low-carbon smart landscapes, the core values of “Creative Human Space, Ecological to Simple Path” are demonstrated, and H3C's “creative,” “green,” “simple,” and “people-oriented” entrepreneurial spirit are displayed to improve the office environment. Quality, creating a relaxed working atmosphere. The design combines the concepts of brand, science, nature and health to create an elegant and exquisite, efficient integration, natural ecology, healthy and warm outdoor landscape space, creating a high-quality and efficient working environment for H3C.

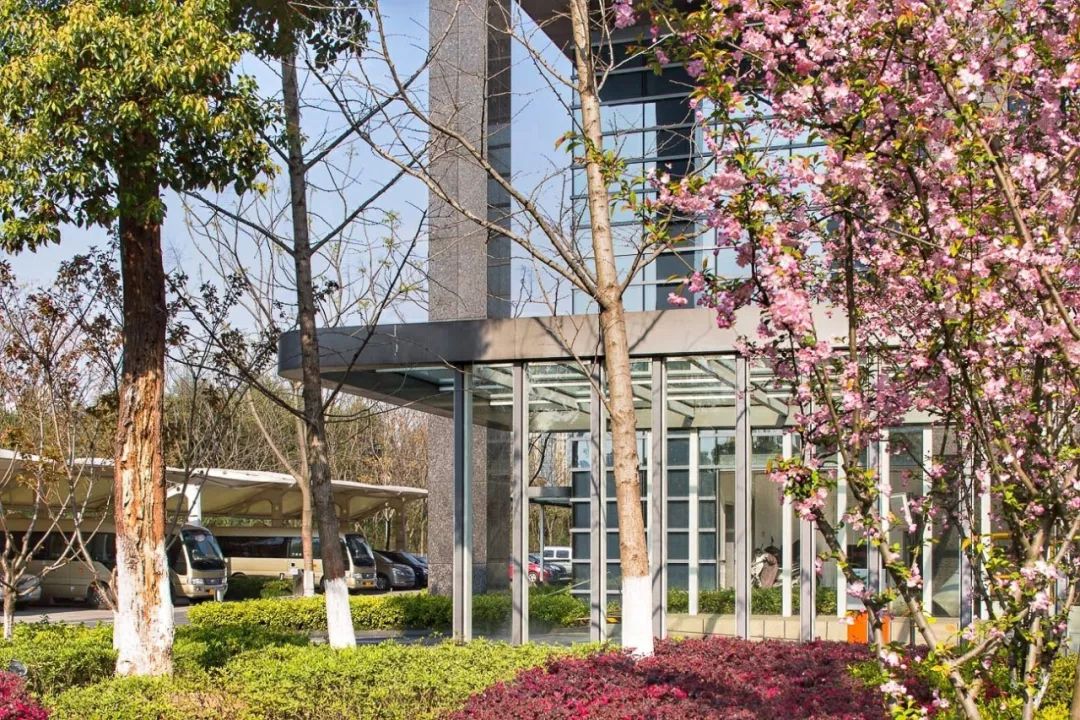

▲ 实景照片

文稿来源：景观与公共艺术研究院
