QUAD扩道建筑设计事务所于2018年11月入围了深圳湾超级总部基地规划设计竞赛。此项目设计面积约5百万平方米，主办方从全球74家设计单位里面挑选15家进入设计竞赛阶段。其余参赛的设计单位包括MDRDV,Miralles Taglieabue EMBT，Massimiliano Fuksas，LAB, TFP, Henning Larsen，NikkenSekkei 以及CUBE等等。 QUAD联同交通顾问MVA以及环保设计顾问Atelier10一同作为联合体参与了这次竞赛。虽然最后很遗憾地没有赢得竞赛，但是我们认为值得和大家分享这次设计中有关超级总部开发方向的创新想法以及环保等设计概念。

In November 2018,

QUADstudio

 was one of the architectural firms short listed out of 74entries to Optimise the Urban Design of 5,000,000 m2 of real estate at the ShenzhenBay Super Headquarter Base. A total of 14 firms were shortlisted were

MDRDV, Miralles Taglebue, MassimilianoFuksas, LAB, TFP, Henning Larsen, Nikken Sekkei and CUBE.

QUAD collaborated with the transport consultant MVA and environmental design consultant

Atelier 10

as a consortium to submit the MLP design scheme

.Although the team didn’t win the competition eventually,but we believe that our vision and aspirations for the MLP, the environmentaldesign and the idea of creating a super transport orientated development forthe future city Super Headquarter Base was worth sharing with the world.

交标当日 模型向大众展示着我们对未来的构想

Megalopolis X

设计团队

项目位置：深圳湾

面积：

5,000,000m2

甲方:深圳投资控股有限公司

总体规划概念设计：

QUAD studio扩道建筑事务所

交通顾问：MVA 弘达

环保设计顾问：Atelier 10

设计团队:

Wai Tang, Kelvin Chu, Charles Ho, Henry Woon,

Chapman Lam

, Jeff Ng, Adrian Pang, Peter Scott, Eric Wen, Landy Liu, Jason Loo, JackZeng

深圳湾超级总部基地

想象一下，在2050年，一座以尖端技术为基础、将未来主义风格和当代艺术融合在一起、汇聚了创新人士的城市会是怎样的？我们是15个国际上具有创造力的设计团队之一，承担粤港澳大湾区枢纽和中心设计任务。 在那里，来自世界各地的人们将惊叹于新一代的未来城市，创意人士可以聚集在一起重新思考未来。 我们很荣幸有机会在创新社区建设、建筑和城市设计方面，具体去设计这样一座未来城市，为所有人建立一个引领创新的平台。

未来城市将成为大湾区的焦点、促进因素及核心区域。

Imagine a city based on cutting edge technology with futuristic nature and contemporary arts all fused together for a city of creative polymaths for the year 2050?

Our aim was not to create just another hub in the city, but the heart of the Greater Bay Area. A place where people from around the world would come the marvel on the next generation of future cities, a place where creative people can come together to rethink the future. We are privilege to have the opportunity to design the content for this future city, designing architecture and urban realm for the creative community to develop a platform for all of us to lead the way towards creation.

The future city will become an attraction and a catalyst and the brain of the greater bay area.

未来从这里开始

工业4.0及新一代人工智能在2025年 “中国制造”声明中，我国将进行一项艰巨的任务——技术革命，它将匹敌甚至超越世界历史上所有的工业革命。我们已经到了一个时代，技术不仅用于日常生活，而是可以在未来用来创造出叹为观止的惊天之作。

China has an ambitus task in their Manifesto for 2025 Made in China, a technology revolution that not only matches, but surpasses all the industrial revolutions in the history of the world combined.  We have come of age where the technology is not only used to help us on daily tasks, we have come a realm where these inventions of tomorrow very soon be compared to the works of gods.

让设计走向未来还有多久？

这是我们再三讨论的问题，如果你看一下技术简史。谁会知道新的现状是什么，未来将可能有一项发明将彻底改变我们的生活方式，如今我们只能用已掌握的技术进行预测。QUAD Studio花了8年时间探索未来城市和深圳湾超级总部基地的可能性，我想我们已经大致了解这座城市的外观、给人的感受以及迎合未来技术的基础设施。

How far can we design into the future?

This is a question we discuss time and time again. The answer is we cannot see into the future and if you look into the brief history of technology;

What this shows is that inventions in technology in the past decade increase exponentially. Who will know what the new reality is, tomorrow there may be an invention that will totally change the way we live. Today we can only speculate with the technology we have in hand.

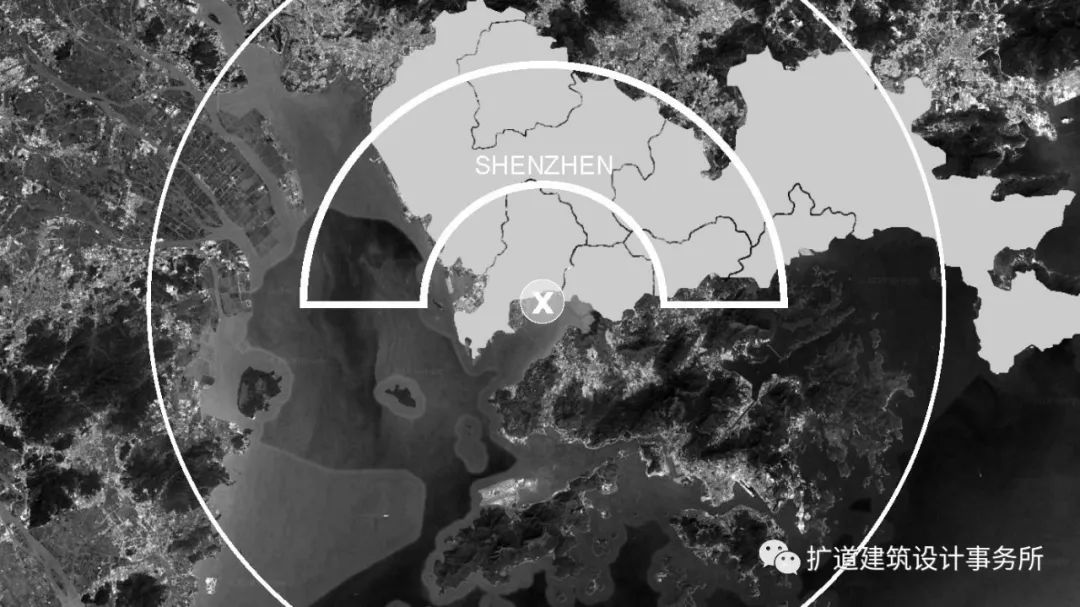

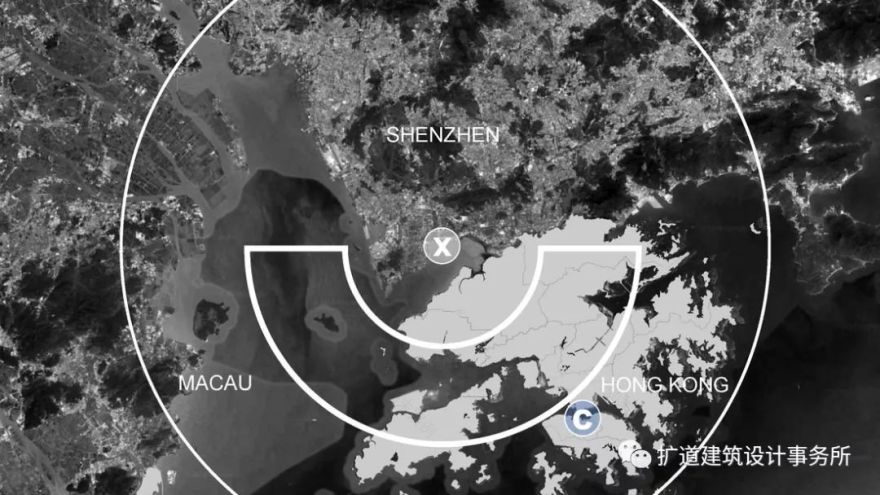

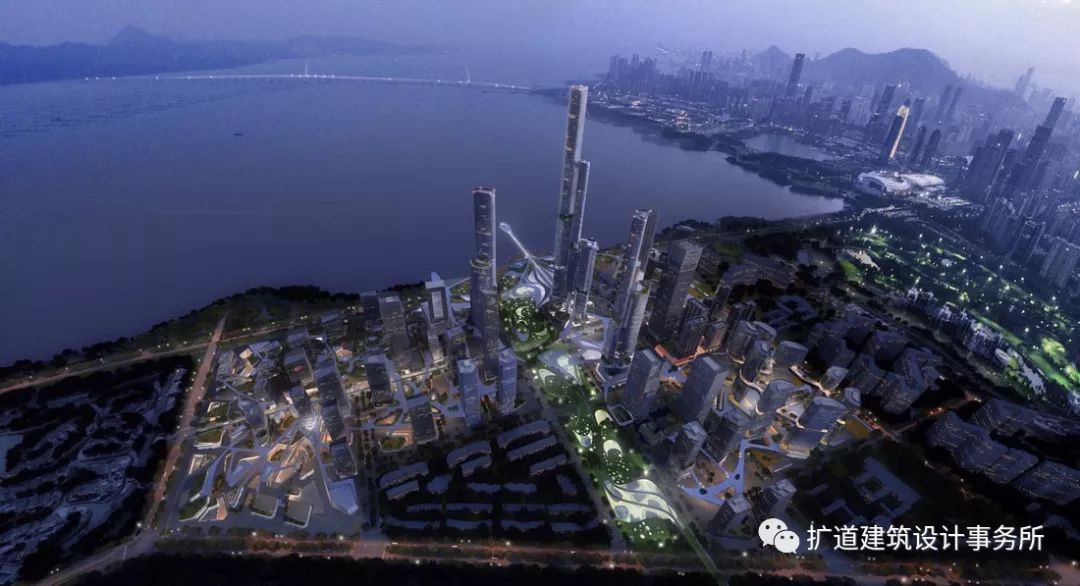

深圳湾超级总部基地在深圳湾与福田口岸之间，位于深圳市南部边缘。如果你把深圳视为孤立的城市，“基地”将以半球形式覆盖深圳所有区域。但是，如果视整个香港和深圳为背景，你会发现“基地”位于这两个城市的中心，从这个角度来看，“基地”改变了自身的背景。

Shenzhen Bay Super Headquarter Base is located on the southern edges of Shenzhen between Shenzhen Bay and Futien. If you look at the Shenzhen as city in isolation, the “Base” covers all regions of Shenzhen in a shape of a semi-circle. But if you look at the bigger picture in the context of Hong Kong and Shenzhen as a whole, you will see that the “Base” is in the centre of the two cities and in this perspective, it changes its context. By 2047, the cities Shenzhen and Hong Kong will be one single megalopolis and with this Megacity comes a new centre.

虽然在中心建立深圳湾超级总部基地是极好的，但仅凭借位于中心的地理条件并不足以使其成为真正的核心。QUAD Studio认为，大都市 X可以成为大都市的中心和核心区。但是，只是被称作中心是不够的，它必须包含成为大湾区的真正中心和创新源地的核心特性。

However, it is all very well to establish Shenzhen Bay Super Headquarter Base as the centre, but It need more than its central location to make it the true heart.

QUAD studio believes that Megalopolis X can exist as the centre and heart of the Megalopolis. But, it is not enough by just calling it the centre, it must contain core attribute that makes it the true centre and the innovative brain of the Greater Bay Area.

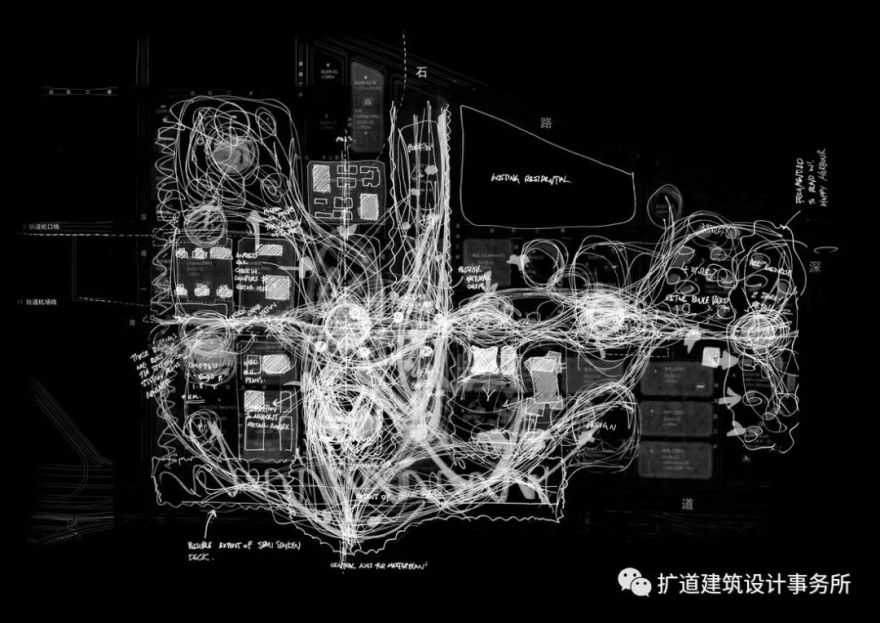

大都市 X. 规划

Planning Megalopolis X

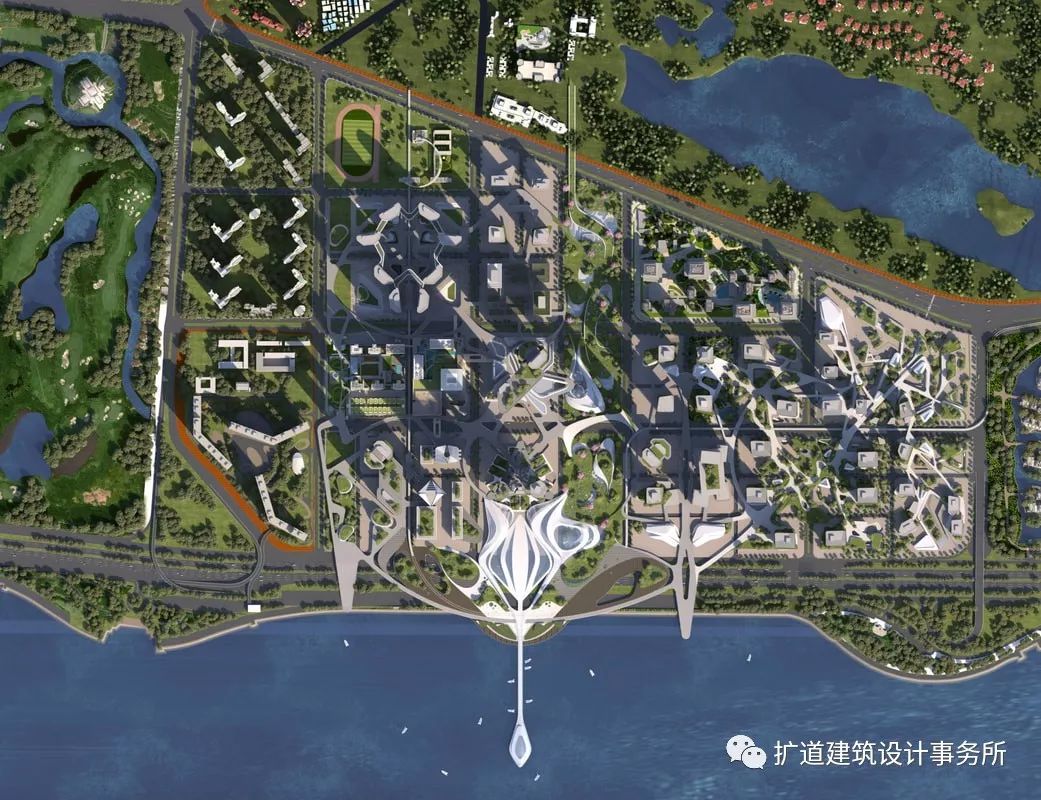

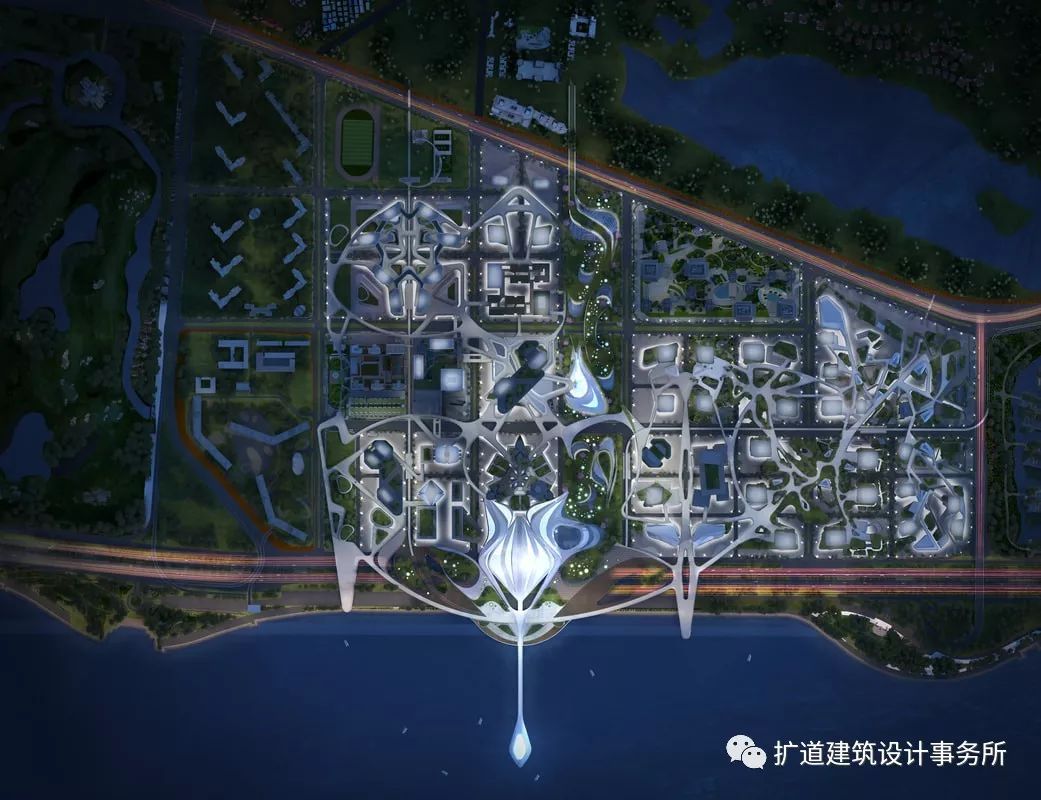

由于3个地铁站以及一些混合使用的开发项目正在筹划中，甚至有些正在建设中，因此该地区不完全是处女地。 然而，这里仍有75％的地块未开发，我们认为这足以用于建设，用于重新思考未来城市的整体愿景。

纵观中外

,每个历史名城，均有其地标建筑。

The site is not exactly virgin land as the 3 metro stations as well as some mixed used developments are on the drawing board, some are even under construction. However, the site is still 75% undeveloped and we think it is enough to work on to rethink the entire vision of the future city.

Every famous historical city around the world has their own Iconic landmarks

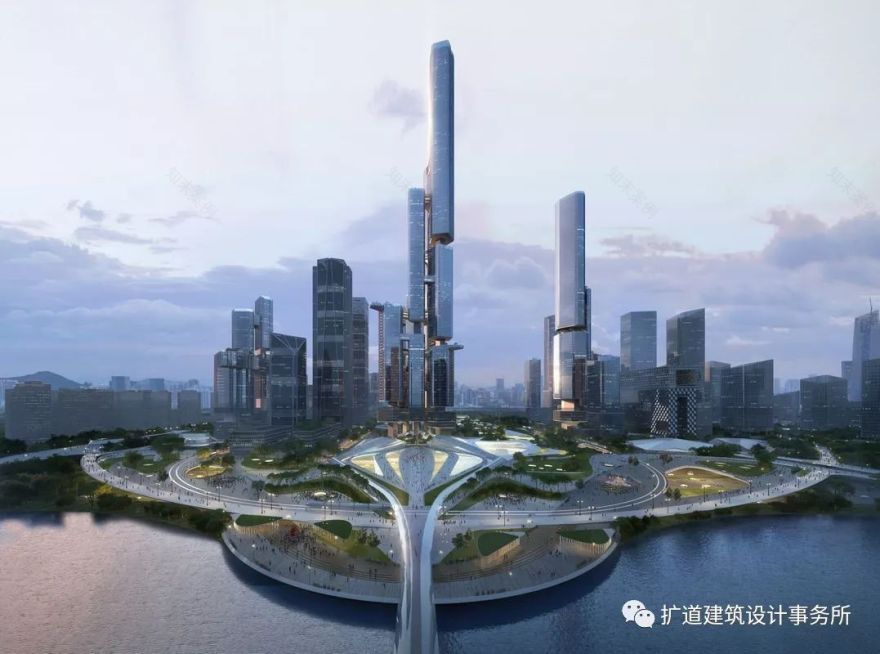

但在未来 我们期待着什么样的地标呢？

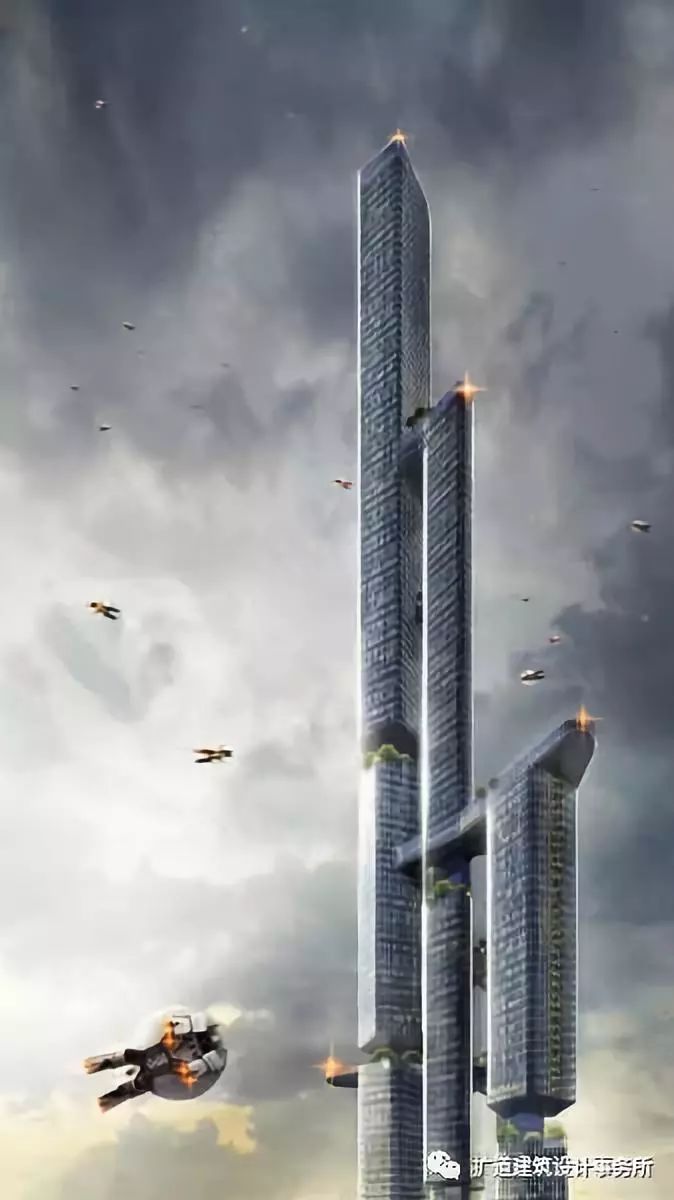

在这里 我们拥有的, 不止是一两座地标，而是一整个城市的地标组团，由以深圳市花为概念的天际mega1号至3号, 占据地标高度, 架空生态纽带, 与连合群楼, 占据地标宽度; 贯通北山南海的中央未来公园, 占据地标深度, 这2.7亿立方米的, 立体巨大地标群, 将是现代超文明的指标, 未来城市的原型

What is our expectation as we march towards the future?

We think it is not enough to consider an iconic singular or even twin towers to represent Megalopolis X, rather we seek a the entire future city as and iconic entity. The mega towers 1 to 3, dominates the city skyline with its origin is inspired by Shenzhen city flower Bougainvillea. Diversified eco-belt covers the full width of city along east-west axis while the central future park defines the depth of the city

未来框架

上述章节中，我们强调了在城市基础设施方面我们拥有的和需要的东西，这对于城市的实际运作至关重要。虽然我们无法为未来未知的技术而设计，但我们可以为即将呈现的技术进行设计。我们要尽可能多地为未来做好准备，能够使城市最大限度地适应未来可能发生的变化。

地上和地下设计

这个想法旨在地上创造尽可能多的公共空间，而将配合城市发展的服务设施放置于地下，服务于整个未来城市。与此同时，在公共空间和服务设施走廊之间还有一个中间层，它融合了这些空间的功能。

A framework for the future

In our previous chapter, we underlined what we have and what we need in terms of infrastructure

for the city. This is imperative for the actual workings of the city. Although we cannot design for unknown future technology,

we can design for technology we know that will be here in the very near future. Preparing as much as we can for the future allows the

city adapt to possible future changes as much as we can.

Above and below ground design

The idea here is to create as much public space above ground as possible and design a supportive utility infrastructure below ground

the service the entire future city. However, there is also an intermediate level that straddles between the public space and the service corridor that is a blend the functionality of these spaces.

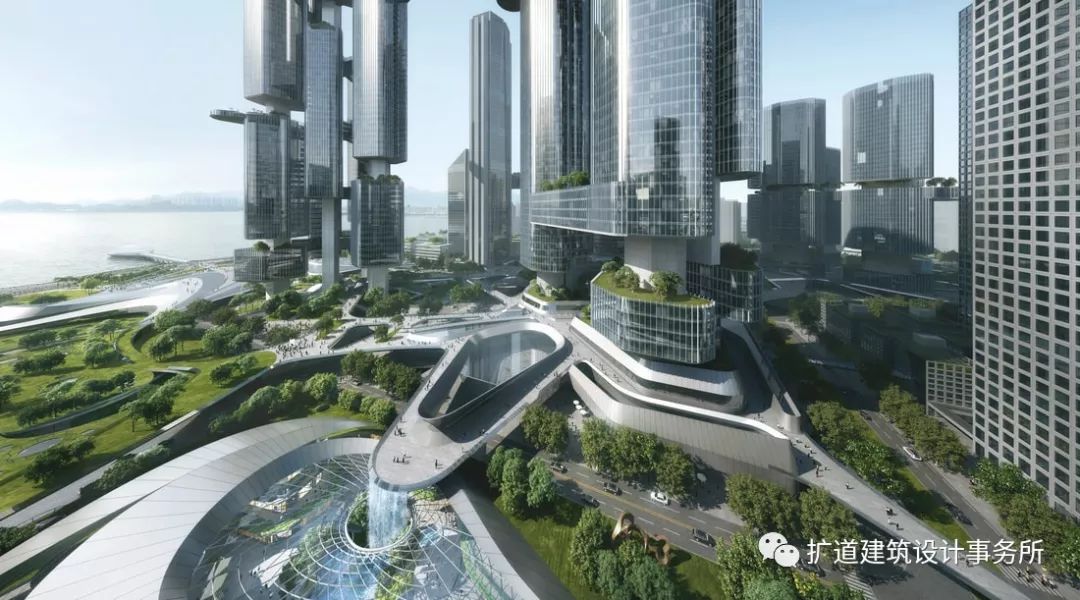

以人为本的未来城市

为了方便在未来城市工作和生活的居民以及游客能够行至城市各处，我们需要设计一个多层次，多穿透性的步行系统，由地下空间连接至地上天桥，与景观节点、艺术和咖啡馆融为一体，供人们步行、骑行或者使用其它个人移动设备。反过来，这个多层次的步行道联结了各个公共空间，使人们聚集和互动，进行区域社交和知识共享。这种环境将改变我们在未来城市里的生活和工作方式，同时，定义并形成都市内不同地区的不同个性。

A people orientated future city

People working and living in the future city as well as visitors to be able to walk to all parts of the city. This entails creating a permeable multilevel pedestrian link-age from below ground to the upper deck levels that blend together with landscape nodes, art and cafes for people walking, cycling and other personal mobility devices. In turn, this multilevel pedestrian links public realms that allows people to gather and interact, areas to socialize and for knowledge sharing. An environment that changes the way we live and work inside the future city whilst defining and forming different ideas of different districts within the city.

未来公园长约1公里，目标是成为世界级旅游胜地；未来公园可打造成为这个未来都市里的一个可持续发展的未来主义滨海花园。未来公园由多层次的绿色公园组成。地上有跑道、步行道、自行车道、树木以及融合了艺术的公共空间；地下则为另一番风景——未来主义的景观随气候的变化而变化，溪流和湖泊在地下潺潺流淌，洞穴和植物园里生长全国各地的珍稀植物，还有瀑布飞泻而下。公园从北向南延伸，分为5个区域。

Aiming to be a major world class attraction, the park measures almost 1km long. The Future Park in an opportunity to create a futuristically sustainable water-front garden for this Future Megalopolis.

Future Park comprises of multi-level green park where above ground, there are running, walking and cycling paths, trees and public realms infused with art. Below ground becomes another world. A climate controlled futuristic landscape, underground streams and lake, caverns and botanical gardens with waterfalls and rare plant species from all over China. The space stretches from north to south and divided into 5 zones.

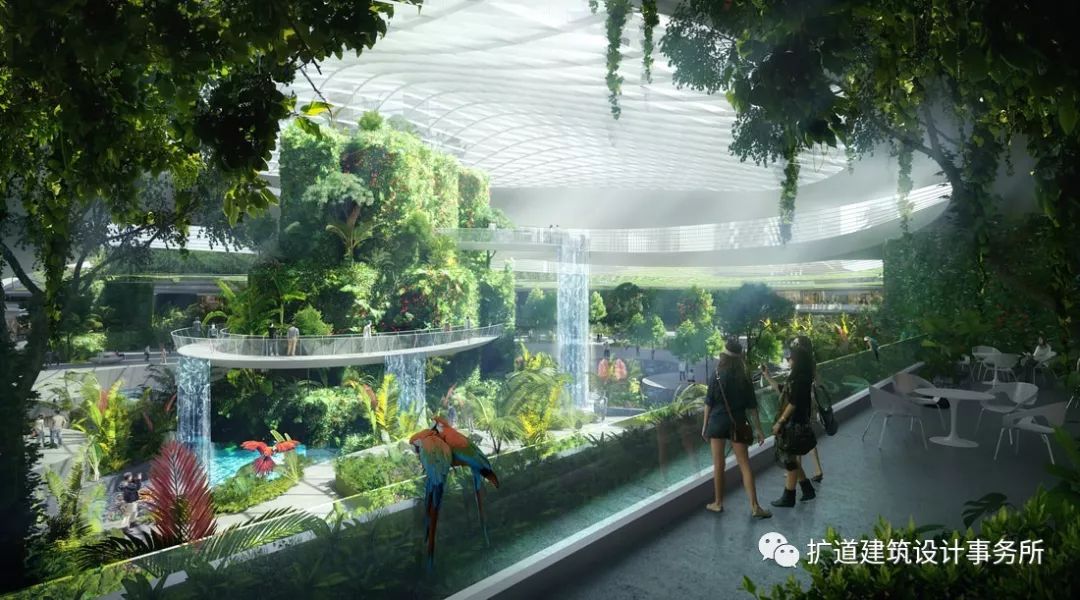

生态区

凉爽干燥的植物园，植物种类来自中国的干旱地区，凉爽湿润的植物园，植物种类来自中国的湿润区云雾林

Botanical Biome

The Botanical Biome is split into 2 zones;

Cool Dry

botanicalgarden

 with plant species fromthe dryer parts of China

Cool Moist

botanicalgarden

 with plant species fromthe moist cloud forests in China

商业和餐饮区

未来公园的入口与连接到超级购物商场相连，是一个由气候控制的绿色环

境，并设有局部冷却系统、辐射板冷却系统、置换通风装置和具有高可见光透射率、低太阳能增益率的光谱选择性玻璃。

Retail & F&B Extension

The beginning of the journey into the Future Park. Connected to the mega mall, is a climate controlled green environment with localized cooling, radiant slab cooling, displacement ventilation and spectrally selec-tive glazing with high visual light transmittance and low solar gains.

娱乐生态区

娱乐生态区本身也分为2个区域;

自然体验区

壮观的景观攀岩墙，以及健康和水疗区，瑜伽和健身区，人们可以在大自然中冥想和锻炼。自然游乐区在城市绿洲中，为成人、儿童和水肺潜水活动提供的一系列泳池。

Recreation Biome

T

he recreation biome itself is also split into 2 zones;

Experiencing Nature

- Sublime landscape climbing walls with pods for health and spa, yoga and fitness, guests can come can meditate and exercise with nature.

Relaxing with Nature - A series of pools for Adults, Children and Activity like Scuba Diving within an urban oasis.

绿色生活国度

大都市 X的西北角是一系列豪华服务式公寓，在人行天桥和露台设有相连的公共空间。 秉持绿色发展原则，这里将统一发展为中国最大的城市保护区之一。景观设计利用了中国不同海拔高度的植物多样性，形成一个超级绿色的飞地，让人们在大自然中生活。

Green Enclave

Located to the North western corner of Megalopolis X resides a cluster of luxury service apartments with con-nected public realms in the skywalk and at podium level. Combined with a green heart unifying the development into one of the largest urban sanctuaries in China. The landscaping draws on the diversity of flora found at the various altitudes in China forming a super green enclave allowing people to live amongst nature.

在这个区域，我们希望创造一个轻松、无压力的环境以提升人们的创造力，因而与自然融为一体至关重要。公共空间充斥着健康的生活精神，丰富的自然采光、室内/室外联合咖啡馆和餐饮，公共空间没有车辆行驶，人们可以与自然和谐相处。在大都市 X里，所有的开发项目由景观带连接到海滨长廊，吸引游客前来发现并探索未来城市周围的不同区域和公共空间。

Here we want to create an environment that is relaxing and stress free to enhance your creativity. Being one with nature is essential. The Public Realm is filled with healthy living in mind. Abundance of natural daylight, seamless indoor/outdoor cafes and dining. Public space free from cars where one can exercise in harmony with nature. Integrated with the landscape belt that connects all developments in Megalopolis X to the promenade, it attracts visitors on a journey of discovery, to explore different districts and public realms around this future city.

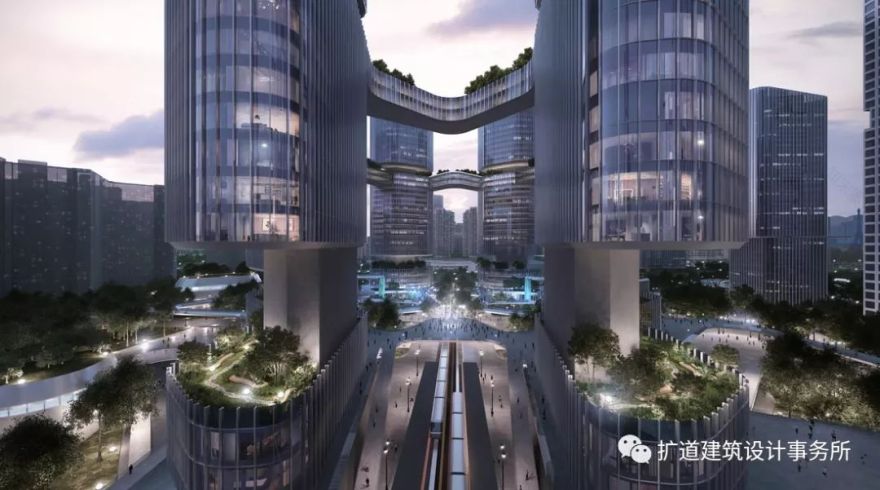

超级交通综合体

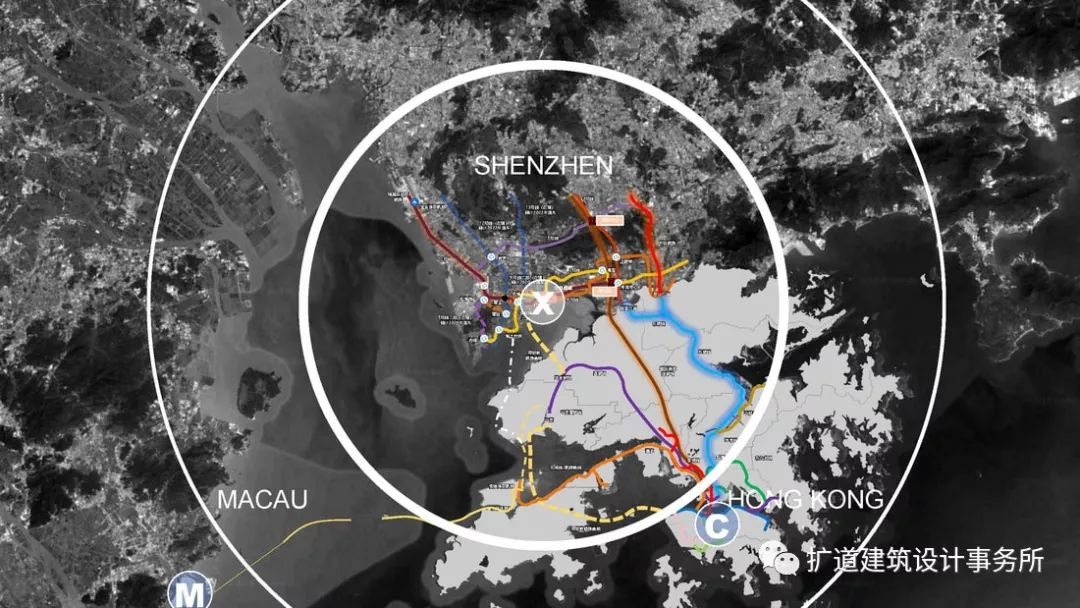

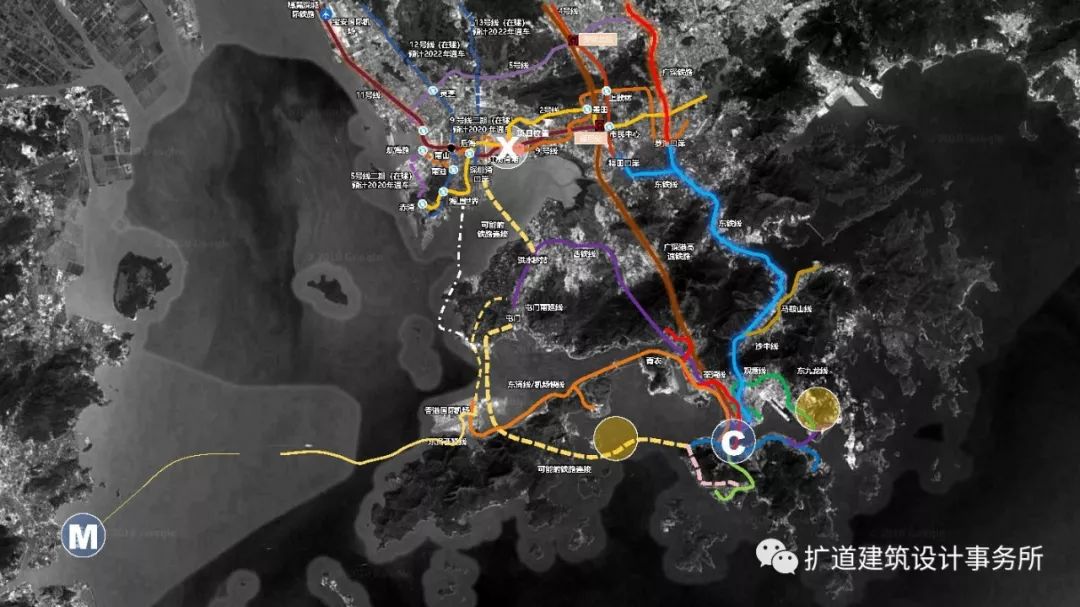

以交通主导的城市规划已经沿用了好几十年，我们的未来发展将会如何？现状地块内的几个地铁站和公交换乘站仅仅覆盖了东西向的主要交通流线，所以我们建议规划一个轻轨系统；能有效地覆盖总规内的几个主要节点及滨水文化区，以及伸延到地块东面地欢乐海岸，这样既能打造一个跨片区的旅游观光路线，同时能加强整个复合社区的可持续性。

我们的愿景超越了规划红线；当在不久的将来香港与深圳再没有边境的时候，一条前所未有的的城际快线，能高效地贯穿深港两地机场, 超级总部和前海枢纽等重要区域。同时受惠于港珠澳大桥等重大基础设施的落成，深圳，香港，澳门，珠海为骨干连同珠三角其他城市形成超级交通网络主导的大湾区,将引领我国经济发展到达一个新的高度。

The Super TOD

TOD has been a worldwide urban planning approach for decades, what is our next step in future?

As currently metro stations and PTI limited to east/west ends, a circle line of light rail system is introduced to effectively connect existing nodes and waterfront promenade, with OCT harbour and cultural village, forming a complete tourist attraction trip and linkage of self-sustainable community

Despite that Our vision goes further more, a ground-breaking intercity line proposed to connect Hong Kong with Megalopolis X, Qianhai, Shenzhen and HK international airport , with the benefit of HZM bridge and other major transportation infrastructure, Shenzhen, HK, Macau and Pearl river delta region will unprecedentedly merged as one super TOD, bringing China to a further height as a major economic powerhouse

可持续的基础设施

如前所述，我们的目标是通过实现以下愿景，为深圳湾的居民、劳动者和游客提供智能和可持续的生活方式：通过调整环境来支持可持续的生活方式，使其易于推广为达到推广可持续生活方式所需的变化适应能力，我们需要使可持续的生活选择变得容易、方便、触手可及和令人愉悦。这需要为深圳湾总体规划开发适当的基础设施和特定环境的解决方案。

Sustainable Infrastructure

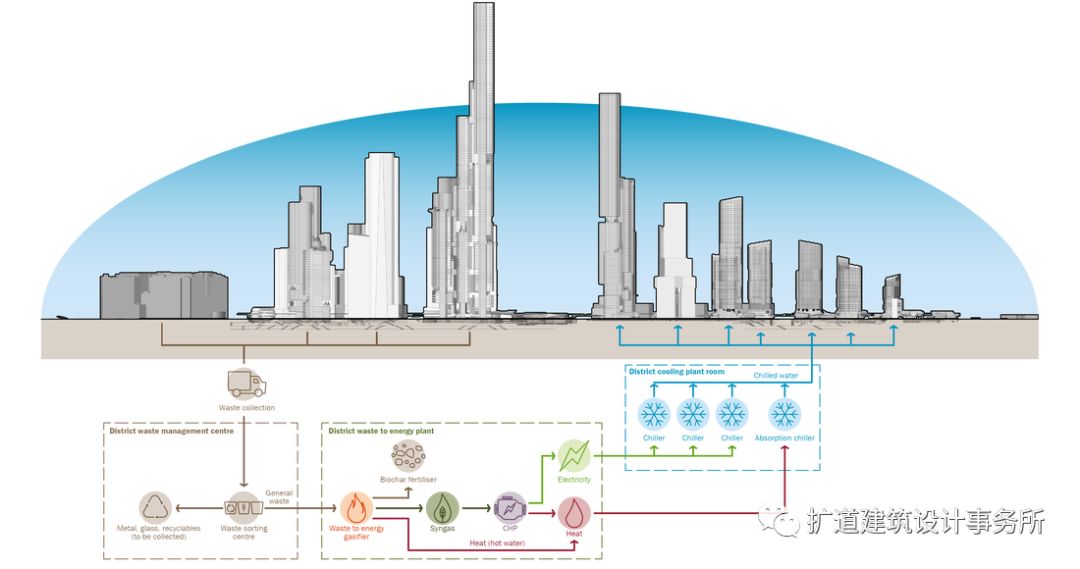

The idea of the proposed infrastructure hub will house and integrate all our proposed infrastructure system to operate in a centralised location in a seamless manner. The operation from automatic waste collection, segregation for recycling, general waste to energy, Combined Heat and Power (CHP) system burning Waste by-product Syngas, to centralised chilled water generation all in one place.

拟议的基础设施枢纽将容纳和集成所有我们拟议的基础设施系统，以便以无缝的方式在集中的地点运作。从自动垃圾收集、回收分离、一般垃圾转化为能源、燃烧垃圾副产物合成气的热电联产系统( CHP) 到集中的冷却水生产都在同一个地方进行。与每栋建筑中的传统水冷式冷水机组相比，区域冷却系统一般提高30％或以上的能效。 另一方面 ，我们考虑通过气化

厂气化60-80％一般废物量。废物气化将有助于我们的城市总体规划中的能耗抵消10-15％， 能源可用于为我们的地区传输网络或我们的区域冷却系统供电。加上减少的废物收集流量，估计我们建议的基础设施中心将为整个总体规划贡献大约30％的节能。

The district cooling system will target at least 30% energy efficiency improvement over traditional water cooled chiller plant in each building. On top of that, We will be looking at eliminating 60-80% of general waste content through on-site gasification. The gasification of the waste from our masterplan will help offsetting site energy consumption by 10-15%, which can be used to power our district electrical transport network, or our district cooling system. Together with the reduced waste collection traffic, we estimate our proposed infrastructure hub will contribute circa 30% of site energy reduction to the whole masterplan.
