《叠墅中的N个盒子》丨中国广州丨舍近空间设计事务所

当室内以盒子体块堆叠、穿插，形成虚实相间的空间整体，感受围合、内嵌、镂空的形体变化。

01|

Animation

△空间视频纯享

SHEJINSPACE2022

THEFIRST FLOOR

/

1F

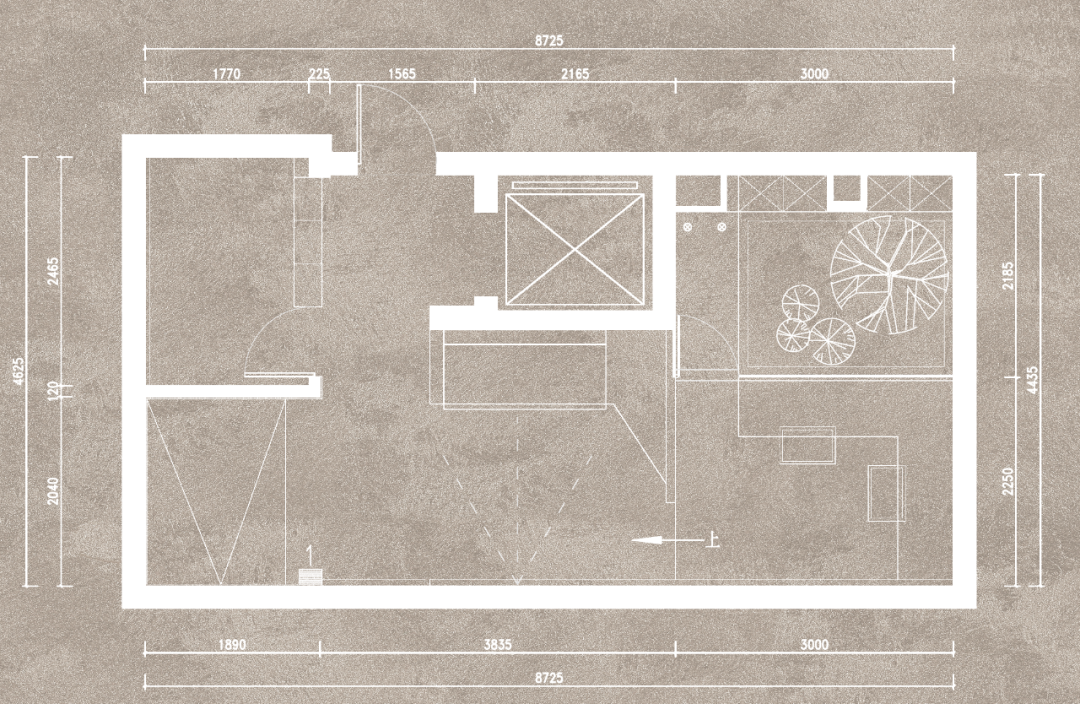

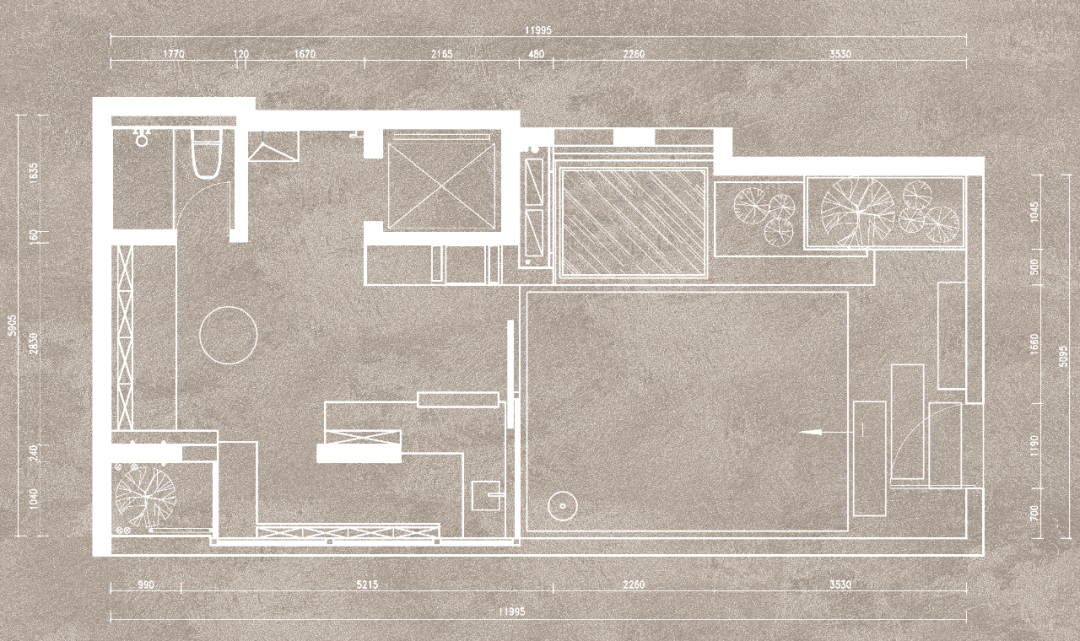

▲一层平面图

©SHEJINSPACE

一层为带室外花园的“私人咖啡馆”，为了解决原始空间狭小问题，设计师在外侧搭建阳光房并将室外的花园小道纳入室内作为咖啡操作；

The first floor is a "private cafe" with an outdoor garden. In order to solve the problem of narrow original space, the designer builds a sun room on the outside and integrates the outdoor garden path into the interior as a coffee operation.

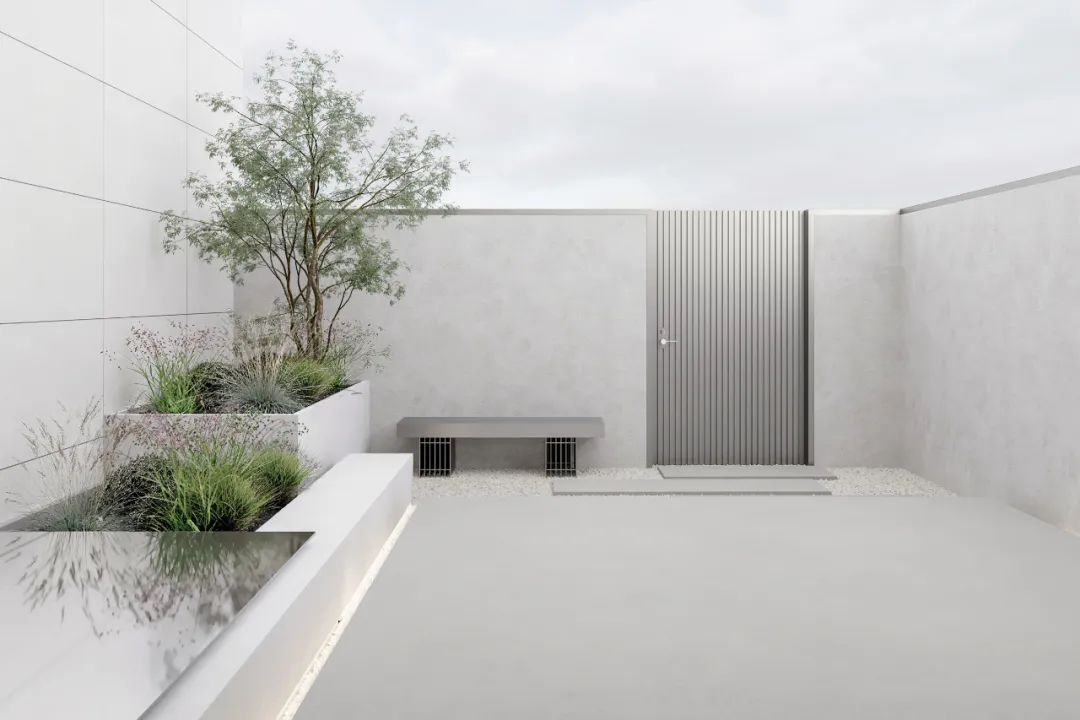

▲室外花园

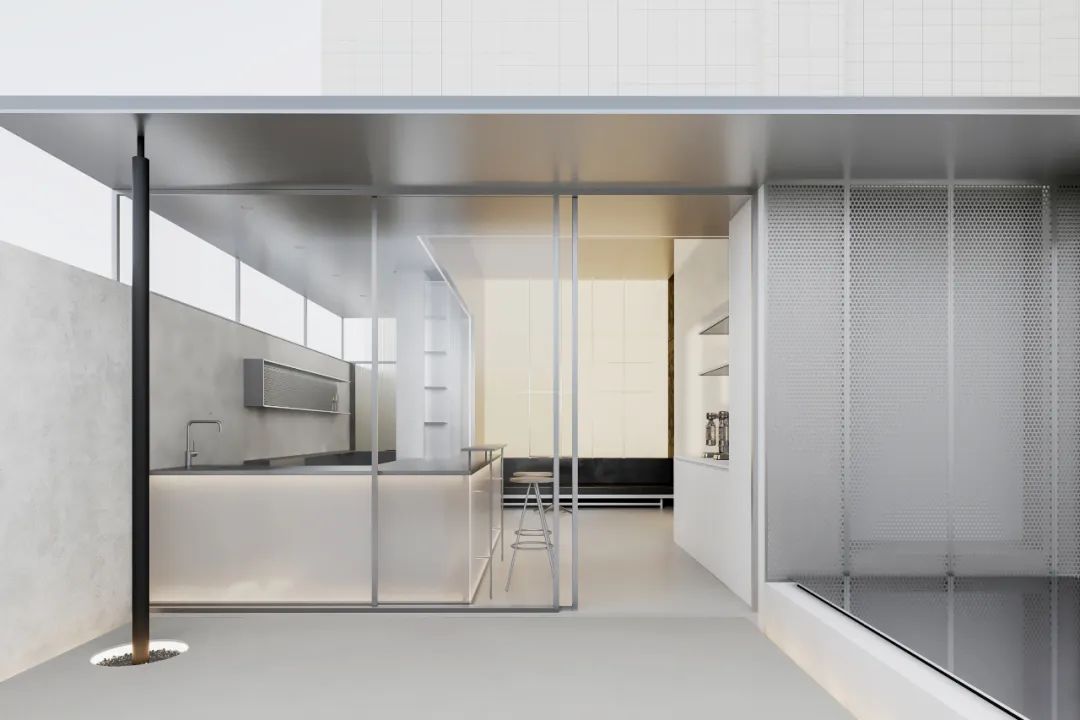

▲“日咖夜酒”

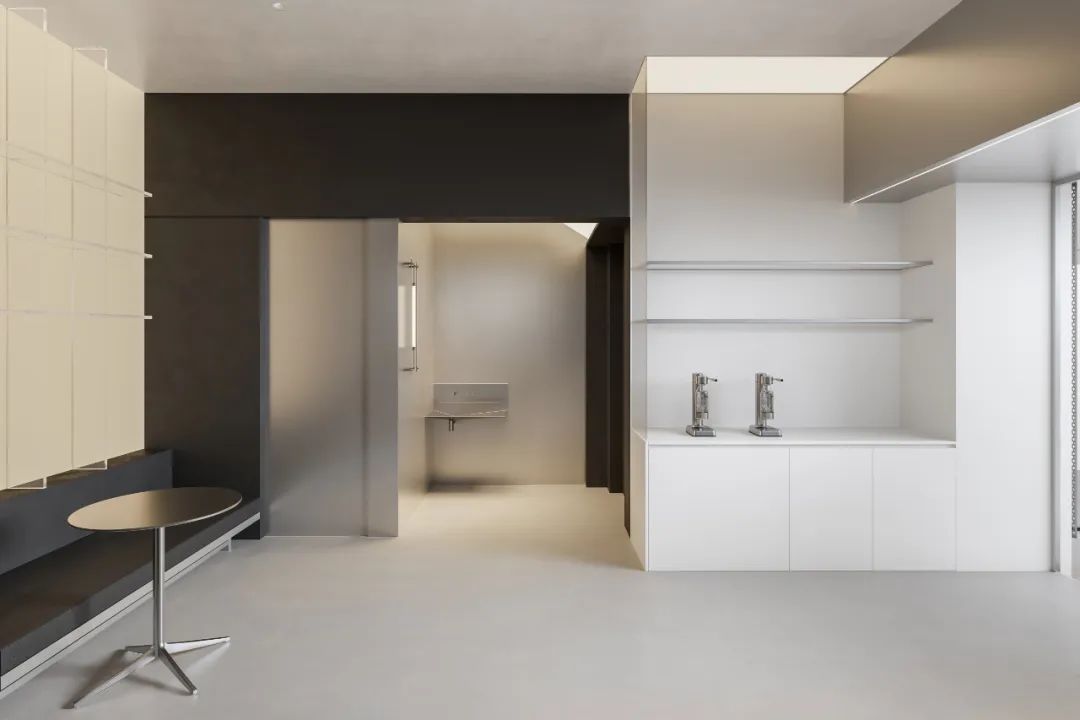

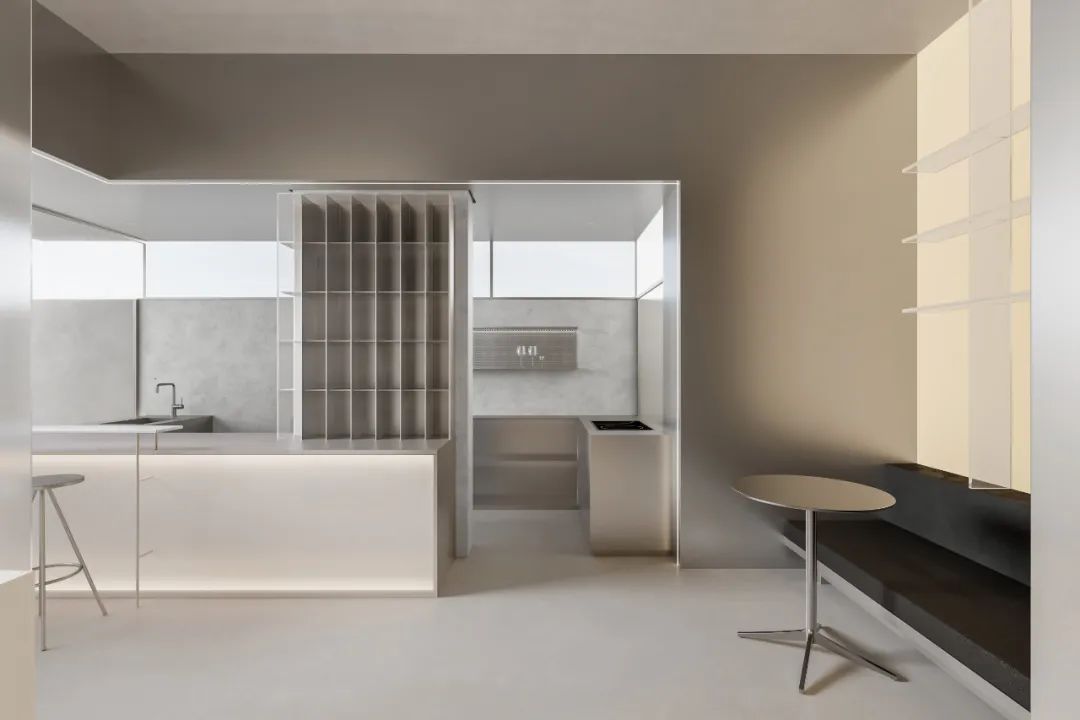

▲“日咖夜酒”操作区内部

在空间内部，大量使用不锈钢、灯光膜、亚克力等材质增加现代空间的轻盈感；

In the interior of the space, a large number of stainless steel, light film, acrylic and other materials to increase the sense of lightness of modern space;

▲休闲区

THEBASEMENT

/

-1

▲地下室平面图

©SHEJINSPACE

地下室包含影音室、手作区、客卧、储藏室等功能。在面积及其有限的情况下，按照功能私密与开放的属性进行分区。银色不锈钢为影音室，营造“C”型包裹感，此外与之相连的是以桦木板为主的手作区；

The basement contains the functions of video room, hand area, guest bedroom, storage room and so on. In the case of extremely limited area, it is divided according to the function of private and open properties. Silver stainless steel for the video room, creating a "C" type package feeling, in addition to connected with the birch wood mainly hand area.

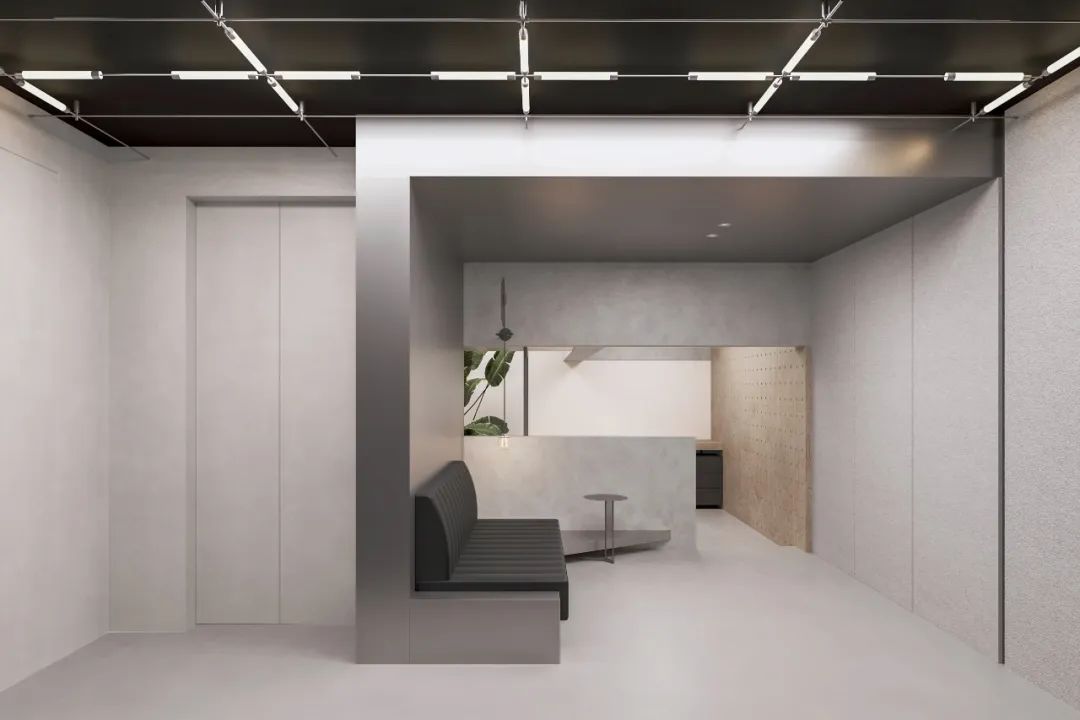

▲影音室

THEFOURTH FLOOR

/

4F

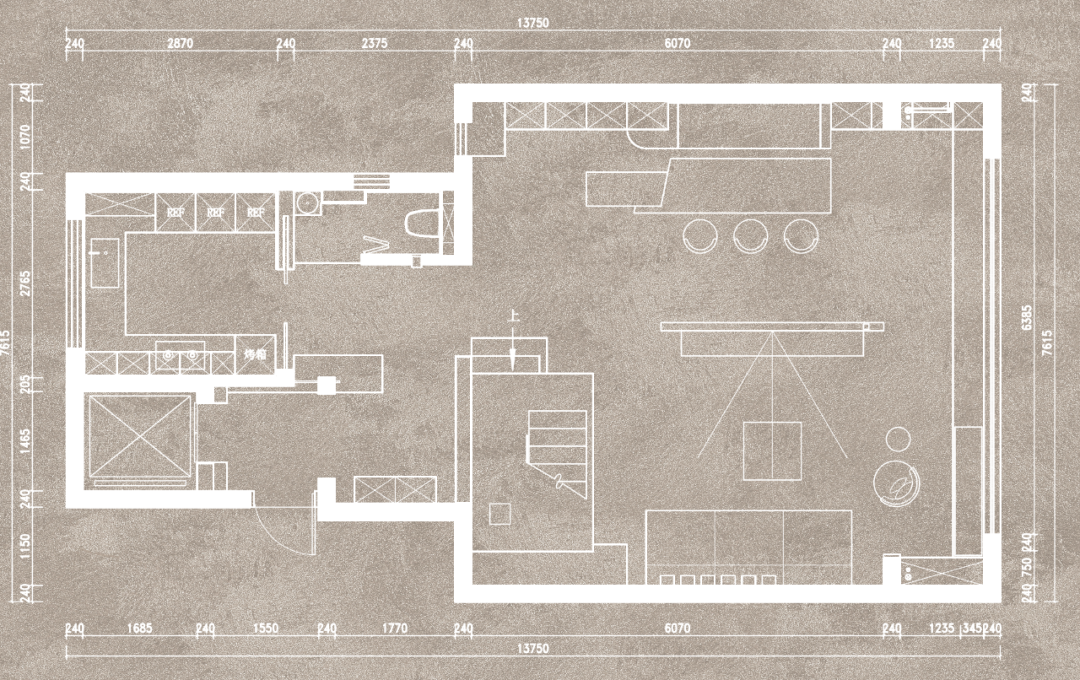

▲4 层平面图

©SHEJINSPACE

四层以开放空间为主题，包含玄关、客餐厅、厨房以及客卫；

The fourth floor is themed with open space, including entrance, guest dining room, kitchen and guest bathroom.

加强原始结构中的梁柱作为玄关的装饰之一，尽头处的三块磨砂玻璃构成半透明墙体，两者虚实结合同时兼具通透性；

The beams and columns in the original structure are strengthened as one of the decorations of the porch, and the three pieces of frosted glass at the end form a translucent wall, both of which combine with the virtual and the solid and simultaneously have the permeability;

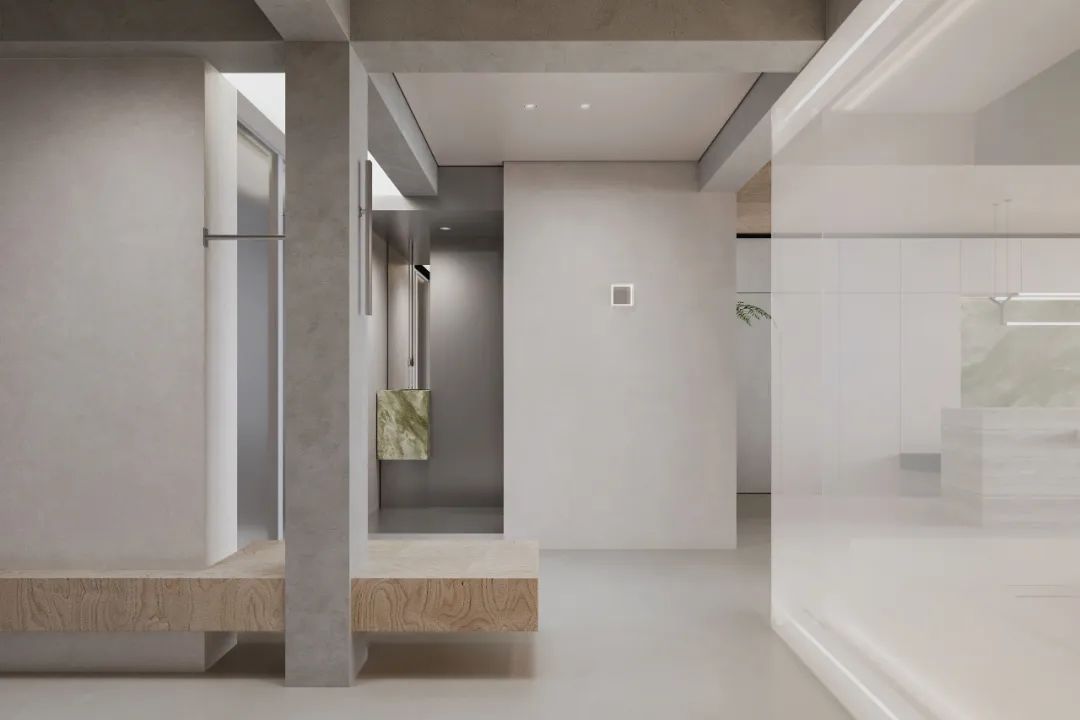

▲玄关处

在玄关的换鞋凳处设置“悬挑”造型，延续了梁柱的穿插关系；

The "overhang" shape is set at the shoes changing stool in the porch, which continues the interspersing relationship between the beams and columns;

▲玄关处

餐客厅之间设置了一个通高空间，通高空间的右侧墙体悬挂下来形成电视的背景墙，同时划分了餐客厅区域；

A double-height space is set between the dining room. The right wall of the double-height space hangs down to form the background wall of the TV, and divides the dining room area.

▲通高墙体

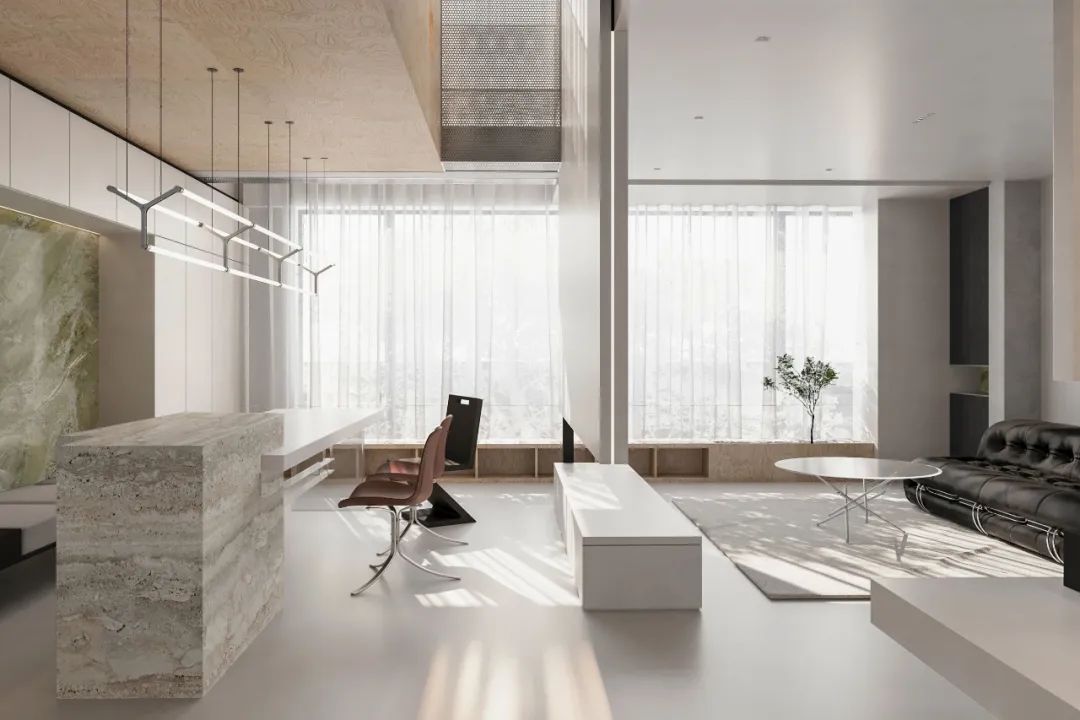

▲左侧餐厅，右侧客厅

在室内利用 4-5 层贯穿的通高空间模拟“小天井”，

一方面增强了上下楼的互动性，另一方面为室内增加采光，让室内保持明亮；

In the interior, the use of 4-5 floors through the full-height space to simulate the "small courtyard", on the one hand to enhance the interaction between the upper and lower floors, on the other hand to increase the lighting for the interior, so that the interior is bright;

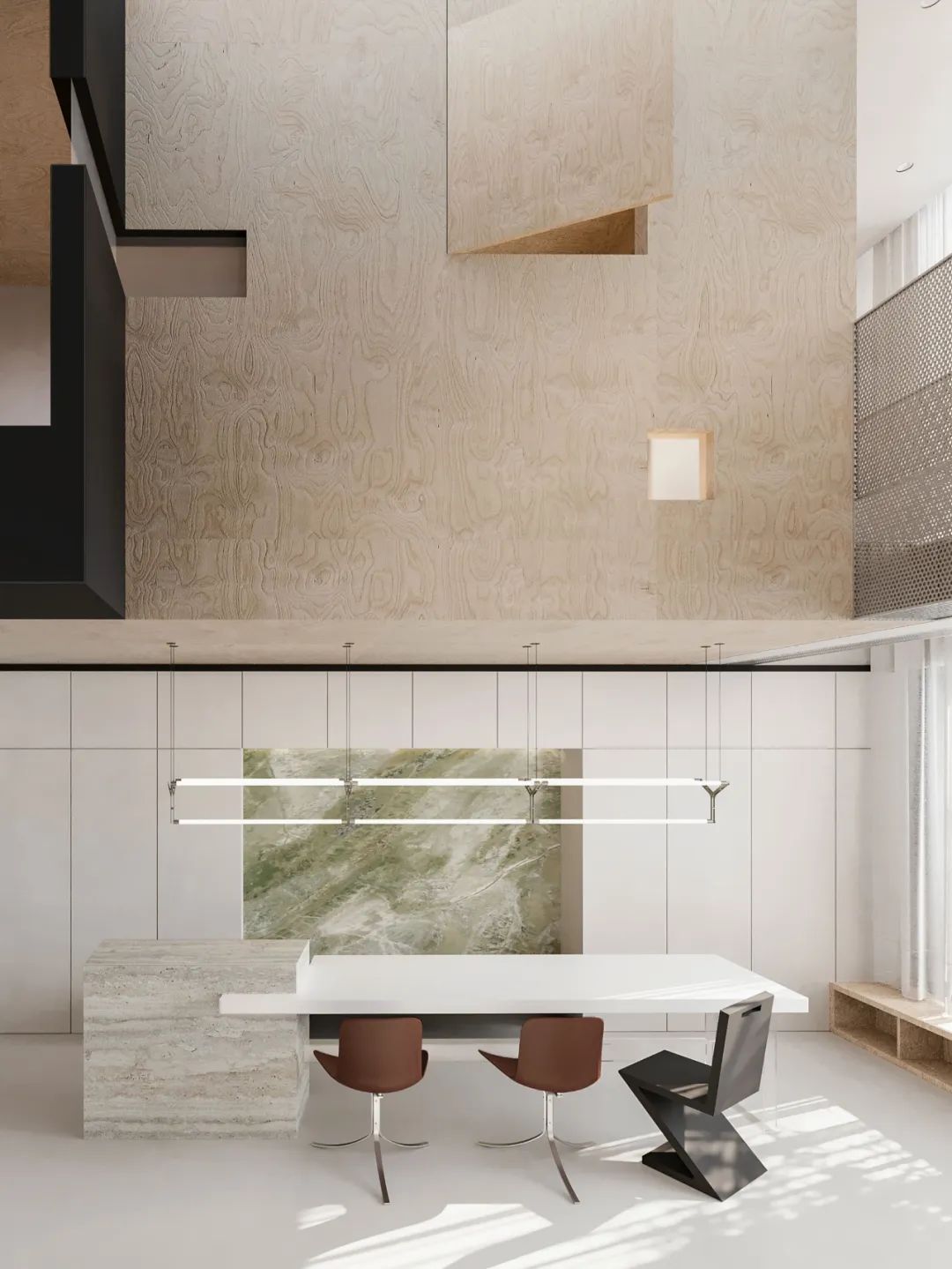

▲贯穿 4-5 层的天井

餐厅靠墙一侧设置了整面墙的柜体，柜体中央内凹成为餐厅的卡座，柜体靠近楼梯的一侧结合窗户设置了悬浮不锈钢景观台，成为楼梯的对景；

The cabinet of the whole wall is arranged on the side of the restaurant wall. The central part of the cabinet is concave to become the booth of the restaurant. The side of the cabinet near the stairs is set with the suspended stainless steel landscape platform combined with the window, which becomes the opposite scene of the stairs.

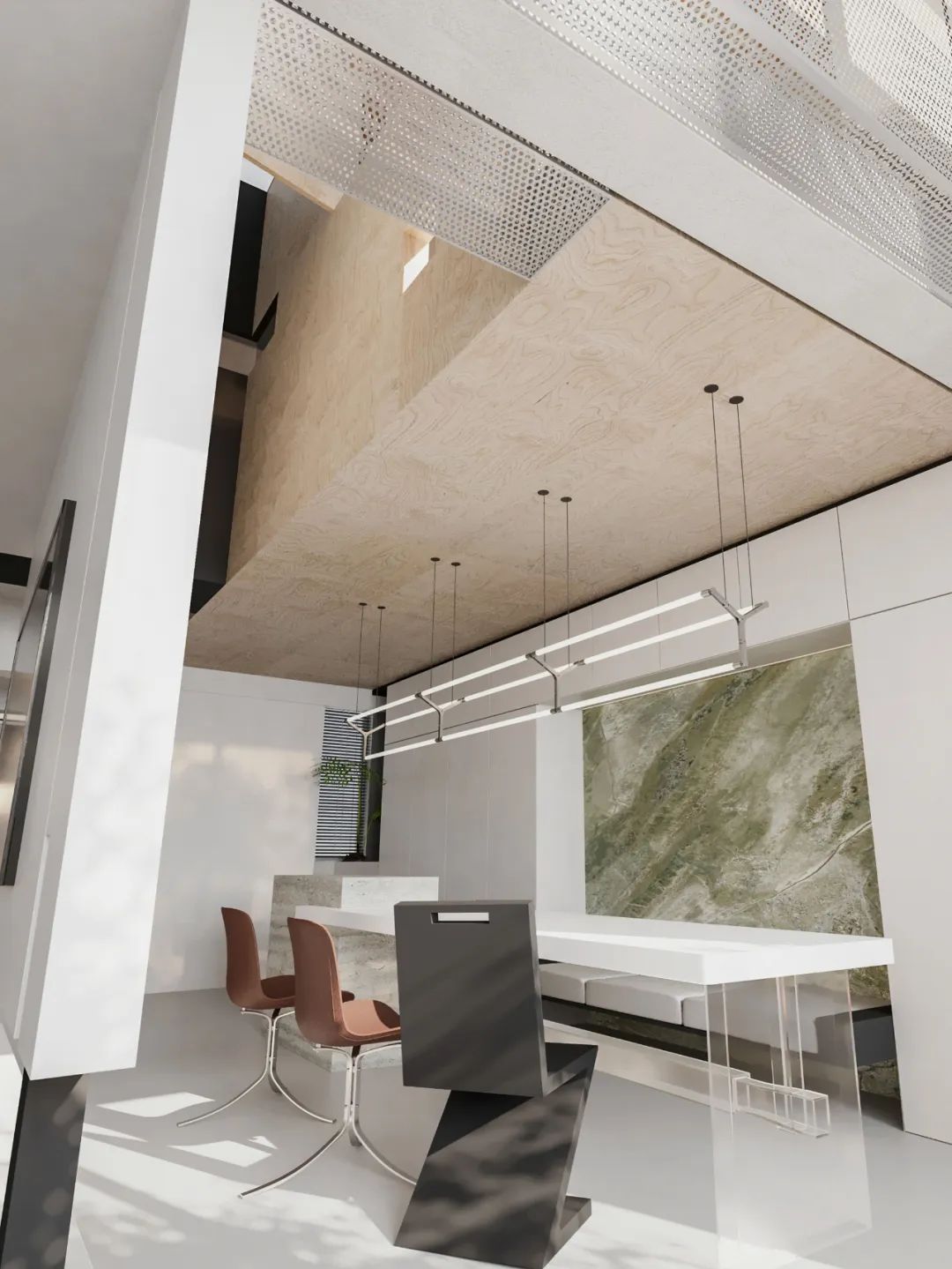

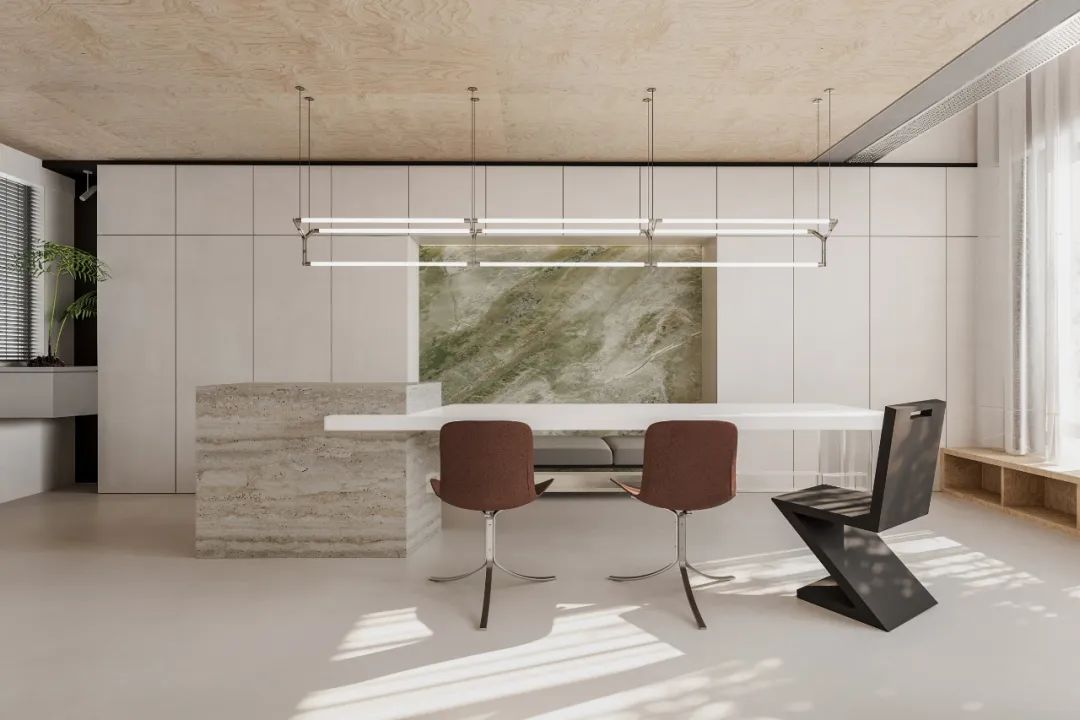

▲餐厅

客厅区域由通高空间的悬挂墙与楼梯的下挂墙围合而成；

The living room area is formed by the hanging wall of the double-height space and the hanging wall of the staircase;

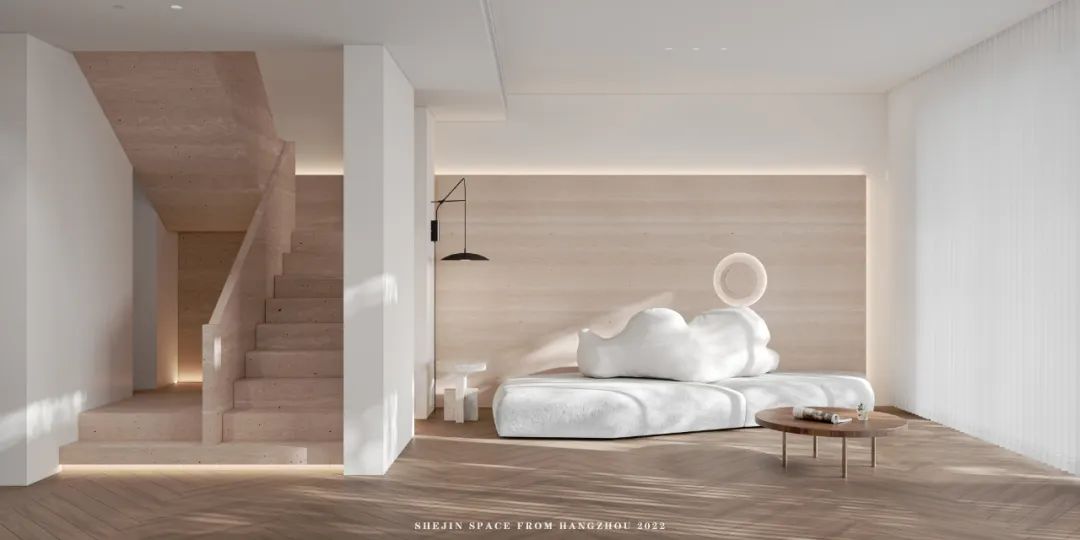

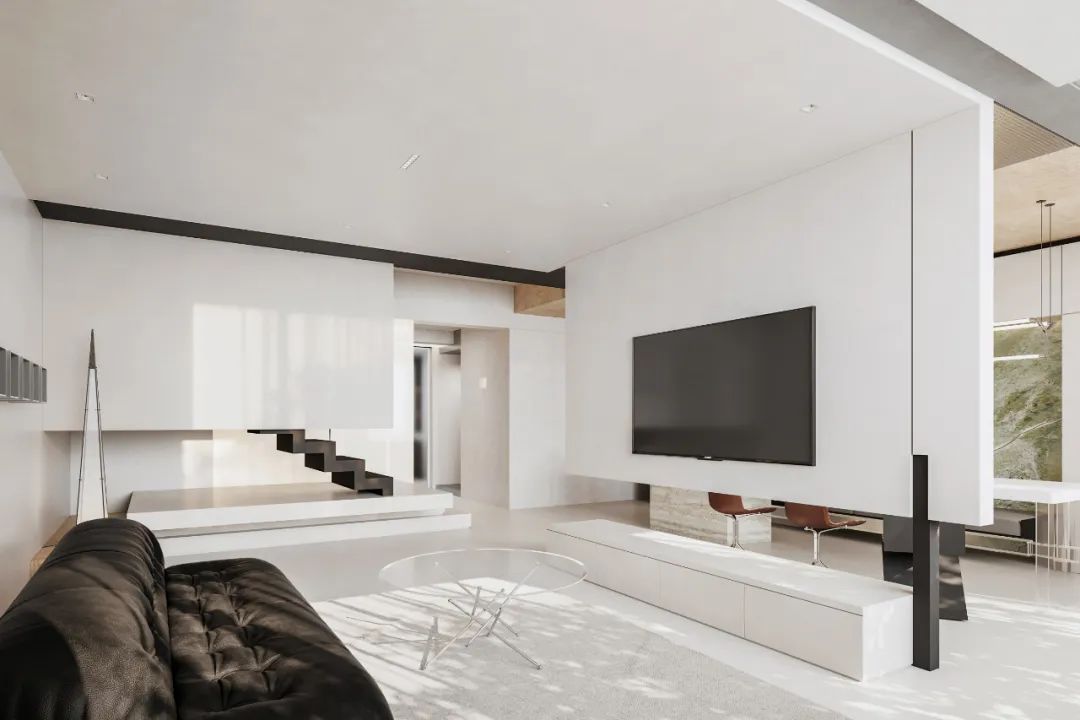

▲客厅

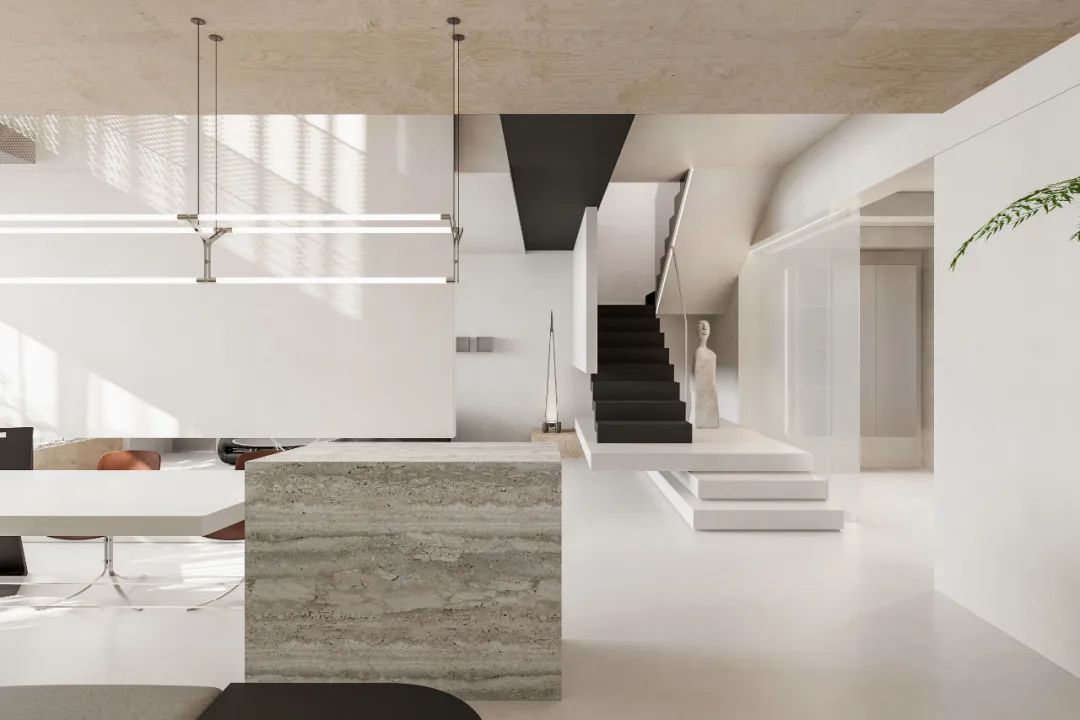

▲由餐厅看向客厅

THE FIFTH FLOOR

/

5F

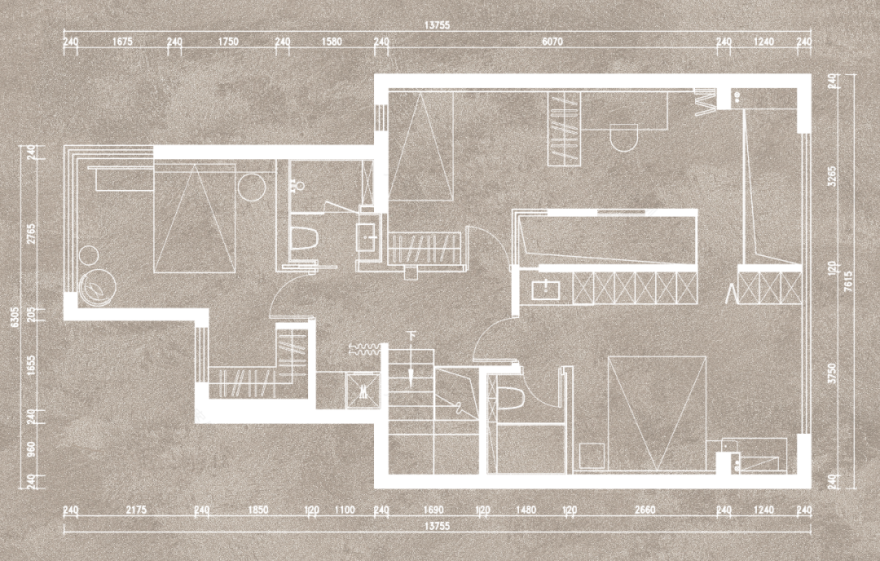

▲5 层平面图

©SHEJINSPACE

五楼主要为住宅的私密区，包含主卧主卫、儿卧、老人房、次卫以及洗衣间；

The fifth floor is the private area of the house, including the master bedroom, the master bathroom, the children’s bedroom, the elderly room, the secondary bathroom and the laundry room.

主卧风格延续极简，在床头区域结合功能设计了一些块面穿插；

The master bedroom style continues to be minimalist, with some blocks interspersed in the bed head area combined with functions;

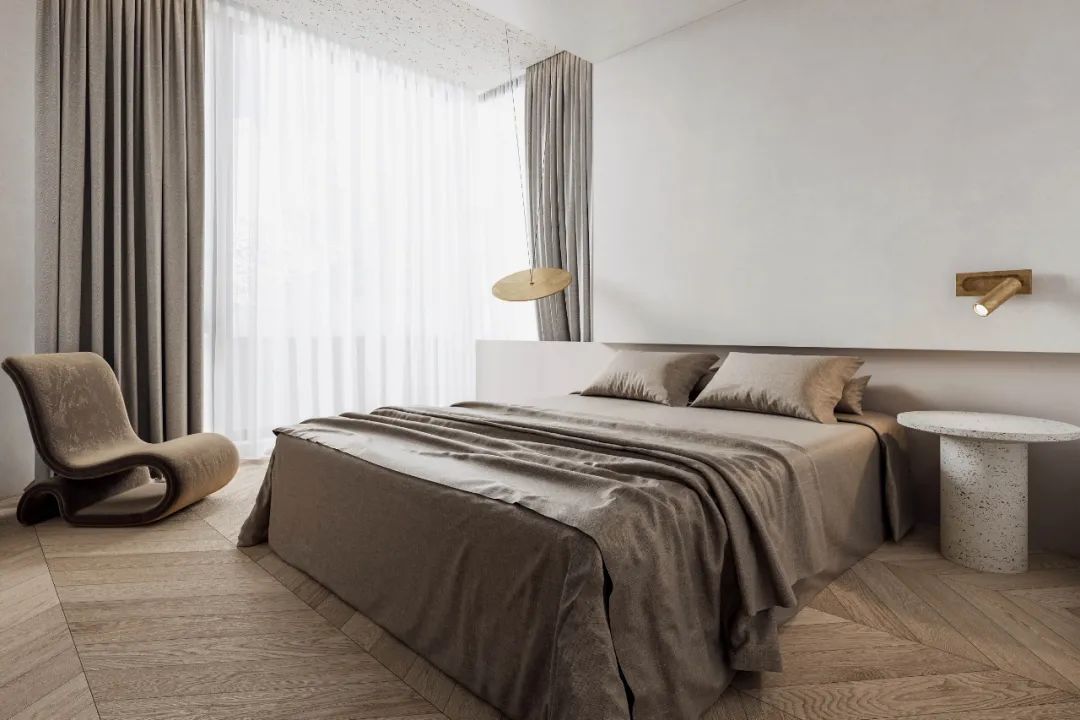

▲主卧

▲次卧

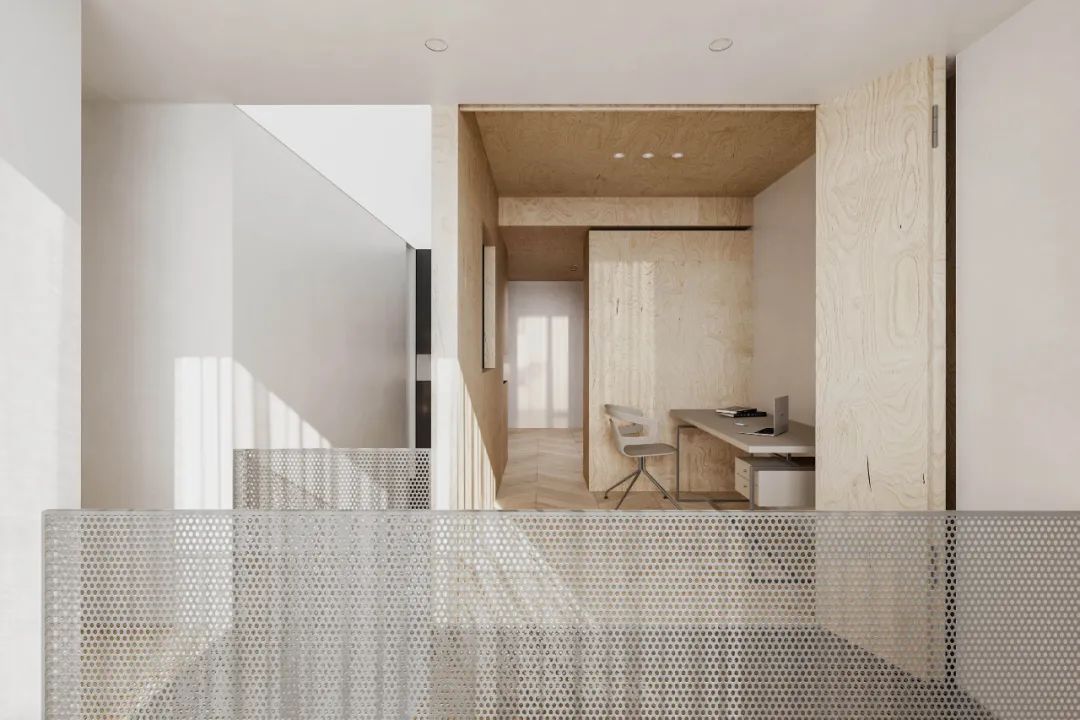

此空间以桦木板包裹，在业主未成家前作为书房使用；外侧连廊多使用穿孔铝板，遇阳光会在墙体形成光影；

This space is wrapped with birch boards and used as a study before the owner had a family. The outer corridor uses perforated aluminum plate, which will form light and shadow in the wall when the sun meets;

▲儿童房

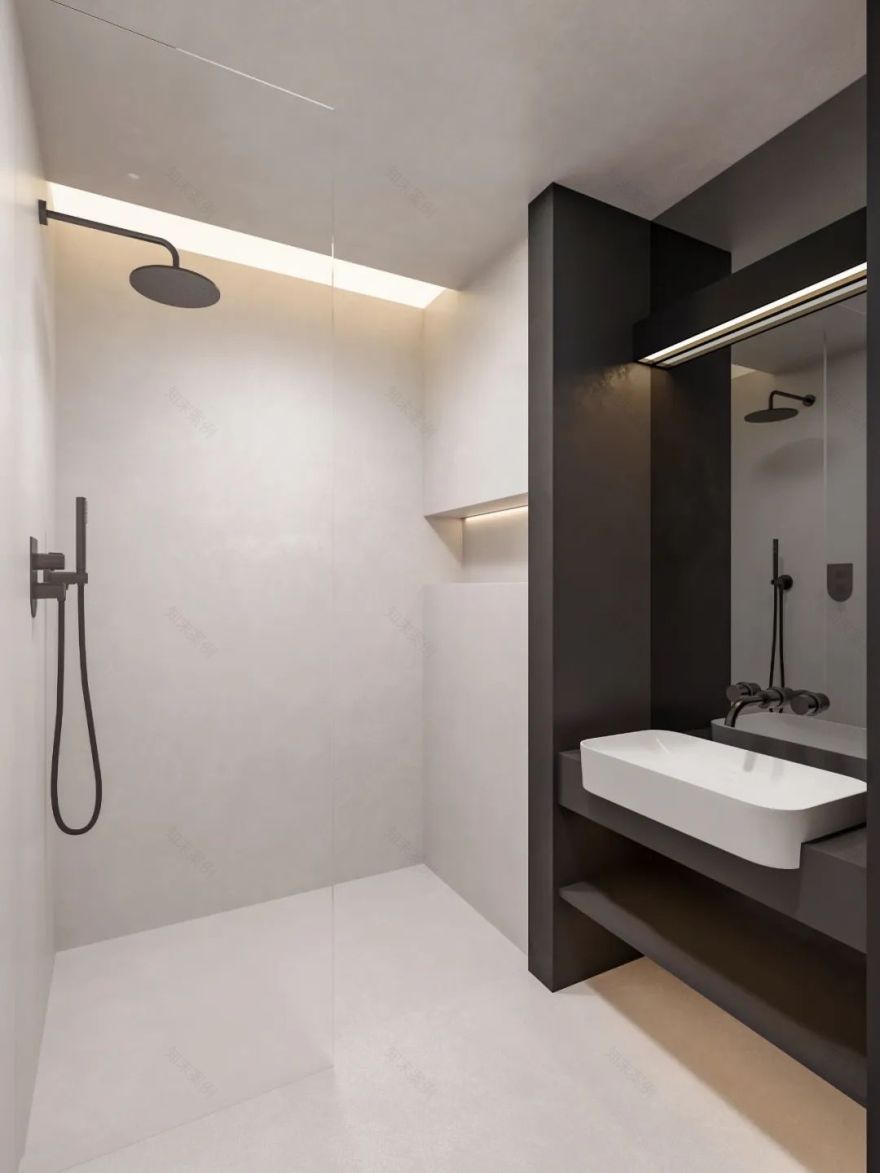

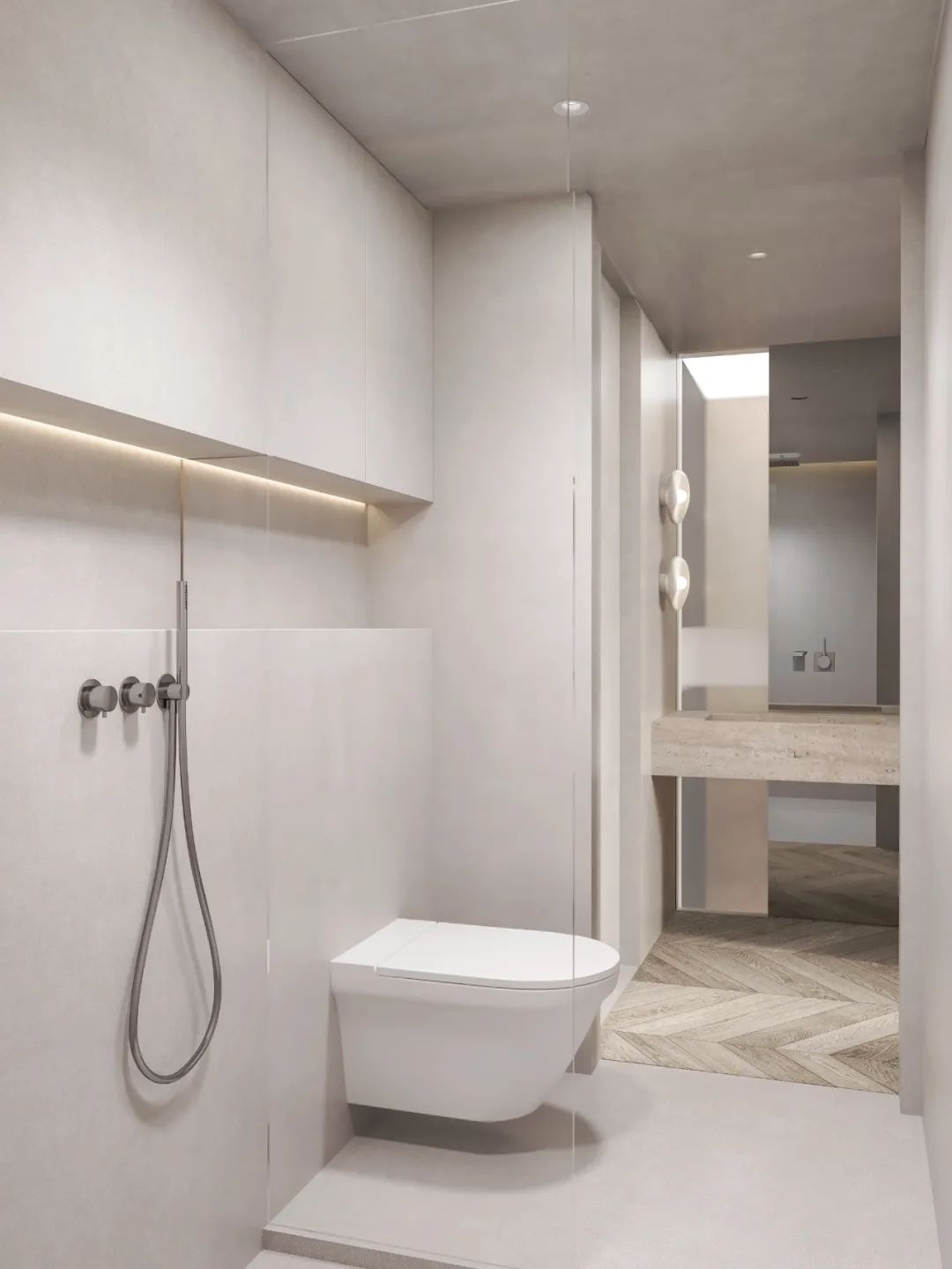

▲卫生间

▲卫生间

HANG ZHOU SHEJIN SAPCE2022

INTERIOR DESIGN//分析图

▲材质分析图

©SHEJINSPACE

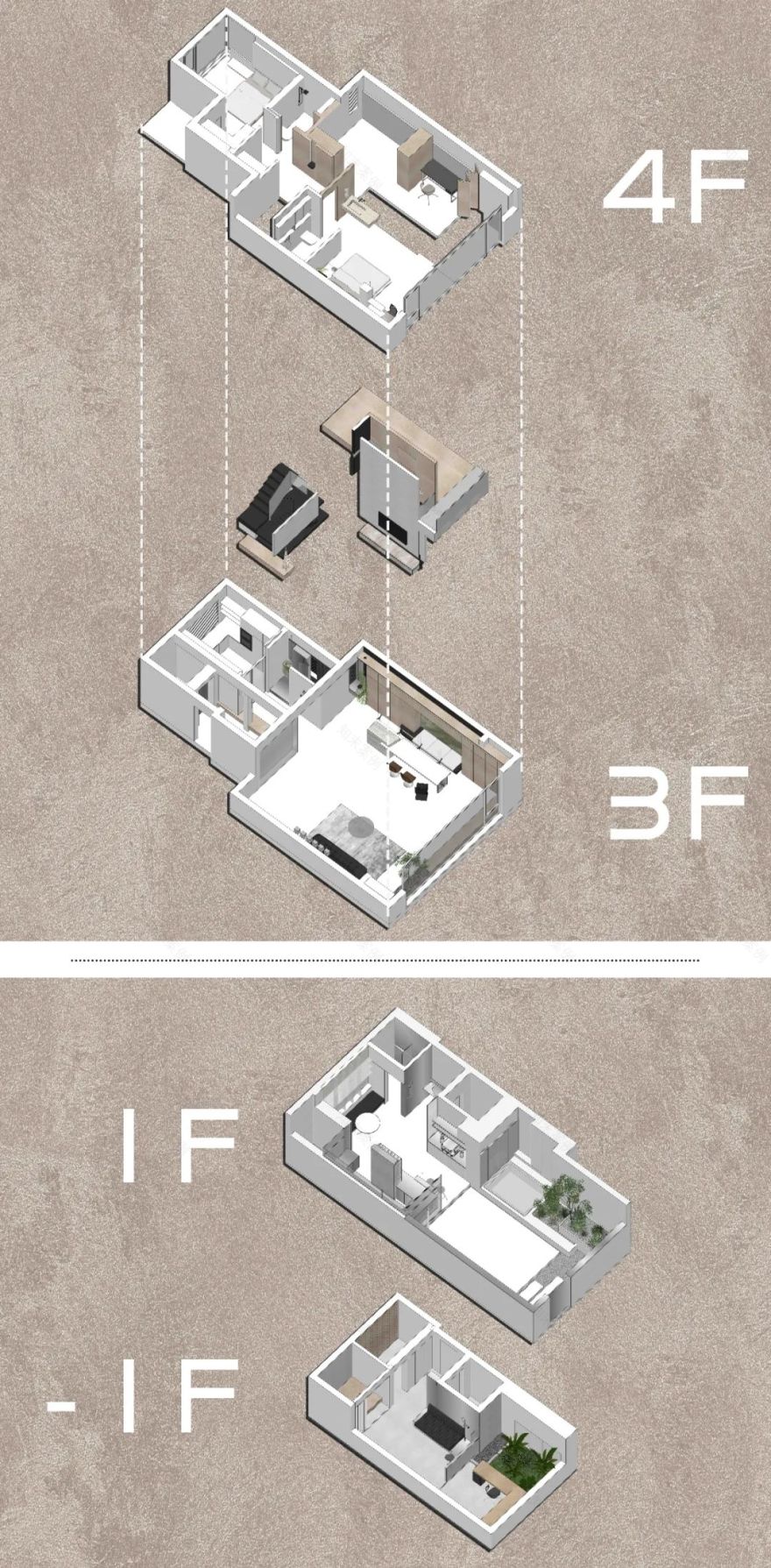

▲轴测分析图

© SHEJINSPACE

项目名称：《叠墅中的 N 个盒子》

Name：《N boxes in the villa》

项目类型：住宅

Project type:residential

项目面积：258㎡

Area：258㎡

设计方：舍近空间设计事务所

Design: Shejin Space Design Office

主创设计师：Often

Lead Designer: Often

设计团队：唐悦、叶杉、肖邦

Designer group:Yue Tang、Shan Ye、Bang Xiao

项目地址：广州

Project address：Guangzhou
