日本南城麻布型木材帘改造设计

Renovation, Japan

设计师：Tsukagoshi Miyashita Sekkei

面积：  51 m²

年份：2020

摄影：Kenta Hasegawa

负责建筑师：Tsukagoshi Miyashita Sekkei

Project Management:Open A

Structural Design :Yasuhirokaneda STRUCTURE

Country:Japan

This is a renovation project of the complex building's entrance.

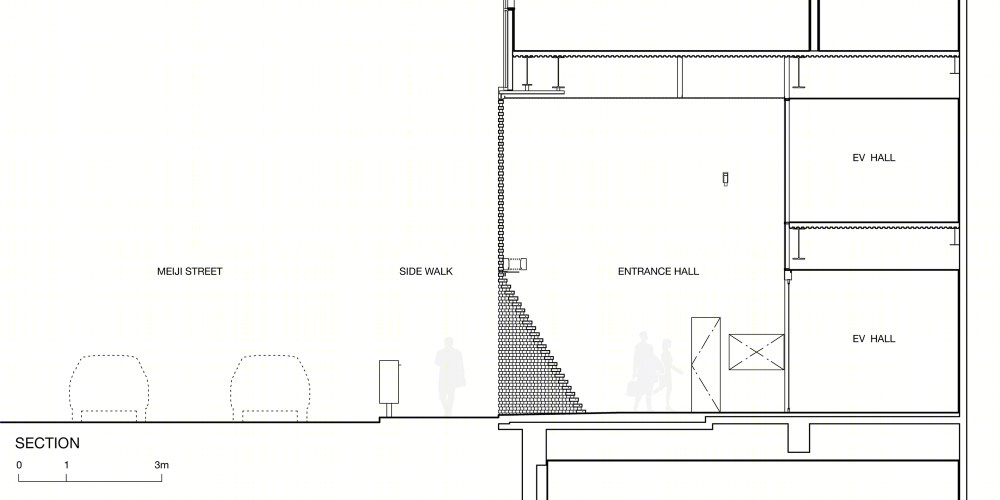

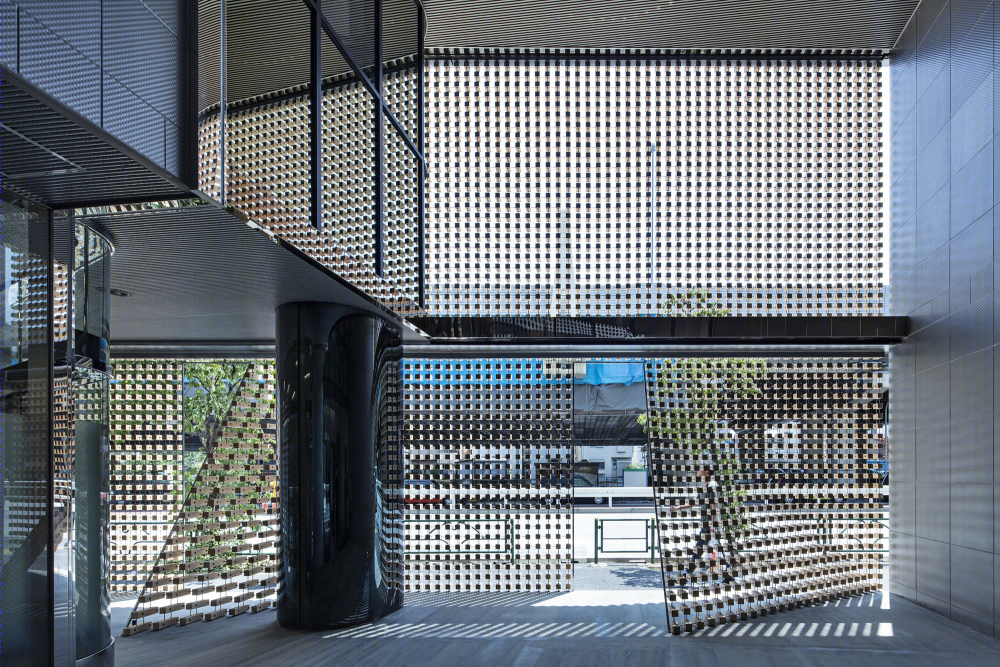

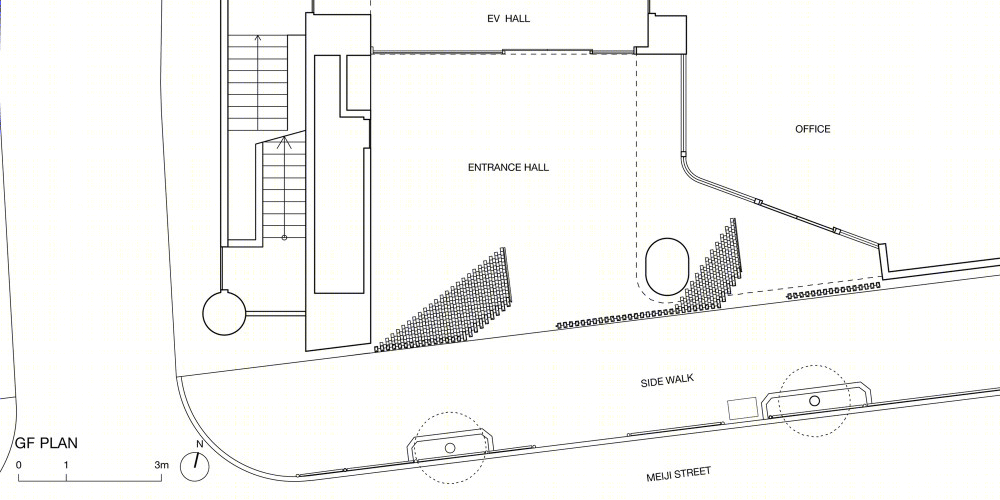

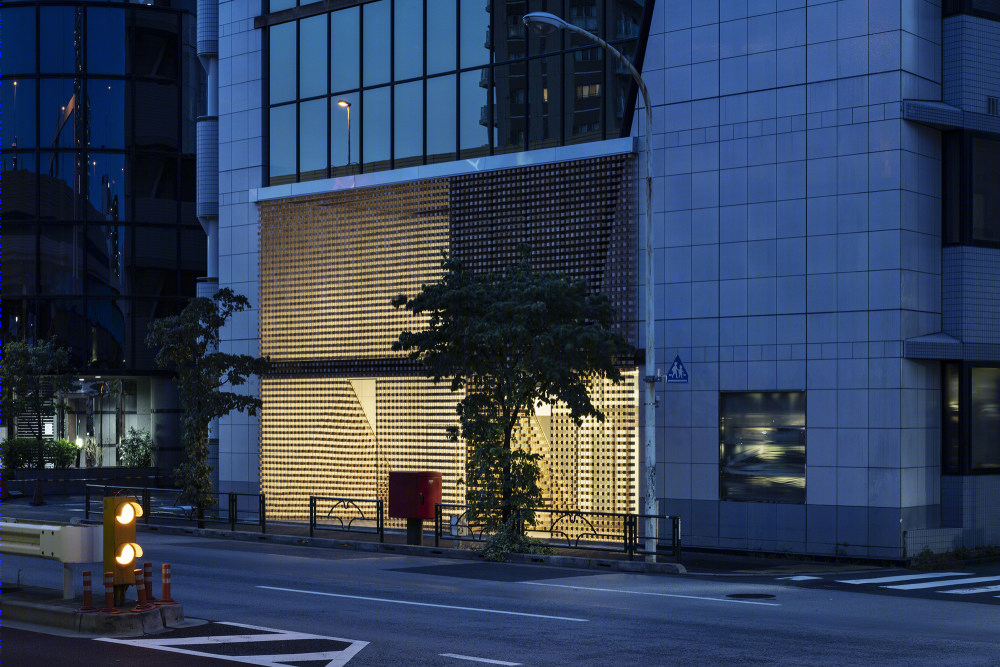

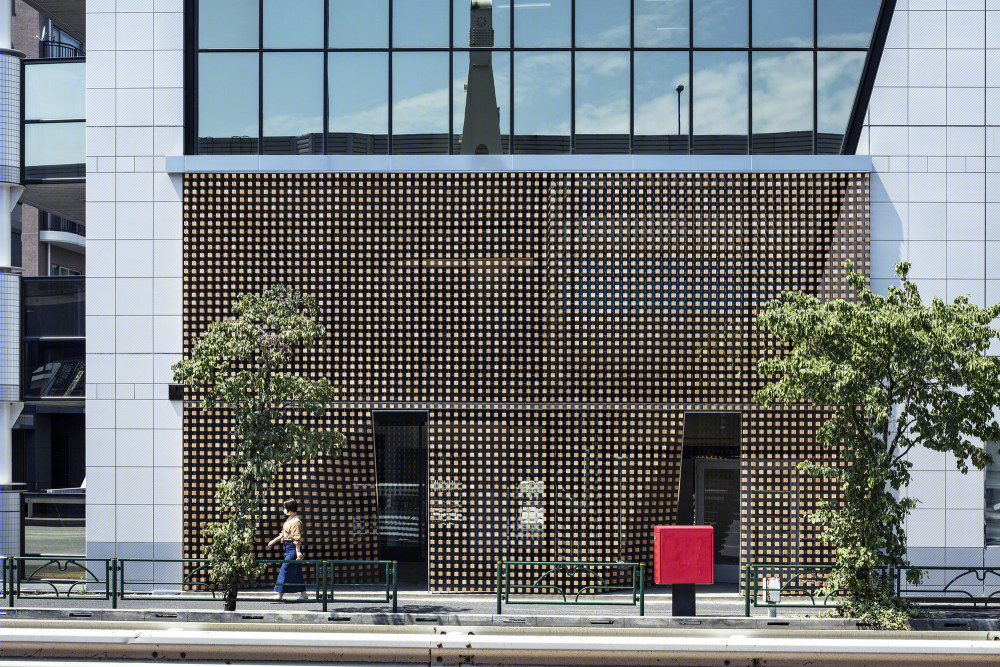

The existing entrance hall consists of 2 stories atrium, but the glass partition divides the atrium inside and outside, and the atrium spaces become halfway size. Then the glass partition is setback to the edge of the atrium to have an open space along the street.  And there is the screen along the Meiji street to protect the space from the heavy traffic and strong southern sunlight.

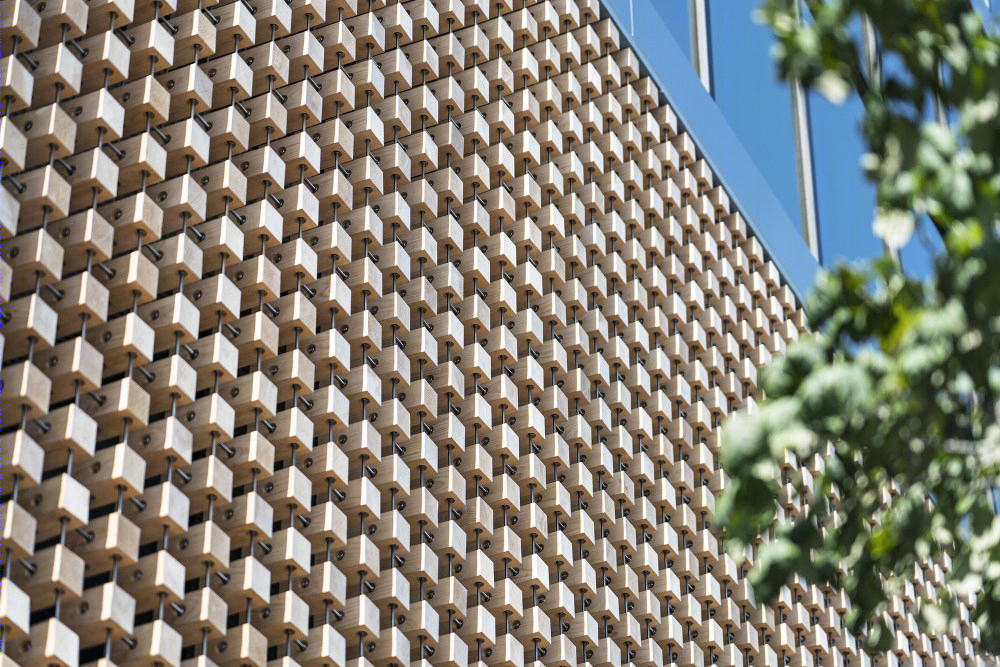

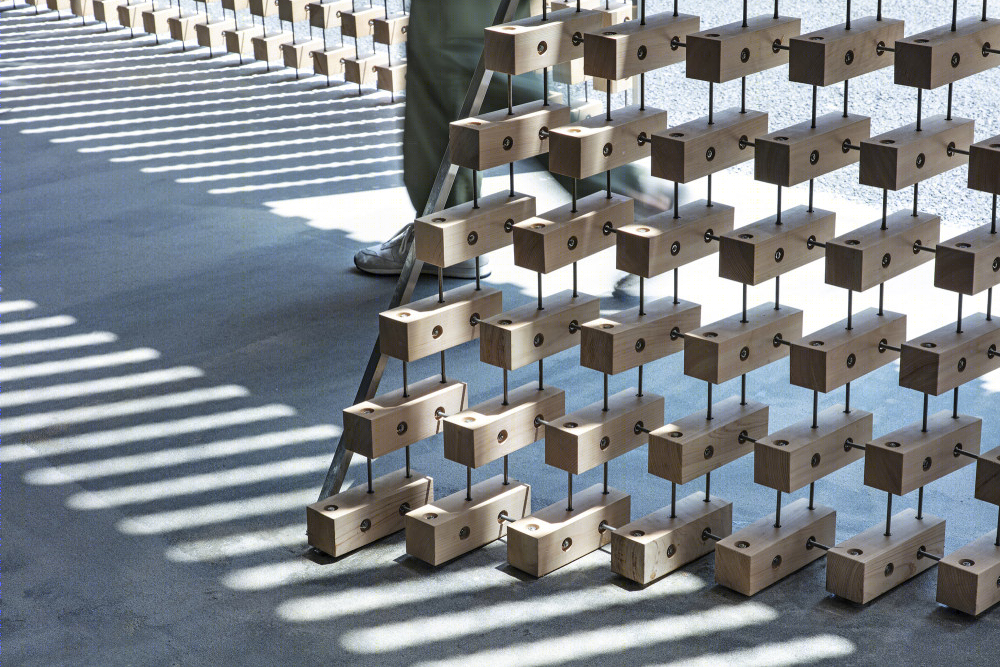

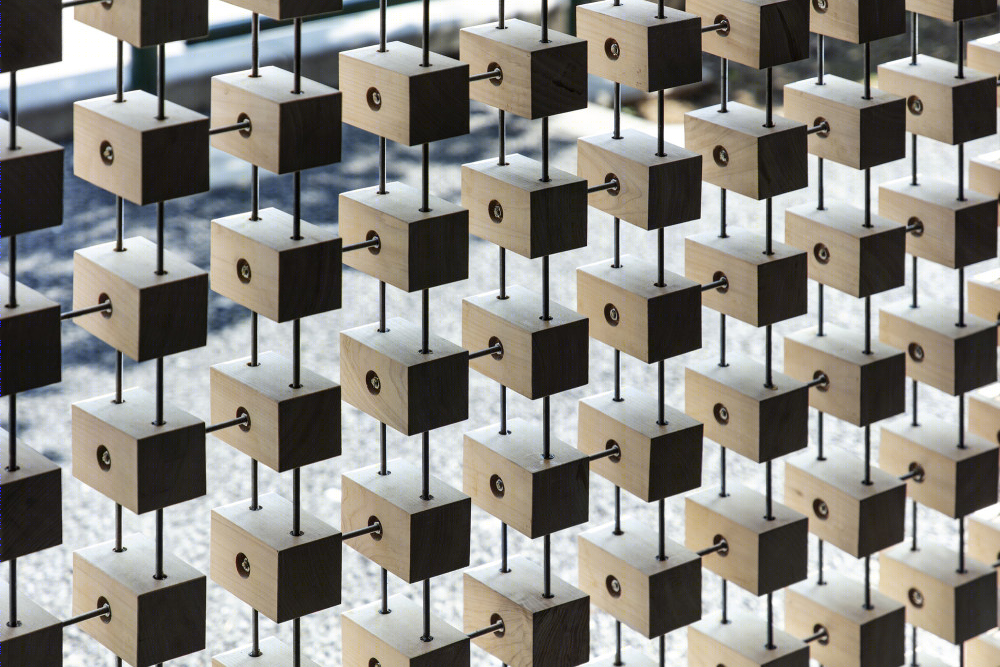

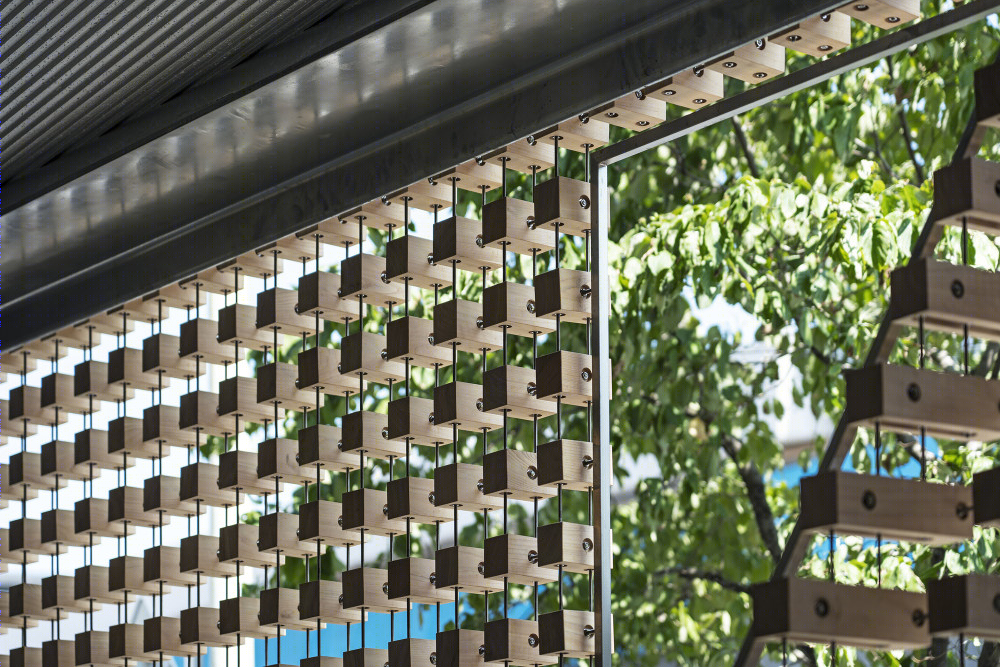

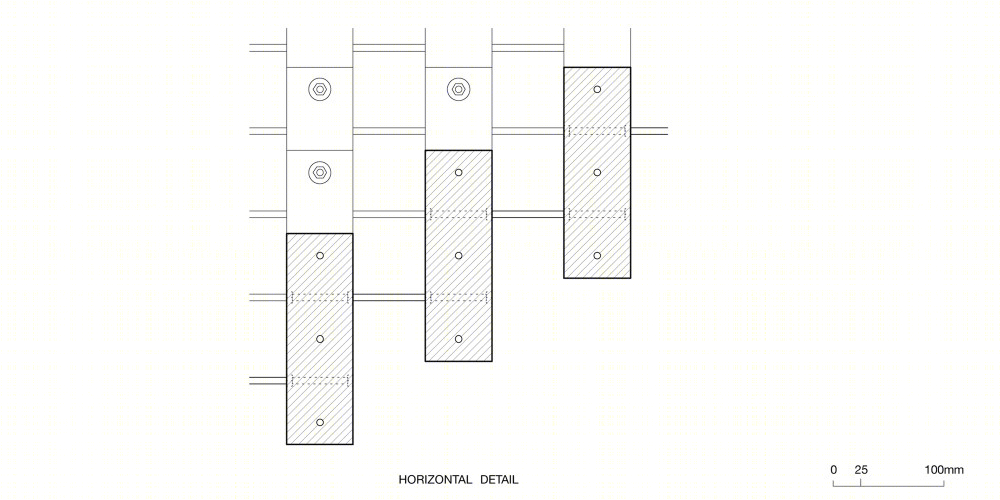

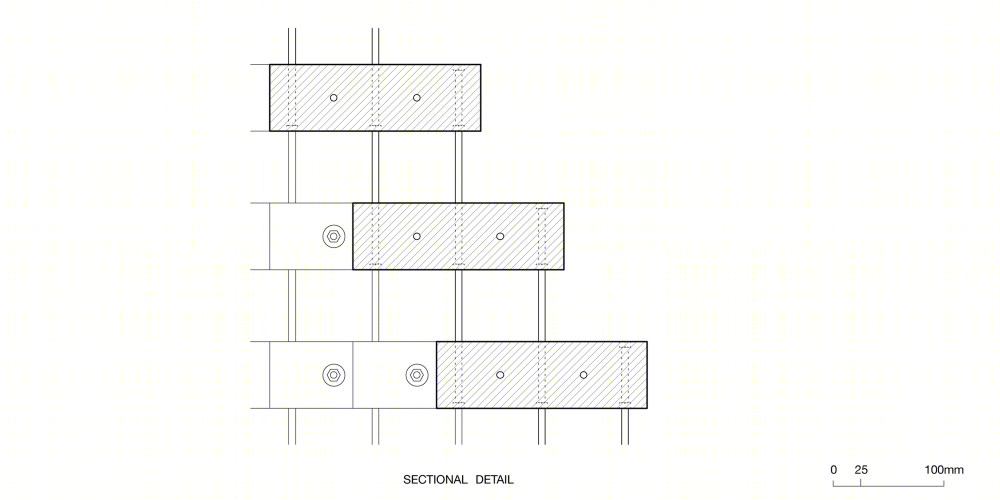

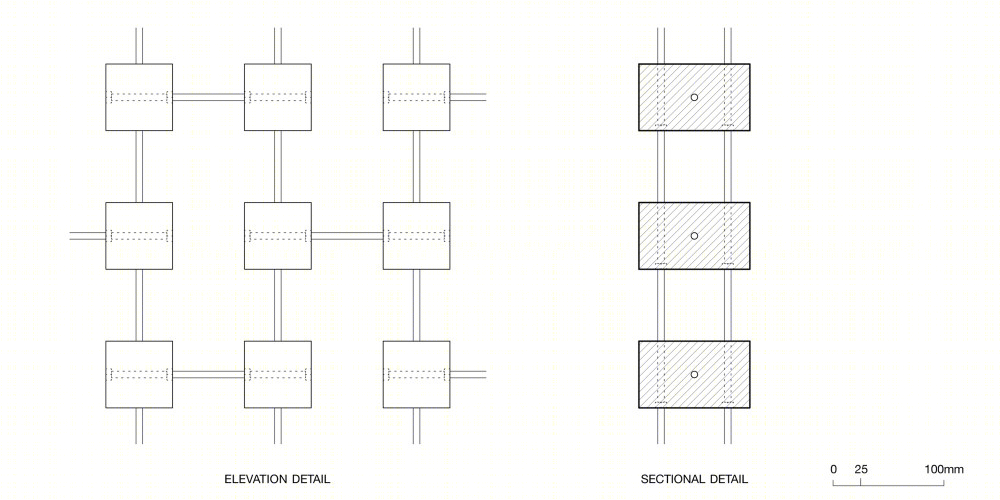

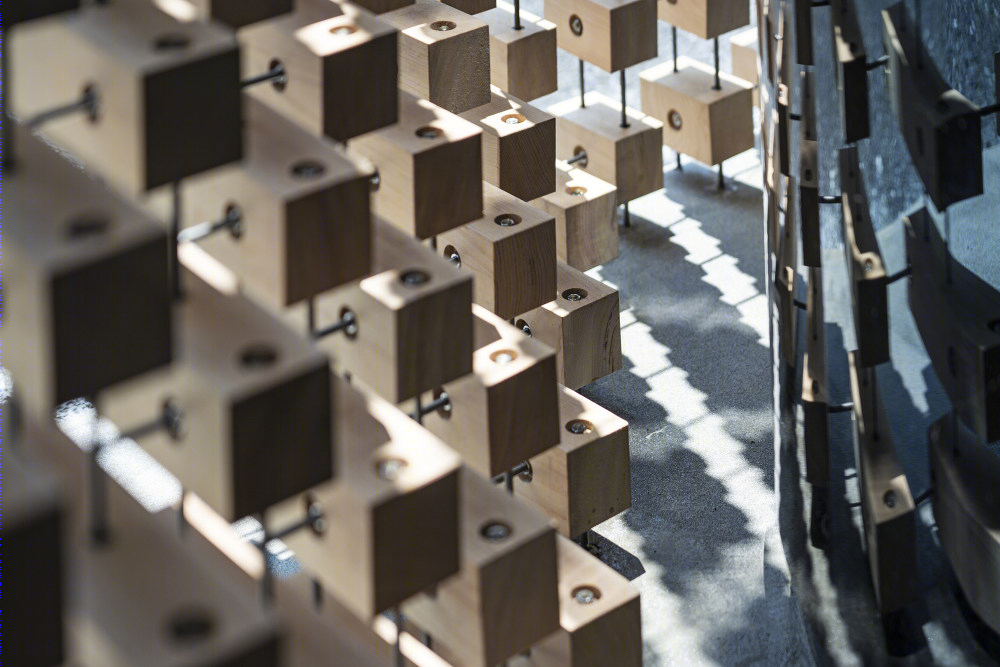

It is thought that the screen should compose the landscape with old temples, that is dotted along the street, and it should be seen esthetically not only from outside but also from inside. The screen consists of cypress lumber and M6 stainless rods. A cypress lumber is often used in old temple and has deodorant effect for the car exhaust. Vertically, two lines of rods penetrate the lumbers and the horizontal rods connect each columns. The composition gives it no hierarchal appearance, without front and back, and enough strength to resist wind pressure and transmits adequate sunlight to the space.

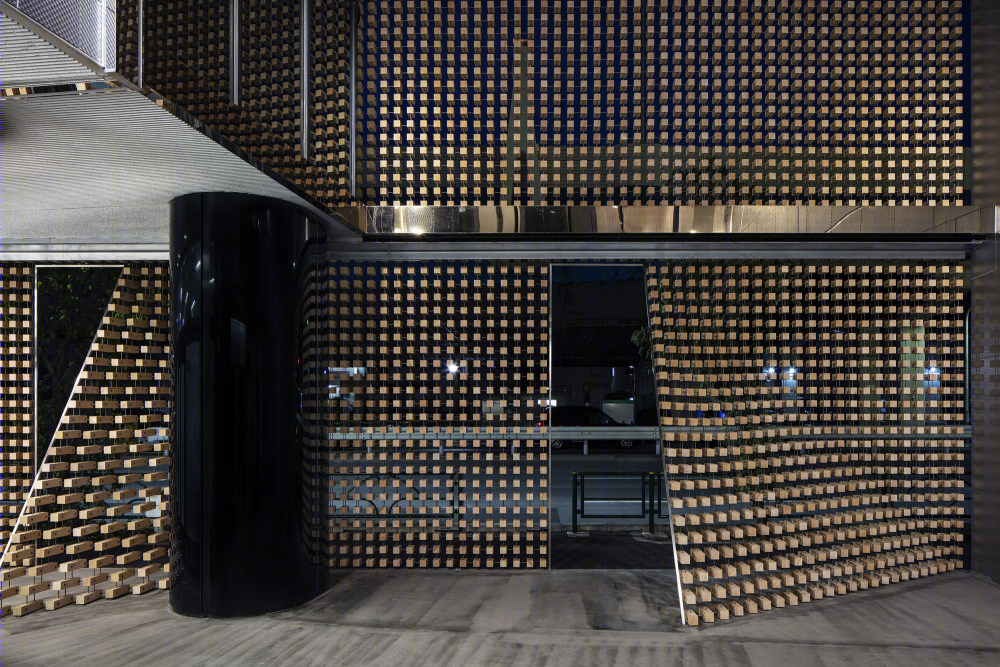

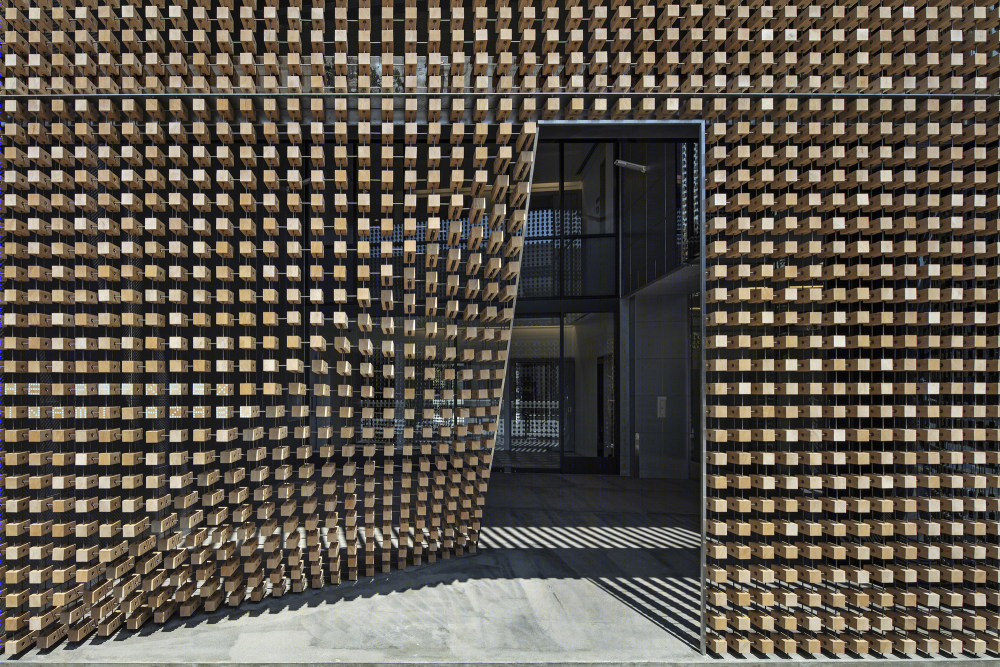

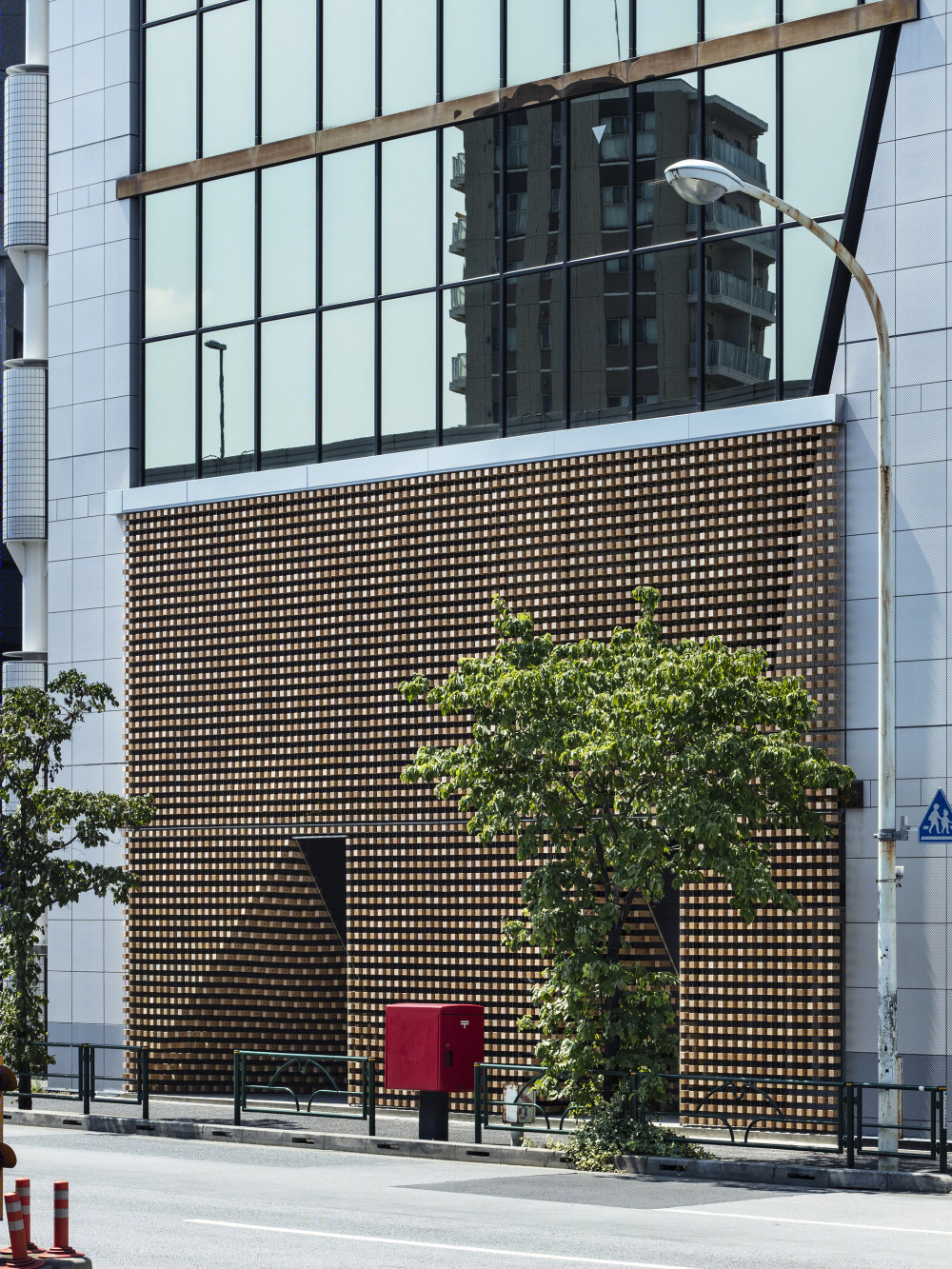

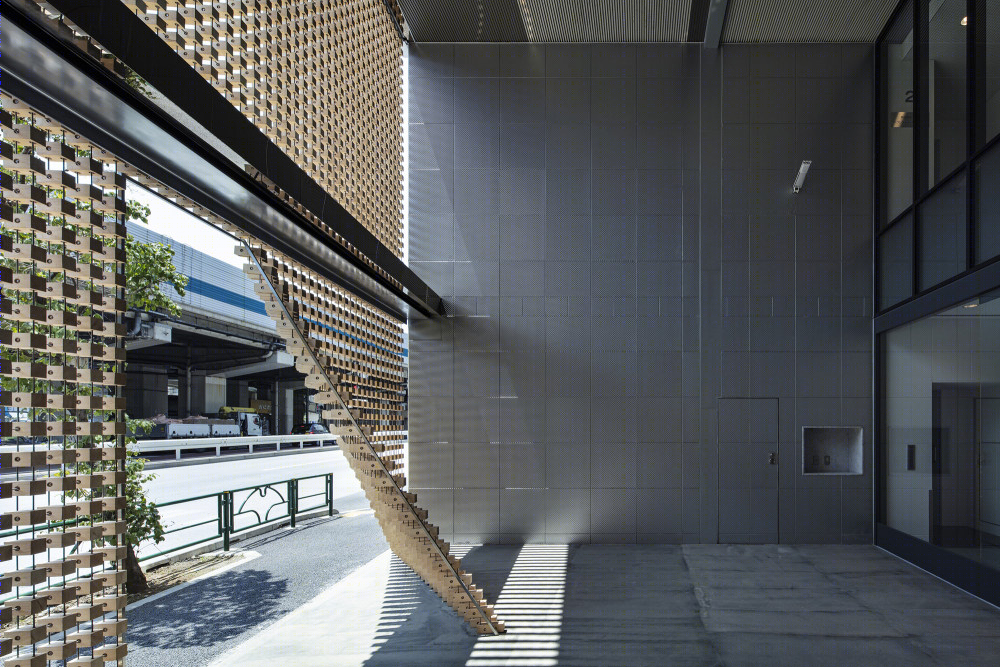

The folded shape and delicate atmosphere make it like curtain made of lumber. The lumber of 100mm depth and less represented rods appear different according to the eye direction and the distance to the screen.

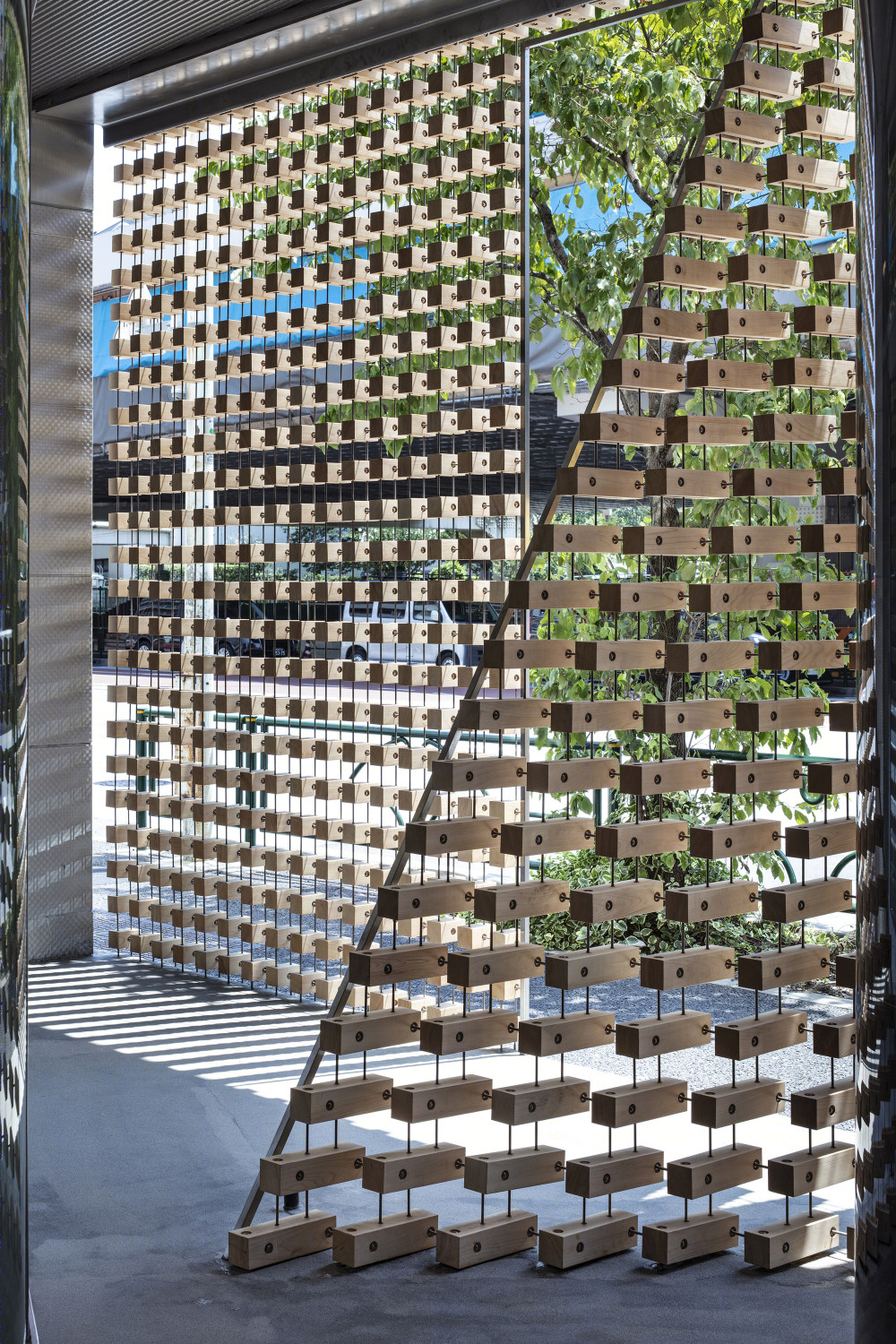

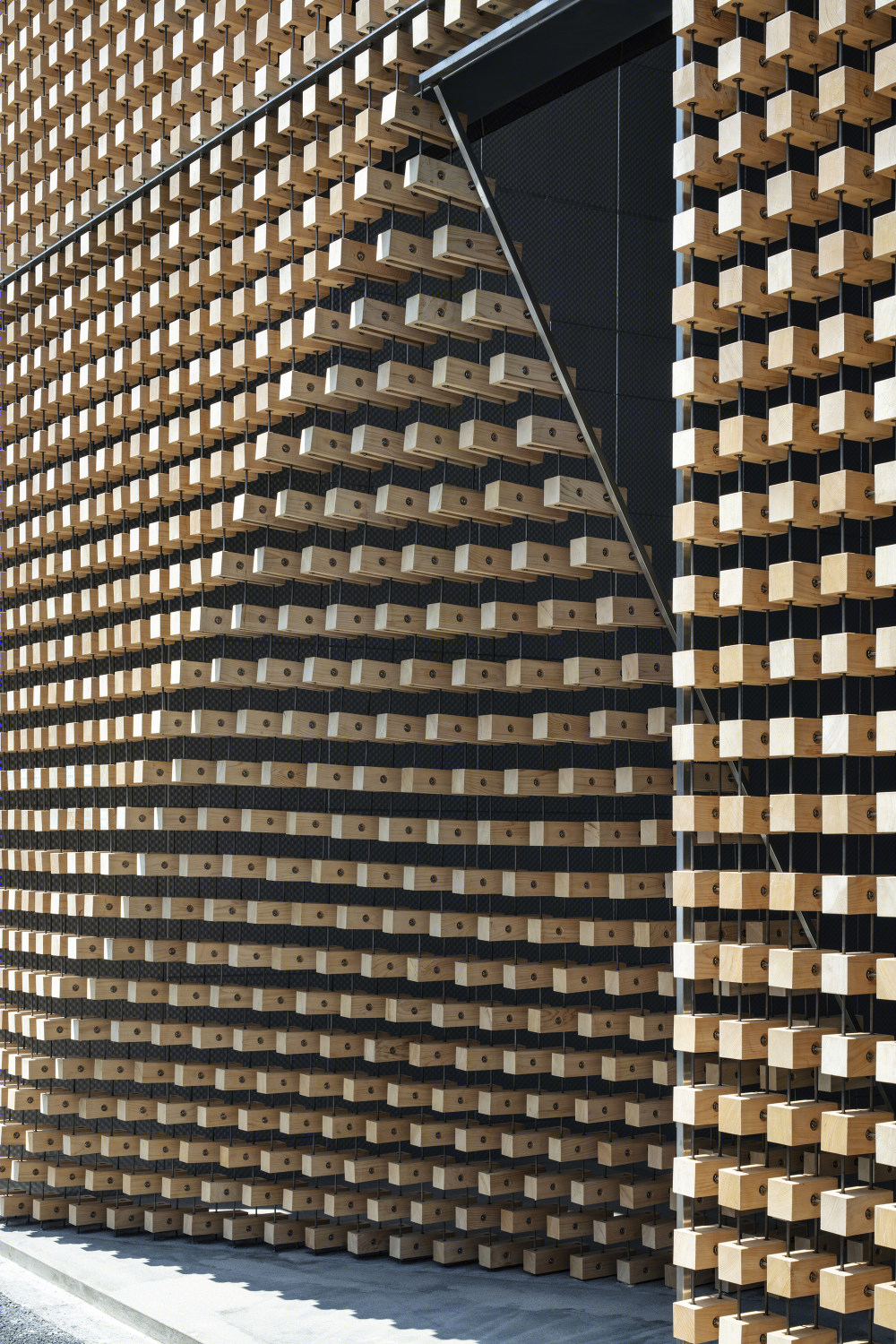

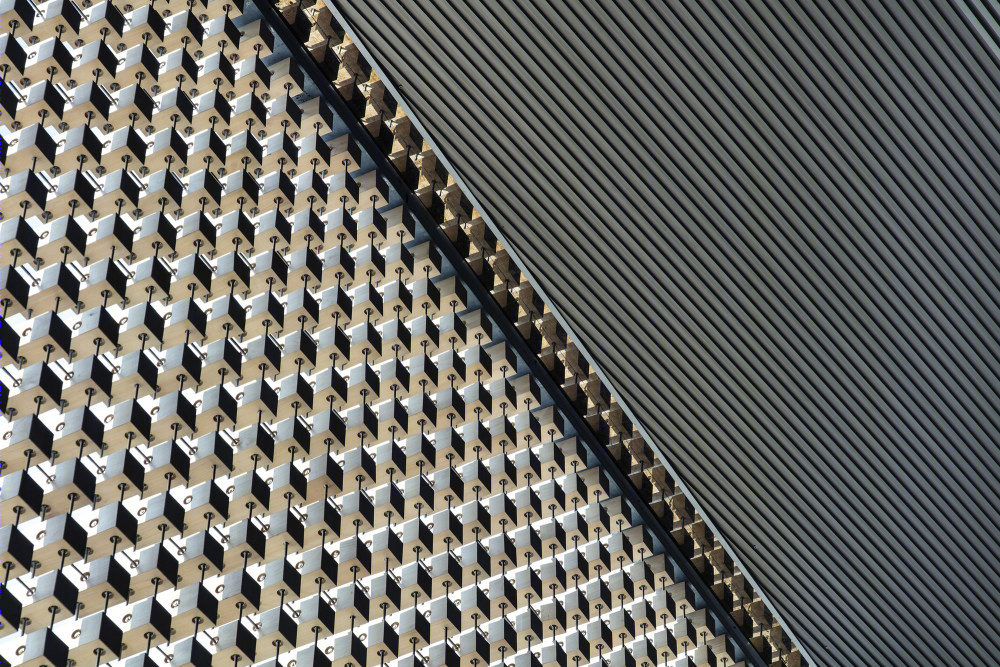

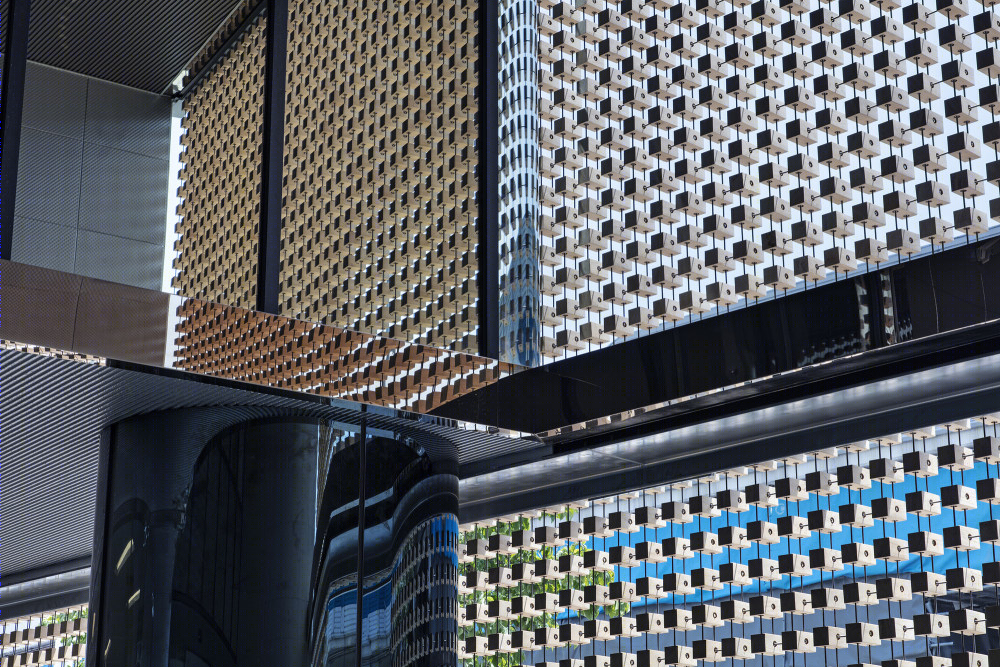

项目完工照片 | Finished Photos
