北京双桥斩获 ENR 全球最佳项目，绿色出行再添亮点

近日，《美国工程新闻纪录》（

ENR

）评选的年度全球最佳及优秀工程项目结果揭晓，共有

30

个来自

21

个国家和地区的工程项目获奖，其中，戈建筑（Ng-lab）与北京市政总院联合设计的两个项目获奖，分别为北京长安街新首钢大桥和昌平回龙观至海淀上地地区自行车专用路工程。此次评选项目为

2019

年

1

月

-2020

年

4

月竣工项目。

Recently, the results of the annual global best and outstanding engineering projec

ts selected by the "U.S. Engineering News Record" (ENR) were announced. A total of 30 engineering projects from 21 countries and regions were awarded. Among them, two projects in which Ng-lab participated were awarded: NewShougang Bridge and Bicycle tracks project from Huilongguan community of Changping district toShangdi community of Haidian district . The selected project is the completed project from January 2019 to April 2020.

ENR

全球最佳项目奖

ENRGlobal Best Projects Awards

ENR

全球最佳项目奖致力于表彰全球最好的建设项目以及在全世界范围内设计建造它们的公司。这个奖项关注的是在其他国家设计和建造项目时所面临的挑战、风险和回报。

The ENR Global Best Projects Awards program is dedicated to honoring the best global construction projects and the companies that designed and built them throughout the entire world. The awards focus on the challenges, risks and rewards of designing and constructing in other countries.

获奖项目一：北京长安街新首钢大桥

Award-winning project 1:

Xinshougang Bridge of Chang’An Avenue, Beijing

获奖类目

:

桥梁

/

隧道

Award category: bridge/tunnel

项目说明：

Project description

：

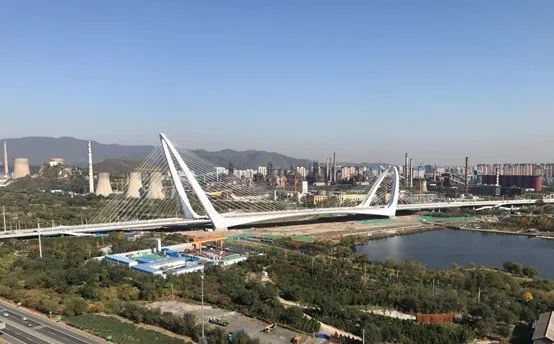

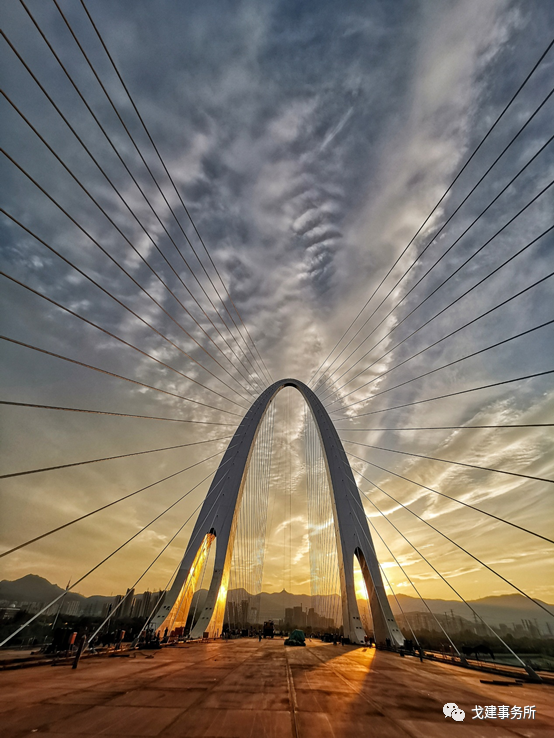

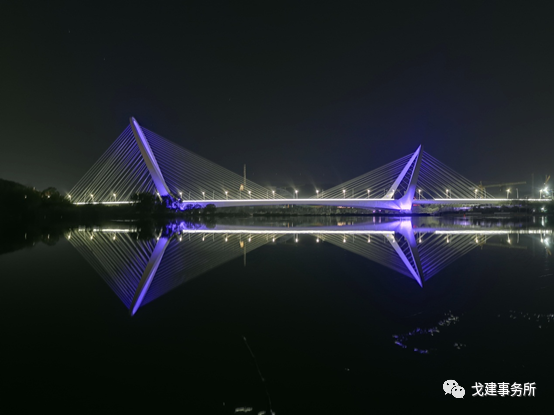

新首钢大桥全长

1.36km

，其中主桥长

639m

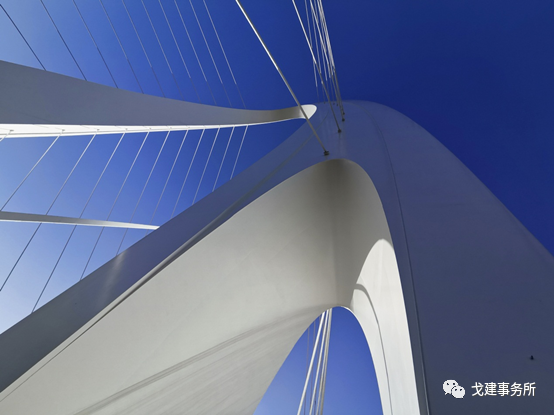

，采用门形不对称倾斜扭曲钢塔、分离式变截面钢主梁构成的新型斜拉刚构组合体系，共

5

跨，主跨

280

米，整体成

50m + 133.3/158.4m + 280m + 120.28/95.1m + 56m

跨度布置。由于永定河与长安街斜交（交角

57.9

度），高、矮塔塔底南北两肢基础顺水流方向设置，墩柱中线沿行车方向错开

25.10m

。西侧高塔采用塔、梁、墩固结；东侧矮塔采用塔、梁固结，在每处塔基底部斜向设置两个

7800t

防锁死减震型单向球型钢支座。高塔高约

124.5

米，矮塔高约

77

米。斜拉索采用竖琴式渐变距离布置。桥面设置双向共

8

条机动车道，两侧各

3.5m

非机动车道及

3.0m

人行道，机动车道和非机动车道间设隔离带，桥梁标准宽度

47m

，最宽的高塔底部处为

54.9m

。主桥全部采用钢结构工厂加工预制，现场吊装焊接成为整体，总用钢量约

4.5

万吨，最大吊装重量

750

吨，总投资约

11.5

亿元。

The total length of the Xinshougang Bridge is 1.36km and the main spans is 639 m. The main span structure is a “non-classical” cable-stayed bridge; it’s a combination of cable-stayed and rigid-frame systems. The two towers are outward-inclined elliptic arches with different height and twisted curved tower legs; at the main span, the tower legs are connected by two box girders which are connected by floor beams supporting the steel orthotropic deck. The dimension of the two box girders varies in both vertical and transverse direction and the dimension are optimized for stress distribution by parametric study. The bridge has 5 spans in total; the span layout is 50m + 133.3/158.4m +280m + 120.28/95.1m + 56m. Since the Yong

ding River and Chang’An Avenue intersect obliquely with

a skew angle of 57.9 degrees, the tower foundations also follow this skew angle for bett

er flood discharge. The center line of piers is 25.10m away from the vehicular direction. The west tower is 124.5m high and the tower legs are moment-connected with the box girders and the piers; the east tower is 77m high and the tower legs are moment-connected with the box girders and supported by two 7800 tons anti-lock one-way ball-shaped vibration-absorption steel supports. The stay cables are set up in a harp-style with gradually varying space. The standard deck width is 47m with 8 motor lanes and 3.5m non-motor and 3.0m pedestrian lanes on each side. The maximum deck width is 54.9m. There is a separation between the motor and non-motor lanes. All the steel structure members were pre-manufactured in shop and transported to the field and assembled together by welding. The total quantity of the steel used is 45 thousand tons; the maximum crane lift weight is 750 tons; the total investment is 164 million dollars.

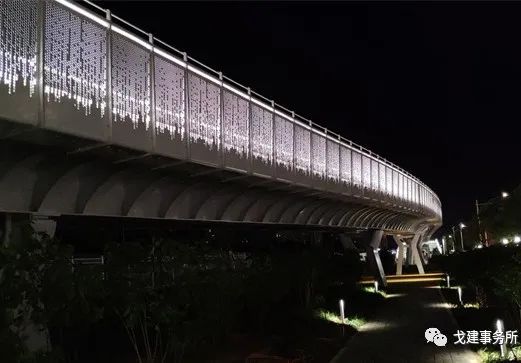

获奖项目二：

昌平回龙观至海淀上地地区自行车专用路工程

Award

-winning project 2: Bicycle tracks project from Huilongguan community of Changping district to Shangdi community of Haidian district

获奖类目

:

道路

/

公路

Award category: road/highway

项目说明：

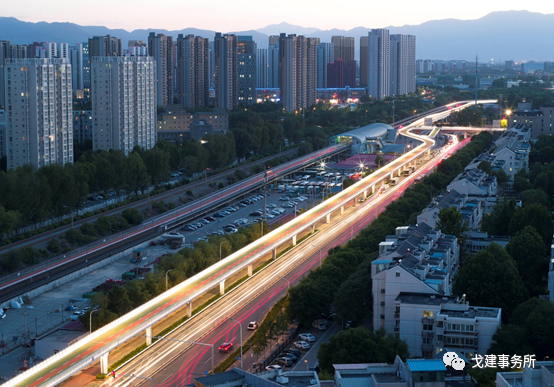

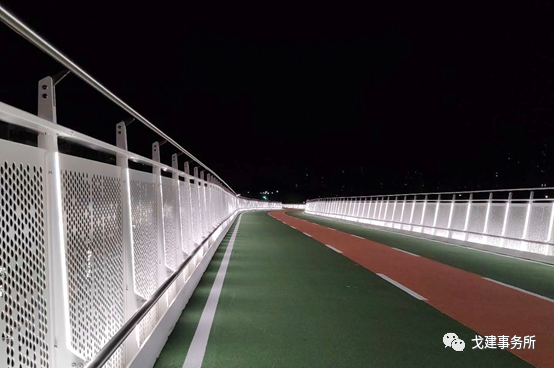

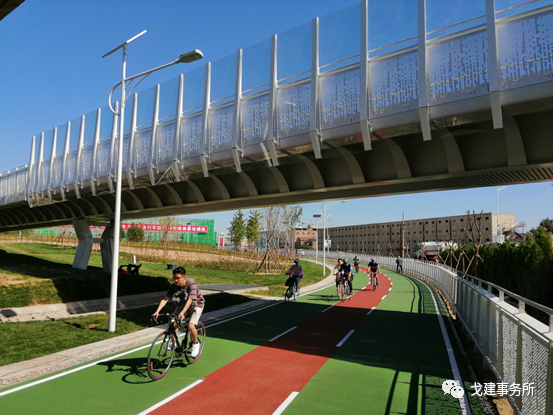

本项目为北京市第一条享有专用路权的自行车高速公路，服务于回龙观社区

—

上地高科技园区往来的短距离通勤交通。该项目沿城市轨道交通走廊布设，紧密连接大型居住区、商业大厦、公共交通枢纽以及高科技园区。对分流短程通勤交通，缓解轨道交通压力，推动中国绿色交通体系建设具有积极的引导及示范作用。

项目全长

6.5km

，其中新建路基段长

2.74km

，新建桥梁段长

2.72km

，利用现况路

1.04km

。设计速度

20km/h

，路面净宽

6m

，双向

5

车道（中间设置为潮汐车道）。沿线设置养护工区

1

处、驿站

1

处、进出口

8

处，同步设置自行车驻车系统。

Project description

：

This project is the first bicycle express way with special right-of-way in Beijing, which serves the short distance commuter traffic between Huilongguan community and Shangdi high-tech park. The project is cleverly wired to connect large residential areas, commercial buildings, public transport hubs and high-tech parks. It will play a positive guiding and demonstration role in diverting short-distance commuter traffic, relieving the pressure of rail transit and promoting the construction of green transportation system in China.

The total length of the project is 6.5km, of which 2.74km is the length of the new roadbed, 2.72km is the length of the new bridge, and 1.04km is the current road. The design speed is 20km/h, the road surface is 6m wide, and there are 5 lanes in both directions (the middleis set as tidal lane). One maintenance area, one relay station and eight importand export stations are set up along the route, and the bicycle parking systemis set up simultaneously.
