漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)

2018/11/19 13:00:00
查看完整案例
微信扫一扫
收藏
下载
翻译

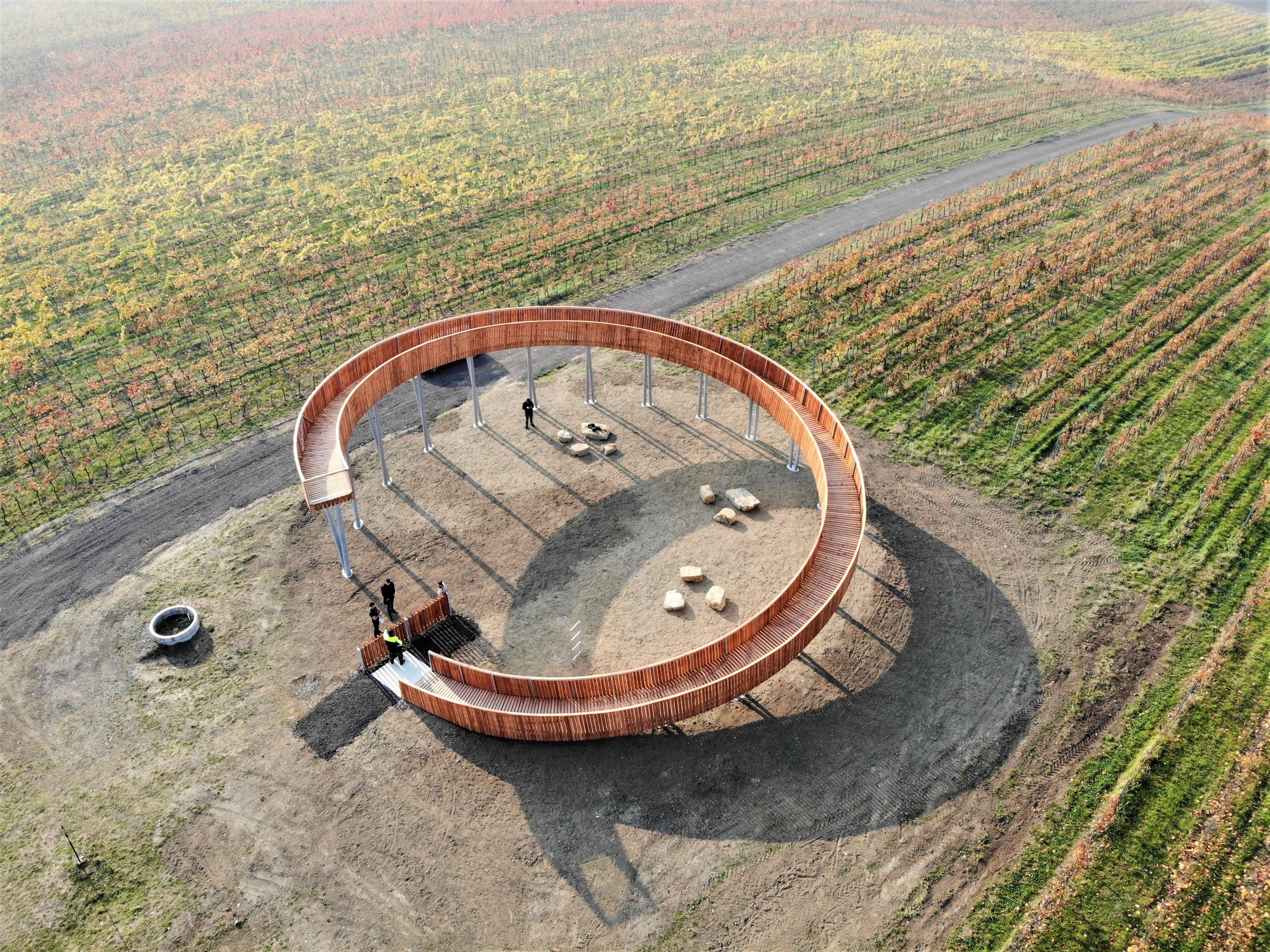

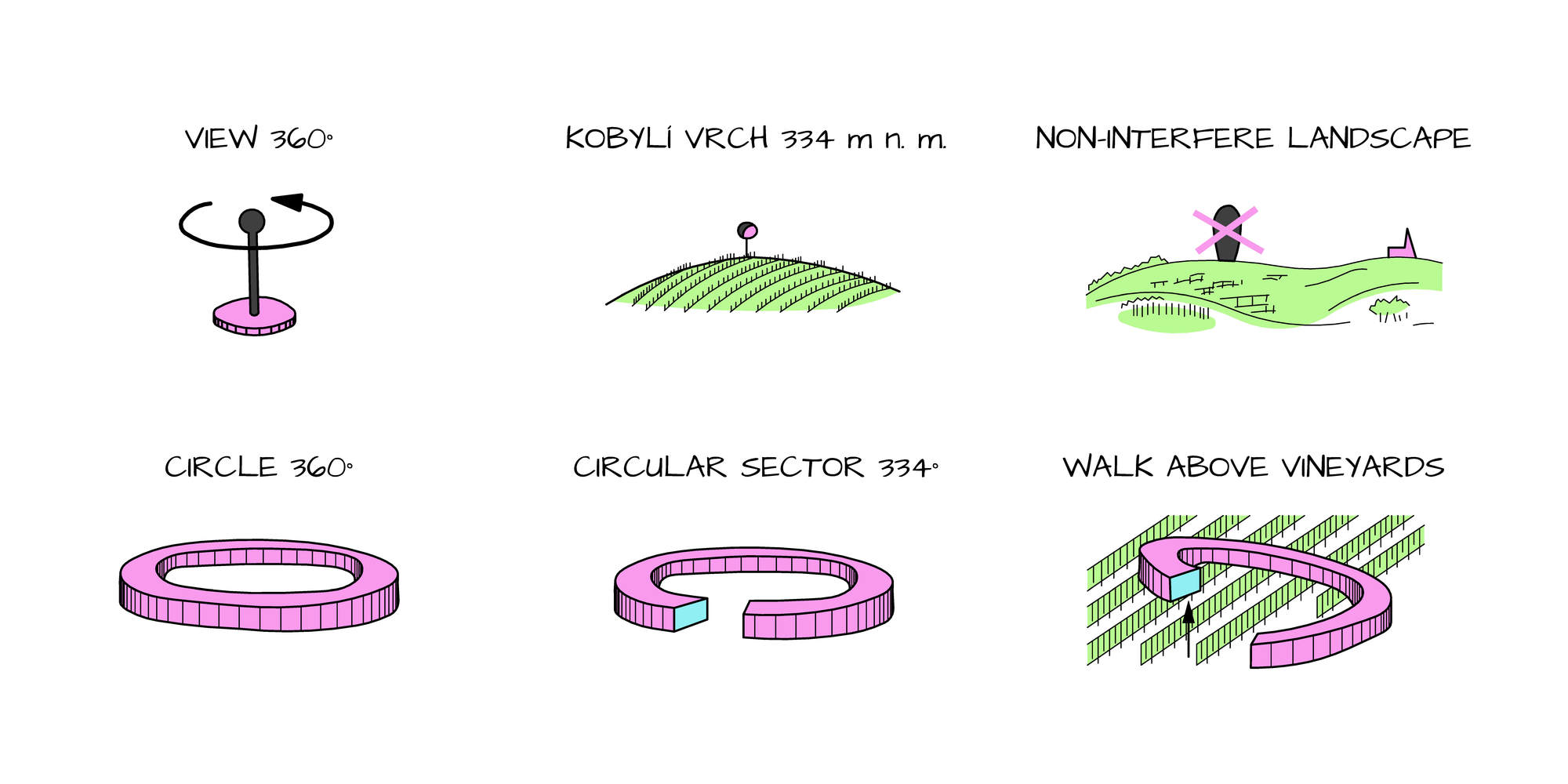

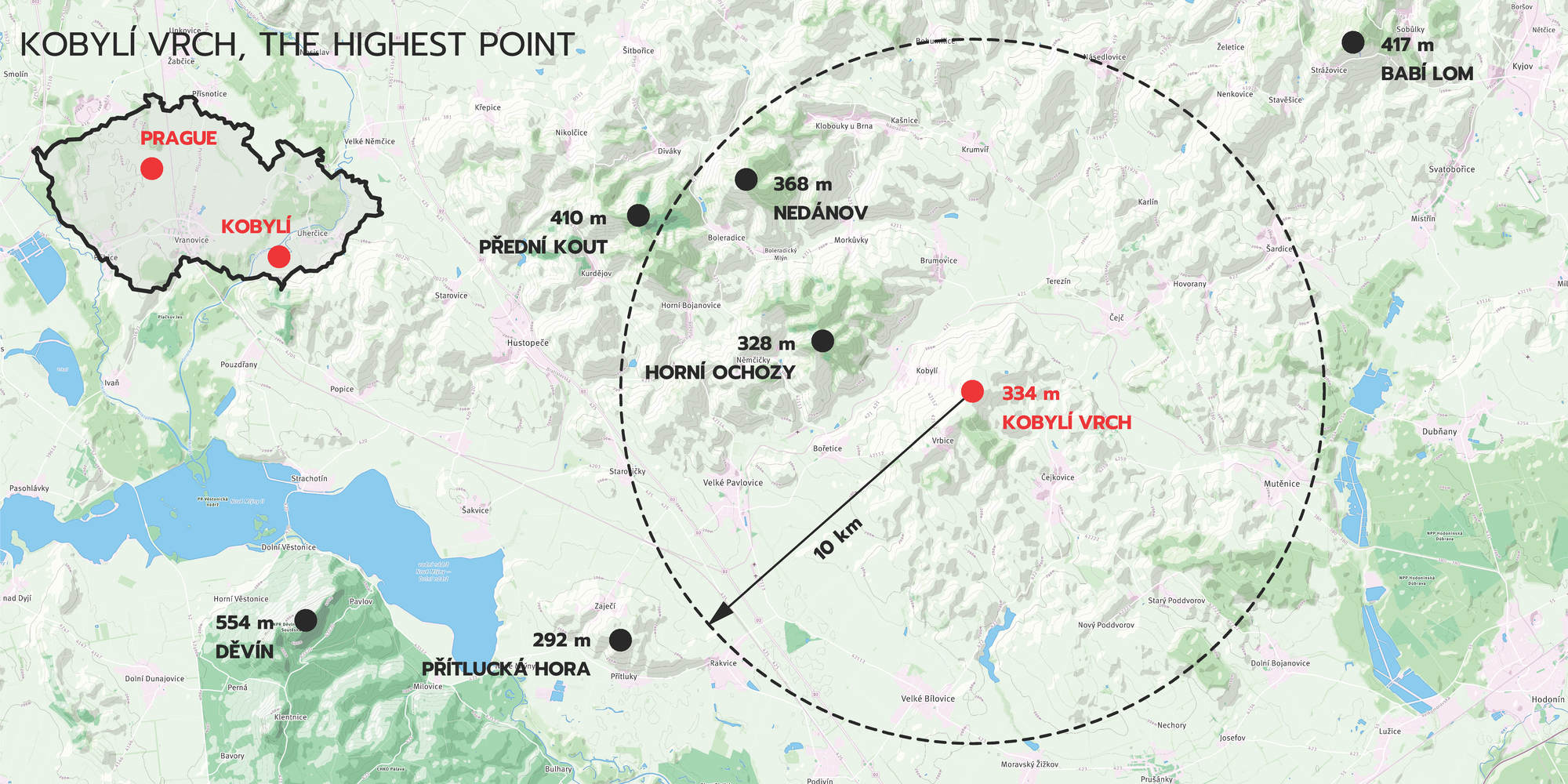

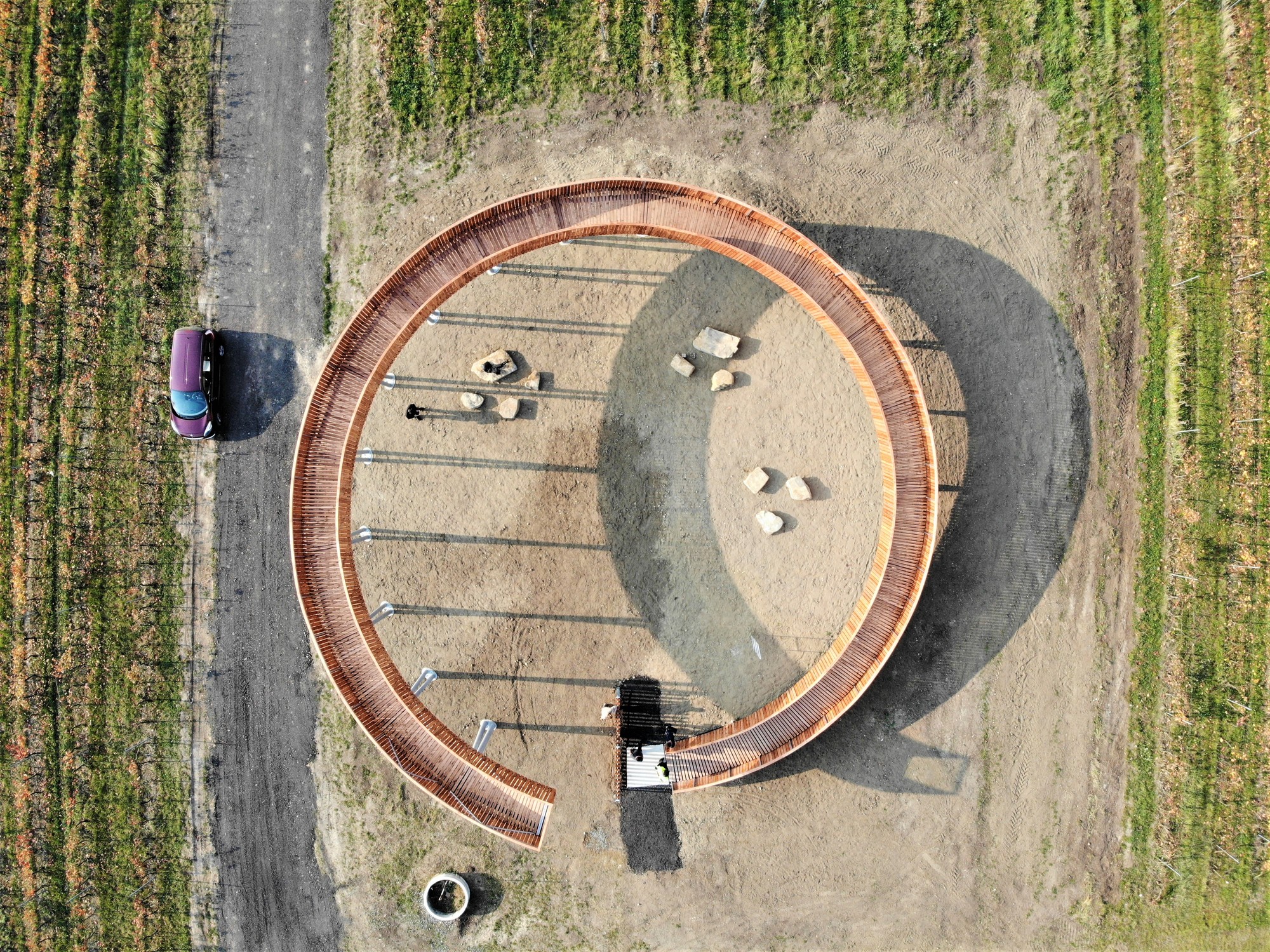

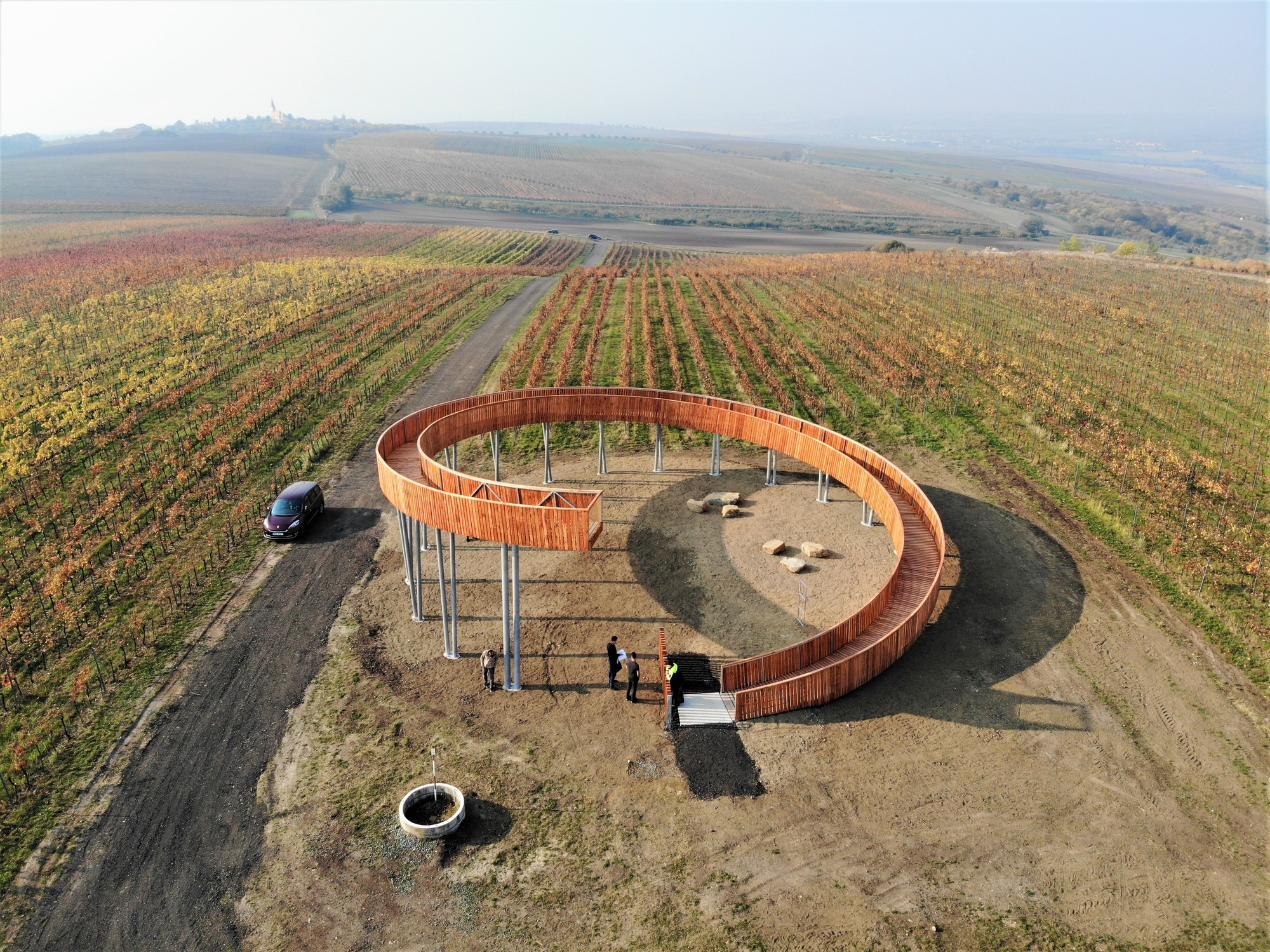

The Walk Above the Vineyards is located near the village of Kobylí on the Kobylí vrch hill. The hill is covered in vineyards and at 334 meters its summit is the highest point in the area. “It was this place that inspired us to design the Walk. The observation deck is shaped like a 334° circle ramp segment, unobtrusively overlooking the beautiful surrounding landscape. The circle represents the natural circle of life and is a symbolic reference to the growth of Kobylí,” explains Jiří Vojtěšek, one of the two architects.
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-1
”Thanks to the inclined plane which replaces stairs, the Walk Above the Vineyards is accessible to those who cannot climb common observational towers. From the Walk’s highest point, 7.6 m above the ground, people can see the UNESCO-listed Lednice-Valtice Cultural Landscape, the Little Carpathians mountain range or even the Austrian Alps when the visibility is good,” says Jakub Roleček, the second architect.
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-3
In the concept of the Walk, the way up is as important as the view from atop. The Walk is equipped with information plates representing a time-and-space line. Along with their way up, people can find the typical plates with arrows pointing towards important landmarks in the area, but in this case, the plates also contain information about both future and historical events taking place in the village or are asking the visitors philosophical questions about themselves.
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-5
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-6
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-7

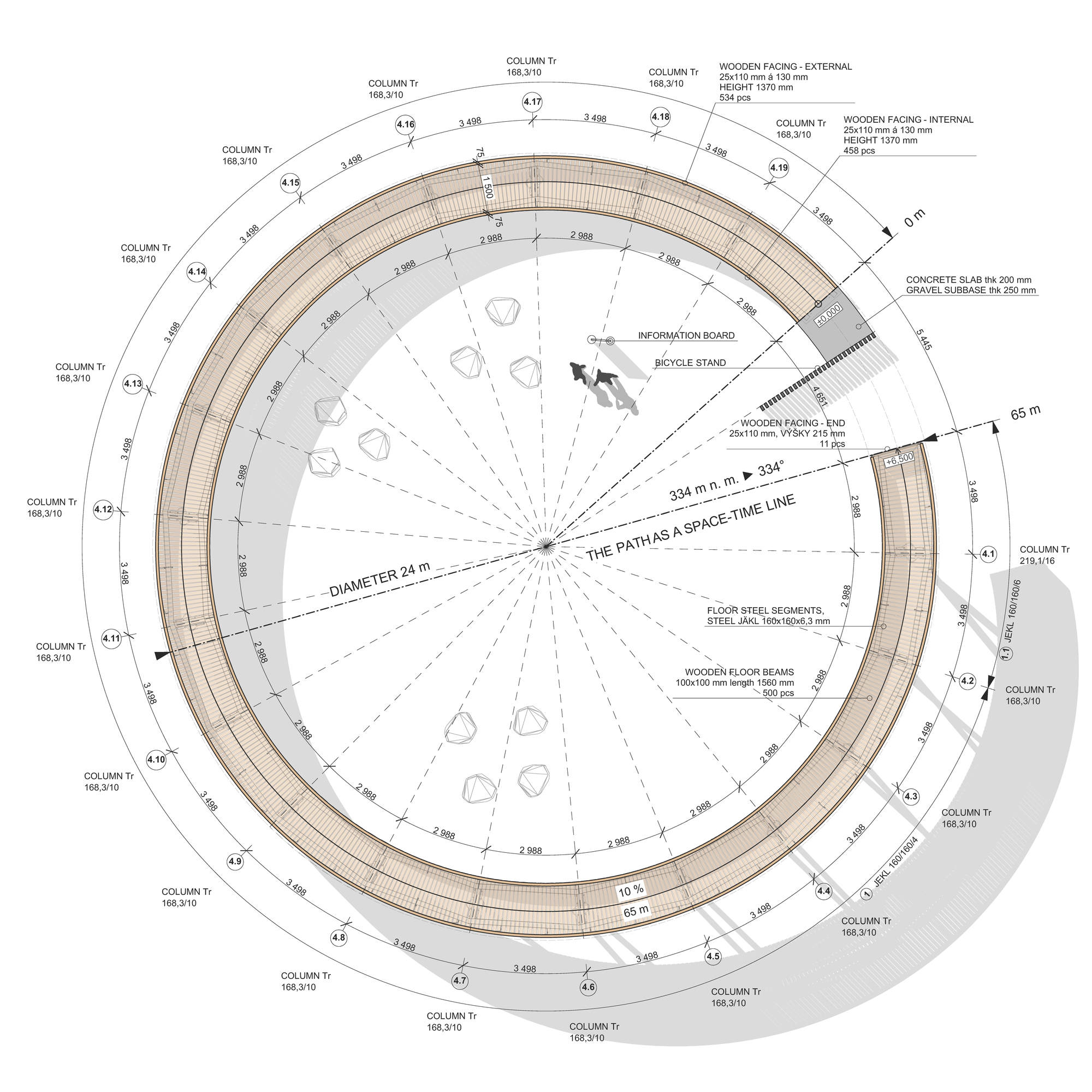

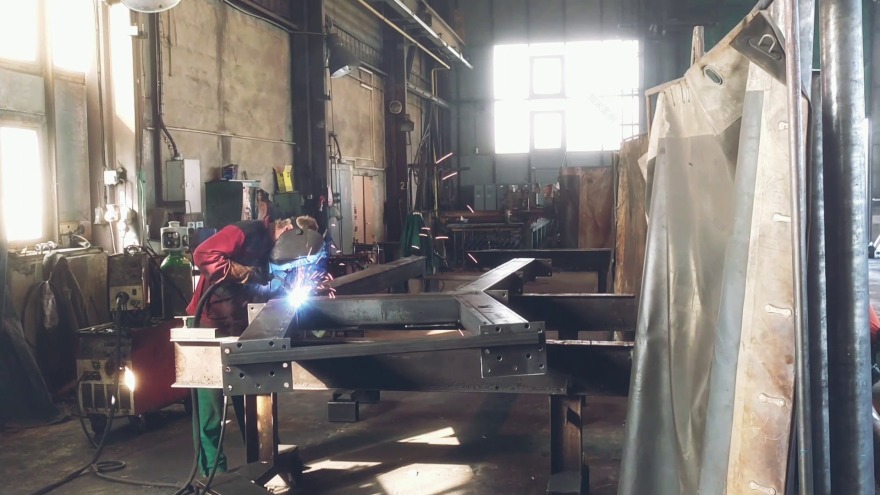

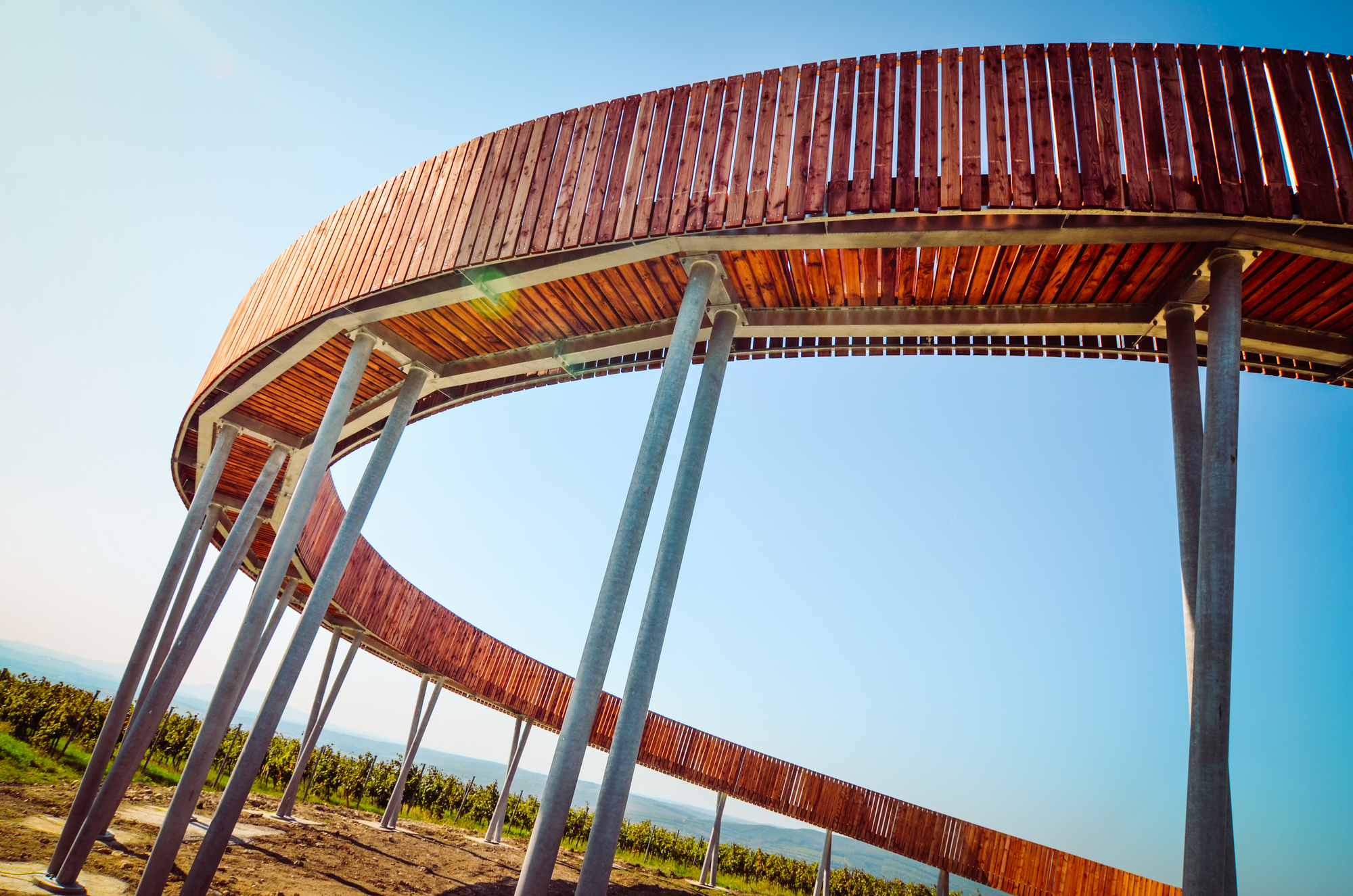

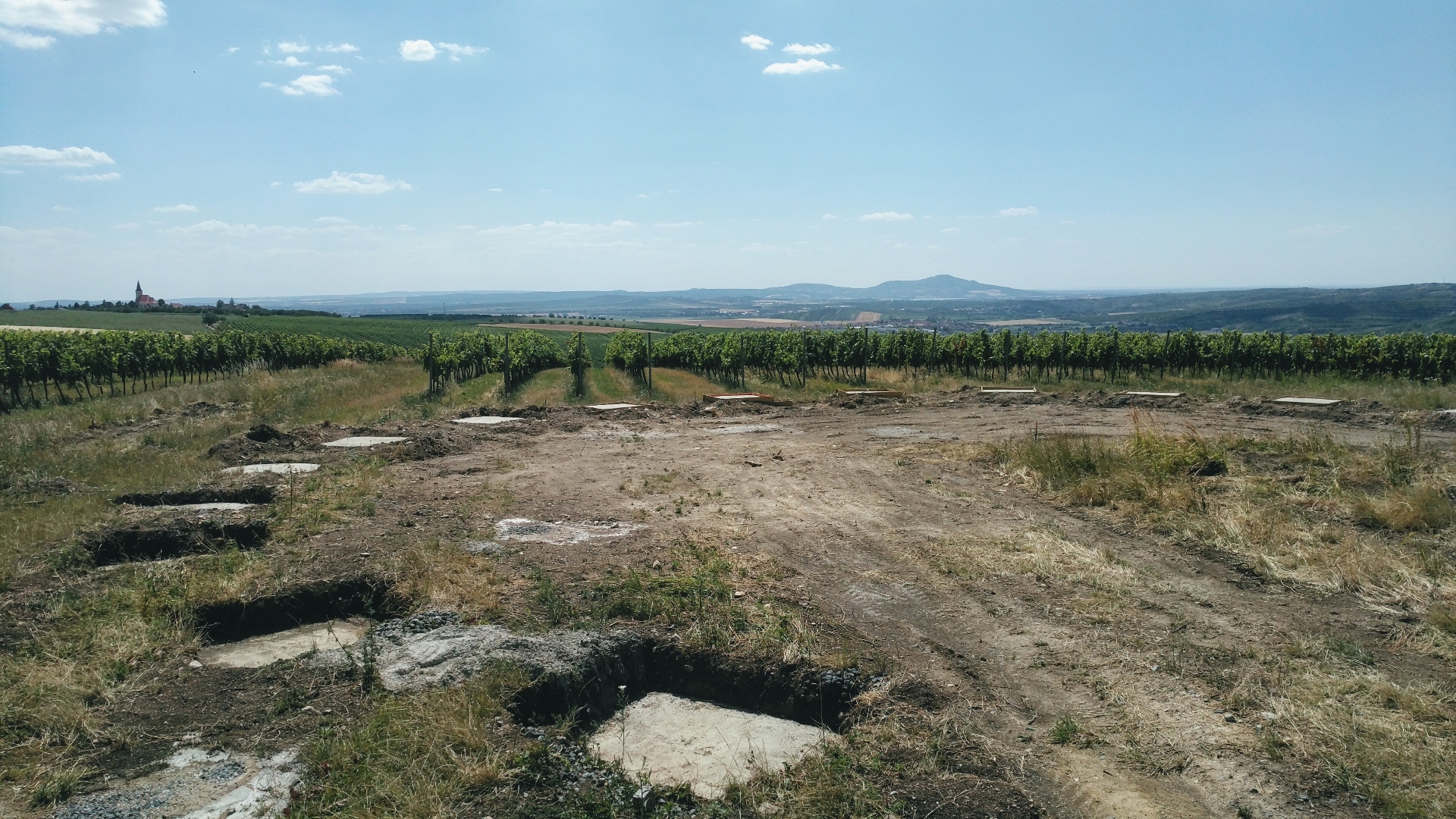

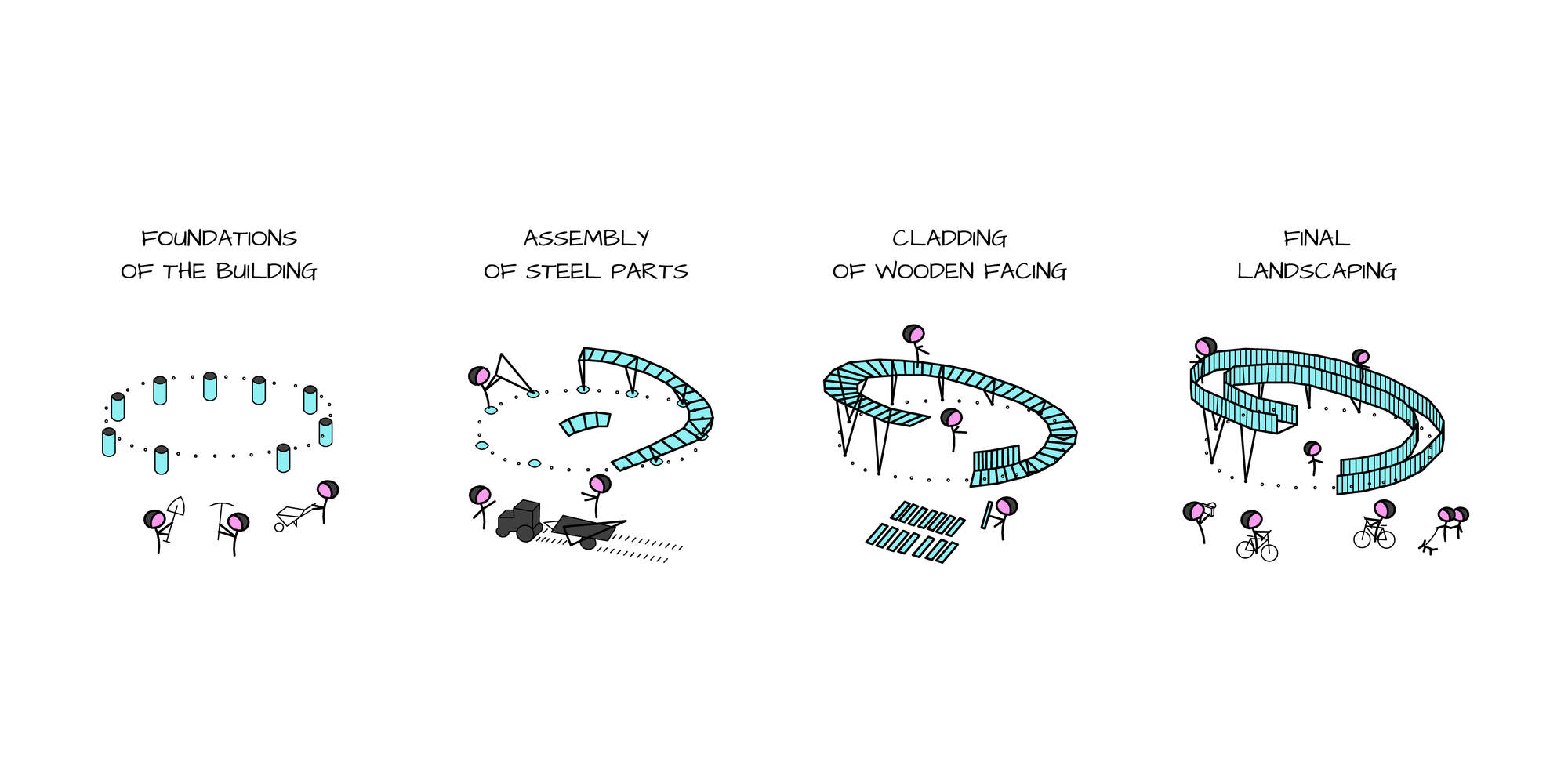

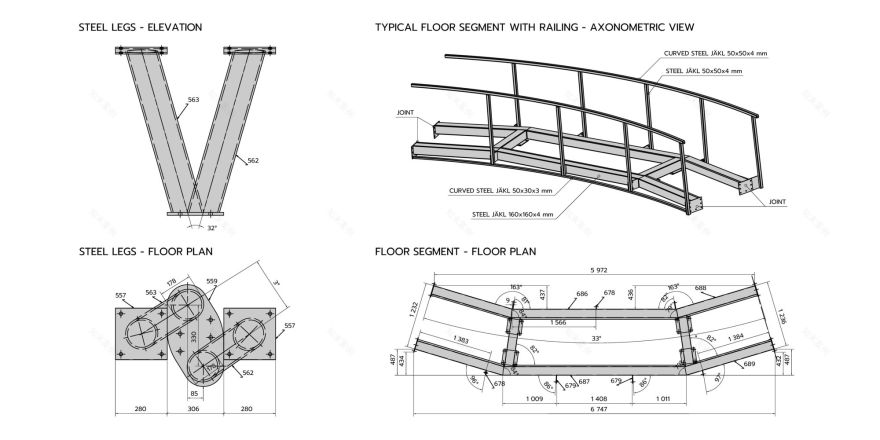

Construction The Walk’s ramp consists of eight identical floor segments and three atypical segments at its beginning and its end. These elements are supported by 19 thin steel double columns. Over 11 tons of steel were used to build the walk, including the railing. The floor consists of over 500 wooden cuboids while over 1000 wooden planks and 130 meters of wooden handrail were used to build the railing. Reinforced concrete 1.2 x 1.2 m footings were used for the foundation and the Walk also has a system for grounding the construction.
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-9
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-10
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-11
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-12
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-13
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-14
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-15
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-16
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-17
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-18
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-19
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-20
漫步葡萄园之上的圆形观景台(The Walk Above the Vineyards)-21
