韩国 Mangmi 农场

2023/08/31 18:20:48
查看完整案例
微信扫一扫
收藏
下载
翻译
韩国 Mangmi 农场-0
韩国 Mangmi 农场-1

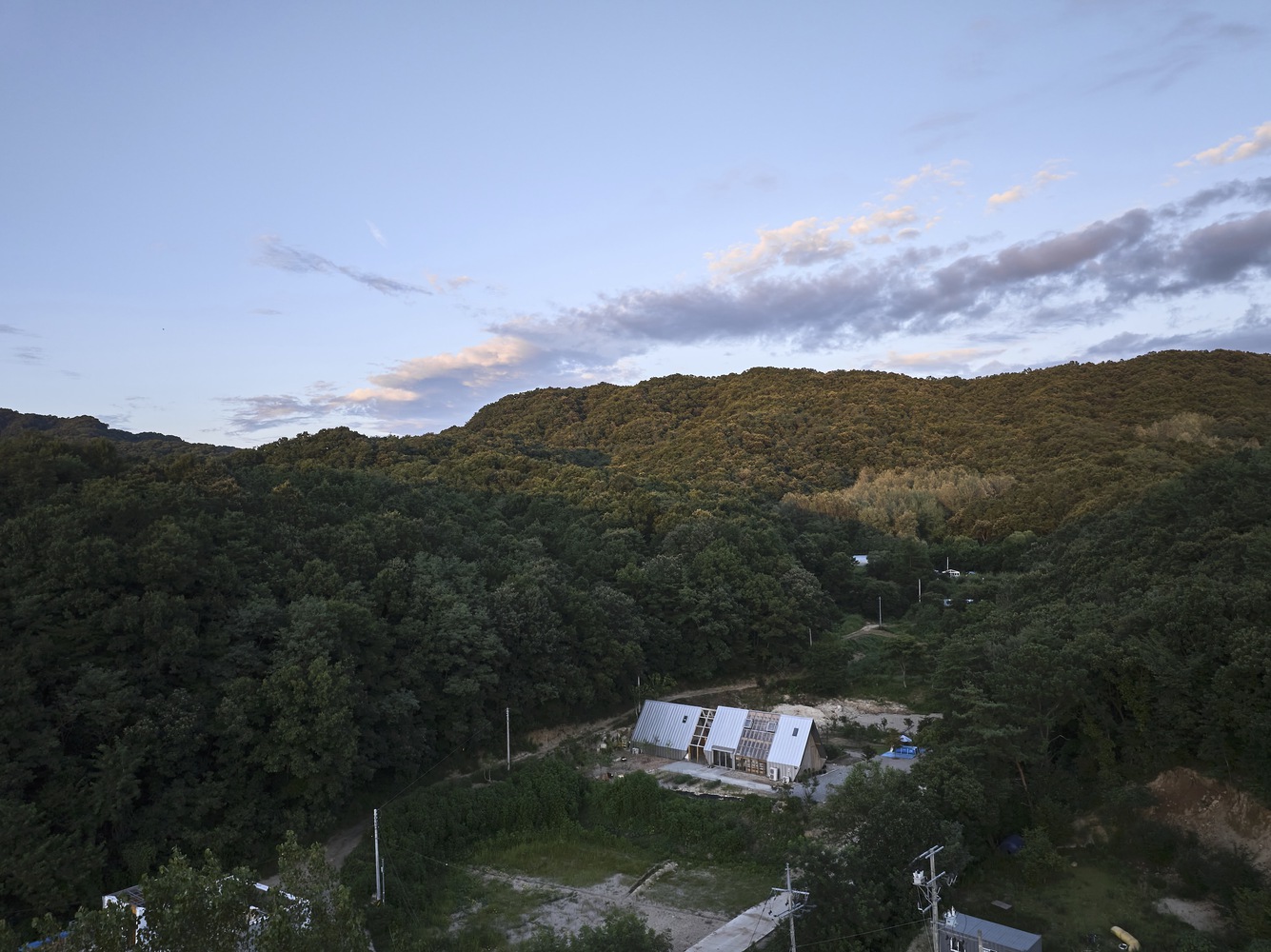

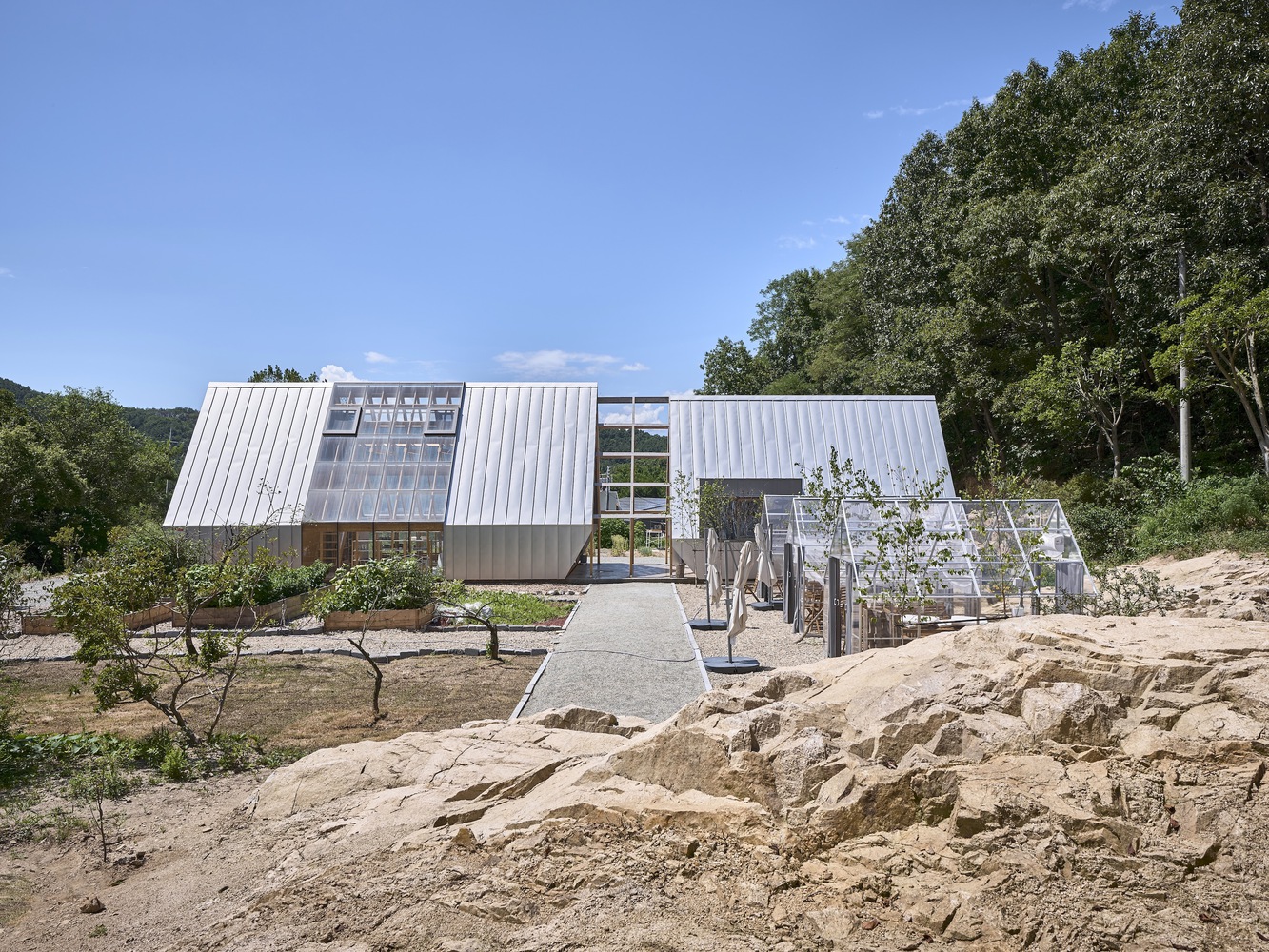

The project is located in Mangmi Village in Yangpyeong, South Korea, in the valley where three mountains meet. Sitting in the deep mountains, the site retains a calm, peaceful vibrance. After retirement, the client couple have been living there growing fruit trees. They asked for a community facility and a glasshouse along with a campsite. The most important feature of the site is the forest. Trees rooted down there for a long time have memories of the place more than anything.
韩国 Mangmi 农场-3

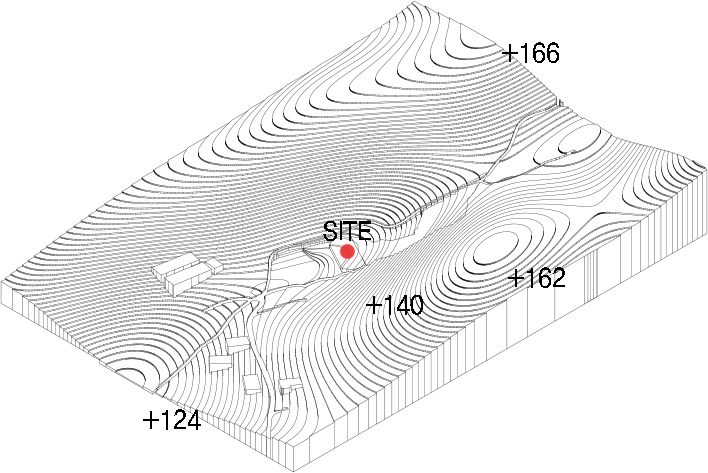

韩国 Mangmi 农场-4
韩国 Mangmi 农场-5
韩国 Mangmi 农场-6
Birch trees are widely distributed around the world. Because they grow well in colder parts of the world, they are commonly found in the Northern region of South Korea. They appear to be silver and thin in shape and grow up to 20 meters high. We hoped that the architectural intervention in the site would resemble a birch tree. We expected a small unit of silver to be in harmony among the forest greens, naturally blending there for a long time.
韩国 Mangmi 农场-8
韩国 Mangmi 农场-9

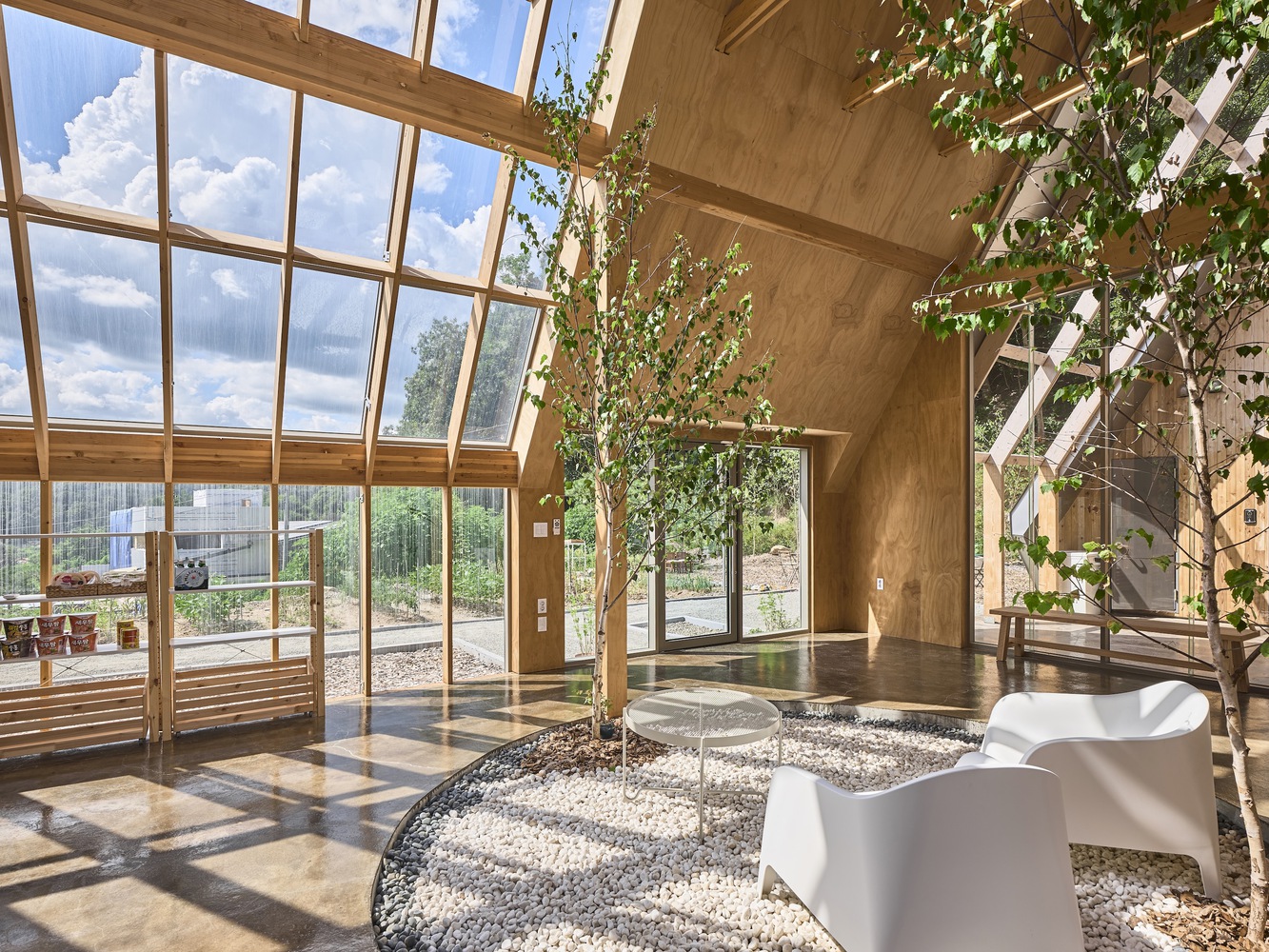

韩国 Mangmi 农场-10

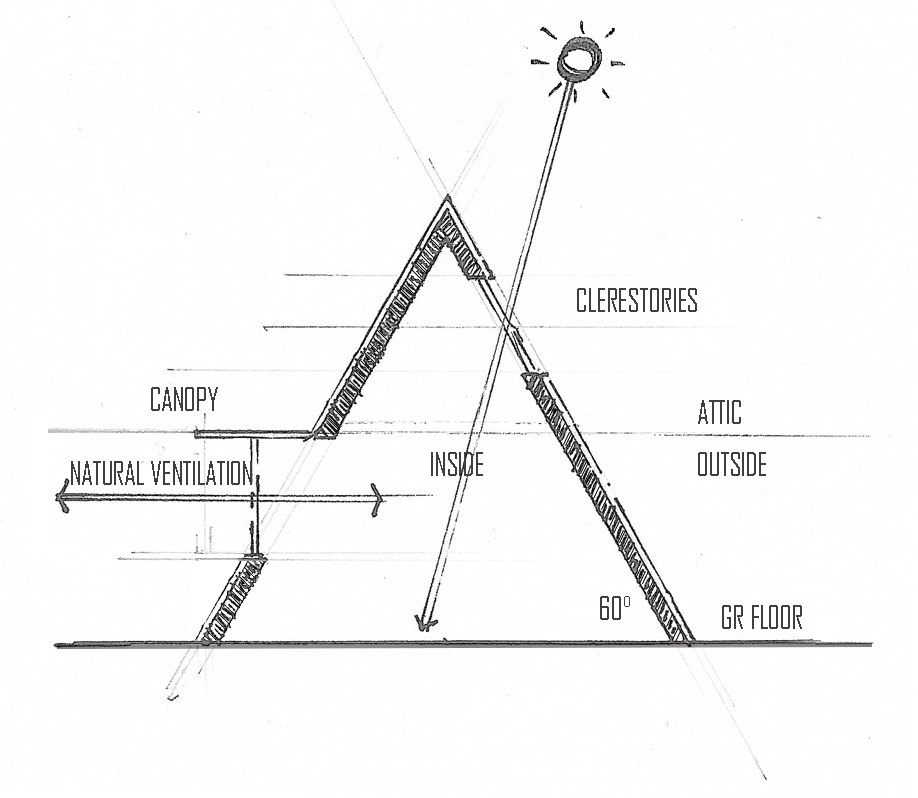

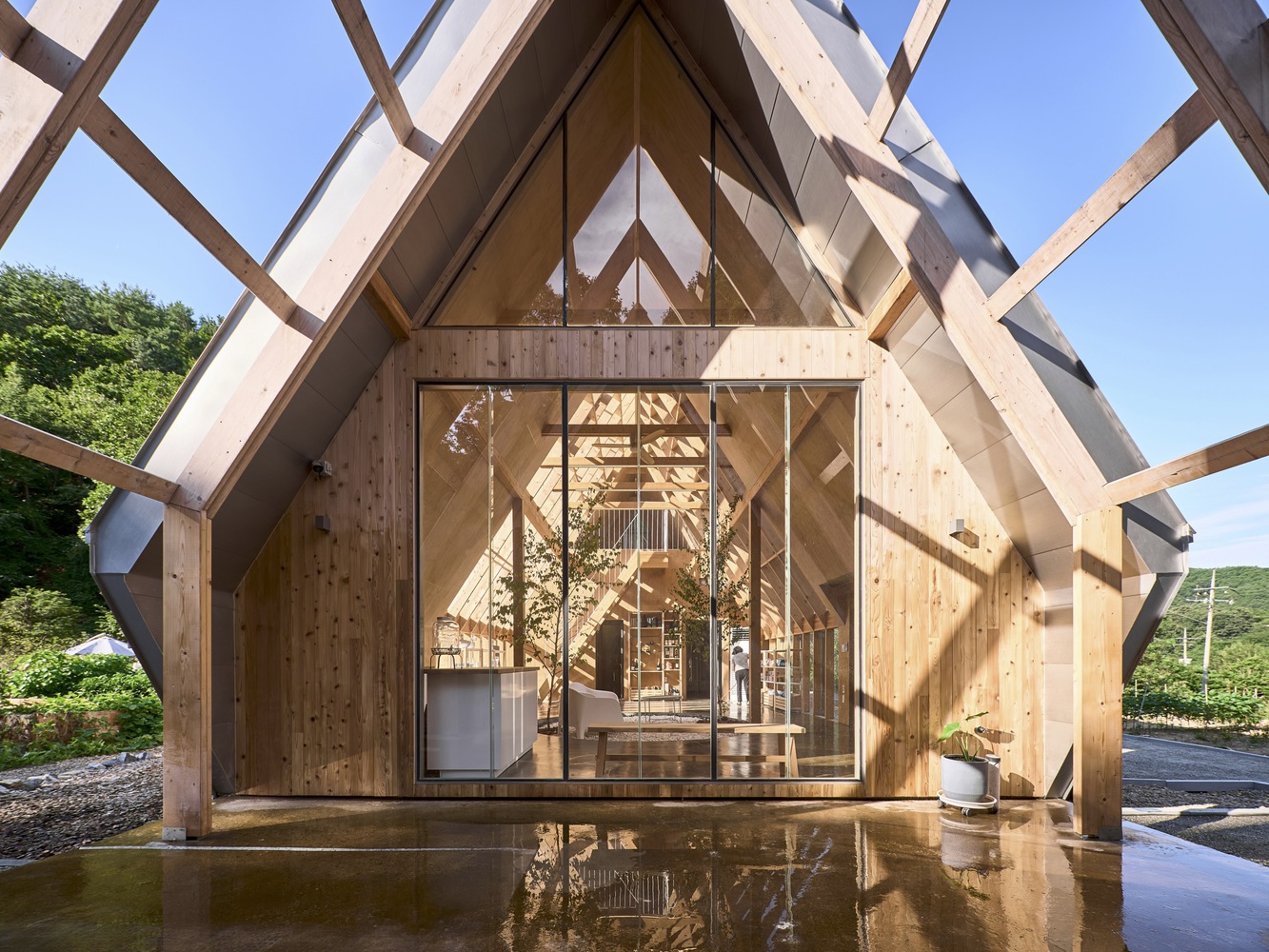

What does it mean for a building to resemble a tree? Trees have various types, shapes, and features depending on their species. Nevertheless, the most common and primitive form of a tree people remember is the geometric form of a triangle. Geometry is the most complete and simple form at the same time. We found the possibility in a triangle to combine walls and roofs in one form. The commonly used SPF Structural wood length is 20 feet (6.1m). Three stories can be achieved if angled at 60 degrees without additional wood pieces.

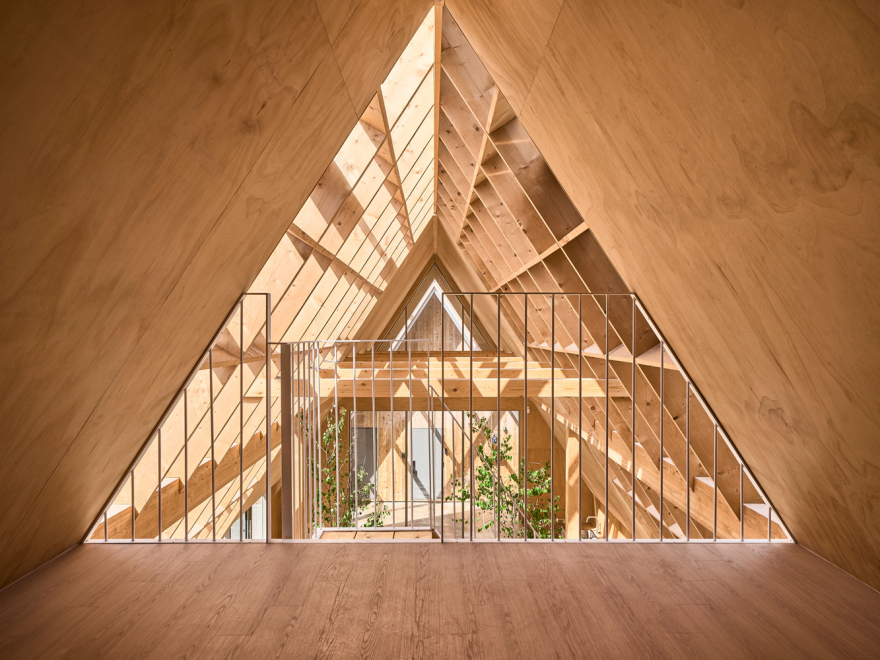

韩国 Mangmi 农场-12
韩国 Mangmi 农场-13

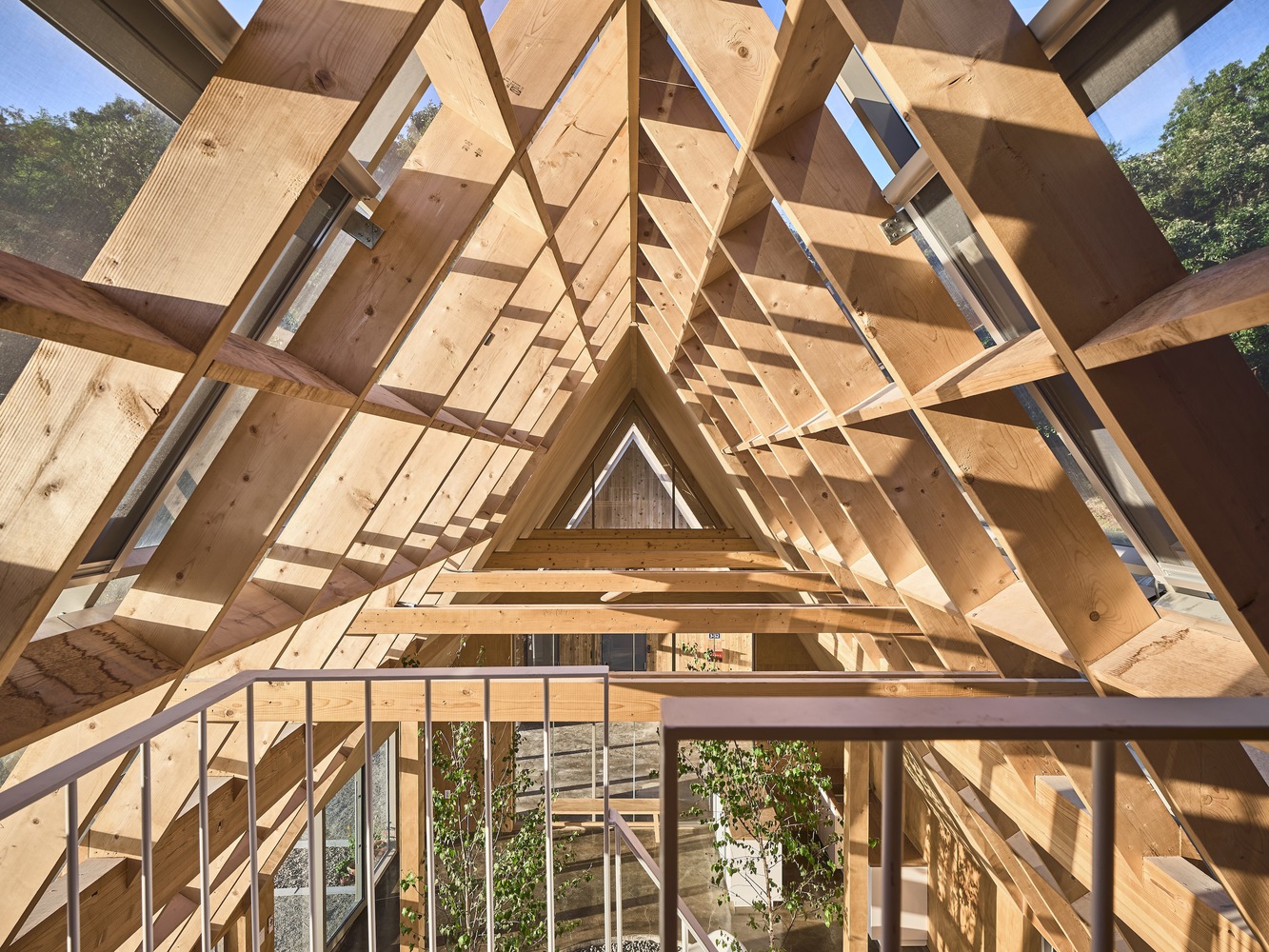

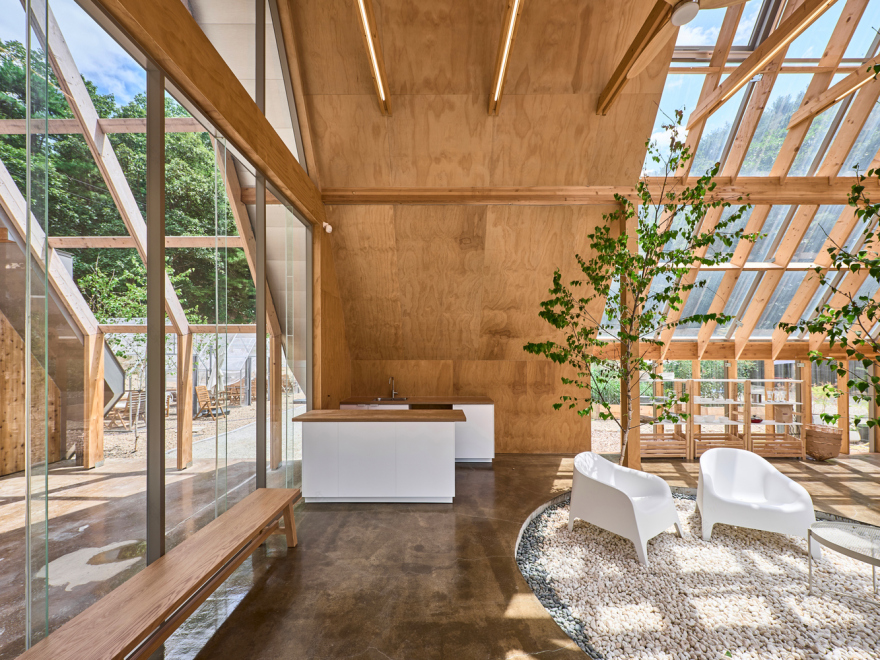

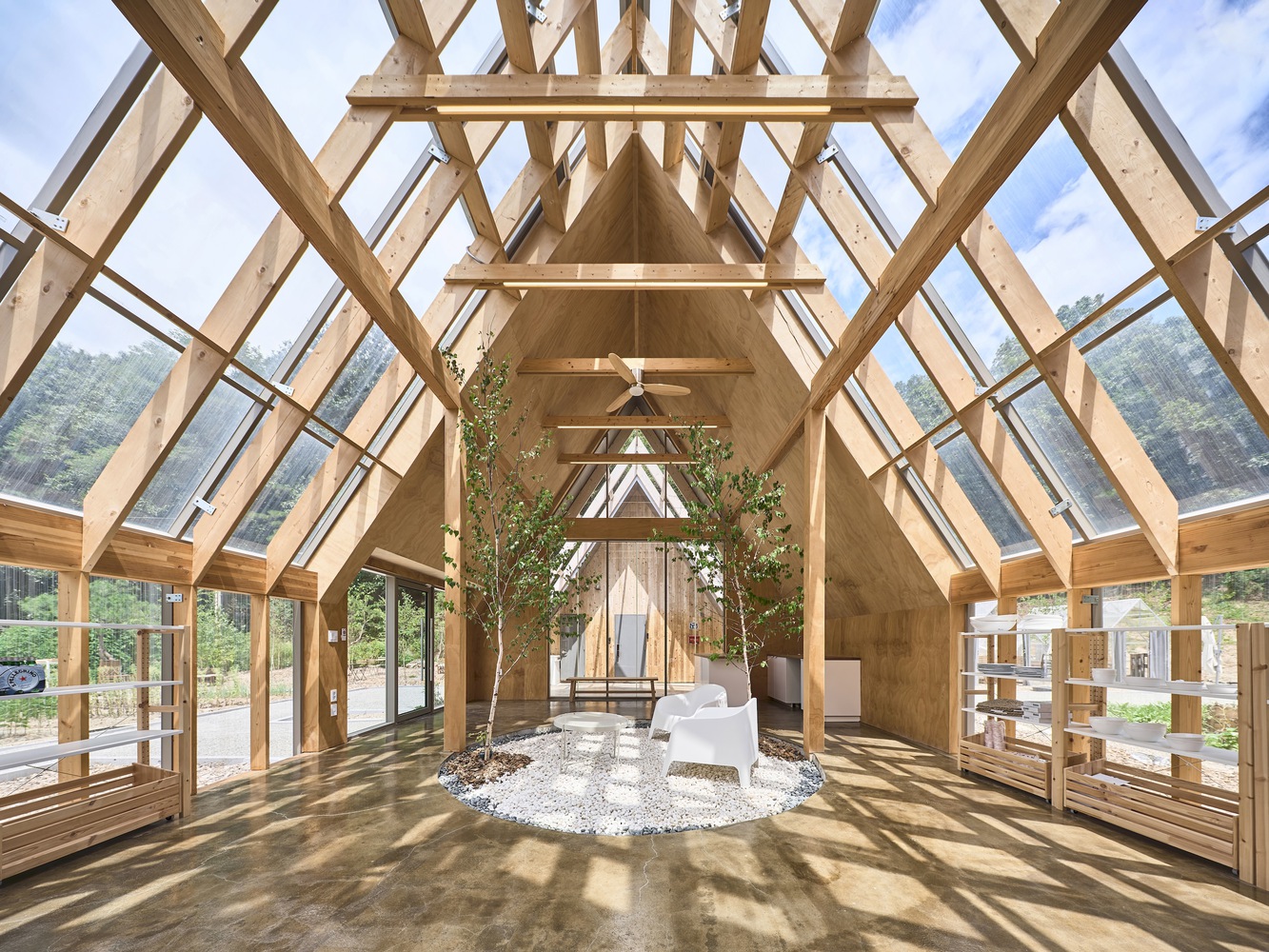

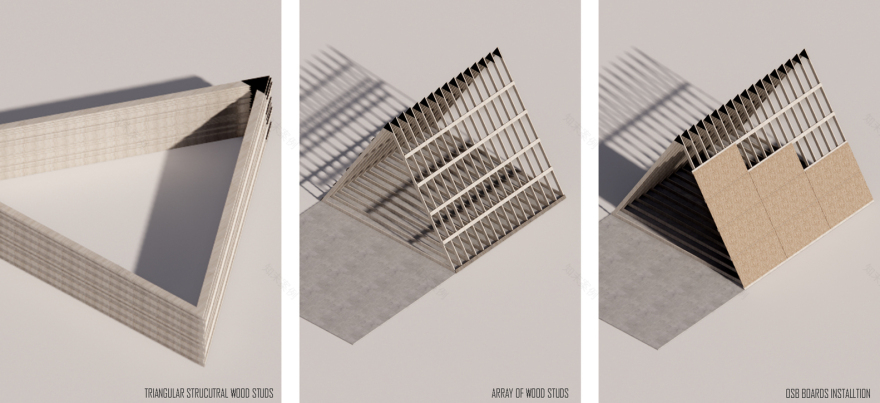

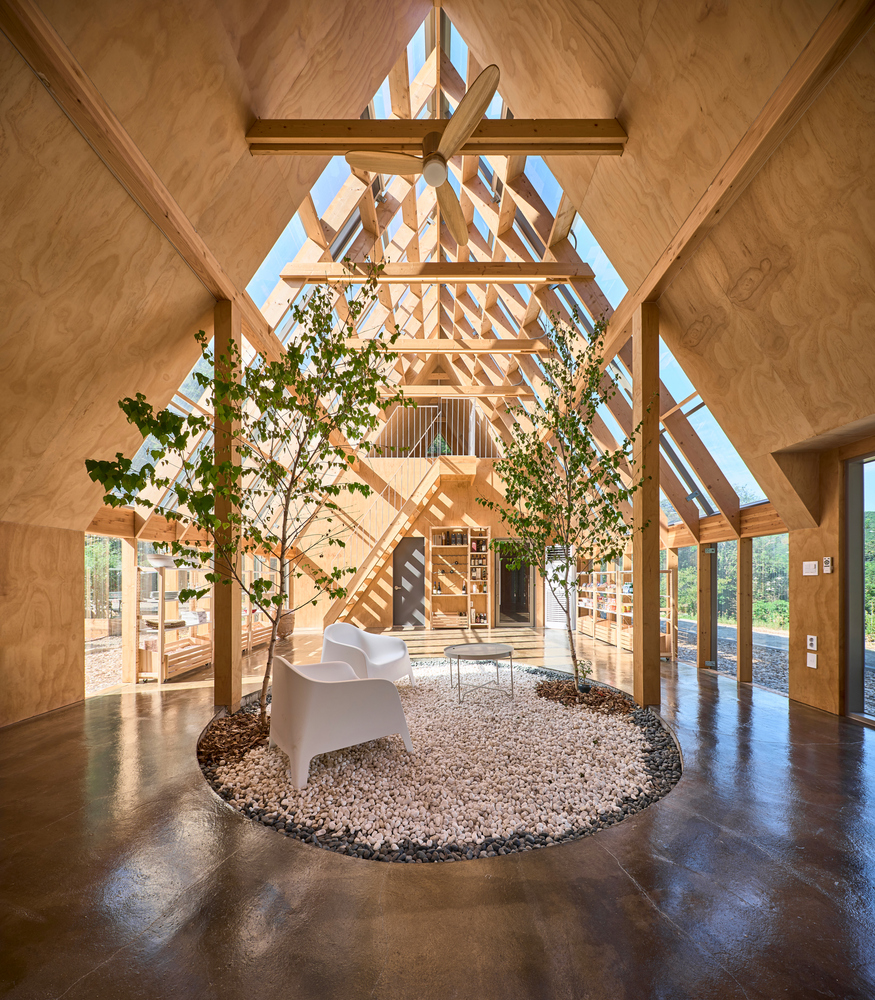

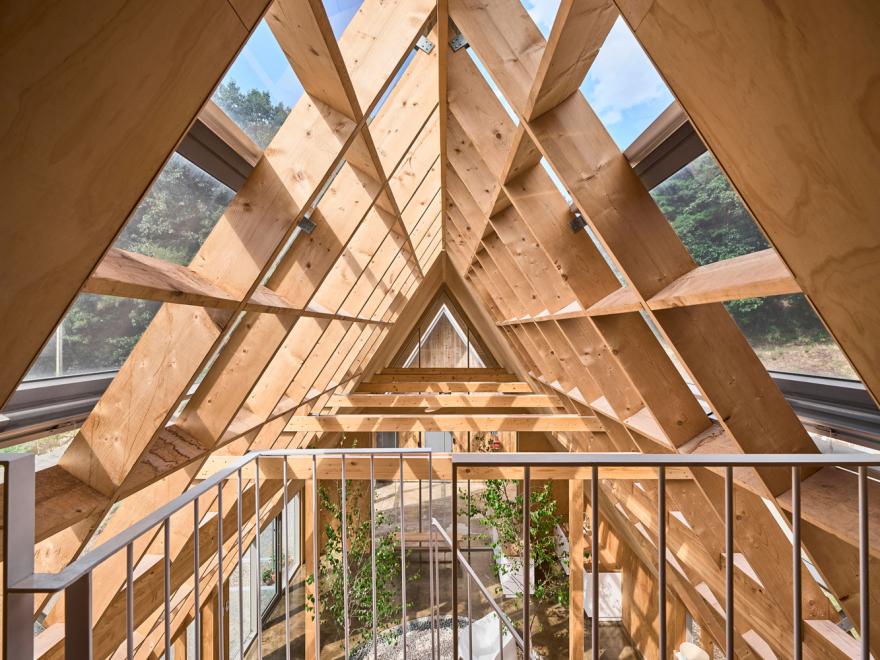

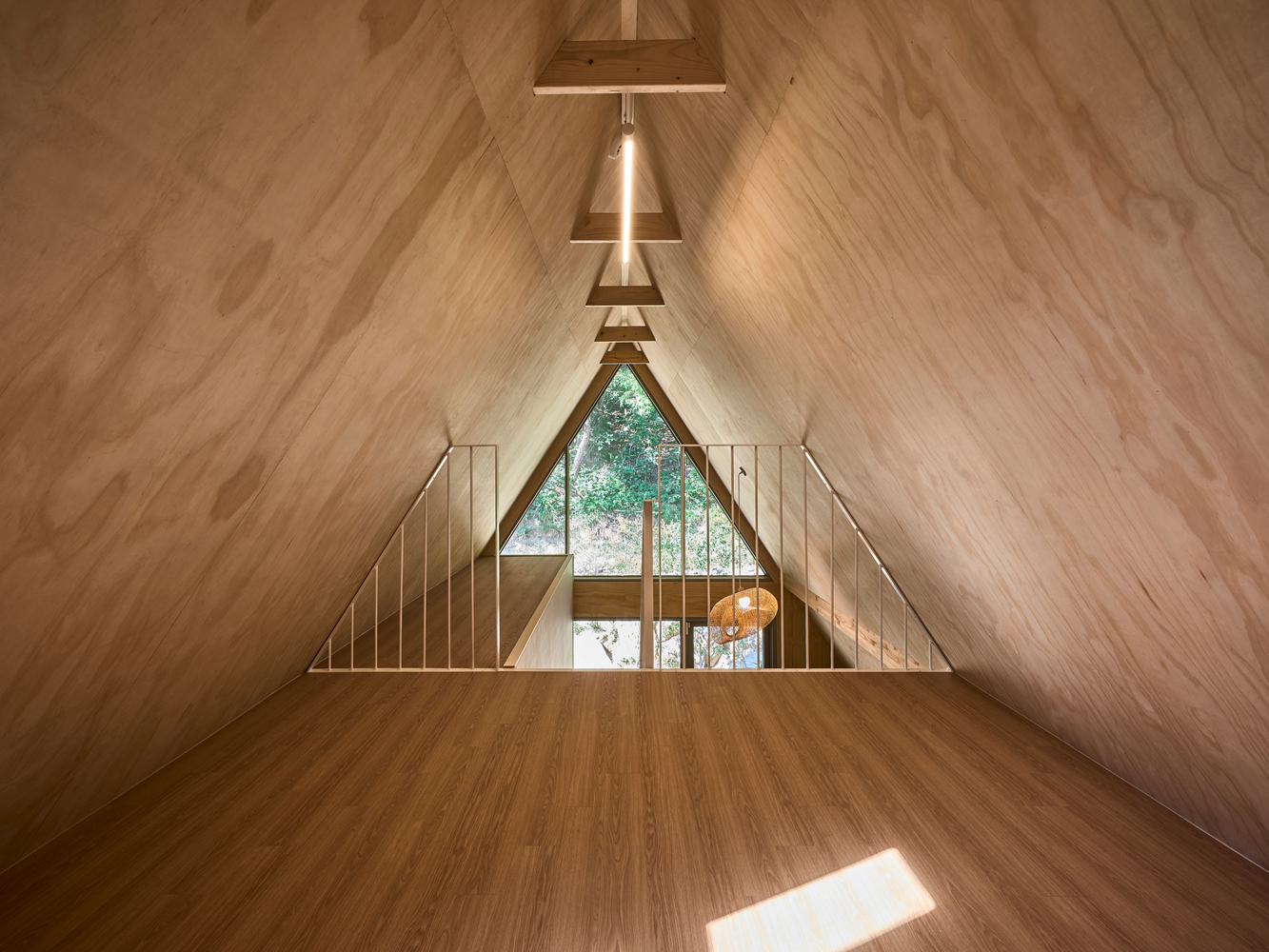

The first impression of the wood materials is the warm texture. Wood materials applied in the exterior and interior walls, the roof structure, the floor finish, and the stair treads are means to feel the different types of warm textures in the wood. Spruce wood studs in the roof structure are installed at 400mm, and we found their potential to be structural elements, louvers, and other architectural elements. Pine tree plywood selected for the interior finish has knots and a bright tone for a natural reaction with the spruce rafters.
韩国 Mangmi 农场-15

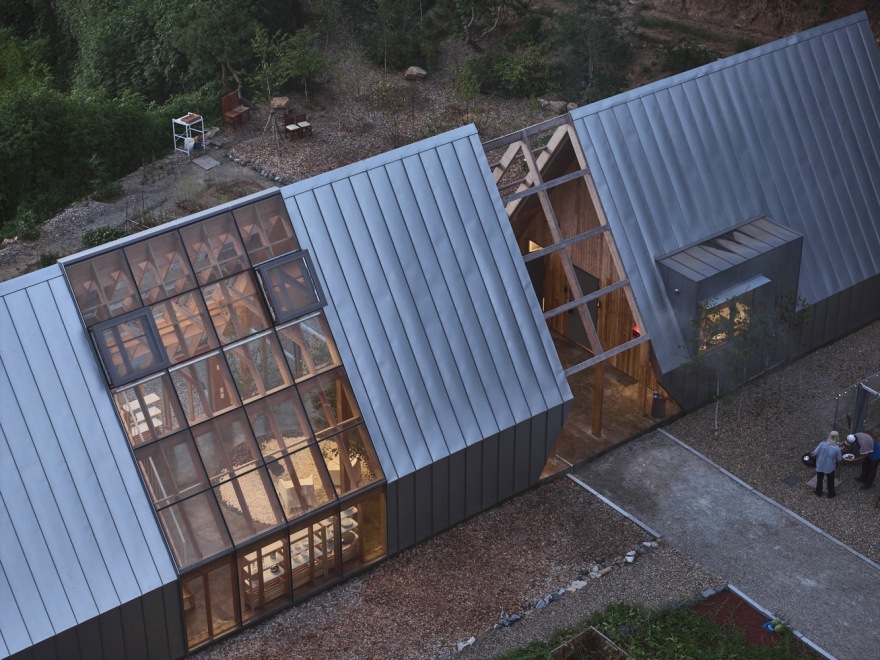

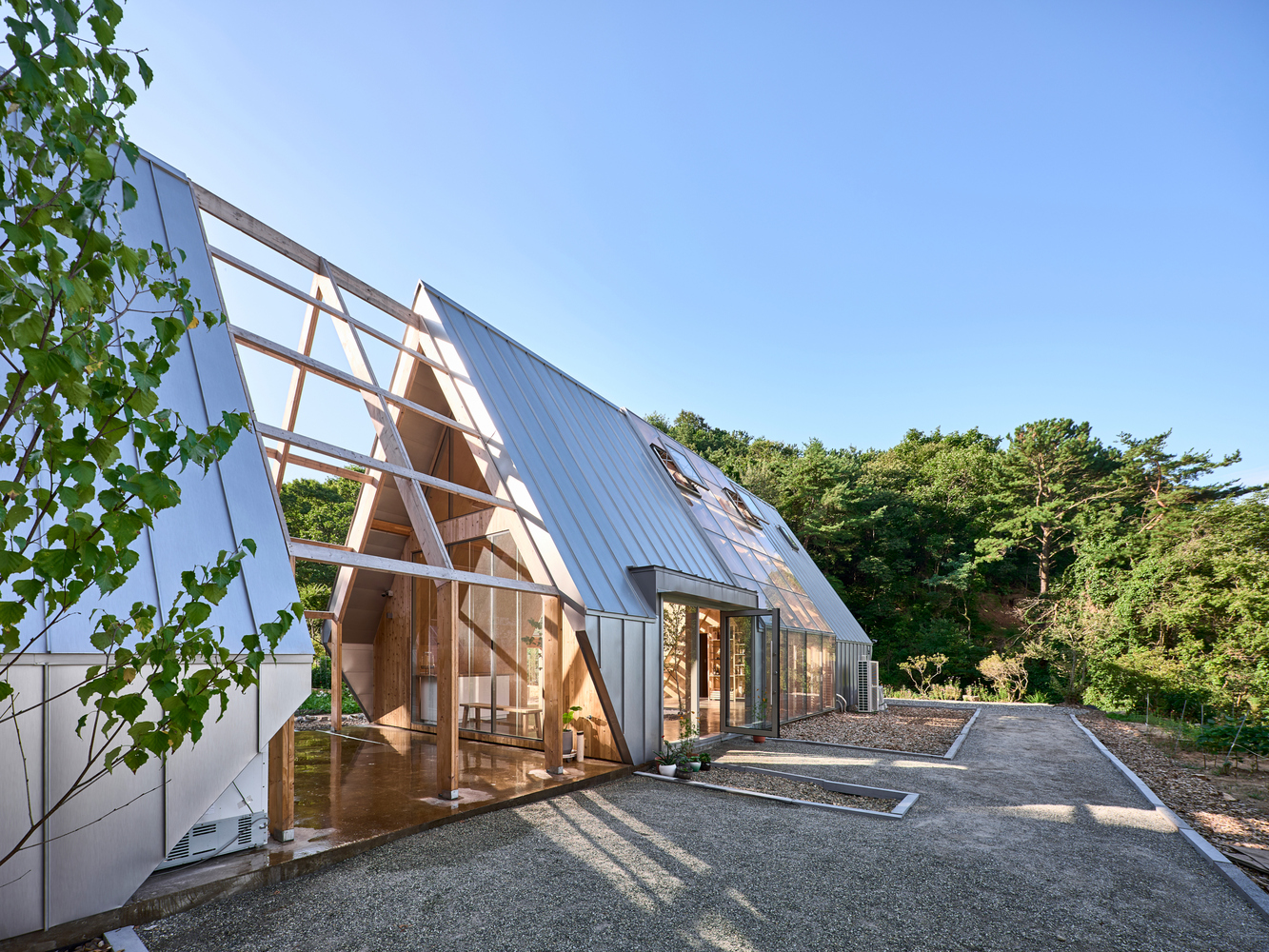

The main exterior materials are designed and selected to resemble the silver bark of birch trees. The pattern of a colony of straightly grown birch trees is depicted in the silver galvanized steel roof. Another wood material on the exterior is cedar, with a reddish tone in the light brown skin. Silicide was applied for the durability of the wood and would turn the wood into a silver-gray tone as time went by. Oak is selected for the stair treads and flooring as the vivid and delicate wood grain of oak gives a distinct character to the space. The variety of the wood species in the project and the natural lighting penetrating through the curtain wall maximize the spatial depth and warmth of the simple space. Mangmi Farm is designed to provide a haven for citizens living in dense cities with cold textures, providing space to completely relax and communicate with nature.
韩国 Mangmi 农场-17

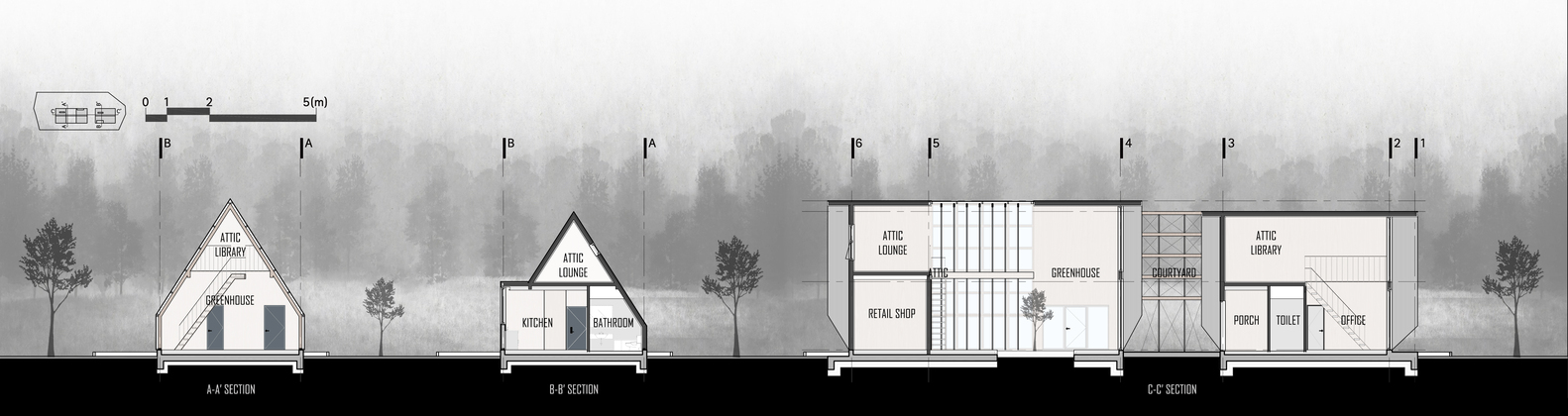

韩国 Mangmi 农场-18

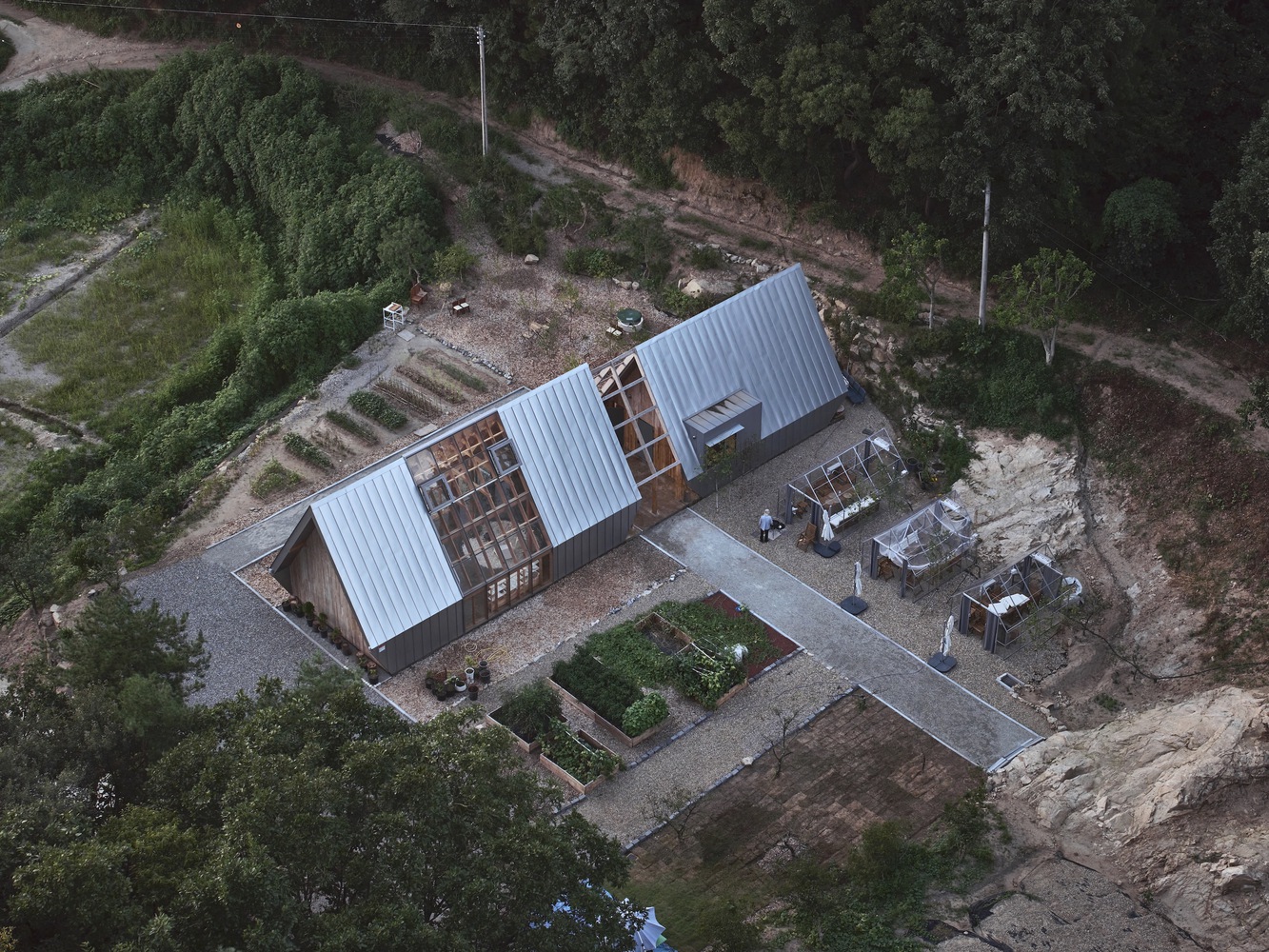

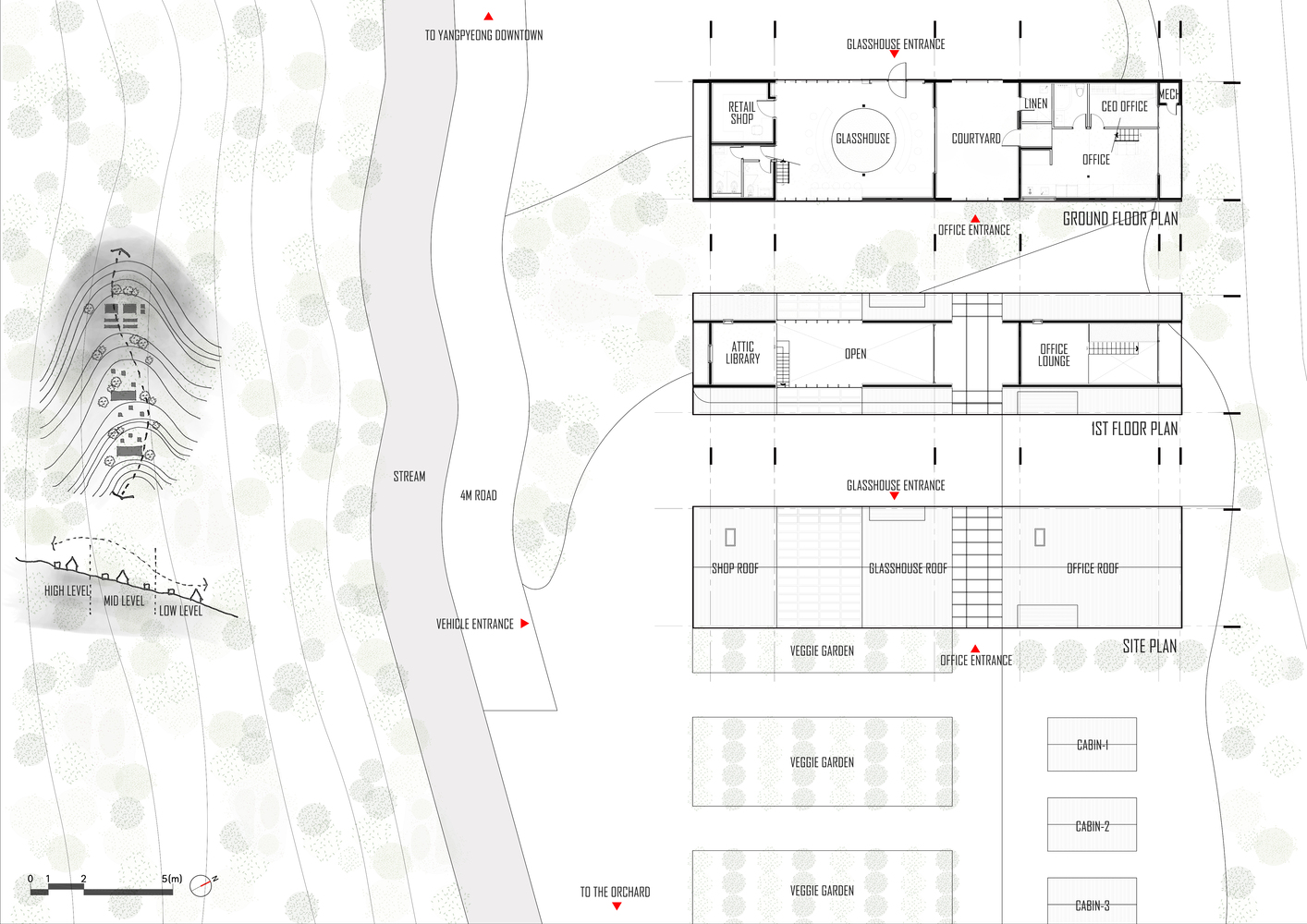

The layout of the buildings started with the consideration of how to place each mass on the sloped site. The land starts from a lower level and gradually rises; we expected different sequences perceived as one climbs the site. The mass exposed at the entry is designed to blend in with the surrounding environment and give a strong impression at the same time. When one reaches the mid-level, one will gradually see birch trees and cabins hidden by the front mass and the topography. The trees and cabins are placed in small entangled units related to the surrounding greenery.
韩国 Mangmi 农场-20
韩国 Mangmi 农场-21
韩国 Mangmi 农场-22

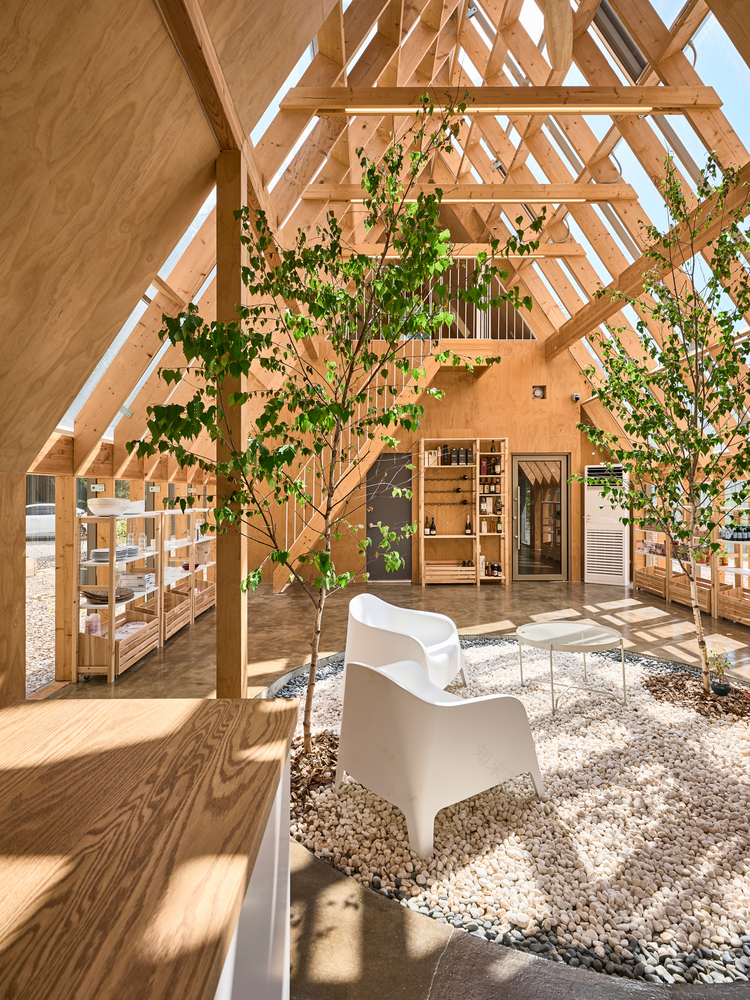

韩国 Mangmi 农场-23
韩国 Mangmi 农场-24
韩国 Mangmi 农场-25
韩国 Mangmi 农场-26
韩国 Mangmi 农场-27
韩国 Mangmi 农场-28

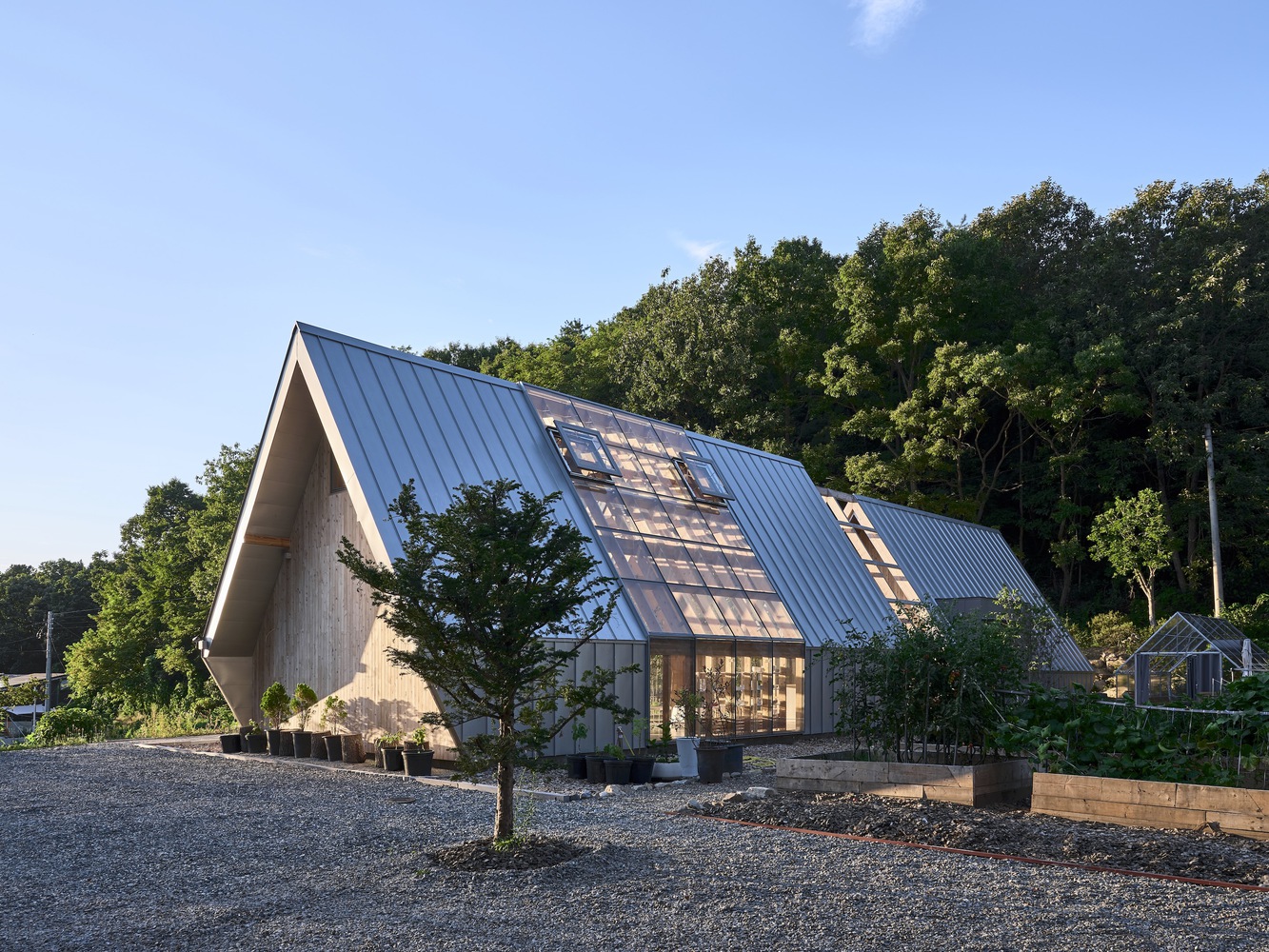

韩国 Mangmi 农场-29

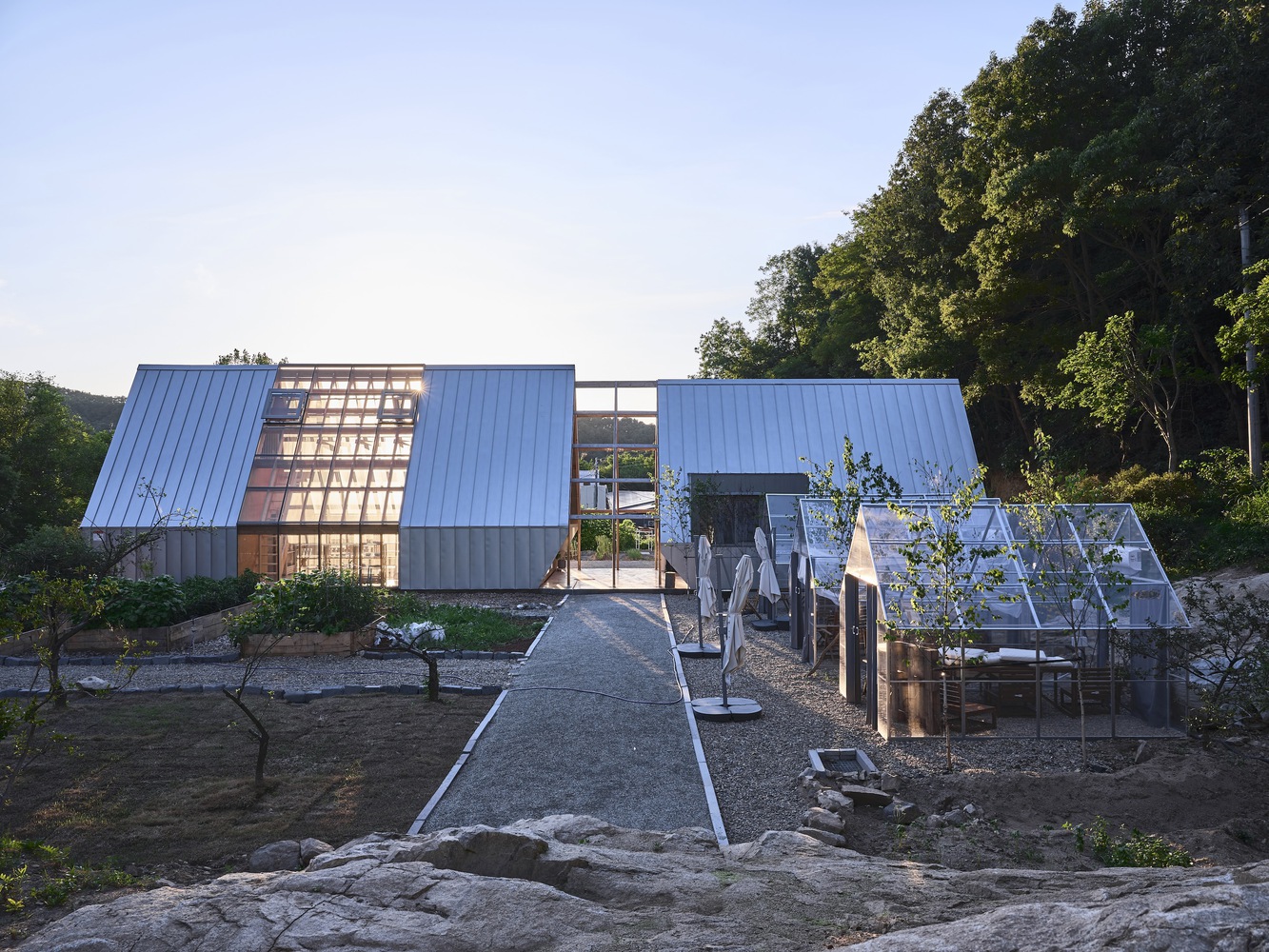

韩国 Mangmi 农场-30
韩国 Mangmi 农场-31
韩国 Mangmi 农场-32
韩国 Mangmi 农场-33
韩国 Mangmi 农场-34
韩国 Mangmi 农场-35
韩国 Mangmi 农场-36
韩国 Mangmi 农场-37

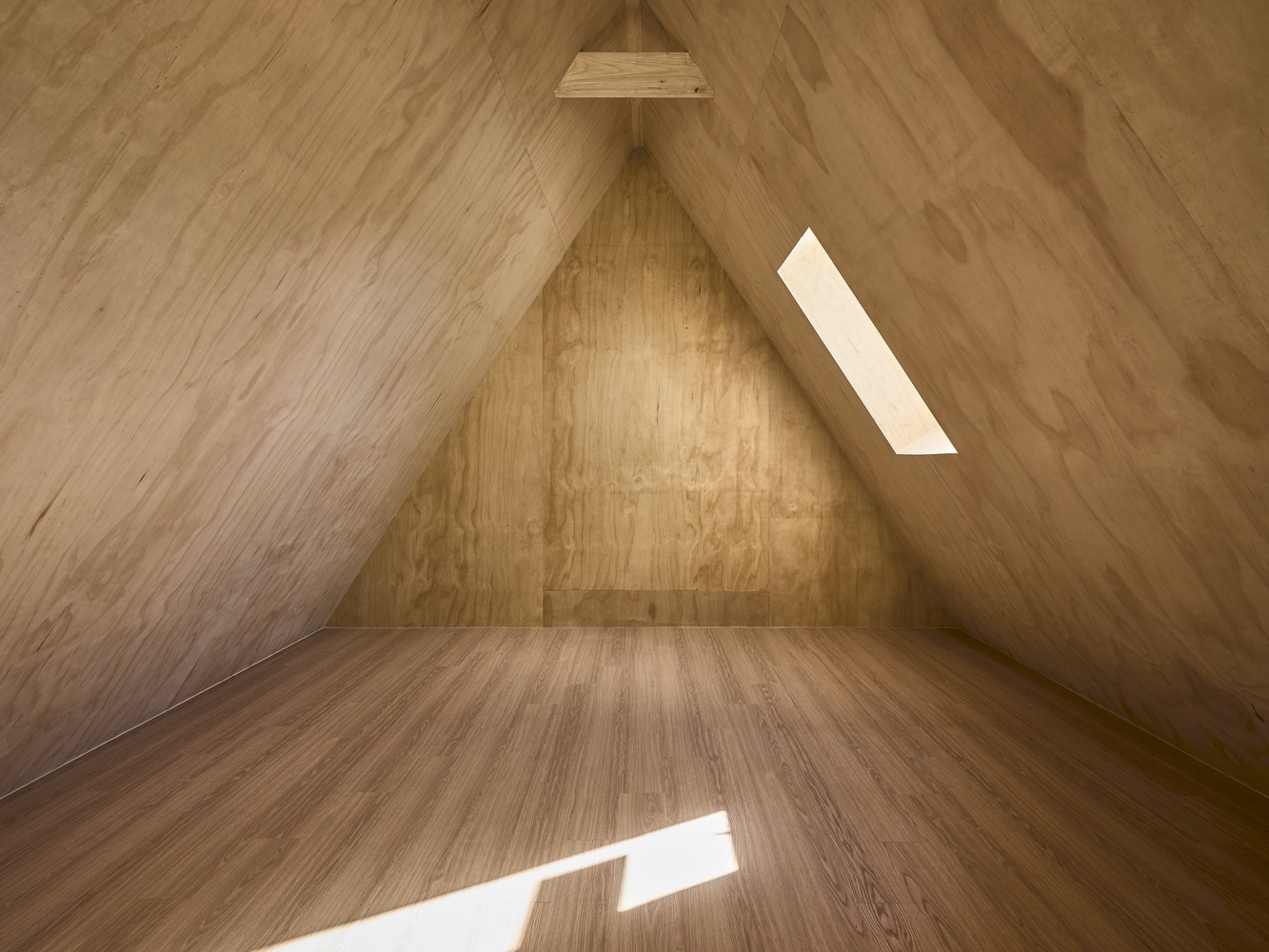

韩国 Mangmi 农场-38
韩国 Mangmi 农场-39
韩国 Mangmi 农场-40
韩国 Mangmi 农场-41
韩国 Mangmi 农场-42
韩国 Mangmi 农场-43
韩国 Mangmi 农场-44
韩国 Mangmi 农场-45
韩国 Mangmi 农场-46
