No. 19咖啡吧,墨尔本 / Biasol

2019/06/29 22:06:19
查看完整案例
微信扫一扫
收藏
下载
延续上一个项目“St Rose咖啡馆”的成功,夫妻设计师组合在墨尔本,距离中央商业区西北部5公里的地方,寻觅了一处狭长的静谧之所。他么希望借此创造另一个体验饮品,感受生活的清幽之地,为墨尔本的咖啡爱好者带来独特的休闲体验。
Following the success of their first café – St Rose in Essendon – husband-and-wife team Domenic and Diana Caruso secured a new Ascot Vale site, approximately five kilometres north-west of Melbourne’s CBD. Their vision was for a sophisticated but welcoming venue that would set a new standard for casual dining – a dynamic addition to Melbourne’s much-loved café culture.

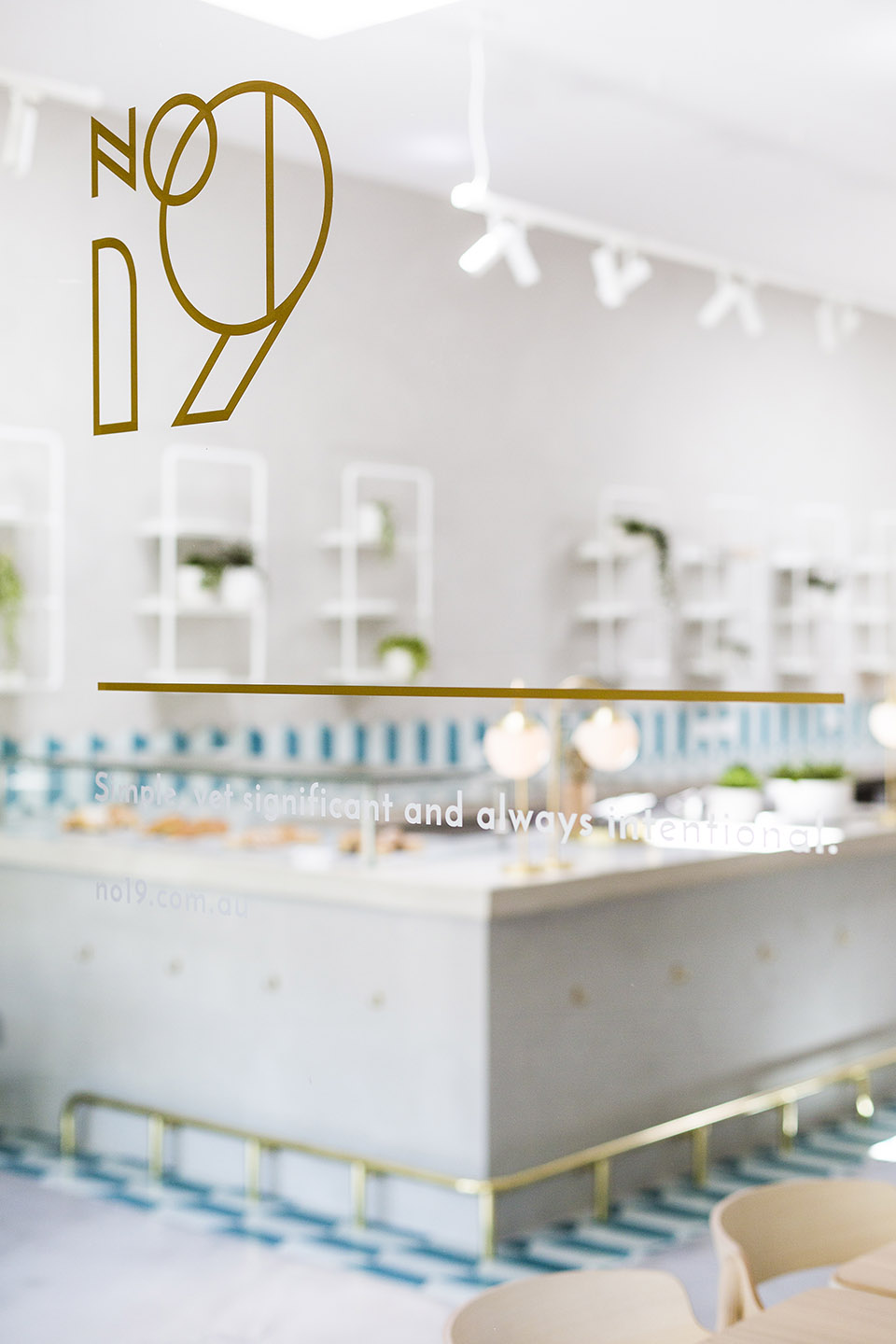

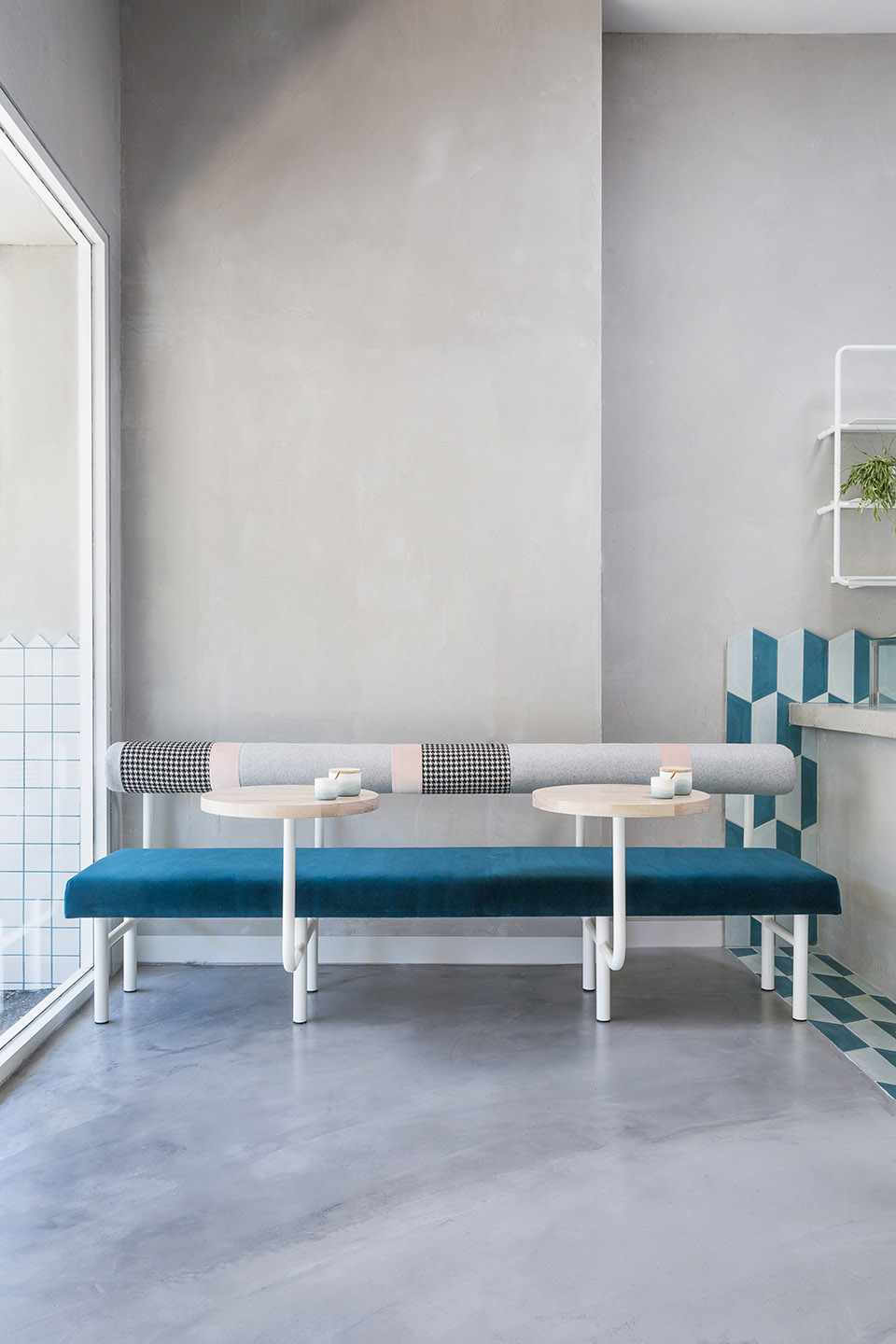

▼空间内部,interior

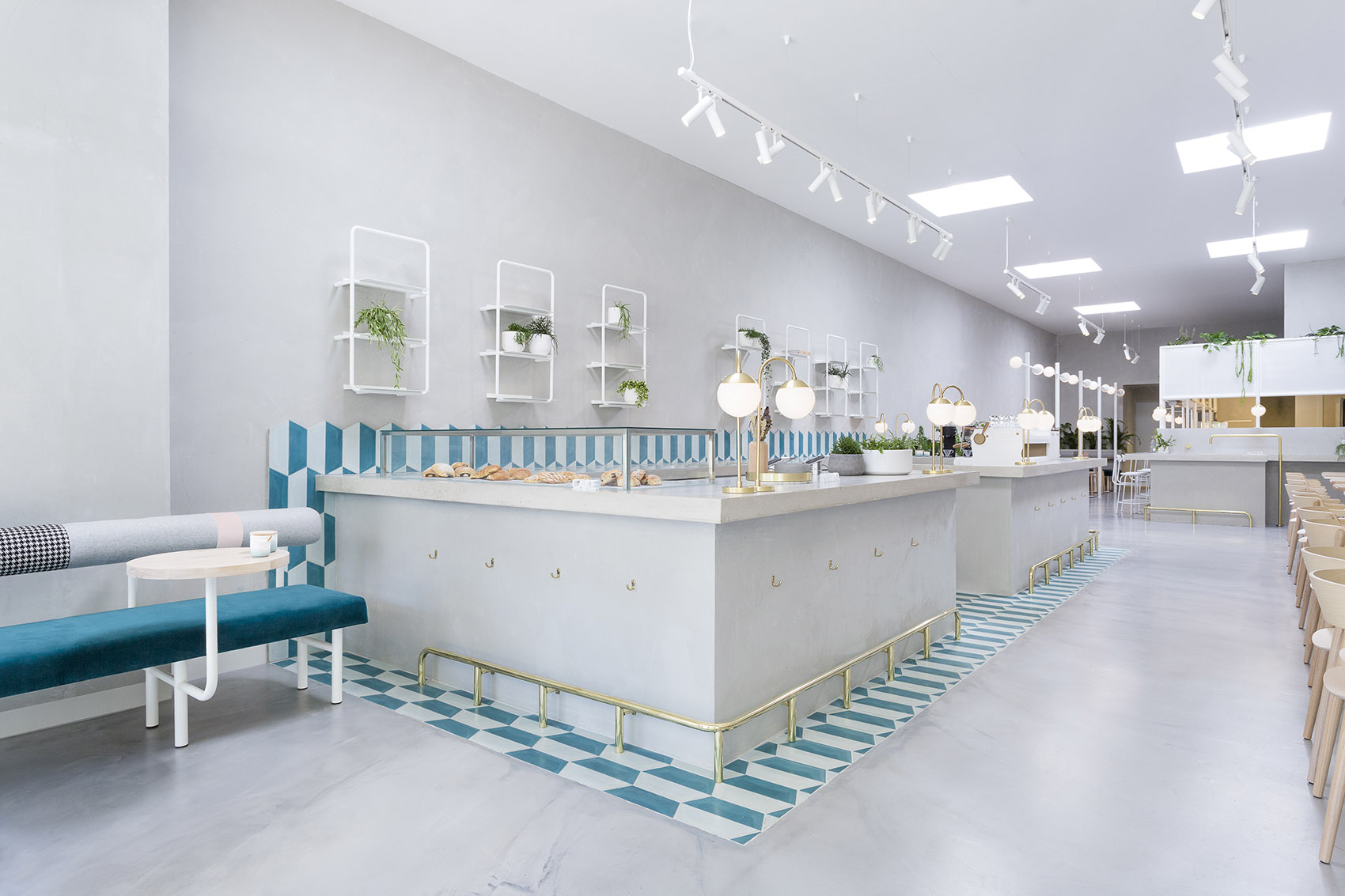

No. 19咖啡吧,墨尔本 / Biasol-3
No. 19咖啡吧,墨尔本 / Biasol-4
No. 19咖啡吧,墨尔本 / Biasol-5
设计师以1950年代席卷墨尔本的希腊肉食品店风格为灵感,将这种独特的氛围贯穿至咖啡店的室内及商标设计。该项目位于繁忙的商业街道,内部天花板高度4.5米,立面的开窗让阳光充分洒进来,深邃的内部空间让体验感加倍。
Spanning both interiors and branding, our concept was an elegant, timeless space inspired by the Greek delicatessens that flourished around Melbourne in the 1950s. Located in a busy shopping strip, the site offered a promising starting point – 4.5-metre ceilings, skylights that flood the space with natural light, and a deep rectangular footprint.

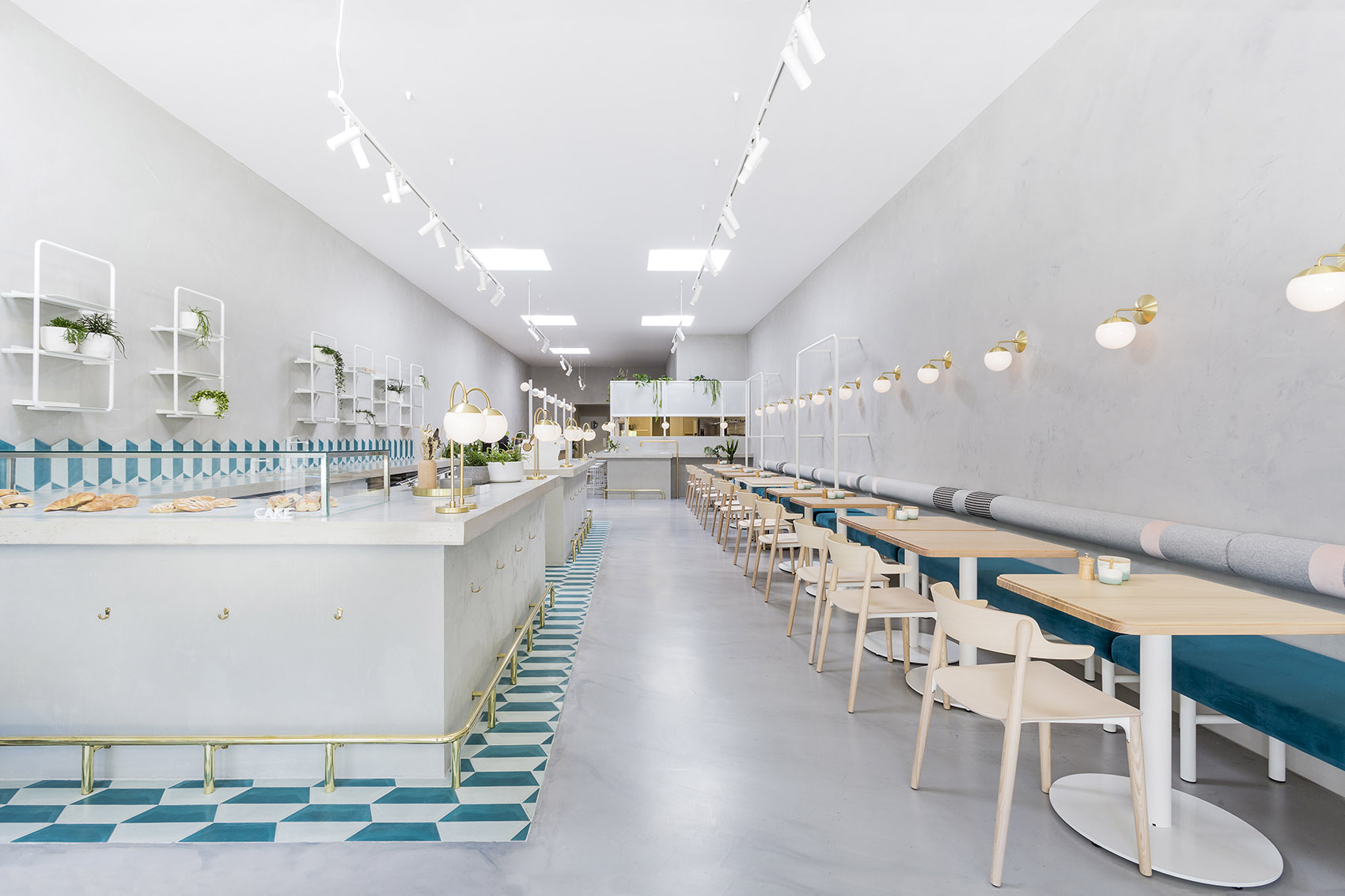

▼希腊风格内饰,inspired by the Greek delicatessens
No. 19咖啡吧,墨尔本 / Biasol-9

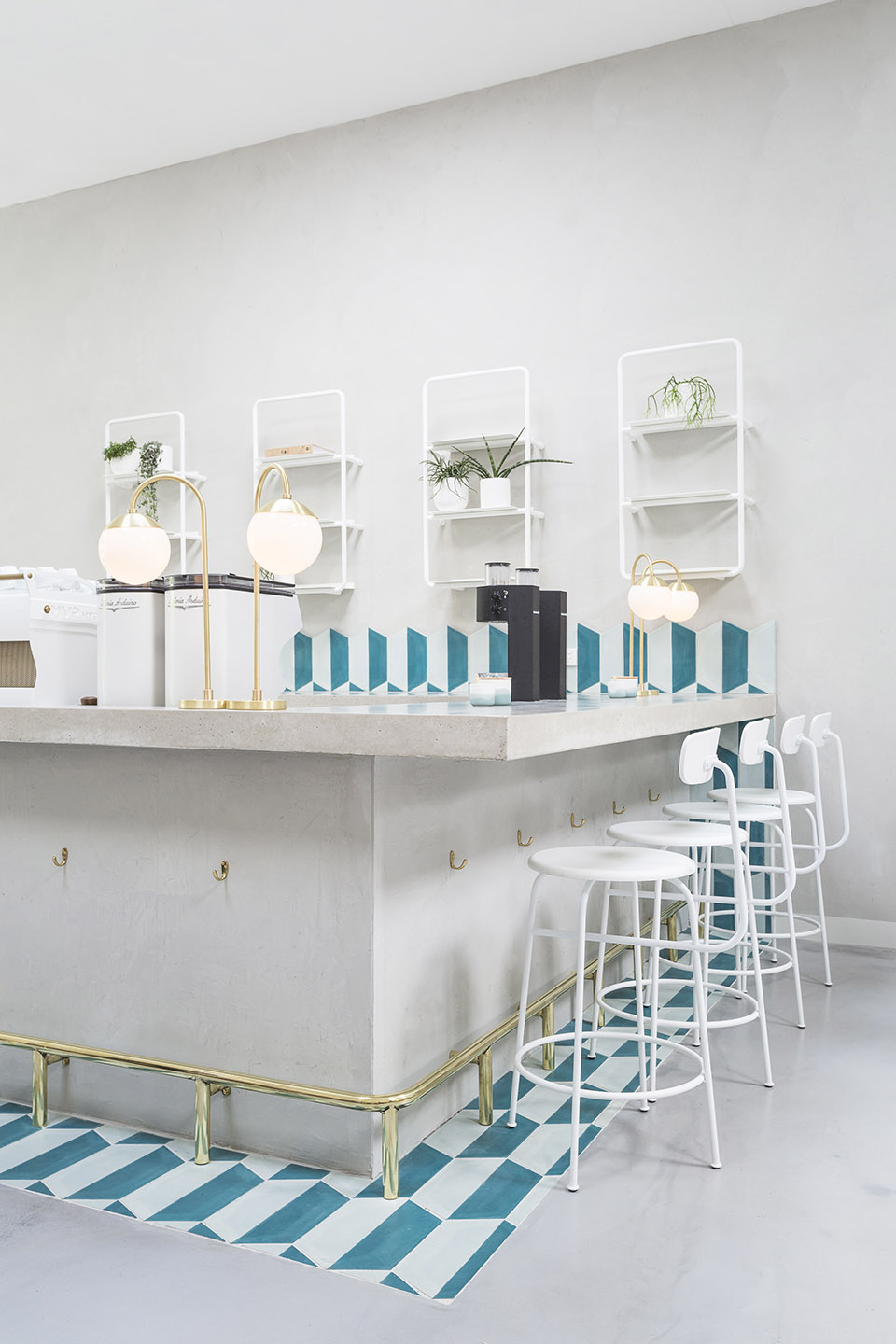

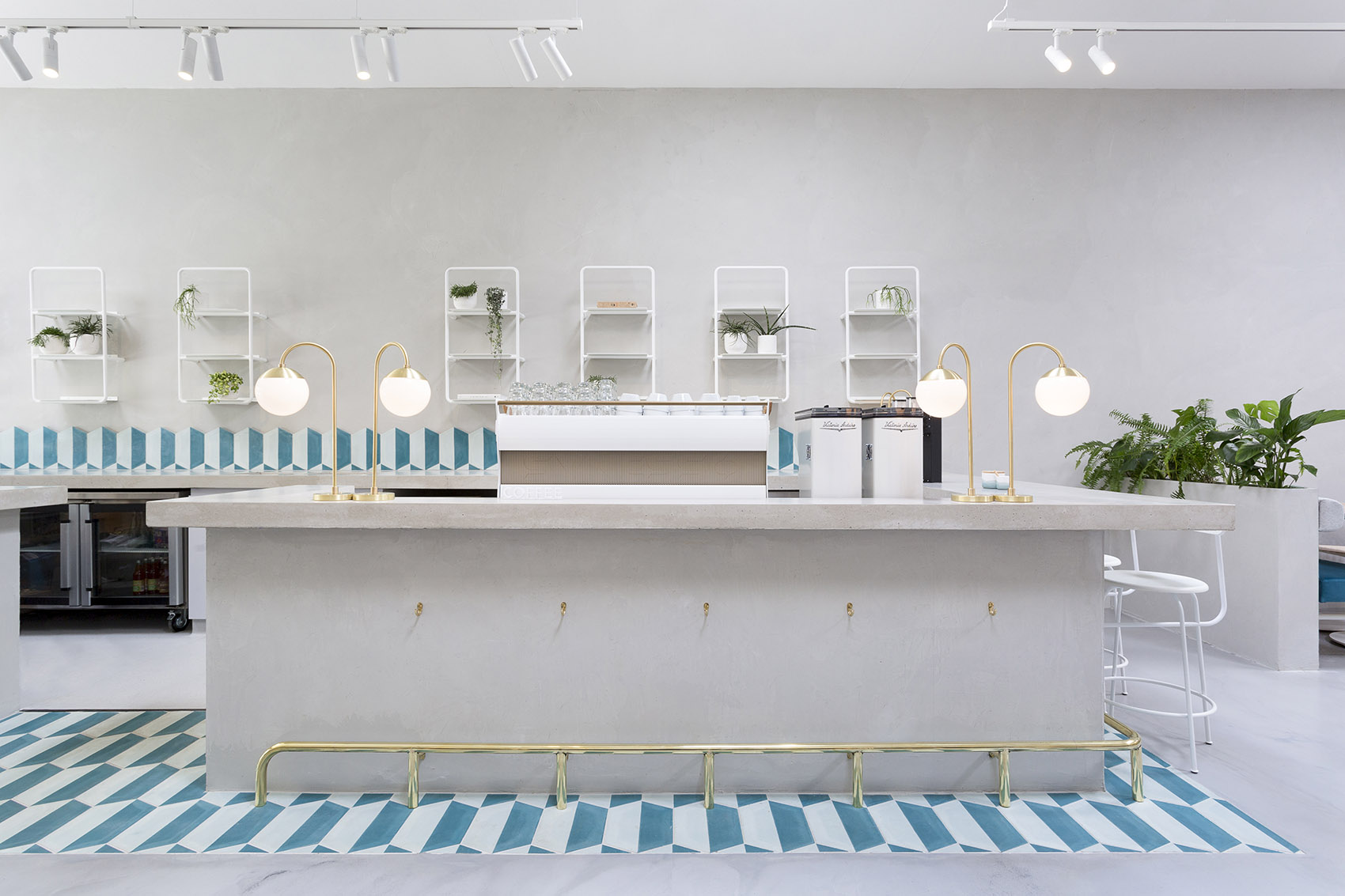

在该空间的核心区域,一个混凝土操作台搭配纯手工设计的绿植装饰和来自摩洛哥的地面铺装,令空间氛围格外清新。暖色黄铜装饰的桌面灯具和脚踏轨道,都增加了室内的工业化氛围。而吧台后方,由白色钢铁制成的管状陈列架及摆在上方的植物,更增空间的活力。

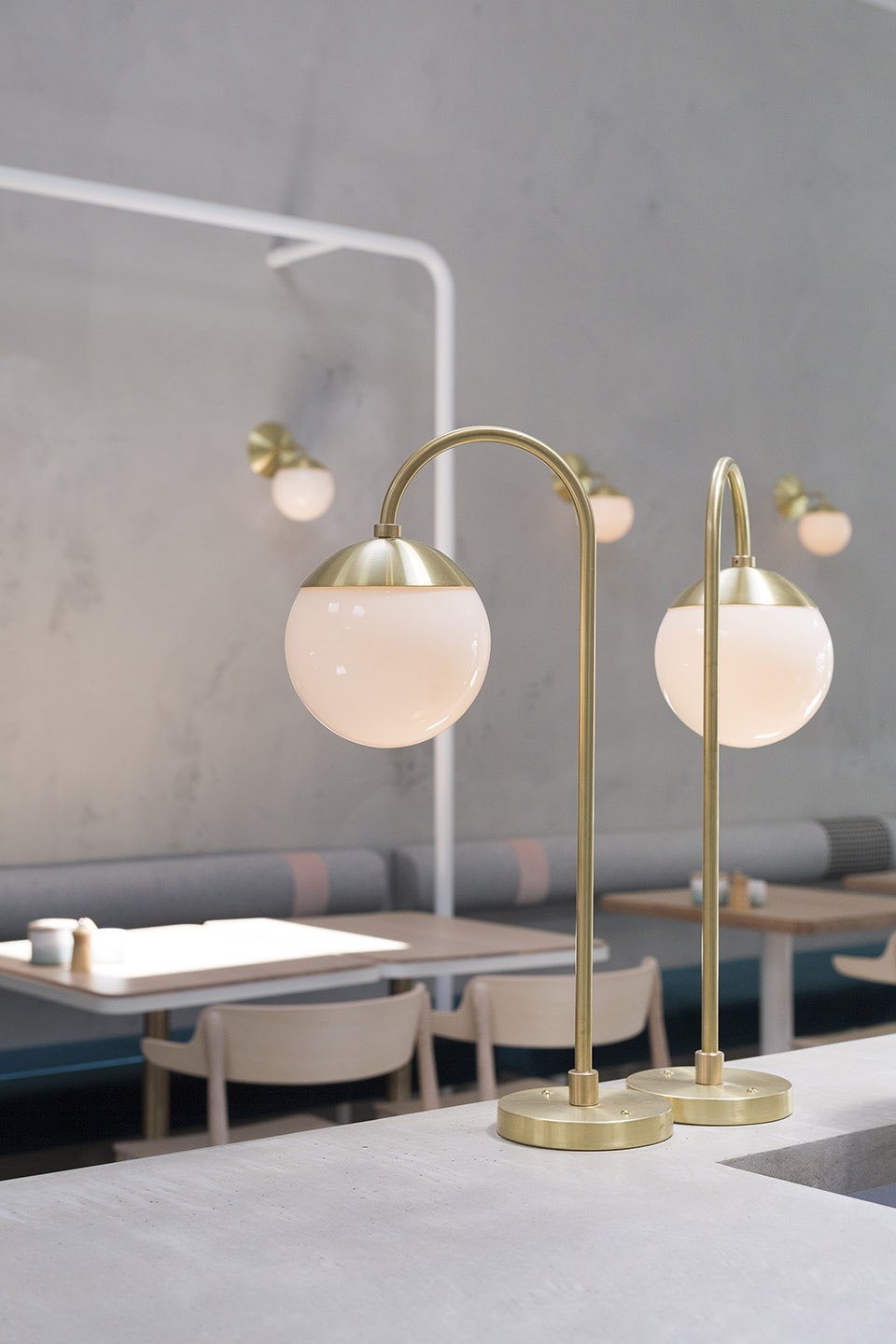

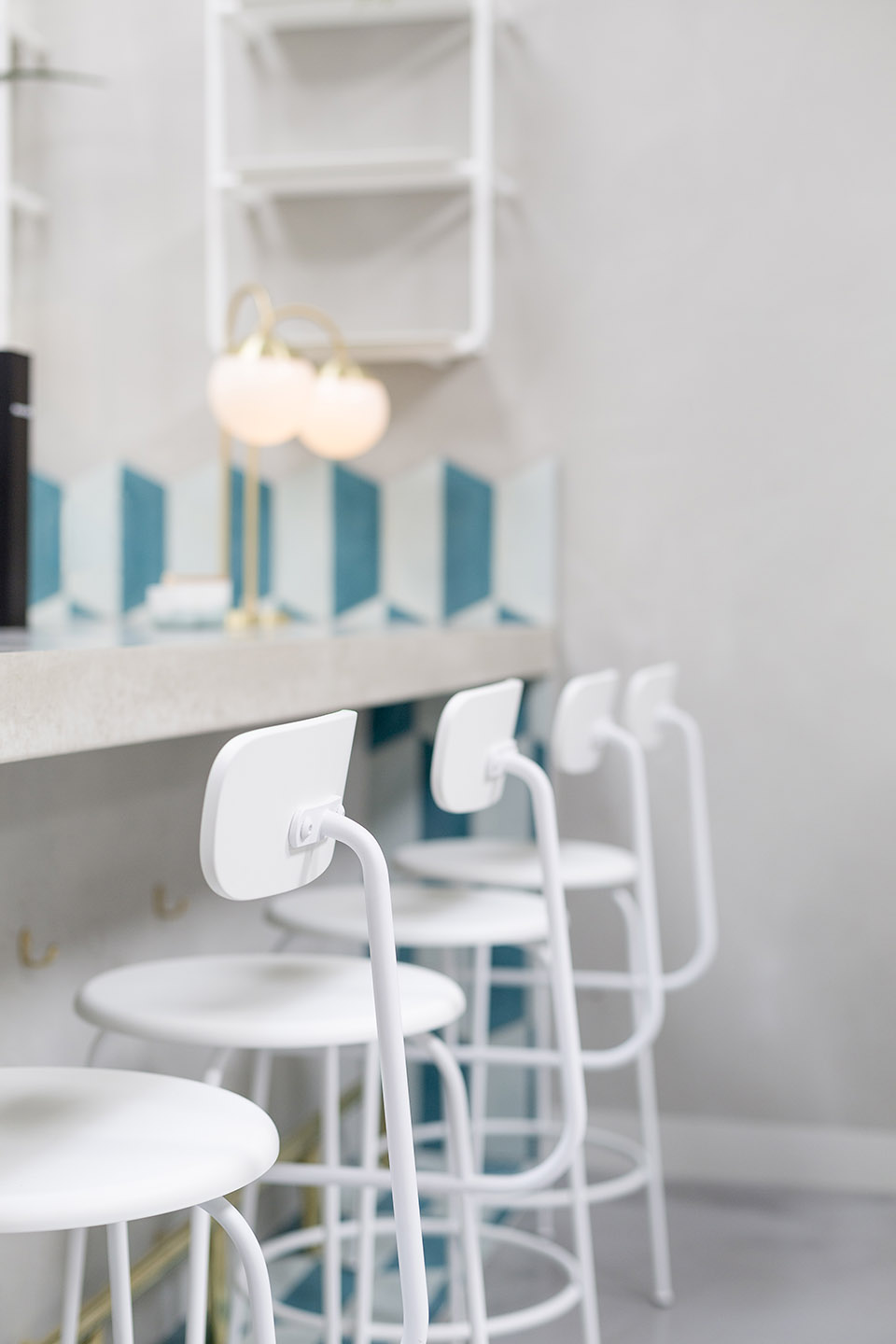

At the heart of the space, a concrete service counter is accented with beautiful hand-painted green and teal tiles from Morocco that trace along the splashback and wrap around the front of the bar. Warm brass elements – arching custom-designed countertop lamps and a slender foot rail – reinforce the venue’s refined aesthetic. Behind the bar, display shelving made from white tubular steel hosts pockets of greenery from Loose Leaf.

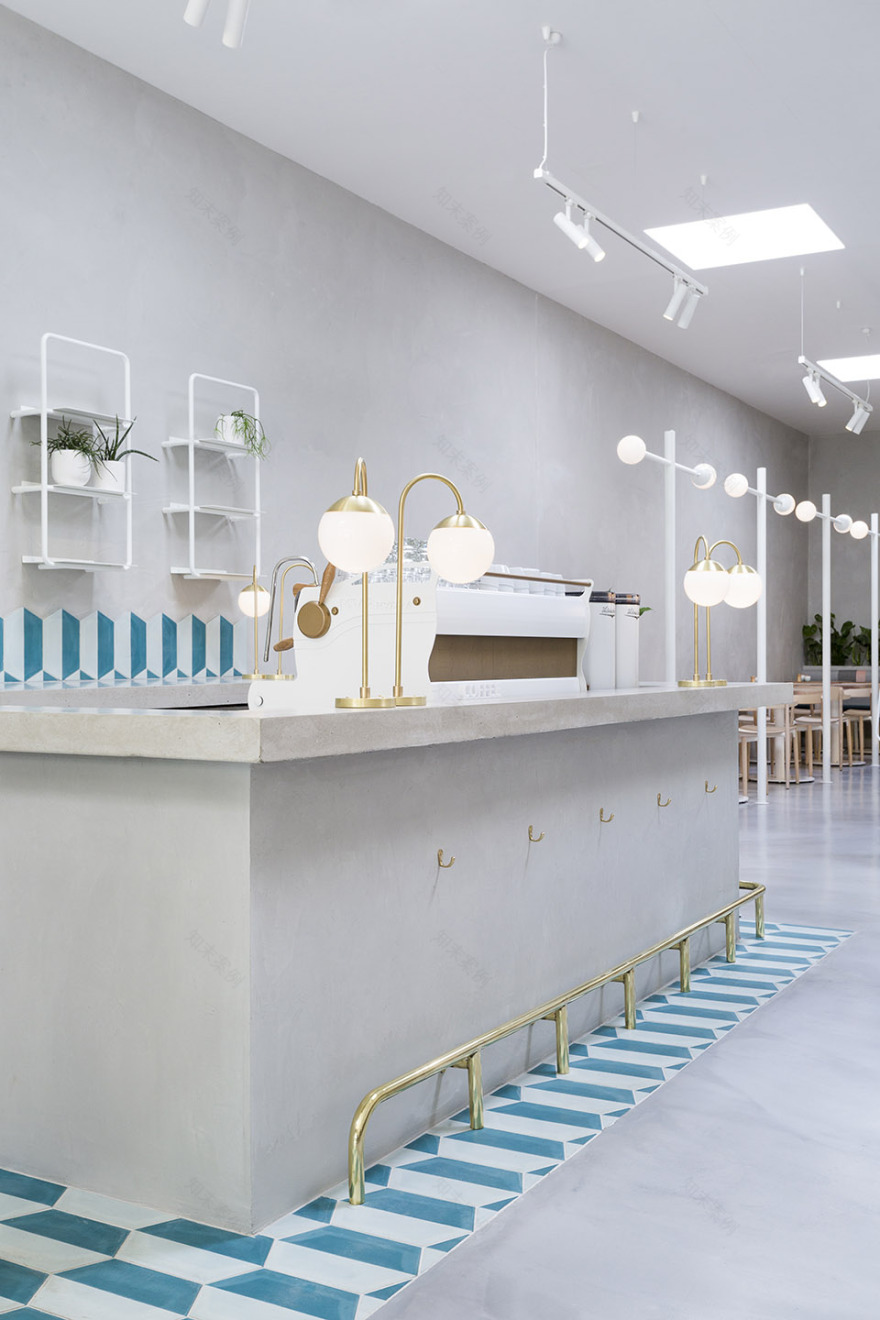

▼吧台是核心区域,the heart is the bar table
No. 19咖啡吧,墨尔本 / Biasol-13
No. 19咖啡吧,墨尔本 / Biasol-14
No. 19咖啡吧,墨尔本 / Biasol-15

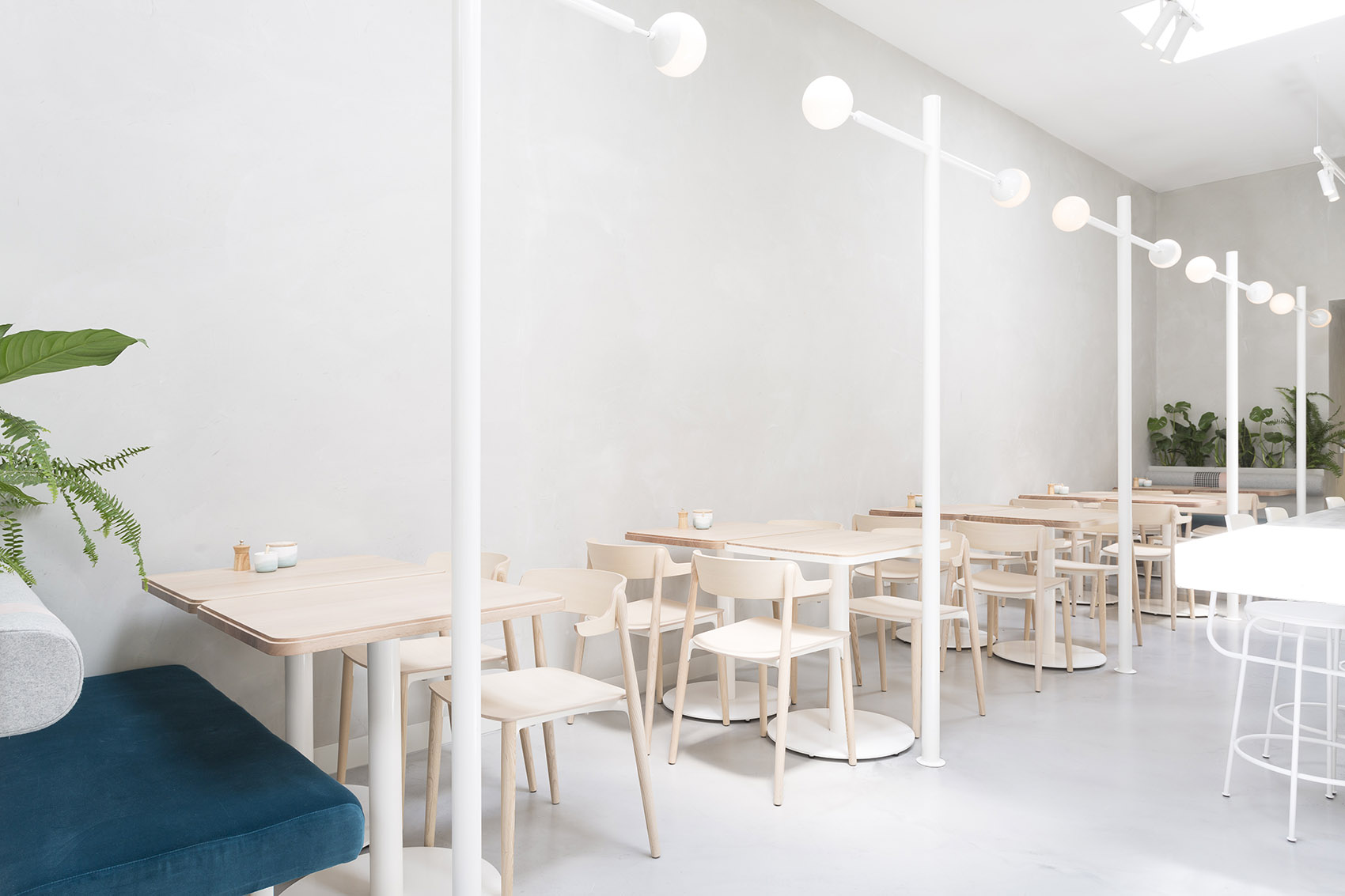

木材饰面的餐桌和座椅沿空间依次排开。桌椅间隔处的轻质钢框架灯饰如同连贯的室内雕塑,打造了亲密的空间氛围。室内家具摆放,通行方式,色彩搭配及墙面装饰无不营造了一个开阔通透的环境。
Timber-topped tables with banquette seating and Pedrali chairs run the length of the space. At intervals, lightweight steel framing with in-built lighting becomes a sculptural element, providing a sense of intimacy without breaking up the café’s openness. Upholstery enhances the pared-back mood of the space – a lush teal for the banquette and a composition of grey, pink and classic houndstooth for the wall-mounted bolster.

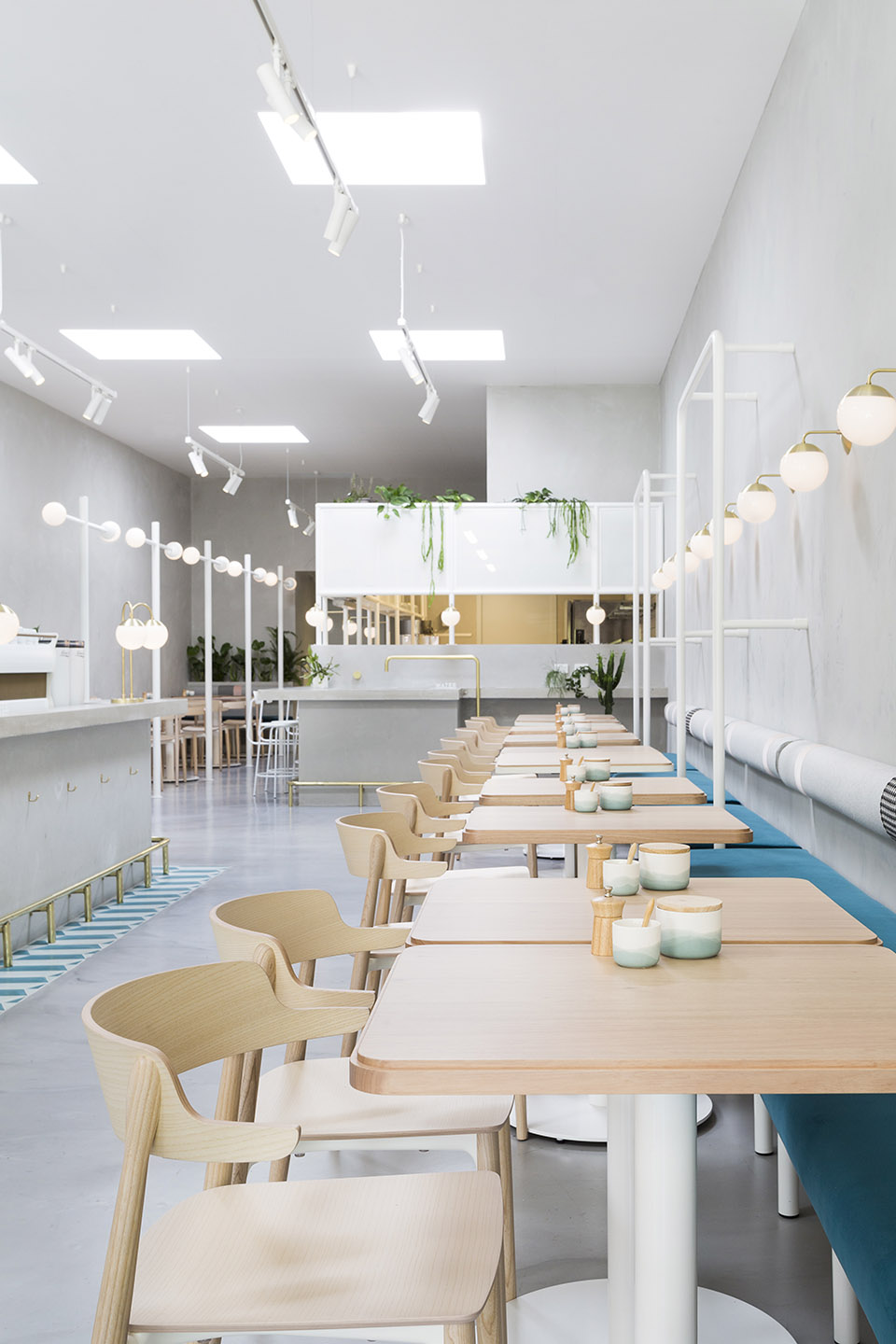

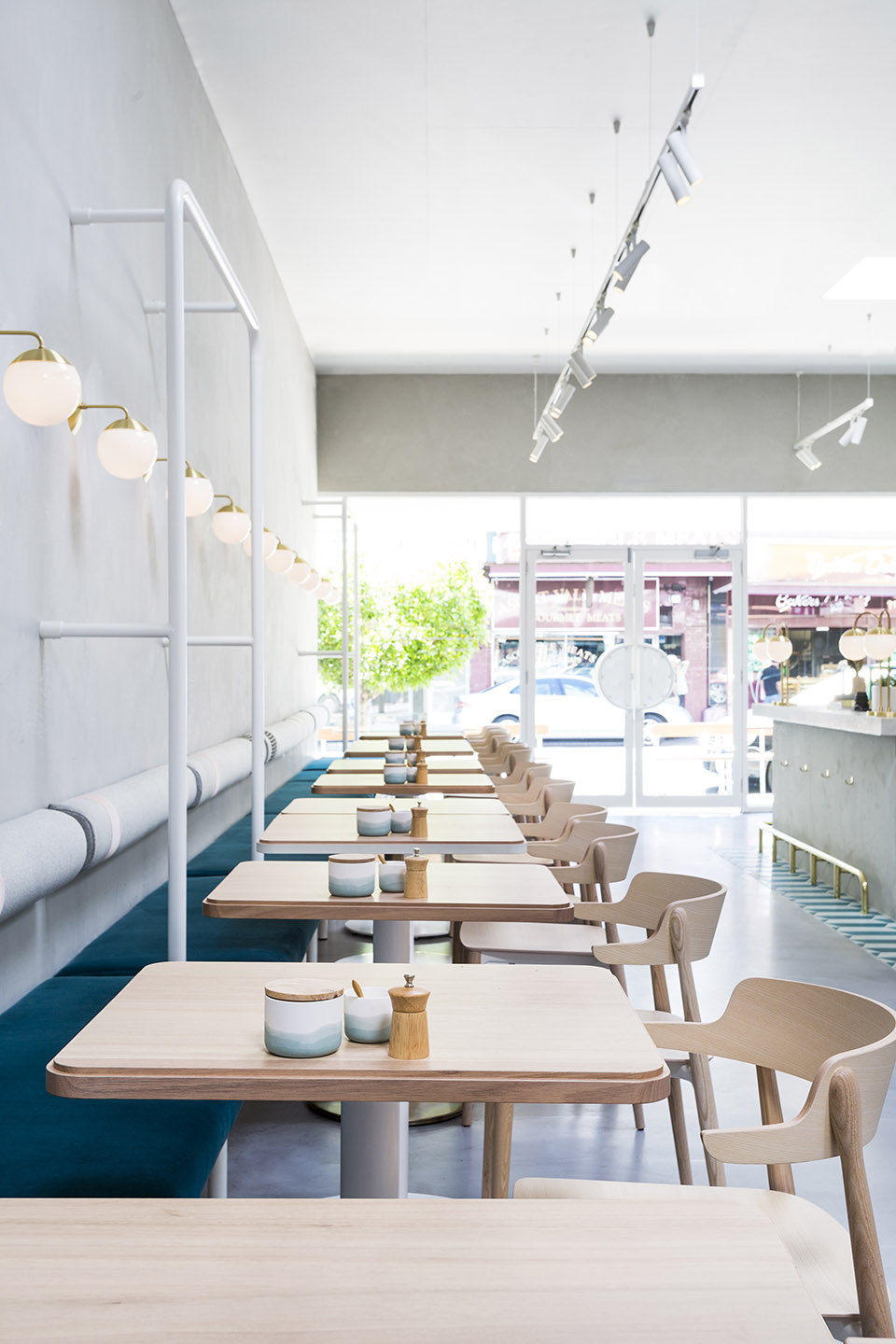

▼木材饰面的餐桌和座椅沿空间依次排开,timber-topped tables with banquette seating and Pedrali chairs run the length of the space

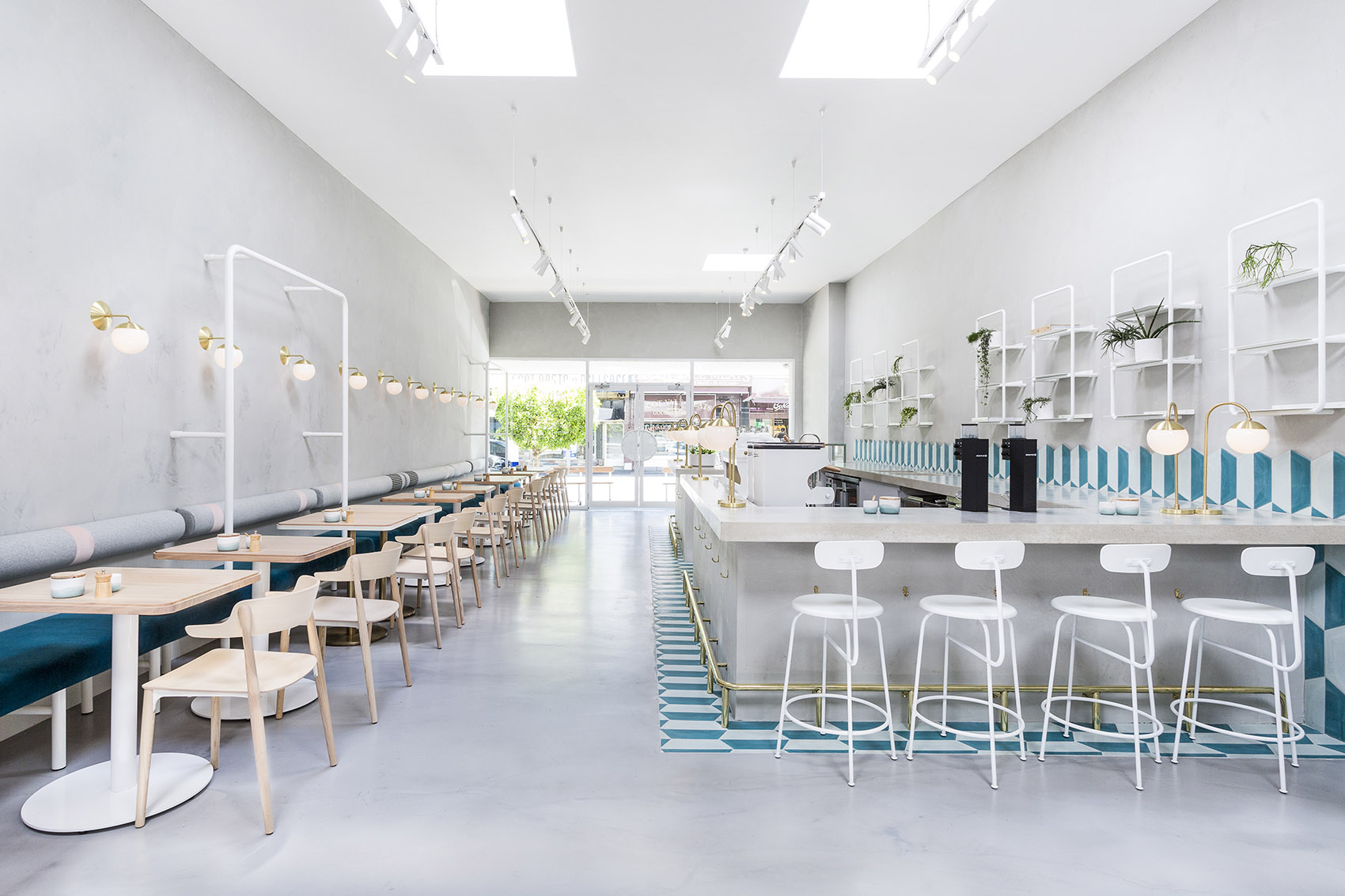

No. 19咖啡吧,墨尔本 / Biasol-19
No. 19咖啡吧,墨尔本 / Biasol-20
No. 19咖啡吧,墨尔本 / Biasol-21
No. 19咖啡吧,墨尔本 / Biasol-22

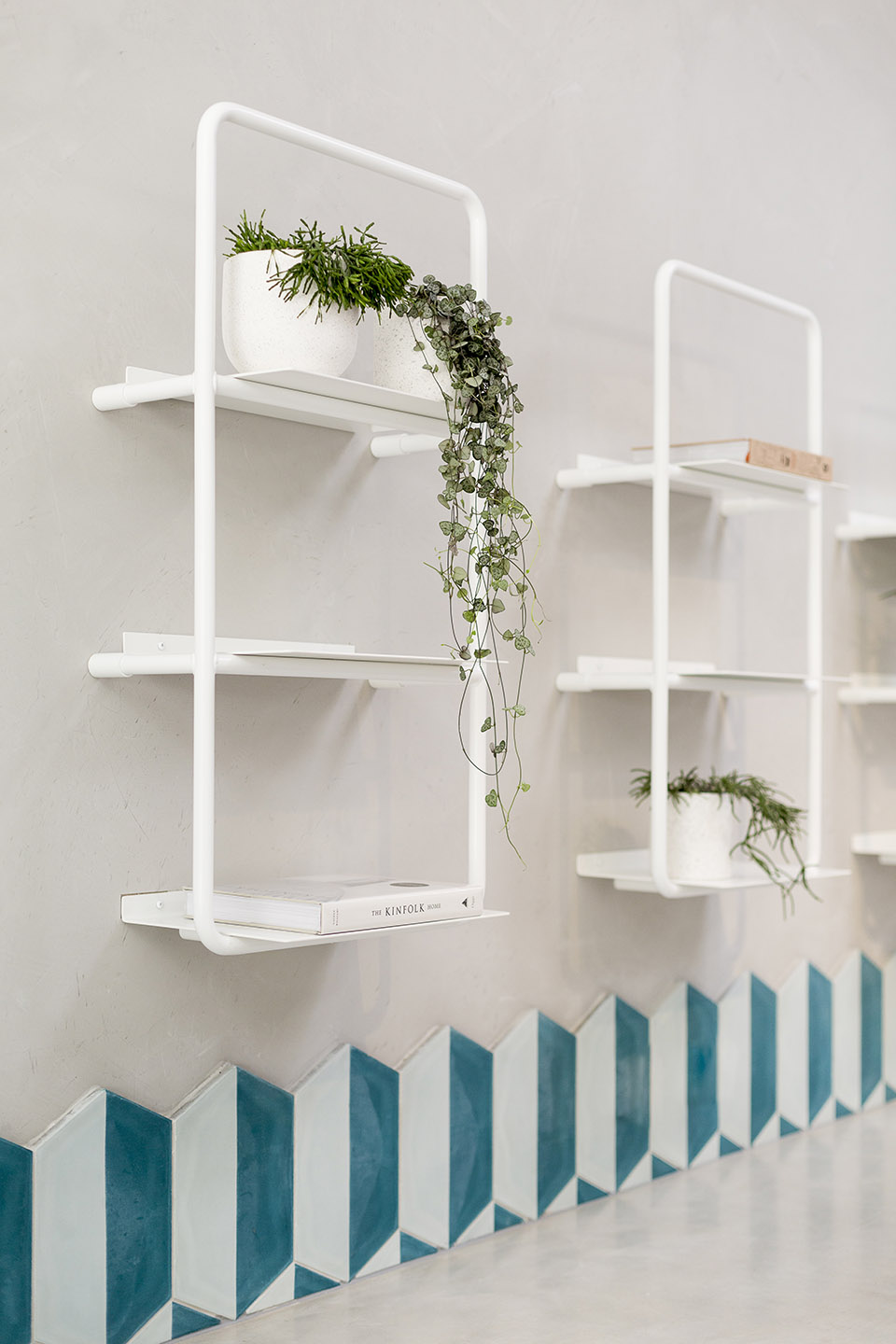

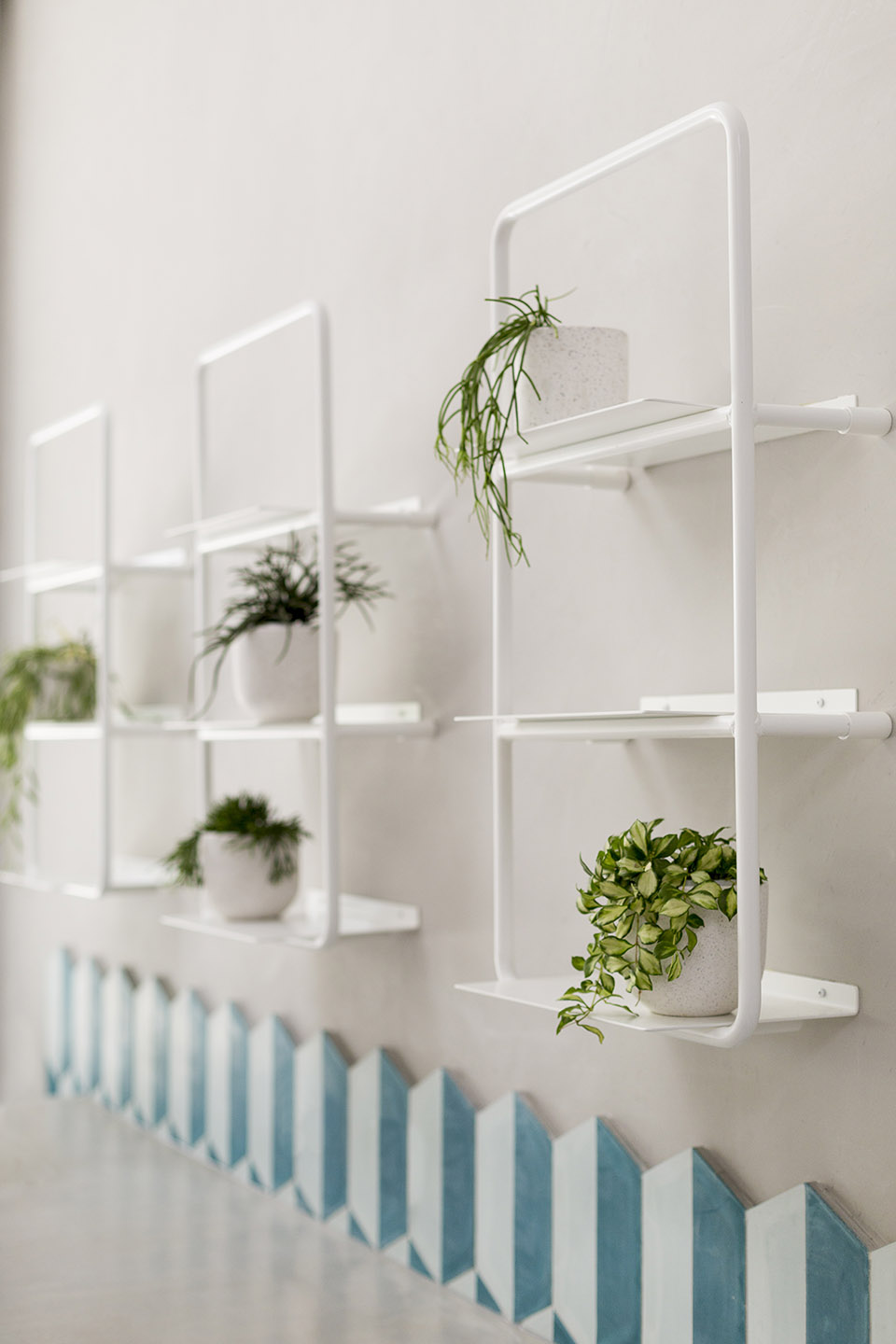

▼白色钢铁制成的管状陈列架, display shelving made from white tubular steel
No. 19咖啡吧,墨尔本 / Biasol-24
No. 19咖啡吧,墨尔本 / Biasol-25
▼家居细部,detail of the furniture
No. 19咖啡吧,墨尔本 / Biasol-27
No. 19咖啡吧,墨尔本 / Biasol-28

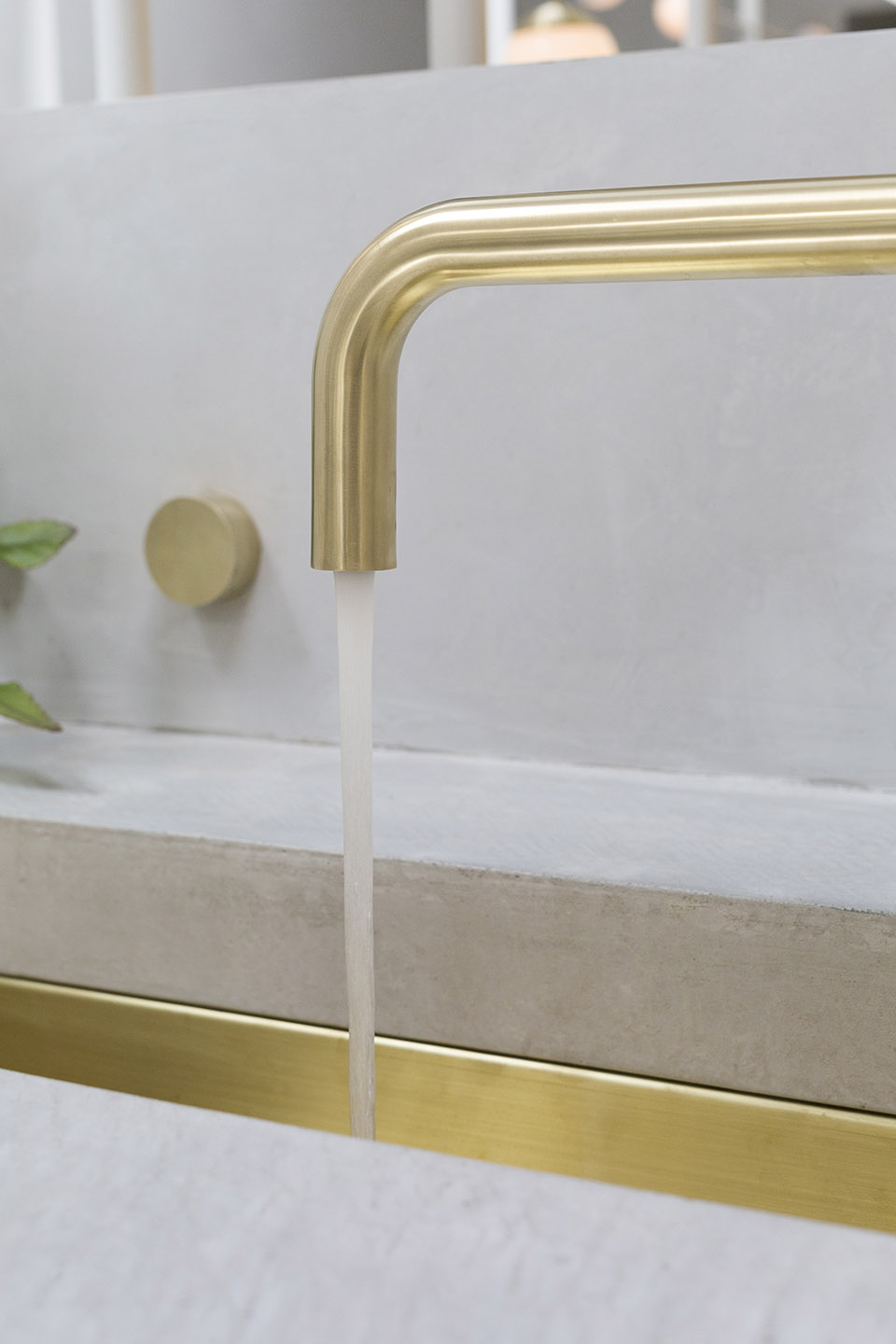

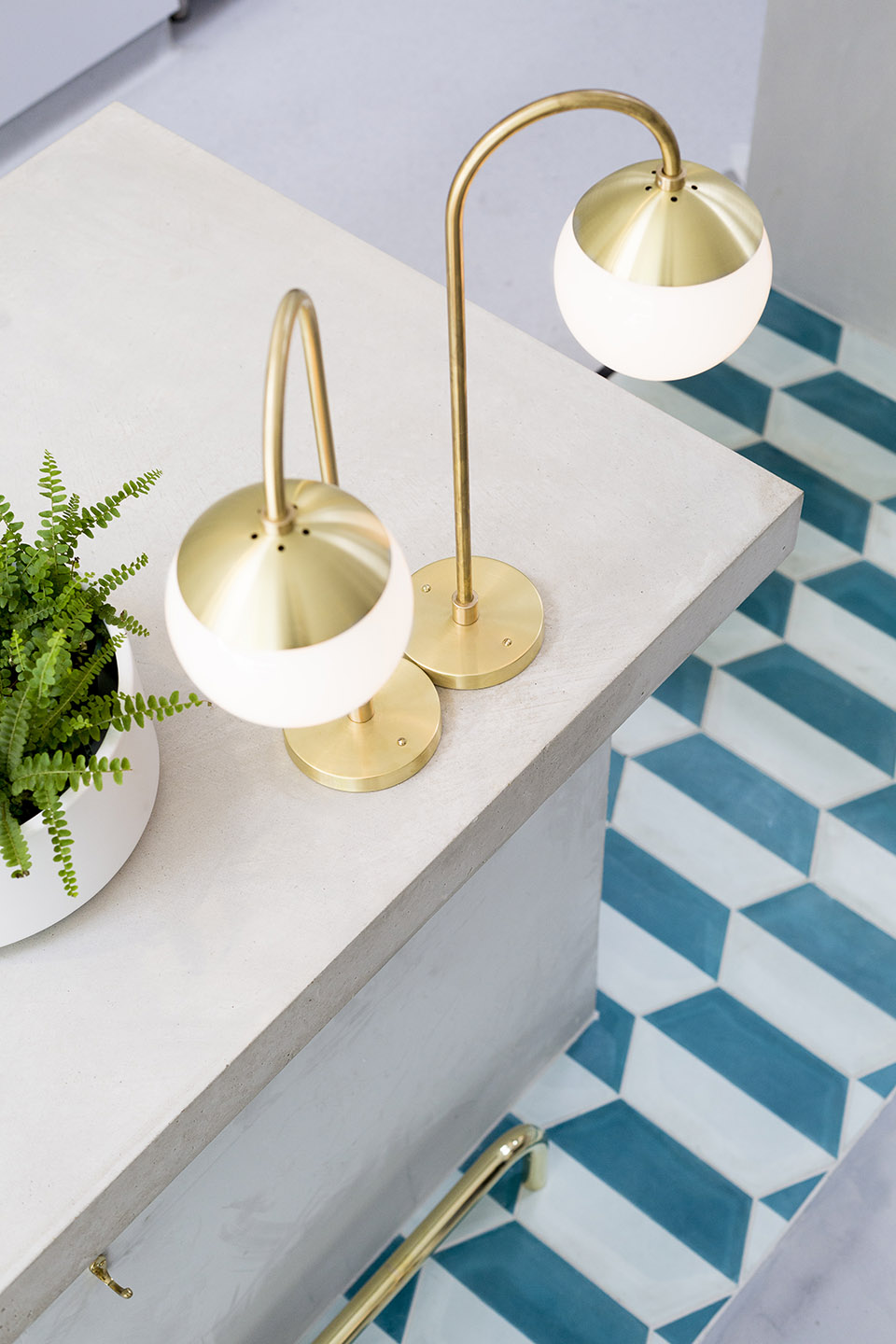

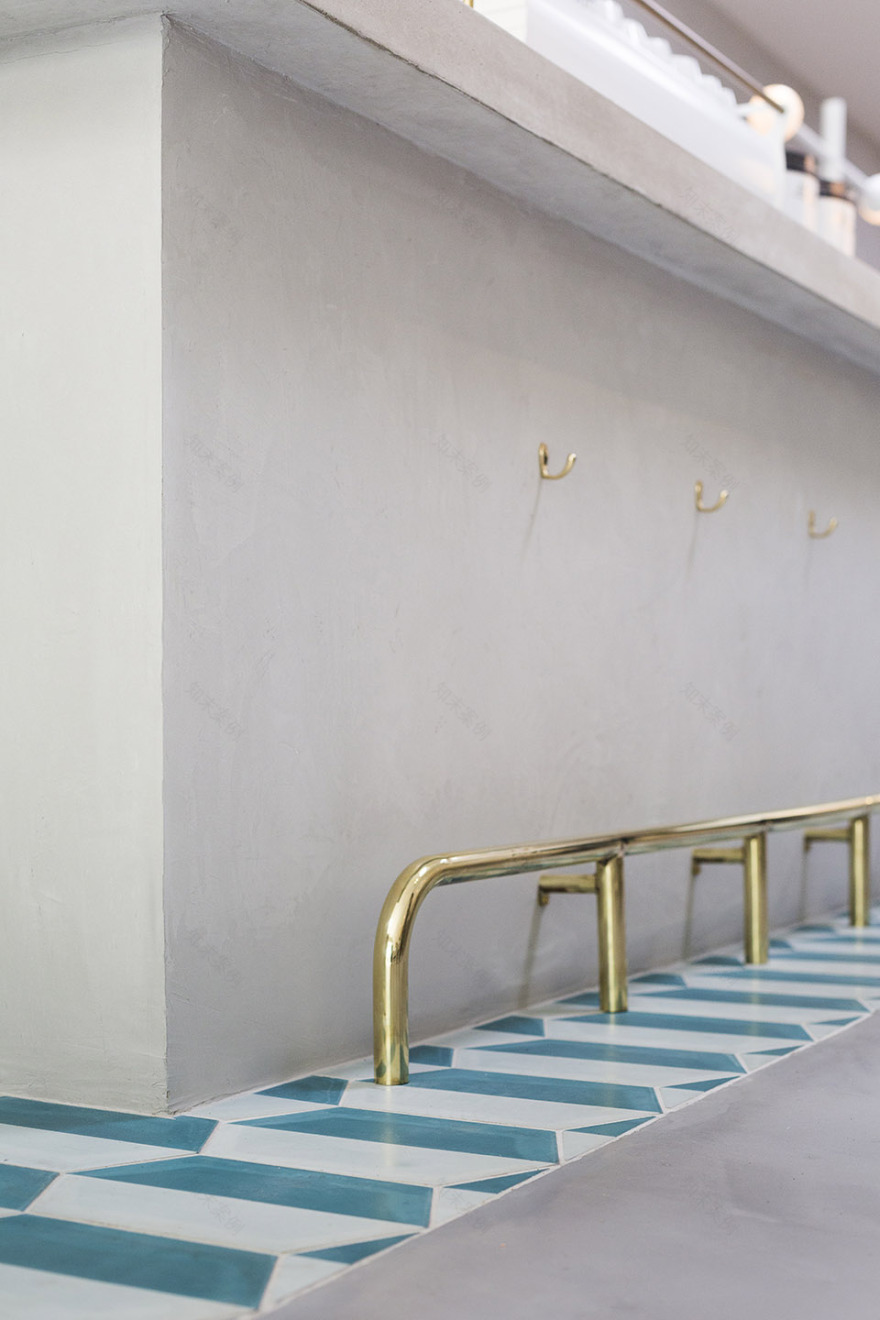

▼黄铜装饰,the brass decoration
No. 19咖啡吧,墨尔本 / Biasol-30
No. 19咖啡吧,墨尔本 / Biasol-31
在后部空间,半开放的操作台周围环绕在最好的座位之中:混凝土长椅配合Menu的托架,让操作台的活动一览无余。
Toward the rear of the space, the semi-open kitchen is surrounded by some of the best seats in the house – a concrete bench traces around it, with Afteroom high stools from Menu catching a glimpse of the activity.

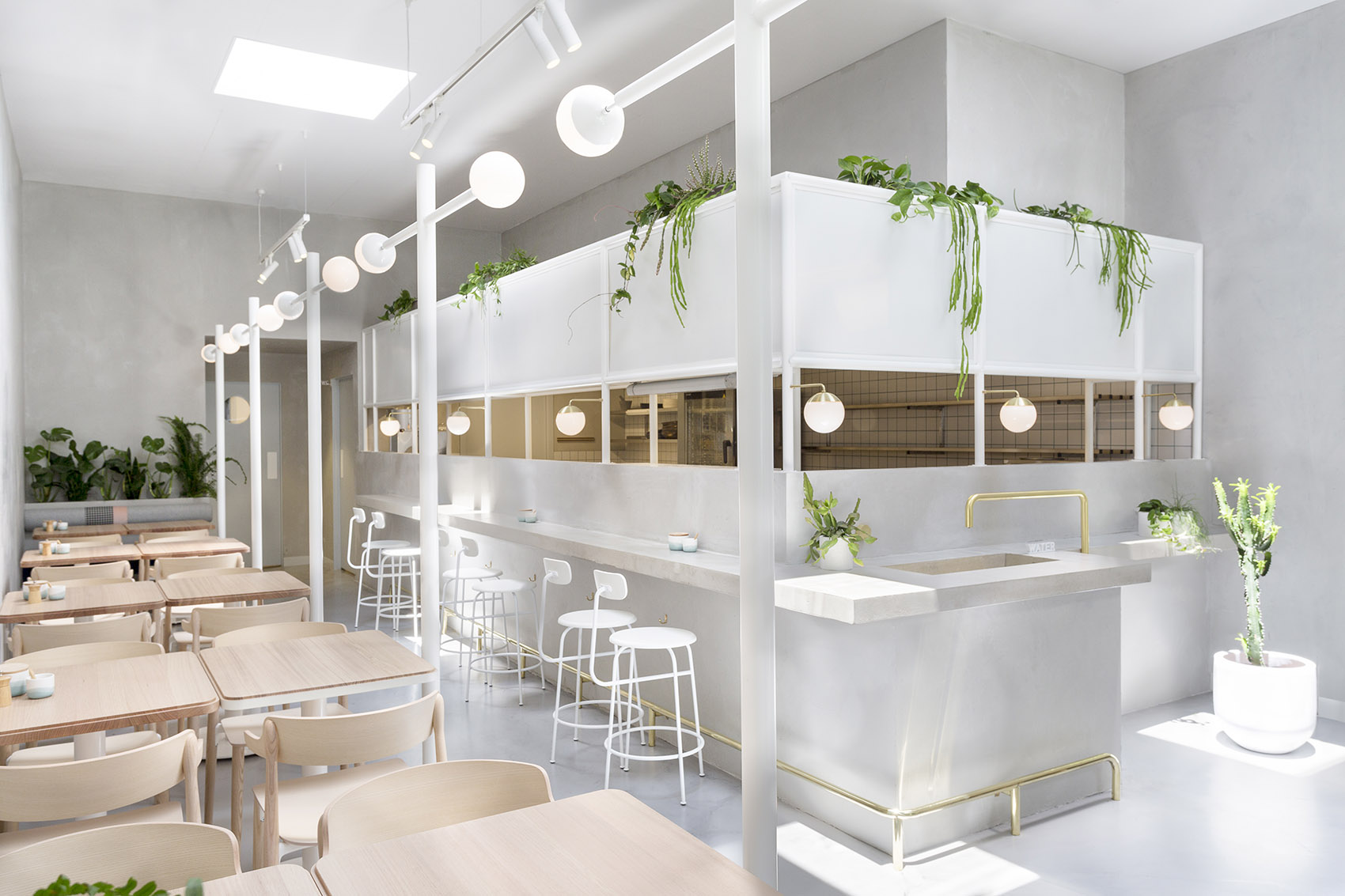

▼半开放操作台,the semi-open kitchen
No. 19咖啡吧,墨尔本 / Biasol-35
▼环绕在操作台周围的是空间中最好的位置, kitchen is surrounded by some of the best seats
No. 19咖啡吧,墨尔本 / Biasol-37
No. 19咖啡吧,墨尔本 / Biasol-38

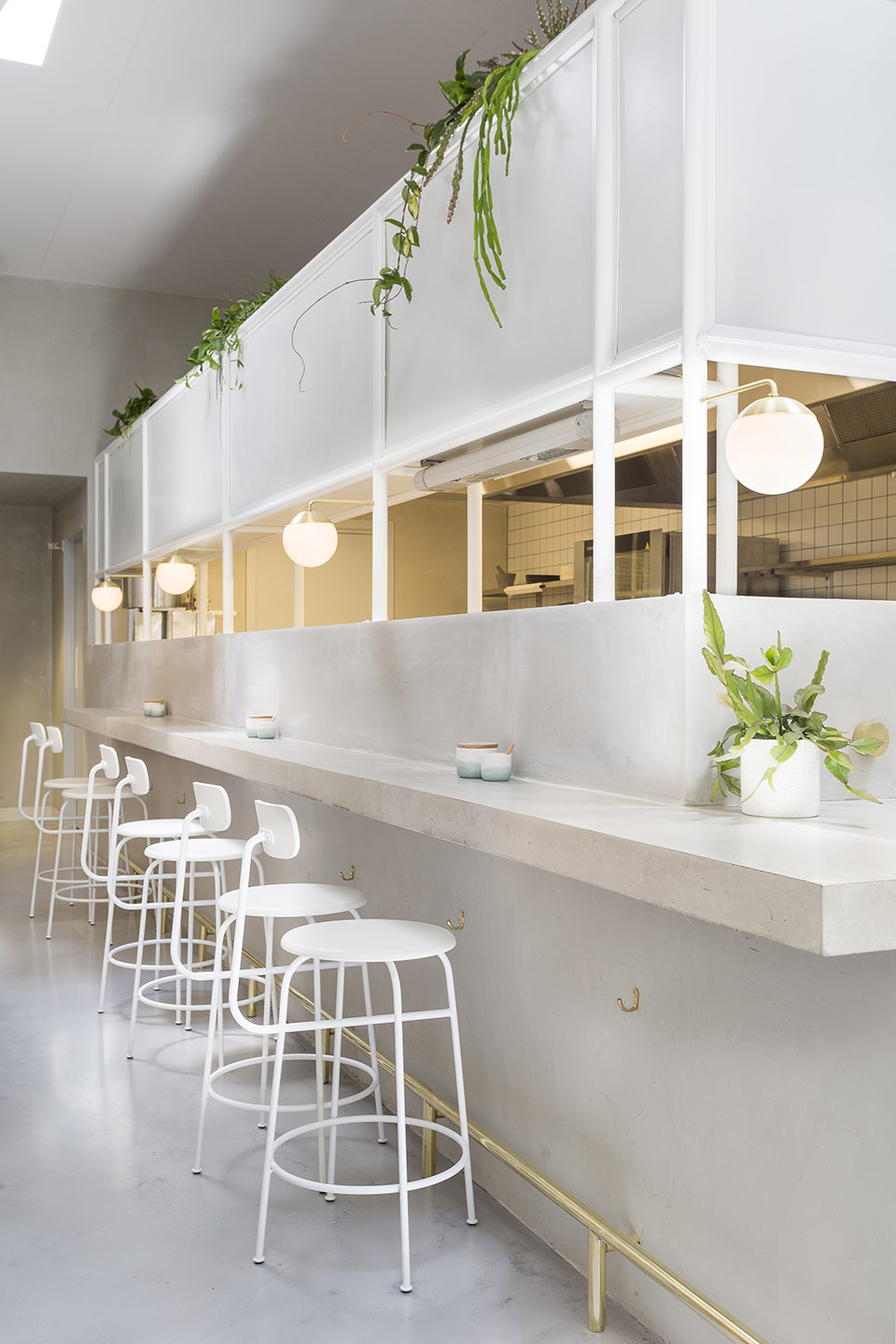

No. 19咖啡吧,墨尔本 / Biasol-39
No. 19咖啡吧,墨尔本 / Biasol-40
在咖啡厅的前面摆放着木质桌面的定制台凳来提供街边用餐。 设计师仔细斟酌了外部座椅的配置,以确保外面的食客和内部氛围的联系。 同样的,门的布置也是精心设计的。该项目的首要任务是将室内设计与商店品牌联系起来,因此咖啡厅内包含菜单,杯具,调味料瓶等都经过了设计师的精心设计。
A key priority in this project was to develop a strong relationship between the interior design and the brand itself. Every element – from the menus and coasters to the deli paper and crockery – has been carefully conceived, reflecting our integrated approach. At the front of the café, a custom-designed bench with timber tabletops offers street-side dining. We considered the configuration of this seating carefully, to ensure a strong visual connection between diners outside and the energy within. In a similar way, the alcove by the door was tailored to accommodate orders to go.

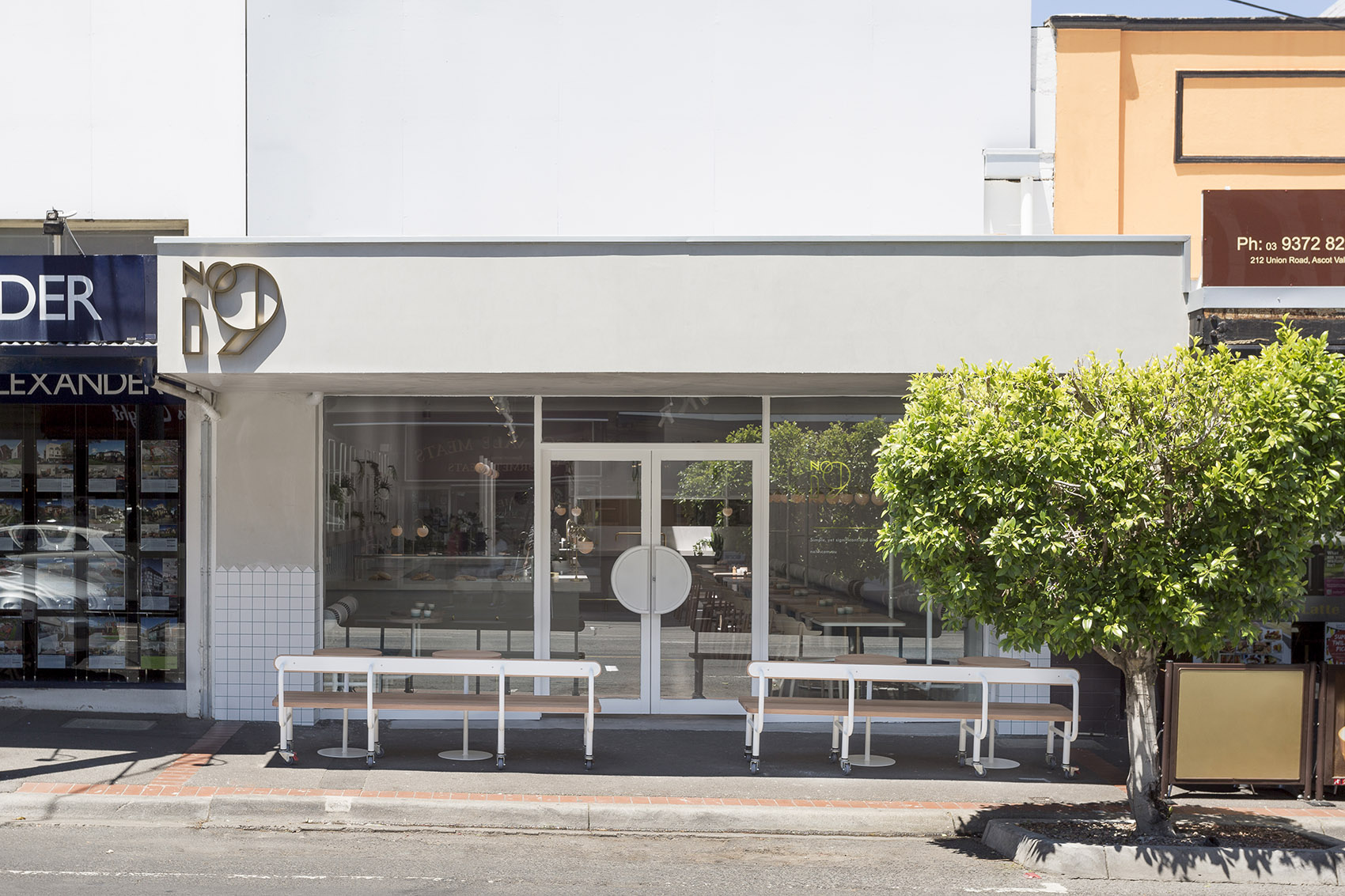

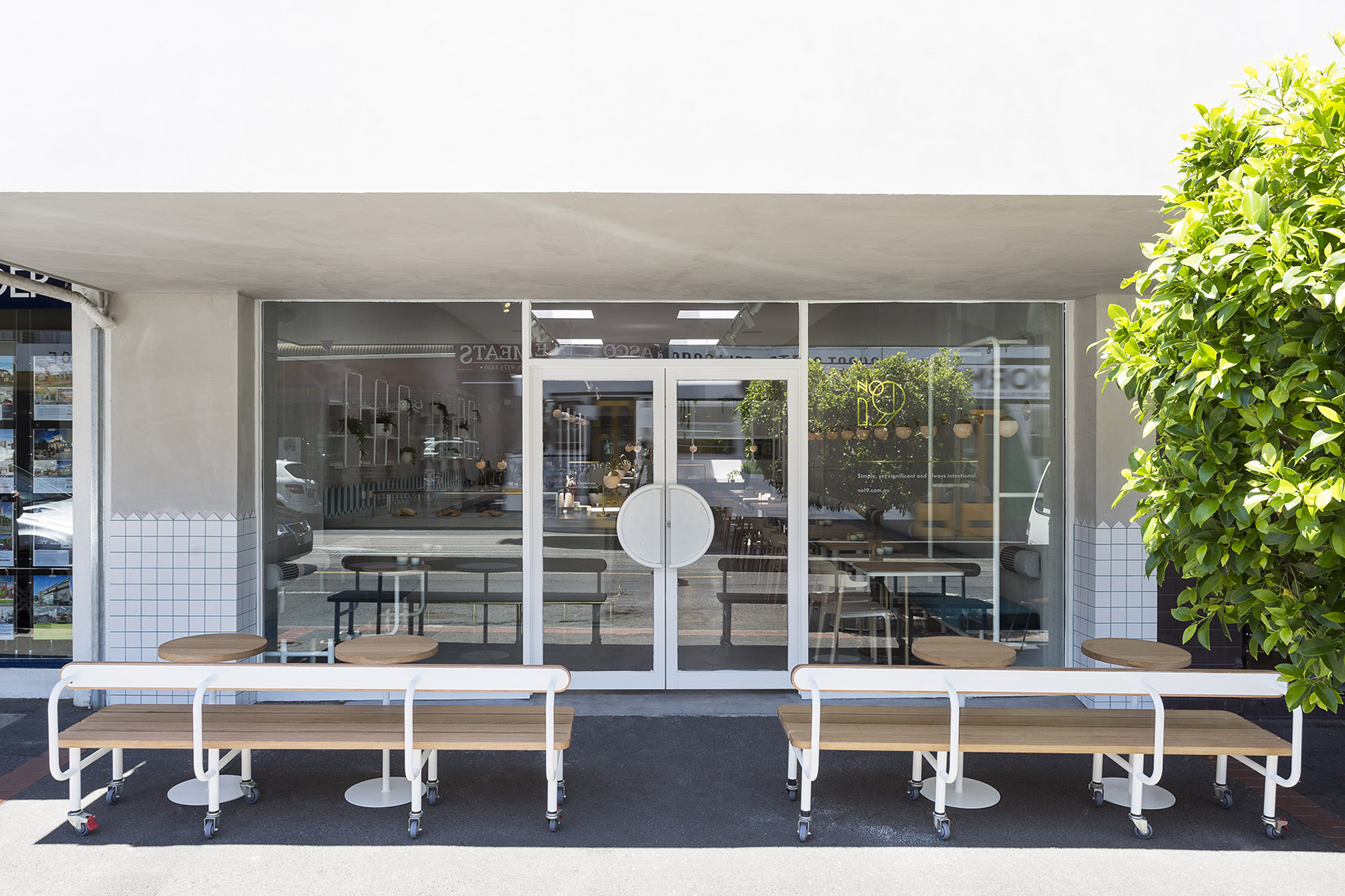

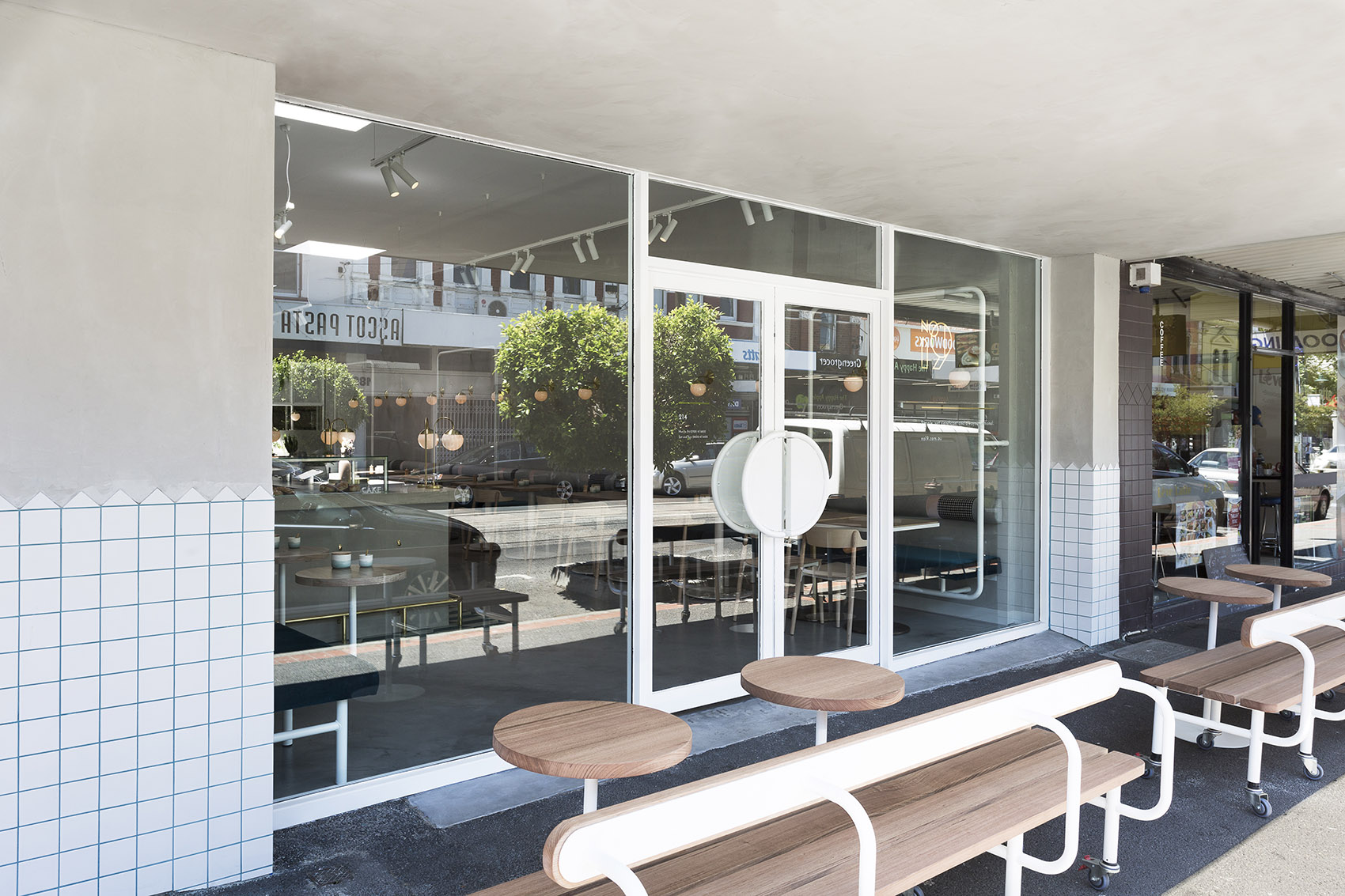

▼咖啡厅外立面 ,the front view
No. 19咖啡吧,墨尔本 / Biasol-44

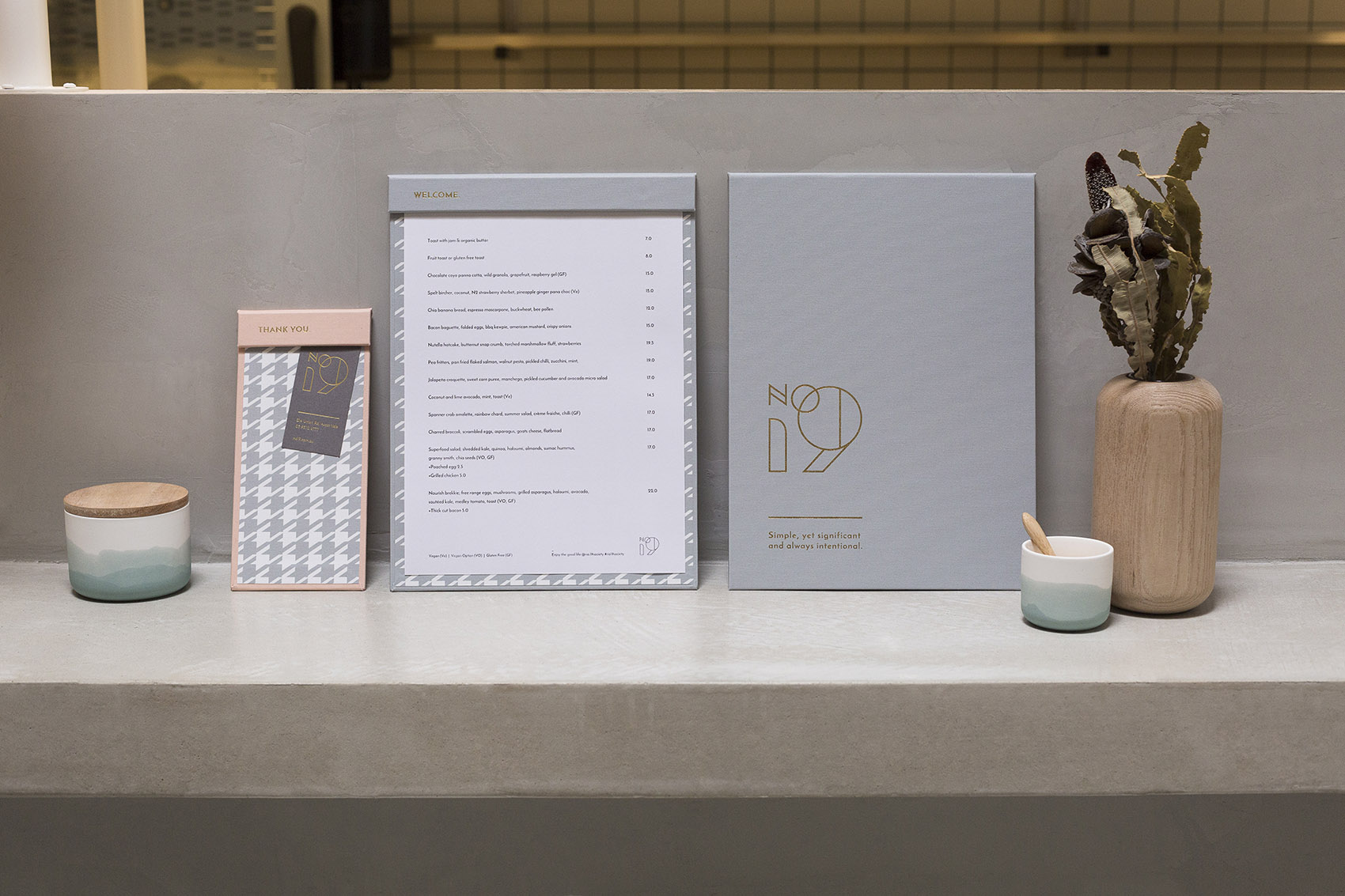

▼配套设计,related design
No. 19咖啡吧,墨尔本 / Biasol-46
No. 19咖啡吧,墨尔本 / Biasol-47
No. 19咖啡吧,墨尔本 / Biasol-48
No. 19咖啡吧,墨尔本 / Biasol-49
No. 19咖啡吧,墨尔本 / Biasol-50
No. 19咖啡吧,墨尔本 / Biasol-51

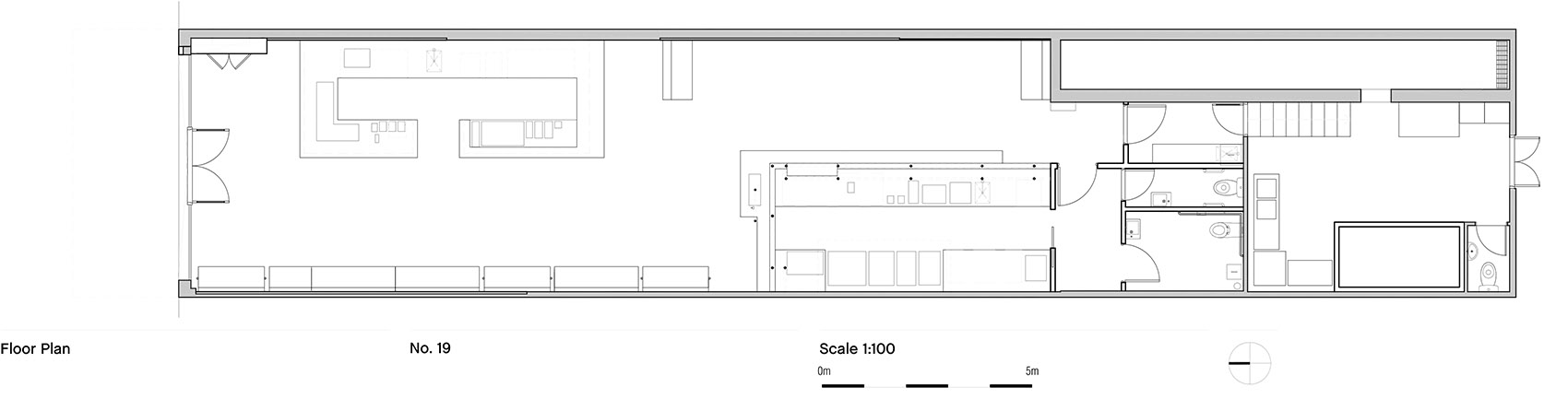

▼平面图,plan
No. 19咖啡吧,墨尔本 / Biasol-53

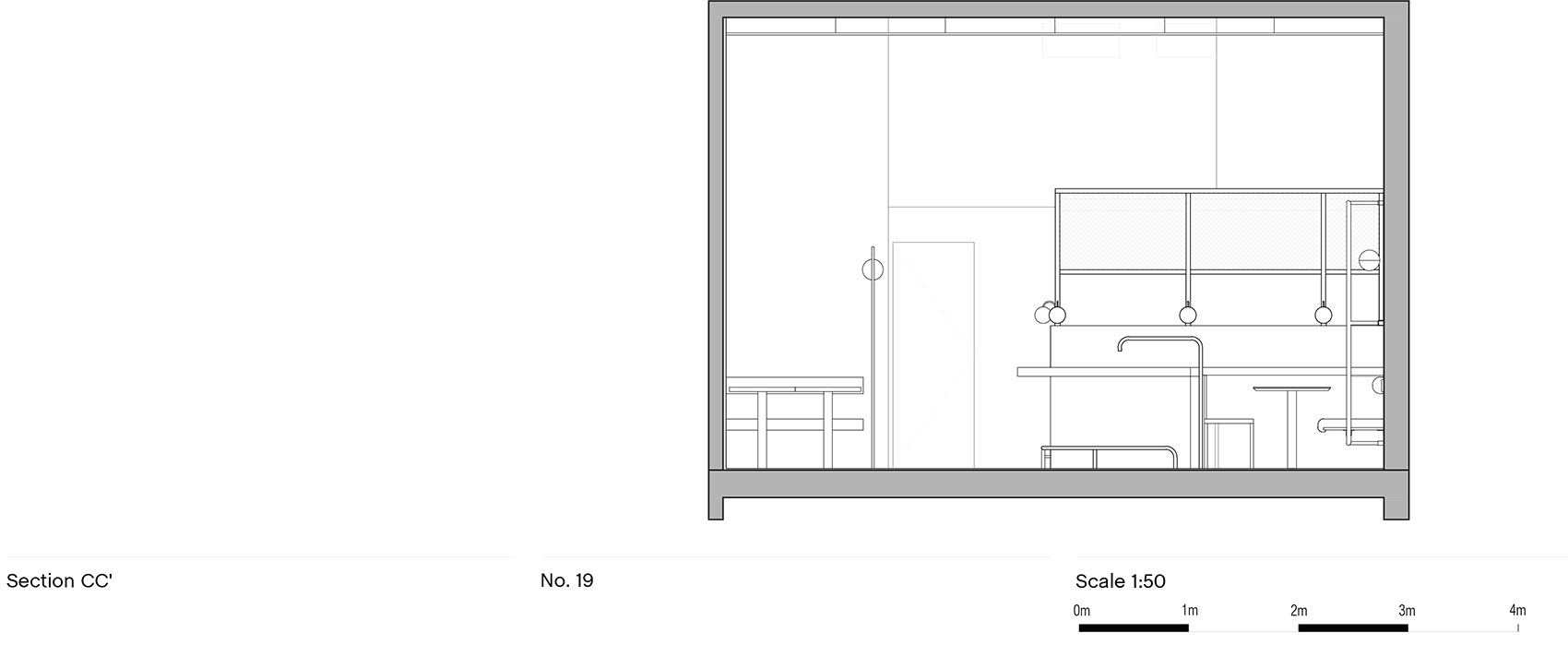

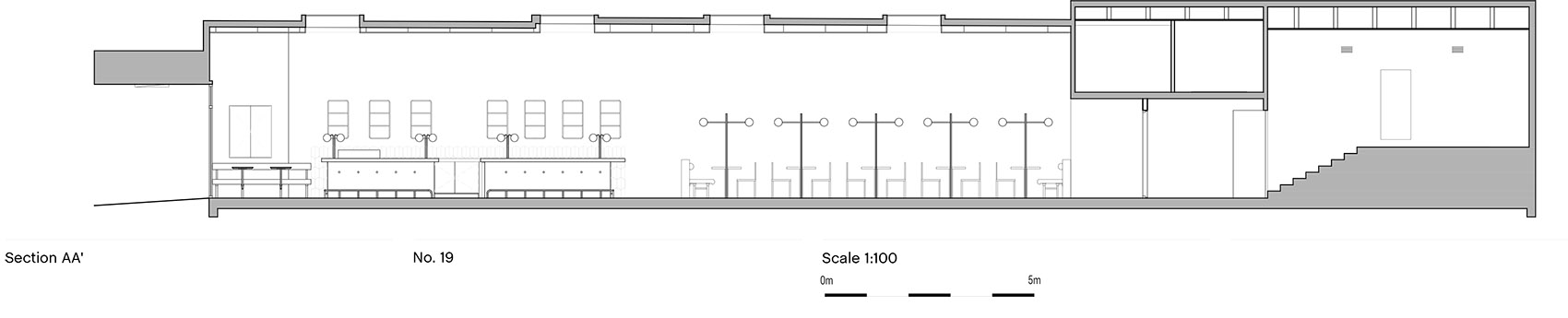

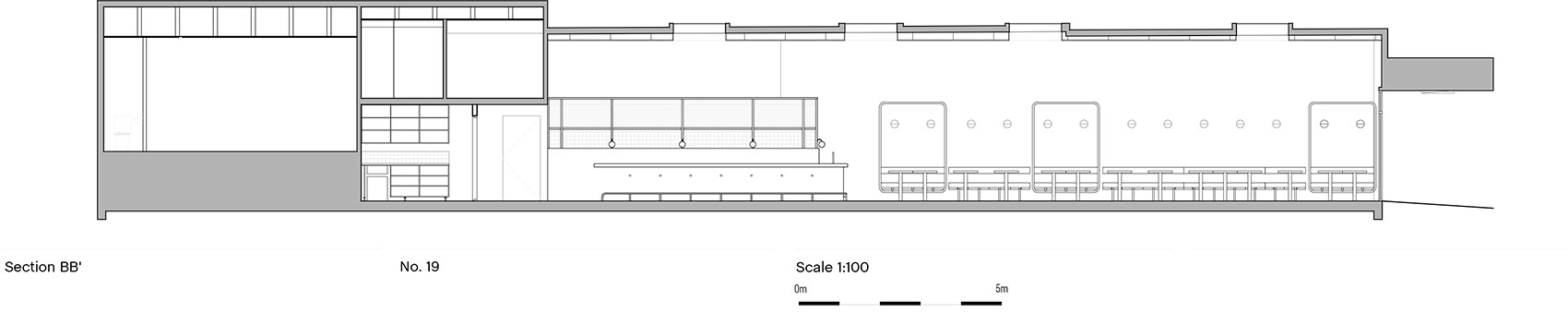

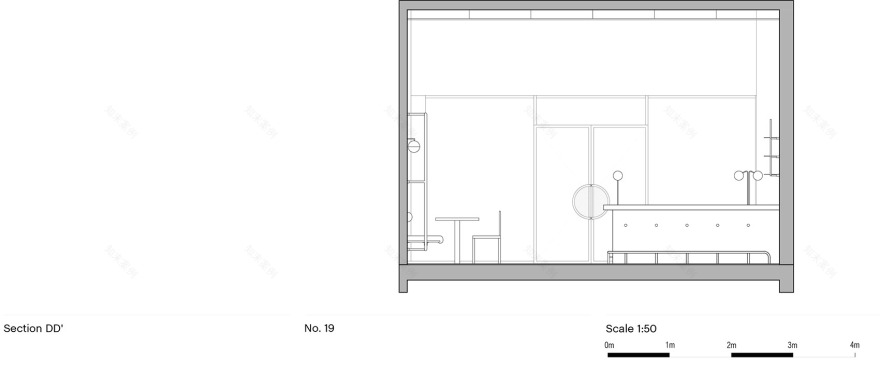

▼剖面图,section
No. 19咖啡吧,墨尔本 / Biasol-55
No. 19咖啡吧,墨尔本 / Biasol-56
No. 19咖啡吧,墨尔本 / Biasol-57
No. 19咖啡吧,墨尔本 / Biasol-58

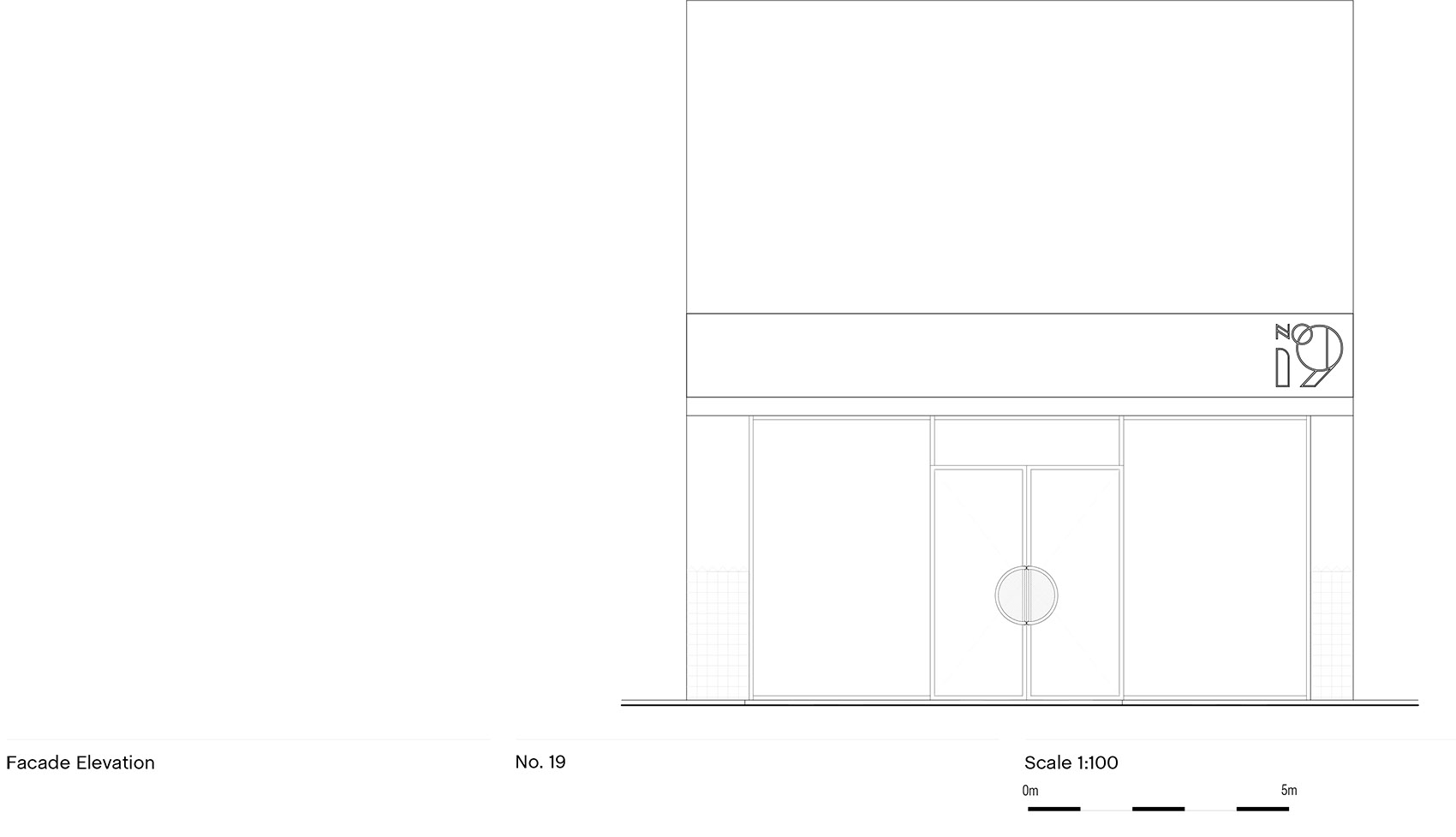

▼立面图 ,elevation
No. 19咖啡吧,墨尔本 / Biasol-60

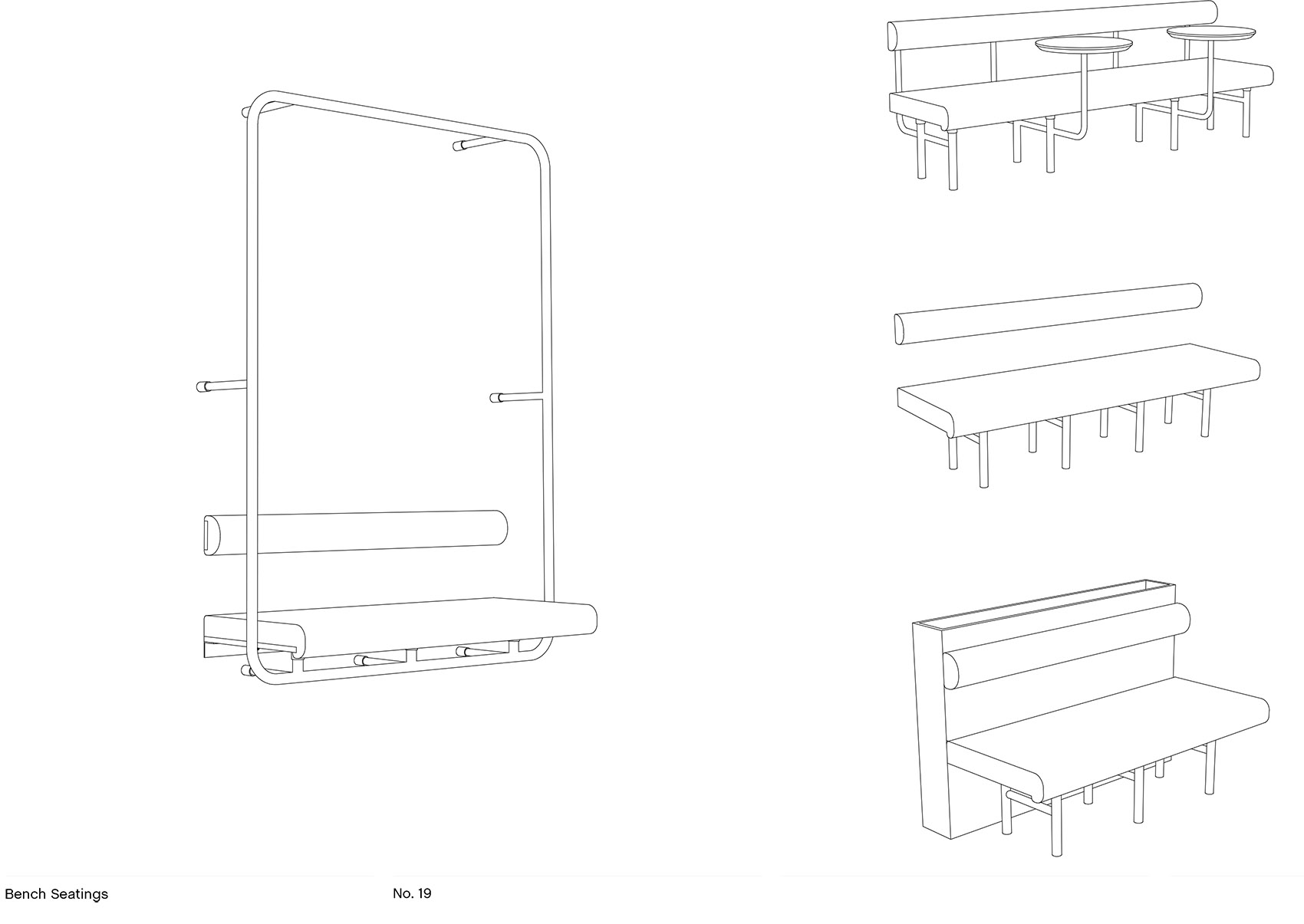

▼家具设计细节,detail of the furniture
No. 19咖啡吧,墨尔本 / Biasol-62
Materials:Concrete,Hexagonal Tiles,Pale Timber Brass,Felt/Velvet/Houndstooth Fabric Floor:Resin Flooring Ceiling: Woven Image: EchoPanel col. Upholstery: Kvadrat Maharam: Divina Melange col. 120 Mokum Fabrics: Velluti col. 334 Mokum Fabrics: Velutti col. 806 Unique Fabrics: Chivasso – Titan CH2850 Tiles: Tiento Tiles: Popham Long Demi Hex Tiles col. Turquoise/Pistachio Furniture: JR Furniture: Pedrali – Nemea 2825 Dining Chair JR Furniture: Pedrali – Inox 4412 Brass Base JR Furniture: Pedrali – Inox 4431 White Base Design Mode: Menu – Afteroom Counter Chair Lighting: Cedar and Moss: Custom Table Lamps Cedar and Moss: Alto Wall Sconce Sphera: Binario Track Lights Paints: Taubmans: Crisp White Dulux: Genetic Code Taubmans: Beige Mirage Taubmans: Grey Gamut Greenery: On the Side Pots Loose Leaf Greenery
No. 19咖啡吧,墨尔本 / Biasol-64

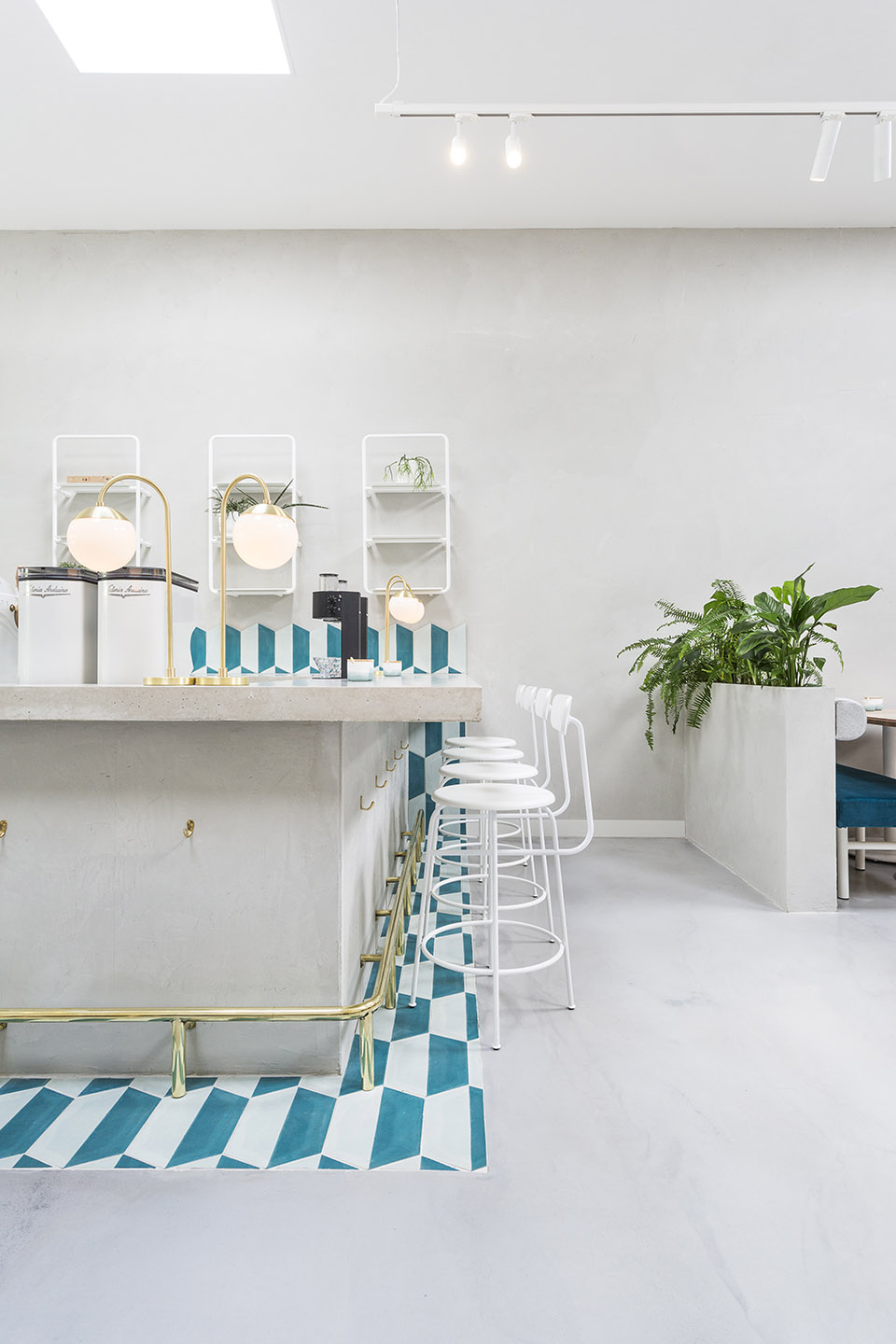

No. 19咖啡吧,墨尔本 / Biasol-65
No. 19咖啡吧,墨尔本 / Biasol-66
No. 19咖啡吧,墨尔本 / Biasol-67

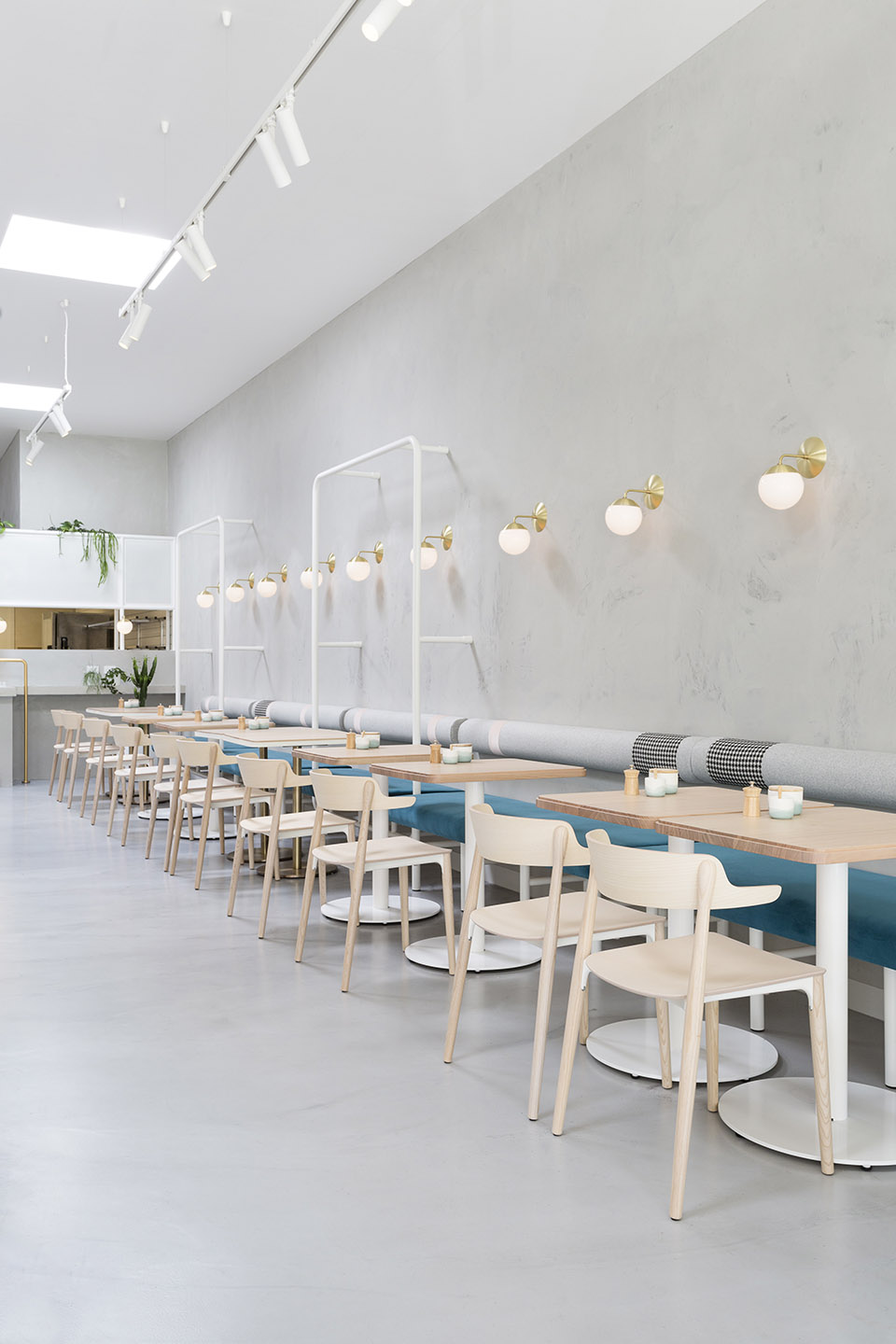

No. 19咖啡吧,墨尔本 / Biasol-68
No. 19咖啡吧,墨尔本 / Biasol-69
No. 19咖啡吧,墨尔本 / Biasol-70
No. 19咖啡吧,墨尔本 / Biasol-71
No. 19咖啡吧,墨尔本 / Biasol-72
No. 19咖啡吧,墨尔本 / Biasol-73
No. 19咖啡吧,墨尔本 / Biasol-74
No. 19咖啡吧,墨尔本 / Biasol-75
No. 19咖啡吧,墨尔本 / Biasol-76
No. 19咖啡吧,墨尔本 / Biasol-77

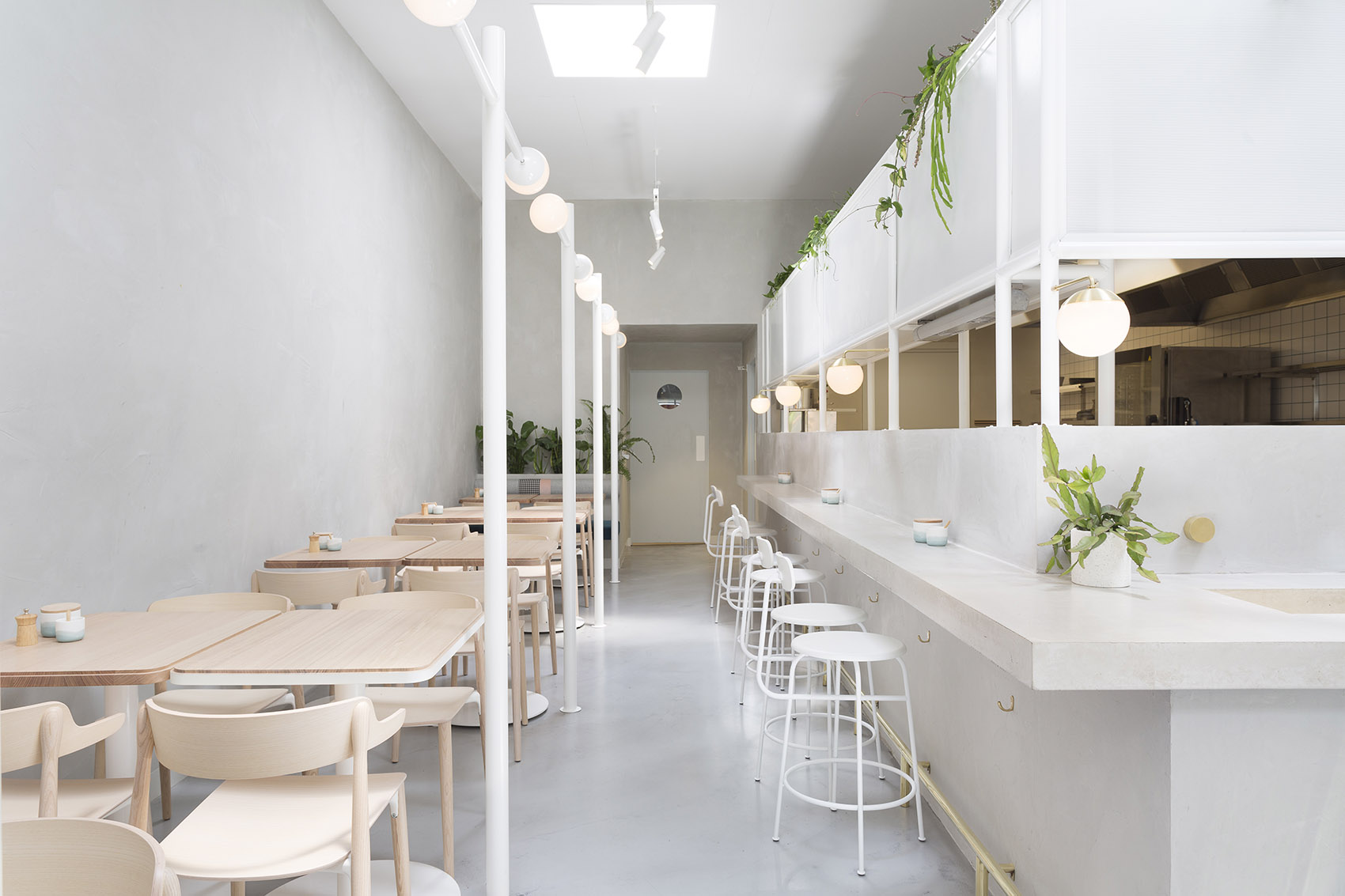

No. 19咖啡吧,墨尔本 / Biasol-78
