游弋于天地间 & 拥有漂浮大泳池的意大利Hubertus
酒店 / noa*

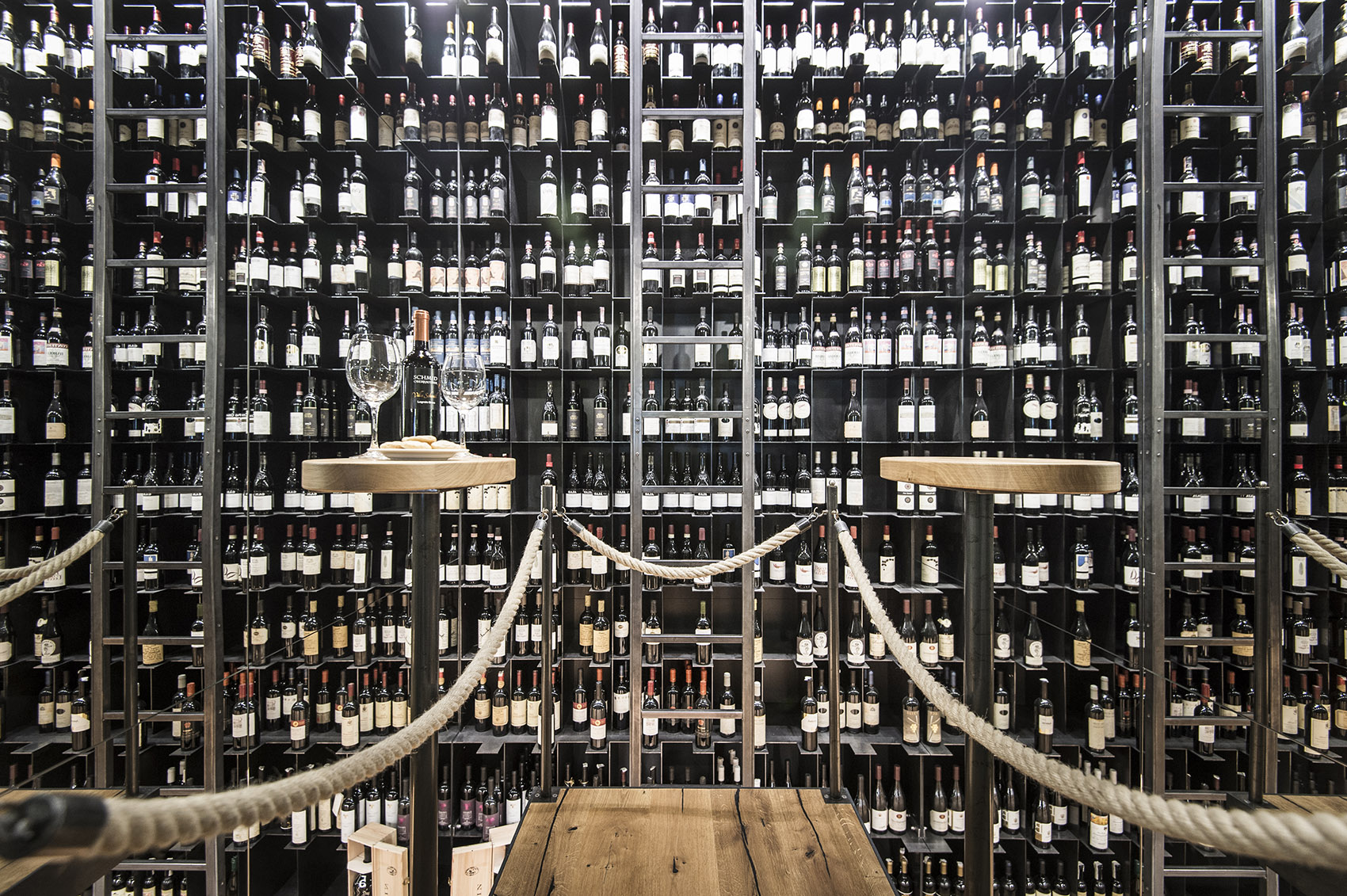

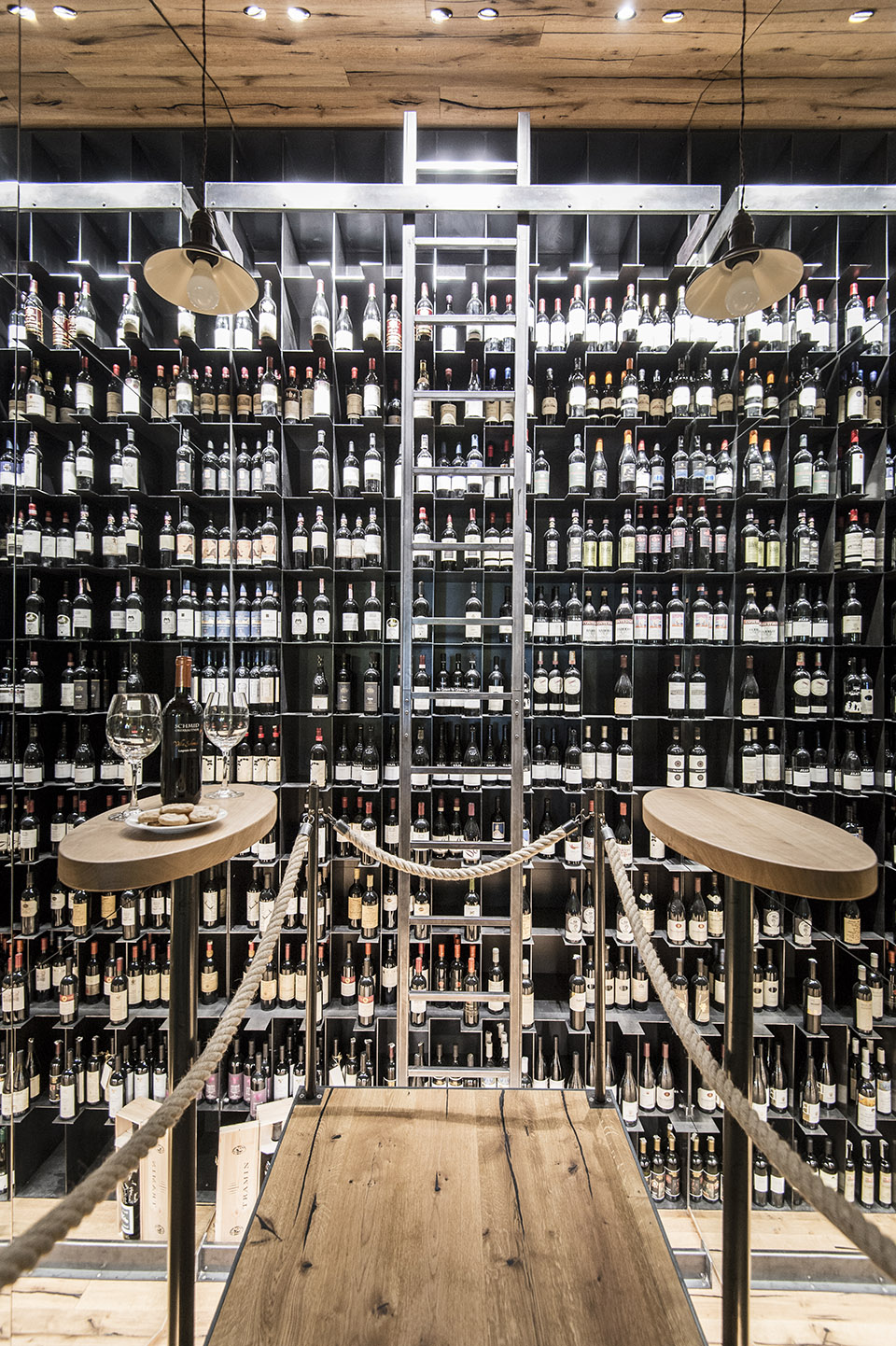

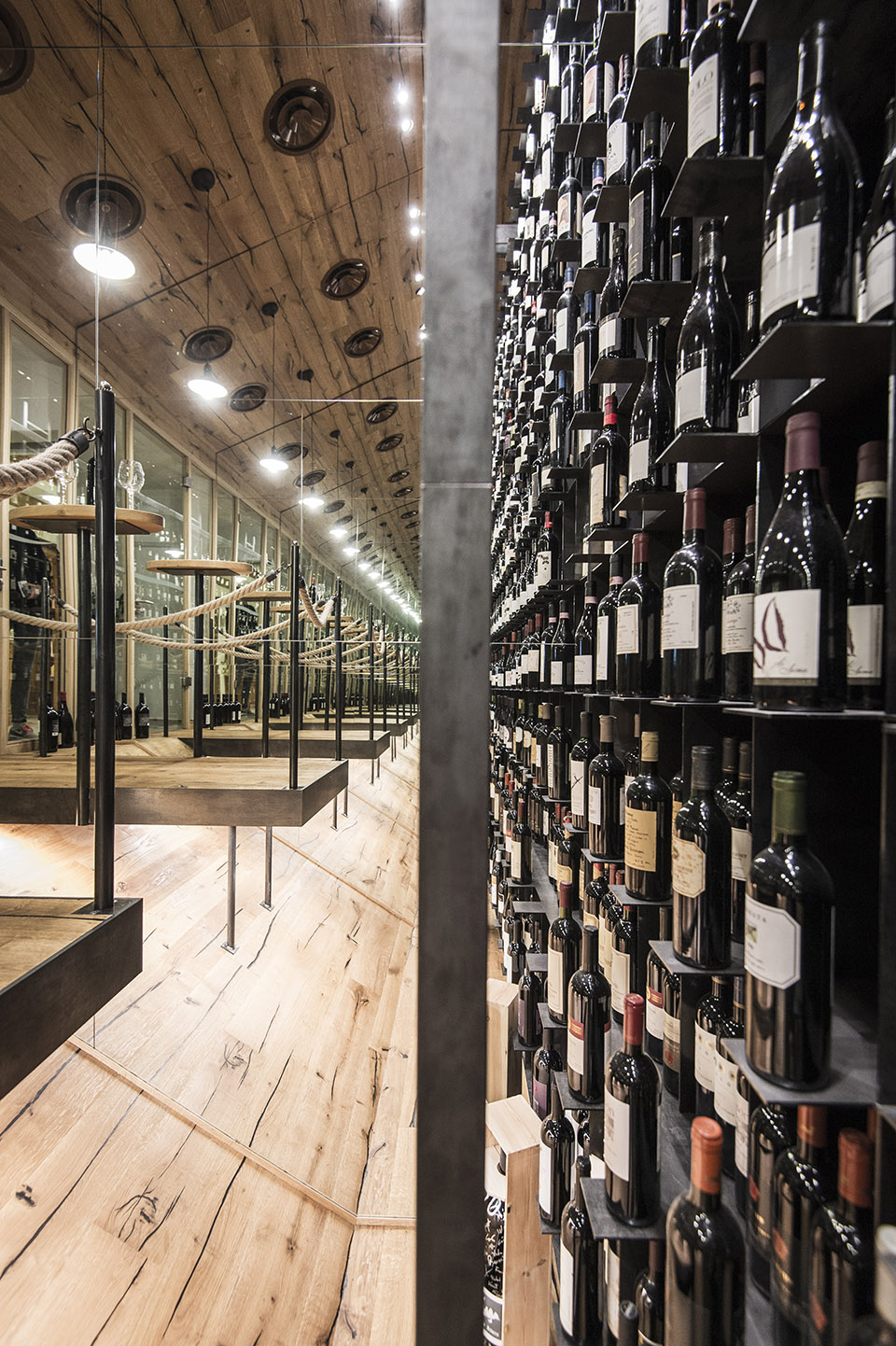

Hubertus酒店位于瓦尔道拉，在著名Puster 山谷滑雪徒步旅行区Kronplatz的山脚下，海拔1350米。这个家族创建的酒店新老建筑一共包含16间套房、一个带有厨房的餐厅、“Stuben”、入口大厅，接待区、酒窖、健身中心和一个带有全景露台的娱乐休息室。25米长的泳池连接了新旧建筑，强调了其翻新建筑的本质。

The Hotel Hubertus is located in Valdaora, at the foot of the famous ski and hiking area Kronplatz in the Puster Valley at an altitude of about 1350 m. The family establishment was generously enhanced and enlarged with 16 new suites, a new kitchen with restaurants and “Stuben”, an entrance area with lobby, reception and wine cellar and a fitness and a relaxation room with panoramic terraces. The new 25 m long pool, functioning as a connector between old and new, underlines the essence of this comprehensive renovation and renewal project.

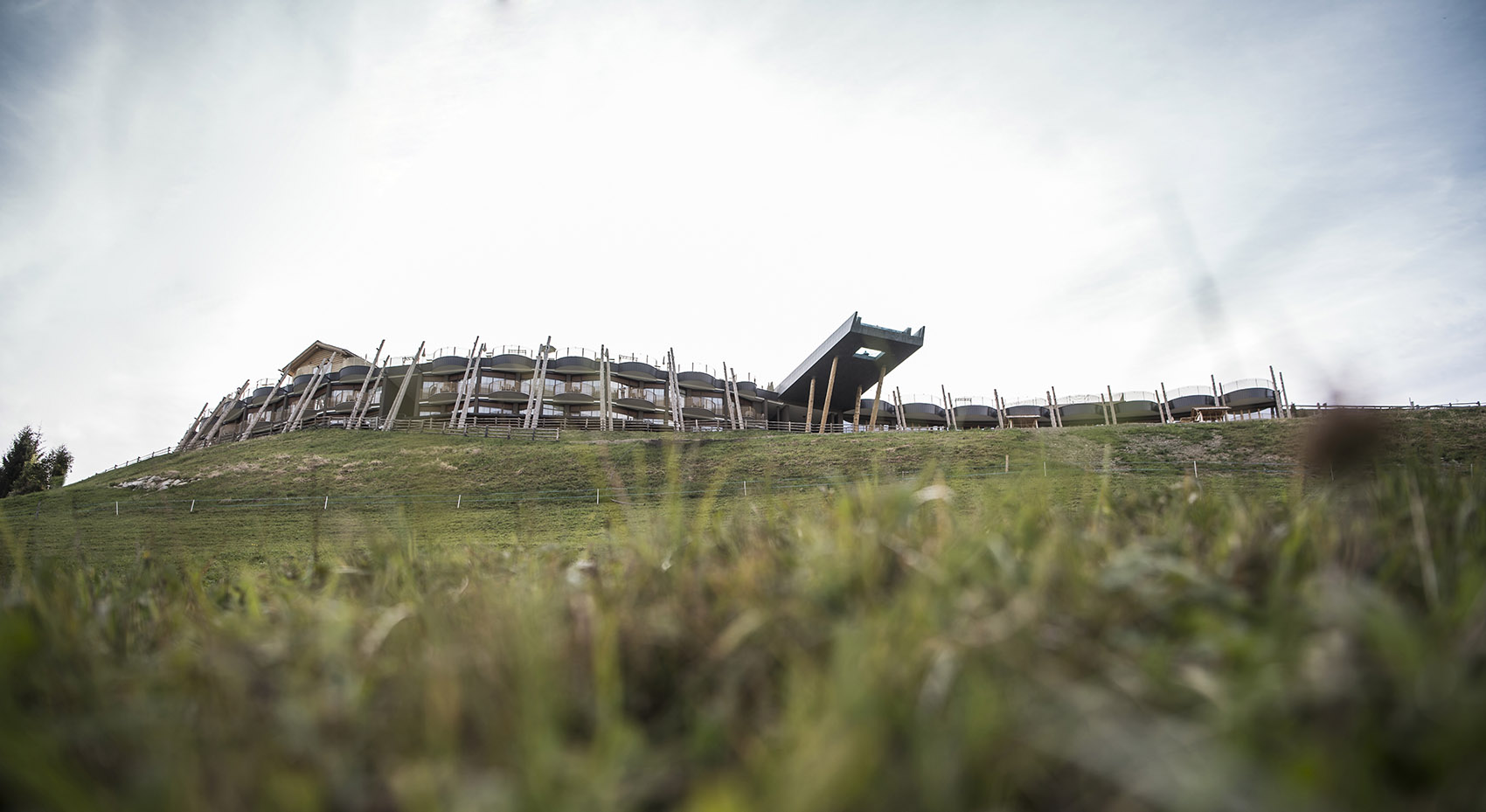

▼Hubertus酒店位于瓦尔道拉，在著名Puster 山谷滑雪徒步旅行区Kronplatz的山脚下，The Hotel Hubertus is located in Valdaora, at the foot of the famous ski and hiking area Kronplatz in the Puster Valley

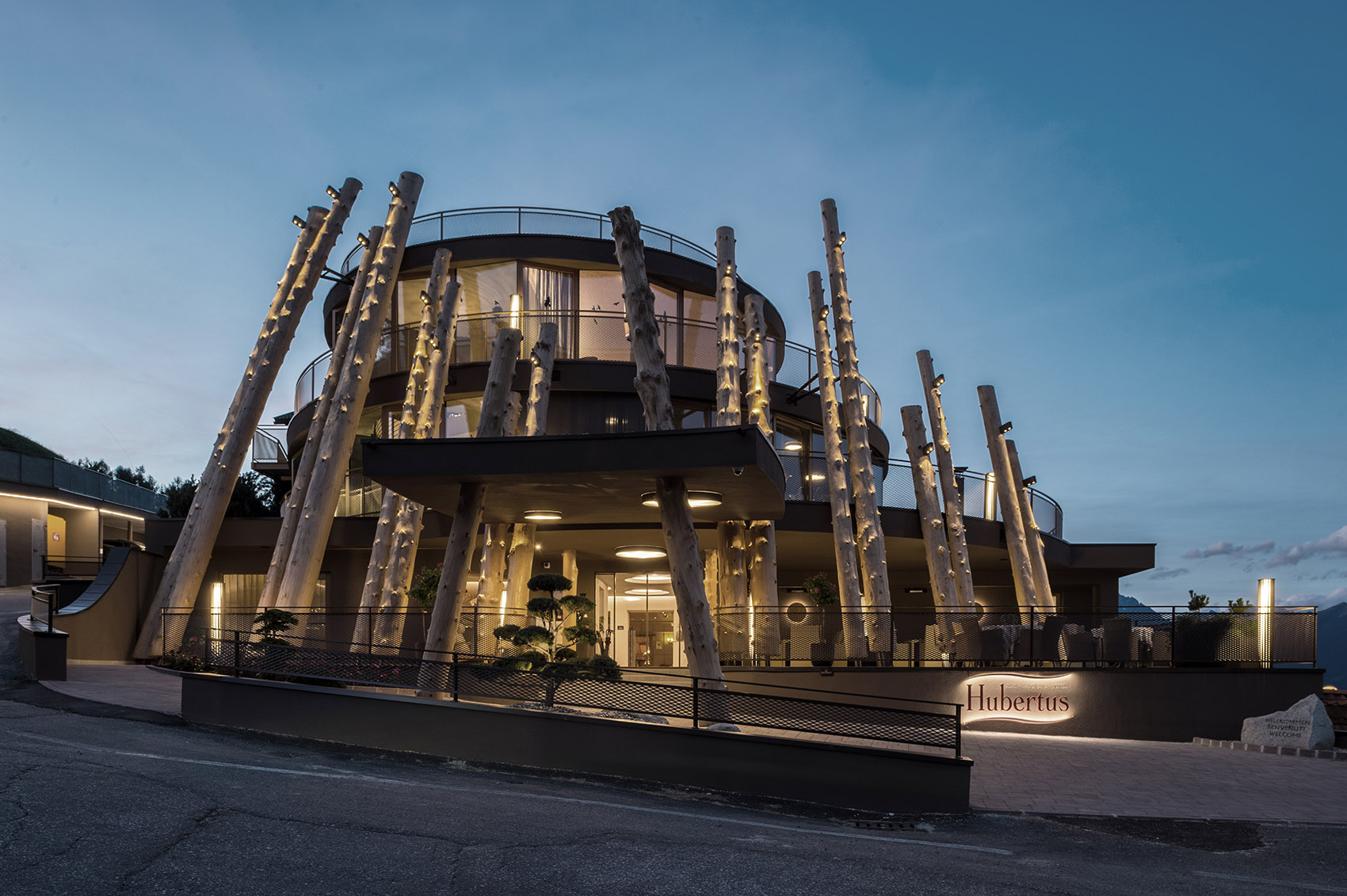

▼建筑夜景，External View at Night

noa*建筑事务所使用天然的落叶松树干材质创造一个统一的，备俱节奏感的立面，统一了新老建筑。

By creating an unified, rhythmically alternating façade with native larch tree trunks noa* connects “old and new” in a consistent manner.

均质统一的建筑外观遵循了该地区的自然地形，为设计一个新的悬臂式泳池创造了条件，泳池在新老酒店之间仿佛漂浮于天地之间。

The homogeneous appearance, following the natural topography of the area, creates the theatrical base for the design of the new, cantilevering pool, which thrones between the old and new accommodation wings, floating between heaven and earth…

项目的主要挑战是使现存建筑与新建筑相连接，来保持其统一连续的外观。脱皮落叶松树干作为新旧建筑多功能立面的主要组成元素，成功的保持了建筑之间的美学联系。他们不仅使曲线立面动感，还可以抵挡日光，分隔房间，并且防雨水。在加强了建筑隐私性的同时还作为支撑悬臂式泳池和立面的基础。建筑新建部分遵循地形，坐落于现存酒店体量弯曲的一翼上，使其形态更加流畅。从平面上看尤其明显，建筑融于现有景观陡峭的斜坡中。树干造成的狭窄双木柱，统一了建筑外观并使其建筑美学连贯统一。

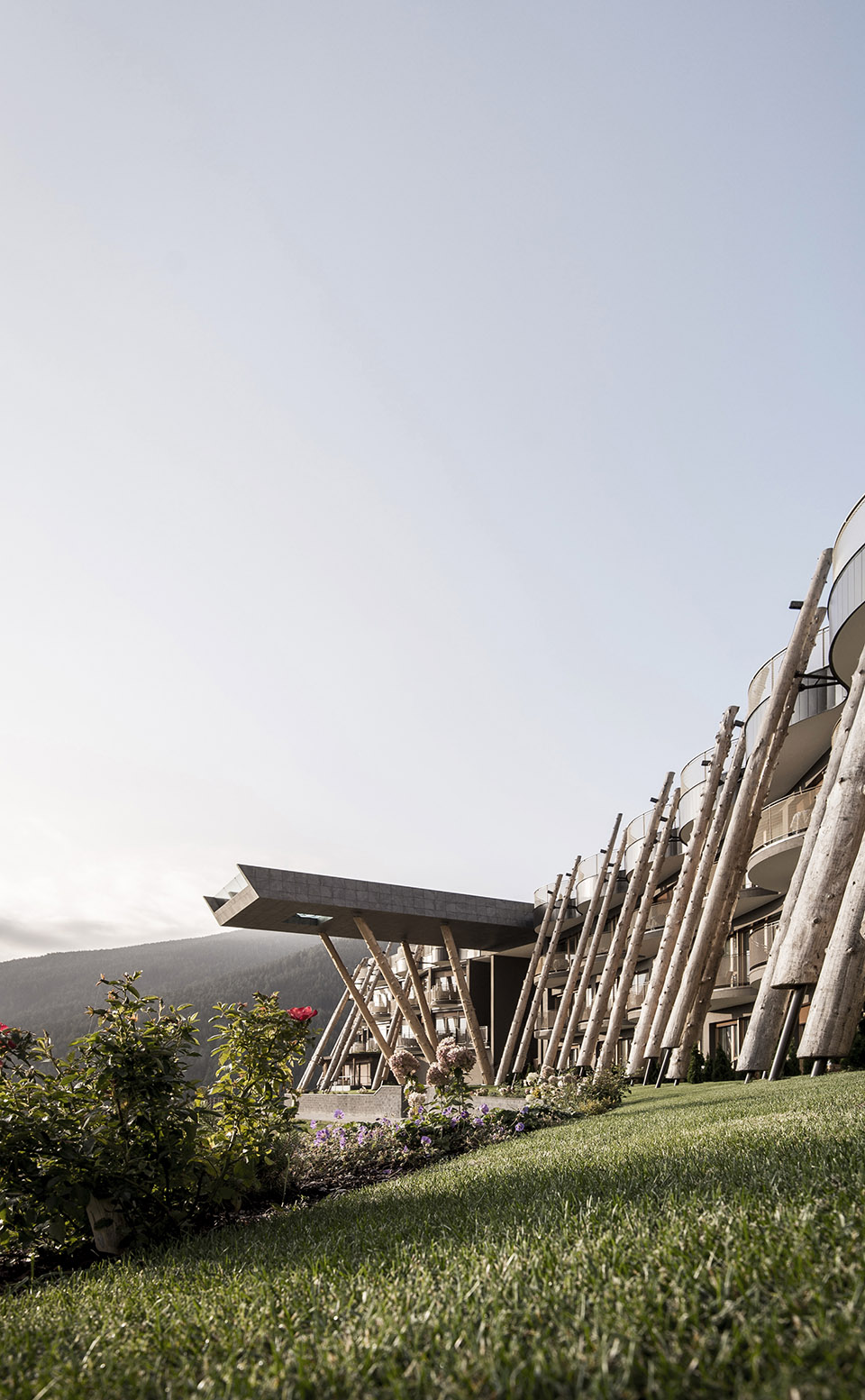

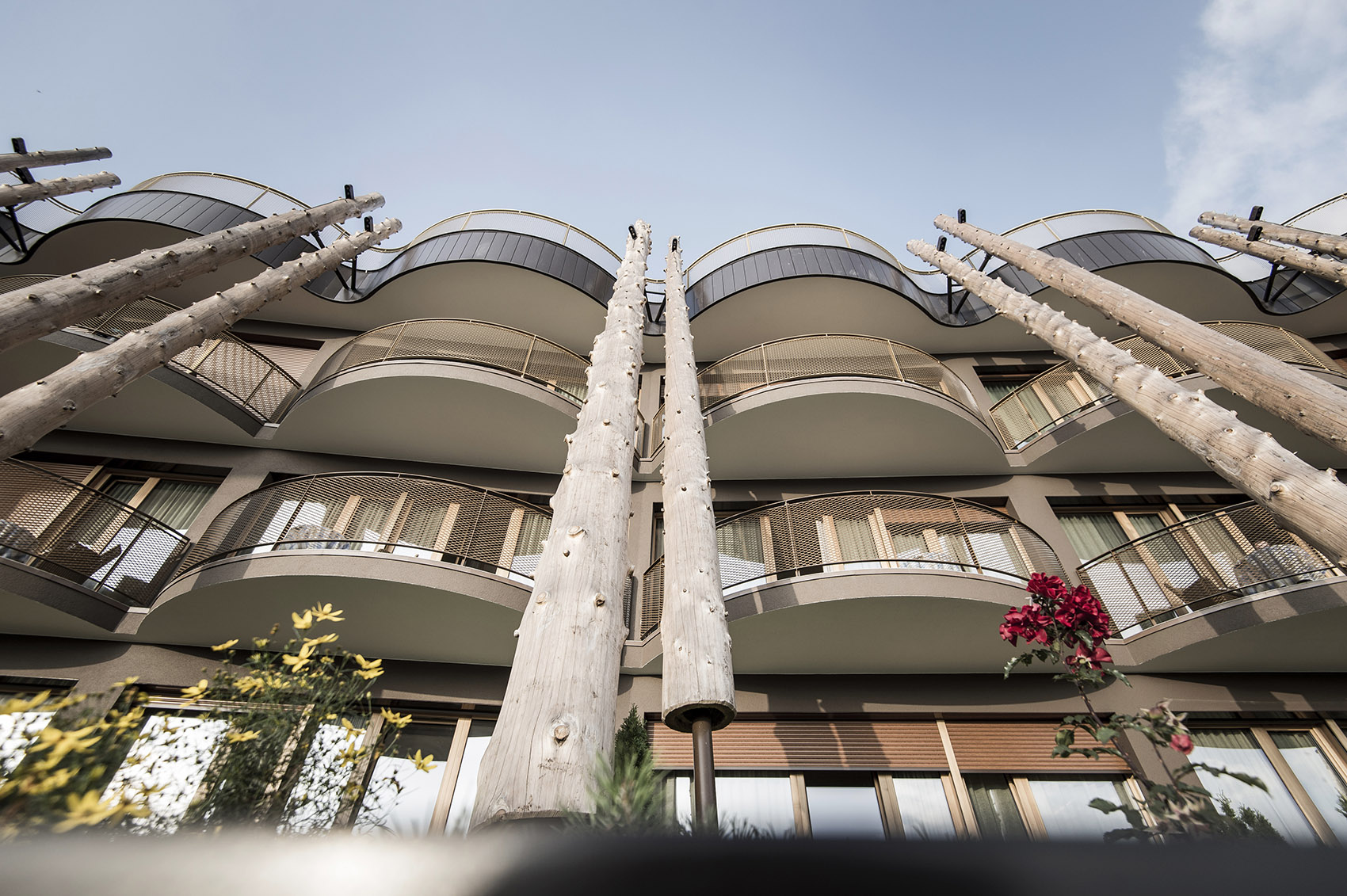

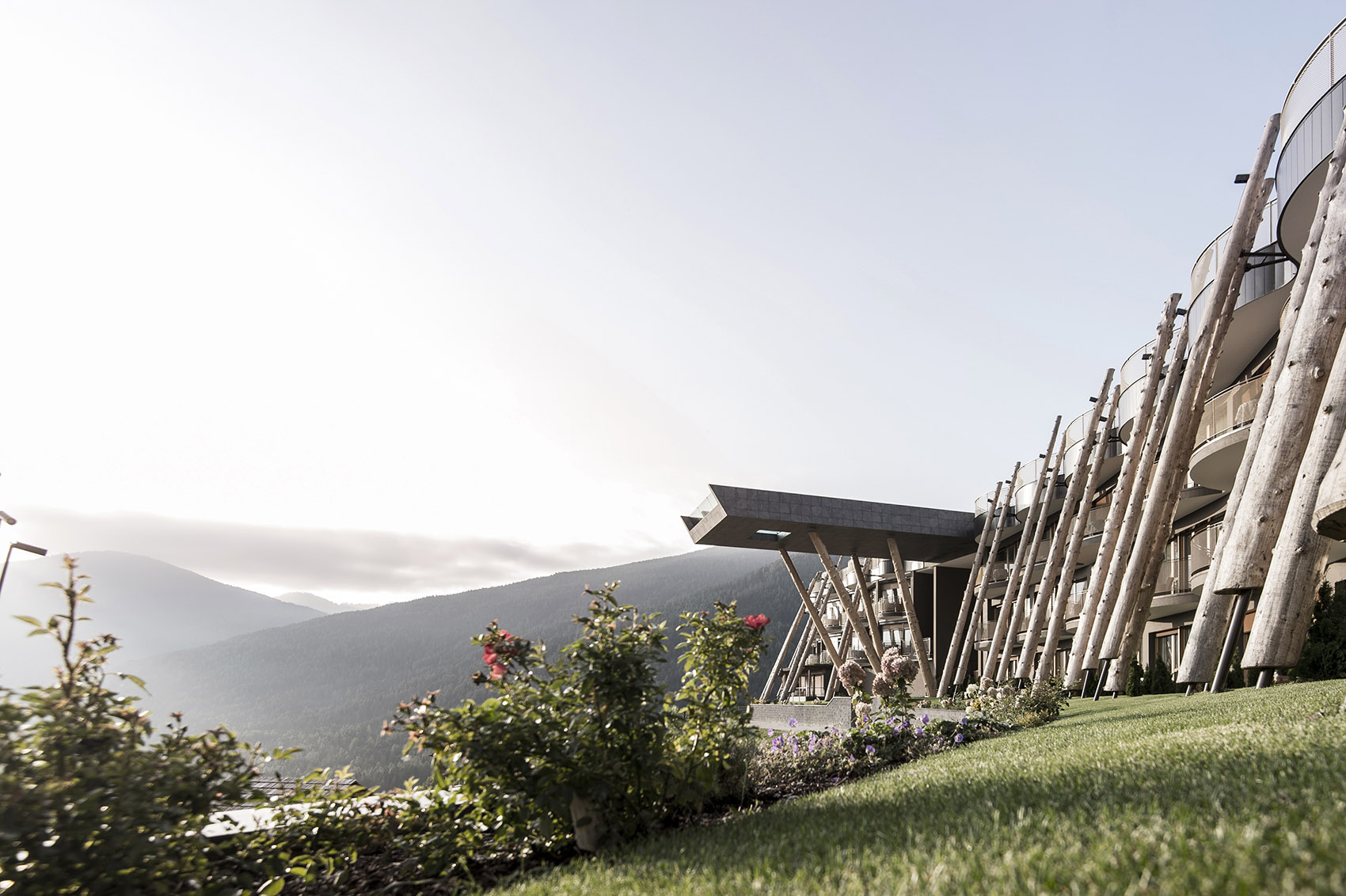

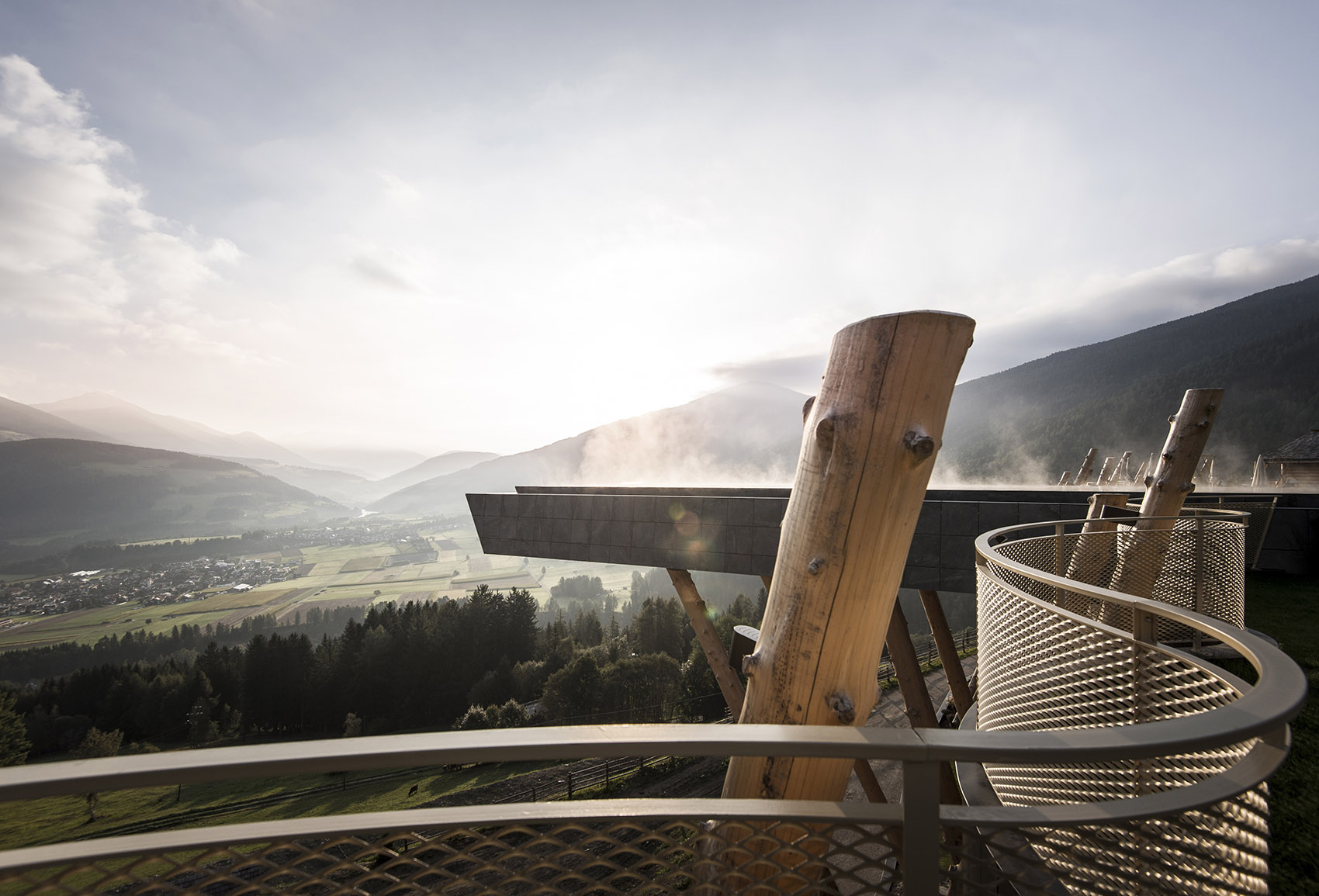

▼脱皮落叶松树干作为新旧建筑多功能立面的主要组成元素，成功的保持了建筑之间的美学联系，The debarked larch trunks, which were used as multifunctional façade elements for the existing and new building, succeed in creating this aesthetical connection.

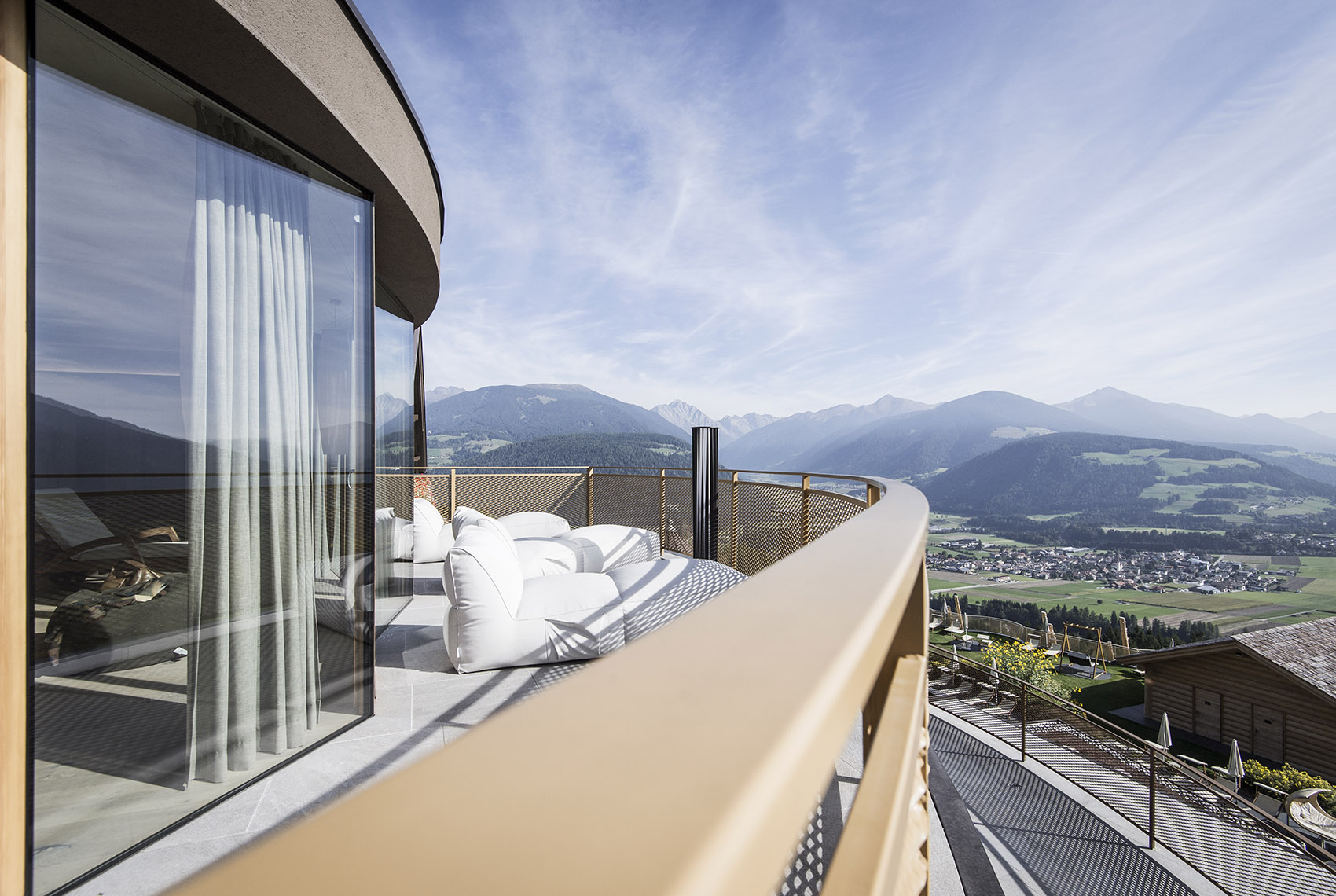

穿孔粉末涂层金属栏杆代替了木质老旧的栏杆并且以流畅的方式固定。大地色的色调和其孔洞在加强了私密性的同时也保留了视线交流的可能性。这种配色方案运用于整个立面上，使建筑外围护建筑均质统一。温暖，灰棕的大地色调也来源于周边景观的自然配色。副楼内的新房间采用了玻璃立面，东面的阳台以获得更好的自然光照射。曲线阳台也遵循了流线顺畅的主题，使建筑成为一个完整的整体。新的建筑紧密联系了景观与周边环境。

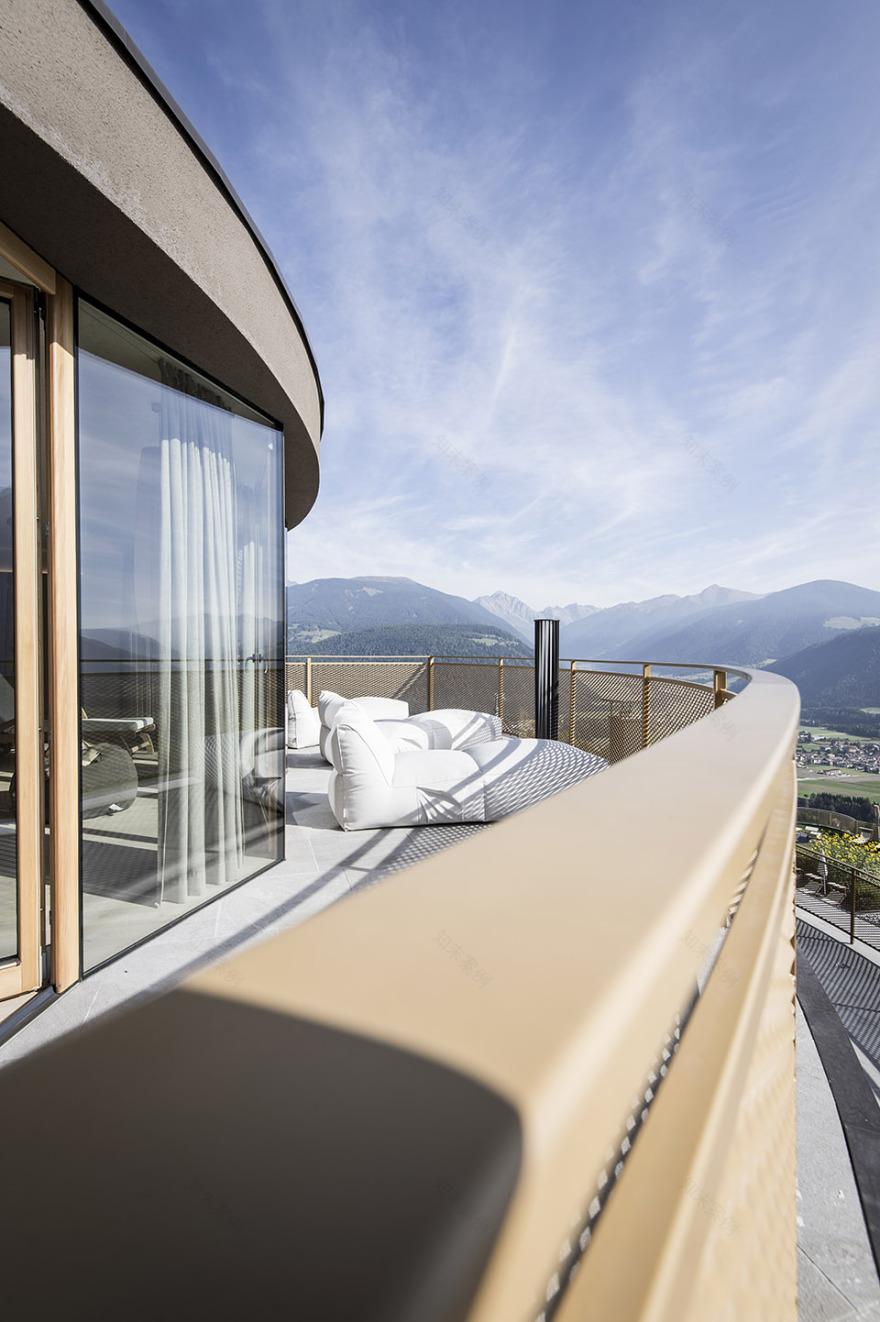

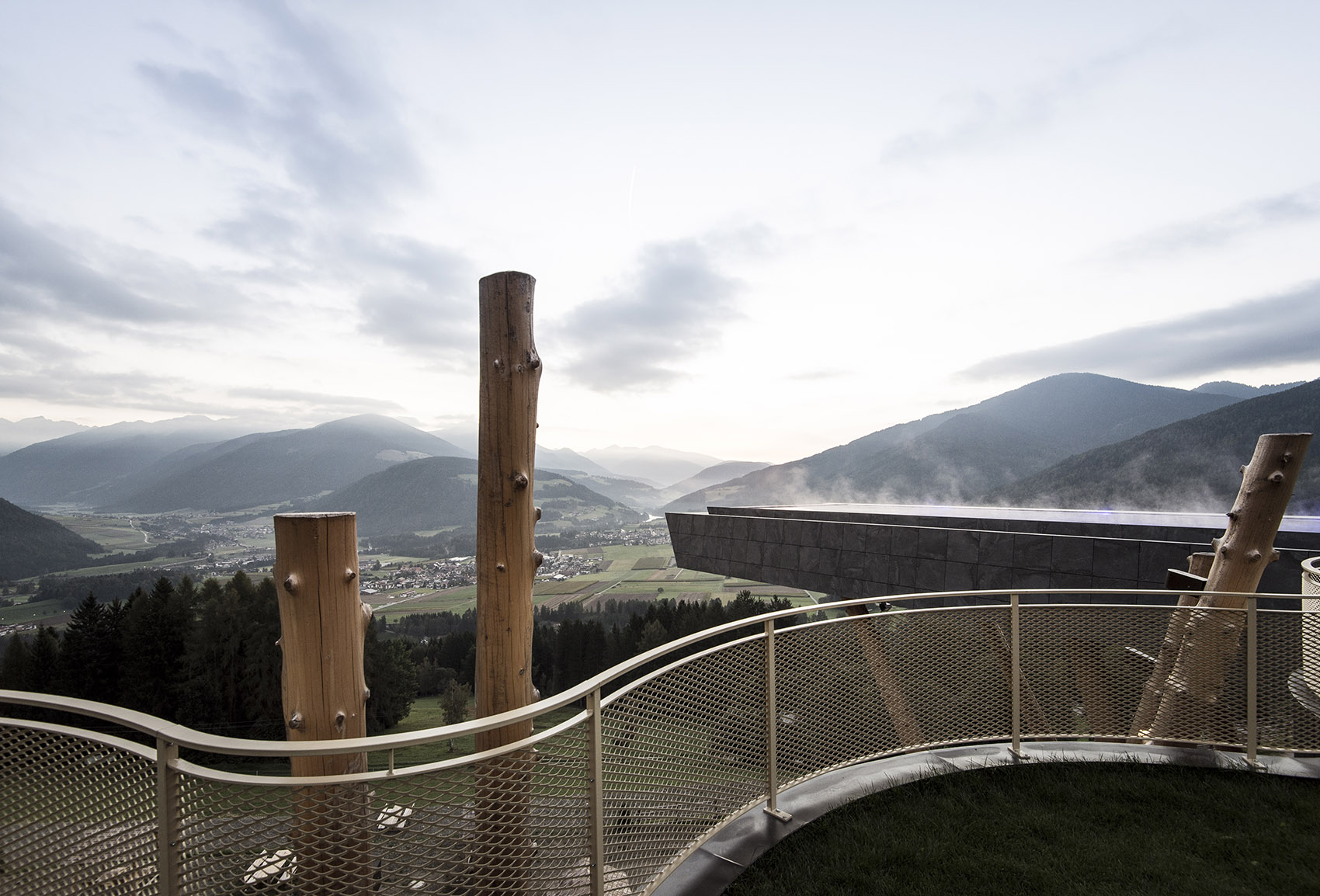

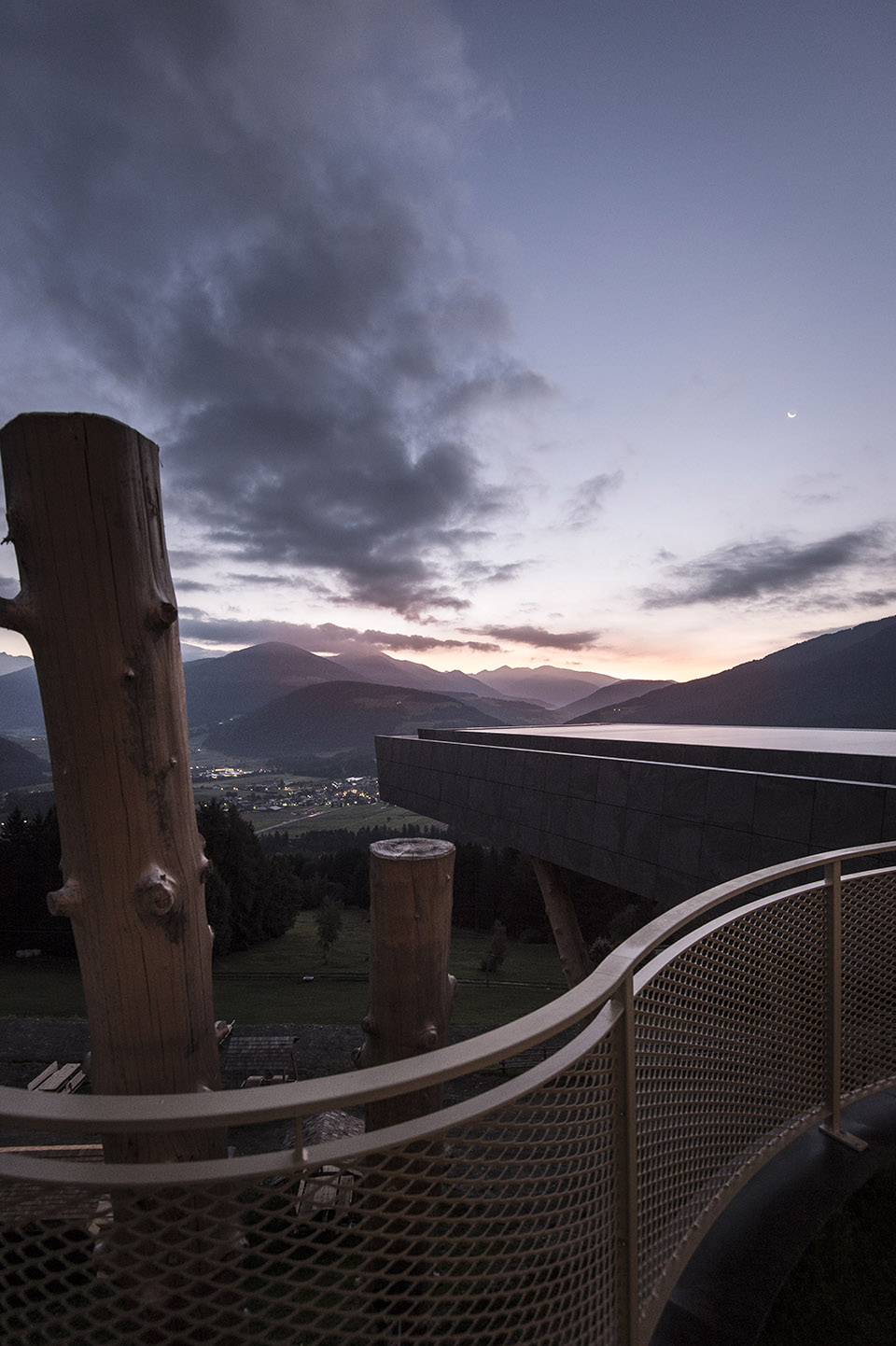

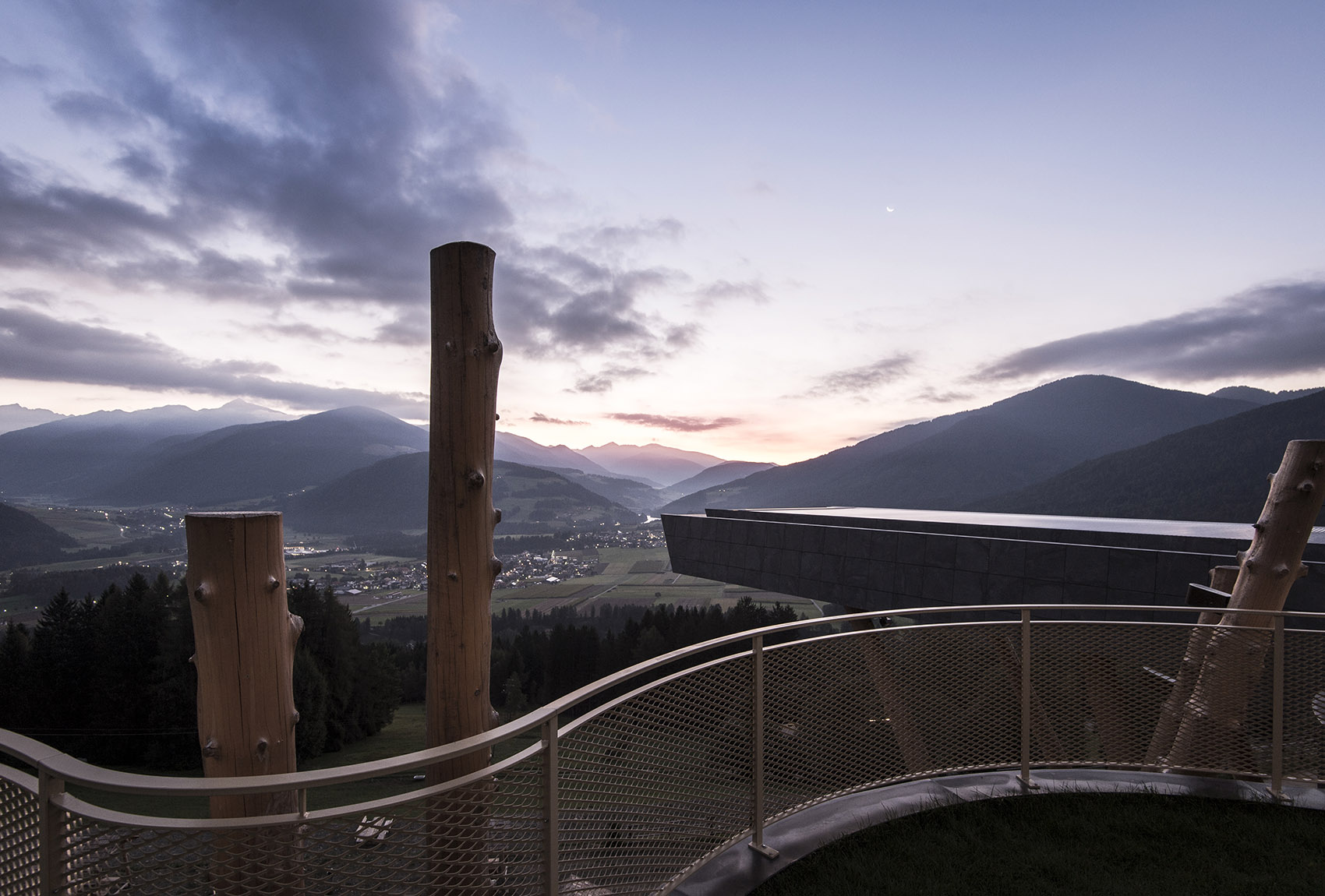

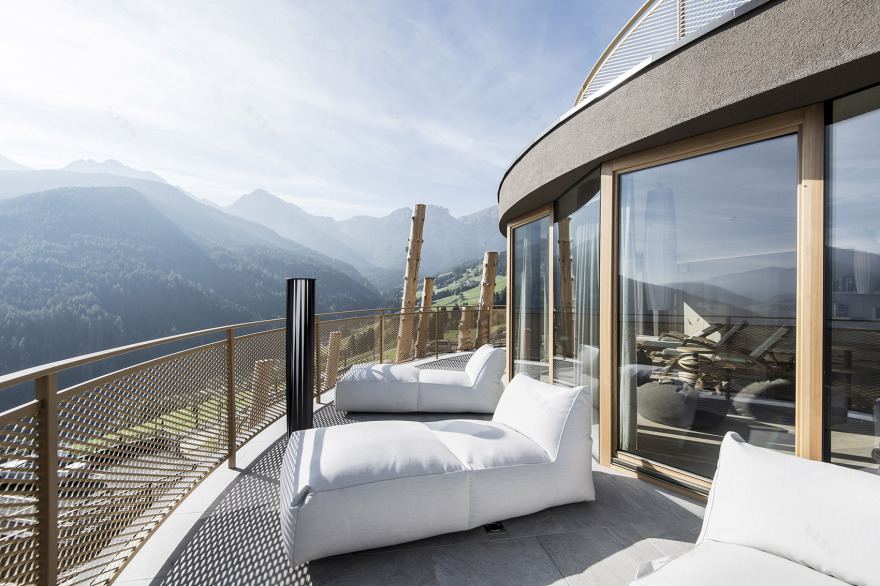

▼穿孔粉末涂层金属栏杆代替了木质老旧的栏杆，Thew new perforated, powder-coated metal balustrades replace the old wooden ones and are fixed in a fluit curvy manner.

▼温暖，灰棕的大地色调也来源于周边景观的自然配色，Through the use of a warm, gray brown earth tone, derived from the colour palette of the surrounding landscape.

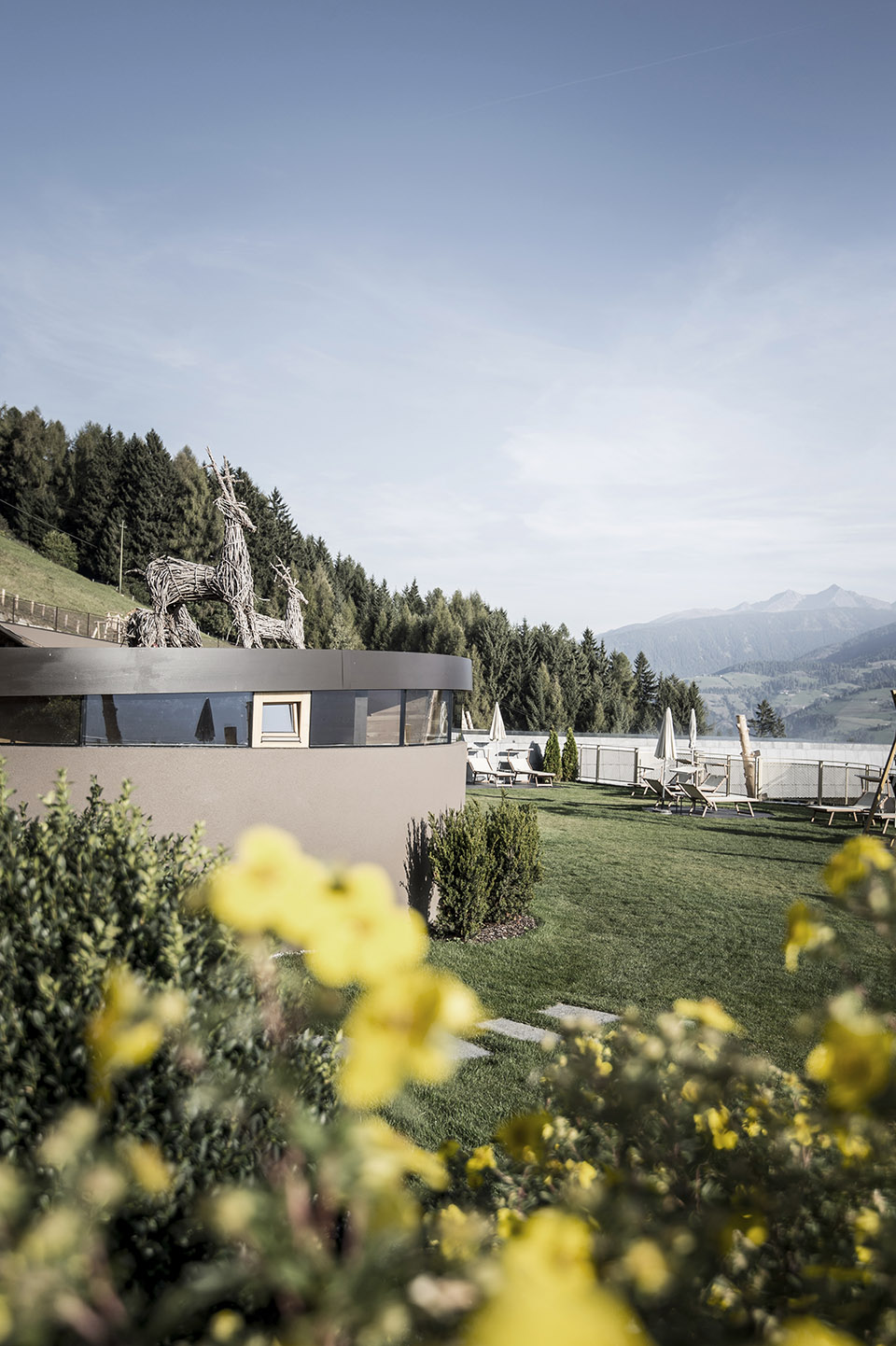

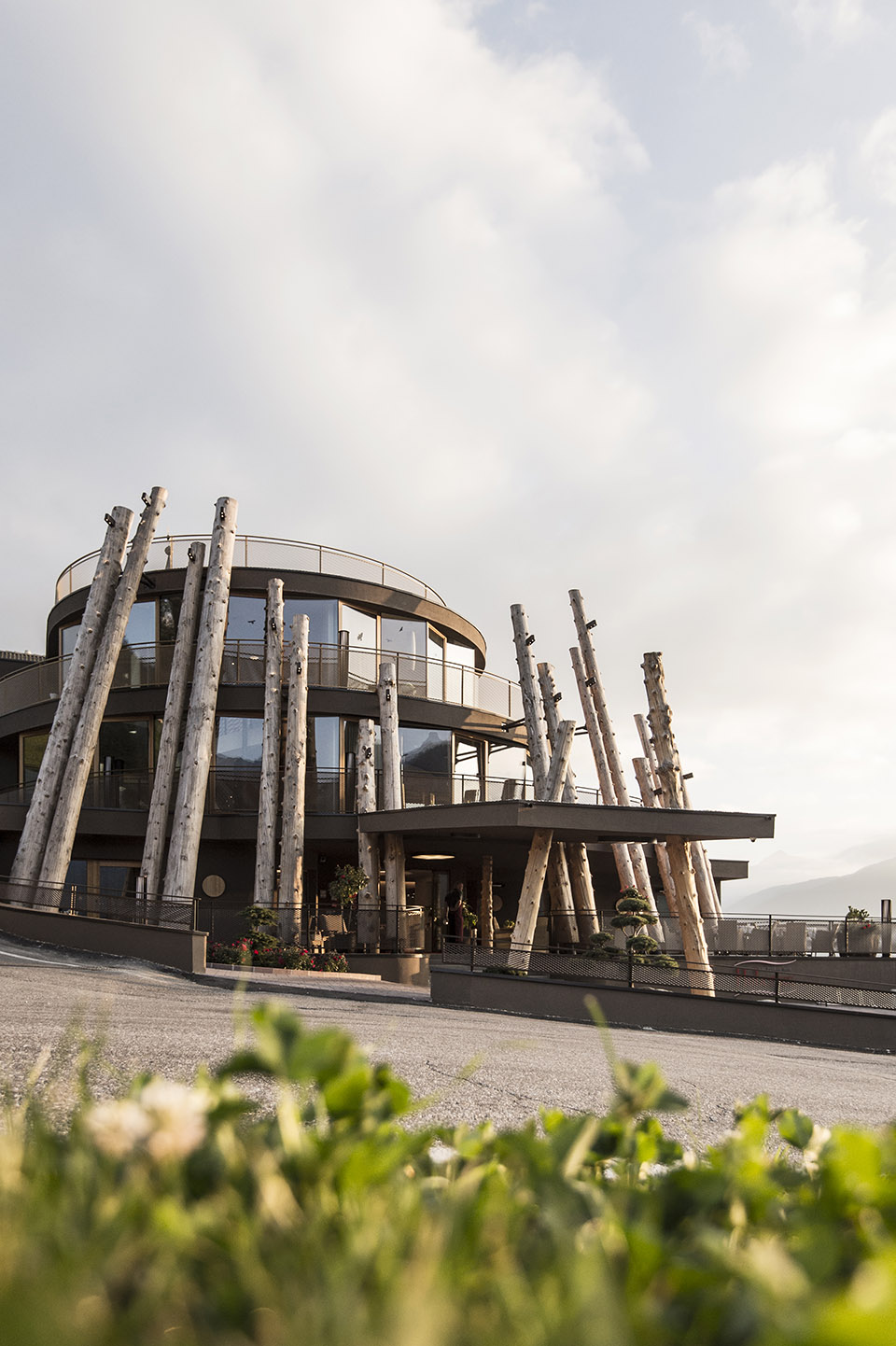

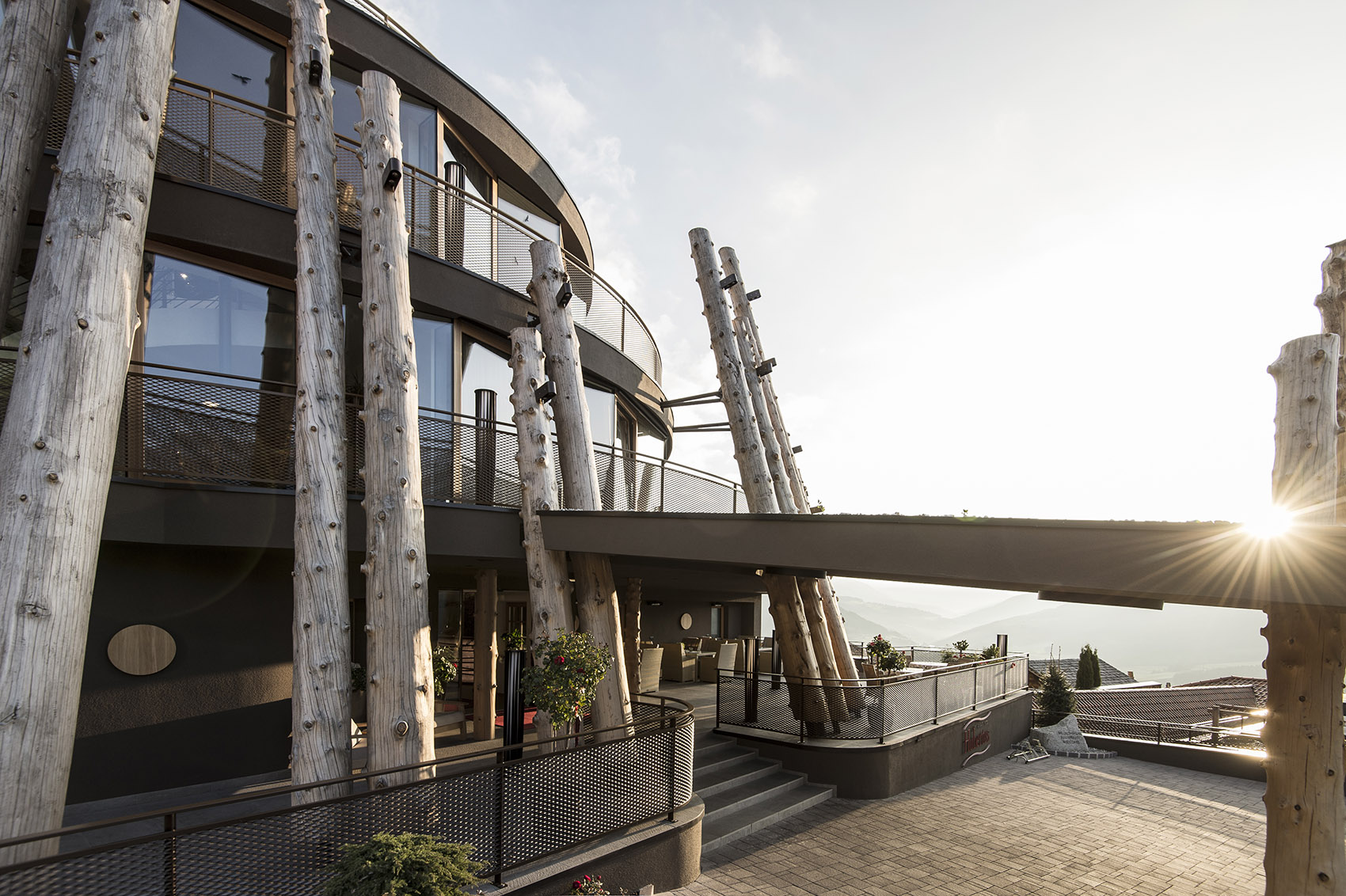

落叶松树干组成的立面在新的入口区域得以延续，其设计使圆形大厅的采光量最佳。曲线的地貌在影响了建筑外观设计的同时也影响了建筑内部的设计。消除了建筑内外，冷暖，新旧的界限。原有的花园位于地下层，新镂空圆形休息室无缝的安拆自爱了原有花园的外部。屋顶的休闲娱乐室的屋顶全部采用玻璃材质，木头梁呈放射状松散的分布在屋顶，这样可以获得更优良的视野。

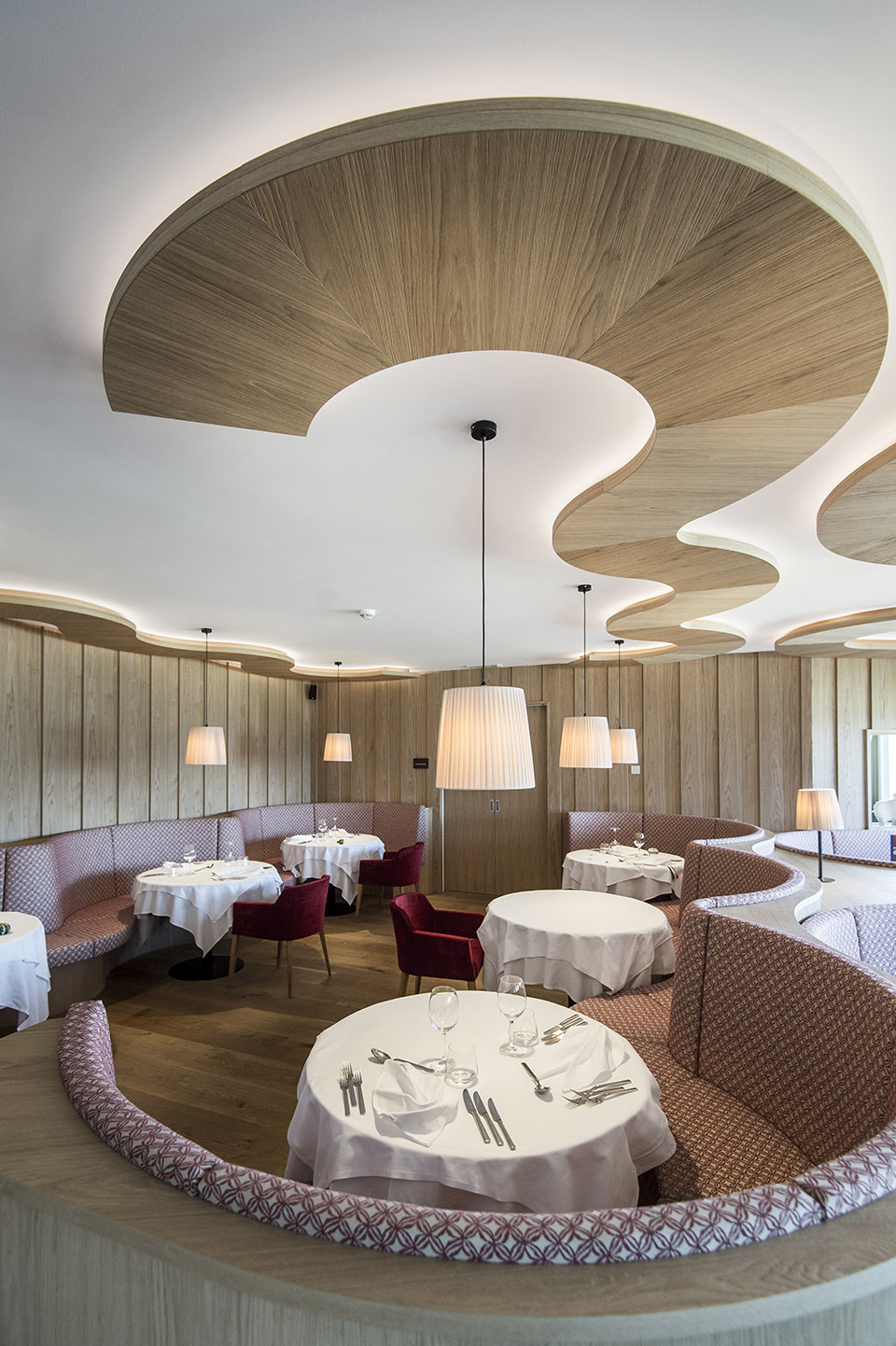

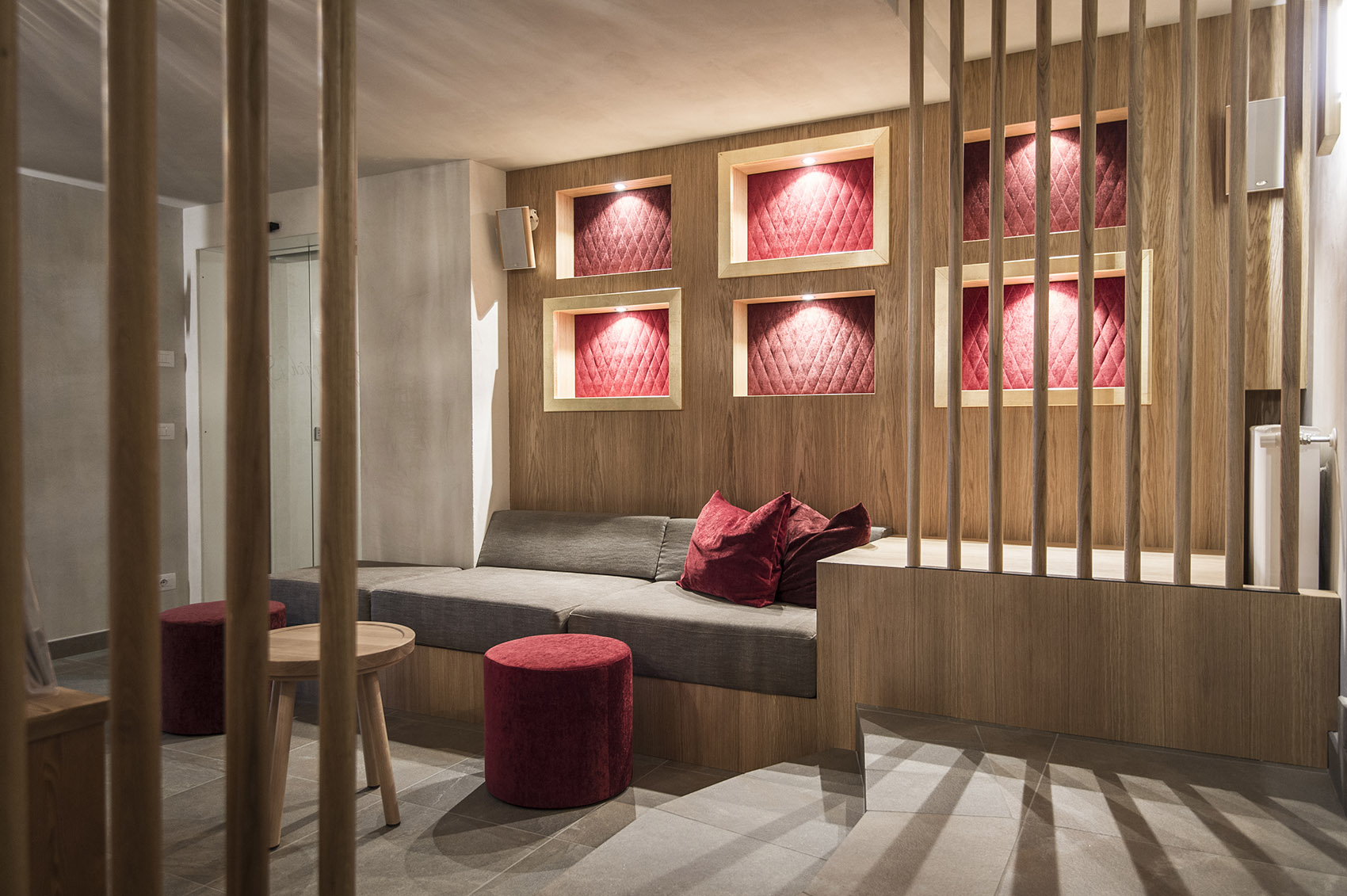

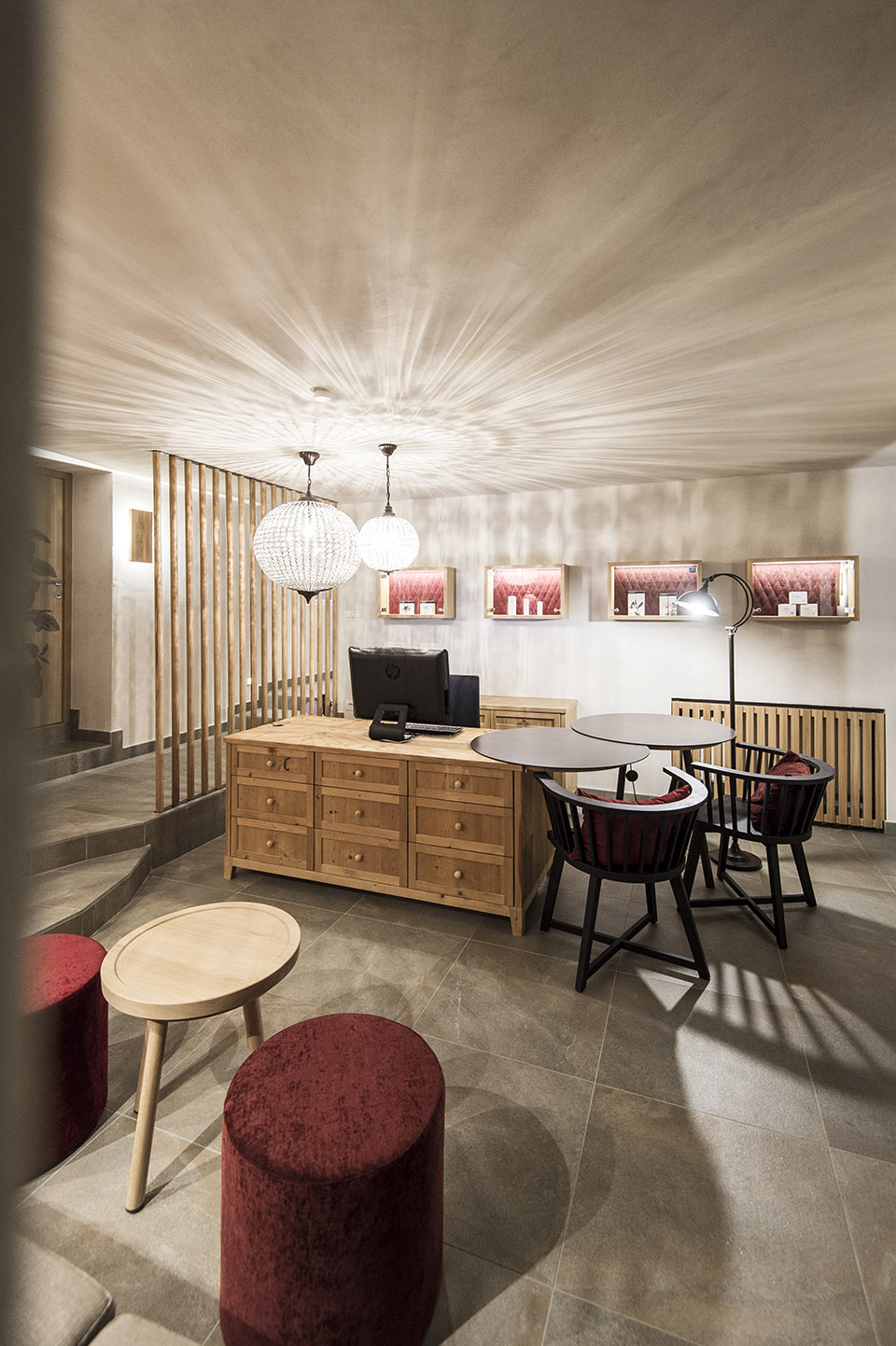

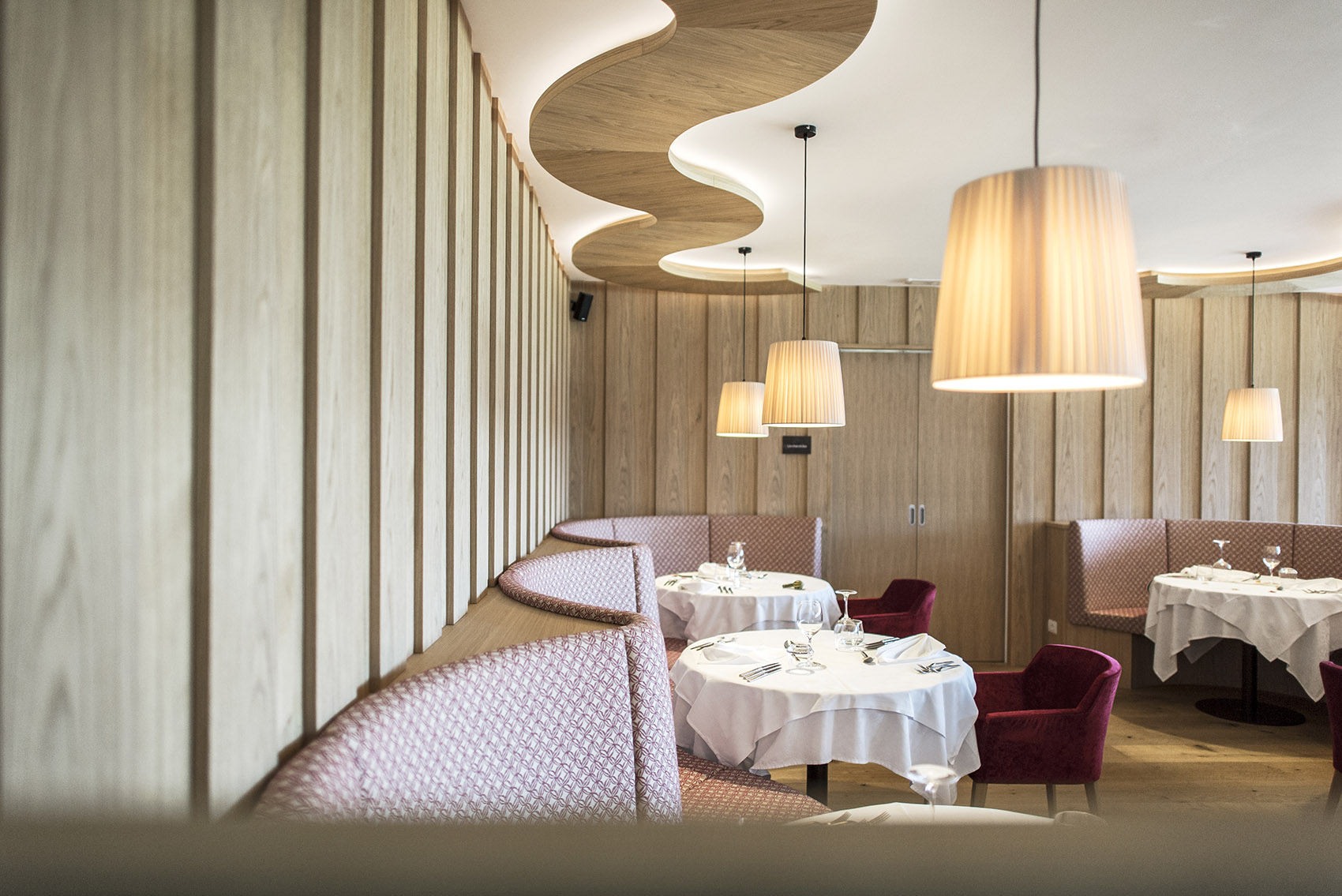

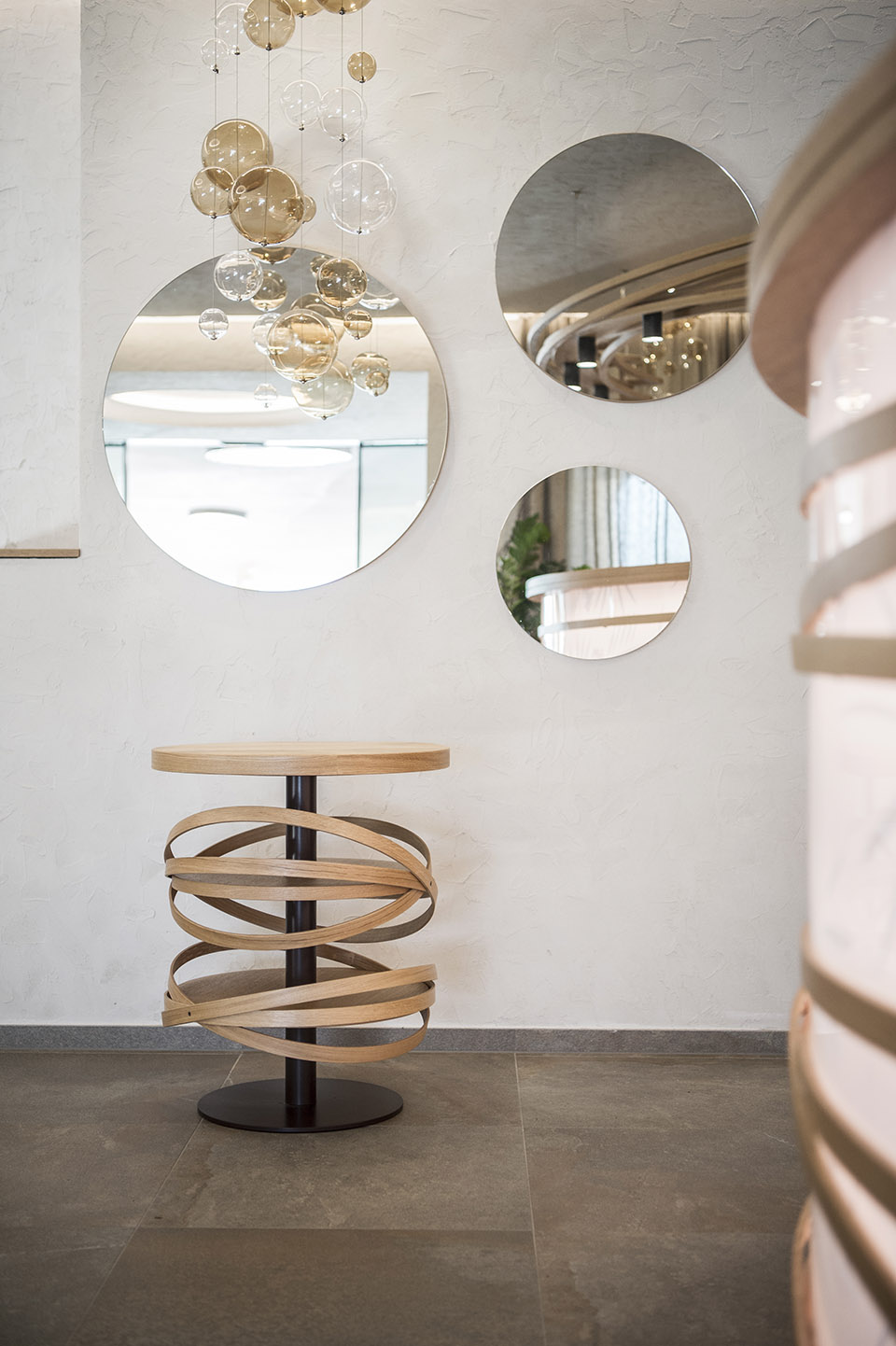

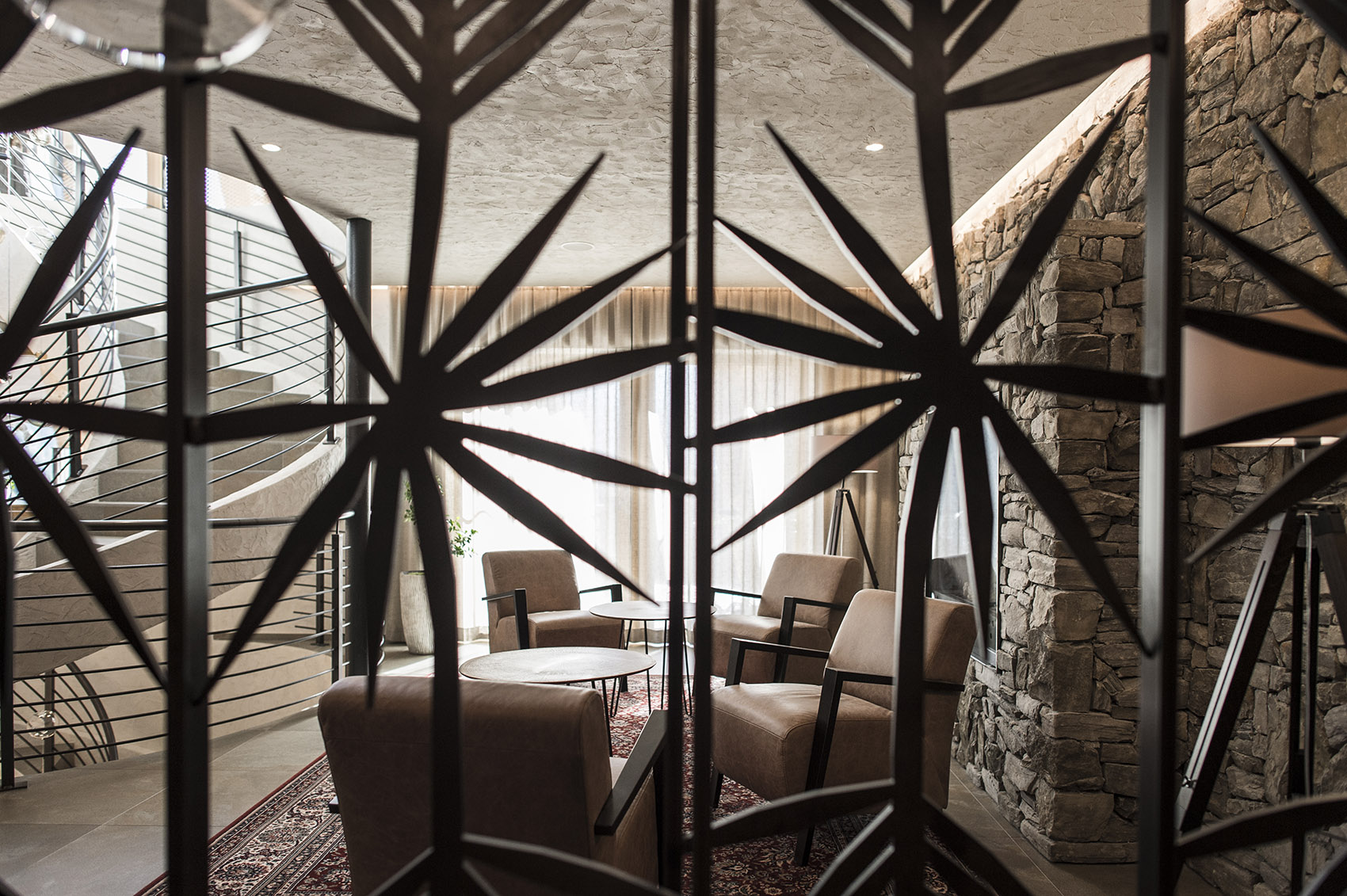

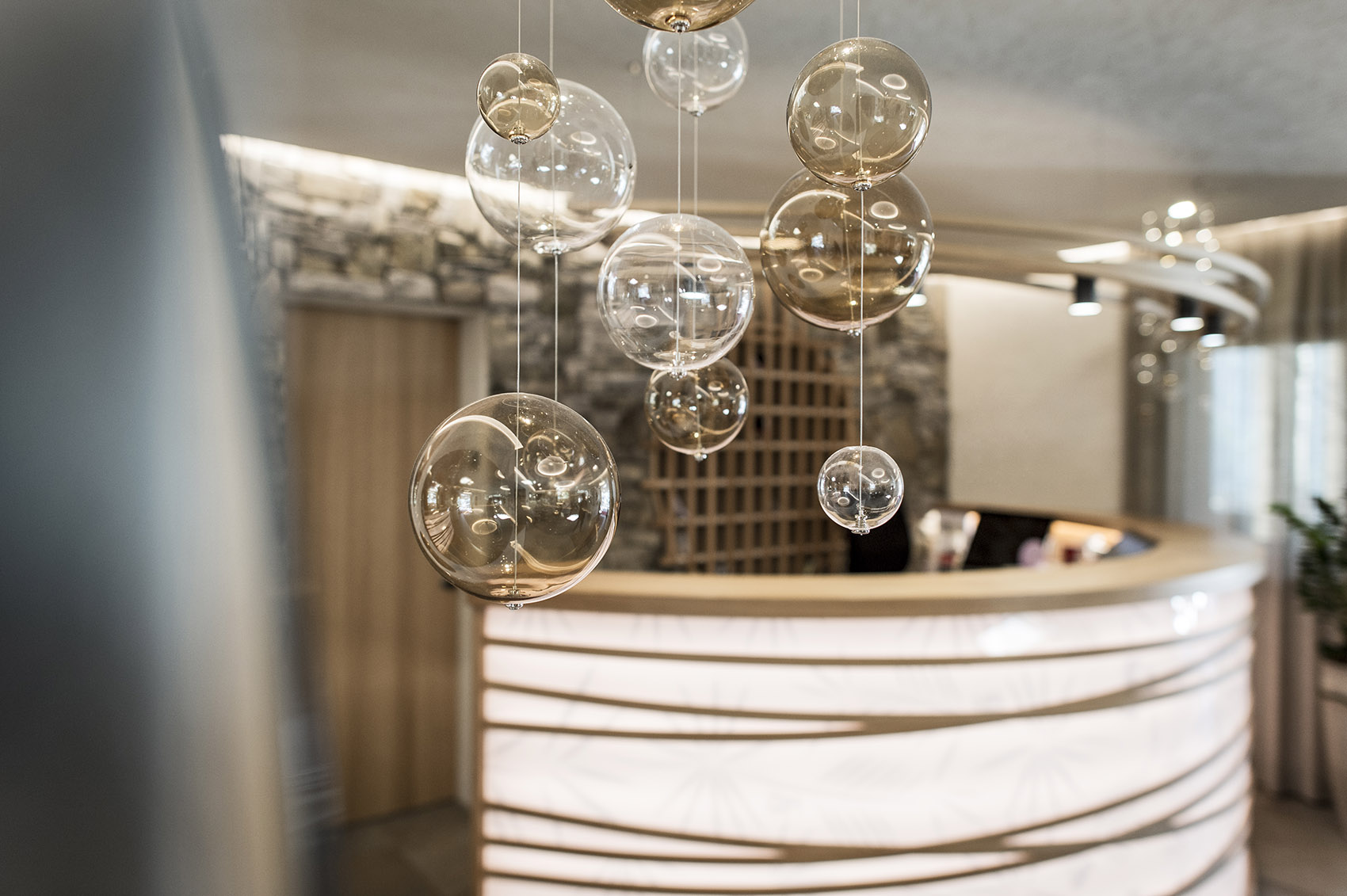

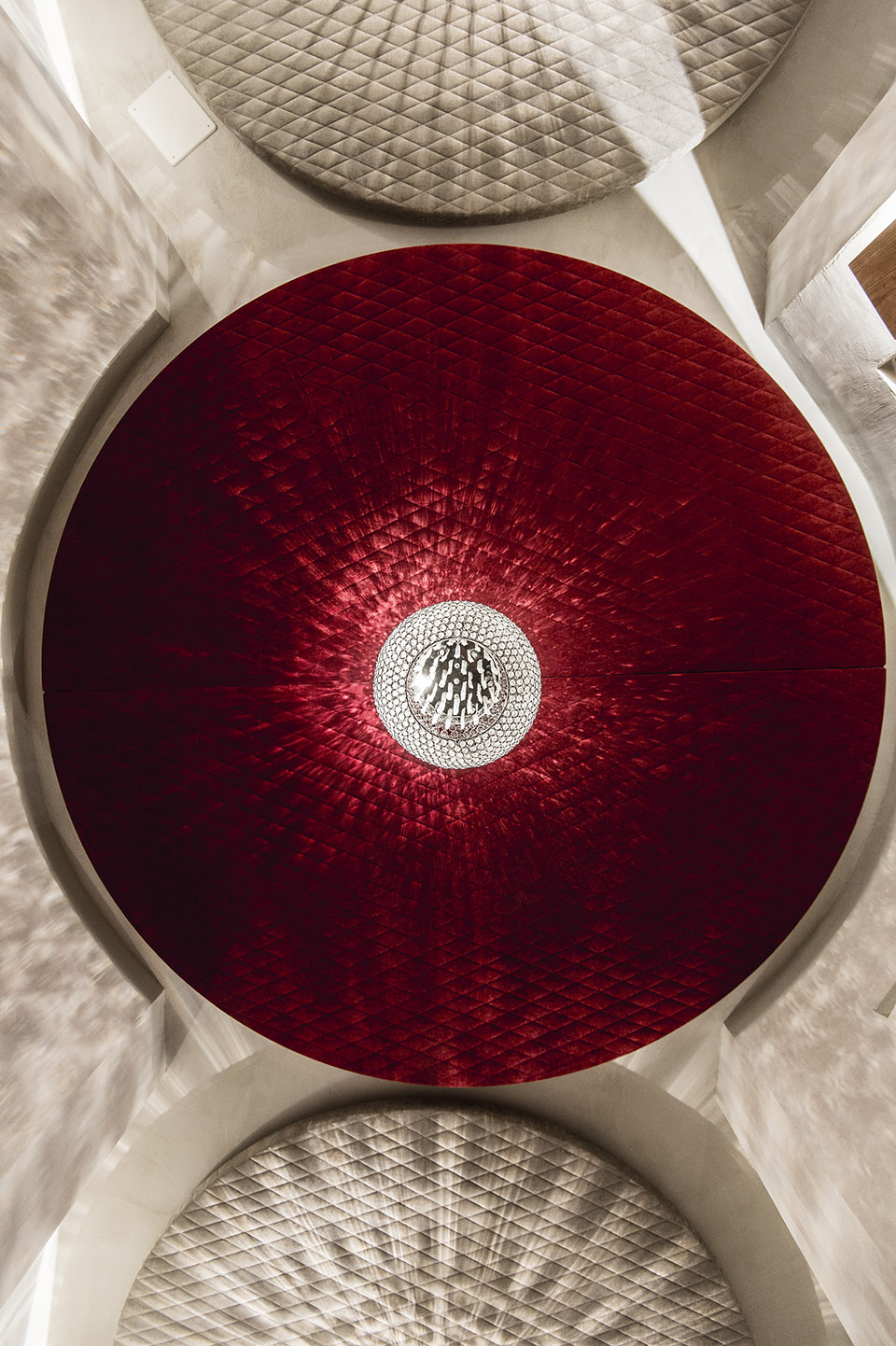

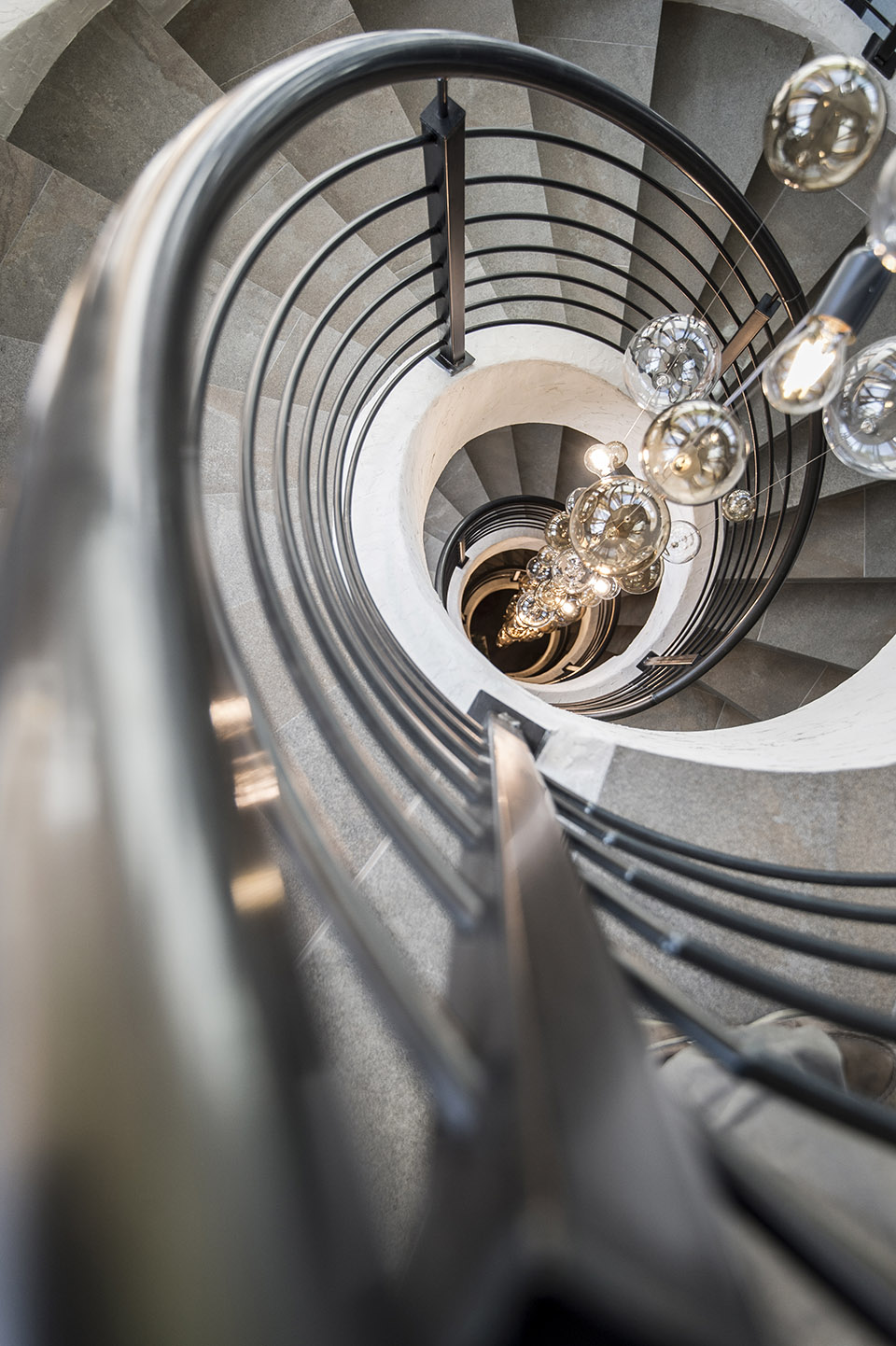

▼公共空间，Public Space

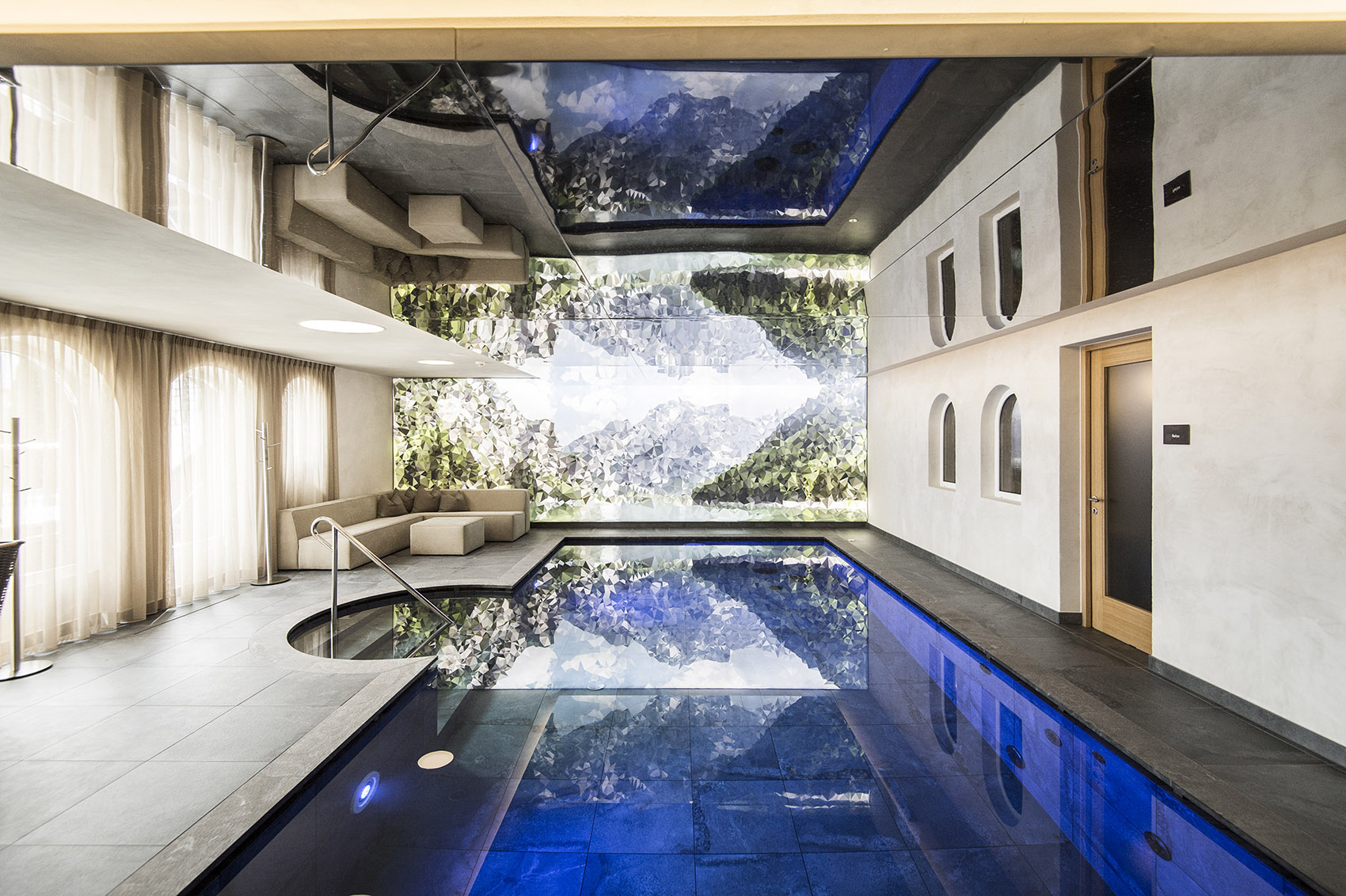

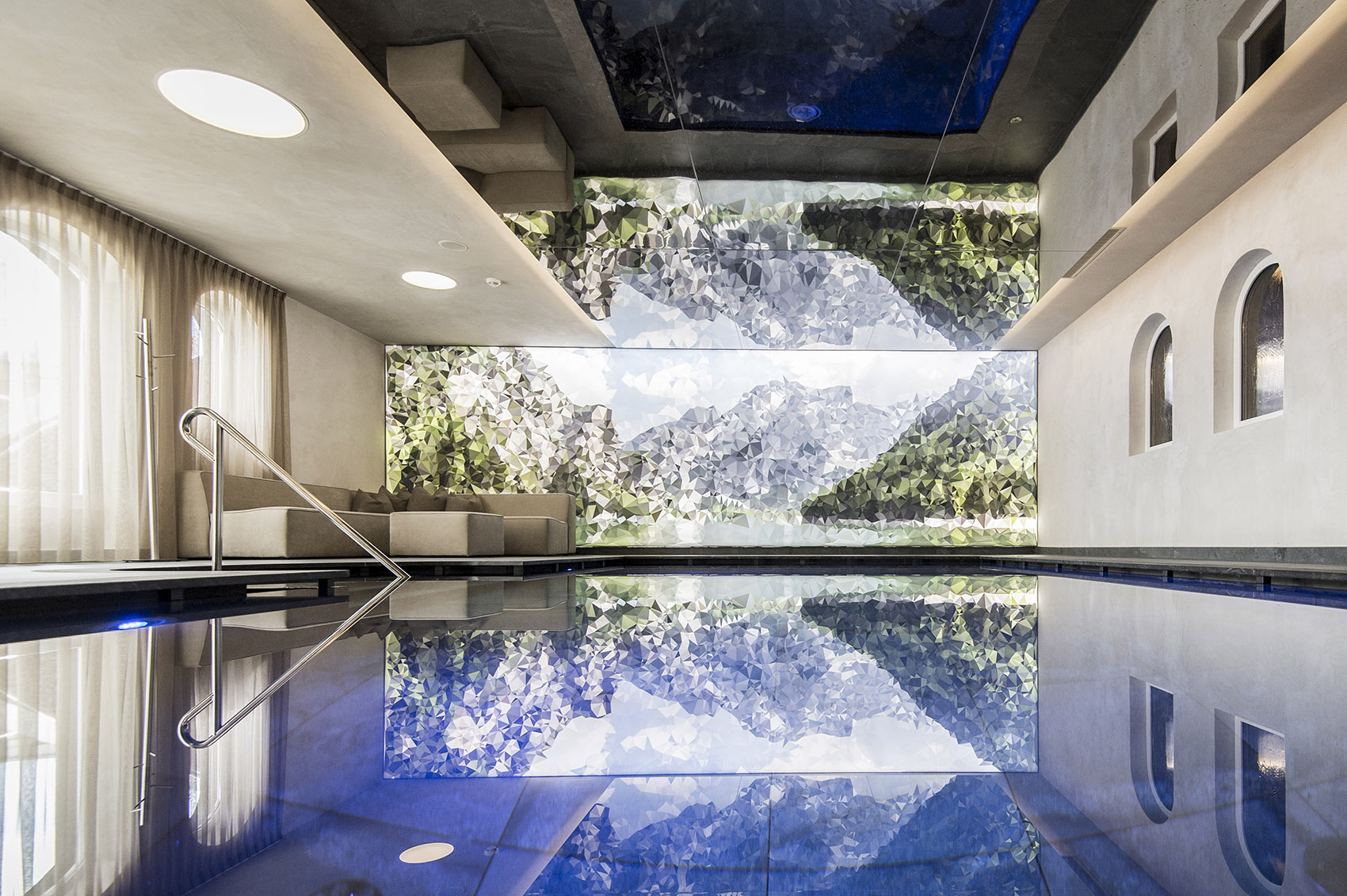

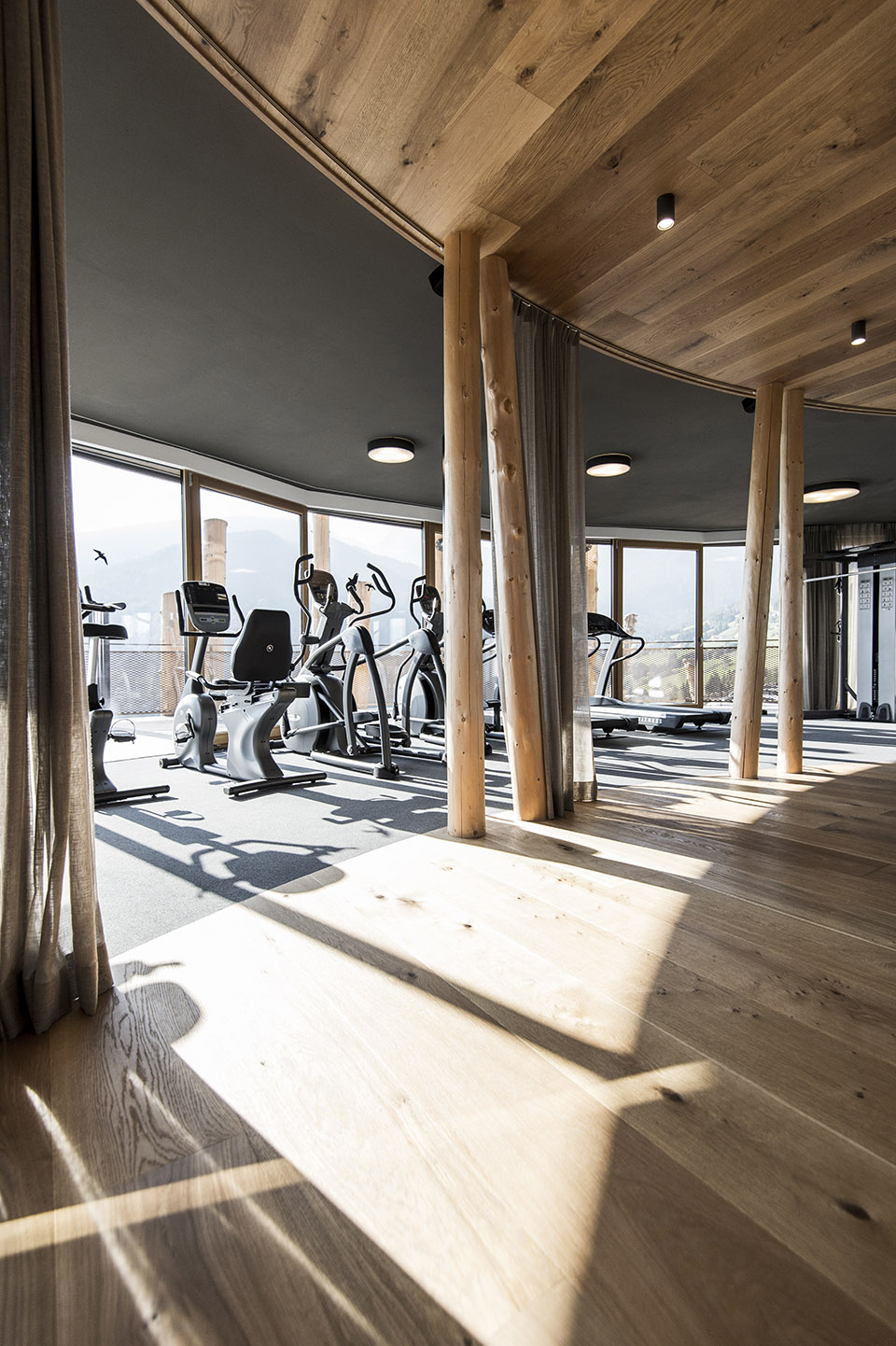

▼健身中心，Fitness center

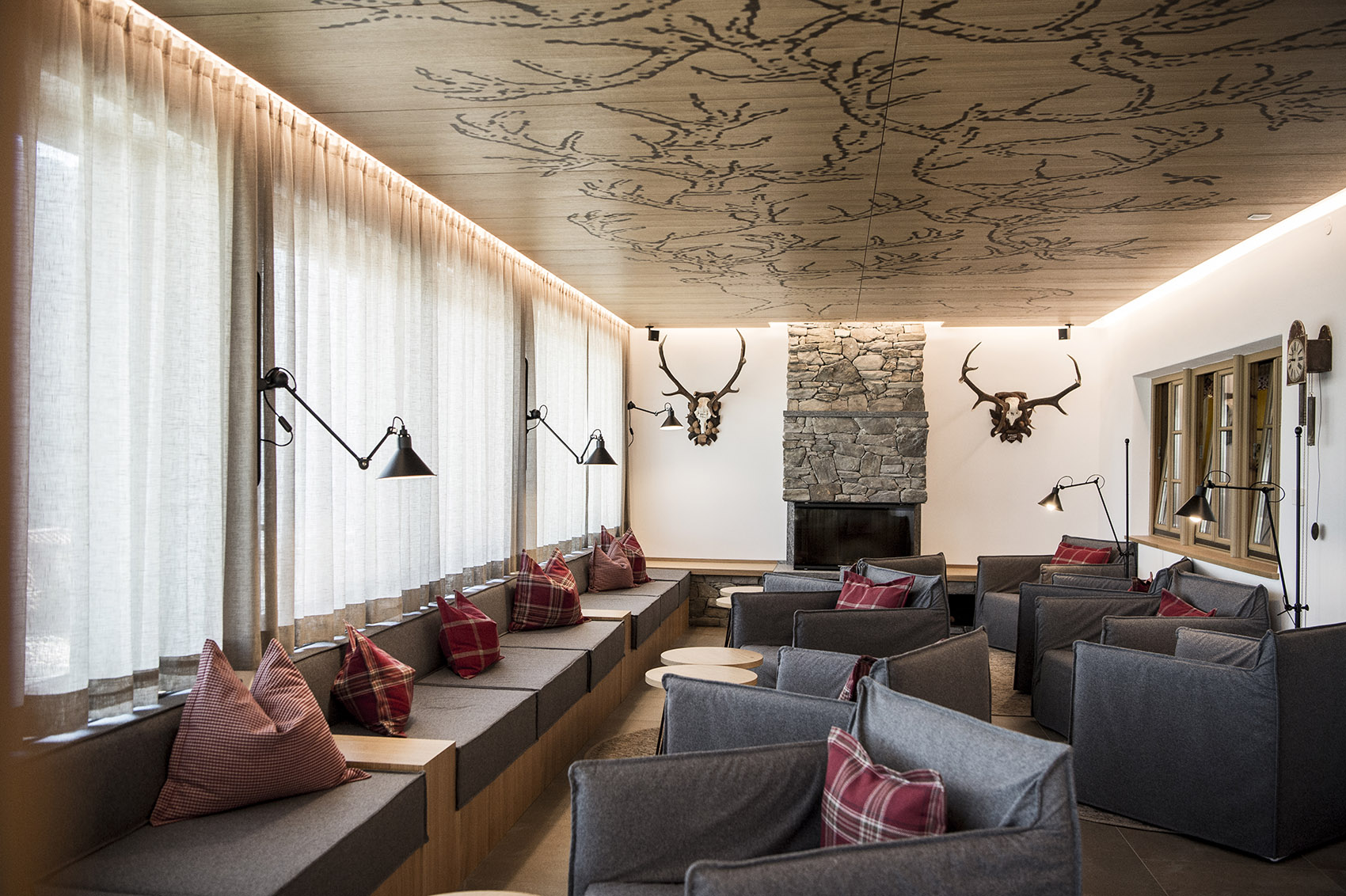

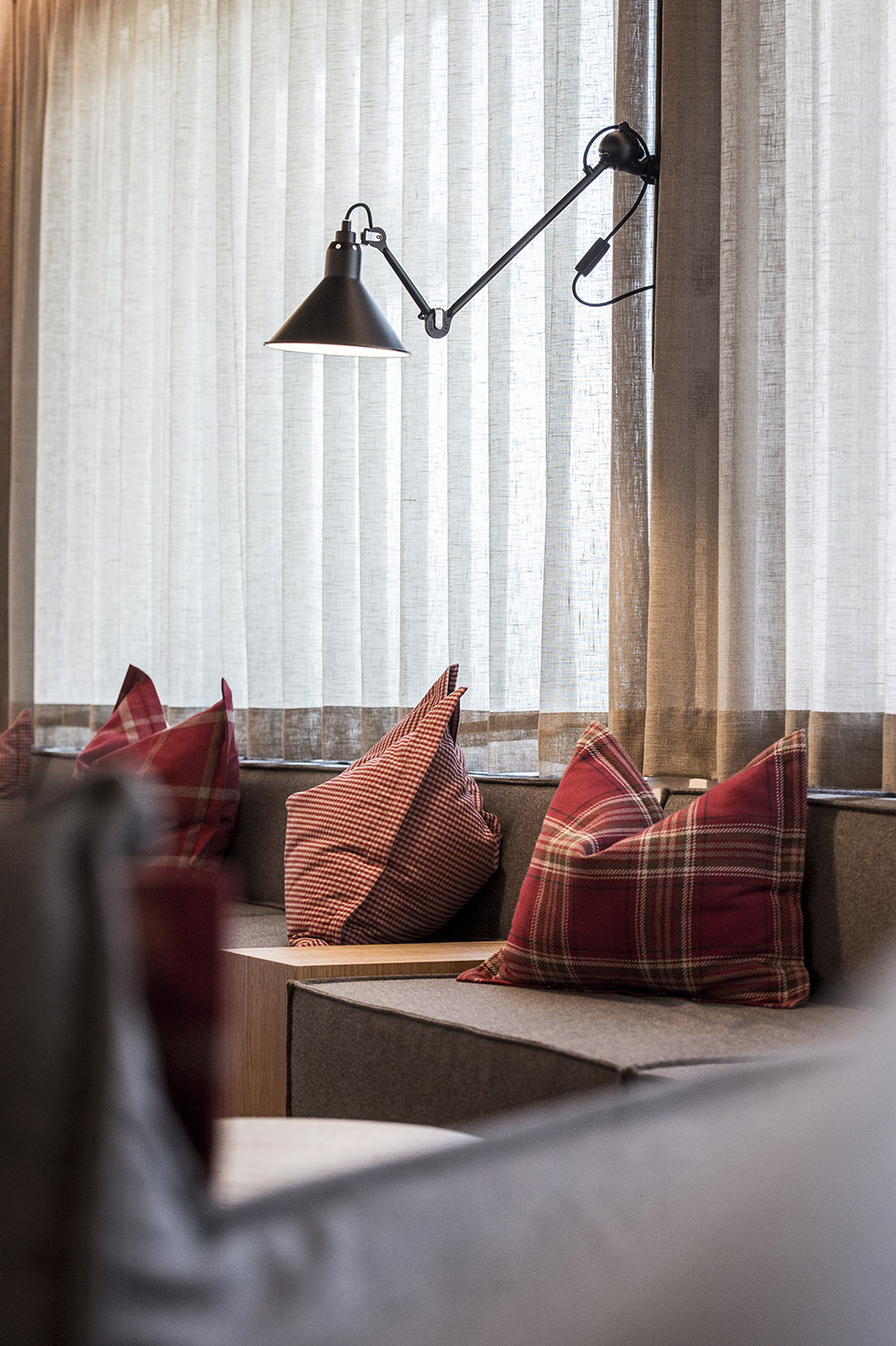

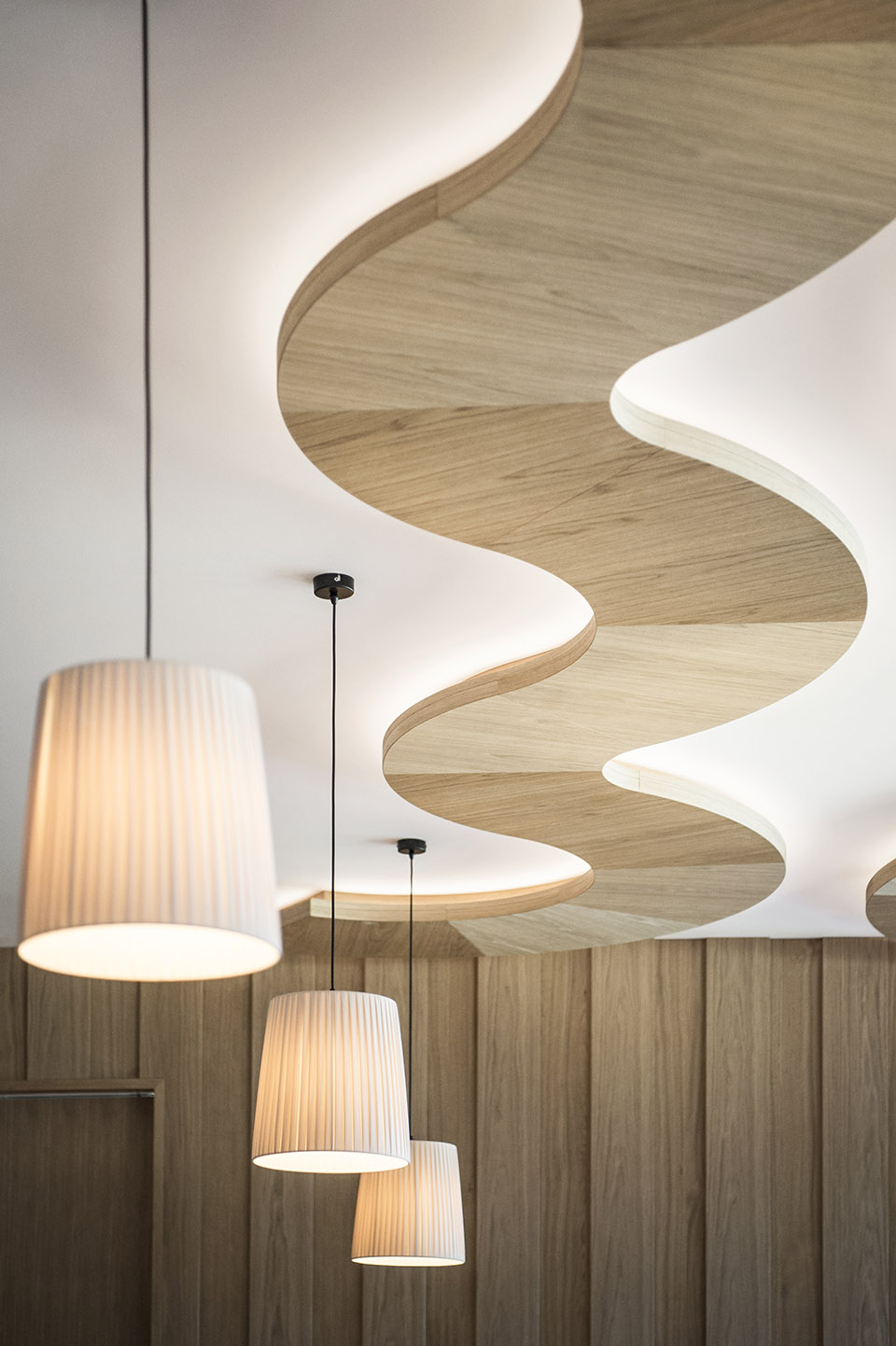

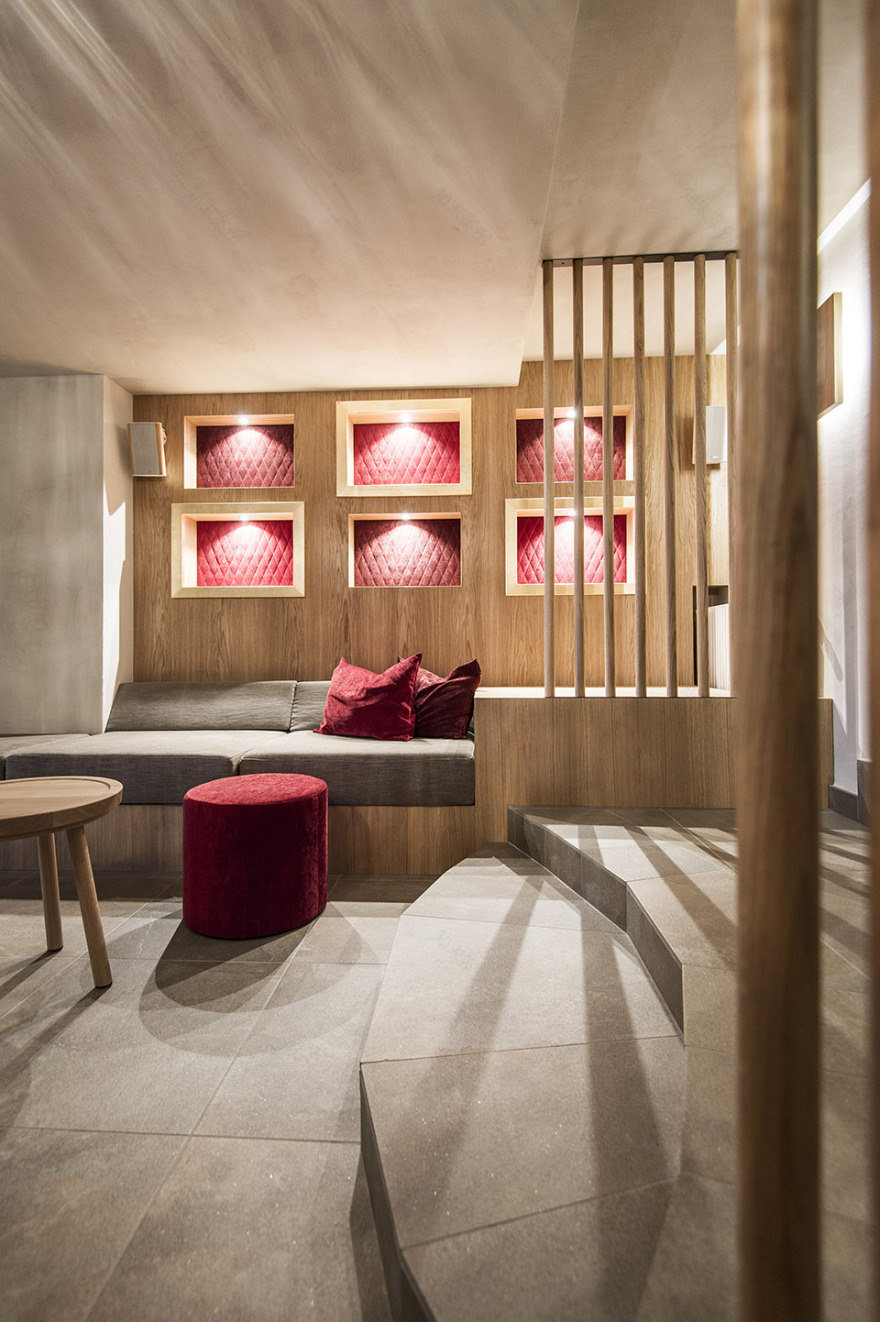

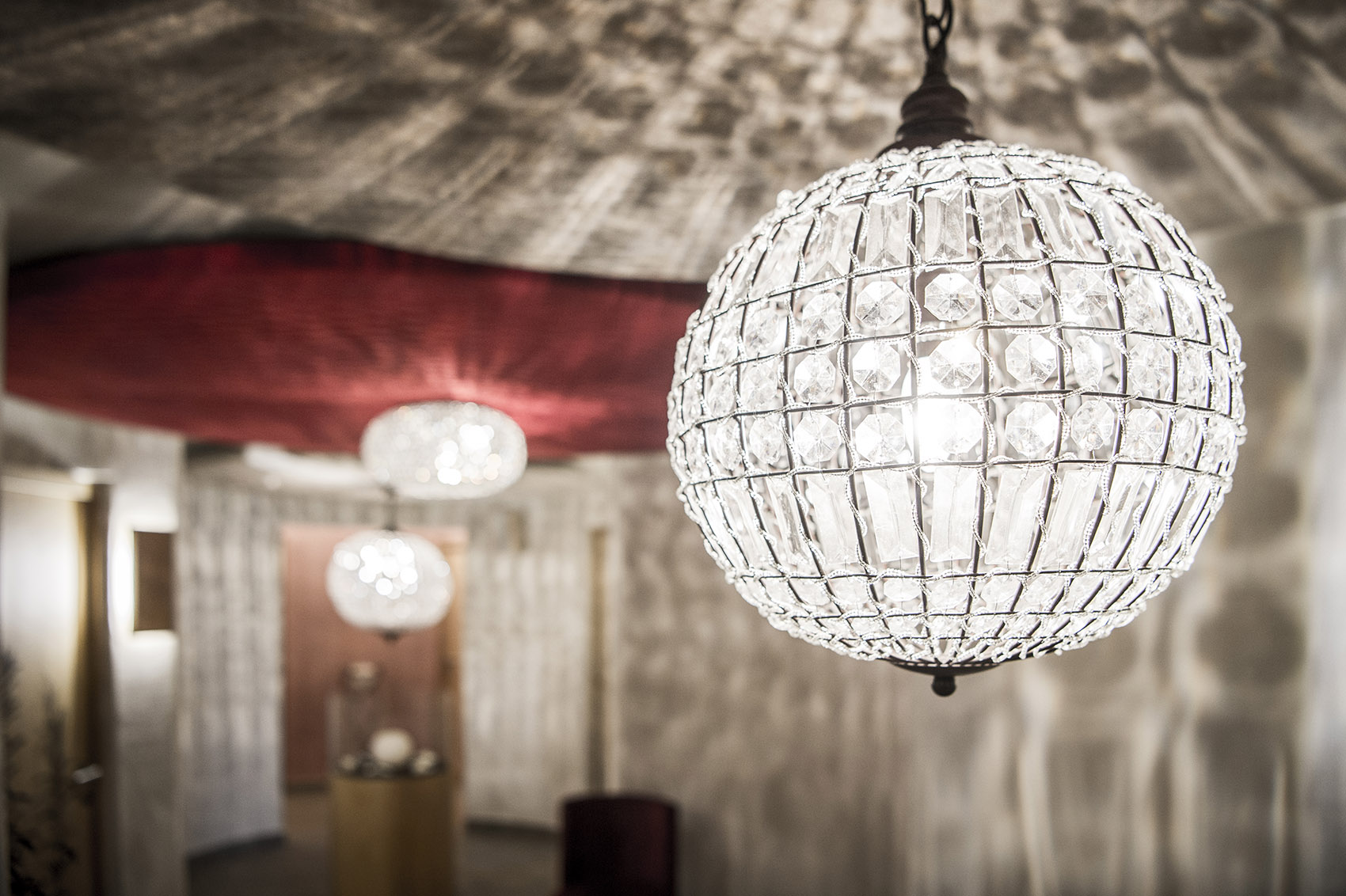

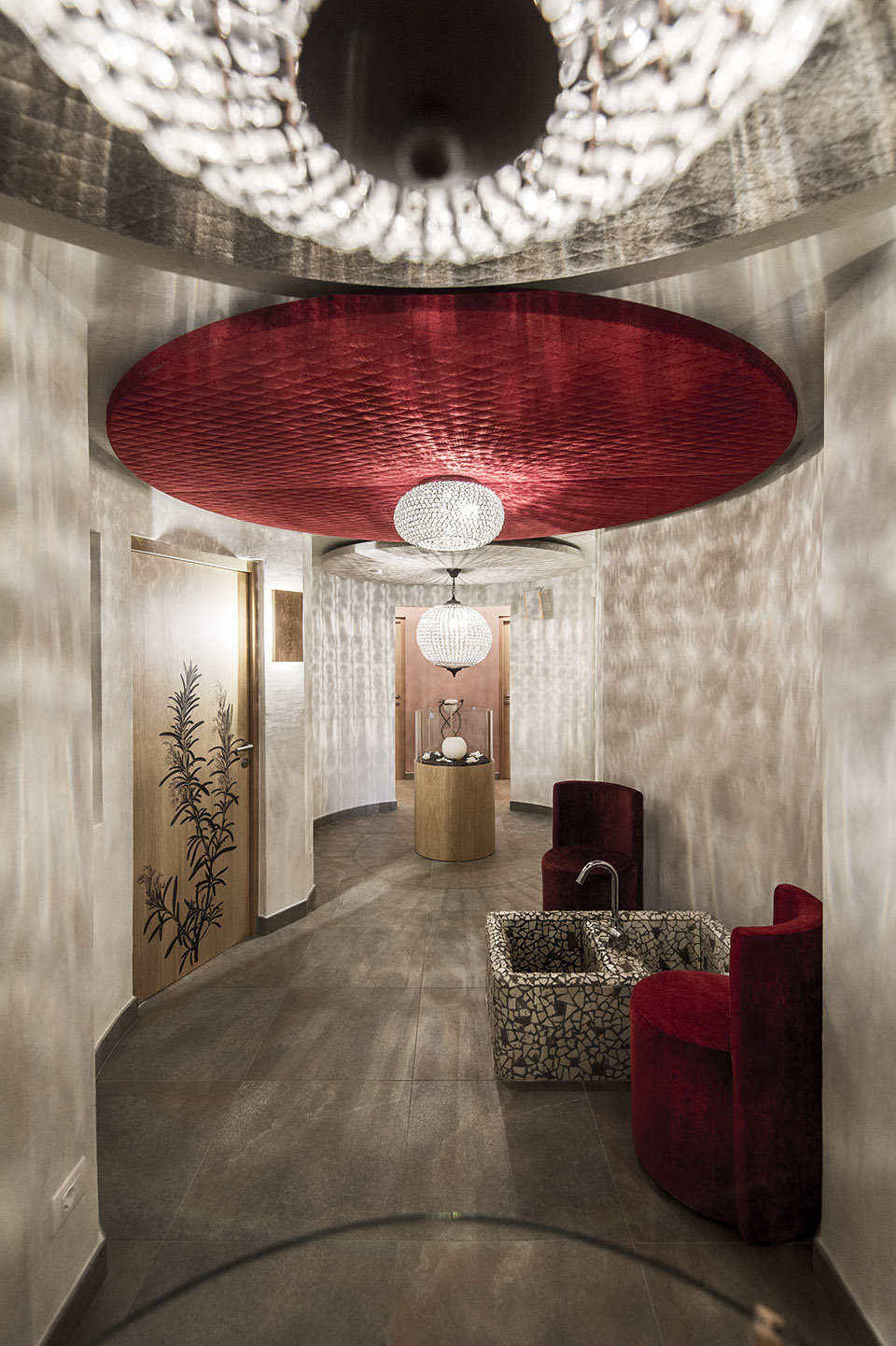

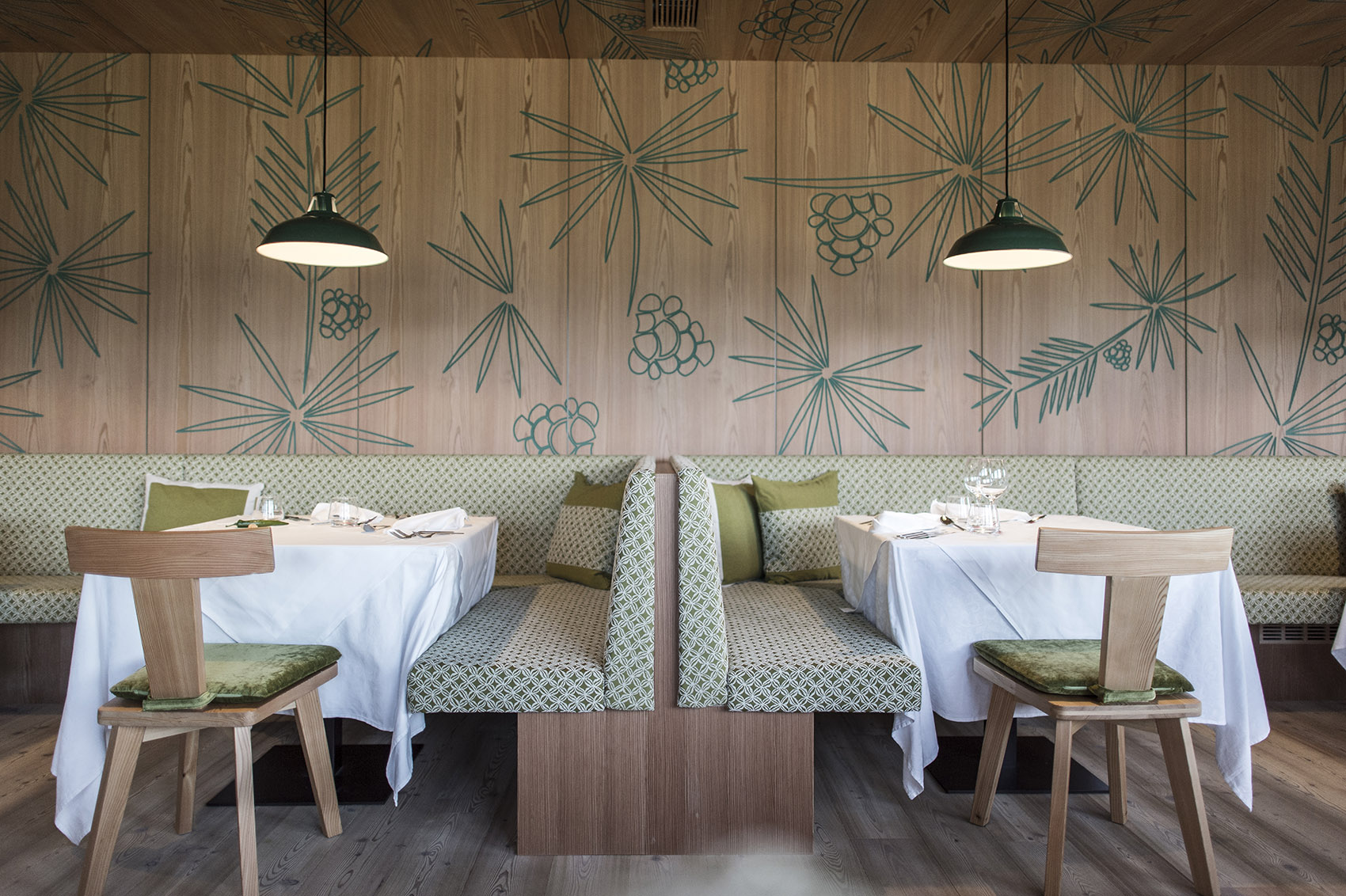

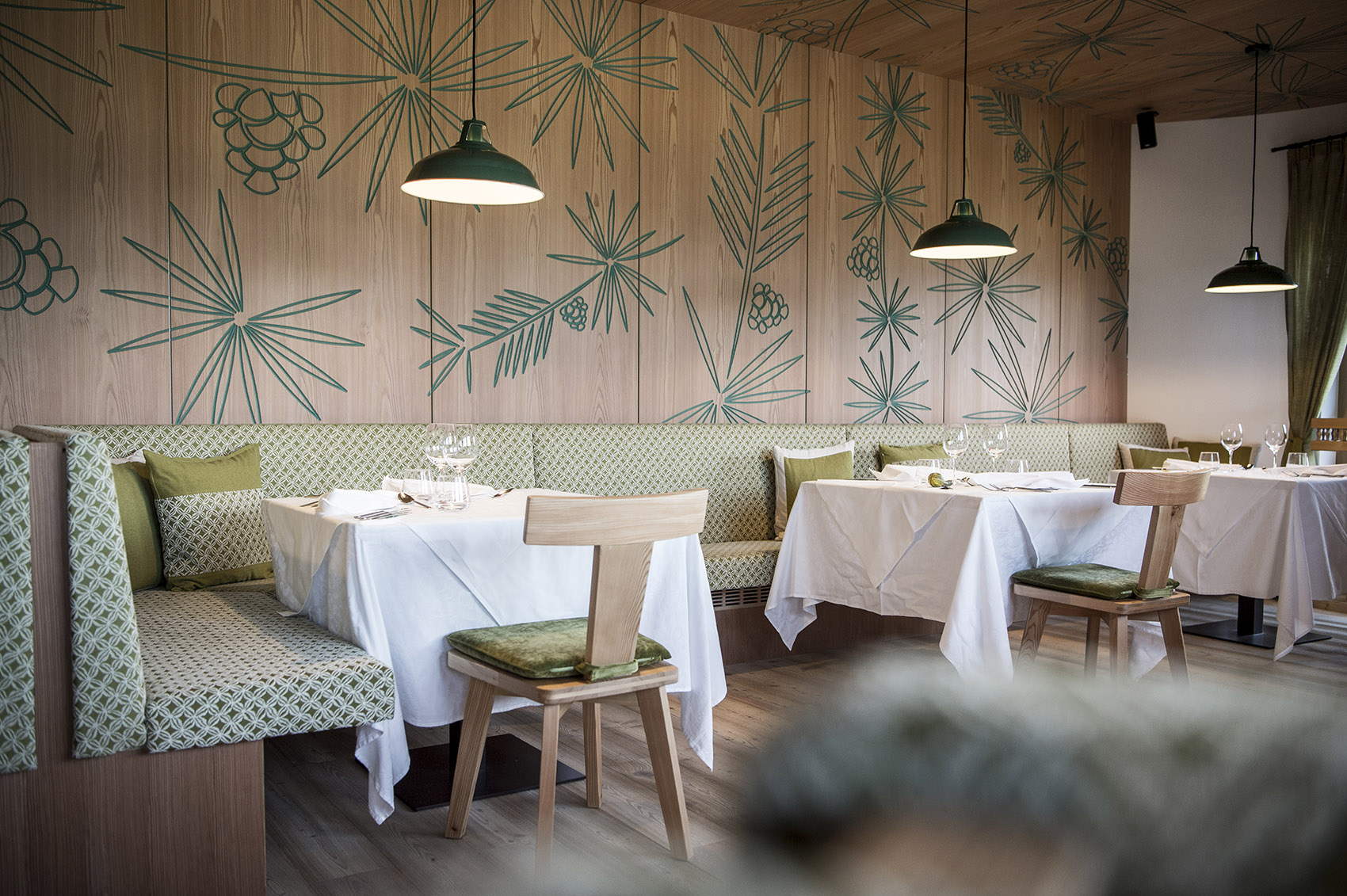

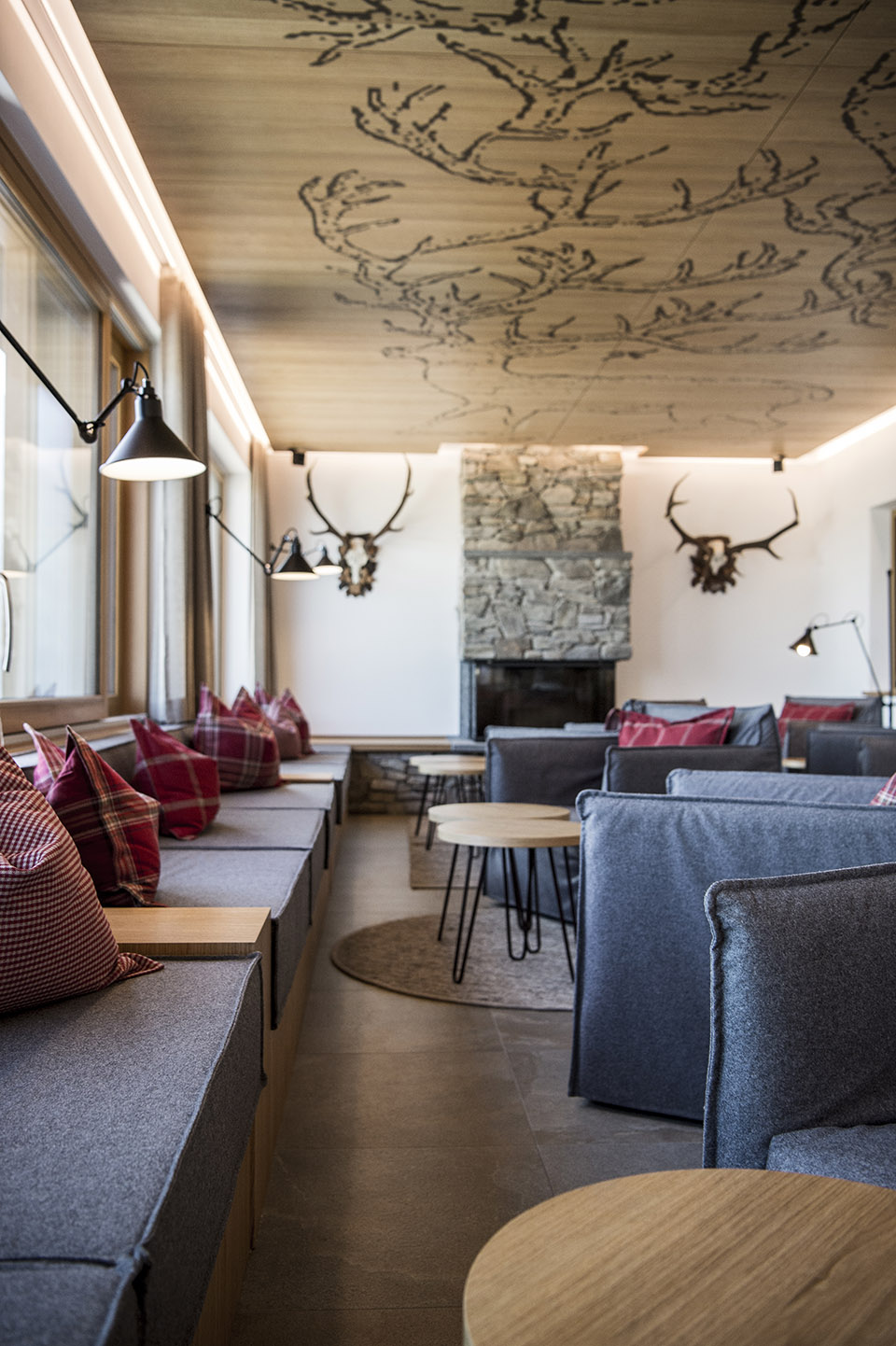

▼暖色的建筑内部，Warm Interior View

现代的火炉创造出一种起居室的氛围，剥皮木材质的使用加强了室内外与立面的联系。

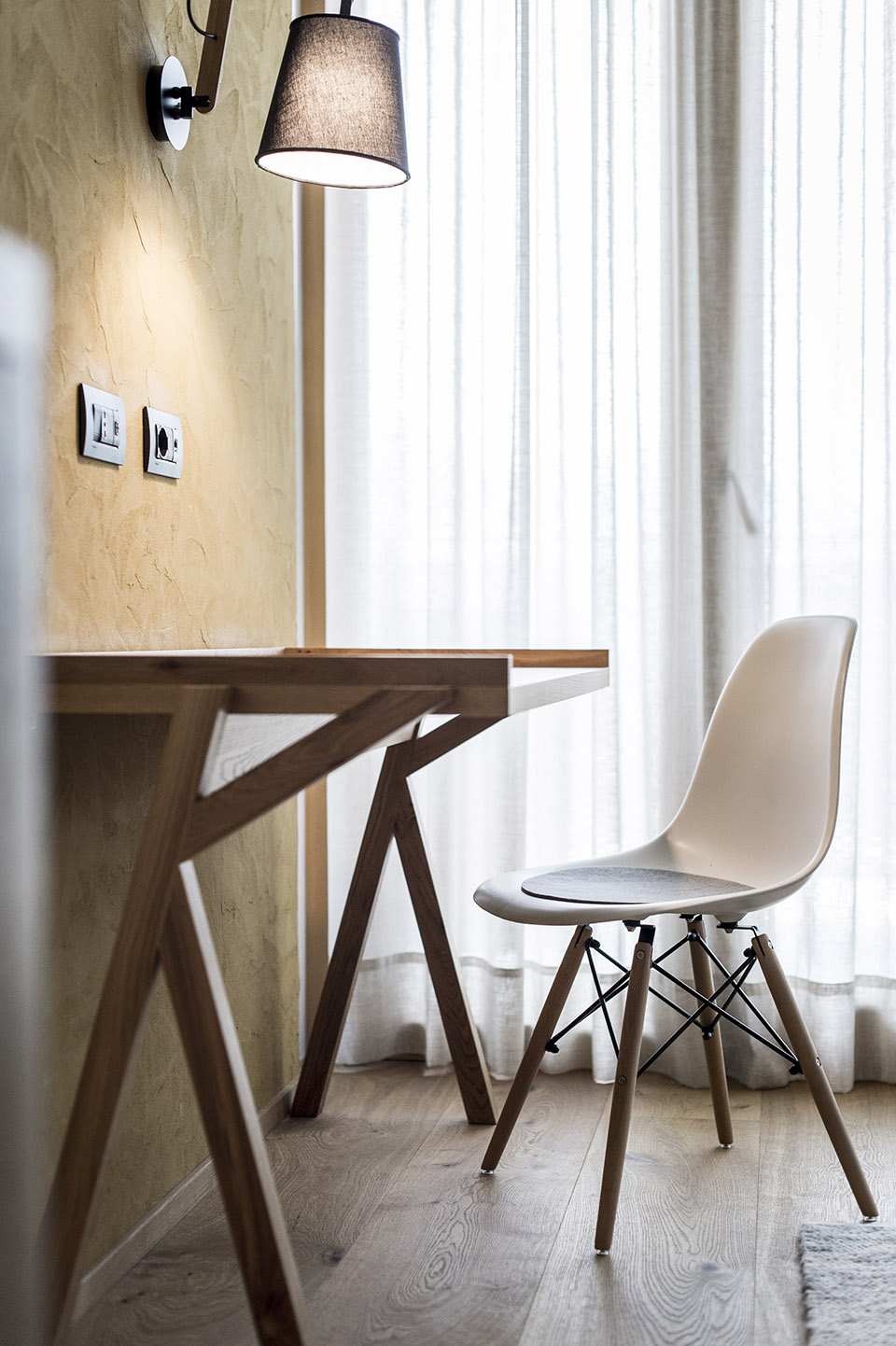

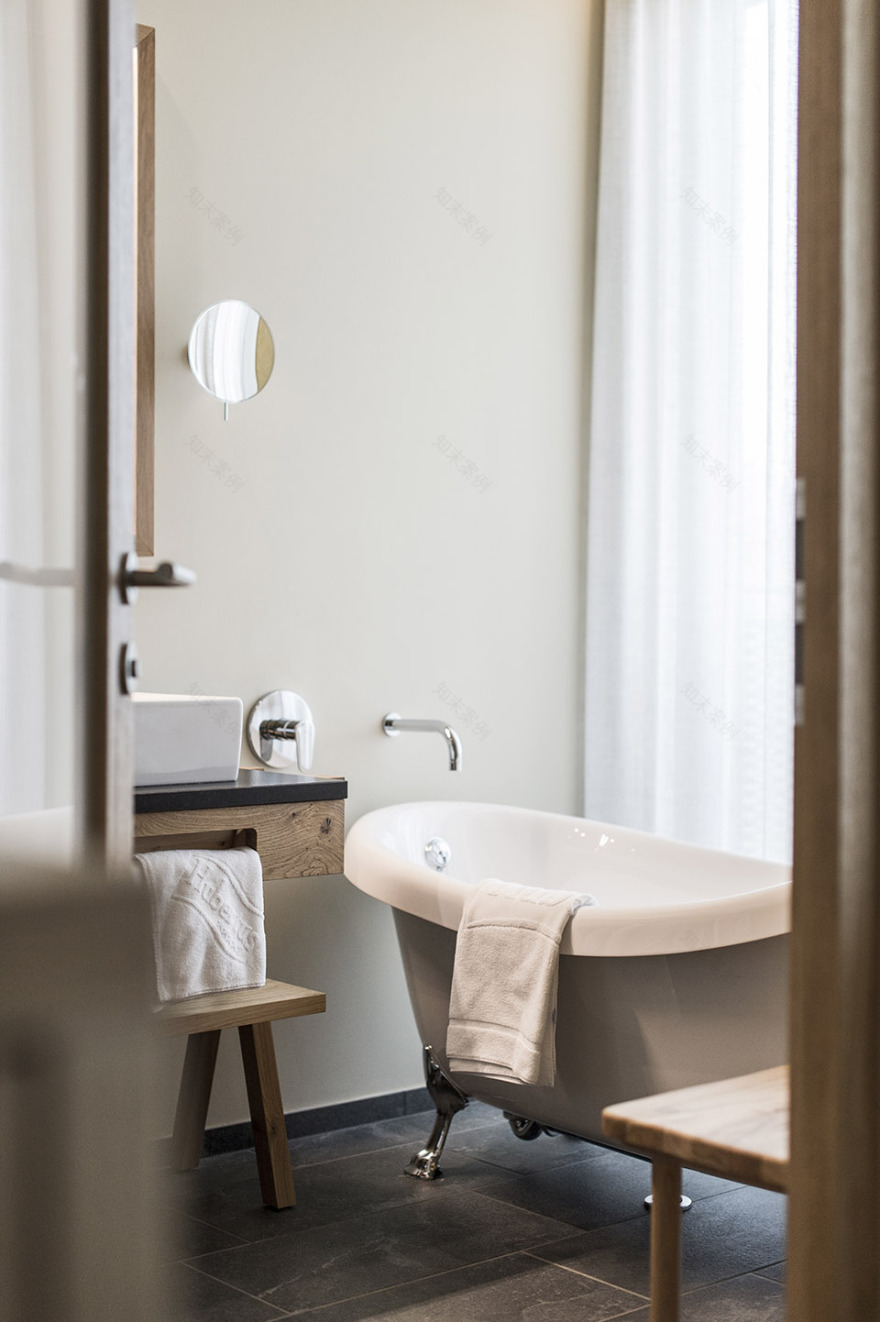

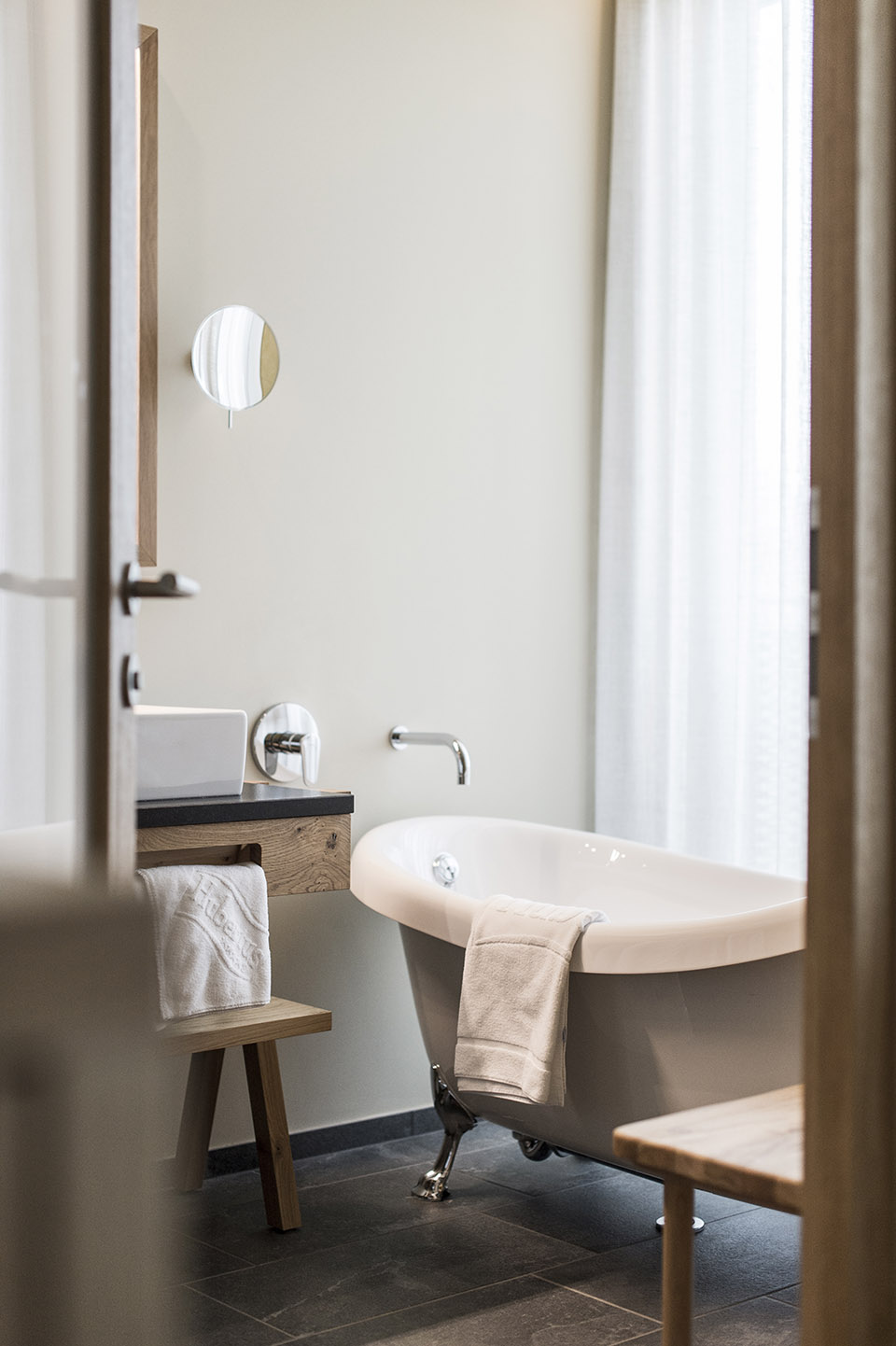

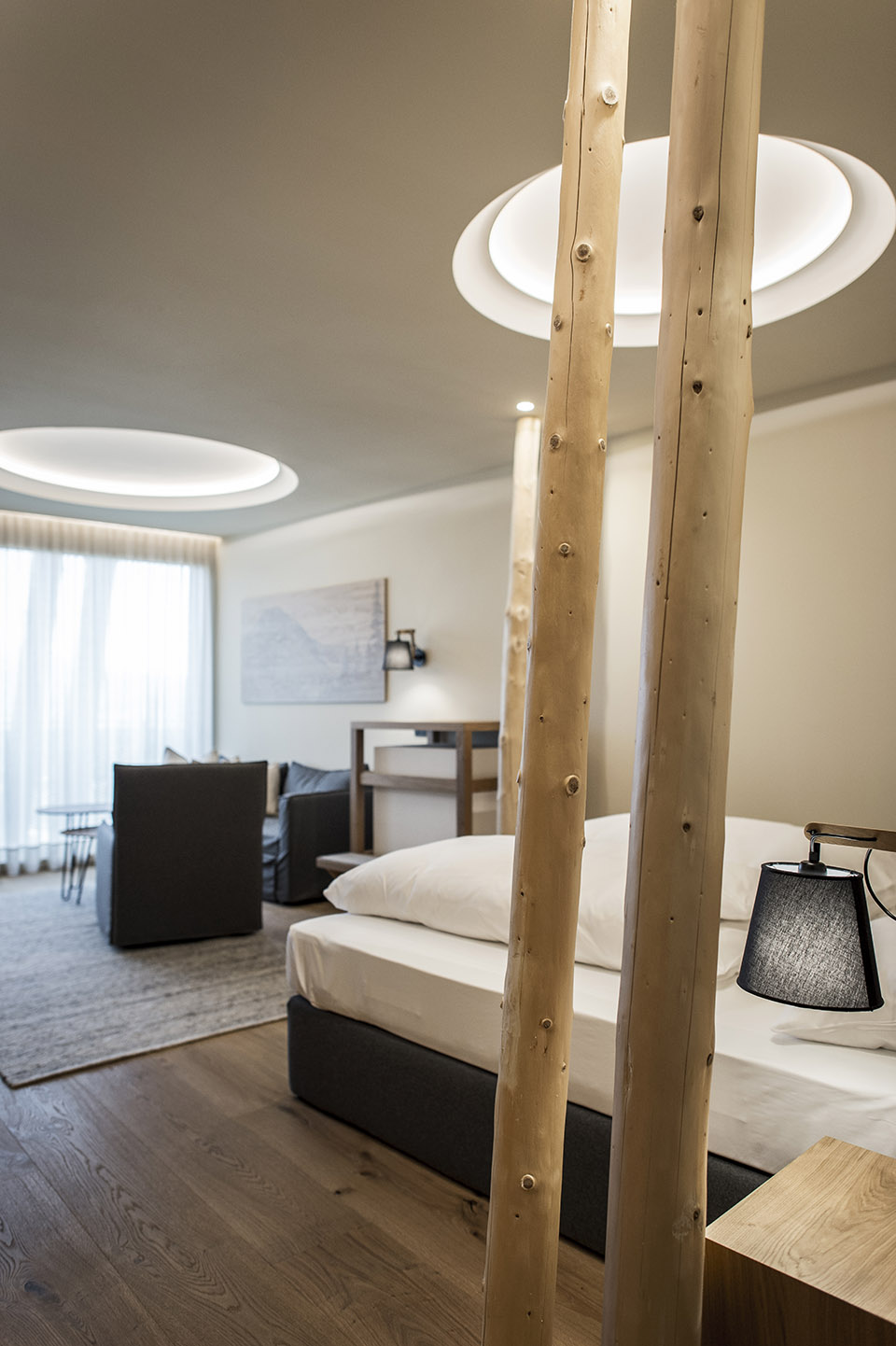

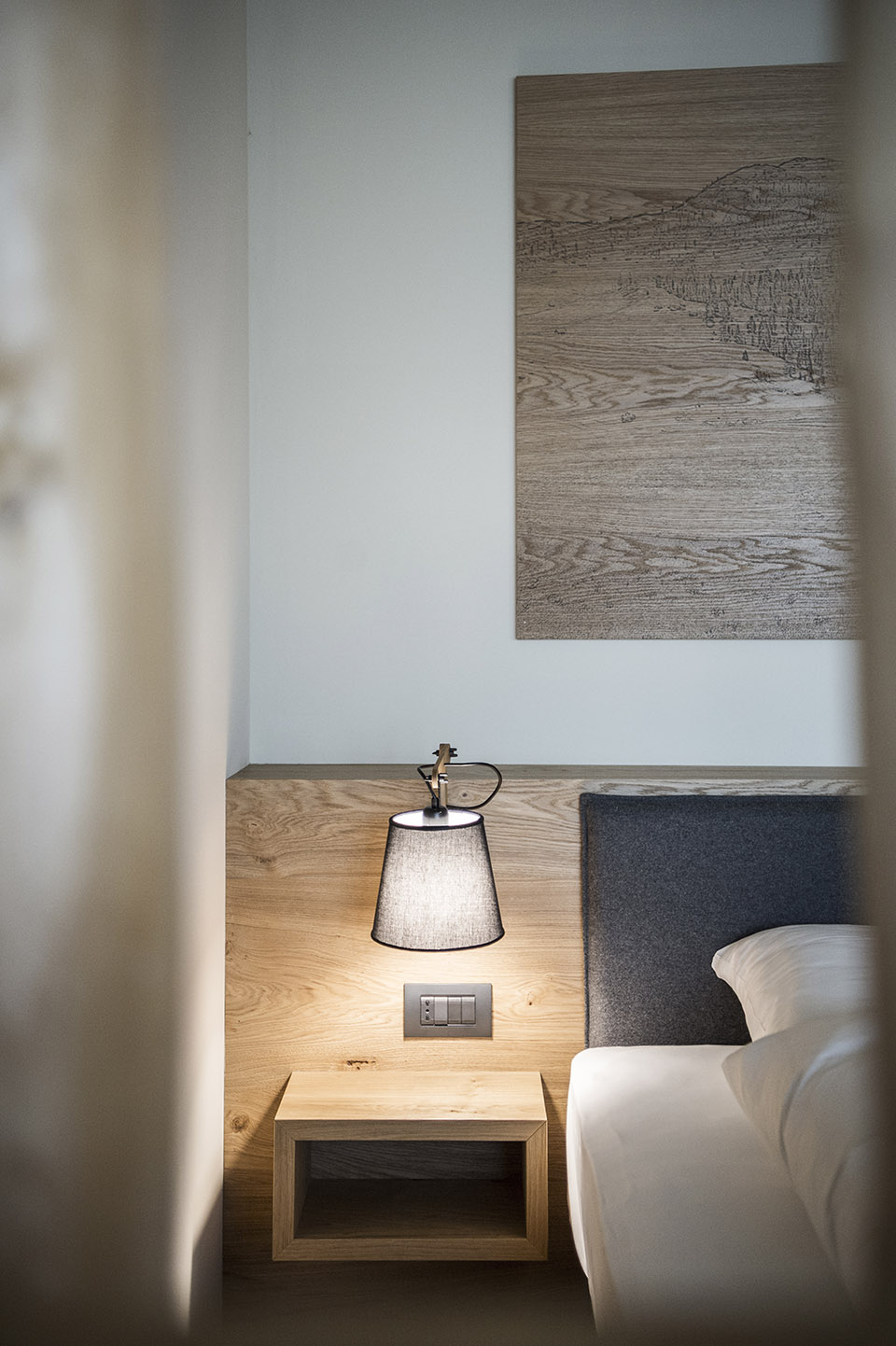

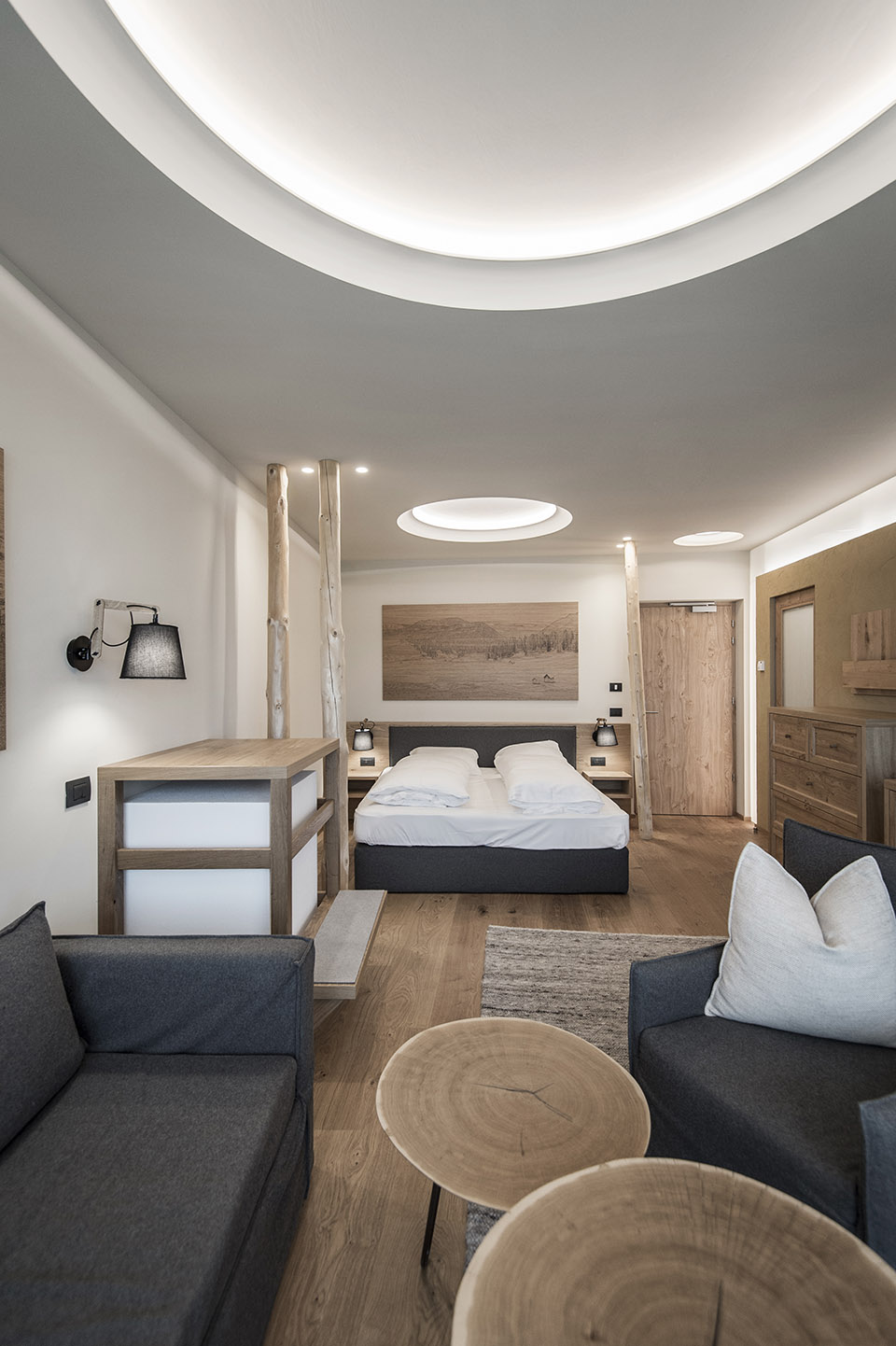

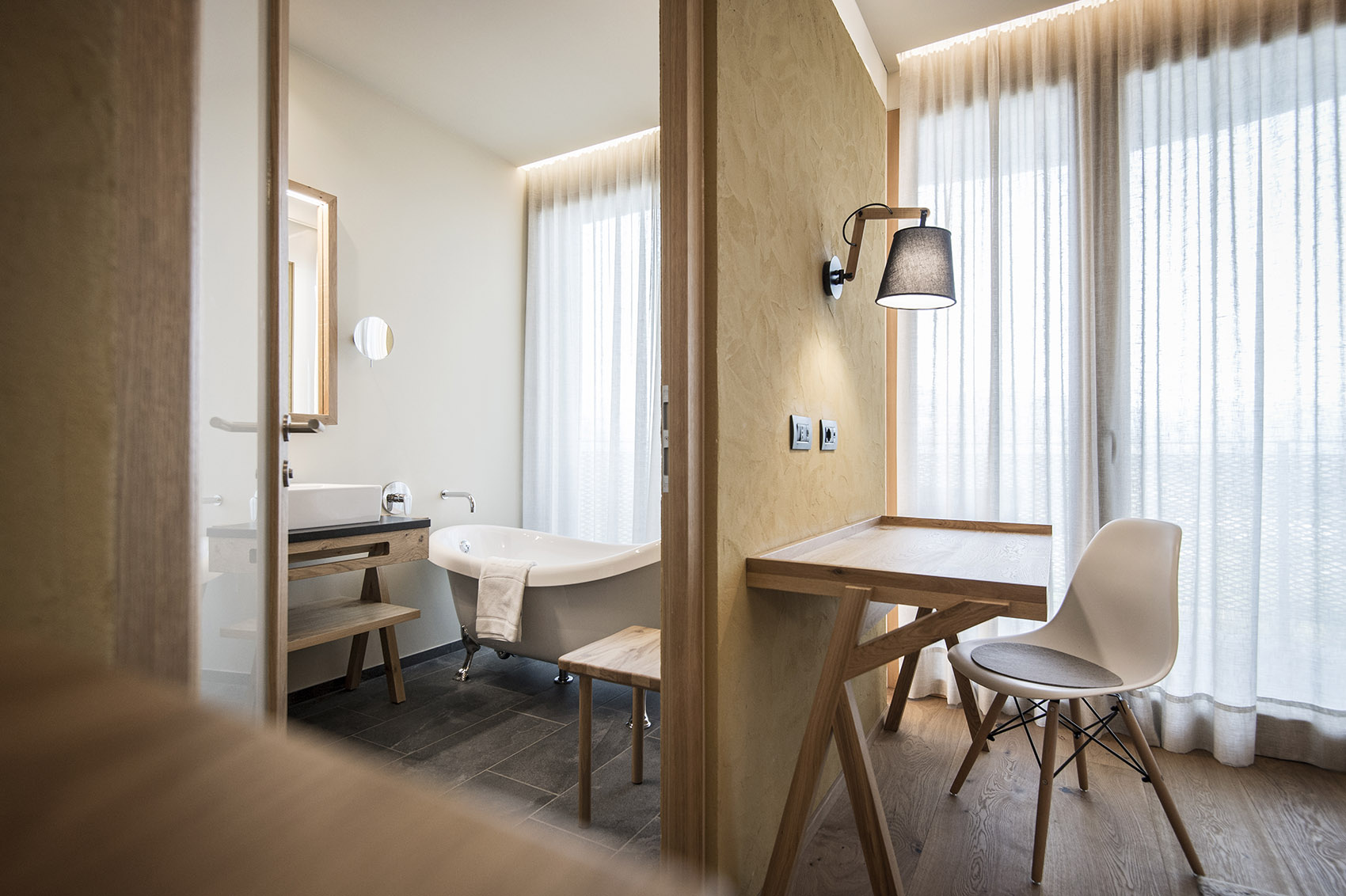

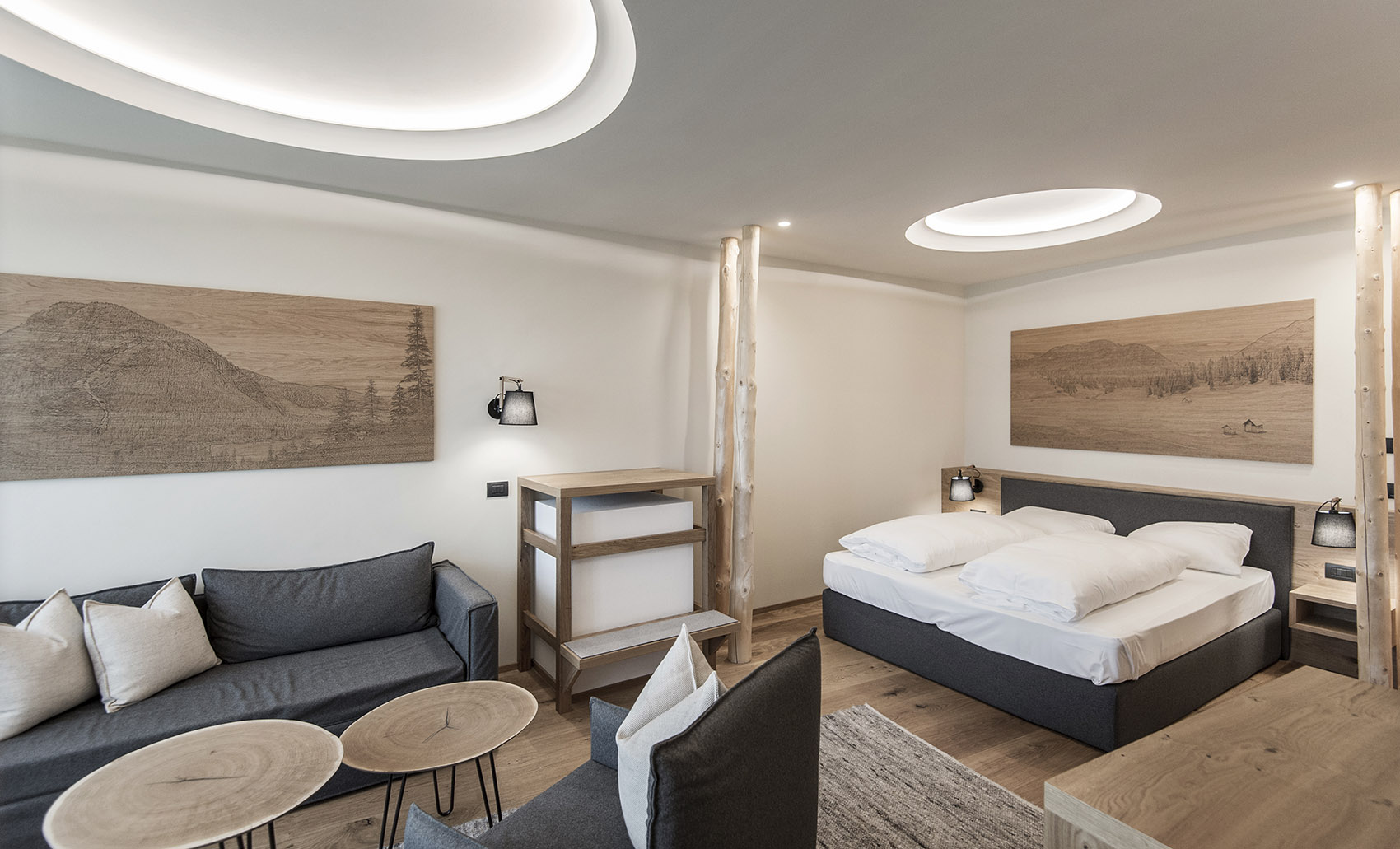

▼酒店客房，Hotel room

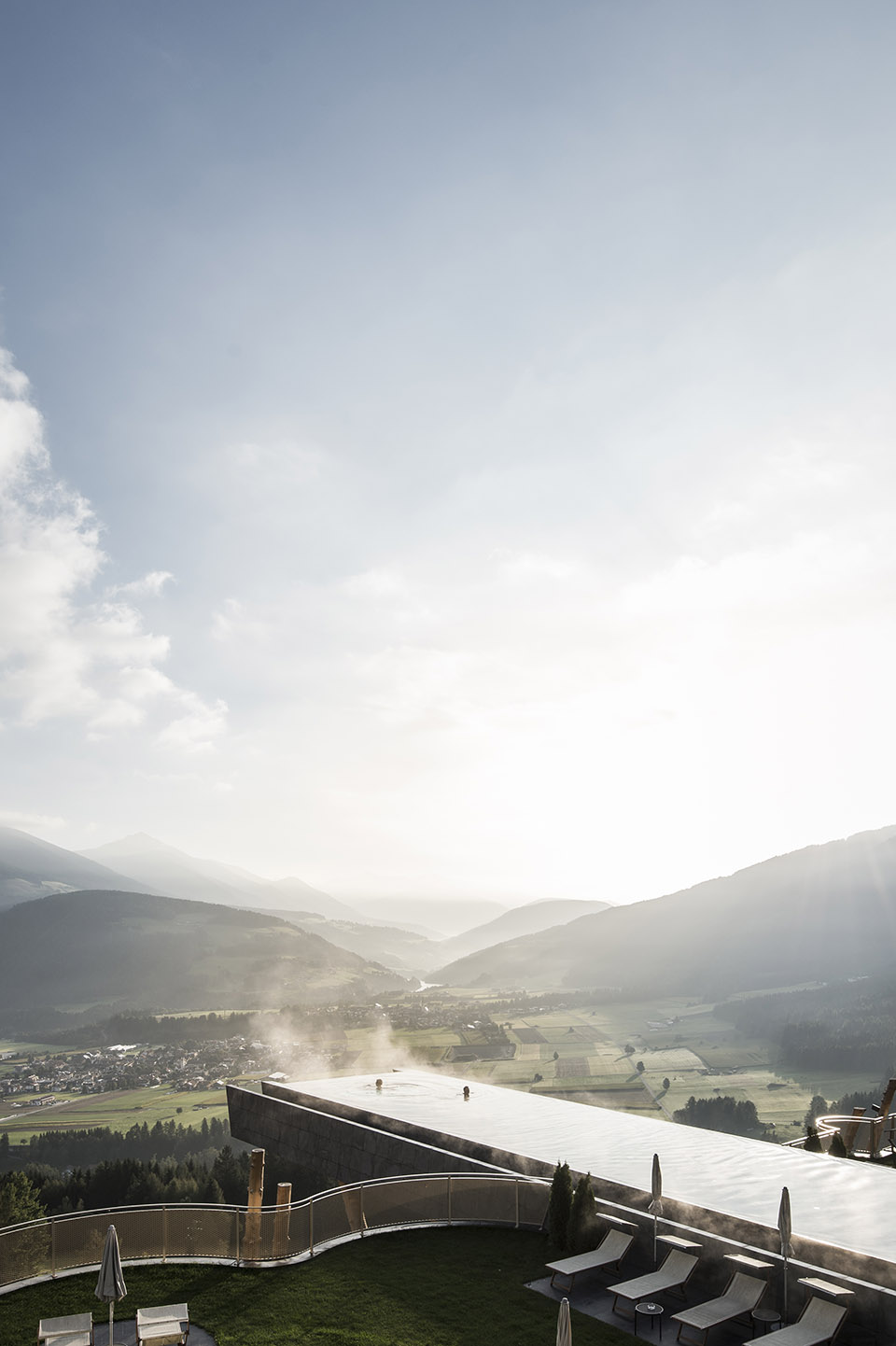

该项目的亮点是新的天空泳池，新的泳池坐落于两栋酒店之间，像一块漂浮的巨石停靠于基地上，俯瞰着山谷。无边界的泳池，宽5米，长25米，水深1.3米，这个悬挂在17米高度的泳池像是一个独立的存在。

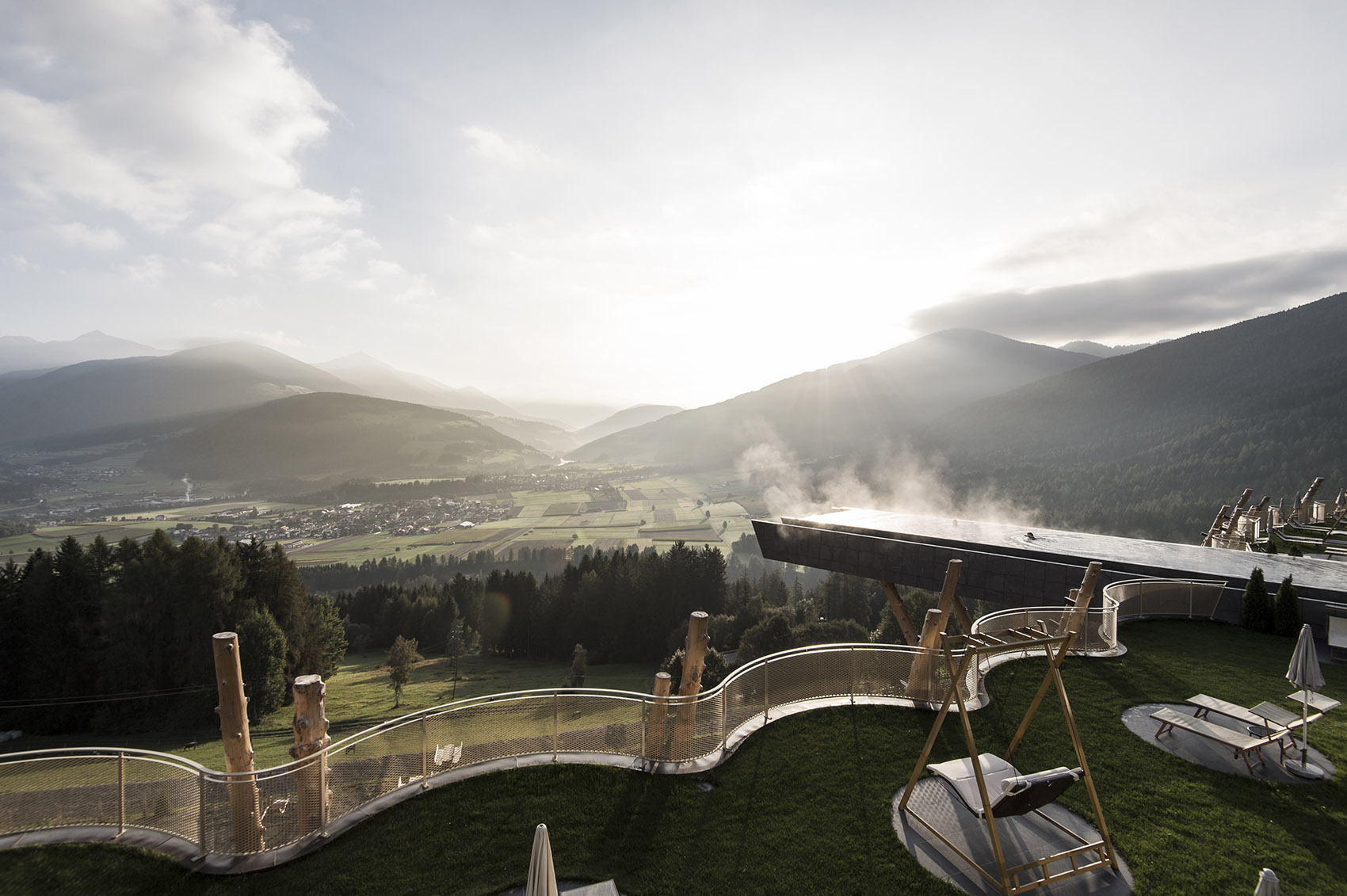

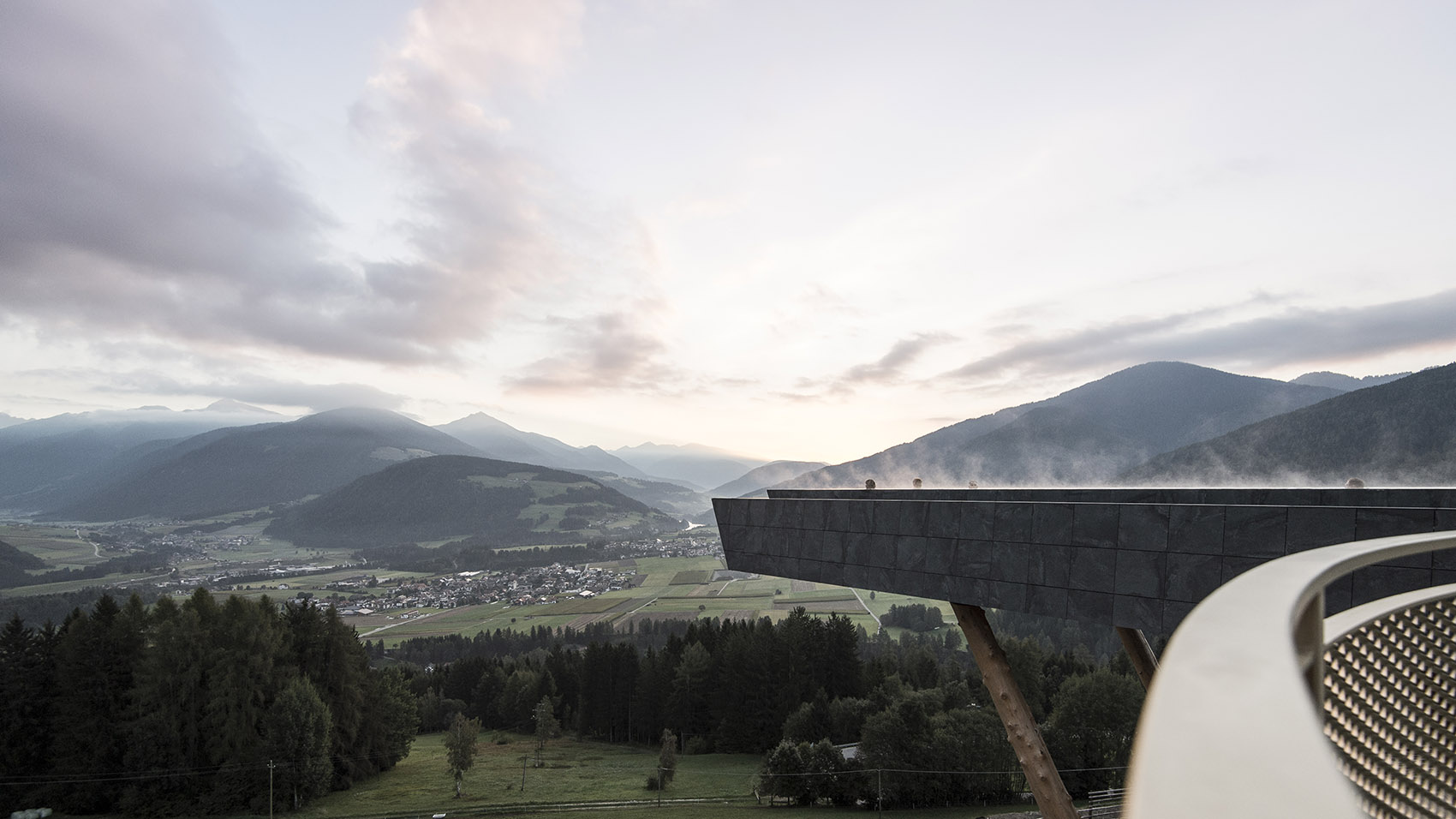

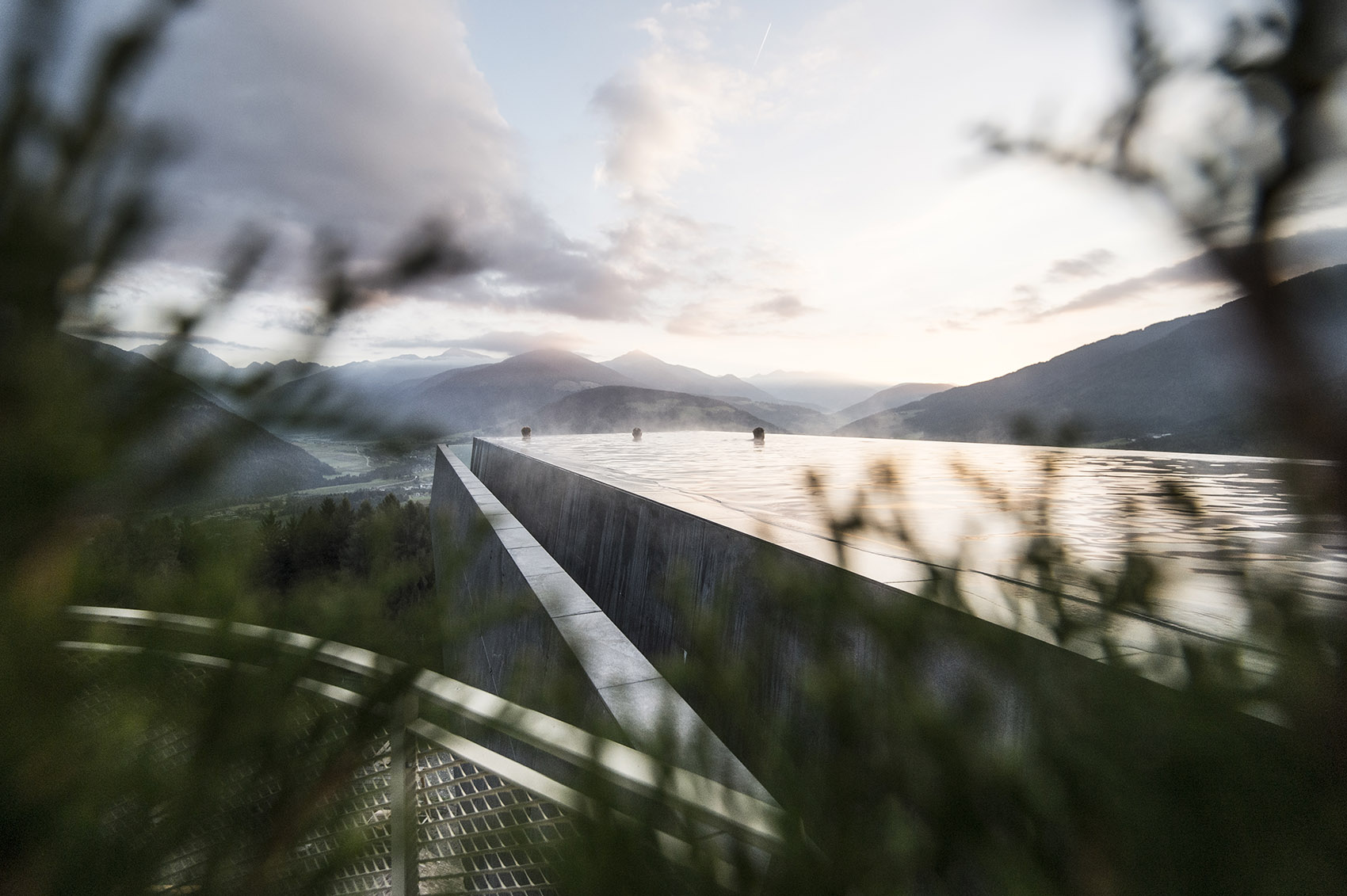

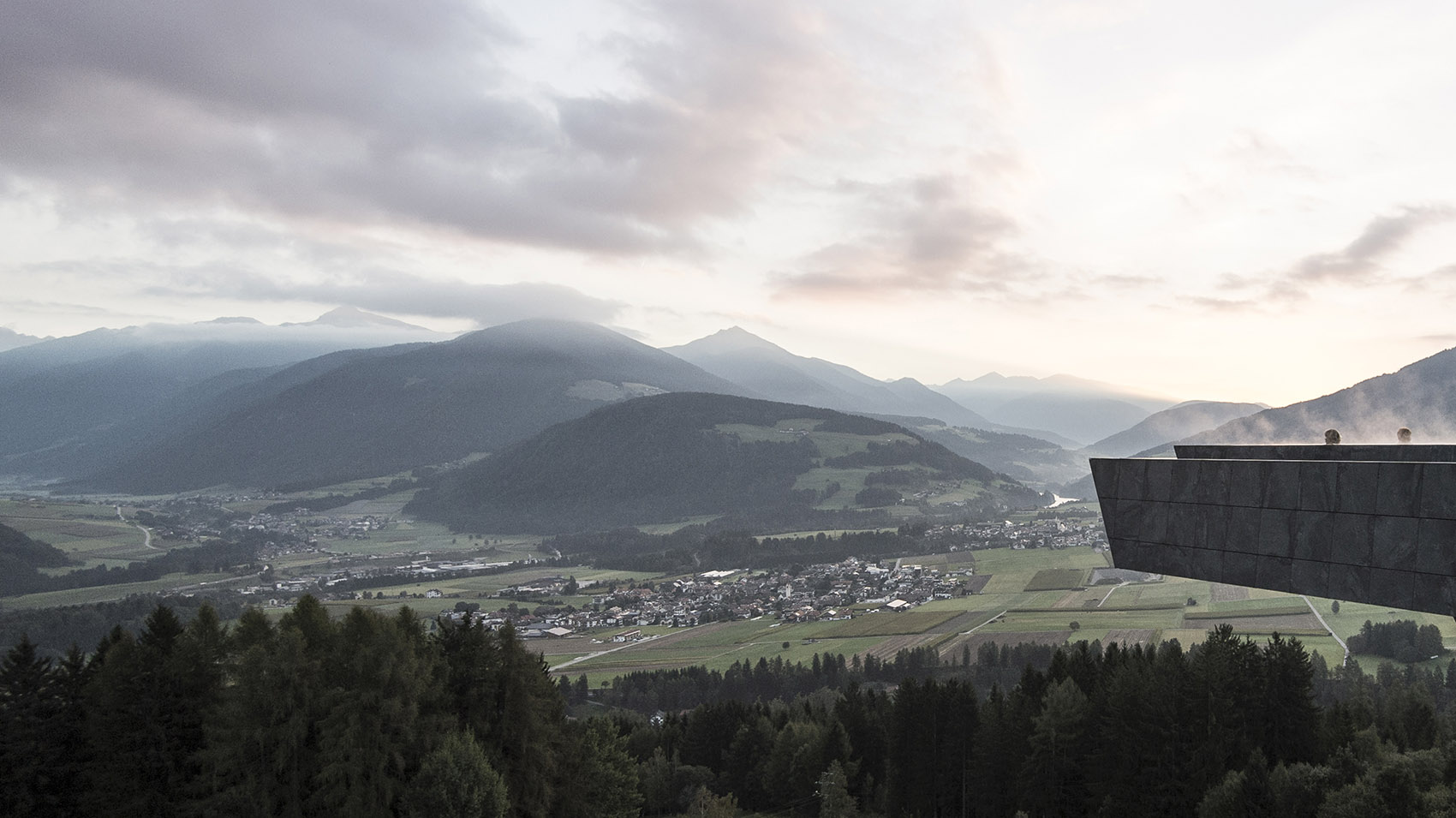

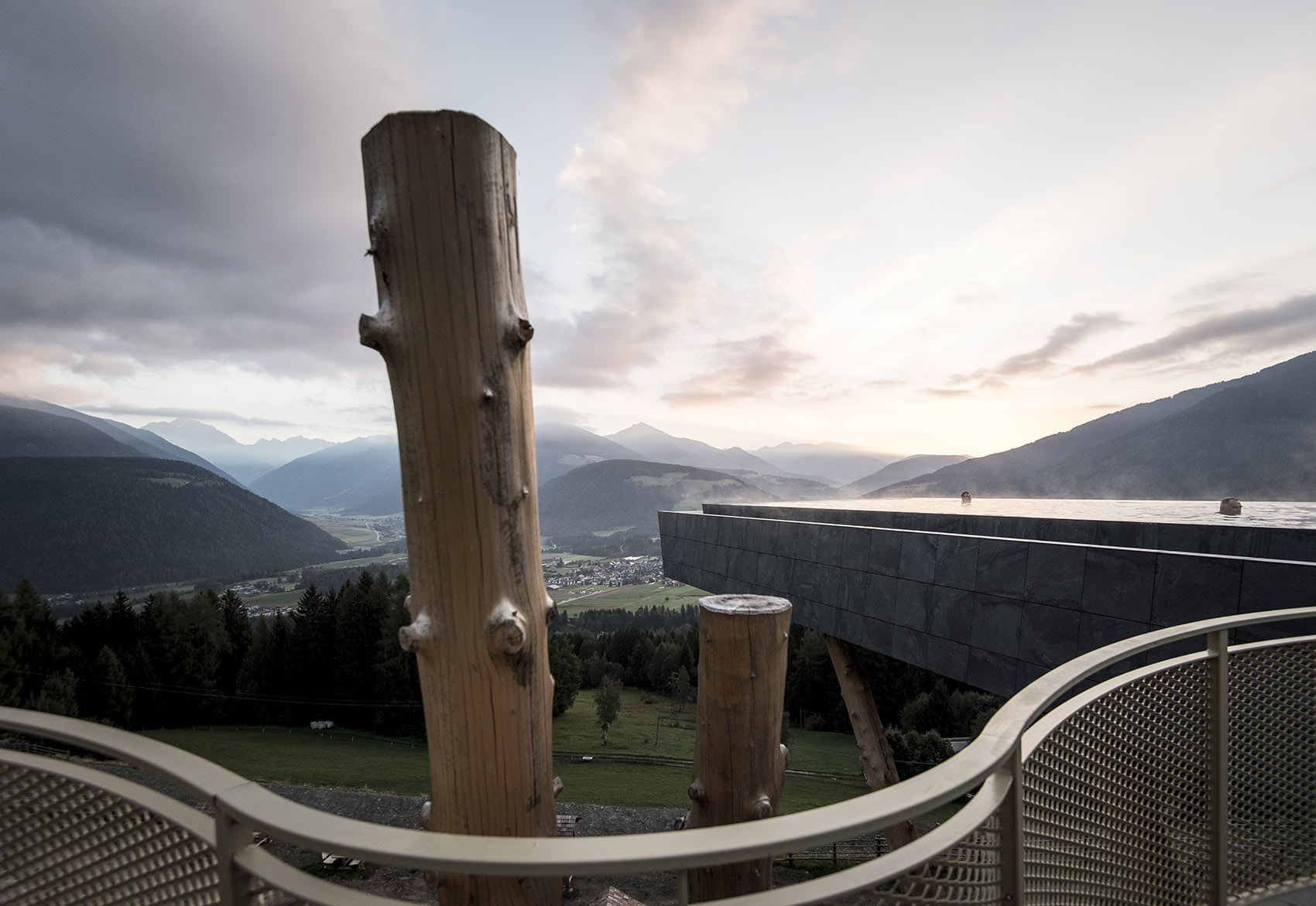

▼新的泳池坐落于两栋酒店之间，像一块漂浮的巨石停靠于基地上，俯瞰着山谷，The new pool, which imposingly rests in-between the two accommodation wings, seems like a floating rock, come to rest at the site, overlooking the valley

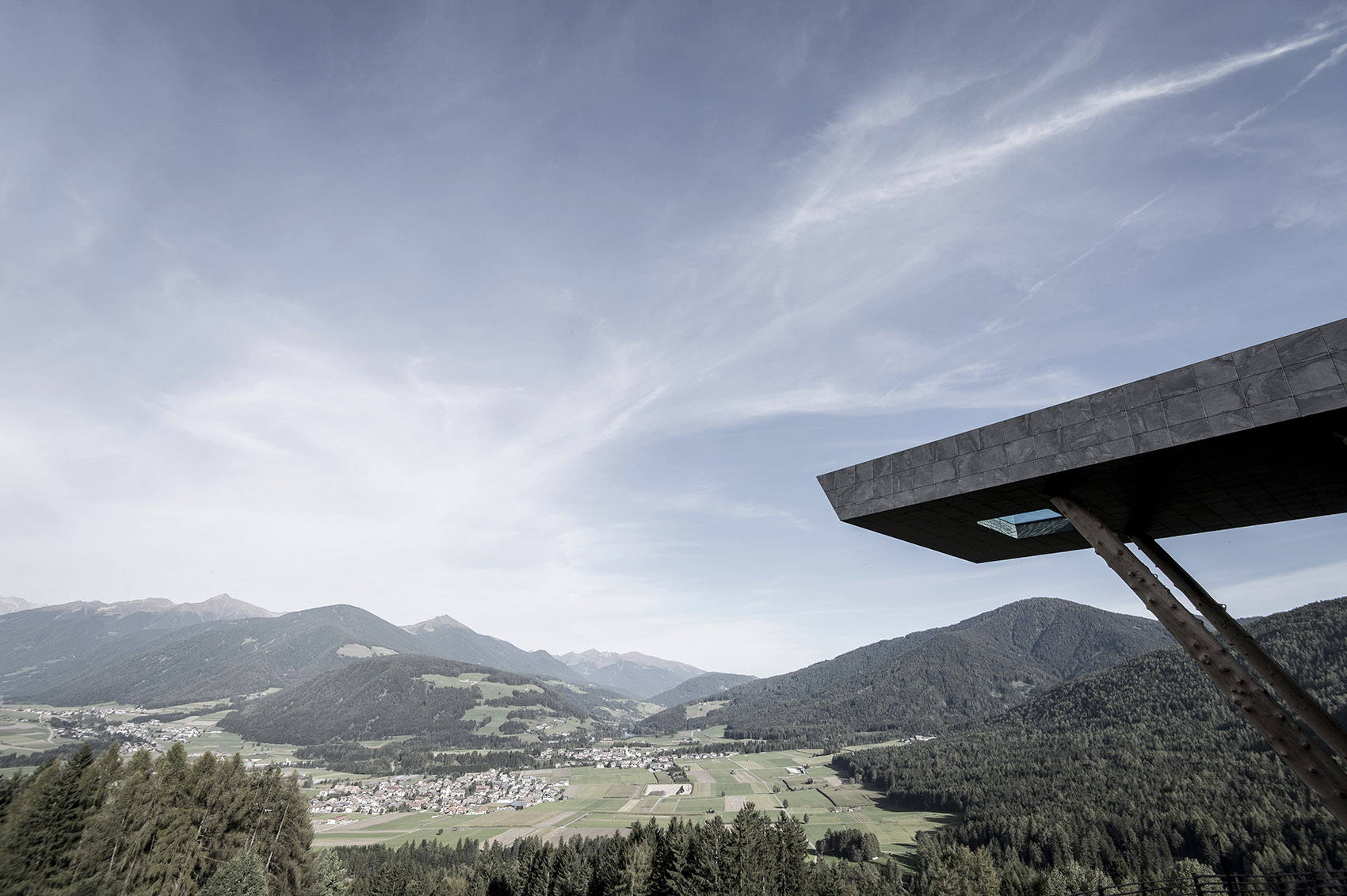

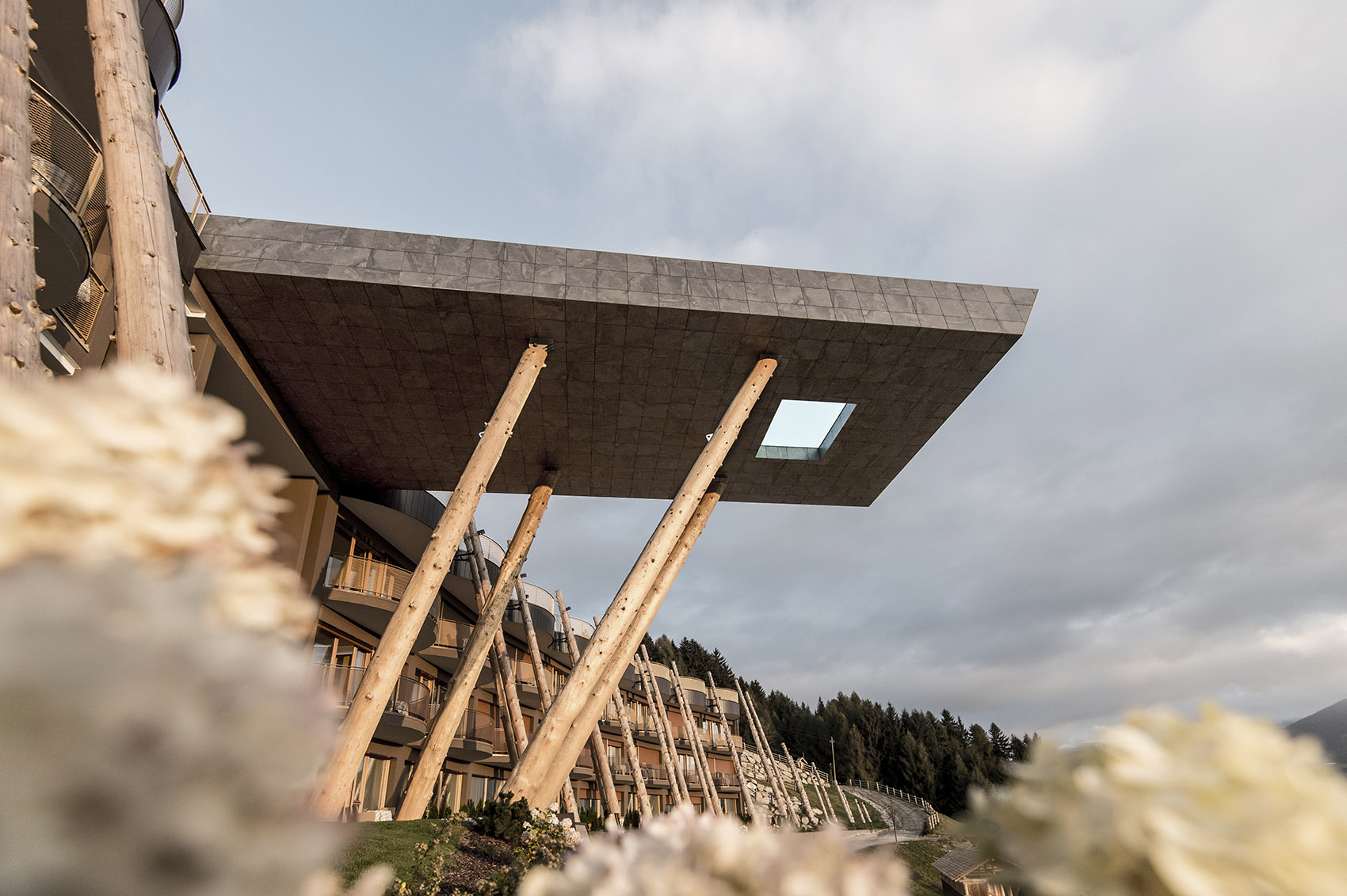

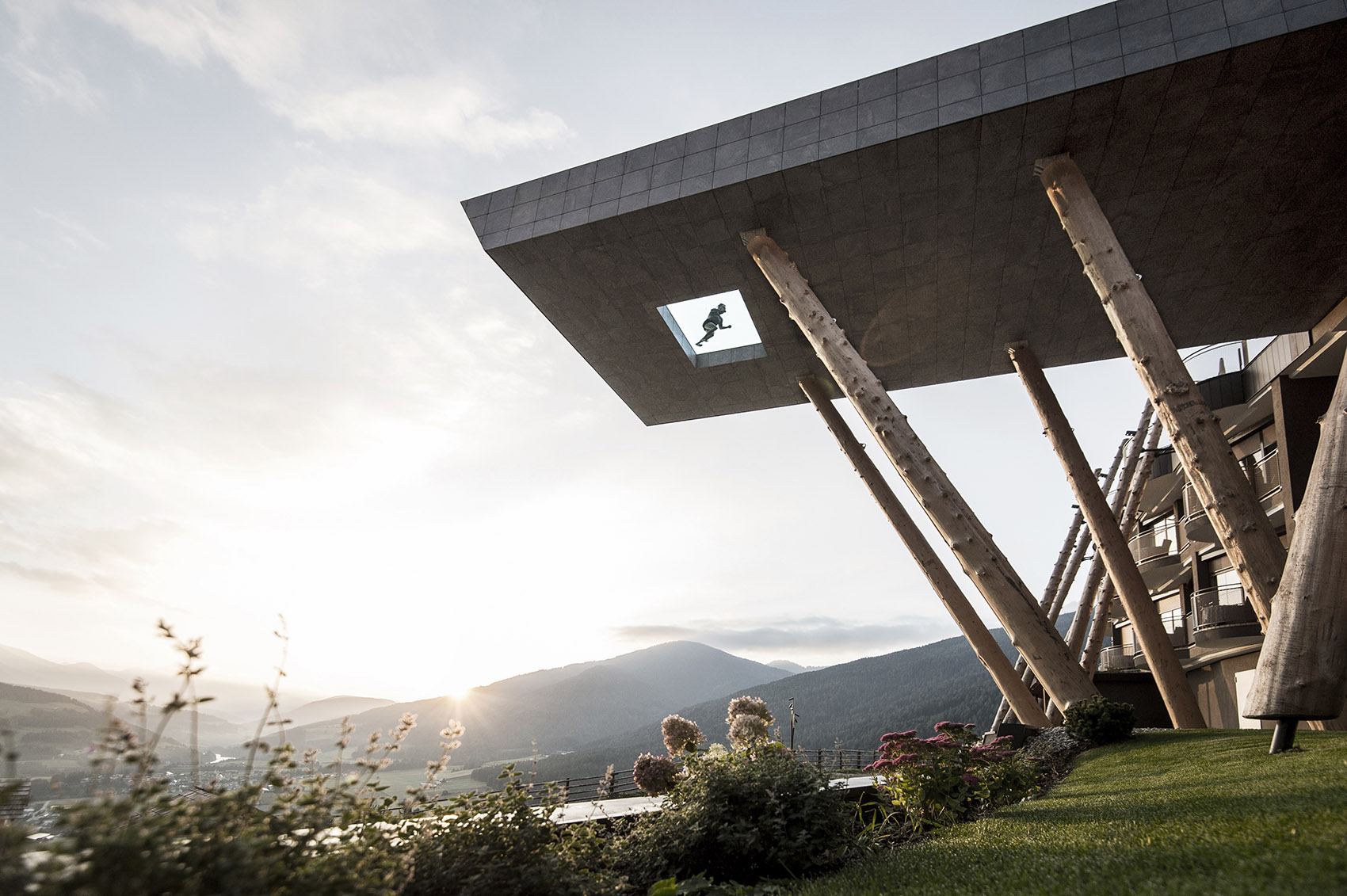

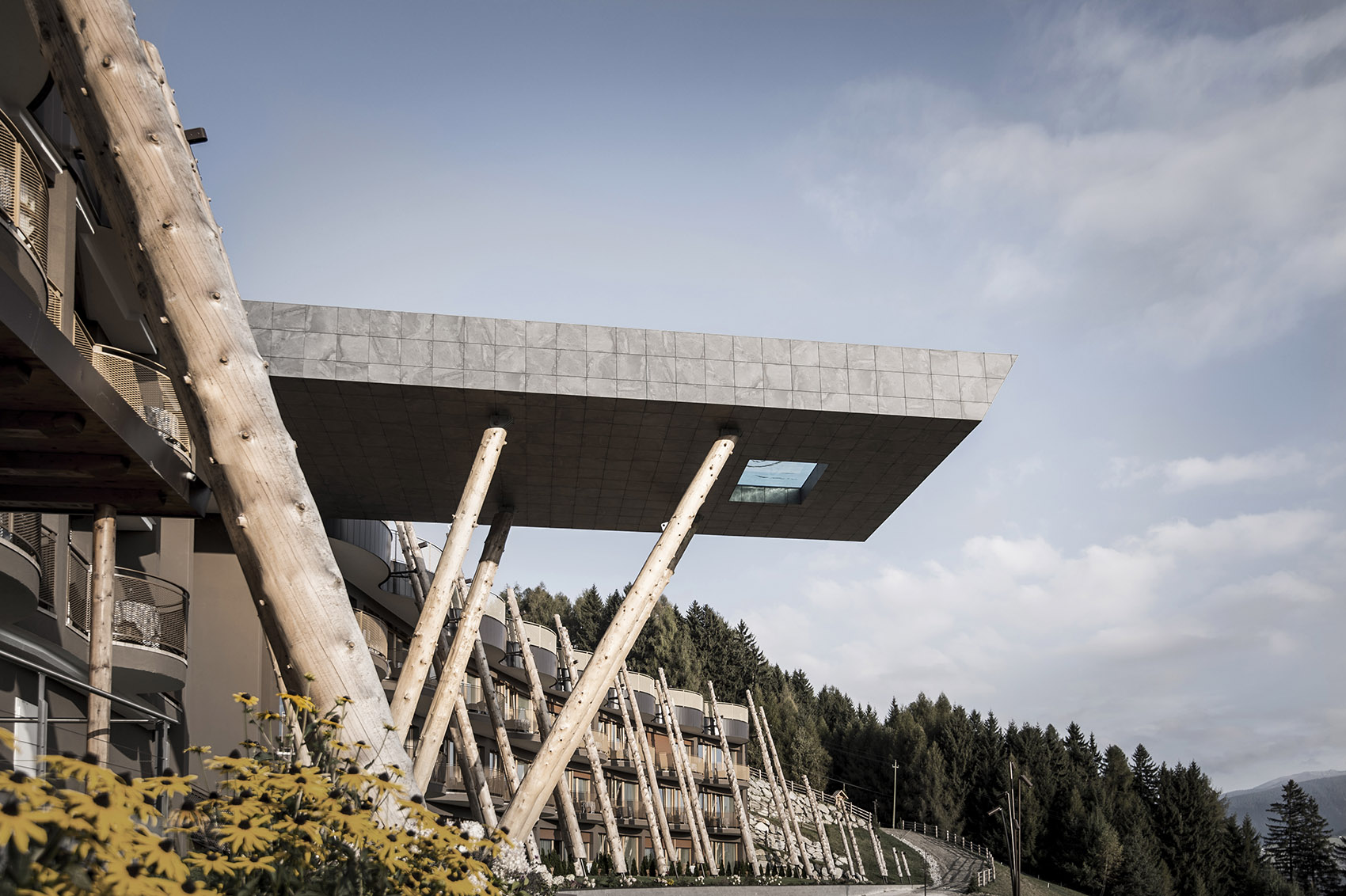

▼这个悬挂在17米高度的泳池像是一个独立的存在，over 17 m cantilevering pool can be seen as completely unique.

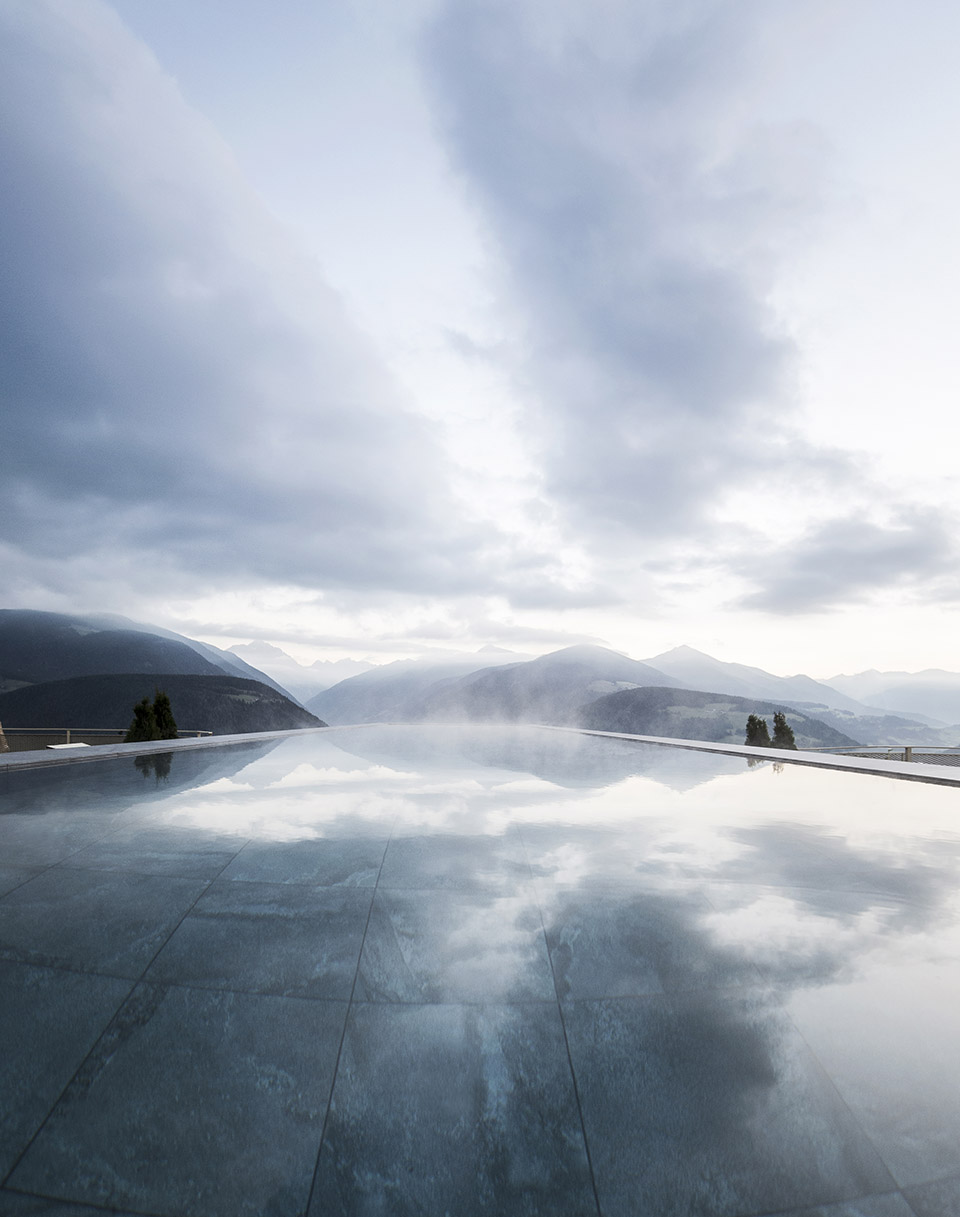

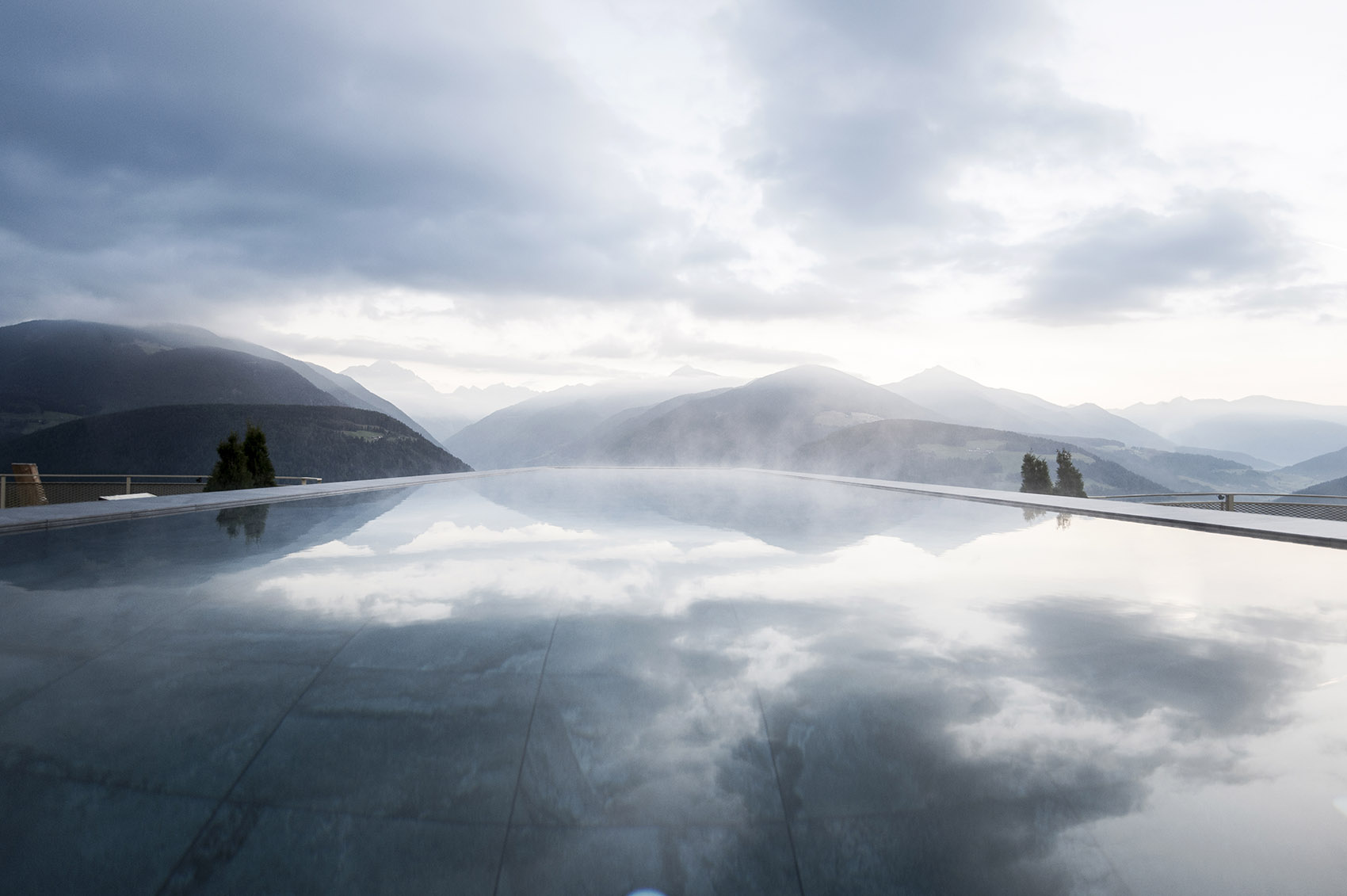

其高于地面12米，当人们游到泳池边缘，会有一种漂浮于天地之间的错觉。泳池底部和前部的玻璃材质更是加强了这一感觉。无边泳池使用了无烟煤色的石材，消除了景观与泳池之间的边界，创造了一种水流无处不去消失于景观与泳池之间的假象。泳池也隐喻了高山湖泊，正如酒店坐落于联合国教科文组织世界遗产多洛米蒂山。

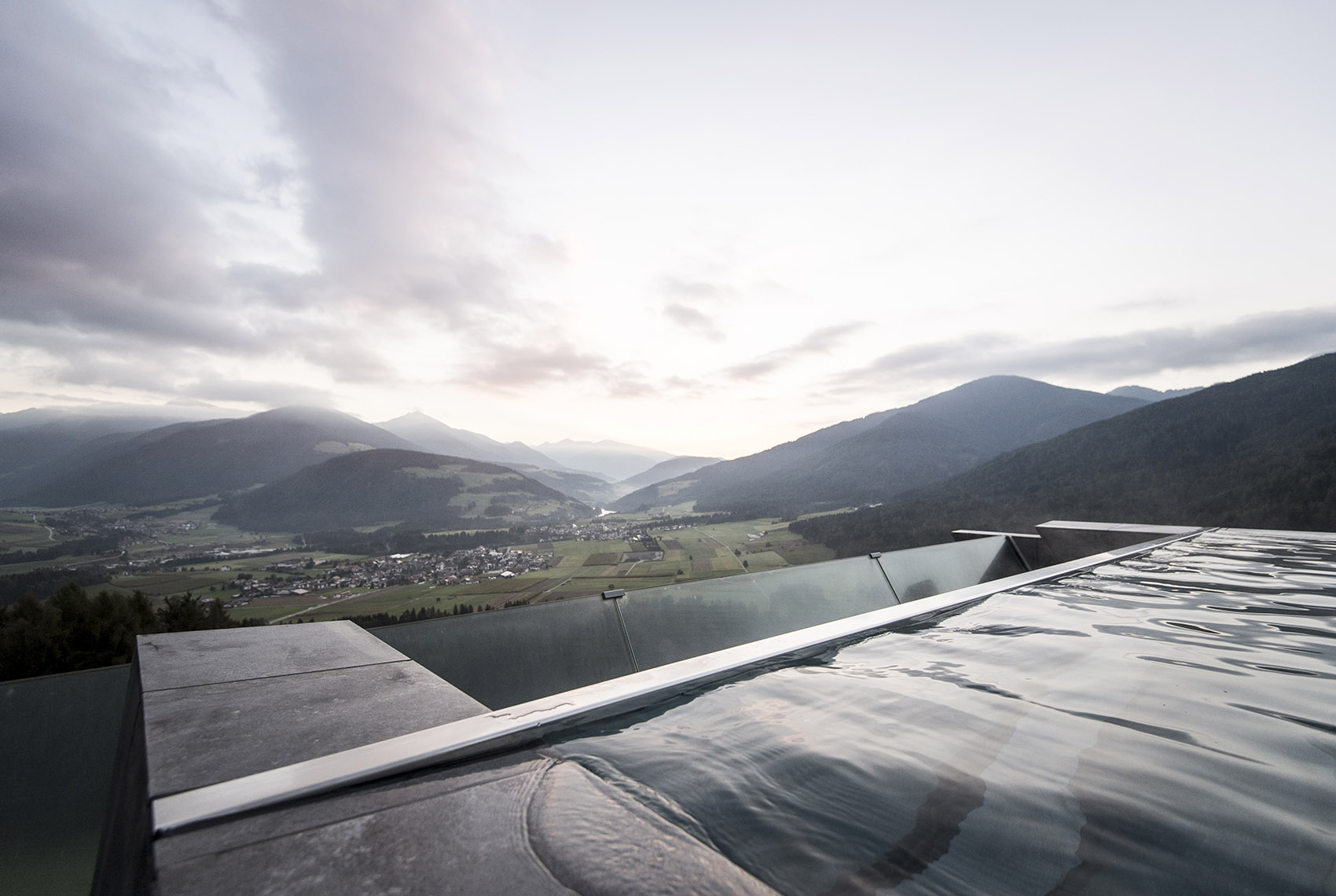

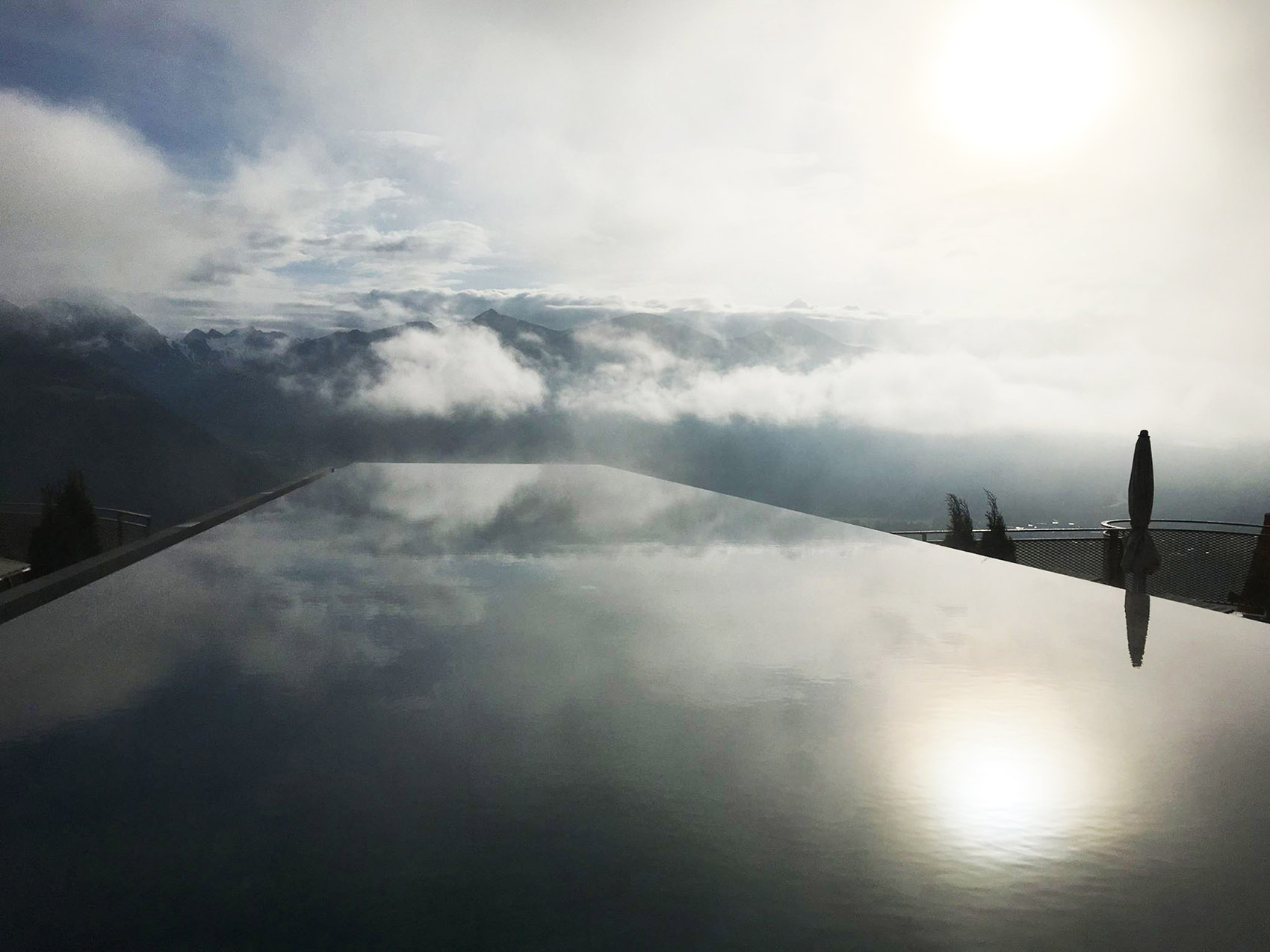

▼当人们游到泳池边缘，会有一种漂浮于天地之间的错觉， at its extreme edge, gives the swimmer the feeling of floating – weightlessly between heaven and earth.

The key challange in the project was to create a link between the exisiting building and the new design, in order to keep a uniformal and consistent appearance. The debarked larch trunks, which were used as multifunctional façade elements for the existing and new building, succeed in creating this aesthetical connection. They not only support the dynamics of the curved façade, but function also as sun screens, room dividers and rain protectors, further enhancing the feeling of privacy and in addition to this forming the static basis for the cantilevering pool and façade.

The design of the newly constructed part of the building is orientated typologically on the already existing curved accommodation wing. Further the fluid shape of the new design, which becomes especially evident in plan view, follows the topography of the existing landscape with its slope and steep contour lines. The tree trunks, as narrow double wooden pillars, strive to function as an unifying envelop for the project by creating a continuous aesthetics.

Thew new perforated, powder-coated metal balustrades replace the old wooden ones and are fixed in a fluit curvy manner. With their earthy tones and perforation, they allow access to the view while at the same time enhancing the feeling of privacy. This colour scheme was used for the whole façade, creating a homogeneous building envelop. Through the use of a warm, gray brown earth tone, derived from the colour palette of the surrounding landscape.

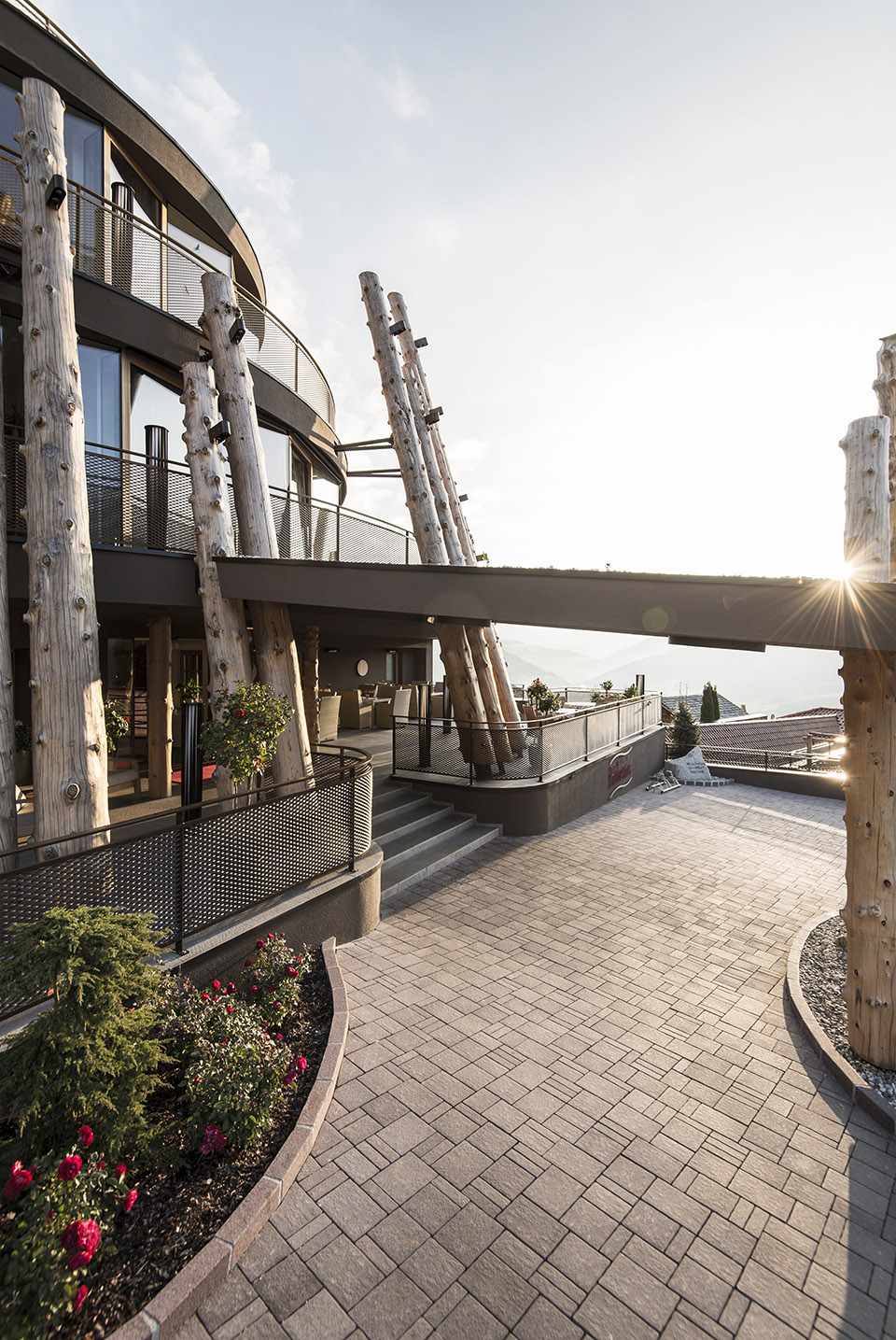

The façade design with debarked tree trunks also continues on the new entrance area, which with its design as a rotunda allows a maximum of natural light to flow into the building. Topographic curves can be seen as the key influence for the design process and are not only evident on the outside but also on the inside of the building. This allows the gap between inside and outside, cold and warm, before and after, to almost disappear…

The new pool, which imposingly rests in-between the two accommodation wings, seems like a floating rock, come to rest at the site, overlooking the valley. The hidden edges of the pool, kept in anthracite-coloured stone, abolish the gap between pool and landscape, creating the impression of the water flowing into nothing, disappearing between pool and landscape. The pool metaphorically reminds of a mountain lake, nestled into the astonishing mountainscape of the UNESCO World Heritage site, the Dolomites…

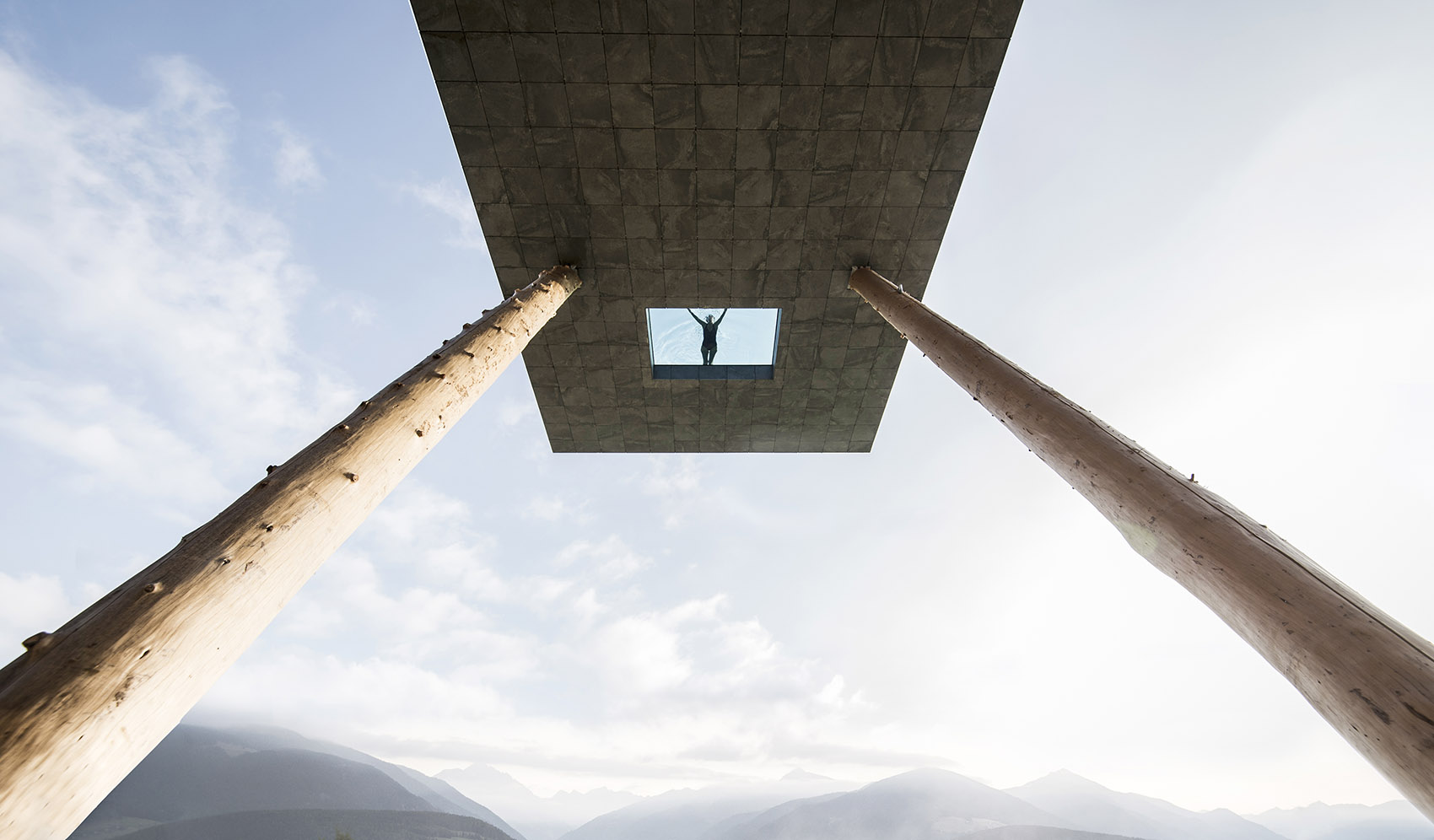

The highlight of the project is the new sky pool, floating like a natural rock over the new accommodation wing. Without any visible boarders, a width of 5 m, a length of 25 m and a depth of 1,30 m the over 17 m cantilevering pool can be seen as completely unique. The position of the pool, which floats 12 m above the ground, at its extreme edge, gives the swimmer the feeling of floating – weightlessly between heaven and earth. This impression is further reinforces by the glass front and a glazed window on the bottom of the pool.

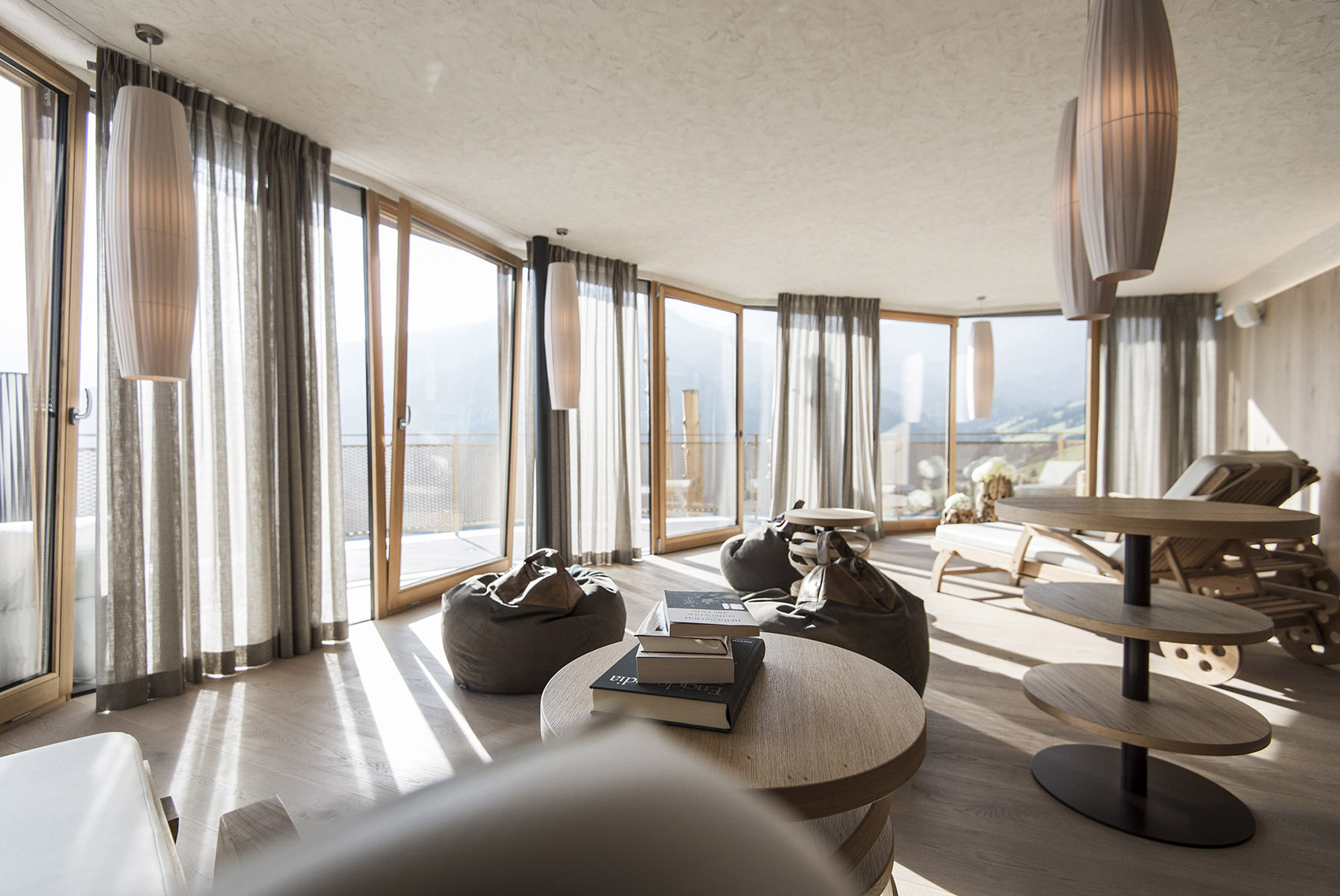

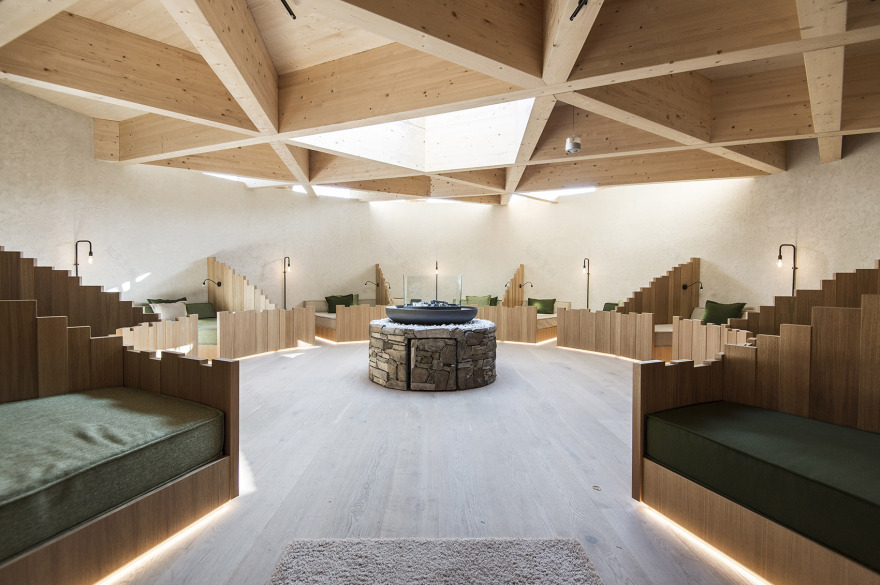

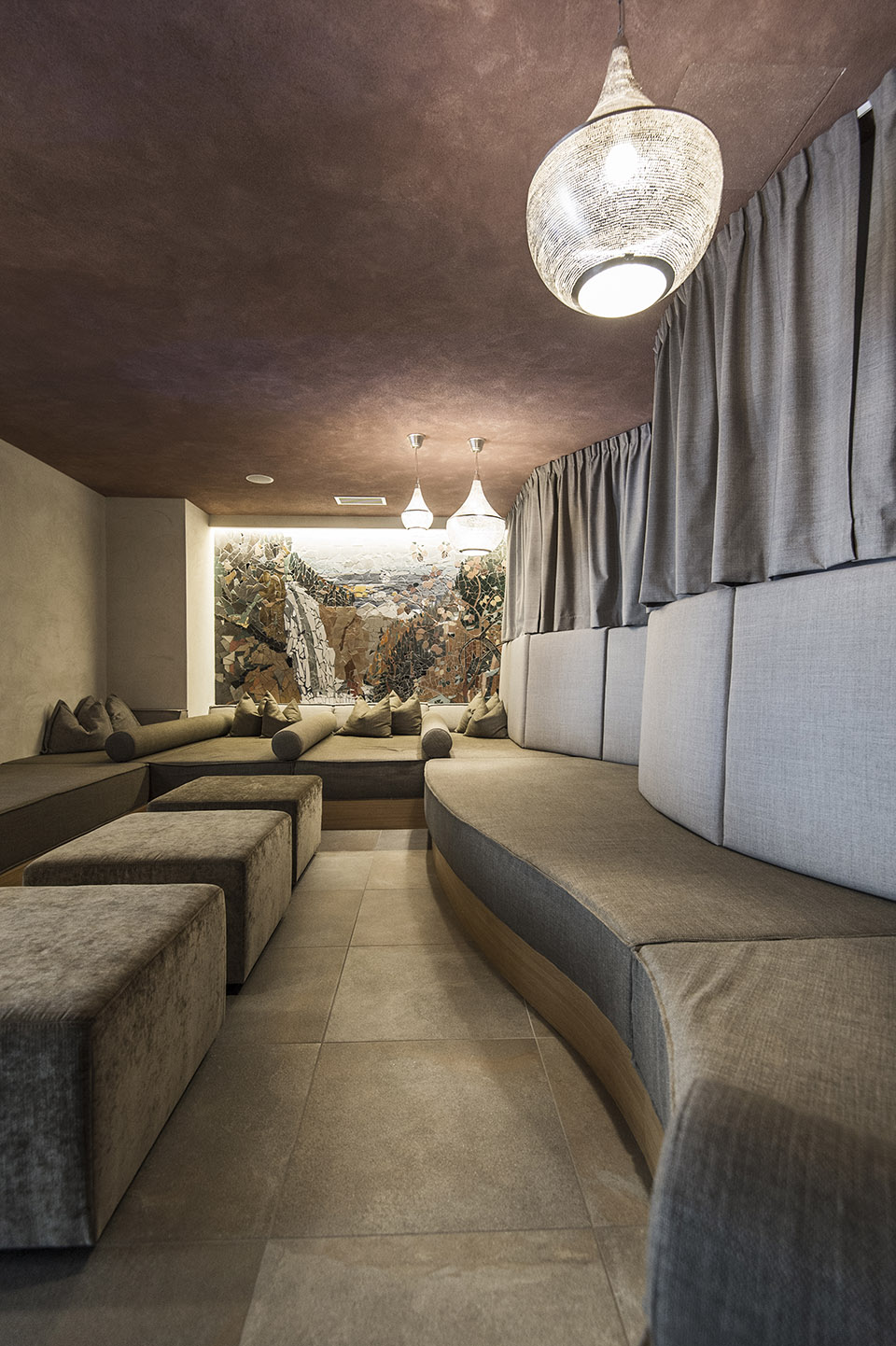

In the existing garden at basement level, the new scarped circular relaxation room, is fitting neatlessly into the existing exterior garden area. The roof of the relaxation room is fully glazed and covered radially with wooden beams. A loose distribution of the beams allows for excellent views through the glass roof. Chalet-character

The new rooms in the annex with their glazed front and east facing-balcony allow for natural lighting. Contemporary interpreted stoves in the rooms create a living room atmosphere, while debarked wooden room dividers create a link to the exterior and its façade. Lastly also the curves of the balcony follow the main theme of the fluid gesture, and celebrate the project as one, which through the conversion and new construction stands in a strong connection to the surrounding landscape.

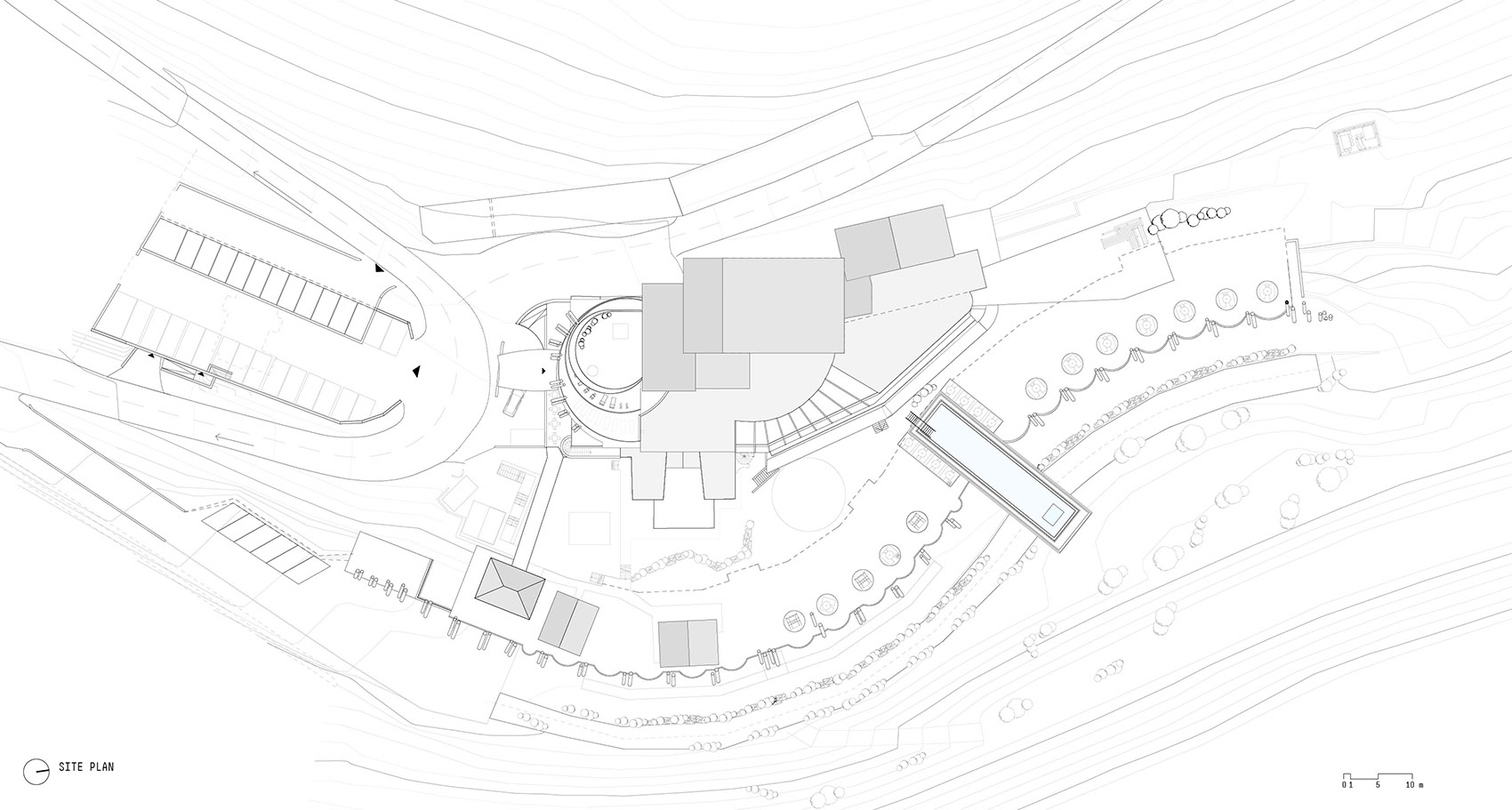

▼总平面，Master Plan

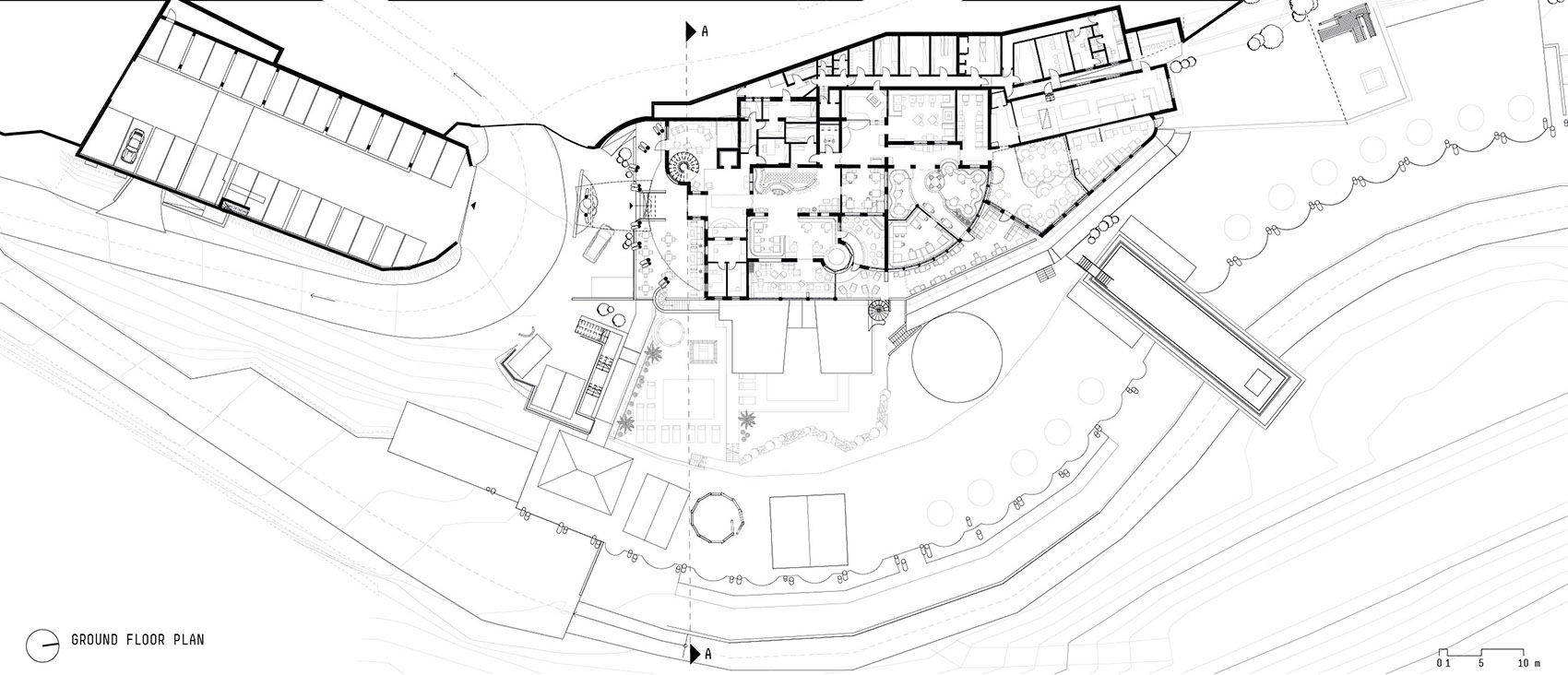

▼首层平面图，Ground Floor Plan

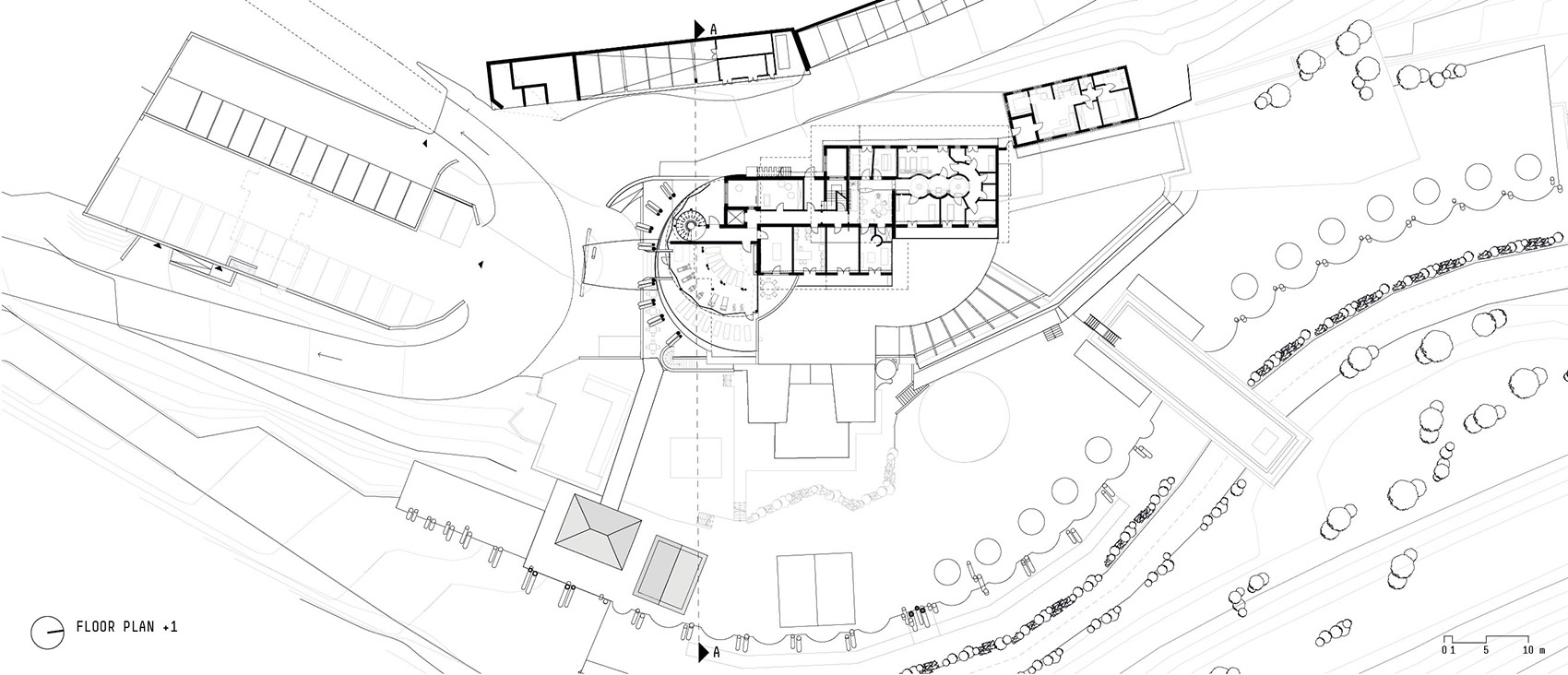

▼一层平面图，1st Floor Plan

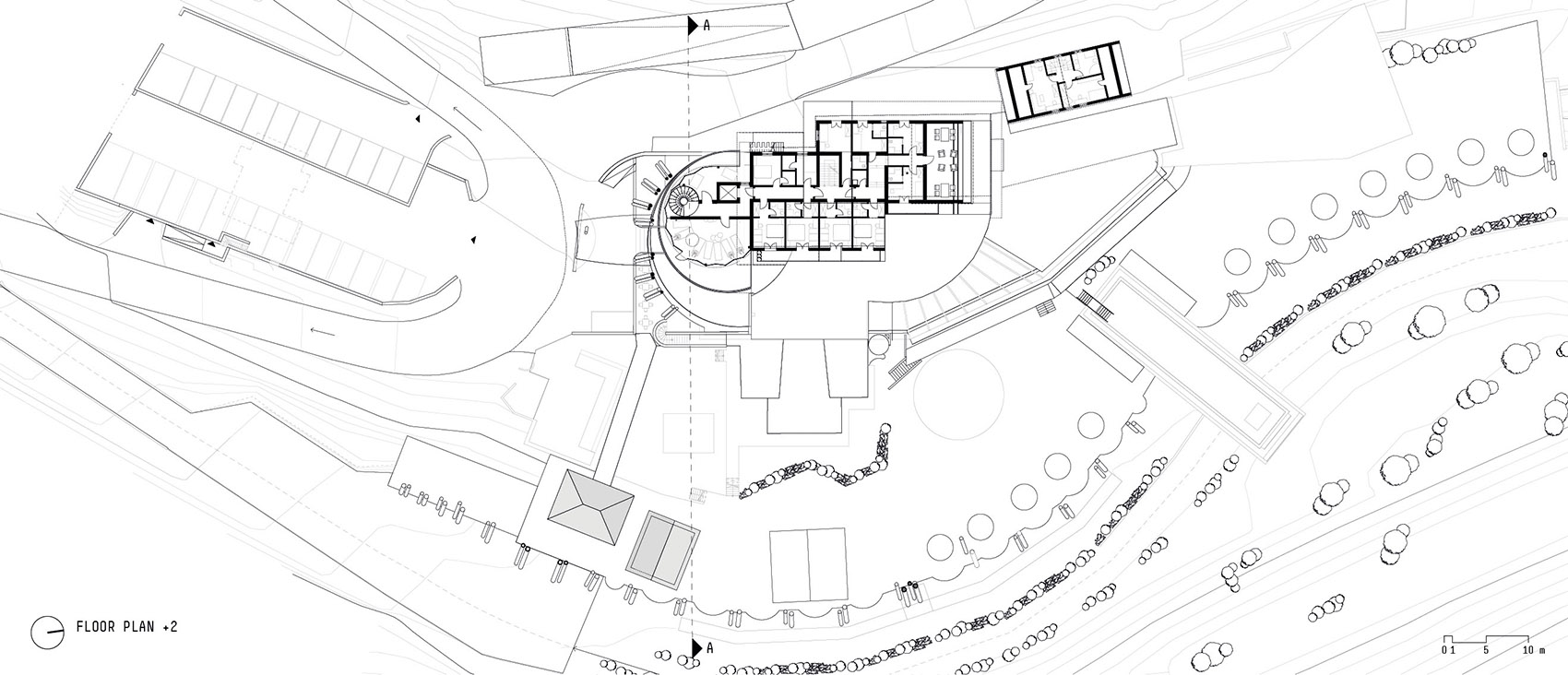

▼二层平面图，2nd Floor Plan

▼三层平面图，3rd Floor Plan

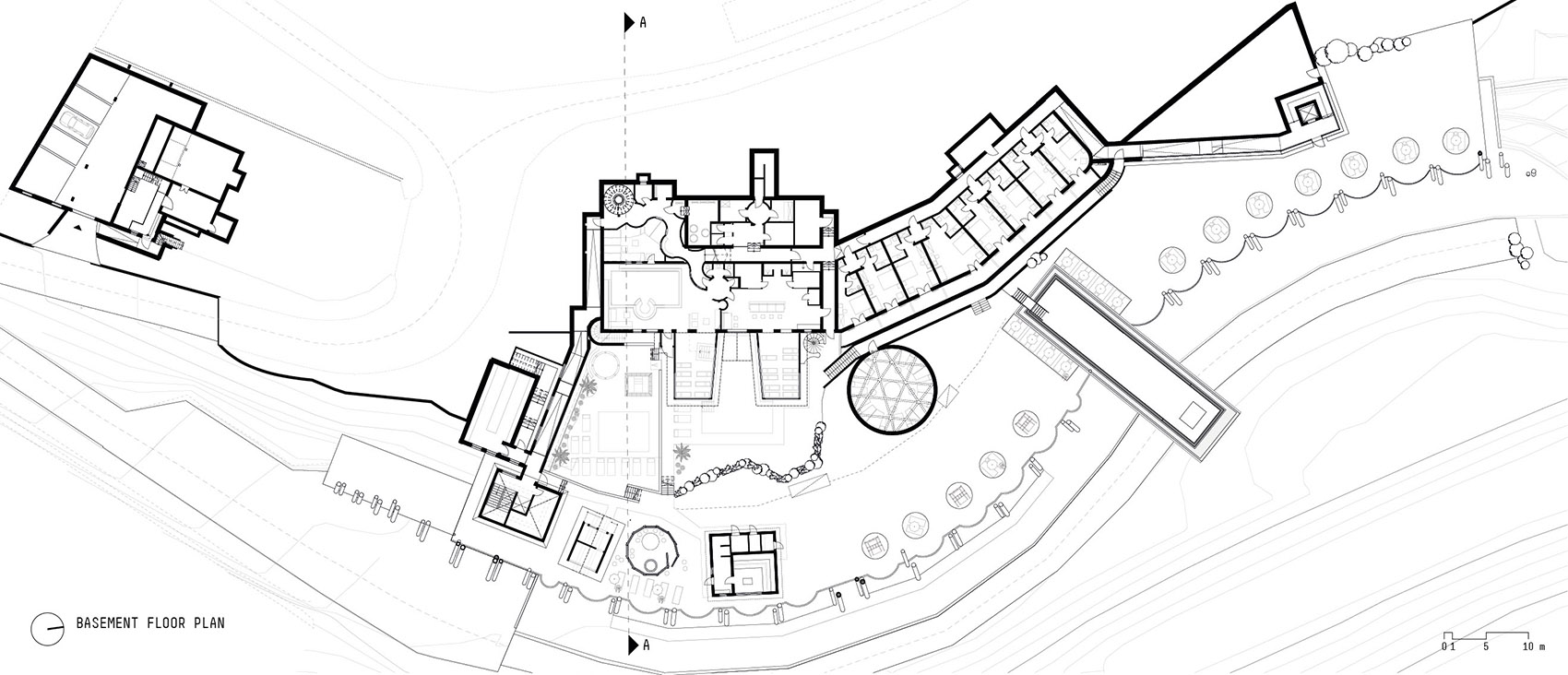

▼地下层平面图，Basement Floor Plan

▼地下一层平面图，B1 Floor Plan

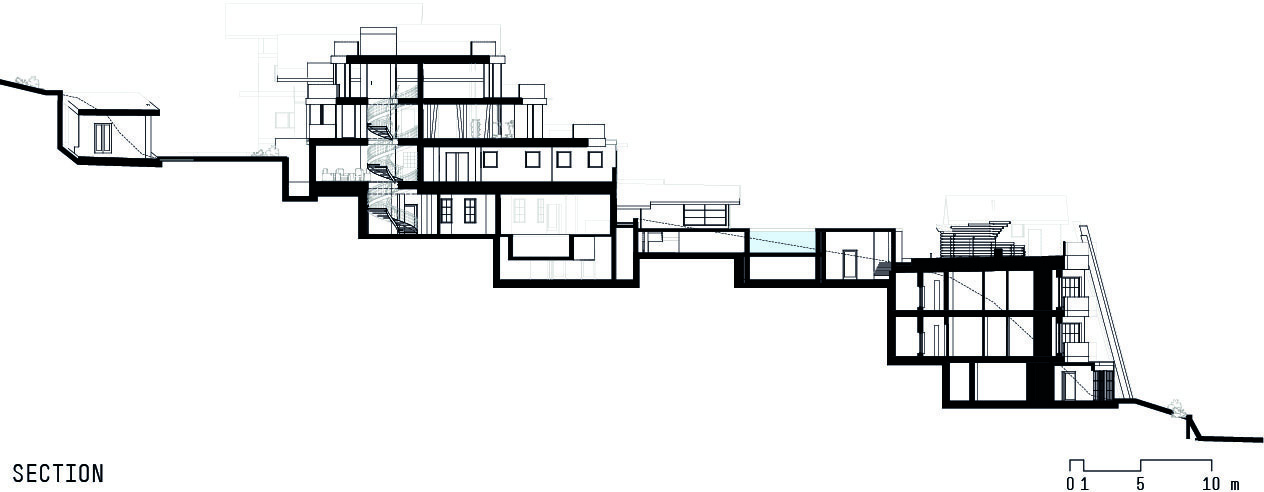

▼剖面图，Section

▼立面图，Elevation

Project name: Hubertus Place: Valdaora (I) Architecture: noa* (network of architecture) Finished: May 2016 Typology: Hotel
