灵动体块 & 巴塞罗那ZAMNESS共享办公空间 / Nook Architects

ZAMNESS一直在寻找一个可以用作工作室的空间，几经寻找之后终于遇到一个合适的共享办公空间。Nook Architects建筑事务所为其进行室内设计，他们受到了有限的经费，工期，和三个月时间限制的挑战。此空间是Poble Nou社区70年代建造的常见典型办公空间；大户型的阁楼有整面的落地窗，其中布置着工作室和仓库并配备有服务和人行电梯。社区工业建筑的特点潜移默化的影响着新的室内设计。

We had been trying for one, very long year to change our place of work and after visiting several apartments and establishments, we suddenly came across the opportunity of developing a project for a shared office with a closely known client. On this occasion time was our main challenge- we had to finish an interior design project, obtain estimated costs, manage the construction works and move in just 3 months. The working space has a configuration very commonly found on buildings built in the 70’s at the Poble Nou neighborhood; large lofts with completely glazed facades that housed workshops and warehouses, with various people and service lifts, and a very industrial character that’s reminiscent of the neighborhood’s productive past which is now undergoing a continuous renewal.

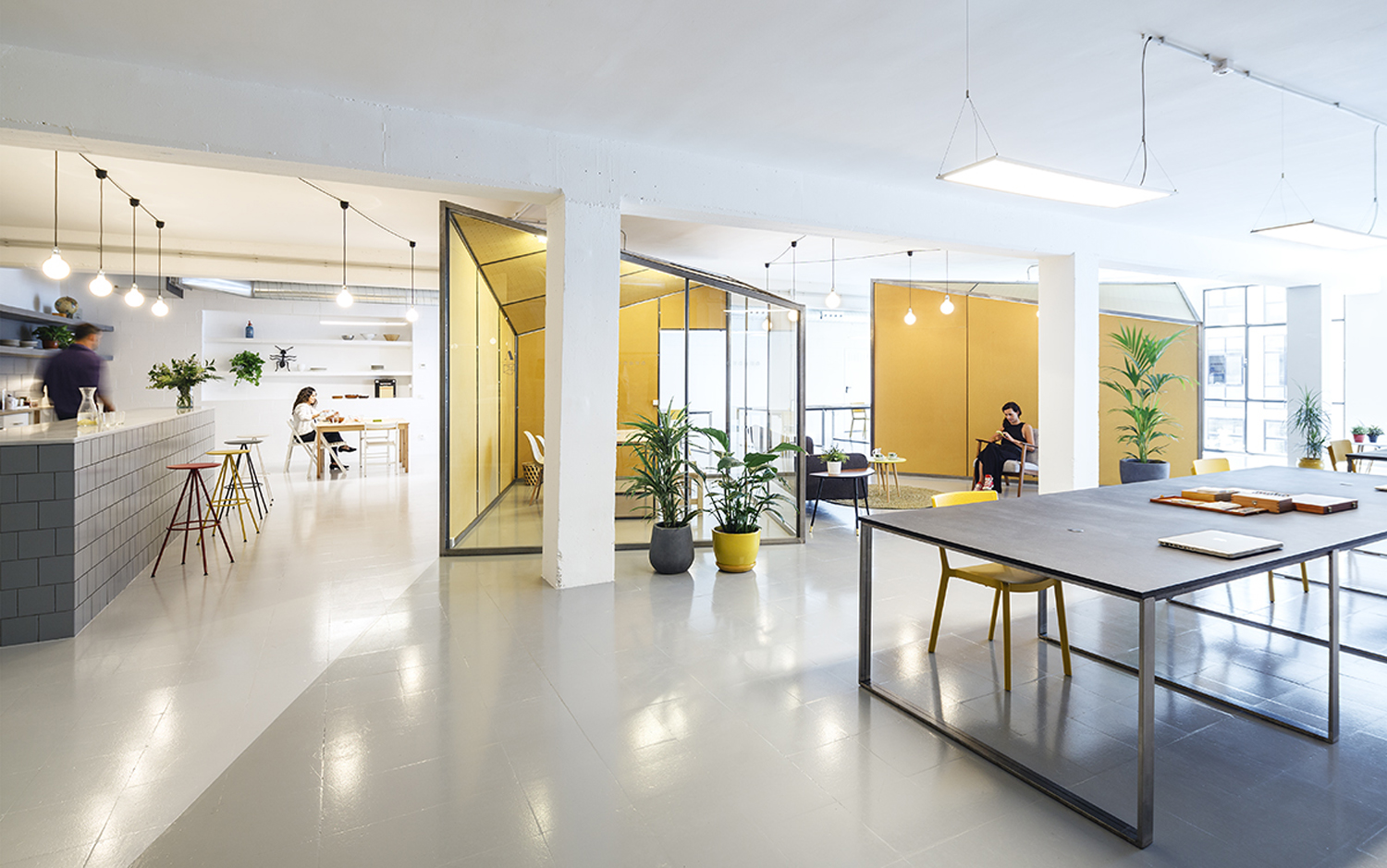

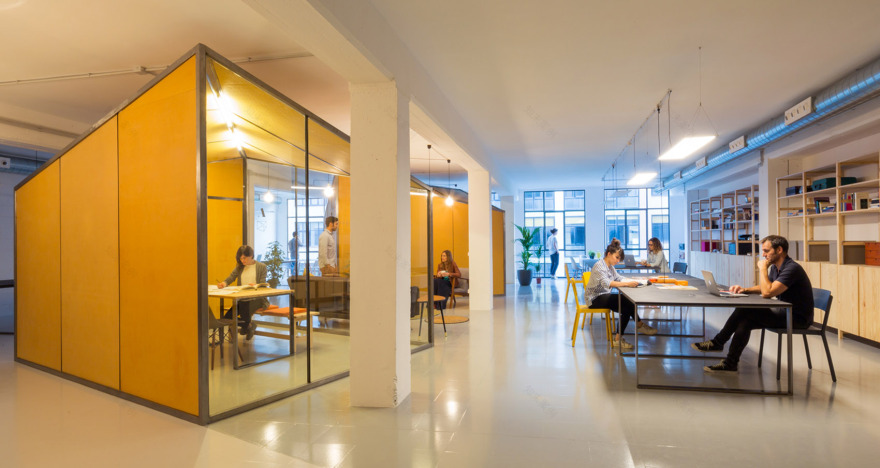

▼明快活泼办公室全景，Liviey Interior Overall View

此空间是一个由钢筋混泥土柱子和悬梁支撑的300平米大开敞空间。建筑结构形成了三条中心轴线，满足了建筑师的对空间的功能需求，在平面布置上，公共会议室和休息区位于中心，两个办公室则位于两边。正交排布的网状结构体系和模块化的立面相结合使中间的区域比两边要窄，为布置两个相似的办公室制造了难度。建筑师决定在空间中插入三个块状空间，其中两个用于会议，另一个用作卫生间。其独立于原有空间存在，使空间更有层次和秩序感。

We found a space that was empty and completely lacked partitions, 300 m2 supported by reinforced concrete pillars and hung beams.The structure is composed of three centerlines that clearly fitted the required functional plan: two offices located on opposite sides and the common meeting rooms and resting areas in the center. We noticed, from the beginning the strength of the orthogonal arrangement set by the reticular structure and the modulated façade. It also made very obvious the fact that one of the centerlines was narrower than the rest, which complicated the solution for the need of the two very similar office spaces. The intervention was then clear: the construction of three light volumes- two for meeting rooms, one for the bathrooms; we defined the ensemble by granting hierarchy to the existing vacuum and differentiating our intervention from the original envelope.

▼打破结构轴线的平面布置，plan break the limits of the structural axis

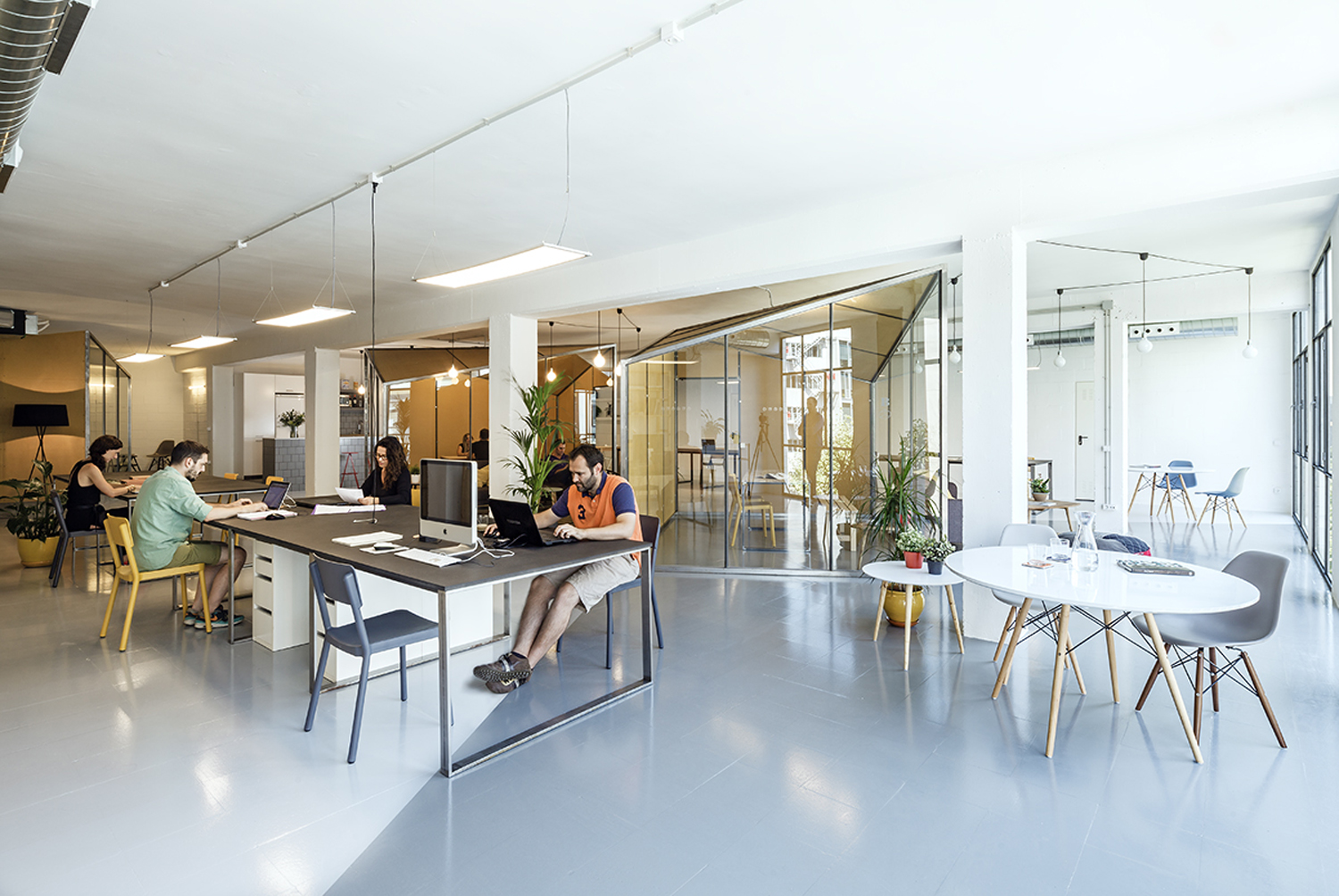

▼用于办公室的两个体块，the construction of three light volumes- two for meeting rooms

三个介入体块采用对角线的排列方式，打破了建筑结构轴线的限制，其形成的两条对角线轴线贯穿了整个空间，并形成了一些间隙的零散空间，人们可以在这里休息和闲逛。三种不同灰度的铺地也界定了空间的功能分布，靠近立面的一边颜色最深，入口部分的颜色最浅。

We used diagonals to set apart our intervention and to configure spaces that overflowed from the limits of the structural axis. This established a relationship between the three volumes and two diagonals that go across the entire space, making interstitial spaces for resting areas and an ample galley. This idea was reinforced by using three different pavement tones of gray that go from the darkest near the facade to the lightest at the entry on the opposite side.

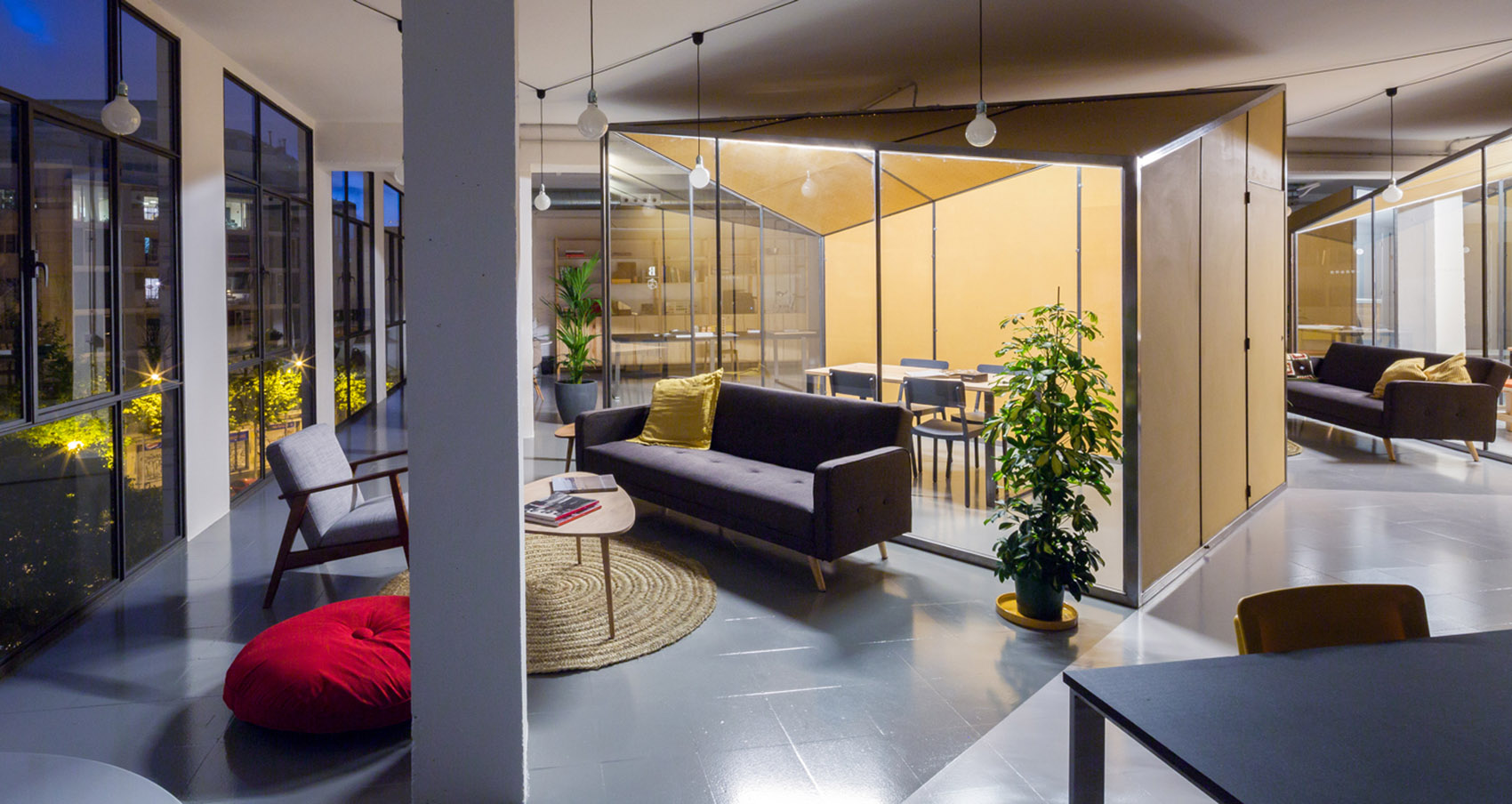

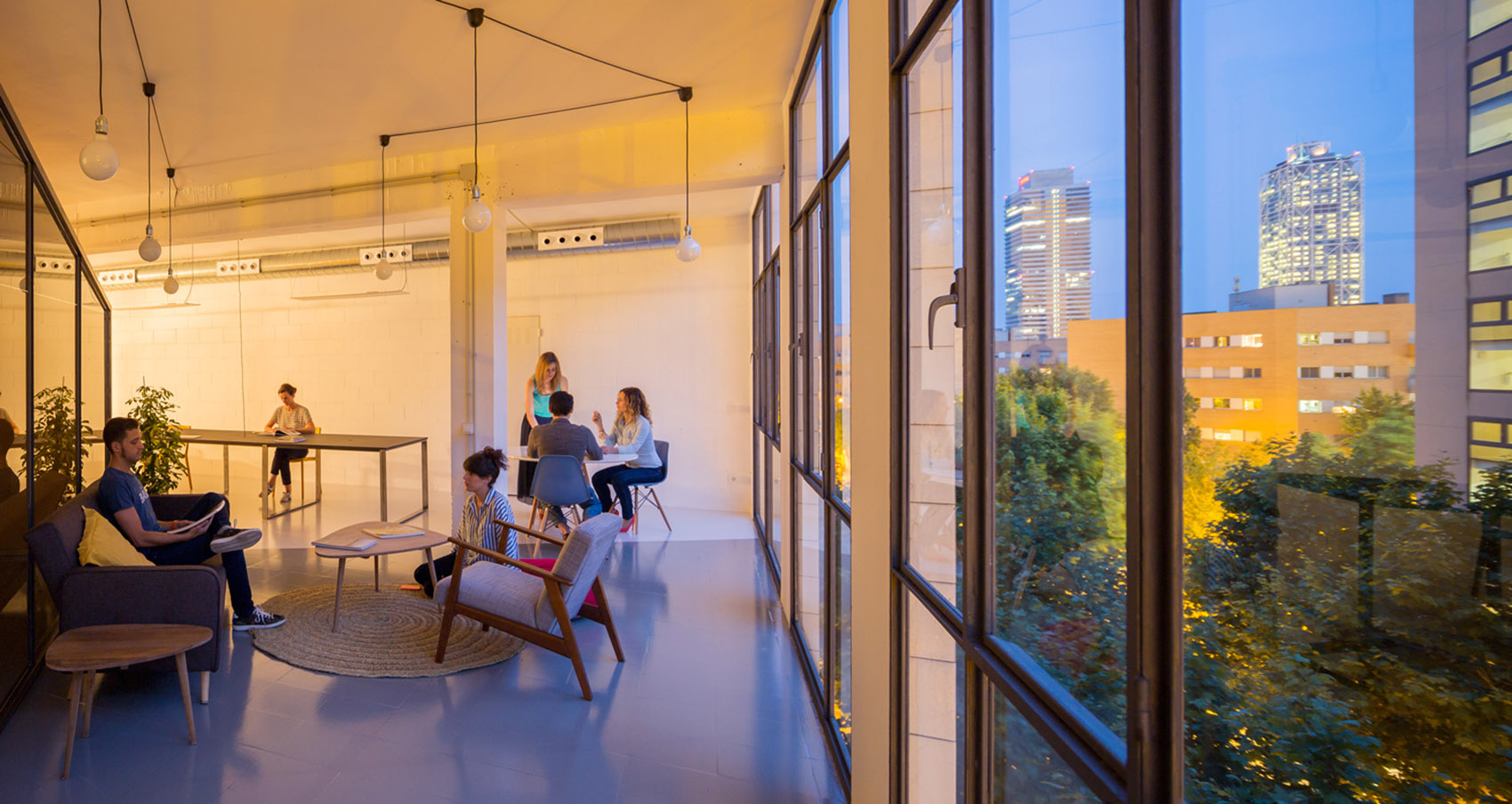

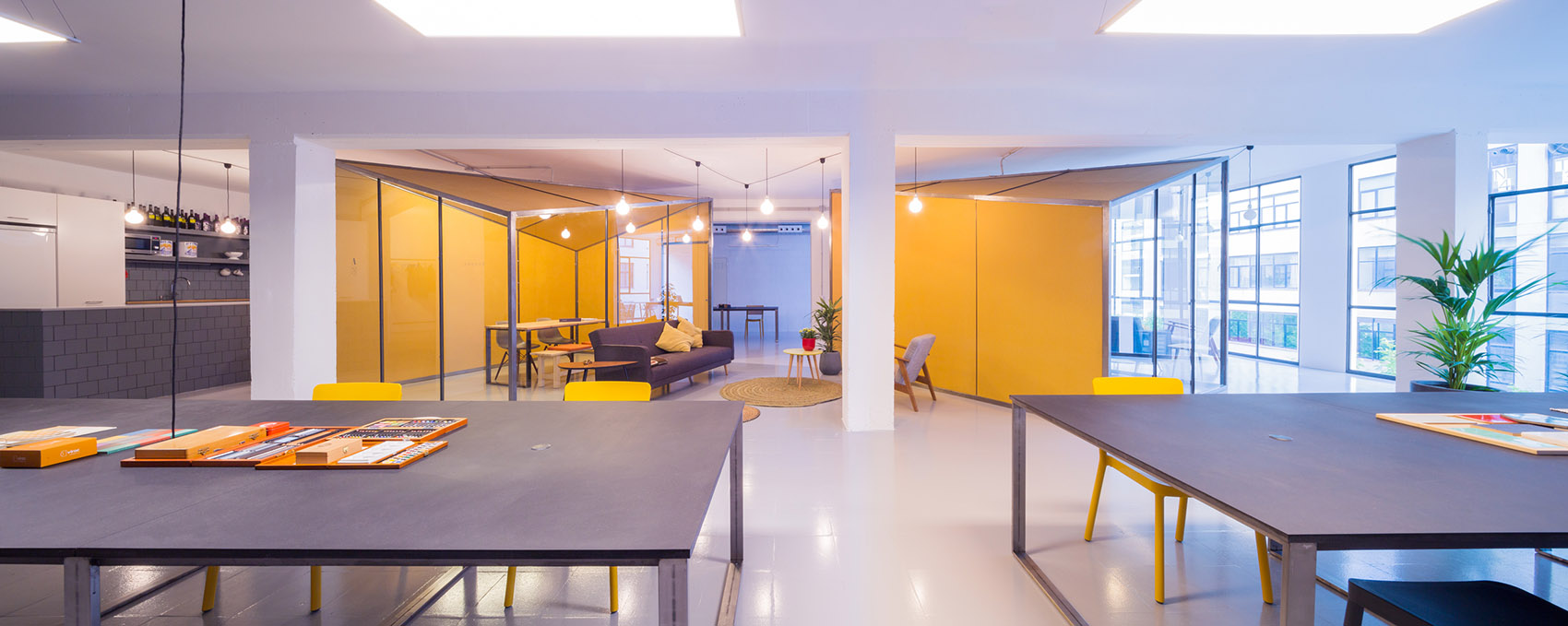

▼ 间隙的零散空间用于休息和闲逛，making interstitial spaces for resting areas and an ample galley

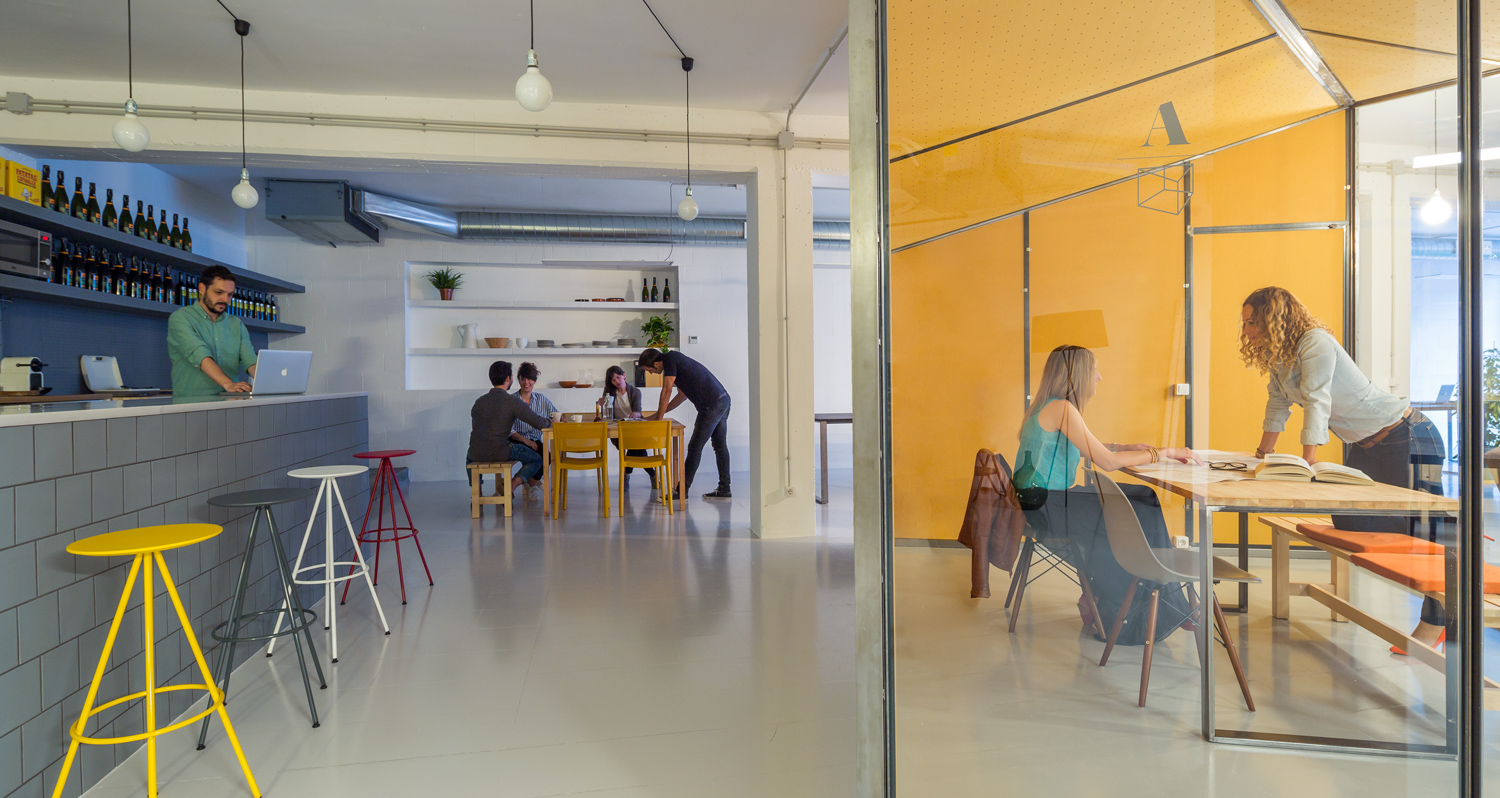

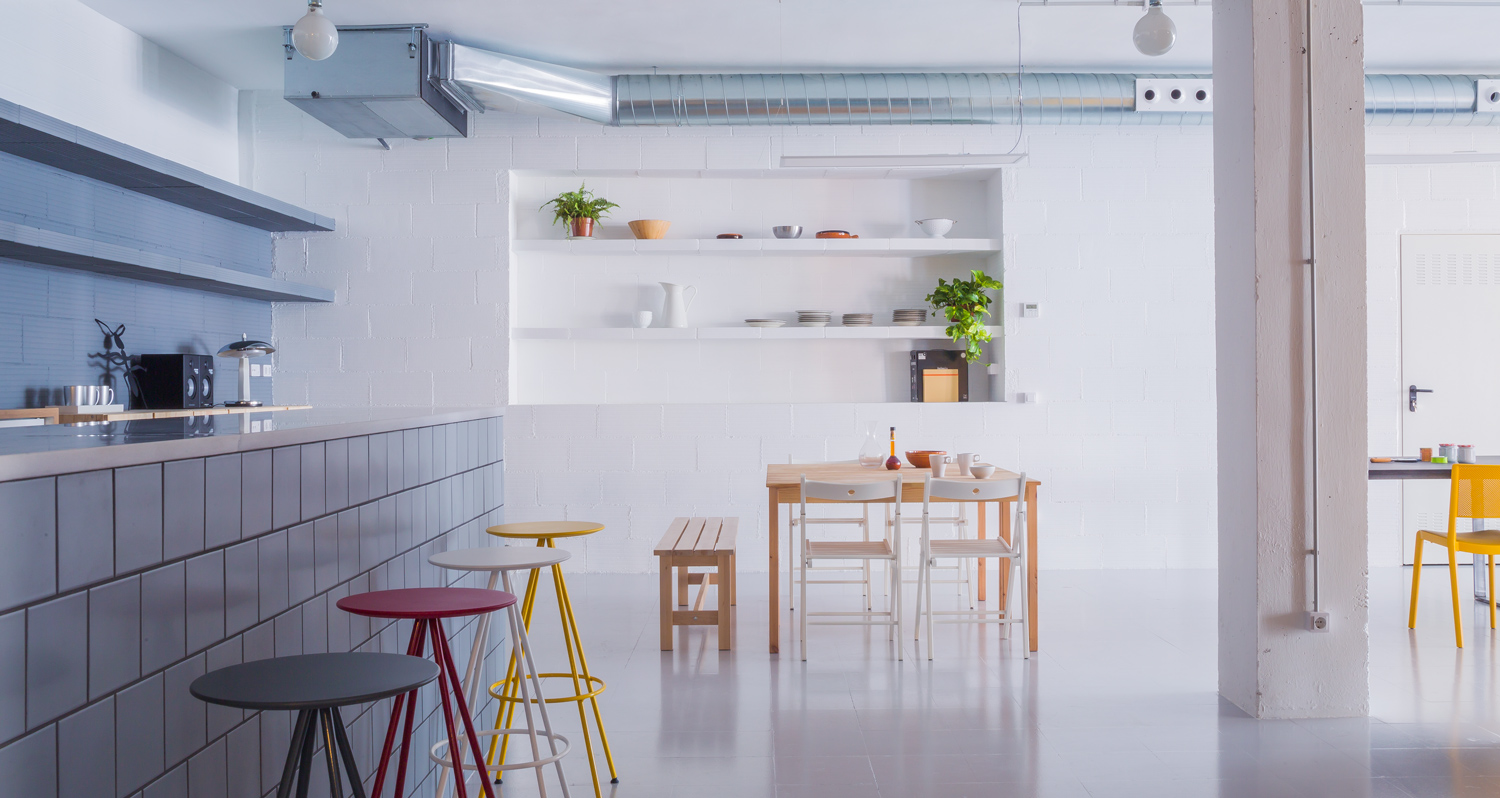

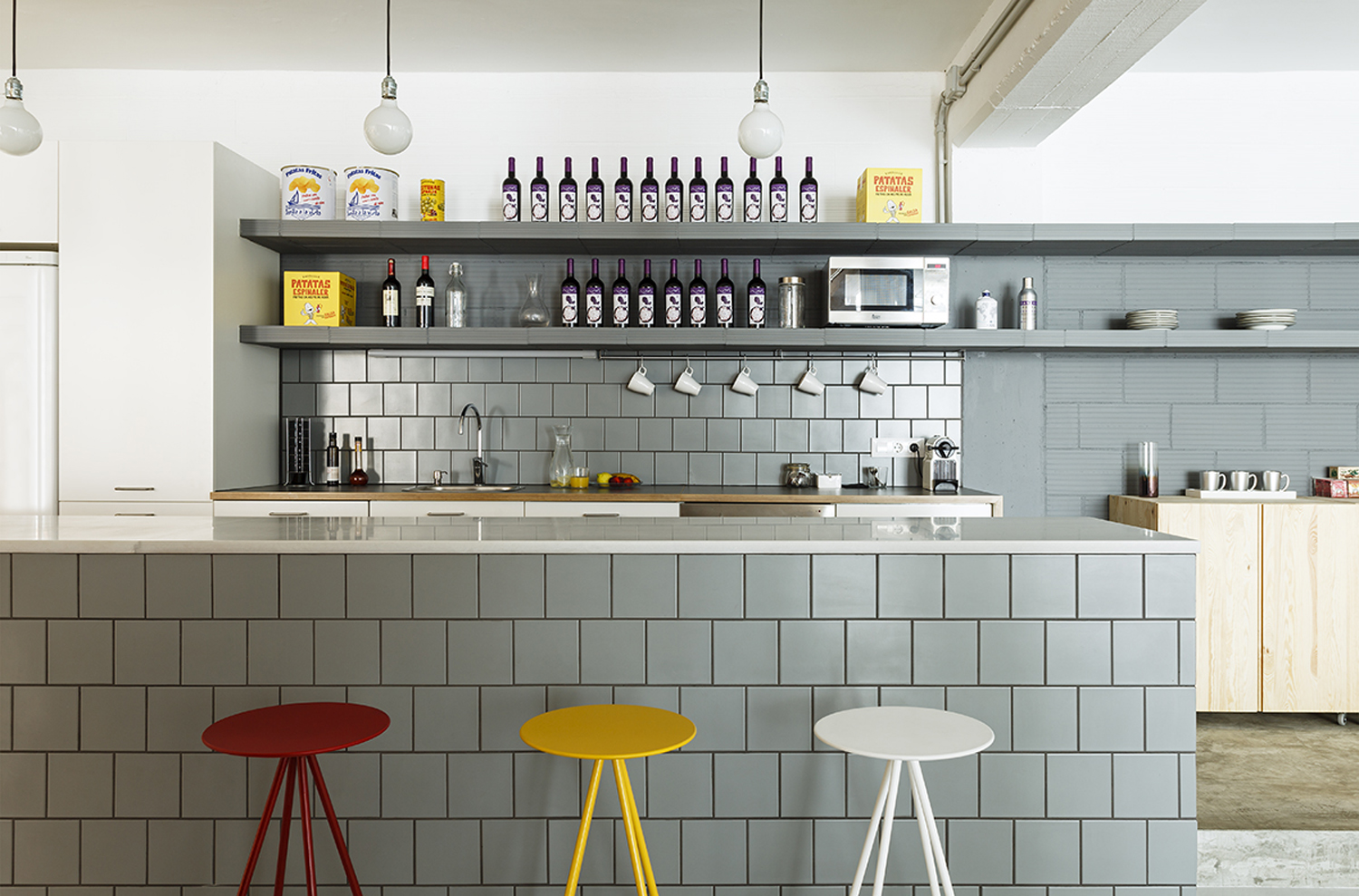

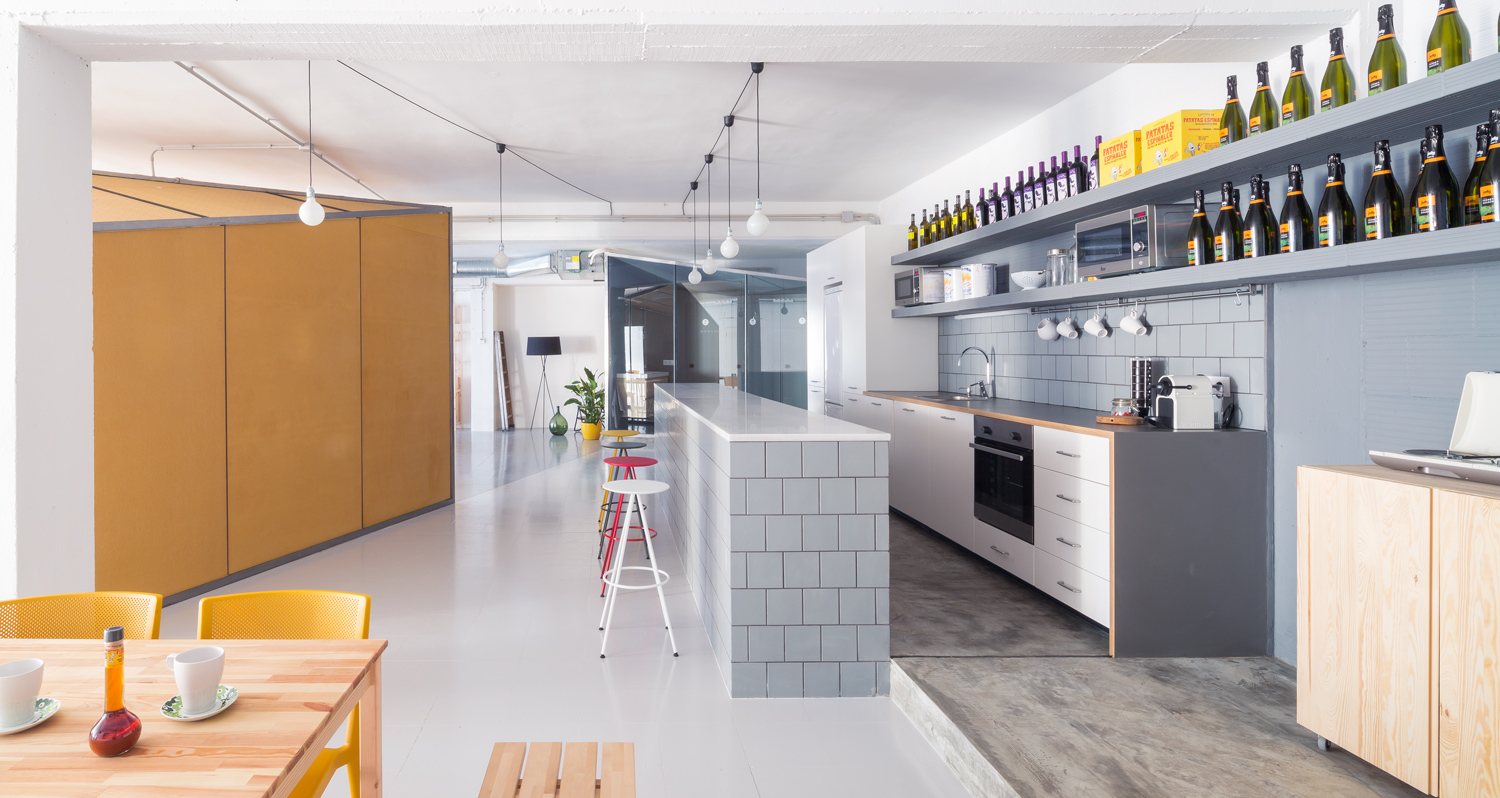

▼吧台和餐桌椅，Bar and seating area

这些独立存在的体量原本是平顶的方形盒子，结构简洁。随着时间的流逝，建筑师将这些体块改造成了顶部突起的对称坡屋顶体量，在结构的允许下最大化的扩充了空间的高度。

These volumes were originally thought of as rectangular boxes with flat roofs, the minimum structure for a meeting room. As time went by, we deformed these, transforming them into asymmetric pieces by elevating the diagonal to the roof, increasing its volume up to the capacity set by the limits defined by the slab and the hung beams.

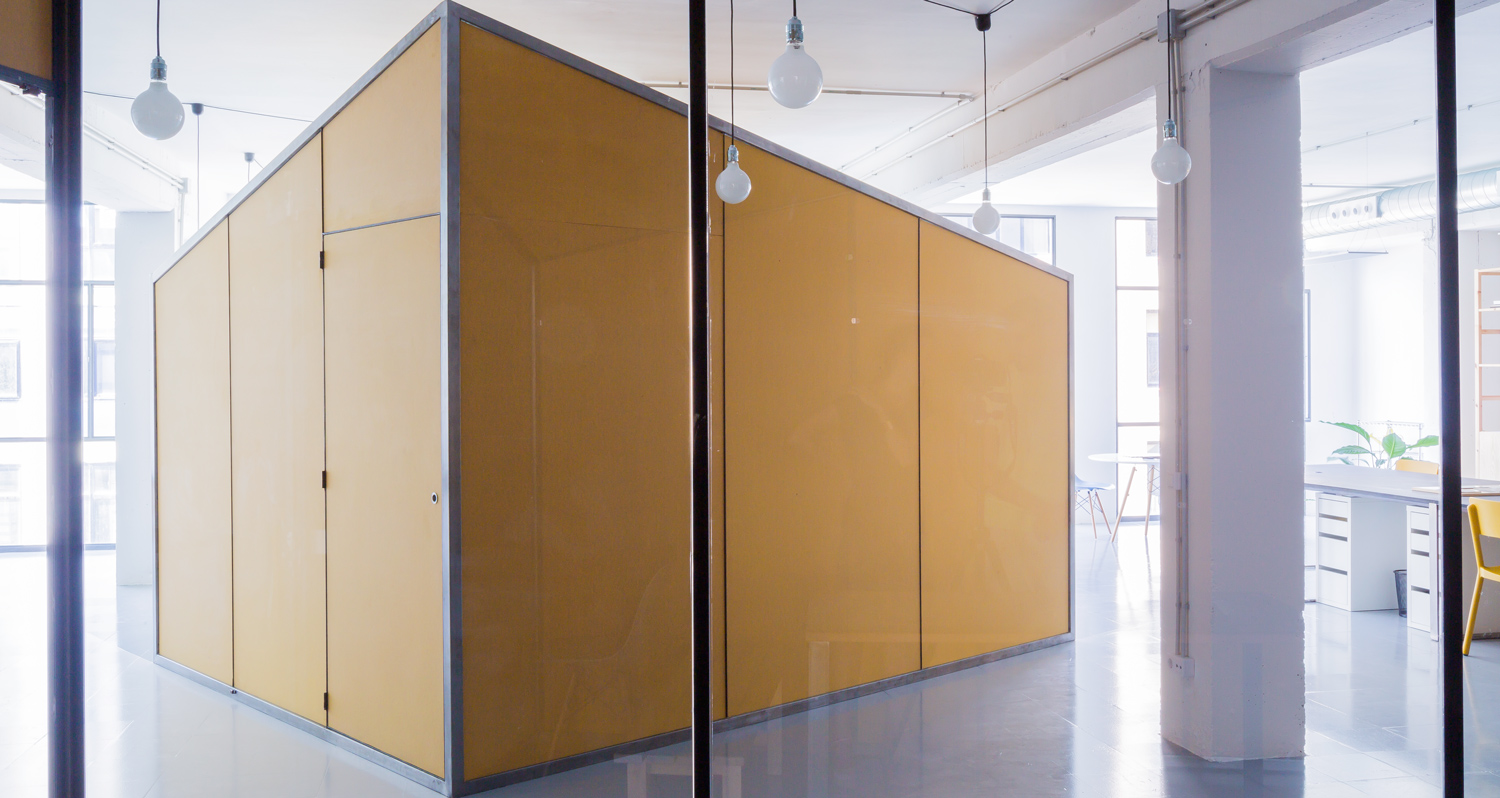

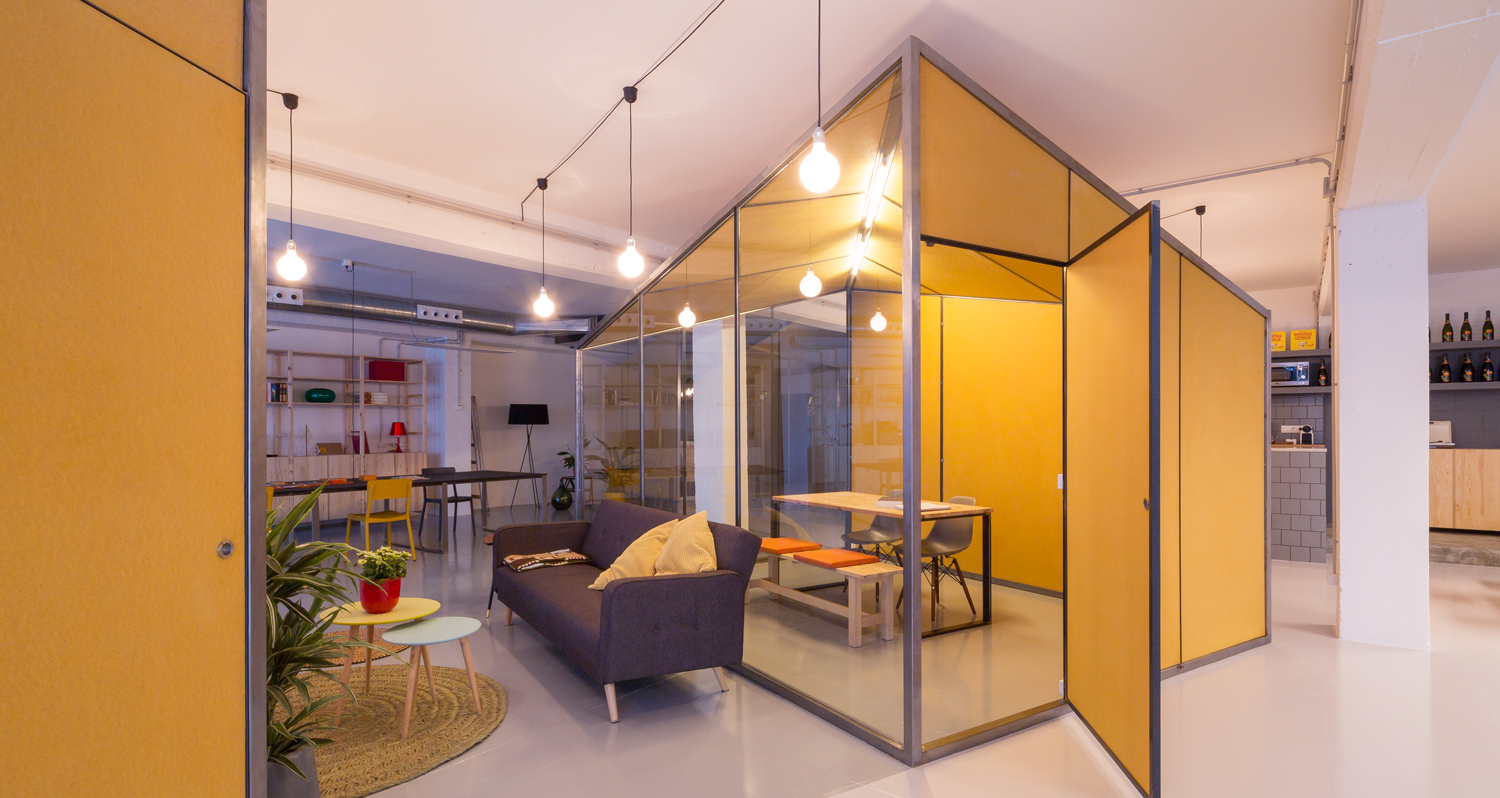

▼坡屋顶会议室，Meeting room volume

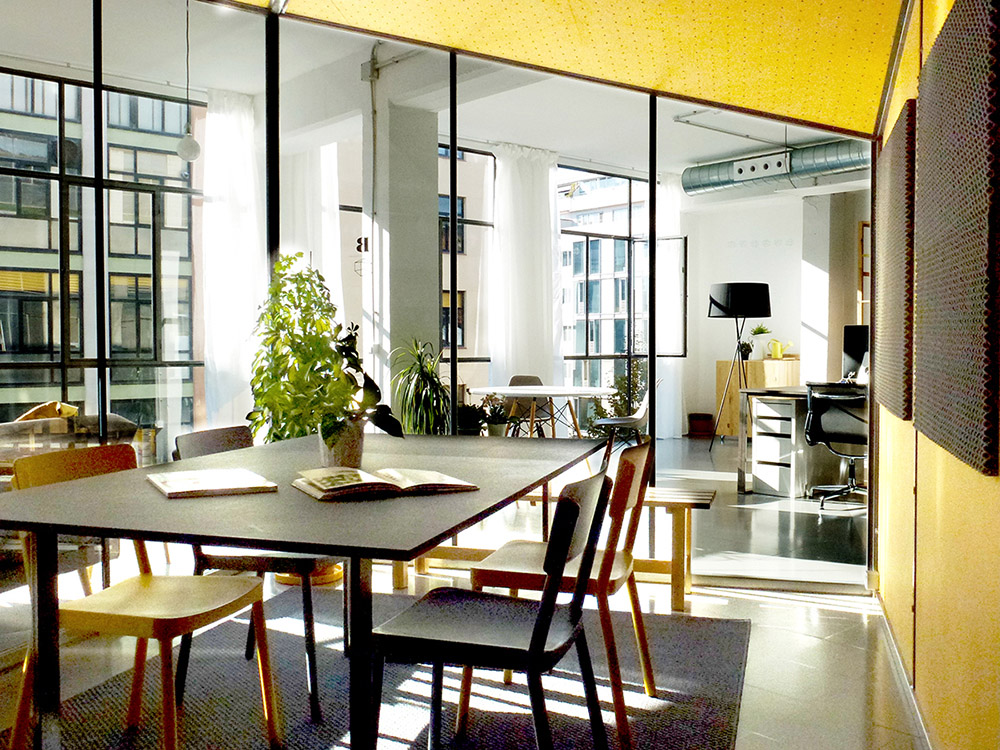

▼会议室体量内部，Inside Meeting room volume

最靠近入口的体块空间是浴室，建筑师将地板高度抬升，以便满足布置排水管的需求。办公室的桌子和三个体块的材质都使用了彩色的刨花板，耐用持久，防水并且尺寸大。剩余的家具也根据空间的尺寸来选择。

We placed the bathrooms near the entry and elevated it from the original pavement level to allow the sanitary installation to reach the only drainpipe located on one end of the establishment. We then set ourselves to solve the volumes and the working tables with the same material. We used colored chipboard, which is durable, water resistant and available in large sizes. The rest of the furniture are standard modules adapted to the dimensions of the spaces.

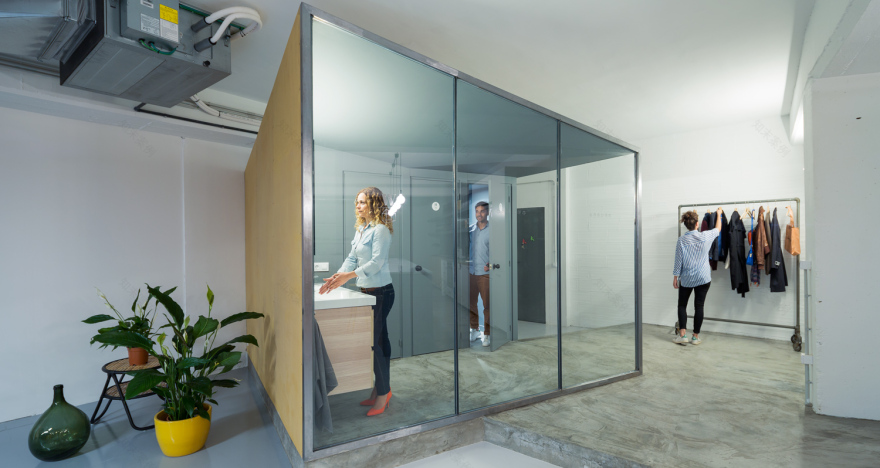

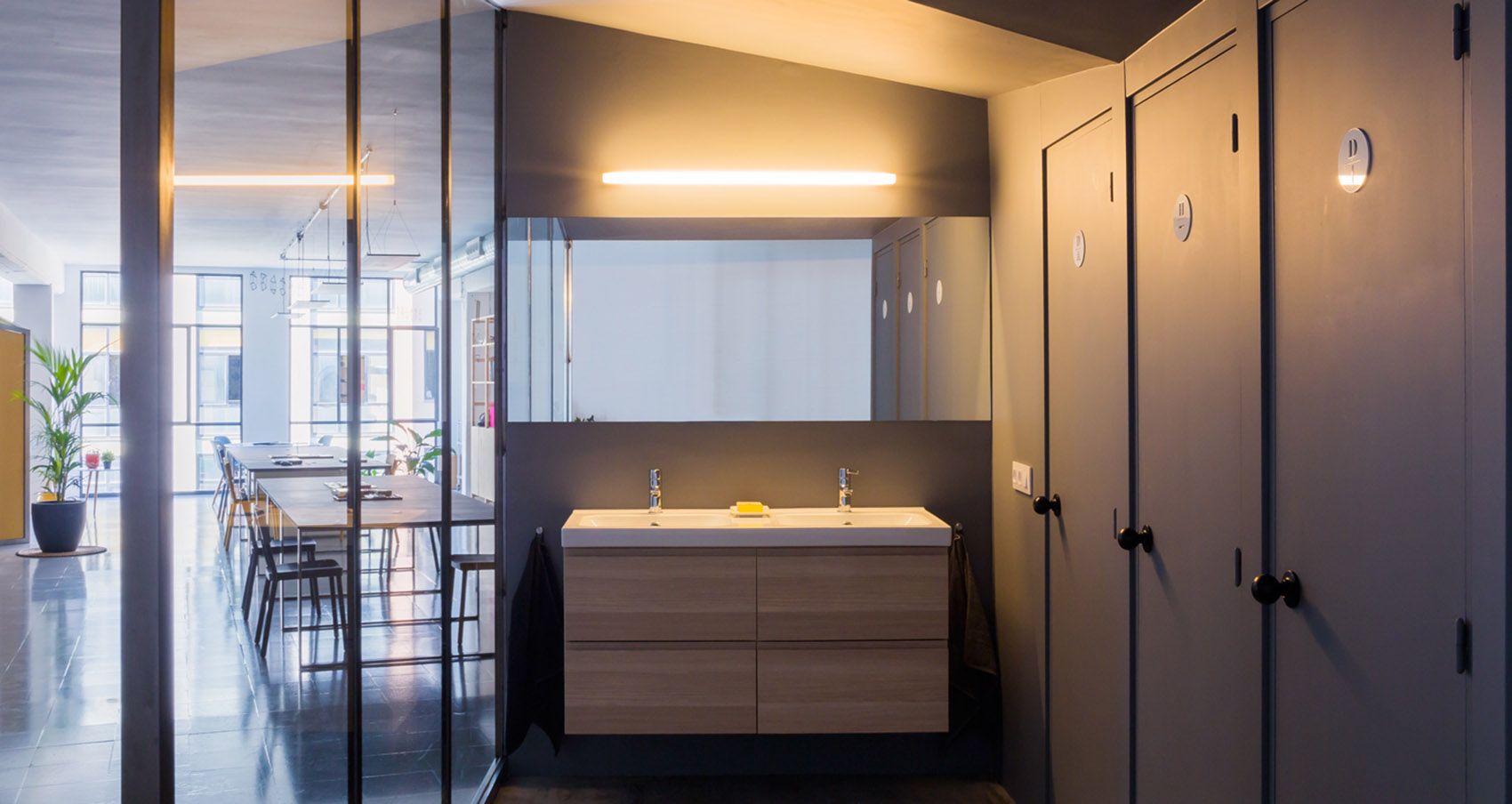

▼浴室，bathroom

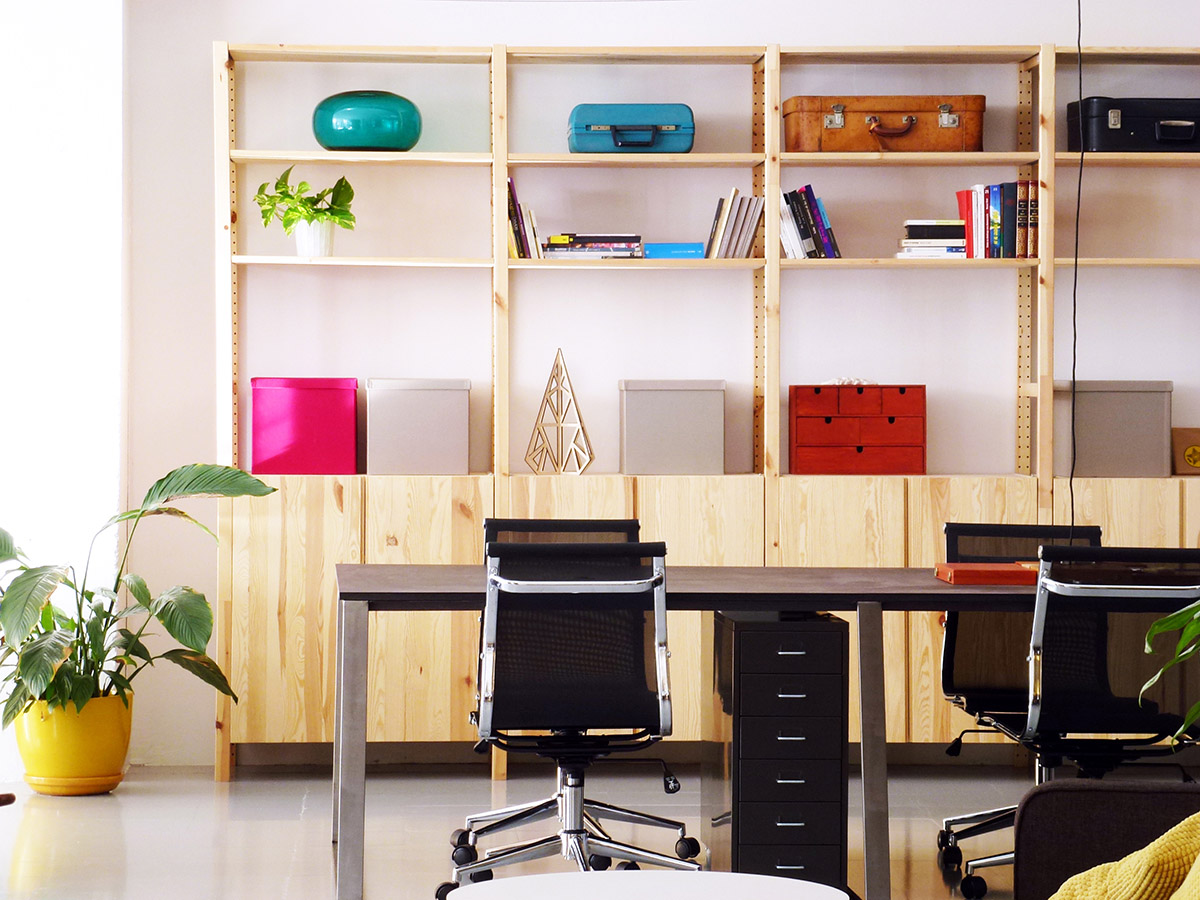

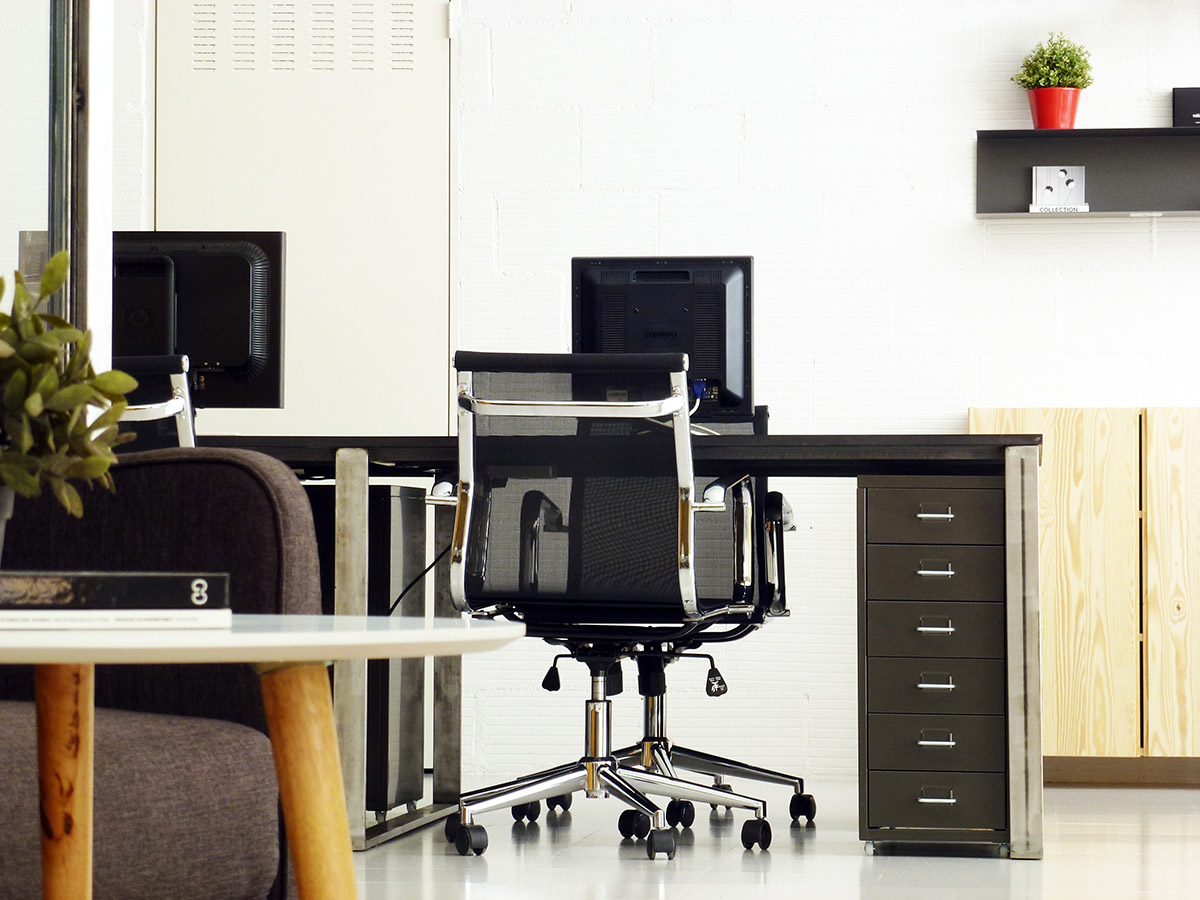

▼办公室家具，Furnitures

建筑师在完全空白的空间中，建立起对角线的布置方式，打破了原有结构的限制，他们希望这也可以影响到其工作方式，将休闲娱乐与工作结合在一起。

Upon finding the challenge of a blank canvas, we established in Zamness diagonals that diluted the limits of each zone the same way that we intend to dilute the limits between work, rest and leisure time.

▼体块分解轴测图，Exploded Axonometric

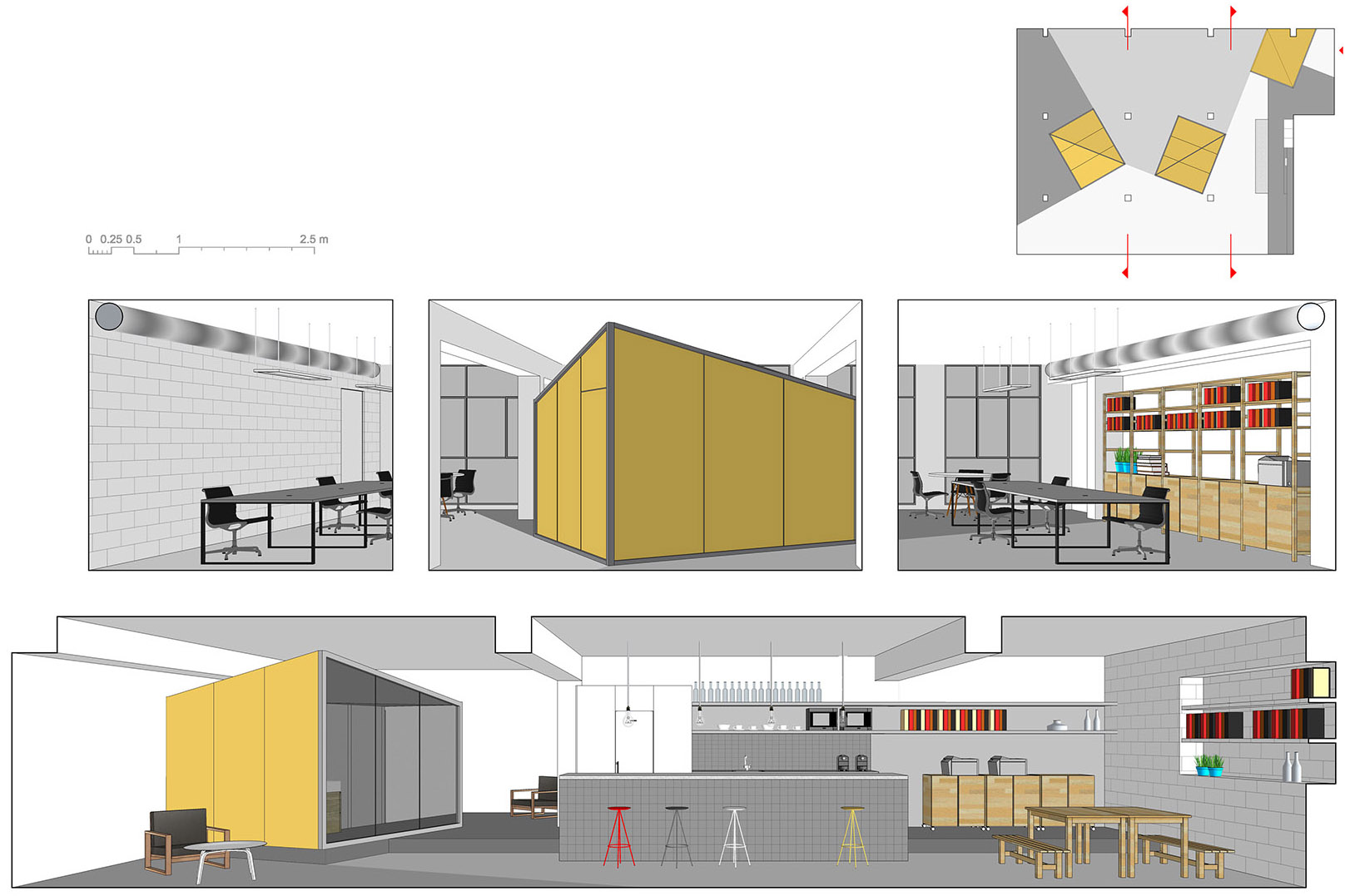

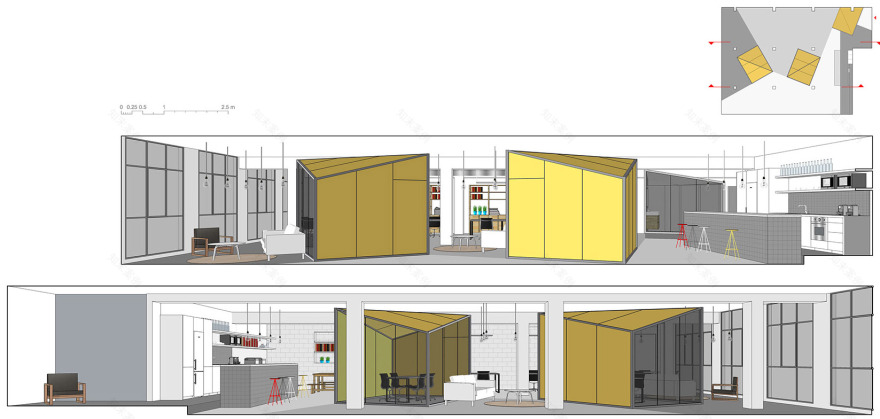

▼立面图，Elevations
