东伦敦的黄色大泡泡 / Dosis

Second Dome是由西班牙建筑事务所DOSIS为Second Home—一个提供创意工作空间的公司设计的充气结构建筑。

Second Dome is an pneumatic living structure designed by the Spanish architecture practice DOSIS for creative workspace provider Second Home.

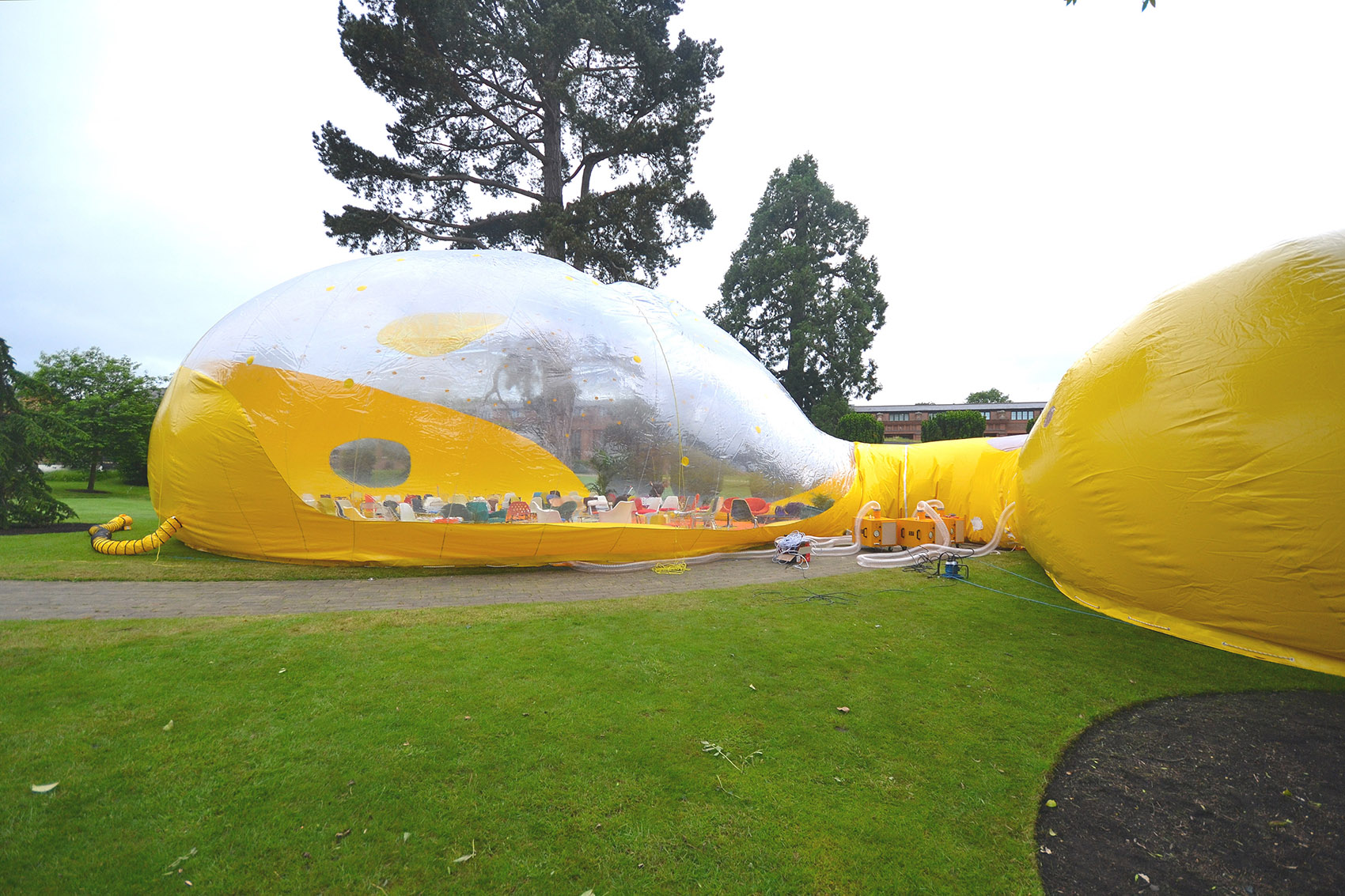

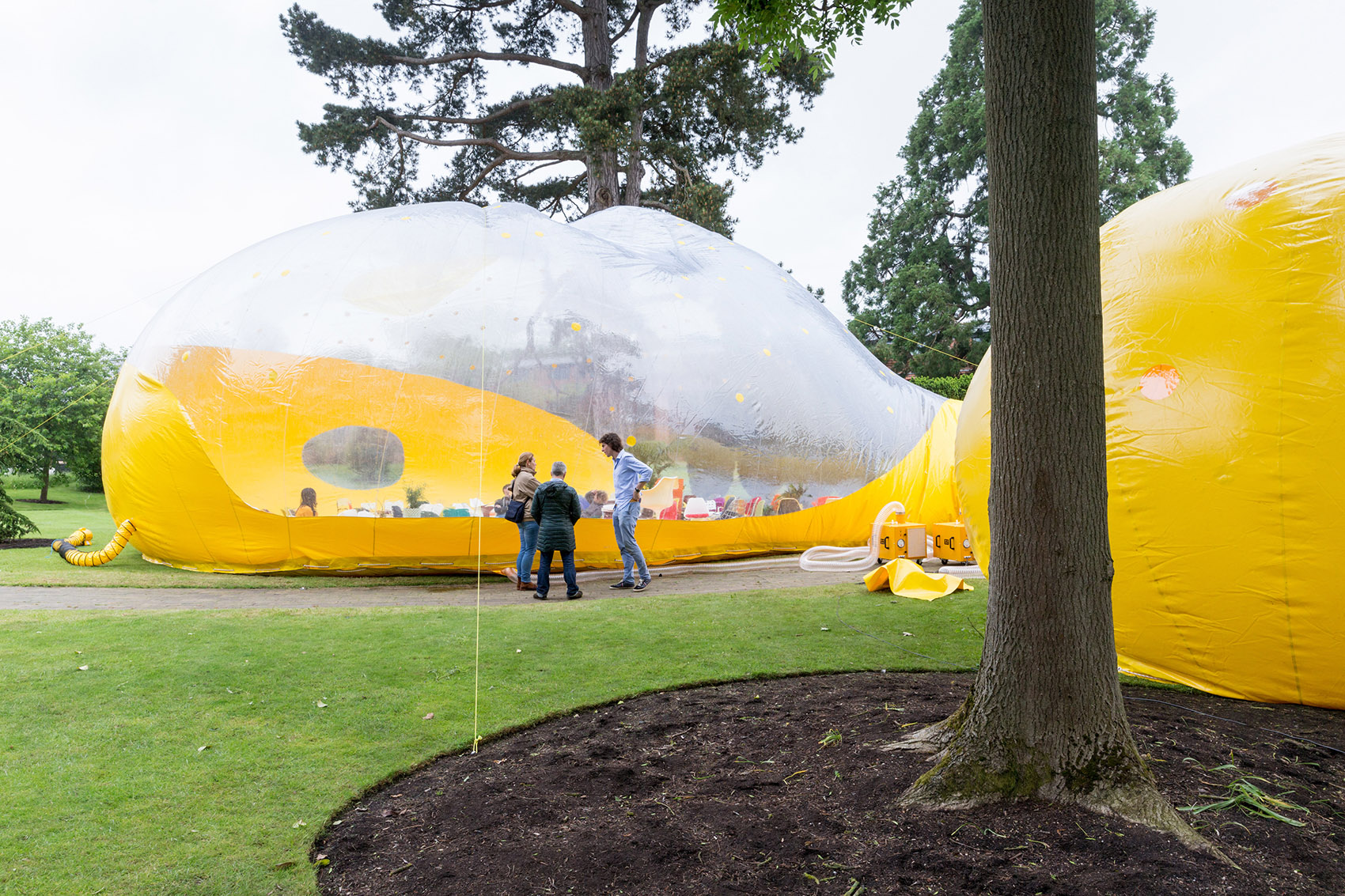

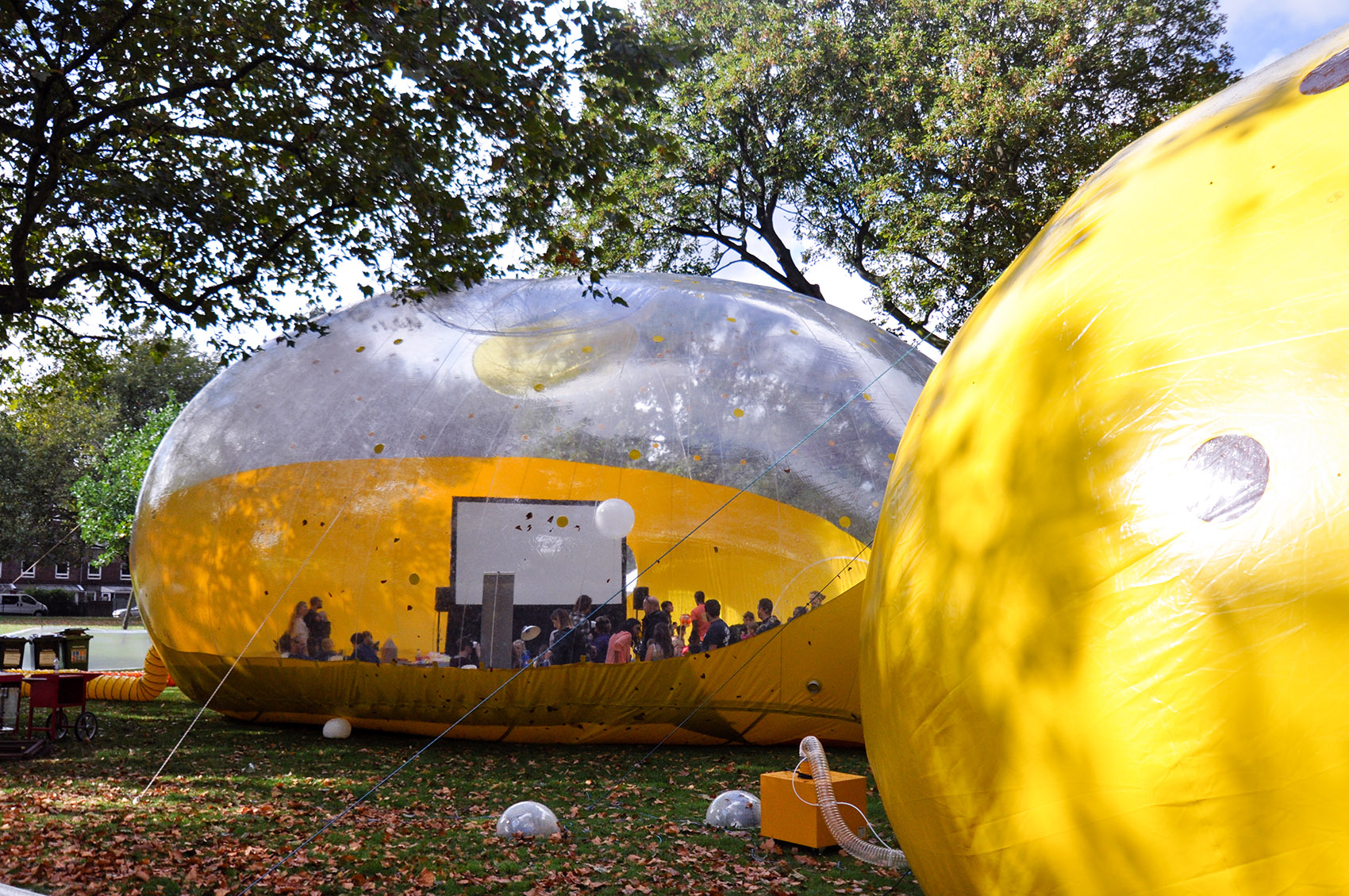

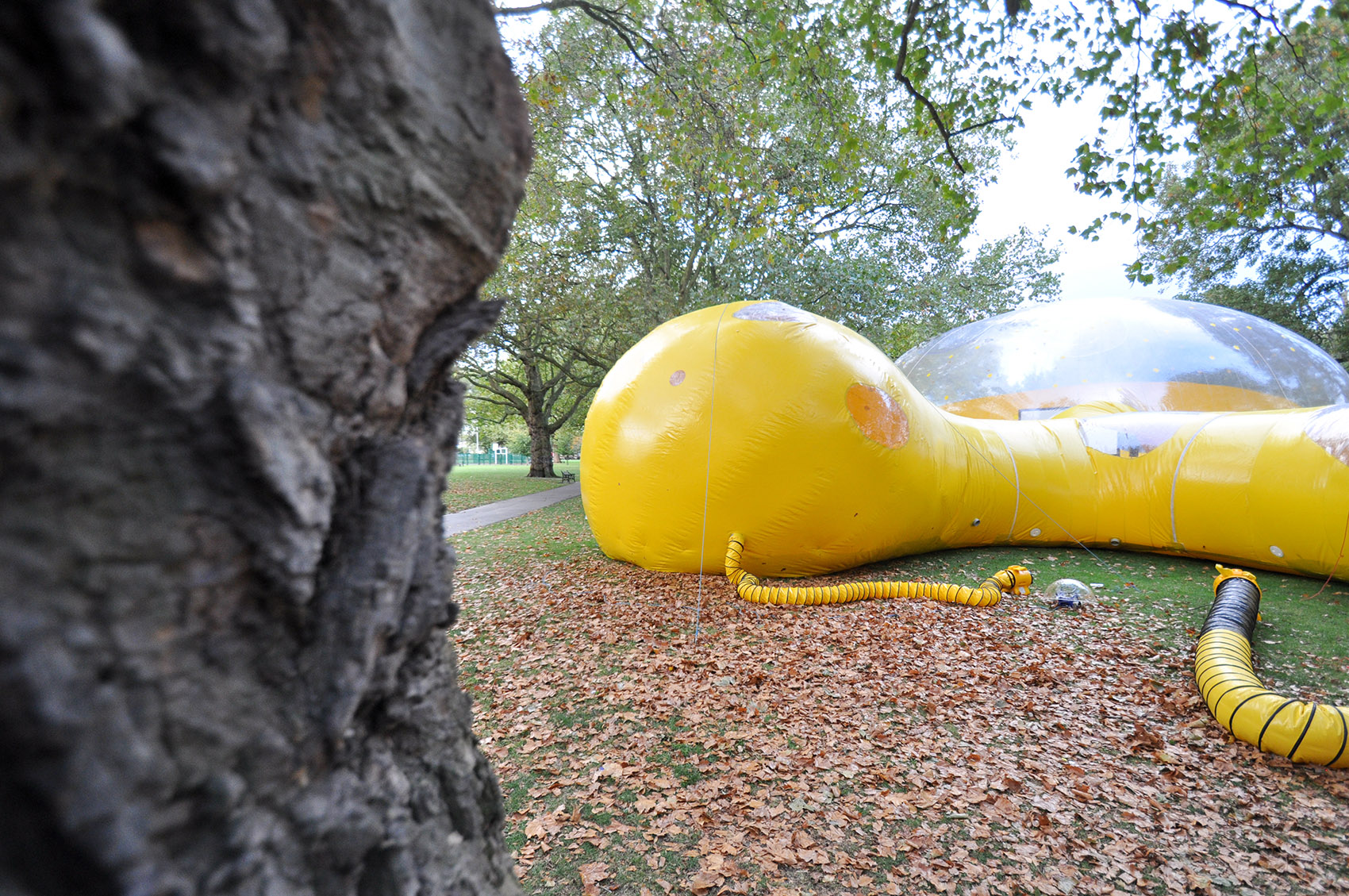

▼建筑外观，external view

2016年十月一日，Second Dome于东伦敦的London Fields充气建立起来，用于为当地家庭和儿童举办免费社区活动，包括动画工作坊，电影放映，皮纳塔设计和科学实验的活动，全部由非营利组织Shuffle组织举办。

On 1 October 2016, Second Dome was inflated in London Fields in East London to host free community events for local families and children. The events were organized by the not-for-profit organization Shuffle, and include animation workshops, film screenings, pinata-designing and science experiments.

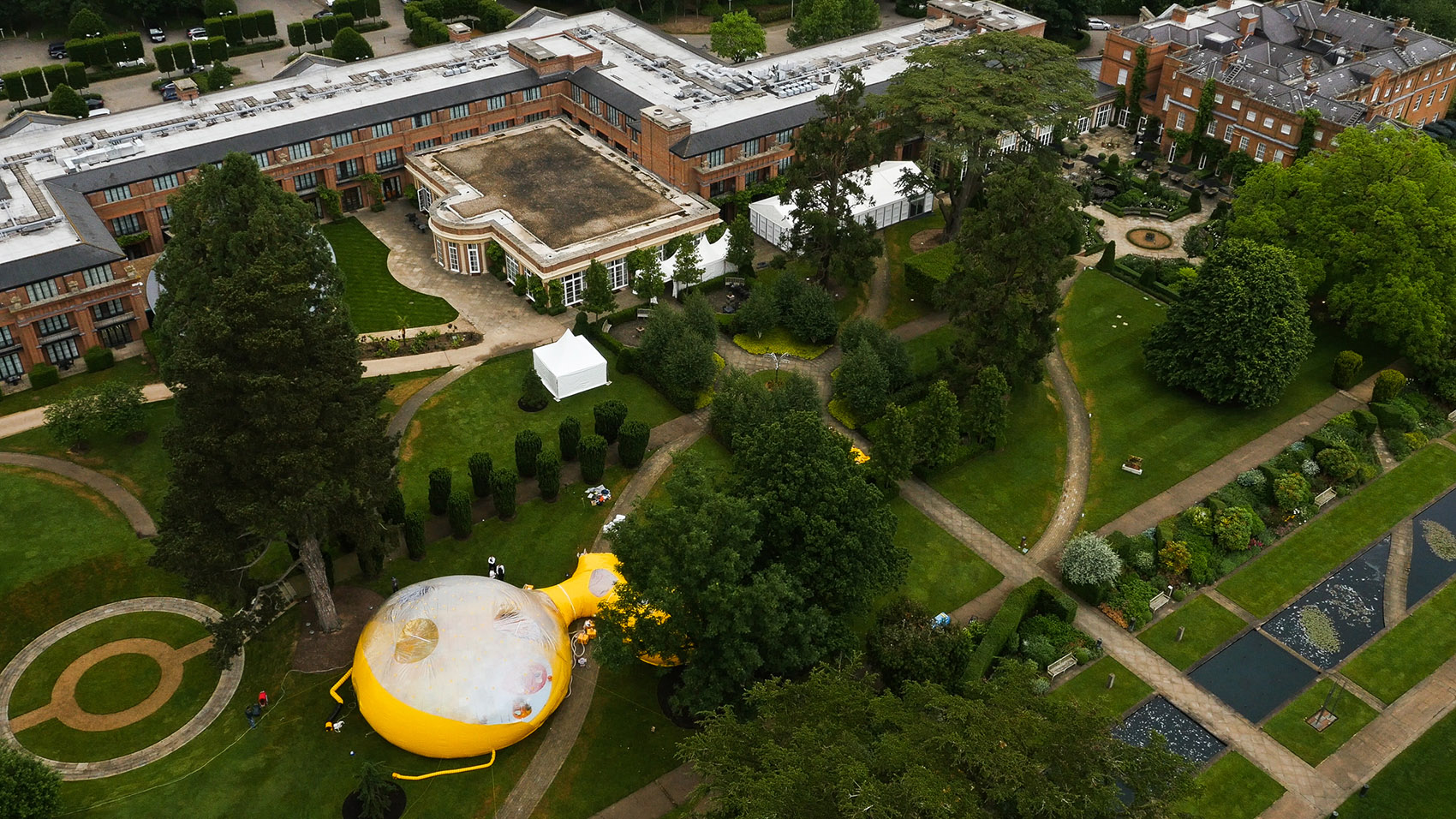

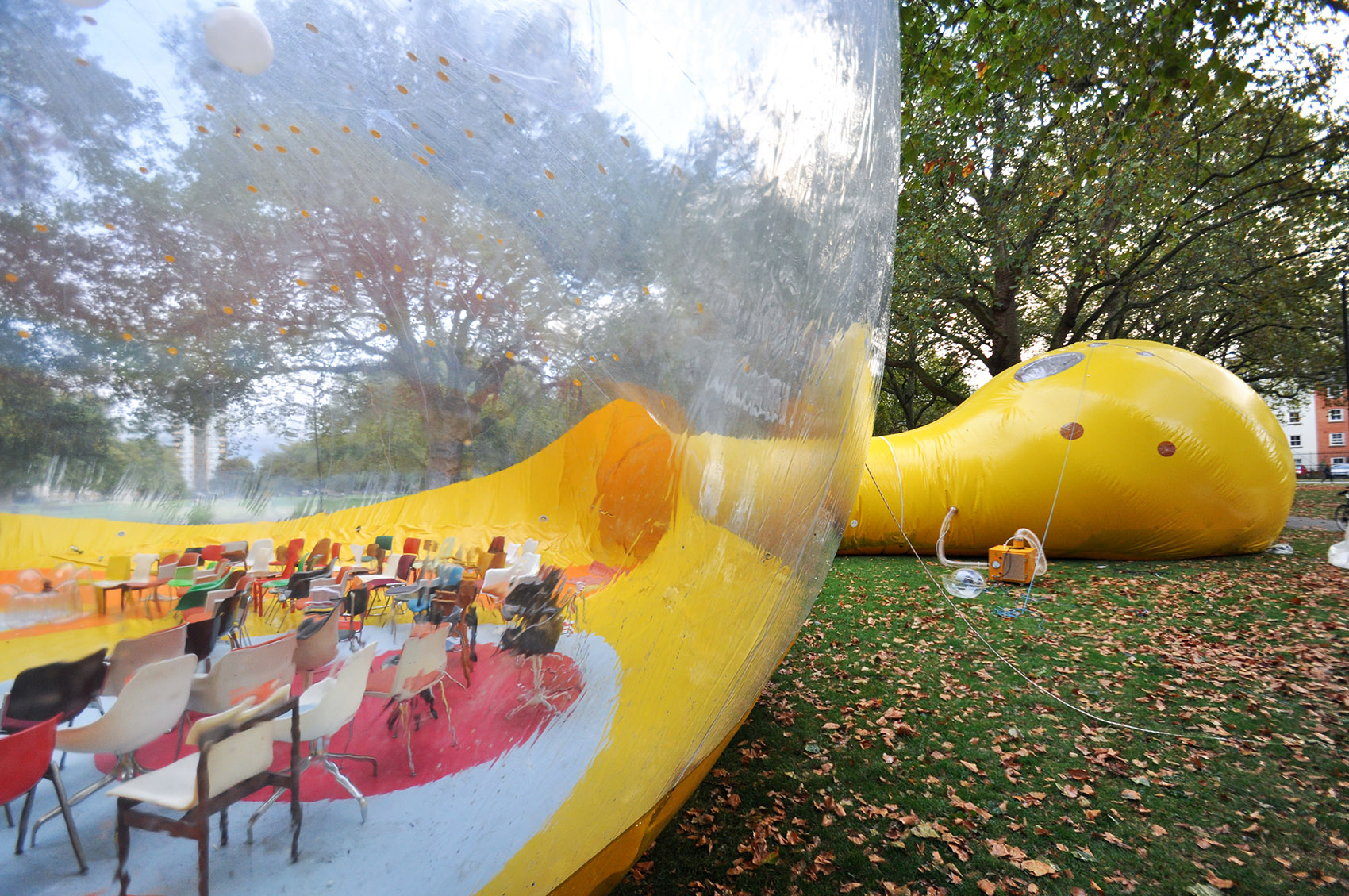

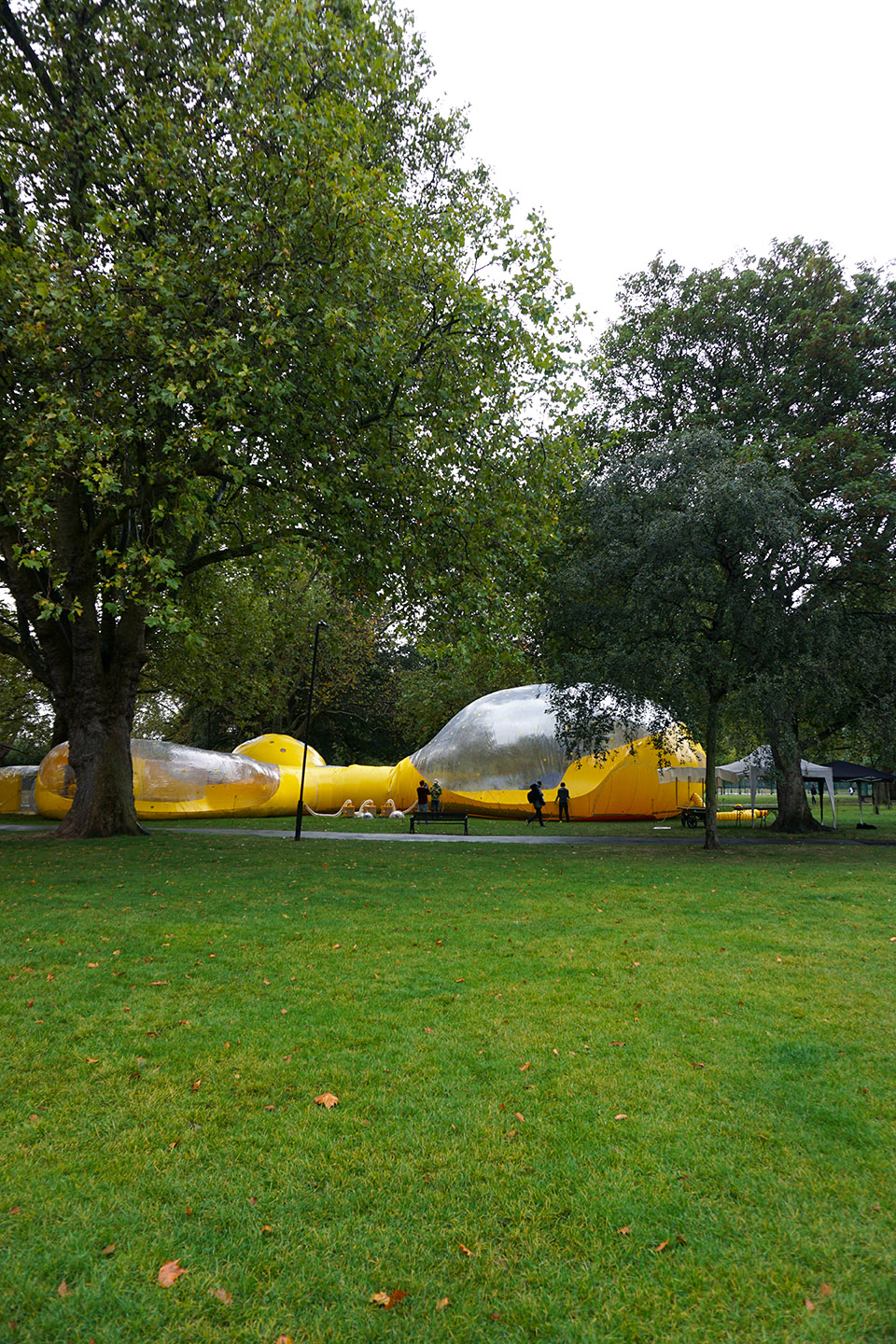

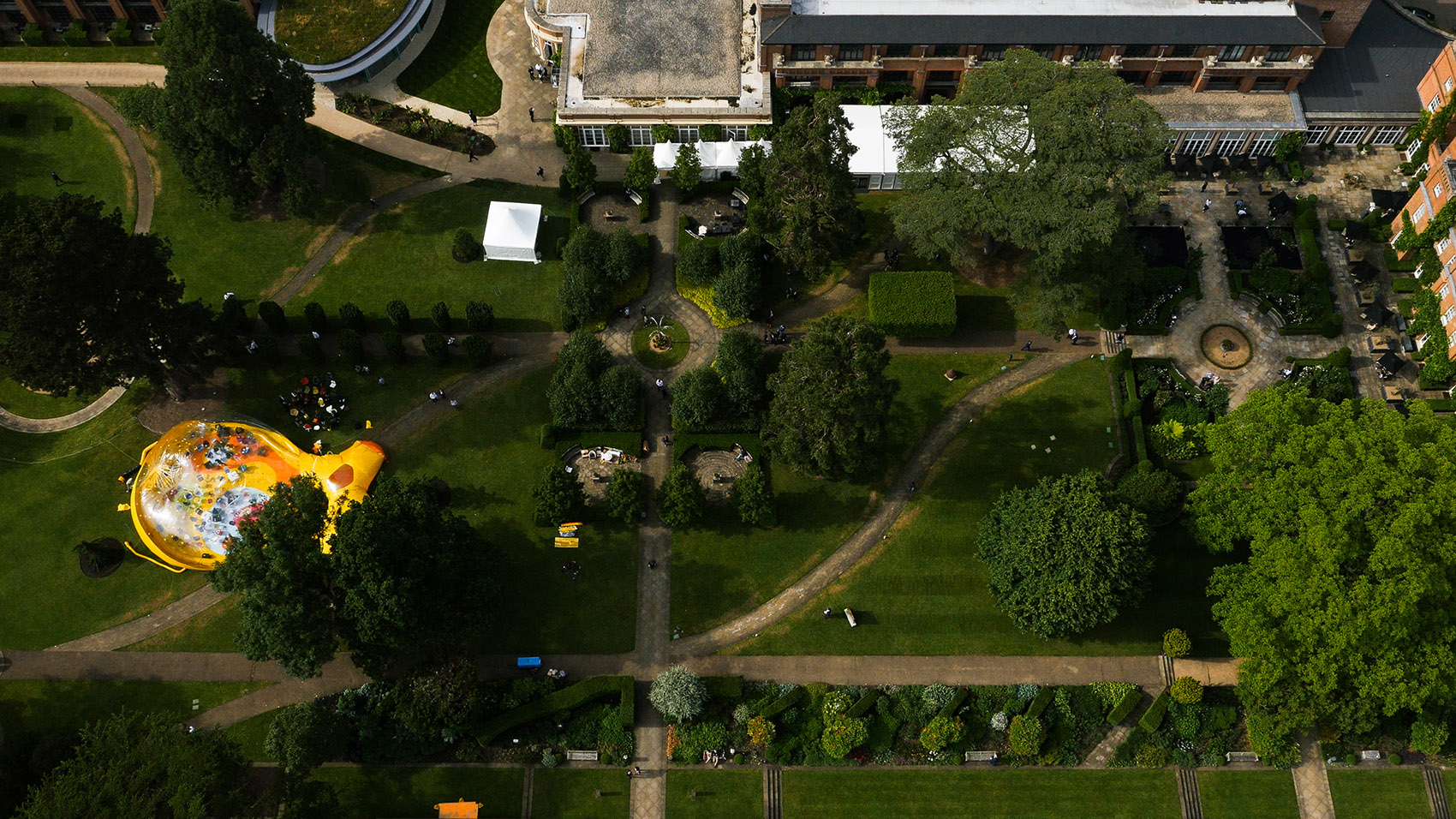

▼ 场地环境，Site Contexts

Second Dome是一个可重构的空间，可以在几分钟内由一个65平米的单一泡泡空间，变成一个400平米大8米高的多重空间结构。没有任何其他的结构体系可以在如此短的时间内组装起来，并且能扩大伸展成一个充气膜不到一毫米厚的大尺度空间

Second Dome is a reconfigurable space that can transform within minutes from a single 65 m2 bubble to a multi-room structure with over 400 m2 and 8 meters high. No other type of structure can be assembled so quickly and also have the capacity to span large areas with a thickness of less than a millimeter. It is a technologic artefact that automatically responds to wind and pressure and that needs extremely low quantities of energy for fabrication and assembly.

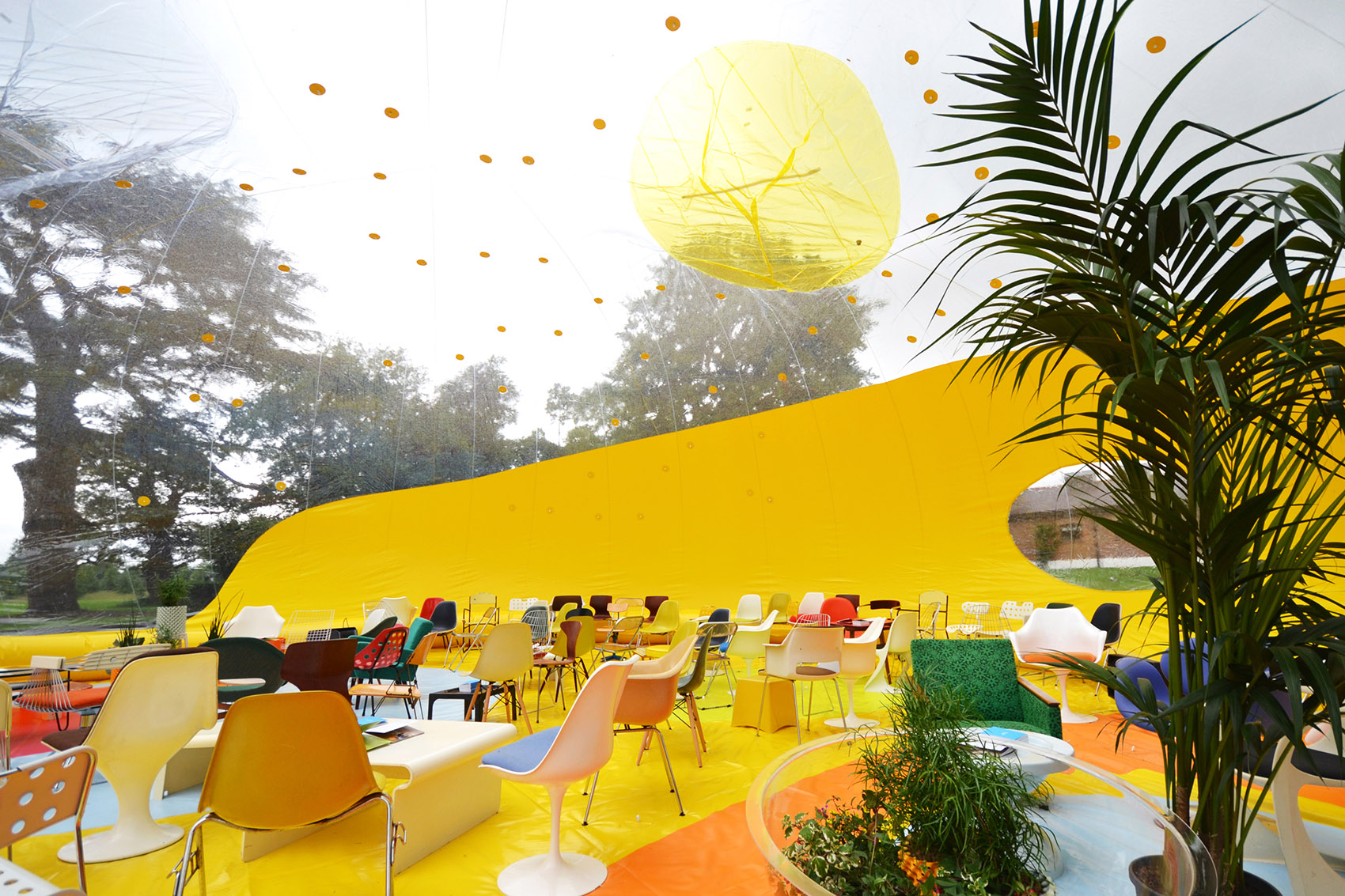

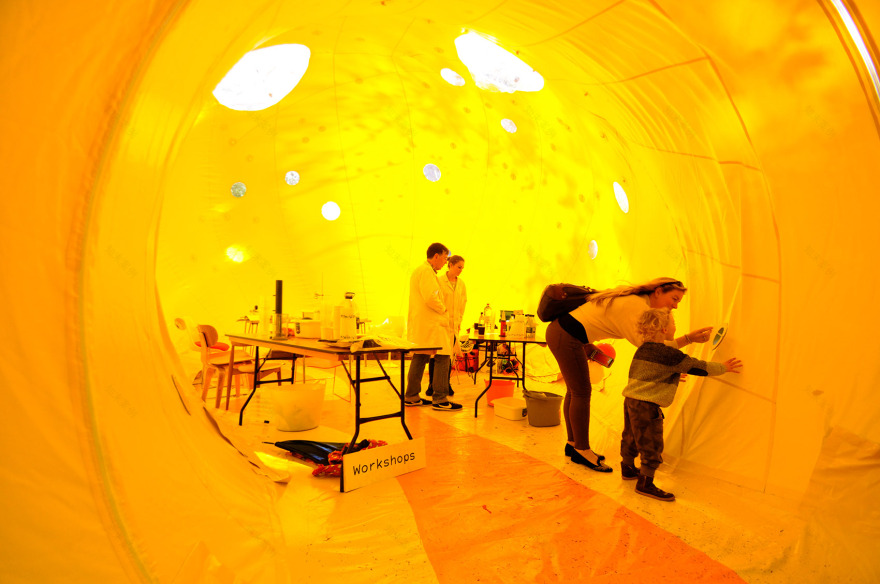

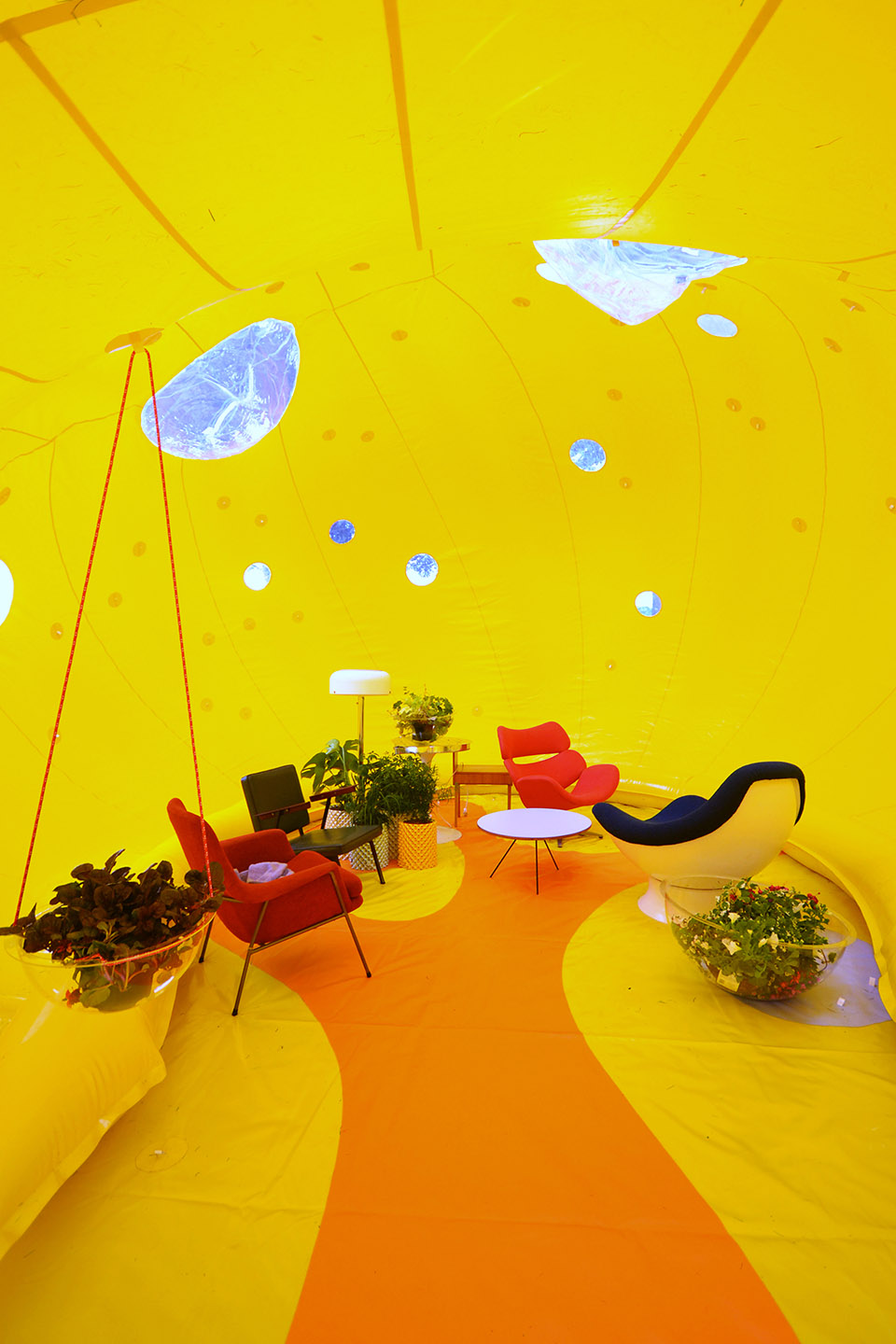

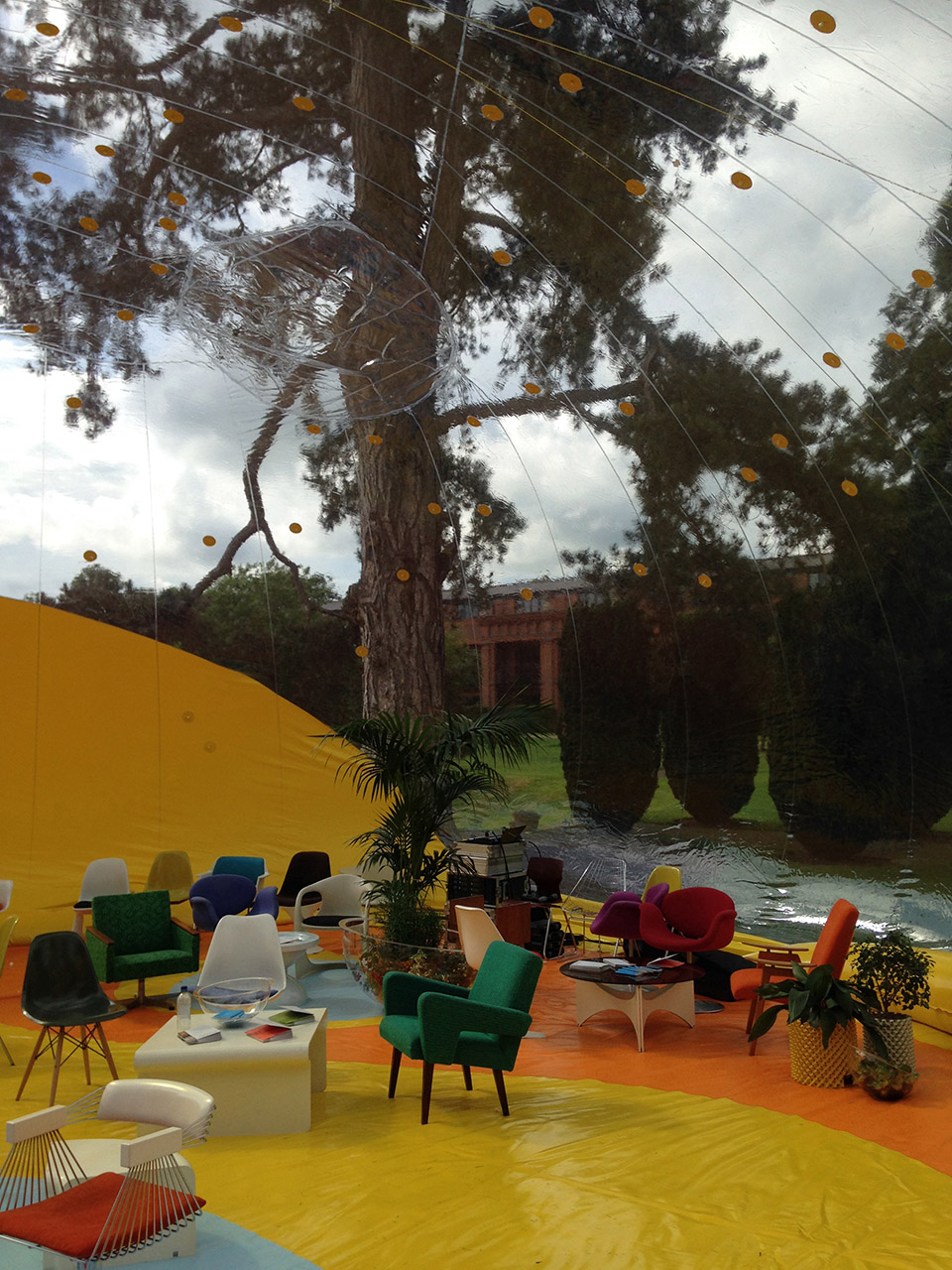

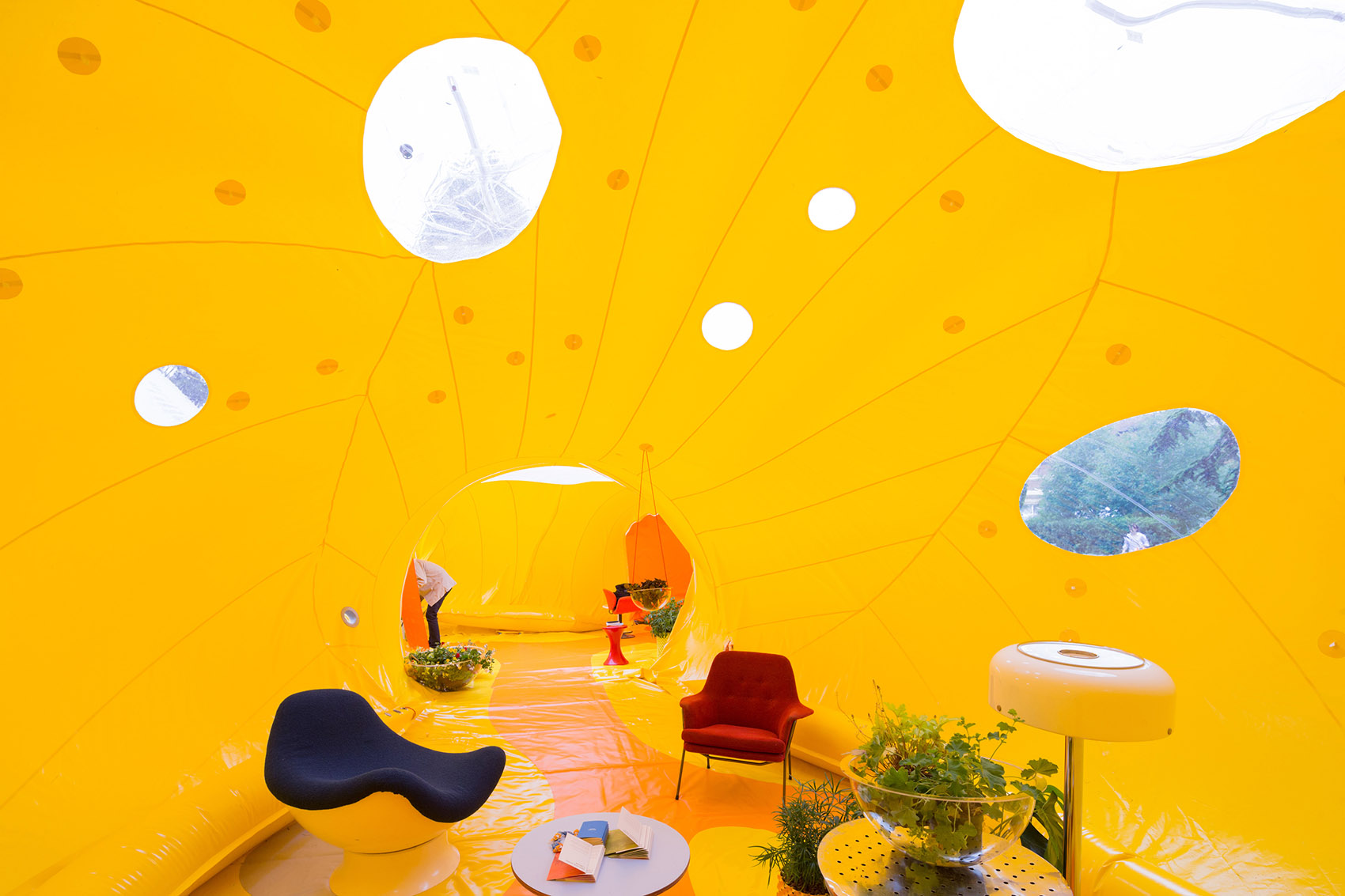

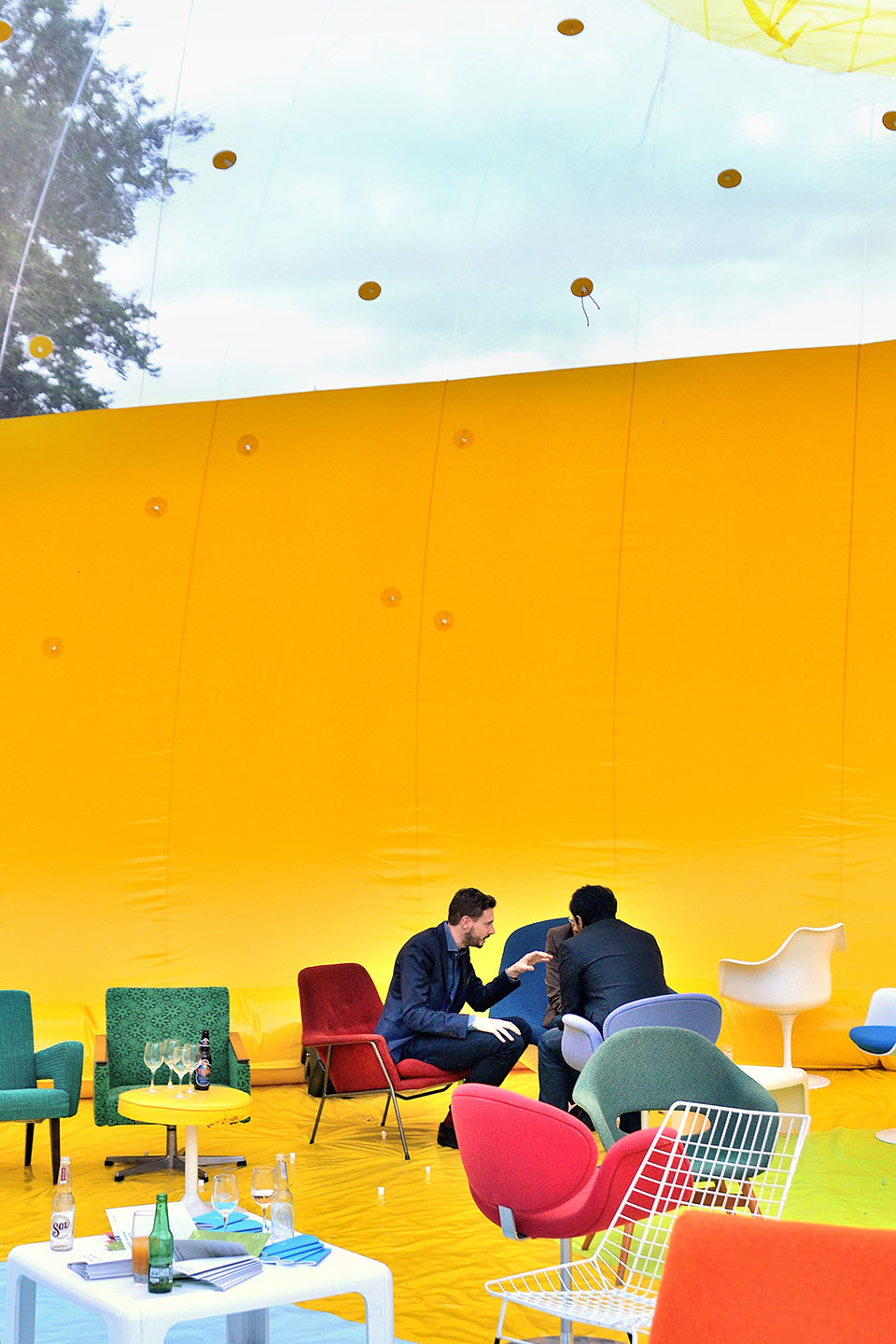

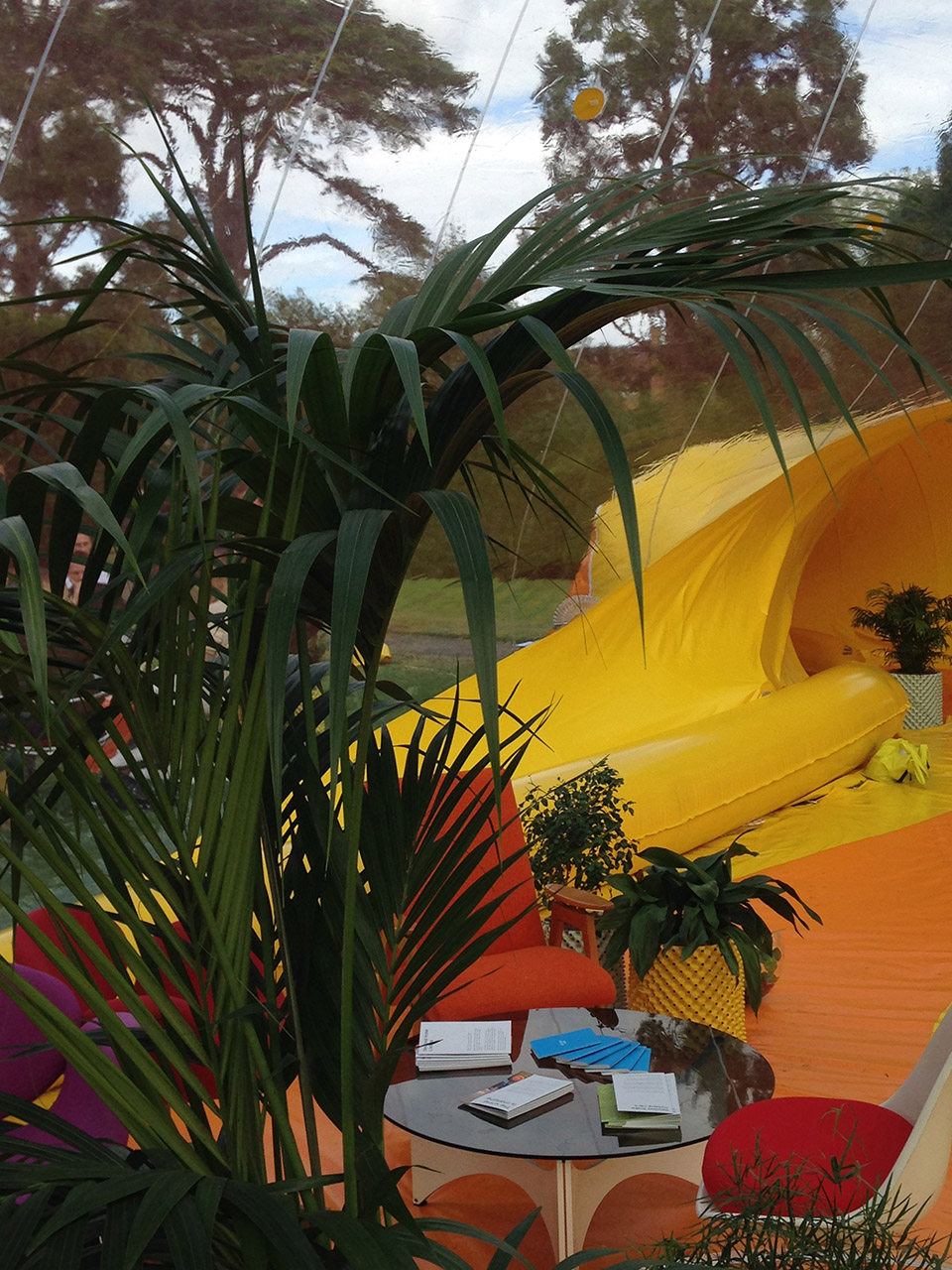

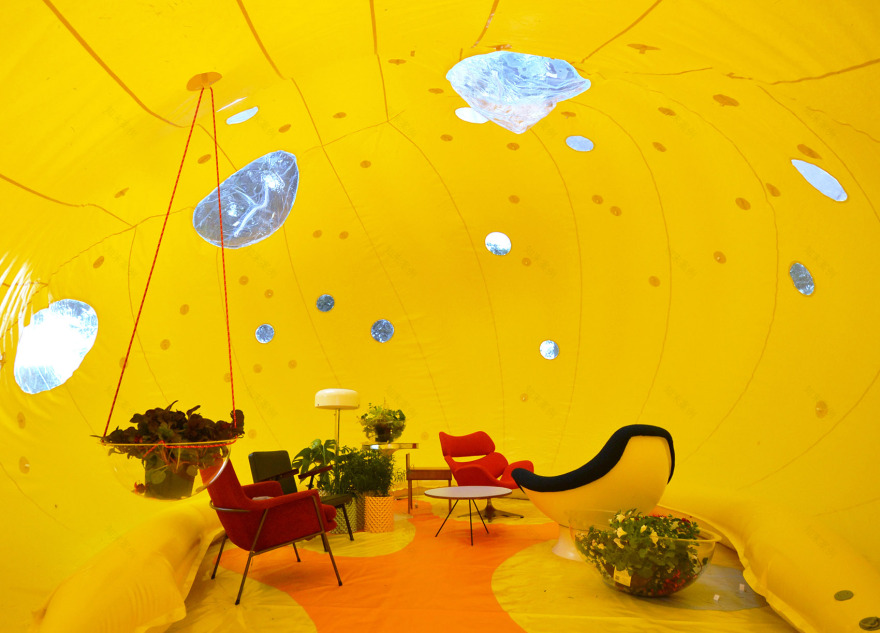

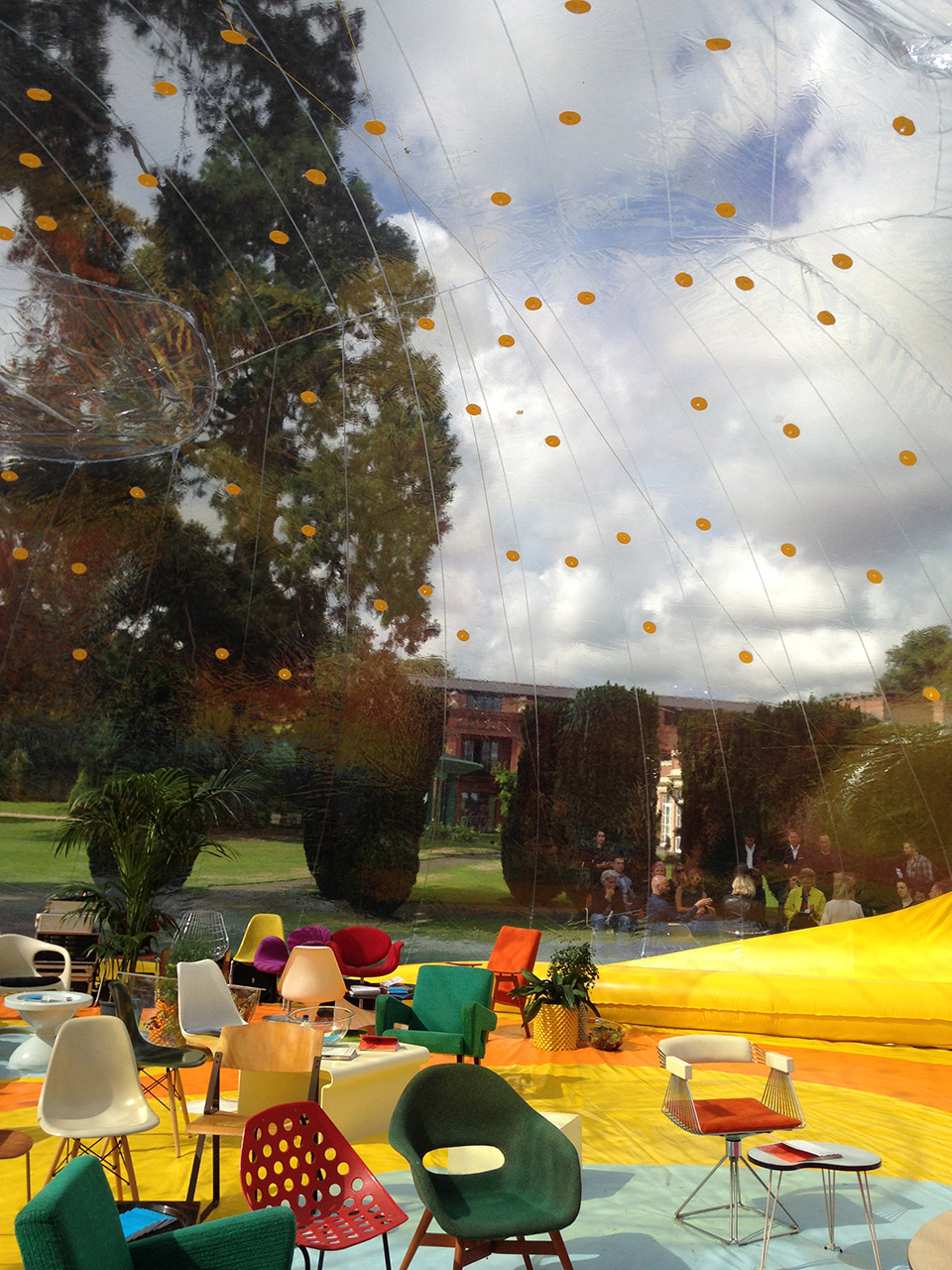

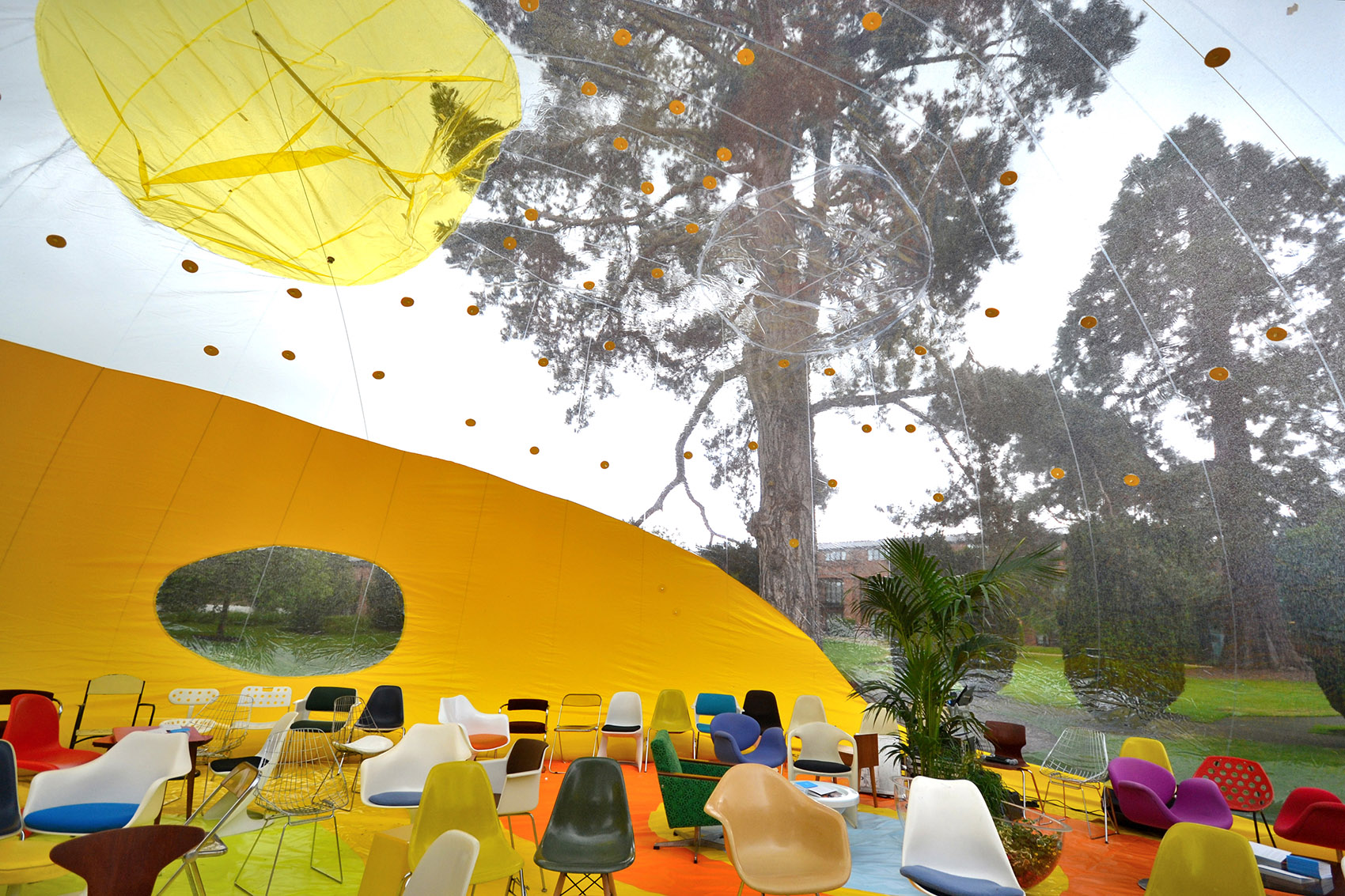

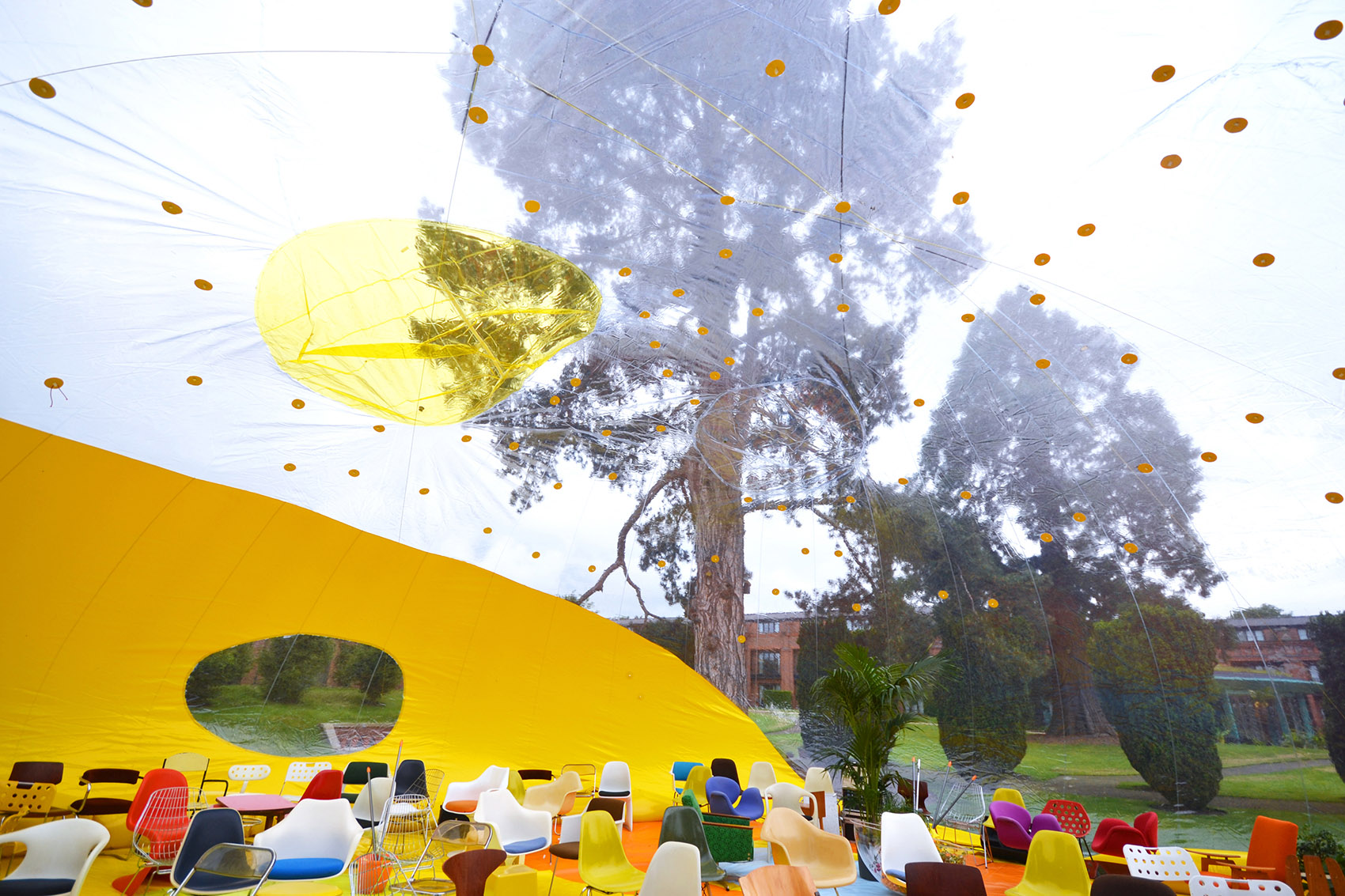

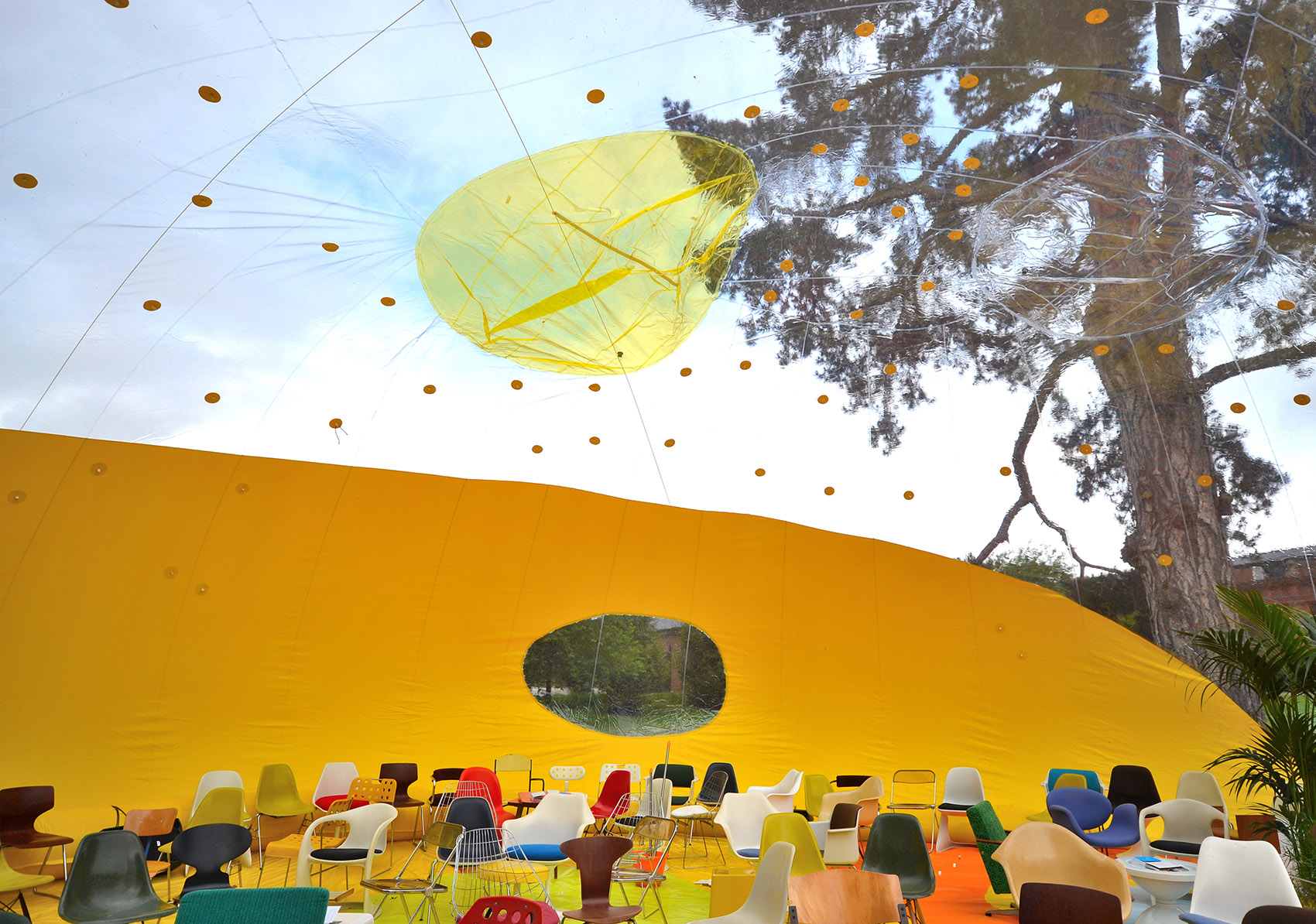

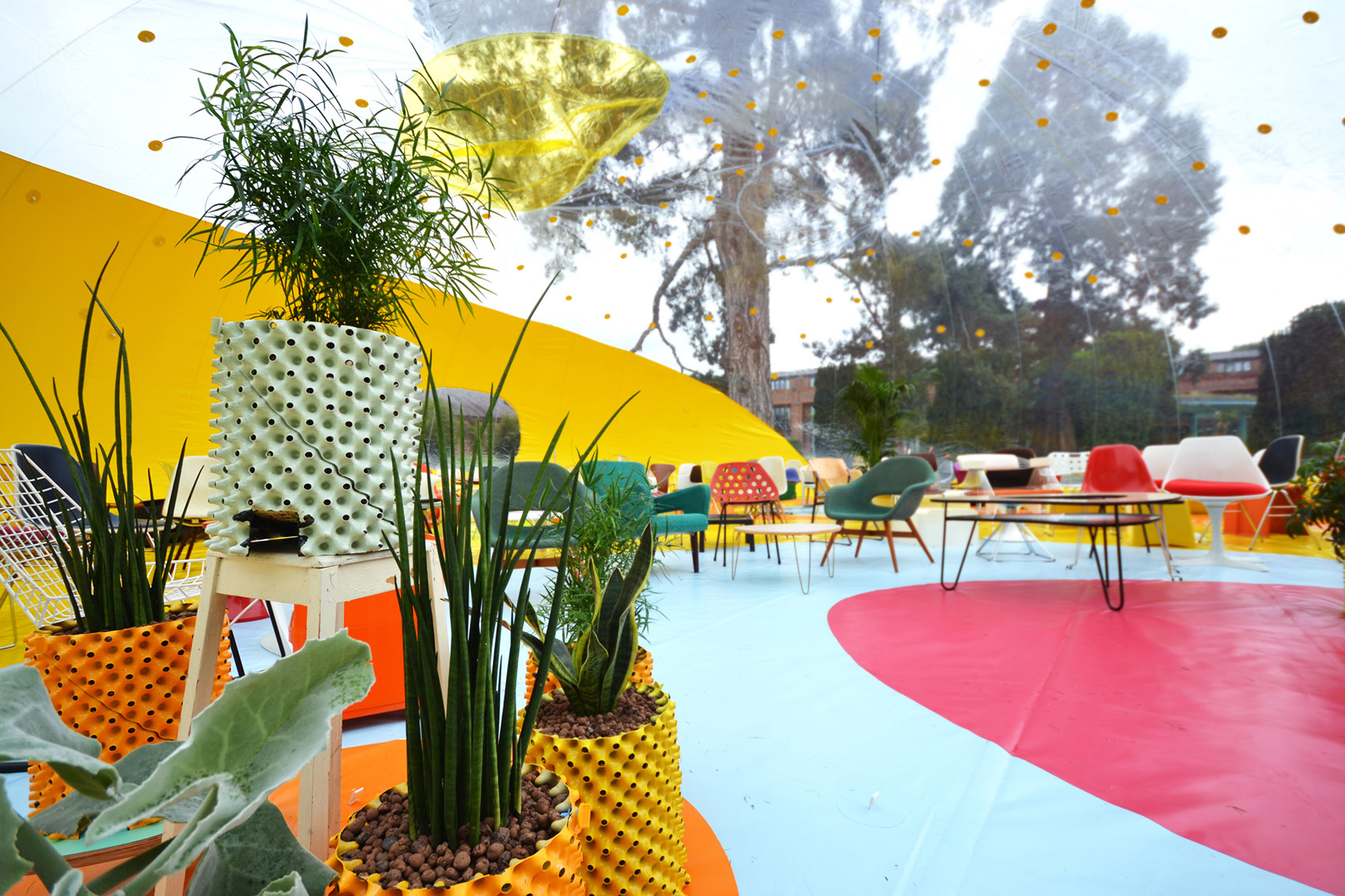

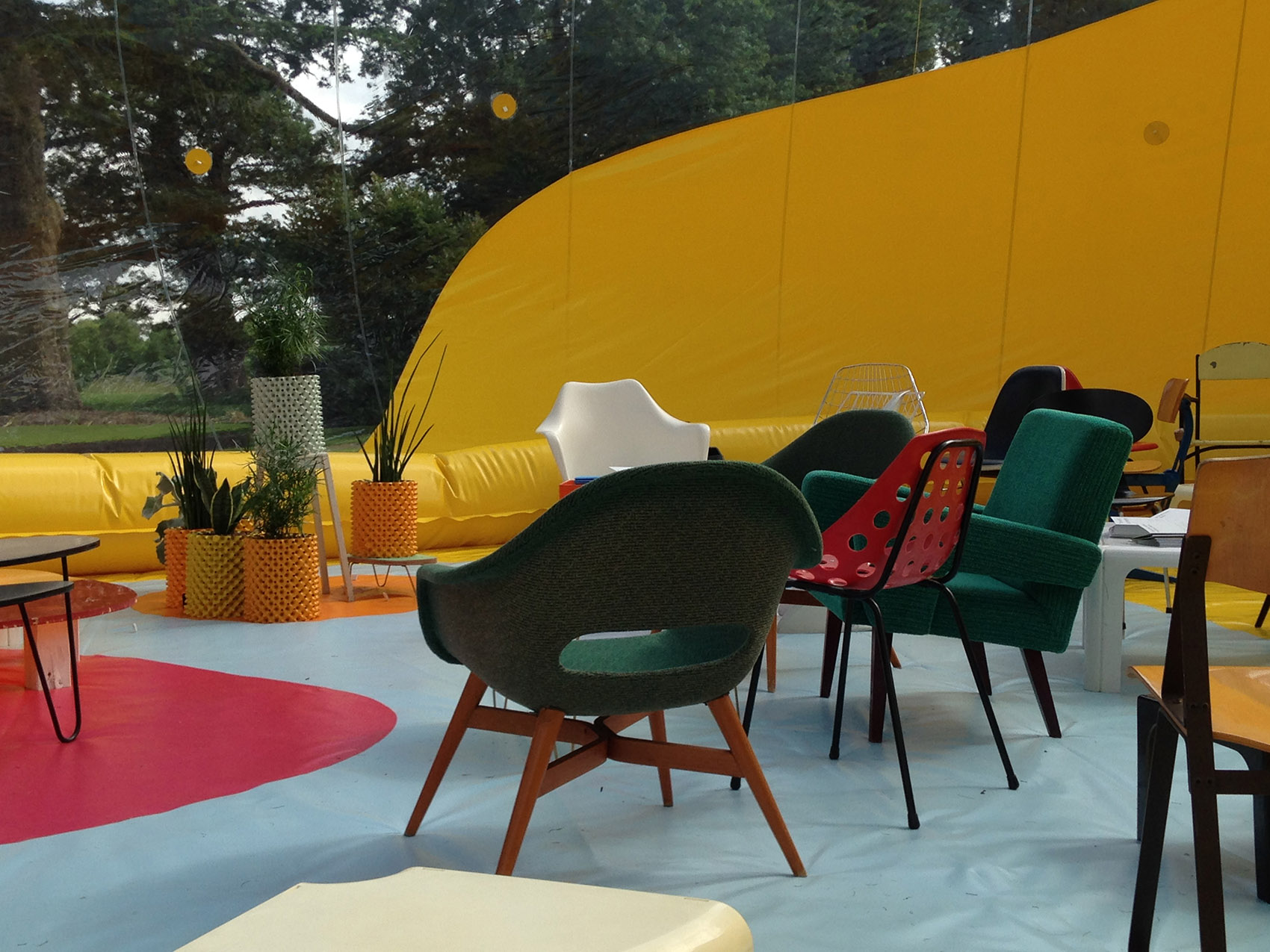

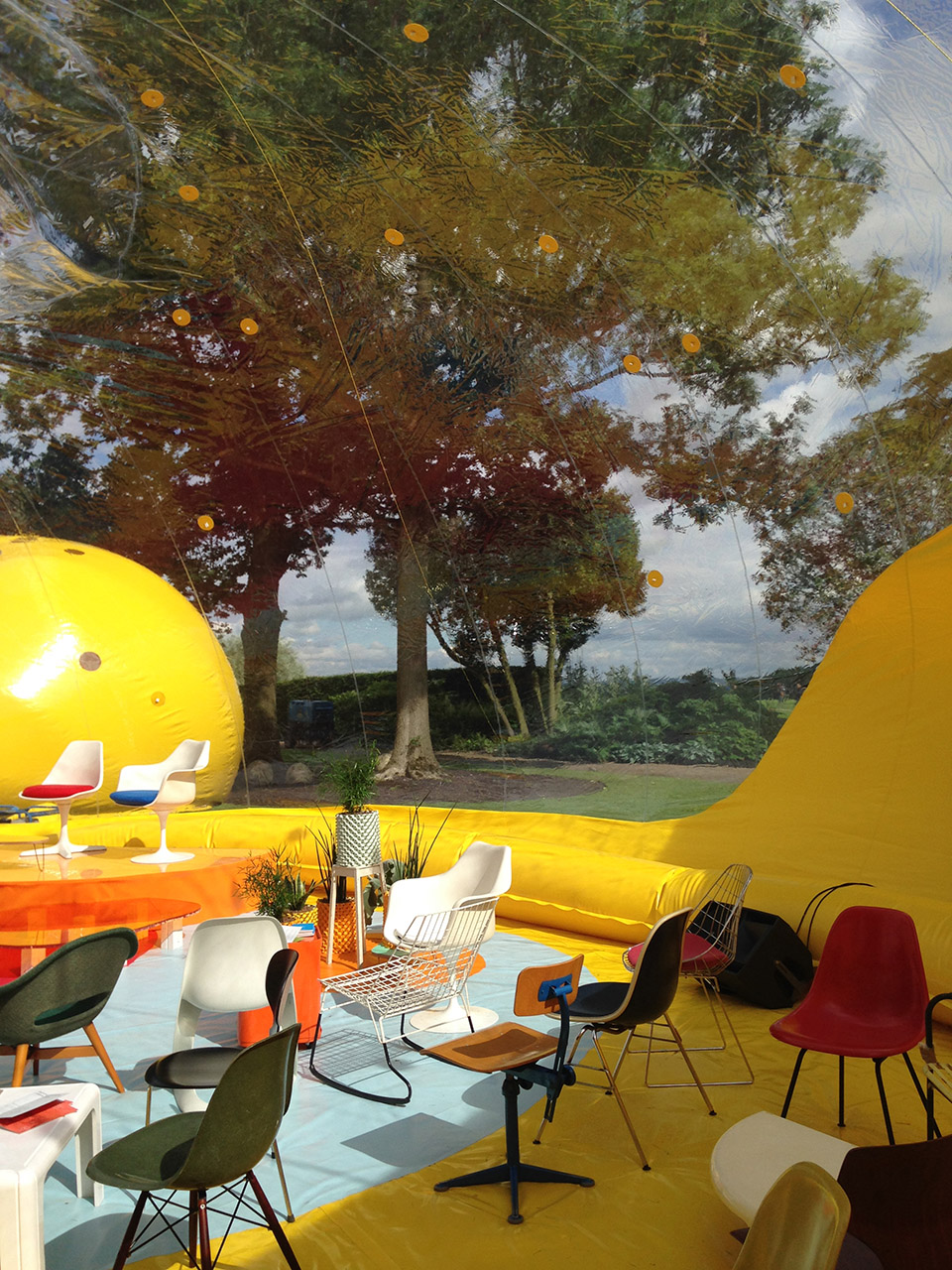

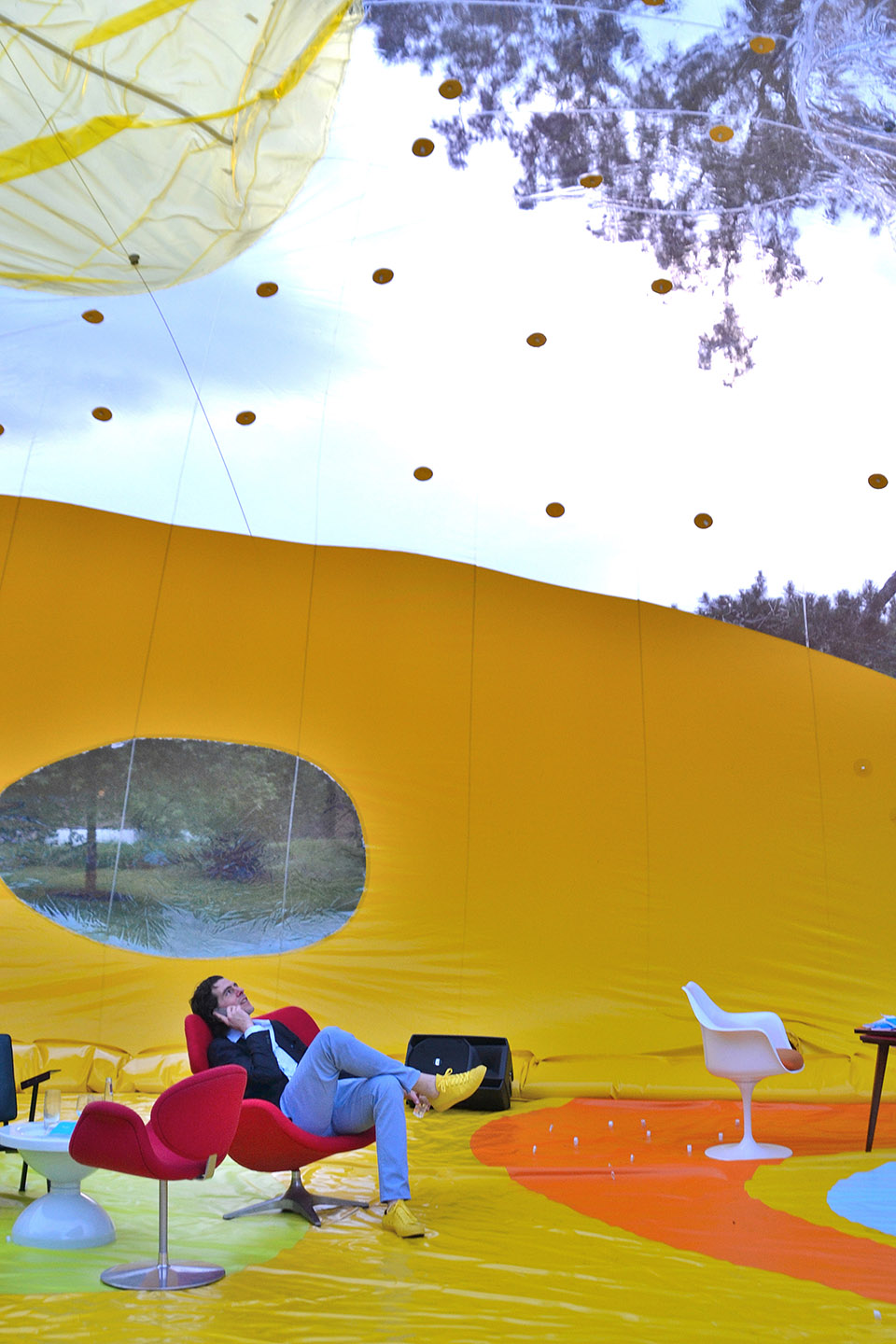

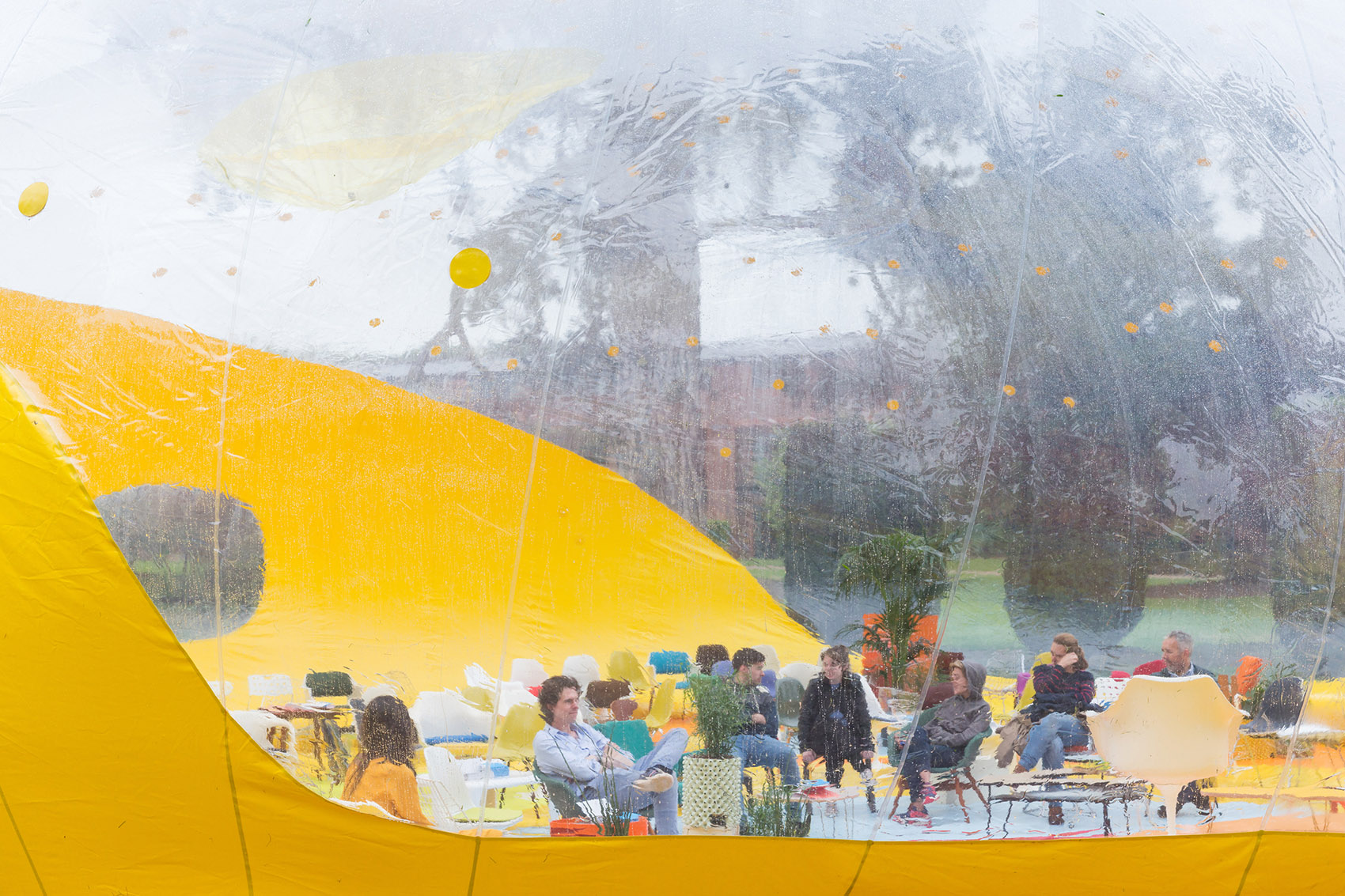

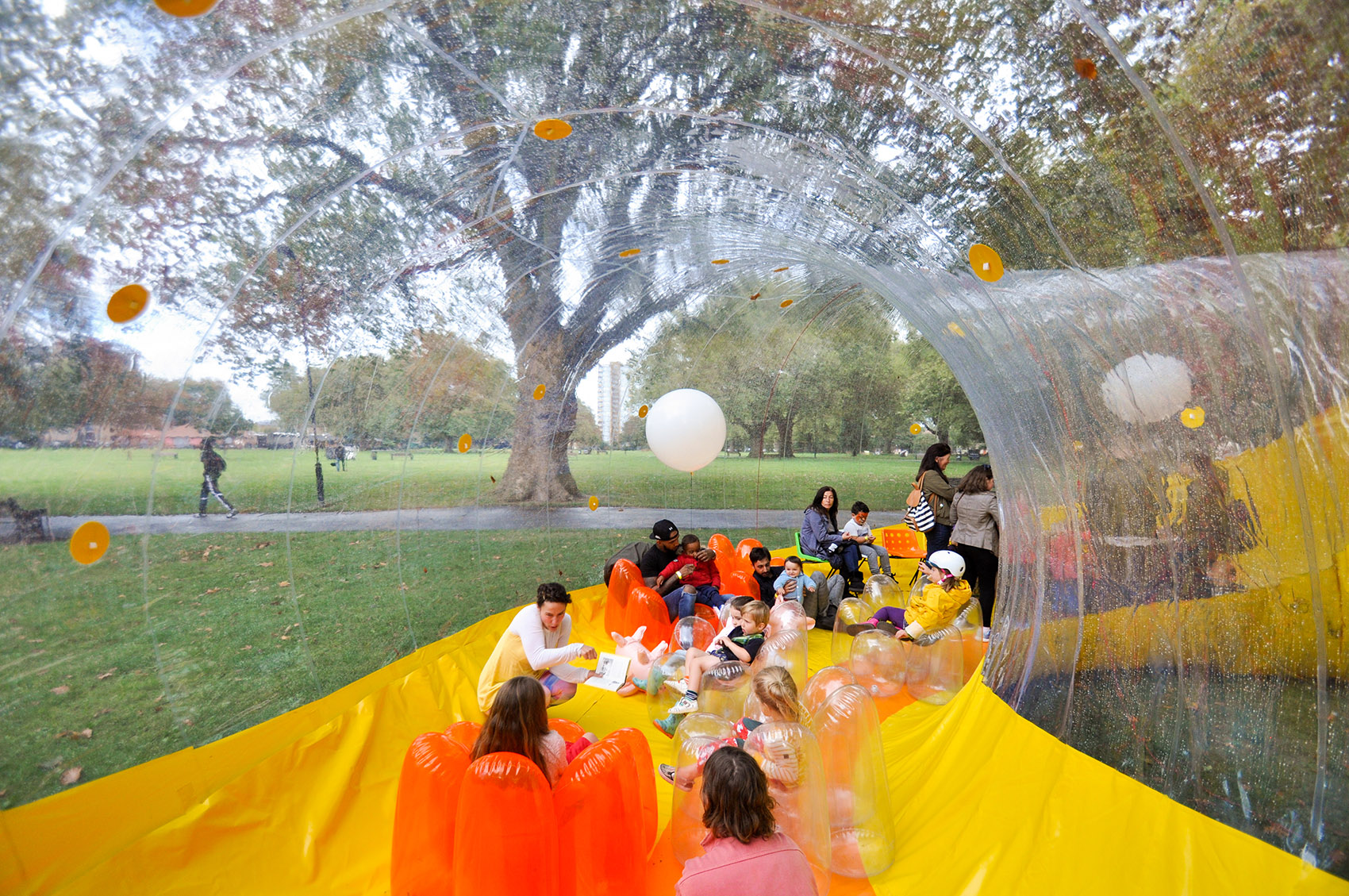

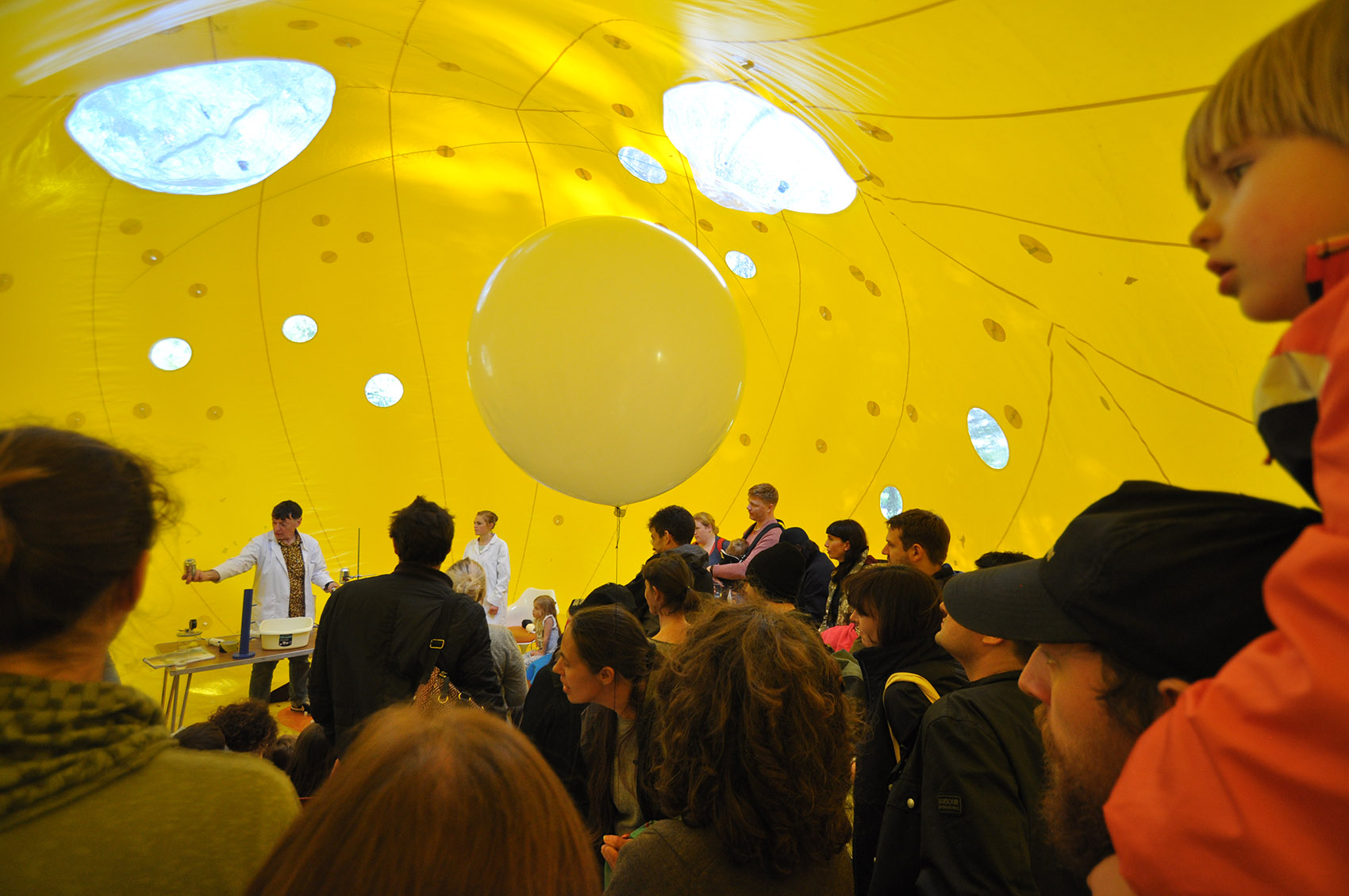

▼建筑内部，interior view

Second Dome是由2016年创始人论坛委托设计的，它可以即时的膨胀起来，为人们所使用，然后即时的消失。Second Dome是体验式建筑，他的变化过程甚至比他本身的存在更重要。是时间和行为定义了这个即时建筑。他的构造变化多端，可以满足各种各样的城市需求。Second Dome付出了极少的努力和精力就激活了城市的活力。

Second Dome was commissioned for Founders Forum 2016, it is instantaneous, it responds to specific urban needs in a specific space time. It pops, acts and vanishes. Second Dome is an experience, it is matter transformed into action. Time and action defines its architecture. Tectonics respond to optionality, allowing multiplicity of reactions to urban requirements. Second Dome activates the city instantly with extremely little effort and energy.

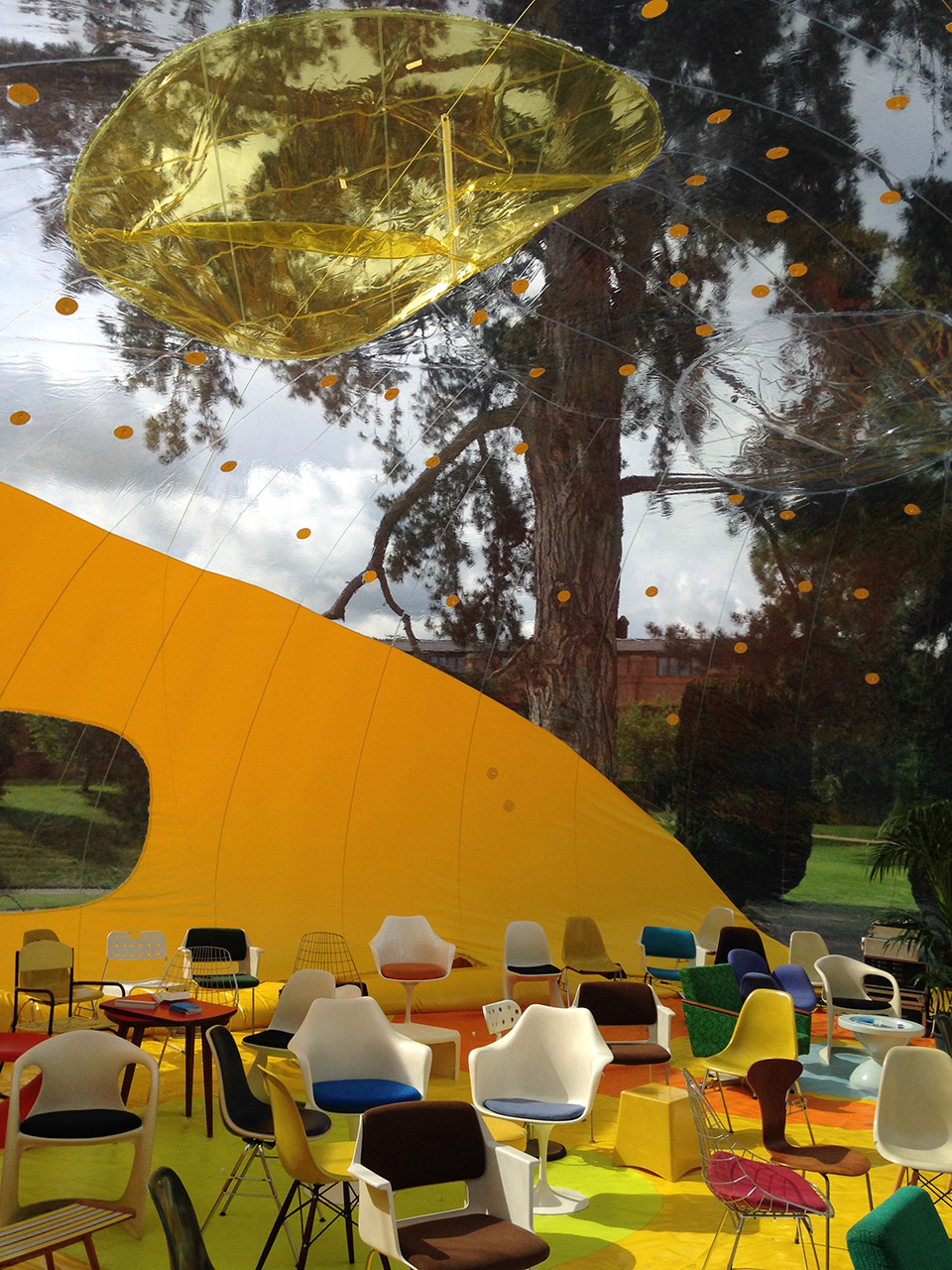

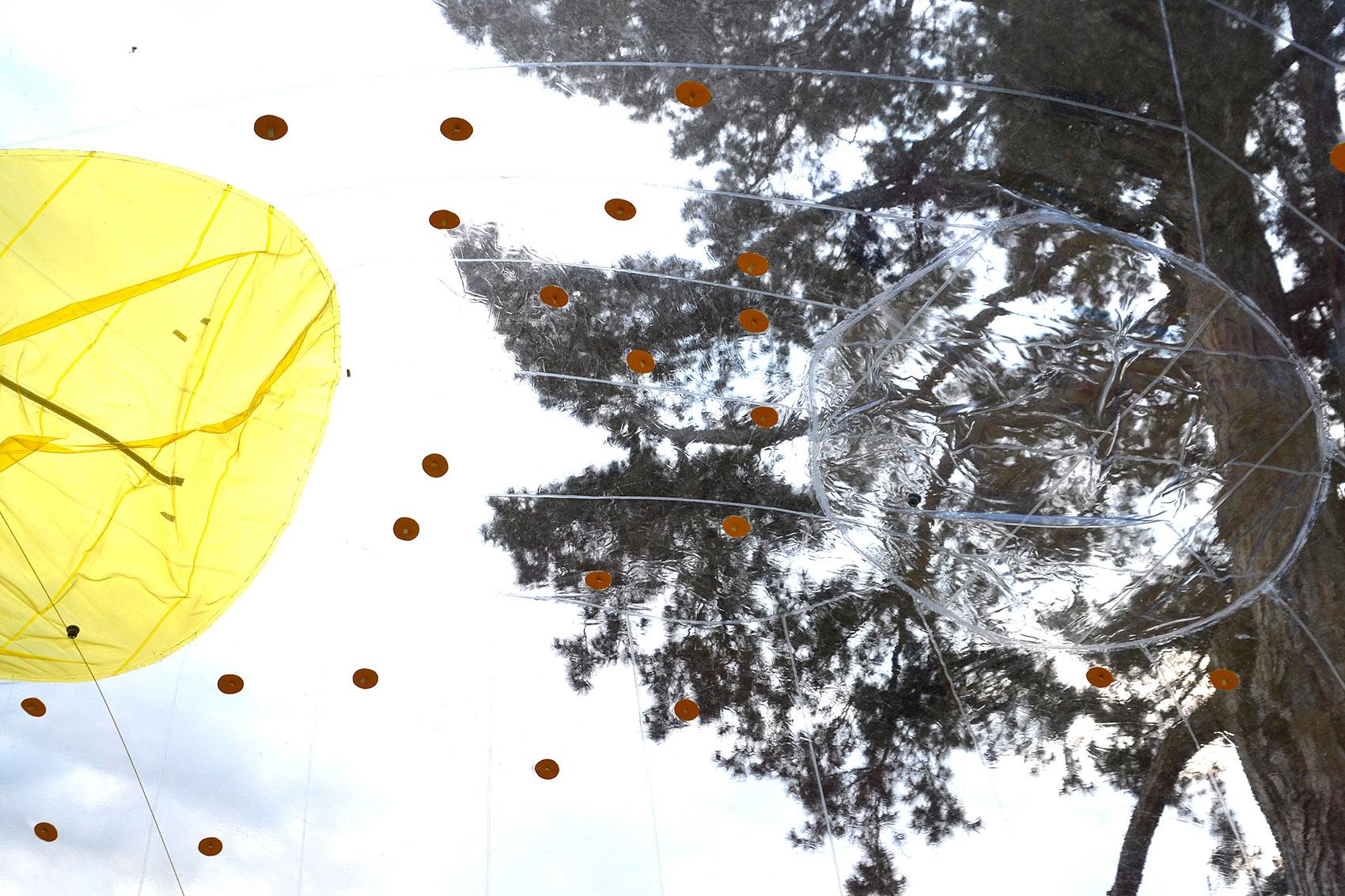

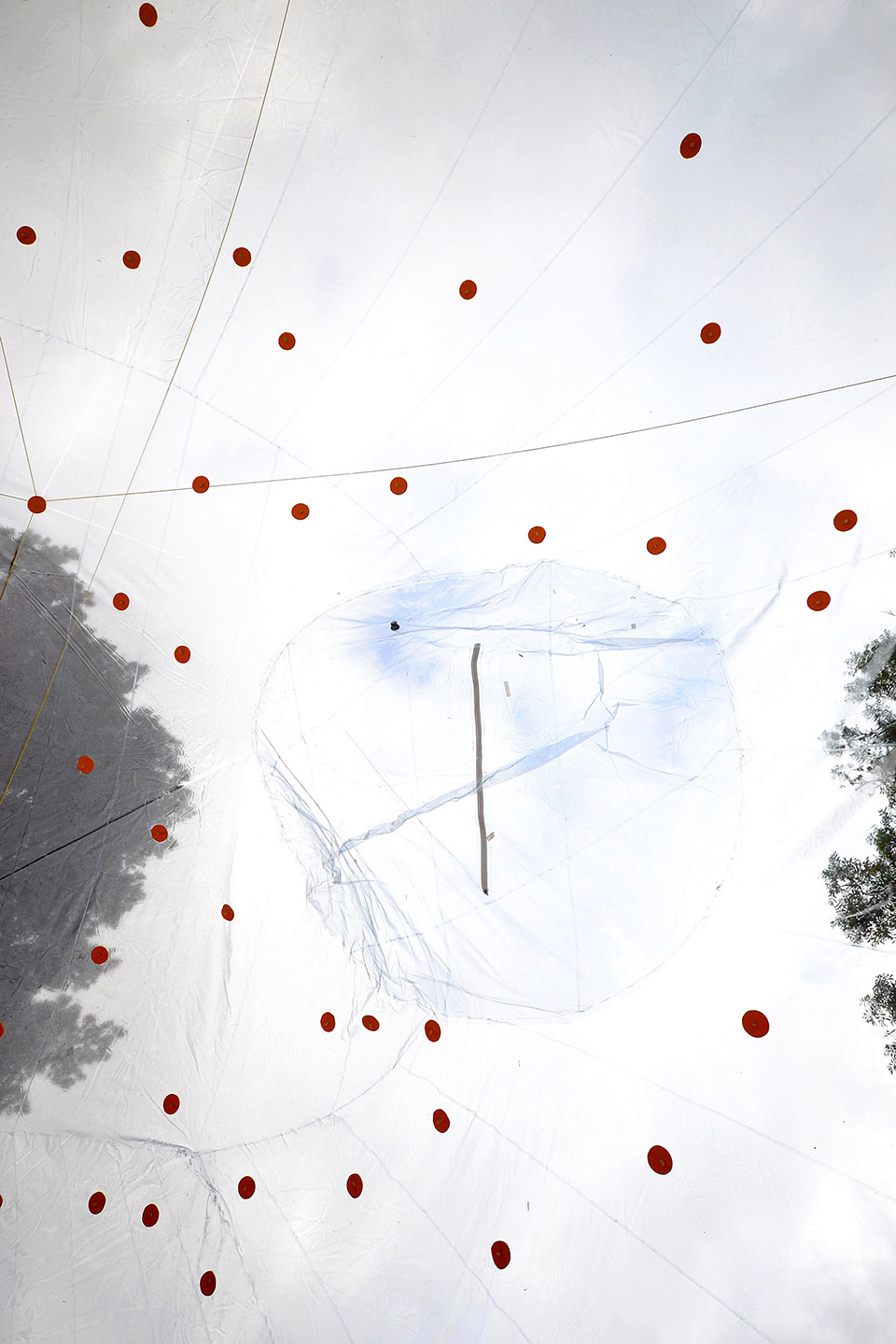

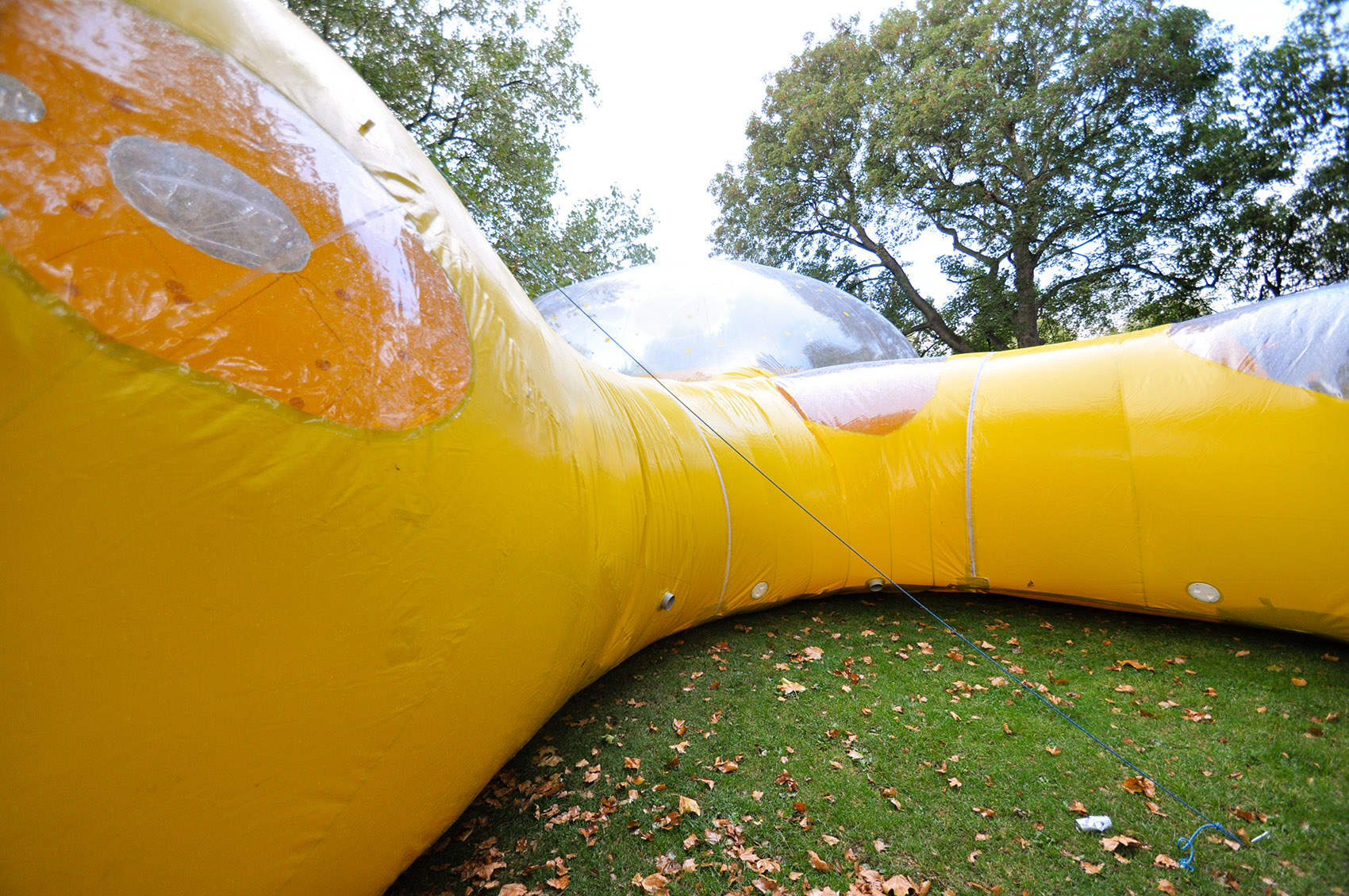

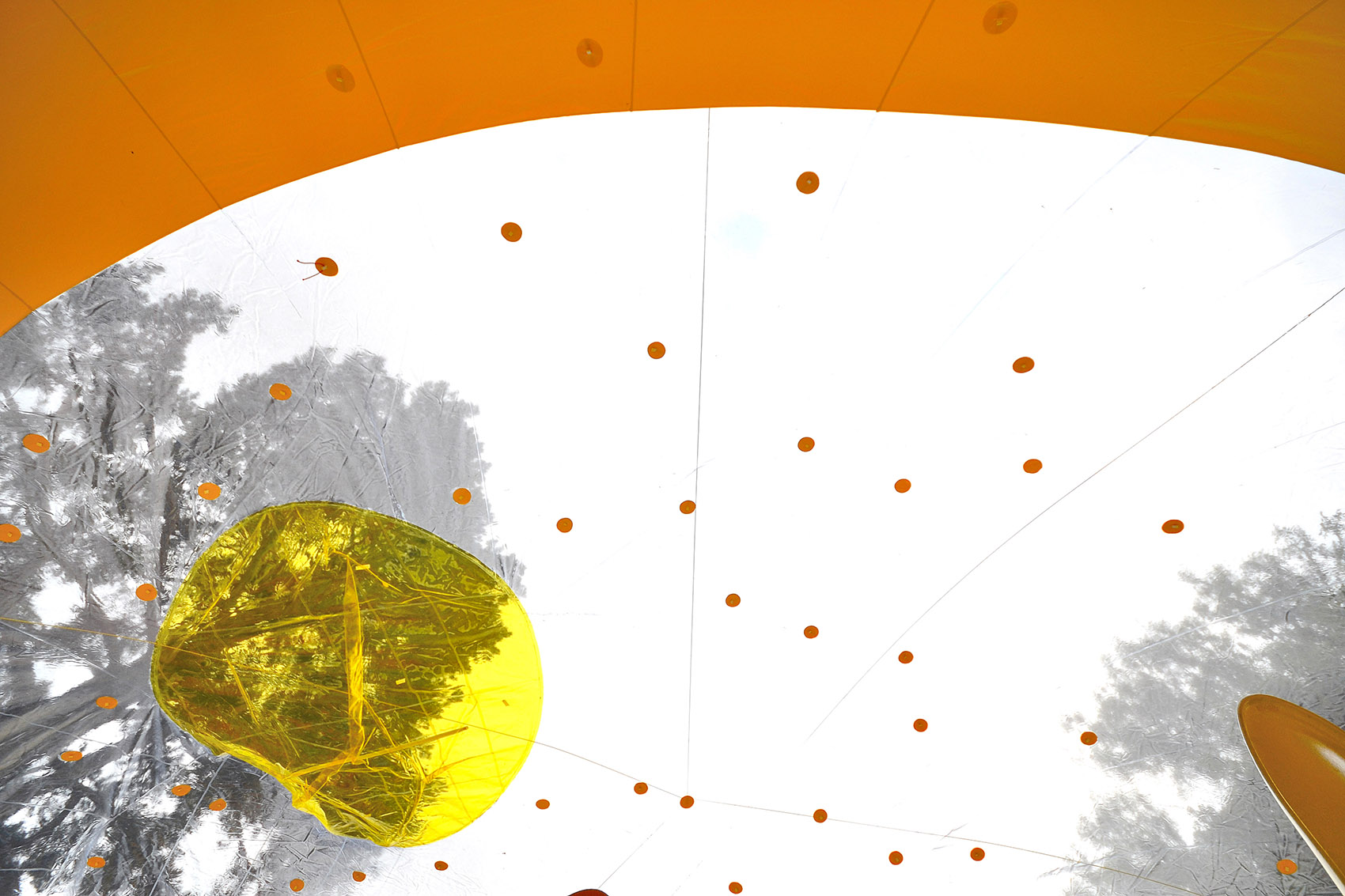

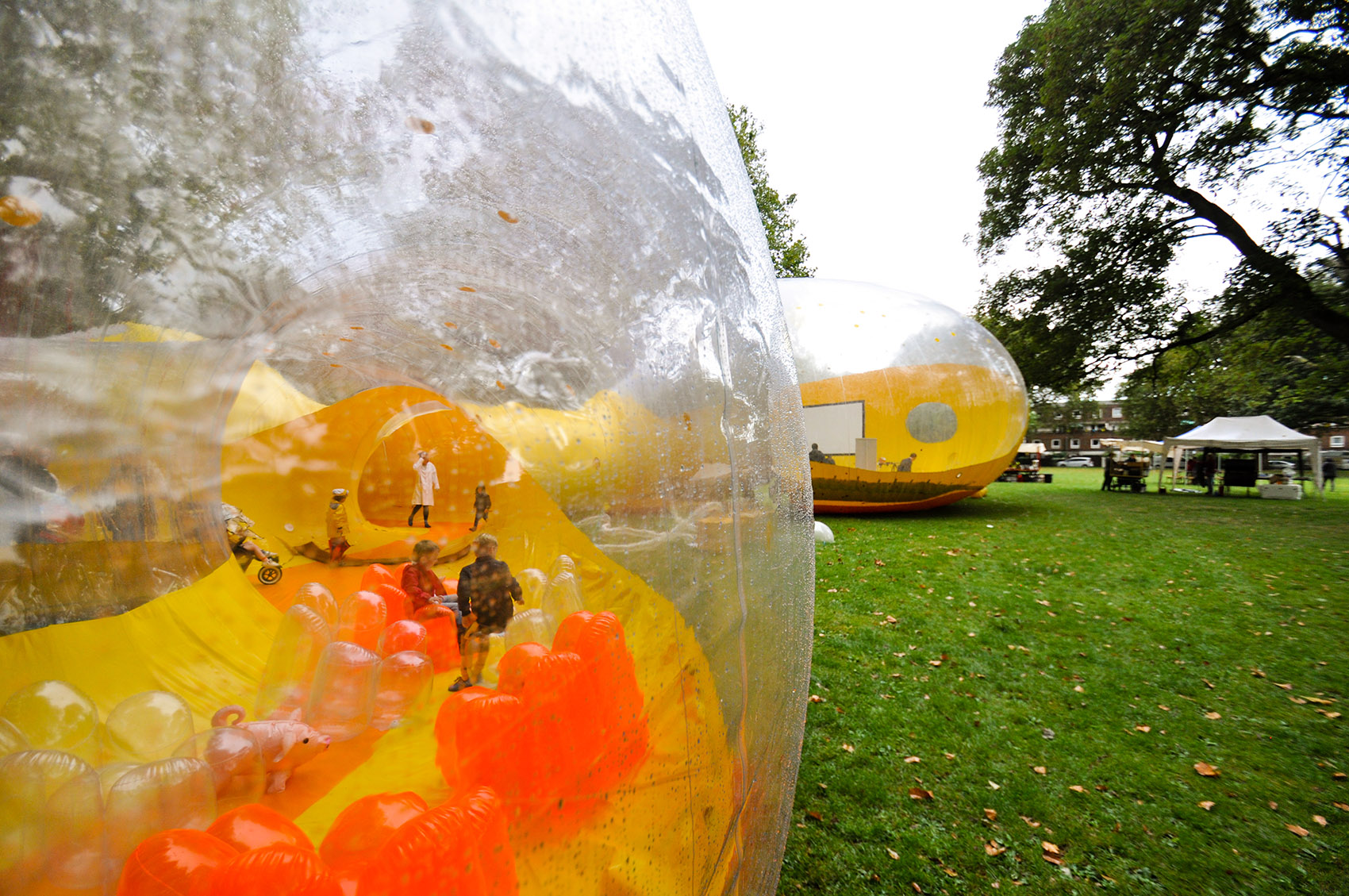

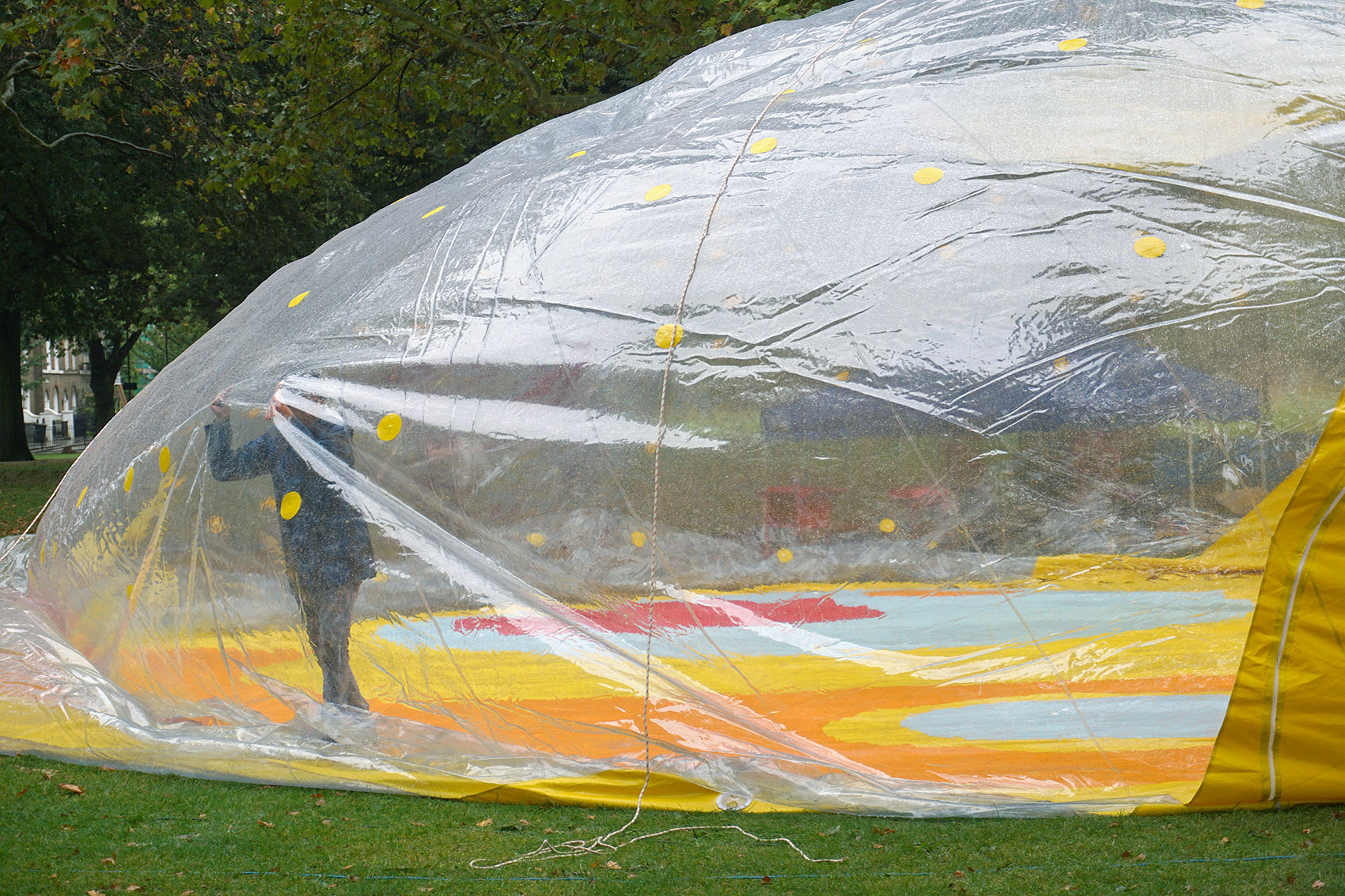

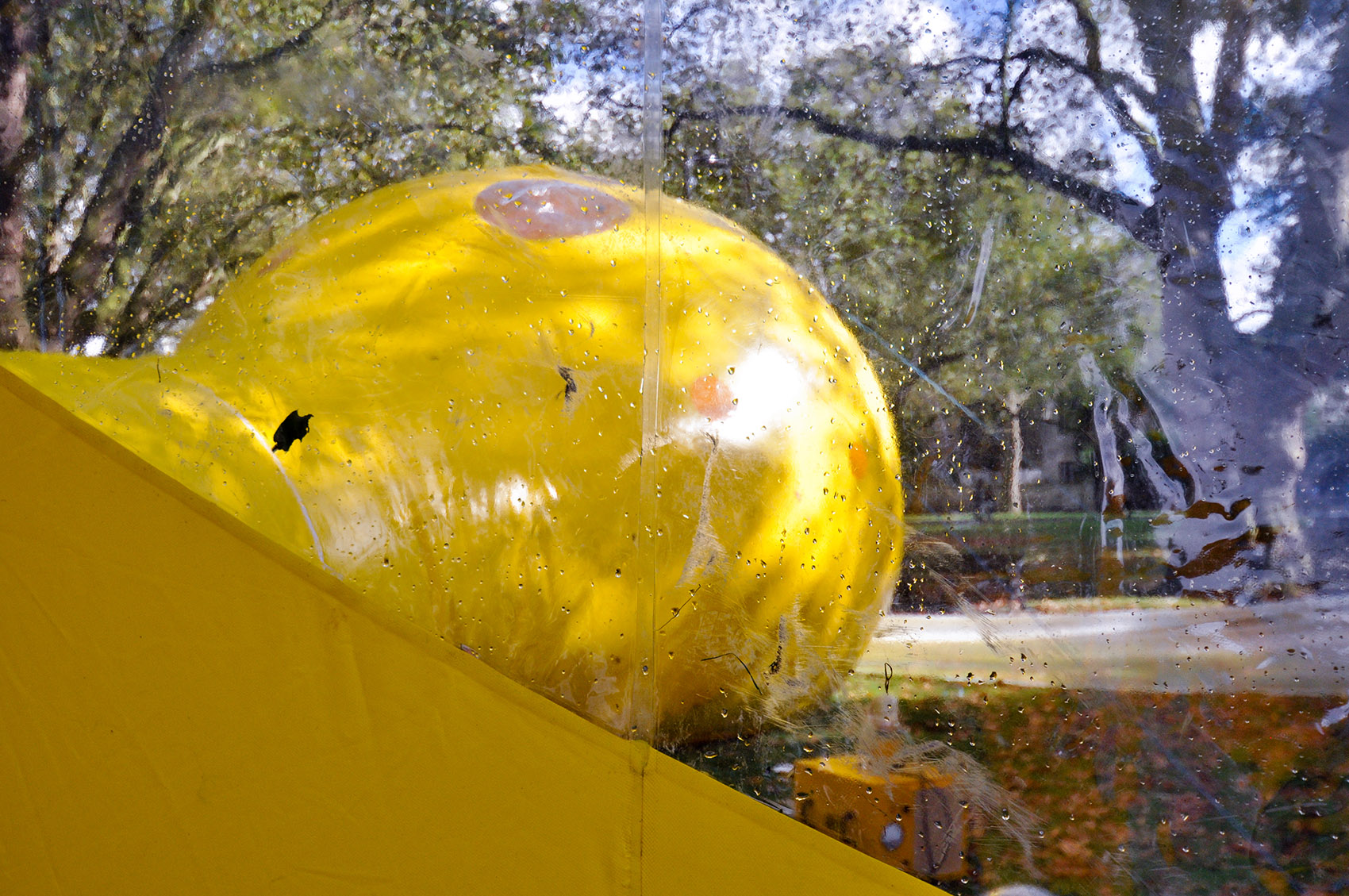

▼ 建筑细节，Details

Second Home的联合创始人Rohan Silva评论道： “Second Home 一直致力于让城市更加具有创造性，革新性，更加具有创业精神。这也是我们委任设计一个充气建筑的目的，他可以在城市的各个空间中存在。” Second Home的联合创始人Sam Aldenton评论道： “Second Dome是一个充满娱乐性的空间，他向我们展示了城市空间激发我们想象力的各种可能，并且为人们的集会提供了更具新意的方式。” Commenting, Second Home co-founder Rohan Silva said: “Second Home is all about making our cities more creative, innovative and entrepreneurial. That’s why we’ve commissioned this pneumatic structure, which we’ll be taking to different places in the city” Commenting, Second Home co-founder Sam Aldenton said: “Second Dome is such a playful space – and shows how our urban areas can fire our imagination, and can make it possible for people to come together in new ways.”

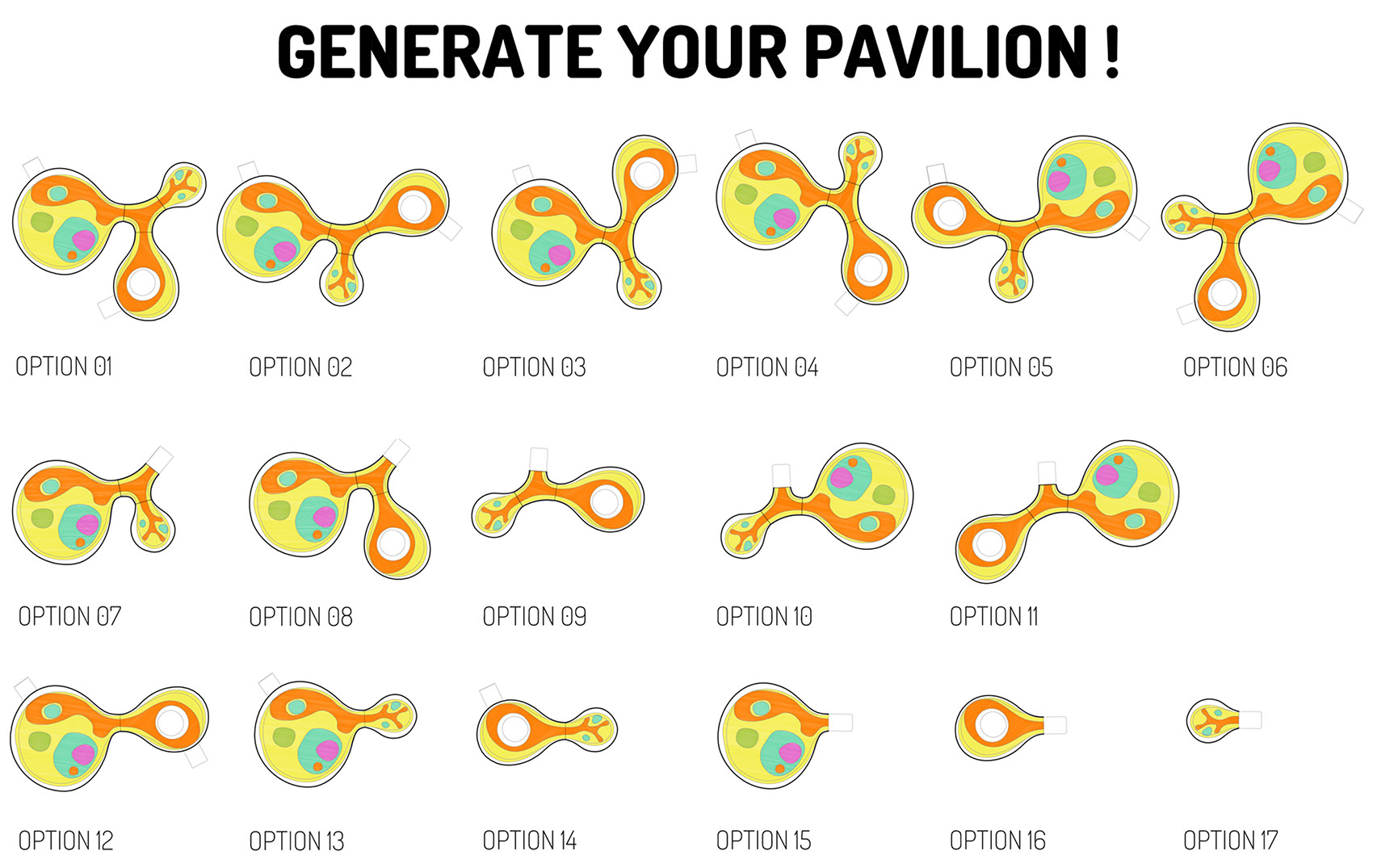

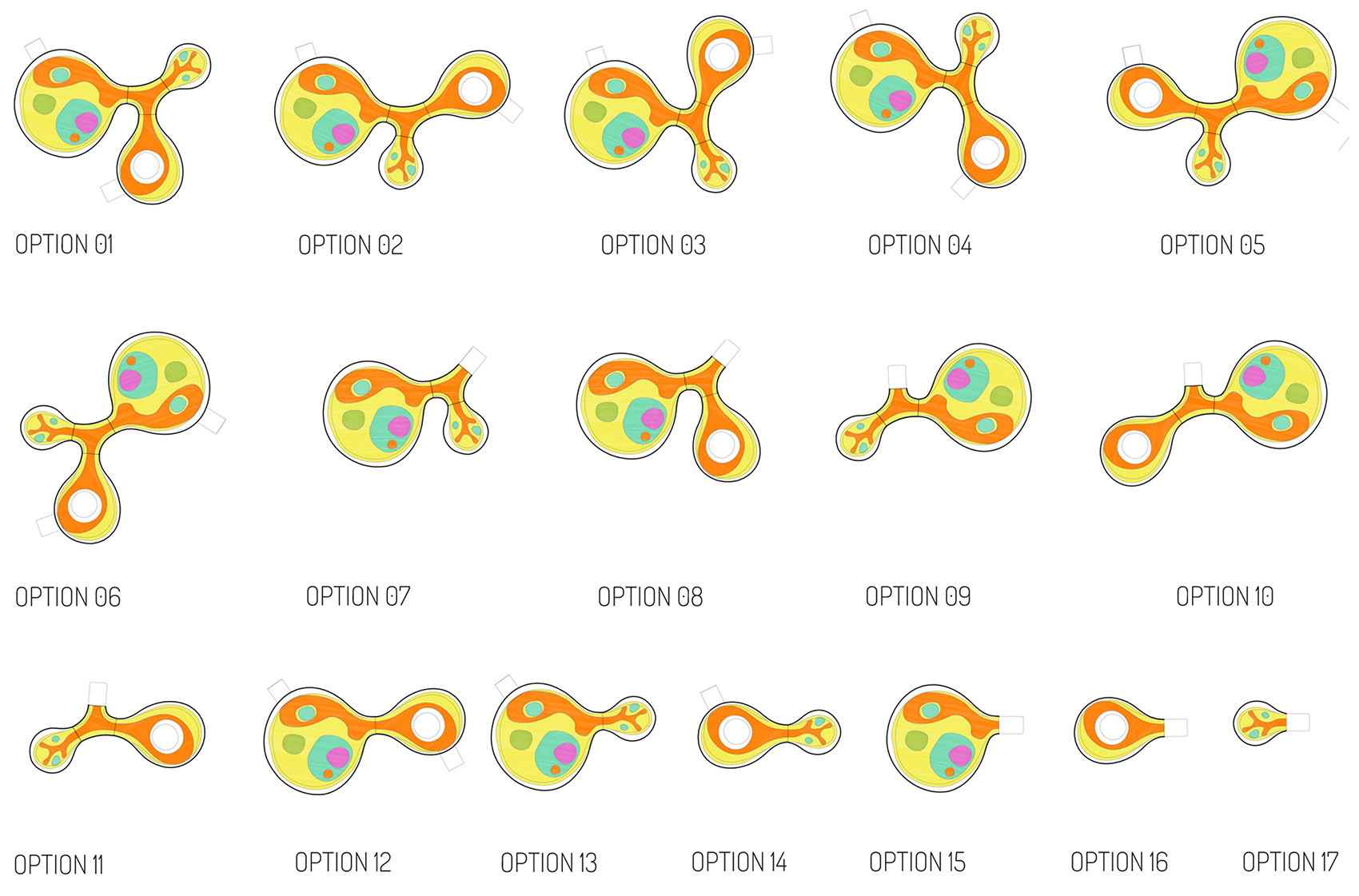

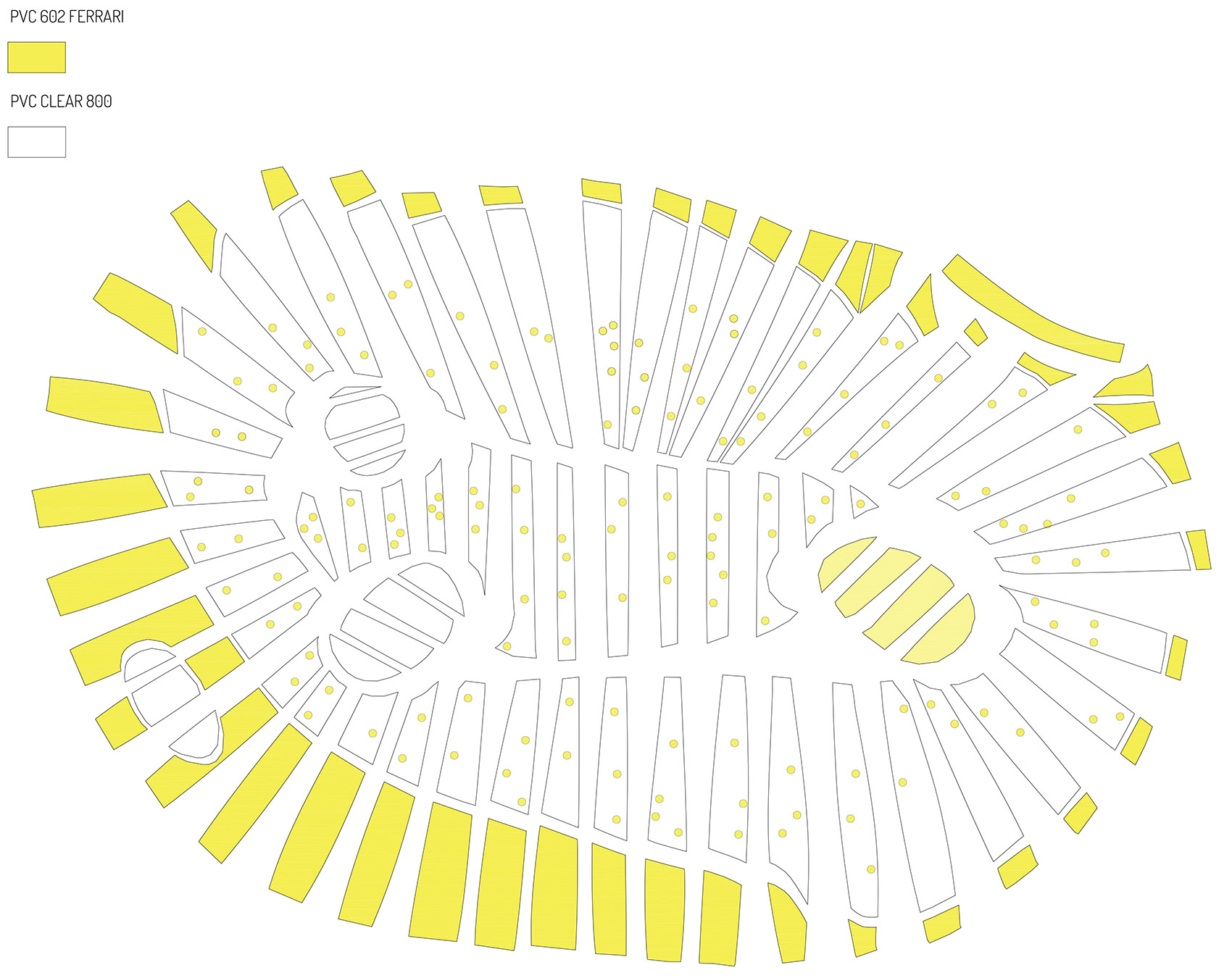

▼分析图，Diagram

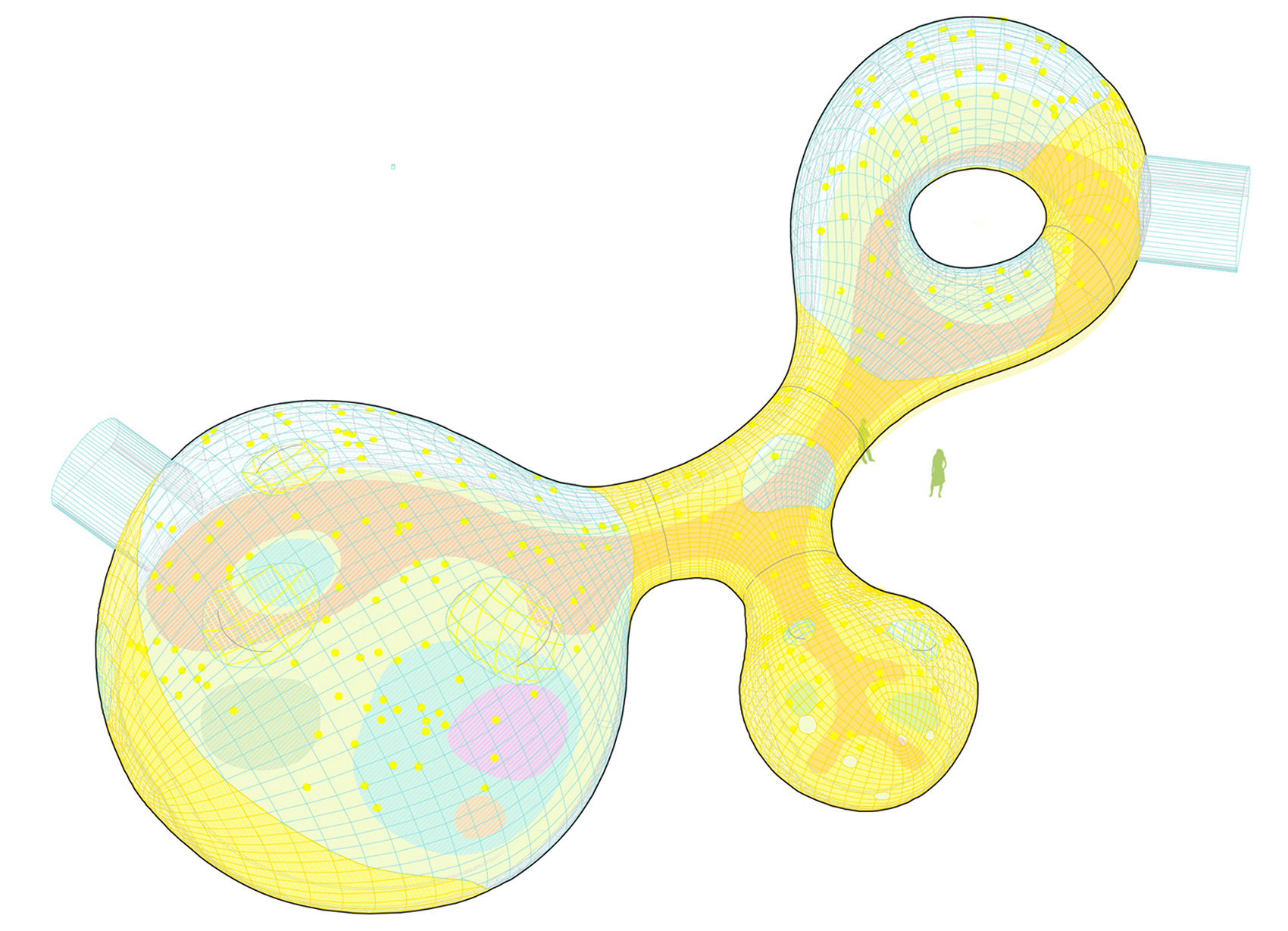

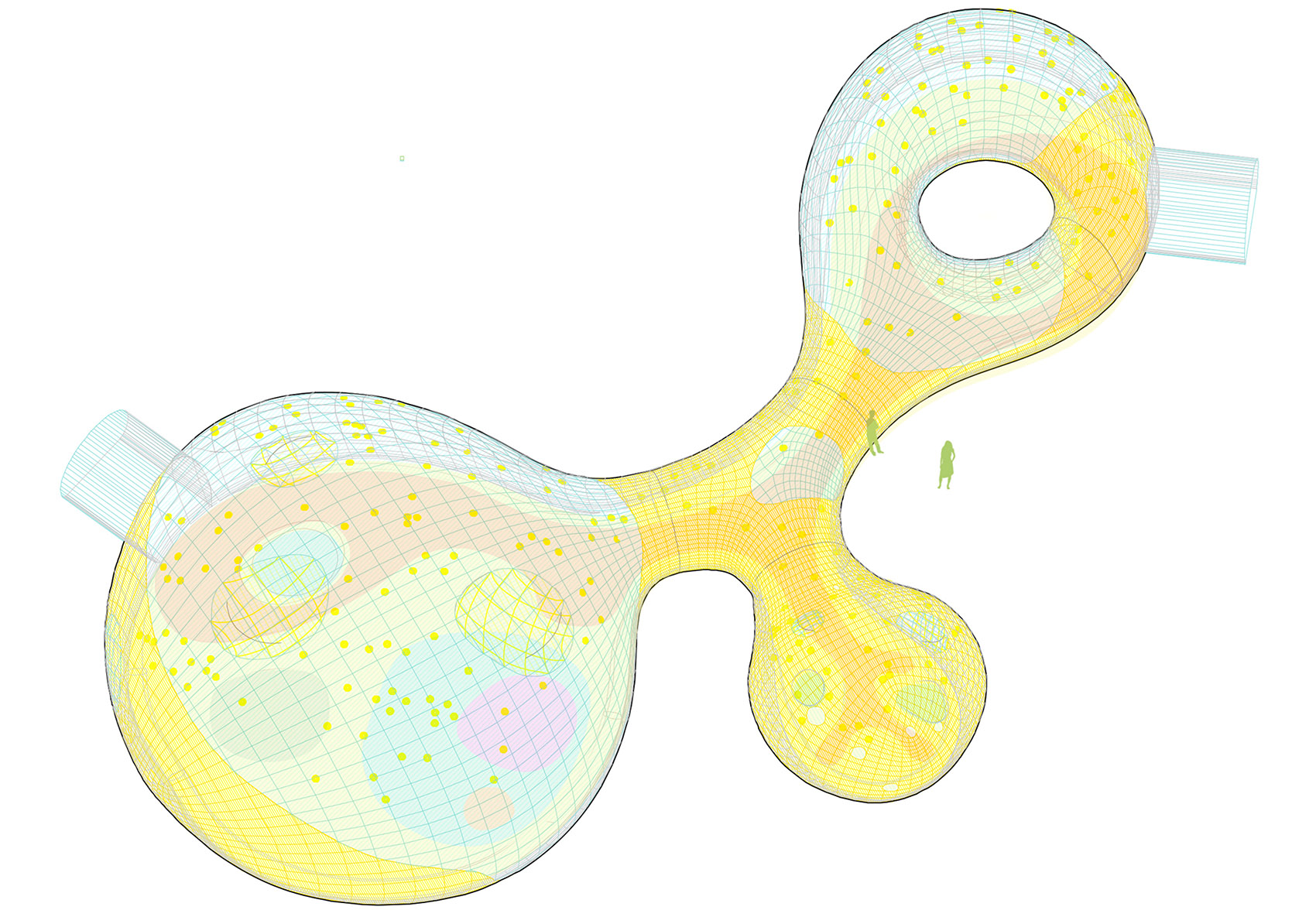

▼ 轴测图， Axonometric

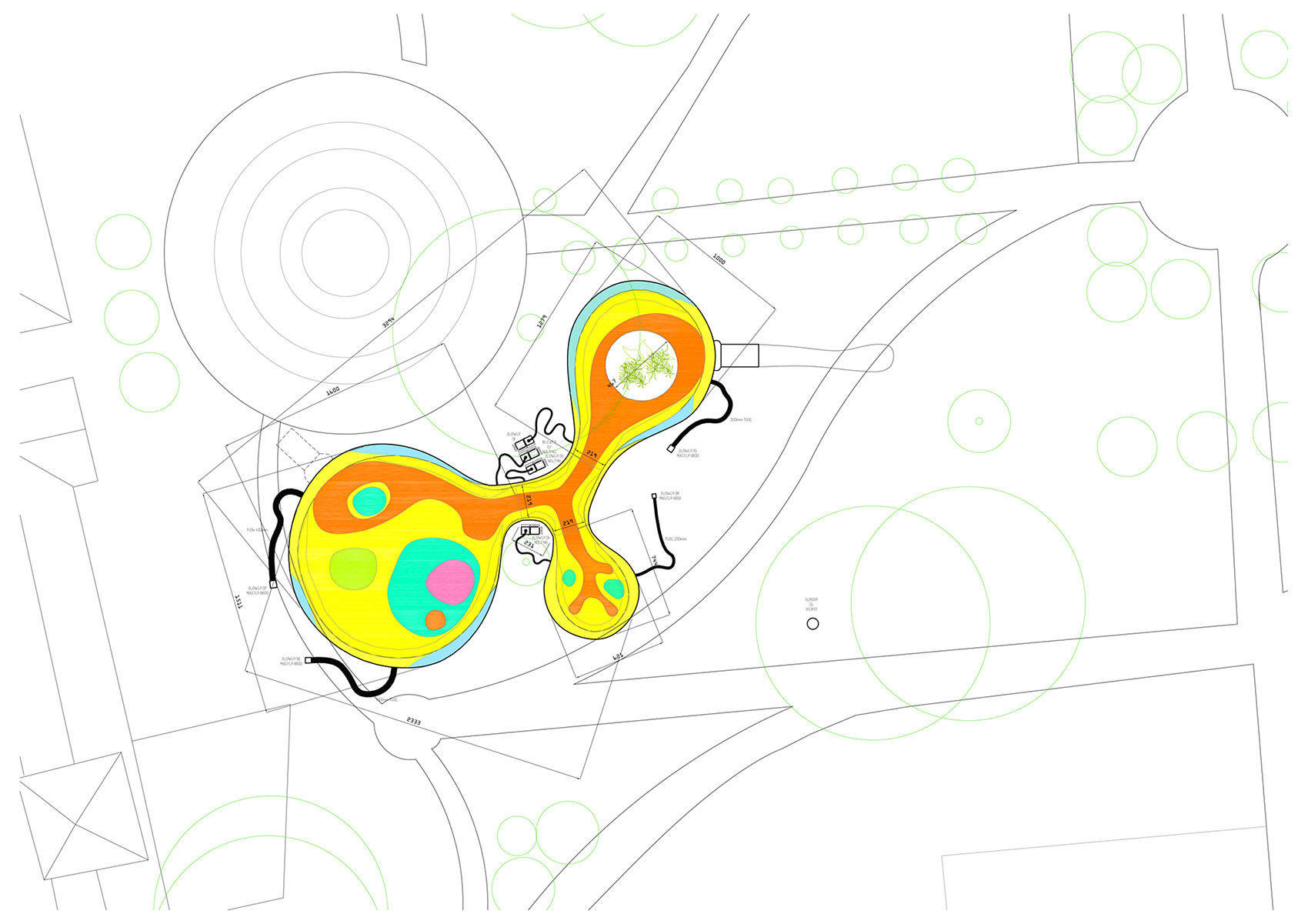

▼总平面，Situation Plan

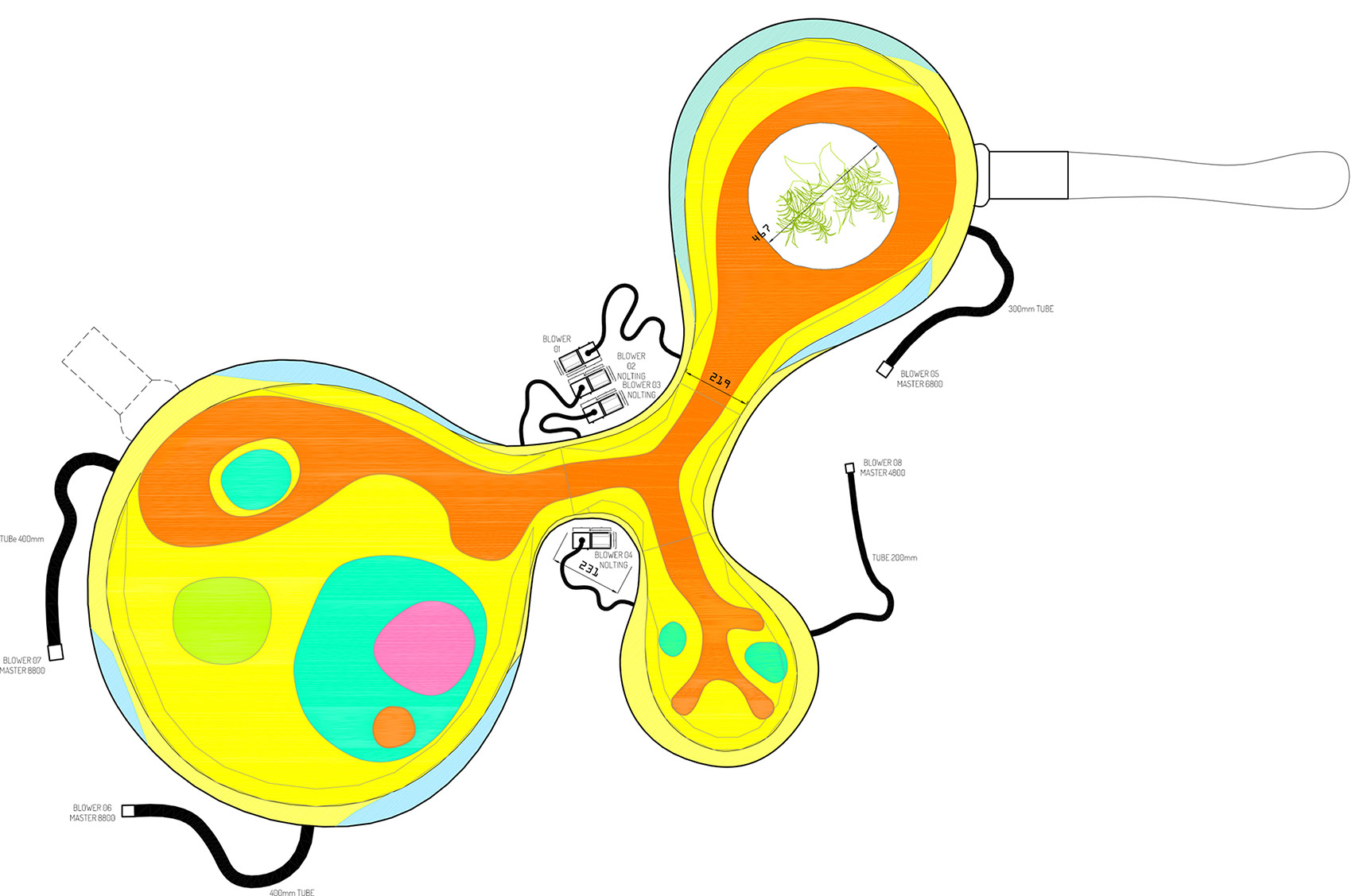

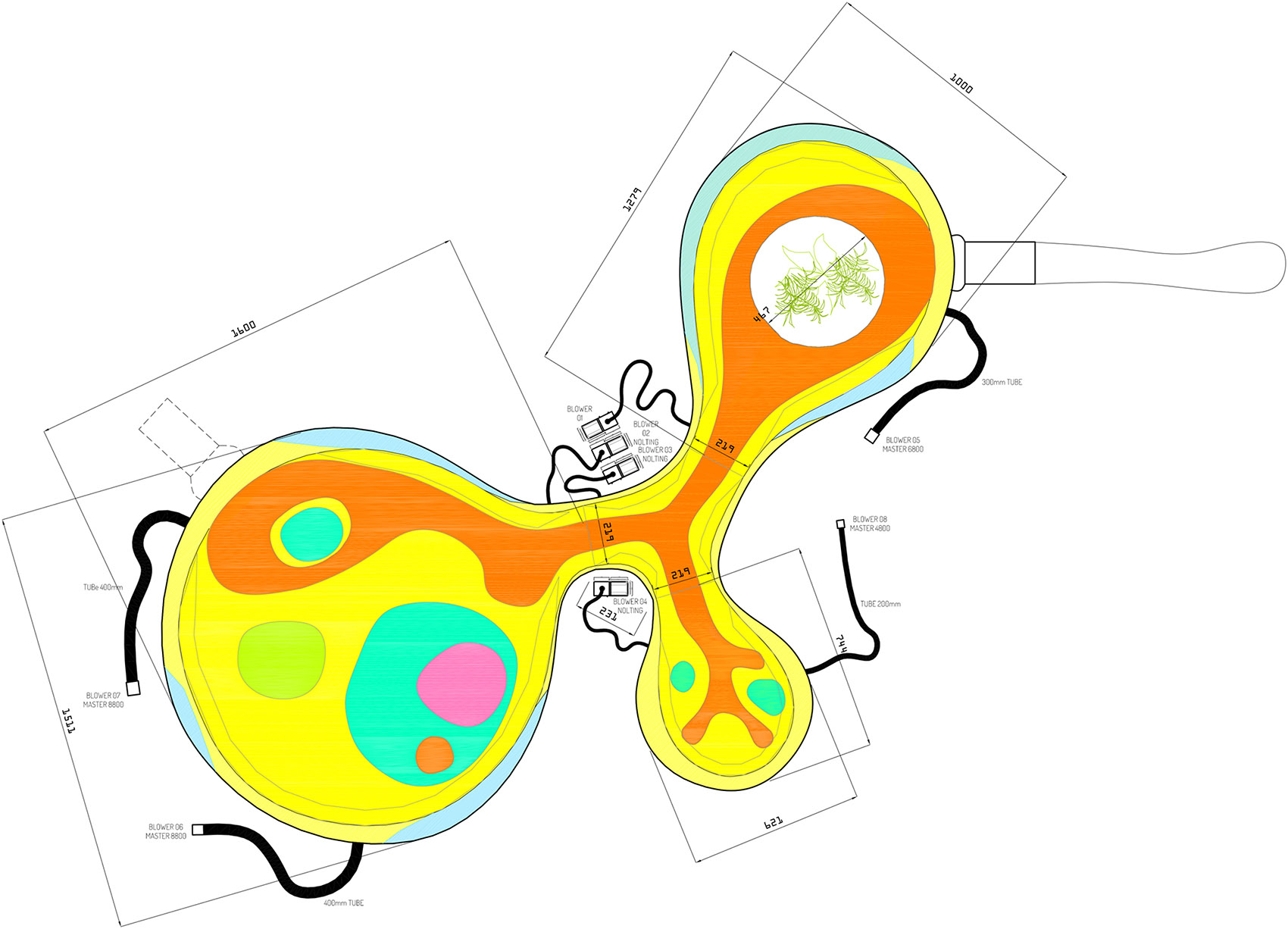

▼平面图，Floor Plan

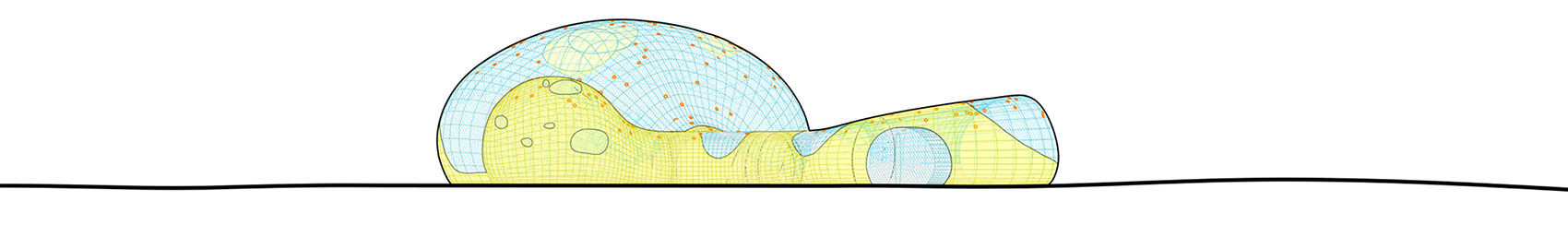

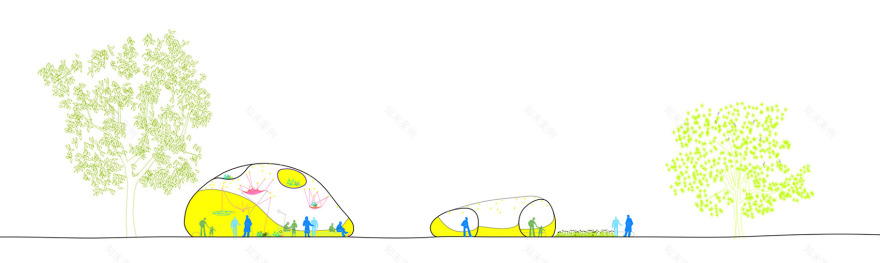

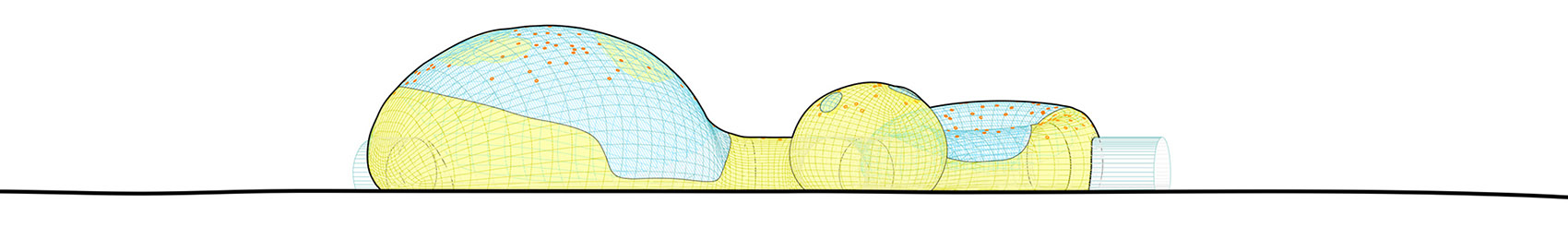

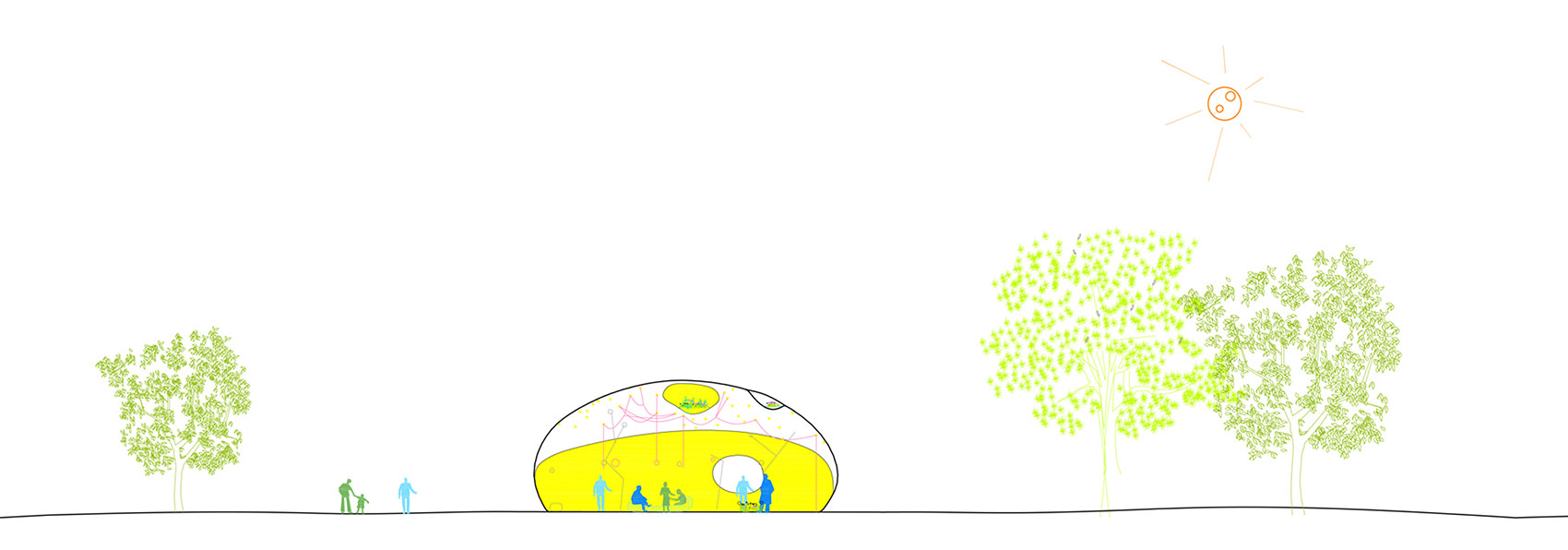

▼立面图，Elevation

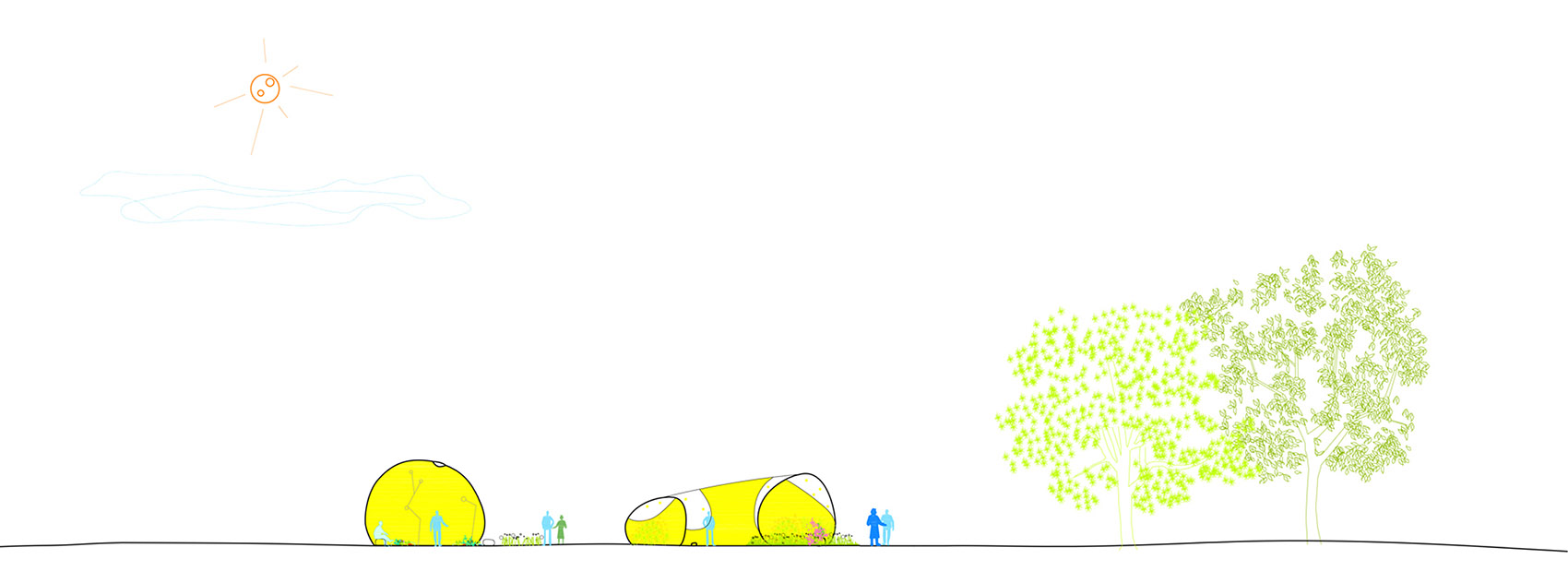

▼剖面图，Section

Project Data:

Project name: Second Dome Tipology: Itinerant pavilion. Active structure. Pneumatic Structure. Surface: 315 m2 Location: London, United Kingdom. Date: June 2016 Authors: Ignacio Peydro + Isabel Collado (DOSIS) Team: Luis F. Núñez, Irene Gigirey, Arantxa Fernández, Bruno Canales. Manufacturer: Arquitextil. Lastra y Zorrilla Materials: Color PVC: Ferrari Precontrait 402 Clear PVC: Expafol Cristal Flexible Ignífugo 800 Blowers: Gustav-Nolting y Master Photography: Atlas Drones, Dosis, Iwan Baan, John Porral
