太田市美术馆图书馆丨日本群马丨平田晃久建筑设计事务所

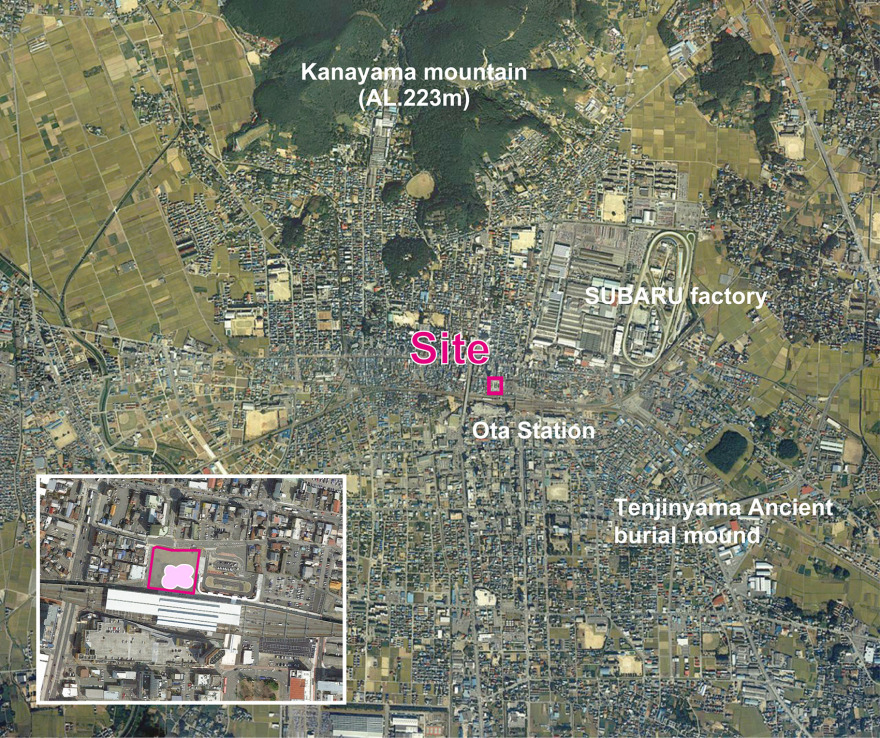

项目坐落于日本群马县太田市车站前，是一座集美术馆与图书馆为一体的文化交流设施。项目的核心理念旨在打造一个文化目的地，利用该设施振兴基本已经荒废的车站前地区，将人们重新吸引到该场地中来。设计的另一个核心目标则是将建筑内部与城镇联系在一起，为人们营造出一处轻松亲切、可以随意拜访停留的休闲场所。

This cultural exchange facility was built in front of Ota Station in Gunma Prefecture. One aim of the project was to create a base that would draw a stream of people back to the front of the station, which had become largely deserted. Another aim was to create something that would make a connection between the town and the building’s interior, encouraging people to casually drop by.

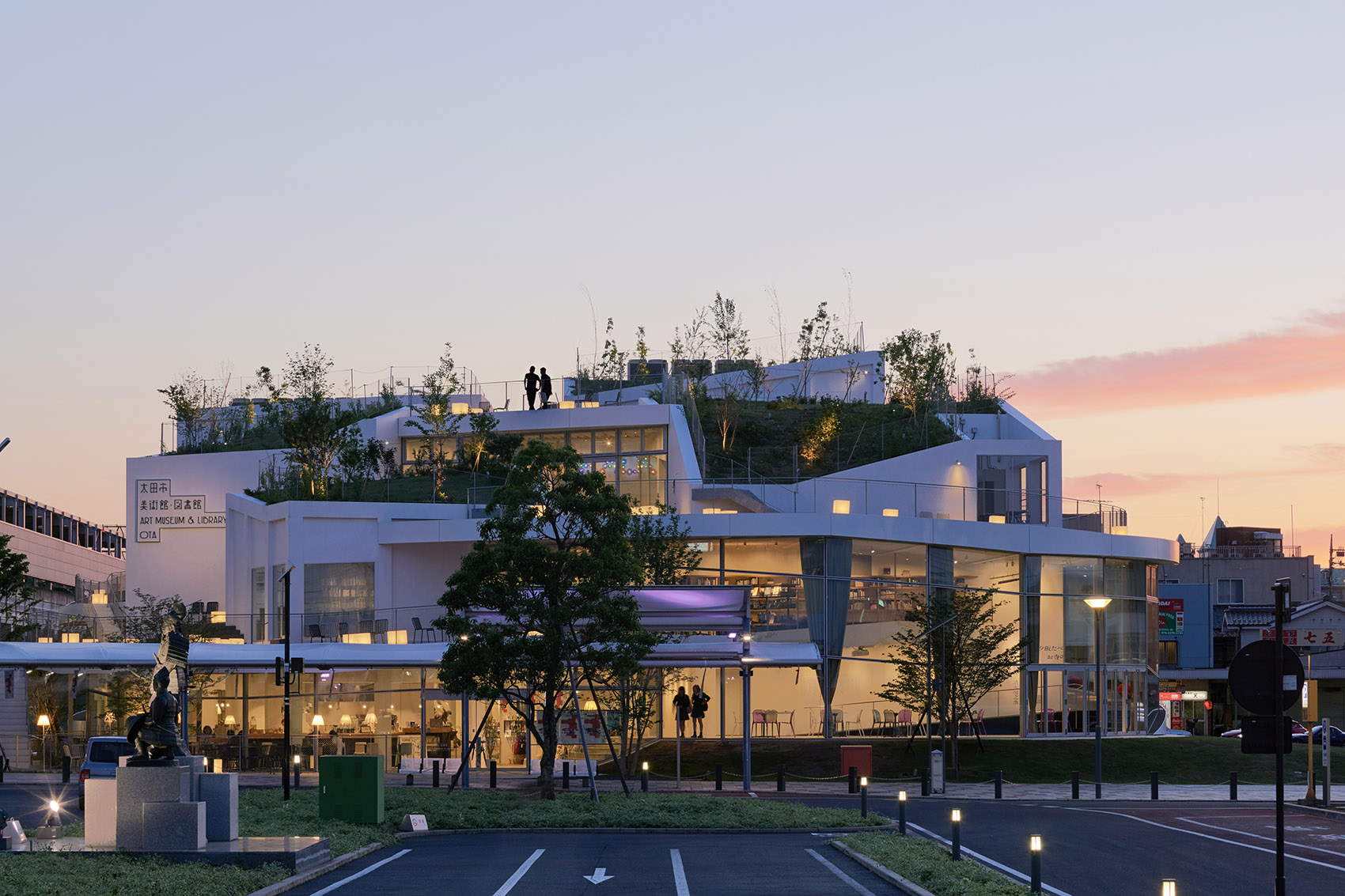

▼项目外观，external view © Daici Ano

建筑设计旨在彰显出太田市独特的地域特征，设计灵感来自飞机机翼与螺旋桨，旨在向曾是该市工业中流砥柱的中岛飞机公司致敬。设计师希望将该建筑打造成城市中重要的空间节点，让人们与活力如河流一般汇聚于此。

It was also necessary to create a place that was wholly unique to Ota. Using the image of a wing and propeller, a reference to the Nakajima Aircraft Company, which had once operated in the city, I attempted to evoke a state in which the building would serve as a node for multiple streams.

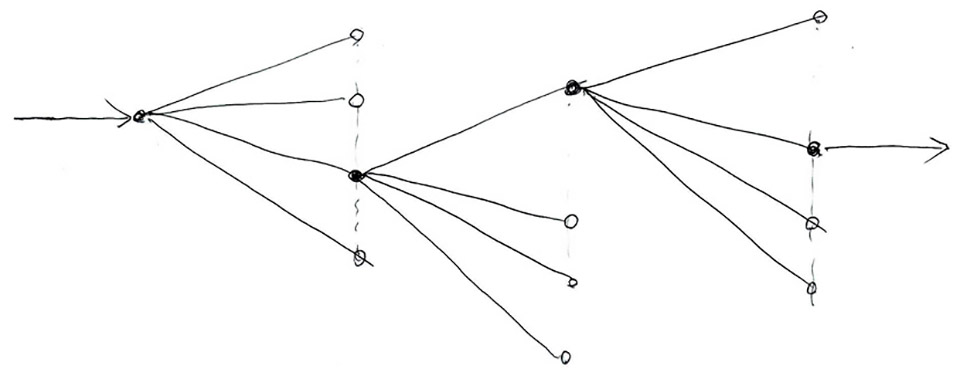

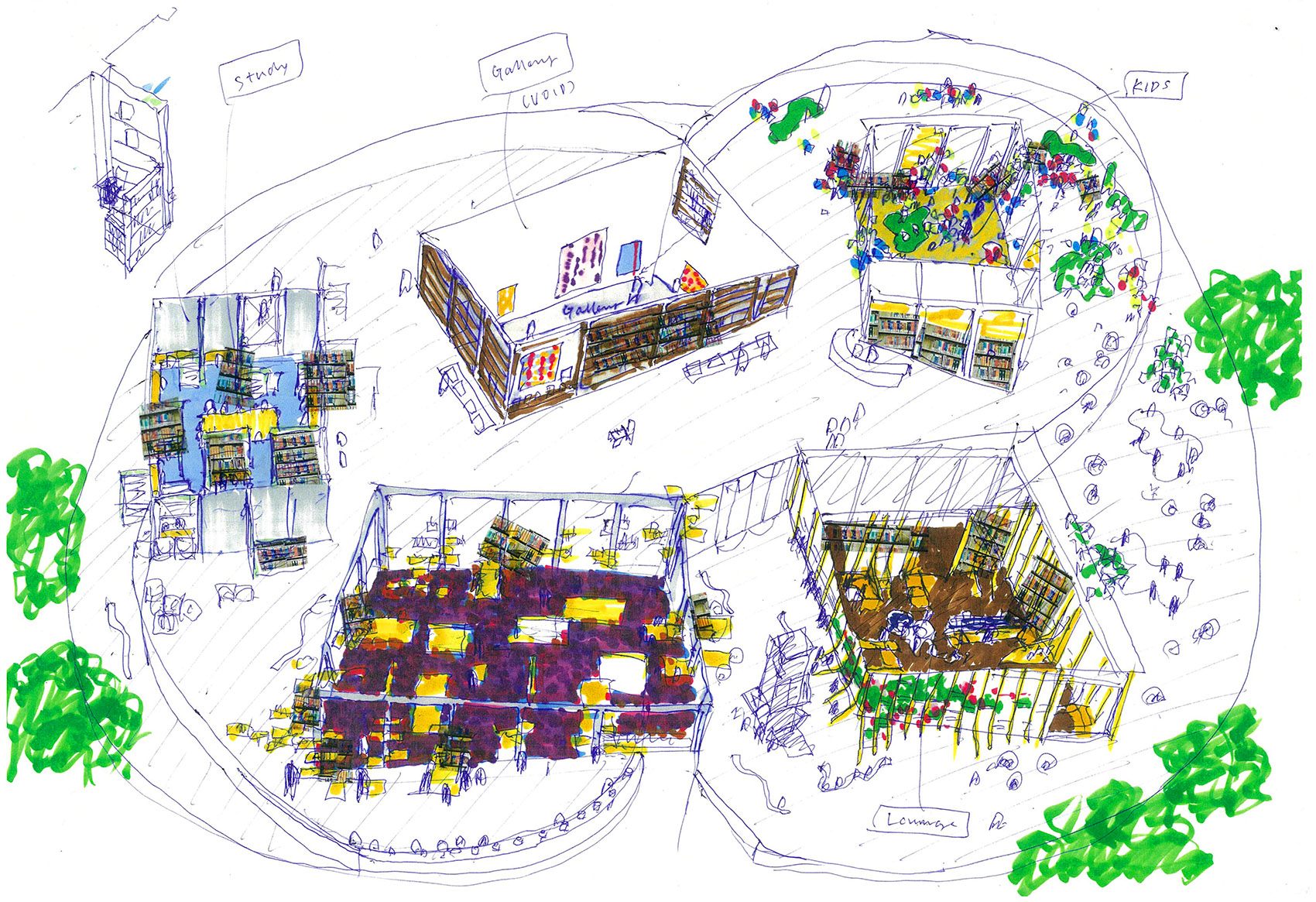

▼手绘草图，sketches © Akihisa Hirata Architecture Office

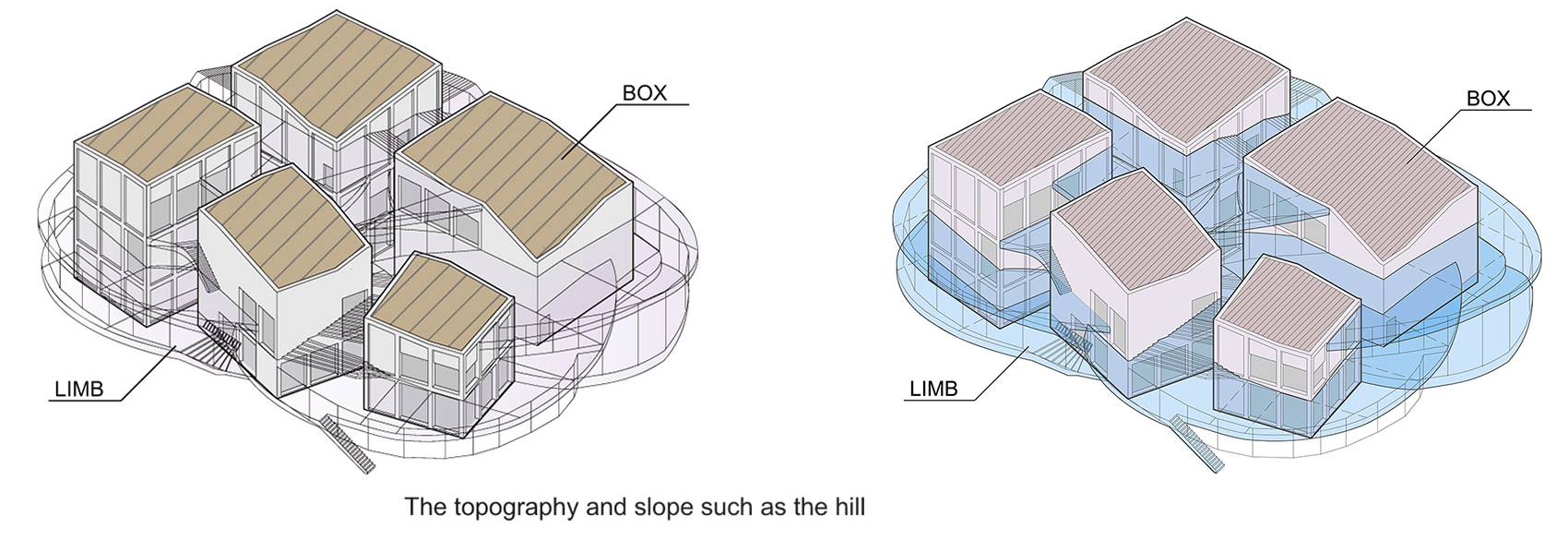

▼轴测分析图，axonometric drawing © Akihisa Hirata Architecture Office

从结构上看，一条钢架斜坡环绕在建筑周围，将五个钢筋混凝土盒子包裹在其中。这种建筑形式能够让人们自然地走到每一层楼，就像在城市中穿行一般。此外，设计师还力图将具有不同特点的场所整合在同一三维空间中，让不同年龄、不同背景的人都能寻找到属于自己的位置。

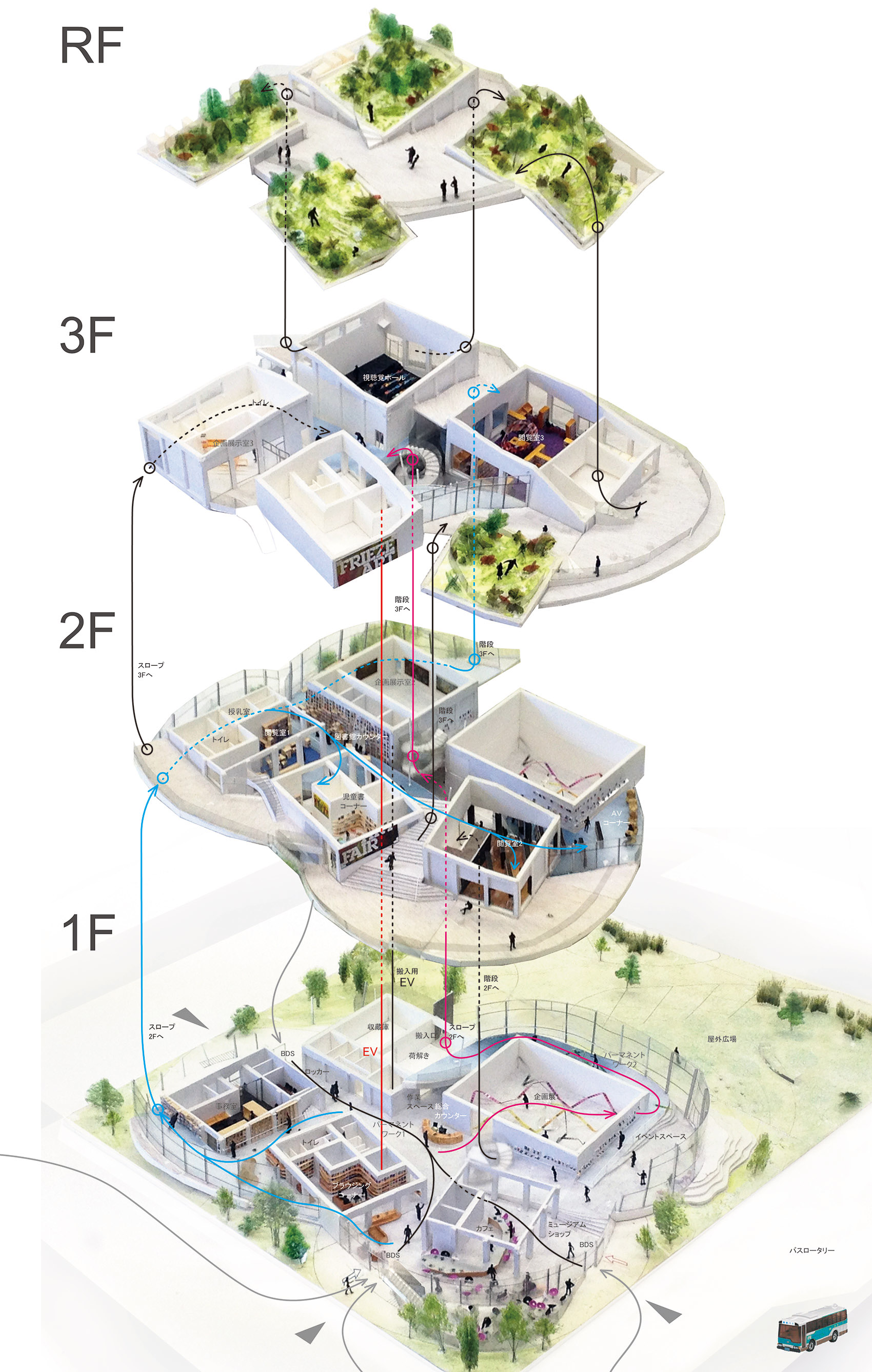

▼爆炸分析图，explosive analysis chart © Akihisa Hirata Architecture Office

In concrete terms, I proposed a structure in which a slope would wind around and around five reinforced-concrete boxes by means of a steel rim. This enables people to naturally make their way to every floor as if they were walking through the city. In addition, I tried to create a three-dimensional symbiosis of places with a diverse range of characteristics to enable people of many different ages and backgrounds to discover their own place.

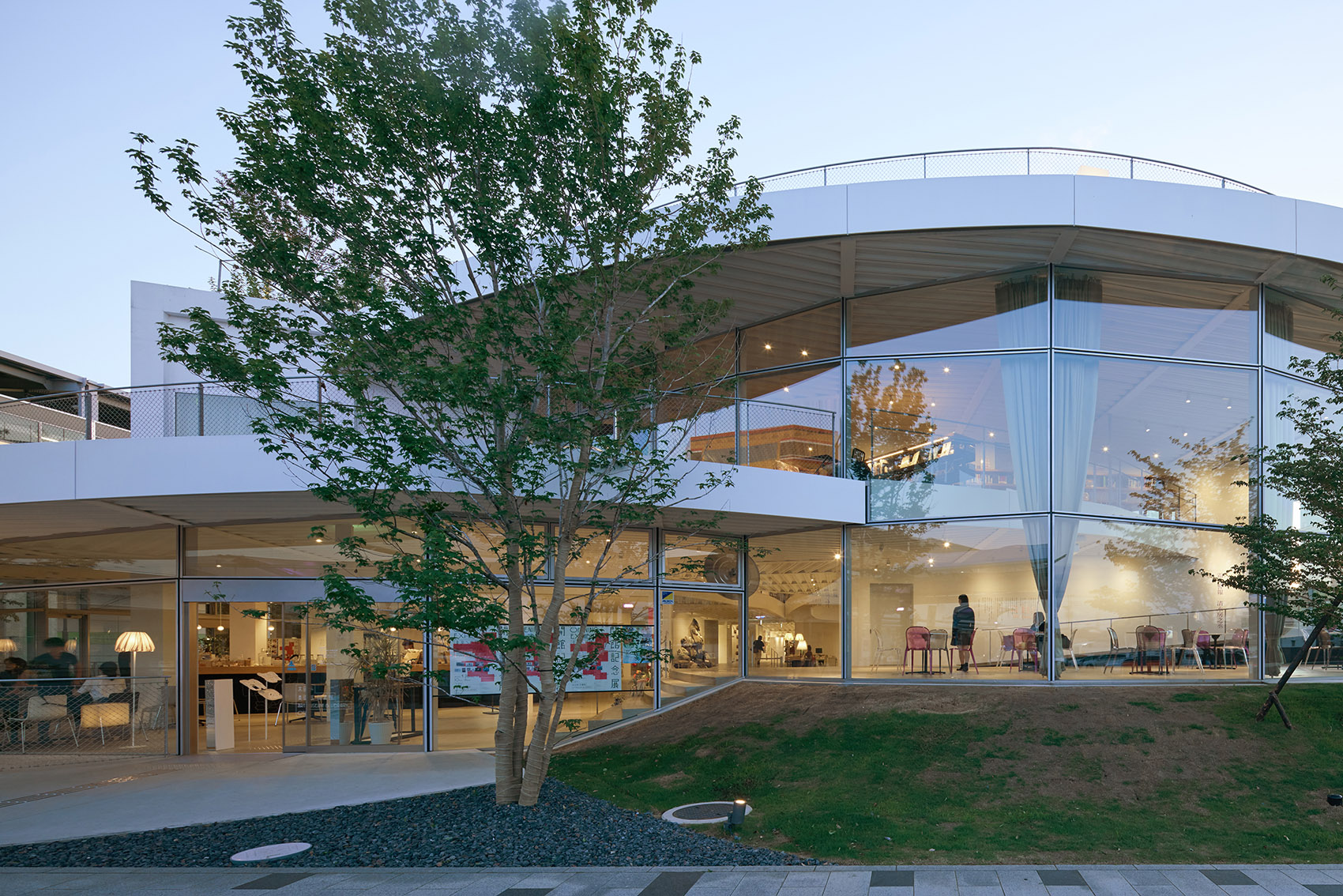

▼大面积的玻璃将建筑内部向外界开放，large areas of glass open the interior to the outside world © Daici Ano

从外观上看，大面积的玻璃将建筑内部的书架与艺术品暴露在人们的眼前，吸引着人们走进室内探索，美术馆与图书馆之间存在紧密的视觉联系，同样起到了引导人流的效果。

The book shelves and works of art are visible through the window, making people want to go inside, and in the same way that a museum or a library exudes a welcoming air by providing us with a glimpse of its contents, the building precipitates a stream of people.

▼室内空间概览，overall of interior © Daici Ano

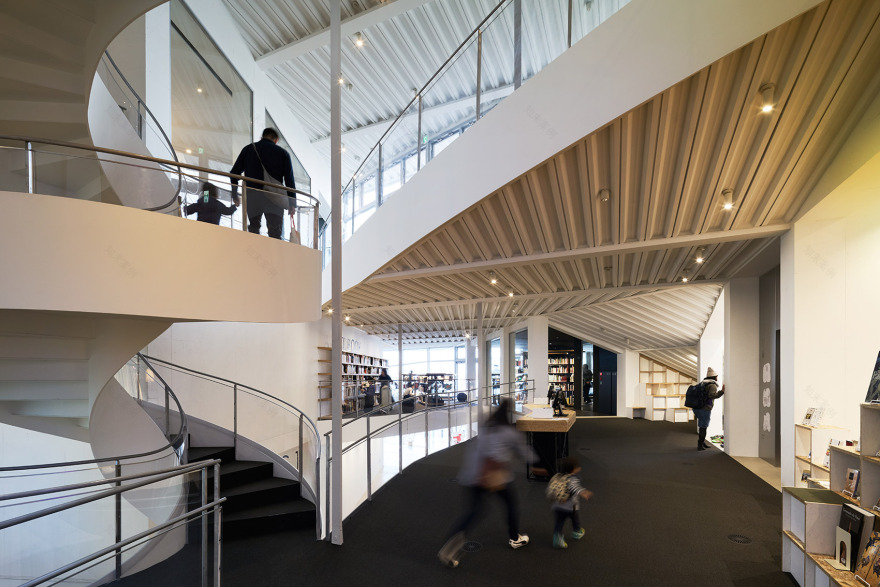

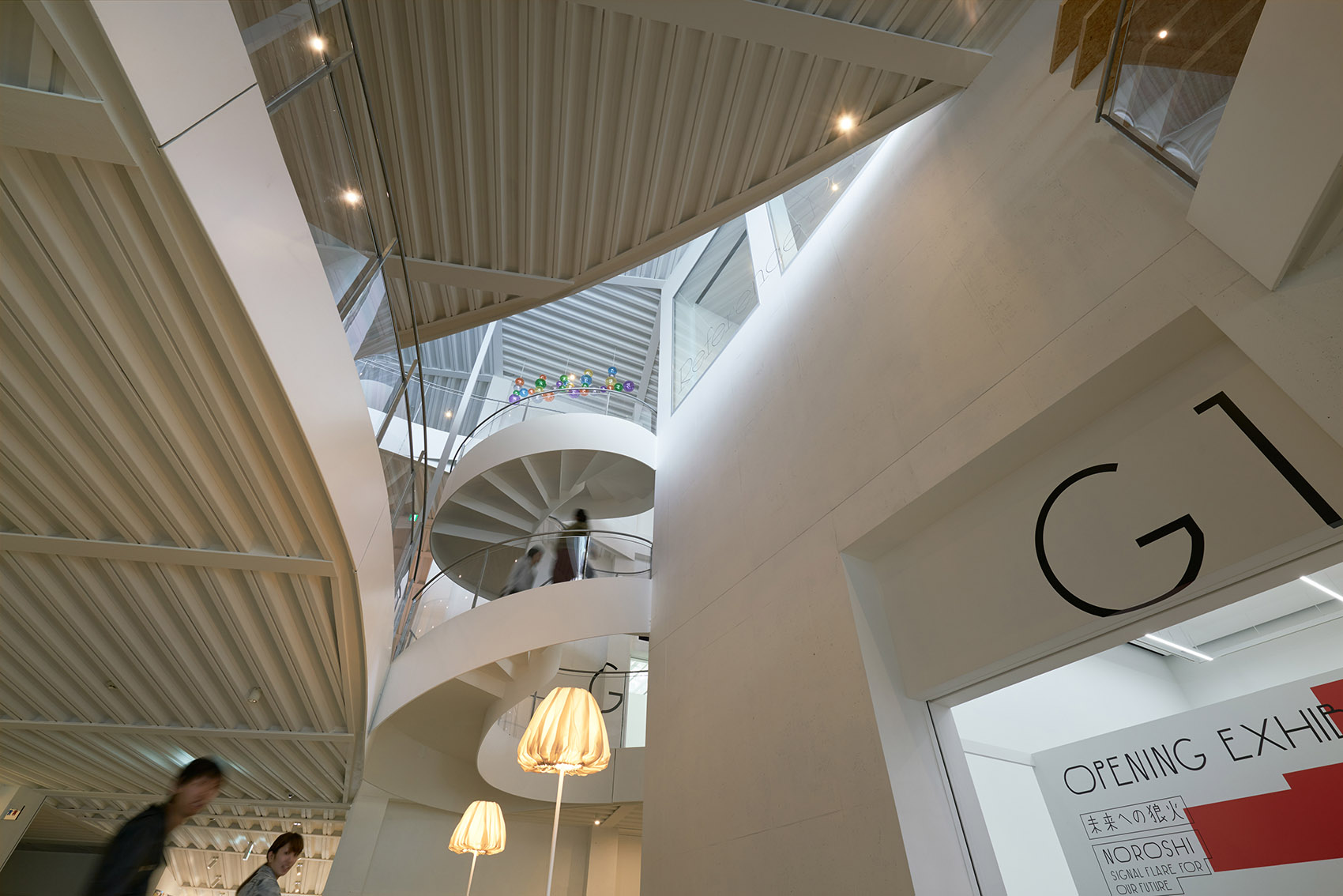

▼交错的平台与旋转楼梯，staggered platforms and spiral staircases © Daici Ano

这座建筑就像绽放在车站前的一朵花，吸引着大量的当地居民与工作人员参与其中。

Designed to entangle a large number of local residents and staff, the building is like a flower that was born in front of the station.

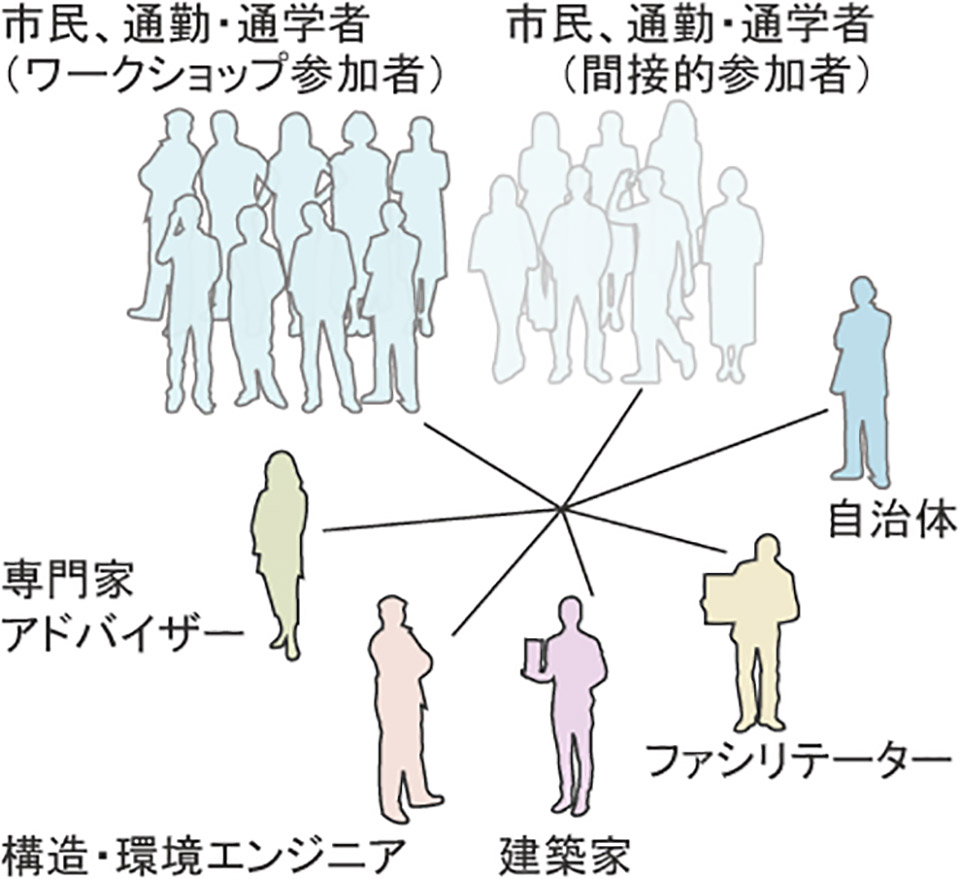

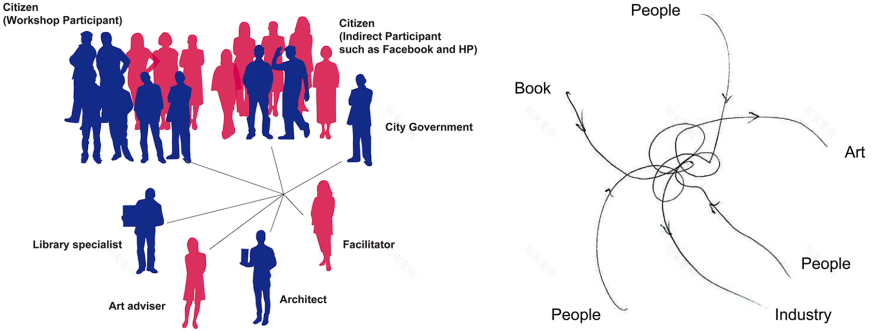

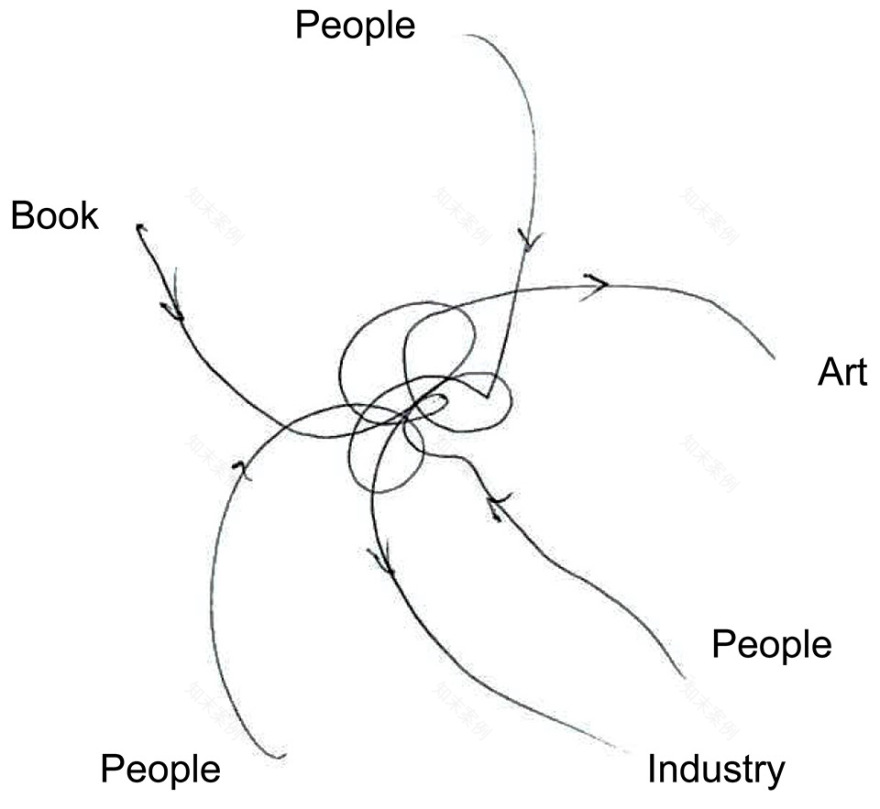

▼概念分析图，concept diagram © Akihisa Hirata Architecture Office

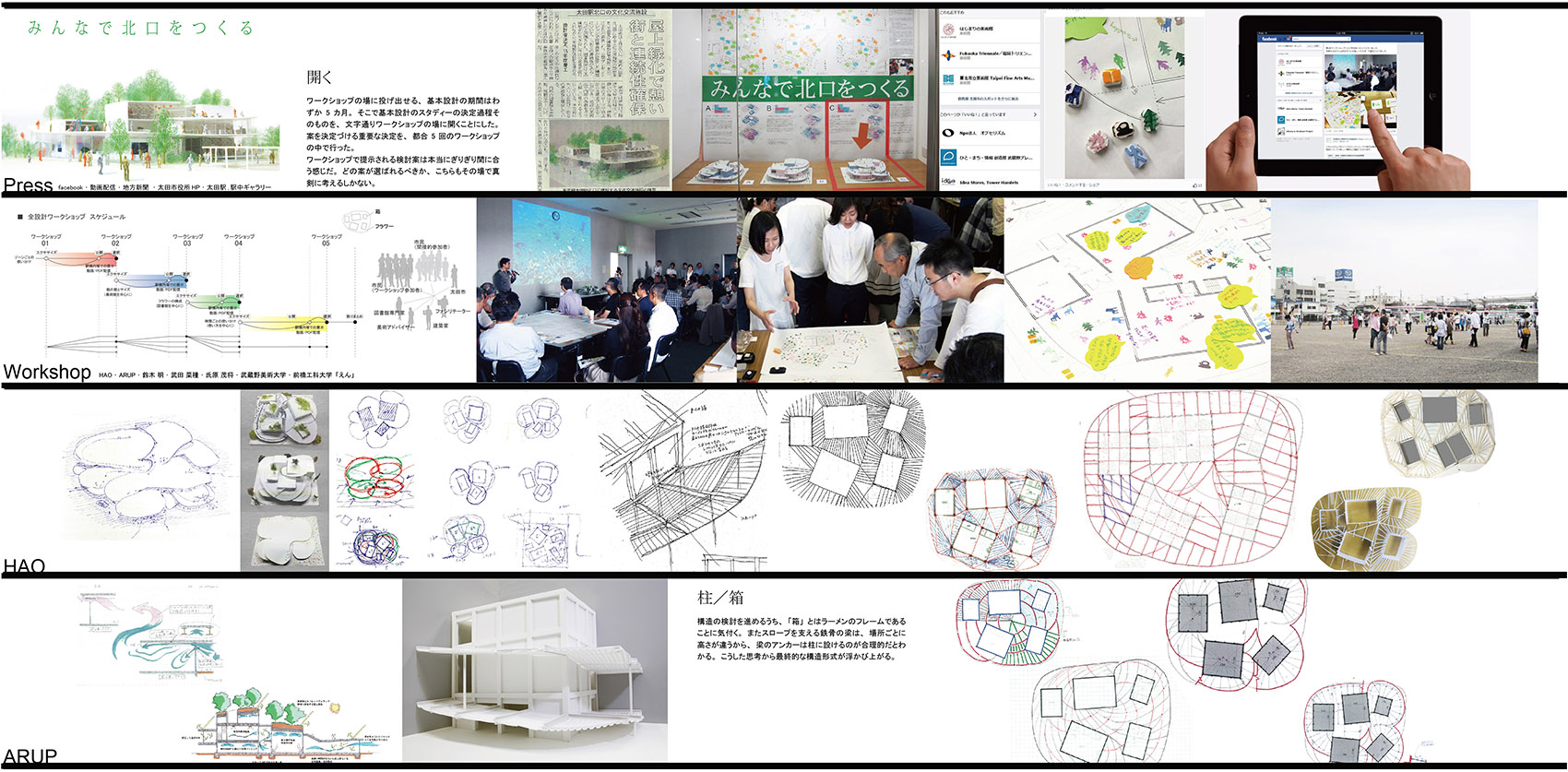

▼分析图，analysis chart © Akihisa Hirata Architecture Office

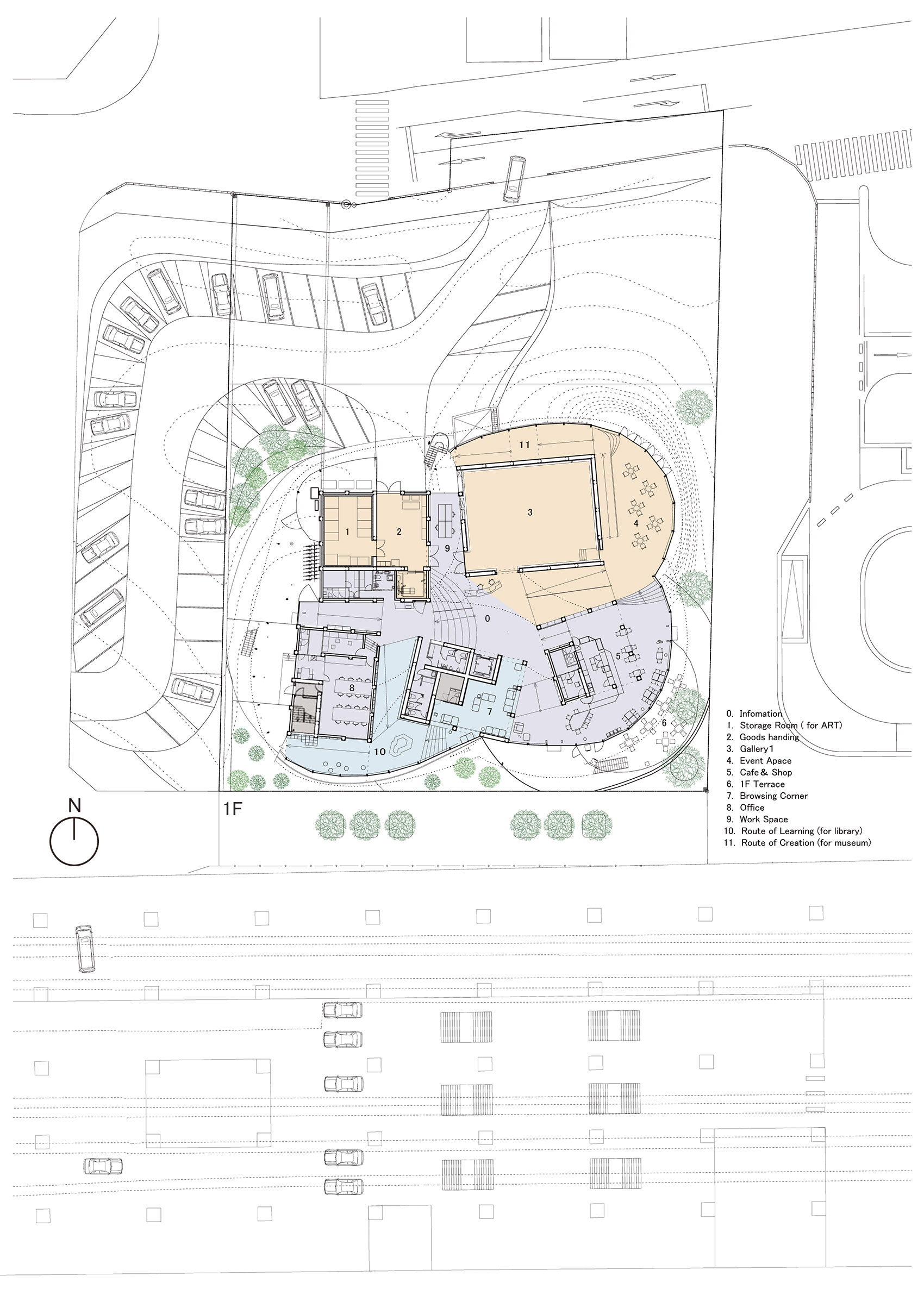

▼底层平面图，ground floor plan © Akihisa Hirata Architecture Office

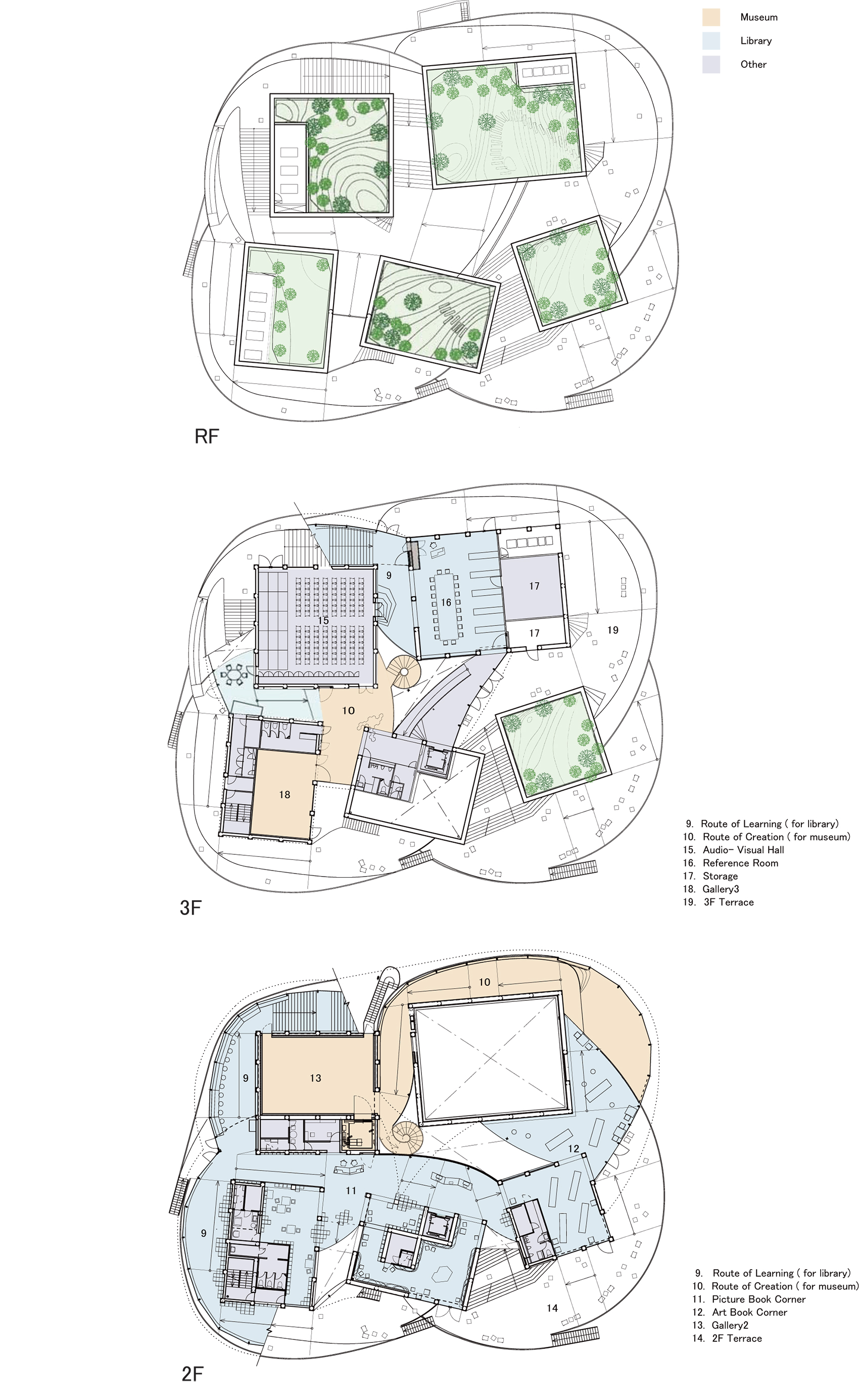

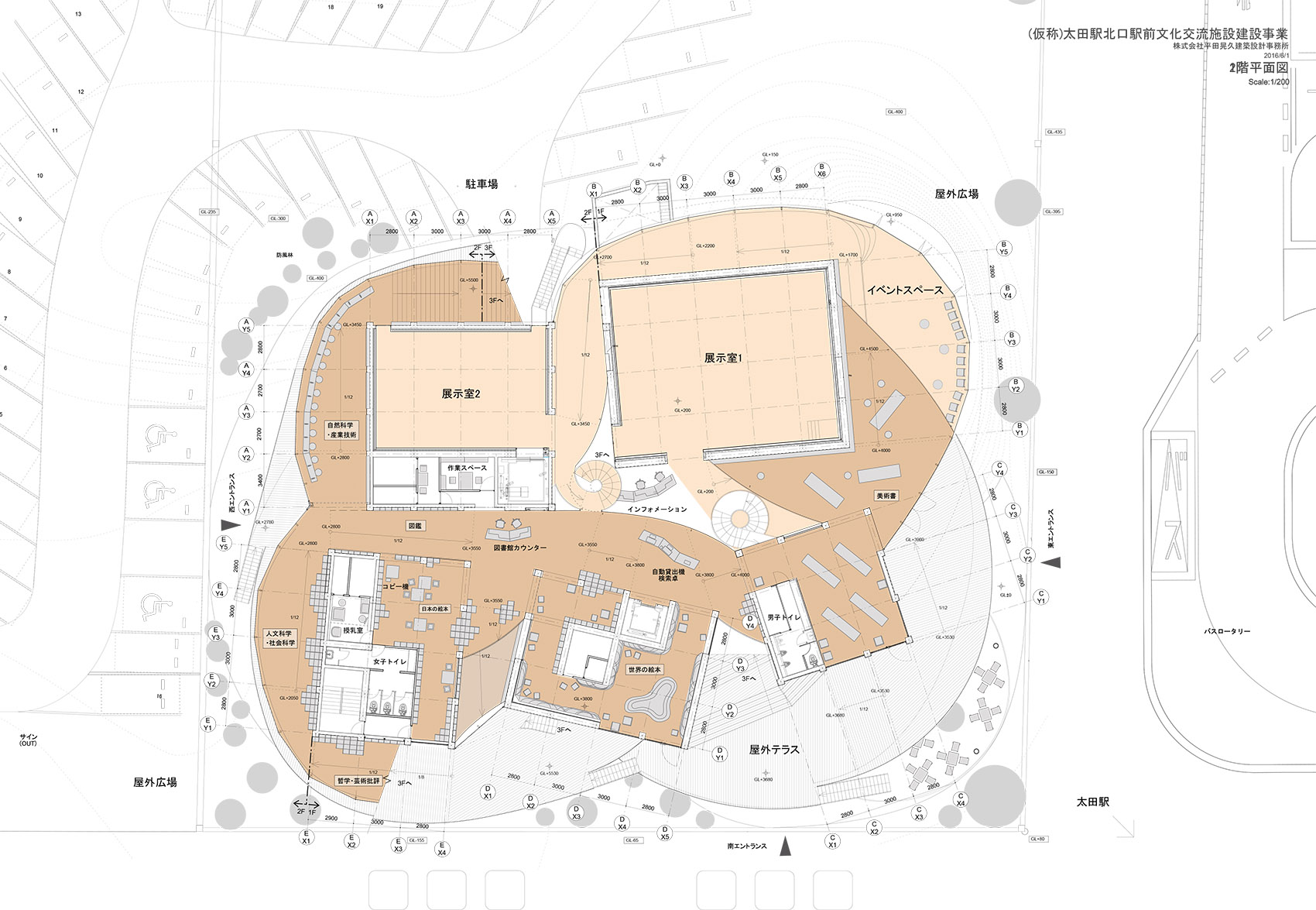

▼平面图，plans © Akihisa Hirata Architecture Office

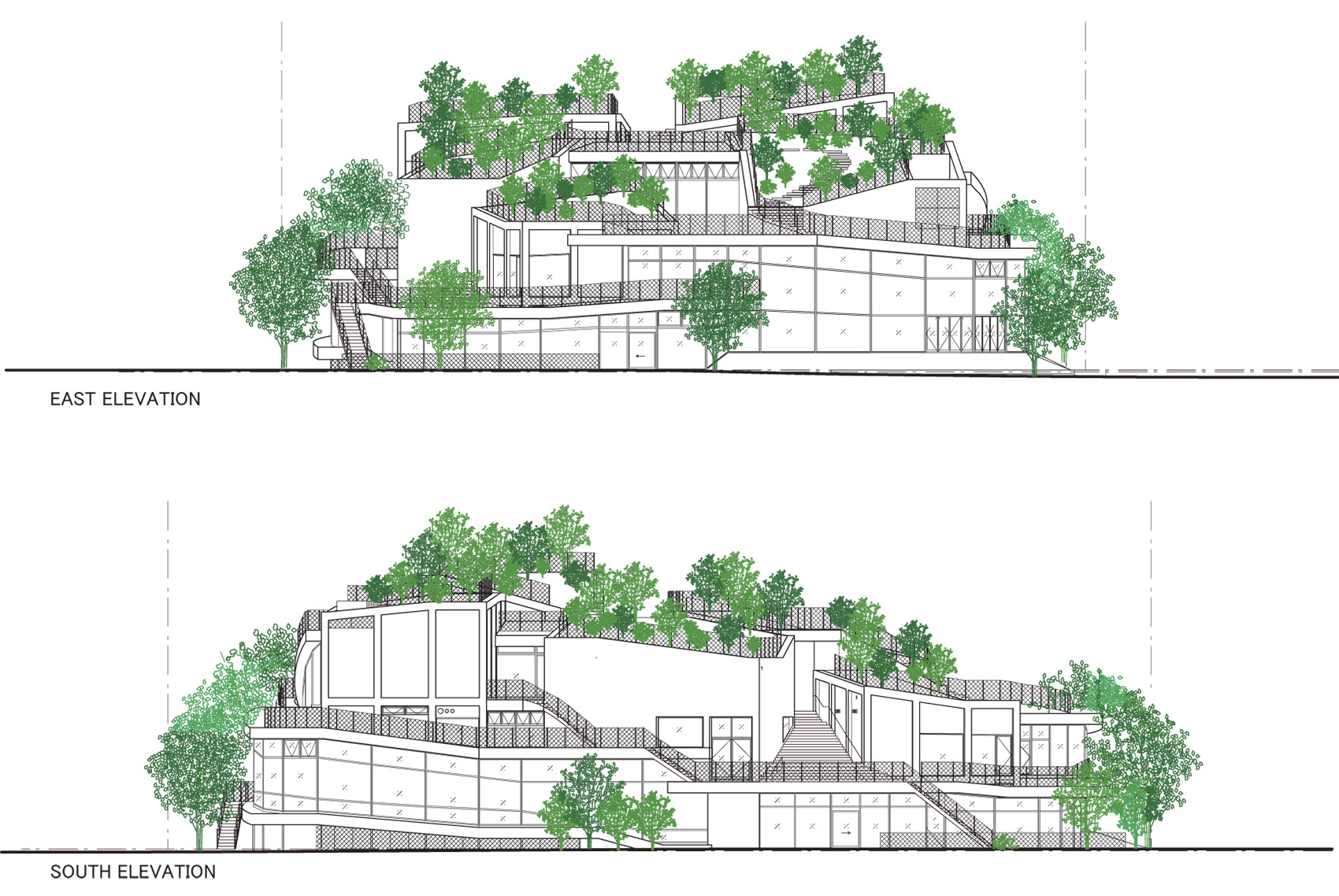

▼立面图，elevations © Akihisa Hirata Architecture Office

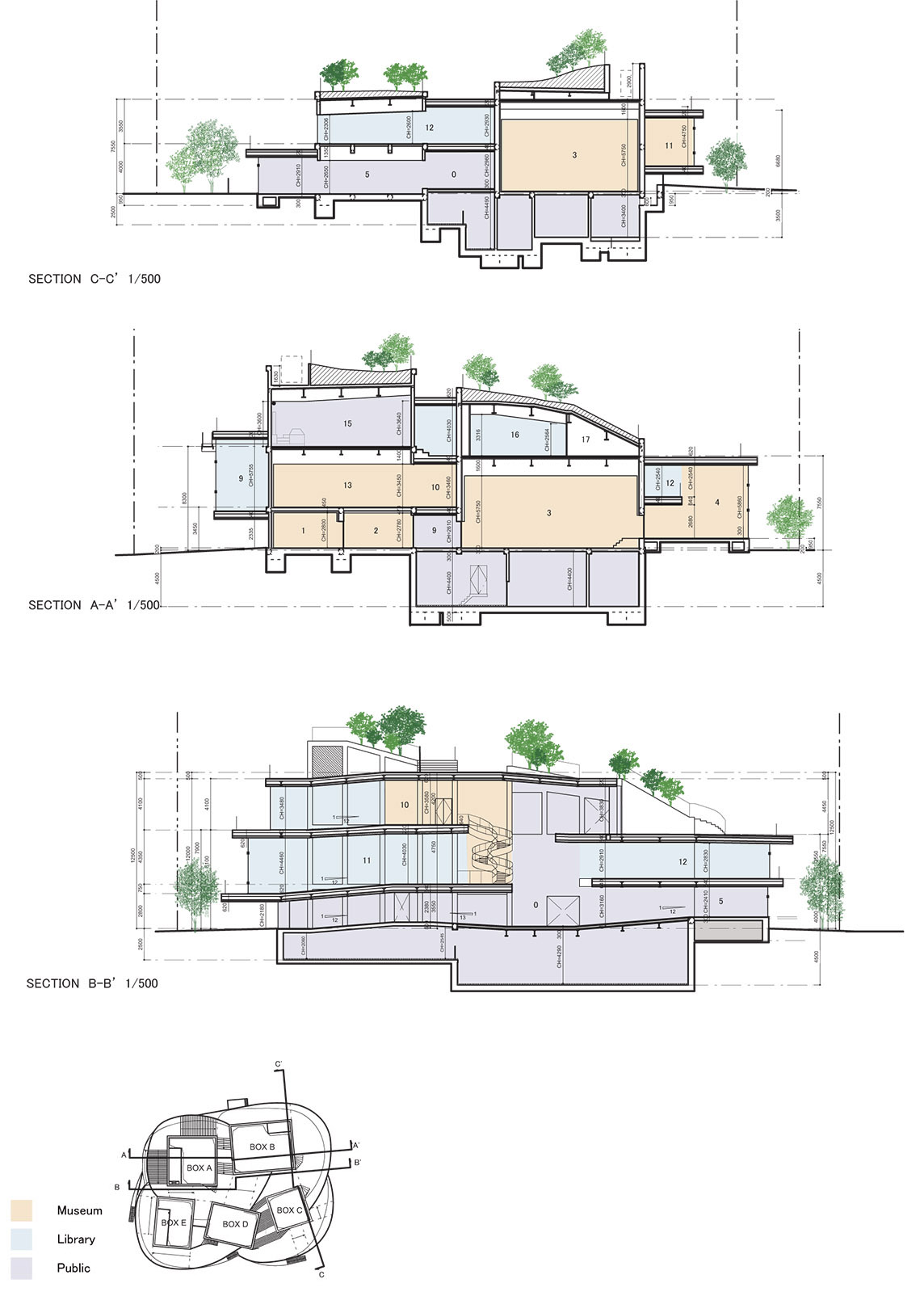

▼剖面图，sections © Akihisa Hirata Architecture Office

Project data Site : Ota, Gunma Design period : April 2014 – March 2015 Construction period : May 2013 – December 2014 Structural engineer : arup General contractors : Ishikawakensetsu Site area : 4641.33 sqm Built area : 1496.87 sqm Total floor area : 3152.85 sqm Program : museum, library, cafe shop Floors : B1-3 Height : 15.2 m Structure : Reinforced concrete, Steel

Credit 1) Models : akihisa hirata architecture office 2) Photo after completion : Daici Ano 3) Photo under construction : akihisa hirata architecture office 5) Drawings : akihisa hirata architecture office 6) Concept diagrams : akihisa hirata architecture office 7) Perspective images : akihisa hirata architecture office
