One Church Square Paul Davis+Partners

© Adam Parker

亚当·帕克

保罗戴维斯合作伙伴最近完成了一个高质量的，可持续的项目，关键工人住房在Pimlico，尊重相邻的一级列入圣詹姆斯少教堂。

Paul Davis + Partners has recently completed a quality, sustainable project for keyworker housing in Pimlico that respects the adjacent grade I listed St James the Less Church.

© Adam Parker

亚当·帕克

一座教堂广场坐落在繁忙的沃克斯豪尔桥路上，保罗·戴维斯的设计巧妙地利用了它安静的立面，将它的入口定位在与教堂共用的公共广场上。这一举措确保了一个以前未被充分利用的广场得到了振兴，同时也加强了它与教会和它的基础的联系。

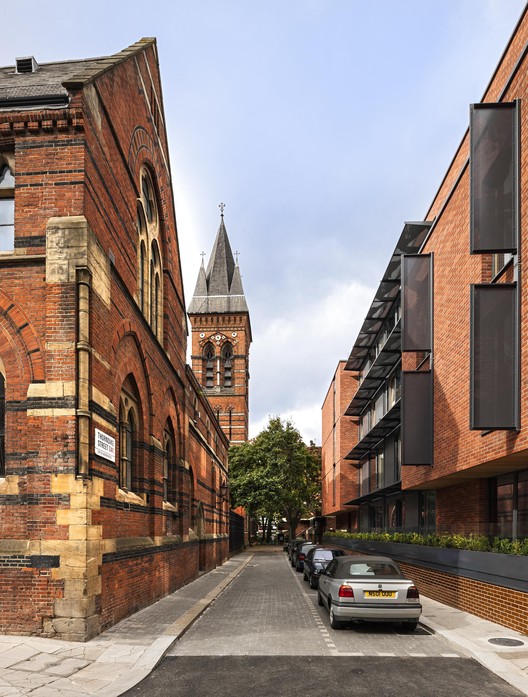

One Church Square is situated on the busy Vauxhall Bridge Road, and Paul Davis + Partner’s design ingeniously exploits its quieter elevation by locating its entrance off the public square it shares with the church. This move ensures that a previously under-utilised square has been revitalised and also reinforces its connection to the church and its grounds.

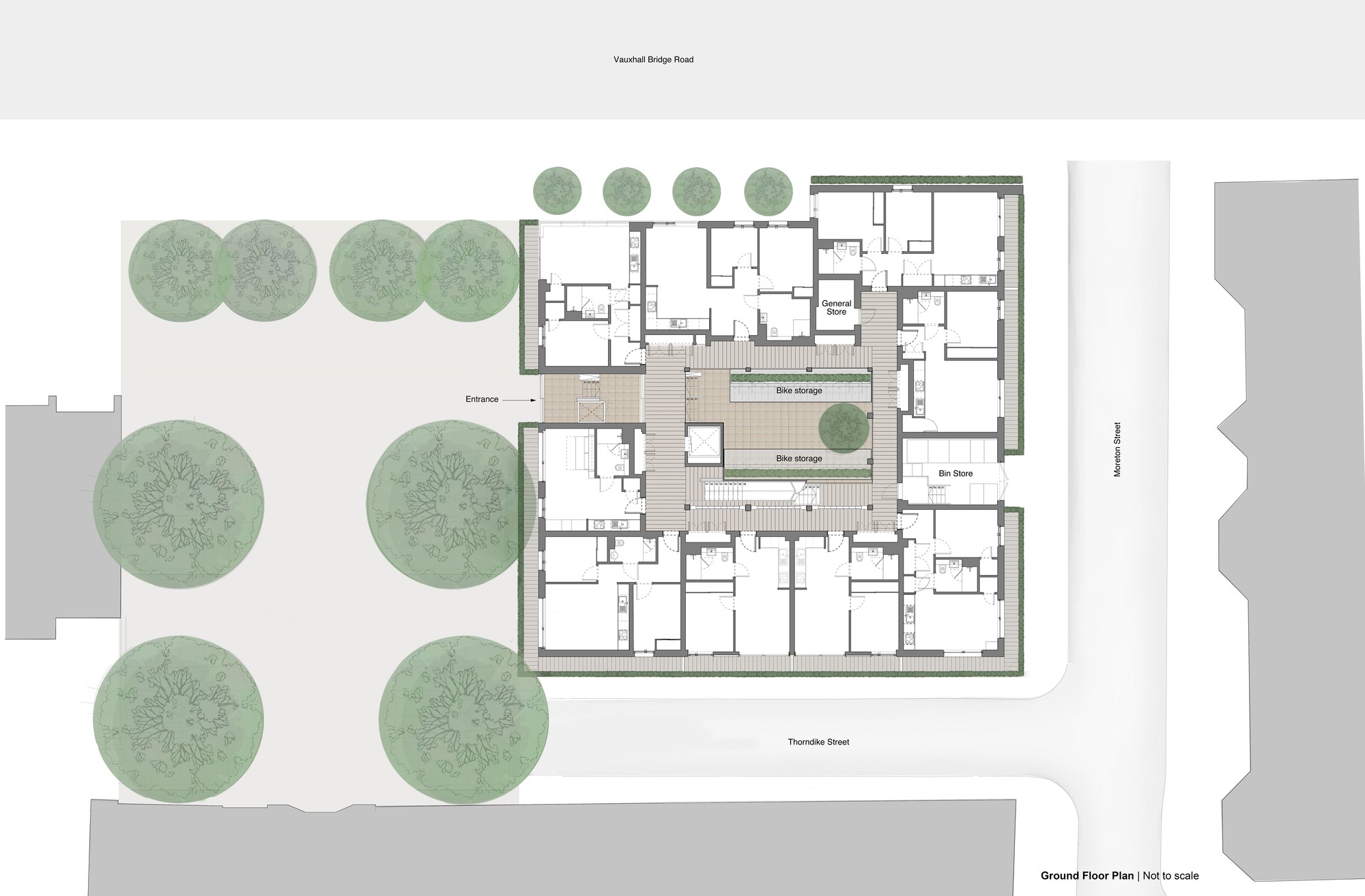

Floor Plan

由海豚广场基金会(DolphinSquare Foundation)委托进行的GB5.5m开发项目，提供了39个5层楼的单元。31套公寓是为关键工人准备的，其余8套是以公开市场的价格出租的。该设计采用中央玻璃覆盖庭院和屋顶露台，旨在促进社会互动和社区意识。位于一个保护区，2400平方米的发展质量设计和材料的选择同情地响应周围的历史城市环境。

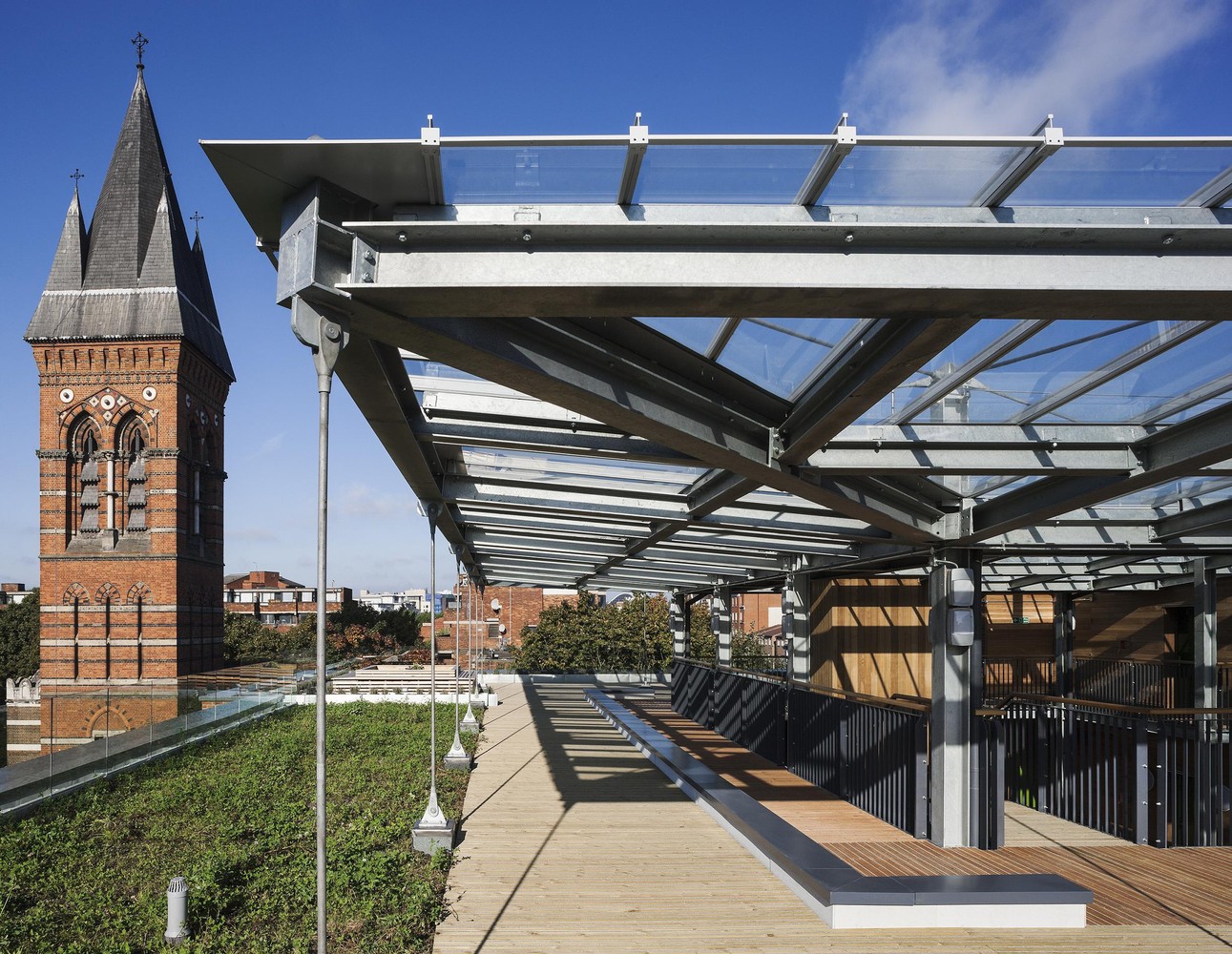

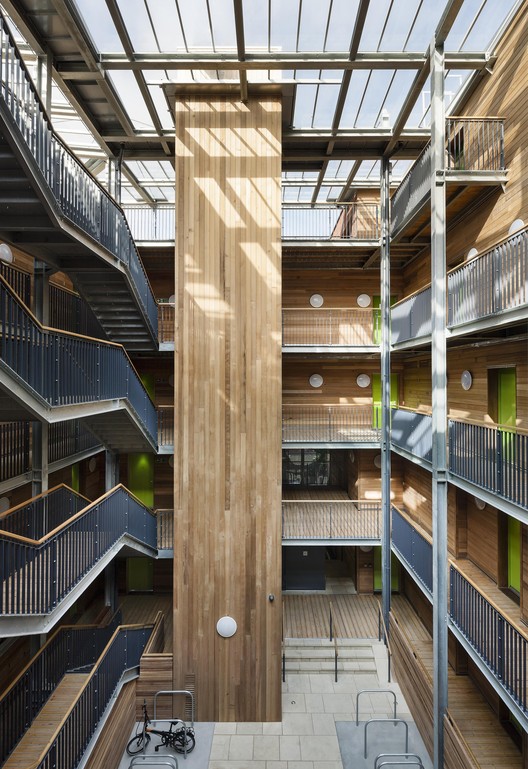

The £5.5m development, commissioned by the Dolphin Square Foundation, provides 39 units spread over 5-storeys. Thirty-one apartments are for key workers while the remaining eight are being rented at open market values. The design employs a central glass-covered courtyard and a roof terrace that aims to contribute to social interaction and a sense of community. Located in a conservation area, the 2,400sq m development’s quality design and choice of materials sympathetically respond to the surrounding historic urban context.

© Adam Parker

亚当·帕克

对于负担得起的住房计划来说，“一个教堂广场”采用了一系列可持续的措施来实现“可持续住房守则”的第4层，这是不寻常的。为了遵守威斯敏斯特市议会具有挑战性的规划大纲，并满足第4级的要求，已将若干被动措施纳入该计划。这些包括：超绝缘的，密闭的建筑围护结构，太阳能遮阳鳍，带有热回收系统的机械通风，以及在屋顶上提供光伏电池板来发电。

Unusual for an affordable housing scheme, One Church Square utilises a range of sustainable measures to achieve Level 4 of the Code for Sustainable Homes. To comply with Westminster City Council’s challenging planning brief and to meet Level 4, a number of passive measures have been integrated into the scheme. These include; a super-insulated, airtight building envelope, solar shading fins, a mechanical ventilation with heat recovery system, and the provision of photovoltaic panels on the roof to generate the building’s own electricity.

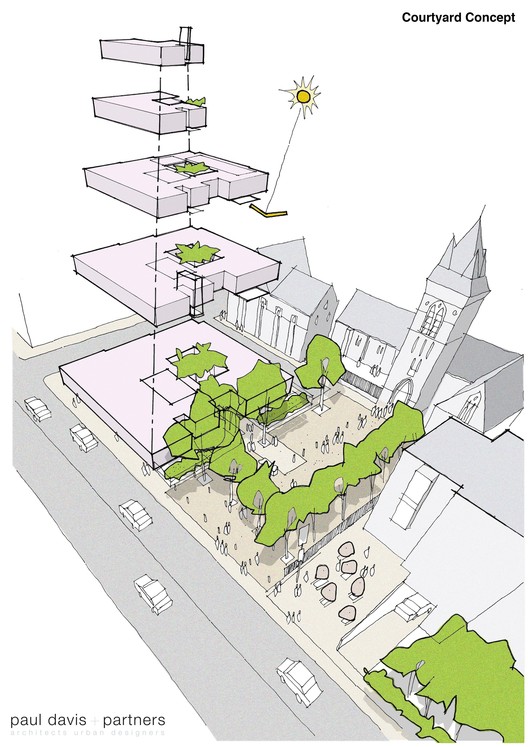

Courtyard Concept

庭院观念

一座教堂广场最近赢得了24项可负担住房计划奖和公民信托奖，这证明Paul Davis Partners经过深思熟虑的设计为其他可持续和高质量、负担得起的住房项目树立了很高的标准。

One Church Square’s recent win of the 24housing Award for Affordable Housing Scheme of the Year and Civic Trust Award commendation proves that Paul Davis + Partners thoughtful design has set the bar high for other sustainable and quality, affordable housing projects.

© Adam Parker

亚当·帕克

Architects Paul Davis+Partners

Location London, United Kingdom

Category Apartments

Area 2400.0 sqm

Project Year 2013

Photographs Adam Parker
