Tanatap墙体花园，印度尼西亚 / RAD+ar

墙体花园是RAD+ar事务所对于墙壁这一元素在当代建筑实践中不断变化的意义和角色进行的探索与反思项目。设计者尝试探索墙体如何对建筑的整体美学和功能作出贡献，并在本项目中展示了对于墙体在空间塑造和融合自然的创新利用。

Wall garden was created as a reflection from RAD+ar on the search of significance and evolving roles of walls in contemporary architectural practice, in which the designer is experimenting on how walls contribute to the overall aesthetic and functionality of buildings in showcasing innovative use of walls in shaping spaces and its integration with existing nature.

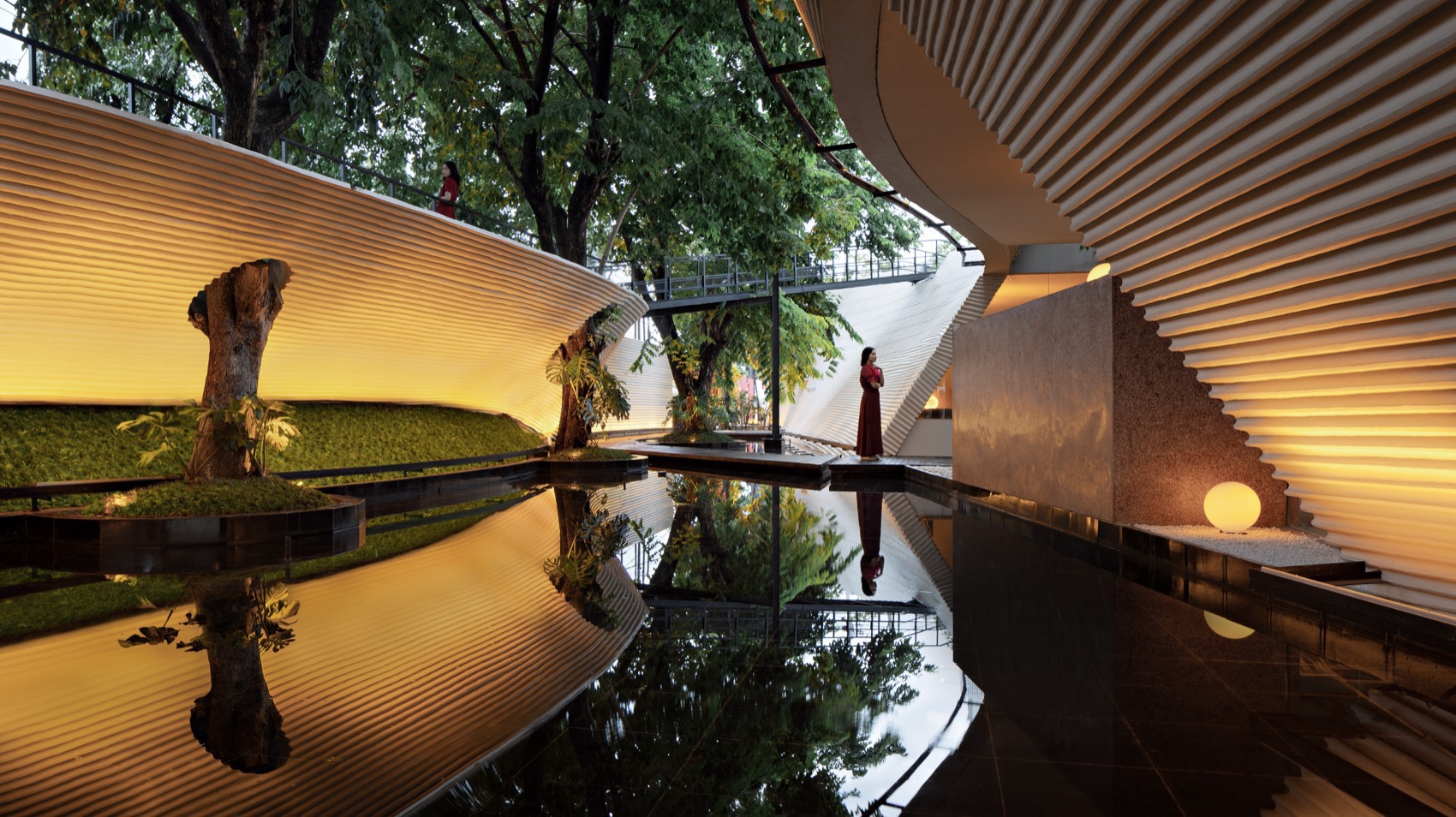

▼项目概览，Overall view © Mario Wibowo

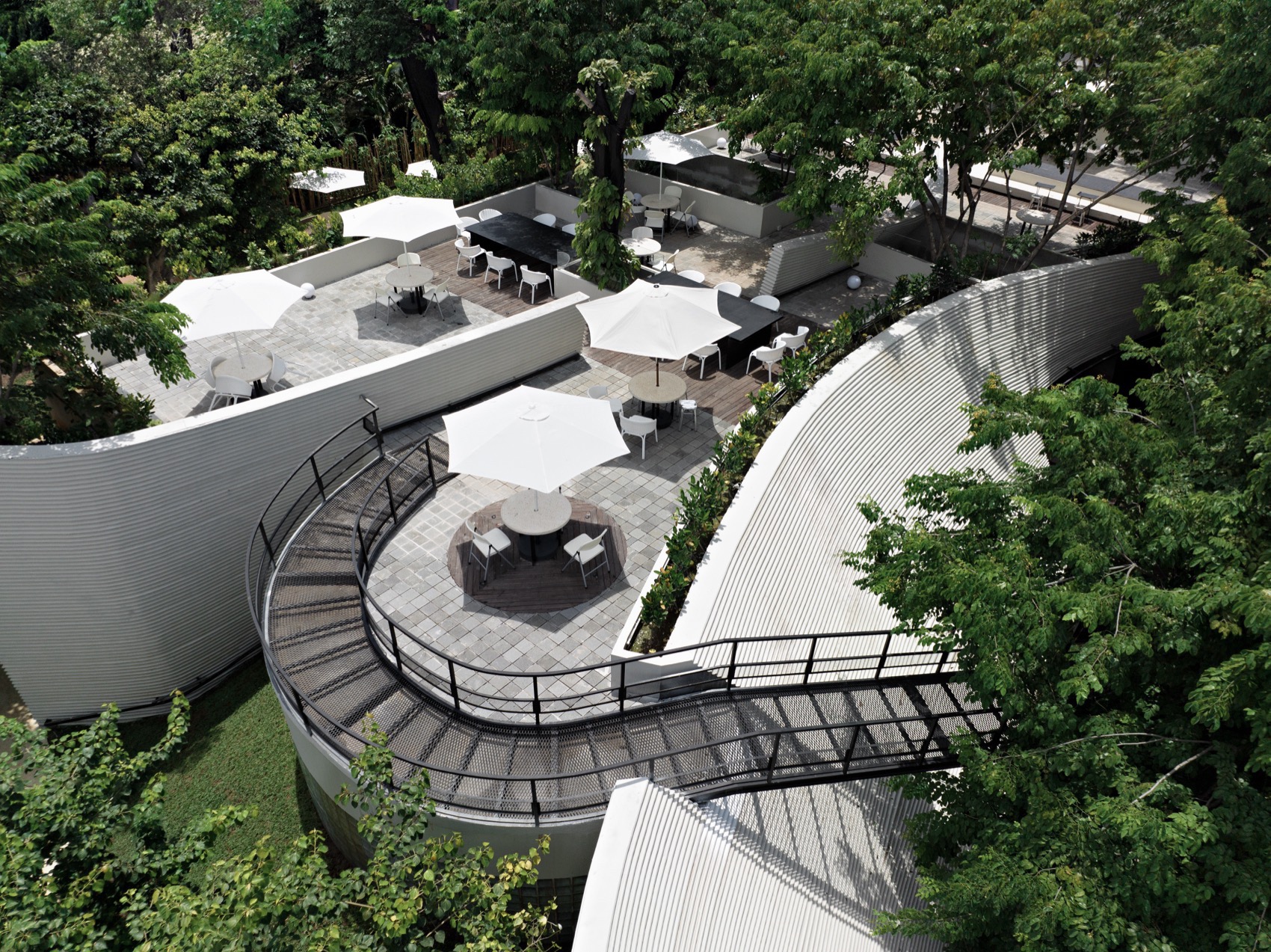

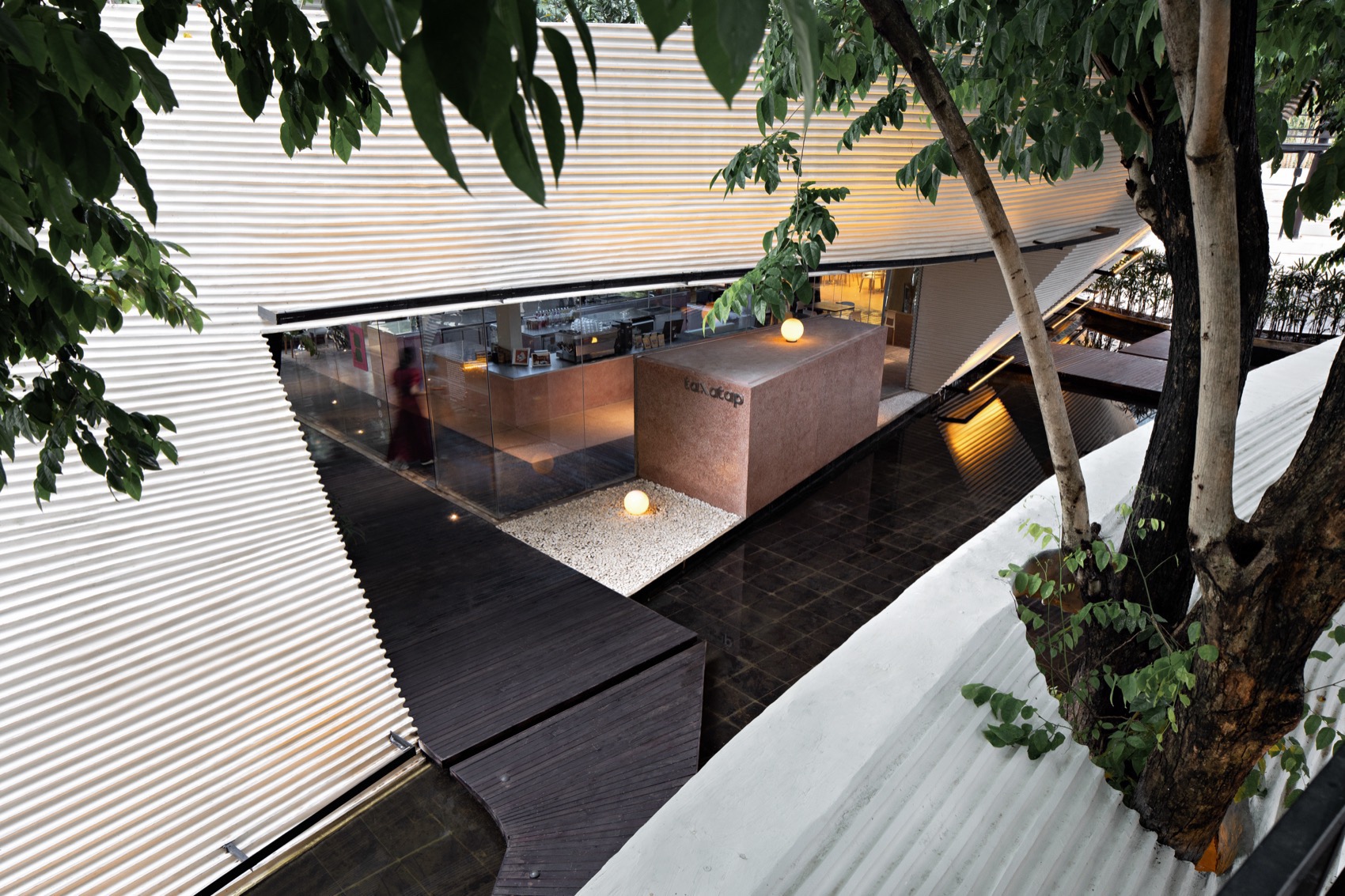

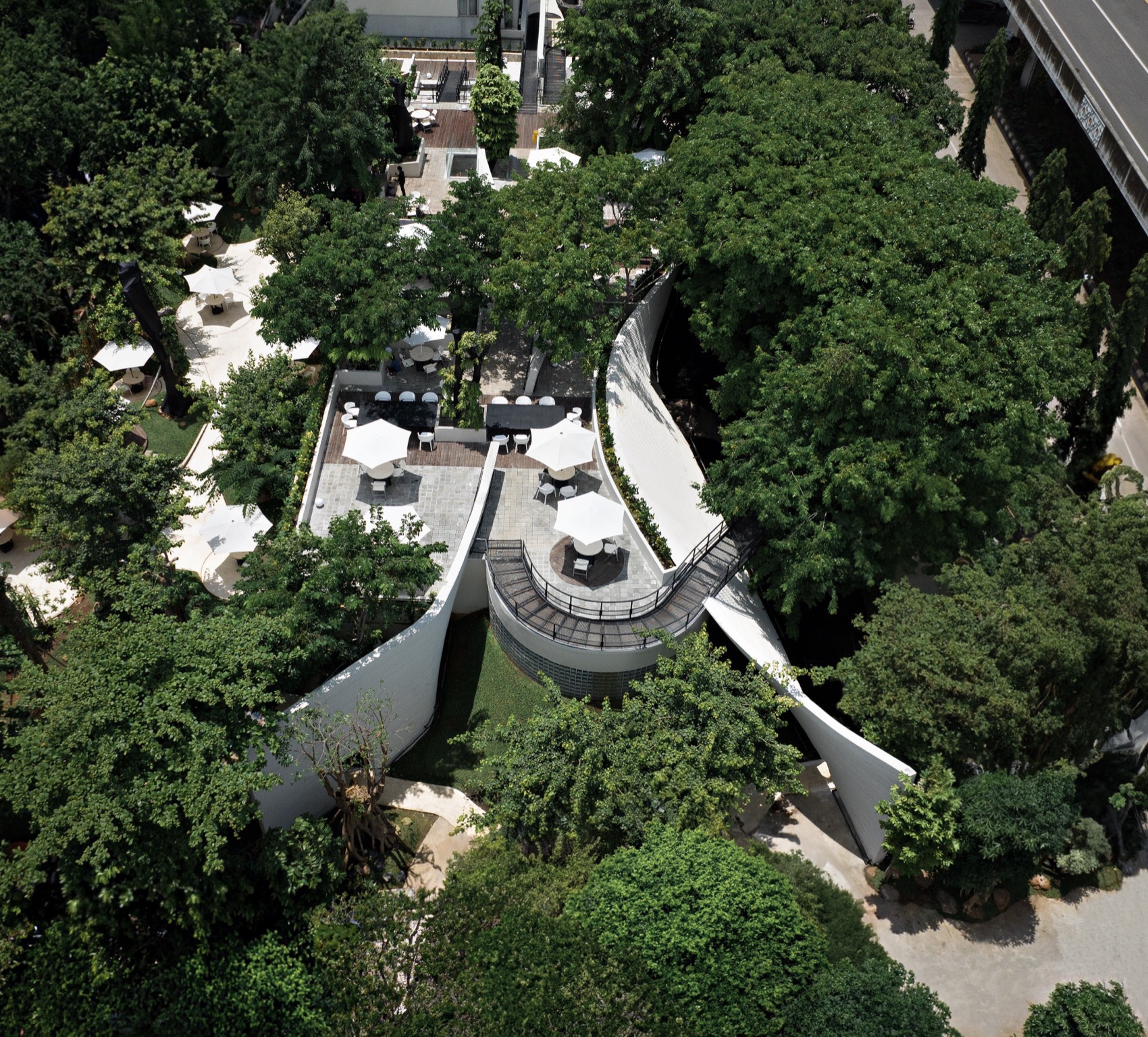

▼鸟瞰，Bird’s eye view © Mario Wibowo

项目是从一个问题开始的——是否有可能打造一个仅由墙体等基本建筑元素组成的商业空间？设计者在场地正中央画了3条斜线，由于不存在高差，这三面墙体能够在场地郁郁葱葱的树木之间形成有趣的形态。花园入口的影壁、后院花园和创意圆形剧场通过树木串联在一起，室内部分安装的空调设备。设计者在此处试图打造层次结构模糊的空间，将立面到圆形剧场和后院花园在视觉上连在一起，与灵活的结构墙体融为一体，呈现出了其整体美观的效果和功能。

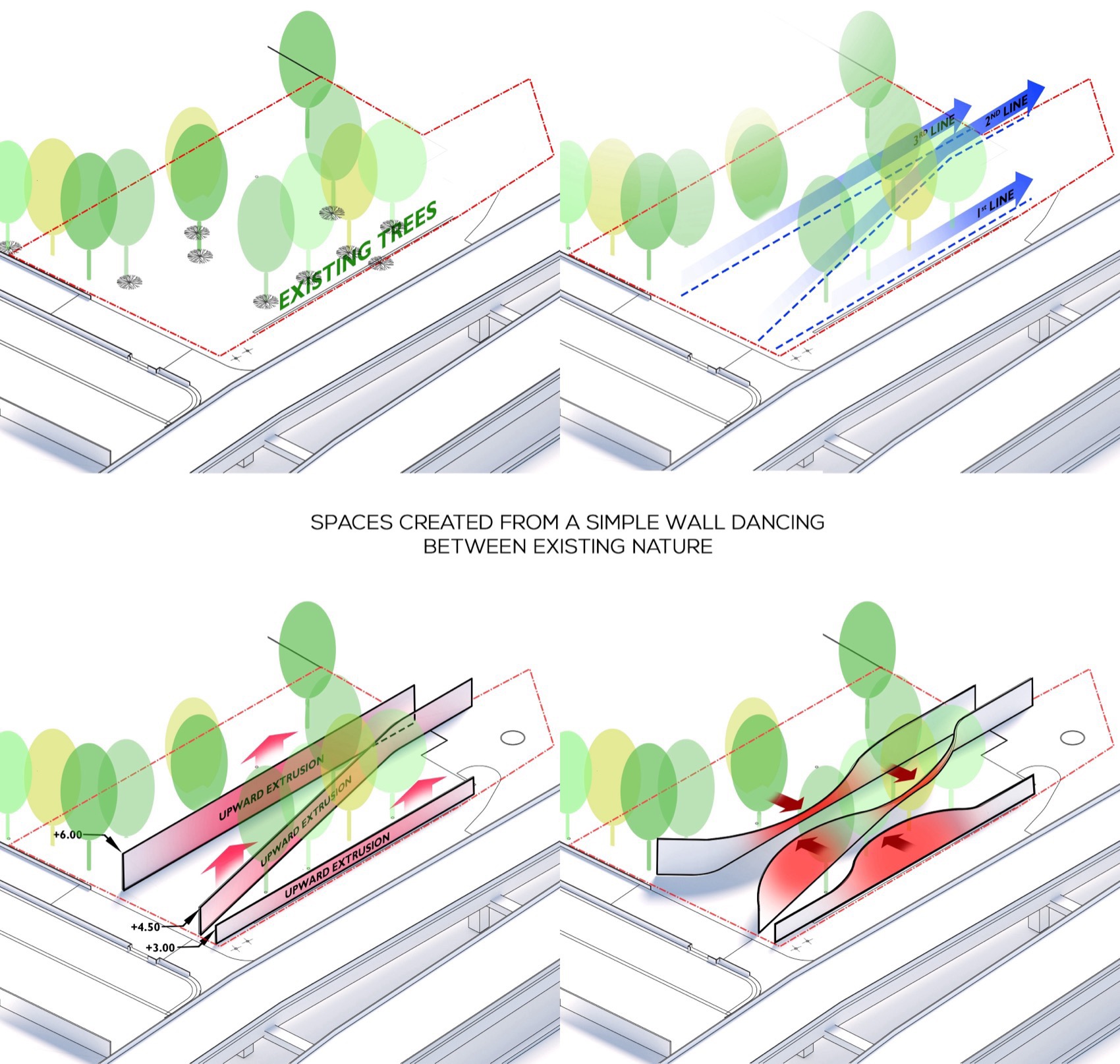

▼概念分析图，conceptual experimental © RAD+ar

Started with a question, whether it is possible to create a commercial space with simply the significance of basic architecture such as a wall, 3 slashes of straight line were drawn right in the middle of the site. With a consistent difference in their height, 3 separated walls erected playfully twirling between the existing lush existing trees. Reflection entrance garden, backyard garden, and creative amphitheater is connected thru existing trees, with indoor aircon area created as the consequential spaces in between. Spaces with no hierarchy was created, from façade to the amphitheater and garden backyard is visually connected, blending in with dancing structural walls that contribute to the overall aesthetic and functionality of buildings.

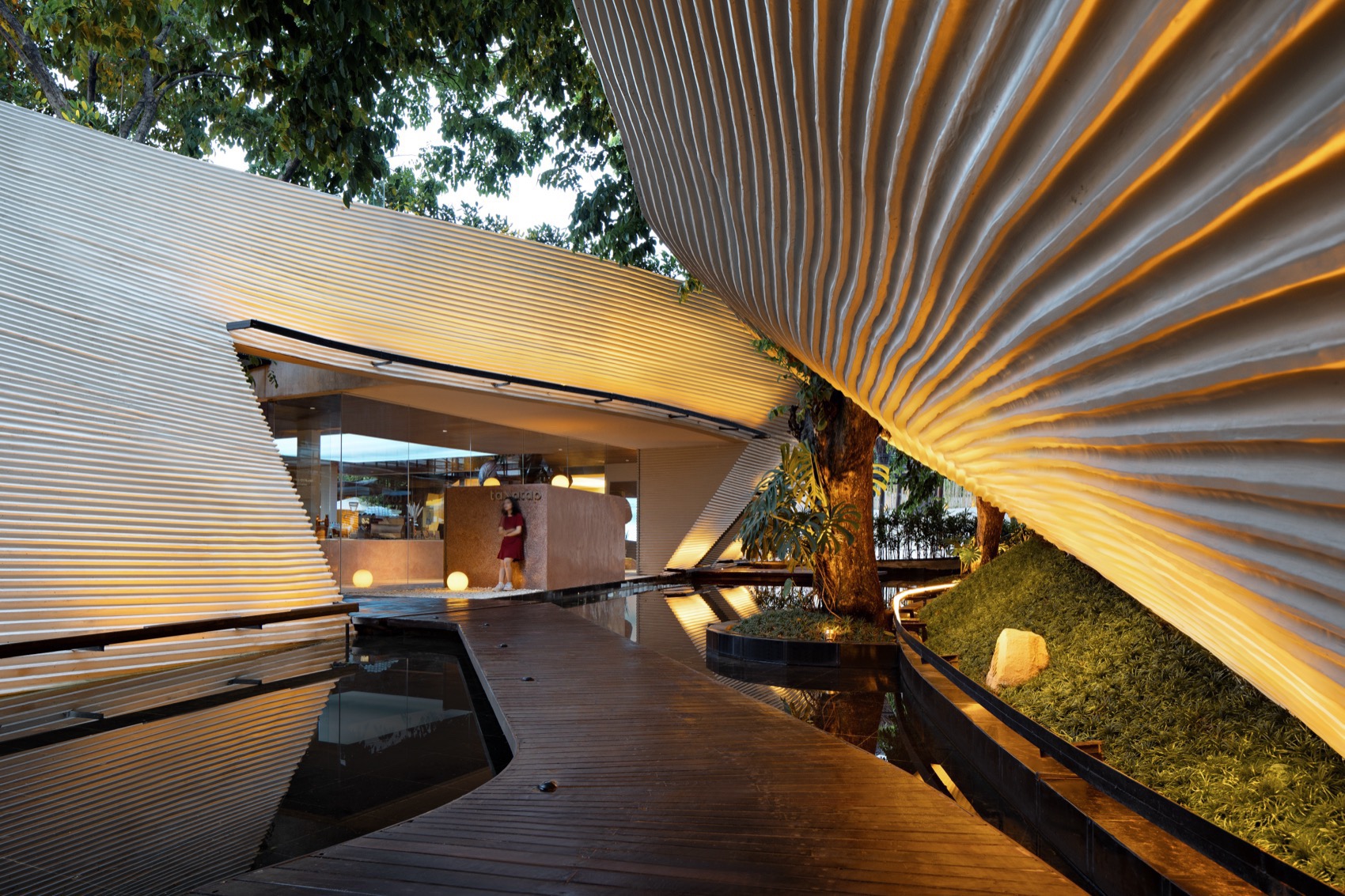

▼由墙体划分出的空间，Space divided by walls © Mario Wibowo

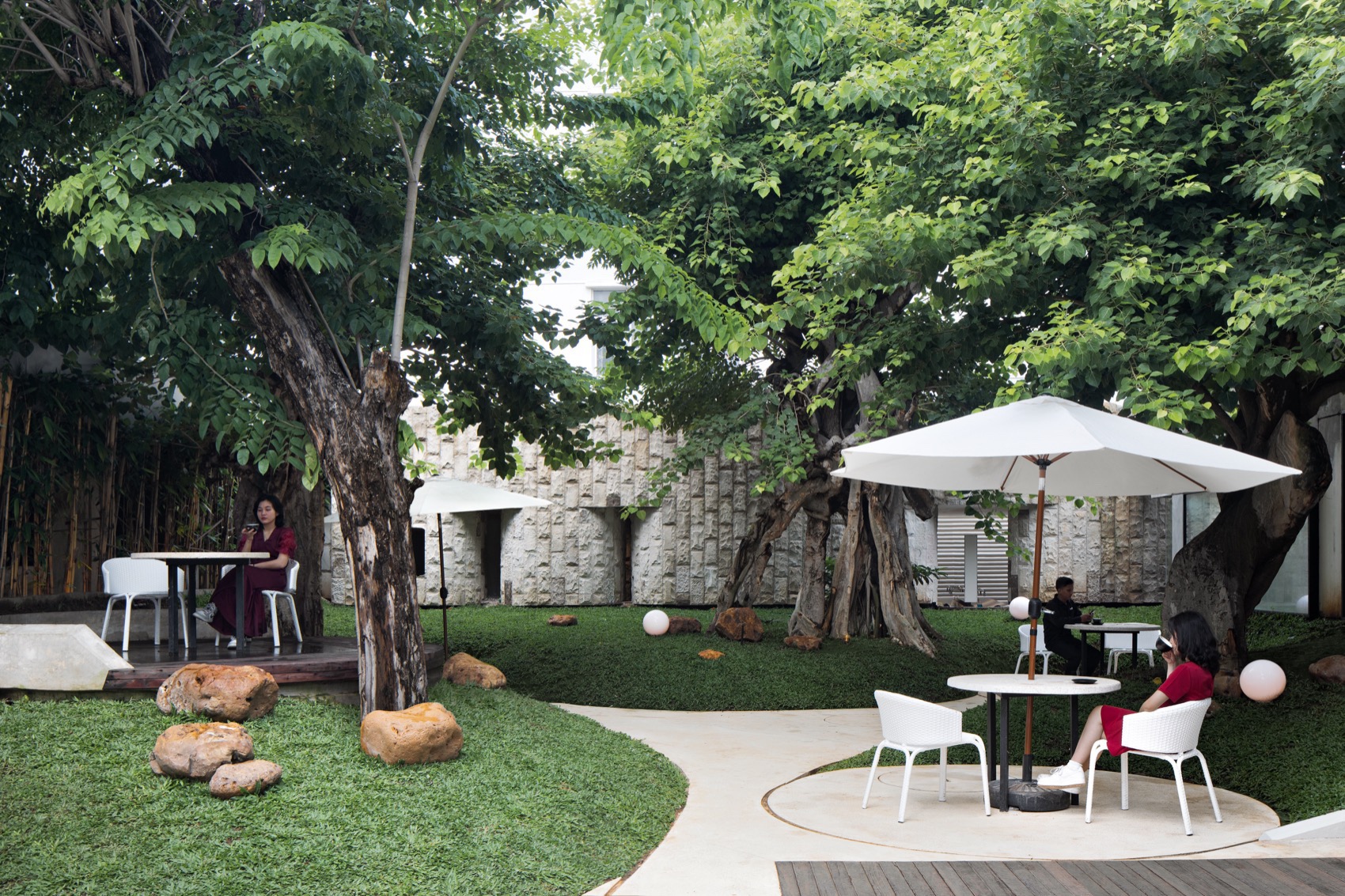

▼后院的花园，The garden backyard © Mario Wibowo

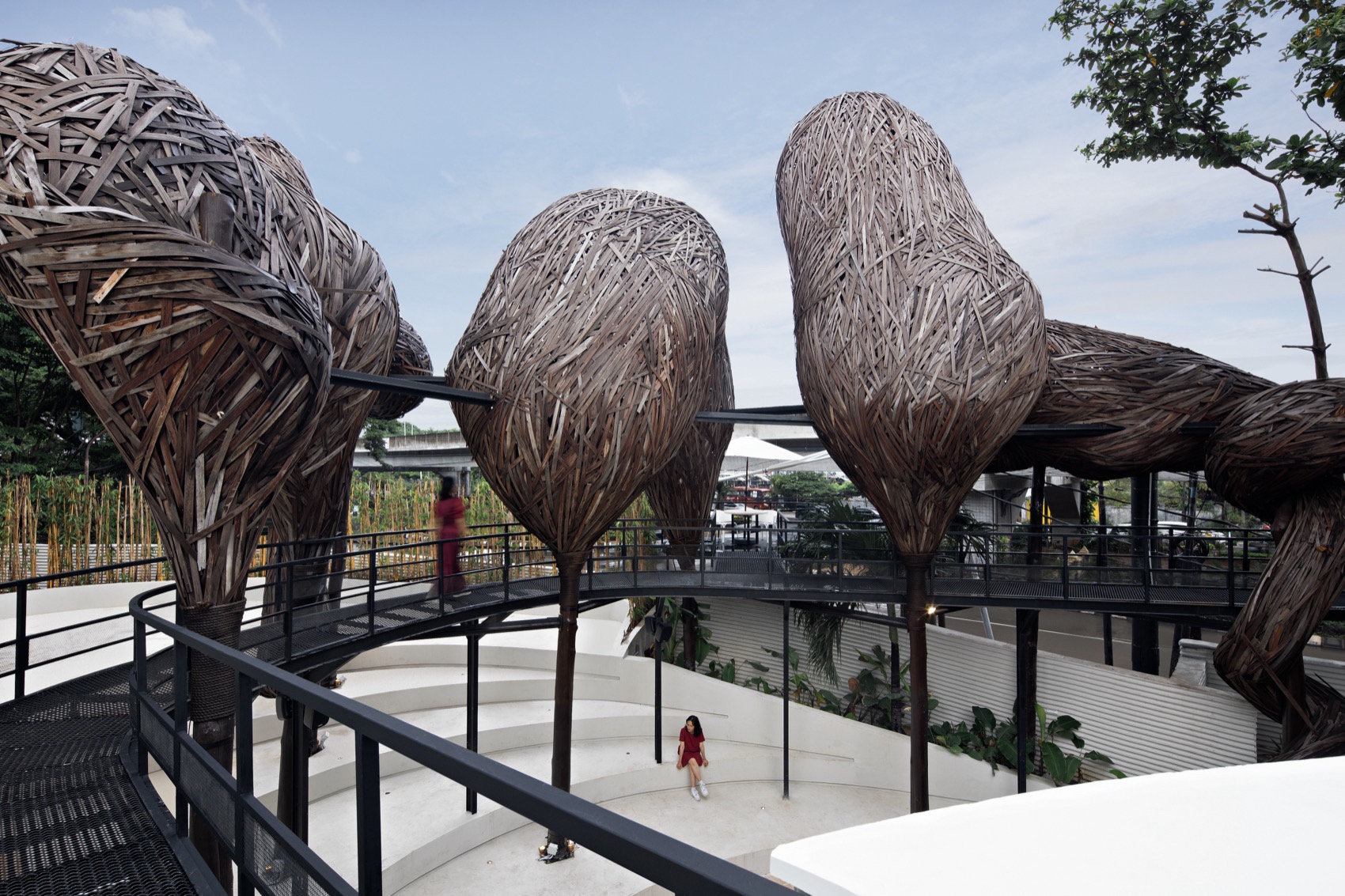

▼充满艺术的设计，Artful design © Mario Wibowo

设计者认为建筑本身从来不是目的，而是应该始终保持社会相关性和与环境的对话。因此，本项目的设计目标是将内外部结合在一起，与内部环境建立起真正的联系，同时追求独特的设计和舒适感。只有达到以上要求，才能满足当今人们较高的期望，因为对于来客来说，自然也是综合环境的一部分。

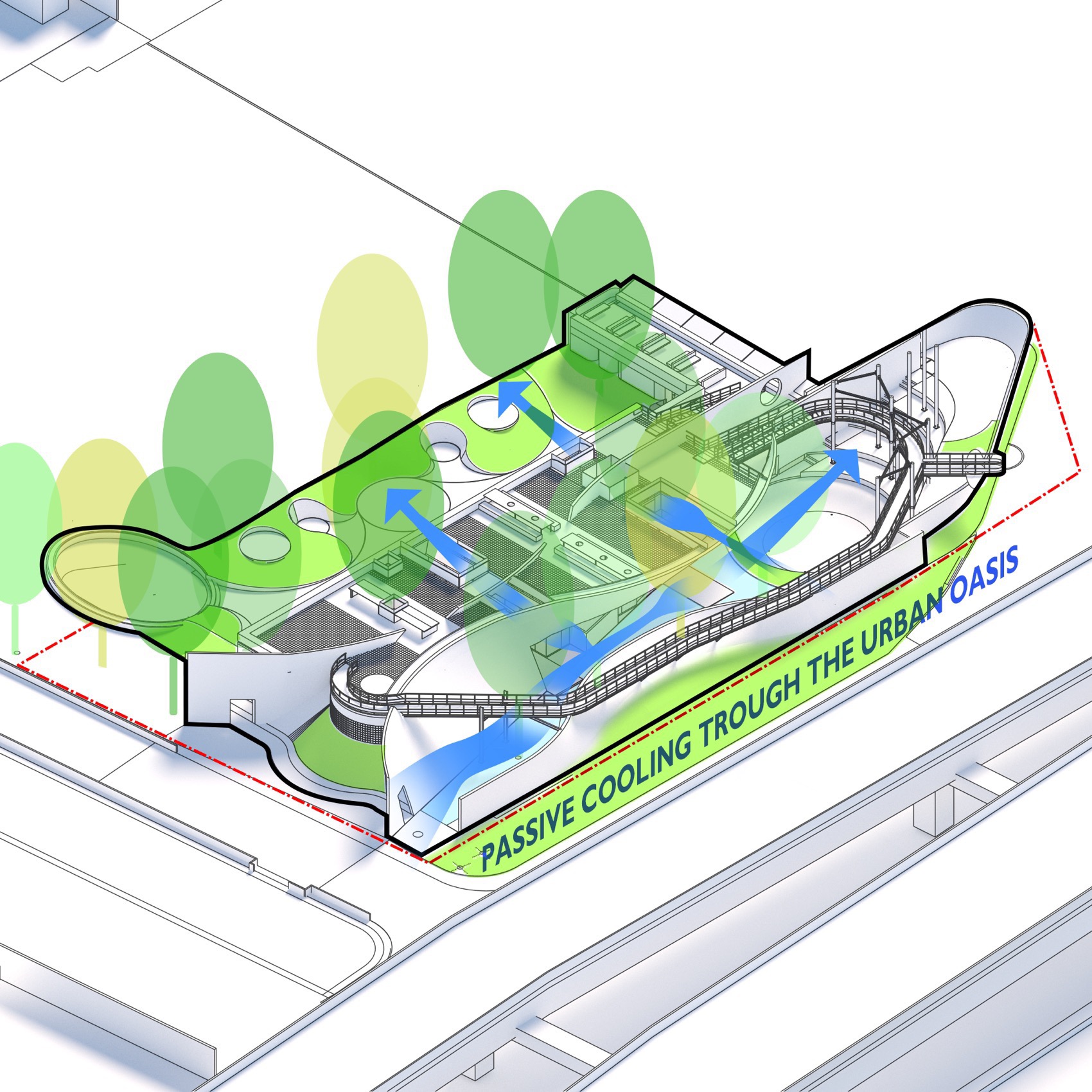

▼微气候分析图，micro climate creation © RAD+ar

Architecture has never been just an end in itself; it has always had a social relevance and it is never alone, but always in dialogue with his environment. For this reason, design aims are to intertwine the interior and the exterior, to create a genuine connection with the interior environment and, at the same time, aim for a unique architectural design and special comfort. Only by achieving that can the high expectations of today’s guests be met; guests for whom the experience of nature is part of an integrated environment.

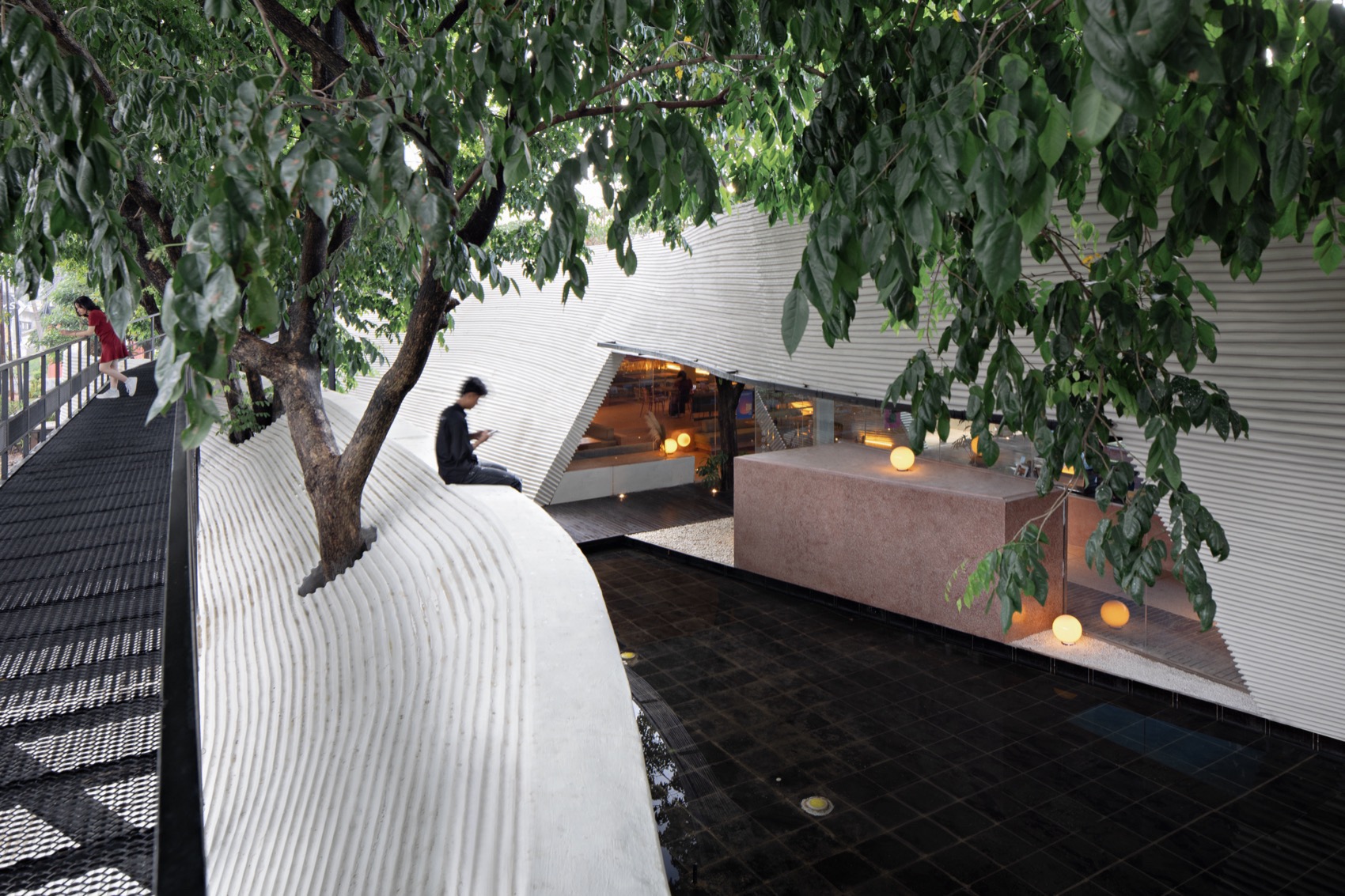

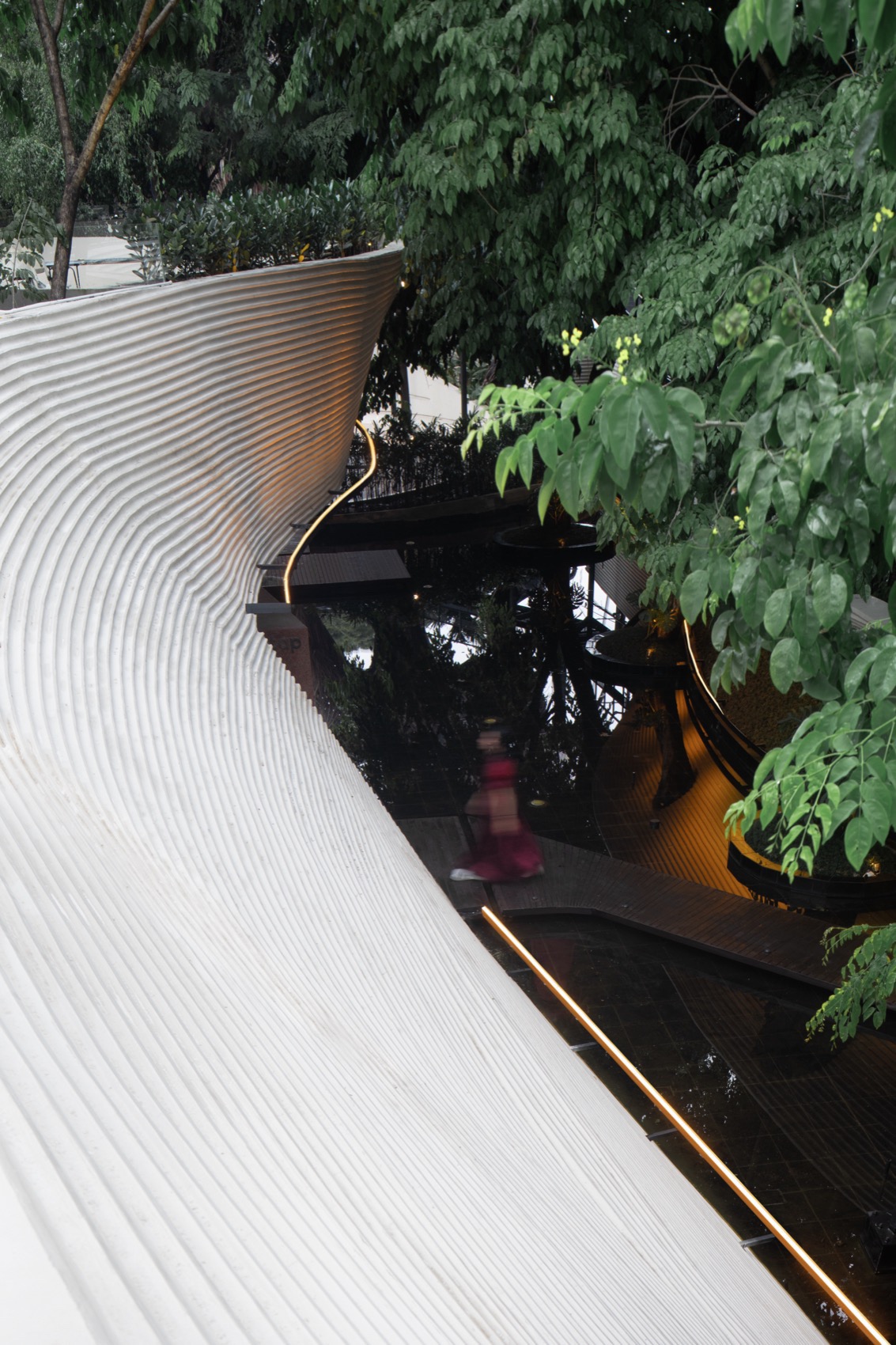

▼墙体间有趣的形态，Interesting shapes between walls © Mario Wibowo

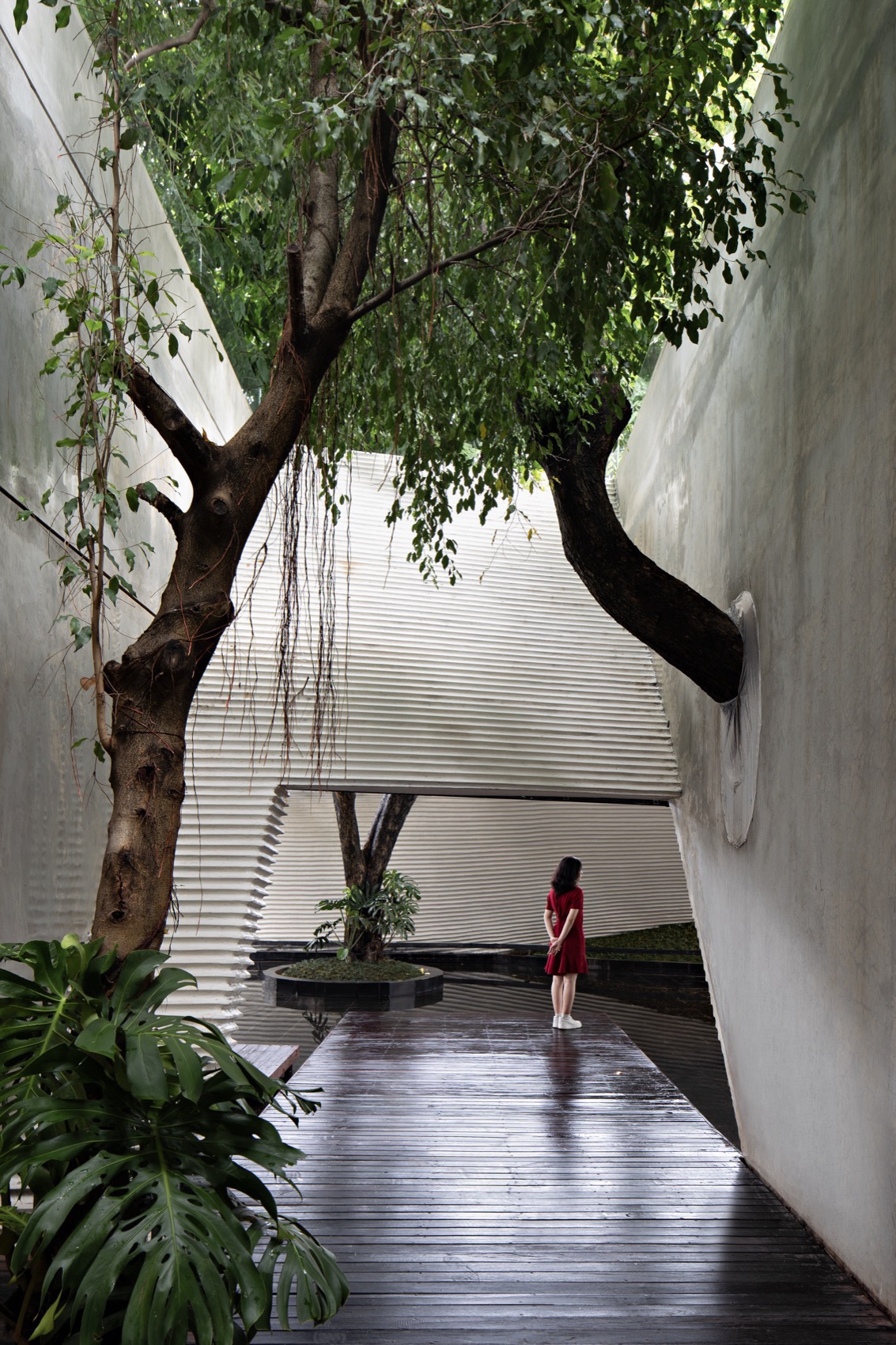

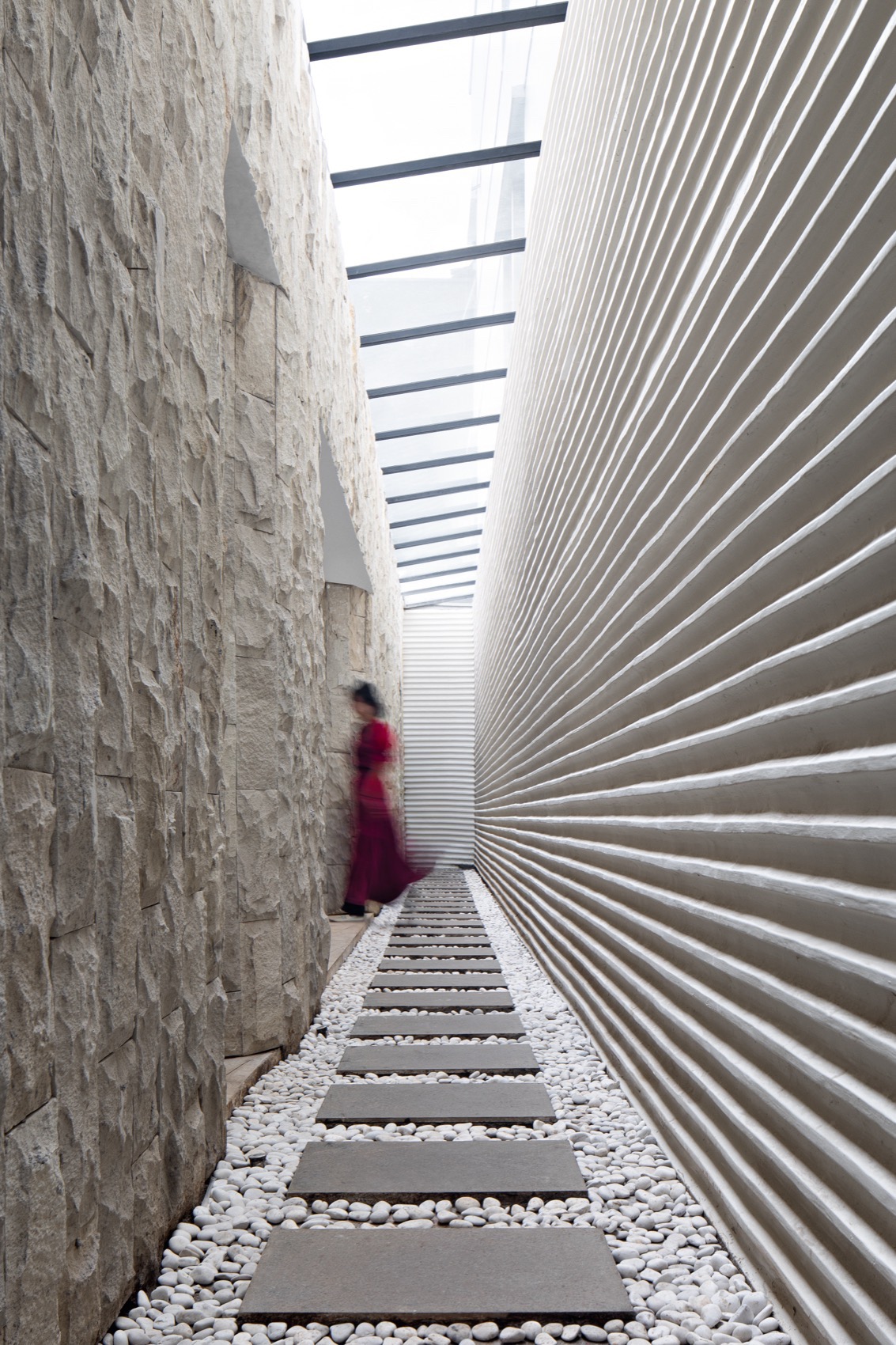

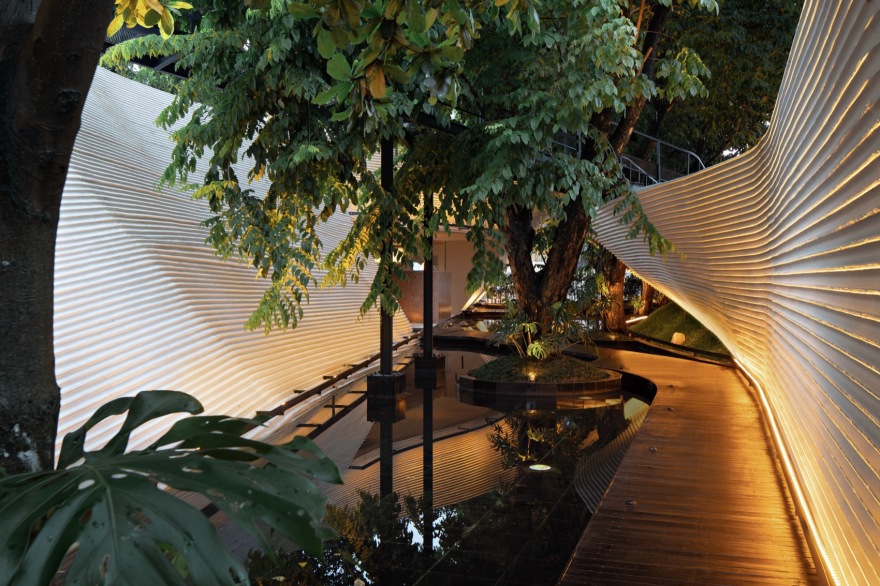

▼花园中的路径，Path in the garden © Mario Wibowo

墙体花园以其多孔性、开放程度和对城市景观的贡献而著称。这栋建筑像是一些列绿色植物之间的迷宫，占据在双重阴影且低能耗的室内区域中。整座花园就像绿洲一样，有着800平方米的集水区，能够在不依靠电力的情况下将所有的使用过的水和雨水收集起来并返还到场地内的地面。设计者还打造了许多相互对抗的截面空间以形成对比关系。与许多其它实验性的Tanatap商业花园设计一样，本项目选择将一处在紧凑的商业区中的旧停车场改造为一个商业花园，利用其特殊的位置来证明一个观点：无论宏观环境挑战如何，被动式低能耗的商业花园在热带发展中国家认识可以实现并且有利可图的。

Wall garden celebrates its porosity being as open as possible as a contribution to the cityscape. The building was nothing more than just a maze underneath a series of greeneries that hovers double shaded – low energy indoor area. Oasis-like reflection garden, is 800sqm water catchment area as main feature of entrance, let the building to be independent and off grid, returning all the process water and rainwater harvesting back to ground within the site. Creating many causal contrast spaces that are produced from optimizing negative section spaces. Built as a commercial garden in the effort of retrofitting old parking space in the middle of compact commercial area, as many other experimental Tanatap commercial garden design, use this particular location to prove a point that regardless the macro environment challenge, a passive low energy commercial design would still be achievable and profitable in tropical-developing country.

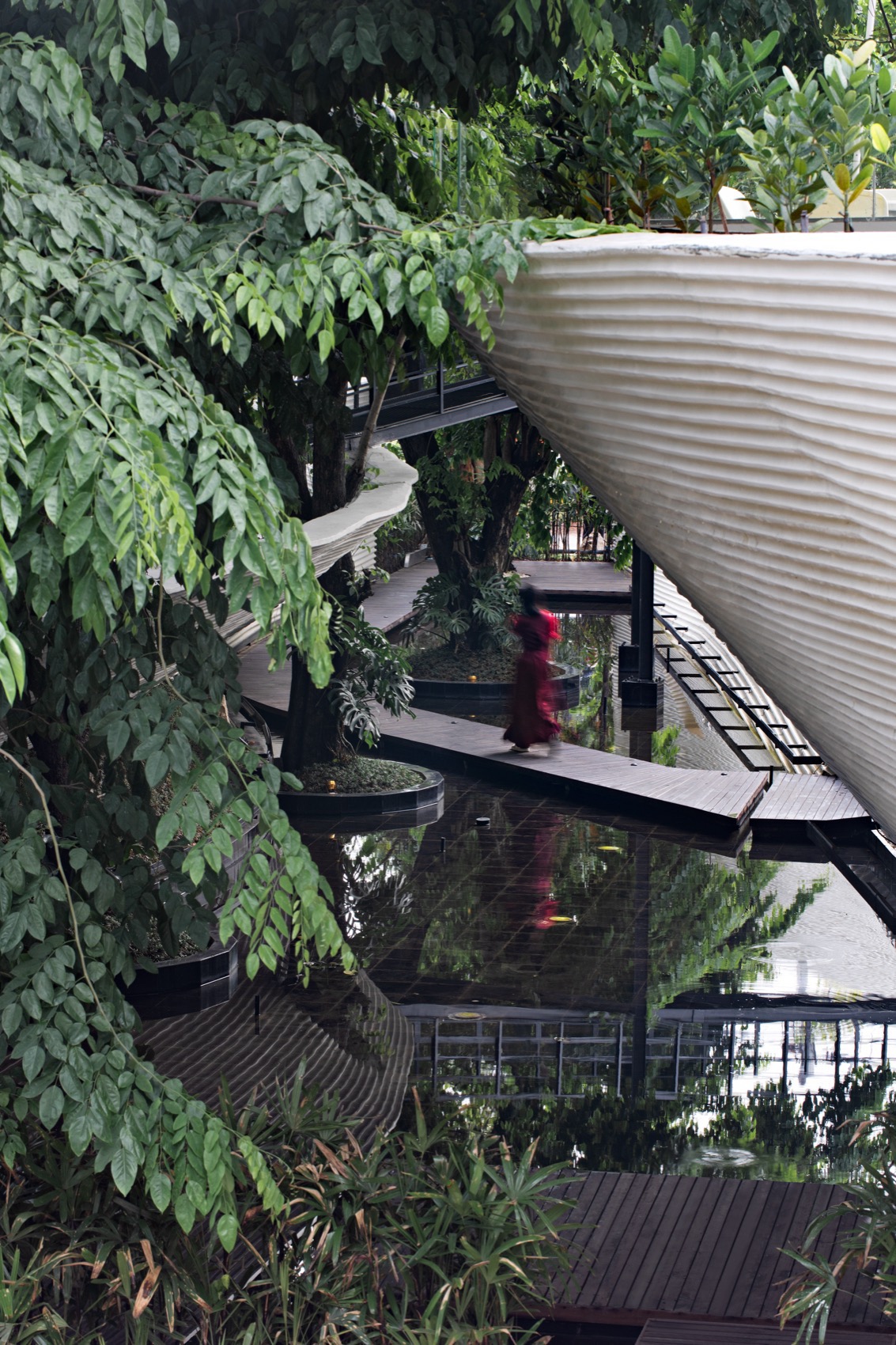

▼与自然相融，Blend with natureg © Mario Wibowo

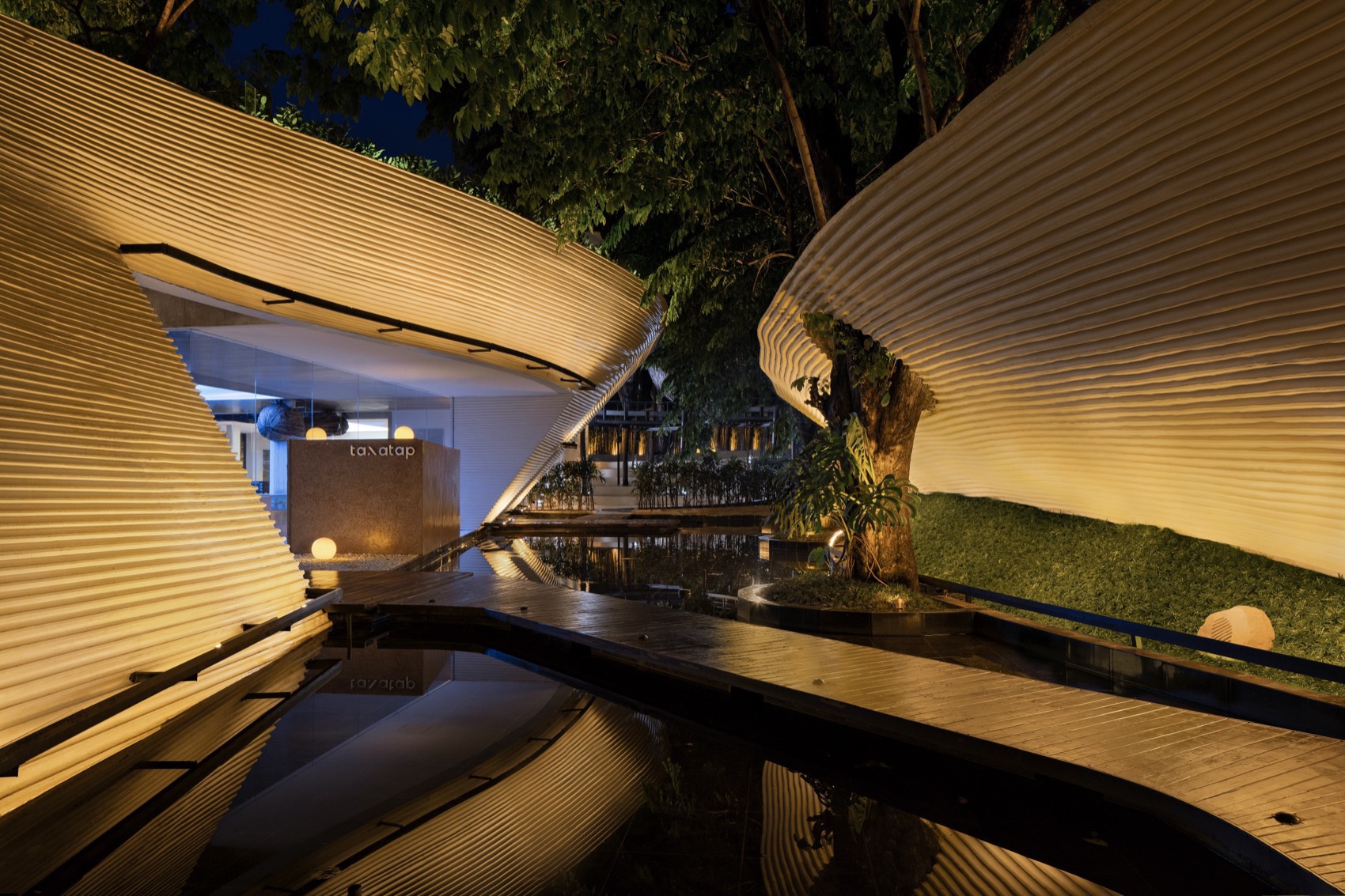

▼咖啡厅入口处，Enrance of the cafe © Mario Wibowo

设计者在本项目中结合了生态价值、体验舒适度和后现代设计等手法：tanatap咖啡花园的设计是希望为人们提供近距离接触自然的机会，同时以其独特的设计为人们带来舒适感。每个设计部分都被并置并呈现具有诗意的组合方式，以达到性质变化最小的效果。结构的形状和位置都经过精心的设计，无论在白天还是夜晚都能呈现出美感，并且通过最小且最简单的系统创造出最佳的动态效果。

Combines ecological value, comfort and post-modern design: tanatap coffee garden was designed to give people a chance to experience nature closer while providing uniquely designed architecture and comforts. The units are juxtaposed with a minimum change of nature. The arrangement of units has poetic emotion. The shape and position of structures were designed to give aesthetic emergence by both day and night and create a dynamic shape with a minimal and simplistic structural system.

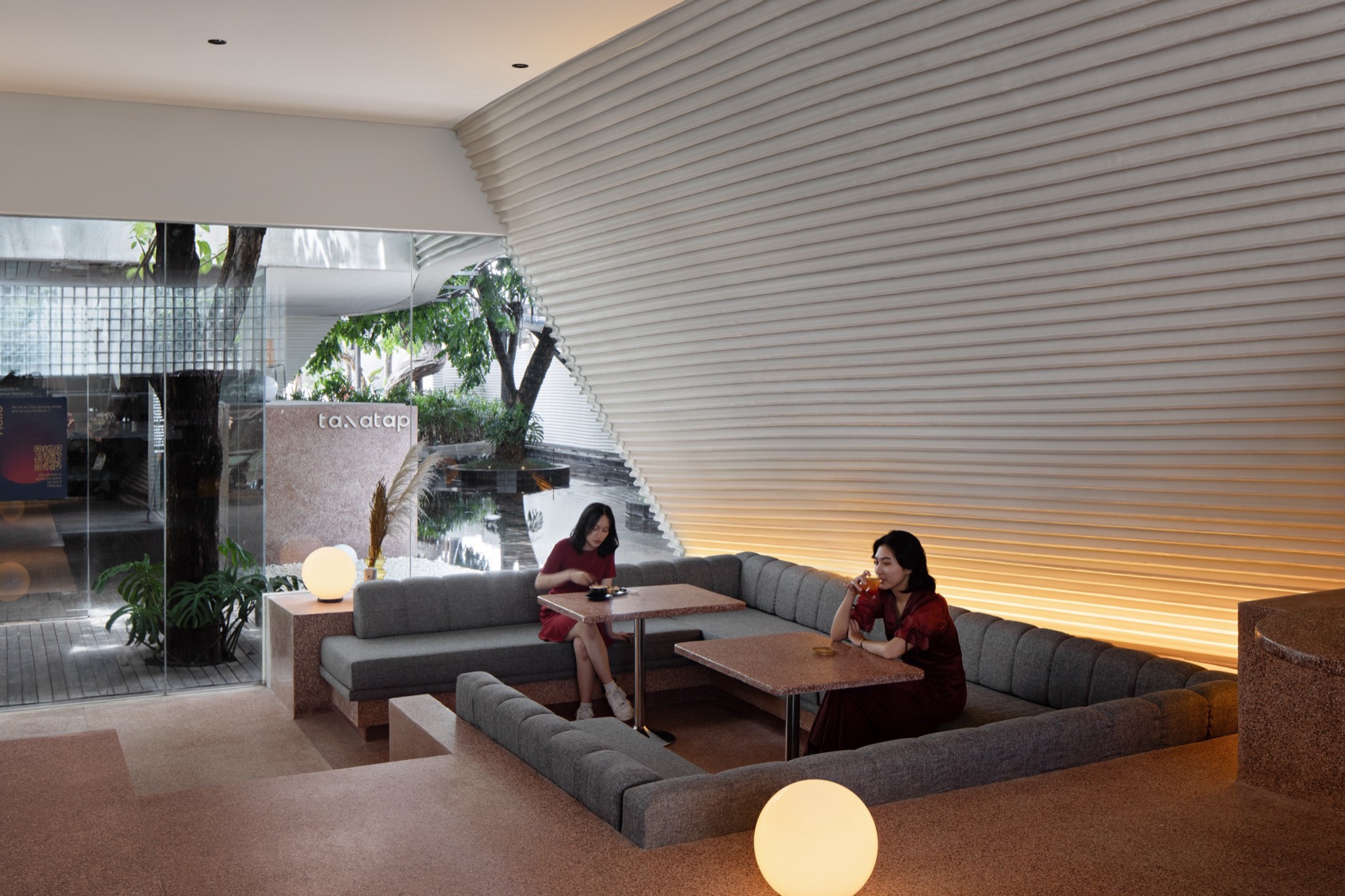

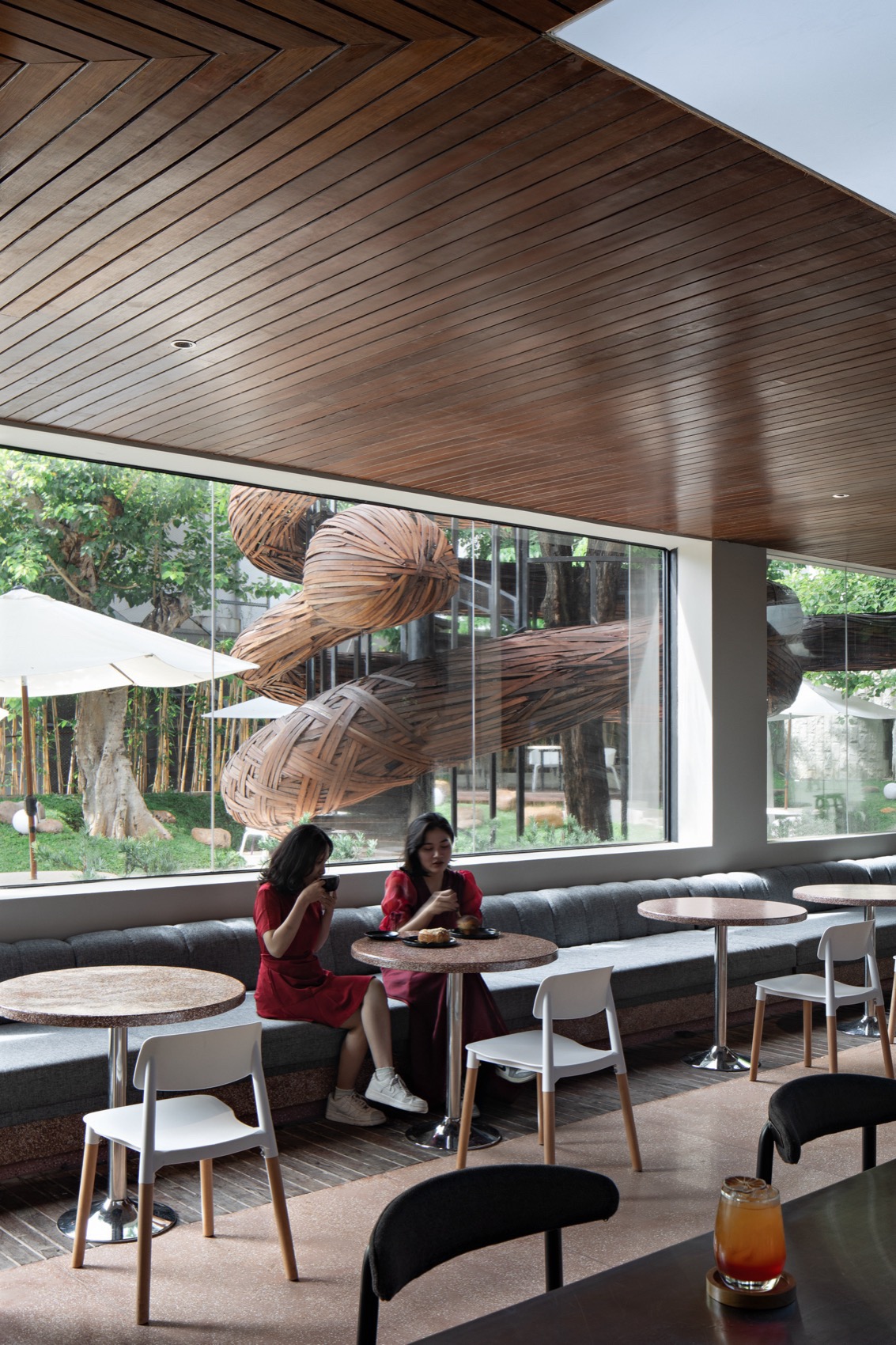

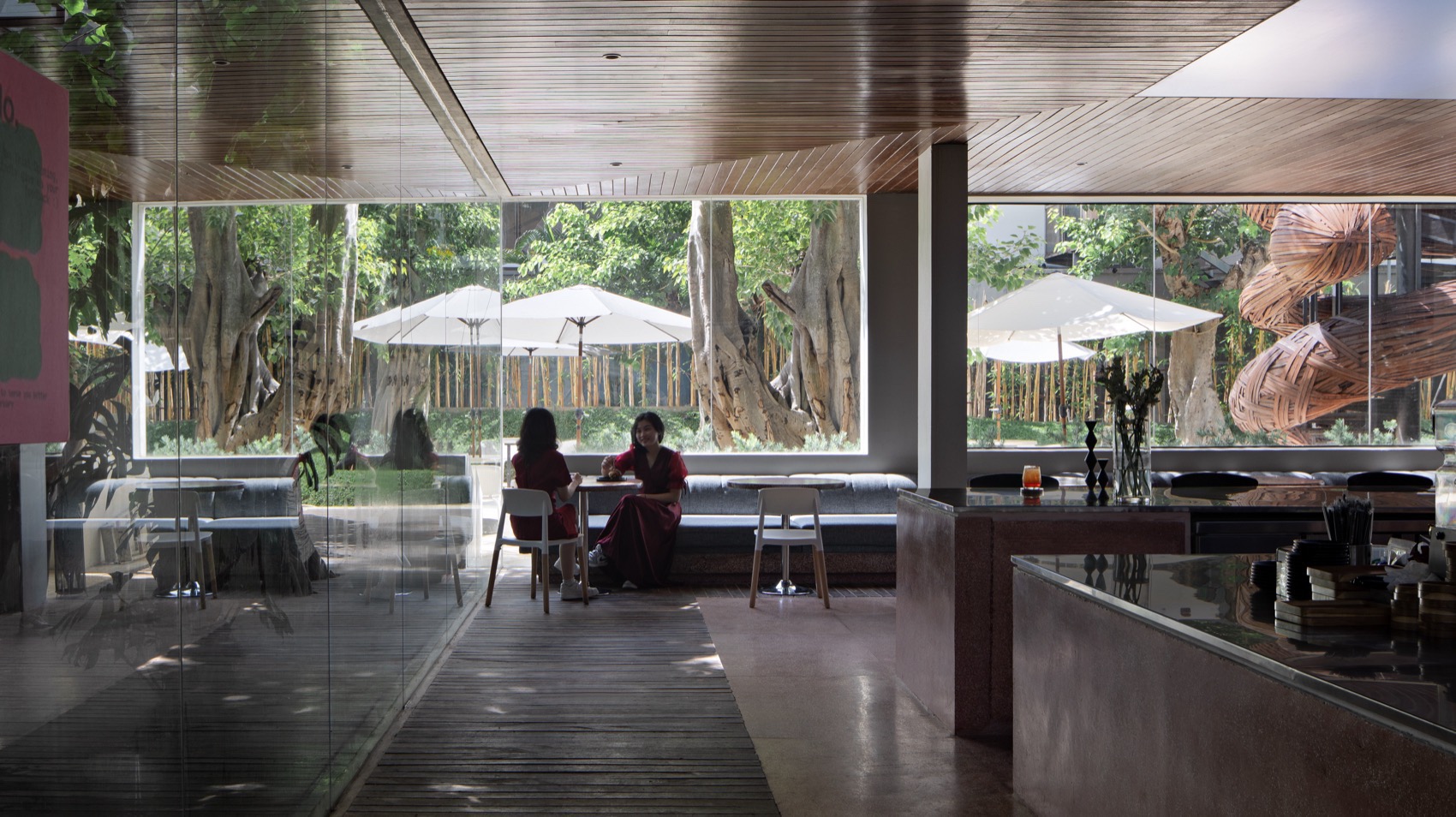

▼室内咖啡厅，The cafe © Mario Wibowo

新建的花园咖啡厅已经成为了当地人的公共客厅，这里为每个热爱音乐和表演的人提供舞台，这里还是一个致力于培养好奇心、交流见闻和分享创造力的空间。人们可以通过灵活的方式在此接触到伟大的艺术和音乐，而鲜艳的色彩能够丰富人们的生活，引领人们前往未知的地方。

The new coffee garden will serve as a public living room for the locals and a new exciting destination for everyone with a passion for music & performance. A space dedicated to nourishing curiosity, knowledge and creativity. Exposure to great art and music can be flexible and transformative. Enriching our lives with vibrant colors and taking us places we never knew existed.

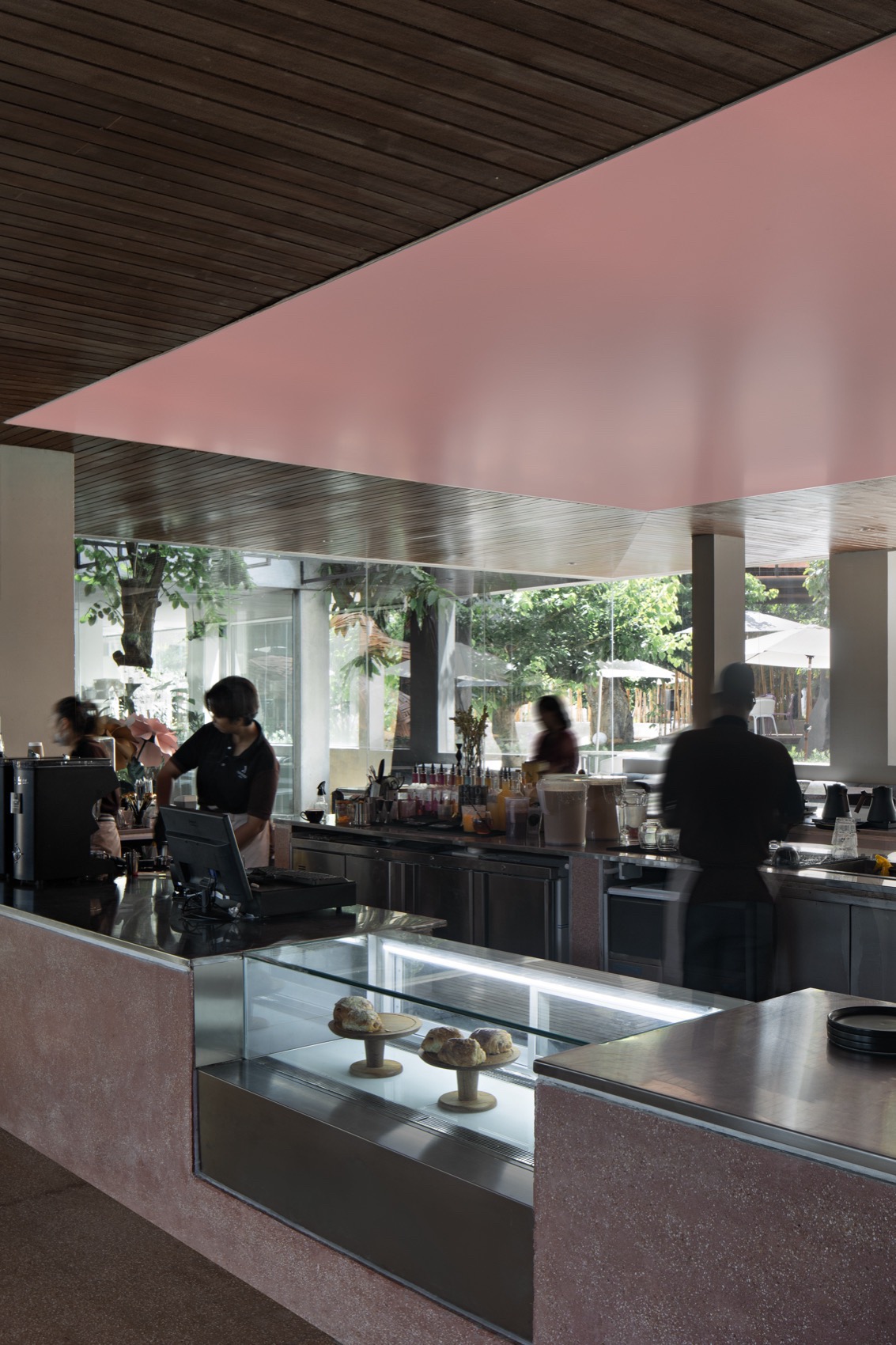

▼点单区，Ordering area © Mario Wibowo

▼咖啡厅已成为当地人的公共客厅，The new coffee garden will serve as a public living room for the locals © Mario Wibowo

Tanatap项目由Antonius Richard发起，目前正努力通过建立分散型可持续建筑来贯彻其理念，在印度尼西亚等发展中国家，这项设计在致力于在开放式商业花园中打造可容纳音乐和表演的创意社区。

Initiated by Antonius Richard, Tanatap is trying to stay consistent with its vision to decentralize sustainable buildings through sustainable business. In developing countries such as Indonesia, the design was committed to host music and performance creative communities in its open theater-commercial garden set up.

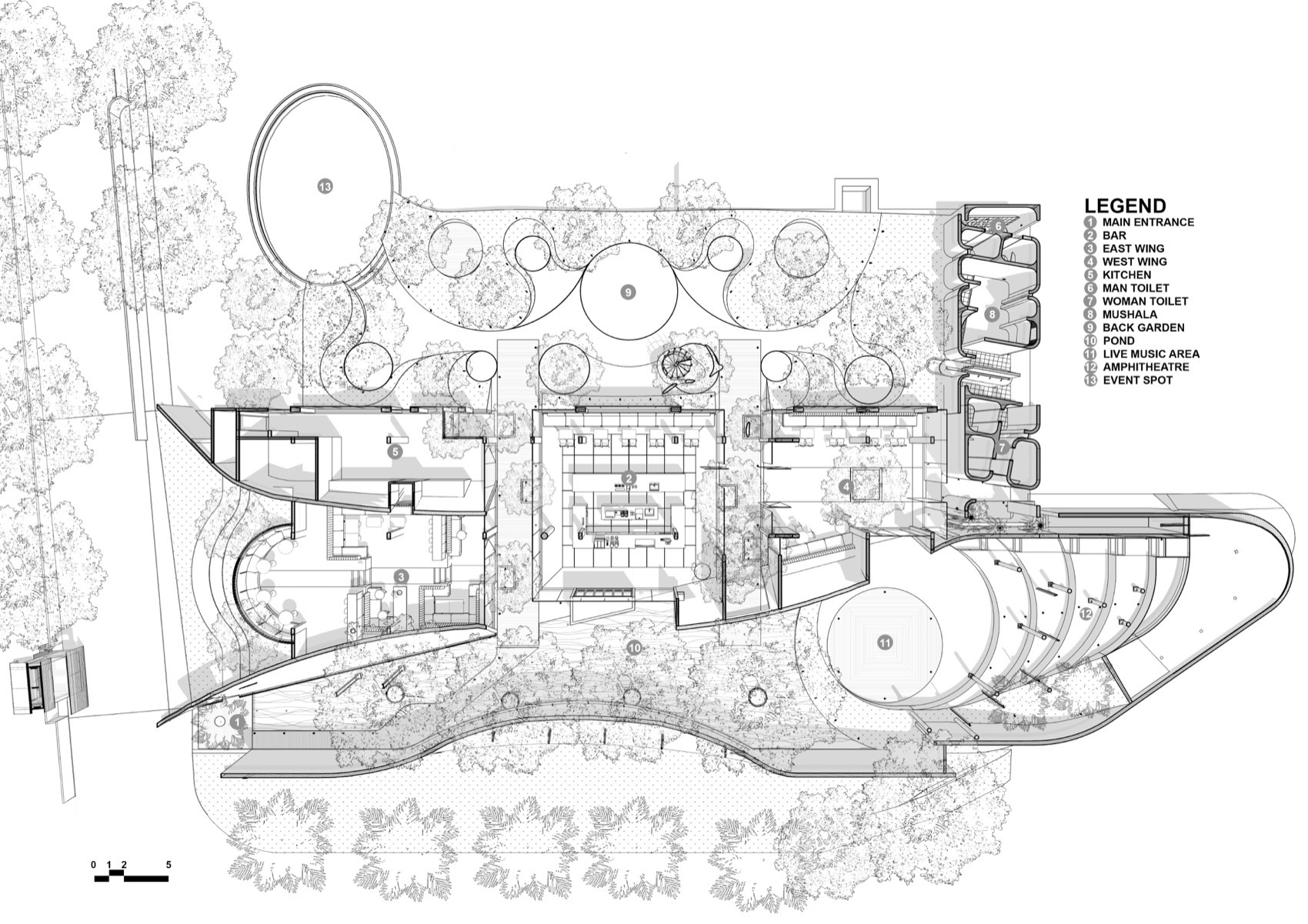

▼首层平面图，ground plan © RAD+ar

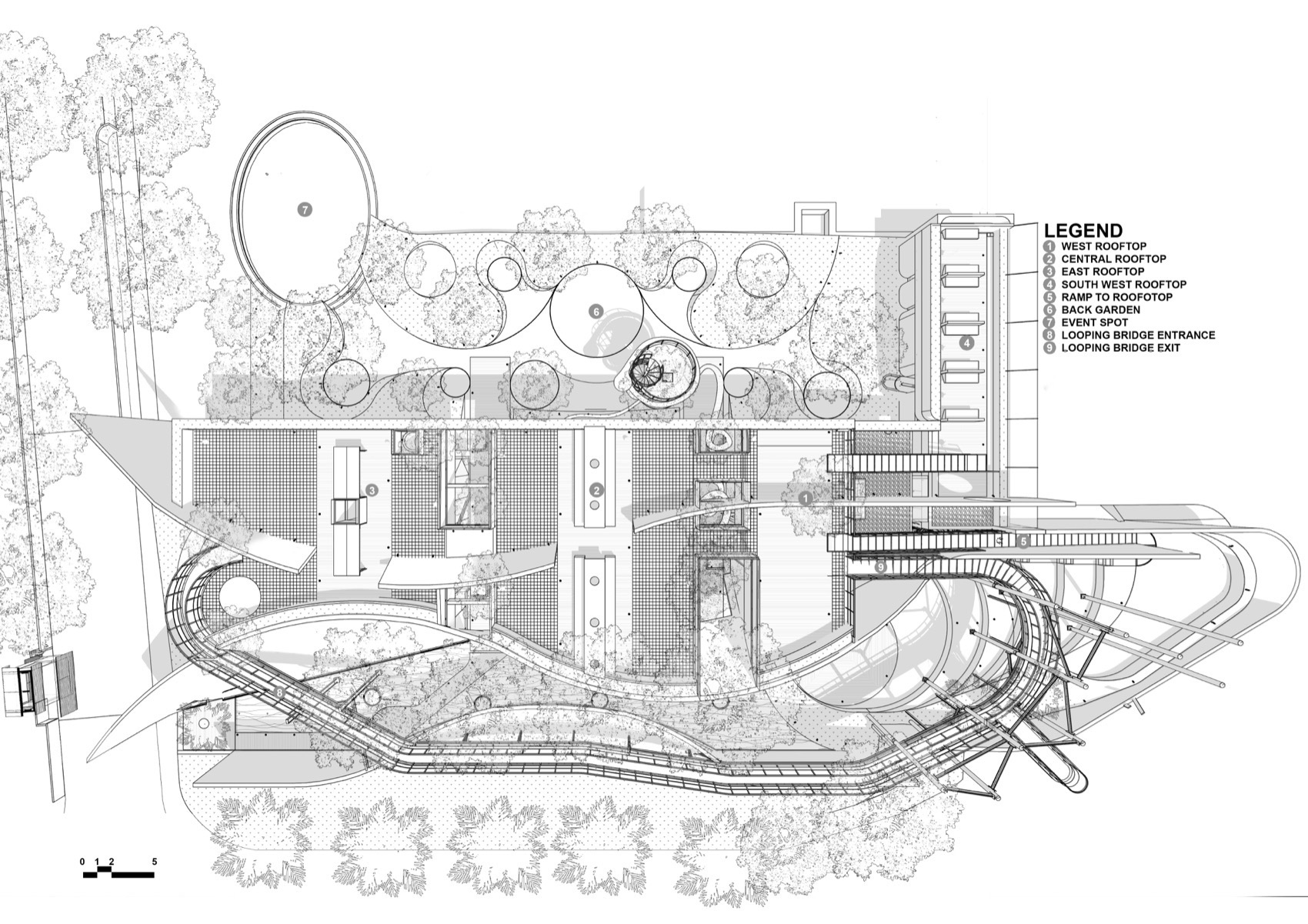

▼屋顶层平面图，roof plan © RAD+ar

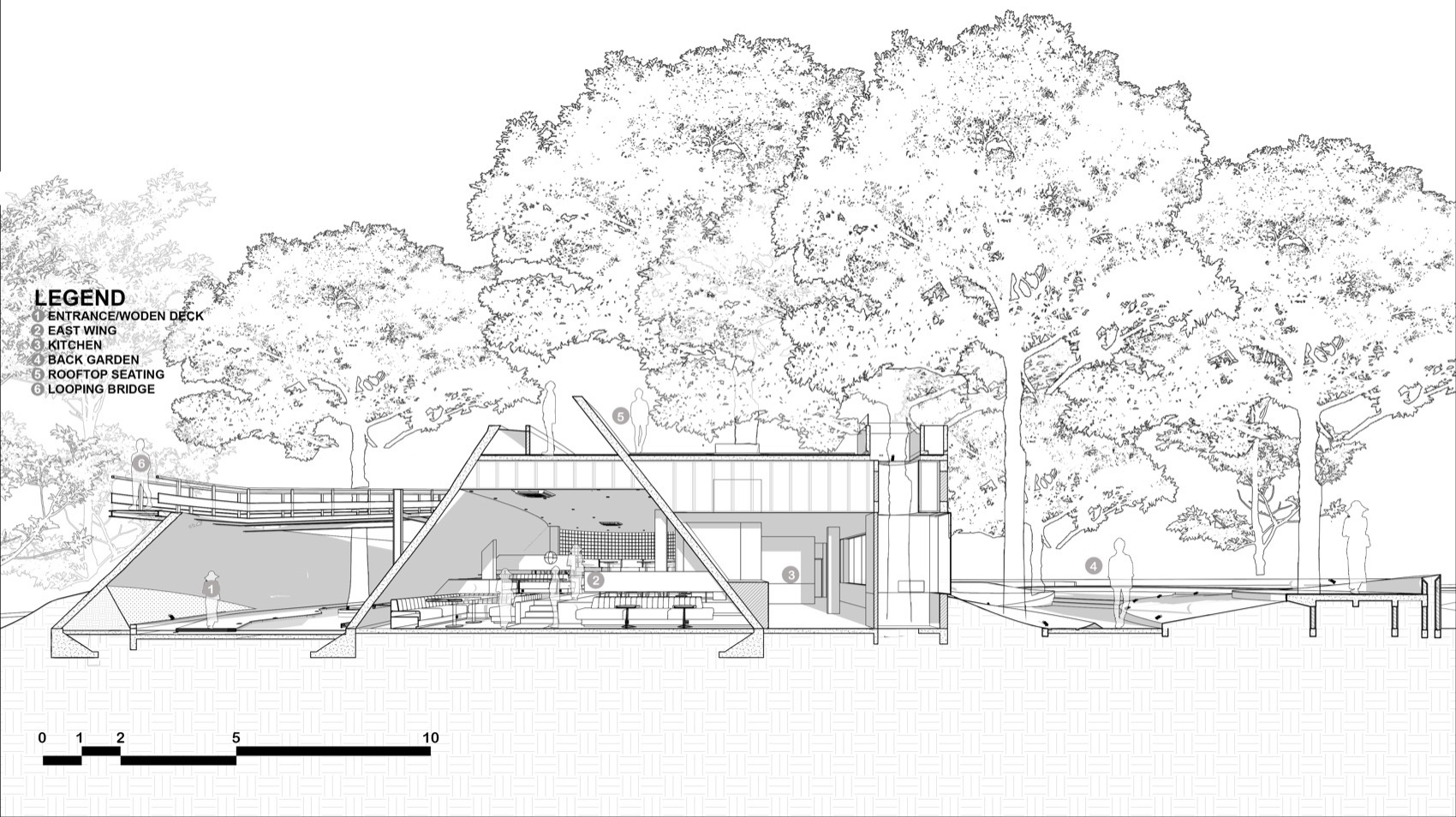

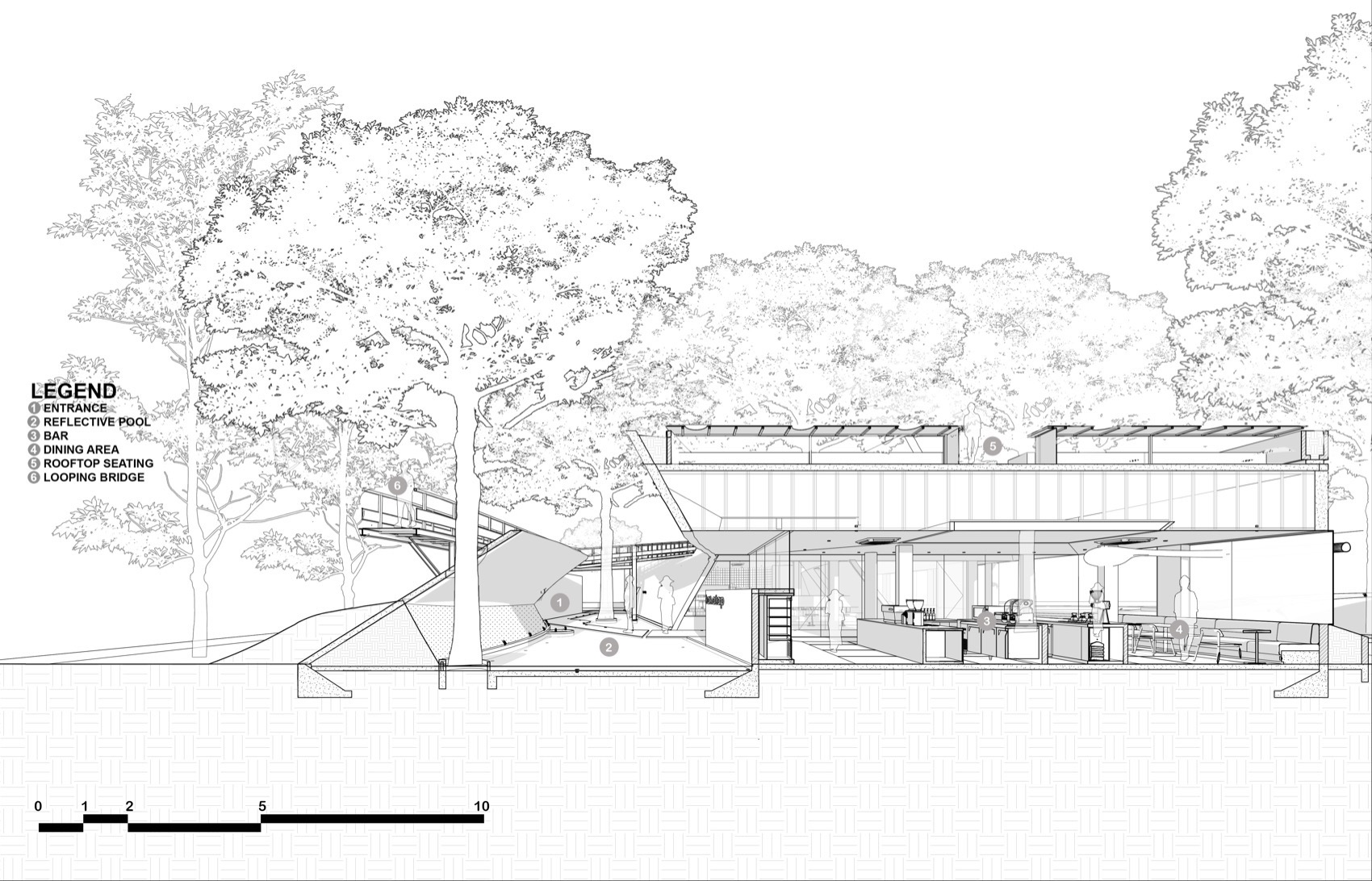

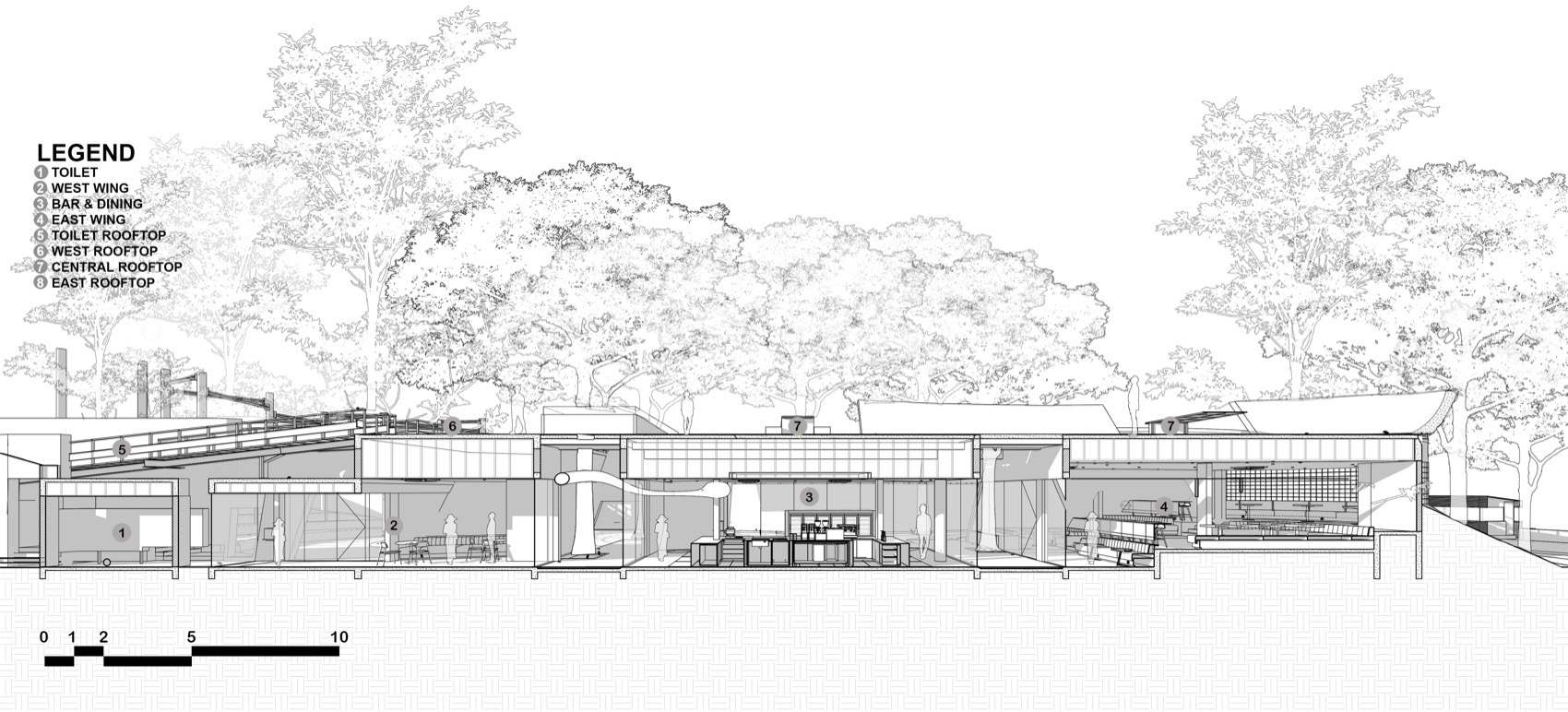

▼剖面图，section © RAD+ar
