Architects:Morris Adjmi Architects
Area:36000ft²
Year:2022
Photographs:Selvon Ramsawak,Glen-Gery
Manufacturers:Glen-Gery,WindLoch
Contractor:Empire State Contractors
Structural:RCM/BGA Engineering
MEP:ABS Engineers
Civil:Sullivan Group Design LLC
Expeditor:JM Zoning
Design Principal:Morris Adjmi
Project Management:Brittany Macomber
Interior Design Lead:Melissa Shalloway
Managing Director:Michael Zweck-Bronner
Project Architect:Paul Tierman
Senior Designer:Thomas Wensing
City:Brooklyn
Country:United States
格兰德桑树公寓丨美国纽约丨Morris Adjmi Architects-18
Text description provided by the architects. Located at the intersection of Grand and Mulberry Streets in the heart of Little Italy, MA’s design of The Grand Mulberry draws inspiration from the rich heritage of historic Italianate tenements found throughout the neighborhood. The custom-profiled brick that clads the contemporary condominium building creates a spectral reference to this heritage.
格兰德桑树公寓丨美国纽约丨Morris Adjmi Architects-20

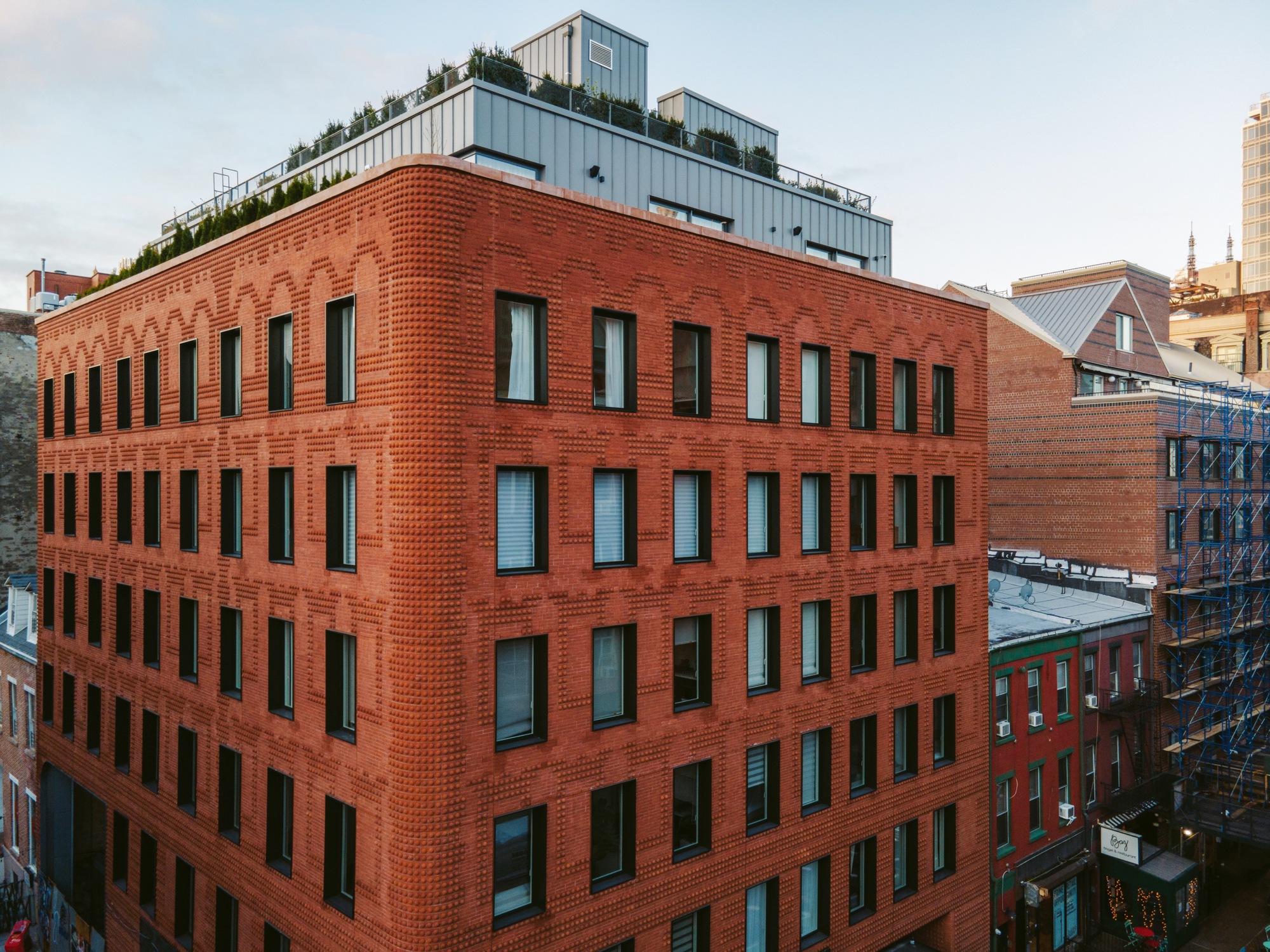

While MA frequently takes inspiration from nearby buildings, the firm’s designs rarely replicate specific structures. The Grand Mulberry is somewhat of an exception—the facade is an abstraction of a literal copy. The classically inspired, irregular grouping of “ghost windows” creates tension with the regular cadence of the building’s real windows as a way to juxtapose past and present.
格兰德桑树公寓丨美国纽约丨Morris Adjmi Architects-22

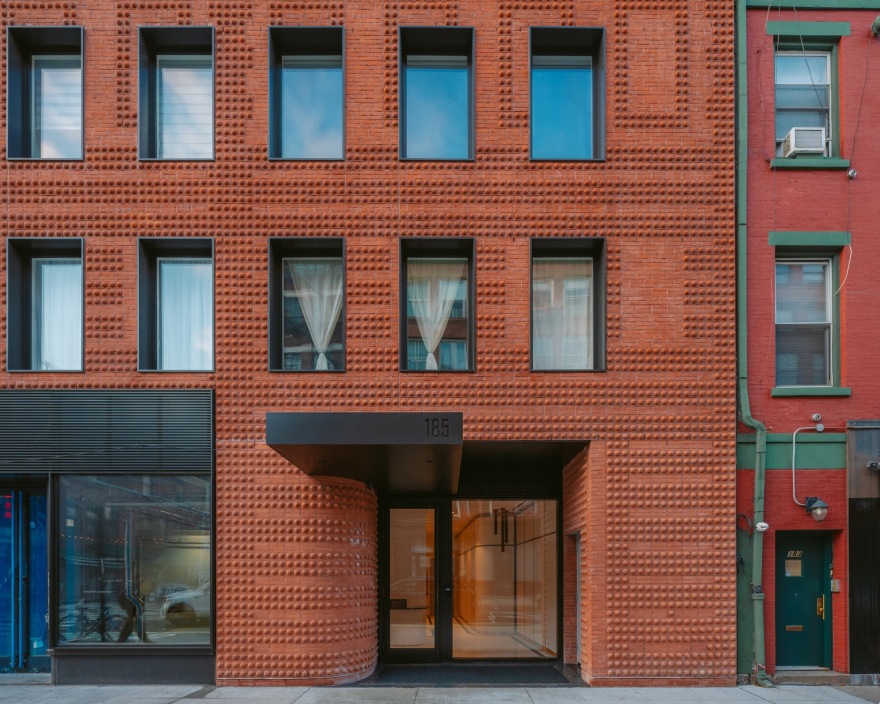

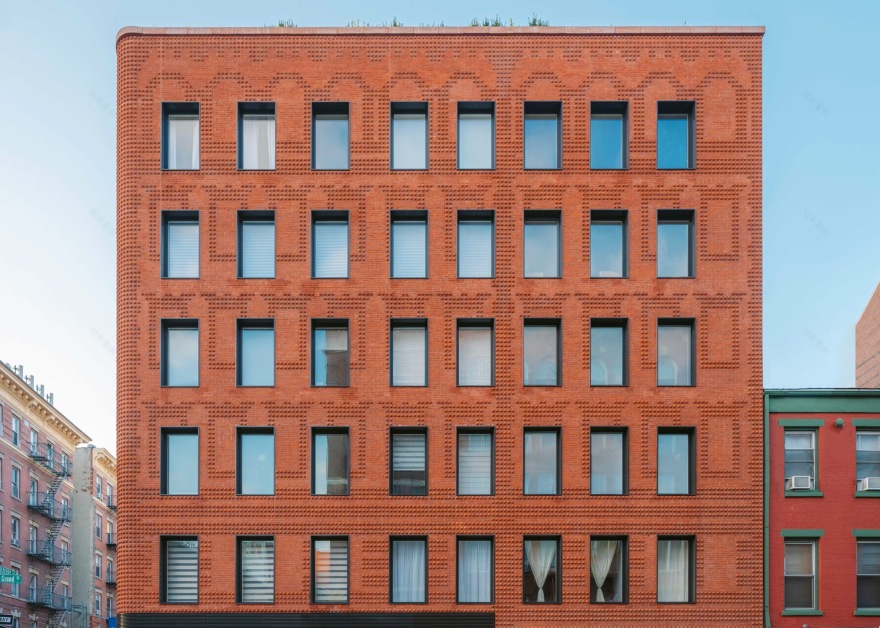

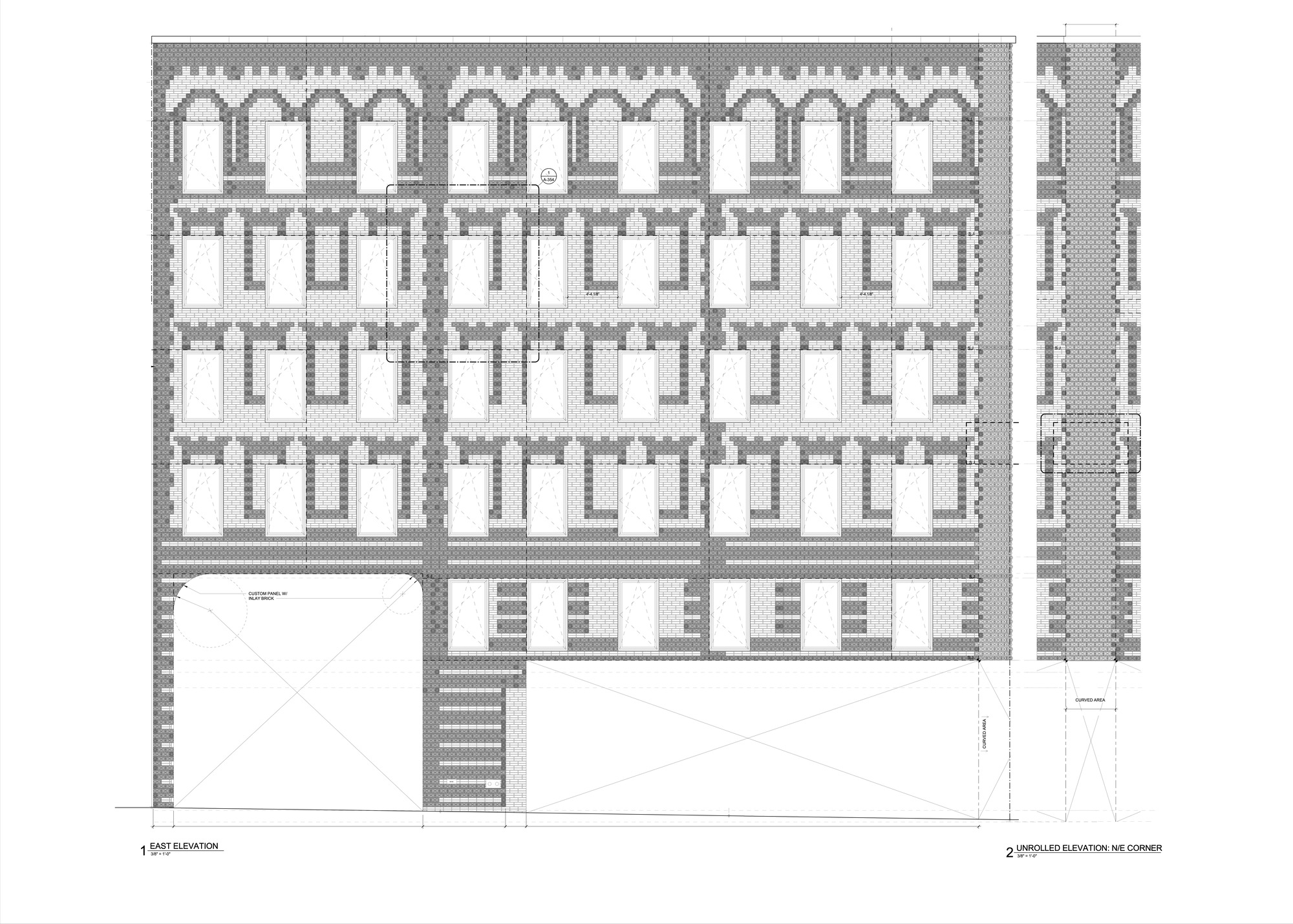

Traditionally, Italianate tenement buildings featured a tripartite façade that consisted of a base, middle, and top with differing details and brickwork used for each portion. Emulating this tradition, The Grand Mulberry’s façade pattern consists of banding at the building’s base on floors 1-2, pediment windows in the middle on floors 3-5, and arched windows and a cornice at the top portion on floor 6.
格兰德桑树公寓丨美国纽约丨Morris Adjmi Architects-24

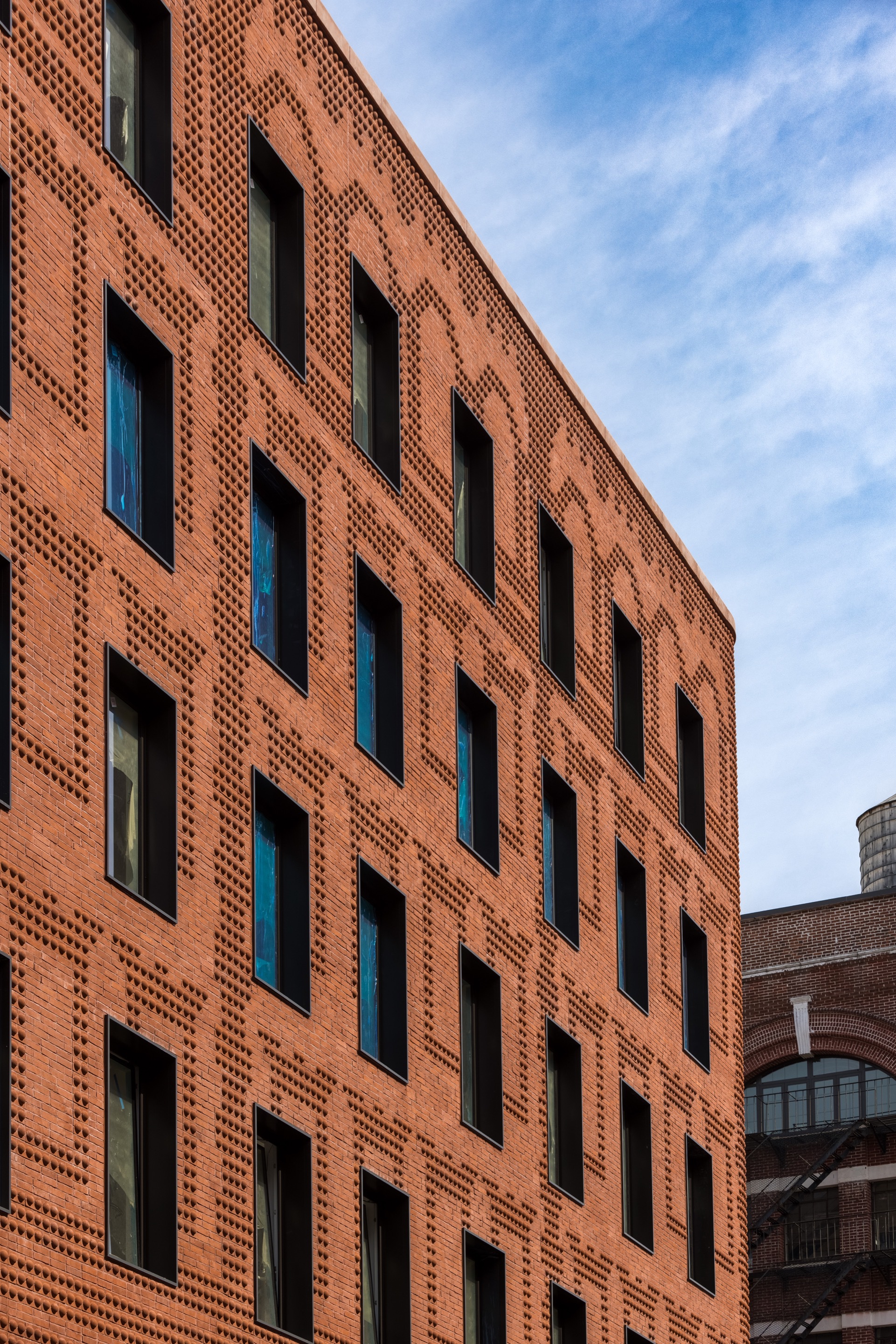

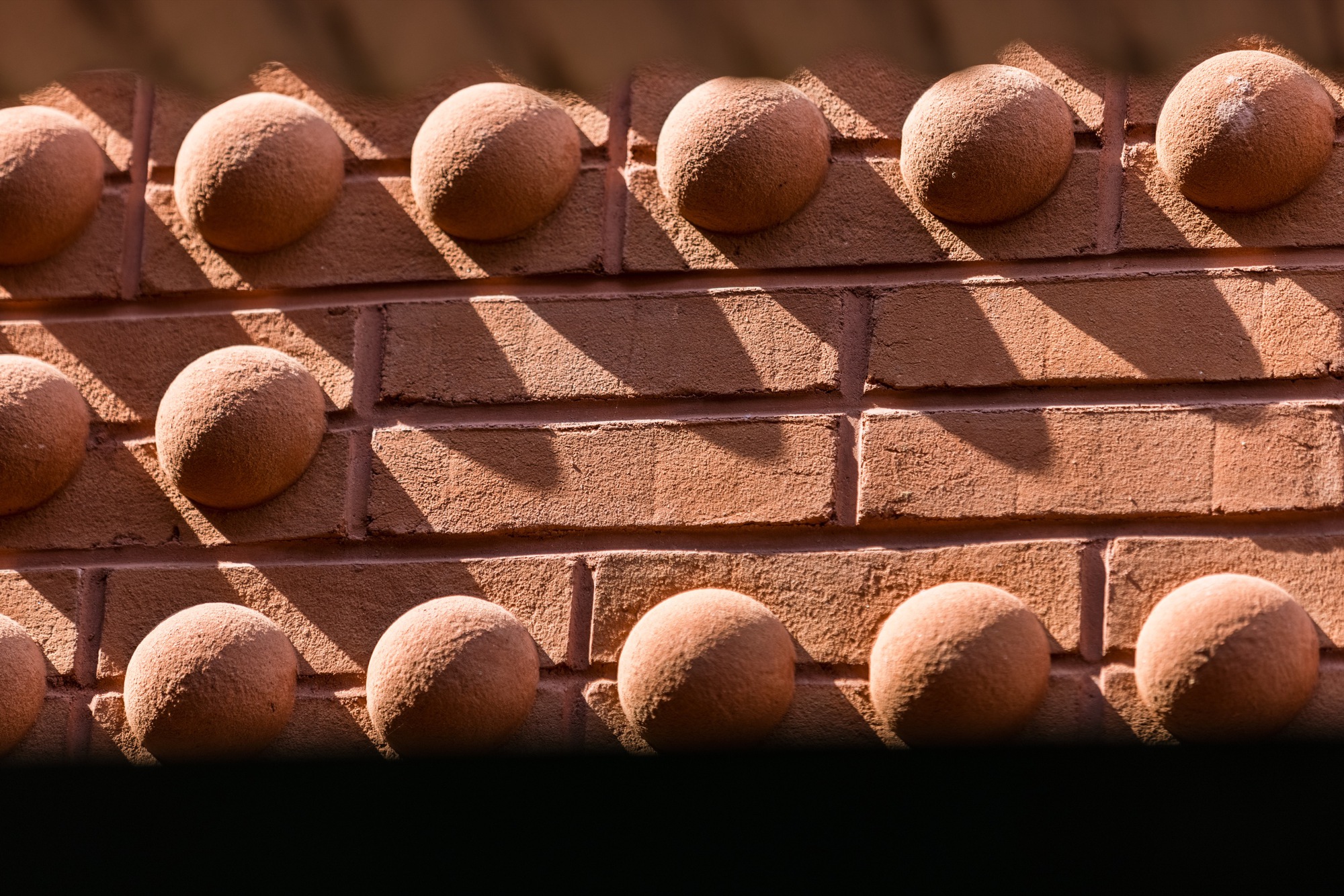

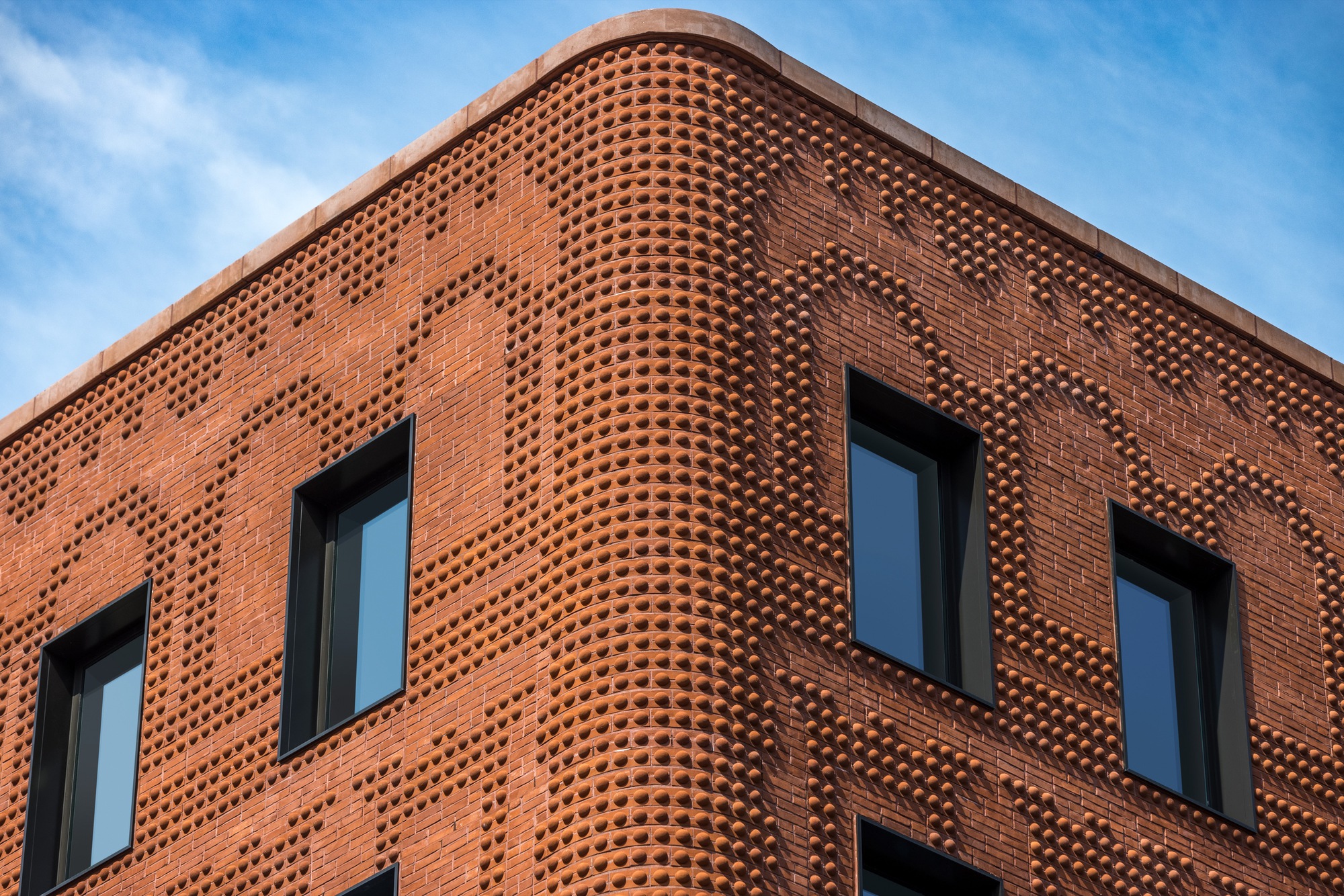

Quoining details define the bays. Given the project’s setting, the objective from the onset was to design a building that was contextual yet unmistakably contemporary. While the facade pattern is traditional, the application of the hand-molded domed bricks is very modern—each brick was carefully positioned within the double-stacked running bond coursing to present the illusion of a traditional Italianate façade.
格兰德桑树公寓丨美国纽约丨Morris Adjmi Architects-26
格兰德桑树公寓丨美国纽约丨Morris Adjmi Architects-27

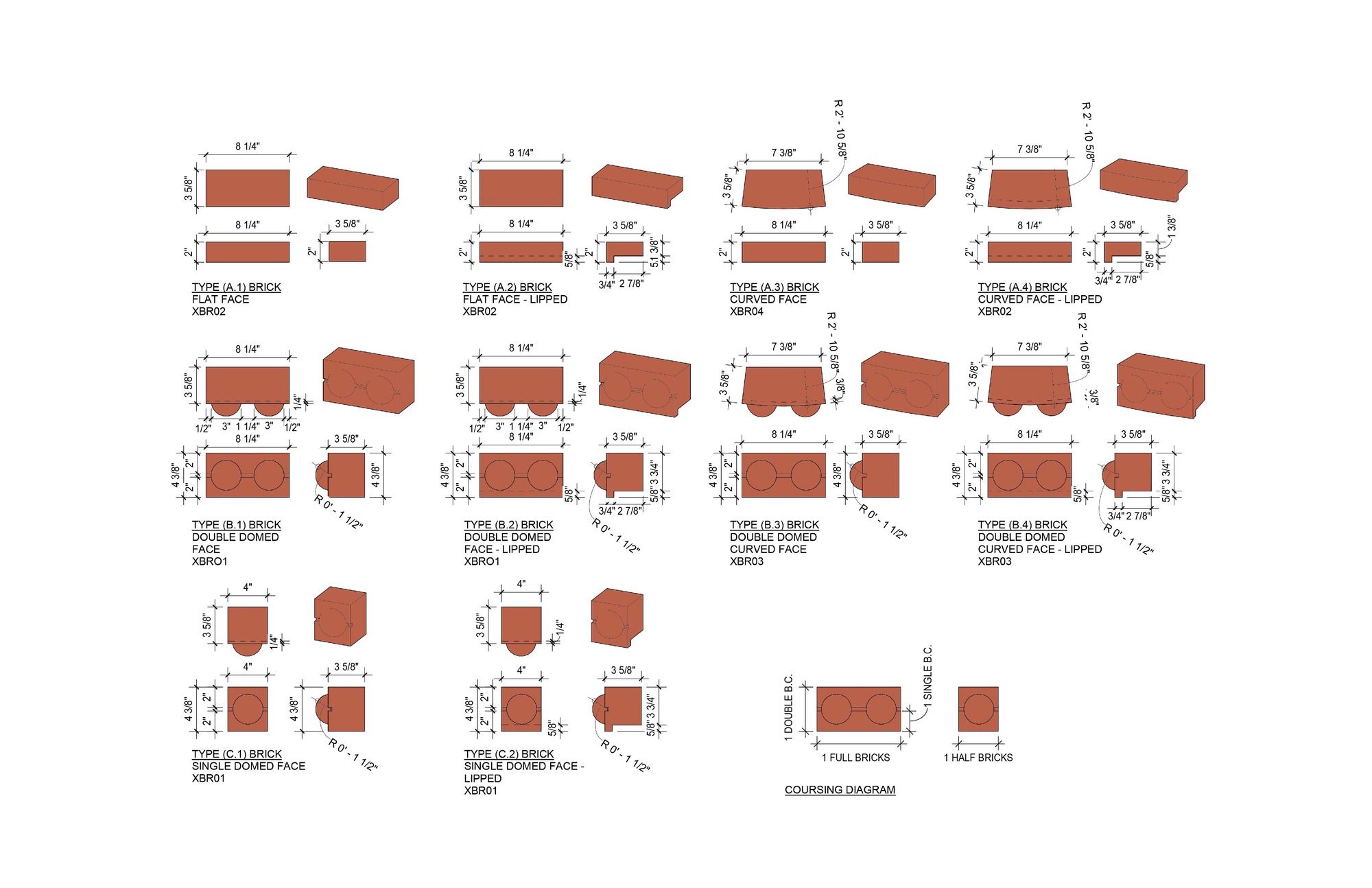

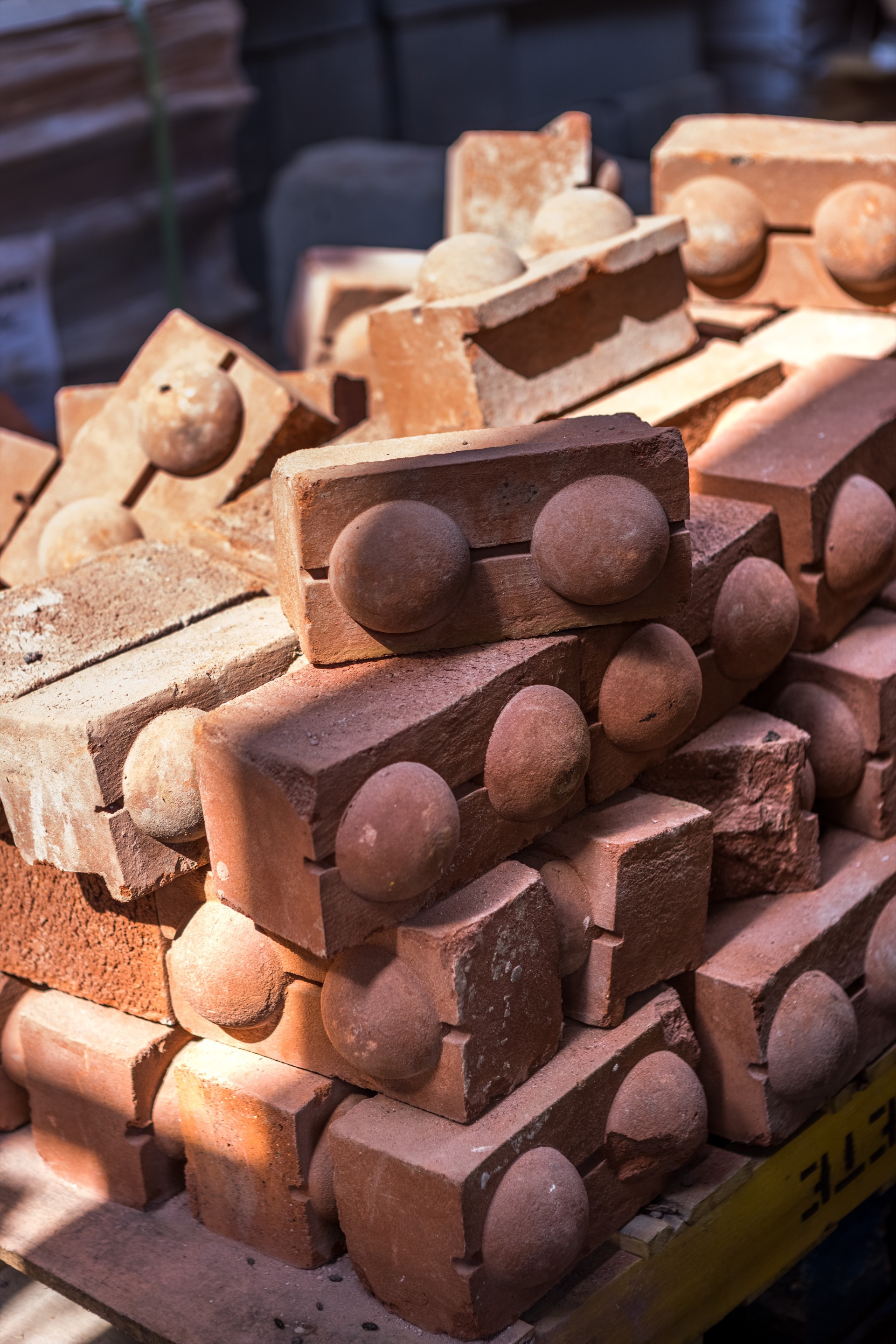

The custom bricks come in roughly thirty different shapes to execute the pattern, including double bricks with double domes (the most prevalent), double bricks with a single dome, curved bricks, lipped bricks, and simple shapes without domes. All have a uniform red-orange clay color that pays further homage to the red brick buildings found in the neighborhood.
格兰德桑树公寓丨美国纽约丨Morris Adjmi Architects-29
格兰德桑树公寓丨美国纽约丨Morris Adjmi Architects-30
格兰德桑树公寓丨美国纽约丨Morris Adjmi Architects-31

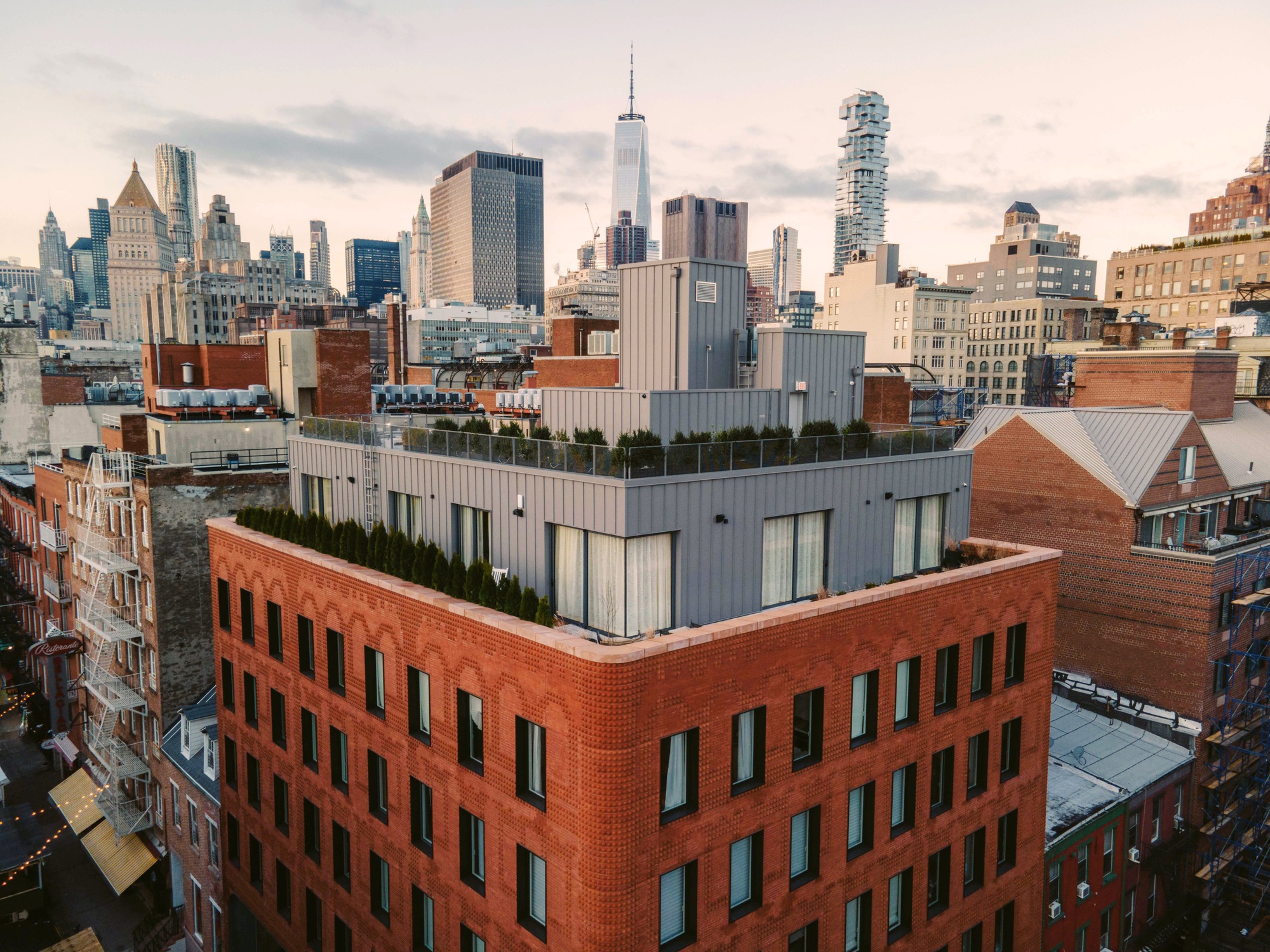

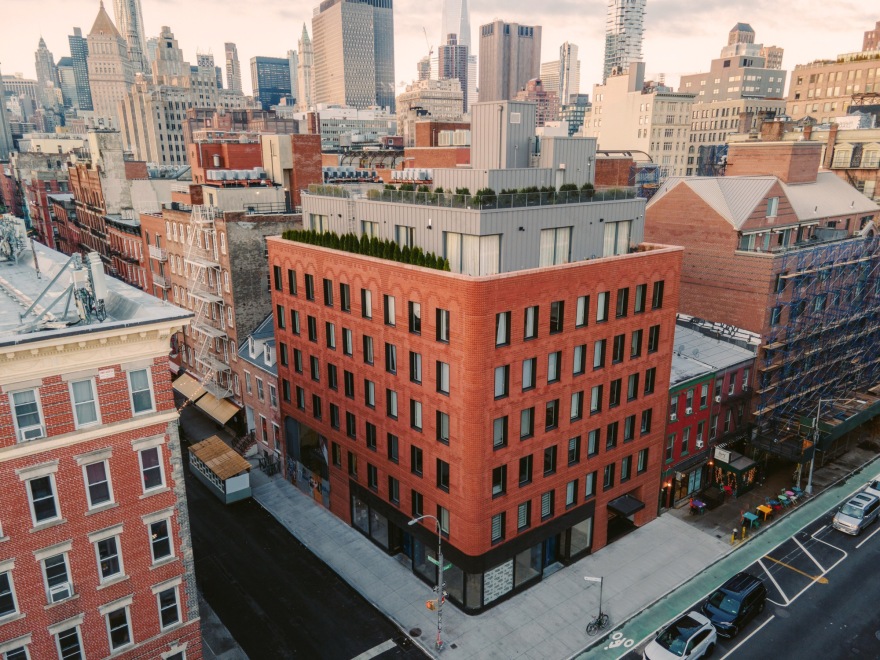

At the rear of the building, the 7th floor steps back to create a gracious terrace for the penthouse unit that faces both Grand and Mulberry Streets. The penthouse and the building’s bulkhead are wrapped in medium gray standing seam metal panels that create a subtle contrast of material and color. This allows these elements to stand alone but not detract from the brick façade below.
格兰德桑树公寓丨美国纽约丨Morris Adjmi Architects-33
Project gallery
格兰德桑树公寓丨美国纽约丨Morris Adjmi Architects-35
格兰德桑树公寓丨美国纽约丨Morris Adjmi Architects-36
格兰德桑树公寓丨美国纽约丨Morris Adjmi Architects-37
格兰德桑树公寓丨美国纽约丨Morris Adjmi Architects-38
格兰德桑树公寓丨美国纽约丨Morris Adjmi Architects-39
格兰德桑树公寓丨美国纽约丨Morris Adjmi Architects-40

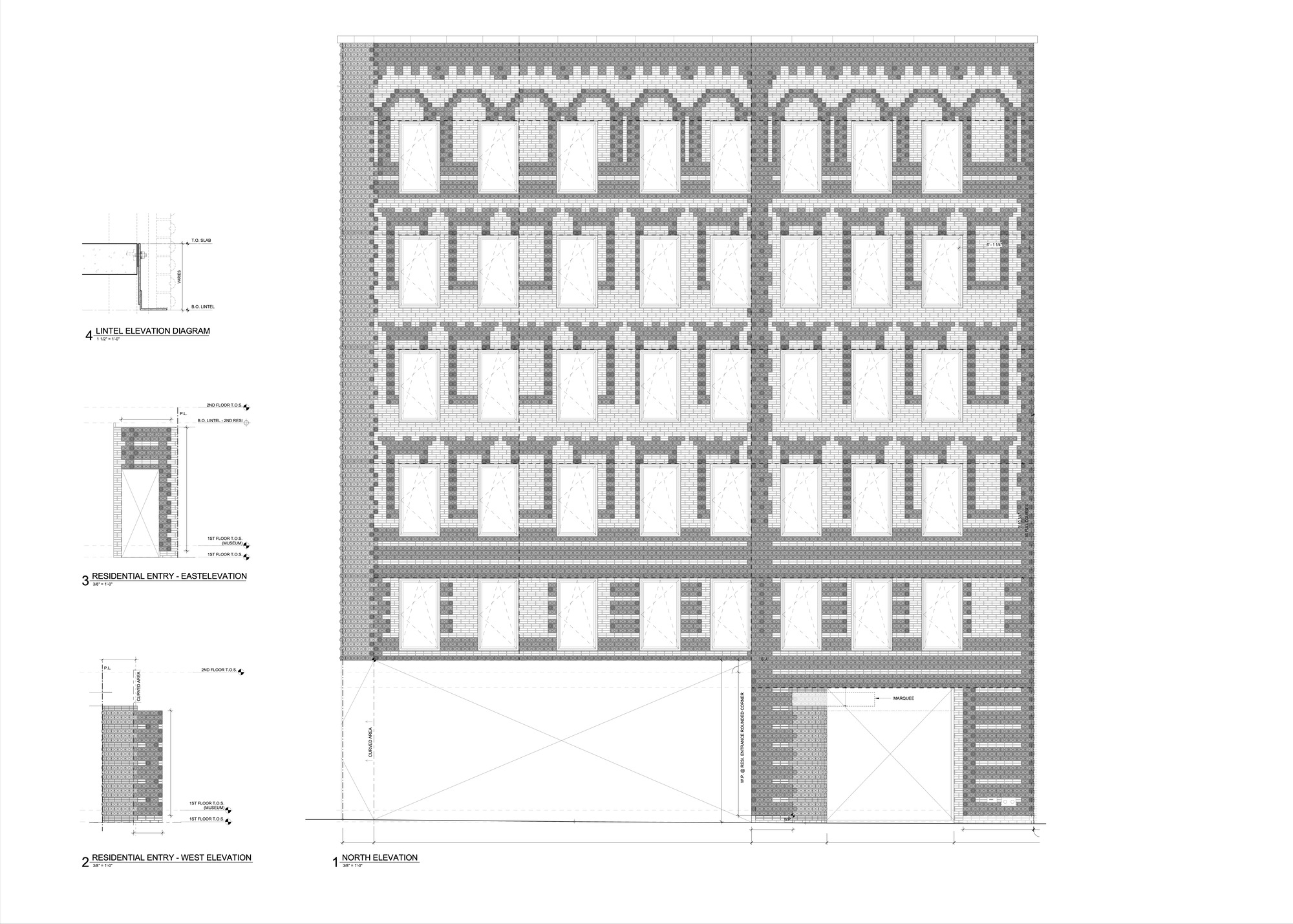

格兰德桑树公寓丨美国纽约丨Morris Adjmi Architects-41
Project location
Address:185 Grand St, Brooklyn, NY 11211, New York, United States
