António Granjo 综合用途建筑丨葡萄牙波尔图丨Fragmentos

Architects:Fragmentos

Area:10520m²

Year:2021

Photographs:Fernando Guerra | FG+SG

Specialities:A400

Inspection:Alfaplan

Construction Company:Garcia & Garcia

Quantifications And Budget:Tribato

Landscape Design:Green Dreams

City:Porto

Country:Portugal

Text description provided by the architects. The intervention brought a new life to this old complex composed of three isolated volumes, enhancing urban life and renewing an area of the city currently being transformed.

Located in Bonfim, Porto, the goal of the intervention was the recovery and conversion of a vacant lot that housed an old building materials factory into a mixed housing and services project, maintaining the memory of the original construction.

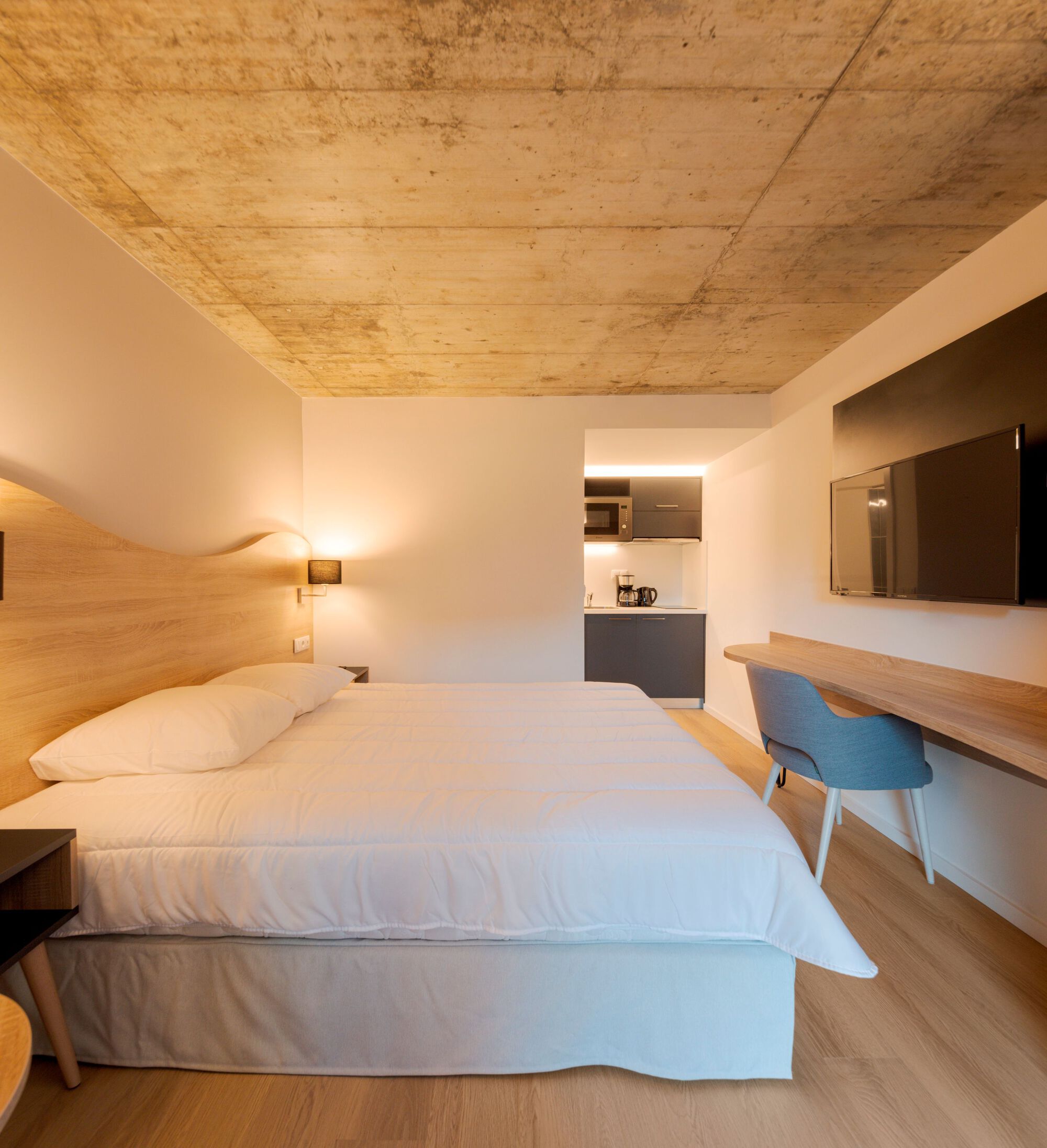

The main pedestrian and road entrance is via Rua António Granjo. This street frontage contains the 16-apartment building for multi-family housing and a students' residence, of which the reception area is particularly notable. The continuation of the student residence unfolds in the interior of the block, distributed across the various volumes and totaling 212 rooms.

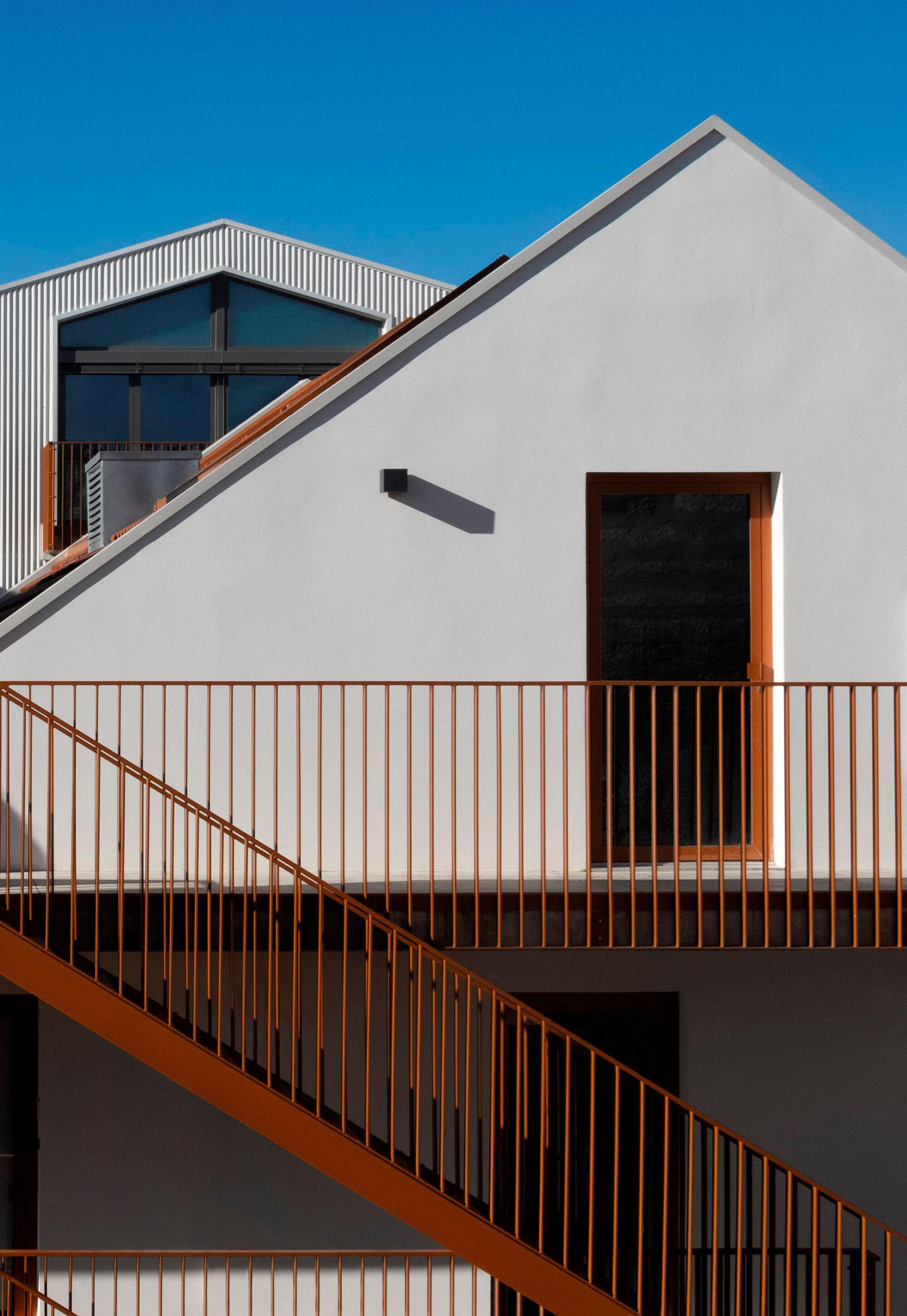

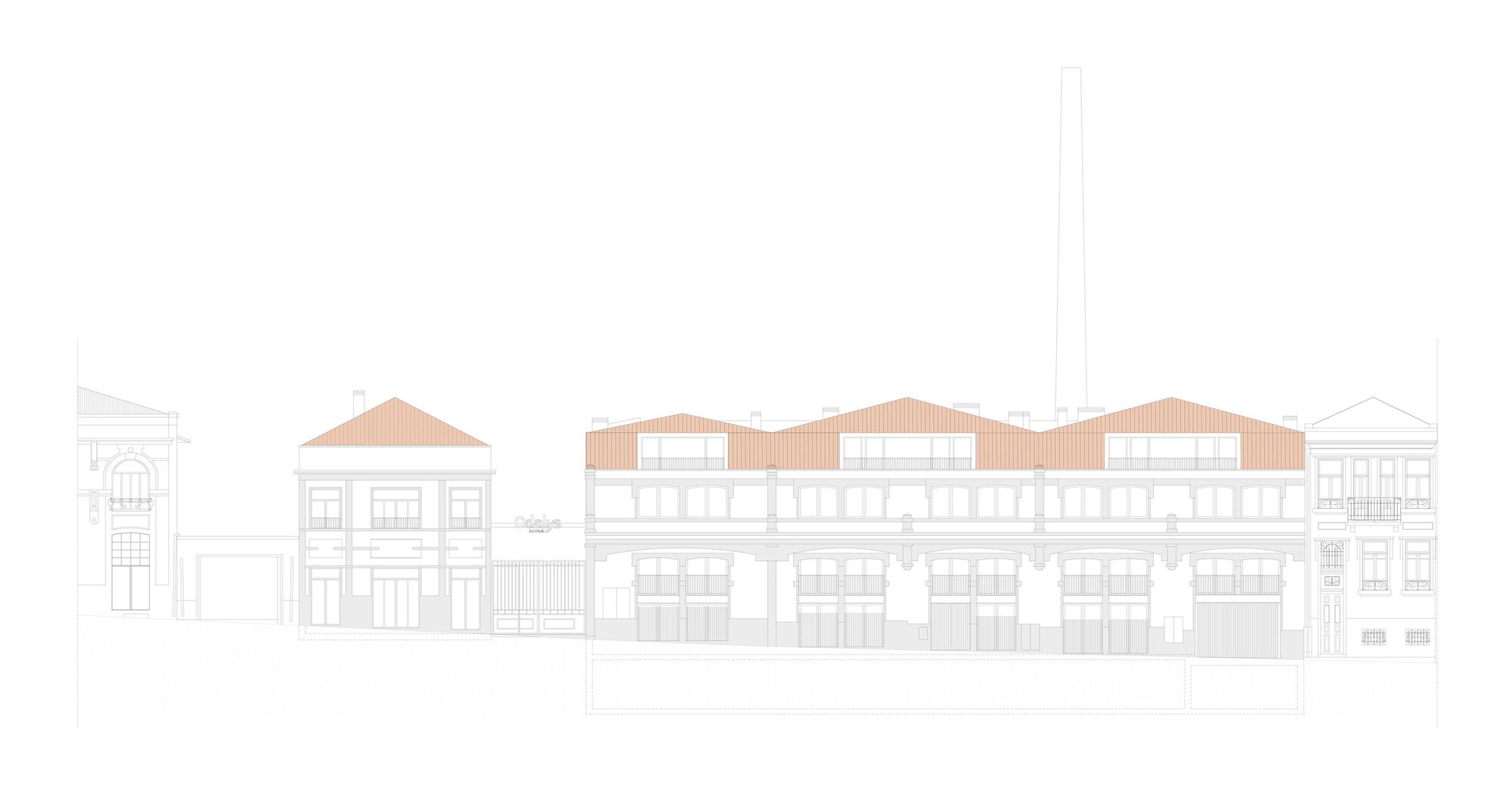

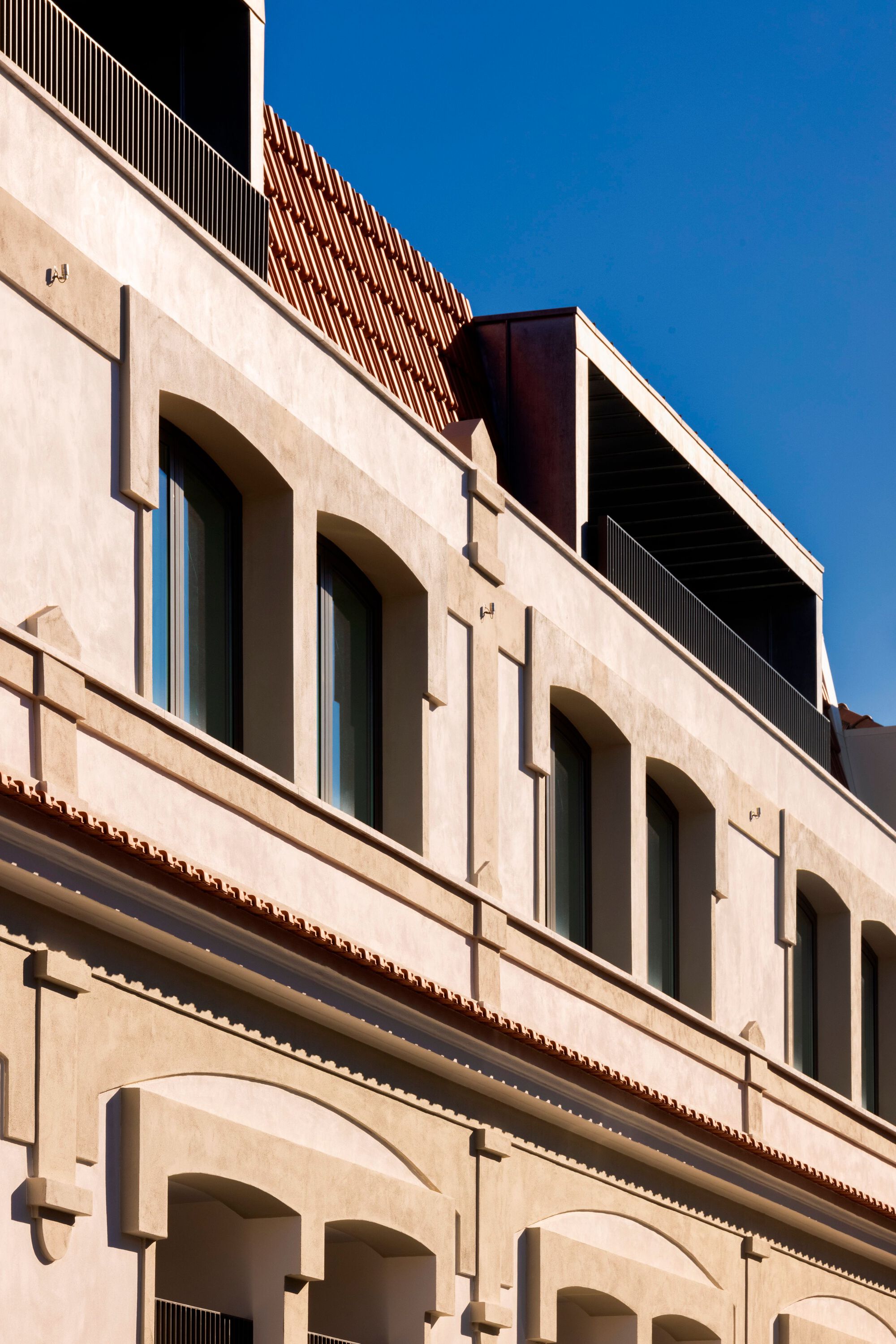

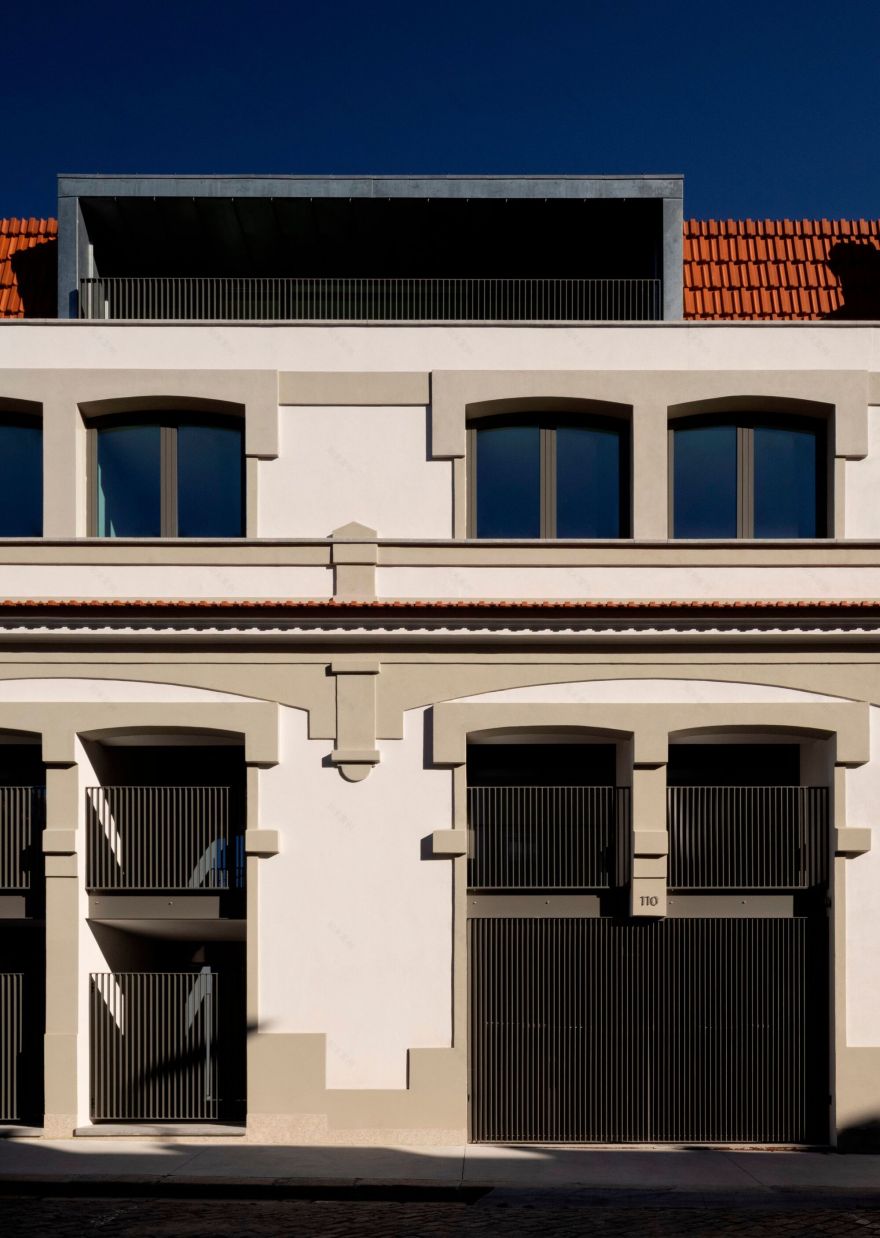

The original aspects of the main façade facing Rua António Granjo have been maintained with the recovery and reproduction of constructive elements and details characteristic of the former industrial use. The third floor, integrated into the roof, features a more contemporary language, marked by the use of zinc-covered mansards in the same color as the external window frames. More than creating a contrast, this serves to highlight the complementarity and integration of all elements with each other and with their surroundings, while adding a contemporary feel.

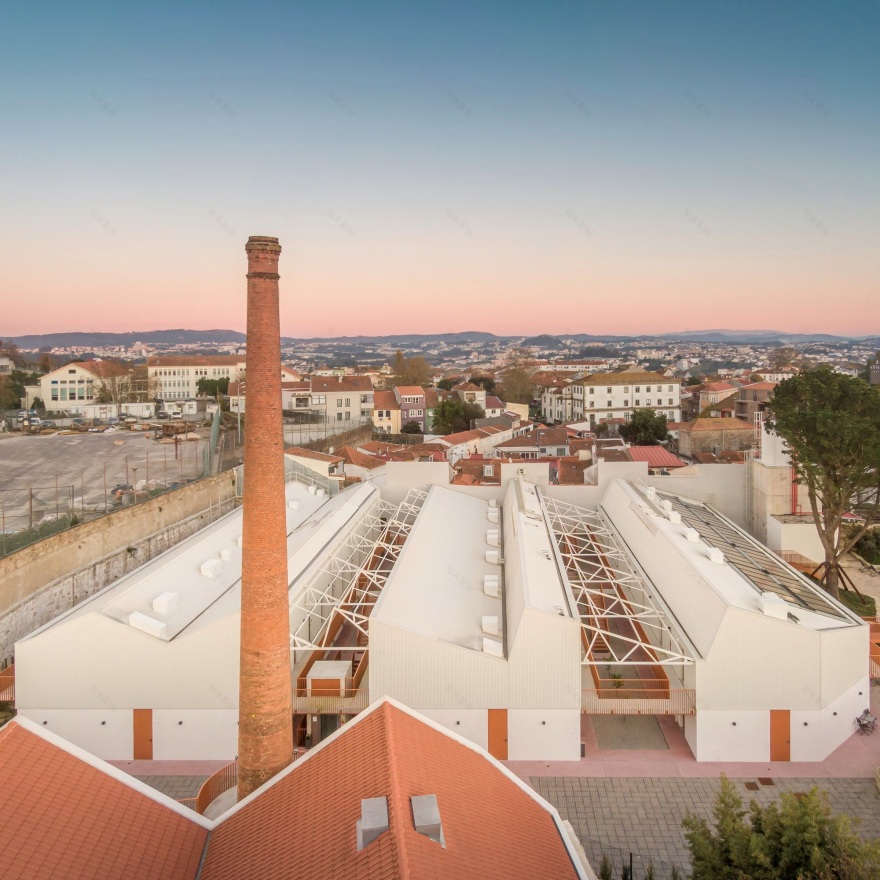

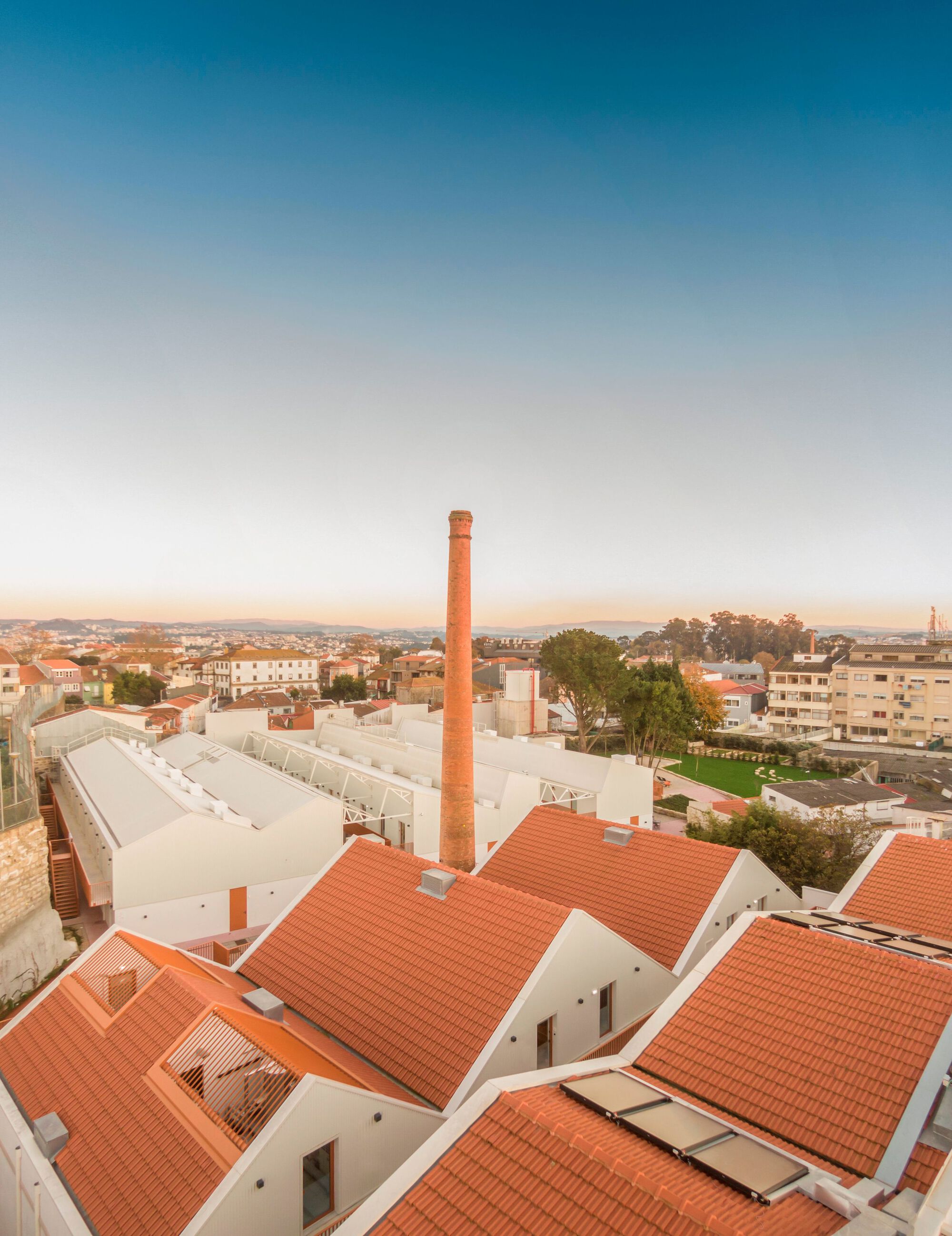

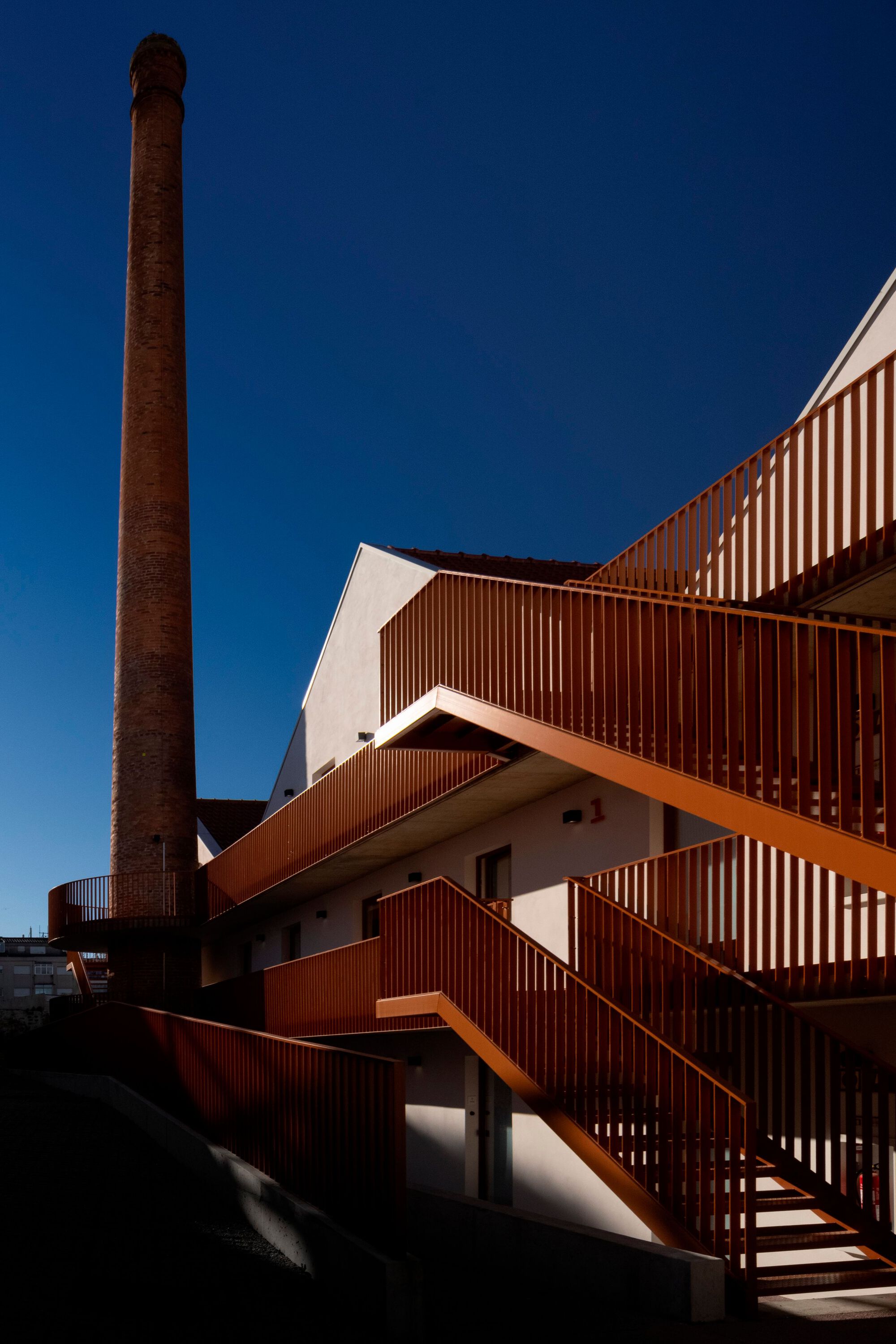

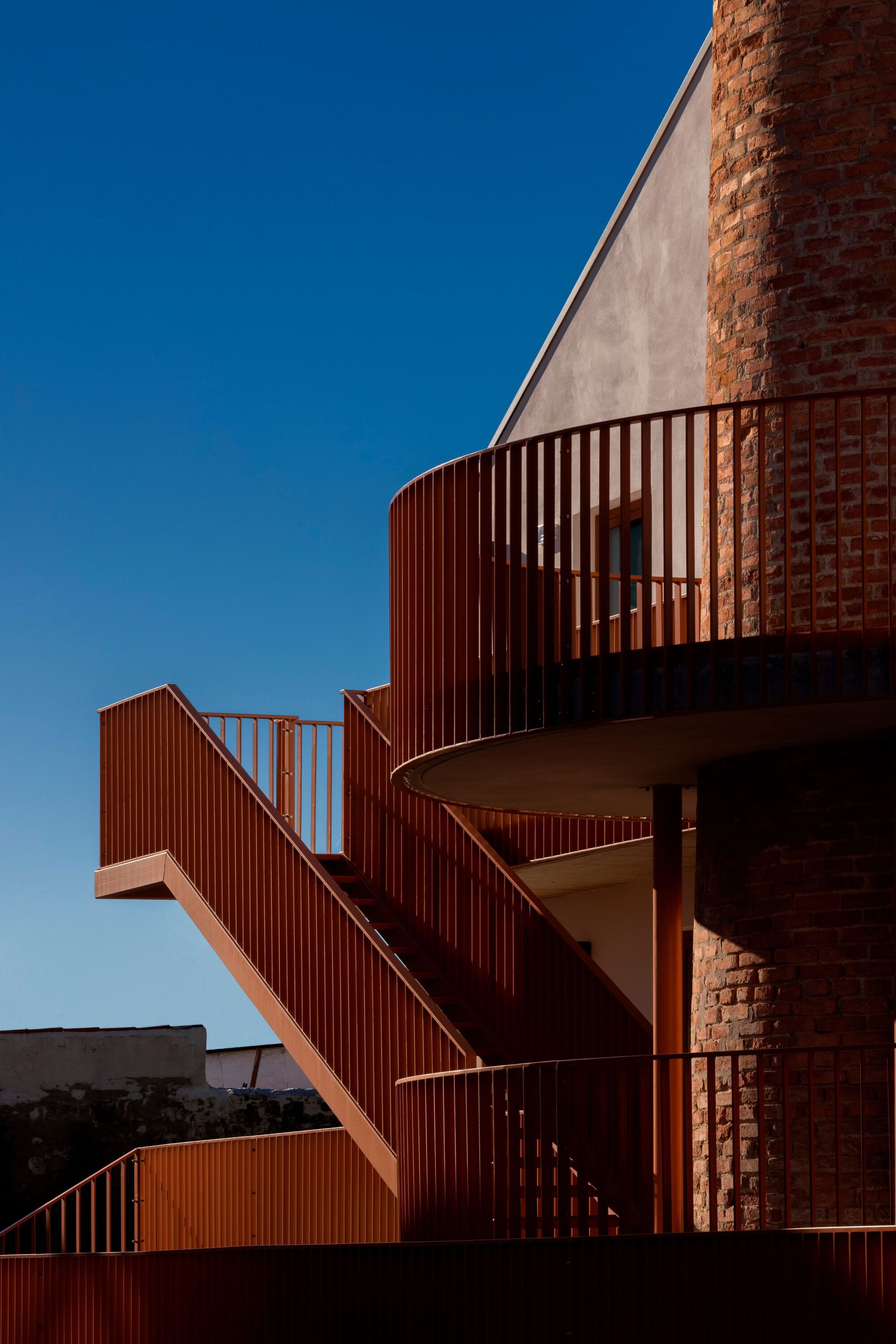

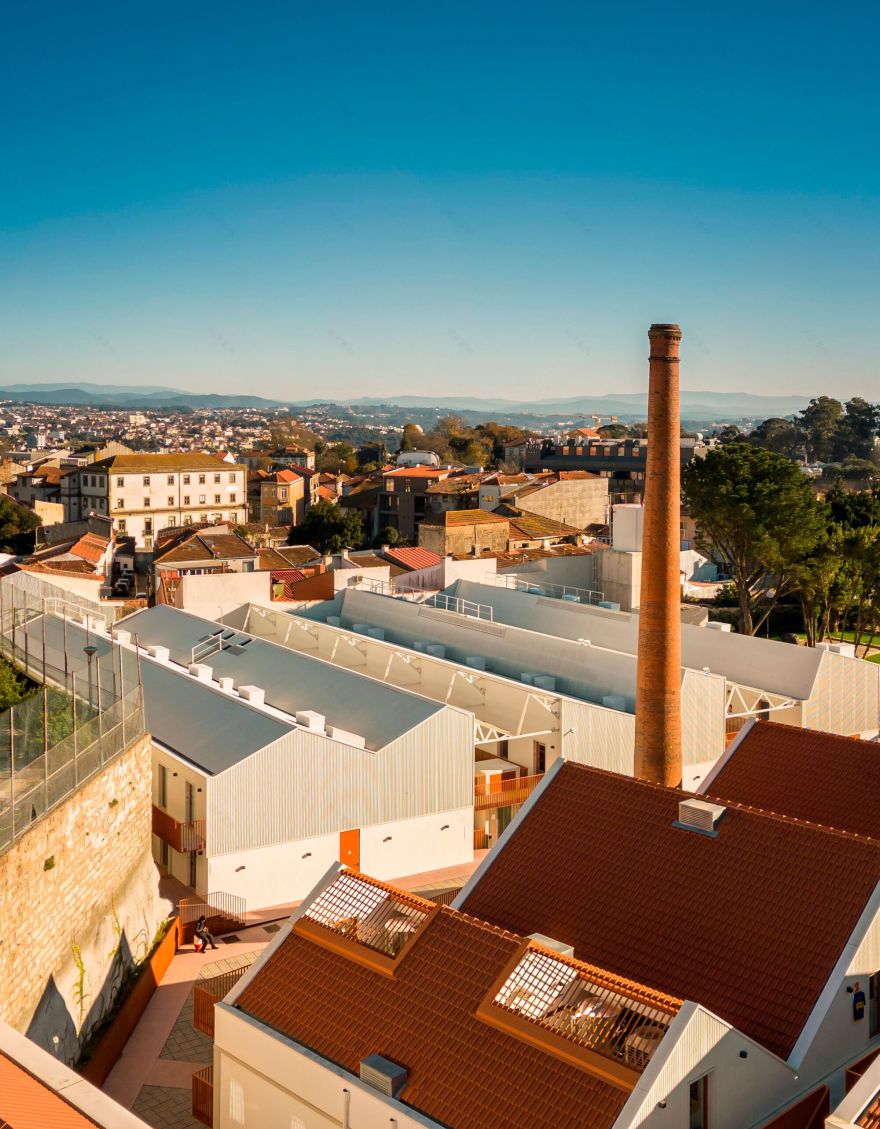

Despite its contrasting uses, the project was approached with a language that sought to unite pre-existing elements, reinforcing the identity of place. The industrial chimney was retained and recovered as an aesthetic element and a memory of the past, becoming central to the character of the space.

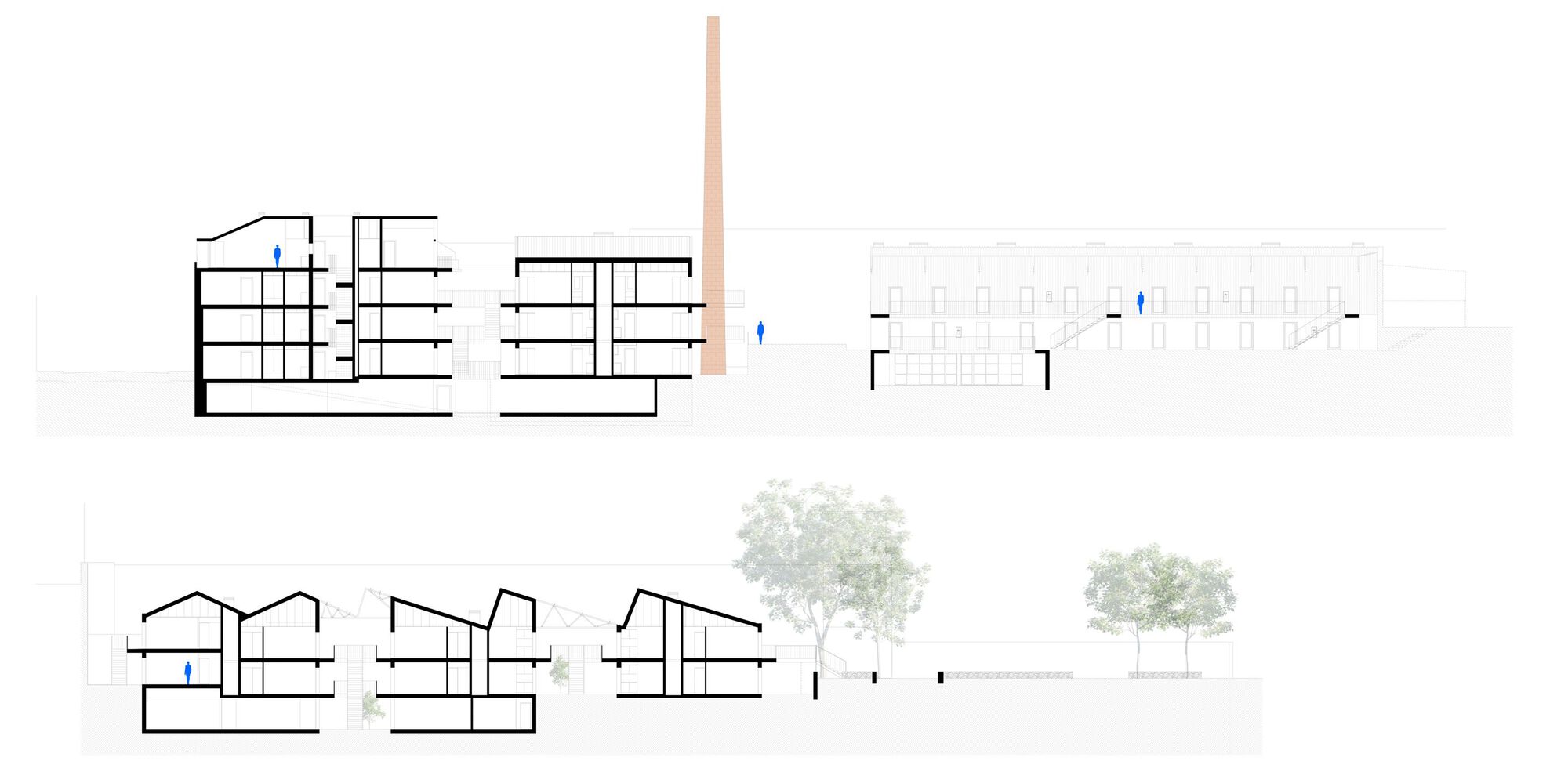

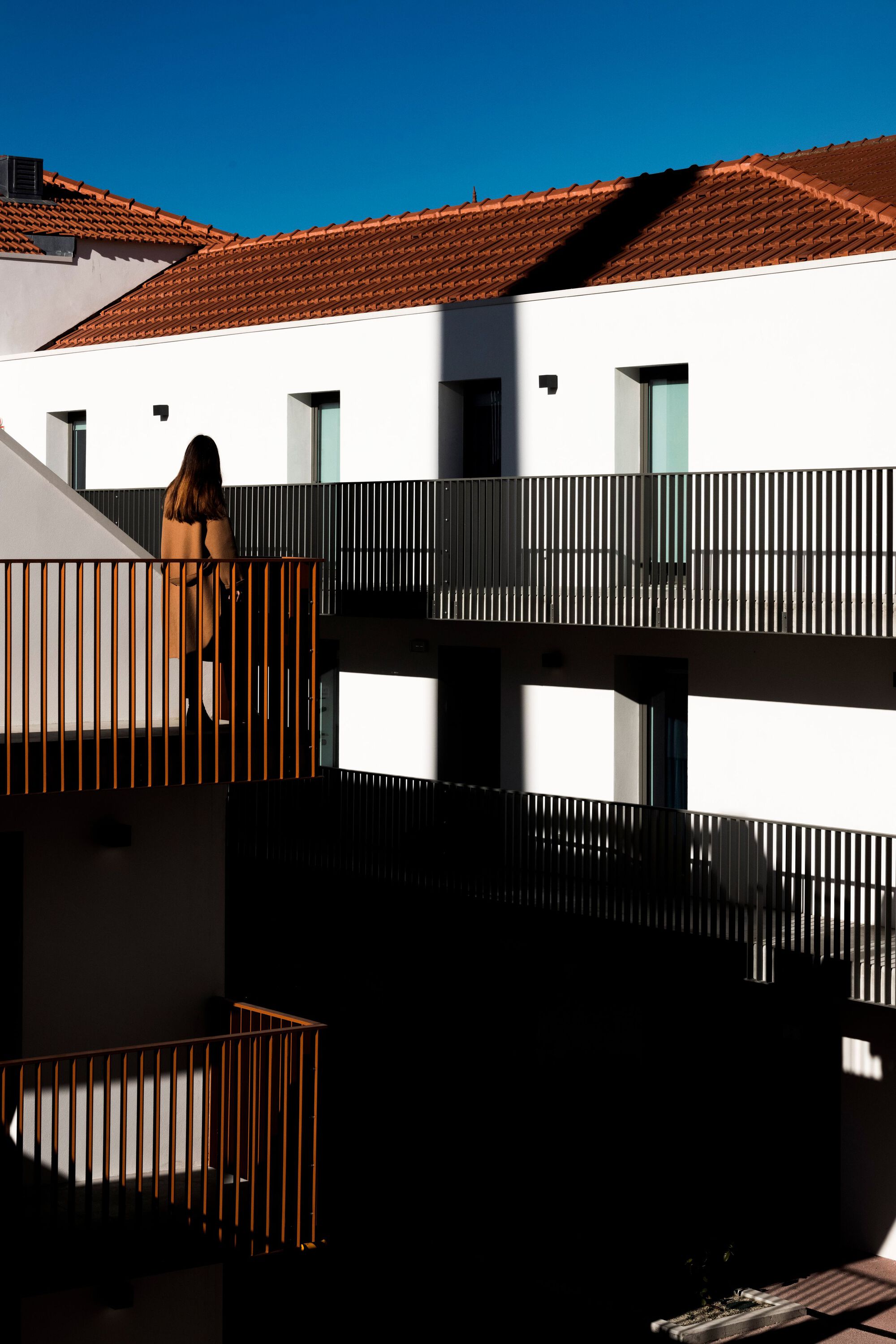

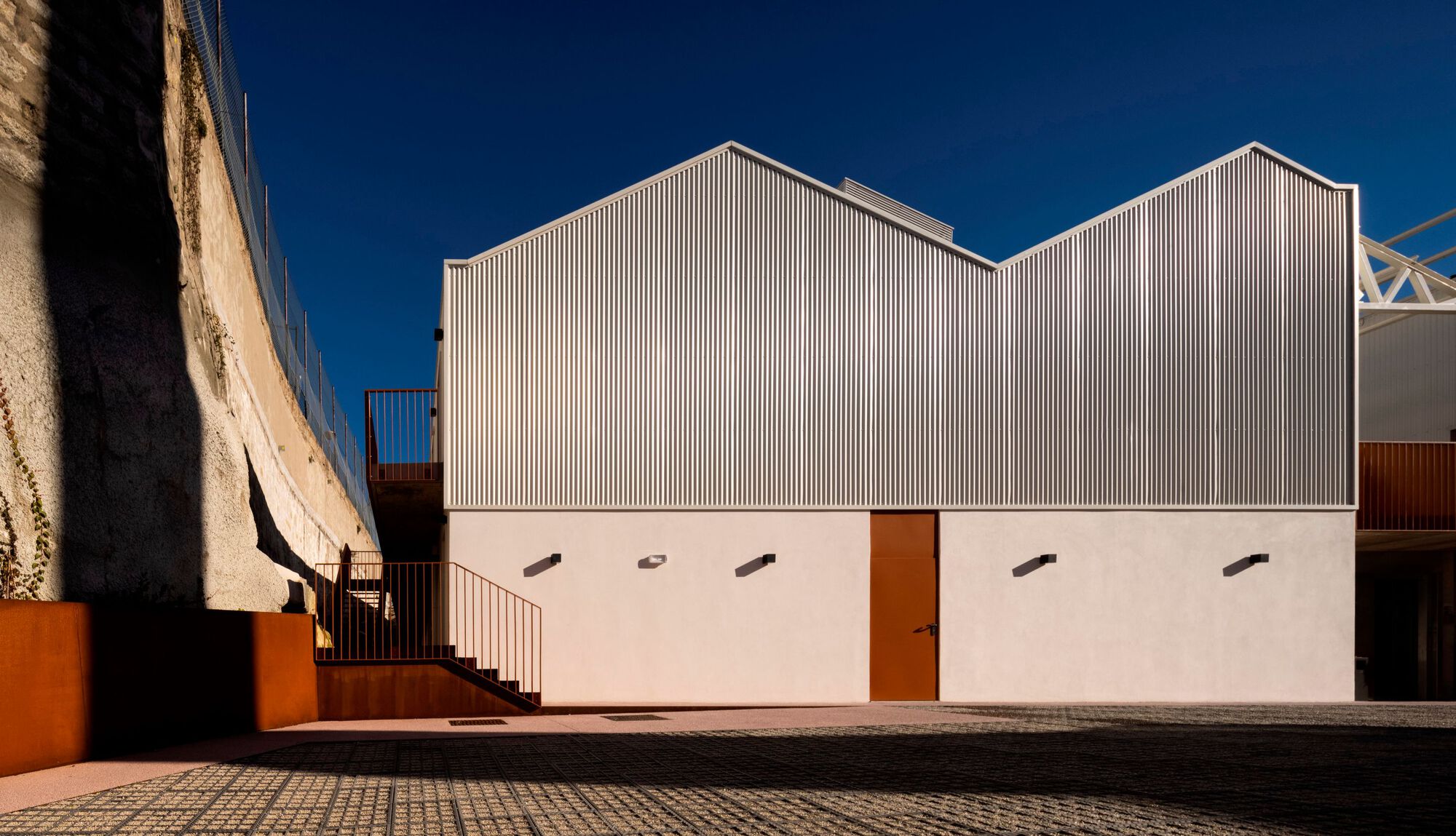

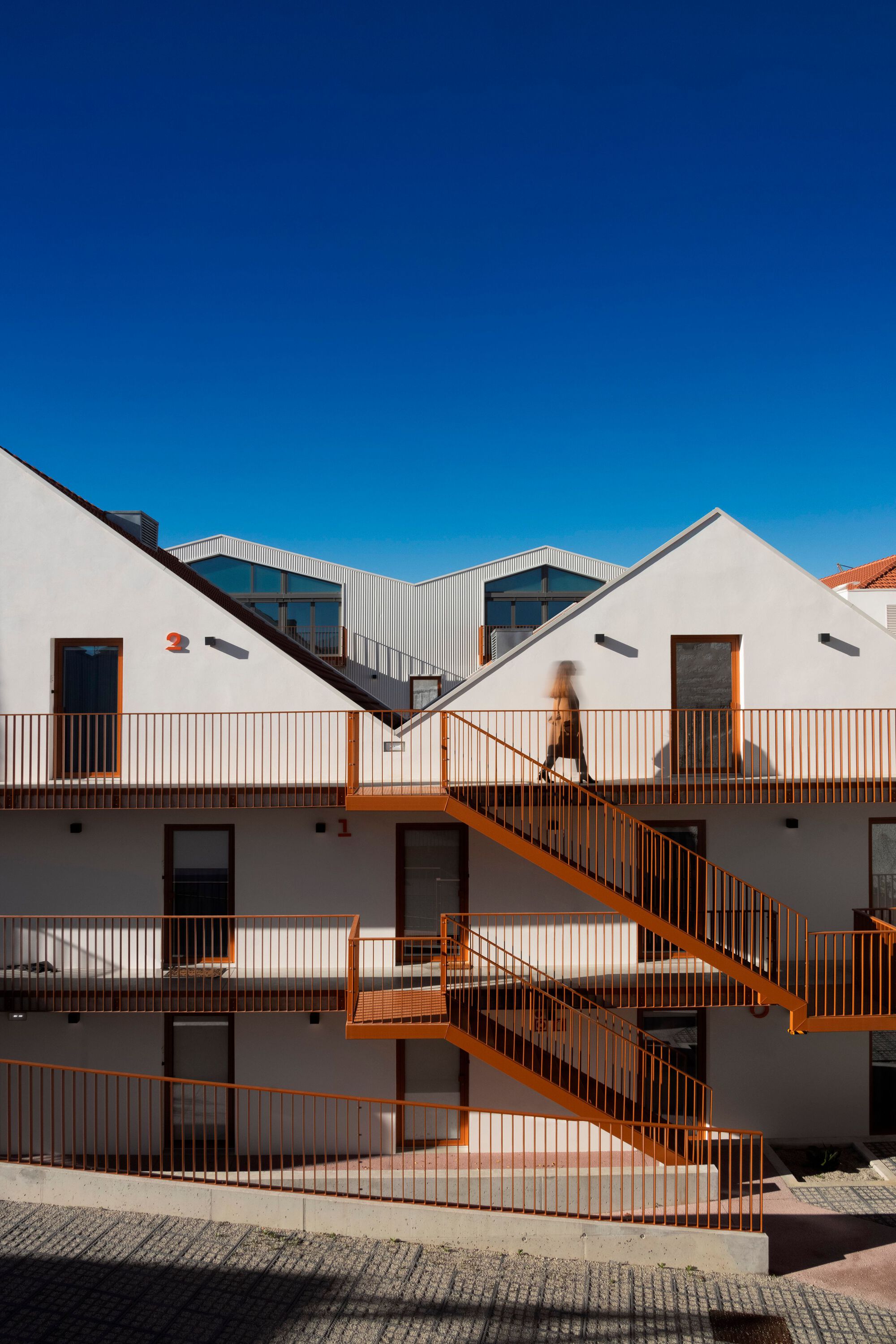

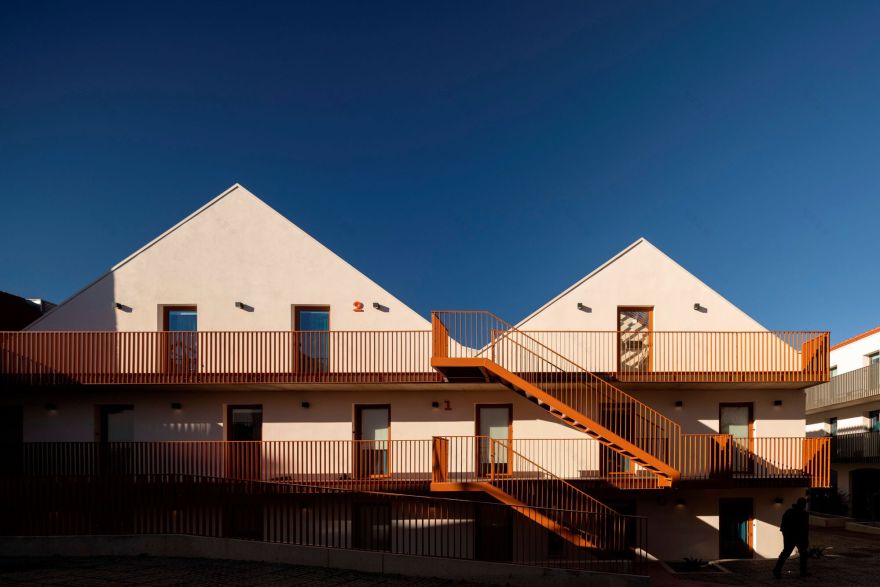

The generous ceiling height of the old warehouses allowed for the creation of two floors of housing and the insertion of a further floor integrated into the roof. The introduction of open spaces allowed for the creation of courtyards, bringing natural light into the various dwellings and creating a feeling of neighborhood among the people inhabiting the spaces. The profile of industrial roofs, so particular to industrial design, was maintained even within these open spaces.

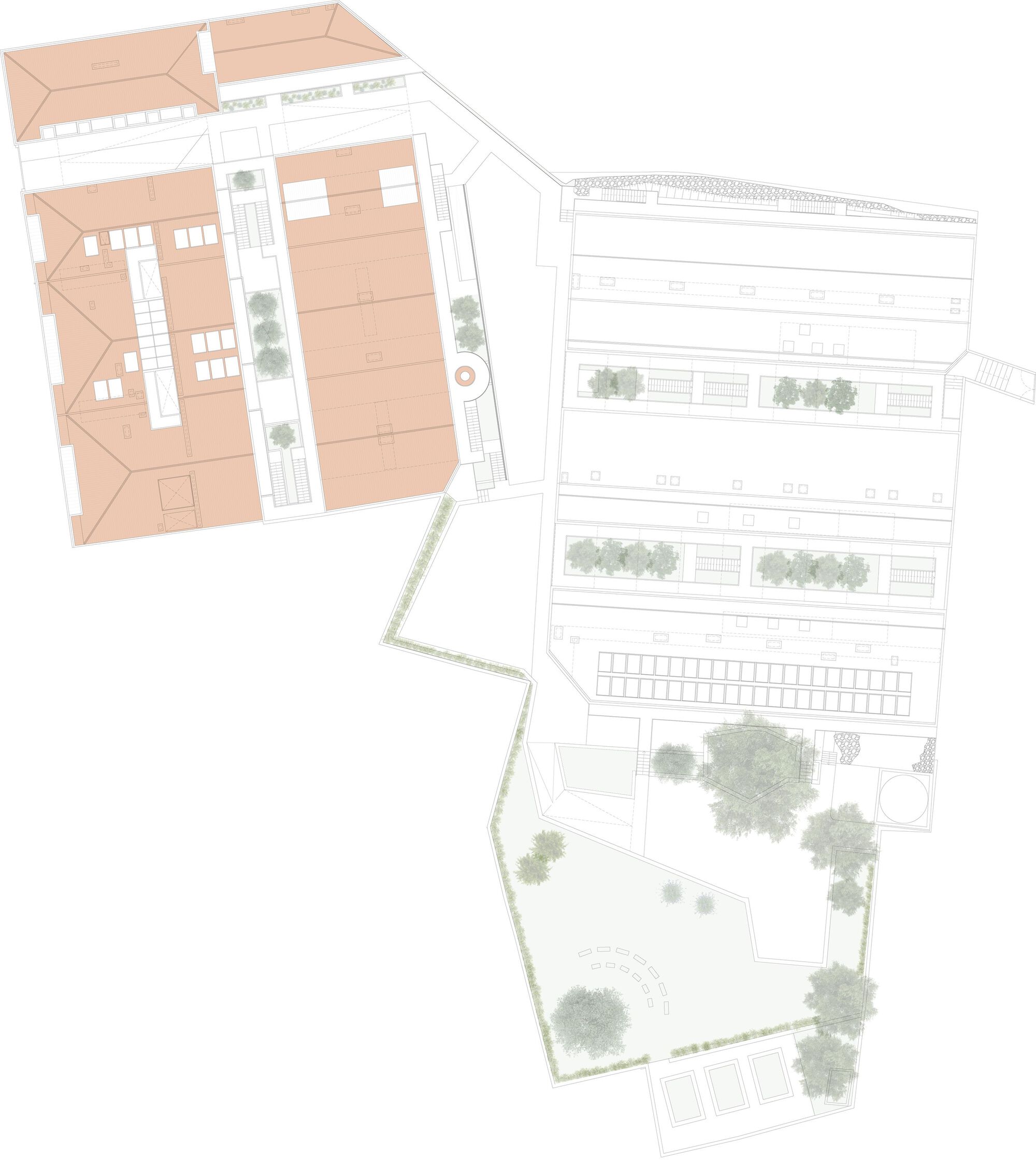

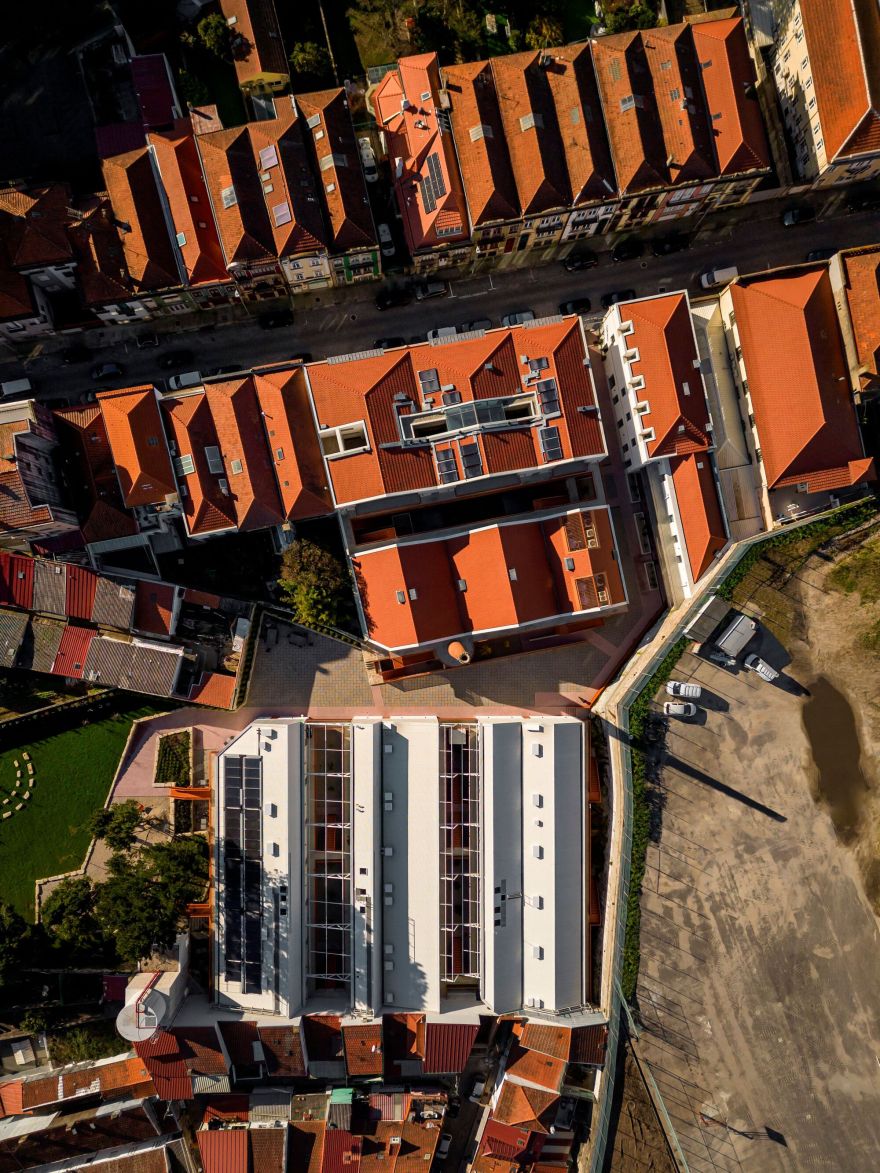

In addition to the patios, the size of the plot permitted the creation of an extensive common outdoor area, with paved areas and a lawn. Orange, beech, and poplar trees already present on the site were retained for these exterior spaces, enhancing the greenery that is typical of Porto, while stone found on the site was likewise reused for the creation of interior walls in outdoor common areas.

Project gallery

Project location

Address:Porto, Portugal
