捉迷藏公寓丨美国洛杉矶丨Valerie Schweitzer Architects

Architects:Valerie Schweitzer Architects

Area:23800ft²

Year:2022

Photographs:Yoshihiro Makino

Manufacturers:EGGER,AVM Industries,Bosch,Caeser Stone,Kohler,Milgard,Solarban

Lead Architect:Valerie Schweitzer

Architect of Record:Andrew Ratzsch

Contractors:James Kennedy Construction

Structural Team:Masoud Dejban Inc.

Construction Details:Charles Georgie

Presentation Drawings:Wei Wang

Mechanical And Plumbing:Air Plus Inc.

City:Los Angeles

Country:United States

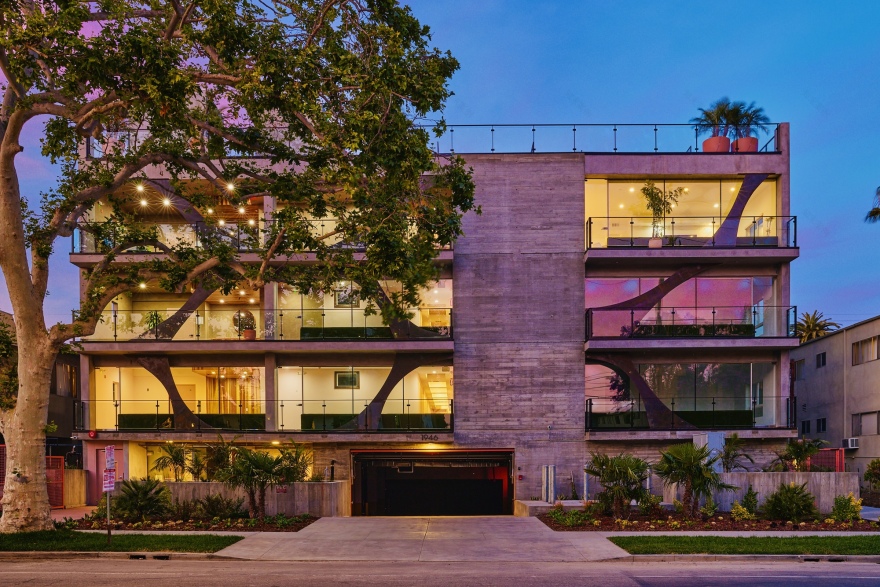

Text description provided by the architects. Inspired by the palm tree, the nature-centric apartment building in west LA provides a sense of nurture to the entire street in a post-pandemic age. It incorporates the local flora in unique ways including the site’s roughly 90-year-old sycamore, with a playful treehouse effect. The 15-unit structure, LEED Gold, heightens our awareness of nature’s interplay with the man-made that marks Los Angeles. It does so with a mix of natural and industrial materials: Corten steel, insulated glazing, board form concrete, salvaged wood, and palm trees on all floors.

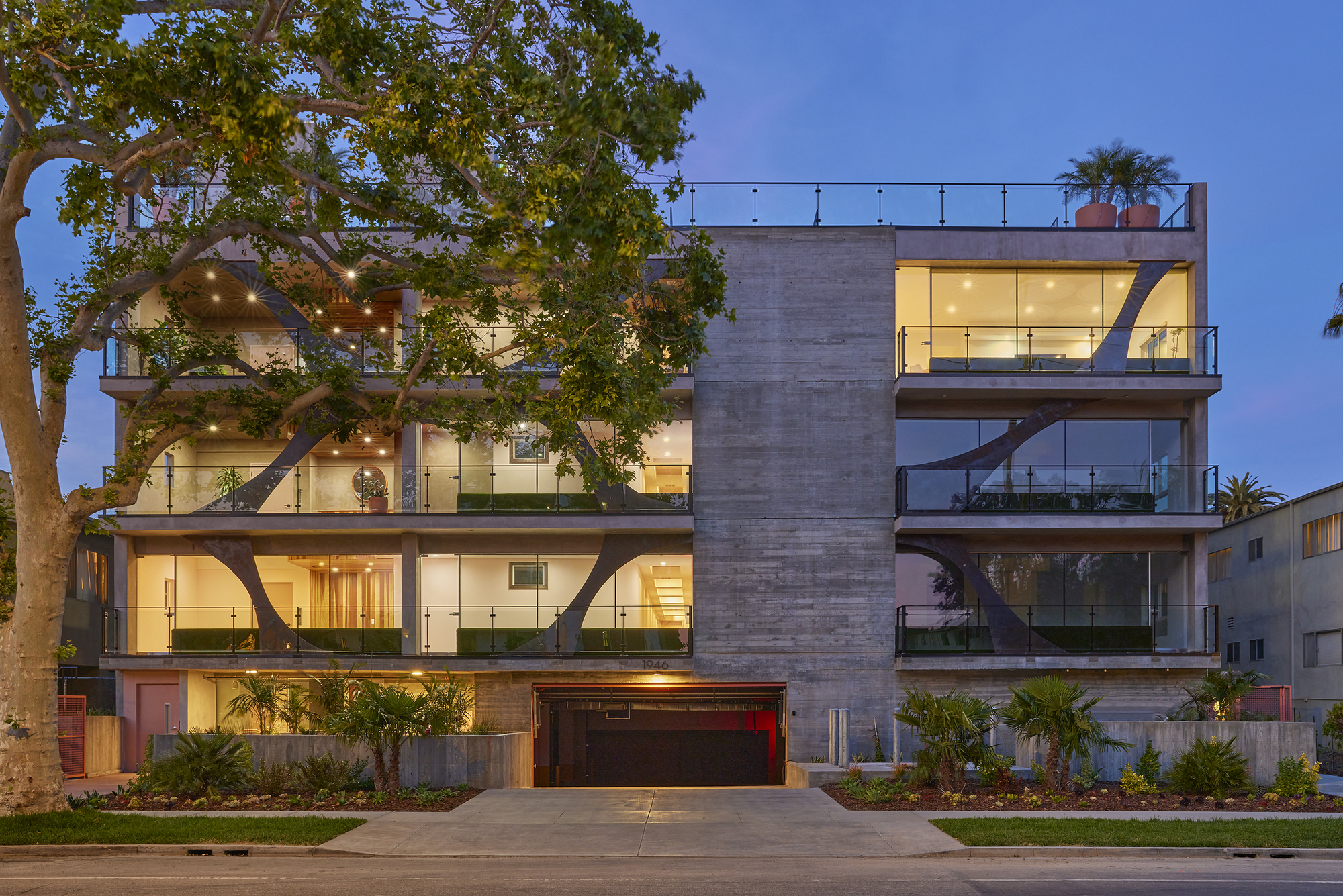

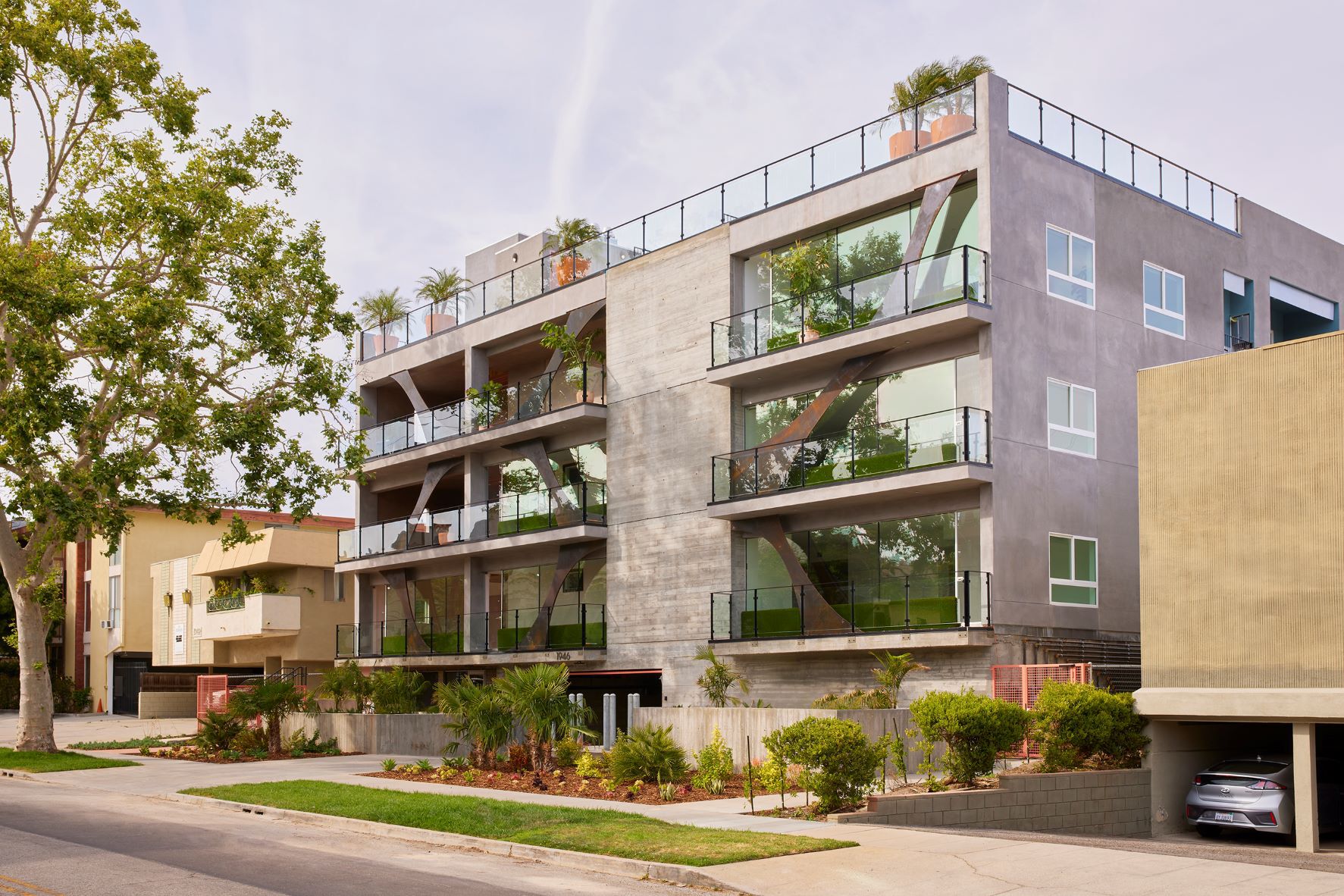

Four stories high, 1946 Overland is submerged over three feet below grade to optimize the height for each unit. This also keeps the public lobbies cooler in the summer months. Additionally, passively cooled garden halls at the Southwest-facing front facade reduce the HVAC load. A primary challenge was to meet the speculative goal of the development team to maximize square footage on a budget, while still elevating the pedestrian experience. Much of Overland Avenue has a beat-up, even depressive quality and we sought to defy that with an aspect of theater and an economy of means that still deepens a sense of place.

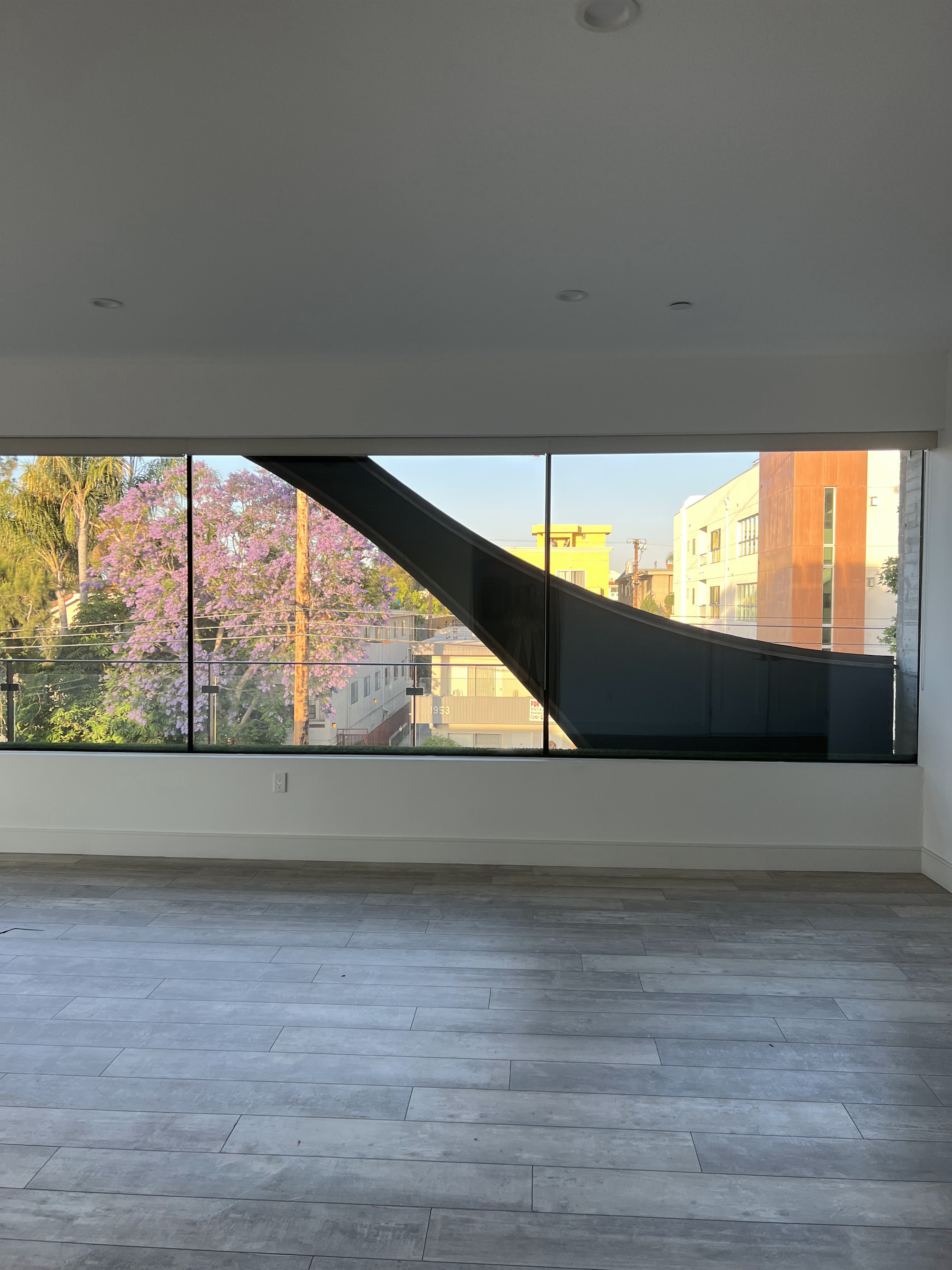

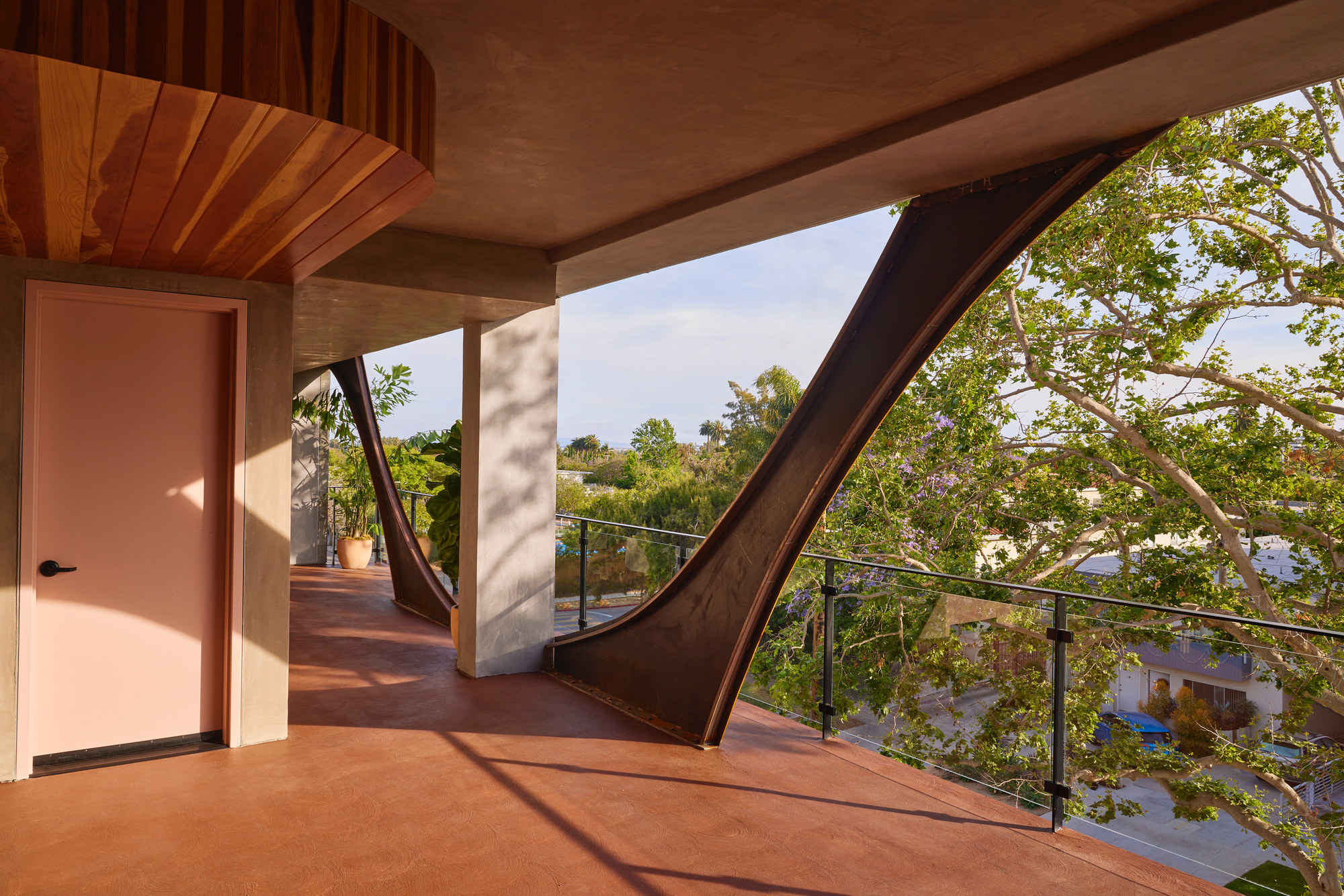

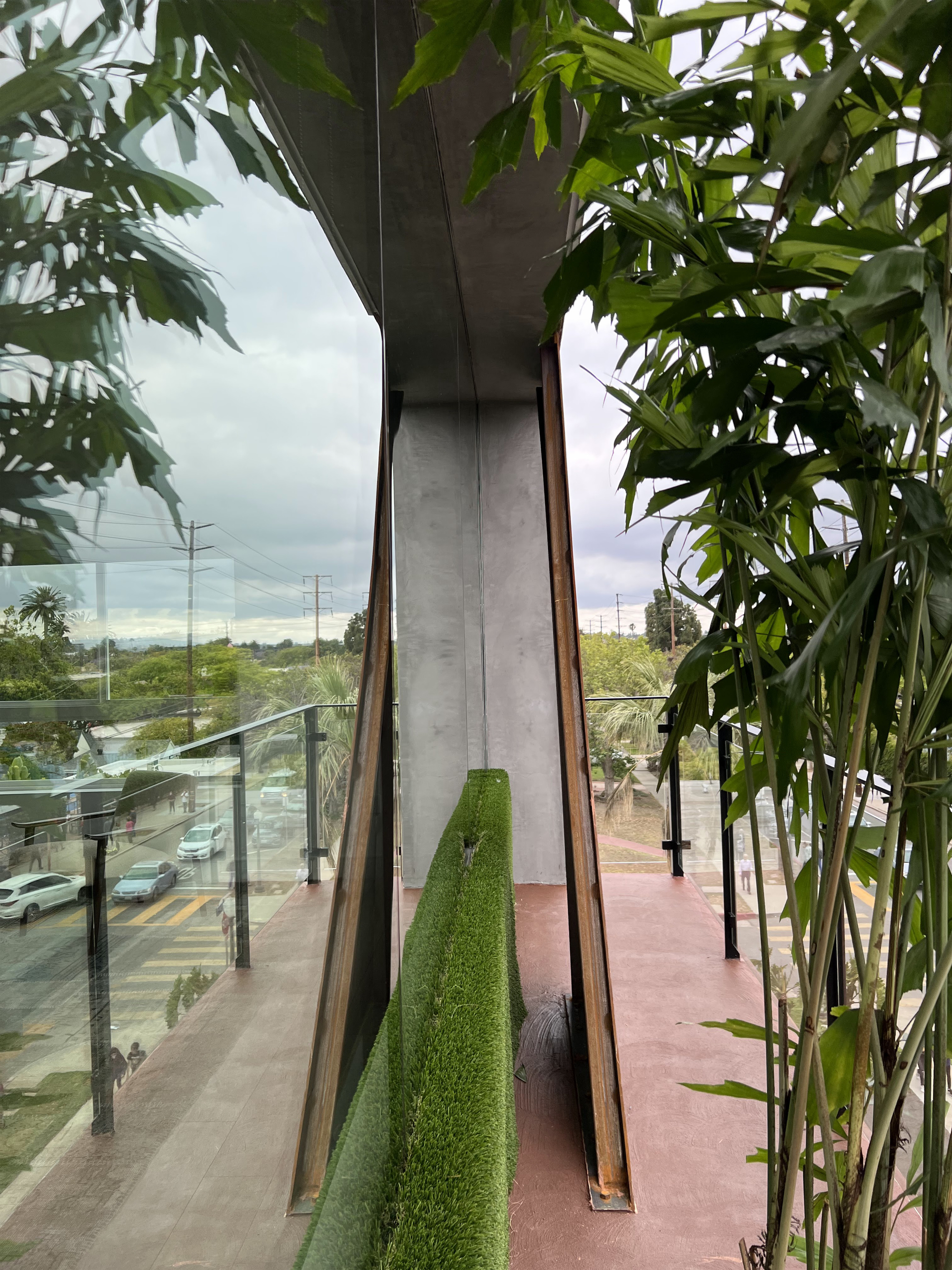

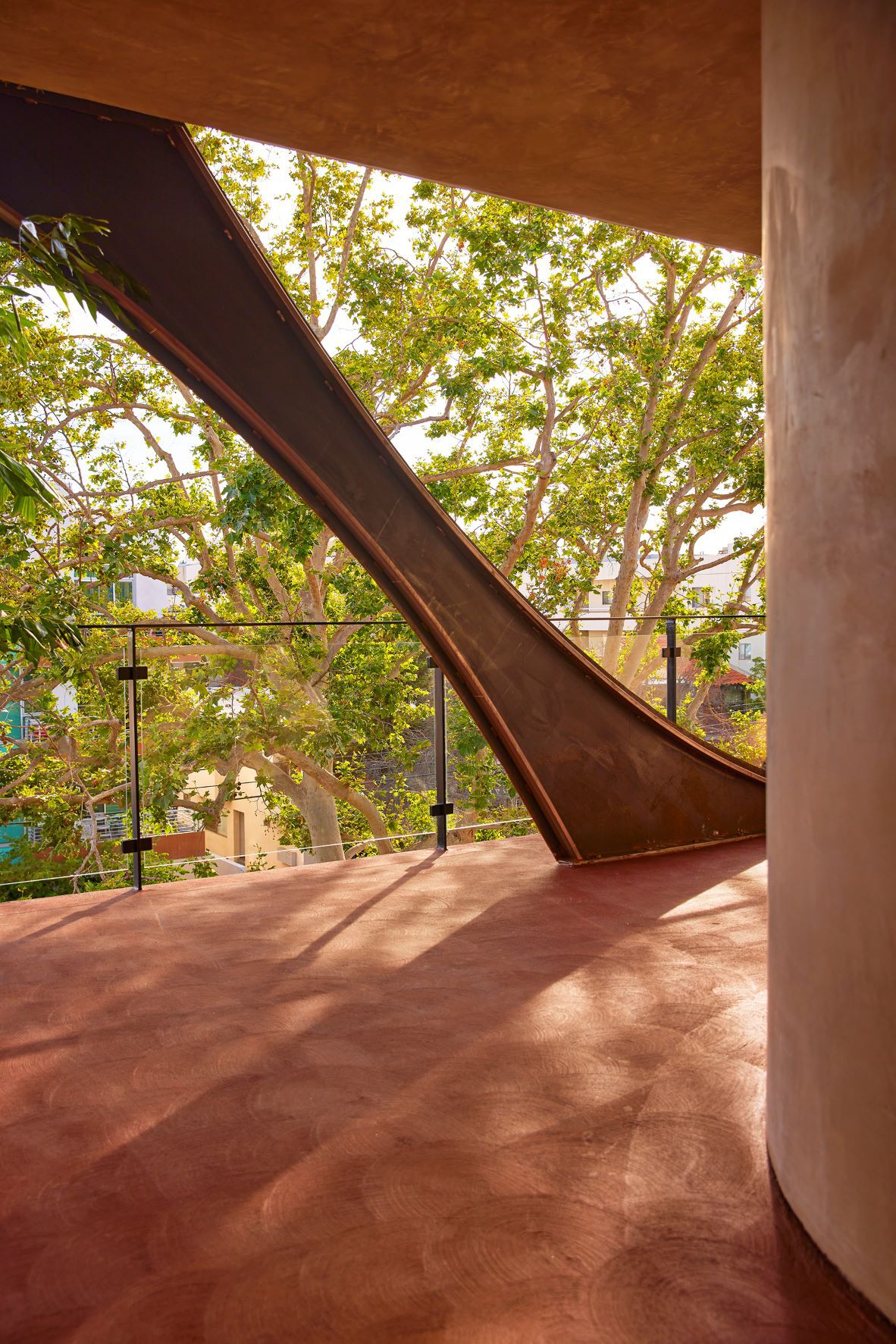

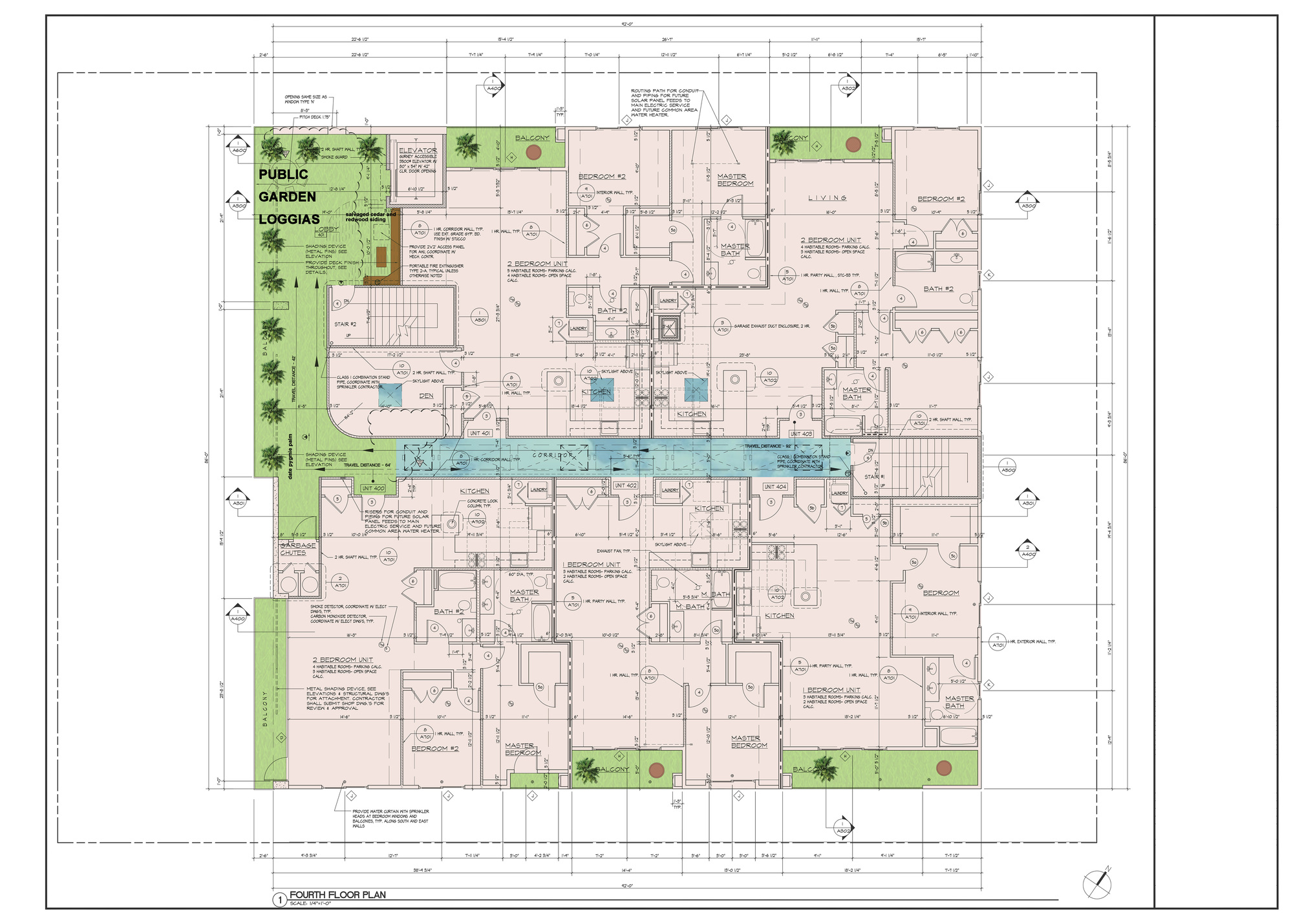

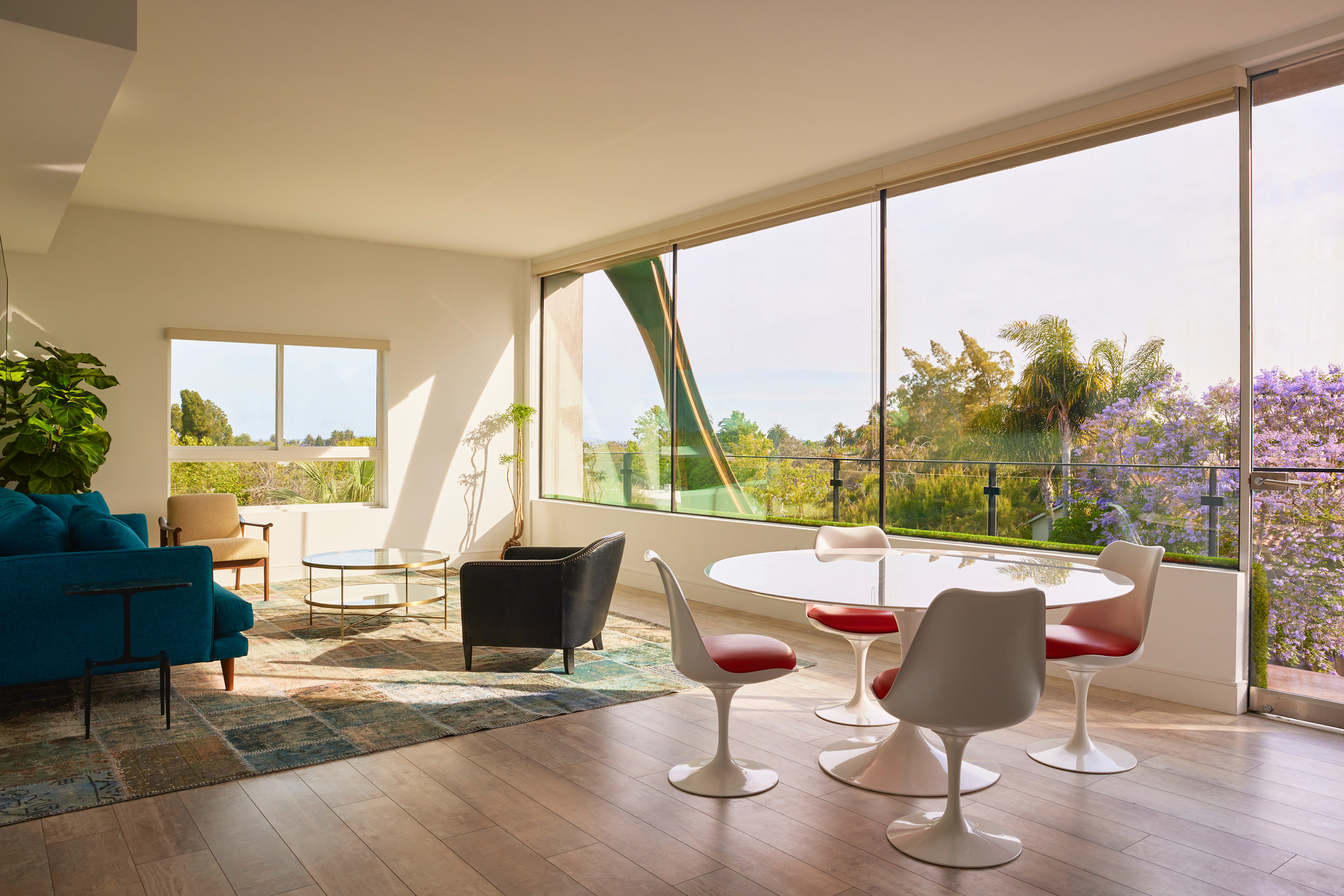

The budding utilizes a concrete podium with a wood superstructure, and steel framing at the front facade to accomplish the wide expanses of Low e glass. Three large bays are open at the upper floors to create plant-filled loggias that take advantage of the idyllic climate, improve air circulation and lower the carbon footprint. The sheltered loggias encourage community and allow one to work down the hall from one’s apartment. Natural light is furthered with the inclusion of seven skylights on the top floor.

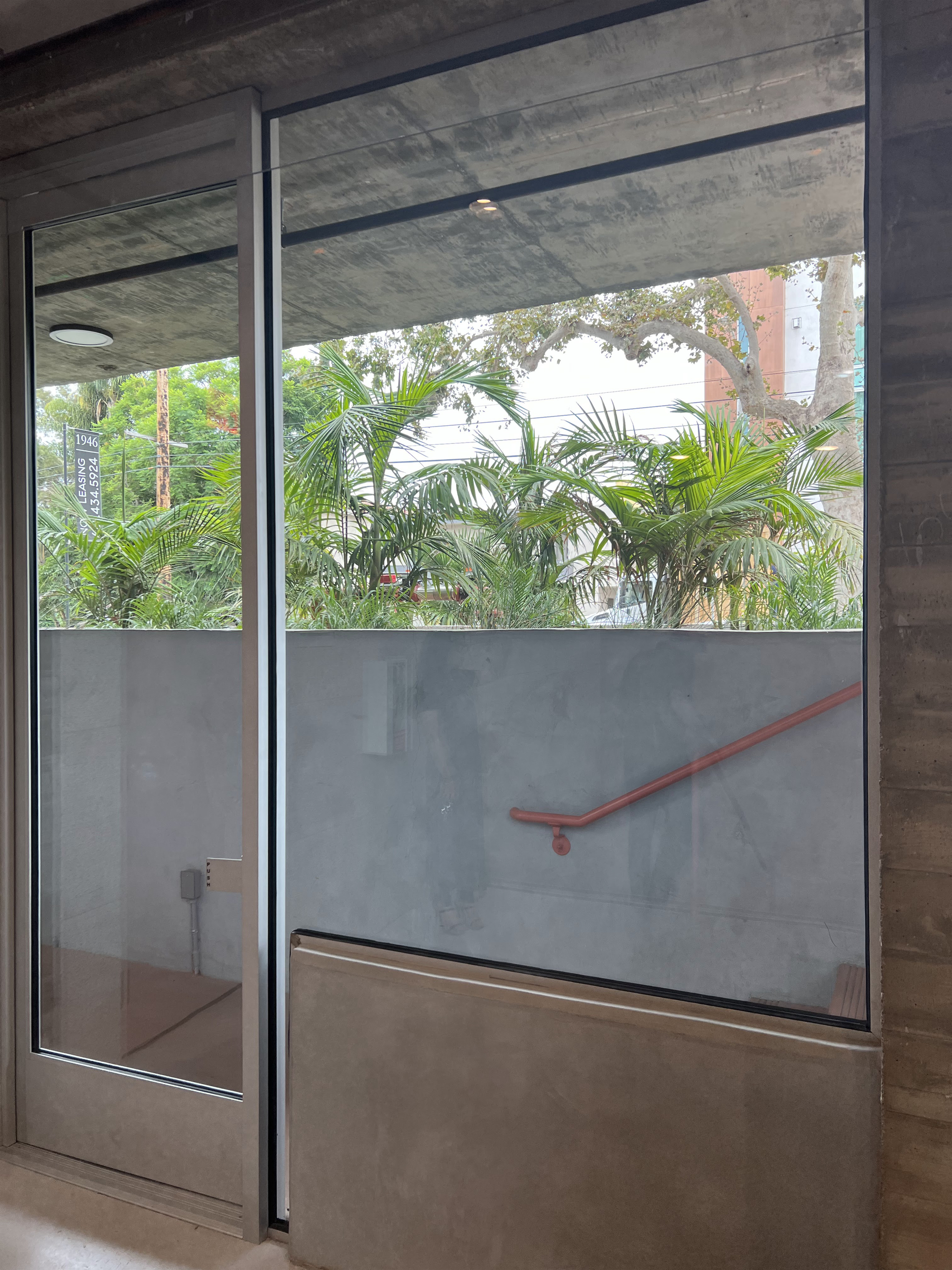

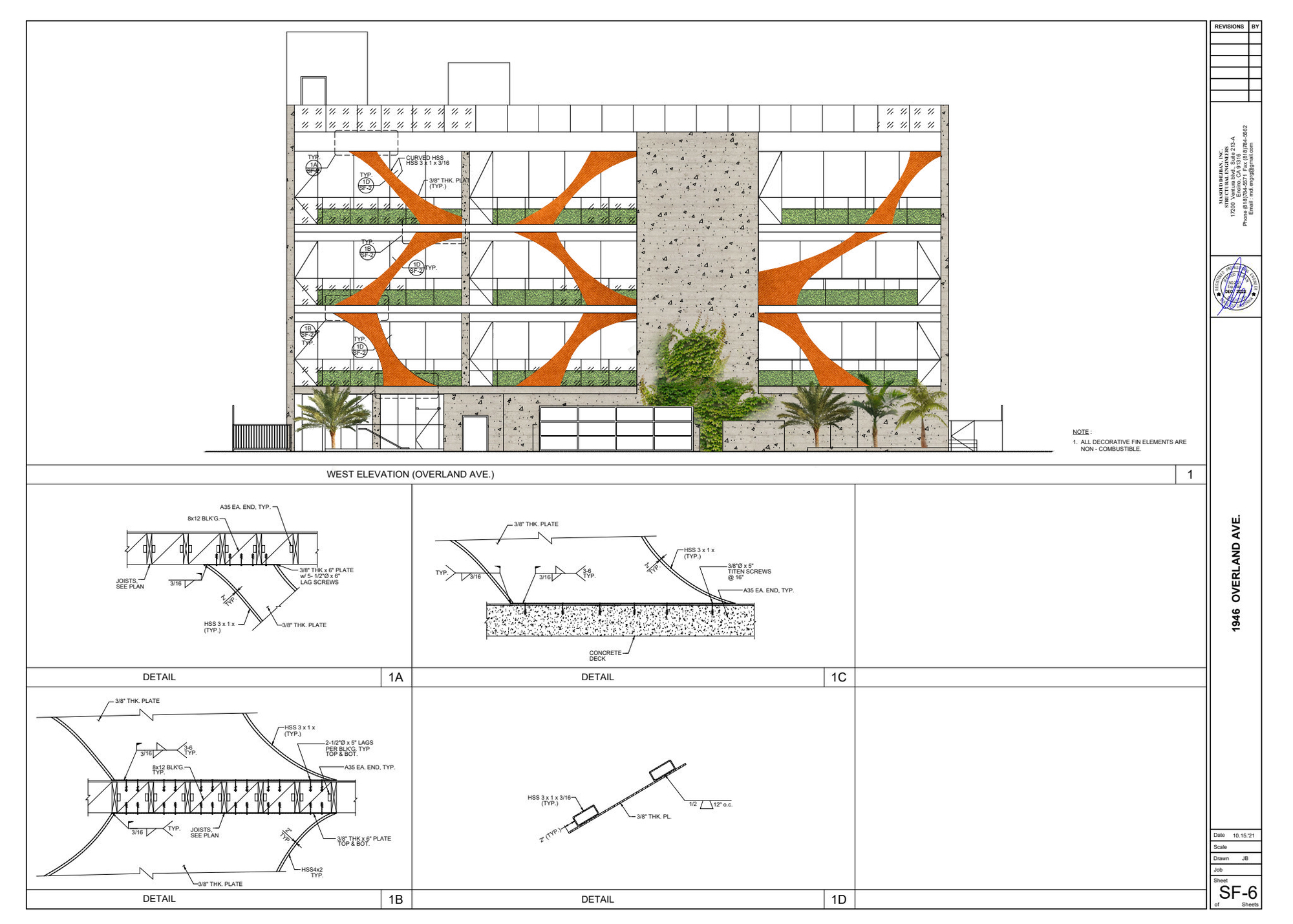

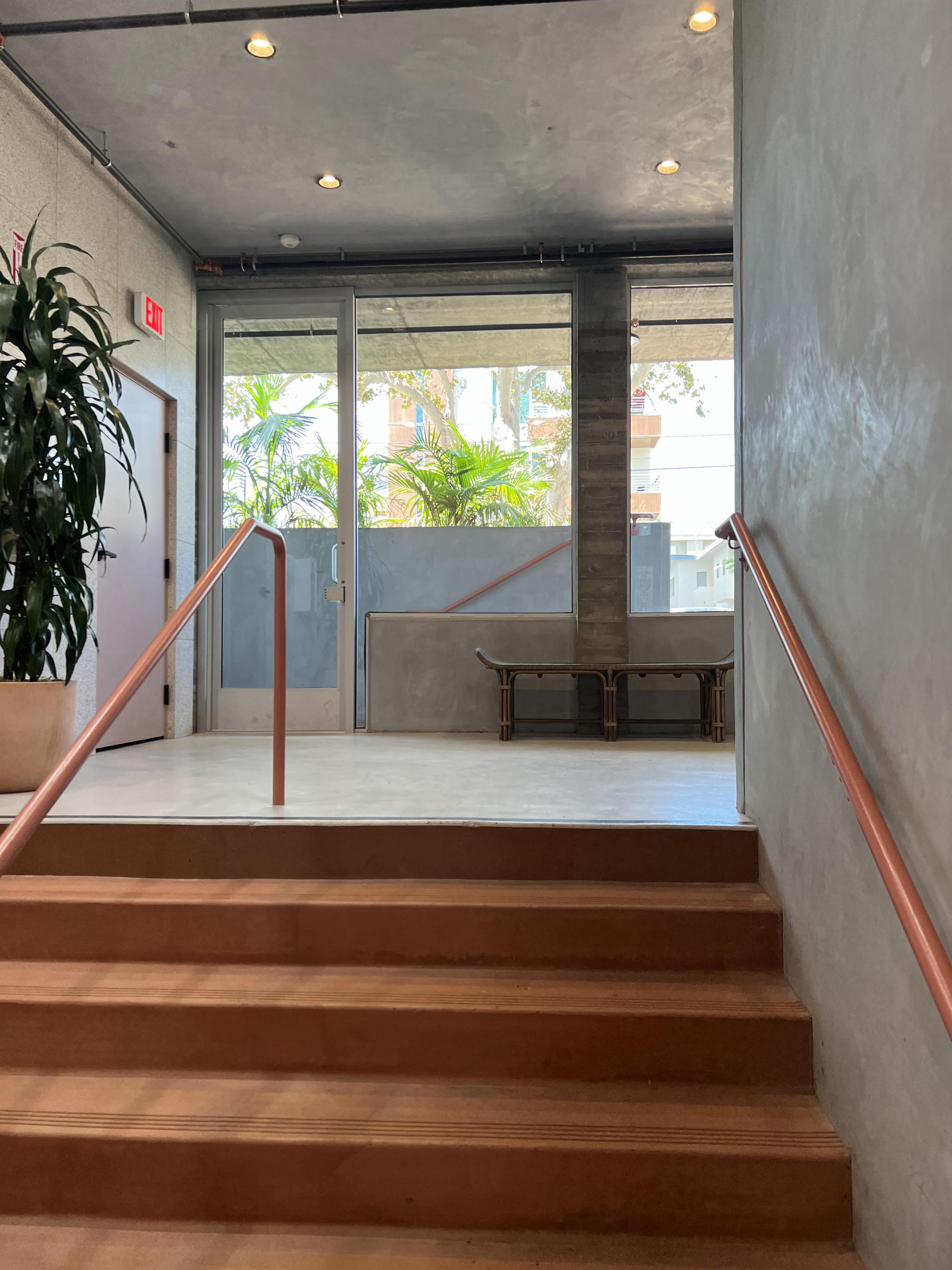

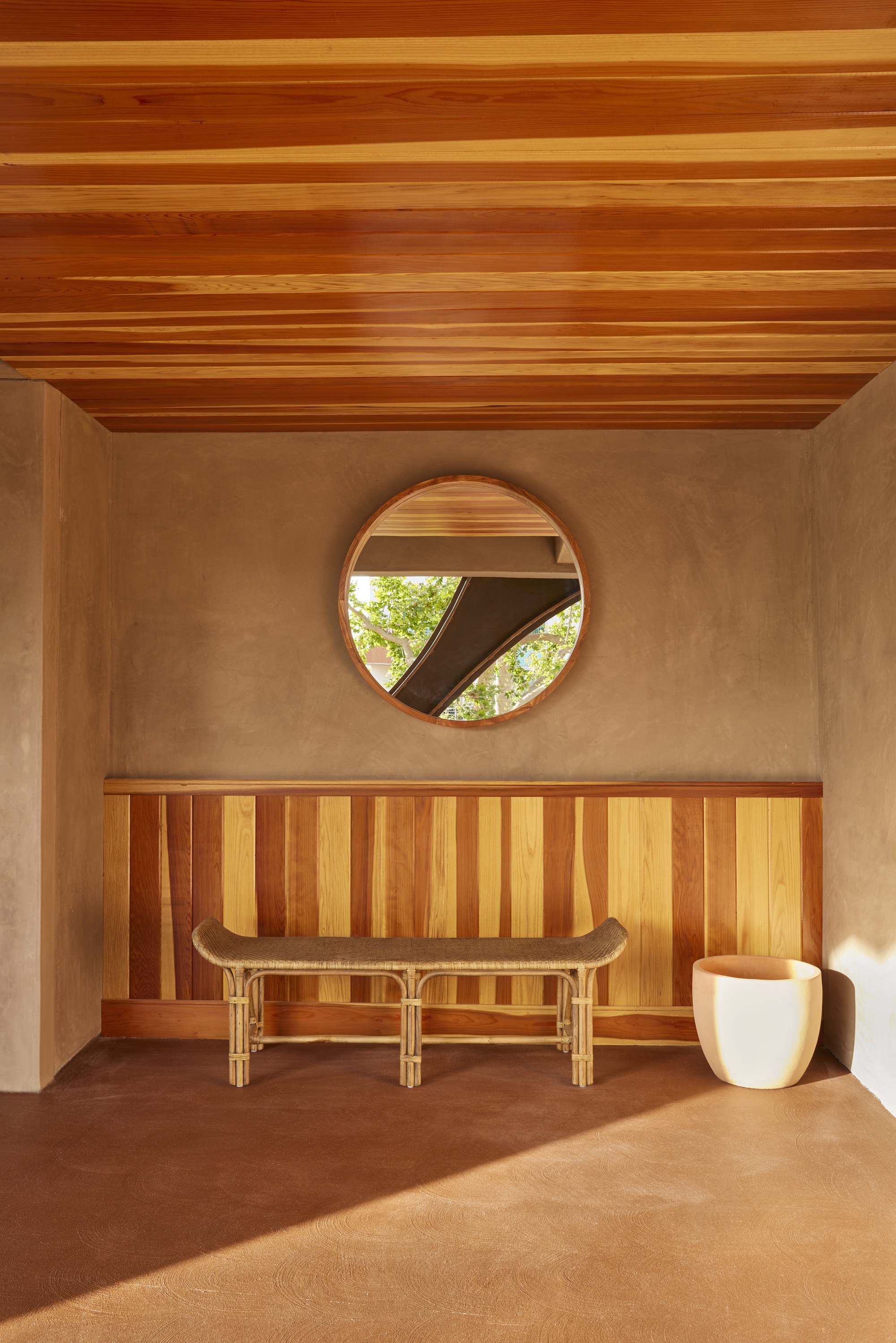

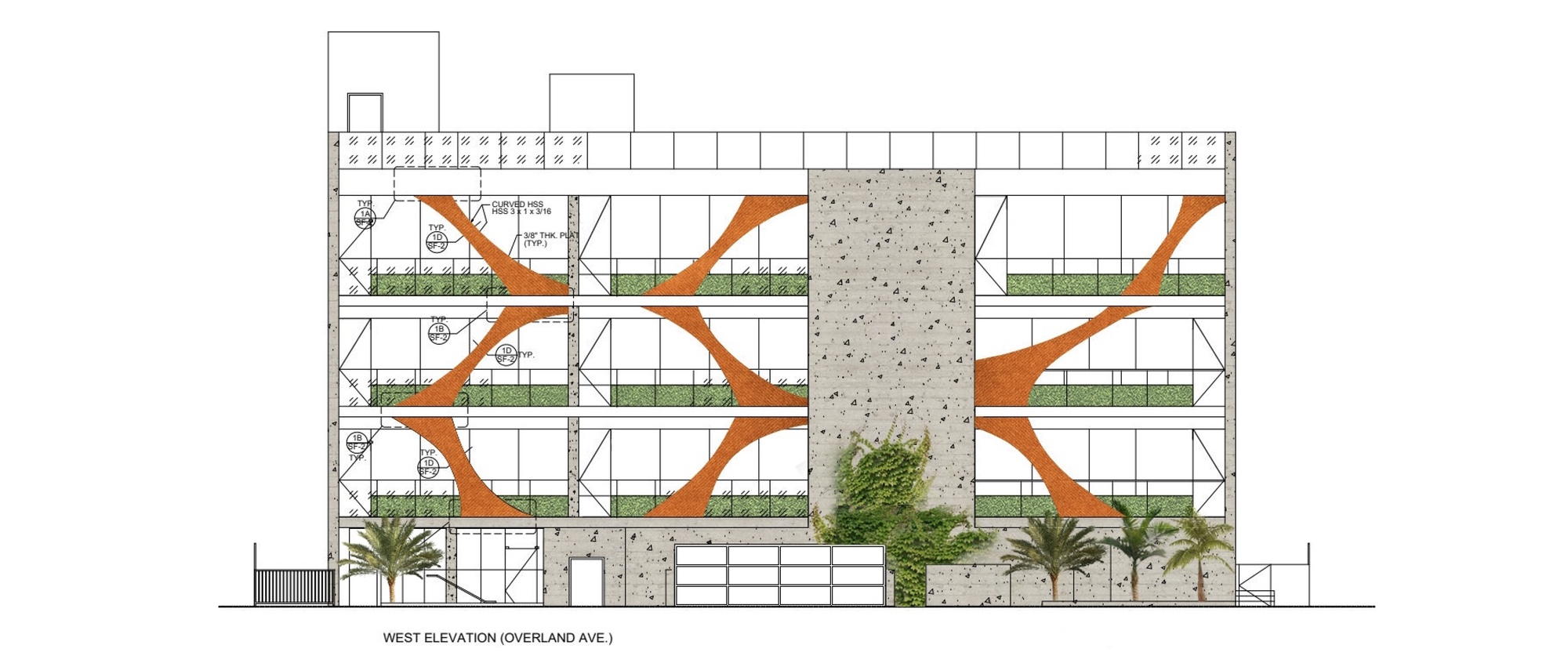

The ‘pocket gardens’ forge greater connections with the street that includes a charter school catty-corner to the site, and bikers on their way to Century City. (Children may be seen scootering by and taking photos in front of the playful facade). The architecture elevates the industrial steel through refined forms–that echo those of palm tree trunks– to draw out its specific beauty. And this element changes over time, becoming a deep orange, much like ripening fruit. Board form surfaces are pulled into the interiors at the lower lobby to further blur the distinctions between indoors and outdoors. Placed in vertical and horizontal orientation the board form also echoes the lines seen on palm tree bark. Landscape design by the lead architect.

Project gallery

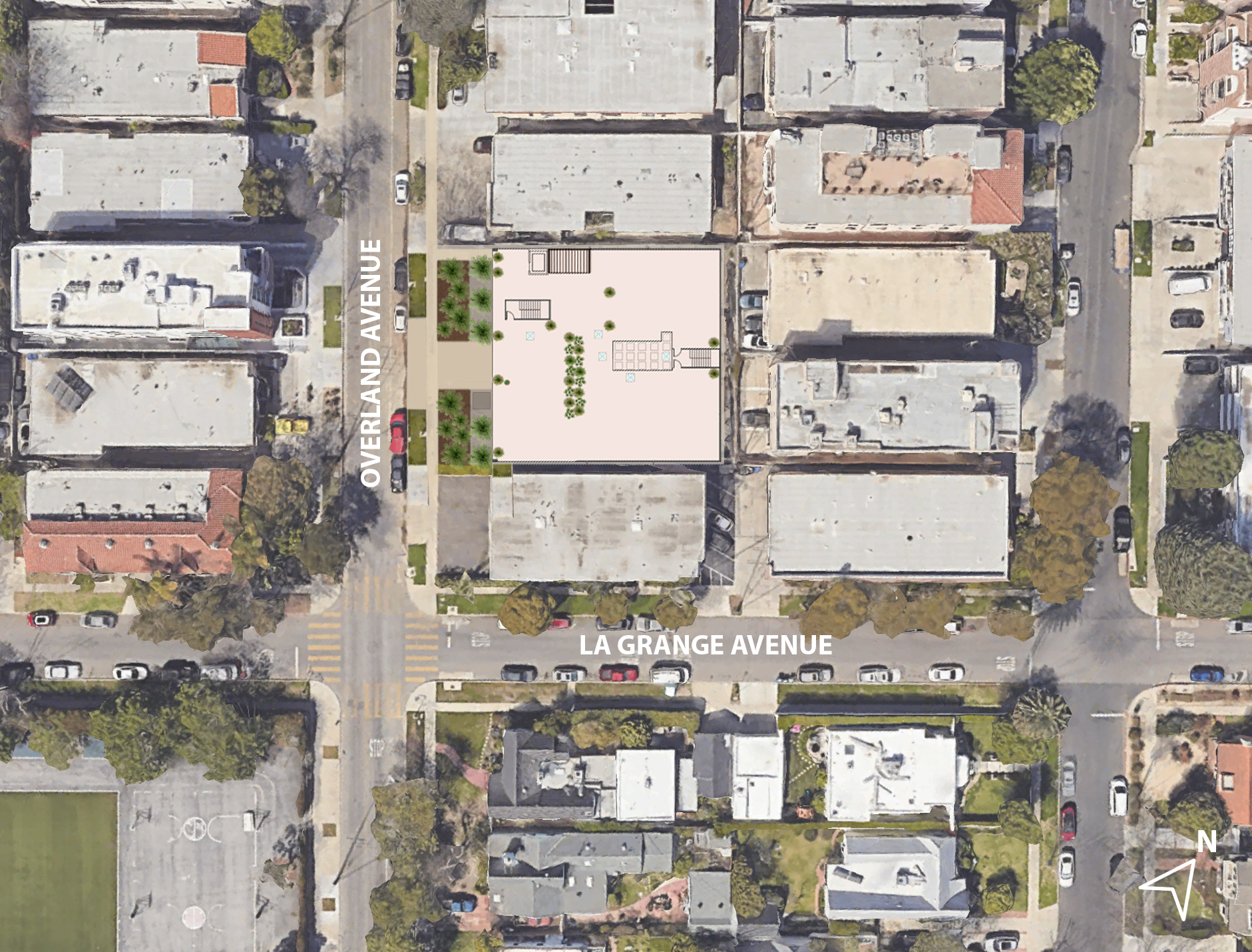

Project location

Address:1946 Overland Ave, Los Angeles, CA 90025, United States
