房屋+混合建筑 V2丨巴西丨Rede Arquitetos

Architects:Rede Arquitetos

Area:2671m²

Year:2020

Photographs:Igor Ribeiro

Manufacturers:Cerbrás,Fortcolor Tintas,Metalúrgica Massapeense,Sobral Madeiras

Lead Architects Studio Lotus:Igor Ribeiro

Design Team:Francisco Navarrete

Country:Brazil

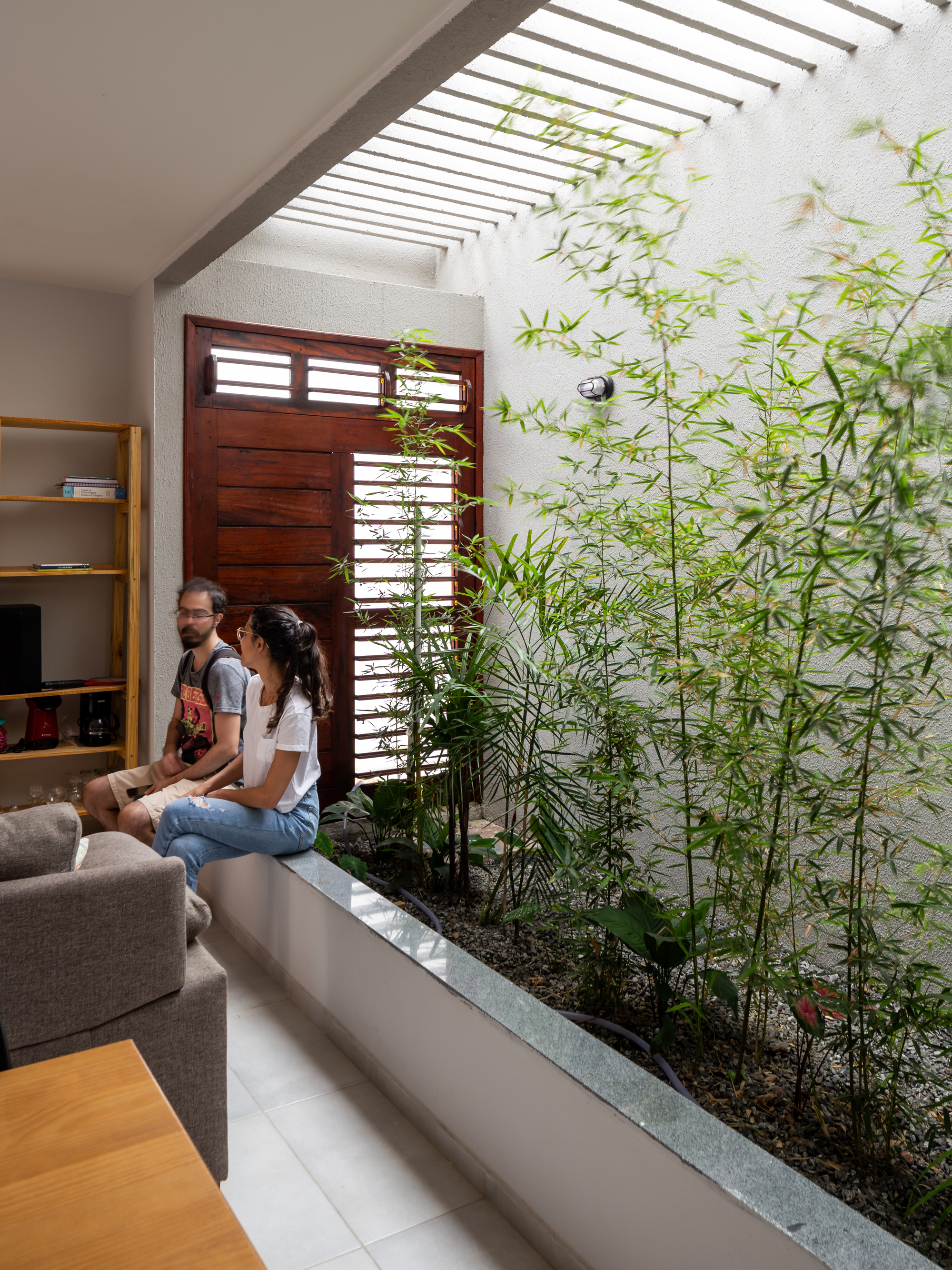

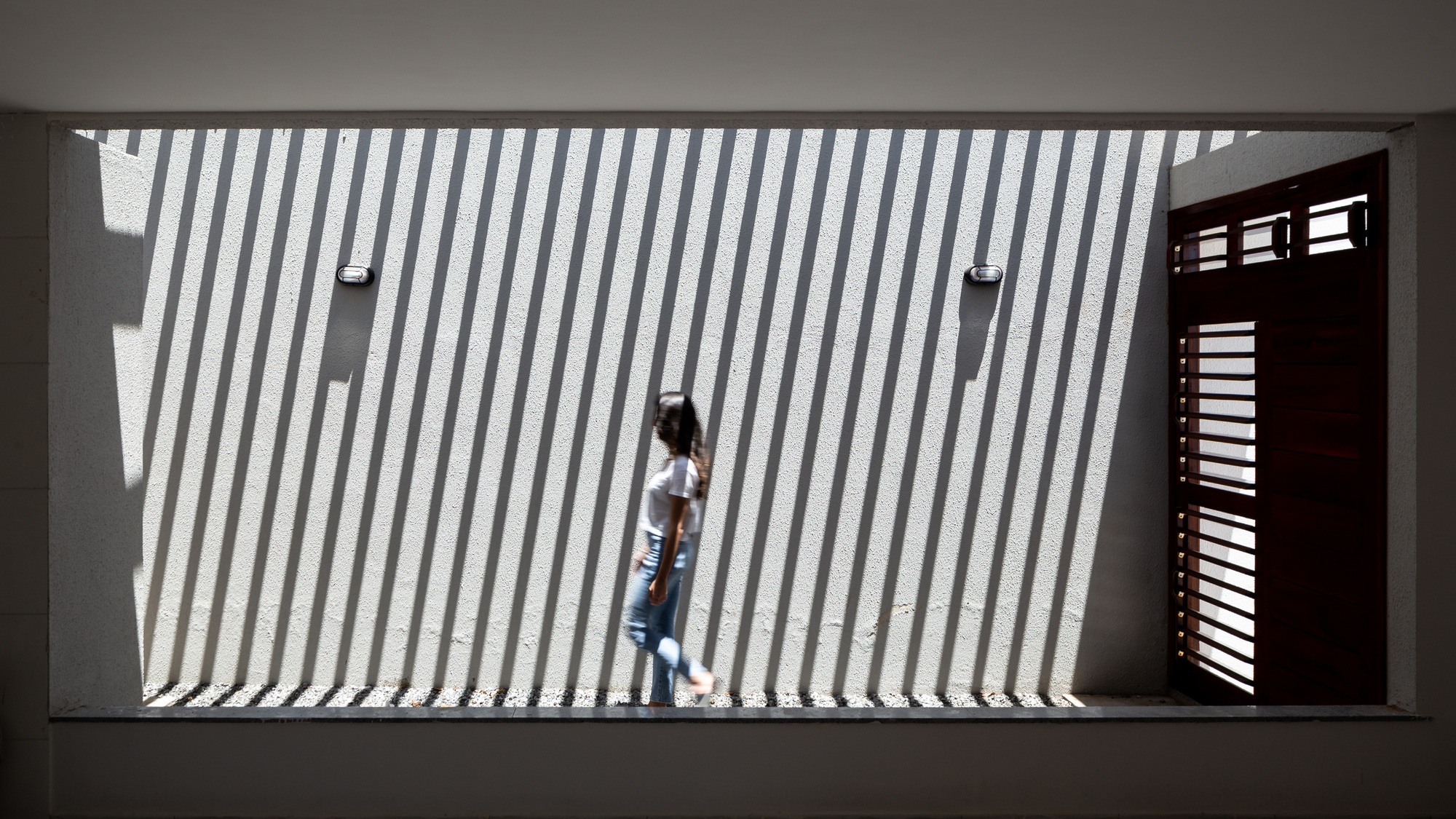

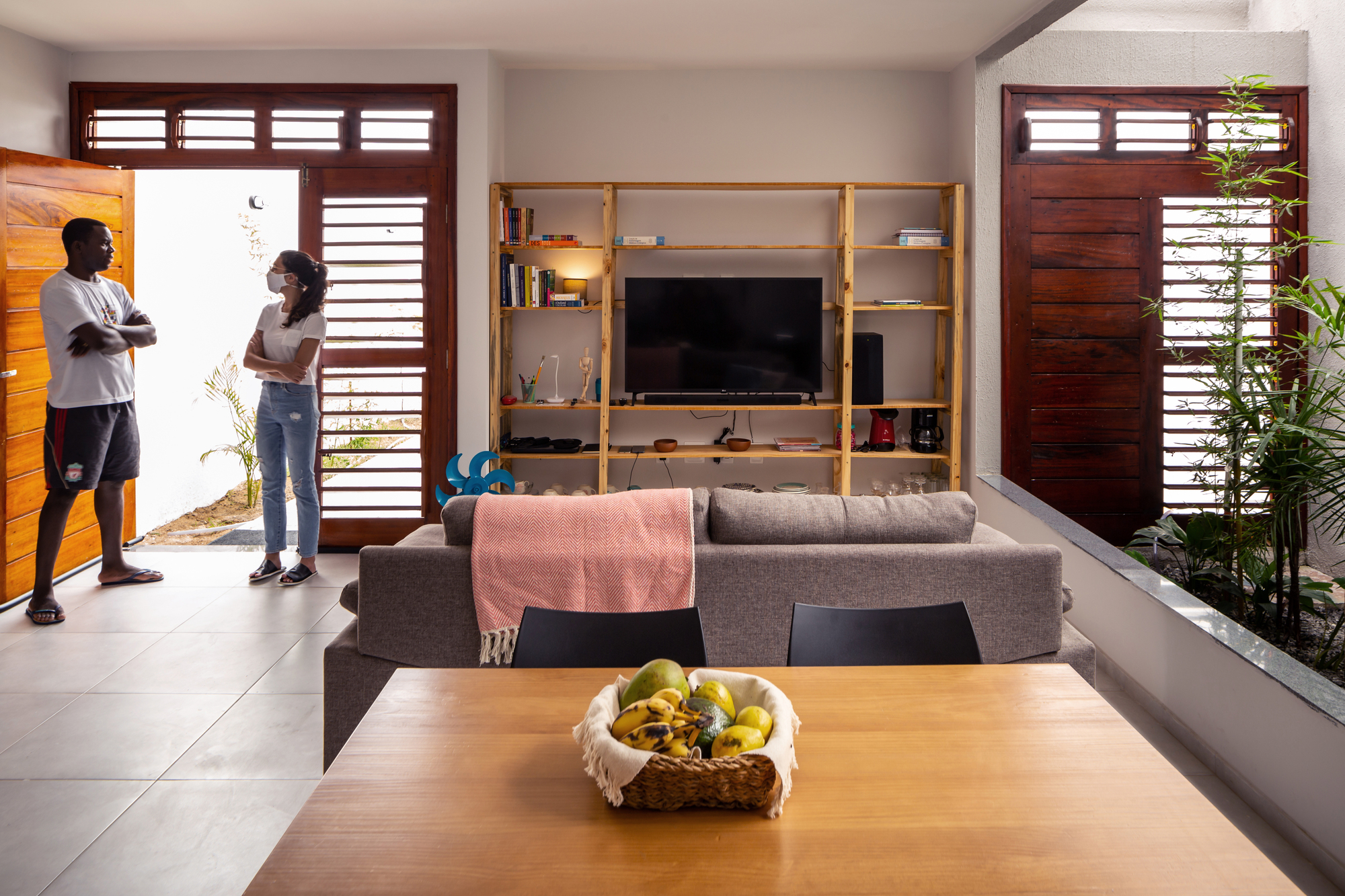

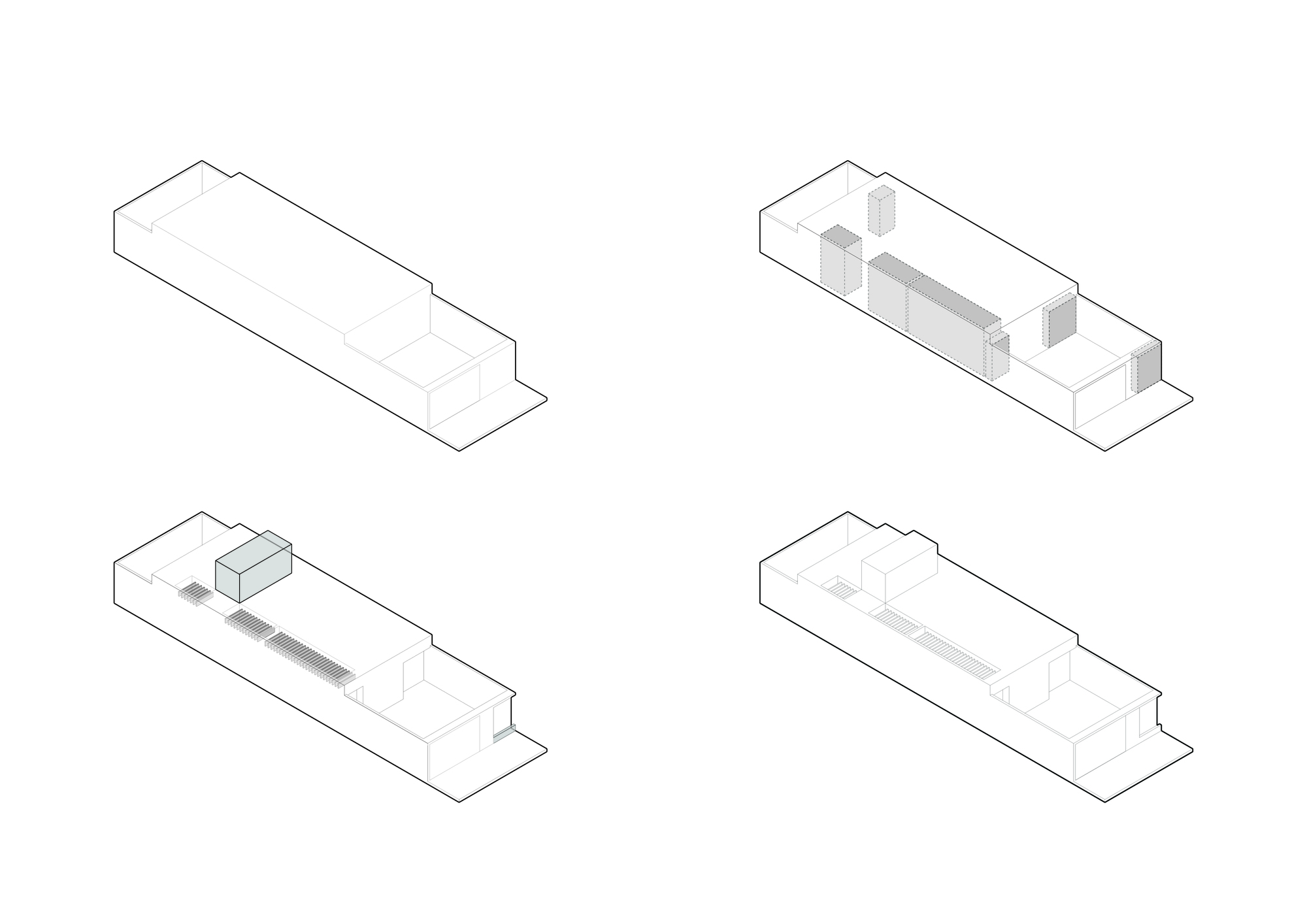

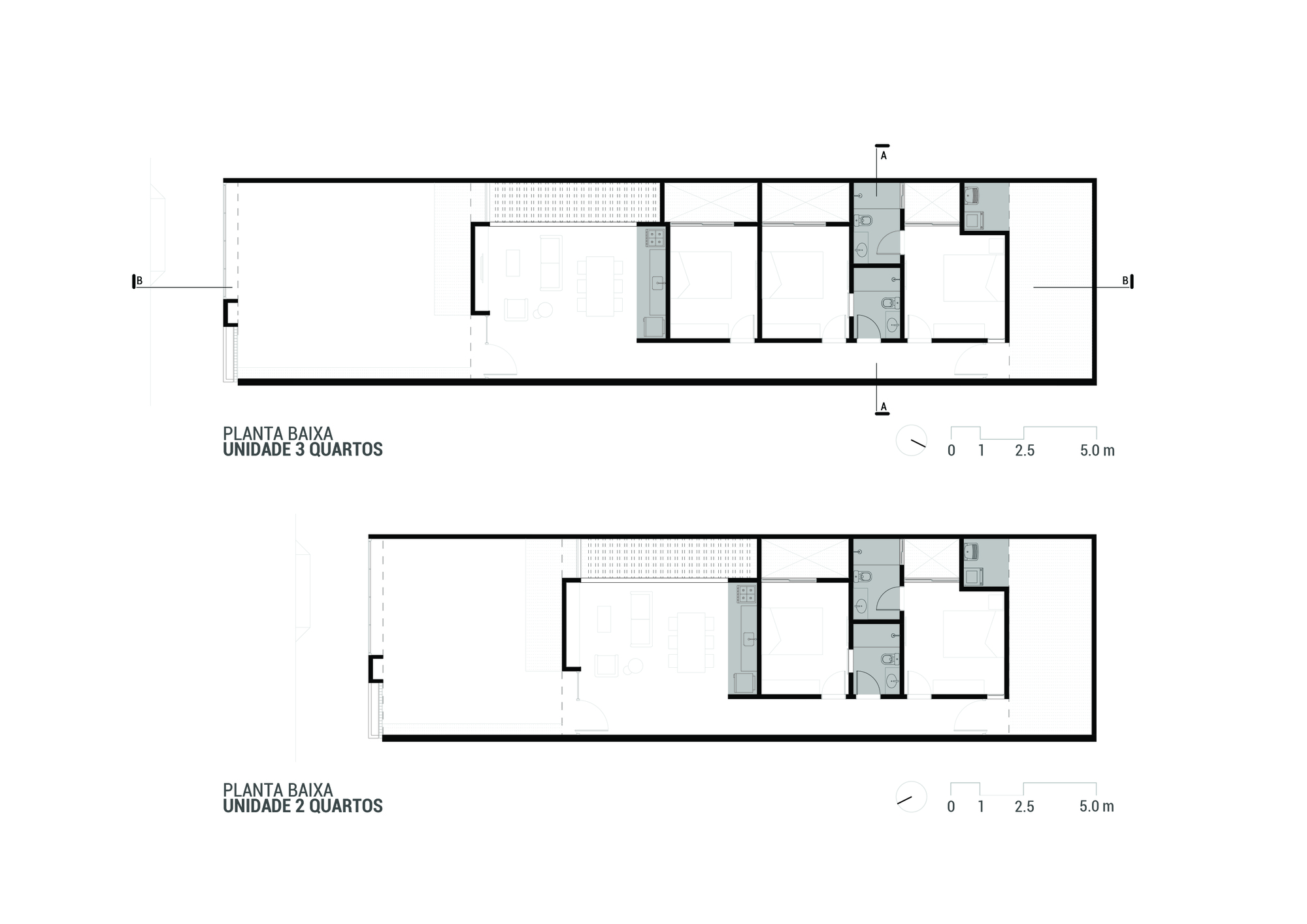

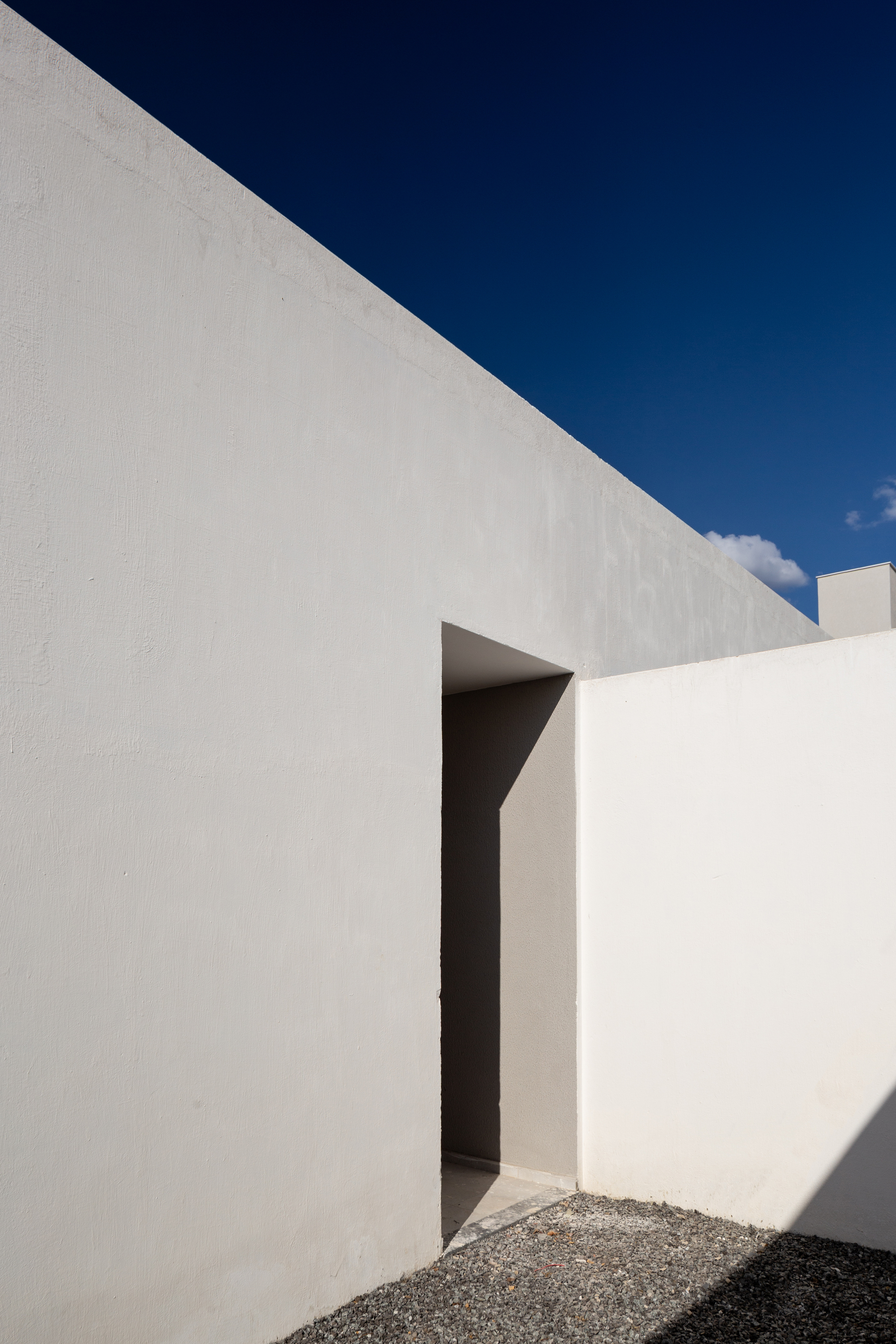

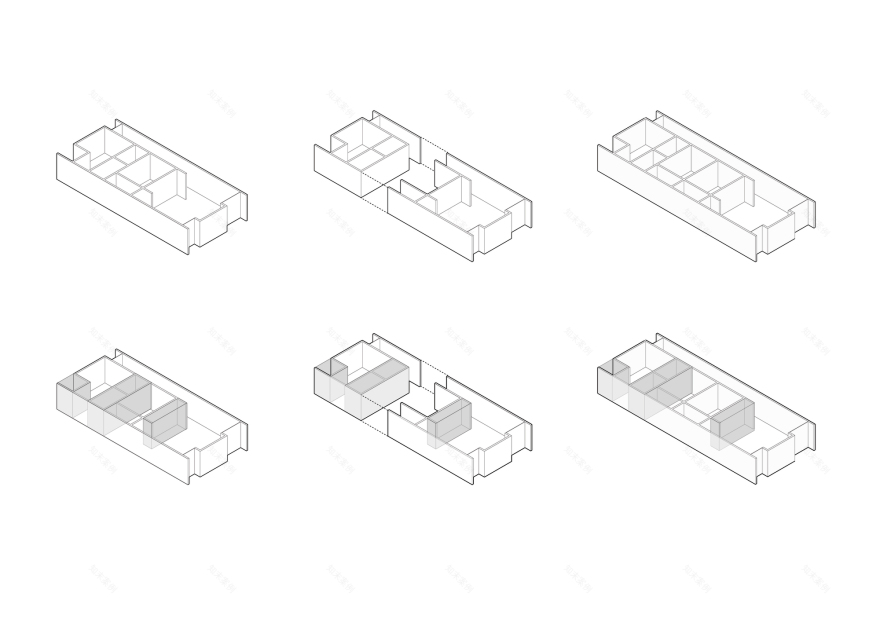

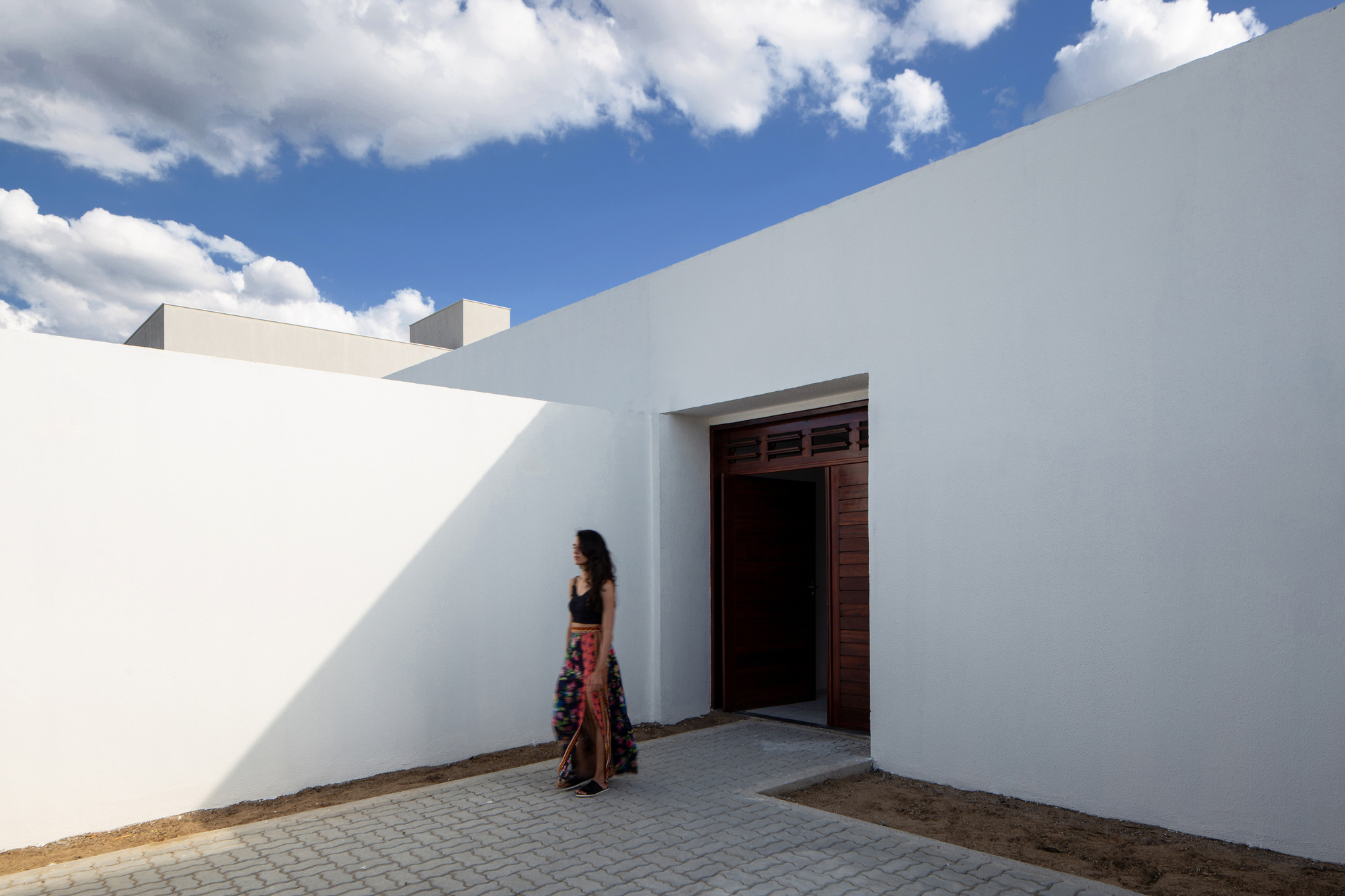

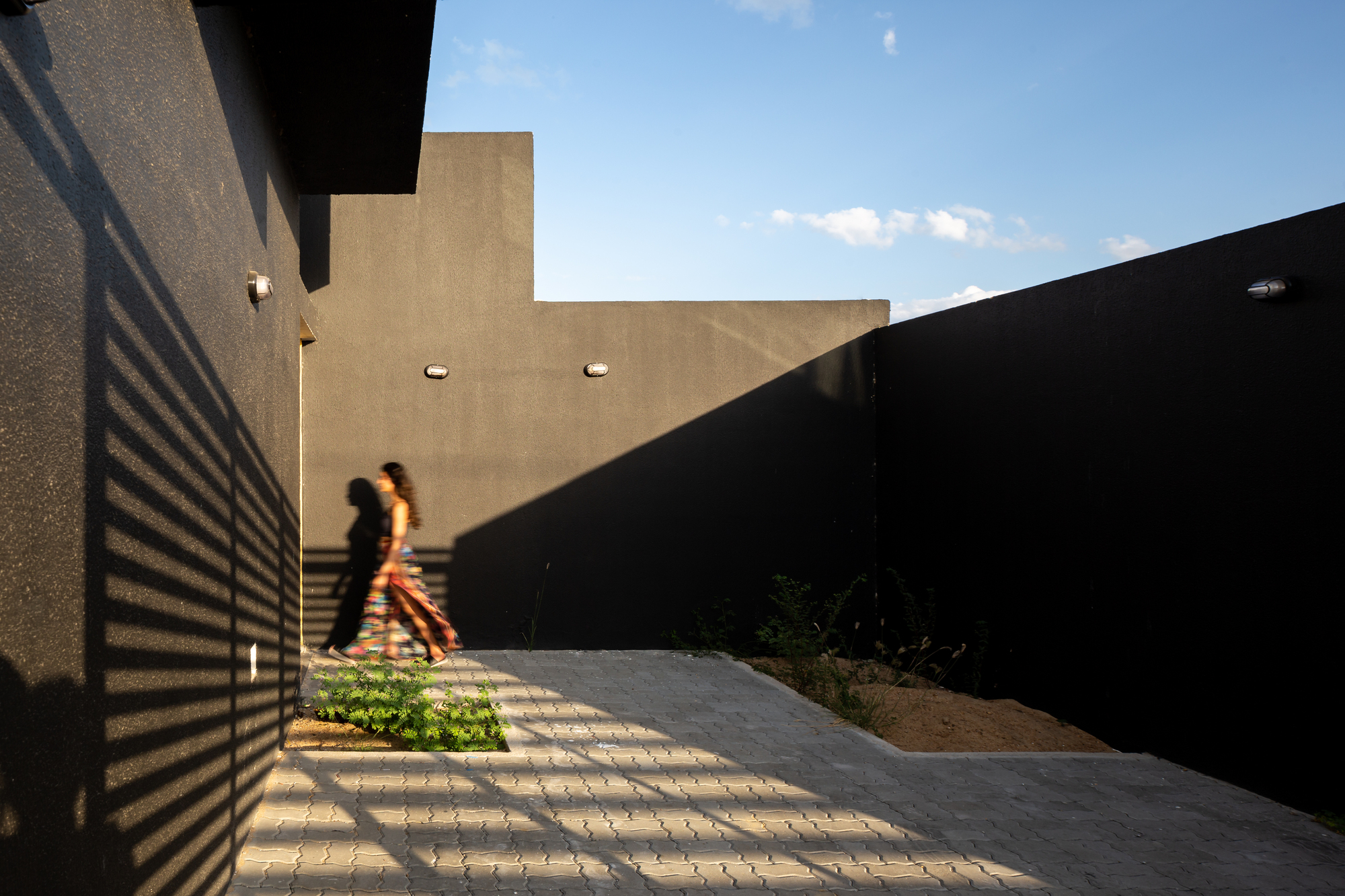

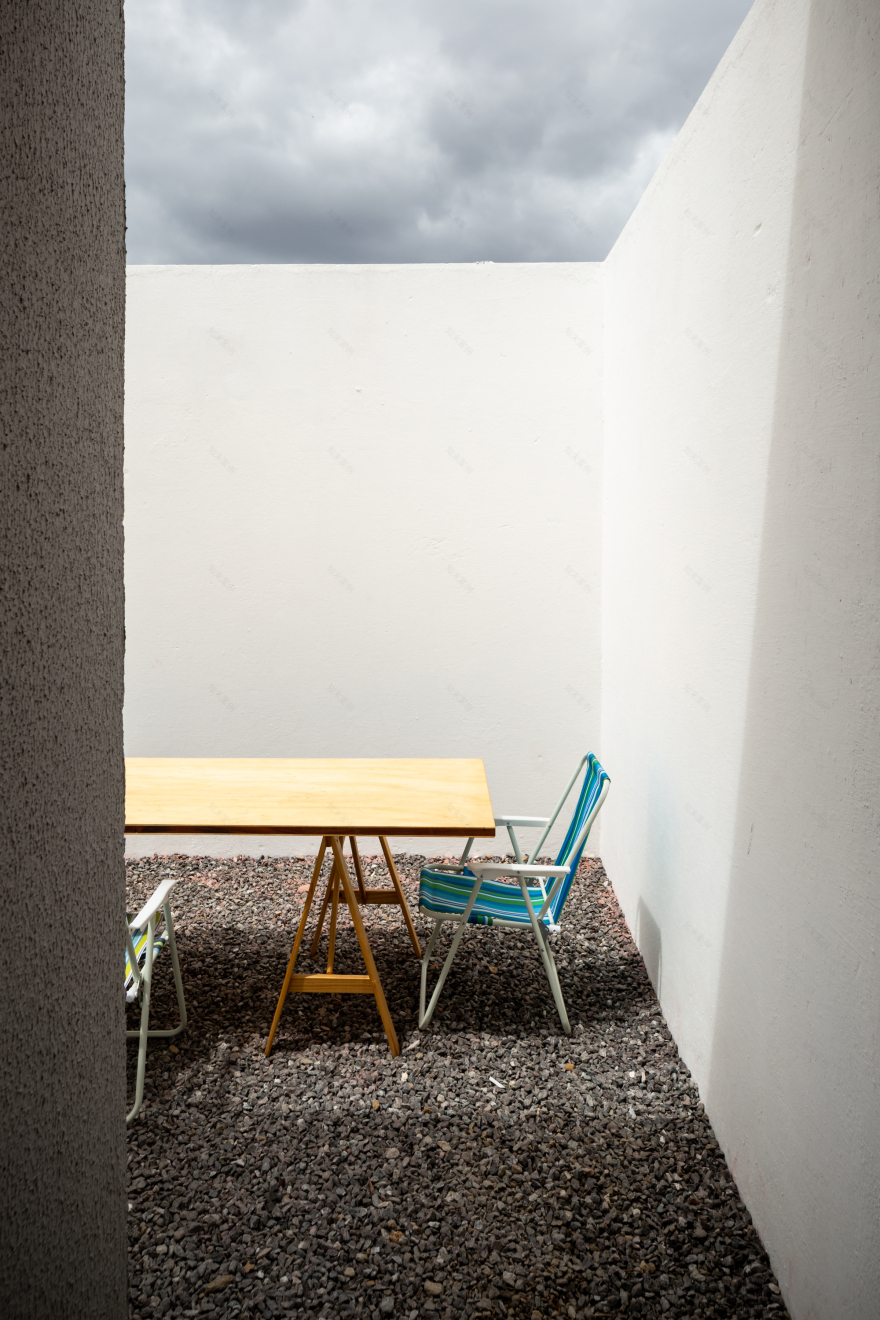

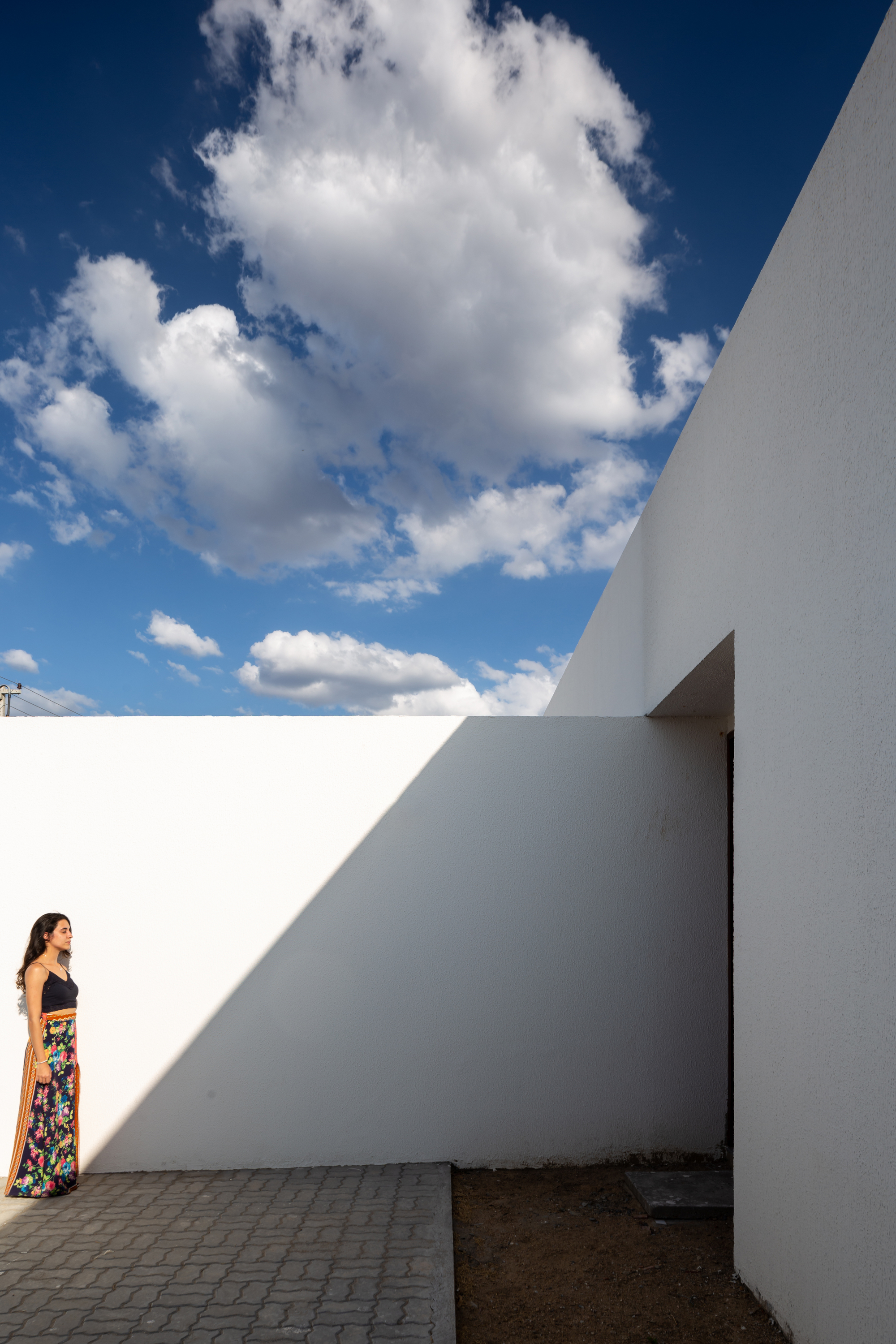

On the first, two sizes of units were proposed, with two and three bedrooms (87.50 m2 and 104.00 m2, respectively). Based on the possible volume of construction, a series of extraction operations were carried out to create the internal spaces, as can be seen in the recessed doors and windows, and through the creation of internal patios, individualized for each room in the house, which take advantage of the side recesses, in addition to having pergolas that filter the light, mark the passage of time even without seeing the exterior, and still guarantee the security of the interior. These strategies work both to expand the internal spaces, which have a more restricted area due to the measurements of the lot, as well as for better climatic performance, allowing cross ventilation and indirect lighting, appropriate to the local climate.

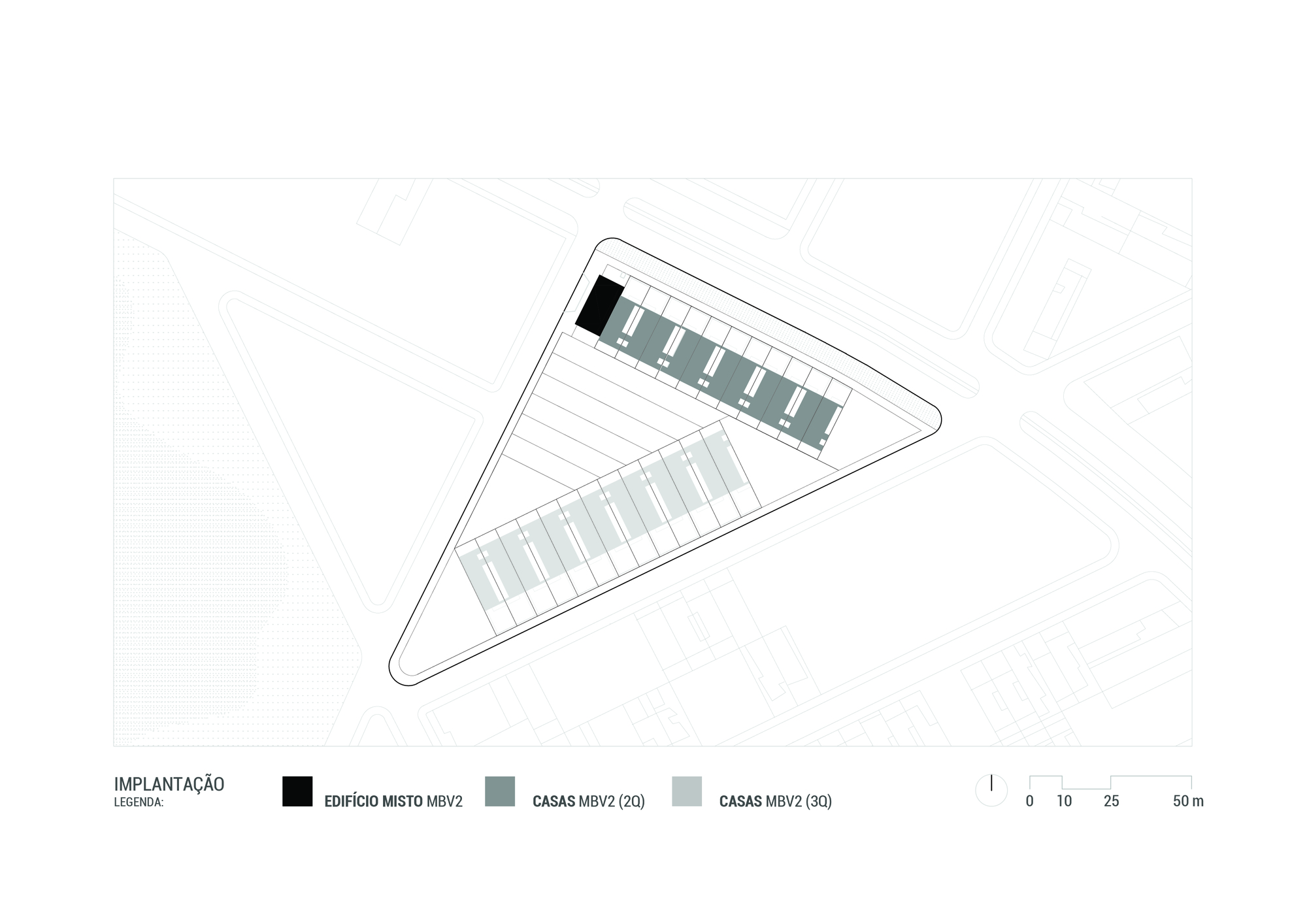

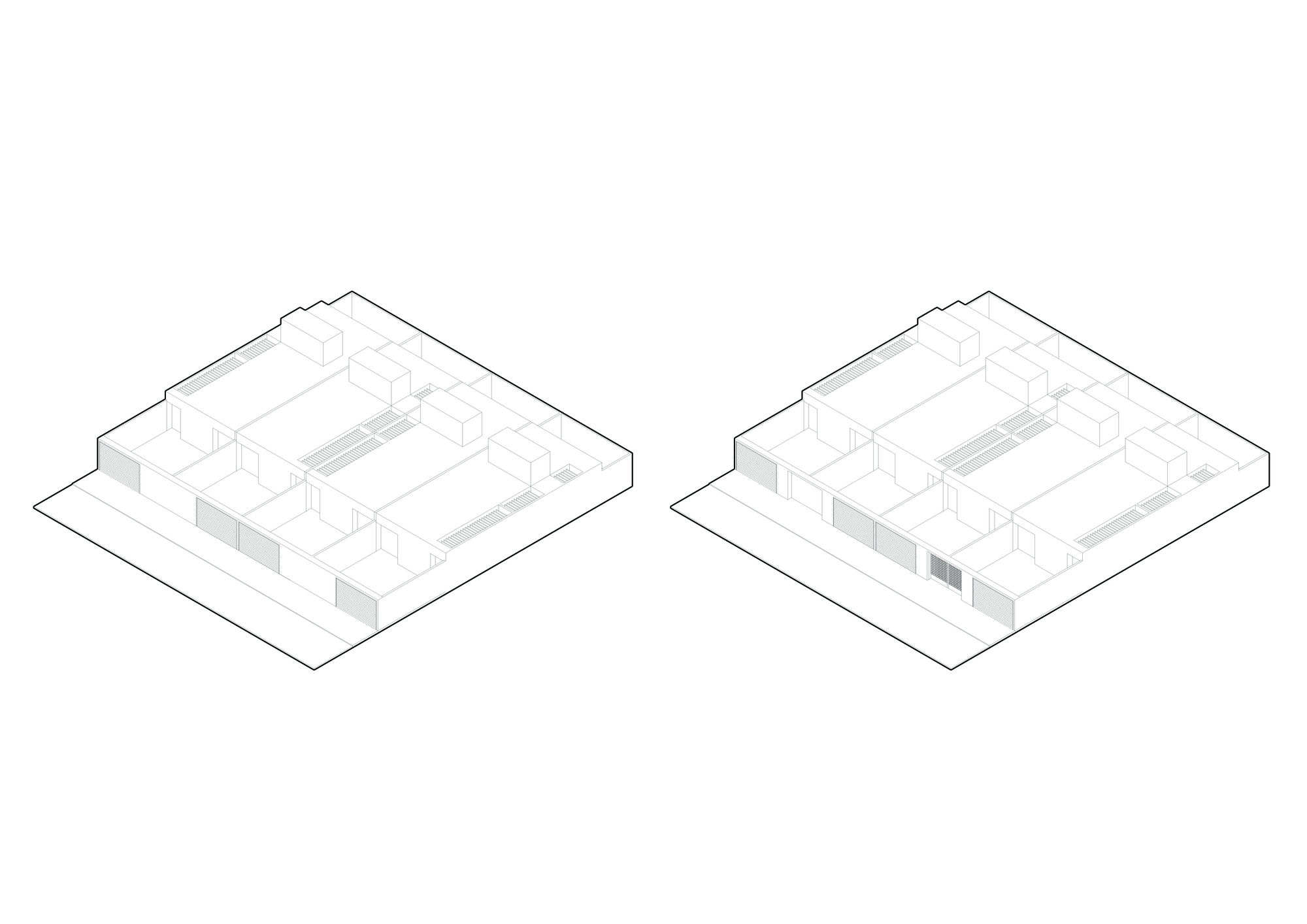

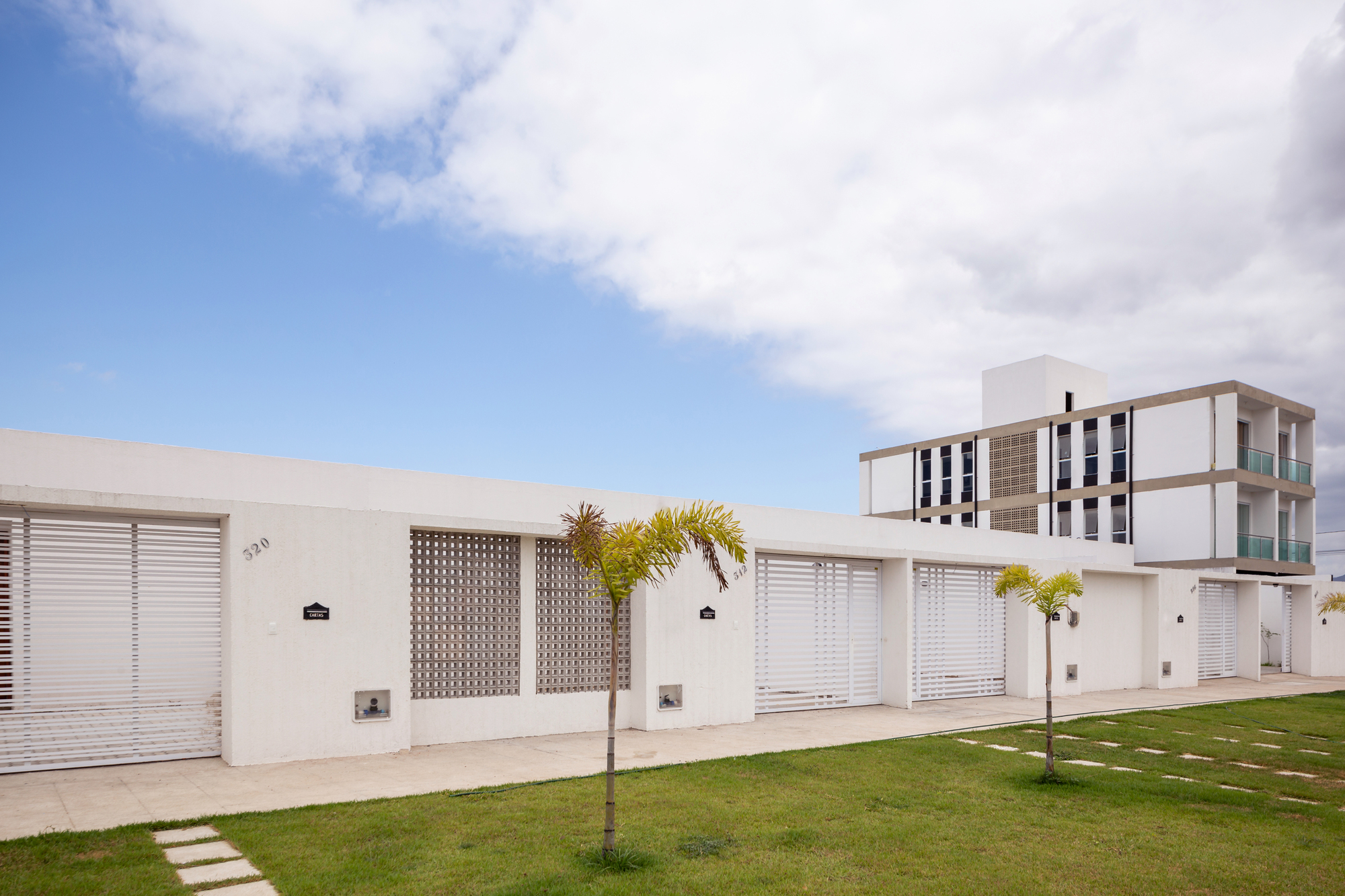

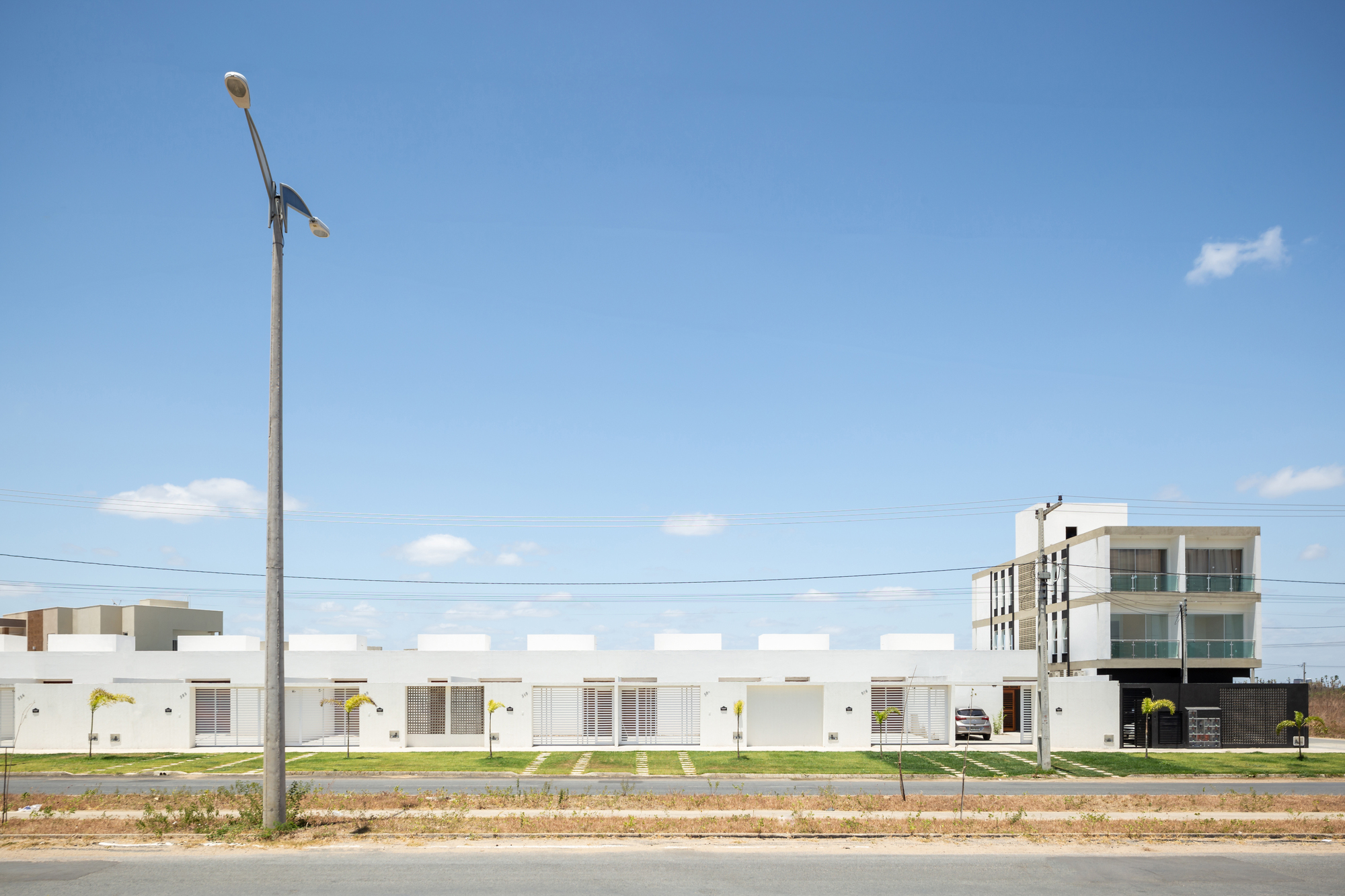

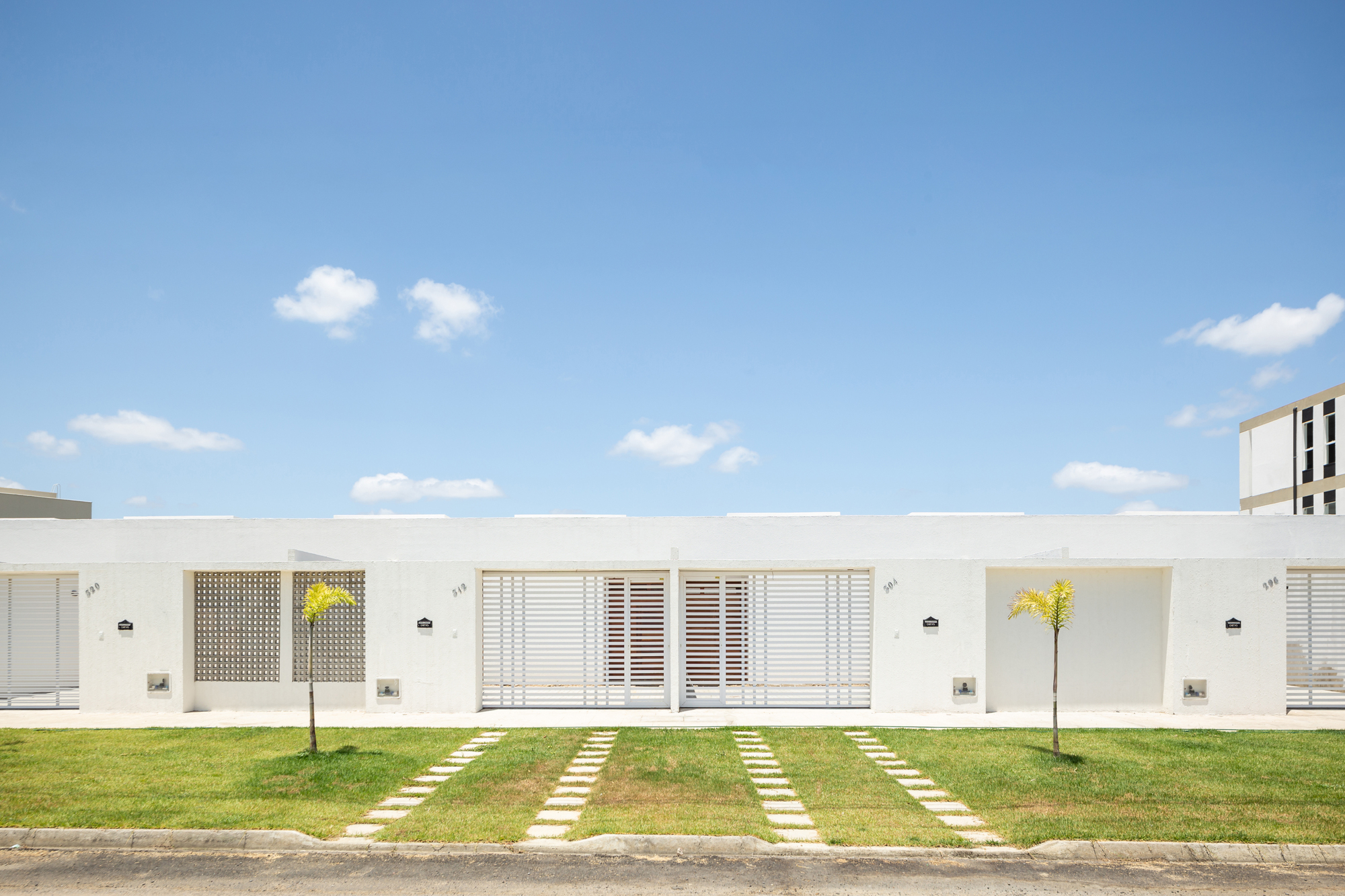

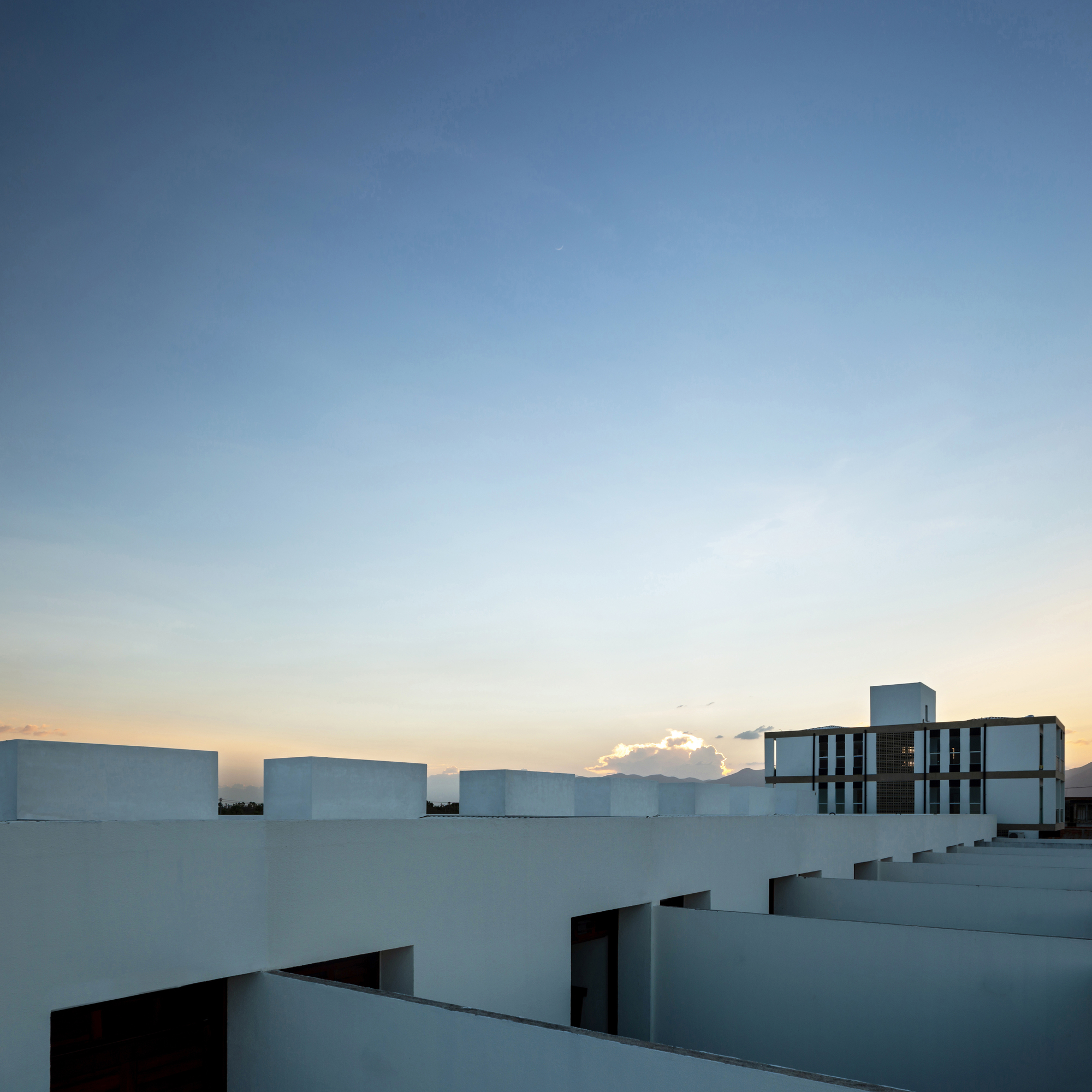

Regarding the urban aspect, since it was a series of houses, it was thought to create diversity and permeability on the fronts - perceptible in the designs of sidewalks, walls and railings - in order to create an interesting urbanity to the whole and its surroundings. In addition, the perception of the whole and the typology of the terraced house happens through the sharing of patios and water tanks, in the latter, including concentrating the installations to each two units.

Project gallery

Project location

Address:Sobral - Ceara, Brazil
